1. Managing Infrastructure as Code
Allan Shone

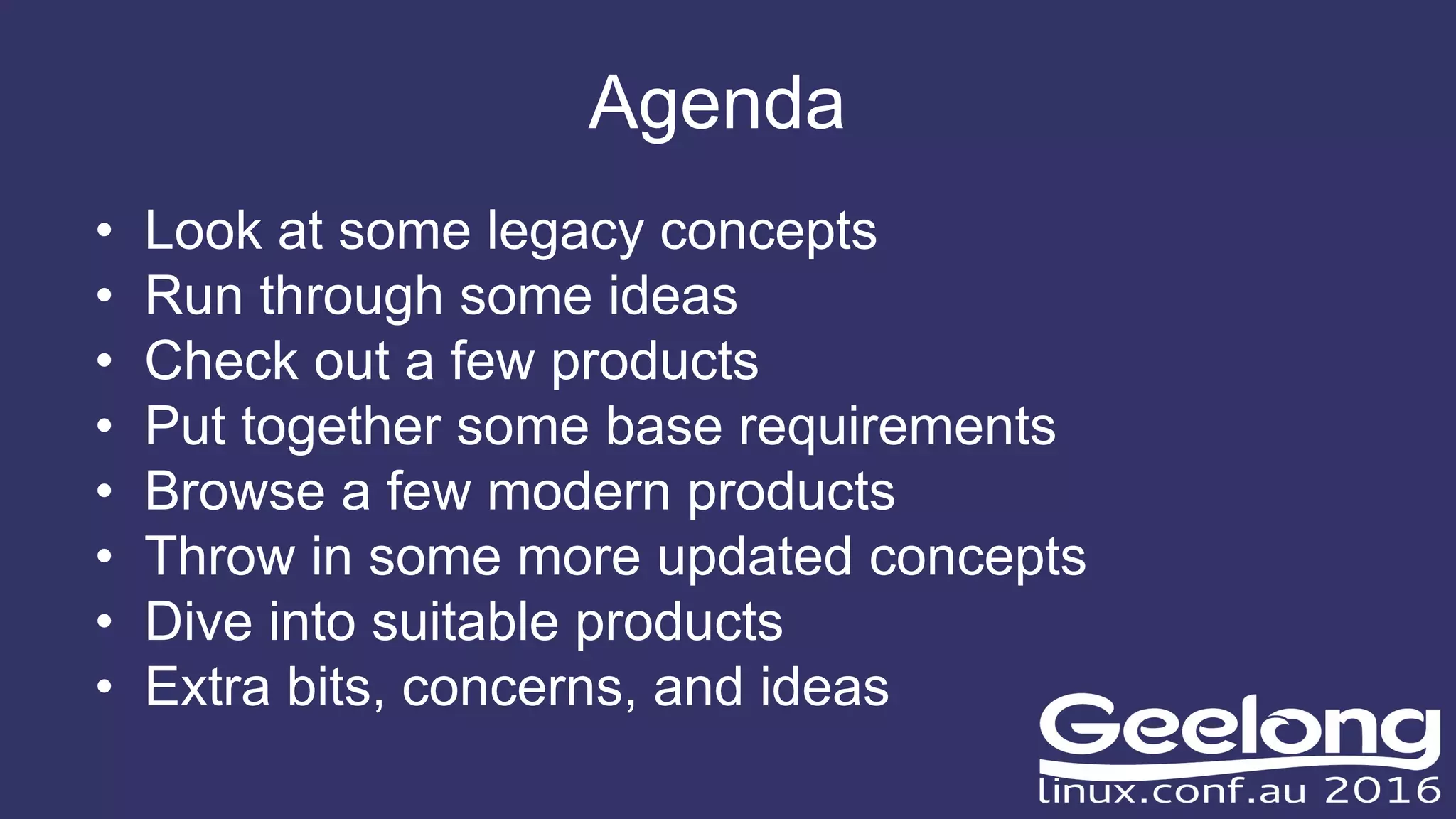

2. Agenda
• Look at some legacy concepts
• Run through some ideas
• Check out a few products
• Put together some base requirements
• Browse a few modern products
• Throw in some more updated concepts
• Dive into suitable products
• Extra bits, concerns, and ideas

3. Back in the day...
• Infrastructure was extremely manual
• Hosts, meta details, and further information was
recorded in text files, or other plain text based
systems
• Hostnames based on function
• Documentation was fragmented
• Legacy infrastructure becomes unmanageable
and can be forgotten
• Nightmare to keep track of

4. Tools
• Wiki / HTML Tables
• Text Files
• Shared drives
• Internal admin server
• Shared FTP
• Proprietary and specific software solutions
• Shell scripts

5. Problems?
• Keeping host lists up-to-date
• Multiple users managing infrastructure
• Recent status indicators
• Cumbersome interfaces
• Time consuming data interactions
• What about software?

6. Ideas
• Some sort of versioning
• Easier interface for collaboration
• Provision of host state
• Start looking at automation

7. Bits and Pieces
• Databases
• Services
• Applications
• Cache
• Routers

8. Software?
• First, infrastructure requires orchestration
• Then, software dependencies can be pushed within
each of those infrastructure items
• Bare-metal is different with a separate set of
requirements
• The premise for both though is still of value to the
general topic

9. Basic Provisioners

10. Ansible
• Provides inheritance
• Allows for variable configuration
• Straight-forward to use with automation
• Expressive with its syntax using YAML
• Playbooks used for grouping of instructions
• Playbooks versioned in a DIY fashion
• Agentless model for deployment
• Templating makes conf files a breeze

11. Simple Software
# Playbook for Application
- hosts: “{{hosts}}”
remote_user: root
sudo: yes
roles:
- common
- app-server
# Directory Structure
roles/common/handlers/main.yml
roles/common/tasks/main.yml
roles/common/templates/ntpd.conf
roles/app-server/handlers/main.yml
roles/app-server/tasks/main.yml
roles/app-server/templates/apache.conf
roles/app-server/vars/example.yml

12. Provisioning Infrastructure
- hosts: localhost
connection: local
gather_facts: false
tasks:
- name: Provision instances
ec2:
key_name: my_key
group: test
instance_type: t2.micro
image: “{{ami_id}}”
count_tag:
Name: Demo
instance_tags:
Name: Demo
register: ec2
- name: Add Hosts to Host Group
add_host: hostname={{ item.public_ip }} groups=ec2hosts
with_items: ec2.instances
- hosts: ec2hosts
name: configuration play
user: ec2-user
gather_facts: true
tasks:
- name: Check NTP Service
service: name=ntpd state=started

13. Drawbacks
• Difficult to track created instances
• Supplier specific wrapper
• Versioning is DIY
• Basic in terms of complete solution

14. Chef
• Builds on Ruby for syntax
• Fluent way of pushing modifications
• Variable capabilities for ease of automation
• Cookbooks used to group instructions
• Cookbooks synchronised with the Chef Server
• Server to client model

15. Simple Instances
num_instances = 10
1.upto(num_instances) do |inst|
machine "my-machine-#{inst}" do
add_machine_options bootstrap_options: {
security_group_ids: 'test-sg',
subnet_id: 'subnet-1234567',
instance_type: 't2.micro'
}
end
end

16. Resources
load_balancer "test-elb" do
machines [ "machine1", "machine2" ]
load_balancer_options :listeners => [{
:port => 80,
:protocol => :http,
:instance_port => 80,
:instance_protocol => :http,
}]
end

17. Drawbacks
• Dedicated server for management
• Uses Ruby natively, which could be a positive if you
work with Ruby or don’t mind
• What is required for some may not exist unless the
necessary Plugin is available for it
• OS and Package restrictions for nodes

18. Puppet
• Simple syntax for configuration
• Server model for deployments
• Automation readily available
• Parameterised configurations for easy environment
setup

19. Software
package { 'apache2':
provider=>'apt',
ensure=>'installed'
}
notify { 'Apache2 is installed.':
}
service { 'apache2':
ensure=>'running'
}
notify { 'Apache2 is running.':
}

20. ec2_securitygroup { 'sample-group':
ensure => present,
region => 'us-west-1',
description => 'Group used for testing Puppet AWS module',
}
ec2_instance { 'sample-instance':
ensure => present,
region => 'us-west-1',
availability_zone => 'us-west-1a',
image_id => 'ami-696e652c',
instance_type => 't1.micro',
security_groups => ['sample-group'],
}
Resources

21. Resource - Finalising
ec2_loadbalancer { 'sample-load-balancer':
ensure => present,
region => 'us-west-1',
availability_zones => ['us-west-1a', 'us-west-1b'],
instances => ['sample-instance', 'another-instance'],
security_groups => ['sample-group'],
listeners => [{
protocol => 'tcp',
port => 80,
}],
}

22. Drawbacks
• Requires learning the Puppet specific language for the
actual infrastructure code
• Complex infrastructure can become quite cumbersome
to manage
• Dependency based, order of execution can be tricky to
control when it is required to be

23. What about hosts?

24. CloudFormation
• Complete “physical” infrastructure as code
• Basic JSON file for definition
• Services for usage easily interacted with
• Tightly coupled with AWS
• Versioned and stored within the console
• Ease of automation

25. Beginning
{
"AWSTemplateFormatVersion": "2016-01-01",
"Description": "My Template",
"Parameters": {
"KeyName": {
"Description": "EC2 KeyPair",
"Type": "AWS::EC2::KeyPair::KeyName",
"ConstraintDescription": "must be the name of an existing EC2 KeyPair."
}
}
}

26. Resources - Security Group
"Resources": {
"WebServerSecurityGroup": {
"Type": "AWS::EC2::SecurityGroup",
"Properties": {
"GroupDescription": "Minimal Access",
"SecurityGroupIngress": [{
"IpProtocol": "tcp",
"FromPort": "80",
"ToPort": "80",
"CidrIp": "0.0.0.0/0"
}]
}
}
}

27. Resources - Instance
"Resources": {
"WebServer": {
"Type": "AWS::EC2::Instance",
"Metadata": {
"AWS::CloudFormation::Init": {
"install": {
"packages": {
"yum": {
"httpd": []
}
}
}
}
}

28. Tying it together
"Outputs": {
"WebsiteURL": {
"Value": {
"Fn::Join": ["", [
"http://",
{
"Fn::GetAtt": [
"WebServer",
"PublicDnsName"
]},
"/ping"
]]},
"Description": "Website"
}
}

29. Drawbacks
• AWS specific
• JSON for the configuration can be difficult to create
and maintain - No comments
• Not idempotent
• Templates are very large and can become quite
cumbersome to follow
• Most functionality can be automated through the
command line interface within other tools

30. Infrastructure pieces
• Software management, host management, resources
• A general tool provides one but not the other
• Arbitrary scripts can shoehorn this
• Duplication and Inconsistencies would become
problematic with keeping data sets in different tools

31. Combinations
• Software dependencies managed
• Hosts instantiated or made available on demand
• Configurations completed between environments to
allow for sand-boxed communication
• Entire infrastructures brought up with a single
command as replica of production

32. TerraForm
• Will orchestrate and provision
• Syntax is easy to grasp and maintain
• Configurations can be quite simple
• Parameterised capabilities for ease of scripting with
environments

33. Software
resource "aws_instance" "web" {
connection { user = "ubuntu" }
instance_type = "m1.small"
ami = "${lookup(var.aws_amis, var.aws_region)}"
key_name = "${aws_key_pair.auth.id}"
vpc_security_group_ids = ["${aws_security_group.default.id}"]
subnet_id = "${aws_subnet.default.id}"
provisioner "remote-exec" {
inline = [
"sudo apt-get -y update",
"sudo apt-get -y install nginx",
"sudo service nginx start"
]
}
}

34. Resources
resource "aws_elb" "web" {
name = "terraform-example-elb"
subnets = ["${aws_subnet.default.id}"]
security_groups = ["${aws_security_group.elb.id}"]
instances = ["${aws_instance.web.id}"]
listener {
instance_port = 80
instance_protocol = "http"
lb_port = 80
lb_protocol = "http"
}}
resource "aws_key_pair" "auth" {
key_name = "${var.key_name}"
public_key = "${file(var.public_key_path)}"
}

35. Drawbacks
• Tightly integrated with vendors
• Learning curve for syntax
• Delays with updated services and functionality
• Newcomer to the fully managed tool suite, some
features are incomplete or in progress

36. ManageaCloud
• Complete solution, orchestration and provisioning
• Simple, re-usable configuration
• Built-in versioning for deployments and infrastructure
• Open choice of vendor - no requirements
• Framework approach for infrastructure management

37. Macfile
• Configuration template
• Complete infrastructure specification
• Versioned to allow for ease of use, deployment, and
rollback
• Simple syntax no vendor specifics

38. App Instance
roles:
demo_app:
instance create:
configuration: demo_application
infrastructures:
demo_application_instance:
name: demo
provider: amazon
location: us-east-1
hardware: t1.micro
role: demo_app
environment:
- APP_BRANCH: master

39. Resource
resources:
elastic_load_balancer:
create bash:
aws elb create-load-balancer
--load-balancer-name infrastructure.param.name
--listeners infrastructure.param.listeners
--availability-zones infrastructure.param.availability-zones
--region infrastructure.param.region
destroy bash:
aws elb delete-load-balancer
--load-balancer-name infrastructure.param.name
--region infrastructure.param.region

40. Resource Instance
infrastructures:
load balancer 01:
resource: elastic_load_balancer
params:
name: my-demo-load-balancer
listeners: Protocol=HTTP,LoadBalancerPort=80,InstanceProtocol=HTTP,InstancePort=80
availability-zones: us-east-1b us-east-1c
region: us-east-1

41. Associationactions:
get_id:
ssh: wget -q -O - http://169.254.169.254/latest/meta-data/instance-id
register_lb:
create bash:
aws elb register-instances-with-load-balancer
--load-balancer-name infrastructure.param.load-balancer-name
--instances infrastructure.param.instances
--region infrastructure.param.region
infrastructures:
register_instance:
ready: role.demo_app
resource: register_lb
params:
load-balancer-name: my-demo-load-balancer
instances: role.demo_app.get_id

42. Drawbacks
• Most components are open source, not all at the
present time
• No unified syntax for providers

43. What about people?

44. DevOps
• Largely, DevOps came about as a hybrid role to help
manage and facilitate process change
• Automation is a key aspect
• Not Operations, but not Development either (but is
still both)
• Provide an interface between infrastructure and
environments and deployments made

45. Concepts
• Even with automation, humans are still needed
• Sanity checking and improving tools
• Removing bottlenecks
• Increasing developer and wider business productivity
• Know the management tools and the details of how
the infrastructure functions

46. Workflows
• Very important to focus on processes
• Tools are wonderful, but processes need to be suitable
for the tool of choice
• Automation will bring down the Op aspects of DevOps
• Cross functional efforts to bring the automation to the
infrastructure
• Size of infrastructure

47. Infrastructure as Code

48. Decisions
• Situations make decisions difficult
• Complete solutions are not always necessary
• Preference and team knowledge makes a difference
• A product is not specifically good just because others
use it

49. Options
• There’s always more options available than time to
discuss - CFengine, Salt, Heat, OneOps
• It’s all about automation, and removing bottlenecks in
cumbersome processes

50. Future
• Abilities to share, extend, and work better with
infrastructures
• Inheritance for roles, resources, and instances
• Complete control with automation of infrastructure
sets
• Simple options for deployment strategies

51. Thank you!
Allan Shone
https://manageacloud.com
