XT Best Practices

The document discusses best practices for optimizing performance on Cray XT systems, including configuration details of Cray XT4 and XT5 nodes. It emphasizes the importance of selecting appropriate compilers, compiler flags, and profiling and debugging techniques to enhance performance at scale. Additionally, it covers load balancing, communication optimizations, and the use of tools like CrayPat for performance data collection and analysis.

Embed presentation

Downloaded 19 times

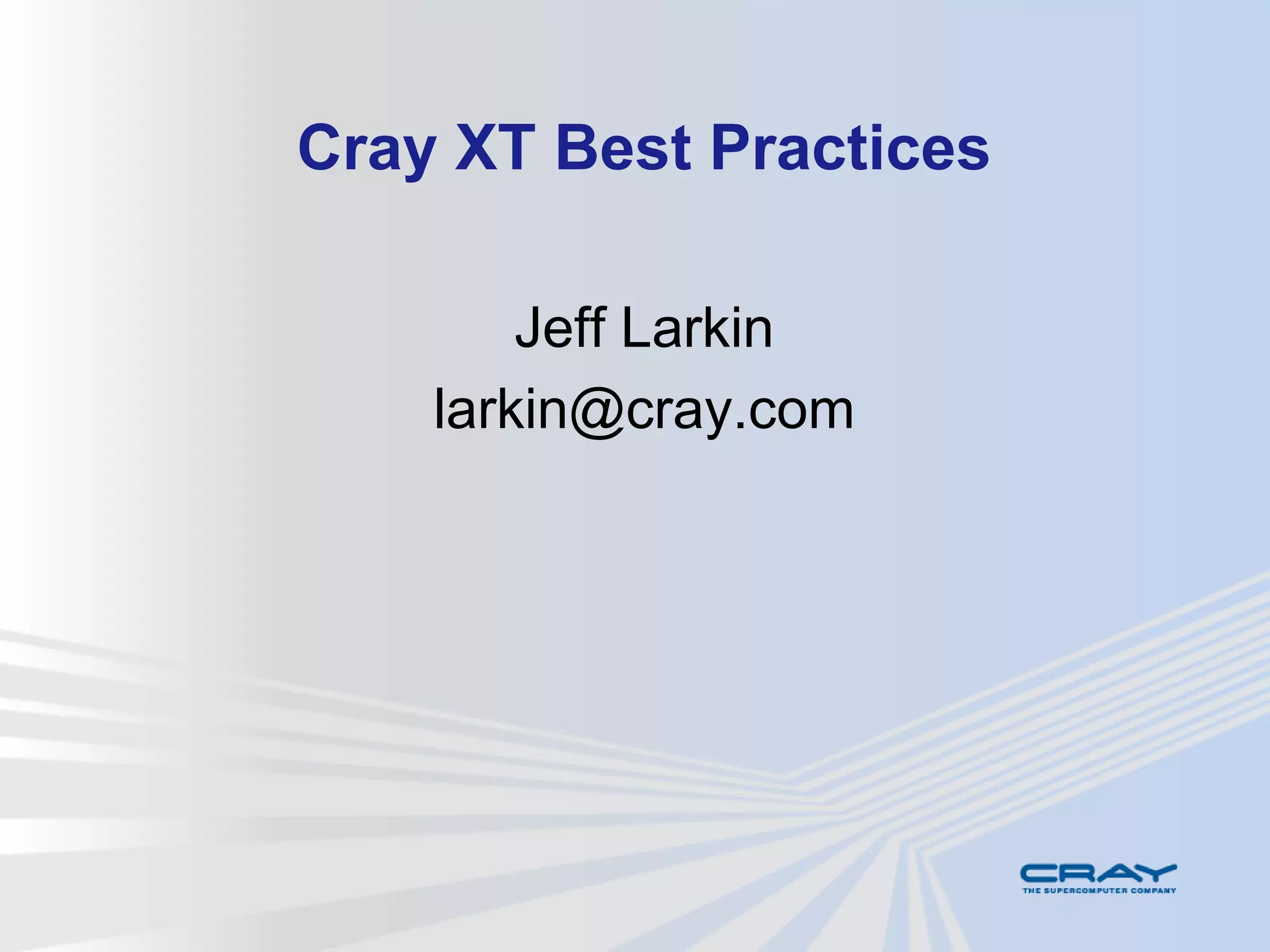

Cray XT Best Practices Jeff Larkin larkin@cray.com

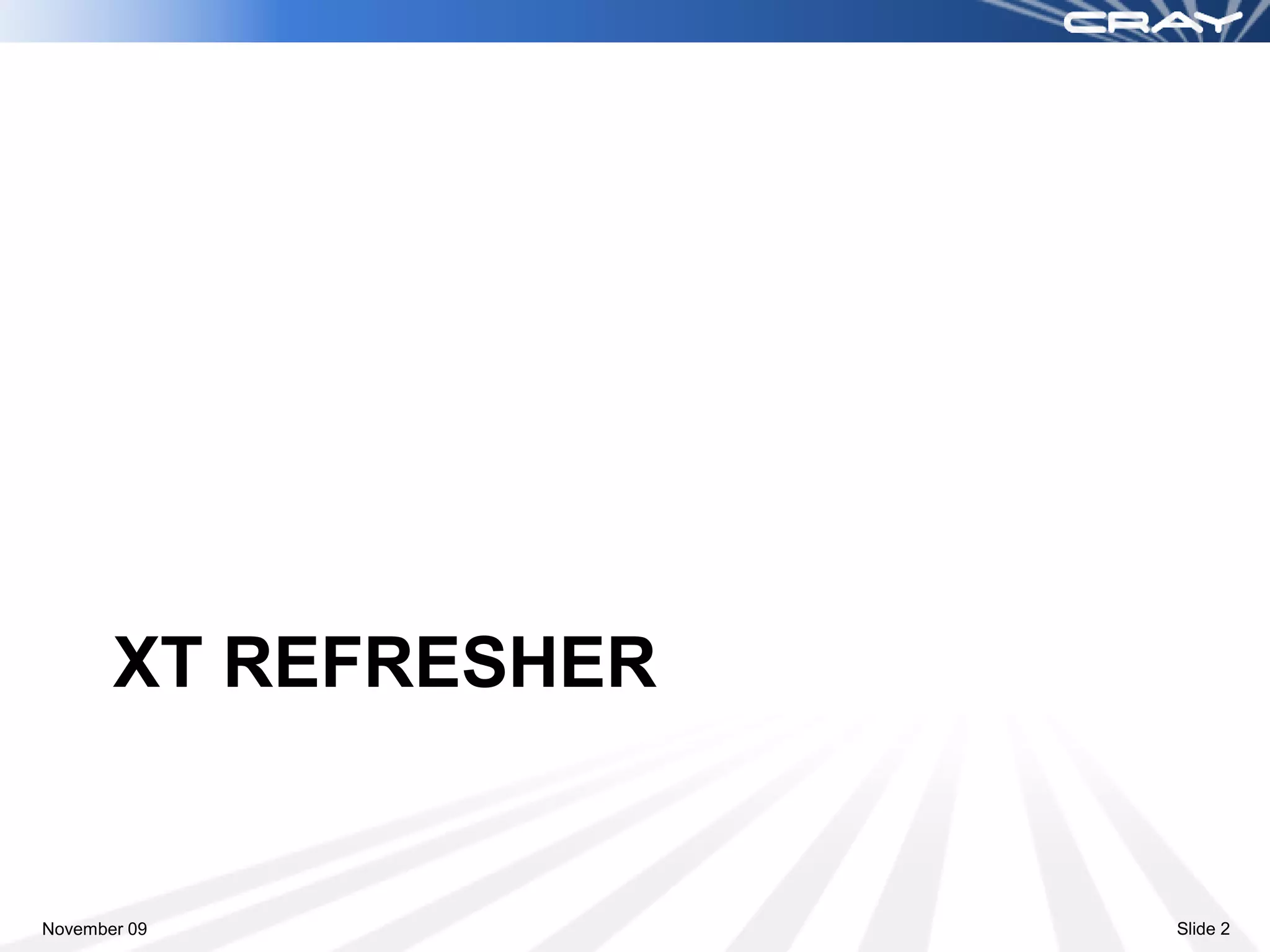

XT REFRESHER November 09 Slide 2

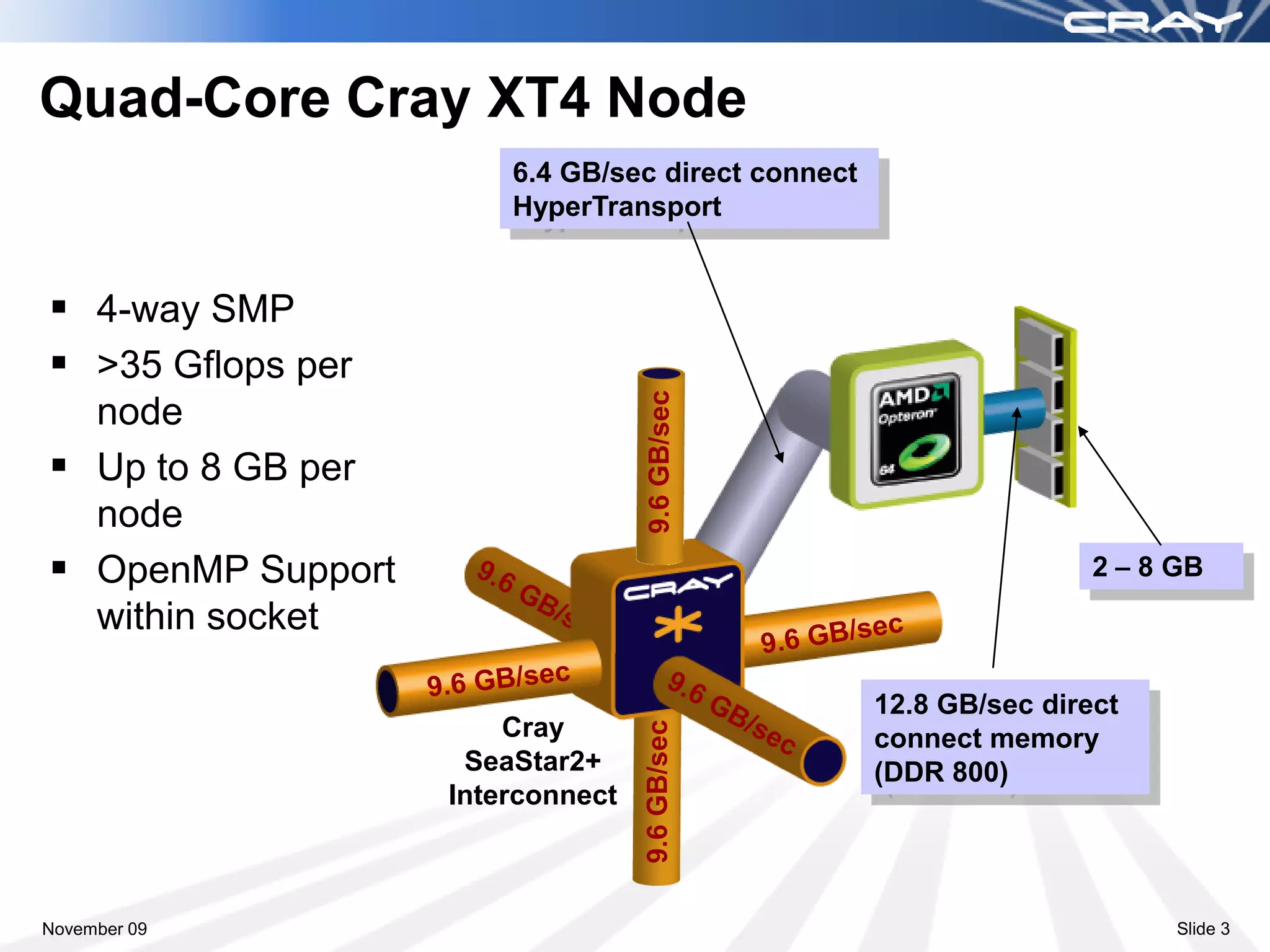

Quad-Core Cray XT4 Node 6.4 GB/sec direct connect HyperTransport  4-way SMP  >35 Gflops per node  Up to 8 GB per node  OpenMP Support 2 – 8 GB within socket 12.8 GB/sec direct Cray connect memory SeaStar2+ (DDR 800) Interconnect November 09 Slide 3

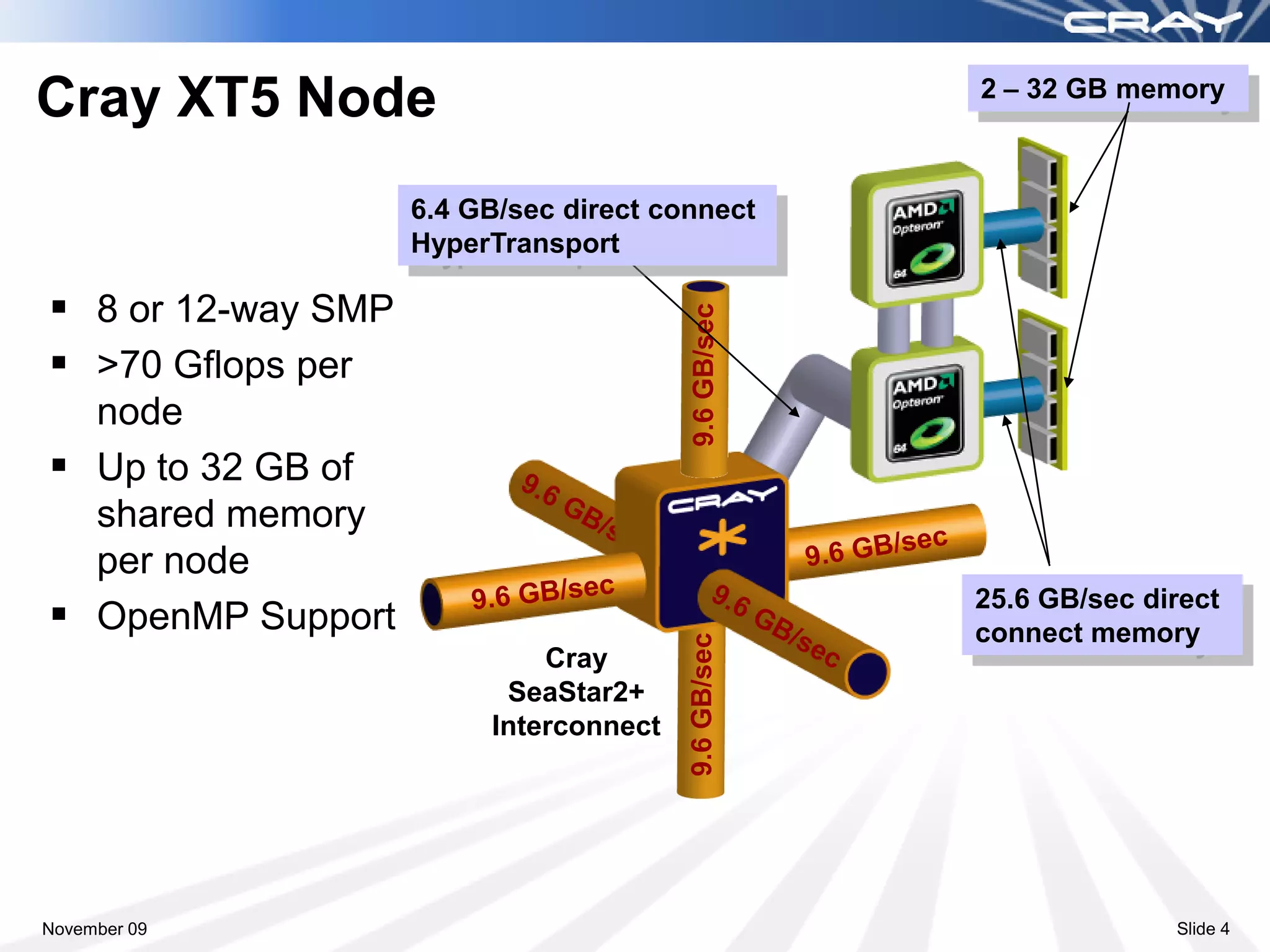

2 – 32 GB memory Cray XT5 Node 6.4 GB/sec direct connect HyperTransport  8 or 12-way SMP  >70 Gflops per node  Up to 32 GB of shared memory per node 25.6 GB/sec direct  OpenMP Support connect memory Cray SeaStar2+ Interconnect November 09 Slide 4

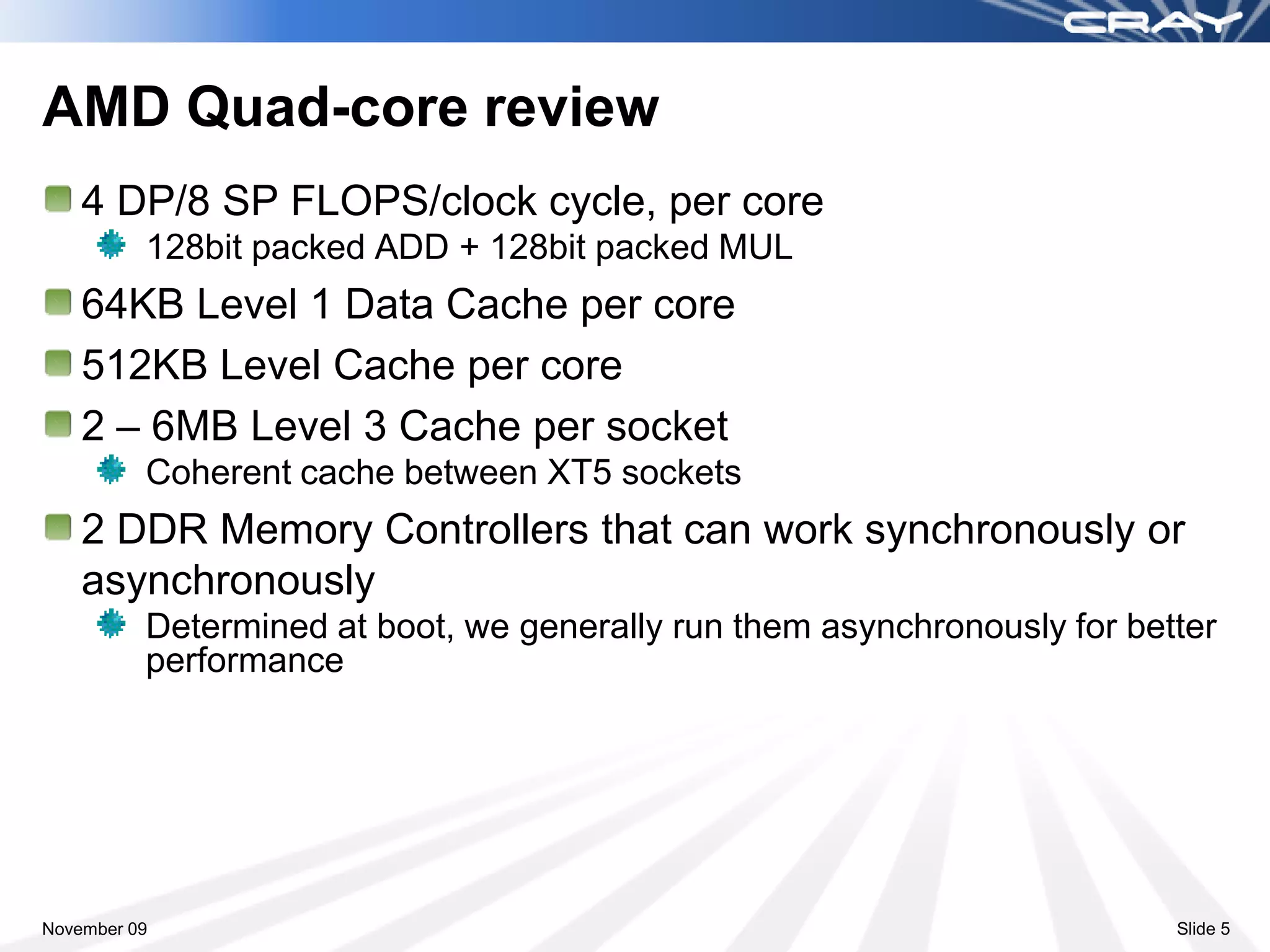

AMD Quad-core review 4 DP/8 SP FLOPS/clock cycle, per core 128bit packed ADD + 128bit packed MUL 64KB Level 1 Data Cache per core 512KB Level Cache per core 2 – 6MB Level 3 Cache per socket Coherent cache between XT5 sockets 2 DDR Memory Controllers that can work synchronously or asynchronously Determined at boot, we generally run them asynchronously for better performance November 09 Slide 5

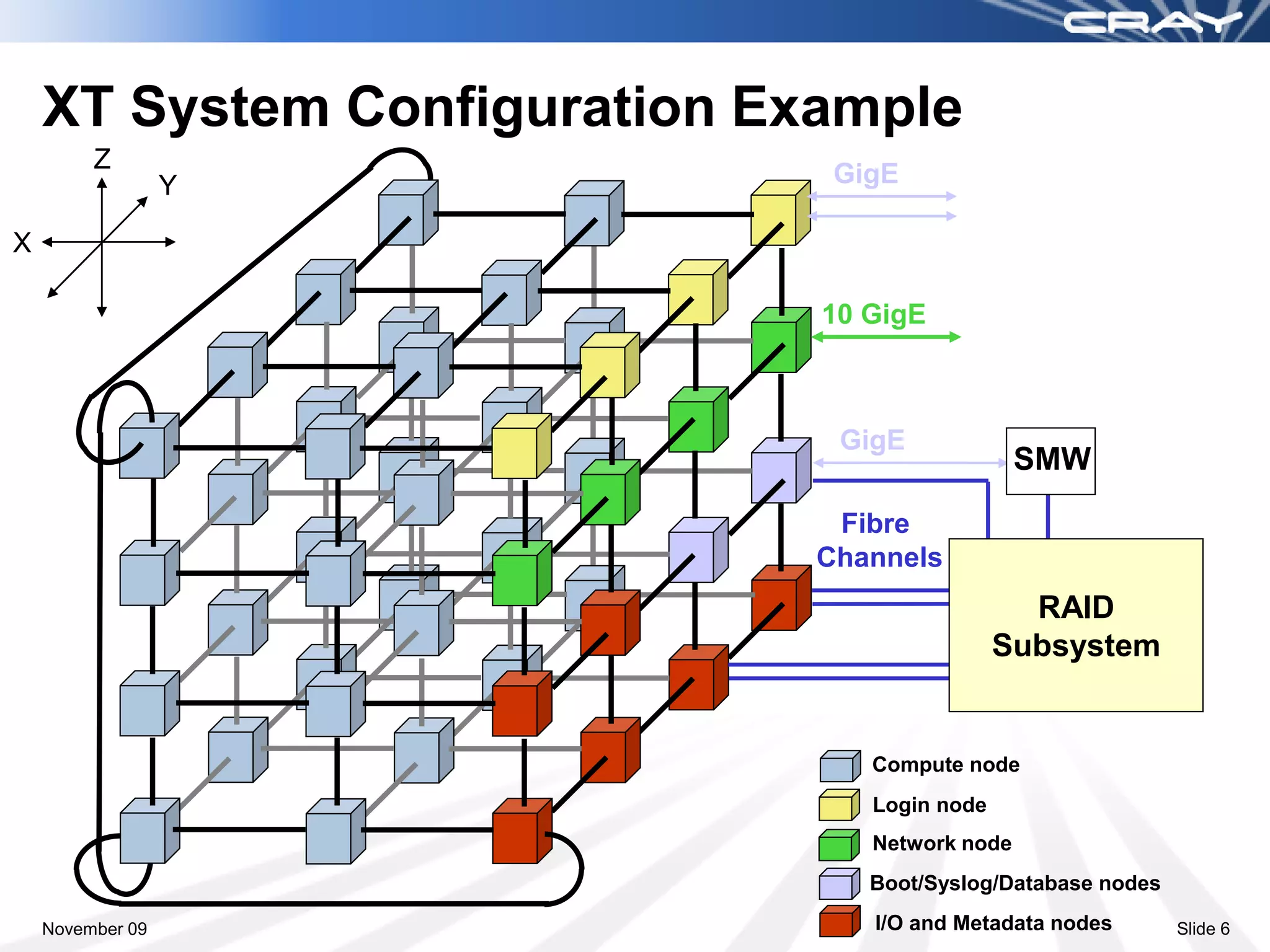

XT System Configuration Example Z Y GigE X 10 GigE GigE SMW Fibre Channels RAID Subsystem Compute node Login node Network node Boot/Syslog/Database nodes November 09 I/O and Metadata nodes Slide 6

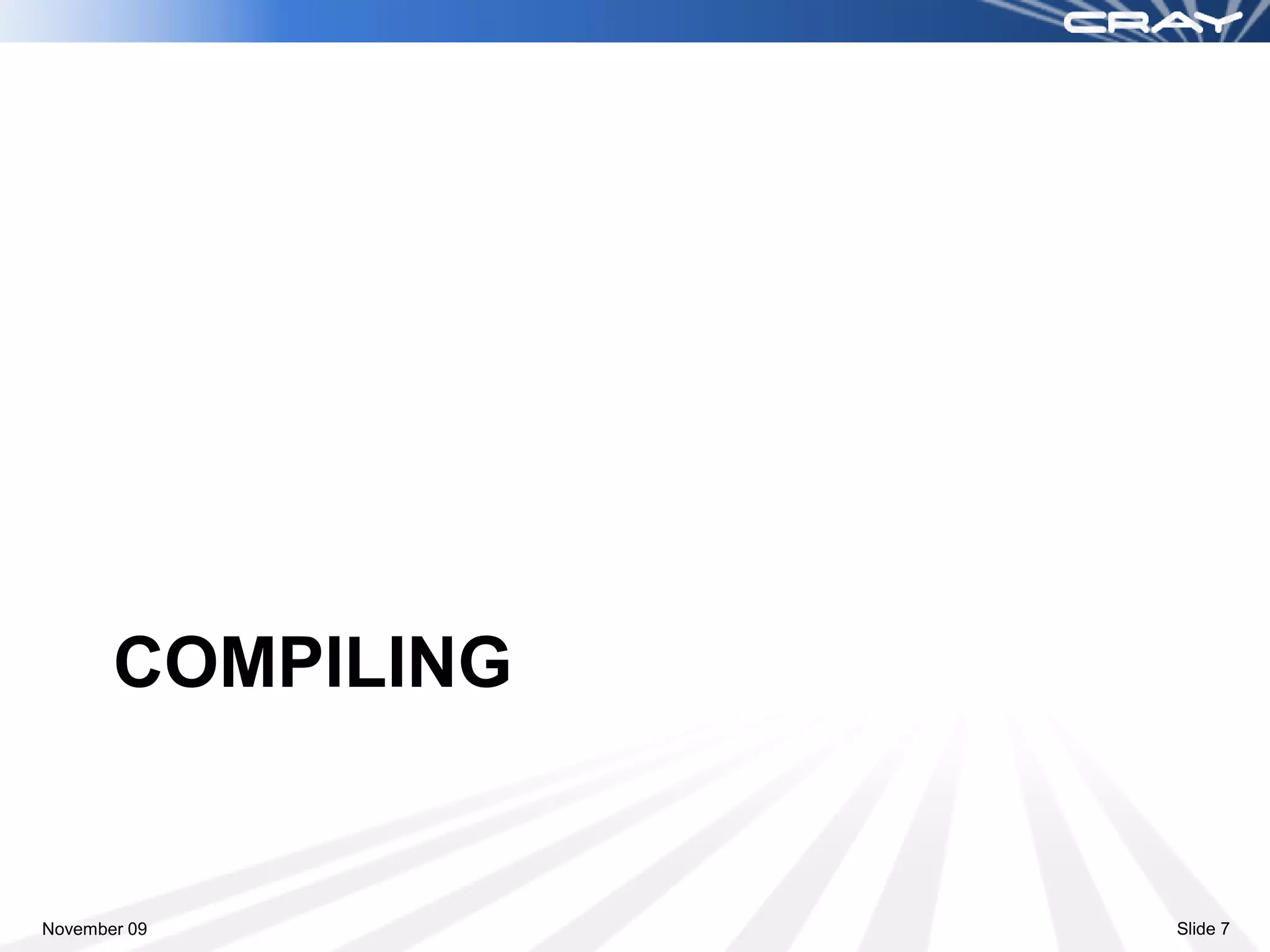

COMPILING November 09 Slide 7

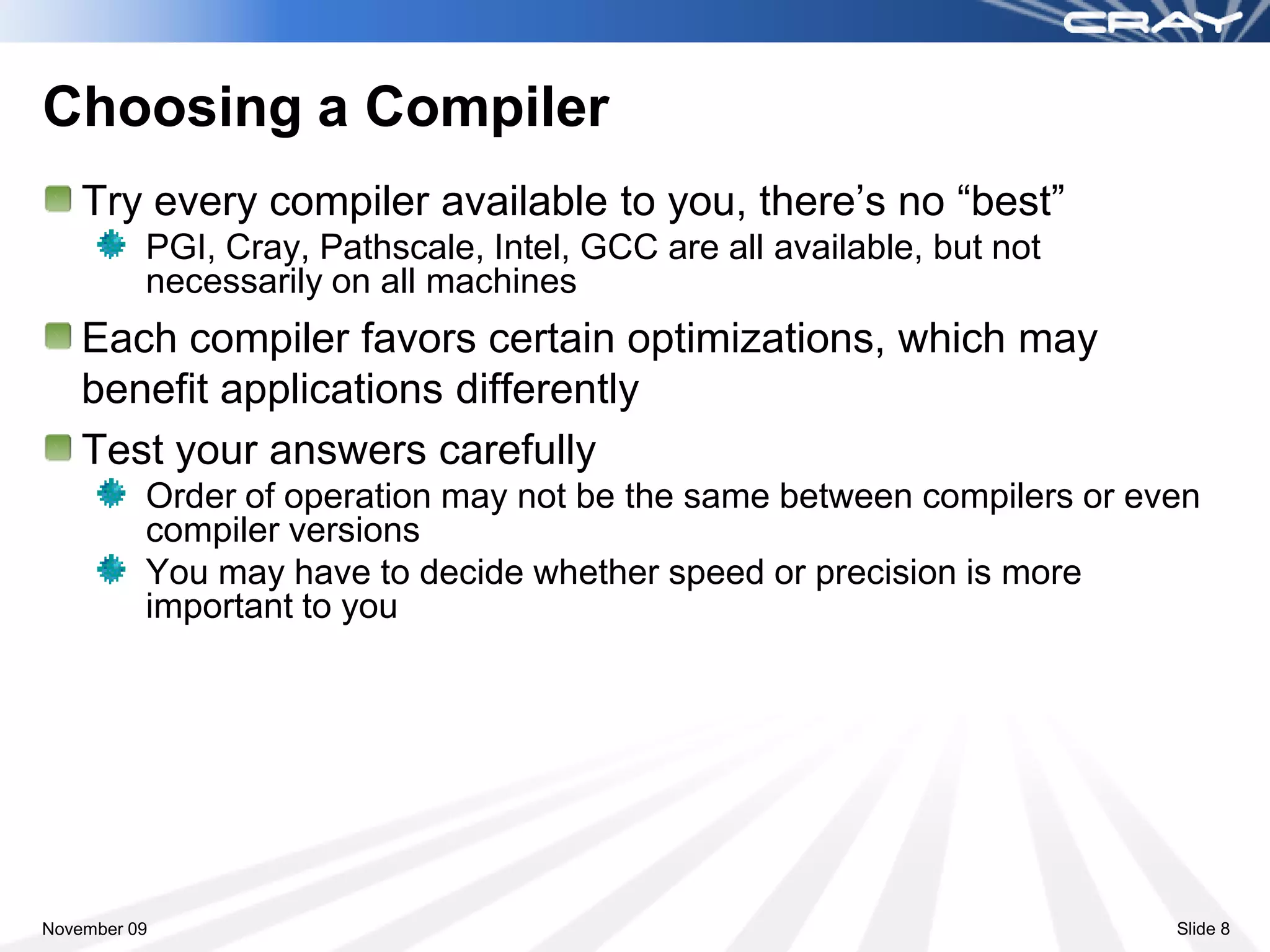

Choosing a Compiler Try every compiler available to you, there’s no “best” PGI, Cray, Pathscale, Intel, GCC are all available, but not necessarily on all machines Each compiler favors certain optimizations, which may benefit applications differently Test your answers carefully Order of operation may not be the same between compilers or even compiler versions You may have to decide whether speed or precision is more important to you November 09 Slide 8

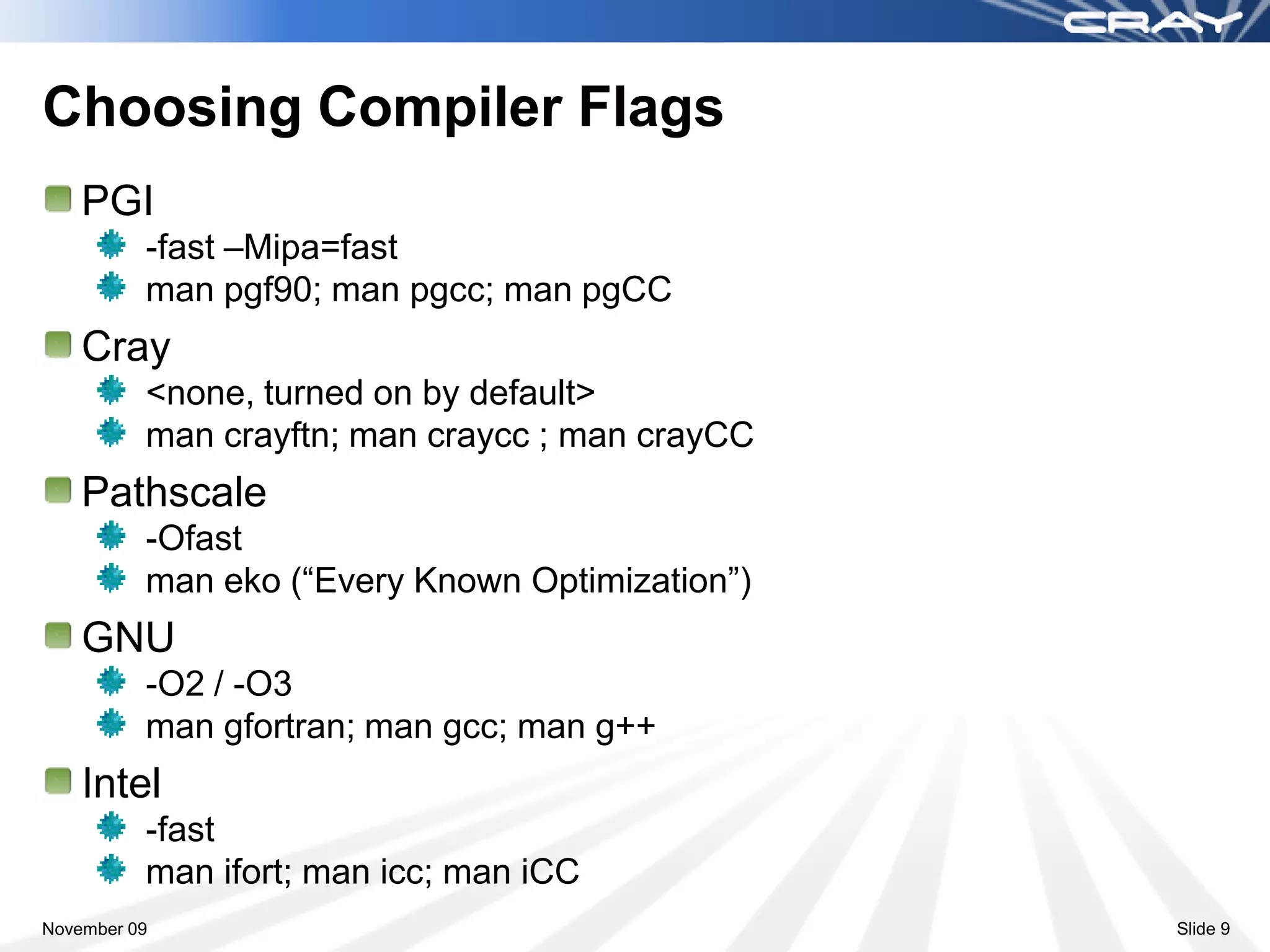

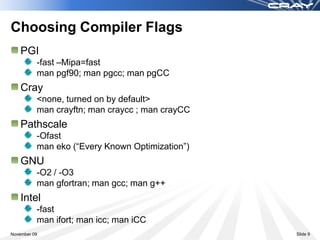

Choosing Compiler Flags PGI -fast –Mipa=fast man pgf90; man pgcc; man pgCC Cray <none, turned on by default> man crayftn; man craycc ; man crayCC Pathscale -Ofast man eko (“Every Known Optimization”) GNU -O2 / -O3 man gfortran; man gcc; man g++ Intel -fast man ifort; man icc; man iCC November 09 Slide 9
PROFILING AND DEBUGGING November 09 Slide 10

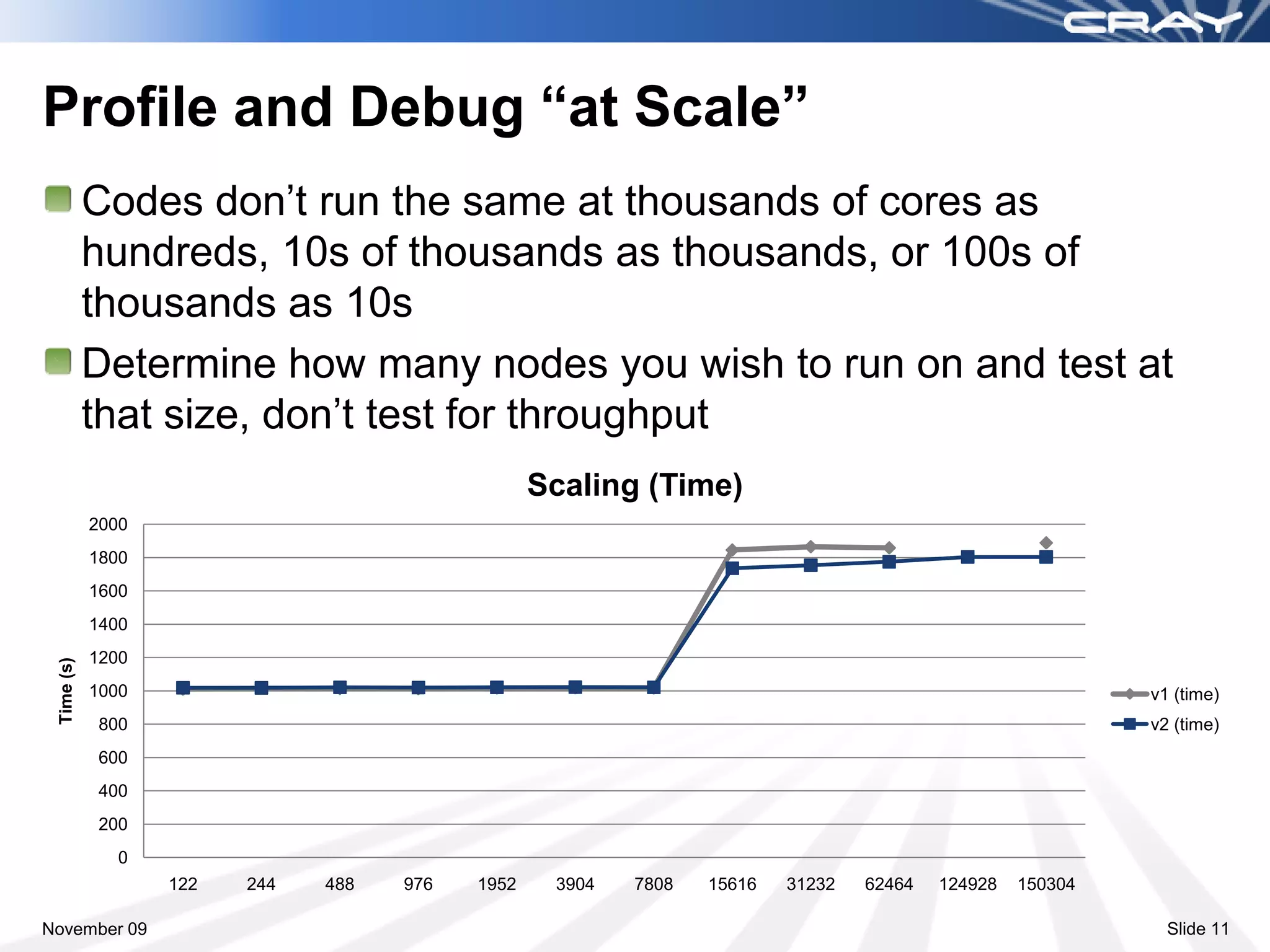

Profile and Debug “at Scale” Codes don’t run the same at thousands of cores as hundreds, 10s of thousands as thousands, or 100s of thousands as 10s Determine how many nodes you wish to run on and test at that size, don’t test for throughput Scaling (Time) 2000 1800 1600 1400 1200 Time (s) 1000 v1 (time) 800 v2 (time) 600 400 200 0 122 244 488 976 1952 3904 7808 15616 31232 62464 124928 150304 November 09 Slide 11

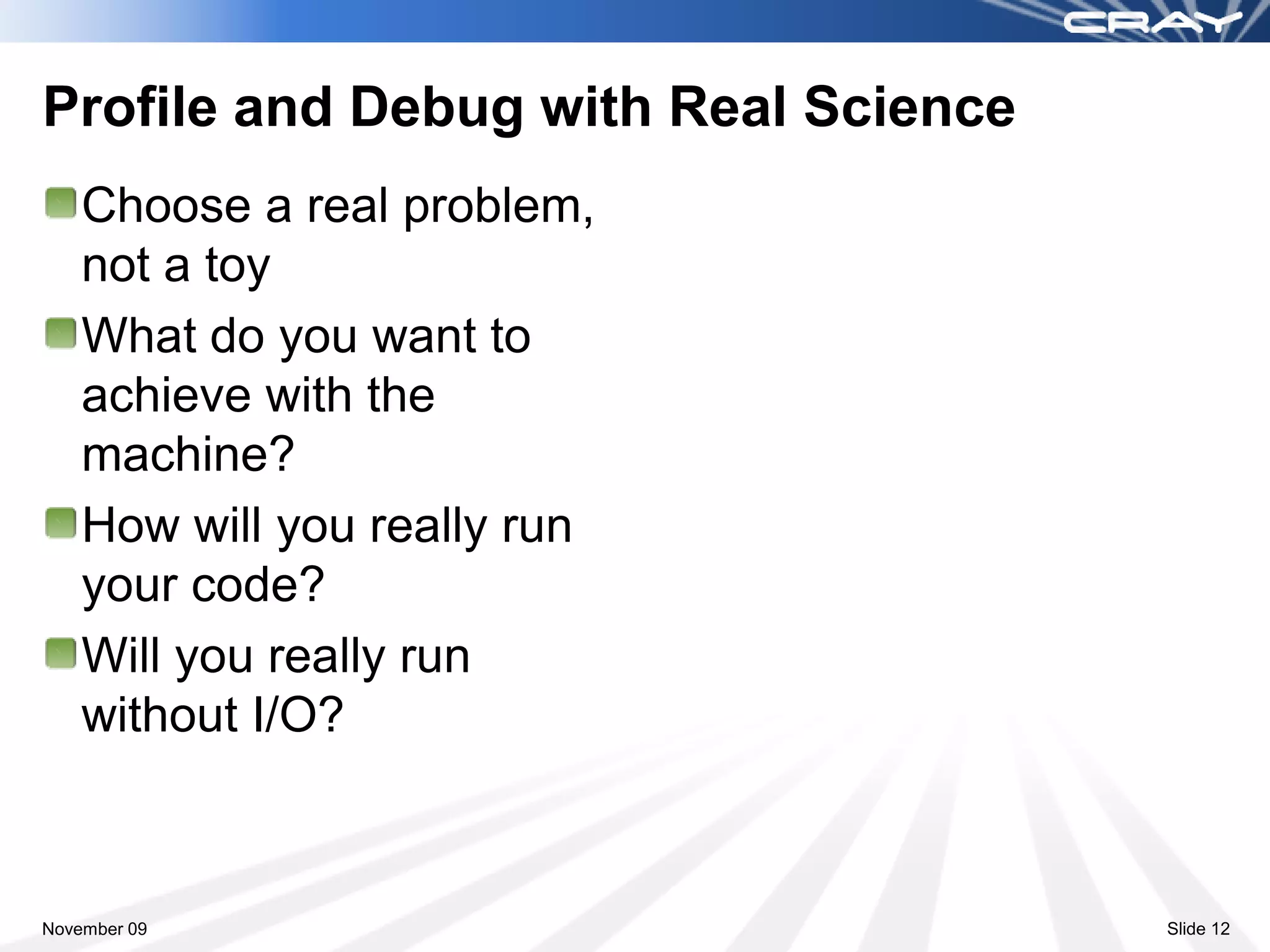

Profile and Debug with Real Science Choose a real problem, not a toy What do you want to achieve with the machine? How will you really run your code? Will you really run without I/O? November 09 Slide 12

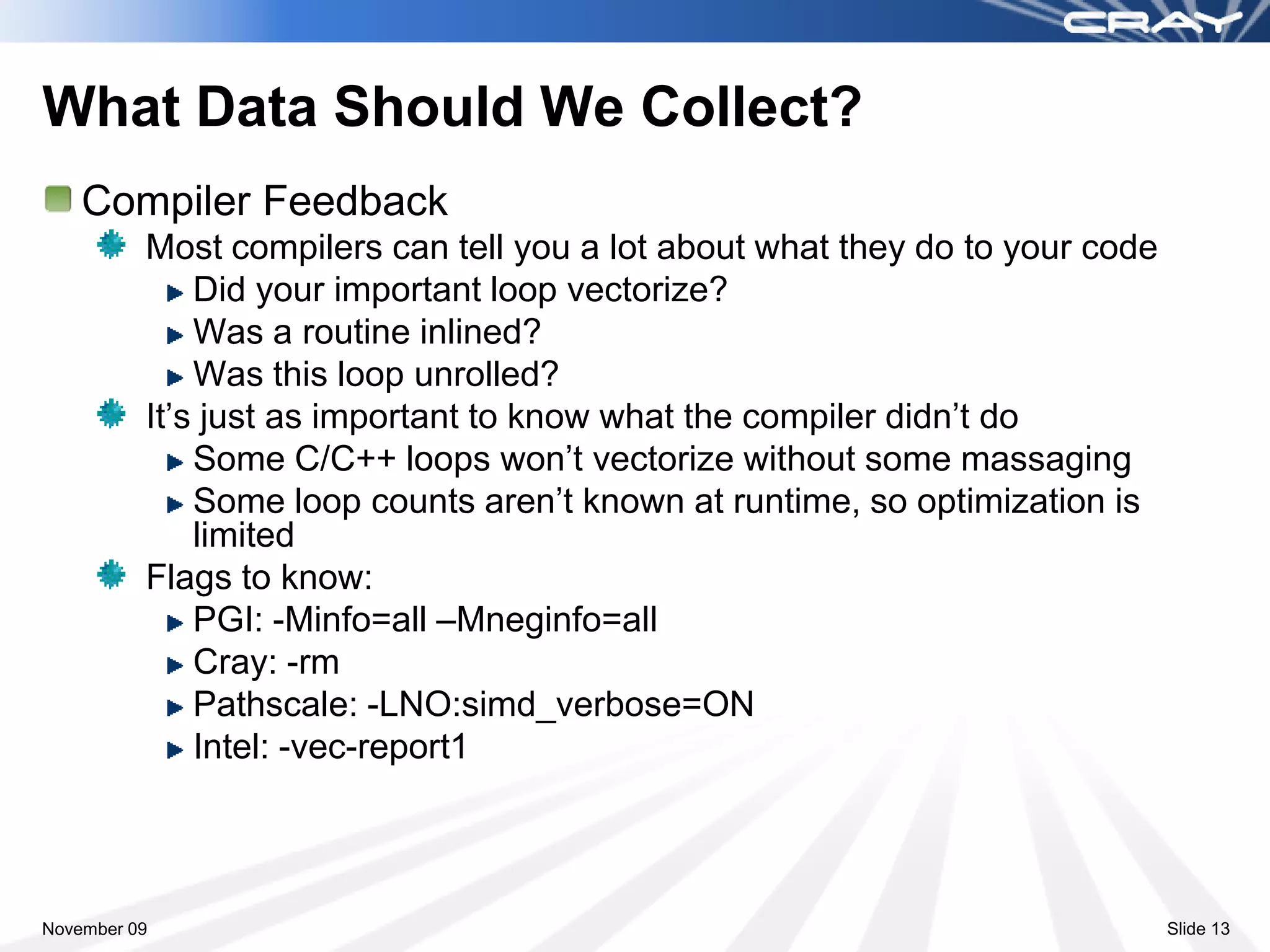

What Data Should We Collect? Compiler Feedback Most compilers can tell you a lot about what they do to your code Did your important loop vectorize? Was a routine inlined? Was this loop unrolled? It’s just as important to know what the compiler didn’t do Some C/C++ loops won’t vectorize without some massaging Some loop counts aren’t known at runtime, so optimization is limited Flags to know: PGI: -Minfo=all –Mneginfo=all Cray: -rm Pathscale: -LNO:simd_verbose=ON Intel: -vec-report1 November 09 Slide 13

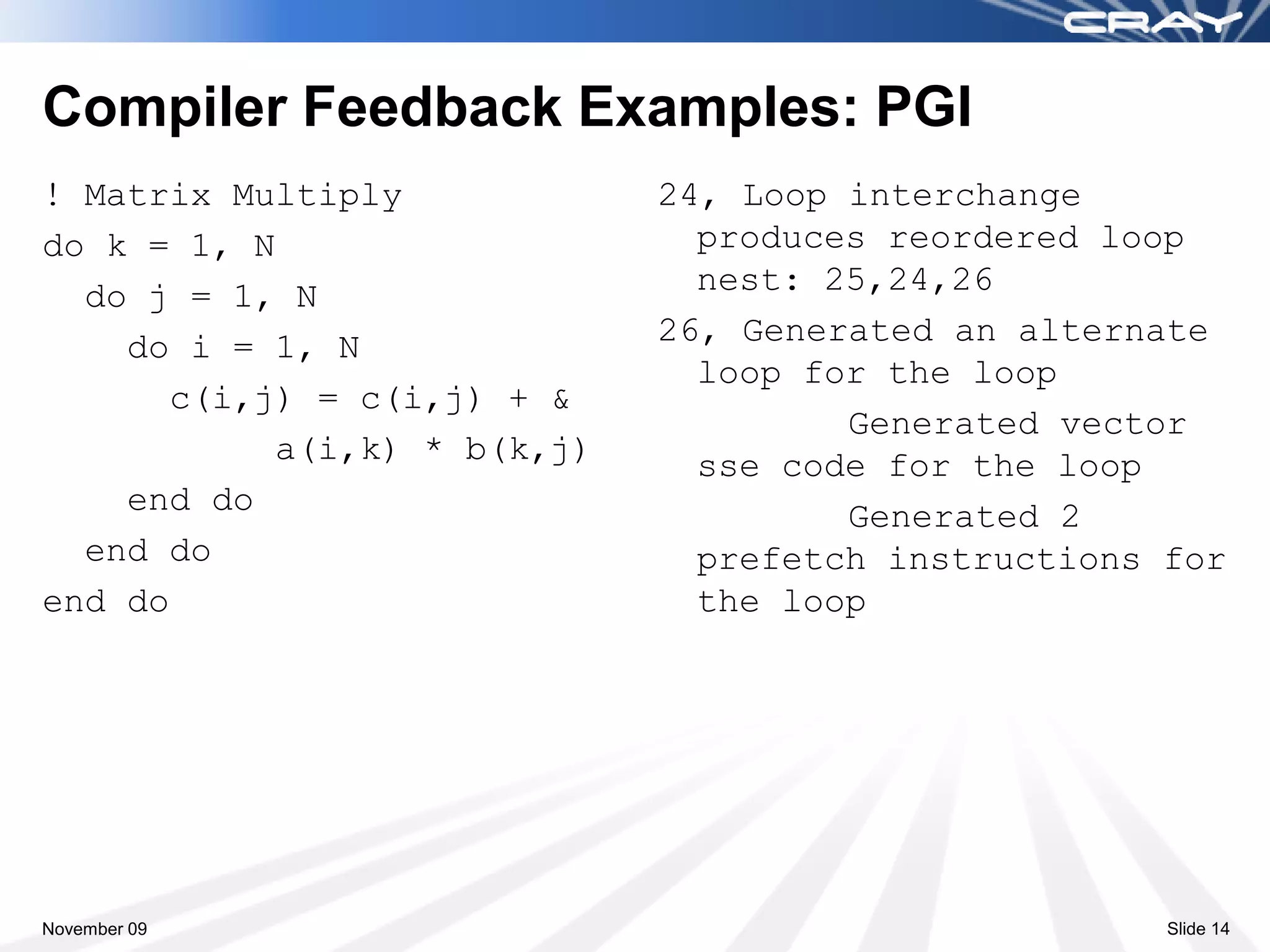

Compiler Feedback Examples: PGI ! Matrix Multiply 24, Loop interchange do k = 1, N produces reordered loop do j = 1, N nest: 25,24,26 do i = 1, N 26, Generated an alternate loop for the loop c(i,j) = c(i,j) + & Generated vector a(i,k) * b(k,j) sse code for the loop end do Generated 2 end do prefetch instructions for end do the loop November 09 Slide 14

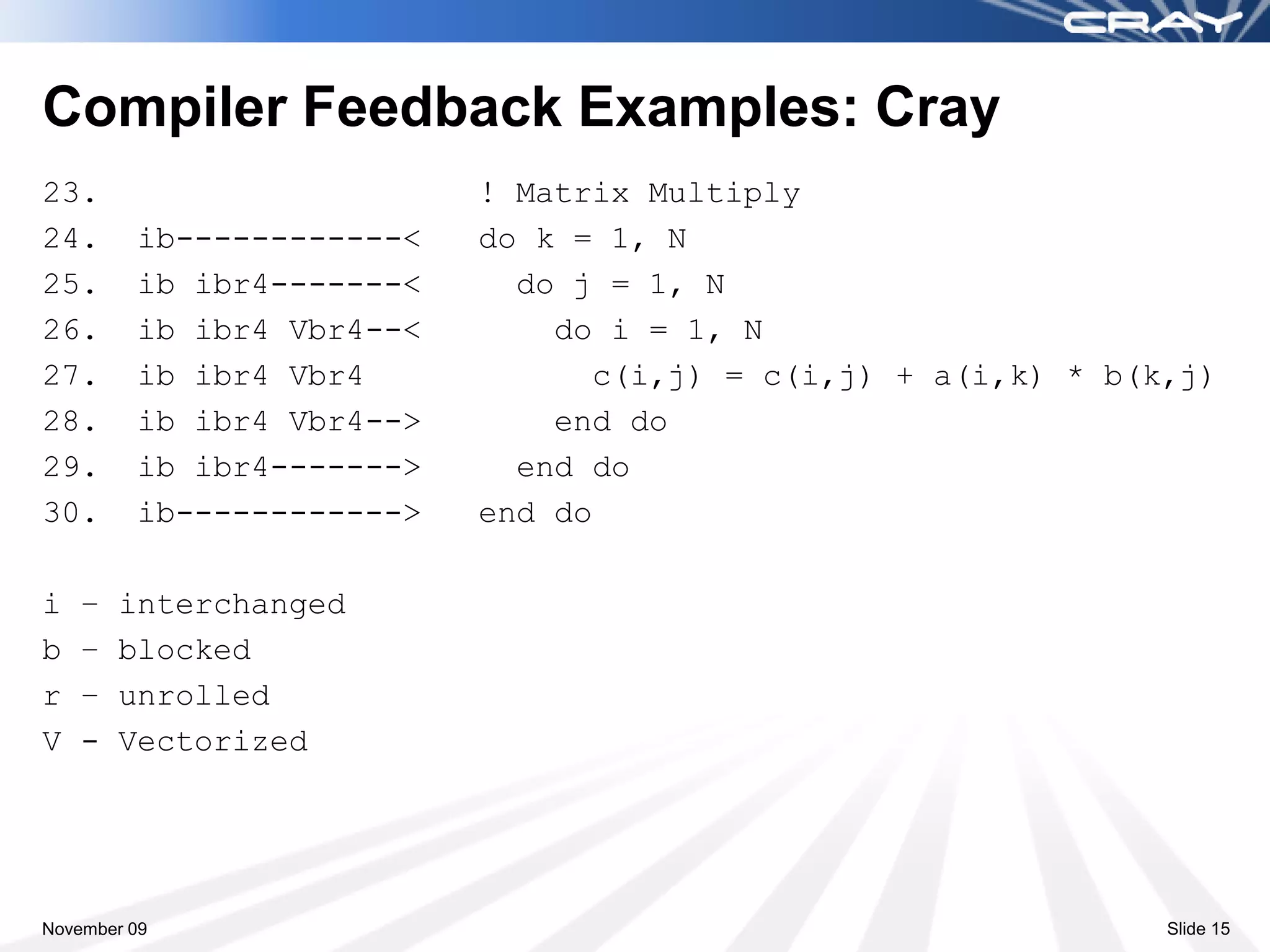

Compiler Feedback Examples: Cray 23. ! Matrix Multiply 24. ib------------< do k = 1, N 25. ib ibr4-------< do j = 1, N 26. ib ibr4 Vbr4--< do i = 1, N 27. ib ibr4 Vbr4 c(i,j) = c(i,j) + a(i,k) * b(k,j) 28. ib ibr4 Vbr4--> end do 29. ib ibr4-------> end do 30. ib------------> end do i – interchanged b – blocked r – unrolled V - Vectorized November 09 Slide 15

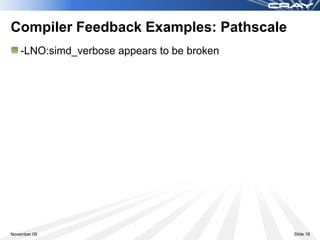

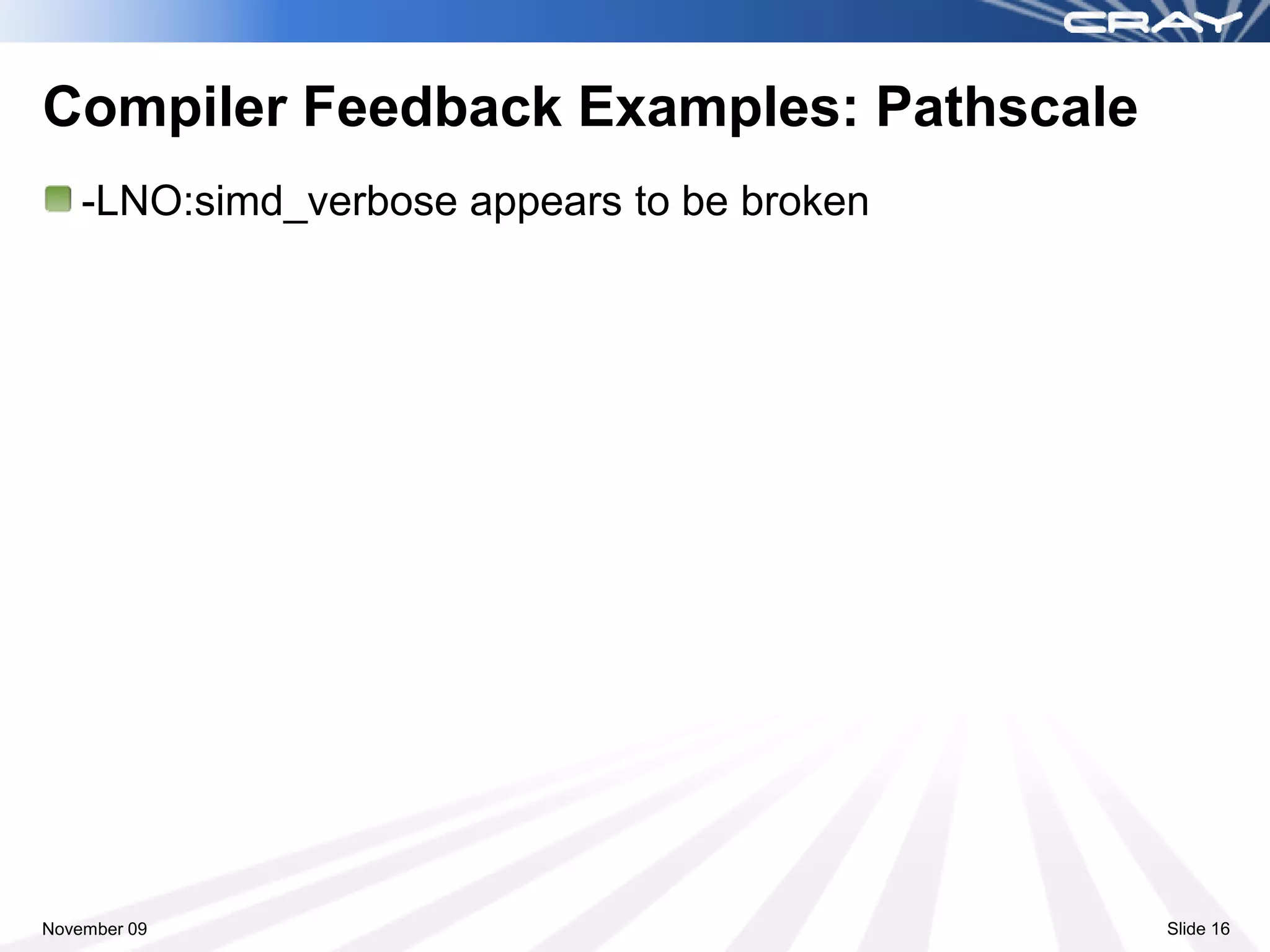

Compiler Feedback Examples: Pathscale -LNO:simd_verbose appears to be broken November 09 Slide 16

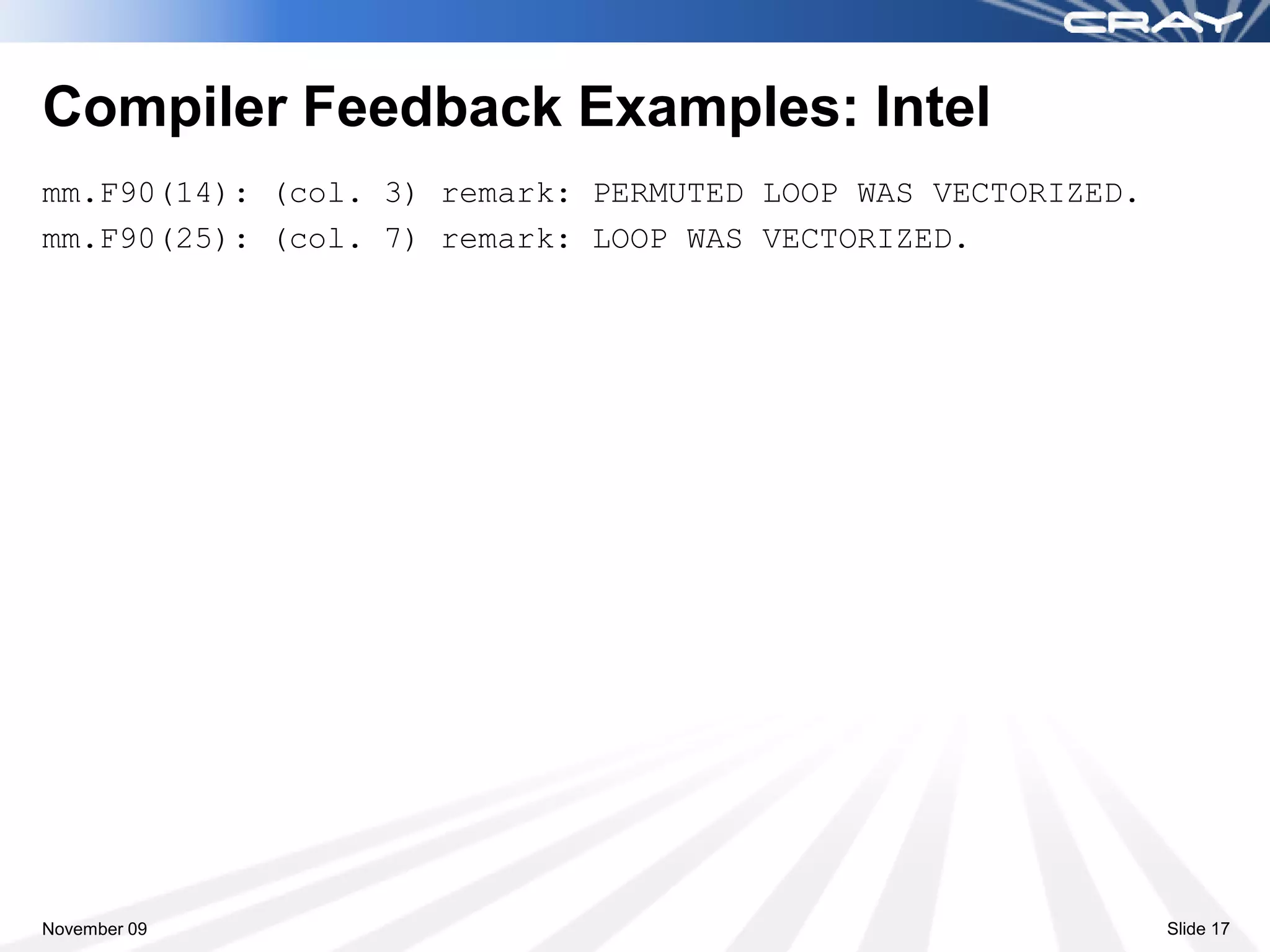

Compiler Feedback Examples: Intel mm.F90(14): (col. 3) remark: PERMUTED LOOP WAS VECTORIZED. mm.F90(25): (col. 7) remark: LOOP WAS VECTORIZED. November 09 Slide 17

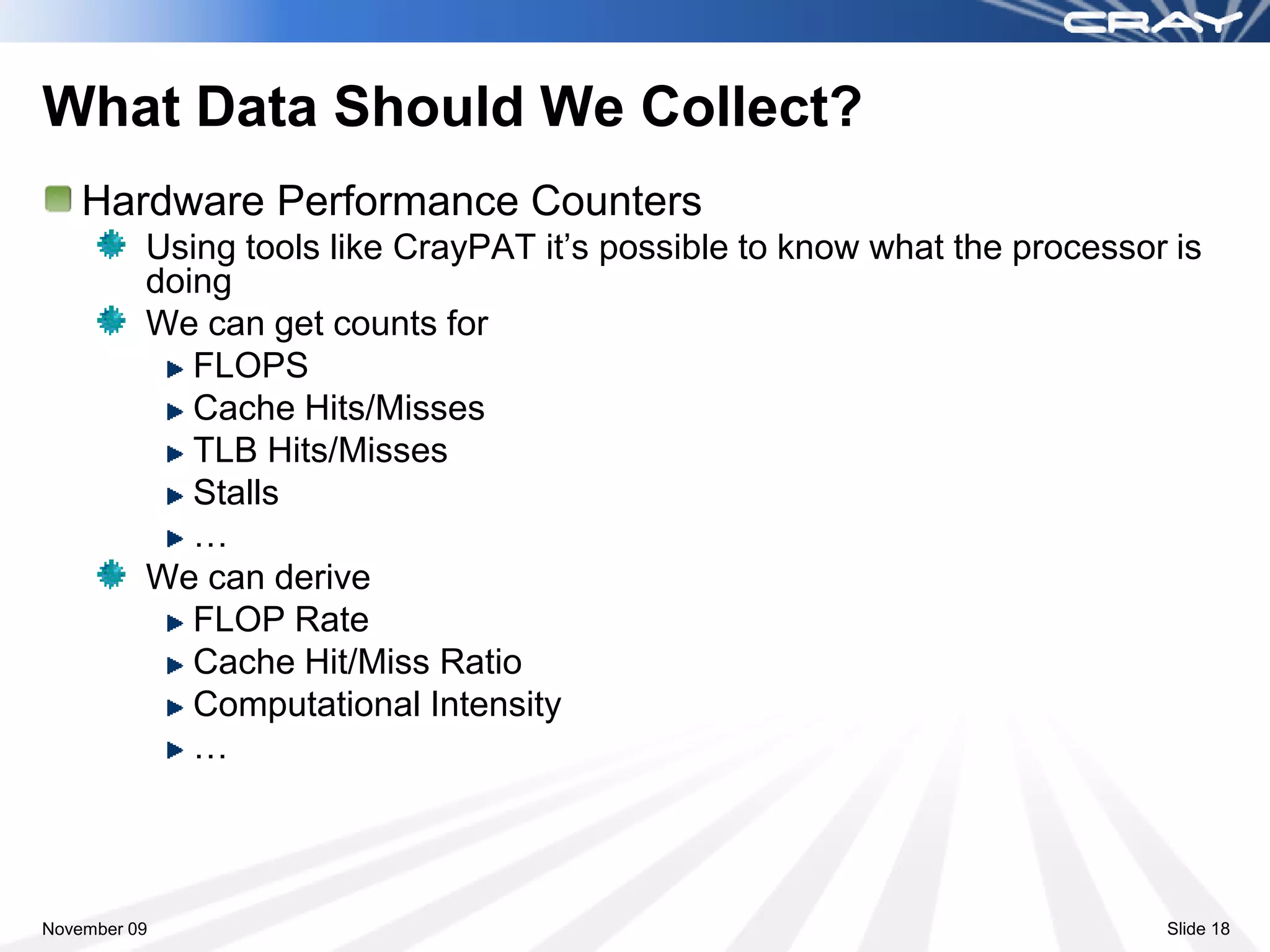

What Data Should We Collect? Hardware Performance Counters Using tools like CrayPAT it’s possible to know what the processor is doing We can get counts for FLOPS Cache Hits/Misses TLB Hits/Misses Stalls … We can derive FLOP Rate Cache Hit/Miss Ratio Computational Intensity … November 09 Slide 18

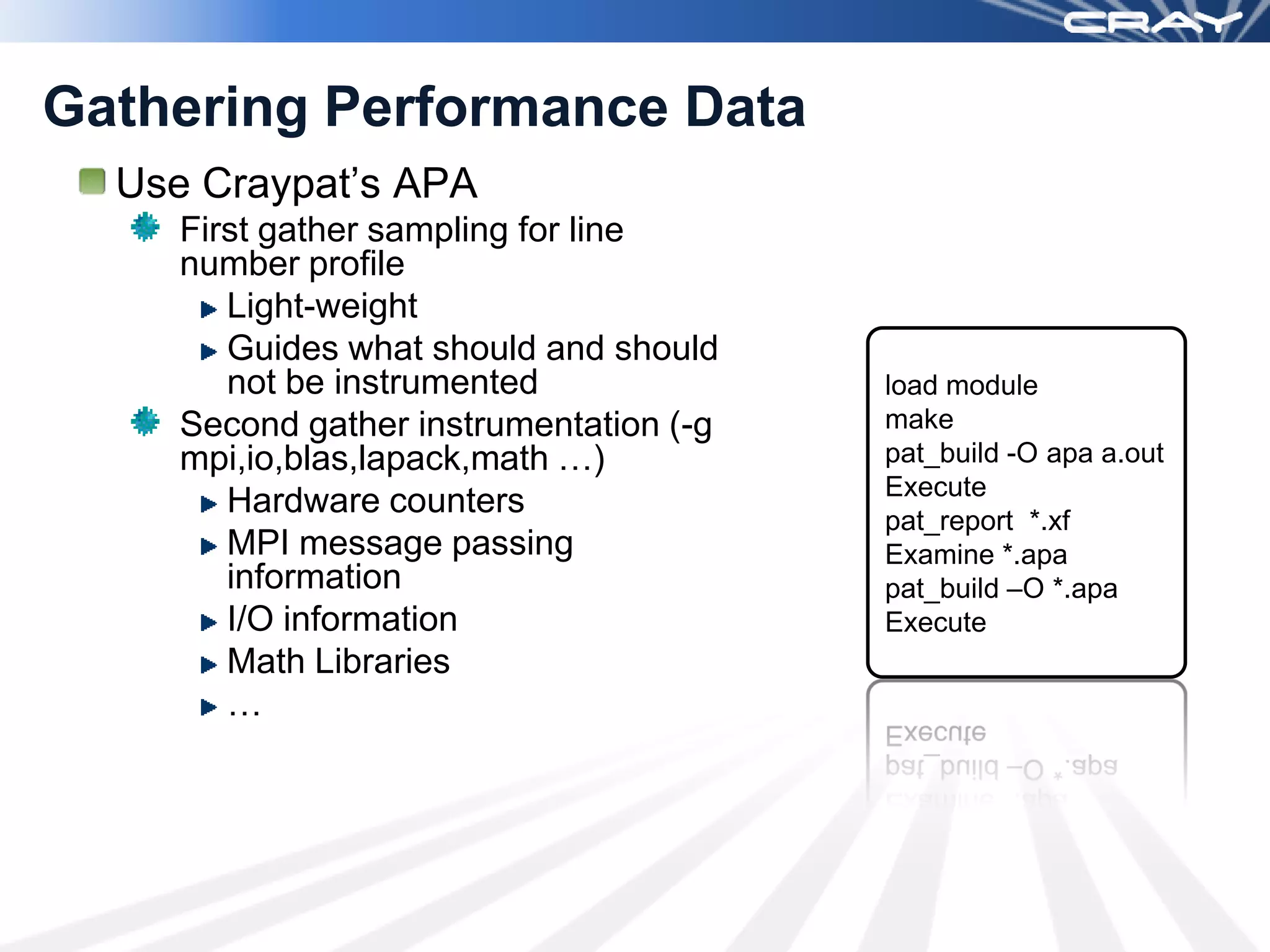

Gathering Performance Data Use Craypat’s APA First gather sampling for line number profile Light-weight Guides what should and should not be instrumented load module Second gather instrumentation (-g make mpi,io,blas,lapack,math …) pat_build -O apa a.out Execute Hardware counters pat_report *.xf MPI message passing Examine *.apa information pat_build –O *.apa I/O information Execute Math Libraries …

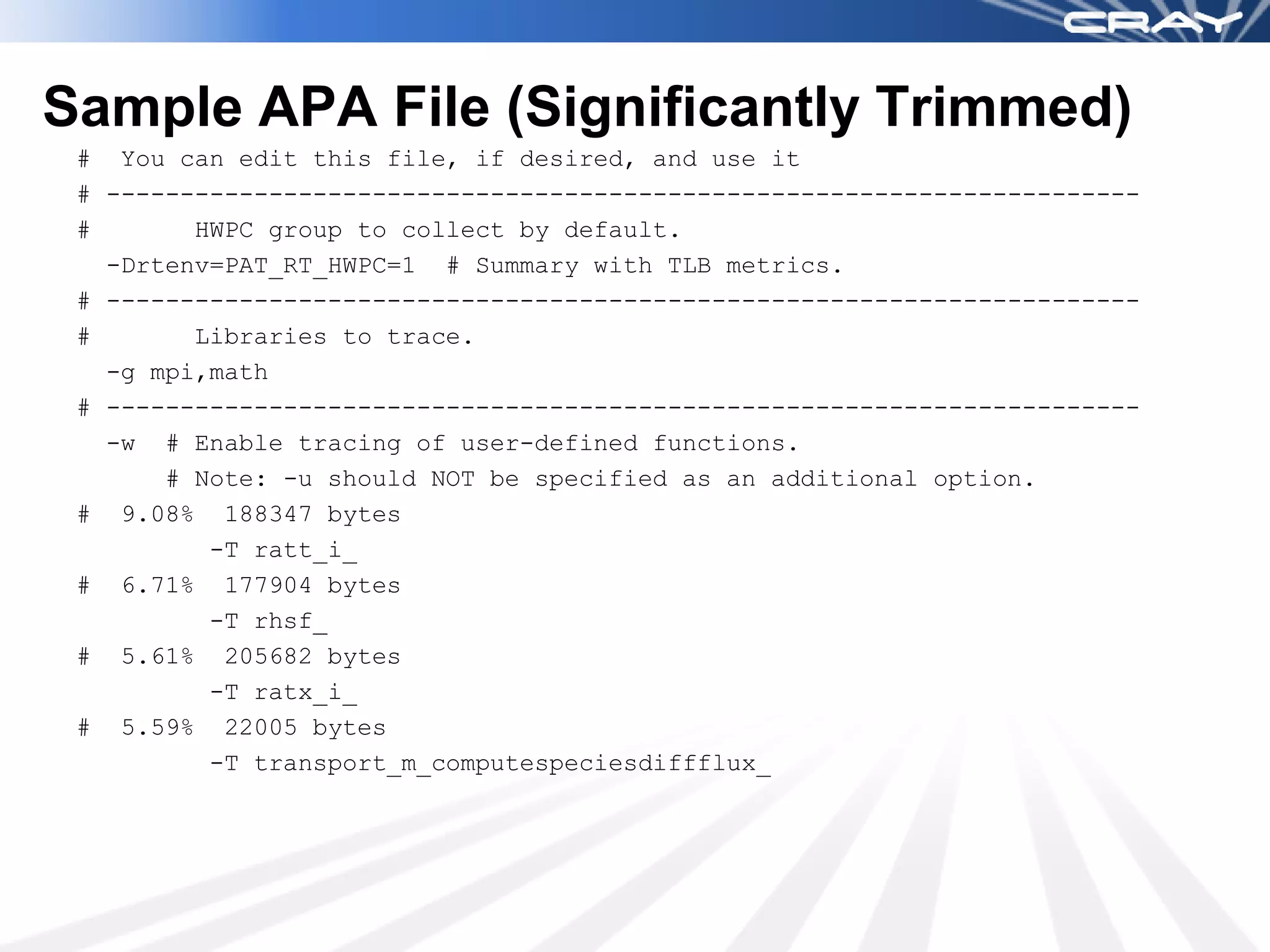

Sample APA File (Significantly Trimmed) # You can edit this file, if desired, and use it # ---------------------------------------------------------------------- # HWPC group to collect by default. -Drtenv=PAT_RT_HWPC=1 # Summary with TLB metrics. # ---------------------------------------------------------------------- # Libraries to trace. -g mpi,math # ---------------------------------------------------------------------- -w # Enable tracing of user-defined functions. # Note: -u should NOT be specified as an additional option. # 9.08% 188347 bytes -T ratt_i_ # 6.71% 177904 bytes -T rhsf_ # 5.61% 205682 bytes -T ratx_i_ # 5.59% 22005 bytes -T transport_m_computespeciesdiffflux_

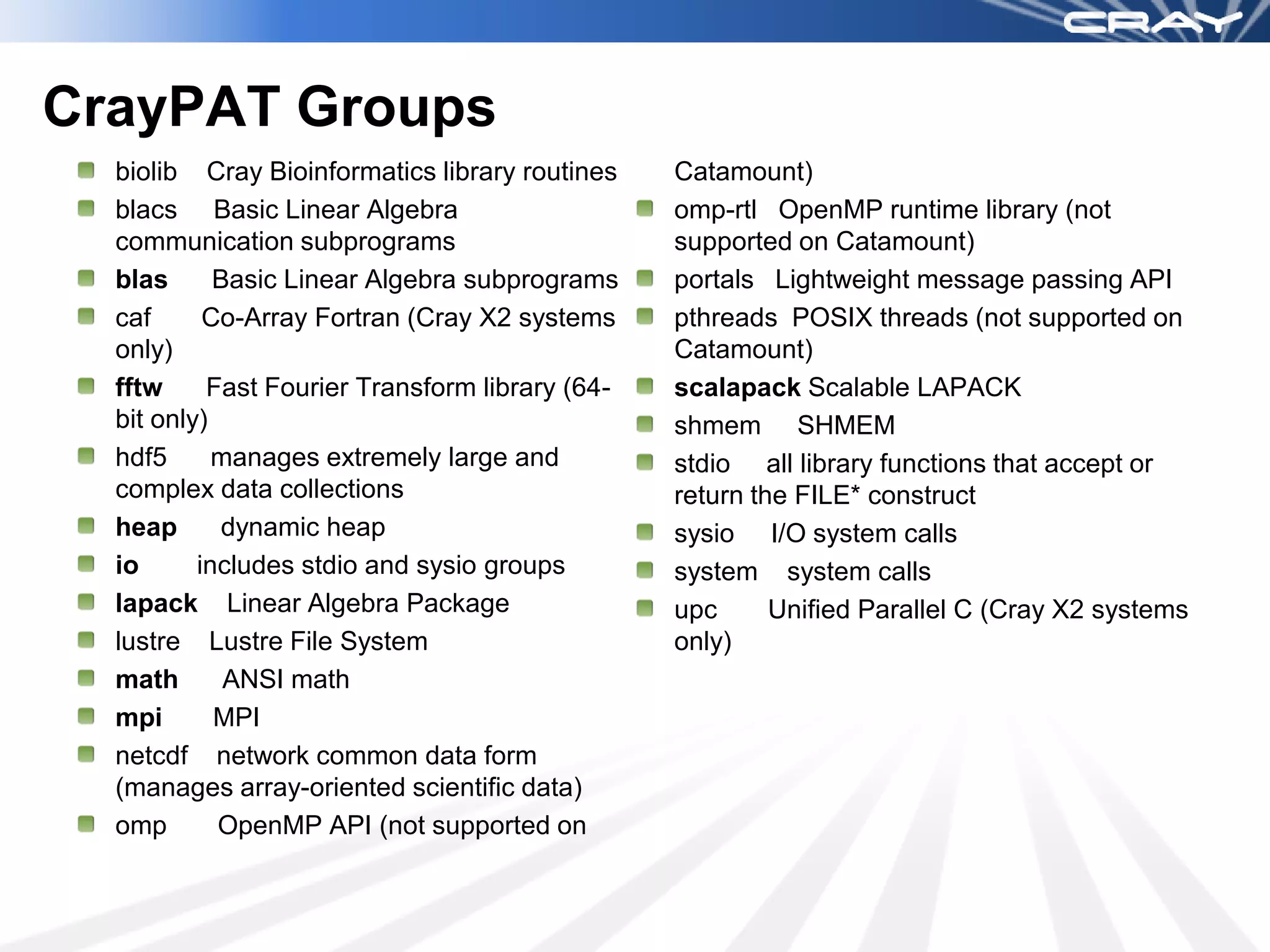

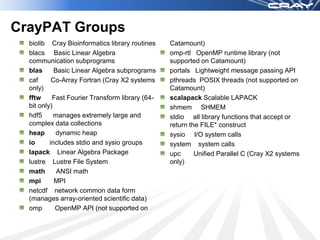

CrayPAT Groups biolib Cray Bioinformatics library routines Catamount) blacs Basic Linear Algebra omp-rtl OpenMP runtime library (not communication subprograms supported on Catamount) blas Basic Linear Algebra subprograms portals Lightweight message passing API caf Co-Array Fortran (Cray X2 systems pthreads POSIX threads (not supported on only) Catamount) fftw Fast Fourier Transform library (64- scalapack Scalable LAPACK bit only) shmem SHMEM hdf5 manages extremely large and stdio all library functions that accept or complex data collections return the FILE* construct heap dynamic heap sysio I/O system calls io includes stdio and sysio groups system system calls lapack Linear Algebra Package upc Unified Parallel C (Cray X2 systems lustre Lustre File System only) math ANSI math mpi MPI netcdf network common data form (manages array-oriented scientific data) omp OpenMP API (not supported on

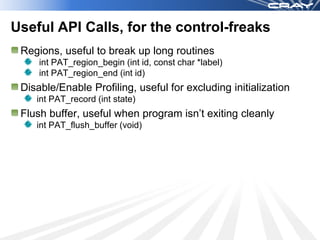

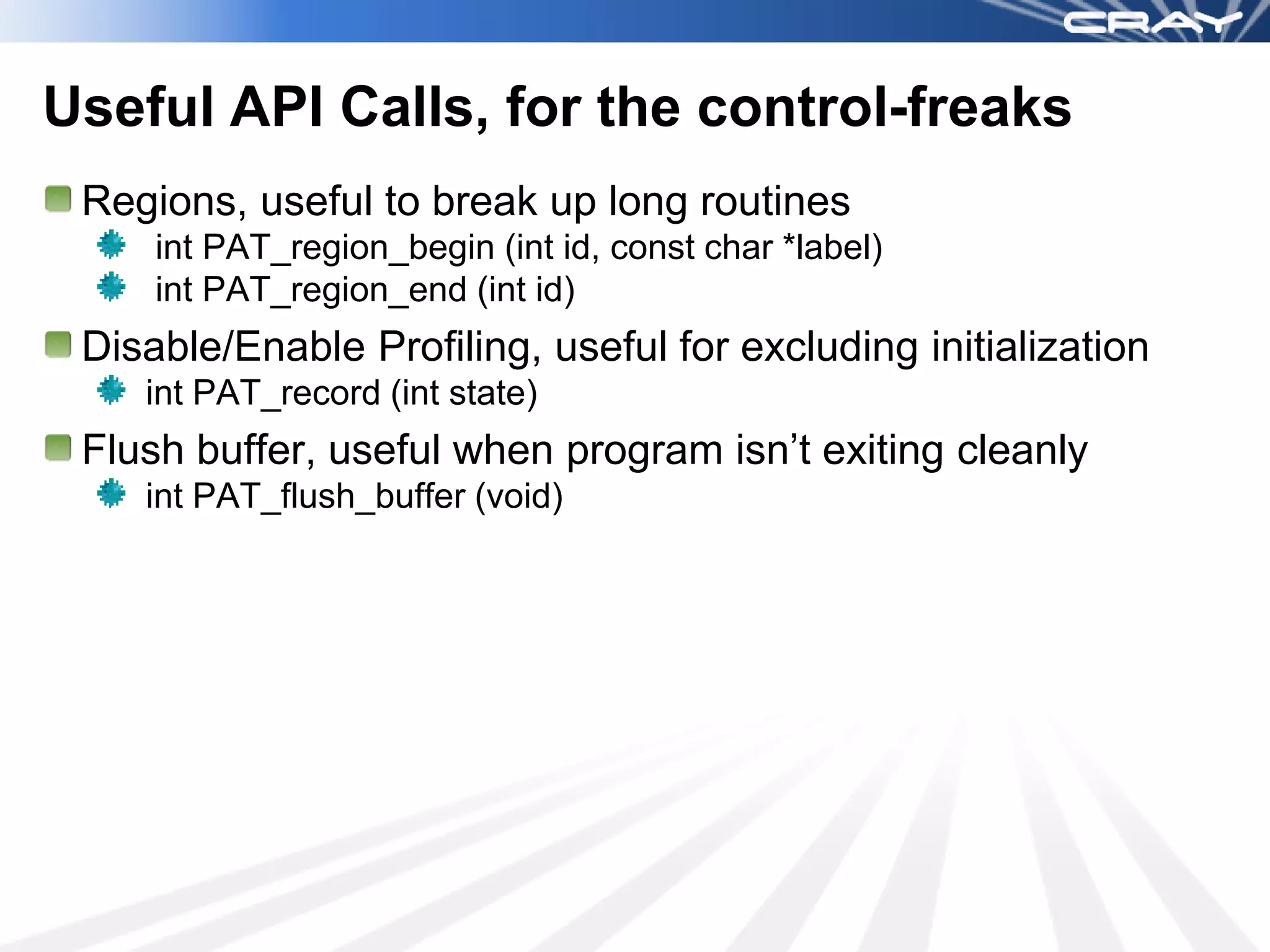

Useful API Calls, for the control-freaks Regions, useful to break up long routines int PAT_region_begin (int id, const char *label) int PAT_region_end (int id) Disable/Enable Profiling, useful for excluding initialization int PAT_record (int state) Flush buffer, useful when program isn’t exiting cleanly int PAT_flush_buffer (void)

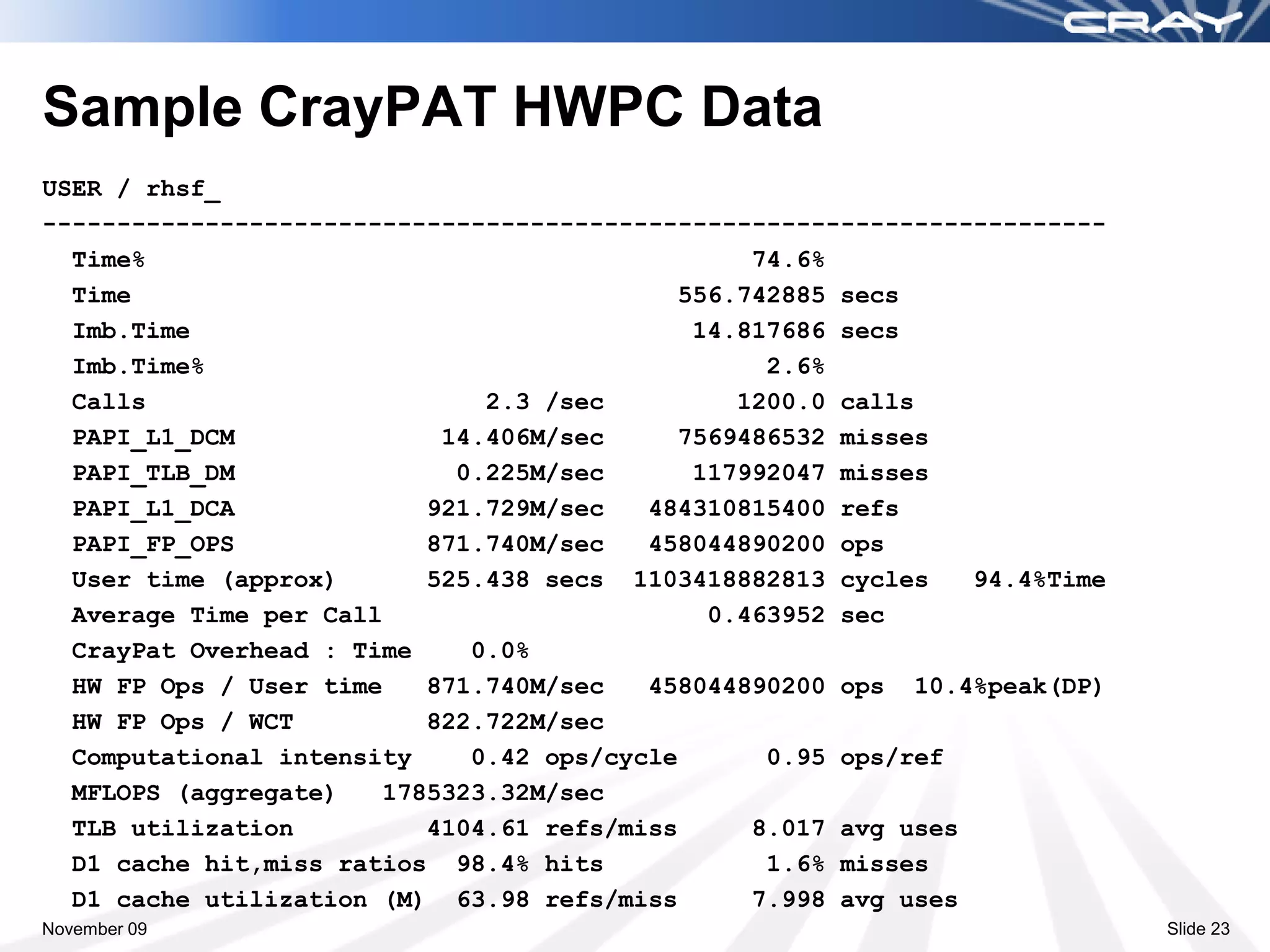

Sample CrayPAT HWPC Data USER / rhsf_ ------------------------------------------------------------------------ Time% 74.6% Time 556.742885 secs Imb.Time 14.817686 secs Imb.Time% 2.6% Calls 2.3 /sec 1200.0 calls PAPI_L1_DCM 14.406M/sec 7569486532 misses PAPI_TLB_DM 0.225M/sec 117992047 misses PAPI_L1_DCA 921.729M/sec 484310815400 refs PAPI_FP_OPS 871.740M/sec 458044890200 ops User time (approx) 525.438 secs 1103418882813 cycles 94.4%Time Average Time per Call 0.463952 sec CrayPat Overhead : Time 0.0% HW FP Ops / User time 871.740M/sec 458044890200 ops 10.4%peak(DP) HW FP Ops / WCT 822.722M/sec Computational intensity 0.42 ops/cycle 0.95 ops/ref MFLOPS (aggregate) 1785323.32M/sec TLB utilization 4104.61 refs/miss 8.017 avg uses D1 cache hit,miss ratios 98.4% hits 1.6% misses D1 cache utilization (M) 63.98 refs/miss 7.998 avg uses November 09 Slide 23

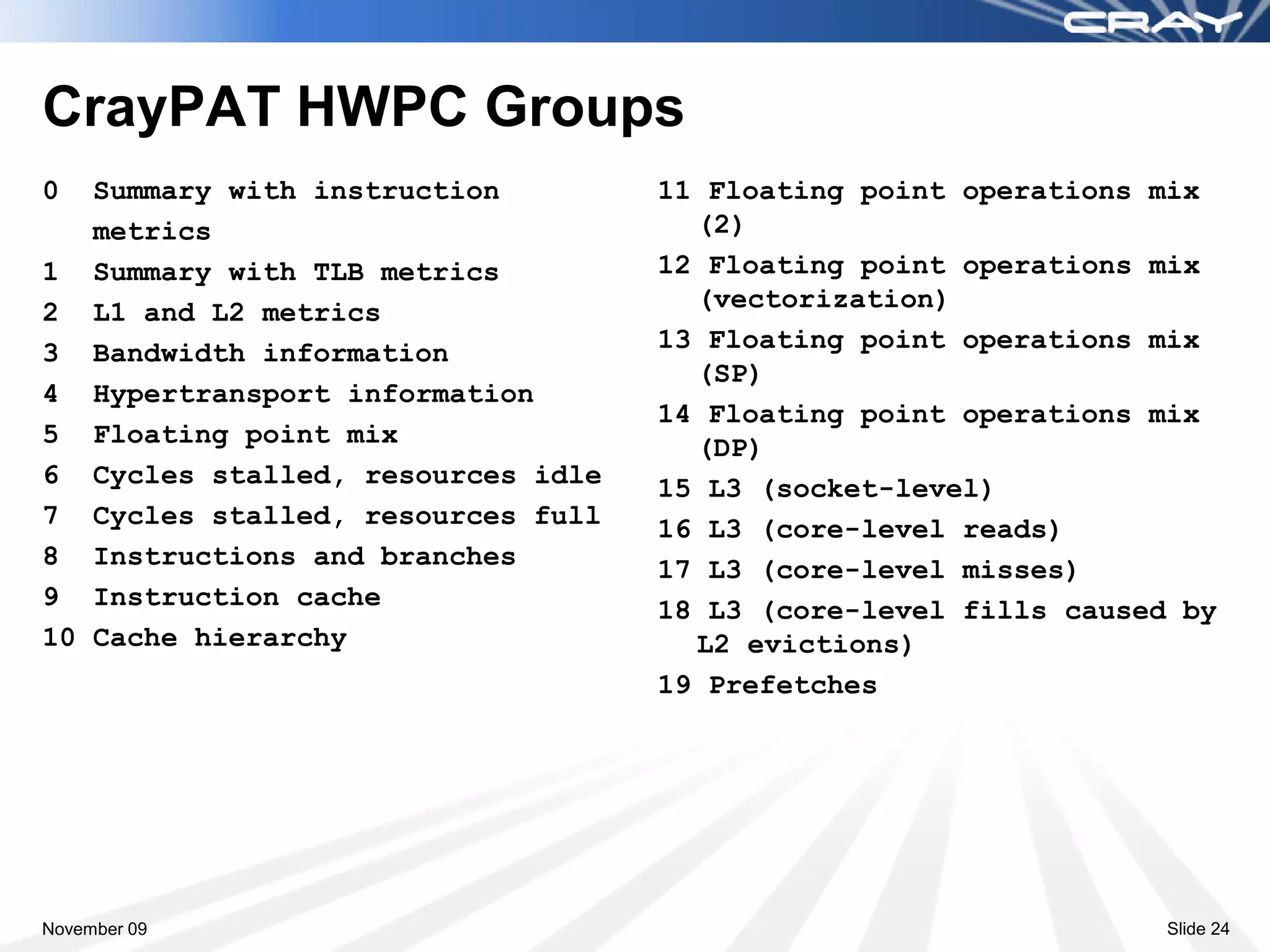

CrayPAT HWPC Groups 0 Summary with instruction 11 Floating point operations mix metrics (2) 1 Summary with TLB metrics 12 Floating point operations mix 2 L1 and L2 metrics (vectorization) 3 Bandwidth information 13 Floating point operations mix (SP) 4 Hypertransport information 14 Floating point operations mix 5 Floating point mix (DP) 6 Cycles stalled, resources idle 15 L3 (socket-level) 7 Cycles stalled, resources full 16 L3 (core-level reads) 8 Instructions and branches 17 L3 (core-level misses) 9 Instruction cache 18 L3 (core-level fills caused by 10 Cache hierarchy L2 evictions) 19 Prefetches November 09 Slide 24

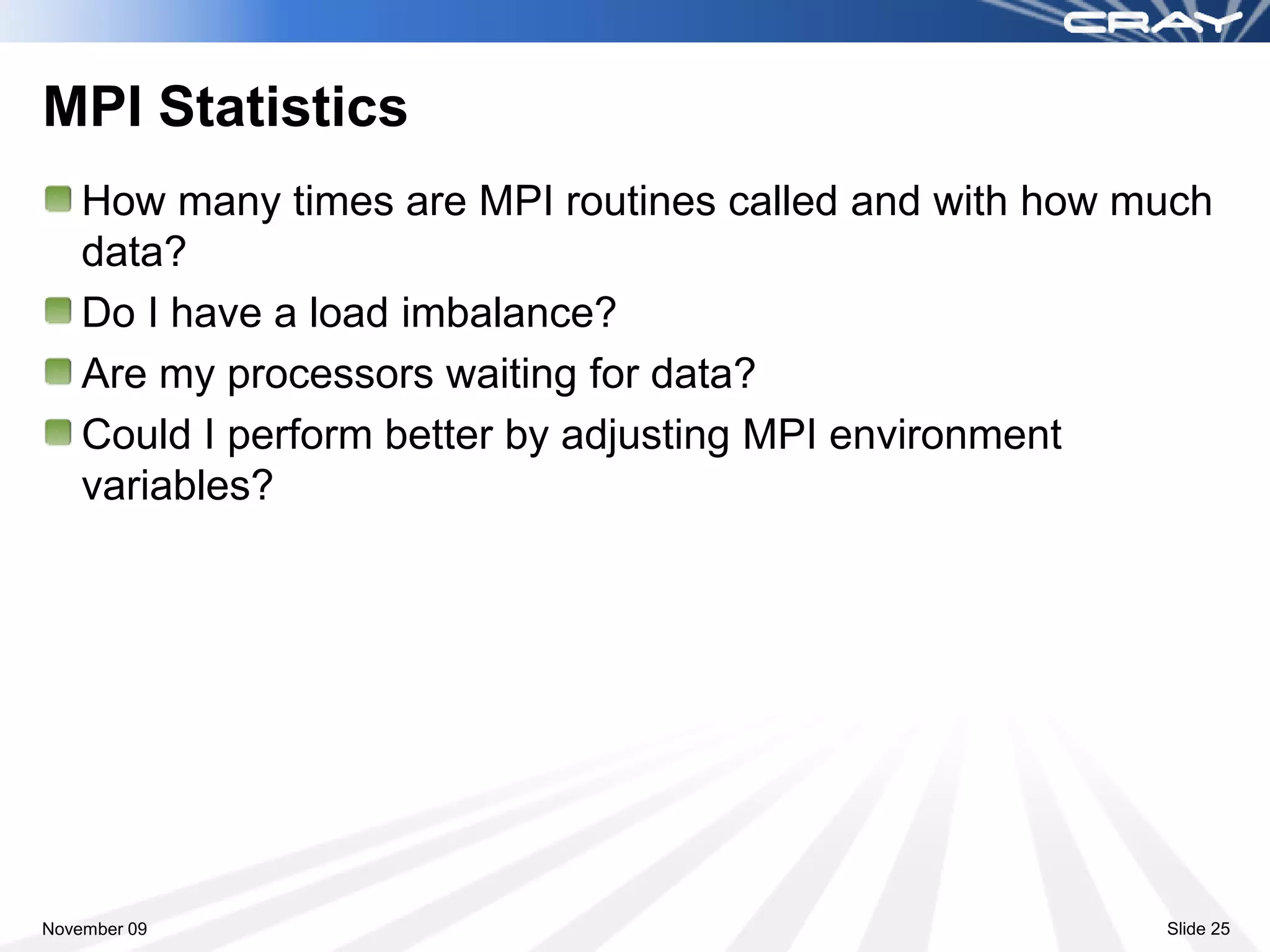

MPI Statistics How many times are MPI routines called and with how much data? Do I have a load imbalance? Are my processors waiting for data? Could I perform better by adjusting MPI environment variables? November 09 Slide 25

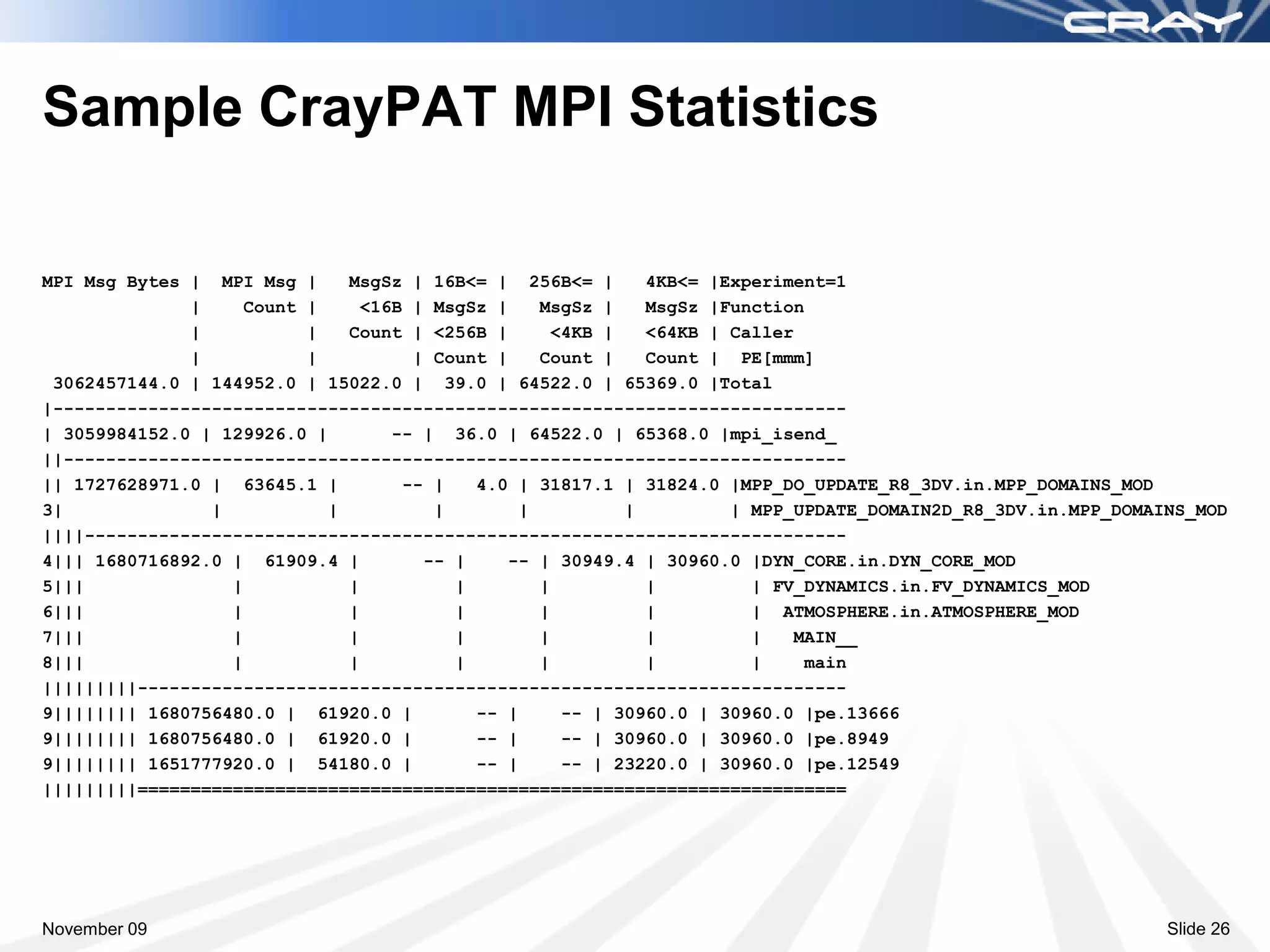

Sample CrayPAT MPI Statistics MPI Msg Bytes | MPI Msg | MsgSz | 16B<= | 256B<= | 4KB<= |Experiment=1 | Count | <16B | MsgSz | MsgSz | MsgSz |Function | | Count | <256B | <4KB | <64KB | Caller | | | Count | Count | Count | PE[mmm] 3062457144.0 | 144952.0 | 15022.0 | 39.0 | 64522.0 | 65369.0 |Total |--------------------------------------------------------------------------- | 3059984152.0 | 129926.0 | -- | 36.0 | 64522.0 | 65368.0 |mpi_isend_ ||-------------------------------------------------------------------------- || 1727628971.0 | 63645.1 | -- | 4.0 | 31817.1 | 31824.0 |MPP_DO_UPDATE_R8_3DV.in.MPP_DOMAINS_MOD 3| | | | | | | MPP_UPDATE_DOMAIN2D_R8_3DV.in.MPP_DOMAINS_MOD ||||------------------------------------------------------------------------ 4||| 1680716892.0 | 61909.4 | -- | -- | 30949.4 | 30960.0 |DYN_CORE.in.DYN_CORE_MOD 5||| | | | | | | FV_DYNAMICS.in.FV_DYNAMICS_MOD 6||| | | | | | | ATMOSPHERE.in.ATMOSPHERE_MOD 7||| | | | | | | MAIN__ 8||| | | | | | | main |||||||||------------------------------------------------------------------- 9|||||||| 1680756480.0 | 61920.0 | -- | -- | 30960.0 | 30960.0 |pe.13666 9|||||||| 1680756480.0 | 61920.0 | -- | -- | 30960.0 | 30960.0 |pe.8949 9|||||||| 1651777920.0 | 54180.0 | -- | -- | 23220.0 | 30960.0 |pe.12549 |||||||||=================================================================== November 09 Slide 26

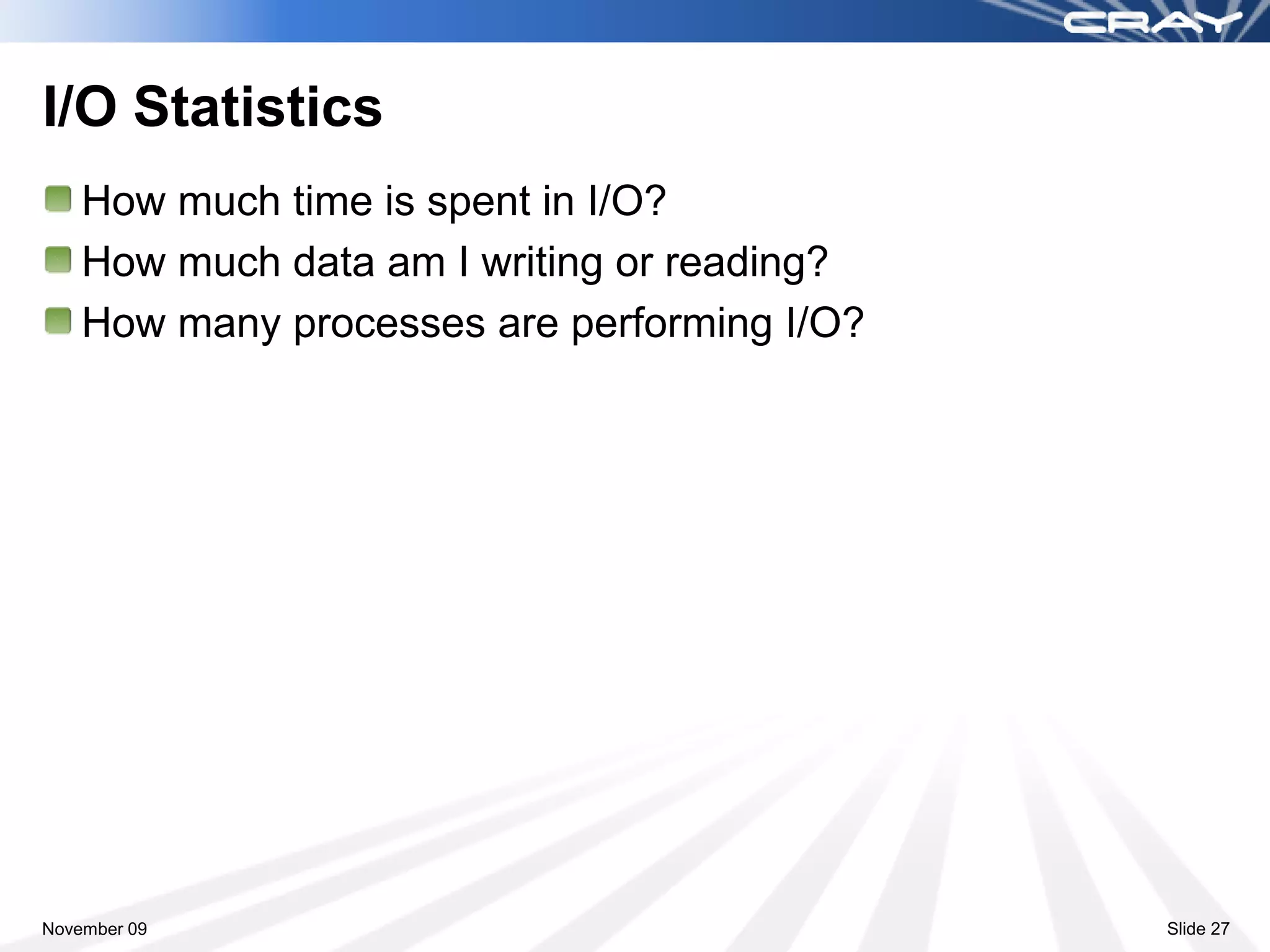

I/O Statistics How much time is spent in I/O? How much data am I writing or reading? How many processes are performing I/O? November 09 Slide 27

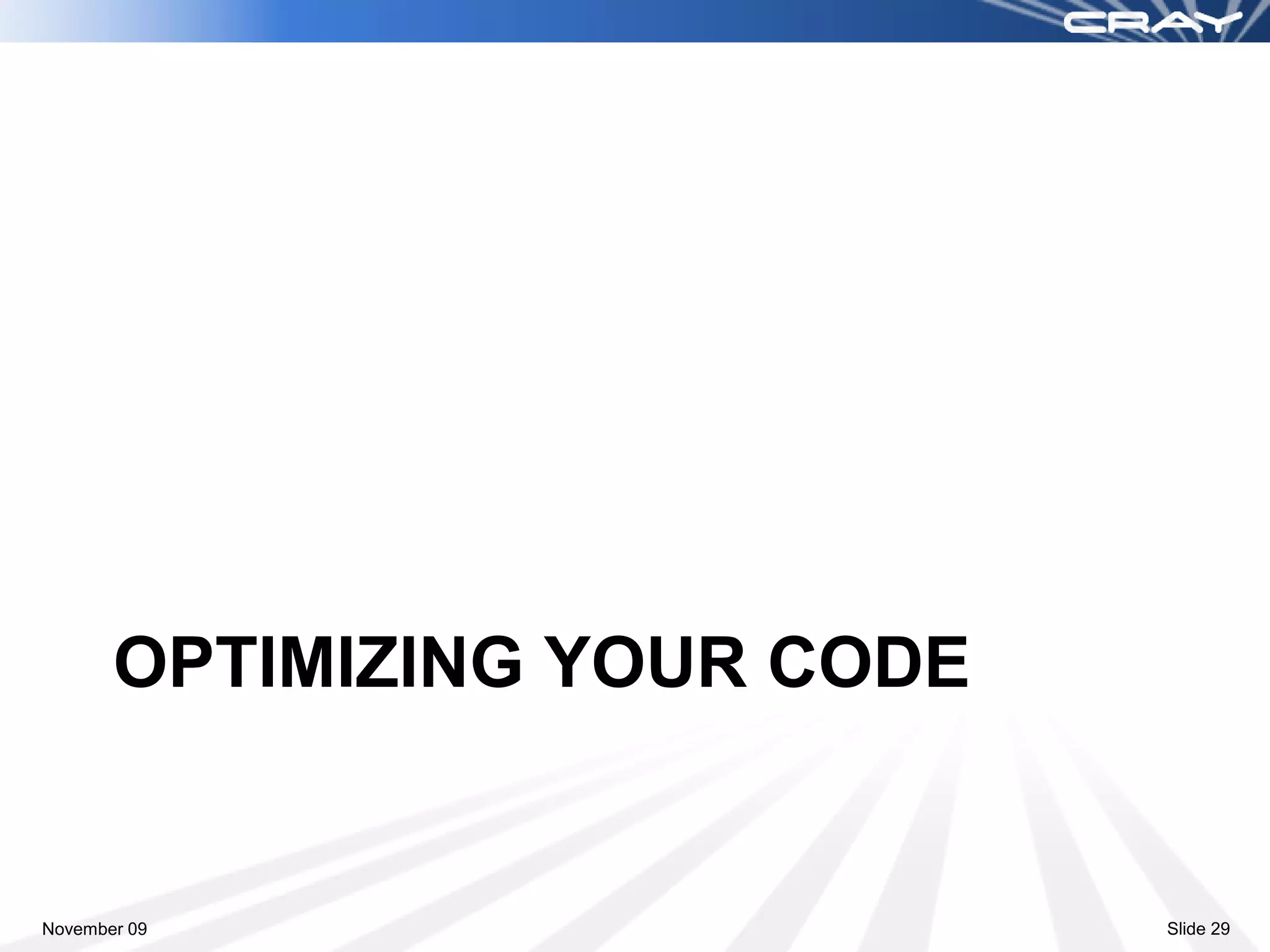

OPTIMIZING YOUR CODE November 09 Slide 29

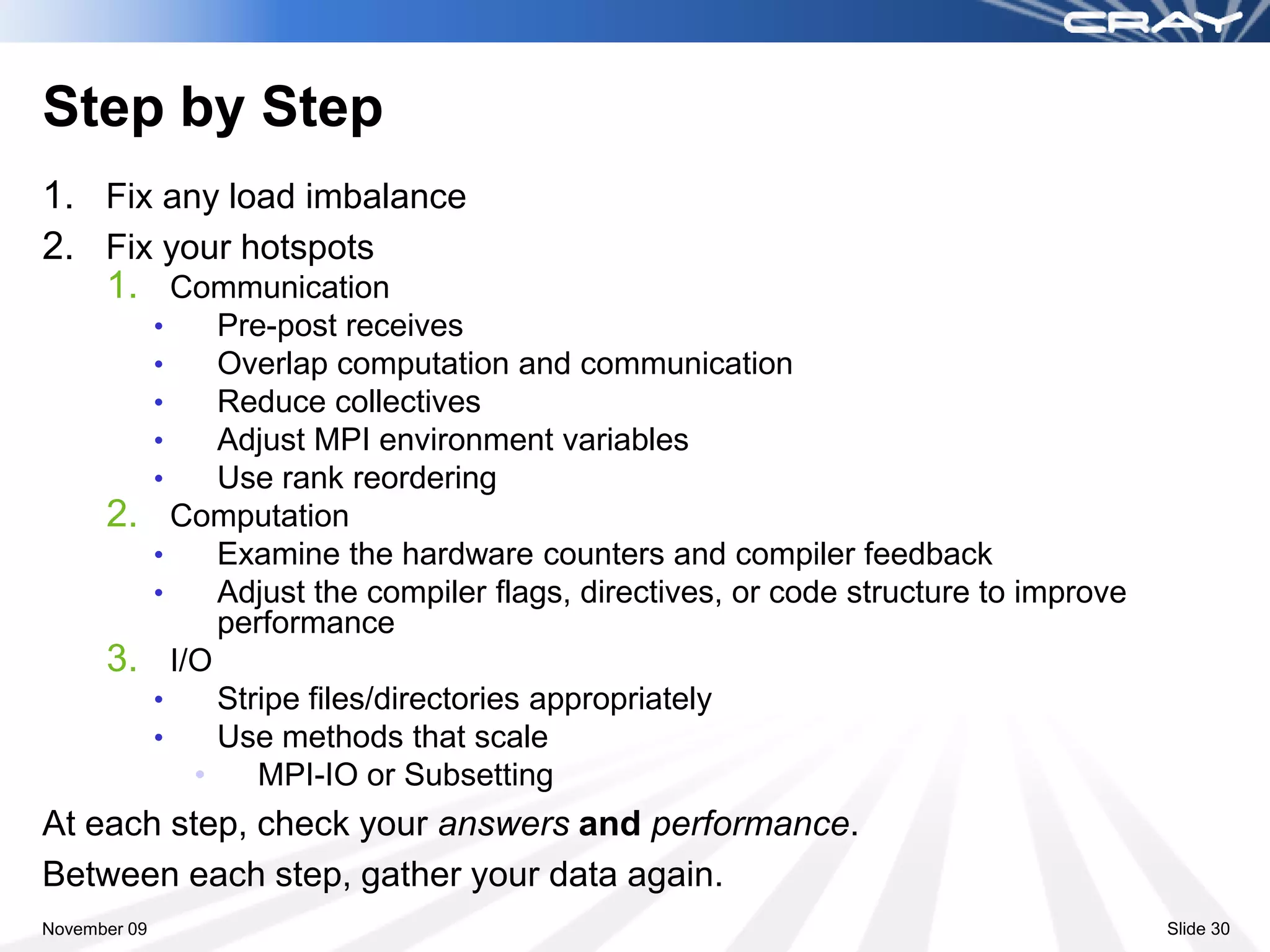

Step by Step 1. Fix any load imbalance 2. Fix your hotspots 1. Communication • Pre-post receives • Overlap computation and communication • Reduce collectives • Adjust MPI environment variables • Use rank reordering 2. Computation • Examine the hardware counters and compiler feedback • Adjust the compiler flags, directives, or code structure to improve performance 3. I/O • Stripe files/directories appropriately • Use methods that scale • MPI-IO or Subsetting At each step, check your answers and performance. Between each step, gather your data again. November 09 Slide 30

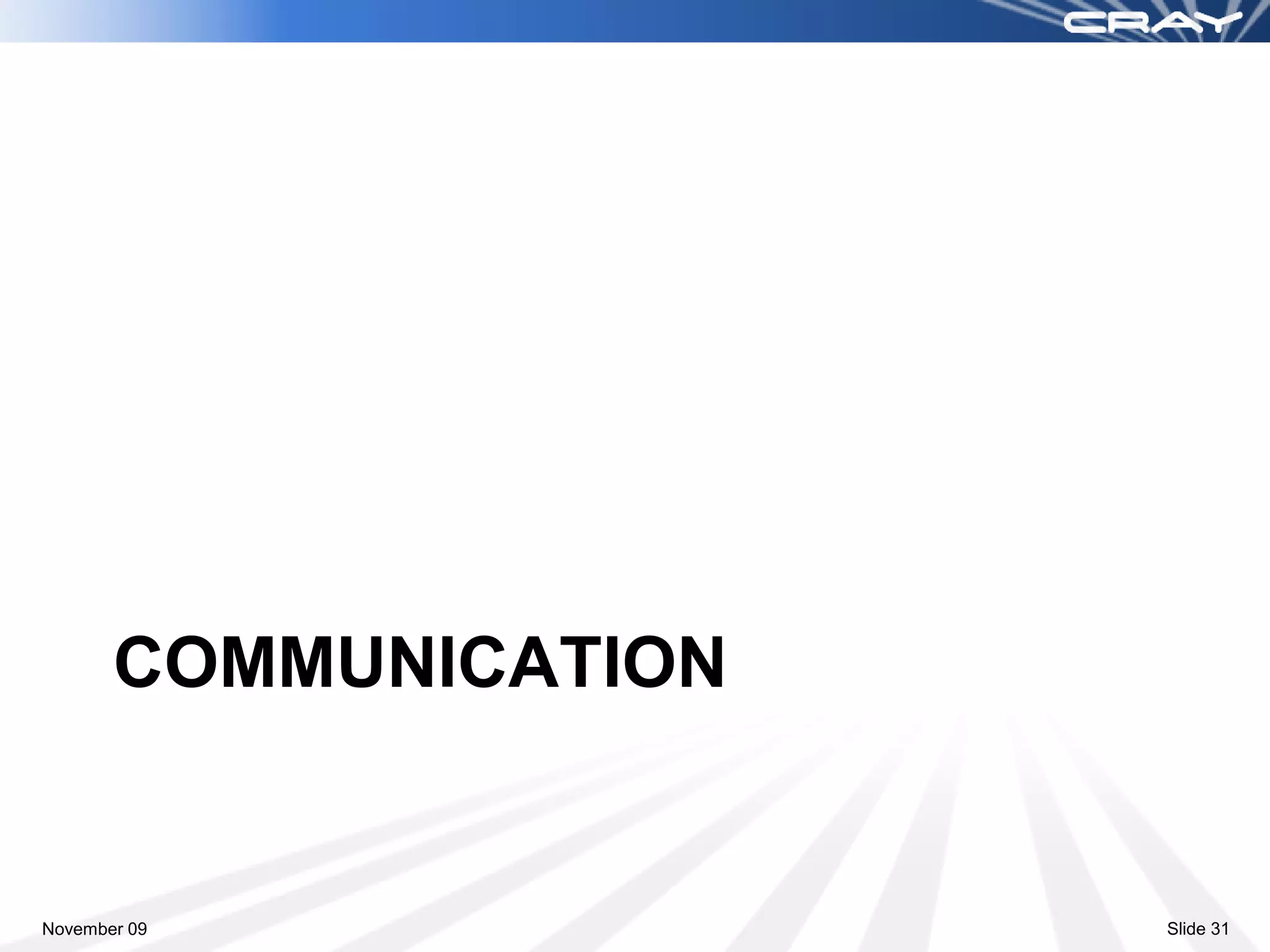

COMMUNICATION November 09 Slide 31

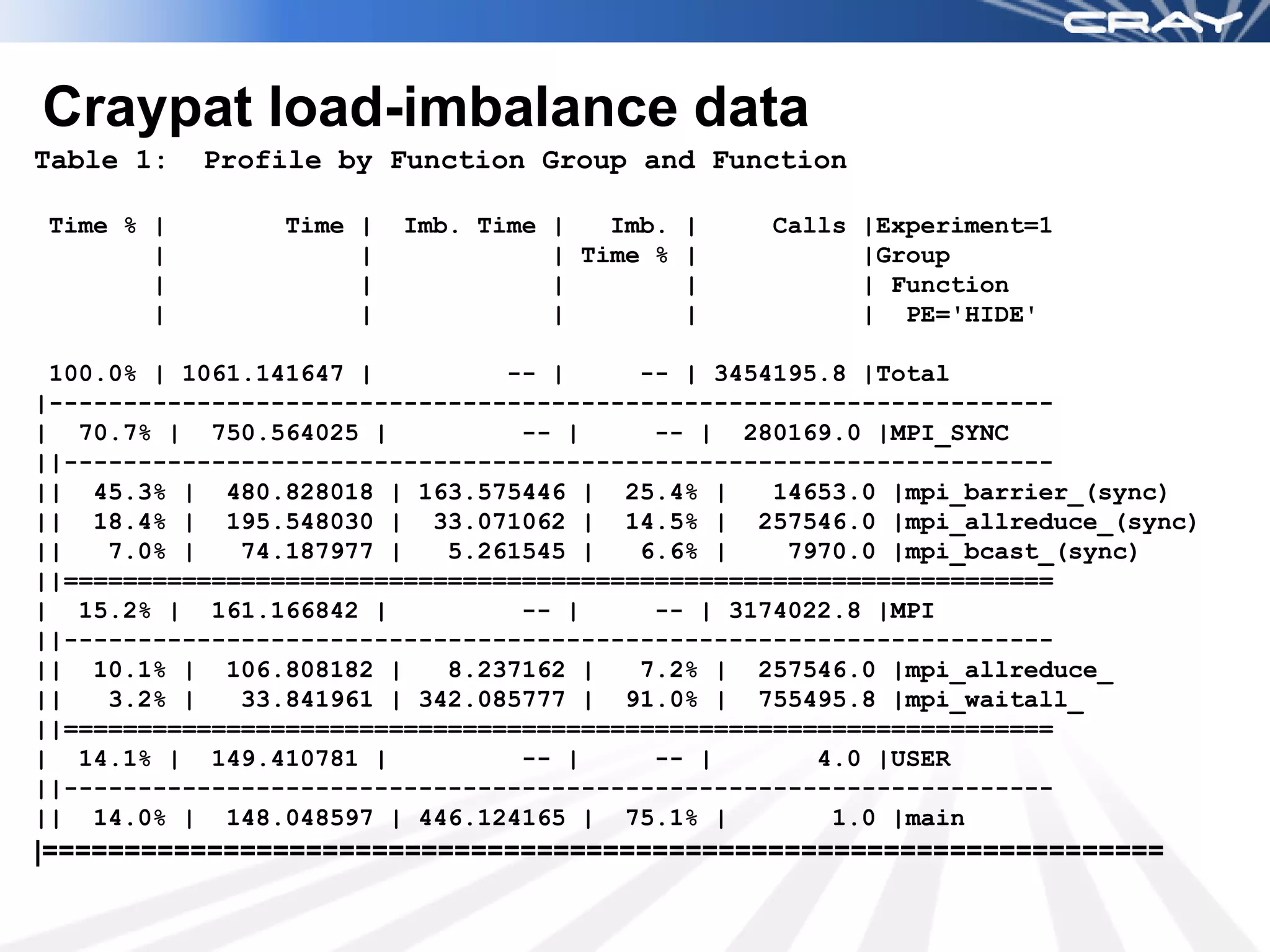

Craypat load-imbalance data Table 1: Profile by Function Group and Function Time % | Time | Imb. Time | Imb. | Calls |Experiment=1 | | | Time % | |Group | | | | | Function | | | | | PE='HIDE' 100.0% | 1061.141647 | -- | -- | 3454195.8 |Total |-------------------------------------------------------------------- | 70.7% | 750.564025 | -- | -- | 280169.0 |MPI_SYNC ||------------------------------------------------------------------- || 45.3% | 480.828018 | 163.575446 | 25.4% | 14653.0 |mpi_barrier_(sync) || 18.4% | 195.548030 | 33.071062 | 14.5% | 257546.0 |mpi_allreduce_(sync) || 7.0% | 74.187977 | 5.261545 | 6.6% | 7970.0 |mpi_bcast_(sync) ||=================================================================== | 15.2% | 161.166842 | -- | -- | 3174022.8 |MPI ||------------------------------------------------------------------- || 10.1% | 106.808182 | 8.237162 | 7.2% | 257546.0 |mpi_allreduce_ || 3.2% | 33.841961 | 342.085777 | 91.0% | 755495.8 |mpi_waitall_ ||=================================================================== | 14.1% | 149.410781 | -- | -- | 4.0 |USER ||------------------------------------------------------------------- || 14.0% | 148.048597 | 446.124165 | 75.1% | 1.0 |main |====================================================================

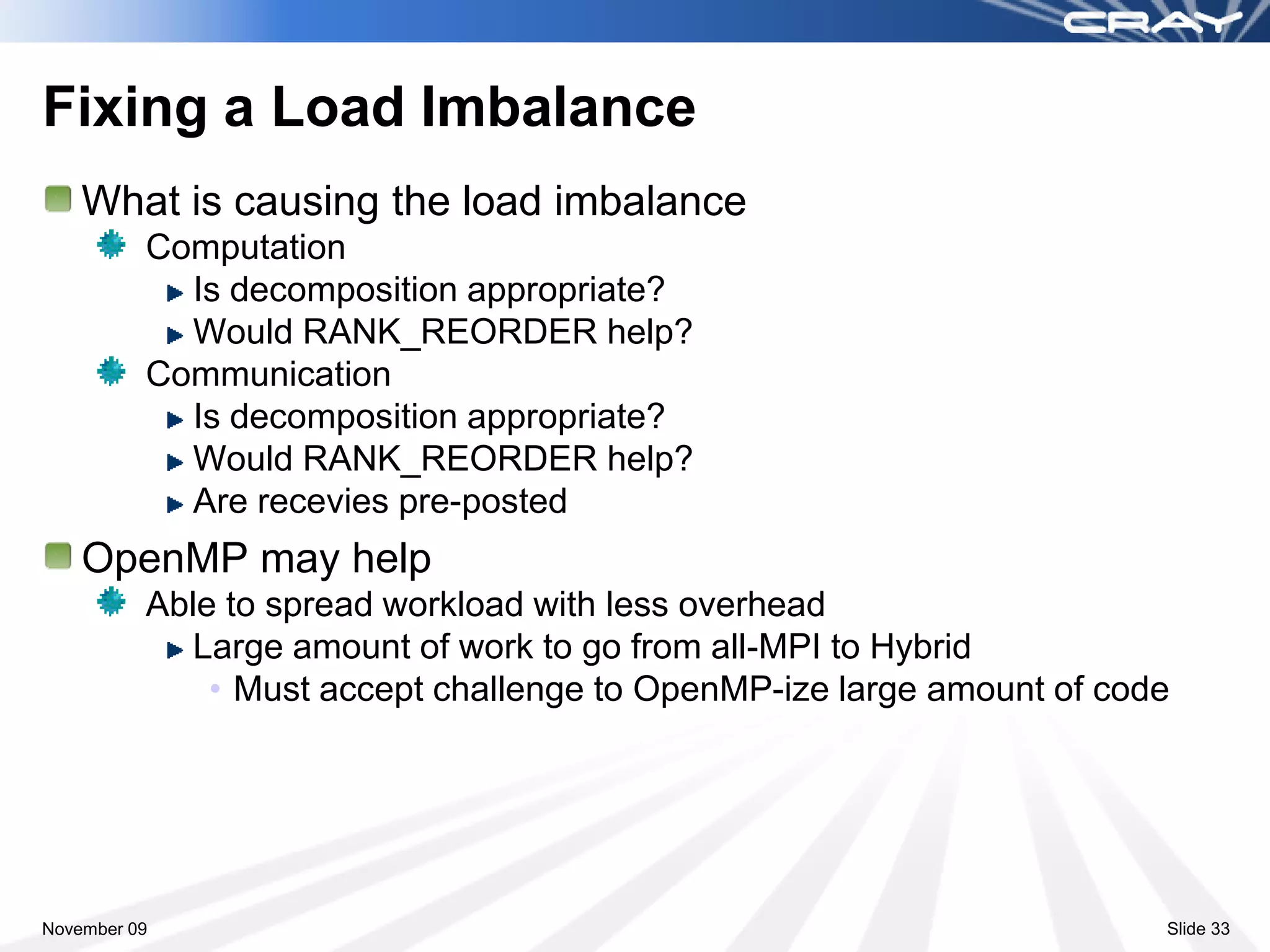

Fixing a Load Imbalance What is causing the load imbalance Computation Is decomposition appropriate? Would RANK_REORDER help? Communication Is decomposition appropriate? Would RANK_REORDER help? Are recevies pre-posted OpenMP may help Able to spread workload with less overhead Large amount of work to go from all-MPI to Hybrid • Must accept challenge to OpenMP-ize large amount of code November 09 Slide 33

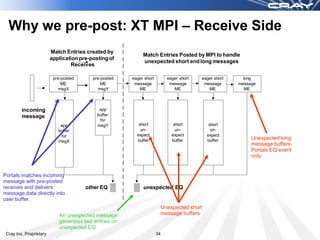

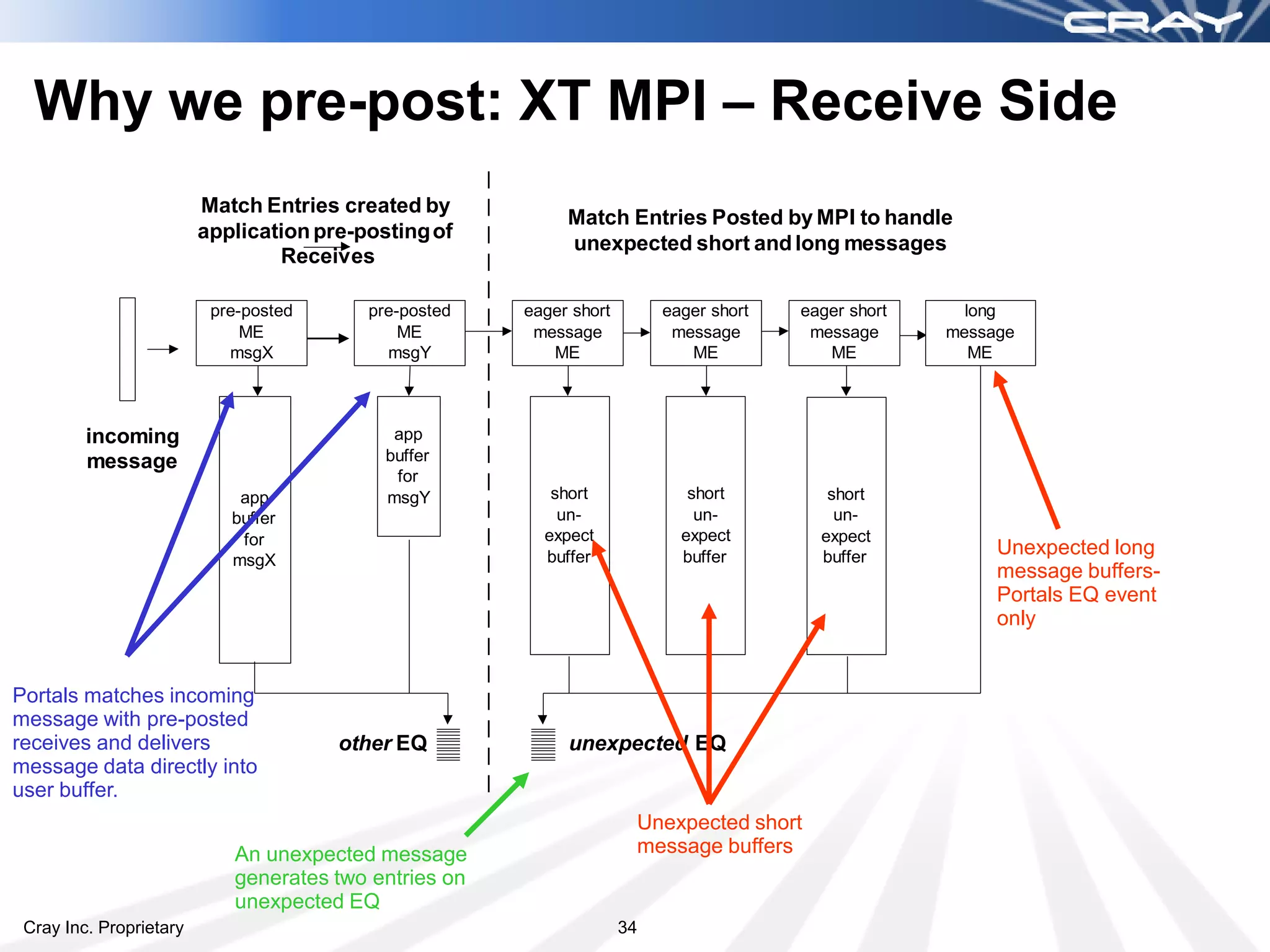

Why we pre-post: XT MPI – Receive Side Match Entries created by Match Entries Posted by MPI to handle application pre-posting of unexpected short and long messages Receives pre-posted pre-posted eager short eager short eager short long ME ME message message message message msgX msgY ME ME ME ME incoming app message buffer for app msgY short short short buffer un- un- un- for expect expect expect buffer buffer buffer Unexpected long msgX message buffers- Portals EQ event only Portals matches incoming message with pre-posted receives and delivers other EQ unexpected EQ message data directly into user buffer. Unexpected short An unexpected message message buffers generates two entries on unexpected EQ Cray Inc. Proprietary 34

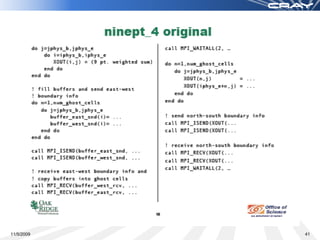

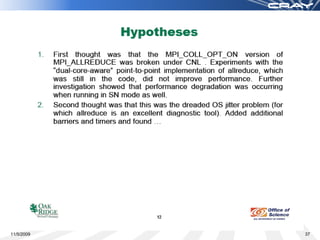

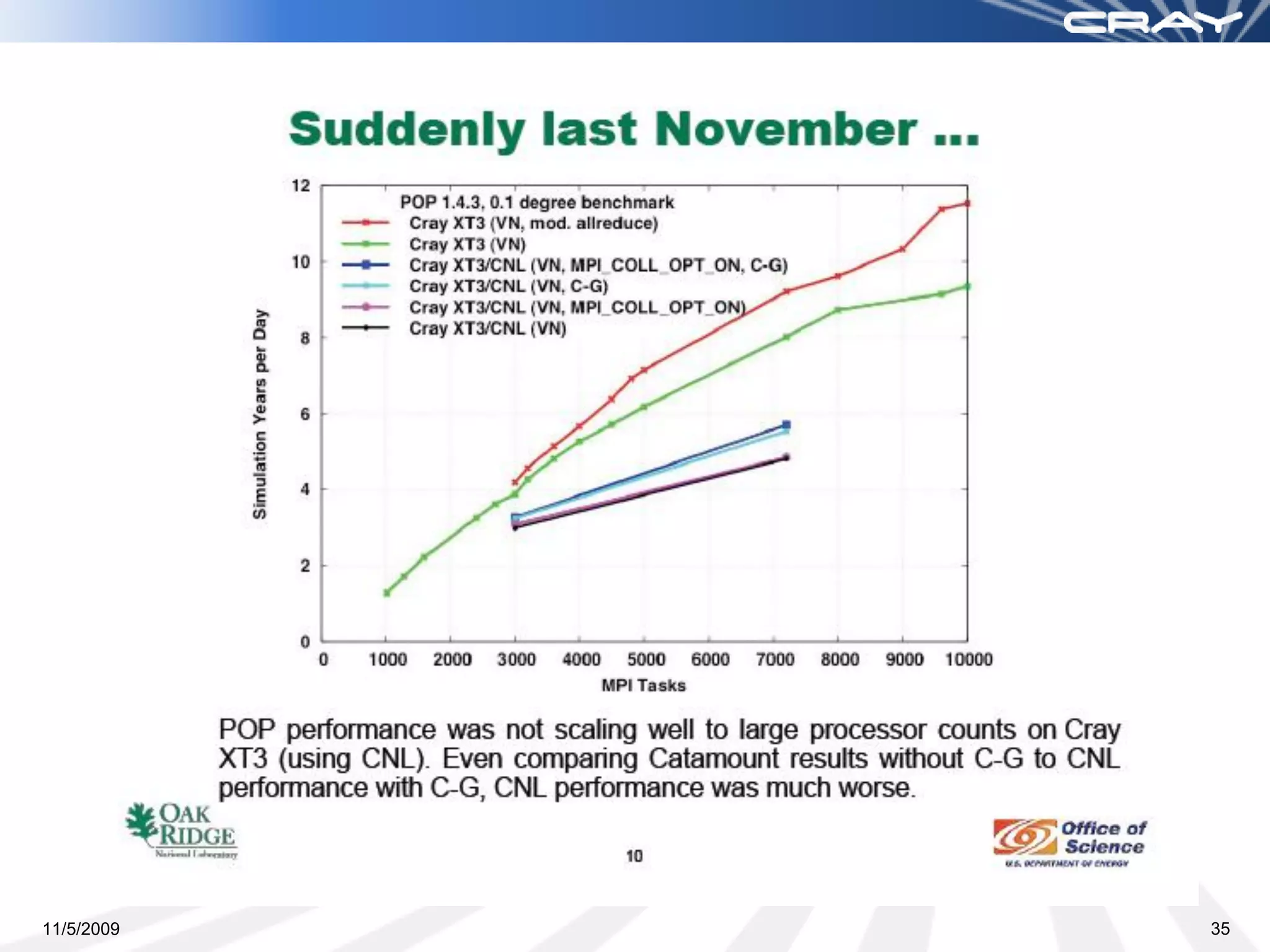

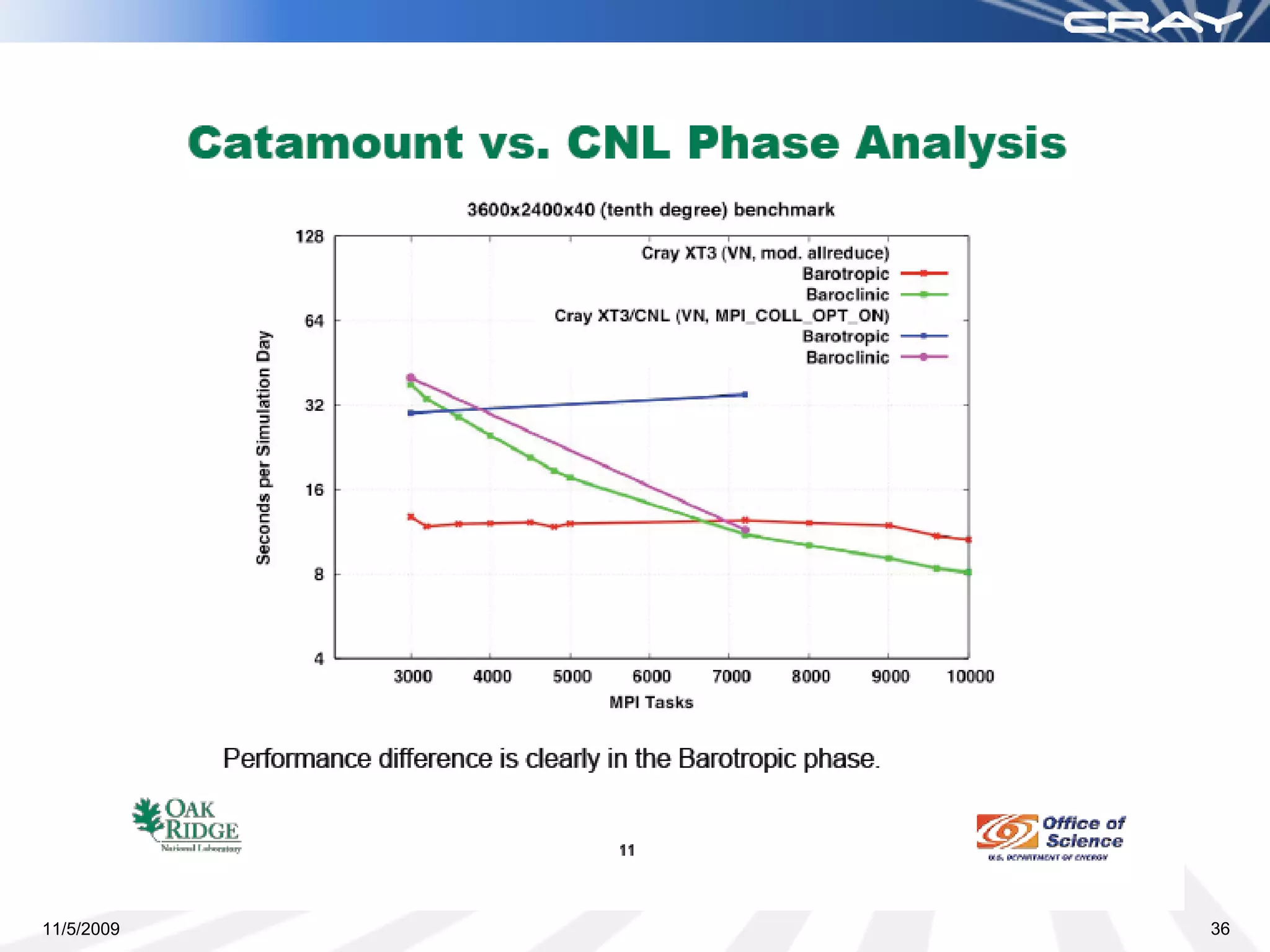

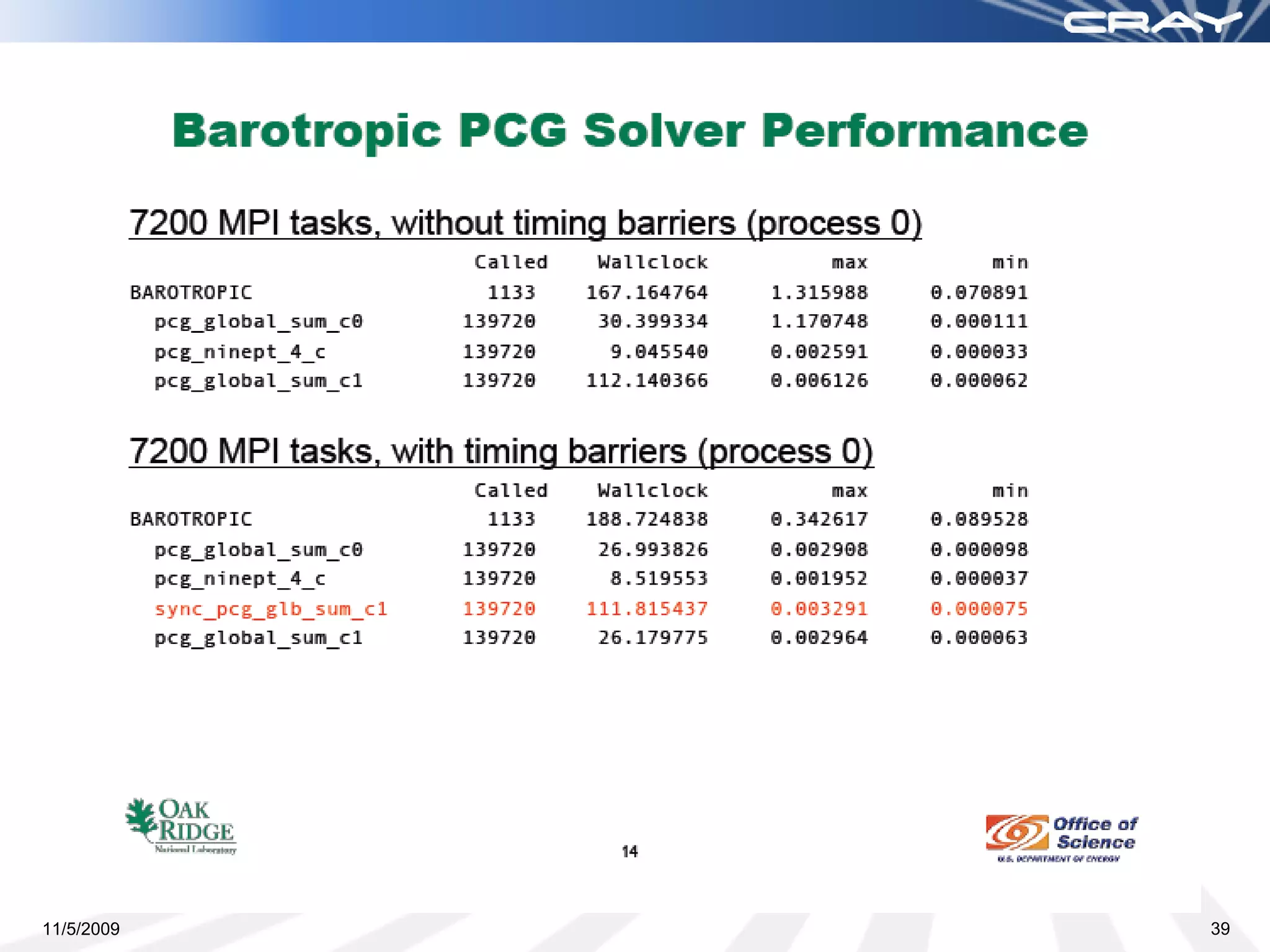

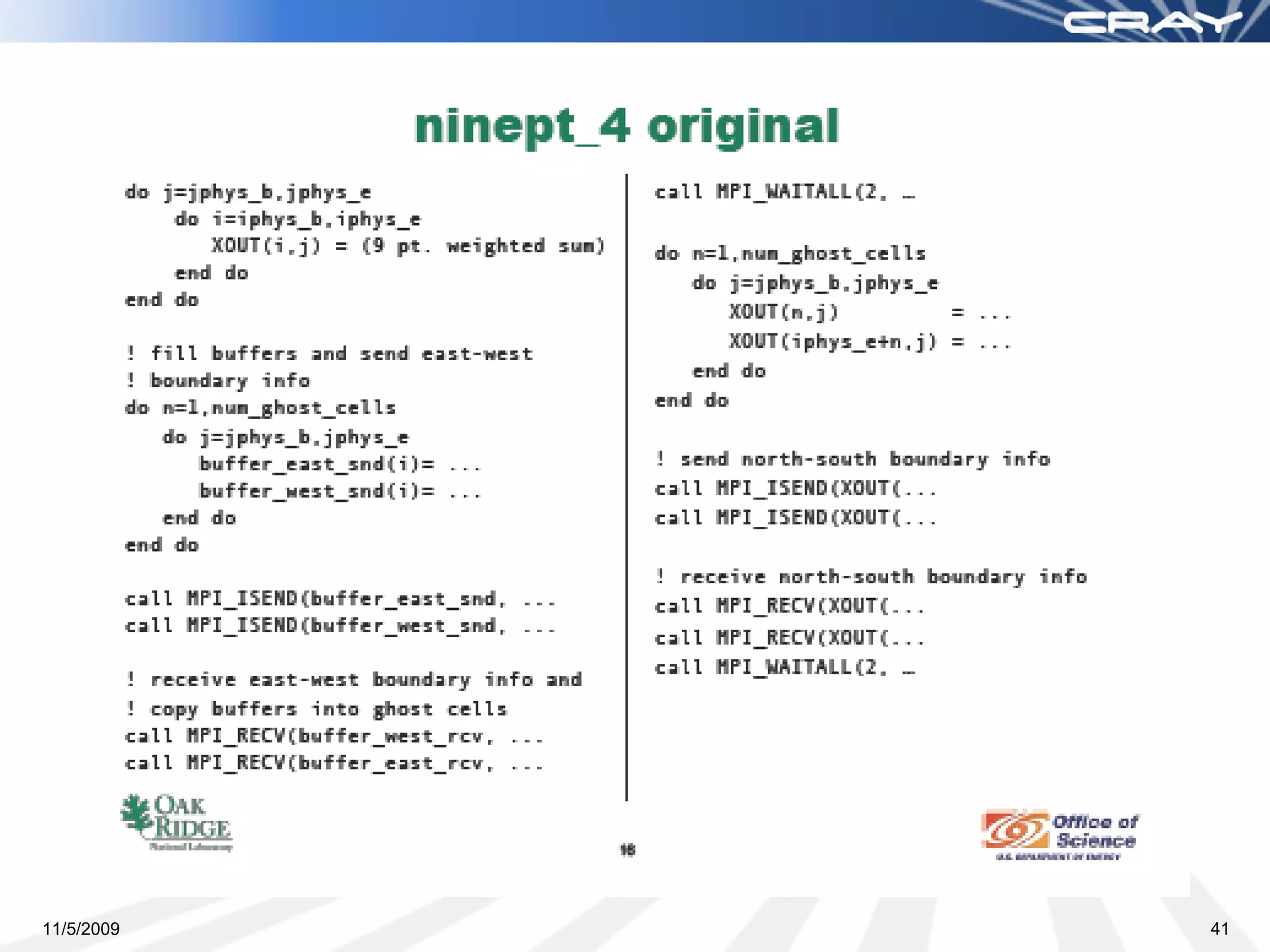

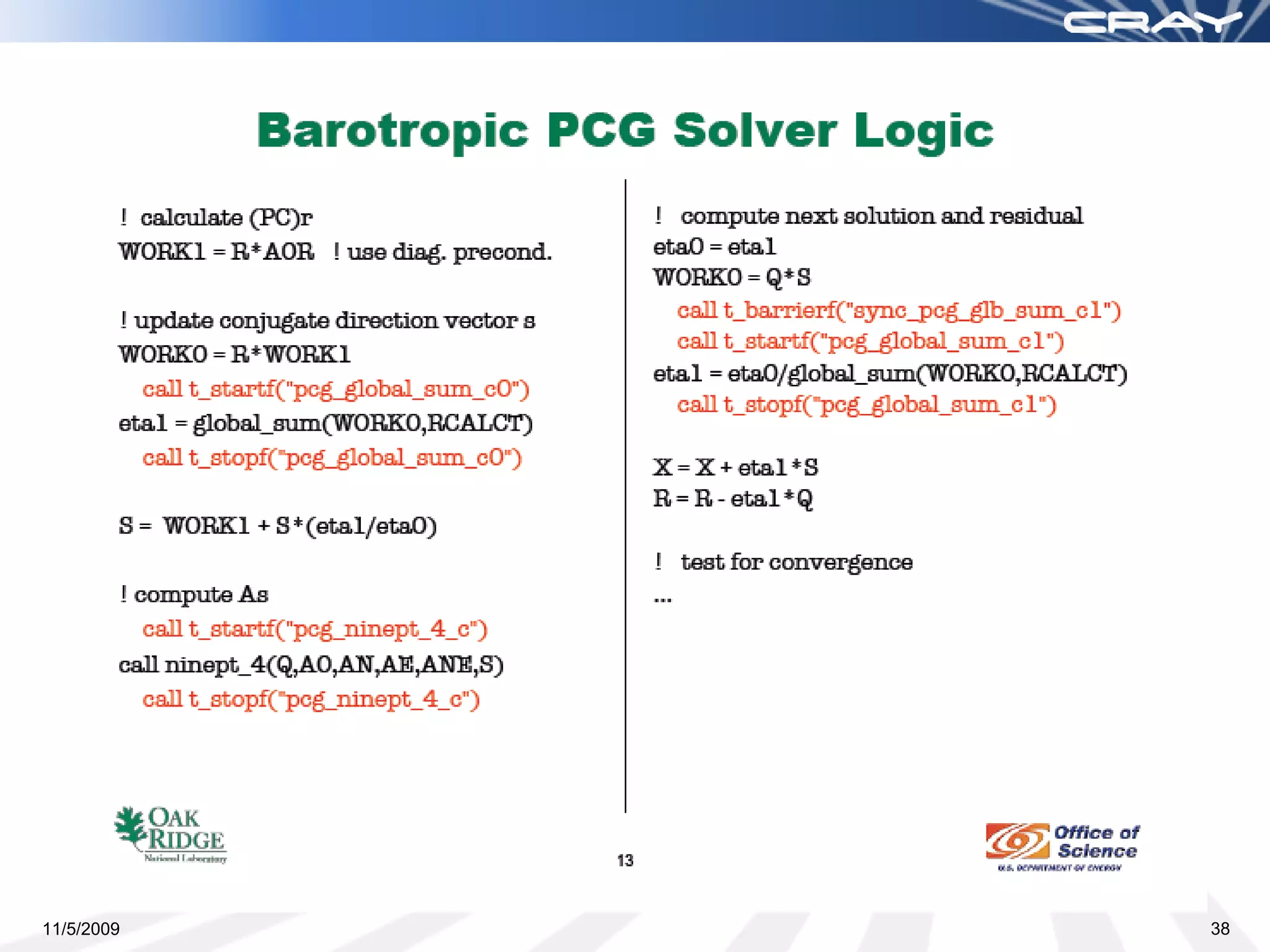

11/5/2009 35

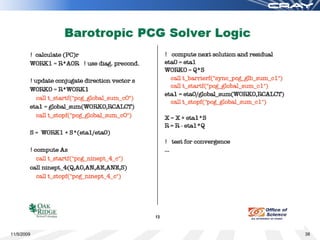

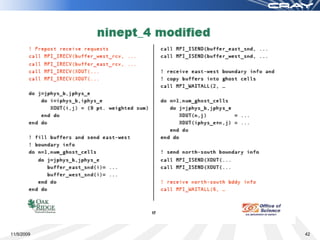

11/5/2009 36

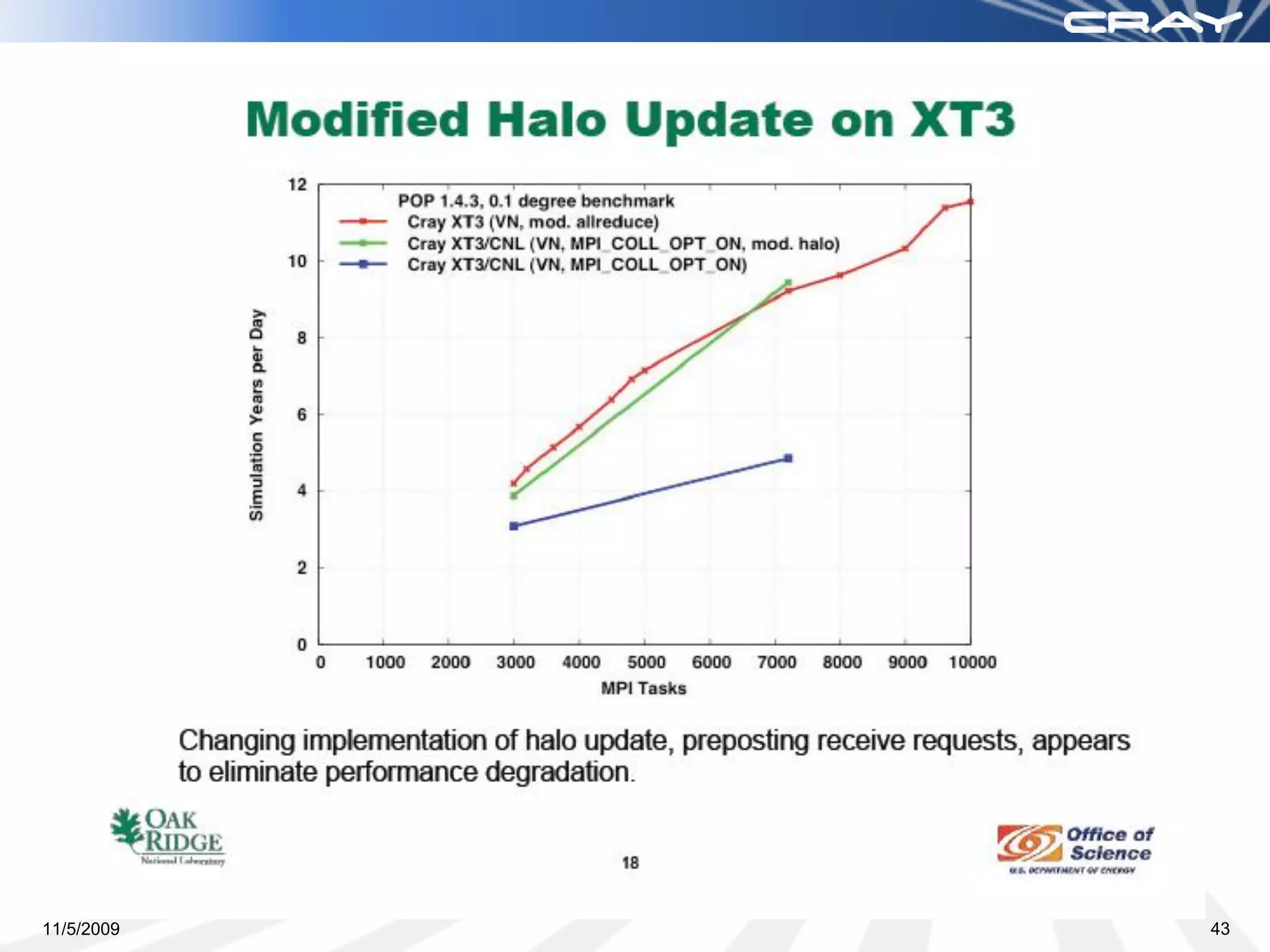

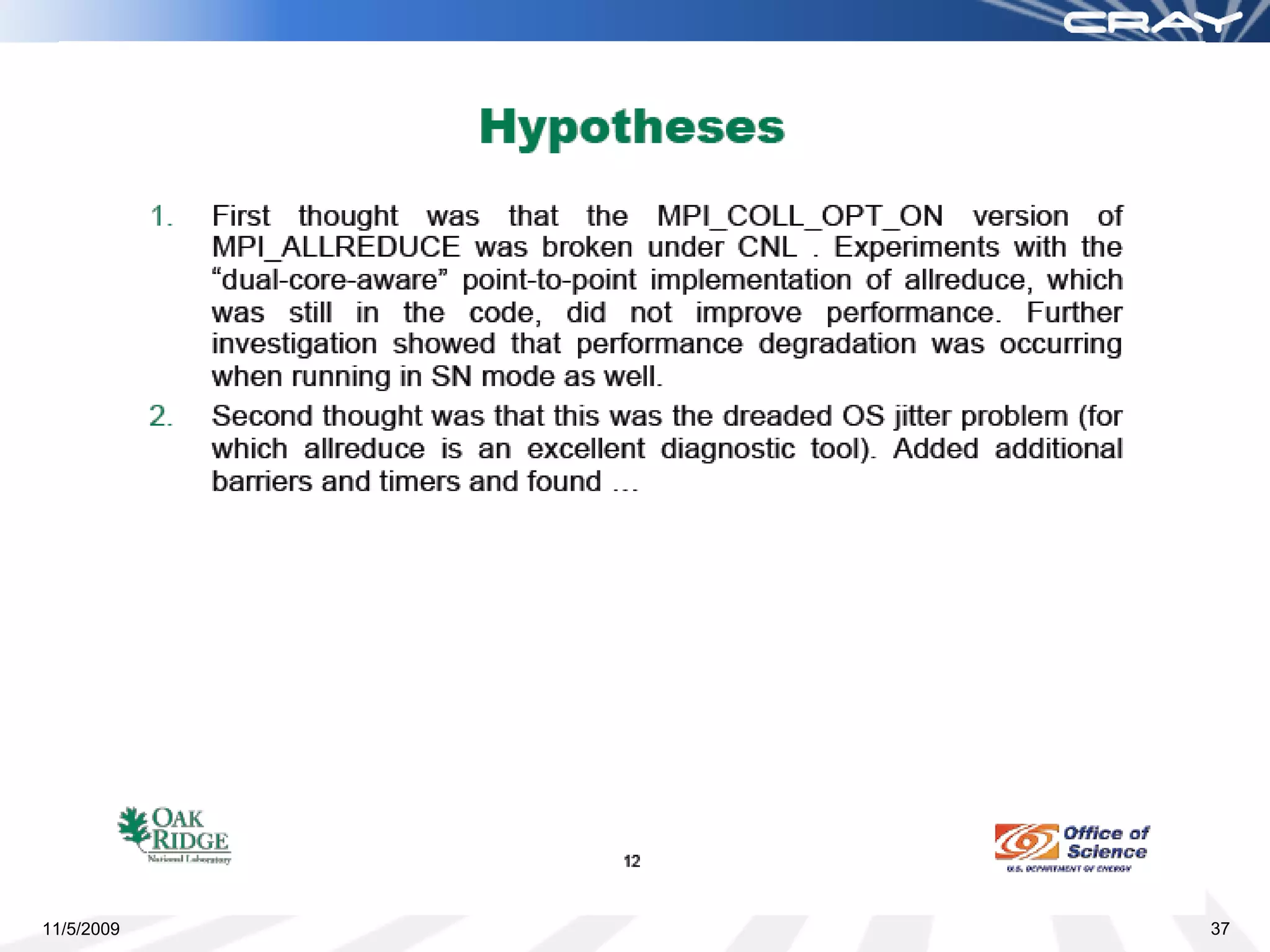

11/5/2009 37
11/5/2009 38

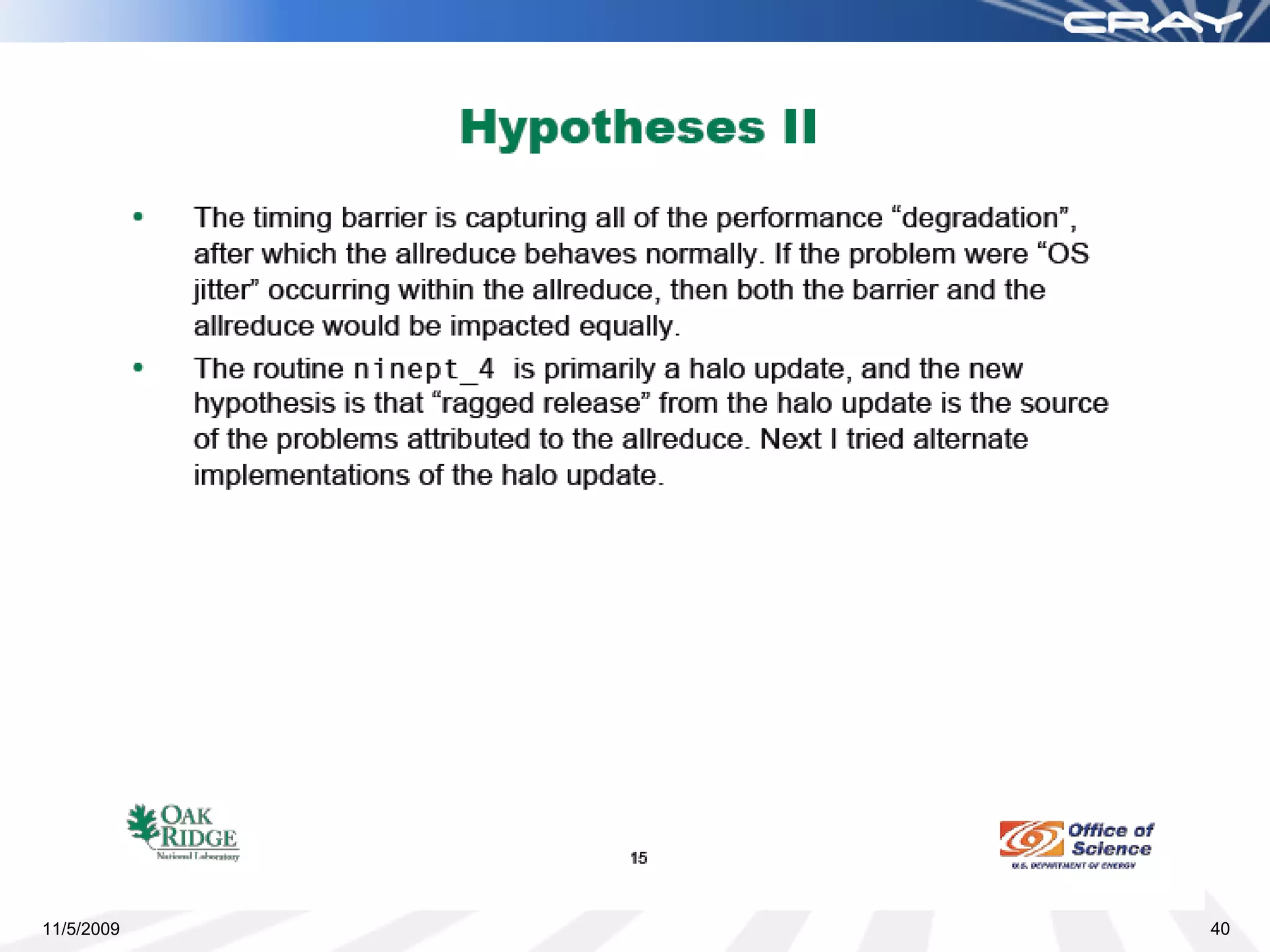

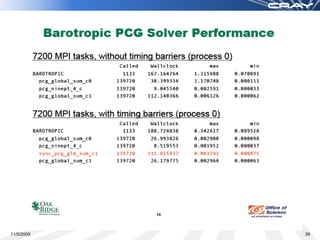

11/5/2009 39
11/5/2009 40

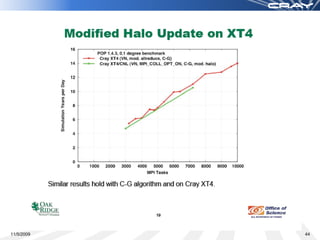

11/5/2009 41

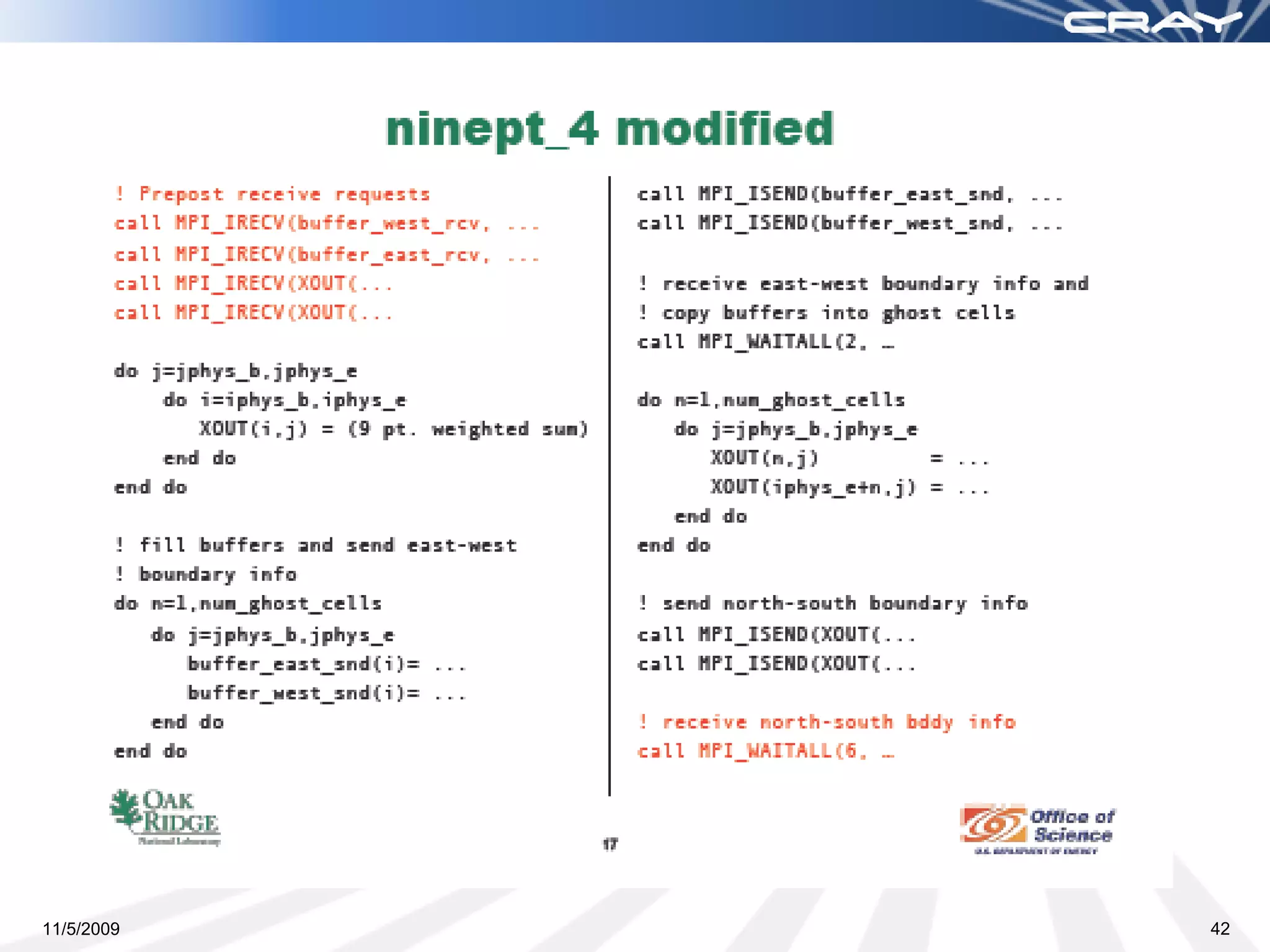

11/5/2009 42

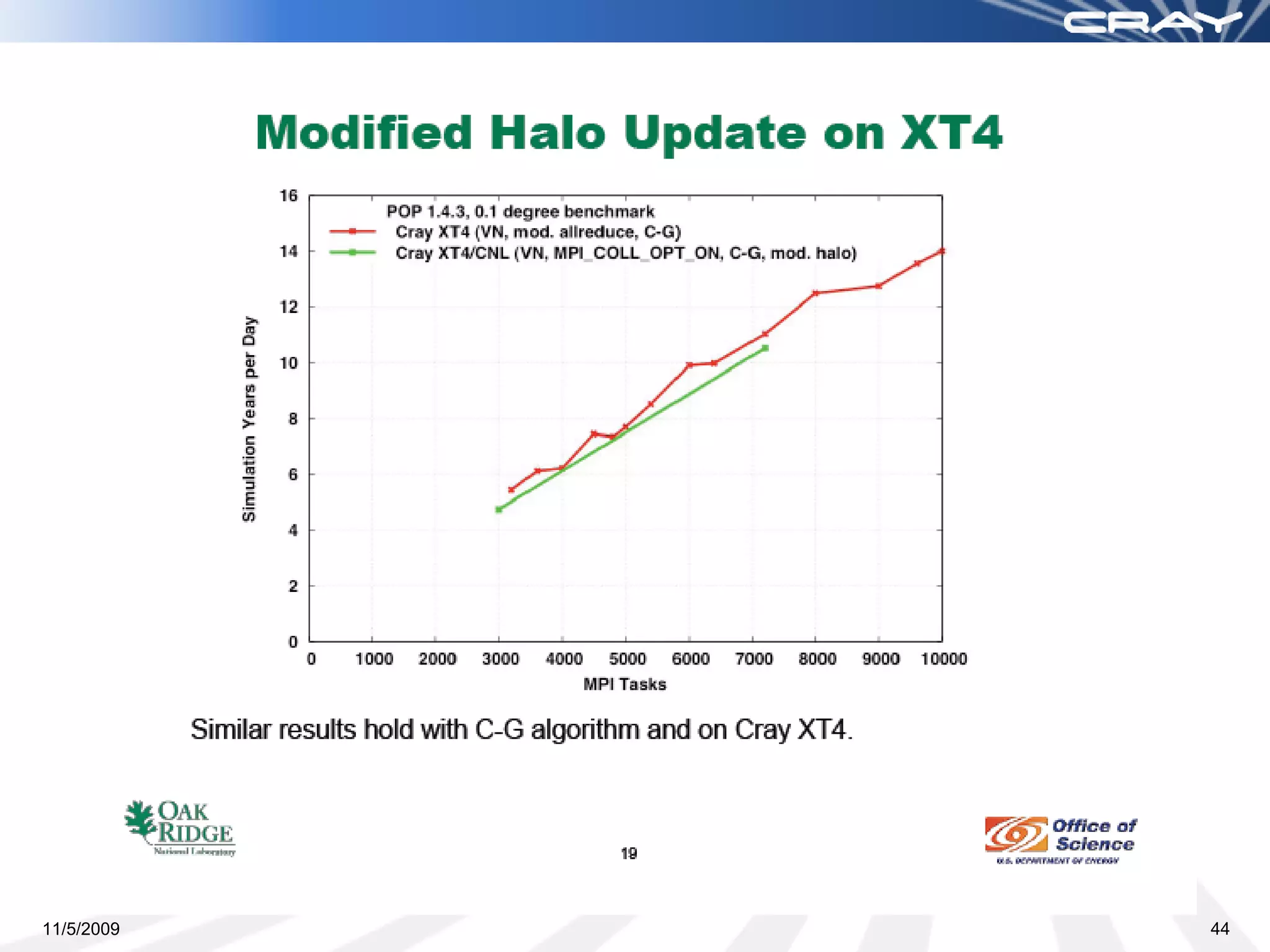

11/5/2009 43
11/5/2009 44

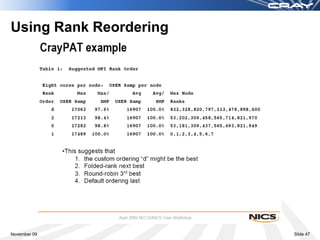

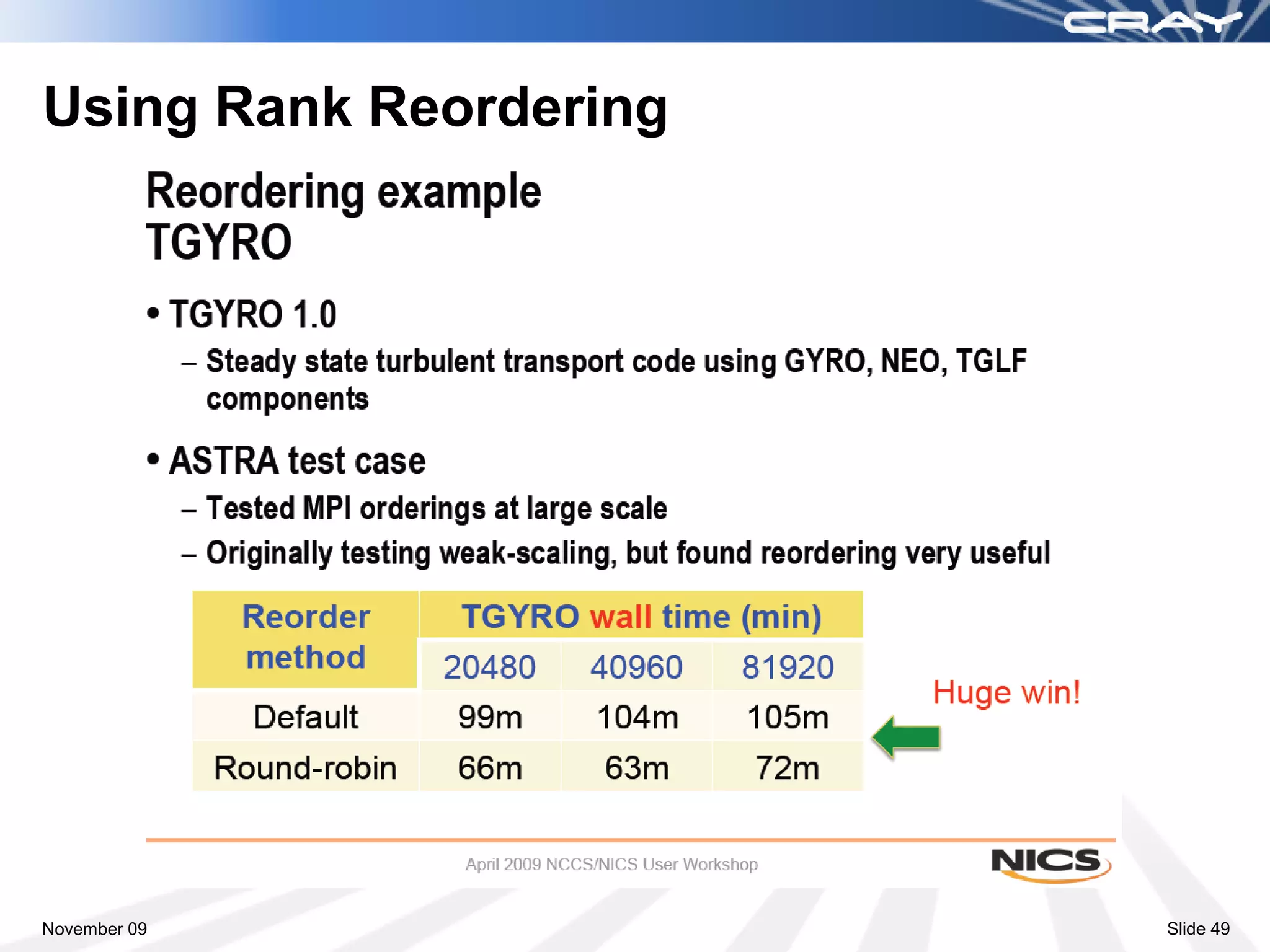

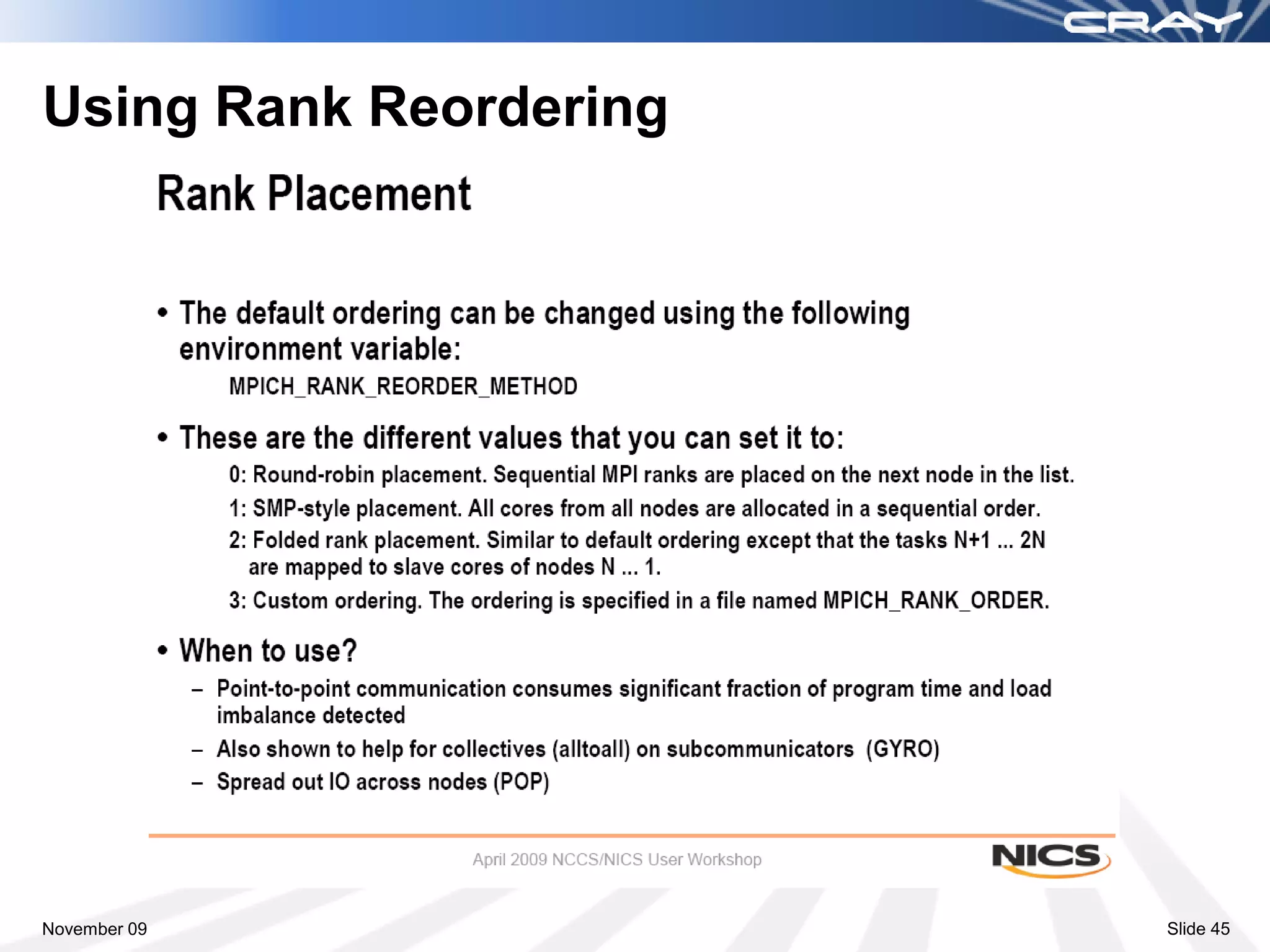

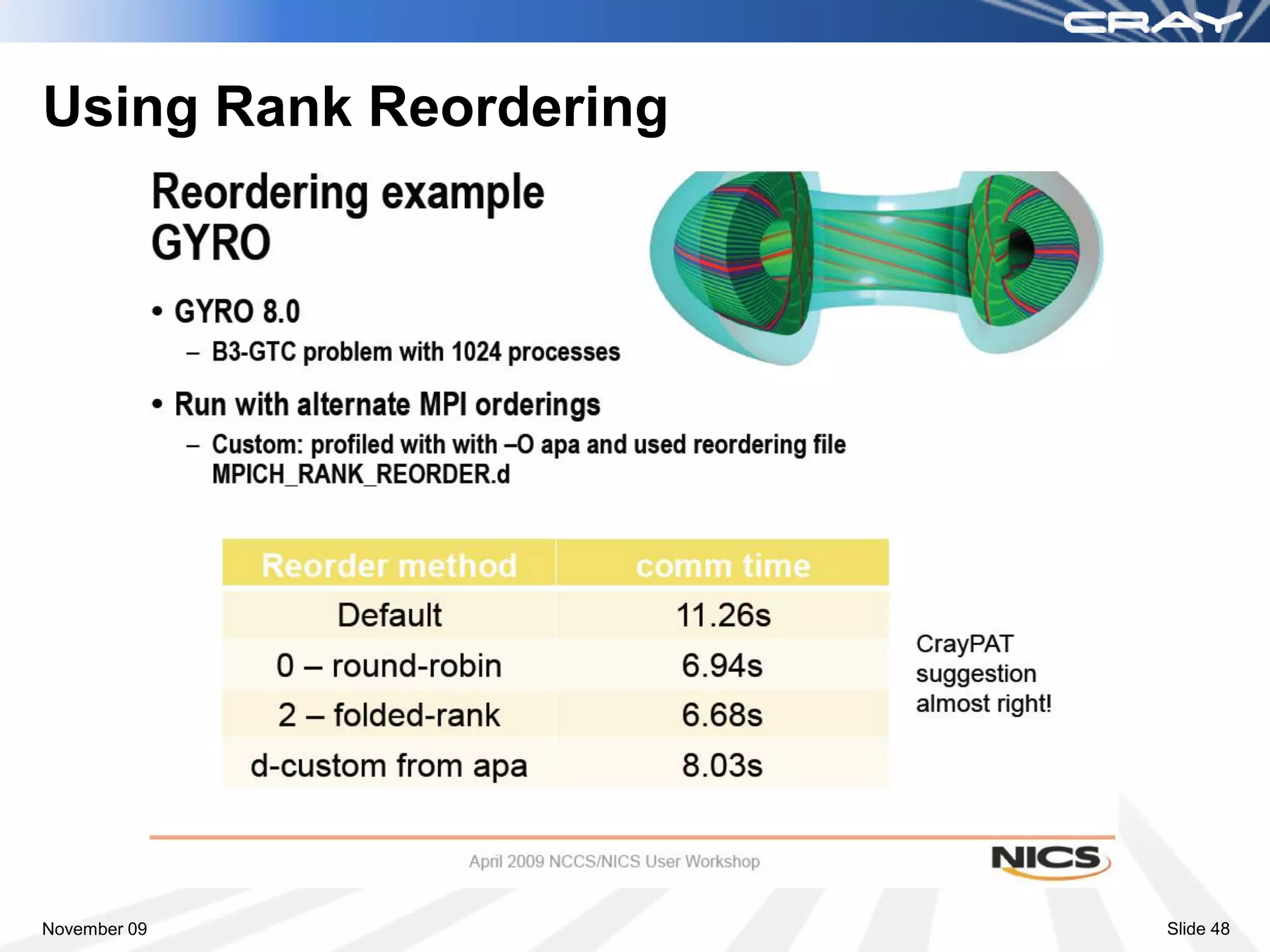

Using Rank Reordering November 09 Slide 45

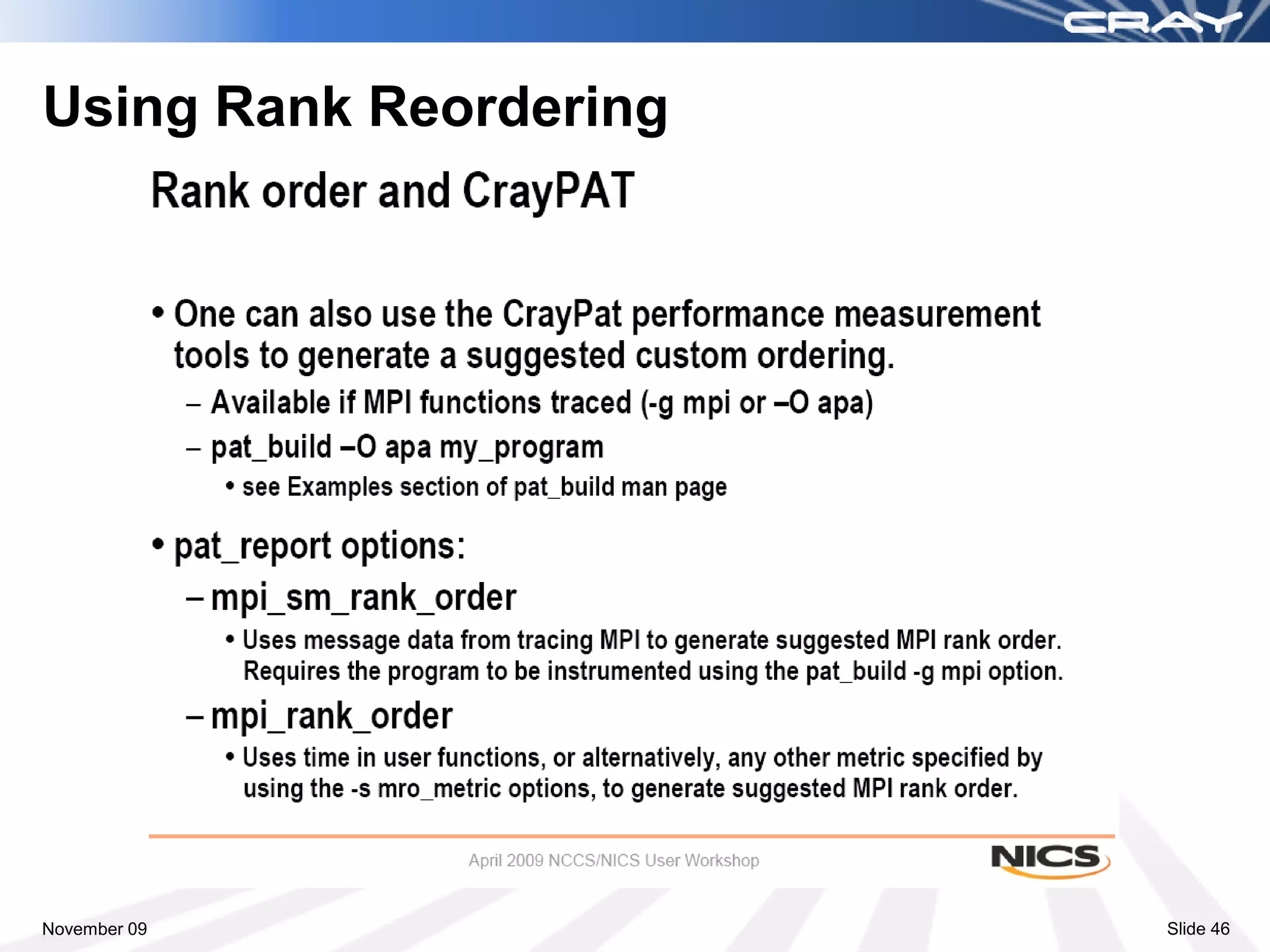

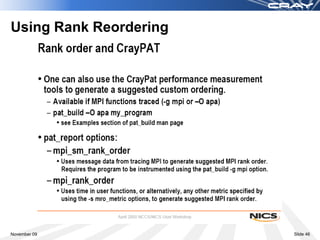

Using Rank Reordering November 09 Slide 46

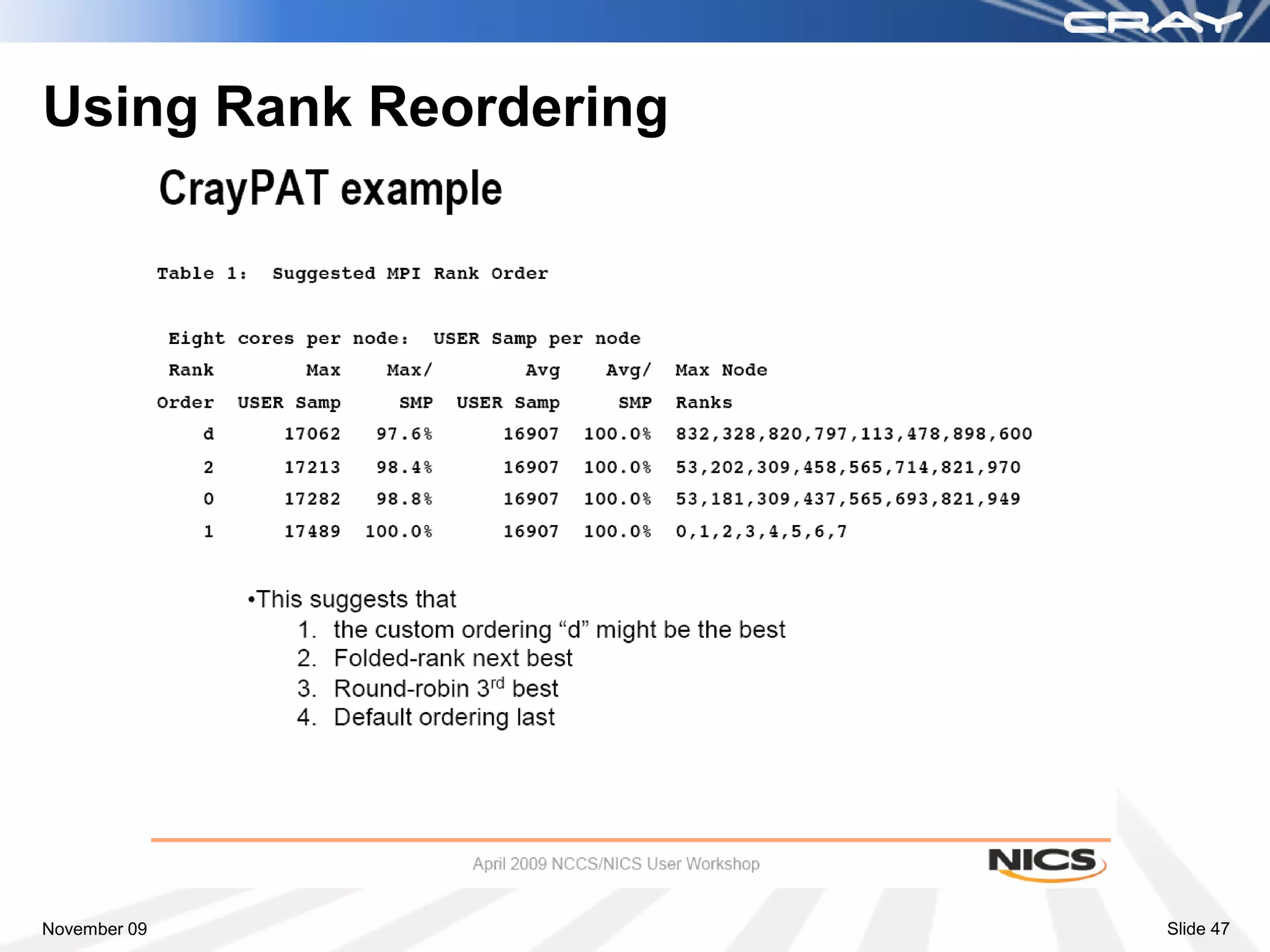

Using Rank Reordering November 09 Slide 47
Using Rank Reordering November 09 Slide 48
Using Rank Reordering November 09 Slide 49

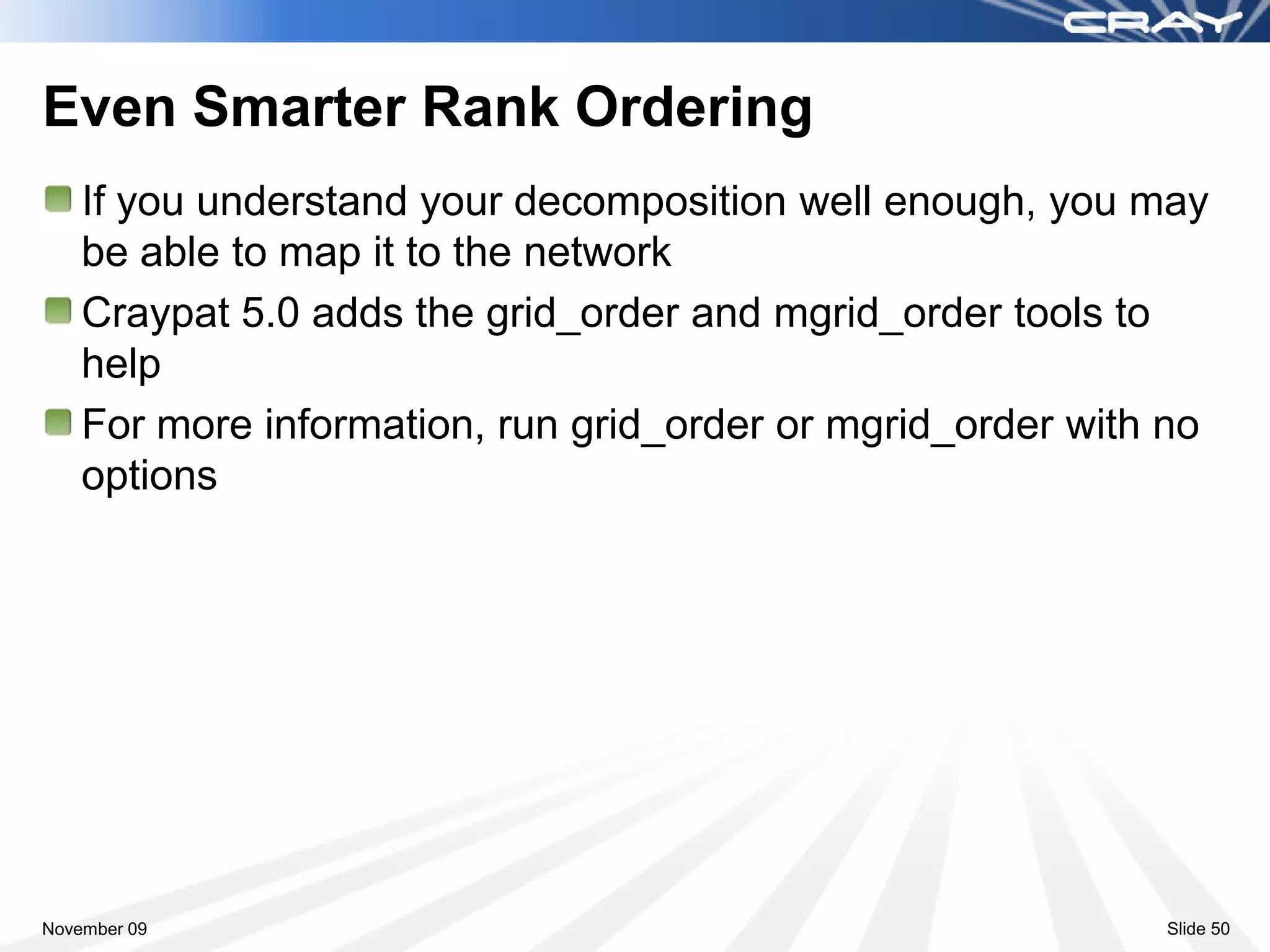

Even Smarter Rank Ordering If you understand your decomposition well enough, you may be able to map it to the network Craypat 5.0 adds the grid_order and mgrid_order tools to help For more information, run grid_order or mgrid_order with no options November 09 Slide 50

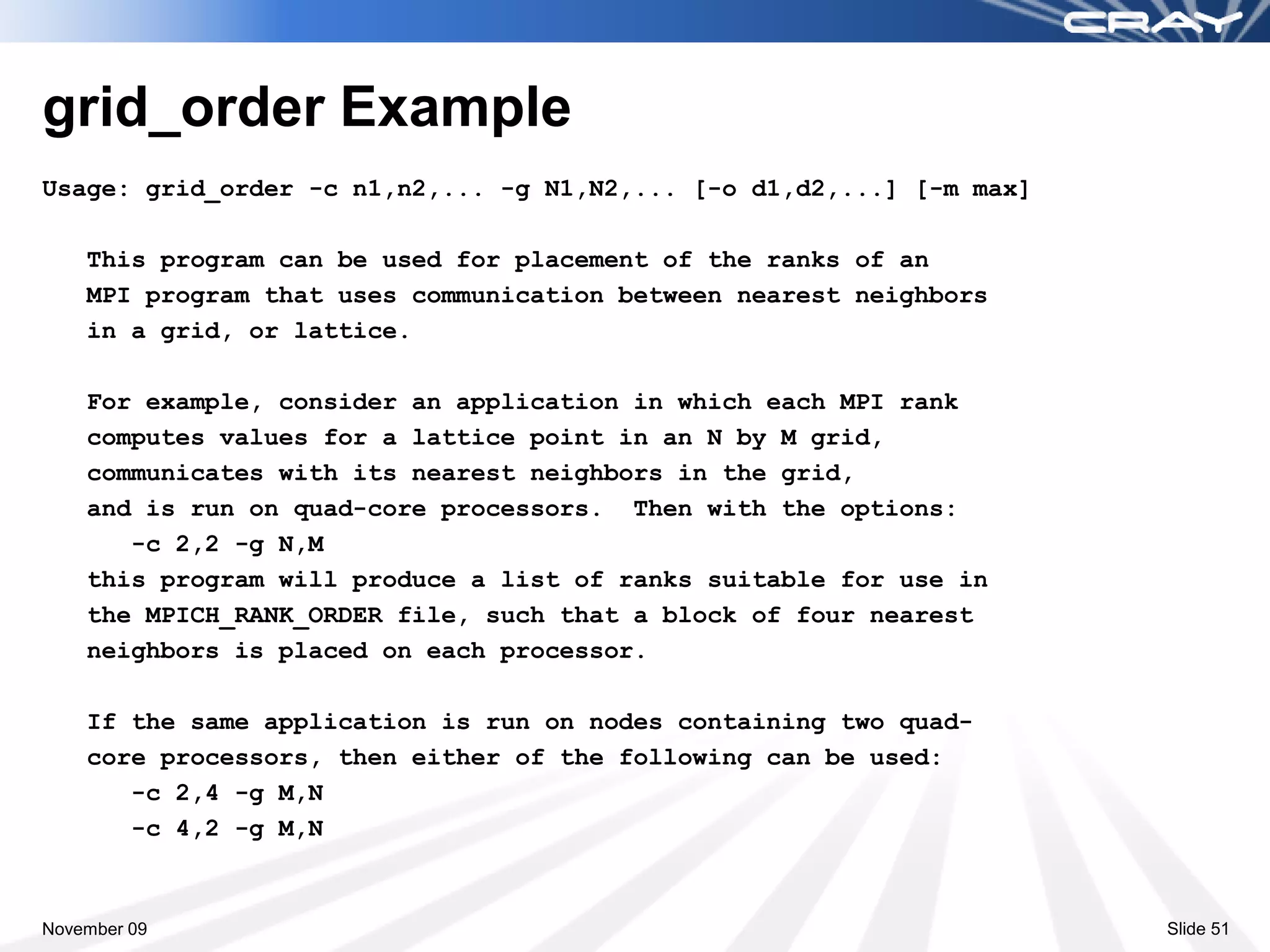

grid_order Example Usage: grid_order -c n1,n2,... -g N1,N2,... [-o d1,d2,...] [-m max] This program can be used for placement of the ranks of an MPI program that uses communication between nearest neighbors in a grid, or lattice. For example, consider an application in which each MPI rank computes values for a lattice point in an N by M grid, communicates with its nearest neighbors in the grid, and is run on quad-core processors. Then with the options: -c 2,2 -g N,M this program will produce a list of ranks suitable for use in the MPICH_RANK_ORDER file, such that a block of four nearest neighbors is placed on each processor. If the same application is run on nodes containing two quad- core processors, then either of the following can be used: -c 2,4 -g M,N -c 4,2 -g M,N November 09 Slide 51

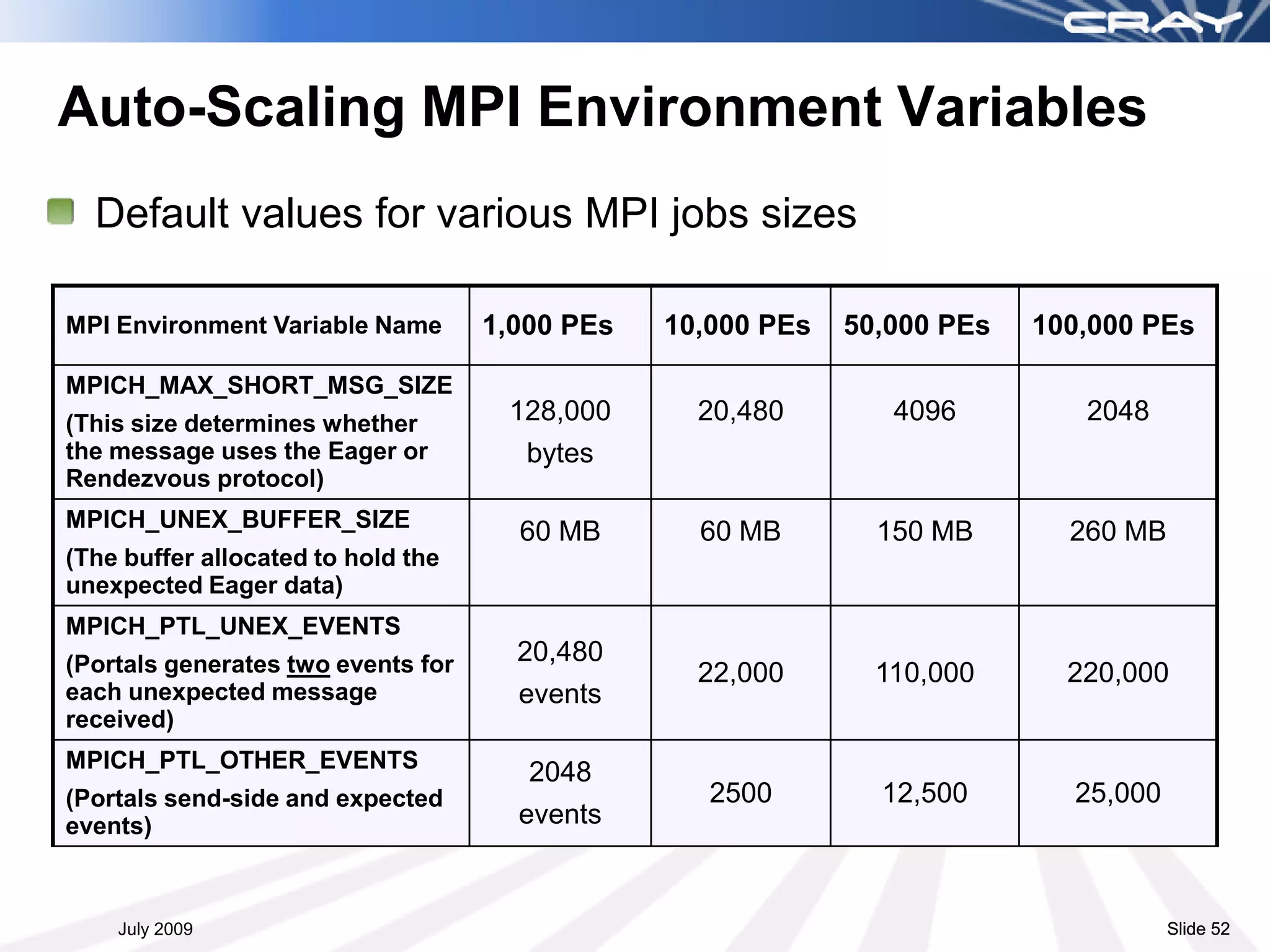

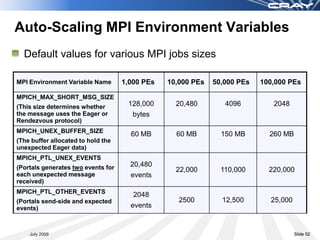

Auto-Scaling MPI Environment Variables Default values for various MPI jobs sizes MPI Environment Variable Name 1,000 PEs 10,000 PEs 50,000 PEs 100,000 PEs MPICH_MAX_SHORT_MSG_SIZE (This size determines whether 128,000 20,480 4096 2048 the message uses the Eager or bytes Rendezvous protocol) MPICH_UNEX_BUFFER_SIZE 60 MB 60 MB 150 MB 260 MB (The buffer allocated to hold the unexpected Eager data) MPICH_PTL_UNEX_EVENTS (Portals generates two events for 20,480 22,000 110,000 220,000 each unexpected message events received) MPICH_PTL_OTHER_EVENTS 2048 (Portals send-side and expected 2500 12,500 25,000 events) events July 2009 Slide 52

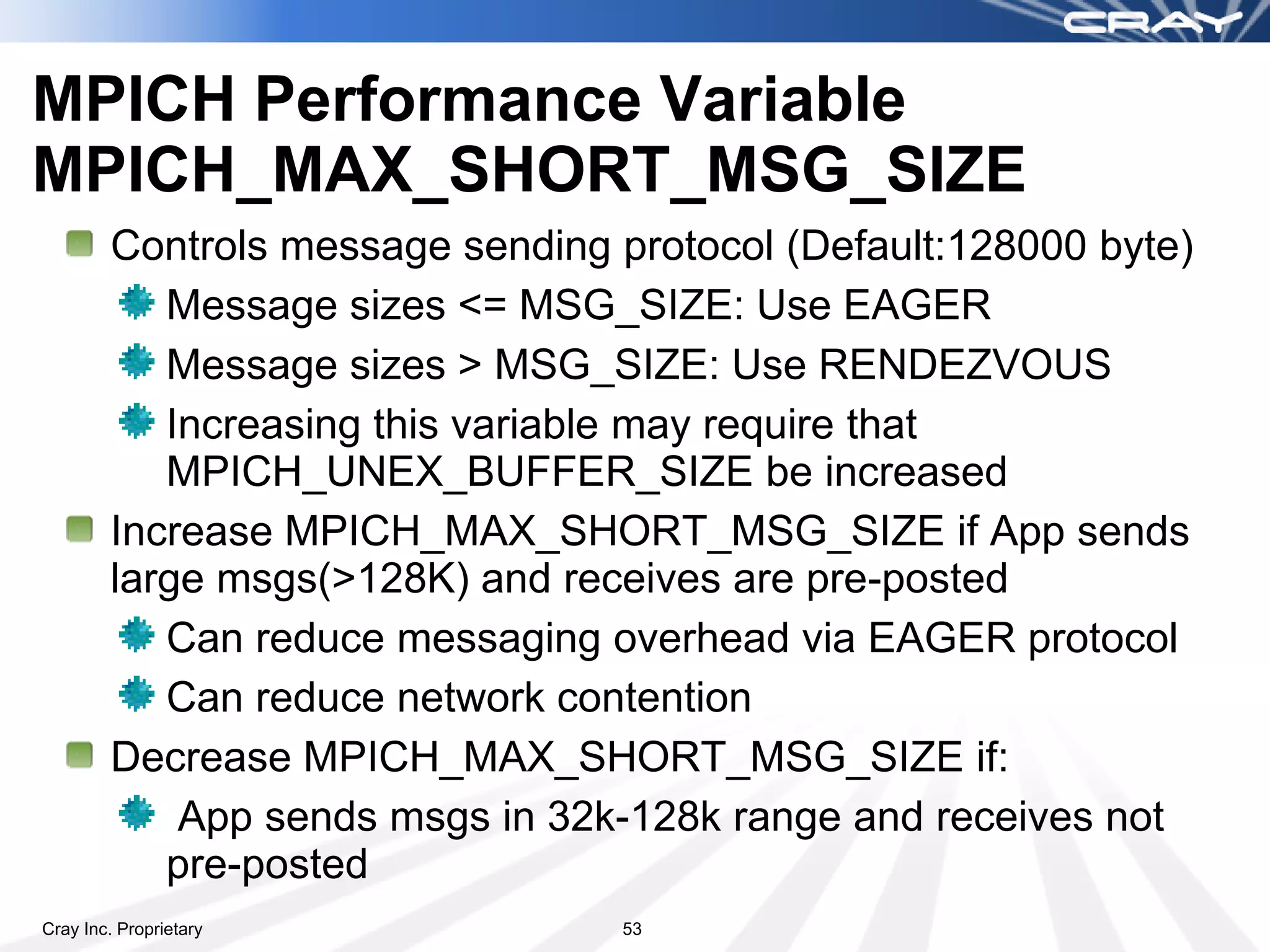

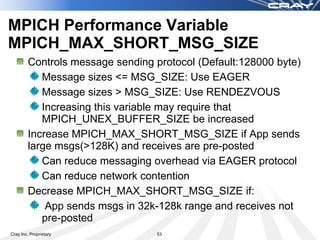

MPICH Performance Variable MPICH_MAX_SHORT_MSG_SIZE Controls message sending protocol (Default:128000 byte) Message sizes <= MSG_SIZE: Use EAGER Message sizes > MSG_SIZE: Use RENDEZVOUS Increasing this variable may require that MPICH_UNEX_BUFFER_SIZE be increased Increase MPICH_MAX_SHORT_MSG_SIZE if App sends large msgs(>128K) and receives are pre-posted Can reduce messaging overhead via EAGER protocol Can reduce network contention Decrease MPICH_MAX_SHORT_MSG_SIZE if: App sends msgs in 32k-128k range and receives not pre-posted Cray Inc. Proprietary 53
COMPUTATION November 09 Slide 54

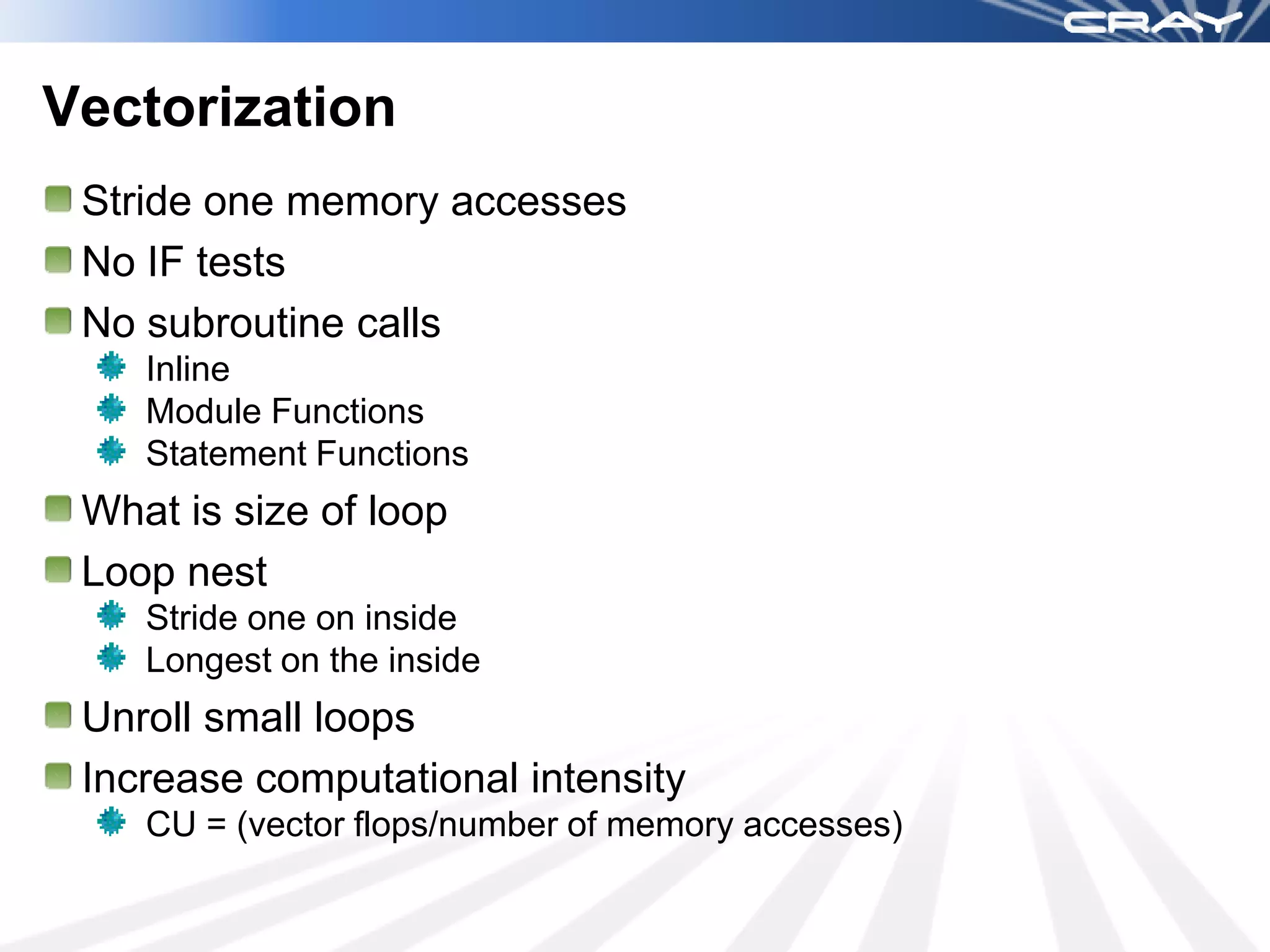

Vectorization Stride one memory accesses No IF tests No subroutine calls Inline Module Functions Statement Functions What is size of loop Loop nest Stride one on inside Longest on the inside Unroll small loops Increase computational intensity CU = (vector flops/number of memory accesses)

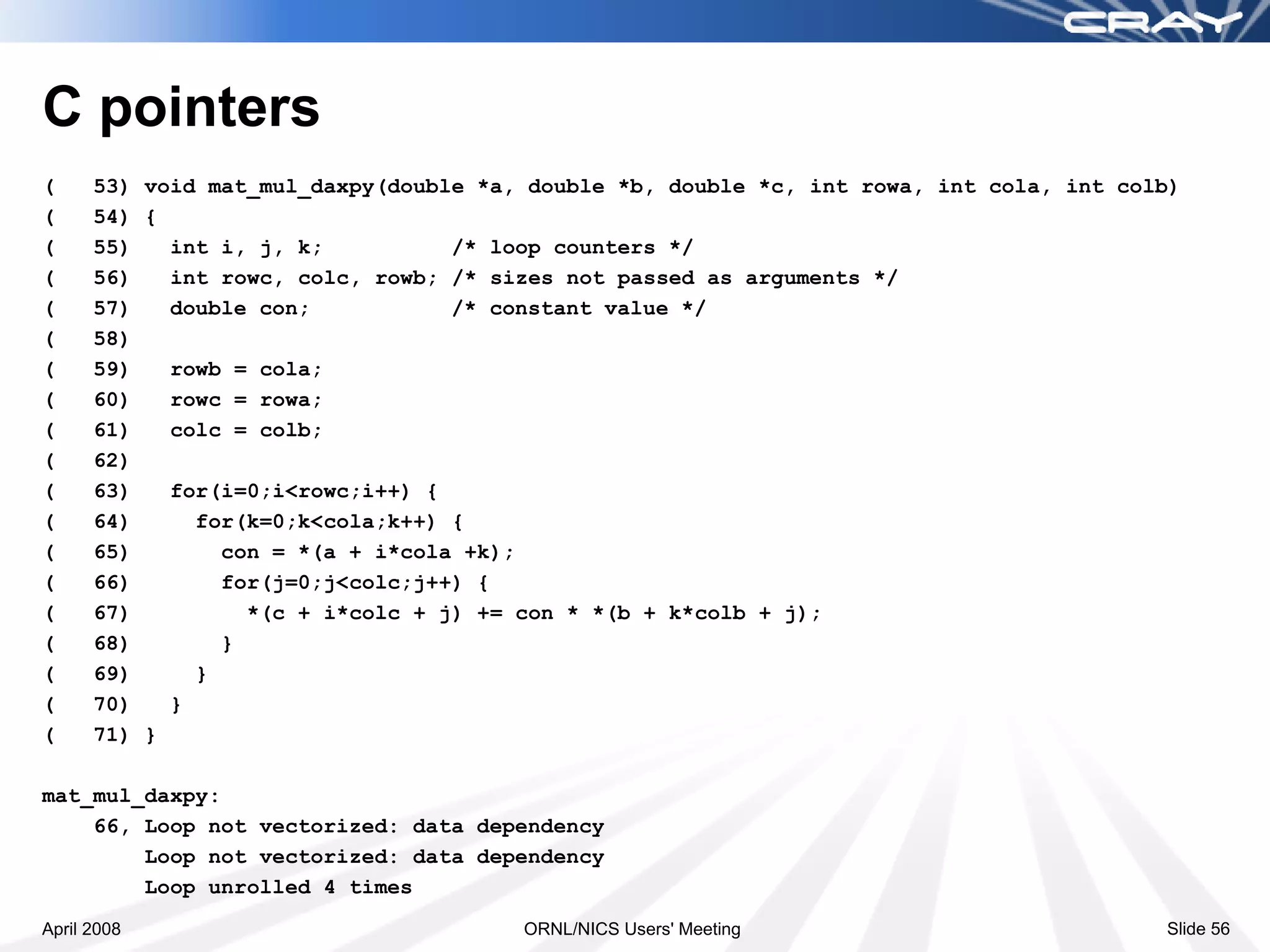

C pointers ( 53) void mat_mul_daxpy(double *a, double *b, double *c, int rowa, int cola, int colb) ( 54) { ( 55) int i, j, k; /* loop counters */ ( 56) int rowc, colc, rowb; /* sizes not passed as arguments */ ( 57) double con; /* constant value */ ( 58) ( 59) rowb = cola; ( 60) rowc = rowa; ( 61) colc = colb; ( 62) ( 63) for(i=0;i<rowc;i++) { ( 64) for(k=0;k<cola;k++) { ( 65) con = *(a + i*cola +k); ( 66) for(j=0;j<colc;j++) { ( 67) *(c + i*colc + j) += con * *(b + k*colb + j); ( 68) } ( 69) } ( 70) } ( 71) } mat_mul_daxpy: 66, Loop not vectorized: data dependency Loop not vectorized: data dependency Loop unrolled 4 times April 2008 ORNL/NICS Users' Meeting Slide 56

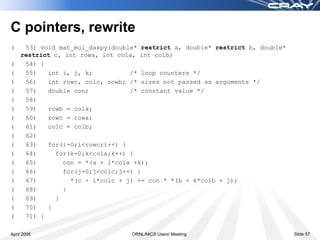

C pointers, rewrite ( 53) void mat_mul_daxpy(double* restrict a, double* restrict b, double* restrict c, int rowa, int cola, int colb) ( 54) { ( 55) int i, j, k; /* loop counters */ ( 56) int rowc, colc, rowb; /* sizes not passed as arguments */ ( 57) double con; /* constant value */ ( 58) ( 59) rowb = cola; ( 60) rowc = rowa; ( 61) colc = colb; ( 62) ( 63) for(i=0;i<rowc;i++) { ( 64) for(k=0;k<cola;k++) { ( 65) con = *(a + i*cola +k); ( 66) for(j=0;j<colc;j++) { ( 67) *(c + i*colc + j) += con * *(b + k*colb + j); ( 68) } ( 69) } ( 70) } ( 71) } April 2008 ORNL/NICS Users' Meeting Slide 57

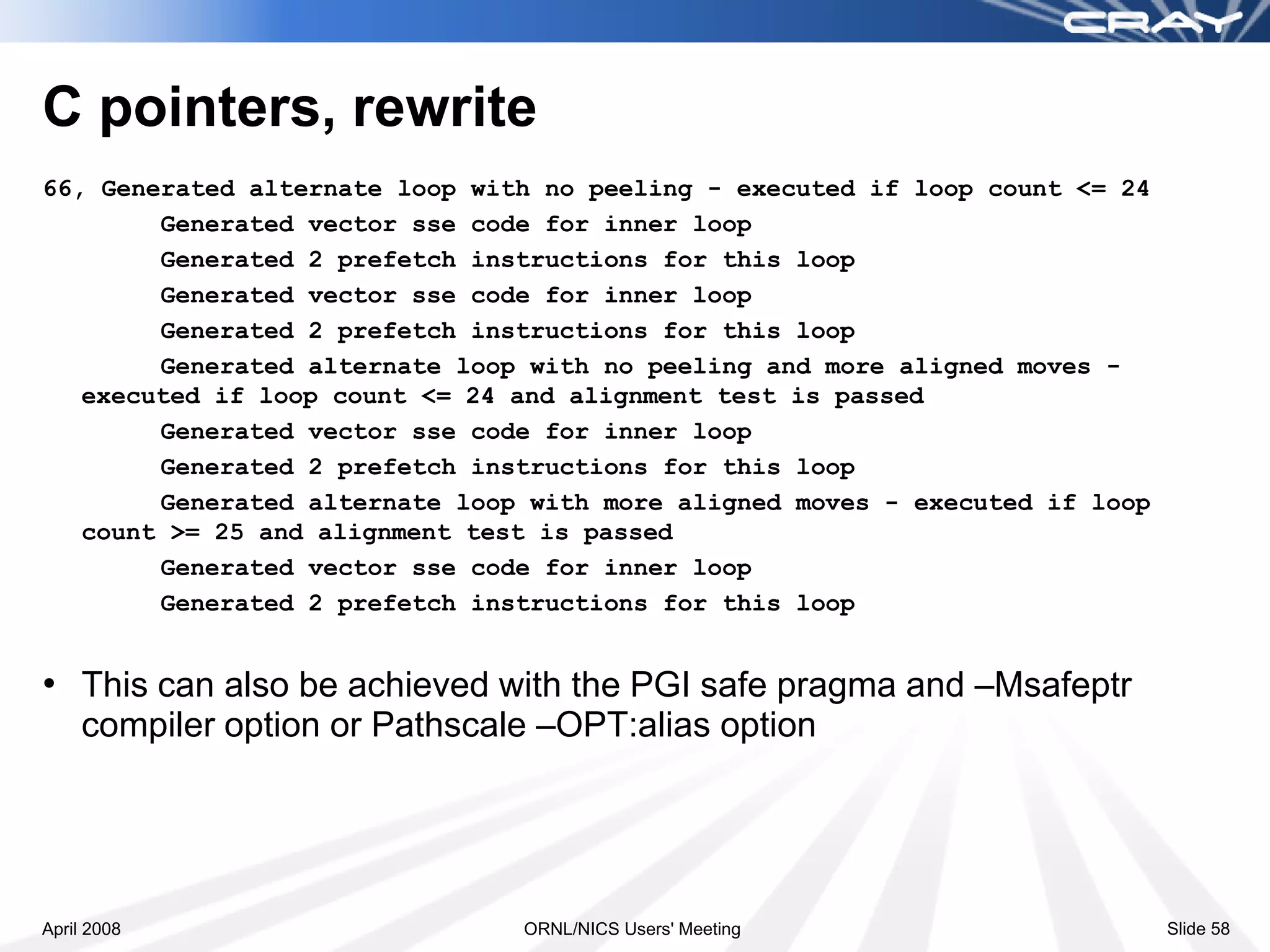

C pointers, rewrite 66, Generated alternate loop with no peeling - executed if loop count <= 24 Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop Generated alternate loop with no peeling and more aligned moves - executed if loop count <= 24 and alignment test is passed Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop Generated alternate loop with more aligned moves - executed if loop count >= 25 and alignment test is passed Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop • This can also be achieved with the PGI safe pragma and –Msafeptr compiler option or Pathscale –OPT:alias option April 2008 ORNL/NICS Users' Meeting Slide 58
Nested Loops ( 47) DO 45020 I = 1, N ( 48) F(I) = A(I) + .5 ( 49) DO 45020 J = 1, 10 ( 50) D(I,J) = B(J) * F(I) ( 51) DO 45020 K = 1, 5 ( 52) C(K,I,J) = D(I,J) * E(K) ( 53) 45020 CONTINUE PGI 49, Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Loop unrolled 2 times (completely unrolled) Pathscale (lp45020.f:48) LOOP WAS VECTORIZED. (lp45020.f:48) Non-contiguous array "C(_BLNK__.0.0)" reference exists. Loop was not vectorized. April 2008 ORNL/NICS Users' Meeting 59

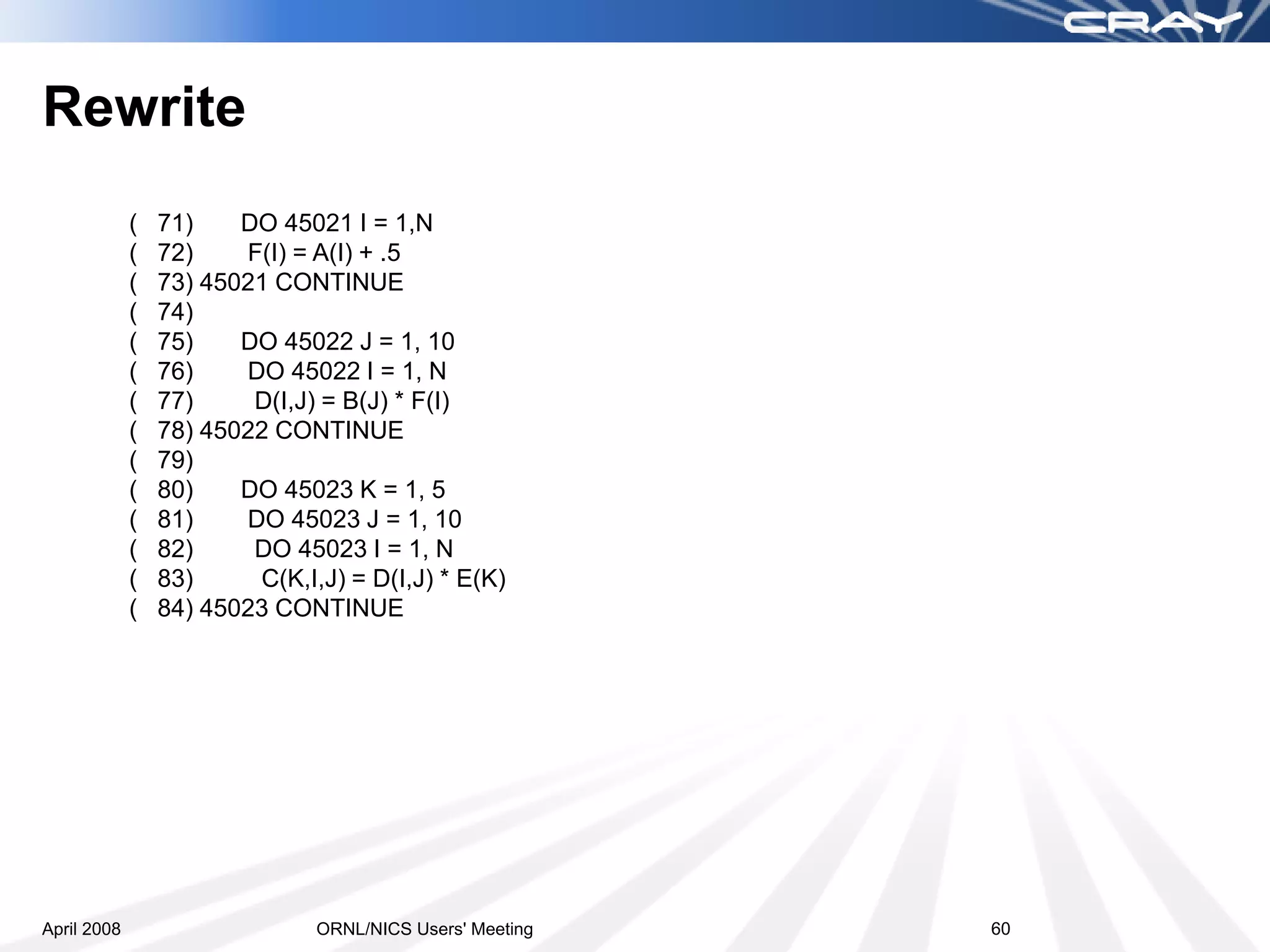

Rewrite ( 71) DO 45021 I = 1,N ( 72) F(I) = A(I) + .5 ( 73) 45021 CONTINUE ( 74) ( 75) DO 45022 J = 1, 10 ( 76) DO 45022 I = 1, N ( 77) D(I,J) = B(J) * F(I) ( 78) 45022 CONTINUE ( 79) ( 80) DO 45023 K = 1, 5 ( 81) DO 45023 J = 1, 10 ( 82) DO 45023 I = 1, N ( 83) C(K,I,J) = D(I,J) * E(K) ( 84) 45023 CONTINUE April 2008 ORNL/NICS Users' Meeting 60

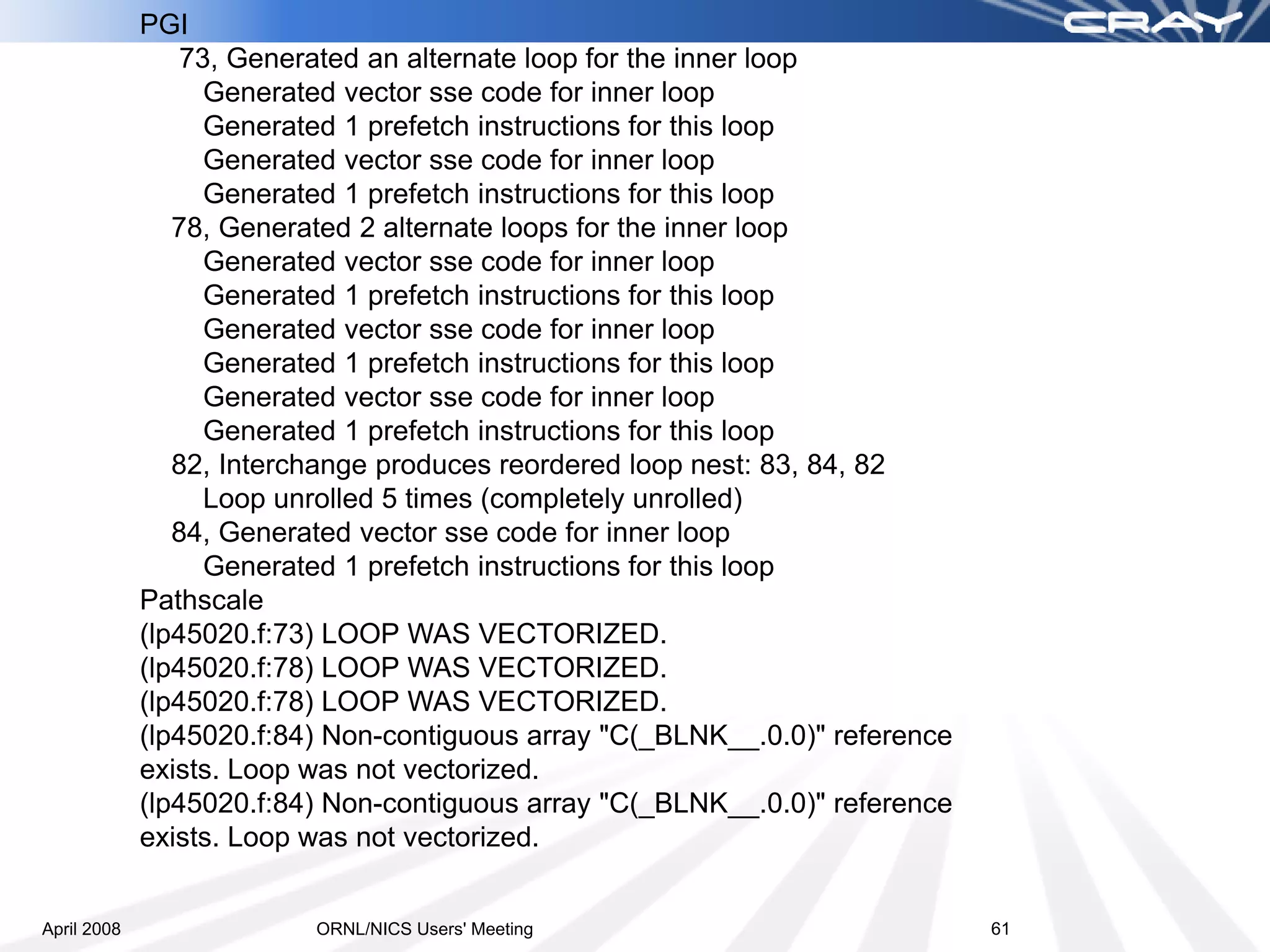

PGI 73, Generated an alternate loop for the inner loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop 78, Generated 2 alternate loops for the inner loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop 82, Interchange produces reordered loop nest: 83, 84, 82 Loop unrolled 5 times (completely unrolled) 84, Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Pathscale (lp45020.f:73) LOOP WAS VECTORIZED. (lp45020.f:78) LOOP WAS VECTORIZED. (lp45020.f:78) LOOP WAS VECTORIZED. (lp45020.f:84) Non-contiguous array "C(_BLNK__.0.0)" reference exists. Loop was not vectorized. (lp45020.f:84) Non-contiguous array "C(_BLNK__.0.0)" reference exists. Loop was not vectorized. April 2008 ORNL/NICS Users' Meeting 61

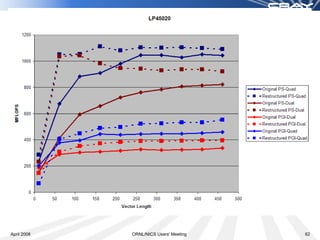

April 2008 ORNL/NICS Users' Meeting 62

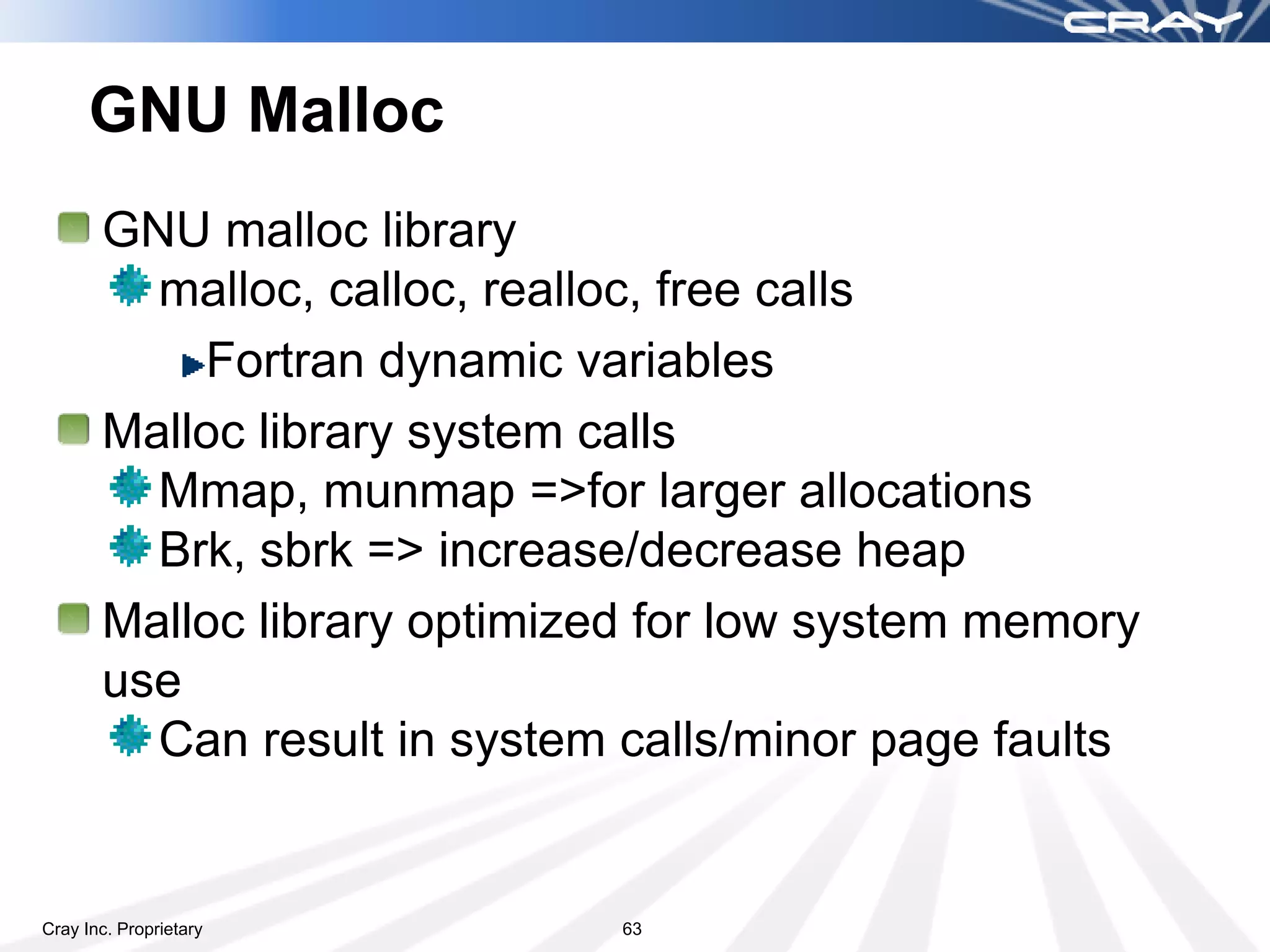

GNU Malloc GNU malloc library malloc, calloc, realloc, free calls Fortran dynamic variables Malloc library system calls Mmap, munmap =>for larger allocations Brk, sbrk => increase/decrease heap Malloc library optimized for low system memory use Can result in system calls/minor page faults Cray Inc. Proprietary 63

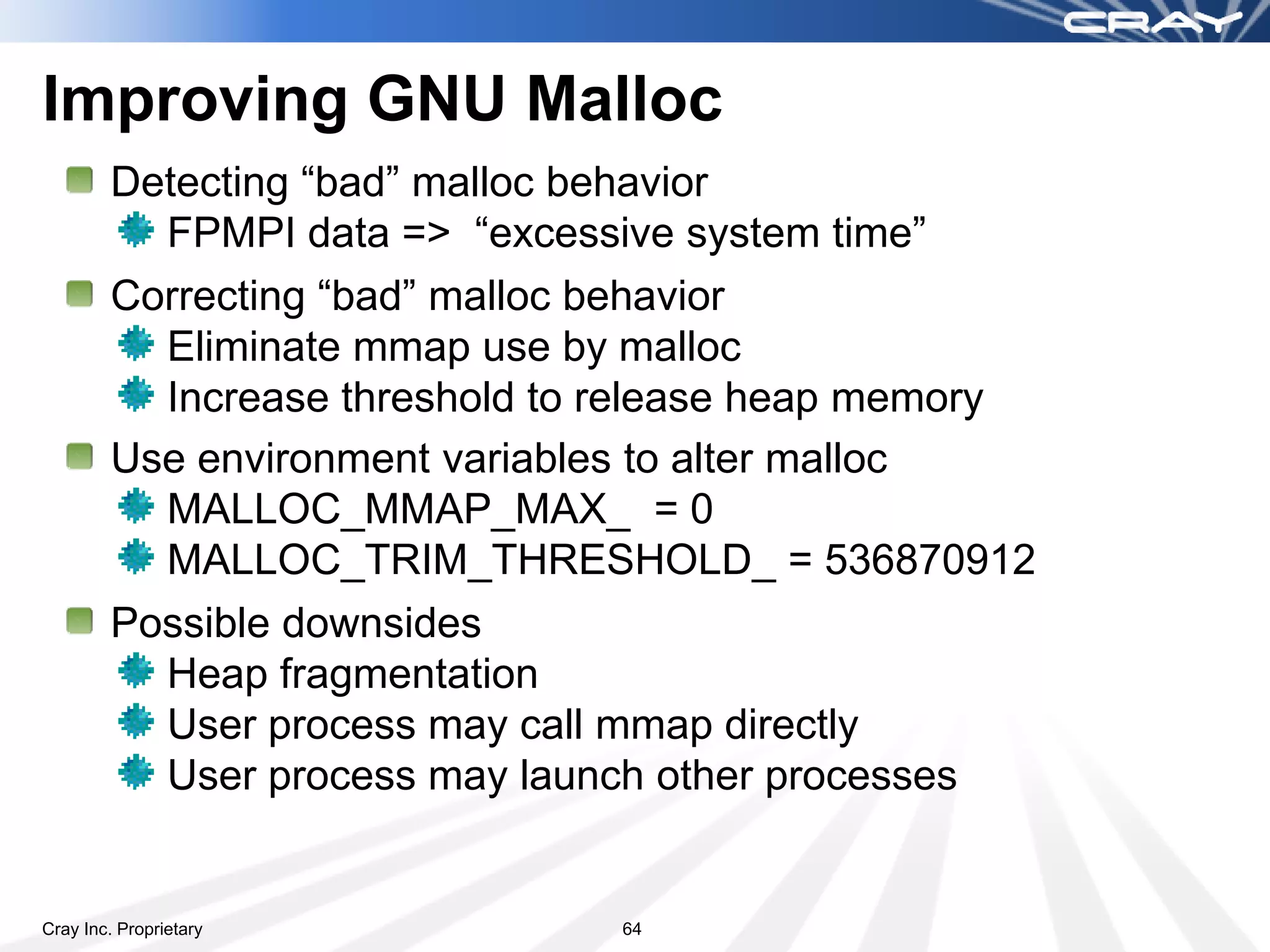

Improving GNU Malloc Detecting “bad” malloc behavior FPMPI data => “excessive system time” Correcting “bad” malloc behavior Eliminate mmap use by malloc Increase threshold to release heap memory Use environment variables to alter malloc MALLOC_MMAP_MAX_ = 0 MALLOC_TRIM_THRESHOLD_ = 536870912 Possible downsides Heap fragmentation User process may call mmap directly User process may launch other processes Cray Inc. Proprietary 64

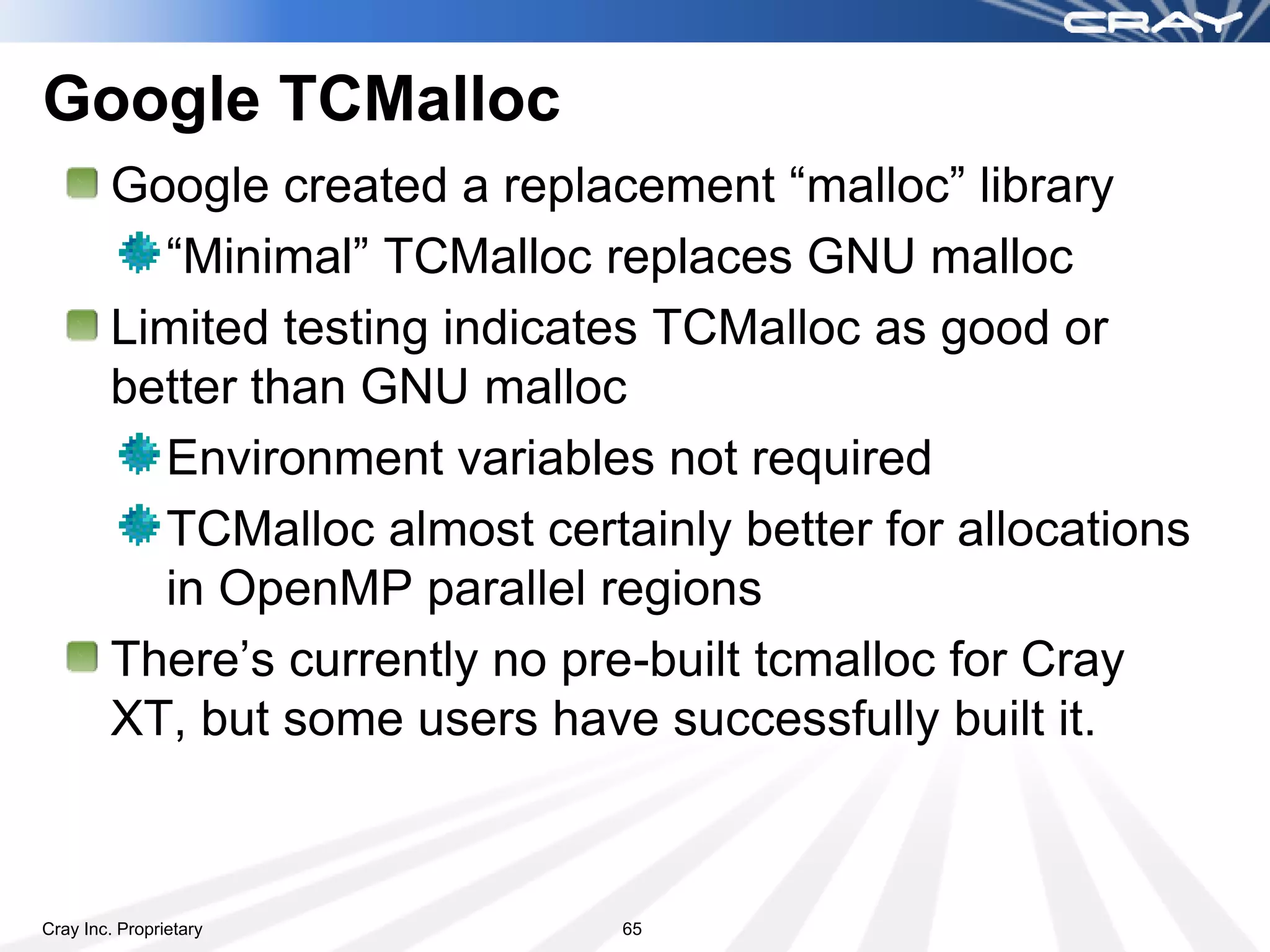

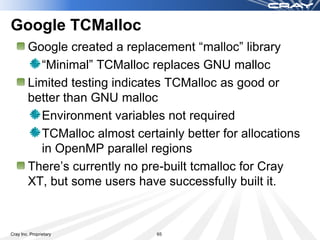

Google TCMalloc Google created a replacement “malloc” library “Minimal” TCMalloc replaces GNU malloc Limited testing indicates TCMalloc as good or better than GNU malloc Environment variables not required TCMalloc almost certainly better for allocations in OpenMP parallel regions Kevin Thomas built/installed “Minimal” TCMalloc To use it or try it: module use /cray/iss/park_bench/lib/modulesfiles module load tcmalloc Link your app Cray Inc. Proprietary 65

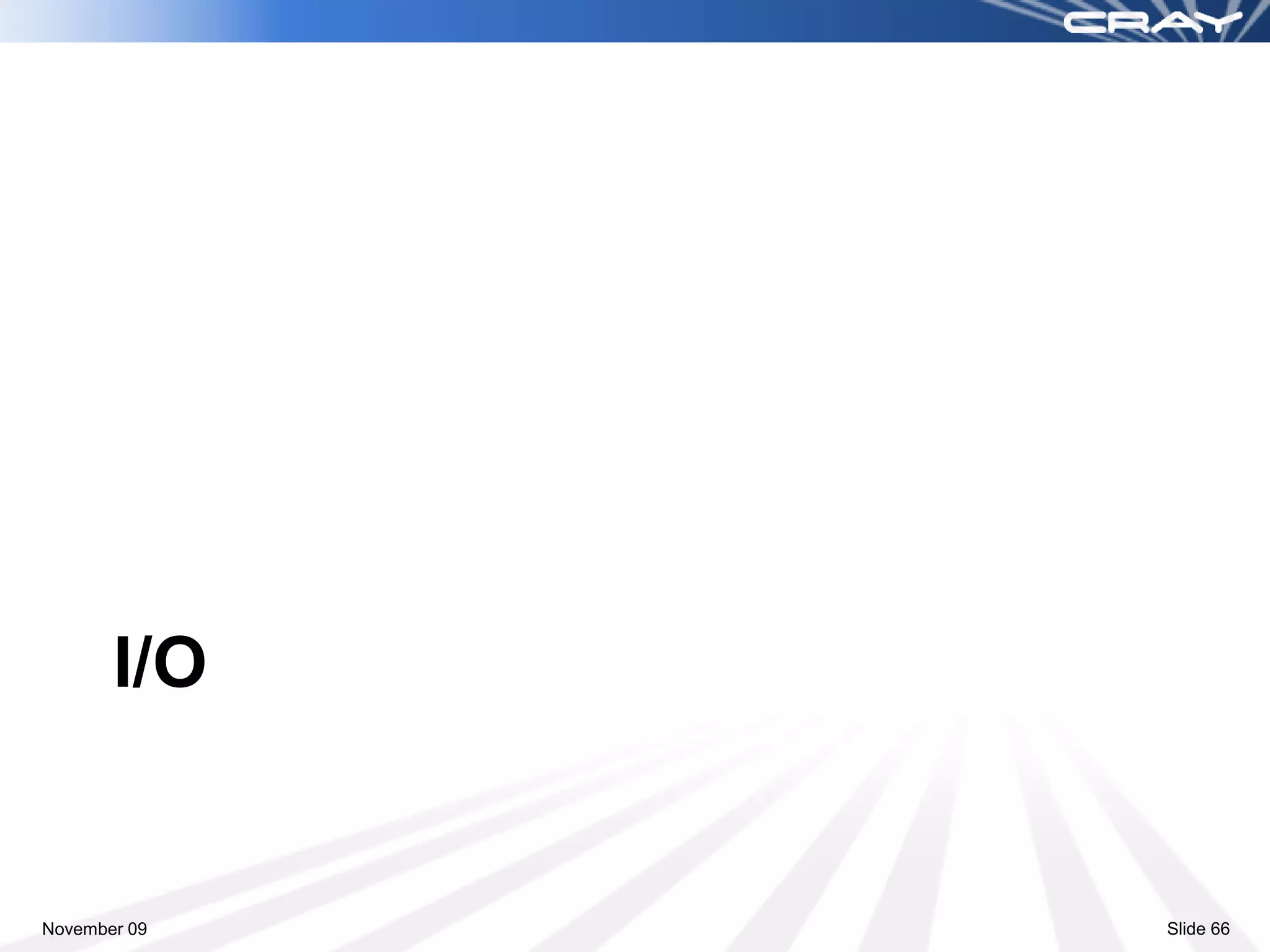

I/O November 09 Slide 66

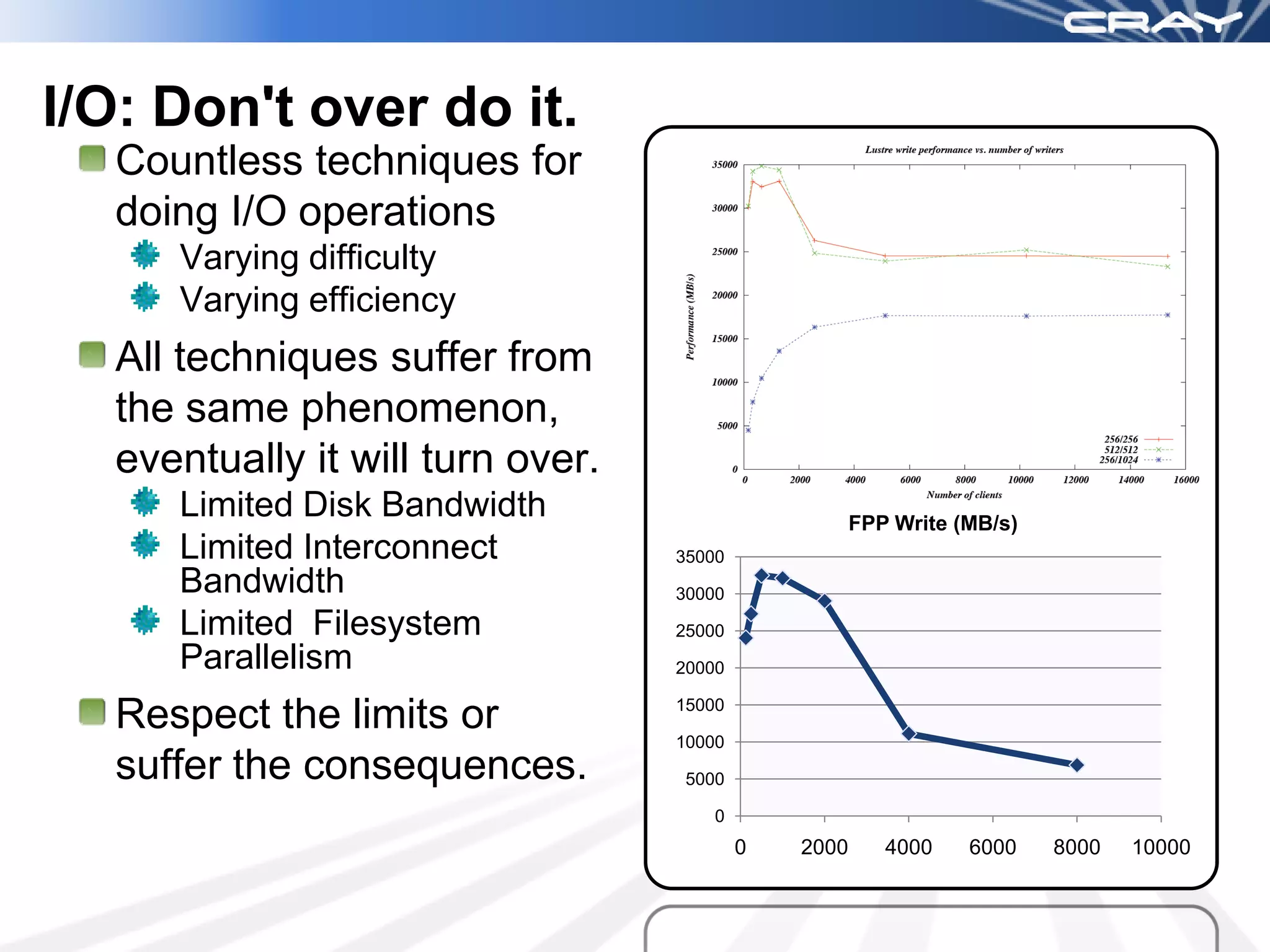

I/O: Don't over do it. Countless techniques for doing I/O operations Varying difficulty Varying efficiency All techniques suffer from the same phenomenon, eventually it will turn over. Limited Disk Bandwidth FPP Write (MB/s) Limited Interconnect 35000 Bandwidth 30000 Limited Filesystem 25000 Parallelism 20000 Respect the limits or 15000 10000 suffer the consequences. 5000 0 0 2000 4000 6000 8000 10000

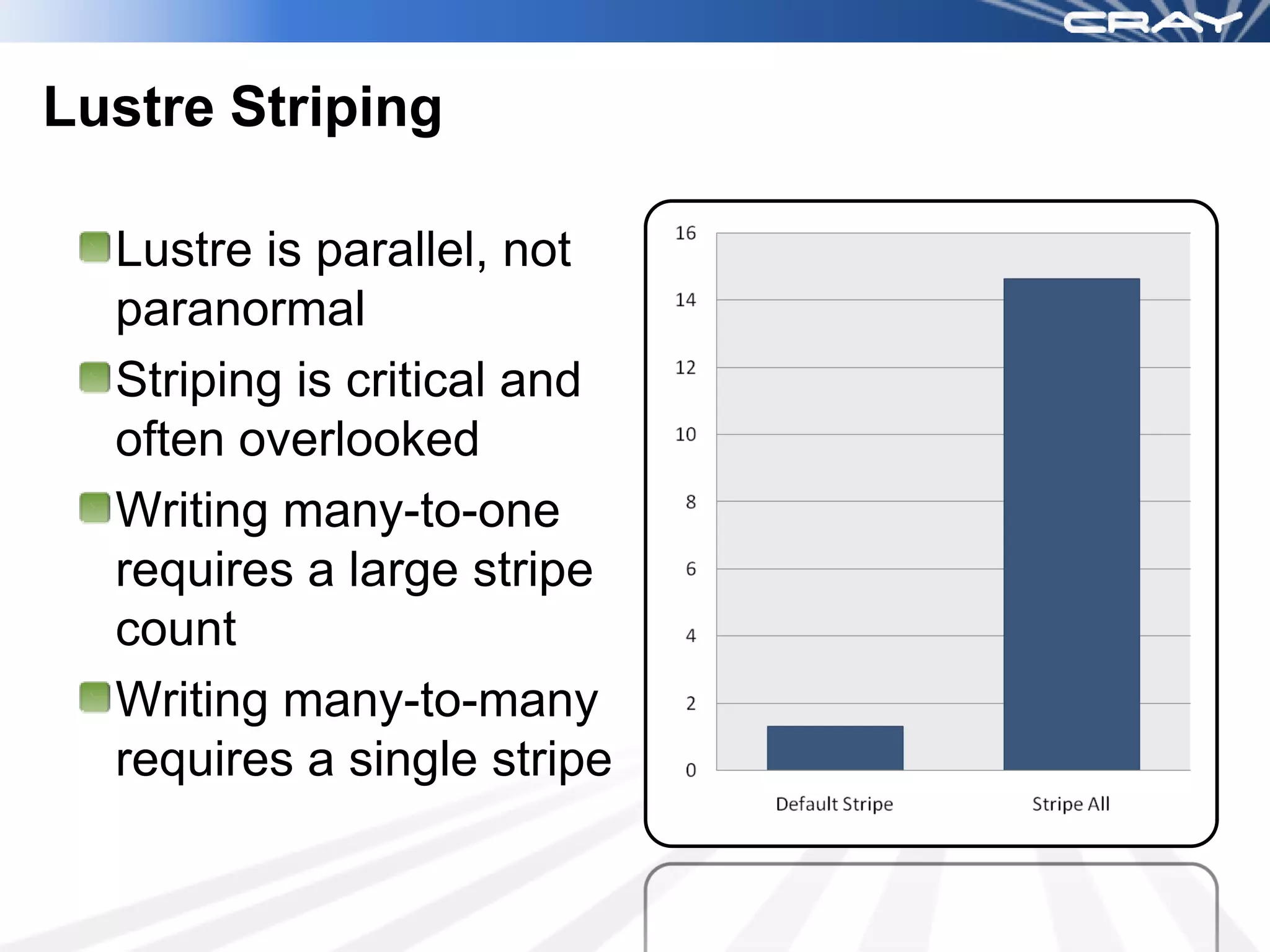

Lustre Striping Lustre is parallel, not paranormal Striping is critical and often overlooked Writing many-to-one requires a large stripe count Writing many-to-many requires a single stripe

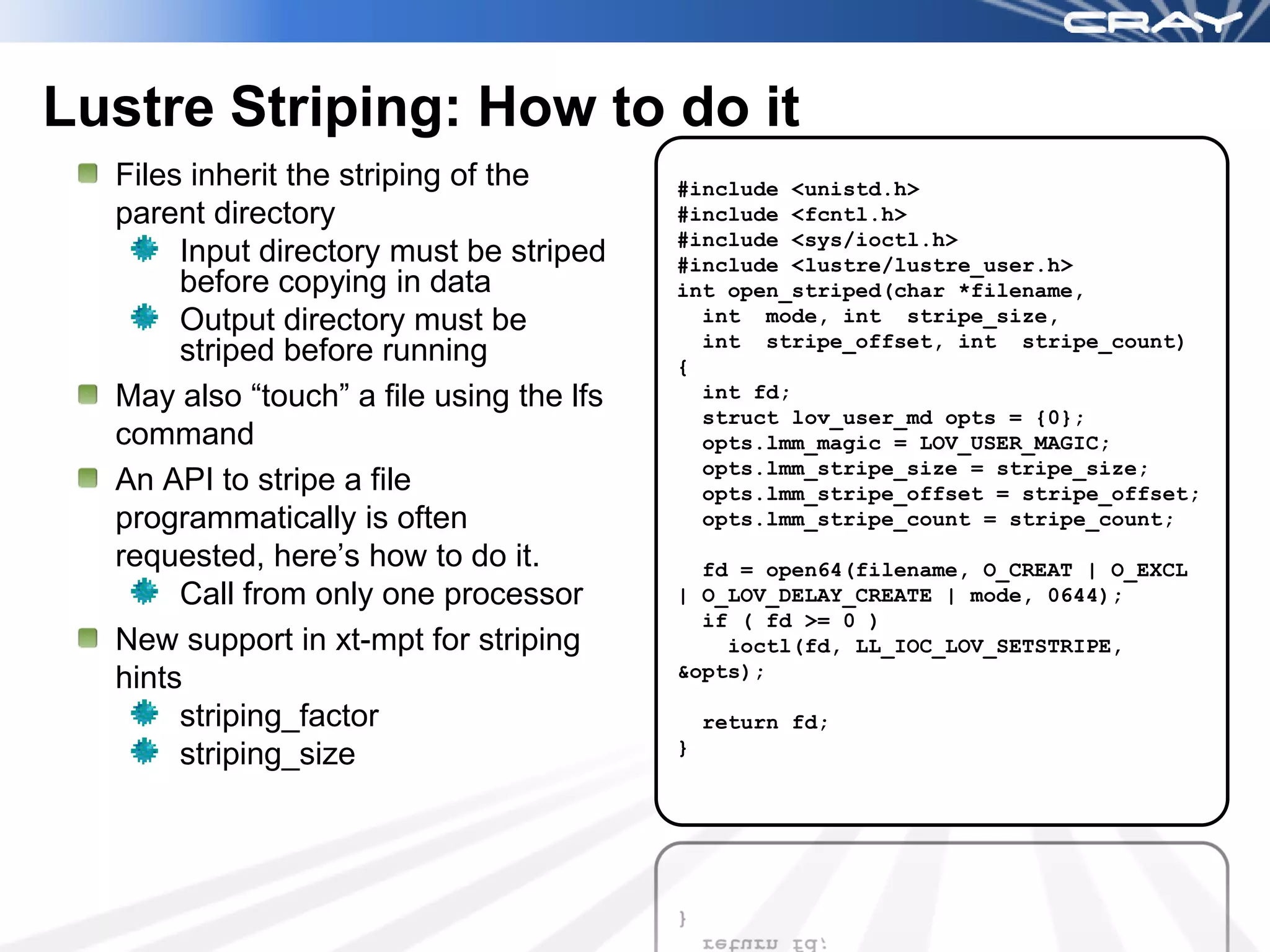

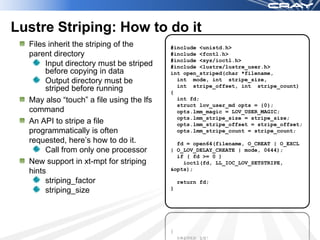

Lustre Striping: How to do it Files inherit the striping of the #include <unistd.h> parent directory #include <fcntl.h> #include <sys/ioctl.h> Input directory must be striped #include <lustre/lustre_user.h> before copying in data int open_striped(char *filename, Output directory must be int mode, int stripe_size, int stripe_offset, int stripe_count) striped before running { May also “touch” a file using the lfs int fd; struct lov_user_md opts = {0}; command opts.lmm_magic = LOV_USER_MAGIC; opts.lmm_stripe_size = stripe_size; An API to stripe a file opts.lmm_stripe_offset = stripe_offset; programmatically is often opts.lmm_stripe_count = stripe_count; requested, here’s how to do it. fd = open64(filename, O_CREAT | O_EXCL Call from only one processor | O_LOV_DELAY_CREATE | mode, 0644); if ( fd >= 0 ) New support in xt-mpt for striping ioctl(fd, LL_IOC_LOV_SETSTRIPE, hints &opts); striping_factor return fd; striping_size }

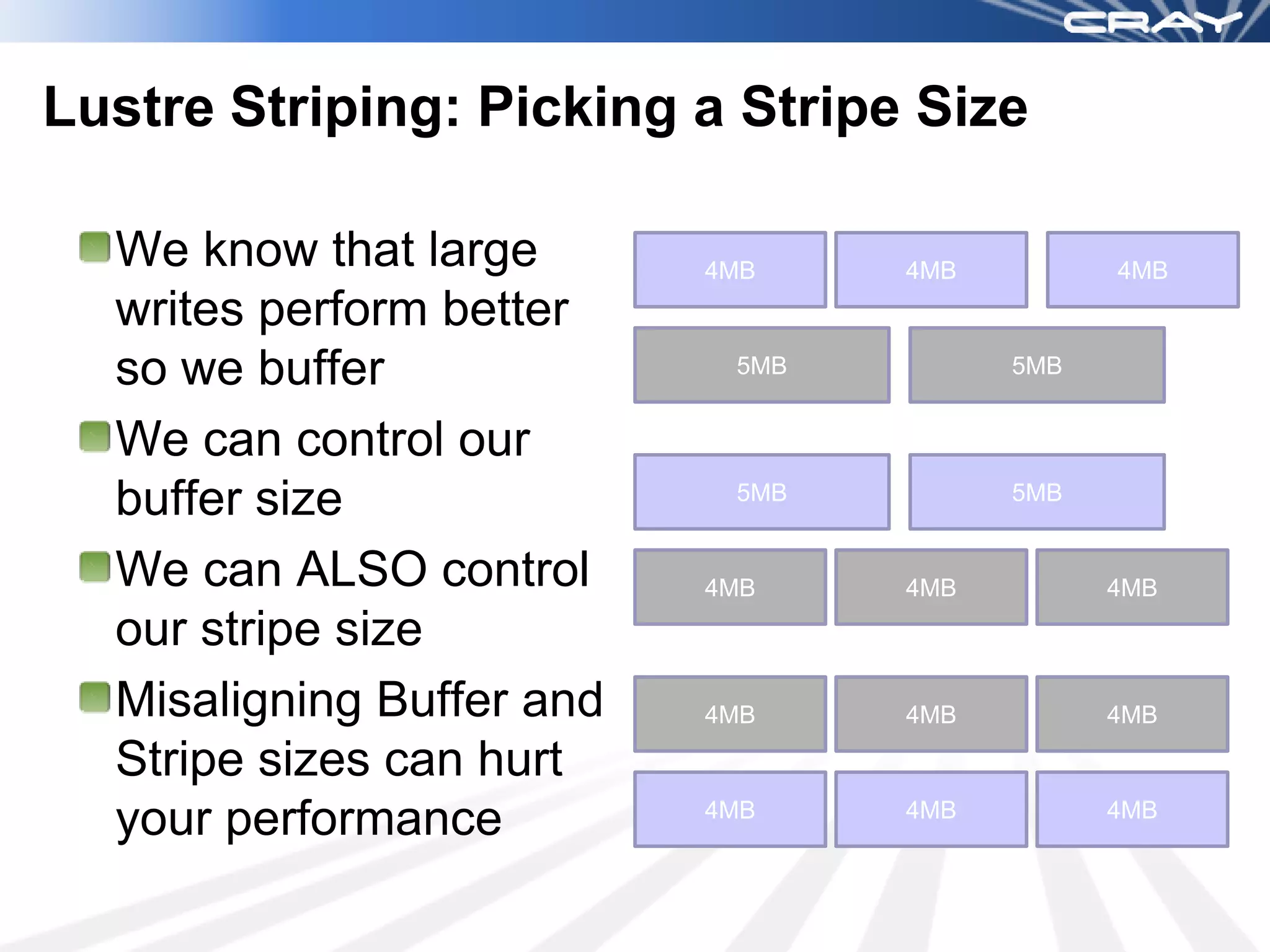

Lustre Striping: Picking a Stripe Size We know that large 4MB 4MB 4MB writes perform better so we buffer 5MB 5MB We can control our buffer size 5MB 5MB We can ALSO control 4MB 4MB 4MB our stripe size Misaligning Buffer and 4MB 4MB 4MB Stripe sizes can hurt your performance 4MB 4MB 4MB

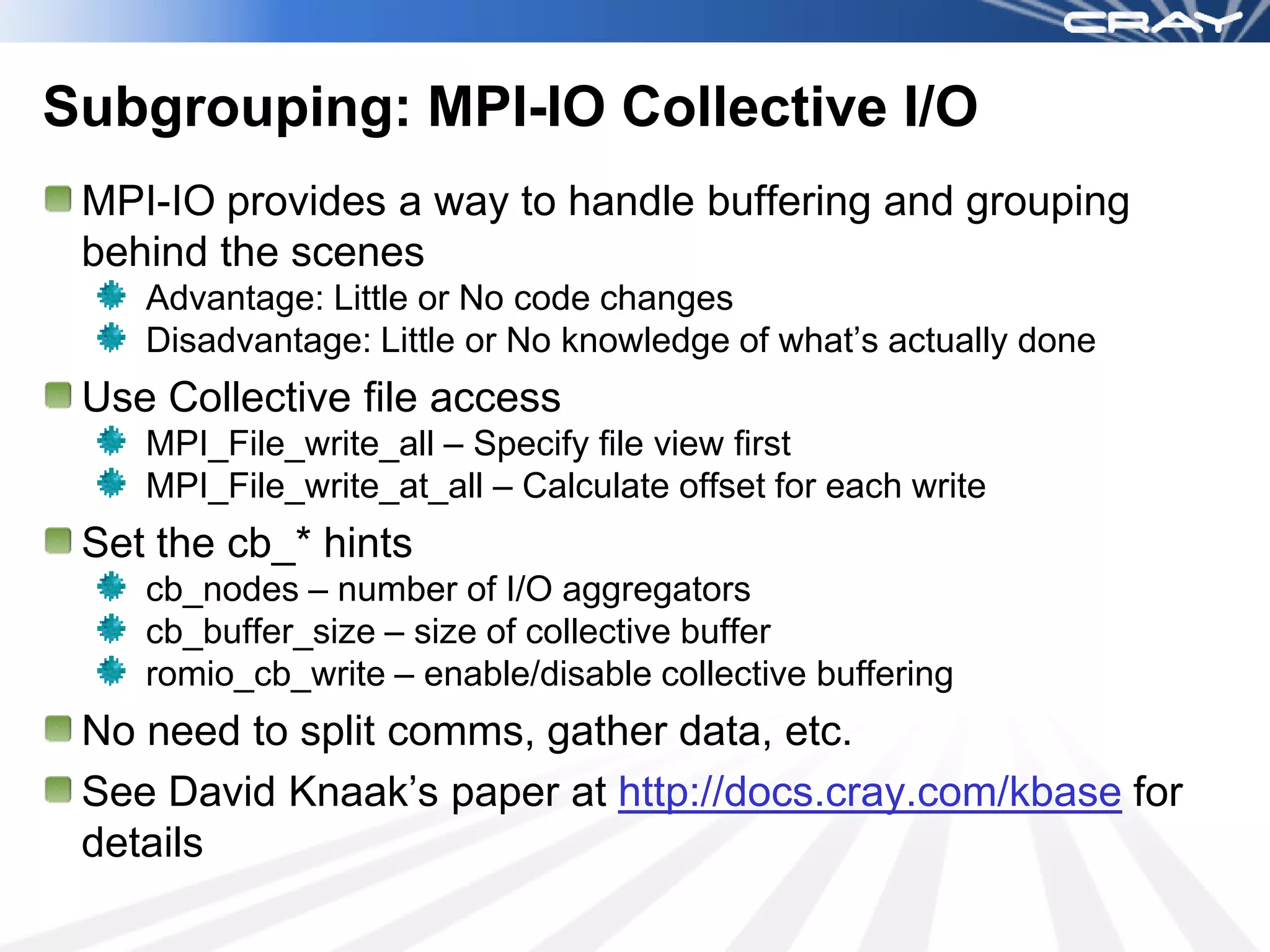

Subgrouping: MPI-IO Collective I/O MPI-IO provides a way to handle buffering and grouping behind the scenes Advantage: Little or No code changes Disadvantage: Little or No knowledge of what’s actually done Use Collective file access MPI_File_write_all – Specify file view first MPI_File_write_at_all – Calculate offset for each write Set the cb_* hints cb_nodes – number of I/O aggregators cb_buffer_size – size of collective buffer romio_cb_write – enable/disable collective buffering No need to split comms, gather data, etc. See David Knaak’s paper at http://docs.cray.com/kbase for details

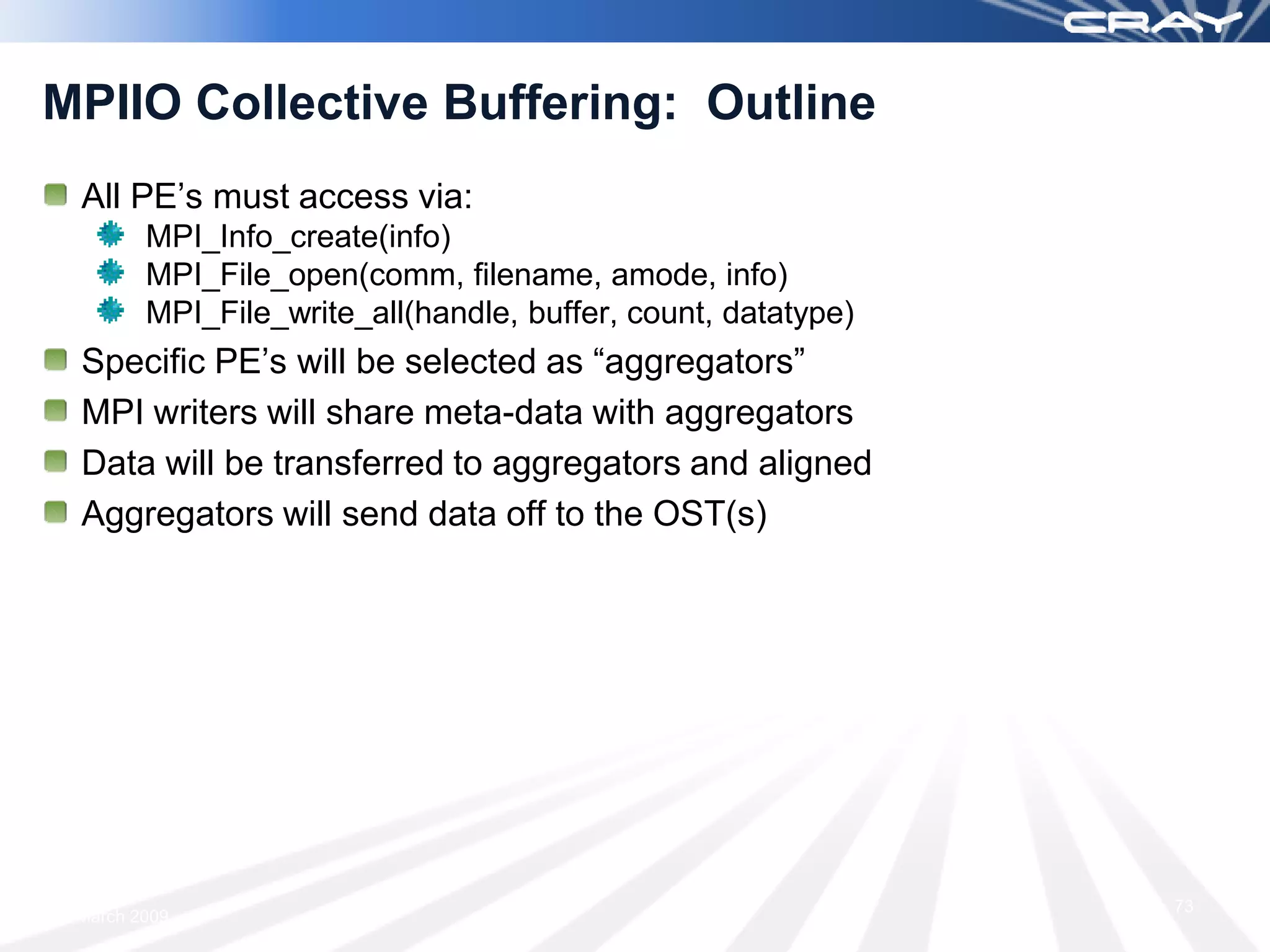

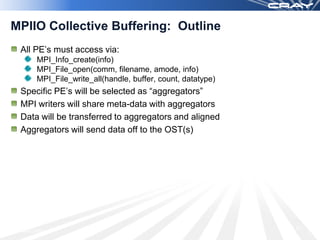

MPIIO Collective Buffering: Outline All PE’s must access via: MPI_Info_create(info) MPI_File_open(comm, filename, amode, info) MPI_File_write_all(handle, buffer, count, datatype) Specific PE’s will be selected as “aggregators” MPI writers will share meta-data with aggregators Data will be transferred to aggregators and aligned Aggregators will send data off to the OST(s) 73 March 2009

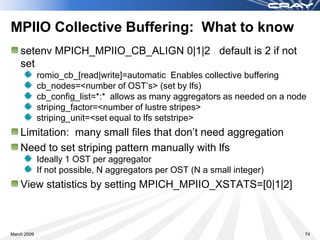

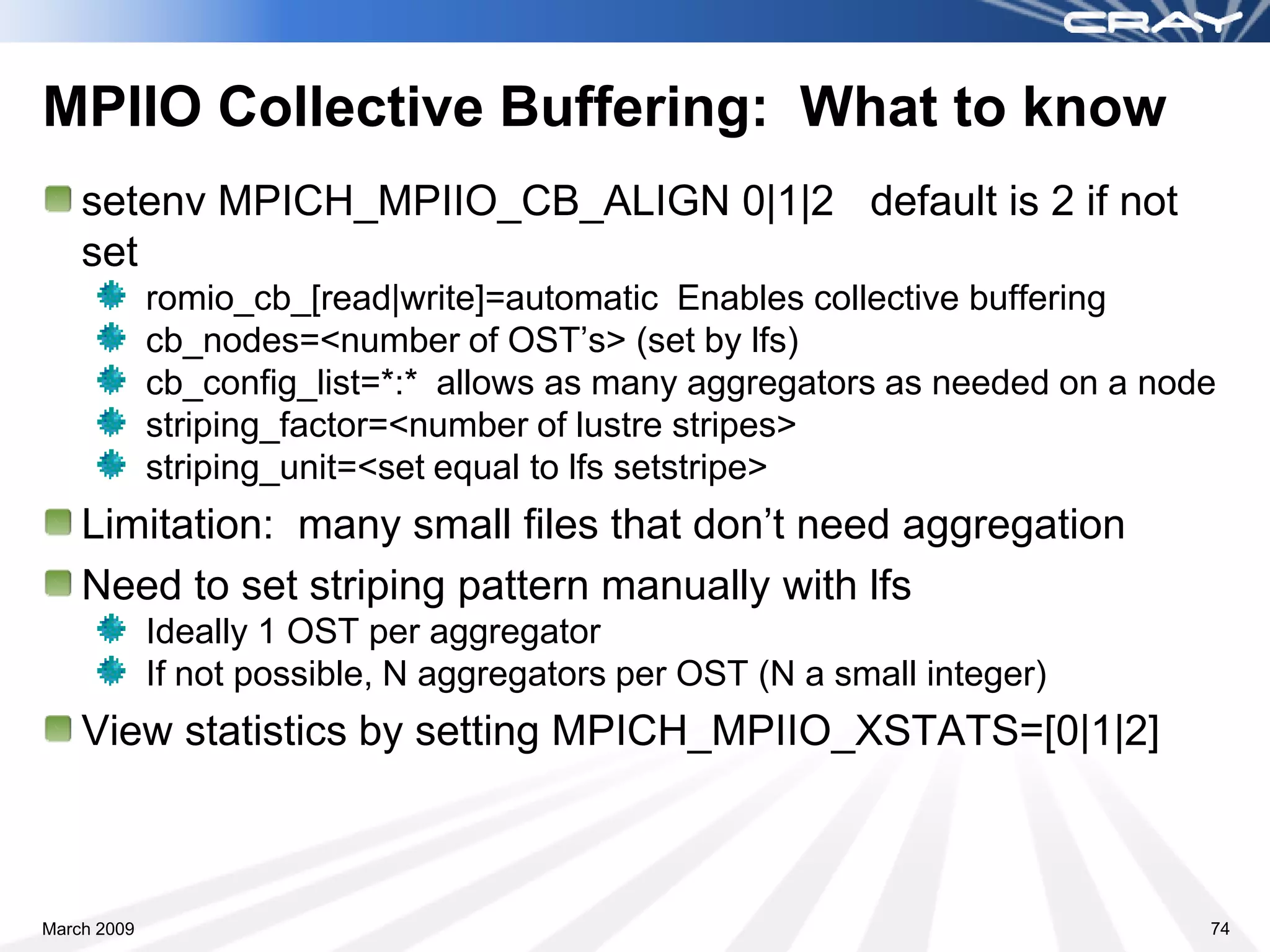

MPIIO Collective Buffering: What to know setenv MPICH_MPIIO_CB_ALIGN 0|1|2 default is 2 if not set romio_cb_[read|write]=automatic Enables collective buffering cb_nodes=<number of OST’s> (set by lfs) cb_config_list=*:* allows as many aggregators as needed on a node striping_factor=<number of lustre stripes> striping_unit=<set equal to lfs setstripe> Limitation: many small files that don’t need aggregation Need to set striping pattern manually with lfs Ideally 1 OST per aggregator If not possible, N aggregators per OST (N a small integer) View statistics by setting MPICH_MPIIO_XSTATS=[0|1|2] March 2009 74

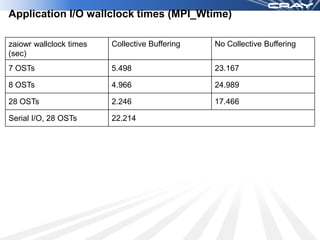

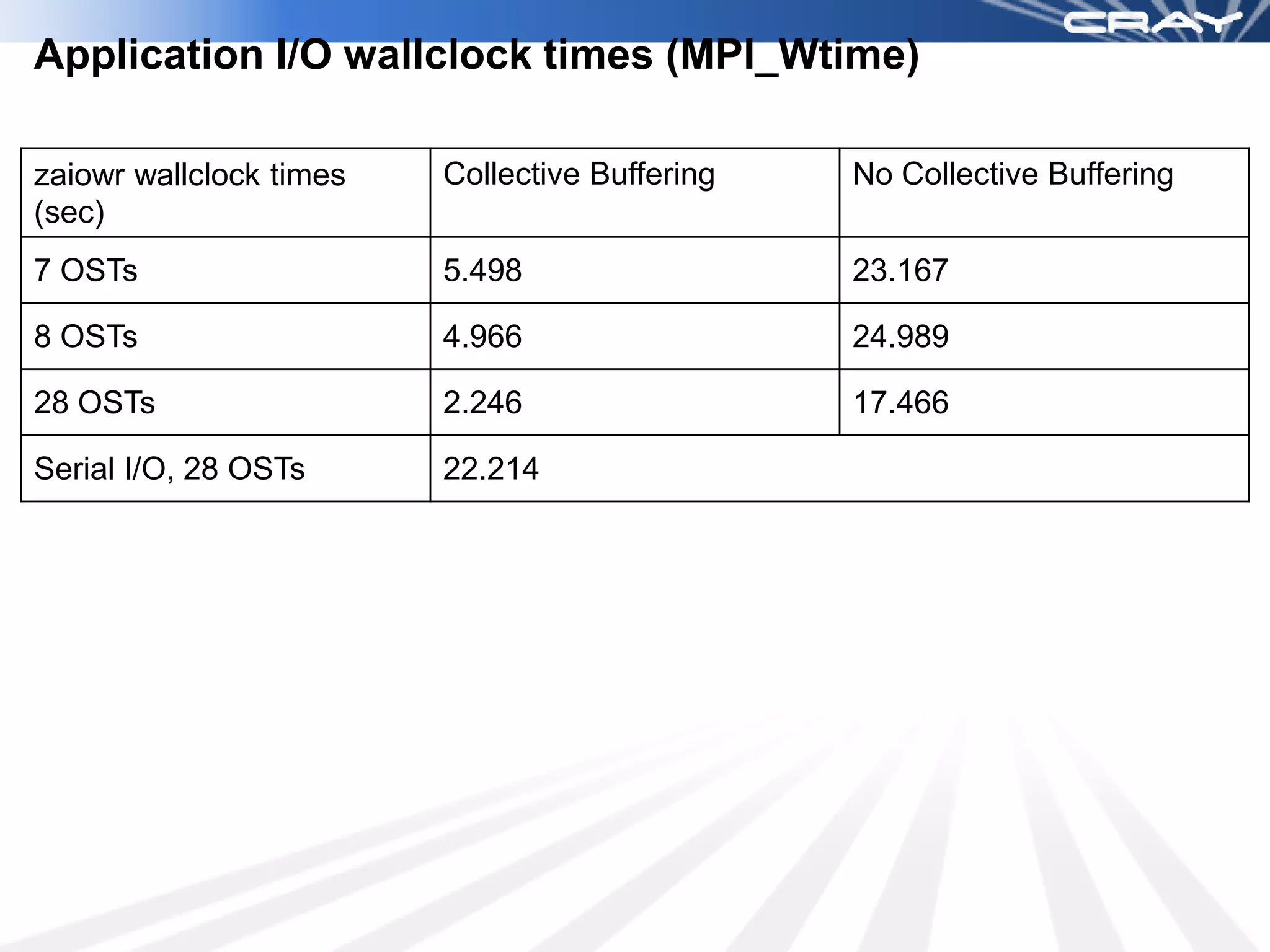

Application I/O wallclock times (MPI_Wtime) zaiowr wallclock times Collective Buffering No Collective Buffering (sec) 7 OSTs 5.498 23.167 8 OSTs 4.966 24.989 28 OSTs 2.246 17.466 Serial I/O, 28 OSTs 22.214

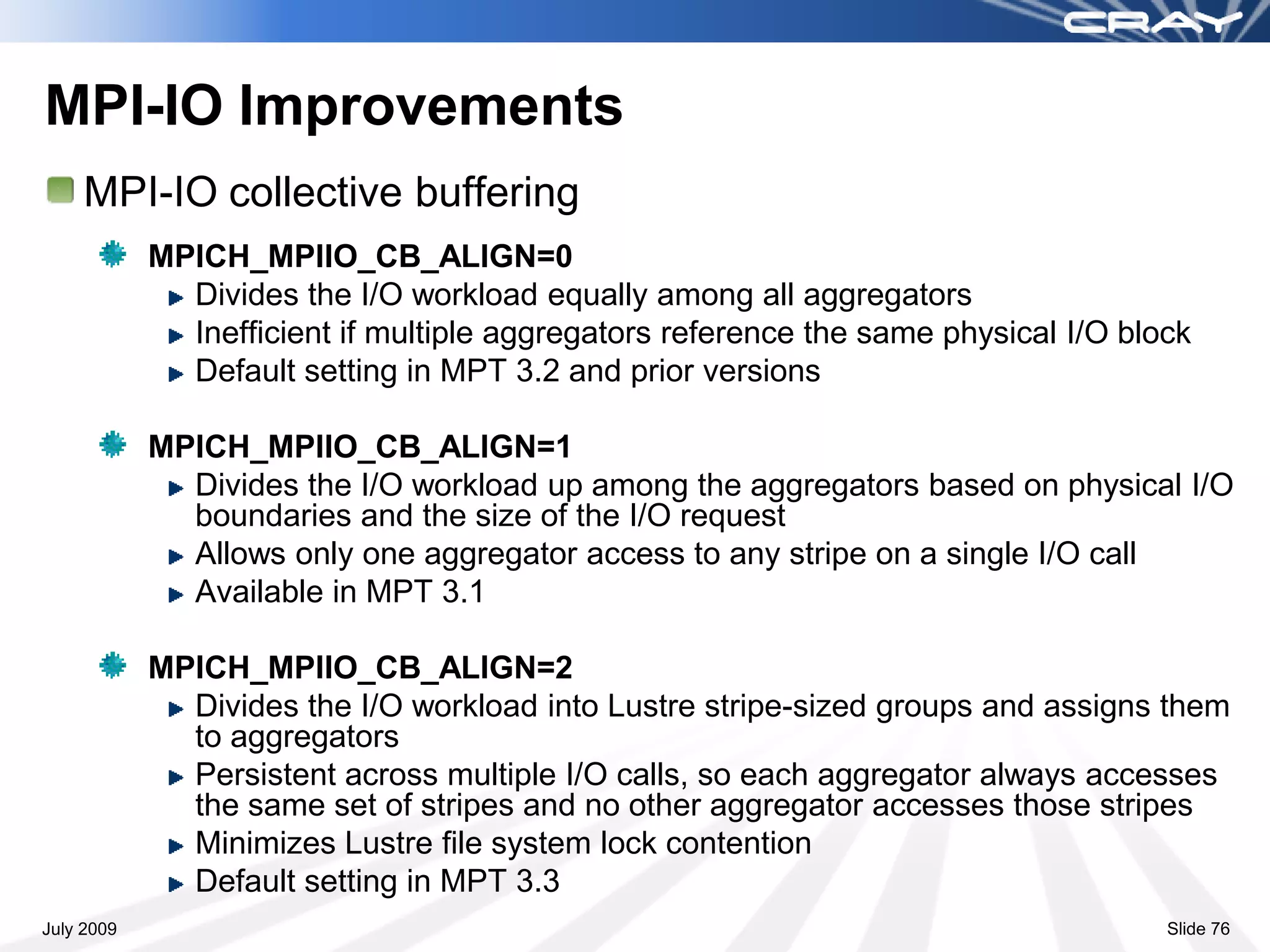

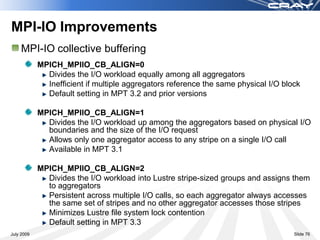

MPI-IO Improvements MPI-IO collective buffering MPICH_MPIIO_CB_ALIGN=0 Divides the I/O workload equally among all aggregators Inefficient if multiple aggregators reference the same physical I/O block Default setting in MPT 3.2 and prior versions MPICH_MPIIO_CB_ALIGN=1 Divides the I/O workload up among the aggregators based on physical I/O boundaries and the size of the I/O request Allows only one aggregator access to any stripe on a single I/O call Available in MPT 3.1 MPICH_MPIIO_CB_ALIGN=2 Divides the I/O workload into Lustre stripe-sized groups and assigns them to aggregators Persistent across multiple I/O calls, so each aggregator always accesses the same set of stripes and no other aggregator accesses those stripes Minimizes Lustre file system lock contention Default setting in MPT 3.3 July 2009 Slide 76

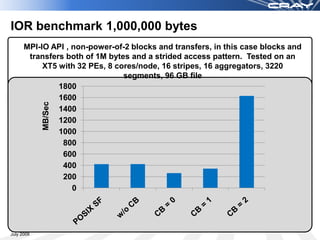

IOR benchmark 1,000,000 bytes MPI-IO API , non-power-of-2 blocks and transfers, in this case blocks and transfers both of 1M bytes and a strided access pattern. Tested on an XT5 with 32 PEs, 8 cores/node, 16 stripes, 16 aggregators, 3220 segments, 96 GB file 1800 1600 MB/Sec 1400 1200 1000 800 600 400 200 0 July 2009

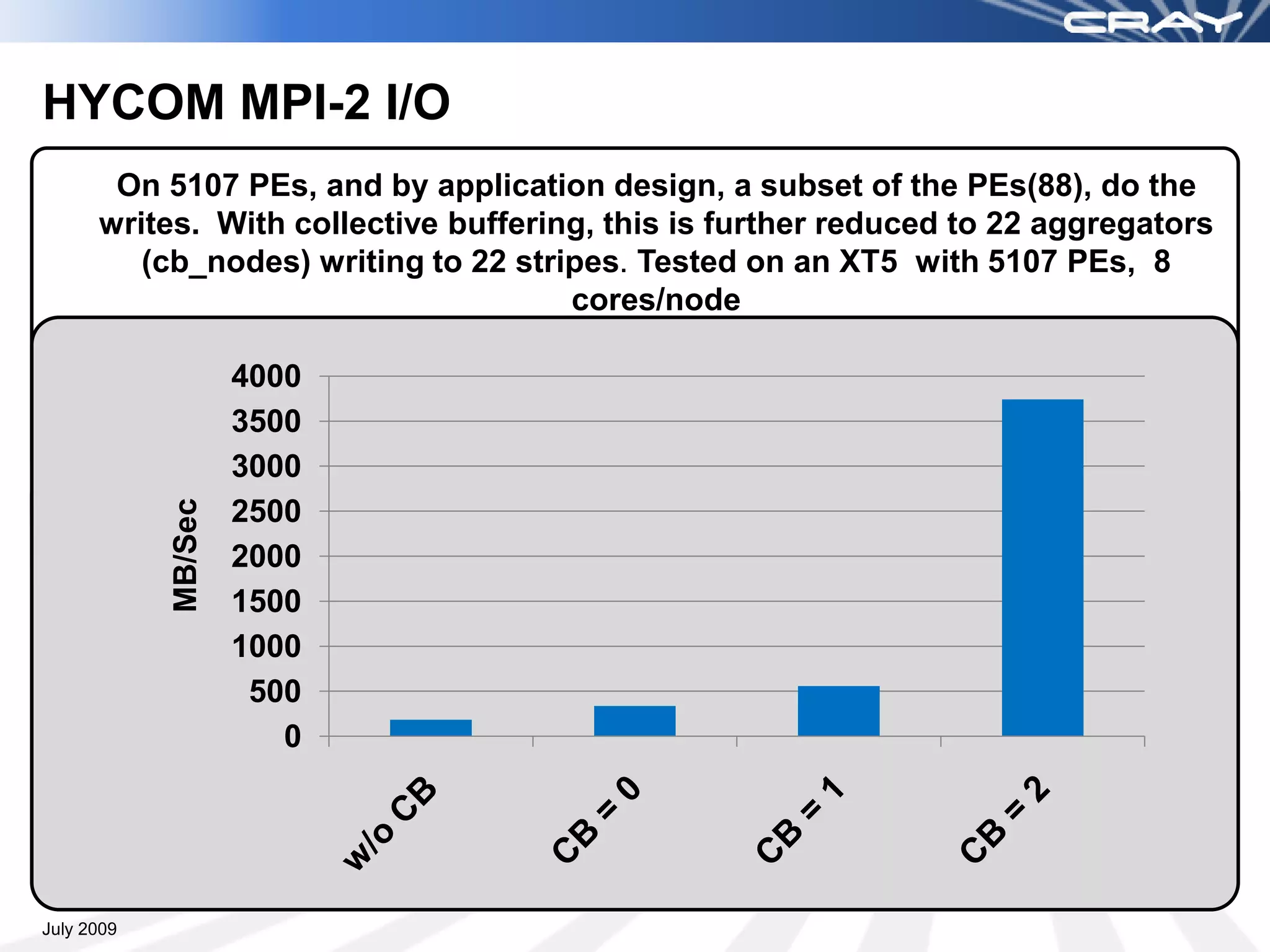

HYCOM MPI-2 I/O On 5107 PEs, and by application design, a subset of the PEs(88), do the writes. With collective buffering, this is further reduced to 22 aggregators (cb_nodes) writing to 22 stripes. Tested on an XT5 with 5107 PEs, 8 cores/node 4000 3500 3000 MB/Sec 2500 2000 1500 1000 500 0 July 2009

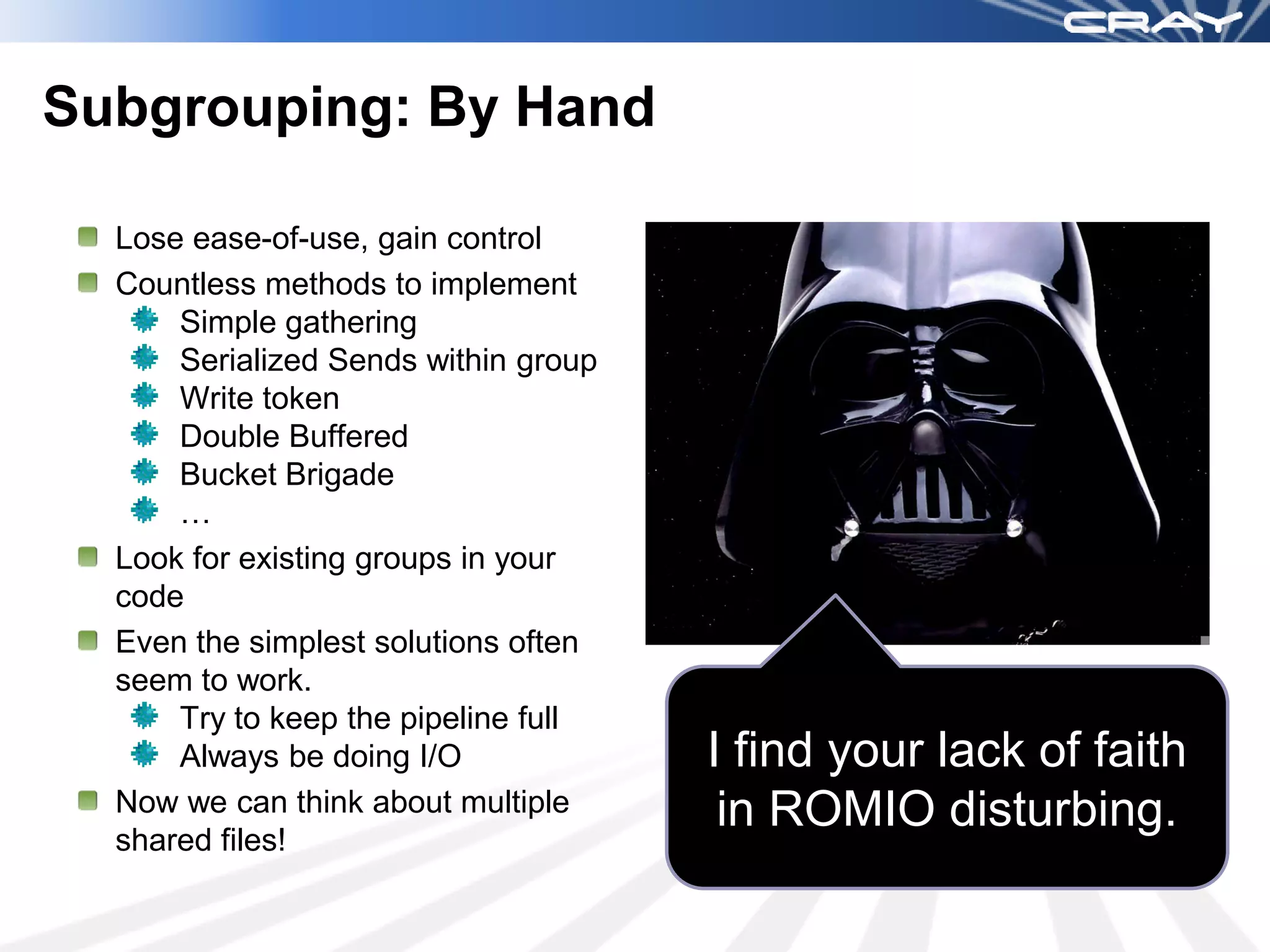

Subgrouping: By Hand Lose ease-of-use, gain control Countless methods to implement Simple gathering Serialized Sends within group Write token Double Buffered Bucket Brigade … Look for existing groups in your code Even the simplest solutions often seem to work. Try to keep the pipeline full Always be doing I/O I find your lack of faith Now we can think about multiple in ROMIO disturbing. shared files!

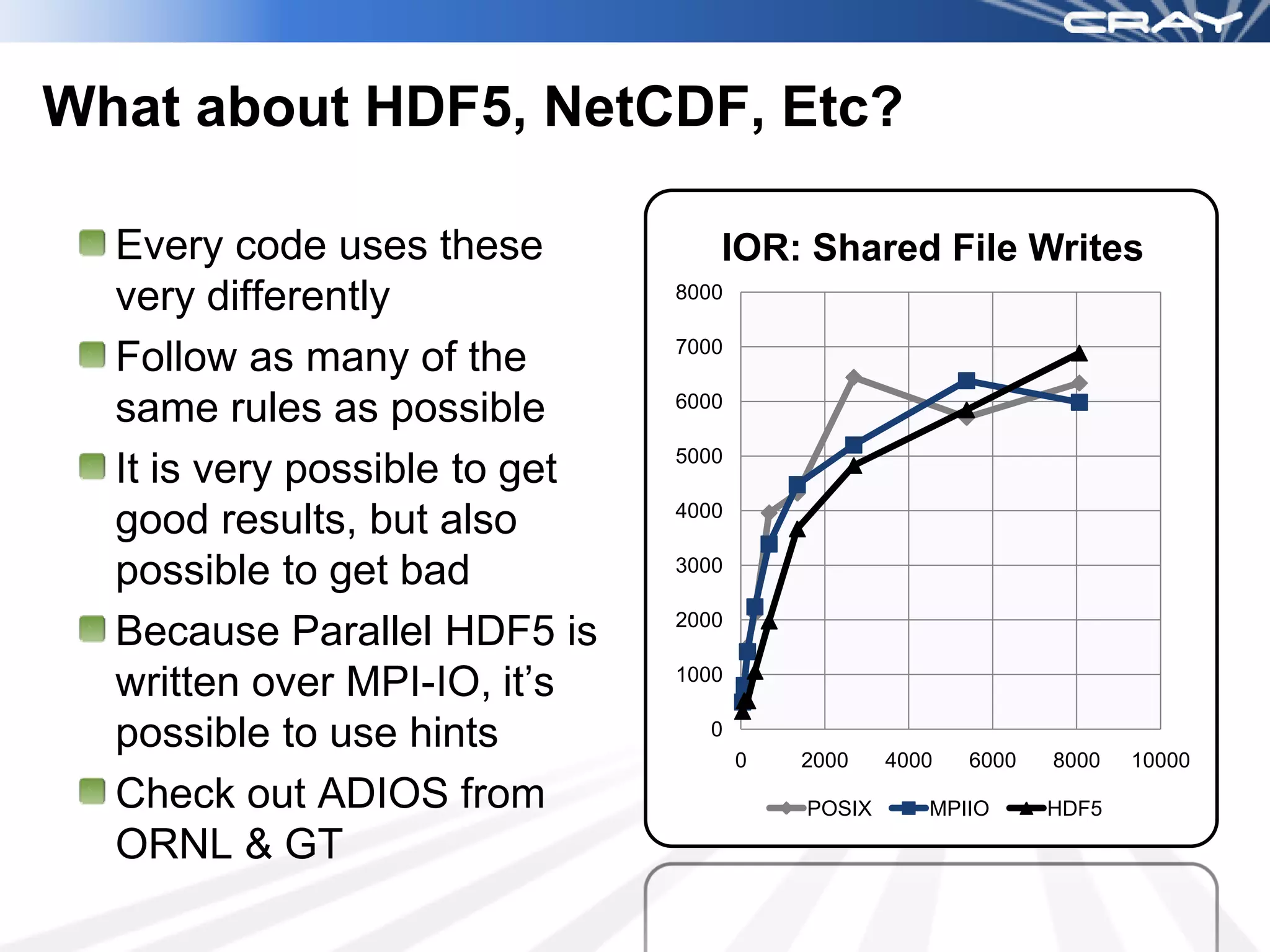

What about HDF5, NetCDF, Etc? Every code uses these IOR: Shared File Writes very differently 8000 7000 Follow as many of the same rules as possible 6000 5000 It is very possible to get 4000 good results, but also possible to get bad 3000 2000 Because Parallel HDF5 is written over MPI-IO, it’s 1000 possible to use hints 0 0 2000 4000 6000 8000 10000 Check out ADIOS from POSIX MPIIO HDF5 ORNL & GT

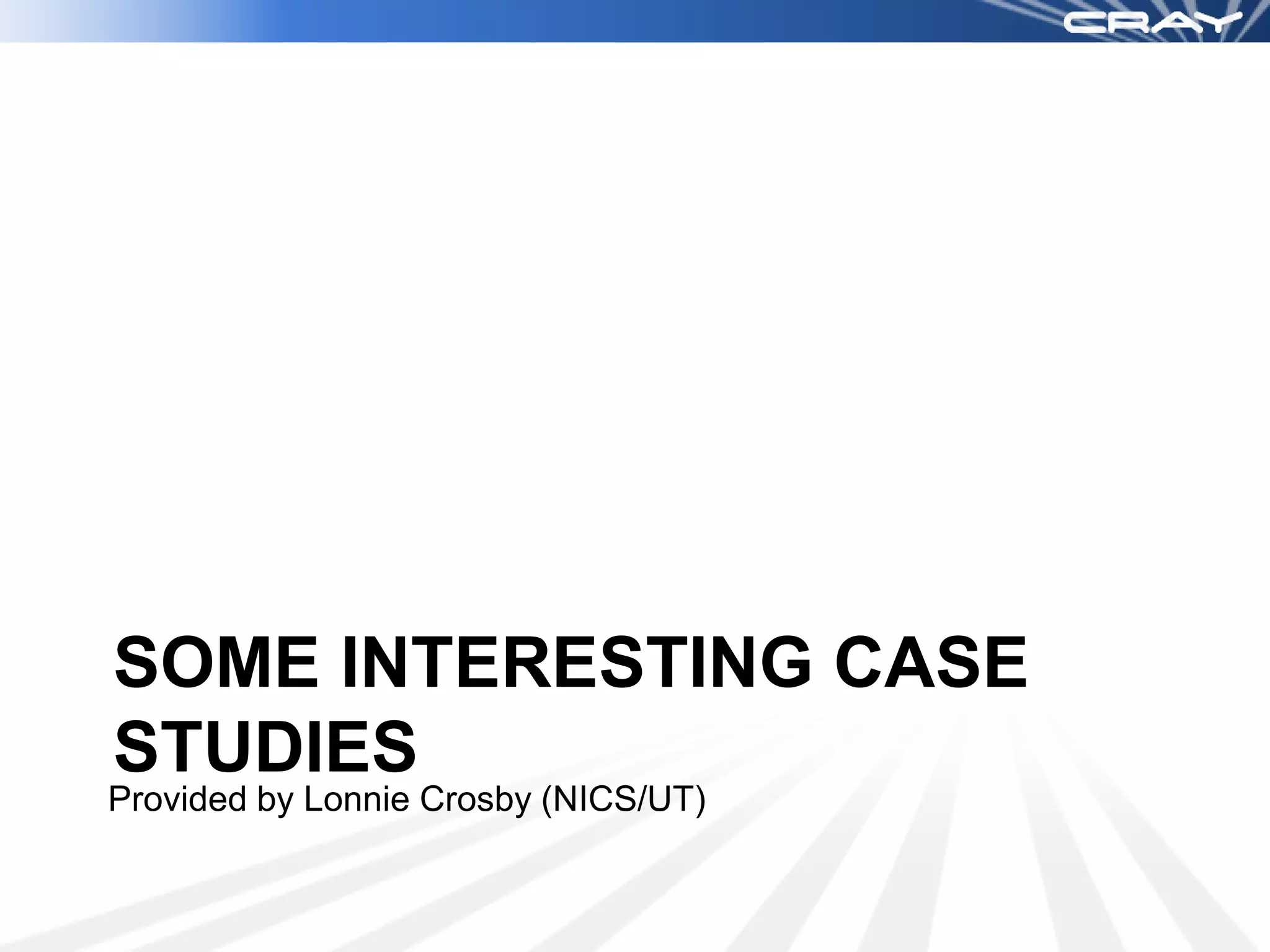

SOME INTERESTING CASE STUDIES Provided by Lonnie Crosby (NICS/UT)
XT Best Practices

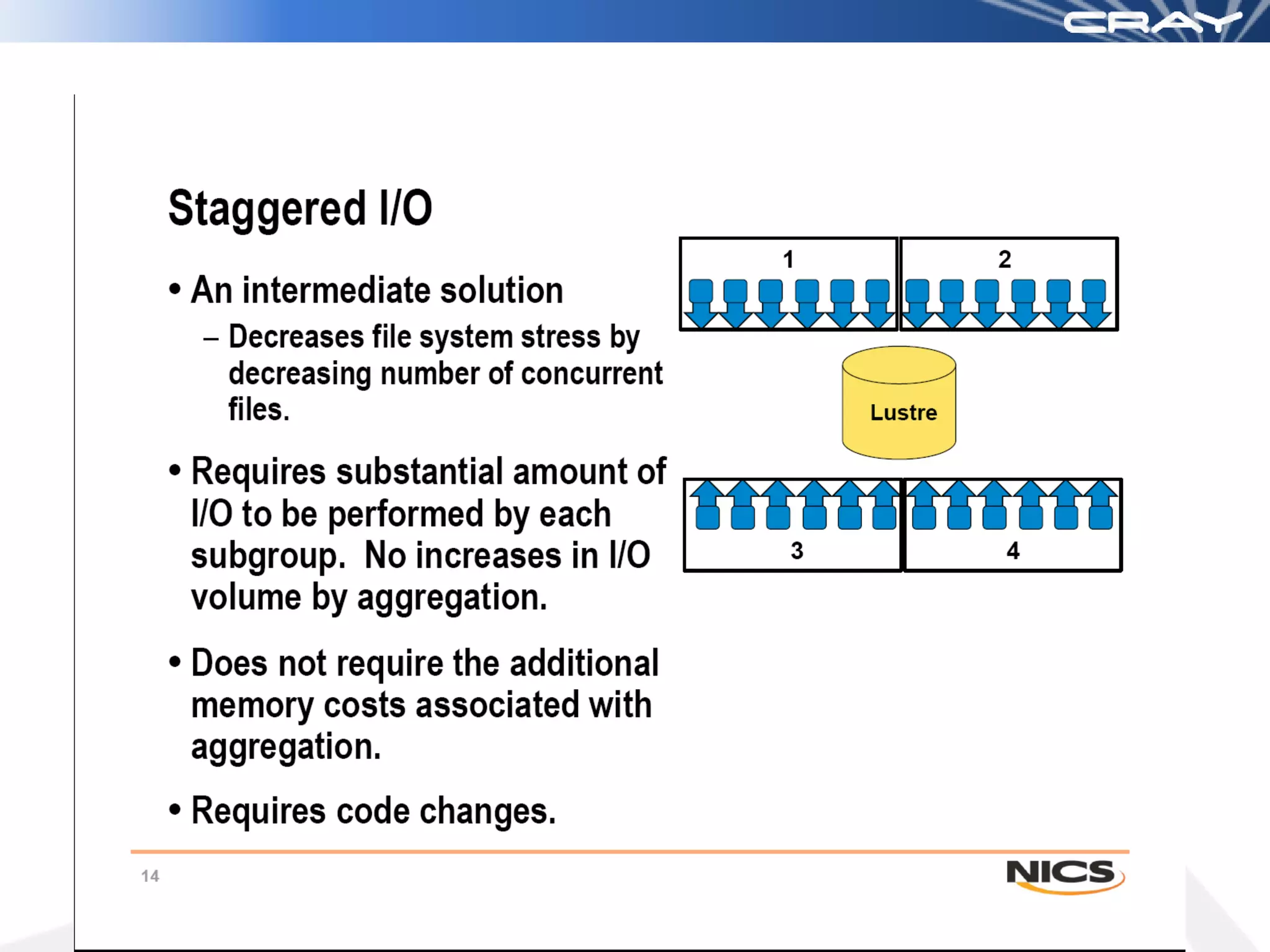

XT Best Practices

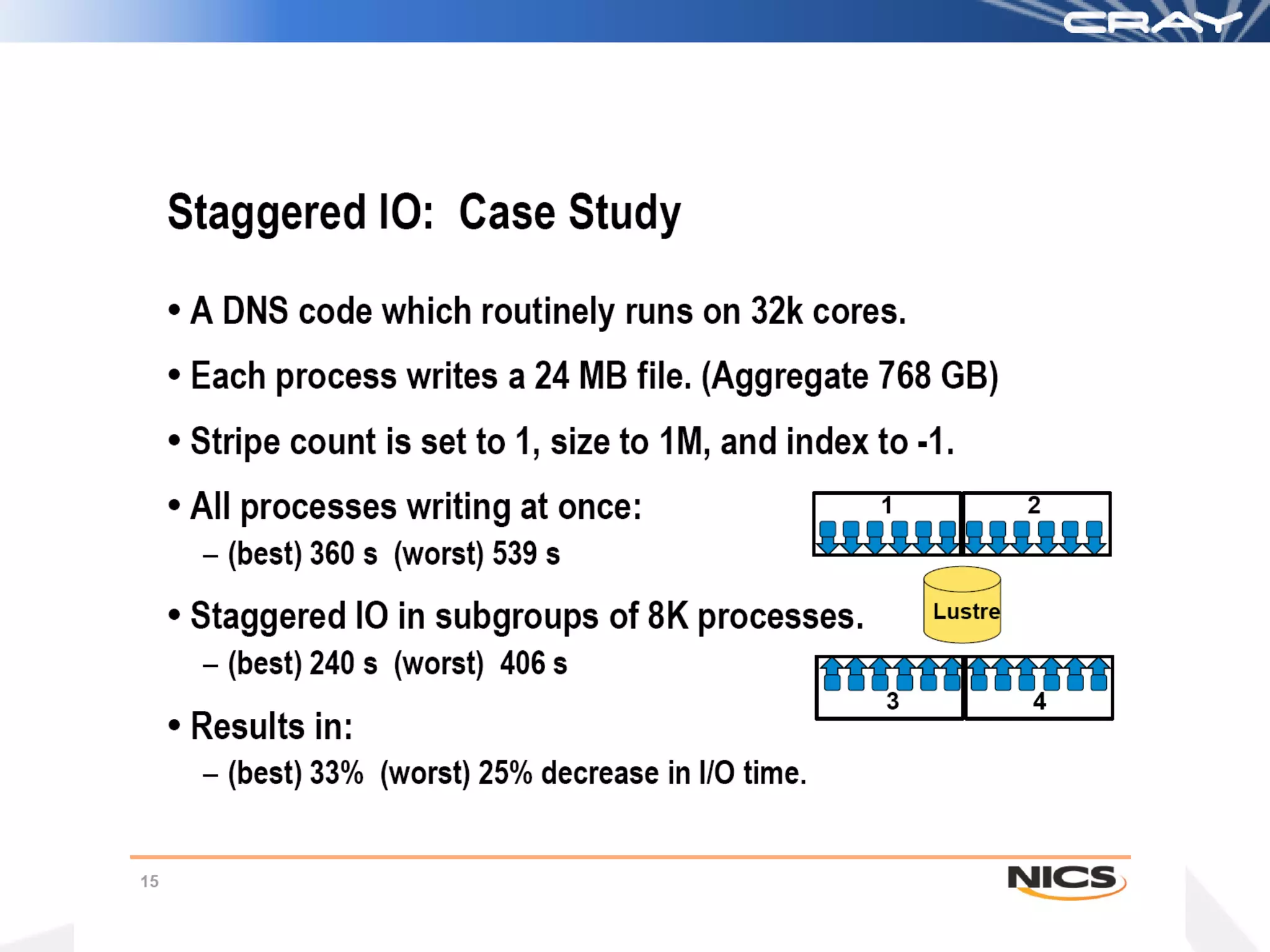

XT Best Practices

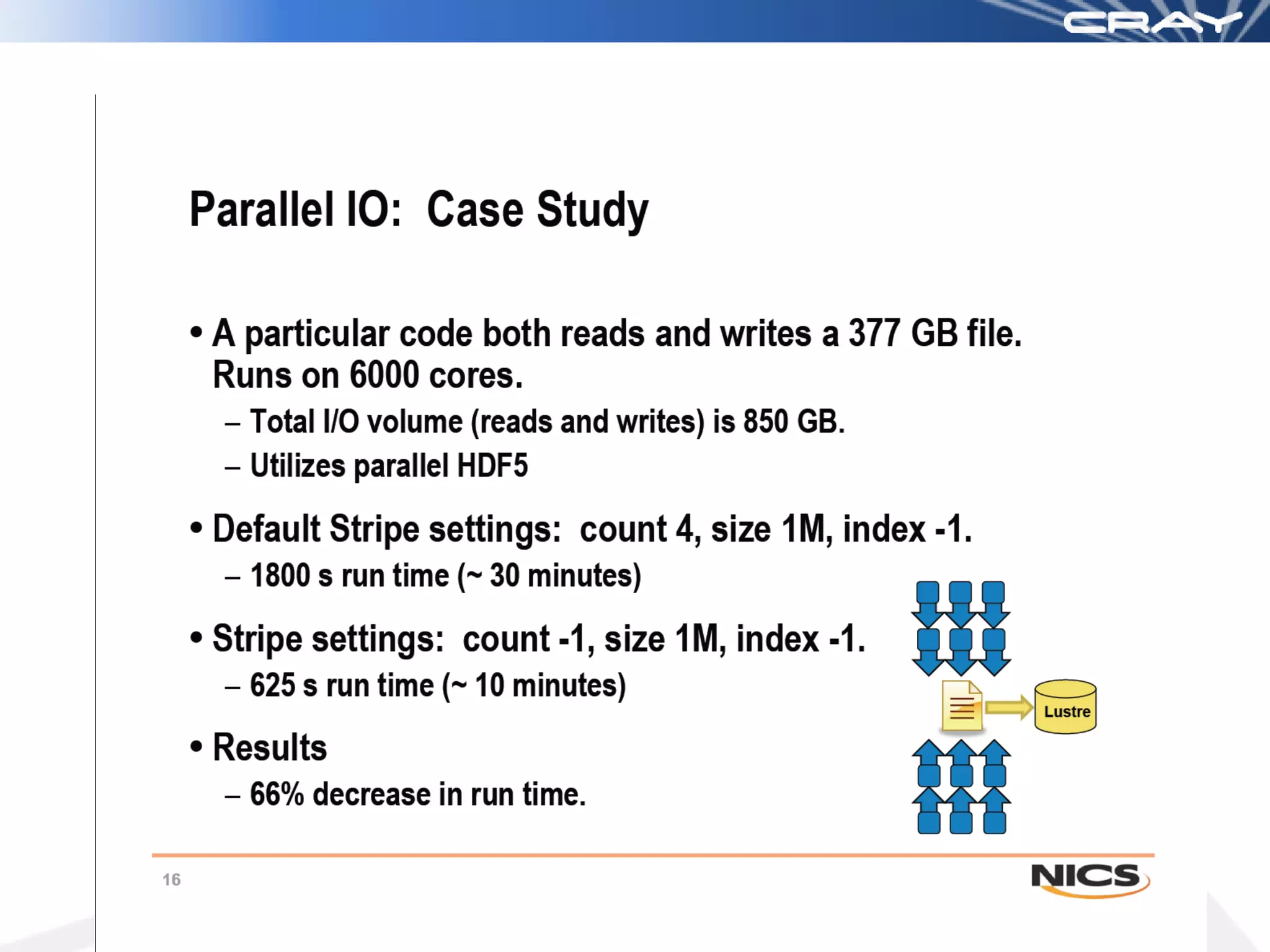

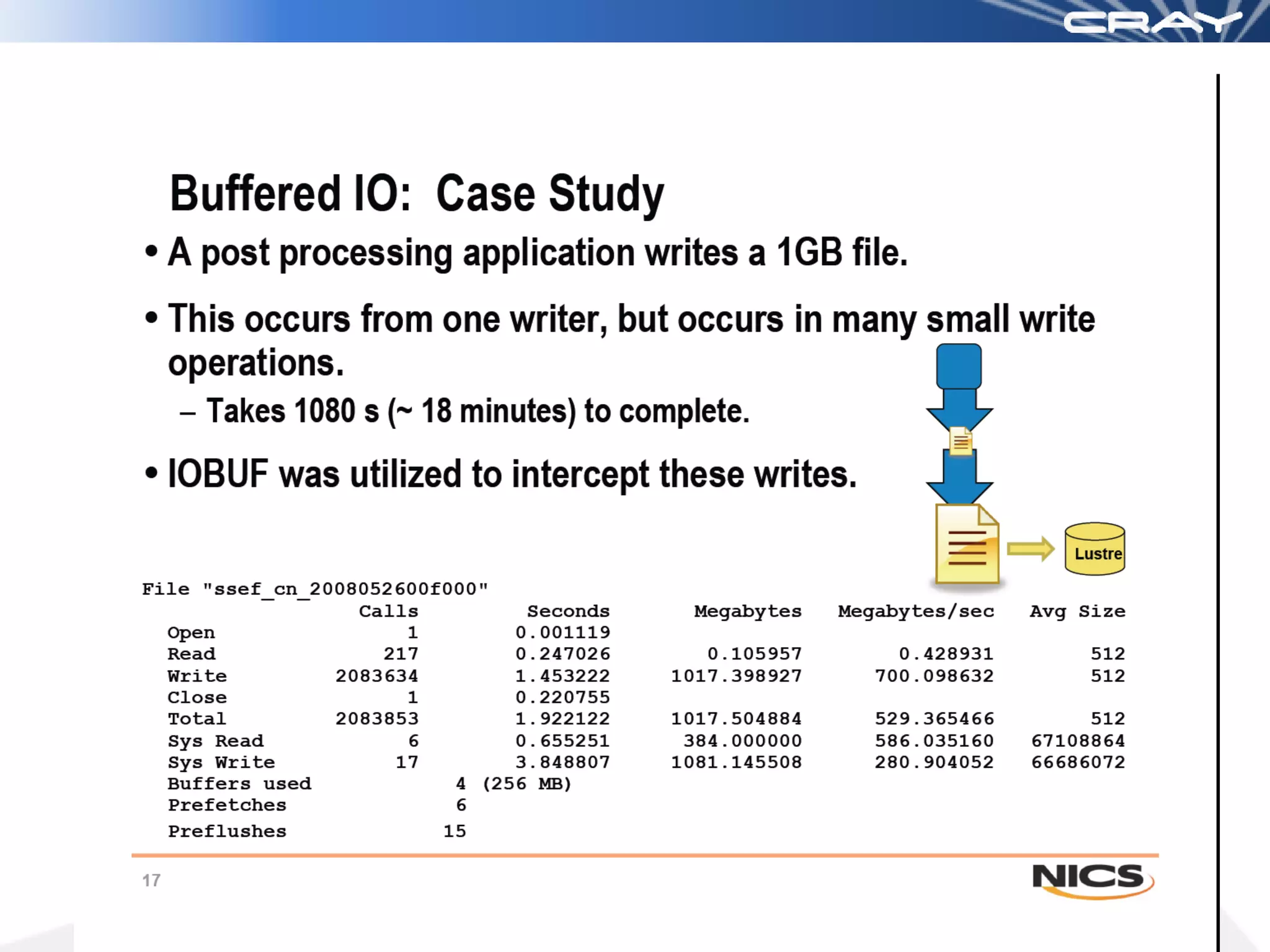

XT Best Practices

More Related Content

PDF
Cray XT Porting, Scaling, and Optimization Best Practices
byJeff Larkin

PDF
PostgreSQL with OpenCL
byMuhaza Liebenlito

PPTX
Siggraph 2016 - Vulkan and nvidia : the essentials
byTristan Lorach

PDF
計算力学シミュレーションに GPU は役立つのか？
byShinnosuke Furuya

PDF
QGATE 0.3: QUANTUM CIRCUIT SIMULATOR
byNVIDIA Japan

PDF
Como obter o melhor do Z por Gustavo Fernandes Araujo (Itau Unibanco)
byJoao Galdino Mello de Souza

PPTX
Dalvik Vm &amp; Jit
byAnkit Somani

PPTX
Borderless Per Face Texture Mapping
bybasisspace

Cray XT Porting, Scaling, and Optimization Best Practices
byJeff Larkin

PostgreSQL with OpenCL
byMuhaza Liebenlito

Siggraph 2016 - Vulkan and nvidia : the essentials
byTristan Lorach

計算力学シミュレーションに GPU は役立つのか？
byShinnosuke Furuya

QGATE 0.3: QUANTUM CIRCUIT SIMULATOR
byNVIDIA Japan

Como obter o melhor do Z por Gustavo Fernandes Araujo (Itau Unibanco)
byJoao Galdino Mello de Souza

Dalvik Vm &amp; Jit
byAnkit Somani

Borderless Per Face Texture Mapping
bybasisspace


What's hot

PDF
Maximizing Application Performance on Cray XT6 and XE6 Supercomputers DOD-MOD...
byJeff Larkin

PDF
How To Train Your Calxeda EnergyCore
byNaoto MATSUMOTO

PDF
Profiling deep learning network using NVIDIA nsight systems
byJack (Jaegeun) Han

PDF
100Gbps OpenStack For Providing High-Performance NFV
byNTT Communications Technology Development

PDF
Do Theoretical Flo Ps Matter For Real Application’S Performance Kaust 2012
byJoshua Mora

PPTX
Intro to GPGPU with CUDA (DevLink)
byRob Gillen

PDF
Can we boost more HPC performance? Integrate IBM POWER servers with GPUs to O...
byNTT Communications Technology Development

PPTX
Intro to GPGPU Programming with Cuda
byRob Gillen

PDF
Direct Code Execution @ CoNEXT 2013
byHajime Tazaki

PPTX
Porting the Source Engine to Linux: Valve's Lessons Learned
bybasisspace

PDF
Qemu JIT Code Generator and System Emulation
byNational Cheng Kung University

PDF
Arm tools and roadmap for SVE compiler support
byLinaro

PDF
Kernelvm 201312-dlmopen
byHajime Tazaki

PPTX
vkFX: Effect(ive) approach for Vulkan API
byTristan Lorach

PDF
macOSの仮想化技術について ~Virtualization-rs Rust bindings for virtualization.framework ~
byNTT Communications Technology Development

ODP
Virtual net performance
byStephen Hemminger

PDF
Java and Containers - Make it Awesome !
byDinakar Guniguntala

PDF
UA Mobile 2012 (English)
bydmalykhanov

PPTX
NvFX GTC 2013
byTristan Lorach

PDF
PT-4054, "OpenCL™ Accelerated Compute Libraries" by John Melonakos
byAMD Developer Central

Maximizing Application Performance on Cray XT6 and XE6 Supercomputers DOD-MOD...
byJeff Larkin

How To Train Your Calxeda EnergyCore
byNaoto MATSUMOTO

Profiling deep learning network using NVIDIA nsight systems
byJack (Jaegeun) Han

100Gbps OpenStack For Providing High-Performance NFV
byNTT Communications Technology Development

Do Theoretical Flo Ps Matter For Real Application’S Performance Kaust 2012
byJoshua Mora

Intro to GPGPU with CUDA (DevLink)
byRob Gillen

Can we boost more HPC performance? Integrate IBM POWER servers with GPUs to O...
byNTT Communications Technology Development

Intro to GPGPU Programming with Cuda
byRob Gillen

Direct Code Execution @ CoNEXT 2013
byHajime Tazaki

Porting the Source Engine to Linux: Valve's Lessons Learned
bybasisspace

Qemu JIT Code Generator and System Emulation
byNational Cheng Kung University

Arm tools and roadmap for SVE compiler support
byLinaro

Kernelvm 201312-dlmopen
byHajime Tazaki

vkFX: Effect(ive) approach for Vulkan API
byTristan Lorach

macOSの仮想化技術について ~Virtualization-rs Rust bindings for virtualization.framework ~
byNTT Communications Technology Development

Virtual net performance
byStephen Hemminger

Java and Containers - Make it Awesome !
byDinakar Guniguntala

UA Mobile 2012 (English)
bydmalykhanov

NvFX GTC 2013
byTristan Lorach

PT-4054, "OpenCL™ Accelerated Compute Libraries" by John Melonakos
byAMD Developer Central


Viewers also liked

PDF
HPCMPUG2011 cray tutorial
byJeff Larkin

PDF
Refactoring Applications for the XK7 and Future Hybrid Architectures
byJeff Larkin

PPTX
Progress Toward Accelerating CAM-SE
byJeff Larkin

PPTX
1ºtecnologias emergentes-thinkepi-fesabid-2011-masmedios
byFESABID

PPT
Drupal1a
byFESABID

PDF
A Comparison of Accelerator Programming Models
byJeff Larkin

HPCMPUG2011 cray tutorial
byJeff Larkin

Refactoring Applications for the XK7 and Future Hybrid Architectures
byJeff Larkin

Progress Toward Accelerating CAM-SE
byJeff Larkin

1ºtecnologias emergentes-thinkepi-fesabid-2011-masmedios
byFESABID

Drupal1a
byFESABID

A Comparison of Accelerator Programming Models
byJeff Larkin


Similar to XT Best Practices

PDF
Pgopencl
byTim Child

PDF
Data-Oriented Design and C++ - Mike Acton Engine Director, Insomniac Games
bydarkasterion2009

PDF
Linux on System z debugging with Valgrind
byIBM India Smarter Computing

PDF
[Harvard CS264] 03 - Introduction to GPU Computing, CUDA Basics
bynpinto

PPTX
Data oriented design and c++
byMike Acton

PPTX
Gpgpu intro
byDominik Seifert

PDF
[Harvard CS264] 16 - Managing Dynamic Parallelism on GPUs: A Case Study of Hi...
bynpinto

PDF
AFDS 2011 Phil Rogers Keynote: “The Programmer’s Guide to the APU Galaxy.”
byHSA Foundation

PDF
Creating an Embedded System Lab
byNonamepro

PDF
[Harvard CS264] 02 - Parallel Thinking, Architecture, Theory & Patterns
bynpinto

PDF
Talk on Parallel Computing at IGWA
byDishant Ailawadi

PDF
Vol1
byashish kumar

PDF
May2010 hex-core-opt
byJeff Larkin

PDF
PG-Strom - GPU Accelerated Asyncr
byKohei KaiGai

PDF
E3MV - Embedded Vision - Sundance
bySundance Multiprocessor Technology Ltd.

PDF
Write once on silicon
bySandip Ray

PPT
Fpga technology
byNaren Sridhar

PDF
Presenter manual embedded systems (specially for summer interns)
byXPERT INFOTECH

PPT
Data flow super computing valentina balas
byValentina Emilia Balas

PDF
301132
byHiroshi Ono

Pgopencl
byTim Child

Data-Oriented Design and C++ - Mike Acton Engine Director, Insomniac Games
bydarkasterion2009

Linux on System z debugging with Valgrind
byIBM India Smarter Computing

[Harvard CS264] 03 - Introduction to GPU Computing, CUDA Basics
bynpinto

Data oriented design and c++
byMike Acton

Gpgpu intro
byDominik Seifert

[Harvard CS264] 16 - Managing Dynamic Parallelism on GPUs: A Case Study of Hi...
bynpinto

AFDS 2011 Phil Rogers Keynote: “The Programmer’s Guide to the APU Galaxy.”
byHSA Foundation

Creating an Embedded System Lab
byNonamepro

[Harvard CS264] 02 - Parallel Thinking, Architecture, Theory & Patterns
bynpinto

Talk on Parallel Computing at IGWA
byDishant Ailawadi

Vol1
byashish kumar

May2010 hex-core-opt
byJeff Larkin

PG-Strom - GPU Accelerated Asyncr
byKohei KaiGai

E3MV - Embedded Vision - Sundance
bySundance Multiprocessor Technology Ltd.

Write once on silicon
bySandip Ray

Fpga technology
byNaren Sridhar

Presenter manual embedded systems (specially for summer interns)
byXPERT INFOTECH

Data flow super computing valentina balas
byValentina Emilia Balas

301132
byHiroshi Ono


More from Jeff Larkin

PDF
FortranCon2020: Highly Parallel Fortran and OpenACC Directives
byJeff Larkin

PDF
Practical Examples for Efficient I/O on Cray XT Systems (CUG 2009)
byJeff Larkin

PDF
Optimizing GPU to GPU Communication on Cray XK7
byJeff Larkin

PDF
Best Practices for OpenMP on GPUs - OpenMP UK Users Group
byJeff Larkin

PDF
Performance Portability Through Descriptive Parallelism
byJeff Larkin

PDF
GTC16 - S6410 - Comparing OpenACC 2.5 and OpenMP 4.5
byJeff Larkin

PDF
Early Results of OpenMP 4.5 Portability on NVIDIA GPUs & CPUs
byJeff Larkin

PDF
CUG2011 Introduction to GPU Computing
byJeff Larkin

PDF
GTC16 - S6510 - Targeting GPUs with OpenMP 4.5
byJeff Larkin

PDF
SC13: OpenMP and NVIDIA
byJeff Larkin

FortranCon2020: Highly Parallel Fortran and OpenACC Directives
byJeff Larkin

Practical Examples for Efficient I/O on Cray XT Systems (CUG 2009)
byJeff Larkin

Optimizing GPU to GPU Communication on Cray XK7
byJeff Larkin

Best Practices for OpenMP on GPUs - OpenMP UK Users Group
byJeff Larkin

Performance Portability Through Descriptive Parallelism
byJeff Larkin

GTC16 - S6410 - Comparing OpenACC 2.5 and OpenMP 4.5
byJeff Larkin

Early Results of OpenMP 4.5 Portability on NVIDIA GPUs & CPUs
byJeff Larkin

CUG2011 Introduction to GPU Computing
byJeff Larkin

GTC16 - S6510 - Targeting GPUs with OpenMP 4.5
byJeff Larkin

SC13: OpenMP and NVIDIA
byJeff Larkin


Recently uploaded

PDF
The State of the Gen AI economy - 2025 - The Meliora Company
byClive Dickens

PPTX
DYNAMICALLY.pptx good for the teachers or students to do seminars and for tea...
bympoorvika031

PPTX
Session 2 - Solving Unstructured & Complex Documents with UiPath IXP
byDianaGray10

PPTX
Emancipatory Information Retrieval: Radically Reorienting Information Retriev...
byBhaskar Mitra

PPTX
MGw_MRS Benfits seu beficios de redes 4g
byJoaquimBarros18

PDF
Day 3 - Data and Application Security - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

PDF
10 Things AI-First Apps Do Differently by iProgrammer Solutions
byiProgrammer Solutions Private Limited

PPTX
How to make Ai agents using Google Gemini AI.pptx
bypkluffy111

PPTX
Why Most GenAI Projects Fail to Scale and How to Become One of the Success St...
byEarley Information Science

PDF
WCAG Analyzer Tools and Techniques for User-Friendly Websites
byAccessibility Analyzer

PDF
DevFest El Jadida 2025 - Product Thinking
byElmehdi AMLOU

PDF
Cross-Cultural Agile Development -Challenges and Strategies for Overcoming Them-
byTakashi Makino

PDF
CompTIA Cybersecurity Analyst (CySA+) CS0-003: Unit 5
byVICTOR MAESTRE RAMIREZ

PDF
Day 5 - Red Team + Blue Team in the Cloud - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

PDF
Our Digital Tribe_ Cultivating Connection and Growth in Our Slack Community 🌿...
bysanjeetmishra30

PDF
Unlocking the Power of Salesforce Architecture: Frameworks for Effective Solu...
byvarsha30tiwari

PDF
Dev Dives: AI that builds with you - UiPath Autopilot for effortless RPA & AP...
byUiPathCommunity

PDF
Day 4 - Access, Deployments, and Monitoring - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

PPTX
wob-report.pptxwob-report.pptxwob-report.pptx
byssuser0d171c

PDF
Is It Possible to Have Wi-Fi Without an Internet Provider
bySidra Jefferi

The State of the Gen AI economy - 2025 - The Meliora Company
byClive Dickens

DYNAMICALLY.pptx good for the teachers or students to do seminars and for tea...
bympoorvika031

Session 2 - Solving Unstructured & Complex Documents with UiPath IXP
byDianaGray10

Emancipatory Information Retrieval: Radically Reorienting Information Retriev...
byBhaskar Mitra

MGw_MRS Benfits seu beficios de redes 4g
byJoaquimBarros18

Day 3 - Data and Application Security - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

10 Things AI-First Apps Do Differently by iProgrammer Solutions
byiProgrammer Solutions Private Limited

How to make Ai agents using Google Gemini AI.pptx
bypkluffy111

Why Most GenAI Projects Fail to Scale and How to Become One of the Success St...
byEarley Information Science

WCAG Analyzer Tools and Techniques for User-Friendly Websites
byAccessibility Analyzer

DevFest El Jadida 2025 - Product Thinking
byElmehdi AMLOU

Cross-Cultural Agile Development -Challenges and Strategies for Overcoming Them-
byTakashi Makino

CompTIA Cybersecurity Analyst (CySA+) CS0-003: Unit 5
byVICTOR MAESTRE RAMIREZ

Day 5 - Red Team + Blue Team in the Cloud - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

Our Digital Tribe_ Cultivating Connection and Growth in Our Slack Community 🌿...
bysanjeetmishra30

Unlocking the Power of Salesforce Architecture: Frameworks for Effective Solu...
byvarsha30tiwari

Dev Dives: AI that builds with you - UiPath Autopilot for effortless RPA & AP...
byUiPathCommunity

Day 4 - Access, Deployments, and Monitoring - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

wob-report.pptxwob-report.pptxwob-report.pptx
byssuser0d171c

Is It Possible to Have Wi-Fi Without an Internet Provider
bySidra Jefferi


XT Best Practices

  • 1.
    Cray XT BestPractices Jeff Larkin larkin@cray.com
  • 2.
  • 3.
    Quad-Core Cray XT4Node 6.4 GB/sec direct connect HyperTransport  4-way SMP  >35 Gflops per node  Up to 8 GB per node  OpenMP Support 2 – 8 GB within socket 12.8 GB/sec direct Cray connect memory SeaStar2+ (DDR 800) Interconnect November 09 Slide 3
  • 4.
    2 – 32GB memory Cray XT5 Node 6.4 GB/sec direct connect HyperTransport  8 or 12-way SMP  >70 Gflops per node  Up to 32 GB of shared memory per node 25.6 GB/sec direct  OpenMP Support connect memory Cray SeaStar2+ Interconnect November 09 Slide 4
  • 5.
    AMD Quad-core review 4 DP/8 SP FLOPS/clock cycle, per core 128bit packed ADD + 128bit packed MUL 64KB Level 1 Data Cache per core 512KB Level Cache per core 2 – 6MB Level 3 Cache per socket Coherent cache between XT5 sockets 2 DDR Memory Controllers that can work synchronously or asynchronously Determined at boot, we generally run them asynchronously for better performance November 09 Slide 5
  • 6.
    XT System ConfigurationExample Z Y GigE X 10 GigE GigE SMW Fibre Channels RAID Subsystem Compute node Login node Network node Boot/Syslog/Database nodes November 09 I/O and Metadata nodes Slide 6
  • 7.
  • 8.
    Choosing a Compiler Try every compiler available to you, there’s no “best” PGI, Cray, Pathscale, Intel, GCC are all available, but not necessarily on all machines Each compiler favors certain optimizations, which may benefit applications differently Test your answers carefully Order of operation may not be the same between compilers or even compiler versions You may have to decide whether speed or precision is more important to you November 09 Slide 8
  • 9.
    Choosing Compiler Flags PGI -fast –Mipa=fast man pgf90; man pgcc; man pgCC Cray <none, turned on by default> man crayftn; man craycc ; man crayCC Pathscale -Ofast man eko (“Every Known Optimization”) GNU -O2 / -O3 man gfortran; man gcc; man g++ Intel -fast man ifort; man icc; man iCC November 09 Slide 9
  • 10.
  • 11.
    Profile and Debug“at Scale” Codes don’t run the same at thousands of cores as hundreds, 10s of thousands as thousands, or 100s of thousands as 10s Determine how many nodes you wish to run on and test at that size, don’t test for throughput Scaling (Time) 2000 1800 1600 1400 1200 Time (s) 1000 v1 (time) 800 v2 (time) 600 400 200 0 122 244 488 976 1952 3904 7808 15616 31232 62464 124928 150304 November 09 Slide 11
  • 12.
    Profile and Debugwith Real Science Choose a real problem, not a toy What do you want to achieve with the machine? How will you really run your code? Will you really run without I/O? November 09 Slide 12
  • 13.
    What Data ShouldWe Collect? Compiler Feedback Most compilers can tell you a lot about what they do to your code Did your important loop vectorize? Was a routine inlined? Was this loop unrolled? It’s just as important to know what the compiler didn’t do Some C/C++ loops won’t vectorize without some massaging Some loop counts aren’t known at runtime, so optimization is limited Flags to know: PGI: -Minfo=all –Mneginfo=all Cray: -rm Pathscale: -LNO:simd_verbose=ON Intel: -vec-report1 November 09 Slide 13
  • 14.
    Compiler Feedback Examples:PGI ! Matrix Multiply 24, Loop interchange do k = 1, N produces reordered loop do j = 1, N nest: 25,24,26 do i = 1, N 26, Generated an alternate loop for the loop c(i,j) = c(i,j) + & Generated vector a(i,k) * b(k,j) sse code for the loop end do Generated 2 end do prefetch instructions for end do the loop November 09 Slide 14
  • 15.
    Compiler Feedback Examples:Cray 23. ! Matrix Multiply 24. ib------------< do k = 1, N 25. ib ibr4-------< do j = 1, N 26. ib ibr4 Vbr4--< do i = 1, N 27. ib ibr4 Vbr4 c(i,j) = c(i,j) + a(i,k) * b(k,j) 28. ib ibr4 Vbr4--> end do 29. ib ibr4-------> end do 30. ib------------> end do i – interchanged b – blocked r – unrolled V - Vectorized November 09 Slide 15
  • 16.
    Compiler Feedback Examples:Pathscale -LNO:simd_verbose appears to be broken November 09 Slide 16
  • 17.
    Compiler Feedback Examples:Intel mm.F90(14): (col. 3) remark: PERMUTED LOOP WAS VECTORIZED. mm.F90(25): (col. 7) remark: LOOP WAS VECTORIZED. November 09 Slide 17
  • 18.
    What Data ShouldWe Collect? Hardware Performance Counters Using tools like CrayPAT it’s possible to know what the processor is doing We can get counts for FLOPS Cache Hits/Misses TLB Hits/Misses Stalls … We can derive FLOP Rate Cache Hit/Miss Ratio Computational Intensity … November 09 Slide 18
  • 19.
    Gathering Performance Data Use Craypat’s APA First gather sampling for line number profile Light-weight Guides what should and should not be instrumented load module Second gather instrumentation (-g make mpi,io,blas,lapack,math …) pat_build -O apa a.out Execute Hardware counters pat_report *.xf MPI message passing Examine *.apa information pat_build –O *.apa I/O information Execute Math Libraries …
  • 20.
    Sample APA File(Significantly Trimmed) # You can edit this file, if desired, and use it # ---------------------------------------------------------------------- # HWPC group to collect by default. -Drtenv=PAT_RT_HWPC=1 # Summary with TLB metrics. # ---------------------------------------------------------------------- # Libraries to trace. -g mpi,math # ---------------------------------------------------------------------- -w # Enable tracing of user-defined functions. # Note: -u should NOT be specified as an additional option. # 9.08% 188347 bytes -T ratt_i_ # 6.71% 177904 bytes -T rhsf_ # 5.61% 205682 bytes -T ratx_i_ # 5.59% 22005 bytes -T transport_m_computespeciesdiffflux_
  • 21.
    CrayPAT Groups biolib Cray Bioinformatics library routines Catamount) blacs Basic Linear Algebra omp-rtl OpenMP runtime library (not communication subprograms supported on Catamount) blas Basic Linear Algebra subprograms portals Lightweight message passing API caf Co-Array Fortran (Cray X2 systems pthreads POSIX threads (not supported on only) Catamount) fftw Fast Fourier Transform library (64- scalapack Scalable LAPACK bit only) shmem SHMEM hdf5 manages extremely large and stdio all library functions that accept or complex data collections return the FILE* construct heap dynamic heap sysio I/O system calls io includes stdio and sysio groups system system calls lapack Linear Algebra Package upc Unified Parallel C (Cray X2 systems lustre Lustre File System only) math ANSI math mpi MPI netcdf network common data form (manages array-oriented scientific data) omp OpenMP API (not supported on
  • 22.
    Useful API Calls,for the control-freaks Regions, useful to break up long routines int PAT_region_begin (int id, const char *label) int PAT_region_end (int id) Disable/Enable Profiling, useful for excluding initialization int PAT_record (int state) Flush buffer, useful when program isn’t exiting cleanly int PAT_flush_buffer (void)
  • 23.
    Sample CrayPAT HWPCData USER / rhsf_ ------------------------------------------------------------------------ Time% 74.6% Time 556.742885 secs Imb.Time 14.817686 secs Imb.Time% 2.6% Calls 2.3 /sec 1200.0 calls PAPI_L1_DCM 14.406M/sec 7569486532 misses PAPI_TLB_DM 0.225M/sec 117992047 misses PAPI_L1_DCA 921.729M/sec 484310815400 refs PAPI_FP_OPS 871.740M/sec 458044890200 ops User time (approx) 525.438 secs 1103418882813 cycles 94.4%Time Average Time per Call 0.463952 sec CrayPat Overhead : Time 0.0% HW FP Ops / User time 871.740M/sec 458044890200 ops 10.4%peak(DP) HW FP Ops / WCT 822.722M/sec Computational intensity 0.42 ops/cycle 0.95 ops/ref MFLOPS (aggregate) 1785323.32M/sec TLB utilization 4104.61 refs/miss 8.017 avg uses D1 cache hit,miss ratios 98.4% hits 1.6% misses D1 cache utilization (M) 63.98 refs/miss 7.998 avg uses November 09 Slide 23
  • 24.
    CrayPAT HWPC Groups 0 Summary with instruction 11 Floating point operations mix metrics (2) 1 Summary with TLB metrics 12 Floating point operations mix 2 L1 and L2 metrics (vectorization) 3 Bandwidth information 13 Floating point operations mix (SP) 4 Hypertransport information 14 Floating point operations mix 5 Floating point mix (DP) 6 Cycles stalled, resources idle 15 L3 (socket-level) 7 Cycles stalled, resources full 16 L3 (core-level reads) 8 Instructions and branches 17 L3 (core-level misses) 9 Instruction cache 18 L3 (core-level fills caused by 10 Cache hierarchy L2 evictions) 19 Prefetches November 09 Slide 24
  • 25.
    MPI Statistics How many times are MPI routines called and with how much data? Do I have a load imbalance? Are my processors waiting for data? Could I perform better by adjusting MPI environment variables? November 09 Slide 25
  • 26.
    Sample CrayPAT MPIStatistics MPI Msg Bytes | MPI Msg | MsgSz | 16B<= | 256B<= | 4KB<= |Experiment=1 | Count | <16B | MsgSz | MsgSz | MsgSz |Function | | Count | <256B | <4KB | <64KB | Caller | | | Count | Count | Count | PE[mmm] 3062457144.0 | 144952.0 | 15022.0 | 39.0 | 64522.0 | 65369.0 |Total |--------------------------------------------------------------------------- | 3059984152.0 | 129926.0 | -- | 36.0 | 64522.0 | 65368.0 |mpi_isend_ ||-------------------------------------------------------------------------- || 1727628971.0 | 63645.1 | -- | 4.0 | 31817.1 | 31824.0 |MPP_DO_UPDATE_R8_3DV.in.MPP_DOMAINS_MOD 3| | | | | | | MPP_UPDATE_DOMAIN2D_R8_3DV.in.MPP_DOMAINS_MOD ||||------------------------------------------------------------------------ 4||| 1680716892.0 | 61909.4 | -- | -- | 30949.4 | 30960.0 |DYN_CORE.in.DYN_CORE_MOD 5||| | | | | | | FV_DYNAMICS.in.FV_DYNAMICS_MOD 6||| | | | | | | ATMOSPHERE.in.ATMOSPHERE_MOD 7||| | | | | | | MAIN__ 8||| | | | | | | main |||||||||------------------------------------------------------------------- 9|||||||| 1680756480.0 | 61920.0 | -- | -- | 30960.0 | 30960.0 |pe.13666 9|||||||| 1680756480.0 | 61920.0 | -- | -- | 30960.0 | 30960.0 |pe.8949 9|||||||| 1651777920.0 | 54180.0 | -- | -- | 23220.0 | 30960.0 |pe.12549 |||||||||=================================================================== November 09 Slide 26
  • 27.
    I/O Statistics How much time is spent in I/O? How much data am I writing or reading? How many processes are performing I/O? November 09 Slide 27
  • 28.
  • 29.
    Step by Step 1.Fix any load imbalance 2. Fix your hotspots 1. Communication • Pre-post receives • Overlap computation and communication • Reduce collectives • Adjust MPI environment variables • Use rank reordering 2. Computation • Examine the hardware counters and compiler feedback • Adjust the compiler flags, directives, or code structure to improve performance 3. I/O • Stripe files/directories appropriately • Use methods that scale • MPI-IO or Subsetting At each step, check your answers and performance. Between each step, gather your data again. November 09 Slide 30
  • 30.
  • 31.
    Craypat load-imbalance data Table1: Profile by Function Group and Function Time % | Time | Imb. Time | Imb. | Calls |Experiment=1 | | | Time % | |Group | | | | | Function | | | | | PE='HIDE' 100.0% | 1061.141647 | -- | -- | 3454195.8 |Total |-------------------------------------------------------------------- | 70.7% | 750.564025 | -- | -- | 280169.0 |MPI_SYNC ||------------------------------------------------------------------- || 45.3% | 480.828018 | 163.575446 | 25.4% | 14653.0 |mpi_barrier_(sync) || 18.4% | 195.548030 | 33.071062 | 14.5% | 257546.0 |mpi_allreduce_(sync) || 7.0% | 74.187977 | 5.261545 | 6.6% | 7970.0 |mpi_bcast_(sync) ||=================================================================== | 15.2% | 161.166842 | -- | -- | 3174022.8 |MPI ||------------------------------------------------------------------- || 10.1% | 106.808182 | 8.237162 | 7.2% | 257546.0 |mpi_allreduce_ || 3.2% | 33.841961 | 342.085777 | 91.0% | 755495.8 |mpi_waitall_ ||=================================================================== | 14.1% | 149.410781 | -- | -- | 4.0 |USER ||------------------------------------------------------------------- || 14.0% | 148.048597 | 446.124165 | 75.1% | 1.0 |main |====================================================================
  • 32.
    Fixing a LoadImbalance What is causing the load imbalance Computation Is decomposition appropriate? Would RANK_REORDER help? Communication Is decomposition appropriate? Would RANK_REORDER help? Are recevies pre-posted OpenMP may help Able to spread workload with less overhead Large amount of work to go from all-MPI to Hybrid • Must accept challenge to OpenMP-ize large amount of code November 09 Slide 33
  • 33.
    Why we pre-post:XT MPI – Receive Side Match Entries created by Match Entries Posted by MPI to handle application pre-posting of unexpected short and long messages Receives pre-posted pre-posted eager short eager short eager short long ME ME message message message message msgX msgY ME ME ME ME incoming app message buffer for app msgY short short short buffer un- un- un- for expect expect expect buffer buffer buffer Unexpected long msgX message buffers- Portals EQ event only Portals matches incoming message with pre-posted receives and delivers other EQ unexpected EQ message data directly into user buffer. Unexpected short An unexpected message message buffers generates two entries on unexpected EQ Cray Inc. Proprietary 34
  • 34.
  • 35.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.
  • 42.
  • 43.
  • 44.
  • 45.
  • 46.
  • 47.
  • 48.
  • 49.
    Even Smarter RankOrdering If you understand your decomposition well enough, you may be able to map it to the network Craypat 5.0 adds the grid_order and mgrid_order tools to help For more information, run grid_order or mgrid_order with no options November 09 Slide 50
  • 50.
    grid_order Example Usage: grid_order-c n1,n2,... -g N1,N2,... [-o d1,d2,...] [-m max] This program can be used for placement of the ranks of an MPI program that uses communication between nearest neighbors in a grid, or lattice. For example, consider an application in which each MPI rank computes values for a lattice point in an N by M grid, communicates with its nearest neighbors in the grid, and is run on quad-core processors. Then with the options: -c 2,2 -g N,M this program will produce a list of ranks suitable for use in the MPICH_RANK_ORDER file, such that a block of four nearest neighbors is placed on each processor. If the same application is run on nodes containing two quad- core processors, then either of the following can be used: -c 2,4 -g M,N -c 4,2 -g M,N November 09 Slide 51
  • 51.
    Auto-Scaling MPI EnvironmentVariables Default values for various MPI jobs sizes MPI Environment Variable Name 1,000 PEs 10,000 PEs 50,000 PEs 100,000 PEs MPICH_MAX_SHORT_MSG_SIZE (This size determines whether 128,000 20,480 4096 2048 the message uses the Eager or bytes Rendezvous protocol) MPICH_UNEX_BUFFER_SIZE 60 MB 60 MB 150 MB 260 MB (The buffer allocated to hold the unexpected Eager data) MPICH_PTL_UNEX_EVENTS (Portals generates two events for 20,480 22,000 110,000 220,000 each unexpected message events received) MPICH_PTL_OTHER_EVENTS 2048 (Portals send-side and expected 2500 12,500 25,000 events) events July 2009 Slide 52
  • 52.
    MPICH Performance Variable MPICH_MAX_SHORT_MSG_SIZE Controls message sending protocol (Default:128000 byte) Message sizes <= MSG_SIZE: Use EAGER Message sizes > MSG_SIZE: Use RENDEZVOUS Increasing this variable may require that MPICH_UNEX_BUFFER_SIZE be increased Increase MPICH_MAX_SHORT_MSG_SIZE if App sends large msgs(>128K) and receives are pre-posted Can reduce messaging overhead via EAGER protocol Can reduce network contention Decrease MPICH_MAX_SHORT_MSG_SIZE if: App sends msgs in 32k-128k range and receives not pre-posted Cray Inc. Proprietary 53
  • 53.
  • 54.
    Vectorization Stride onememory accesses No IF tests No subroutine calls Inline Module Functions Statement Functions What is size of loop Loop nest Stride one on inside Longest on the inside Unroll small loops Increase computational intensity CU = (vector flops/number of memory accesses)
  • 55.
    C pointers ( 53) void mat_mul_daxpy(double *a, double *b, double *c, int rowa, int cola, int colb) ( 54) { ( 55) int i, j, k; /* loop counters */ ( 56) int rowc, colc, rowb; /* sizes not passed as arguments */ ( 57) double con; /* constant value */ ( 58) ( 59) rowb = cola; ( 60) rowc = rowa; ( 61) colc = colb; ( 62) ( 63) for(i=0;i<rowc;i++) { ( 64) for(k=0;k<cola;k++) { ( 65) con = *(a + i*cola +k); ( 66) for(j=0;j<colc;j++) { ( 67) *(c + i*colc + j) += con * *(b + k*colb + j); ( 68) } ( 69) } ( 70) } ( 71) } mat_mul_daxpy: 66, Loop not vectorized: data dependency Loop not vectorized: data dependency Loop unrolled 4 times April 2008 ORNL/NICS Users' Meeting Slide 56
  • 56.
    C pointers, rewrite ( 53) void mat_mul_daxpy(double* restrict a, double* restrict b, double* restrict c, int rowa, int cola, int colb) ( 54) { ( 55) int i, j, k; /* loop counters */ ( 56) int rowc, colc, rowb; /* sizes not passed as arguments */ ( 57) double con; /* constant value */ ( 58) ( 59) rowb = cola; ( 60) rowc = rowa; ( 61) colc = colb; ( 62) ( 63) for(i=0;i<rowc;i++) { ( 64) for(k=0;k<cola;k++) { ( 65) con = *(a + i*cola +k); ( 66) for(j=0;j<colc;j++) { ( 67) *(c + i*colc + j) += con * *(b + k*colb + j); ( 68) } ( 69) } ( 70) } ( 71) } April 2008 ORNL/NICS Users' Meeting Slide 57
  • 57.
    C pointers, rewrite 66,Generated alternate loop with no peeling - executed if loop count <= 24 Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop Generated alternate loop with no peeling and more aligned moves - executed if loop count <= 24 and alignment test is passed Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop Generated alternate loop with more aligned moves - executed if loop count >= 25 and alignment test is passed Generated vector sse code for inner loop Generated 2 prefetch instructions for this loop • This can also be achieved with the PGI safe pragma and –Msafeptr compiler option or Pathscale –OPT:alias option April 2008 ORNL/NICS Users' Meeting Slide 58
  • 58.
    Nested Loops ( 47) DO 45020 I = 1, N ( 48) F(I) = A(I) + .5 ( 49) DO 45020 J = 1, 10 ( 50) D(I,J) = B(J) * F(I) ( 51) DO 45020 K = 1, 5 ( 52) C(K,I,J) = D(I,J) * E(K) ( 53) 45020 CONTINUE PGI 49, Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Loop unrolled 2 times (completely unrolled) Pathscale (lp45020.f:48) LOOP WAS VECTORIZED. (lp45020.f:48) Non-contiguous array "C(_BLNK__.0.0)" reference exists. Loop was not vectorized. April 2008 ORNL/NICS Users' Meeting 59
  • 59.
    Rewrite ( 71) DO 45021 I = 1,N ( 72) F(I) = A(I) + .5 ( 73) 45021 CONTINUE ( 74) ( 75) DO 45022 J = 1, 10 ( 76) DO 45022 I = 1, N ( 77) D(I,J) = B(J) * F(I) ( 78) 45022 CONTINUE ( 79) ( 80) DO 45023 K = 1, 5 ( 81) DO 45023 J = 1, 10 ( 82) DO 45023 I = 1, N ( 83) C(K,I,J) = D(I,J) * E(K) ( 84) 45023 CONTINUE April 2008 ORNL/NICS Users' Meeting 60
  • 60.
    PGI 73, Generated an alternate loop for the inner loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop 78, Generated 2 alternate loops for the inner loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop 82, Interchange produces reordered loop nest: 83, 84, 82 Loop unrolled 5 times (completely unrolled) 84, Generated vector sse code for inner loop Generated 1 prefetch instructions for this loop Pathscale (lp45020.f:73) LOOP WAS VECTORIZED. (lp45020.f:78) LOOP WAS VECTORIZED. (lp45020.f:78) LOOP WAS VECTORIZED. (lp45020.f:84) Non-contiguous array "C(_BLNK__.0.0)" reference exists. Loop was not vectorized. (lp45020.f:84) Non-contiguous array "C(_BLNK__.0.0)" reference exists. Loop was not vectorized. April 2008 ORNL/NICS Users' Meeting 61
  • 61.

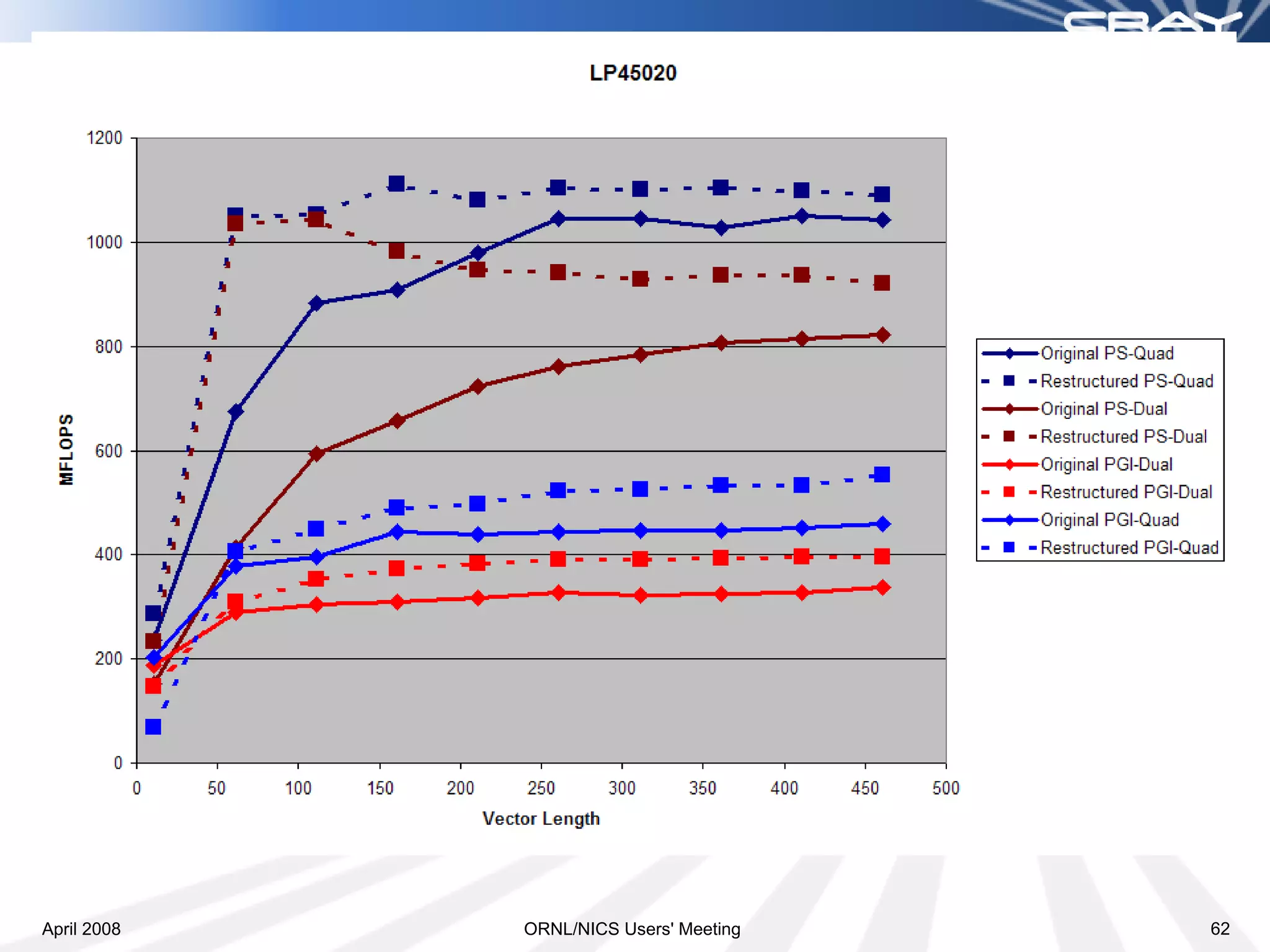

    April 2008 ORNL/NICS Users' Meeting 62
  • 62.
    GNU Malloc GNU malloc library malloc, calloc, realloc, free calls Fortran dynamic variables Malloc library system calls Mmap, munmap =>for larger allocations Brk, sbrk => increase/decrease heap Malloc library optimized for low system memory use Can result in system calls/minor page faults Cray Inc. Proprietary 63
  • 63.
    Improving GNU Malloc Detecting “bad” malloc behavior FPMPI data => “excessive system time” Correcting “bad” malloc behavior Eliminate mmap use by malloc Increase threshold to release heap memory Use environment variables to alter malloc MALLOC_MMAP_MAX_ = 0 MALLOC_TRIM_THRESHOLD_ = 536870912 Possible downsides Heap fragmentation User process may call mmap directly User process may launch other processes Cray Inc. Proprietary 64
  • 64.
    Google TCMalloc Google created a replacement “malloc” library “Minimal” TCMalloc replaces GNU malloc Limited testing indicates TCMalloc as good or better than GNU malloc Environment variables not required TCMalloc almost certainly better for allocations in OpenMP parallel regions Kevin Thomas built/installed “Minimal” TCMalloc To use it or try it: module use /cray/iss/park_bench/lib/modulesfiles module load tcmalloc Link your app Cray Inc. Proprietary 65
  • 65.
  • 66.
    I/O: Don't overdo it. Countless techniques for doing I/O operations Varying difficulty Varying efficiency All techniques suffer from the same phenomenon, eventually it will turn over. Limited Disk Bandwidth FPP Write (MB/s) Limited Interconnect 35000 Bandwidth 30000 Limited Filesystem 25000 Parallelism 20000 Respect the limits or 15000 10000 suffer the consequences. 5000 0 0 2000 4000 6000 8000 10000
  • 67.
    Lustre Striping Lustre is parallel, not paranormal Striping is critical and often overlooked Writing many-to-one requires a large stripe count Writing many-to-many requires a single stripe
  • 68.
    Lustre Striping: Howto do it Files inherit the striping of the #include <unistd.h> parent directory #include <fcntl.h> #include <sys/ioctl.h> Input directory must be striped #include <lustre/lustre_user.h> before copying in data int open_striped(char *filename, Output directory must be int mode, int stripe_size, int stripe_offset, int stripe_count) striped before running { May also “touch” a file using the lfs int fd; struct lov_user_md opts = {0}; command opts.lmm_magic = LOV_USER_MAGIC; opts.lmm_stripe_size = stripe_size; An API to stripe a file opts.lmm_stripe_offset = stripe_offset; programmatically is often opts.lmm_stripe_count = stripe_count; requested, here’s how to do it. fd = open64(filename, O_CREAT | O_EXCL Call from only one processor | O_LOV_DELAY_CREATE | mode, 0644); if ( fd >= 0 ) New support in xt-mpt for striping ioctl(fd, LL_IOC_LOV_SETSTRIPE, hints &opts); striping_factor return fd; striping_size }
  • 69.
    Lustre Striping: Pickinga Stripe Size We know that large 4MB 4MB 4MB writes perform better so we buffer 5MB 5MB We can control our buffer size 5MB 5MB We can ALSO control 4MB 4MB 4MB our stripe size Misaligning Buffer and 4MB 4MB 4MB Stripe sizes can hurt your performance 4MB 4MB 4MB
  • 70.
    Subgrouping: MPI-IO CollectiveI/O MPI-IO provides a way to handle buffering and grouping behind the scenes Advantage: Little or No code changes Disadvantage: Little or No knowledge of what’s actually done Use Collective file access MPI_File_write_all – Specify file view first MPI_File_write_at_all – Calculate offset for each write Set the cb_* hints cb_nodes – number of I/O aggregators cb_buffer_size – size of collective buffer romio_cb_write – enable/disable collective buffering No need to split comms, gather data, etc. See David Knaak’s paper at http://docs.cray.com/kbase for details
  • 71.
    MPIIO Collective Buffering:Outline All PE’s must access via: MPI_Info_create(info) MPI_File_open(comm, filename, amode, info) MPI_File_write_all(handle, buffer, count, datatype) Specific PE’s will be selected as “aggregators” MPI writers will share meta-data with aggregators Data will be transferred to aggregators and aligned Aggregators will send data off to the OST(s) 73 March 2009
  • 72.
    MPIIO Collective Buffering:What to know setenv MPICH_MPIIO_CB_ALIGN 0|1|2 default is 2 if not set romio_cb_[read|write]=automatic Enables collective buffering cb_nodes=<number of OST’s> (set by lfs) cb_config_list=*:* allows as many aggregators as needed on a node striping_factor=<number of lustre stripes> striping_unit=<set equal to lfs setstripe> Limitation: many small files that don’t need aggregation Need to set striping pattern manually with lfs Ideally 1 OST per aggregator If not possible, N aggregators per OST (N a small integer) View statistics by setting MPICH_MPIIO_XSTATS=[0|1|2] March 2009 74
  • 73.
    Application I/O wallclocktimes (MPI_Wtime) zaiowr wallclock times Collective Buffering No Collective Buffering (sec) 7 OSTs 5.498 23.167 8 OSTs 4.966 24.989 28 OSTs 2.246 17.466 Serial I/O, 28 OSTs 22.214
  • 74.
    MPI-IO Improvements MPI-IO collective buffering MPICH_MPIIO_CB_ALIGN=0 Divides the I/O workload equally among all aggregators Inefficient if multiple aggregators reference the same physical I/O block Default setting in MPT 3.2 and prior versions MPICH_MPIIO_CB_ALIGN=1 Divides the I/O workload up among the aggregators based on physical I/O boundaries and the size of the I/O request Allows only one aggregator access to any stripe on a single I/O call Available in MPT 3.1 MPICH_MPIIO_CB_ALIGN=2 Divides the I/O workload into Lustre stripe-sized groups and assigns them to aggregators Persistent across multiple I/O calls, so each aggregator always accesses the same set of stripes and no other aggregator accesses those stripes Minimizes Lustre file system lock contention Default setting in MPT 3.3 July 2009 Slide 76
  • 75.
    IOR benchmark 1,000,000bytes MPI-IO API , non-power-of-2 blocks and transfers, in this case blocks and transfers both of 1M bytes and a strided access pattern. Tested on an XT5 with 32 PEs, 8 cores/node, 16 stripes, 16 aggregators, 3220 segments, 96 GB file 1800 1600 MB/Sec 1400 1200 1000 800 600 400 200 0 July 2009
  • 76.
    HYCOM MPI-2 I/O On 5107 PEs, and by application design, a subset of the PEs(88), do the writes. With collective buffering, this is further reduced to 22 aggregators (cb_nodes) writing to 22 stripes. Tested on an XT5 with 5107 PEs, 8 cores/node 4000 3500 3000 MB/Sec 2500 2000 1500 1000 500 0 July 2009
  • 77.
    Subgrouping: By Hand Lose ease-of-use, gain control Countless methods to implement Simple gathering Serialized Sends within group Write token Double Buffered Bucket Brigade … Look for existing groups in your code Even the simplest solutions often seem to work. Try to keep the pipeline full Always be doing I/O I find your lack of faith Now we can think about multiple in ROMIO disturbing. shared files!
  • 78.
    What about HDF5,NetCDF, Etc? Every code uses these IOR: Shared File Writes very differently 8000 7000 Follow as many of the same rules as possible 6000 5000 It is very possible to get 4000 good results, but also possible to get bad 3000 2000 Because Parallel HDF5 is written over MPI-IO, it’s 1000 possible to use hints 0 0 2000 4000 6000 8000 10000 Check out ADIOS from POSIX MPIIO HDF5 ORNL & GT
  • 79.
    SOME INTERESTING CASE STUDIES Providedby Lonnie Crosby (NICS/UT)
