1. WRITE ONCE ON SILICON AND PLAY IT FOR EVER
: AN EMBEDDED JOURNEY
Sandip Ray
April 29, 2011

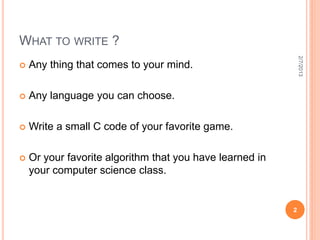

2. WHAT TO WRITE ?
2/7/2013
 Any thing that comes to your mind.
 Any language you can choose.
 Write a small C code of your favorite game.
 Or your favorite algorithm that you have learned in
your computer science class.
2

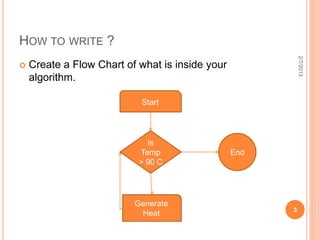

3. HOW TO WRITE ?
2/7/2013
 Create a Flow Chart of what is inside your
algorithm.
Start
Is
Temp End
> 90 C
Generate
3
Heat

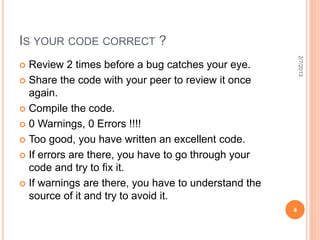

4. IS YOUR CODE CORRECT ?
2/7/2013
 Review 2 times before a bug catches your eye.
 Share the code with your peer to review it once
again.
 Compile the code.
 0 Warnings, 0 Errors !!!!
 Too good, you have written an excellent code.
 If errors are there, you have to go through your
code and try to fix it.
 If warnings are there, you have to understand the
source of it and try to avoid it.
4

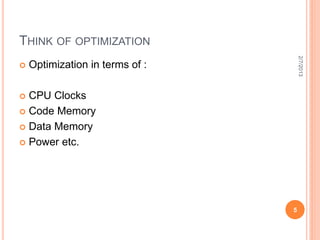

5. THINK OF OPTIMIZATION
2/7/2013
 Optimization in terms of :
 CPU Clocks
 Code Memory
 Data Memory
 Power etc.
5

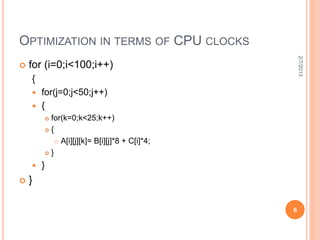

6. OPTIMIZATION IN TERMS OF CPU CLOCKS
2/7/2013
 for (i=0;i<100;i++)
{
 for(j=0;j<50;j++)
 {
 for(k=0;k<25;k++)
 {
 A[i][j][k]= B[i][j]*8 + C[i]*4;
 }
 }
 }
6

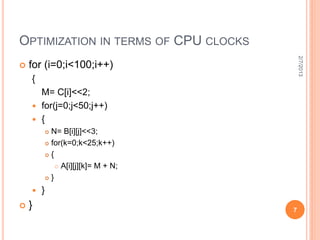

7. OPTIMIZATION IN TERMS OF CPU CLOCKS
2/7/2013
 for (i=0;i<100;i++)
{
M= C[i]<<2;
 for(j=0;j<50;j++)
 {
 N= B[i][j]<<3;
 for(k=0;k<25;k++)
 {
 A[i][j][k]= M + N;
 }
 }
 } 7

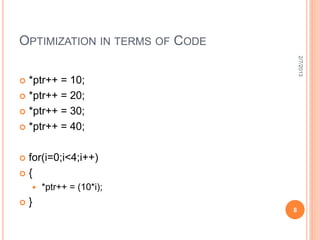

8. OPTIMIZATION IN TERMS OF CODE
2/7/2013
 *ptr++ = 10;
 *ptr++ = 20;
 *ptr++ = 30;
 *ptr++ = 40;
for(i=0;i<4;i++)
{
 *ptr++ = (10*i);
 }
8

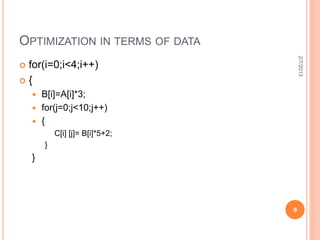

9. OPTIMIZATION IN TERMS OF DATA
2/7/2013
for(i=0;i<4;i++)
{
 B[i]=A[i]*3;
 for(j=0;j<10;j++)
 {
C[i] [j]= B[i]*5+2;
}
}
9

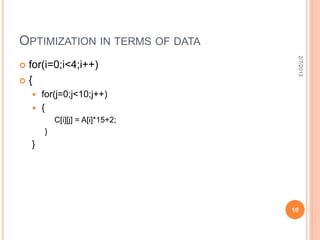

10. OPTIMIZATION IN TERMS OF DATA
2/7/2013
for(i=0;i<4;i++)
{
 for(j=0;j<10;j++)
 {
C[i][j] = A[i]*15+2;
}
}
10

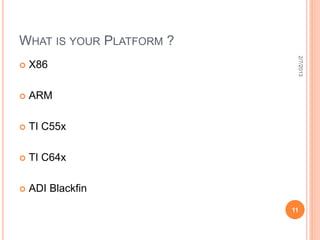

11. WHAT IS YOUR PLATFORM ?
2/7/2013
 X86
 ARM
 TI C55x
 TI C64x
 ADI Blackfin
11

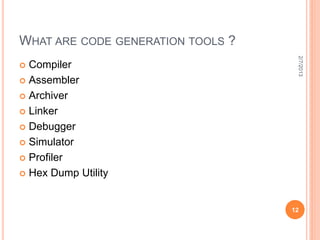

12. WHAT ARE CODE GENERATION TOOLS ?
2/7/2013
 Compiler
 Assembler
 Archiver
 Linker
 Debugger
 Simulator
 Profiler
 Hex Dump Utility
12

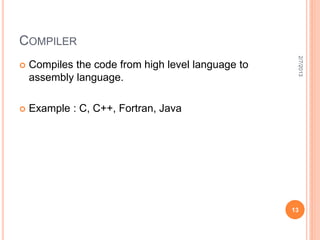

13. COMPILER
2/7/2013
 Compiles the code from high level language to
assembly language.
 Example : C, C++, Fortran, Java
13

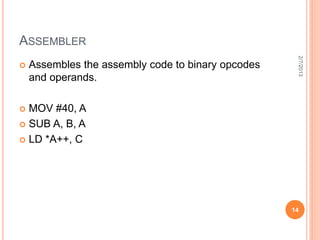

14. ASSEMBLER
2/7/2013
 Assembles the assembly code to binary opcodes
and operands.
 MOV #40, A
 SUB A, B, A
 LD *A++, C
14

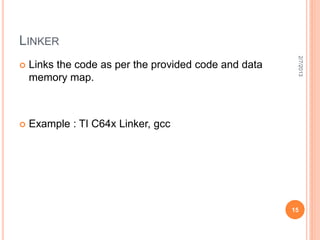

15. LINKER
2/7/2013
 Links the code as per the provided code and data
memory map.
 Example : TI C64x Linker, gcc
15

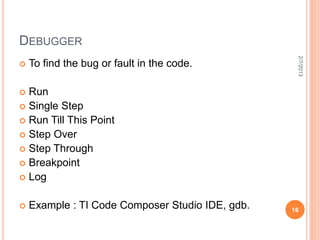

16. DEBUGGER
2/7/2013
 To find the bug or fault in the code.
 Run
 Single Step
 Run Till This Point
 Step Over
 Step Through
 Breakpoint
 Log
 Example : TI Code Composer Studio IDE, gdb. 16

17. SIMULATOR
2/7/2013
 Functional Simulator
 Instruction Set Simulator
 Cycle Accurate Simulator
 Example : TI Code Composer Studio IDE
17

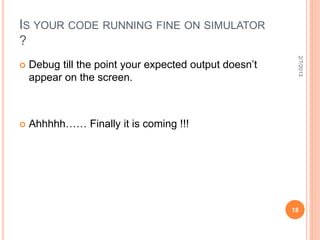

18. IS YOUR CODE RUNNING FINE ON SIMULATOR
?
2/7/2013
 Debug till the point your expected output doesn’t
appear on the screen.
 Ahhhhh…… Finally it is coming !!!
18

19. WANT TO TRY IT OUT ON SILICON ?
2/7/2013
 Yes !!! You can run the code on silicon(provided it is
not a mission critical one)
 Connect the hardware board with serial port,
parallel port or PCI through JTAG.
 Load the object file on processor.
 Press Run and see if expected output are coming
on the screen.
 If yes, you are done !!!
 And don’t forget to check the performance of your
code by using a profiler. 19

20. 2/7/2013
THANK YOU
20
