The document discusses the network architecture of WiMAX. It describes the key components of the WiMAX access service network (ASN) and connectivity service network (CSN), including the base stations, access gateway, home agent, AAA server, and their functions. It also outlines the WiMAX network reference points and profiles, as well as deployment strategies for fixed, mobile, and enterprise services.
The document discusses the architecture of WiMAX networks, including:
- The generic mobile WiMAX architectural model includes an access network, core network, and application service providers with flexible relationships between network operators.

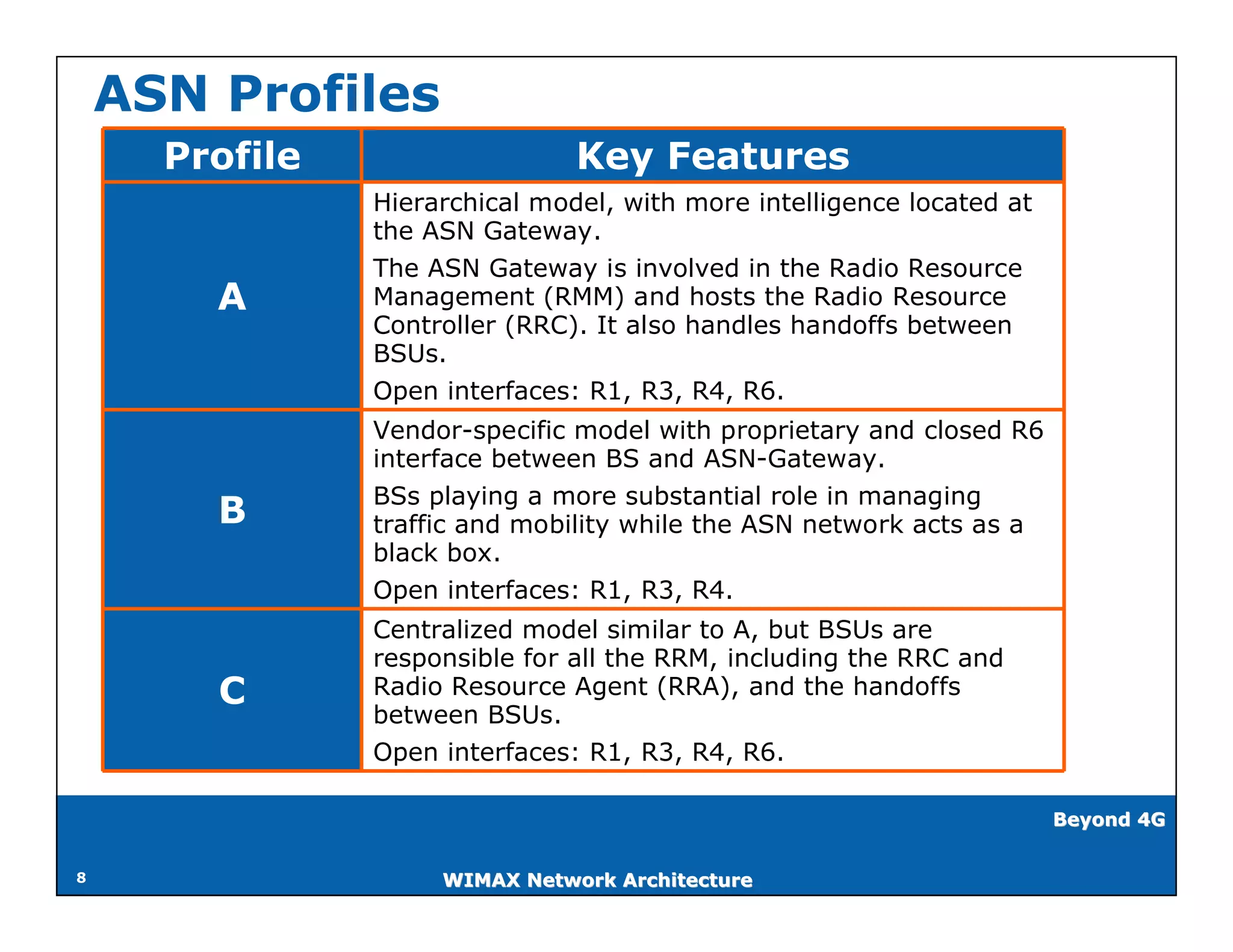

- There are three defined ASN profiles - Profile A with separate BS and ASN-GW, Profile B with combined BS and ASN-GW, and Profile C similar to Profile A but with RRM functions in the BS.
- Key network features discussed include AAA and roaming frameworks, QoS framework, and mobility framework based on mobile IP or proxy mobile IP.
- Interworking with 3G networks is also described, including common billing scenarios and using a WiMAX CSN I
The document discusses WiMax (Worldwide Interoperability for Microwave Access), which is a wireless technology that provides broadband connections over long distances at speeds up to 70 megabits per second without needing line-of-sight access to a base station. It is based on IEEE 802.16 standards and is expected to replace or complement existing wireless technologies like WiFi and Bluetooth by offering higher speeds and longer ranges. The document covers WiMax's technical details, working mechanisms, applications and its potential to enable widespread wireless broadband access.
This document provides an overview of the IEEE 802.16 standard for Mobile WiMAX and beyond. It discusses key features of the WiMAX air interface including its physical layer, medium access control layer, and network architecture. The physical layer uses OFDM and supports features like adaptive modulation and coding, MIMO, and power control. The medium access control layer provides quality of service, scheduling, and error correction. The network architecture is based on an all-IP platform and supports mobility, security, and quality of service.
WiMAX is a wireless broadband technology that provides transmission of data using a wireless signal. It supports transmission of up to 30 miles for fixed users and 5-15 km for mobile users. The IEEE 802.16 standard defines the WiMAX technology specifications. It has evolved over time to support different frequencies and applications. WiMAX provides high-speed broadband access and can serve as a wireless alternative to cable and DSL networks. However, it requires line-of-sight and can be affected by interference or heavy rain. Potential applications include cellular backhaul, residential broadband access, and connectivity in underserved areas.
This document discusses WiMAX (Worldwide Interoperability for Microwave Access), a wireless technology based on IEEE 802.16 standards that can provide broadband connections over long distances. It defines key terms, describes applications of WiMAX for both fixed and mobile use, how WiMAX systems work, competing technologies, current deployments, benefits compared to other options, and initiatives to bring WiMAX to Pakistan.
This document provides an overview of Wi-Fi and WiMAX wireless technologies. It describes Wi-Fi as a wireless local area network standard based on IEEE 802.11 that provides connectivity within 300 feet of an access point. It also outlines WiMAX as a wireless broadband standard based on IEEE 802.16 that can provide connectivity up to 30 km and mobile broadband up to 3 km from a base station. The document discusses the history, standards, components, strengths and weaknesses of both Wi-Fi and WiMAX networks.
WiMAX (802.16) is a wireless technology that provides broadband connectivity using the IEEE 802.16 standards. It was developed to provide "last mile" broadband access using wireless technology. Key features of WiMAX include the use of OFDMA, TDD, and MIMO to provide broadband speeds over long distances. It has applications for small business connectivity, wireless backhaul, nomadic broadband access, and private networks.
The document discusses the architecture of WiMAX networks, including:
- The generic mobile WiMAX architectural model includes an access network, core network, and application service providers with flexible relationships between network operators.
- There are three defined ASN profiles - Profile A with separate BS and ASN-GW, Profile B with combined BS and ASN-GW, and Profile C similar to Profile A but with RRM functions in the BS.
- Key network features discussed include AAA and roaming frameworks, QoS framework, and mobility framework based on mobile IP or proxy mobile IP.
- Interworking with 3G networks is also described, including common billing scenarios and using a WiMAX CSN I
The document discusses WiMax (Worldwide Interoperability for Microwave Access), which is a wireless technology that provides broadband connections over long distances at speeds up to 70 megabits per second without needing line-of-sight access to a base station. It is based on IEEE 802.16 standards and is expected to replace or complement existing wireless technologies like WiFi and Bluetooth by offering higher speeds and longer ranges. The document covers WiMax's technical details, working mechanisms, applications and its potential to enable widespread wireless broadband access.
This document provides an overview of the IEEE 802.16 standard for Mobile WiMAX and beyond. It discusses key features of the WiMAX air interface including its physical layer, medium access control layer, and network architecture. The physical layer uses OFDM and supports features like adaptive modulation and coding, MIMO, and power control. The medium access control layer provides quality of service, scheduling, and error correction. The network architecture is based on an all-IP platform and supports mobility, security, and quality of service.
WiMAX is a wireless broadband technology that provides transmission of data using a wireless signal. It supports transmission of up to 30 miles for fixed users and 5-15 km for mobile users. The IEEE 802.16 standard defines the WiMAX technology specifications. It has evolved over time to support different frequencies and applications. WiMAX provides high-speed broadband access and can serve as a wireless alternative to cable and DSL networks. However, it requires line-of-sight and can be affected by interference or heavy rain. Potential applications include cellular backhaul, residential broadband access, and connectivity in underserved areas.
This document discusses WiMAX (Worldwide Interoperability for Microwave Access), a wireless technology based on IEEE 802.16 standards that can provide broadband connections over long distances. It defines key terms, describes applications of WiMAX for both fixed and mobile use, how WiMAX systems work, competing technologies, current deployments, benefits compared to other options, and initiatives to bring WiMAX to Pakistan.
This document provides an overview of Wi-Fi and WiMAX wireless technologies. It describes Wi-Fi as a wireless local area network standard based on IEEE 802.11 that provides connectivity within 300 feet of an access point. It also outlines WiMAX as a wireless broadband standard based on IEEE 802.16 that can provide connectivity up to 30 km and mobile broadband up to 3 km from a base station. The document discusses the history, standards, components, strengths and weaknesses of both Wi-Fi and WiMAX networks.
WiMAX (802.16) is a wireless technology that provides broadband connectivity using the IEEE 802.16 standards. It was developed to provide "last mile" broadband access using wireless technology. Key features of WiMAX include the use of OFDMA, TDD, and MIMO to provide broadband speeds over long distances. It has applications for small business connectivity, wireless backhaul, nomadic broadband access, and private networks.
WiMAX is an emerging broadband wireless technology that provides transmission of data over long distances. It offers high data rates of up to 70 Mbps over a range of 50 km without needing line-of-sight. WiMAX networks use protocols that allow devices to connect to the Internet without cables, making it suitable for extending broadband access to suburban and rural areas. The technology uses radio frequencies between 2 to 11 GHz for transmission and has the potential to deliver multimedia, voice and other IP services to users anywhere within range of the network.
The WiMAX MAC encapsulates data packets from higher layers through various sublayers. It adds headers at each sublayer for functions like security, bandwidth allocation, and multiple access control before the data is encoded and transmitted through the physical layer using modulation schemes like OFDM. This ensures efficient transmission of data over the wireless medium according to QoS priorities and security requirements.
This document discusses WiMAX (Worldwide Interoperability for Microwave Access) technology. It defines WiMAX as a wireless technology that provides broadband access over long distances through point-to-point links or full mobile access. The document outlines the key components of a WiMAX system including WiMAX towers and receivers. It also describes how WiMAX works and the three levels that comprise the WiMAX technology: the transmission, radio, and core levels. Finally, the document provides examples of potential WiMAX applications and discusses WiMAX network architecture.
WiMAX is a wireless technology that provides broadband access over long distances. It allows users to access the internet without wires by connecting to a WiMAX base station. Key points:
- WiMAX provides high-speed internet access to homes and businesses without wires using wireless technology outlined in IEEE 802.16 standards.
- It can be used for various applications including connecting Wi-Fi hotspots, providing broadband access, and providing mobile data for 4G services.
- WiMAX uses licensed or unlicensed spectrum and has an architecture with subscriber stations, access networks, and connectivity networks interconnected by standardized interfaces.
- It aims to eliminate constraints of Wi-Fi by providing greater mobility over longer distances and
The presentation contains slides regarding various functions, components & uses of Wi-MAX. It compares the advantages of Wi-MAX over other technologies.
Wireless communication systems provide mobility and connectivity anywhere through high data rates, quality of service, and extended ranges of up to 50km. WiMAX is a wireless technology that can deliver broadband access through fixed and mobile networks in an economical way. It transforms mobile broadband by supporting up to 75Mbps for devices like laptops. Key capabilities include centralized coordination, high-speed IP services, quality of service, and compatibility between equipment. WiMAX uses OFDM to optimize delivery of services and enables applications like voice, video, and Internet access over wide metropolitan areas.
The document discusses the evolution and performance of WiMAX technology over different releases (Release 1.0, 1.5, and 2.0). Key points include:
- Performance metrics like peak/average spectral efficiency, data rates, and supported mobility increased with each new release through improvements like increased channel bandwidth, advanced antenna techniques, and modulation schemes.
- Release 2.0 supported carrier aggregation up to 100MHz and advanced MIMO techniques like 8x8 MIMO, providing significantly higher peak/average data rates and spectral efficiency compared to previous releases.
- The increased performance allowed supporting more subscribers per sector while maintaining the data rate per user, demonstrating a 642% growth in capacity from 2010 to 2015 through
WiMAX is a wireless technology that provides broadband internet access over long distances. It uses radio waves to transmit data and can provide connectivity up to 30 miles from a base station. WiMAX uses the IEEE 802.16 standard and consists of components like the base station, receiver, and antennas. It establishes connections like cellular networks but provides faster speeds than WiFi for connecting larger areas.
This document presents a seminar on WiMAX by Bharat Ratna. It begins with an introduction to WiMAX, explaining that it stands for Worldwide Interoperability for Microwave Access and was created by the WiMAX Forum to promote conformity. It then covers fundamental WiMAX concepts like the base station and subscriber station. The document describes WiMAX architecture including the tower and receiver. It explains how WiMAX works by sending data wirelessly using radio waves. Key features like scalability and quality of service are covered. Advantages over 3G like higher throughput and lower cost are discussed. Potential uses and the future scope of WiMAX are presented before concluding that WiMAX has the potential to substitute 3G networks.
The document discusses WiMAX technology and architecture. It provides an overview of the IEEE 802.16 standard, operating frequencies, data rates, network components, and services supported. The key components of a WiMAX network include the subscriber stations, access service network with base stations, connectivity service network with AAA and DHCP servers, and network service provider layer which offers various applications and services to subscribers.
This document provides an overview of WiMAX technology, including the differences between fixed and mobile WiMAX. It discusses the IEEE 802.16 standards for fixed (802.16d) and mobile (802.16e) WiMAX. Fixed WiMAX uses OFDM and operates between 2-11 GHz for fixed wireless connections, while mobile WiMAX uses scalable OFDMA and enables handoffs between base stations for mobility below 100 km/h. Mobile WiMAX also introduces improved quality of service for real-time applications like voice. The document outlines the physical layer specifications and protocols of each standard.
WiMAX is a wireless technology that provides broadband connections over long distances. It uses radio waves to transmit data and can provide connectivity within a 30 mile radius. There are two types of connections - line of sight which uses higher frequencies for stronger connections, and non-line of sight using lower frequencies. WiMAX can deliver speeds up to 70 Mbps for downloads and supports applications like gaming, video conferencing, and media streaming. It has advantages over 3G including lower initial costs and an open standard. Major WiMAX service providers in India include Tata Communications, BSNL, Bharti Airtel and Reliance Communications.
WIMAX stands for Worldwide Interoperability for Microwave Access.WiMAX refers to broadband wireless networks that are based on the IEEE 802.16 standard, which ensures compatibility and interoperability between broadband wireless access equipment.
WiMAX is a wireless technology that provides broadband connections over long distances. It uses radio waves in the 2-11 GHz range to transmit data, allowing it to provide coverage over large areas of up to 50 km from the base station. WiMAX was developed to provide wireless internet access similar to cable or DSL but over longer distances and in more rural areas. It allows for speeds of up to 70 Mbps and can support both fixed and mobile broadband applications. While WiFi is better suited for short range indoor use due to its lower power and speeds of up to 54 Mbps.
WiMAX is a wireless technology that provides broadband connections over long distances. It uses towers and receivers to transmit data, allowing multiple users to access the internet on multiple devices from various locations simultaneously. While similar to Wi-Fi, WiMAX has greater range, higher speeds, and more advanced security compared to other mobile broadband technologies. It supports both fixed and mobile uses.
This document provides an overview of the 802.16/WiMAX standards for broadband wireless access. It describes the history and applications of the standards, the network architecture including frame structure, scheduling types, and quality of service mechanisms. Key physical layer technologies like OFDM, OFDMA and management messages are summarized. Early large-scale deployments like WiBro in South Korea are also mentioned.
Wifi uses spread spectrum technology which can have difficulties decoding signals when two identical signals are received with a small time delay. Wimax uses OFDMA which divides data across multiple subcarriers, making it more robust to signal interference and easier to implement MIMO. While Wifi struggles at distances over a few hundred meters, Wimax can provide throughput of up to 2.5Gbps at 20km and is better suited for mining sites due to its ability to handle high signal reflection and absorption. Key considerations for a Wimax implementation include data throughput needs, quality of service requirements, and allowing suppliers flexibility in choosing parameters to optimize performance within bandwidth limits.
WIMAX is a new wireless technology that can provide broadband internet access over long distances at speeds comparable to cable internet. It uses licensed spectrum to transmit data between towers and customer devices over distances up to 30 miles. This allows it to provide broadband access to rural areas currently without wired internet options. WIMAX has advantages over existing technologies like lower costs, no need for direct line of sight, and ability to serve many users from a single tower.
WiMax (Worldwide Interoperability for Microwave Access) is a wireless technology that provides broadband connections over long distances using radio signals rather than cables or wires. It uses the IEEE 802.16 standard to deliver high-speed internet access of up to 40 Mbps to fixed locations and 15 Mbps for mobile use within a few kilometers of the base station. WiMax can provide both fixed and mobile broadband access as an alternative to cable and DSL. It has a longer range than WiFi with connections of up to 30 miles using line-of-sight antennas.
WiMAX, short for Worldwide Interoperability for Microwave Access, is the name for 802.16 family of wireless services.
Used as carriers in metropolitan area networks.
It has a tremendous range, up to 30 miles, and speeds of up to 70 Mbps.
It combines the familiarity of Wi-Fi with the mobility of cellular that will deliver personal mobile broadband that moves with you.
It lets us get connected to the Internet, miles from the nearest Wi-Fi hotspot.
802.16e provides enhancements to 802.16-2004 to support subscriber stations moving at vehicular speeds. It specifies a system for combined fixed and mobile broadband wireless access using Scalable OFDMA technology. Mobile WiMAX supports seamless handoff between base stations, sleep and idle modes for power management, and smart antenna technologies like beamforming. It can offer full mobility and compete with 3G for IP traffic with peak data rates up to 63Mbps download and 28Mbps upload in a 10MHz channel.
VoIP allows users to make phone calls using an Internet connection instead of a traditional phone line. It works by converting voice signals to digital data that is transmitted in packets over the Internet. A VoIP network uses protocols like SIP and RTP to setup calls and transmit voice data. Components include VoIP protocols, gateways to interface with the PSTN, and codecs to compress voice signals. Businesses are attracted to VoIP as it can help reduce costs while improving utilization of bandwidth and network management. However, security risks like hacking and eavesdropping exist since VoIP uses the public Internet.
WiMAX is an emerging broadband wireless technology that provides transmission of data over long distances. It offers high data rates of up to 70 Mbps over a range of 50 km without needing line-of-sight. WiMAX networks use protocols that allow devices to connect to the Internet without cables, making it suitable for extending broadband access to suburban and rural areas. The technology uses radio frequencies between 2 to 11 GHz for transmission and has the potential to deliver multimedia, voice and other IP services to users anywhere within range of the network.
The WiMAX MAC encapsulates data packets from higher layers through various sublayers. It adds headers at each sublayer for functions like security, bandwidth allocation, and multiple access control before the data is encoded and transmitted through the physical layer using modulation schemes like OFDM. This ensures efficient transmission of data over the wireless medium according to QoS priorities and security requirements.
This document discusses WiMAX (Worldwide Interoperability for Microwave Access) technology. It defines WiMAX as a wireless technology that provides broadband access over long distances through point-to-point links or full mobile access. The document outlines the key components of a WiMAX system including WiMAX towers and receivers. It also describes how WiMAX works and the three levels that comprise the WiMAX technology: the transmission, radio, and core levels. Finally, the document provides examples of potential WiMAX applications and discusses WiMAX network architecture.
WiMAX is a wireless technology that provides broadband access over long distances. It allows users to access the internet without wires by connecting to a WiMAX base station. Key points:
- WiMAX provides high-speed internet access to homes and businesses without wires using wireless technology outlined in IEEE 802.16 standards.
- It can be used for various applications including connecting Wi-Fi hotspots, providing broadband access, and providing mobile data for 4G services.
- WiMAX uses licensed or unlicensed spectrum and has an architecture with subscriber stations, access networks, and connectivity networks interconnected by standardized interfaces.
- It aims to eliminate constraints of Wi-Fi by providing greater mobility over longer distances and
The presentation contains slides regarding various functions, components & uses of Wi-MAX. It compares the advantages of Wi-MAX over other technologies.
Wireless communication systems provide mobility and connectivity anywhere through high data rates, quality of service, and extended ranges of up to 50km. WiMAX is a wireless technology that can deliver broadband access through fixed and mobile networks in an economical way. It transforms mobile broadband by supporting up to 75Mbps for devices like laptops. Key capabilities include centralized coordination, high-speed IP services, quality of service, and compatibility between equipment. WiMAX uses OFDM to optimize delivery of services and enables applications like voice, video, and Internet access over wide metropolitan areas.
The document discusses the evolution and performance of WiMAX technology over different releases (Release 1.0, 1.5, and 2.0). Key points include:
- Performance metrics like peak/average spectral efficiency, data rates, and supported mobility increased with each new release through improvements like increased channel bandwidth, advanced antenna techniques, and modulation schemes.
- Release 2.0 supported carrier aggregation up to 100MHz and advanced MIMO techniques like 8x8 MIMO, providing significantly higher peak/average data rates and spectral efficiency compared to previous releases.
- The increased performance allowed supporting more subscribers per sector while maintaining the data rate per user, demonstrating a 642% growth in capacity from 2010 to 2015 through
WiMAX is a wireless technology that provides broadband internet access over long distances. It uses radio waves to transmit data and can provide connectivity up to 30 miles from a base station. WiMAX uses the IEEE 802.16 standard and consists of components like the base station, receiver, and antennas. It establishes connections like cellular networks but provides faster speeds than WiFi for connecting larger areas.
This document presents a seminar on WiMAX by Bharat Ratna. It begins with an introduction to WiMAX, explaining that it stands for Worldwide Interoperability for Microwave Access and was created by the WiMAX Forum to promote conformity. It then covers fundamental WiMAX concepts like the base station and subscriber station. The document describes WiMAX architecture including the tower and receiver. It explains how WiMAX works by sending data wirelessly using radio waves. Key features like scalability and quality of service are covered. Advantages over 3G like higher throughput and lower cost are discussed. Potential uses and the future scope of WiMAX are presented before concluding that WiMAX has the potential to substitute 3G networks.
The document discusses WiMAX technology and architecture. It provides an overview of the IEEE 802.16 standard, operating frequencies, data rates, network components, and services supported. The key components of a WiMAX network include the subscriber stations, access service network with base stations, connectivity service network with AAA and DHCP servers, and network service provider layer which offers various applications and services to subscribers.
This document provides an overview of WiMAX technology, including the differences between fixed and mobile WiMAX. It discusses the IEEE 802.16 standards for fixed (802.16d) and mobile (802.16e) WiMAX. Fixed WiMAX uses OFDM and operates between 2-11 GHz for fixed wireless connections, while mobile WiMAX uses scalable OFDMA and enables handoffs between base stations for mobility below 100 km/h. Mobile WiMAX also introduces improved quality of service for real-time applications like voice. The document outlines the physical layer specifications and protocols of each standard.
WiMAX is a wireless technology that provides broadband connections over long distances. It uses radio waves to transmit data and can provide connectivity within a 30 mile radius. There are two types of connections - line of sight which uses higher frequencies for stronger connections, and non-line of sight using lower frequencies. WiMAX can deliver speeds up to 70 Mbps for downloads and supports applications like gaming, video conferencing, and media streaming. It has advantages over 3G including lower initial costs and an open standard. Major WiMAX service providers in India include Tata Communications, BSNL, Bharti Airtel and Reliance Communications.
WIMAX stands for Worldwide Interoperability for Microwave Access.WiMAX refers to broadband wireless networks that are based on the IEEE 802.16 standard, which ensures compatibility and interoperability between broadband wireless access equipment.
WiMAX is a wireless technology that provides broadband connections over long distances. It uses radio waves in the 2-11 GHz range to transmit data, allowing it to provide coverage over large areas of up to 50 km from the base station. WiMAX was developed to provide wireless internet access similar to cable or DSL but over longer distances and in more rural areas. It allows for speeds of up to 70 Mbps and can support both fixed and mobile broadband applications. While WiFi is better suited for short range indoor use due to its lower power and speeds of up to 54 Mbps.
WiMAX is a wireless technology that provides broadband connections over long distances. It uses towers and receivers to transmit data, allowing multiple users to access the internet on multiple devices from various locations simultaneously. While similar to Wi-Fi, WiMAX has greater range, higher speeds, and more advanced security compared to other mobile broadband technologies. It supports both fixed and mobile uses.
This document provides an overview of the 802.16/WiMAX standards for broadband wireless access. It describes the history and applications of the standards, the network architecture including frame structure, scheduling types, and quality of service mechanisms. Key physical layer technologies like OFDM, OFDMA and management messages are summarized. Early large-scale deployments like WiBro in South Korea are also mentioned.
Wifi uses spread spectrum technology which can have difficulties decoding signals when two identical signals are received with a small time delay. Wimax uses OFDMA which divides data across multiple subcarriers, making it more robust to signal interference and easier to implement MIMO. While Wifi struggles at distances over a few hundred meters, Wimax can provide throughput of up to 2.5Gbps at 20km and is better suited for mining sites due to its ability to handle high signal reflection and absorption. Key considerations for a Wimax implementation include data throughput needs, quality of service requirements, and allowing suppliers flexibility in choosing parameters to optimize performance within bandwidth limits.
WIMAX is a new wireless technology that can provide broadband internet access over long distances at speeds comparable to cable internet. It uses licensed spectrum to transmit data between towers and customer devices over distances up to 30 miles. This allows it to provide broadband access to rural areas currently without wired internet options. WIMAX has advantages over existing technologies like lower costs, no need for direct line of sight, and ability to serve many users from a single tower.
WiMax (Worldwide Interoperability for Microwave Access) is a wireless technology that provides broadband connections over long distances using radio signals rather than cables or wires. It uses the IEEE 802.16 standard to deliver high-speed internet access of up to 40 Mbps to fixed locations and 15 Mbps for mobile use within a few kilometers of the base station. WiMax can provide both fixed and mobile broadband access as an alternative to cable and DSL. It has a longer range than WiFi with connections of up to 30 miles using line-of-sight antennas.
WiMAX, short for Worldwide Interoperability for Microwave Access, is the name for 802.16 family of wireless services.
Used as carriers in metropolitan area networks.
It has a tremendous range, up to 30 miles, and speeds of up to 70 Mbps.
It combines the familiarity of Wi-Fi with the mobility of cellular that will deliver personal mobile broadband that moves with you.
It lets us get connected to the Internet, miles from the nearest Wi-Fi hotspot.
802.16e provides enhancements to 802.16-2004 to support subscriber stations moving at vehicular speeds. It specifies a system for combined fixed and mobile broadband wireless access using Scalable OFDMA technology. Mobile WiMAX supports seamless handoff between base stations, sleep and idle modes for power management, and smart antenna technologies like beamforming. It can offer full mobility and compete with 3G for IP traffic with peak data rates up to 63Mbps download and 28Mbps upload in a 10MHz channel.
VoIP allows users to make phone calls using an Internet connection instead of a traditional phone line. It works by converting voice signals to digital data that is transmitted in packets over the Internet. A VoIP network uses protocols like SIP and RTP to setup calls and transmit voice data. Components include VoIP protocols, gateways to interface with the PSTN, and codecs to compress voice signals. Businesses are attracted to VoIP as it can help reduce costs while improving utilization of bandwidth and network management. However, security risks like hacking and eavesdropping exist since VoIP uses the public Internet.
The document provides an overview of the femtocell industry between July and December 2007. It discusses early femtocell deployments by Sprint, growing mainstream media coverage, health concerns raised, partnership and trial announcements by various operators and vendors, and the need for the industry to drive femtocell prices below $100 to succeed. It also analyzes the business case for femtocells and their ability to appeal to mobile data users.
The document discusses the architecture and workings of the Internet. It provides definitions and explanations of key concepts:
- The Internet is a network of networks that connects millions of devices globally using standardized communication protocols like TCP/IP. There is no single entity that controls it.
- Individual networks are connected through routers that pass traffic between them. Routers know the addresses of local networks and pass packets to the appropriate outgoing link.
- IP addresses identify devices and allow location addressing. The IP layer handles packaging, addressing, and routing of data packets across the networks.
- Other important concepts discussed include protocols like TCP and UDP, the OSI model layers, DNS lookups, firewalls, and differences between internet, intr
This document discusses branch network solutions from Aruba Networks. It begins with an overview of branch solutions and the disruptions and cost savings they enable. It then covers centralized WLAN solutions with cloud services controllers and features of Aruba's branch operating system. The document also discusses decentralized WLAN with Aruba Instant, intelligent WAN services, and integration with Palo Alto Networks. It concludes by providing guidance on choosing the right branch solution based on factors like network size, branch type, and existing campus architecture.
Wi4 wi max_access_service_network_asn_gateway_data_sheet_copyIbrahimoviczapa
The Motorola ASN Gateway provides a carrier-class WiMAX network solution that supports both fixed and mobile applications. It delivers subscriber services, security, and seamless handovers through BRAS, authentication, and mobility functions. A single gateway can support up to 1000 WiMAX sites and allows operators to offer wholesale services.
WiMAX is a wireless technology that can provide broadband internet access over long distances. It uses multiplexing techniques like OFDM and OFDMA to allow efficient use of spectrum. The document discusses WiMAX network architecture including components like the base station, CPE/MS, and ASN-GW. It also covers topics like QoS classes, modulation schemes, antennas, and applications of WiMAX such as providing VoIP services.
Colt is evolving its VPN portfolio towards a hybrid of MPLS and SD WAN to address customer challenges around needs for higher bandwidth, faster network delivery, and more network agility. It is initially focusing on an SD WAN minimum viable product to directly address new market demand. Longer term, Colt aims to develop a unified, automated on-demand platform powered by network virtualization, orchestration, and artificial intelligence to further optimize services.
Interworking of wi_max_and_3gpp_networks_-slidesBasil John
Interworking of WiMAX and 3GPP Networks based on IMS
The document discusses the interworking of WiMAX and 3GPP networks based on the IP Multimedia Subsystem (IMS). It proposes an architecture where WiMAX networks adopt IMS and SIP is used as the key signaling protocol between IMS elements in WiMAX and the Call Session Control Functions (CSCFs) in IMS. Special issues like quality of service guarantees and authentication, authorization, and accounting are also discussed. Further considerations are needed around network detection and selection, utilizing WiMAX's flexible QoS handling within 3GPP specifications, and improving handoff capabilities between the networks.
WiMAX is a wireless technology that provides broadband connections over long distances. It uses towers to transmit high-speed Internet access to homes and businesses without wires. WiMAX operates using either line-of-sight or non-line-of-sight connections and can provide data rates between 30-40 megabits per second for mobile use and up to 1 gigabit per second for fixed locations. The WiMAX network is made up of towers, base stations, and an access service network that connects subscribers. It supports features like adaptive modulation, link-layer retransmissions, quality of service guarantees, and strong security.
BreezeMAX 3650 is a 802.16e-based WiMAX solution for the US FCC 3.65-3.70 GHz frequency band allocated for wireless broadband, which includes macro and micro
base stations. Incorporating Alvarion’s field-proven and mature WiMAX technology,
which is one of the market’s most popular 802.16e-based, WiMAX solutions,
BreezeMAX 3650 provides superior coverage and capacity that results in fewer cell
sites for reduced CAPEX and OPEX and an improved business case. Furthermore, as
an 802.16e-based solution, BreezeMAX 3650 offers a future-proof network with
optimized value of investment.
Widyatama.lecture.applied networking.iv-week-13.future internet networkingDjadja Sardjana
The document discusses future directions for internet architecture to accommodate emerging wireless and sensor networking needs. It proposes evolutionary, overlay, and revolutionary strategies. Evolution involves extending IP to support mobility and wireless scenarios. Overlays create new optimized networks working across the internet. Revolution specifies a new "beyond IP" network for mobile/wireless applications. All approaches aim to revise networking assumptions and design for new capabilities.
ElItecore’s EliteAAA enables BSNL Roll out WiMAX ServicesDeepti Somani
BSNL, India's largest telecom operator, selected Elitecore's EliteAAA solution to enable WiMAX services across India on a single, centralized AAA platform. This allowed BSNL to leverage its existing AAA infrastructure for WiMAX rollout, reducing costs and speeding up service launch. EliteAAA provided centralized policy management, authentication, and accounting for BSNL's mixed network environment including DSL, WiFi, and WiMAX on a single interface. Over 10 million subscribers can now access multiple BSNL services through a single authentication.
Elitecore's EliteAAA system was selected by BSNL, India's largest telecom operator, to enable WiMAX services across India. The system provided centralized authentication, policy management, and charging capabilities for WiMAX as well as BSNL's existing wireline and wireless networks. Upgrading EliteAAA allowed BSNL to leverage its existing infrastructure and avoid additional hardware costs, facilitating a faster and more cost-effective WiMAX rollout. EliteAAA supported the key WiMAX requirements of multiple authentication methods, ASN gateway integration, prepaid and postpaid services, and WiMAX forum standards compliance.
This document provides an overview of IP RAN network design for 2G and 3G networks. It discusses key aspects of IP RAN including transport connectivity, network synchronization, quality of service, and security. The document also presents case studies of 2G and 3G network topologies designed using IP RAN principles.
The Skystar 360E is a satellite-based broadband IP solution for corporate networks that provides high-speed connectivity to dispersed business locations. It uses DVB standards and supports a wide range of IP applications. The system consists of a central hub and remote VSAT terminals connected via satellite. It offers benefits like centralized management, multicast capabilities, TCP acceleration, and interactive data and video conferencing to improve business efficiency and connectivity for SOHO, SME, and large corporate networks.
In a major move to deliver the promised benefits of Software-Defined Networking (SDN), Corsa Technology introduced the Corsa DP2000 series, a new open programmable switching and routing platform that delivers 10G and 100G subscriber-level networking, on-demand services and real-time network tuning. The Corsa DP2000 allows network architects and operators to dynamically partition hardware into independent virtual SDN switches or routers operating at line-rate.
IoT Field Area Network Solutions & Integration of IPv6 Standards by Patrick G...gogo6
gogo6 IPv6 Video Series. Event, presentation and speaker details below:
EVENT
gogoNET LIVE! 4: IPv6 & The Internet of Things. http://gogonetlive.com
November 12 – 14, 201, Silicon Valley, California
Agenda: http://gogonetlive.com/gogonetlive4-agenda.asp
PRESENTATION
IoT Field Area Network Solutions & Integration of IPv6 Standards
Abstract: http://www.gogo6.com/profiles/blogs/my-presentation-at-gogolive-integration-of-ipv4-and-non-ip
Presentation video: http://www.gogo6.com/video/iot-field-area-network-solutions-integration-of-ipv6-standards-by
Interview video: http://www.gogo6.com/video/interview-with-carsten-bormann-at-gogonet-live-4-ipv6-iot-confere
SPEAKER
Patrick Grossetete - Technical Marketing Engineer (IoT), Cisco
Bio/Profile: http://www.gogo6.com/profile/PatrickGrossetete
MORE
Learn more about IPv6 on the gogoNET social network and our online training courses
http://www.gogo6.com/main
Get free IPv6 connectivity with Freenet6
http://www.gogo6.com/Freenet6
Subscribe to the gogo6 IPv6 Channel on YouTube
http://www.youtube.com/subscription_center?add_user=gogo6videos
Follow gogo6 on Twitter
http://twitter.com/gogo6inc
Like gogo6 on Facebook
http://www.facebook.com/pages/IPv6-products-community-and-services-gogo6/161626696777
An introduction to Meraki as a company and a technology. Meraki have just been awarded visionary status is Gartners 2011 magic quadrant for Wireless LAN and have recently announced the MX range of Cloud-Managed Routers, Meraki, Making Branch Networking Easy.
The document discusses frameworks for modernizing federal networks through network functions virtualization (NFV) and software-defined networking (SDN). It addresses the need to centralize and scale network configurations, enhance situational awareness, enforce policies, and respond rapidly to changing conditions. The proposed framework involves orchestration of virtualized network functions and SDN control through an architecture that includes the OpenDaylight controller, network virtualization, and analytics. Brocade networking products like the Vyatta vRouter are positioned to enable this vision through NFV, SDN, and integration with OpenStack. Use cases for virtual customer premises equipment, virtual customer edge, and virtual peering are described.
Nuage Arista Hardware VTEP. Demoing the integration of Arista switch into Nuage VSP and automatic way of building Vxlan tunnels from virtual to bare metal infrastructure.
The document discusses Aruba's networking portfolio and solutions for campus, branch, and data center networks. It highlights Aruba's new CX switching portfolio which features a common operating system and architecture across edge access to the data center. The CX switches are designed to address customer challenges around legacy networks not keeping pace with digital transformation needs. The document also covers Aruba's Wi-Fi 6 access point portfolio and the benefits of Wi-Fi 6 technology.
Similar to Wi Max Network Architecture V0.1 Pdf Version (20)
This white paper discusses future technologies for fixed-mobile convergence including LTE and SAE. It defines fixed-mobile convergence as providing consistent services via any fixed or mobile access point. The paper describes the motivation for convergence including mobility and consistent services. It outlines the LTE/SAE introduction and technologies including the evolved packet core and all-IP architecture. Key aspects of LTE such as physical layer channels and protocols are also summarized. The purpose is to support an integrated network through the IP Multimedia Subsystem for high-speed mobile experiences comparable to fixed broadband.
This document provides an overview of 3GPP LTE technology. It discusses the evolution of 3GPP standards and the advancement needed for high data rates, including the use of OFDM(A) and SC-FDMA. It provides a brief introduction to LTE including its radio interface architecture, downlink and uplink transmissions, and cell search procedure. Relevant 3GPP specifications for LTE are also listed.
The document discusses the evolution of mobile network architectures from GSM to LTE and SAE. It introduces LTE and SAE, describing them as the radio access network and core network respectively for 3GPP's Evolved Packet System. It provides an overview of the SAE architecture, which includes the Evolved Packet Core and eUTRAN. The core network provides access to external networks and performs functions like QoS, security and mobility management, while the radio access network handles radio interface functions.
This document proposes a concatenated coding scheme with iterative decoding for a bit-shift channel. Specifically, it considers the serial concatenation of an outer error-correcting code and an inner modulation code, possibly preceded by an accumulator. It searches for optimal encoder mappings from an iterative decoding perspective for the inner code, which has been designed to correct single bit-shift errors and have large average power. This is important for inductively coupled channels, as the receiver gets its power from the received signal and the information should maximize the power transferred.
The document proposes LTE Release 10 and beyond (LTE-Advanced) as a candidate radio interface technology for IMT-Advanced. It provides an overview of 3GPP standardization activities, including LTE Release 8 and the work underway in 3GPP to develop LTE-Advanced to meet IMT-Advanced requirements. Key aspects of LTE-Advanced include utilizing carrier aggregation to support wider bandwidth up to 100MHz and advanced MIMO techniques with up to 8-layer transmission to achieve peak data rates of 1Gbps.
The document summarizes radio frequency aspects of 3GPP Release 10 LTE-Advanced technology. Key points discussed include operating bands and transmission bandwidth configurations up to 100MHz supported by carrier aggregation. Feasibility studies covered aspects like UE and base station transmitter/receiver architectures, power levels and emissions for supporting wider channel bandwidths through multiple component carriers. Radio resource management requirements were also addressed to ensure good mobility performance across networks utilizing LTE-Advanced.
This document discusses enhancements to the physical layer of LTE-Advanced (3GPP Release 10). It describes the downlink and uplink physical layer designs, including orthogonal multiple access schemes, reference signals, control signaling, and data transmission methods. It also covers support for time division duplexing, half-duplex frequency division duplexing, and UE categories defined in 3GPP Release 8. The goal of LTE-Advanced is to further improve the LTE standard to meet the requirements of IMT-Advanced.
LTE was developed to meet increasing demands for mobile data by offering significantly higher data rates, lower latency, and improved system capacity compared to HSPA. It transitions to a simplified all-IP architecture. Key LTE technologies include flexible bandwidths up to 20 MHz, OFDMA, MIMO, and channel-dependent scheduling. LTE is expected to provide peak data rates of over 300 Mbps downlink and 75 Mbps uplink for high-end devices.
Mobile broadband growth has led to increased traffic, subscriptions, and revenue for many mobile operators globally. This growth is challenging existing mobile networks and driving operators to evolve their networks to LTE, which can provide significantly higher capacity to support ongoing growth in demand. The mobile industry is largely converging on LTE as the next generation mobile standard, with over 100 operators committed or exploring deployment. LTE promises benefits like lower costs per bit and higher speeds to better meet consumer and business needs in a mobile world.
The document provides an overview of 3GPP Long Term Evolution (LTE) and System Architecture Evolution (SAE). It discusses the motivation for LTE to evolve UMTS towards a packet-only system with higher data rates. The workplan for LTE included feasibility studies from 2004-2006 and standardization work beginning in 2007. Key requirements for LTE included improved peak data rates, latency, spectral efficiency, and reduced infrastructure costs. The LTE air interface uses OFDMA in the downlink and SC-FDMA in the uplink with adaptive modulation up to 64-QAM. Multiple antenna techniques including beamforming, spatial multiplexing, and diversity are supported.
The document proposes LTE Release 10 and beyond (LTE-Advanced) as a candidate radio interface technology for IMT-Advanced. It provides an overview of 3GPP standardization activities, including LTE Release 8 which focused on improving spectral efficiency and reducing latency. LTE-Advanced is being studied to further evolve LTE to meet ITU-R requirements for IMT-Advanced and future needs, with a feasibility study currently ongoing in 3GPP.
This document discusses estimating the performance of concatenated coding schemes. It introduces the Information Processing Characteristic (IPC) which can be used to lower bound the performance of any concatenated coding scheme. The IPC is obtained through asymptotic analysis using EXIT charts or the Approximate Message Passing Convergence Analyzer (AMCA). This provides a lower bound on the IPC that can be achieved with infinite interleaving and iterations. Estimates for realistic schemes with a limited number of iterations are also possible. The IPC can then be used to estimate the resulting bit error ratio.
This document summarizes the key technologies that enable LTE-Advanced, which is an enhancement of LTE to meet the requirements for IMT-Advanced. LTE-Advanced introduces carrier aggregation to support transmission bandwidths up to 100MHz by aggregating multiple LTE carriers. It also enhances multiple antenna technologies to support up to 8 antennas in the downlink and 4 antennas in the uplink. Other technologies introduced include coordinated multipoint transmission and reception, enhanced uplink transmission schemes, and the use of intelligent relay nodes.
This document provides an overview of the book "Understanding UMTS Radio Network Modelling, Planning and Automated Optimisation". It discusses radio network modelling and planning for UMTS/3G cellular networks. The book contains chapters on propagation modelling, theoretical models, planning fundamentals, network design aspects, compatibility of UMTS systems, and specialised network design topics. It aims to help readers understand the theory and practice of UMTS radio network modelling, planning and optimization.
This document provides a summary of key performance indicators (KPIs) for measuring performance in UMTS terrestrial radio access networks (UTRAN). It begins with the basics of performance measurement, including what KPIs are, how performance data is captured and filtered in UTRAN, and definitions from 3GPP. It then describes selected KPIs to measure aspects like block error rate, radio link quality, throughput, handover success rates, call setup rates, and more. The document aims to provide a practical guide for understanding and using KPIs to evaluate UTRAN network performance.
The document is a preface and table of contents for a book about UMTS networks and radio access technology. It introduces the growth of mobile communications and the requirements for 3G systems, including new services and radio access aspects. It also briefly discusses enhancing technologies for 3G like smart antennas, multi-user detection, software defined radio, and integration challenges. The preface and contents set up the topics to be covered in the book at a high level.
This document provides an introduction and overview of the book "HSDPA/HSUPA for UMTS: High Speed Radio Access for Mobile Communications". The book is edited by Harri Holma and Antti Toskala of Nokia Networks, Finland. It covers the standardization of HSDPA and HSUPA in 3GPP, the key technologies and principles of HSDPA and HSUPA including new physical channels and protocols, radio resource management, performance metrics such as bit rates and capacity, and applications over HSPA such as voice-over-IP.
This document is the third edition of the book "WCDMA for UMTS" which provides an overview of the WCDMA radio access technology for third generation mobile communications. It was edited by Harri Holma and Antti Toskala of Nokia and covers topics such as the standardization process, network architecture, protocols, and services supported by UMTS networks using WCDMA. The book serves as a technical reference for 3G cellular communication standards and their implementation.
WiMAX is a wireless technology that provides broadband connections over long distances. It allows high-speed wireless data, voice and video connectivity. The technology uses various standards and frequency bands to provide broadband access up to 30 miles. Products supporting WiMAX standards are expanding and include chips, modules, customer premise equipment and base stations. Many companies are developing WiMAX network infrastructure and devices to deliver wireless internet access using this technology.

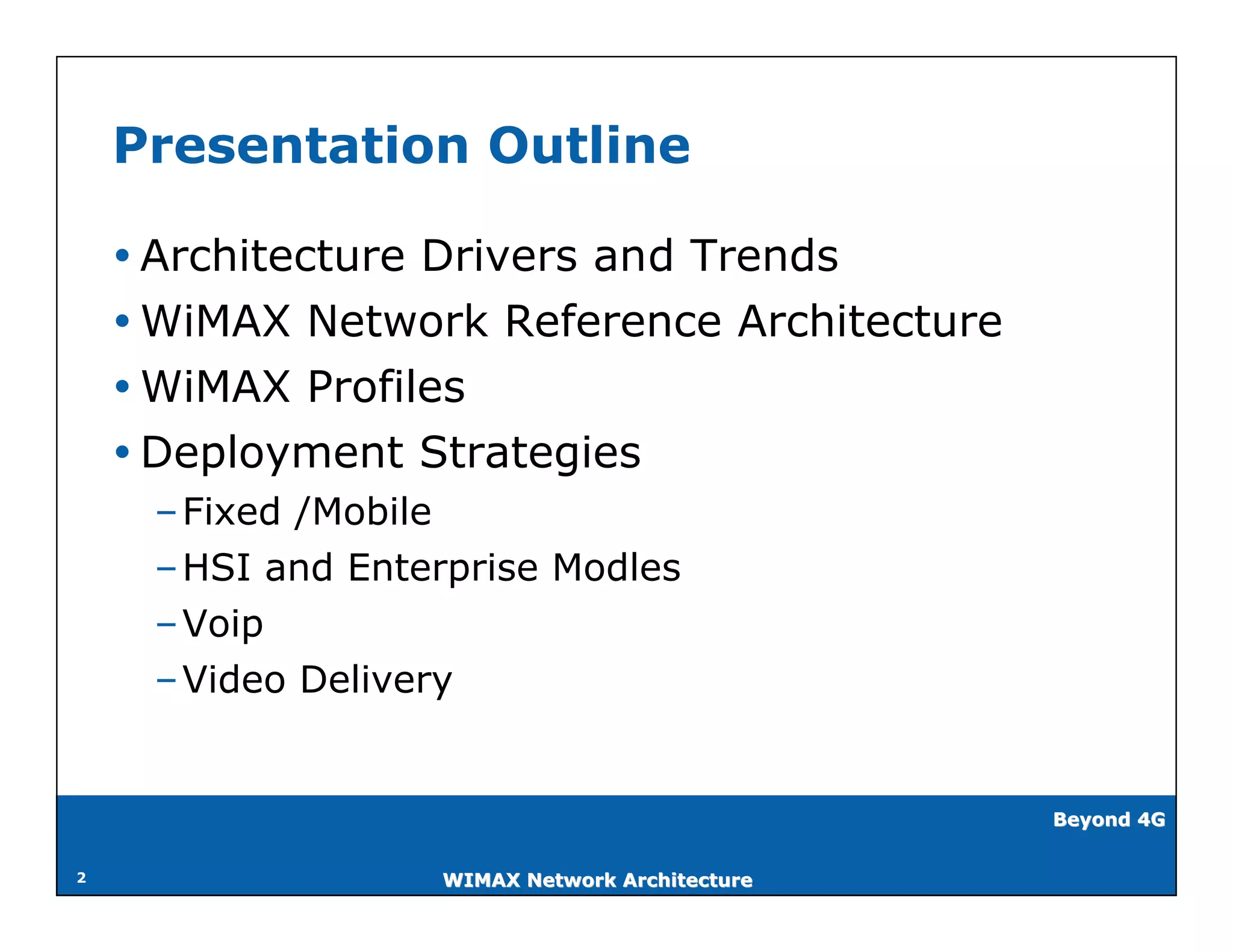

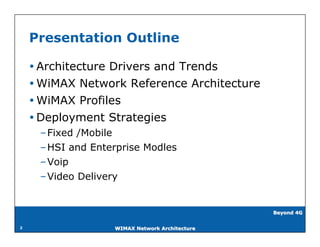

2. Presentation Outline
Architecture Drivers and Trends
WiMAX Network Reference Architecture
WiMAX Profiles
Deployment Strategies
– Fixed /Mobile
– HSI and Enterprise Modles
– Voip
– Video Delivery
Beyond 4G
2 WIMAX Network Architecture

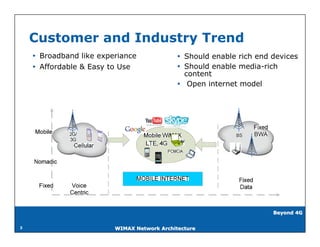

3. Customer and Industry Trend
Broadband like experiance Should enable rich end devices
Affordable & Easy to Use Should enable media-rich
content
Open internet model
Beyond 4G
3 WIMAX Network Architecture

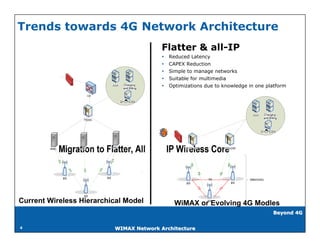

4. Trends towards 4G Network Architecture
Flatter & all-IP
Reduced Latency
CAPEX Reduction
Simple to manage networks
Suitable for multimedia
Optimizations due to knowledge in one platform
XX
XX
R6
R6
XX
XX
XX
R6
R6
R8
R8
Current Wireless Hierarchical Model WiMAX or Evolving 4G Modles
Beyond 4G
4 WIMAX Network Architecture

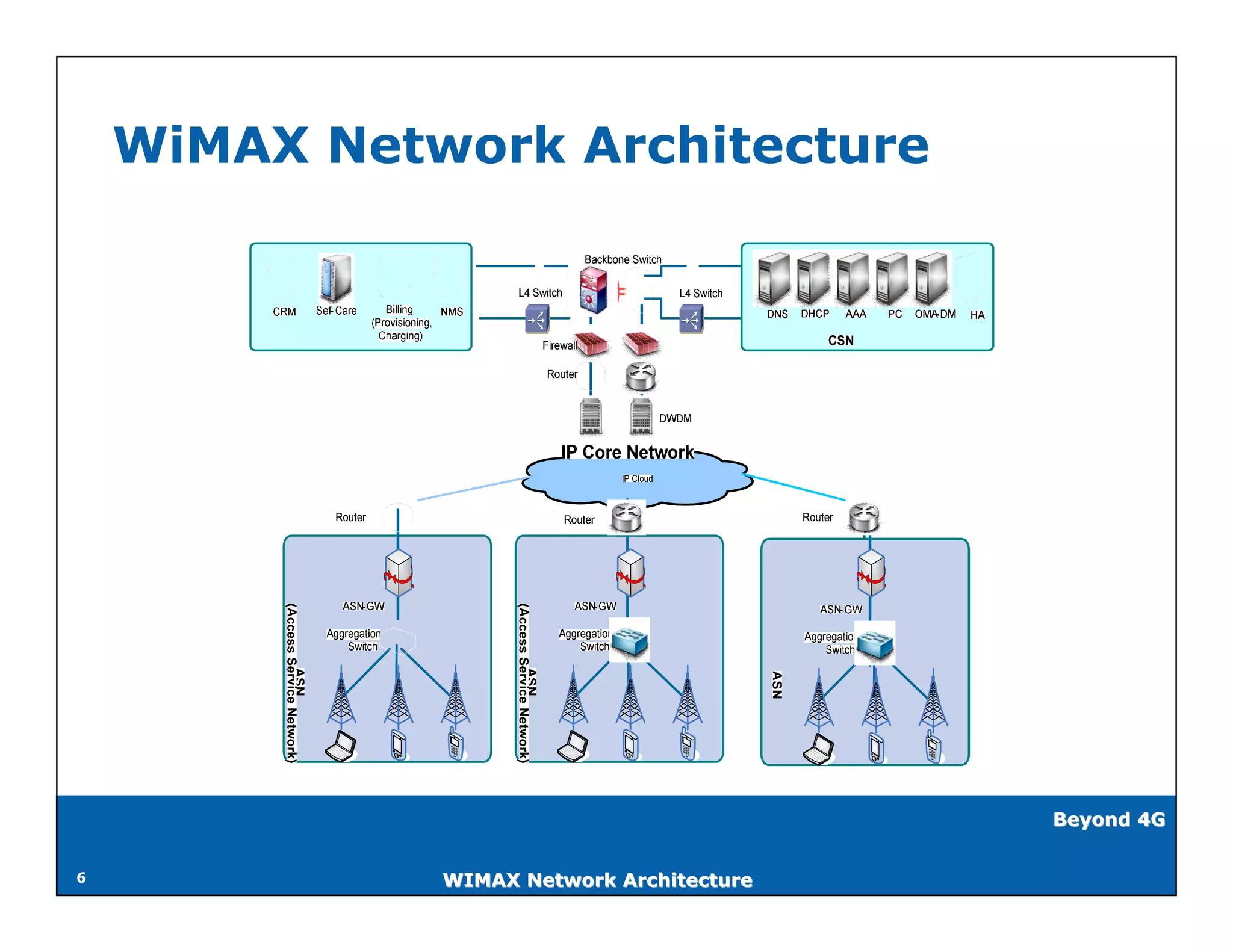

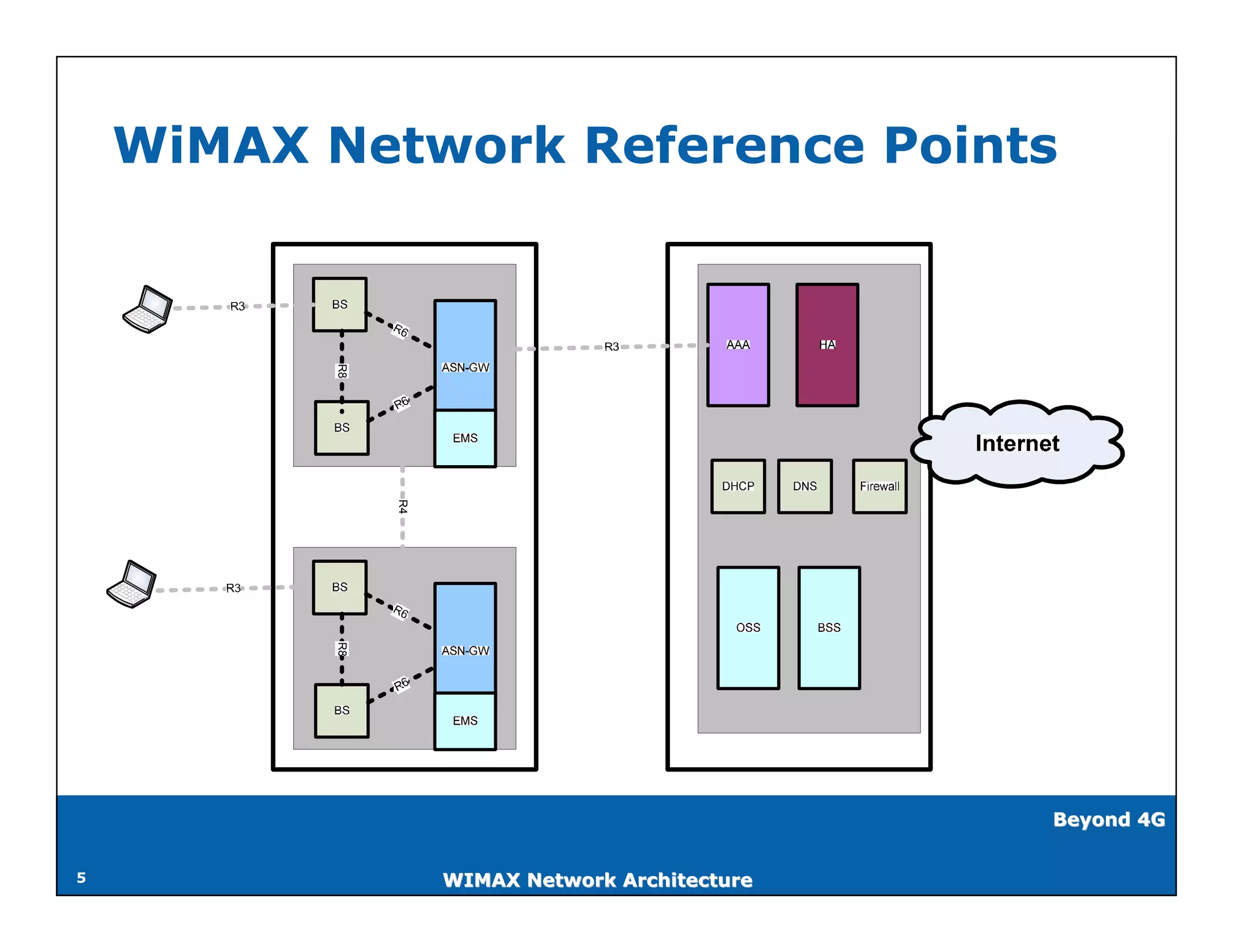

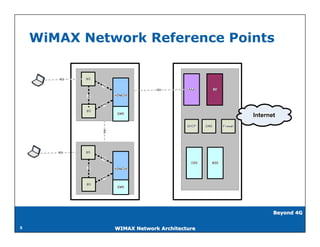

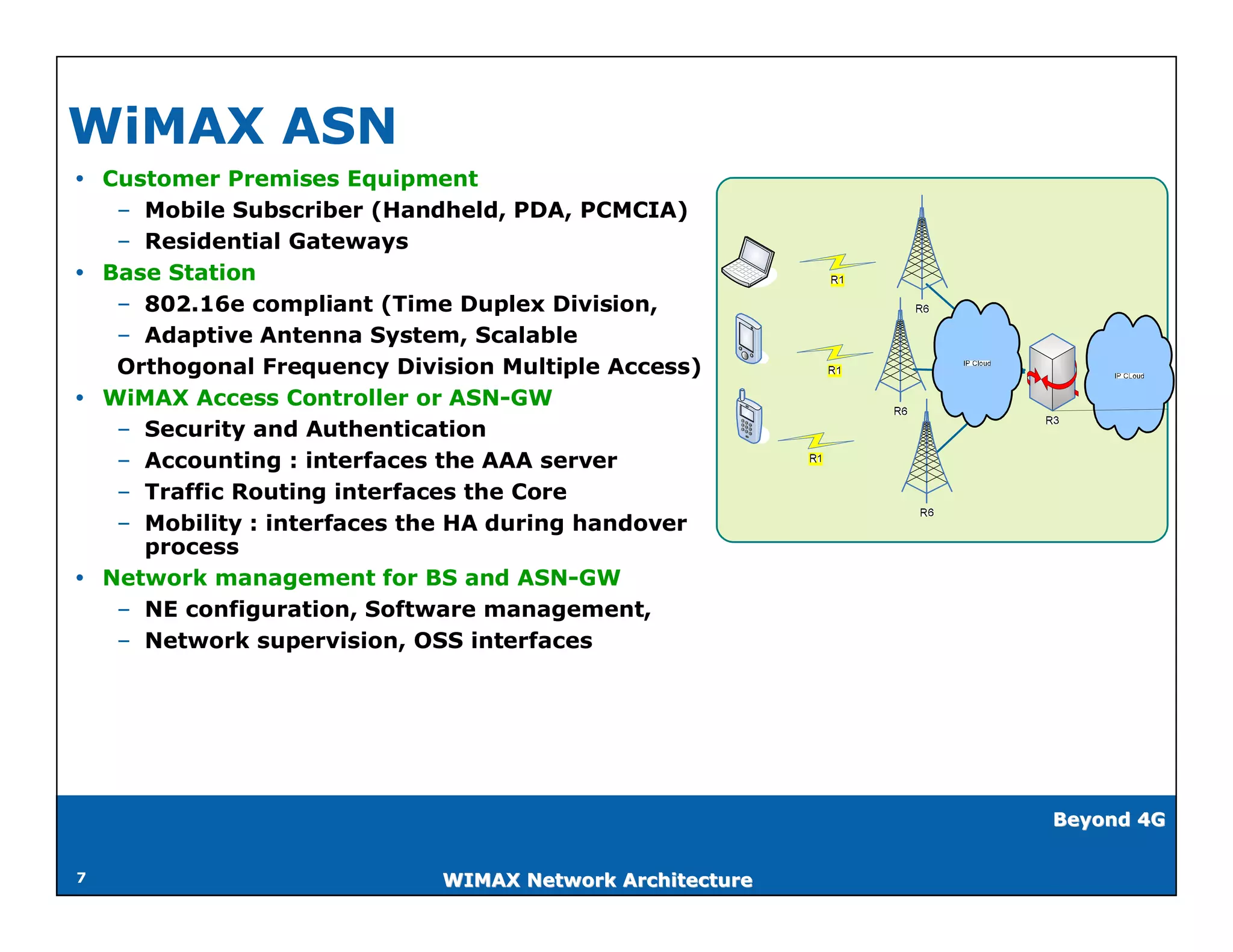

7. WiMAX ASN
Customer Premises Equipment
– Mobile Subscriber (Handheld, PDA, PCMCIA)
– Residential Gateways
Base Station
– 802.16e compliant (Time Duplex Division,
– Adaptive Antenna System, Scalable
Orthogonal Frequency Division Multiple Access)
WiMAX Access Controller or ASN-GW
– Security and Authentication
– Accounting : interfaces the AAA server
– Traffic Routing interfaces the Core
– Mobility : interfaces the HA during handover
process
Network management for BS and ASN-GW
– NE configuration, Software management,
– Network supervision, OSS interfaces
Beyond 4G
7 WIMAX Network Architecture
8. ASN Profiles
Profile Key Features
Hierarchical model, with more intelligence located at
the ASN Gateway.
The ASN Gateway is involved in the Radio Resource
A Management (RMM) and hosts the Radio Resource
Controller (RRC). It also handles handoffs between
BSUs.
Open interfaces: R1, R3, R4, R6.
Vendor-specific model with proprietary and closed R6
interface between BS and ASN-Gateway.
BSs playing a more substantial role in managing
B traffic and mobility while the ASN network acts as a
black box.
Open interfaces: R1, R3, R4.
Centralized model similar to A, but BSUs are
responsible for all the RRM, including the RRC and
C Radio Resource Agent (RRA), and the handoffs
between BSUs.
Open interfaces: R1, R3, R4, R6.
Beyond 4G
8
8 WIMAX Network Architecture

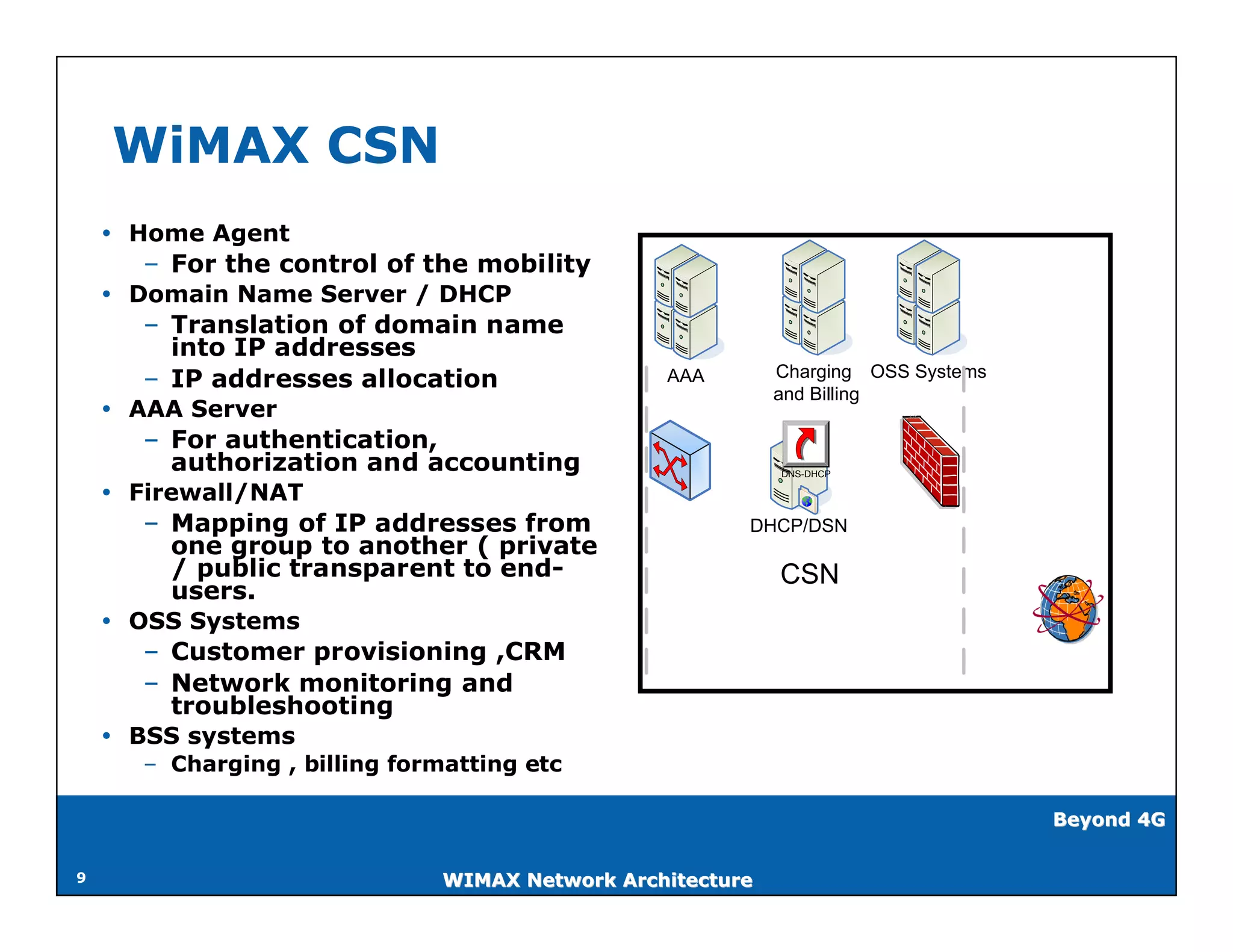

9. WiMAX CSN
Home Agent
– For the control of the mobility
Domain Name Server / DHCP
– Translation of domain name
into IP addresses
Charging OSS Systems
– IP addresses allocation AAA
and Billing
AAA Server
– For authentication,
authorization and accounting DNS-DHCP
Firewall/NAT
– Mapping of IP addresses from DHCP/DSN
one group to another ( private
/ public transparent to end- CSN
users.
OSS Systems
– Customer provisioning ,CRM
– Network monitoring and
troubleshooting
BSS systems
– Charging , billing formatting etc
Beyond 4G
9 WIMAX Network Architecture

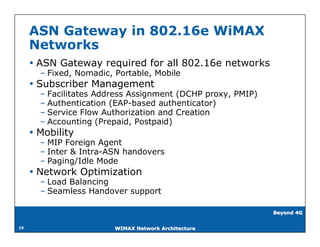

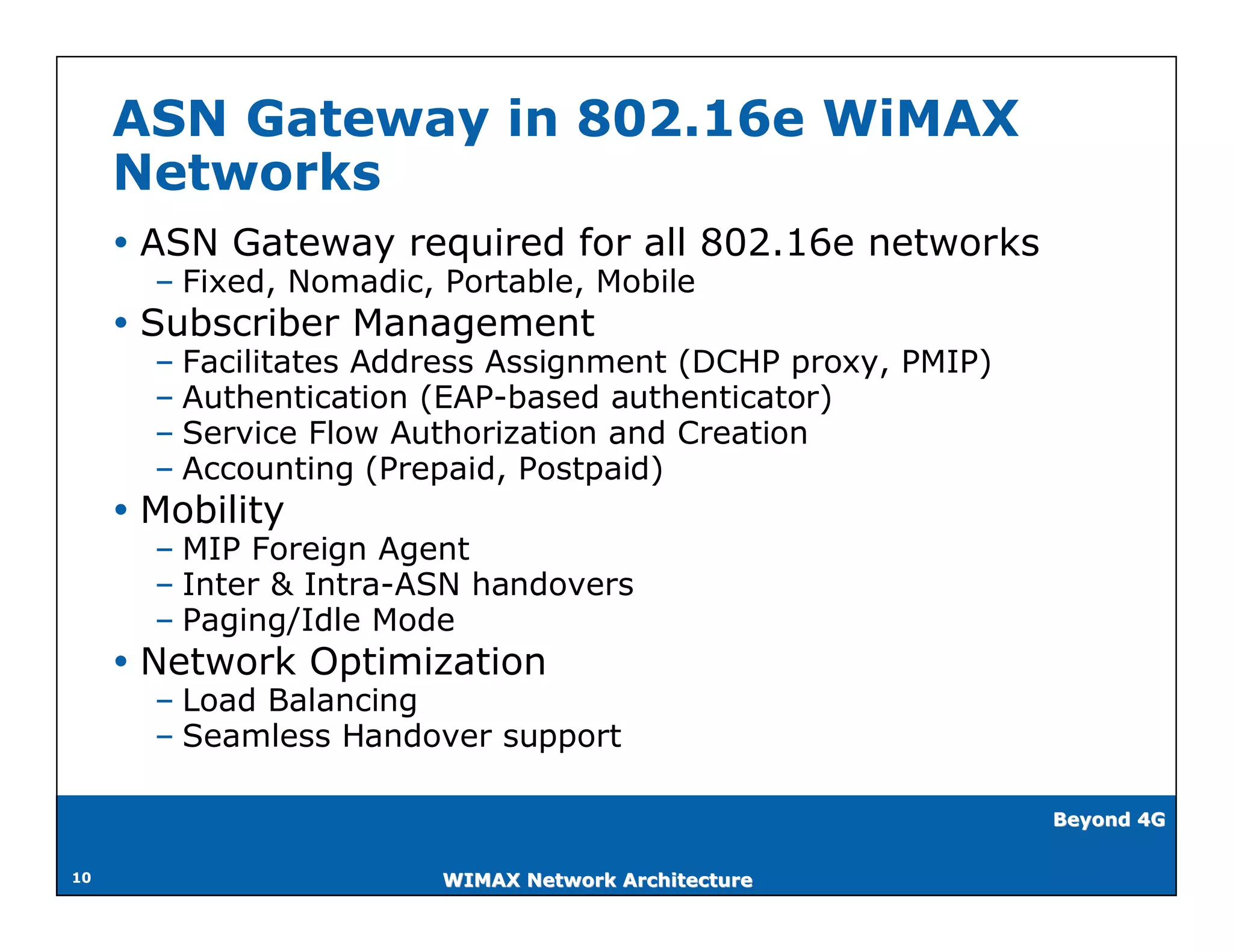

10. ASN Gateway in 802.16e WiMAX
Networks
ASN Gateway required for all 802.16e networks
– Fixed, Nomadic, Portable, Mobile
Subscriber Management
– Facilitates Address Assignment (DCHP proxy, PMIP)
– Authentication (EAP-based authenticator)
– Service Flow Authorization and Creation
– Accounting (Prepaid, Postpaid)
Mobility
– MIP Foreign Agent
– Inter & Intra-ASN handovers
– Paging/Idle Mode
Network Optimization
– Load Balancing
– Seamless Handover support
Beyond 4G
10 WIMAX Network Architecture

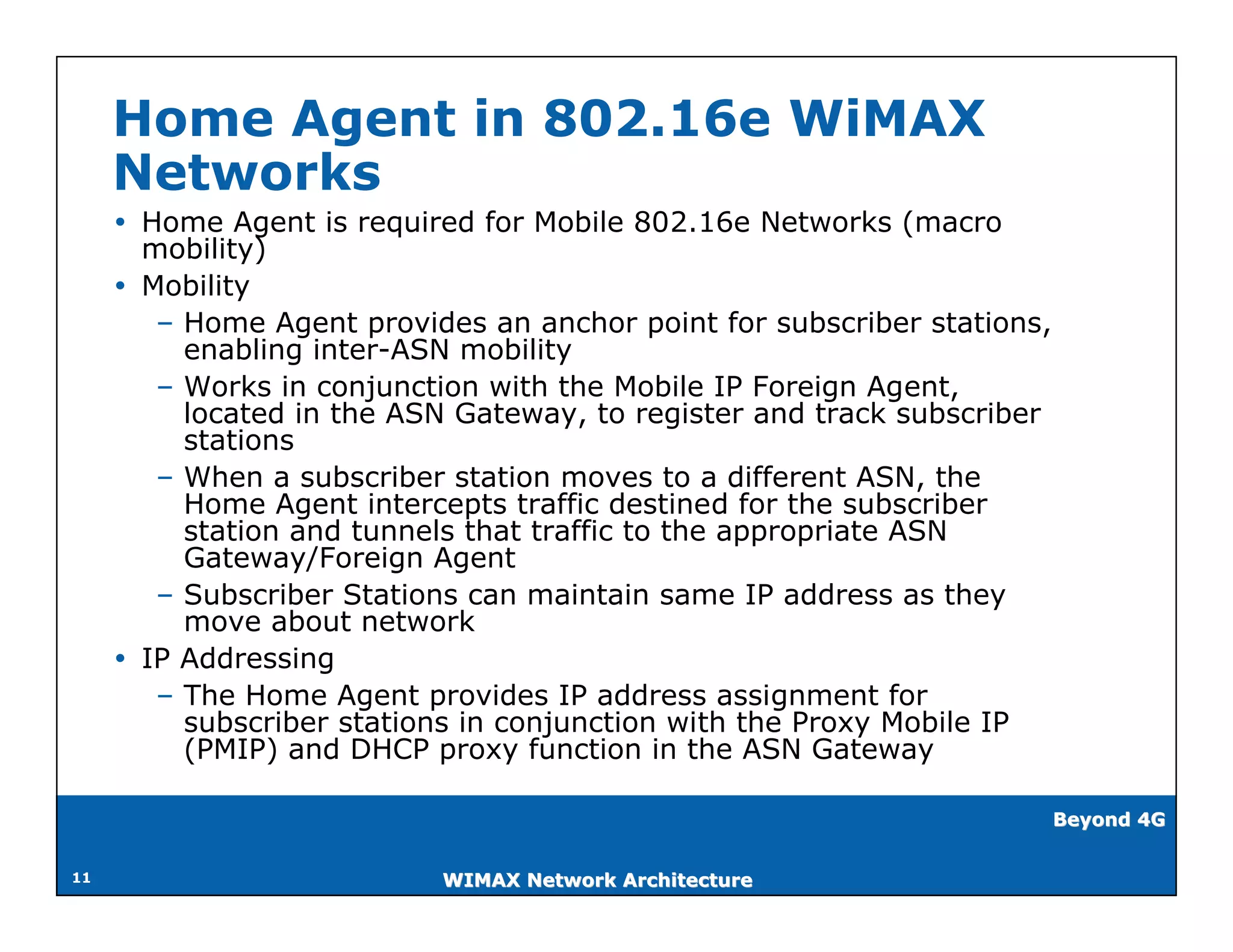

11. Home Agent in 802.16e WiMAX
Networks
Home Agent is required for Mobile 802.16e Networks (macro
mobility)
Mobility
– Home Agent provides an anchor point for subscriber stations,
enabling inter-ASN mobility
– Works in conjunction with the Mobile IP Foreign Agent,
located in the ASN Gateway, to register and track subscriber
stations
– When a subscriber station moves to a different ASN, the
Home Agent intercepts traffic destined for the subscriber
station and tunnels that traffic to the appropriate ASN
Gateway/Foreign Agent
– Subscriber Stations can maintain same IP address as they
move about network
IP Addressing
– The Home Agent provides IP address assignment for
subscriber stations in conjunction with the Proxy Mobile IP
(PMIP) and DHCP proxy function in the ASN Gateway
Beyond 4G
11 WIMAX Network Architecture

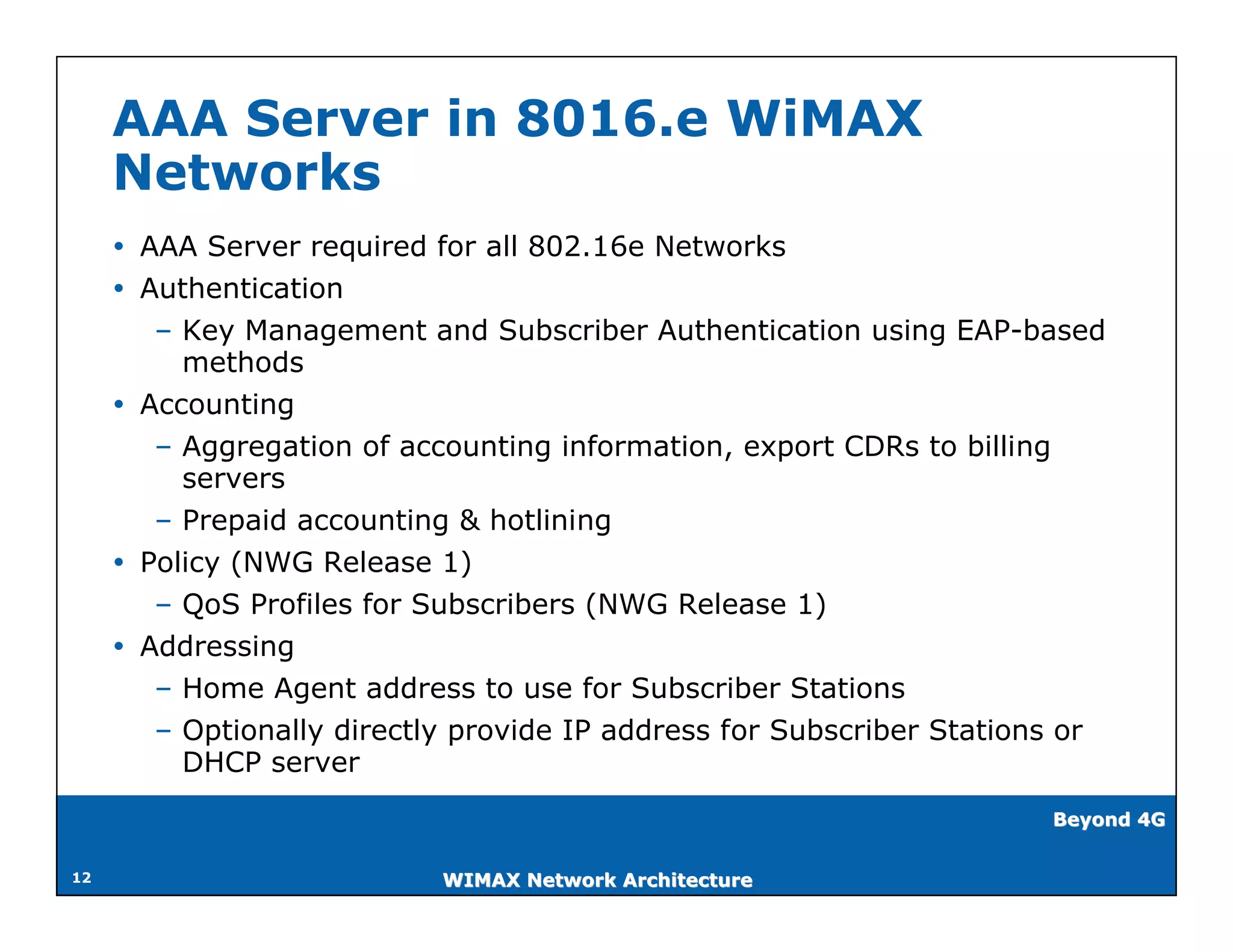

12. AAA Server in 8016.e WiMAX
Networks
AAA Server required for all 802.16e Networks
Authentication
– Key Management and Subscriber Authentication using EAP-based
methods
Accounting
– Aggregation of accounting information, export CDRs to billing
servers
– Prepaid accounting & hotlining
Policy (NWG Release 1)
– QoS Profiles for Subscribers (NWG Release 1)
Addressing
– Home Agent address to use for Subscriber Stations
– Optionally directly provide IP address for Subscriber Stations or
DHCP server
Beyond 4G
12 WIMAX Network Architecture

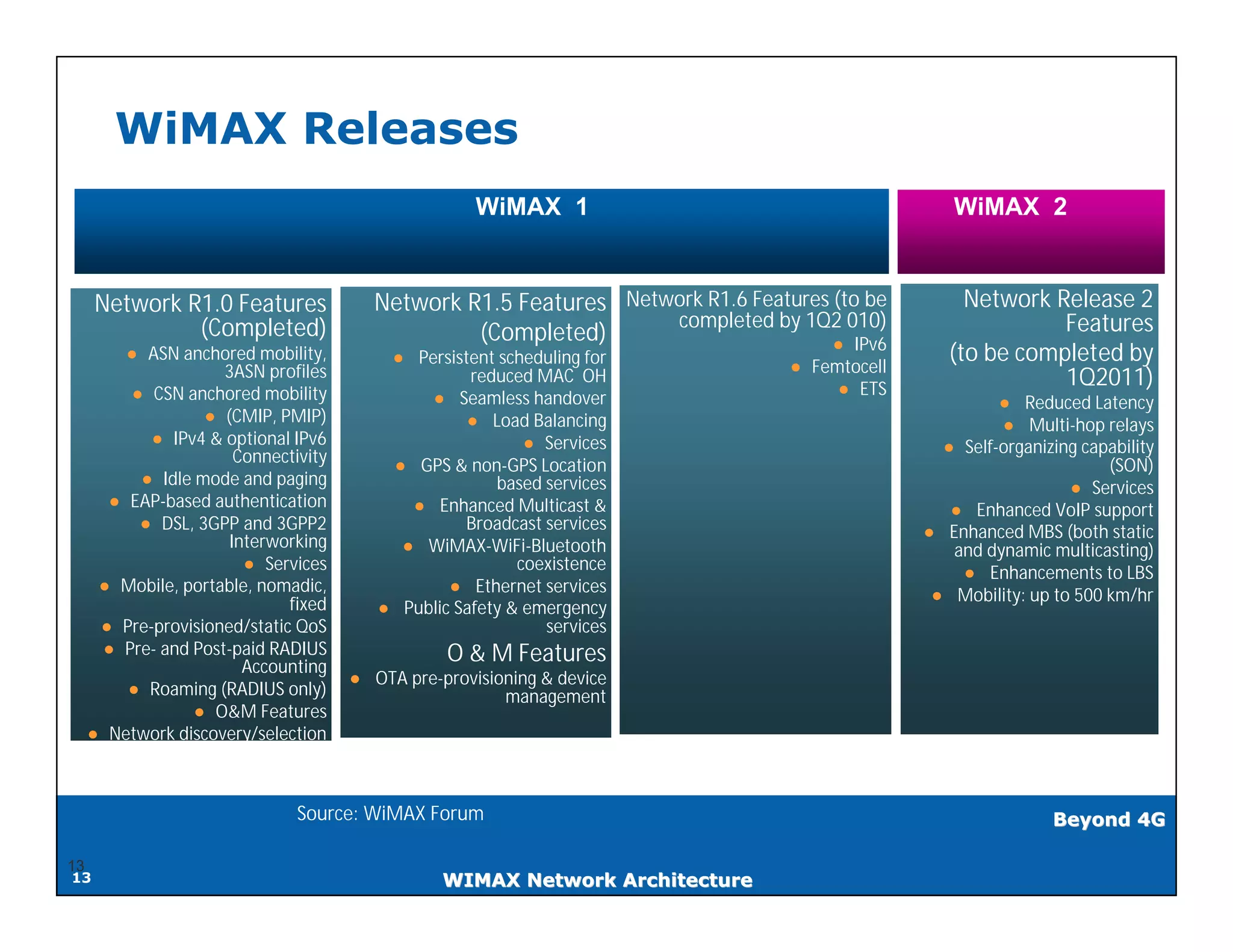

13. WiMAX Releases
MobileWiMAX 1
WiMAX Release 1 WiMAX 2
Network R1.0 Features Network R1.5 Features Network R1.6 Features (to be Network Release 2
(Completed) completed by 1Q2 010) Features
(Completed) ● IPv6
● ASN anchored mobility, ● Persistent scheduling for ● Femtocell
(to be completed by
3ASN profiles reduced MAC OH 1Q2011)
● CSN anchored mobility ● ETS
● Seamless handover ● Reduced Latency
● (CMIP, PMIP) ● Load Balancing ● Multi-hop relays
● IPv4 & optional IPv6 ● Services ● Self-organizing capability
Connectivity ● GPS & non-GPS Location (SON)
● Idle mode and paging based services ● Services
● EAP-based authentication ● Enhanced Multicast & ● Enhanced VoIP support
● DSL, 3GPP and 3GPP2 Broadcast services ● Enhanced MBS (both static
Interworking ● WiMAX-WiFi-Bluetooth and dynamic multicasting)
● Services coexistence ● Enhancements to LBS
● Mobile, portable, nomadic, ● Ethernet services
fixed ● Mobility: up to 500 km/hr
● Public Safety & emergency
● Pre-provisioned/static QoS services
● Pre- and Post-paid RADIUS O & M Features
Accounting
● OTA pre-provisioning & device
● Roaming (RADIUS only) management
● O&M Features
● Network discovery/selection
Source: WiMAX Forum Beyond 4G
13
13 WIMAX Network Architecture

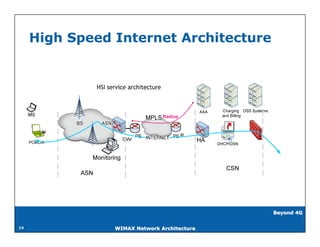

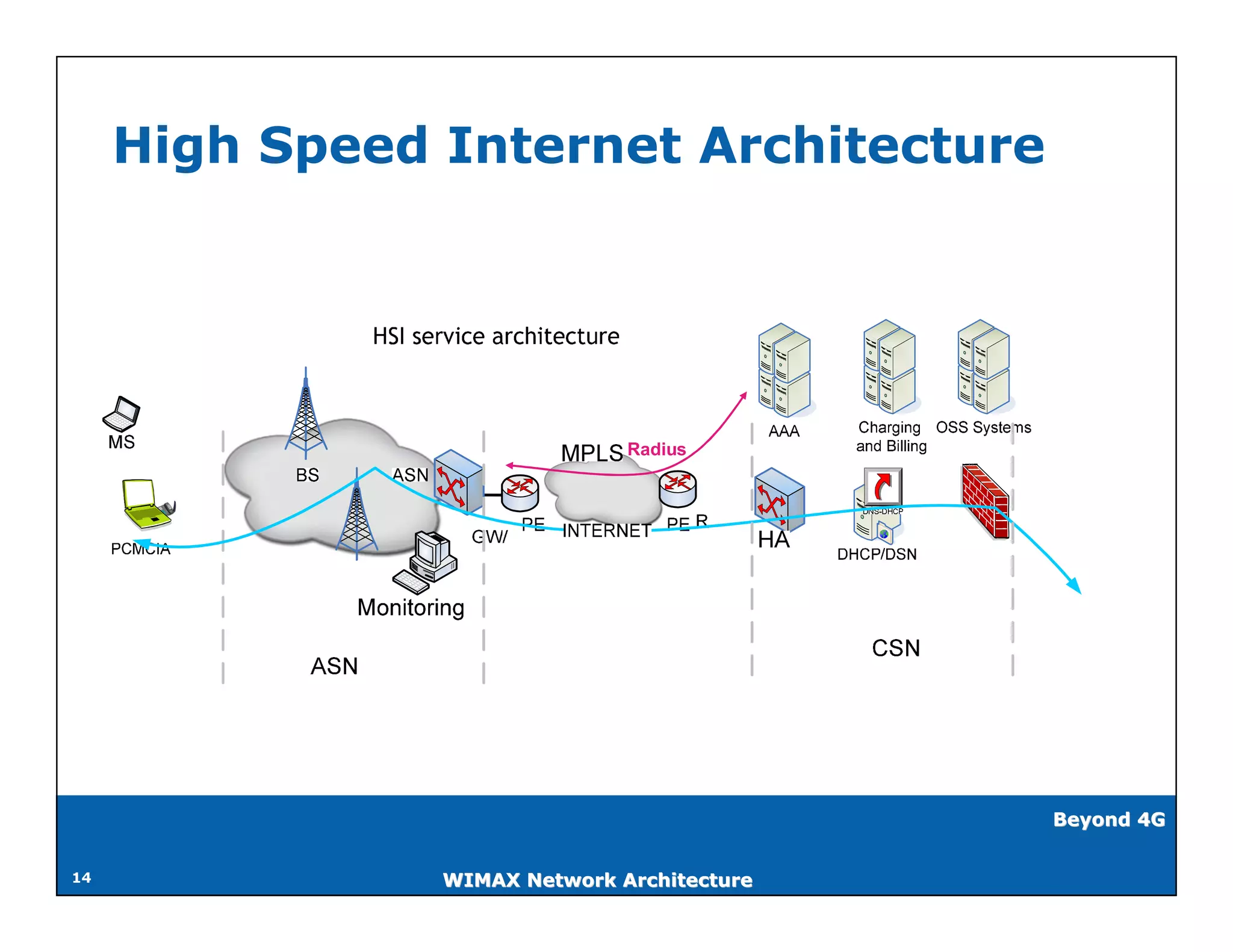

14. High Speed Internet Architecture
Radius
Beyond 4G
14 WIMAX Network Architecture

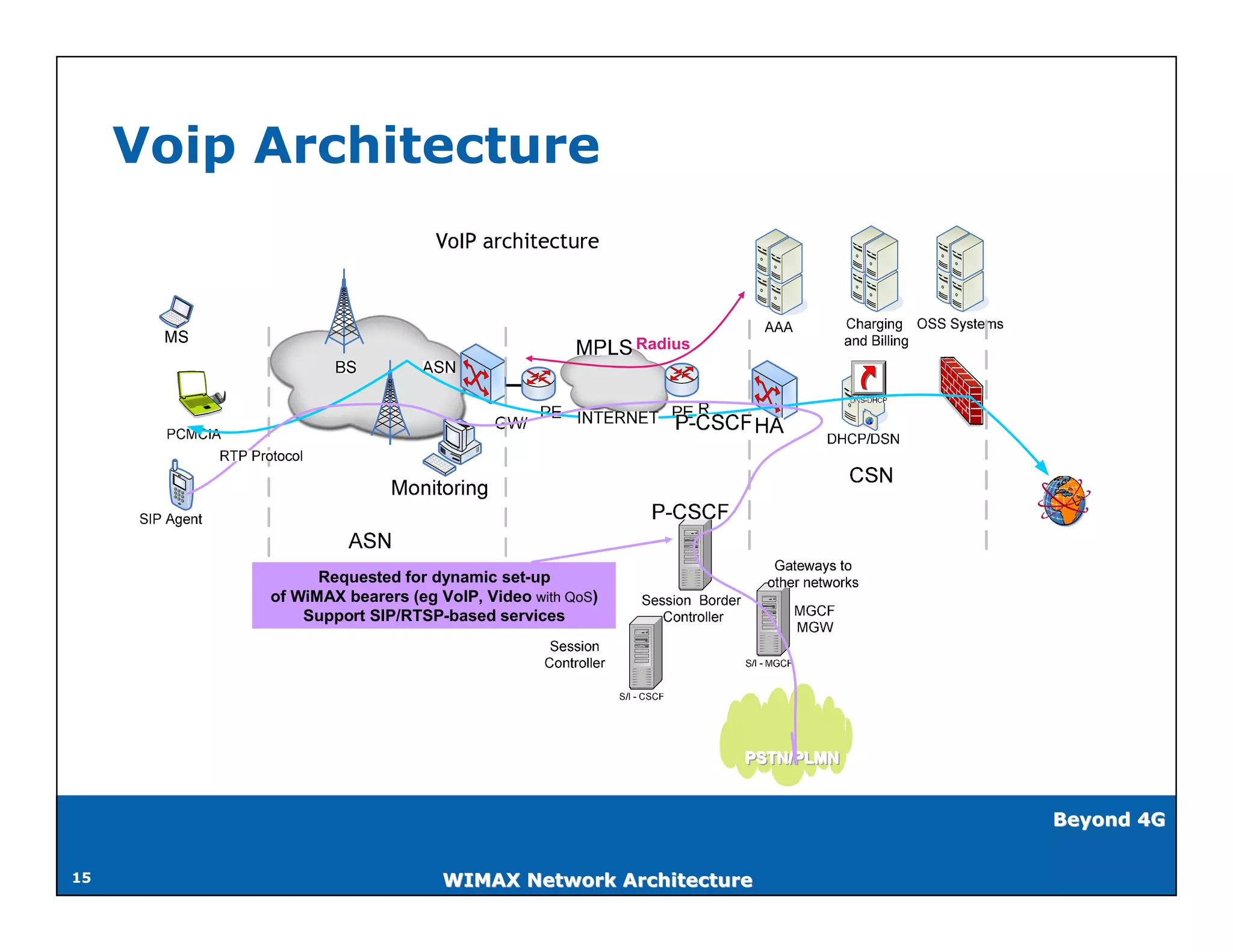

15. Voip Architecture
Radius
Requested for dynamic set-up
of WiMAX bearers (eg VoIP, Video with QoS)
Support SIP/RTSP-based services
PSTN/PLMN
PSTN/PLMN
Beyond 4G
15 WIMAX Network Architecture

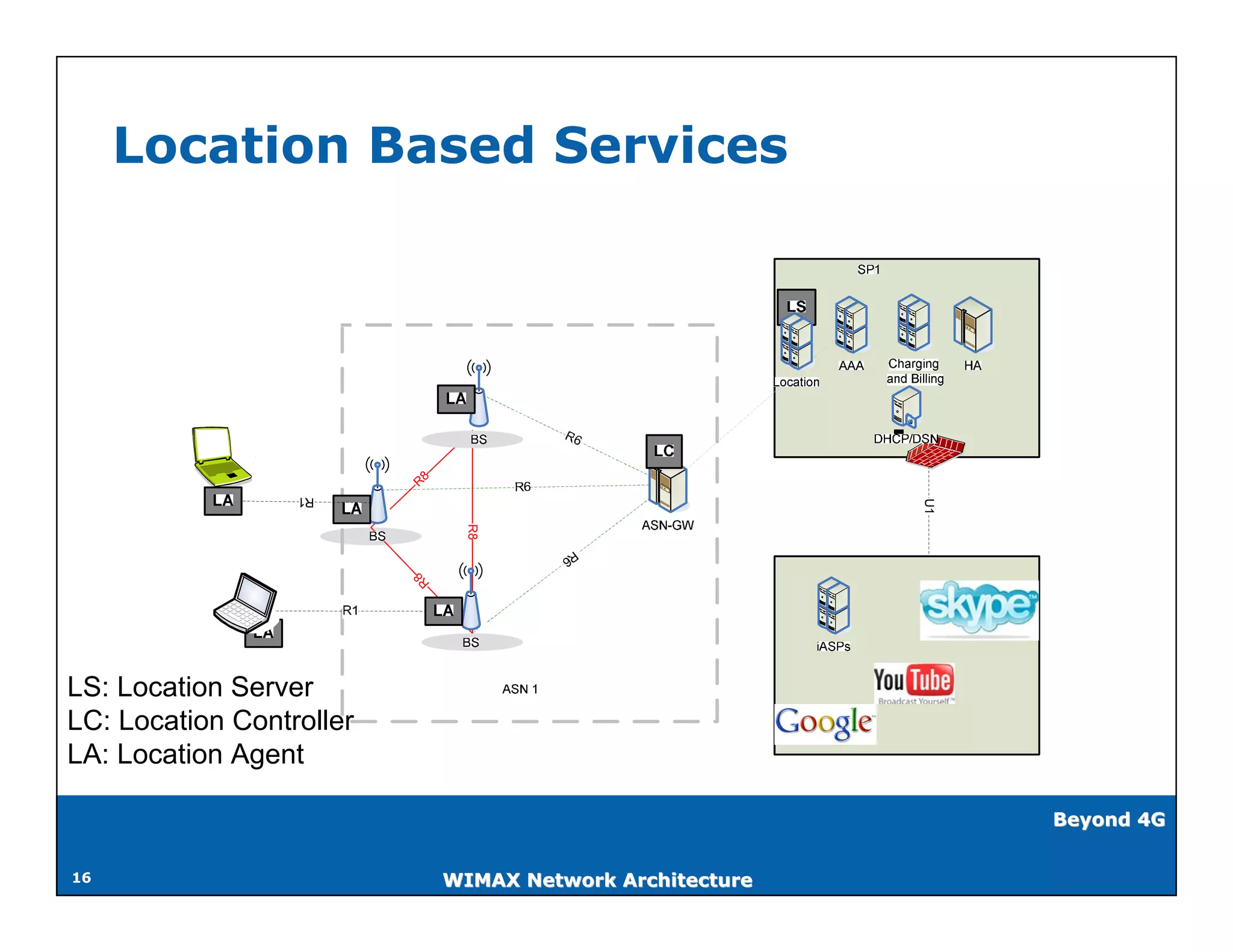

16. Location Based Services
R8
U1
R8
8
R
LS: Location Server
LC: Location Controller
LA: Location Agent
Beyond 4G
16 WIMAX Network Architecture

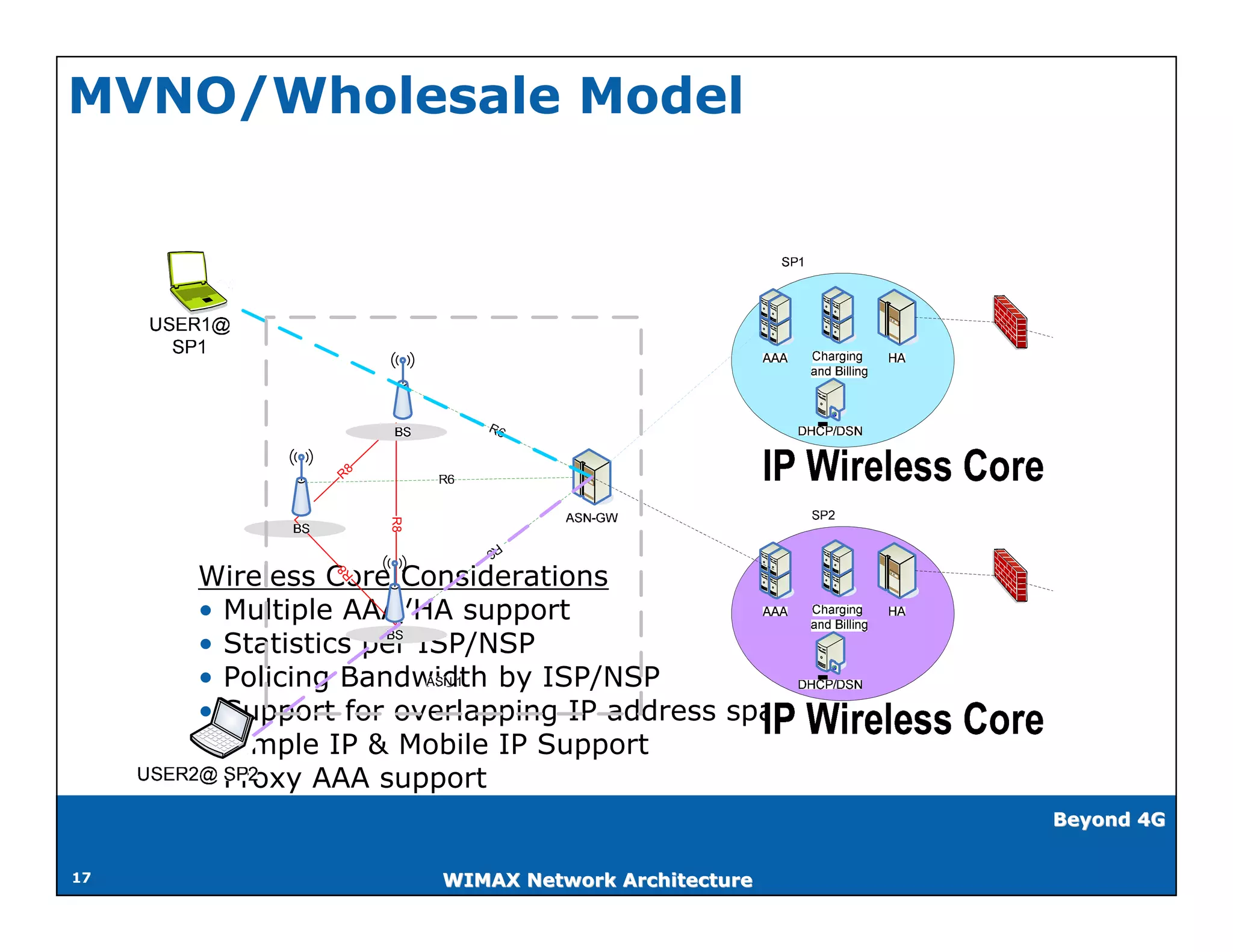

17. MVNO/Wholesale Model
R8
R8
Wireless Core Considerations
R8
• Multiple AAA/HA support
• Statistics per ISP/NSP
• Policing Bandwidth by ISP/NSP
• Support for overlapping IP address spaces
• Simple IP & Mobile IP Support
• Proxy AAA support
Beyond 4G
17 WIMAX Network Architecture

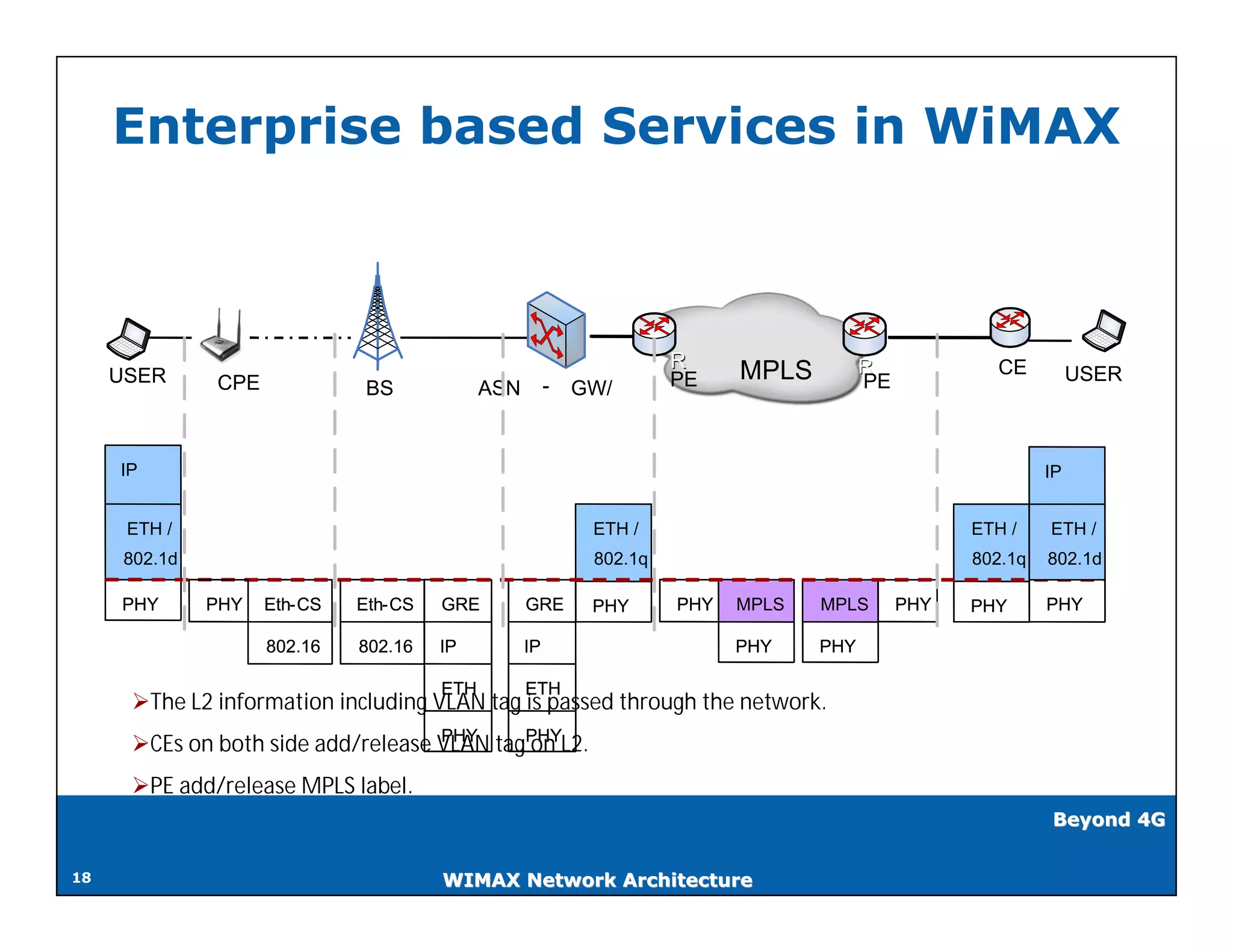

18. Enterprise based Services in WiMAX
R R
USER CPE PE MPLS PE
CE USER
BS ASN - GW/
IP IP
ETH / ETH / ETH / ETH /
802.1d 802.1q 802.1q 802.1d
PHY PHY Eth-CS Eth-CS GRE GRE PHY PHY MPLS MPLS PHY PHY PHY
802.16 802.16 IP IP PHY PHY
ETH ETH
The L2 information including VLAN tag is passed through the network.
CEs on both side add/release VLAN tagPHYL2.
PHY
on
PE add/release MPLS label.
Beyond 4G
18 WIMAX Network Architecture

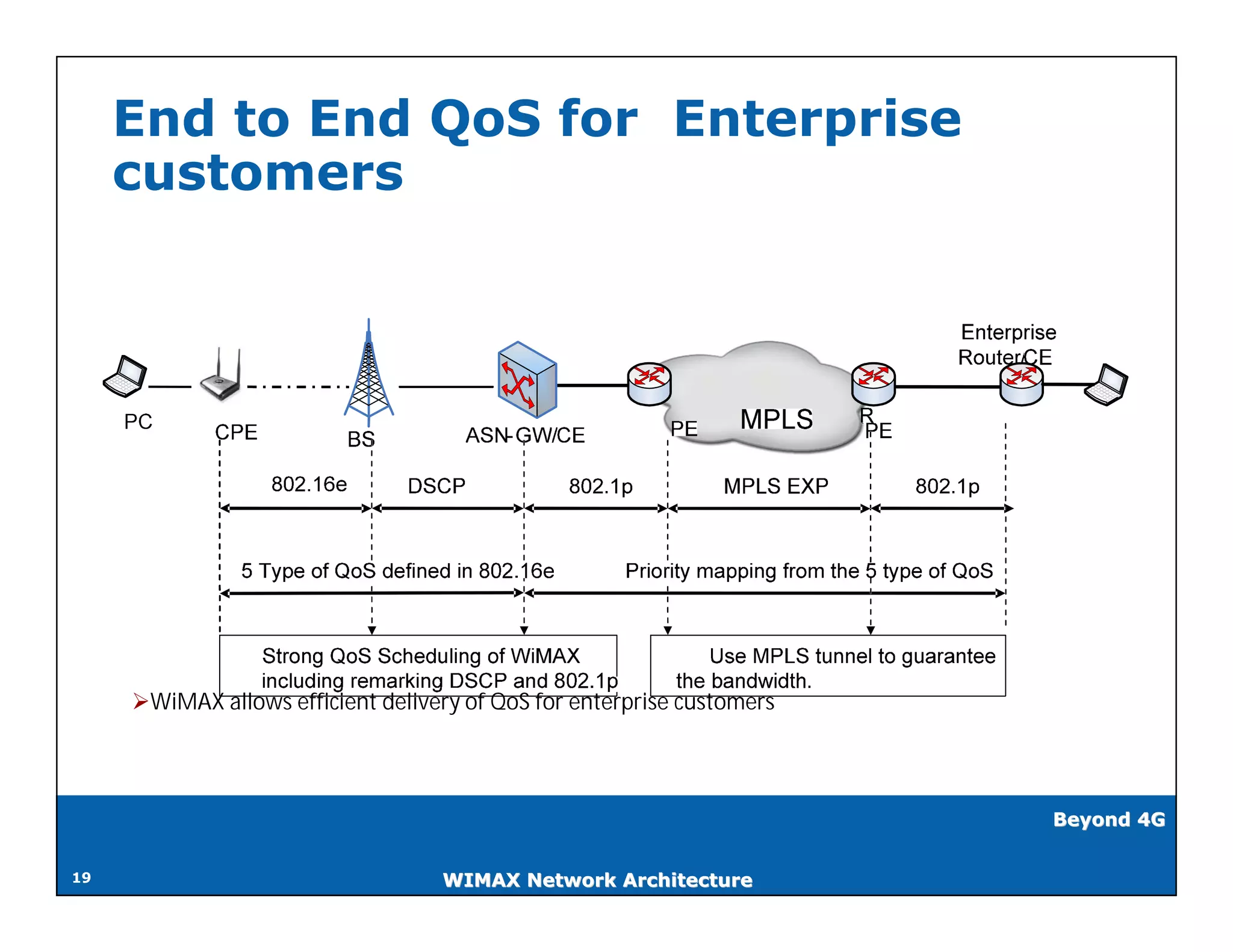

19. End to End QoS for Enterprise
customers
WiMAX allows efficient delivery of QoS for enterprise customers
Beyond 4G
19 WIMAX Network Architecture

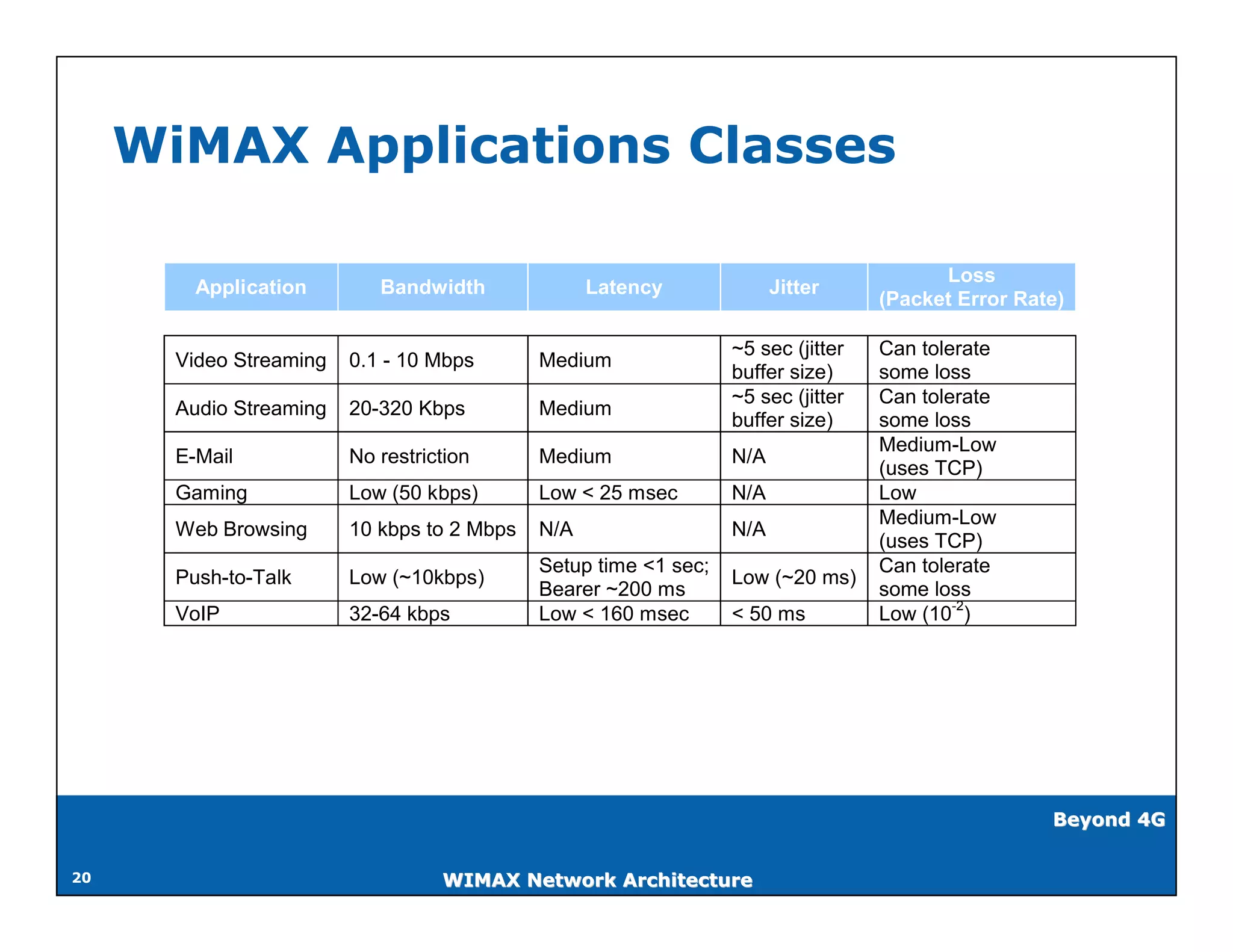

20. WiMAX Applications Classes
Loss
Application Bandwidth Latency Jitter
(Packet Error Rate)
~5 sec (jitter Can tolerate
Video Streaming 0.1 - 10 Mbps Medium
buffer size) some loss
~5 sec (jitter Can tolerate
Audio Streaming 20-320 Kbps Medium
buffer size) some loss
Medium-Low
E-Mail No restriction Medium N/A
(uses TCP)
Gaming Low (50 kbps) Low < 25 msec N/A Low
Medium-Low
Web Browsing 10 kbps to 2 Mbps N/A N/A
(uses TCP)
Setup time <1 sec; Can tolerate
Push-to-Talk Low (~10kbps) Low (~20 ms)
Bearer ~200 ms some loss
-2
VoIP 32-64 kbps Low < 160 msec < 50 ms Low (10 )
Beyond 4G
20 WIMAX Network Architecture
