Visualforce
Visualforce allows users to build custom web pages on Salesforce using the model-view-controller (MVC) pattern. It provides tools like Visualforce tags and components to create user interfaces that leverage standard and custom objects along with Apex controllers and logic. Visualforce pages can be developed using the Developer Console or Force.com IDE and integrated with other technologies to create responsive, custom applications.
More Related Content
Visualforce
- 1. To build customWeb Pages on Salesforce Visualforce
- 2. • Framework tobuild custom user interfaces on salesforce • Hosted on force.com • Build streamlined UX • Create internal and public facing pages • Customize for different devices – Responsive • Leverage other web technologies What is Visualforce?
- 3. Visualforce and MVCPattern Model Controller View User Actions Selects a new view if required by user action Controller updates model as per user actions View Queries model for state Model triggers View update
- 4. Visualforce and MVCPattern Your Data Your Logic View User Actions Selects a new view if required by user action Controller updates model as per user actions View Queries model for state Model triggers View update
- 5. Visualforce and MVCPattern Standard and Custom Objects Standard Controllers and Apex View/Pages User Actions Selects a new view if required by user action Controller updates model as per user actions View Queries model for state Model triggers View update
- 6. MVC Example inSalesforce
- 7. MVC Pattern Visualforce Pages VisualforceComponents Standard Controllers Apex Controllers Custom UI Custom Logic Standard Objects Custom Objects
- 8. • Visualforce tags –80+ standard components – Custom components • Works with all standard web technologies including: – CSS – Javascript – HTML – Flash – Any other Web-Enabled Code Visualforce Markup

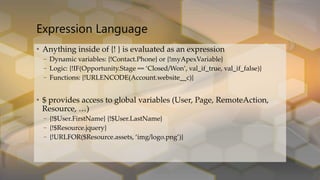

- 9. • Anything insideof {! } is evaluated as an expression – Dynamic variables: {!Contact.Phone} or {!myApexVariable} – Logic: {!IF(Opportunity.Stage == ‘Closed/Won’, val_if_true, val_if_false)} – Functions: {!URLENCODE(Account.website__c)} • $ provides access to global variables (User, Page, RemoteAction, Resource, …) – {!$User.FirstName} {!$User.LastName} – {!$Resource.jquery} – {!URLFOR($Resource.assets, ‘img/logo.png’)} Expression Language
- 10. < apex:outputField value= “{!Restaurant__c.Address__c}” > Standard apex components of visualforce apex: or chatter: prefix Component name (tables, repeats, forms, etc) Attributes to define components Data binding to objects and class variables Reference field using dot notation Merge field to define attribute (can also be a string literal in some cases)
- 11. • Provides accessto data • Logic for handling UI interaction • Standard Controllers – Same functionality as standard pages – Save, delete, field access etc. • Custom controllers – Written in Apex – Override standard behavior – Controller Extensions Visualforce controllers

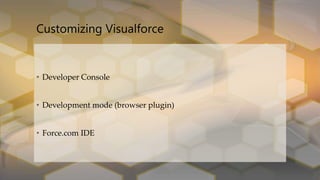

- 12. • Developer Console •Development mode (browser plugin) • Force.com IDE Customizing Visualforce
- 13.

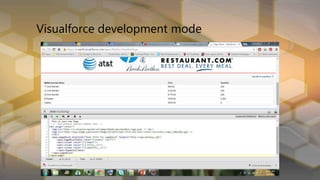

- 14. • Embeds aVisualforce page editor in your browser – see code and preview the page at the same time. • Also adds Apex editor for editing controllers and extensions. • To activate: Setup > My personal information > Personal information Visualforce development mode
- 15.
- 16. Salesforce also madeusing Visualforce
- 17. Possibilities with Visualforce EmailTemplates Embedded in Page Layouts Generate PDFs Custom Tabs Mobile Interfaces Page Overrides
- 18. • Google charts •AngularJS and Jquery • Cookie sessions • Document uploads Visualforce integration
- 19. • http://developer.force.com/sitesgallery – Cisco- certification and communities – Ricoh Australia – DeVry University – VMWare – Partner Locator portal – Force.com appexchange Over 20,000 websites built on Force.com
