This powerpoint presentation covers viruses, bacteria, and other microbes. It begins by defining viruses as non-cellular particles composed of genetic material and protein that can infect living cells. Examples discussed include bacteriophages like T4 and viruses like herpes. Bacteria like E. coli are introduced as single-celled organisms distinct from viruses. The structures of viruses and bacteria are described, along with how bacteria reproduce through binary fission, conjugation, and forming spores. Different types of bacteria are classified by their energy production, respiration, and symbiotic relationships. The powerpoint concludes by discussing nitrogen fixation by bacteria.

1. Viruses & Bacteria
Chapter 17
Biology 11
Presentation put together by Mandie Lynn Walls

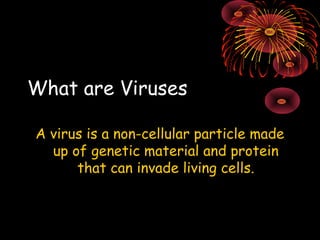

2. What are Viruses
A virus is a non-cellular particle made
up of genetic material and protein
that can invade living cells.

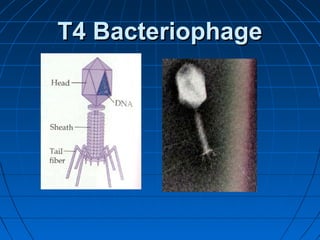

3. T4 Bacteriophage

4. Herpes Virus

5. Escherichia Coli Bacterium
E. coli is a bacterium. That is a crude cell, it is not a virus
because viruses are protein containers with DNA cores or
RNA cores.

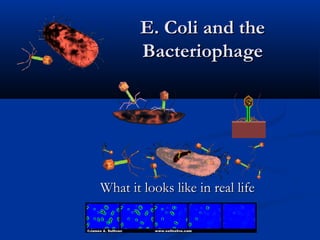

6. E. Coli and the
Bacteriophage
What it looks like in real life

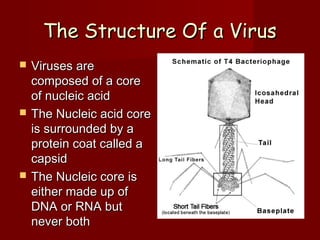

7. The Structure Of a Virus



Viruses are
composed of a core
of nucleic acid
The Nucleic acid core
is surrounded by a
protein coat called a
capsid
The Nucleic core is
either made up of
DNA or RNA but
never both

8. Cycle of Lytic and Lysogenic

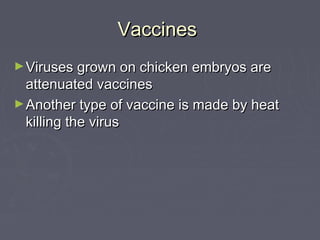

9. Vaccines
► Viruses grown on chicken embryos are
attenuated vaccines
► Another type of vaccine is made by heat
killing the virus

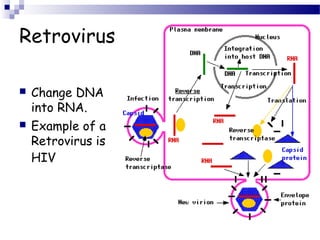

10. Retrovirus


Change DNA
into RNA.
Example of a
Retrovirus is
HIV

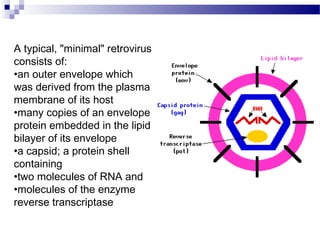

11. A typical, "minimal" retrovirus
consists of:
•an outer envelope which
was derived from the plasma
membrane of its host
•many copies of an envelope
protein embedded in the lipid
bilayer of its envelope
•a capsid; a protein shell
containing
•two molecules of RNA and
•molecules of the enzyme
reverse transcriptase

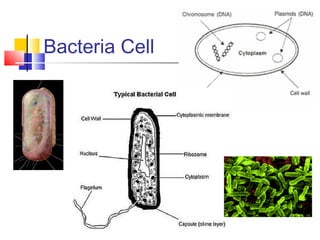

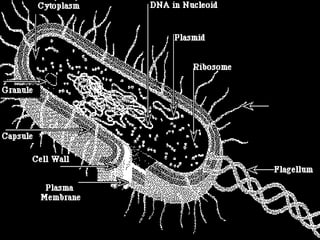

12. Bacteria Cell

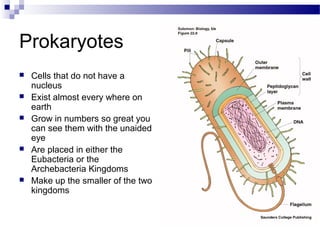

13. Prokaryotes





Cells that do not have a
nucleus
Exist almost every where on
earth
Grow in numbers so great you
can see them with the unaided
eye
Are placed in either the
Eubacteria or the
Archebacteria Kingdoms
Make up the smaller of the two
kingdoms

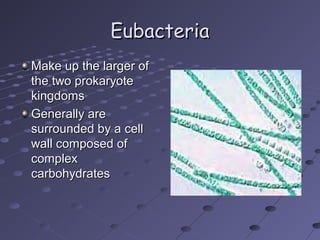

15. Eubacteria
Make up the larger of
the two prokaryote
kingdoms
Generally are
surrounded by a cell
wall composed of
complex
carbohydrates

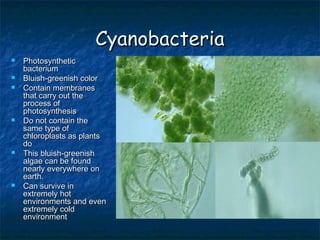

16. Cyanobacteria






Photosynthetic
bacterium
Bluish-greenish color
Contain membranes
that carry out the
process of
photosynthesis
Do not contain the
same type of
chloroplasts as plants
do
This bluish-greenish
algae can be found
nearly everywhere on
earth.
Can survive in
extremely hot
environments and even
extremely cold
environment

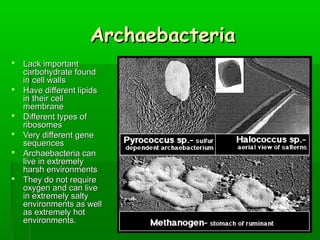

17. Archaebacteria
 Lack important
carbohydrate found
in cell walls
 Have different lipids
in their cell
membrane
 Different types of
ribosomes
 Very different gene
sequences
 Archaebacteria can
live in extremely
harsh environments
 They do not require
oxygen and can live
in extremely salty
environments as well
as extremely hot
environments.

18. Identifying Prokaryotes
Cell Shape
Cell Wall
Movement

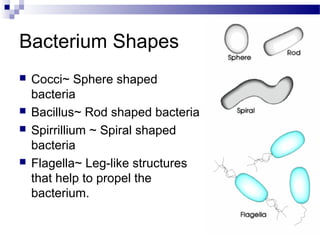

19. Bacterium Shapes




Cocci~ Sphere shaped
bacteria
Bacillus~ Rod shaped bacteria
Spirrillium ~ Spiral shaped
bacteria
Flagella~ Leg-like structures
that help to propel the
bacterium.

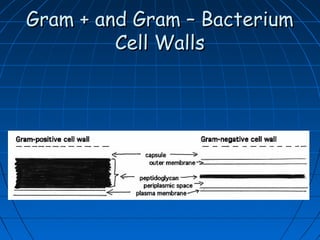

20. Gram + and Gram – Bacterium
Cell Walls

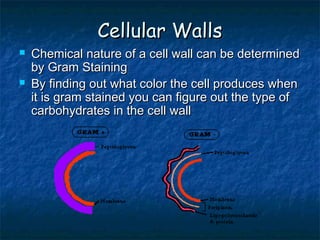

21. Cellular Walls


Chemical nature of a cell wall can be determined
by Gram Staining
By finding out what color the cell produces when
it is gram stained you can figure out the type of
carbohydrates in the cell wall

22. Movement
• Flagella ~ Tail like structure
the whips around to propel the
bacterium

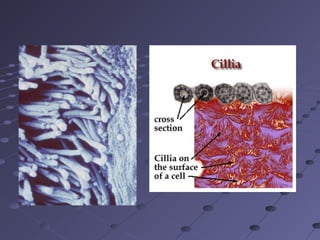

• Cillia ~ Miniature flagella
surround the cell that help to
“swim”
• Non motile ~ Sticky cillia like
structures that keep the
bacterium from moving

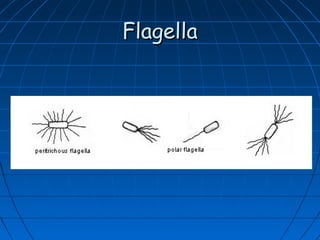

23. Flagella

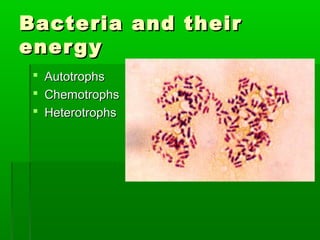

25. Bacteria and their
ener g y



Autotrophs
Chemotrophs
Heterotrophs

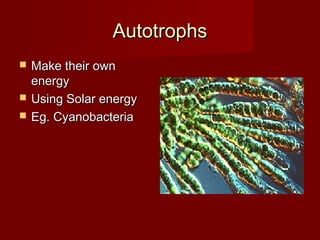

26. Autotrophs



Make their own
energy
Using Solar energy
Eg. Cyanobacteria

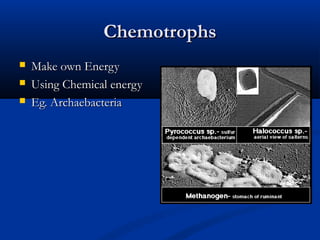

27. Chemotrophs



Make own Energy
Using Chemical energy
Eg. Archaebacteria

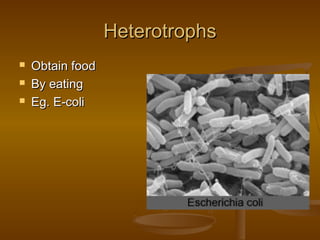

28. Heterotrophs



Obtain food
By eating
Eg. E-coli

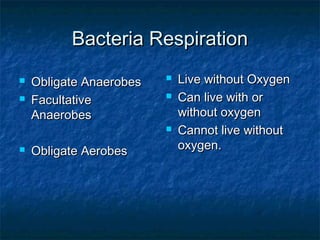

29. Bacteria Respiration


Obligate Anaerobes
Facultative
Anaerobes




Obligate Aerobes
Live without Oxygen
Can live with or
without oxygen
Cannot live without
oxygen.

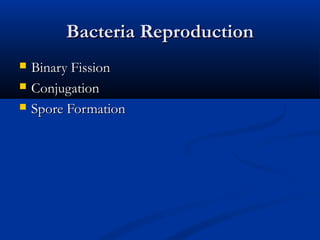

30. Bacteria Reproduction



Binary Fission
Conjugation
Spore Formation

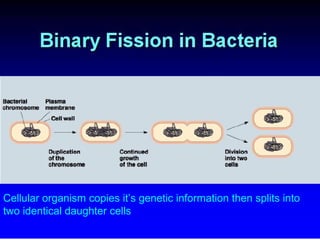

31. Cellular organism copies it’s genetic information then splits into
two identical daughter cells

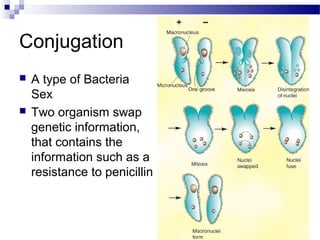

32. Conjugation


A type of Bacteria
Sex
Two organism swap
genetic information,
that contains the
information such as a
resistance to penicillin

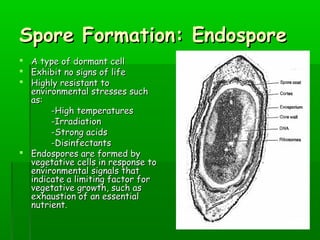

33. Spore Formation: Endospore
 A type of dormant cell
 Exhibit no signs of life
 Highly resistant to
environmental stresses such
as:
-High temperatures
-Irradiation
-Strong acids
-Disinfectants
 Endospores are formed by
vegetative cells in response to
environmental signals that
indicate a limiting factor for
vegetative growth, such as
exhaustion of an essential
nutrient.

34. Symbiosis


Close relationship
between to species in
which at least one
species benefits from
the other
Live together for LIFE

35. Parasitism


Bacteria exploit the
host cell, injuring
them
Eg. Mychobacterium
tuberculosis

36. Mutualism


Symbiosis in which two
of the species live
together in such a way
that both benefit from
the relationship
Eg. E-coli

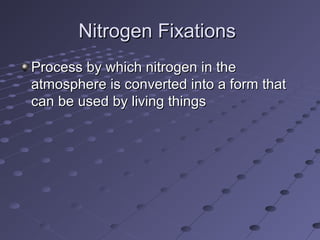

37. Nitrogen Fixations
Process by which nitrogen in the
atmosphere is converted into a form that
can be used by living things

38. THE END

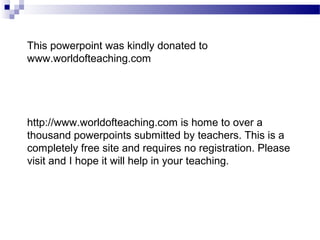

39. This powerpoint was kindly donated to
