This is a PowerPoint Prototype of a Unit on Variables. It was designed for 5th grade students to learn about the different variables used in science experiments. The work was done as part of my coursework as I pursue a doctorate in Educational Technology.
2. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 2 of 118
Stop
Introduction

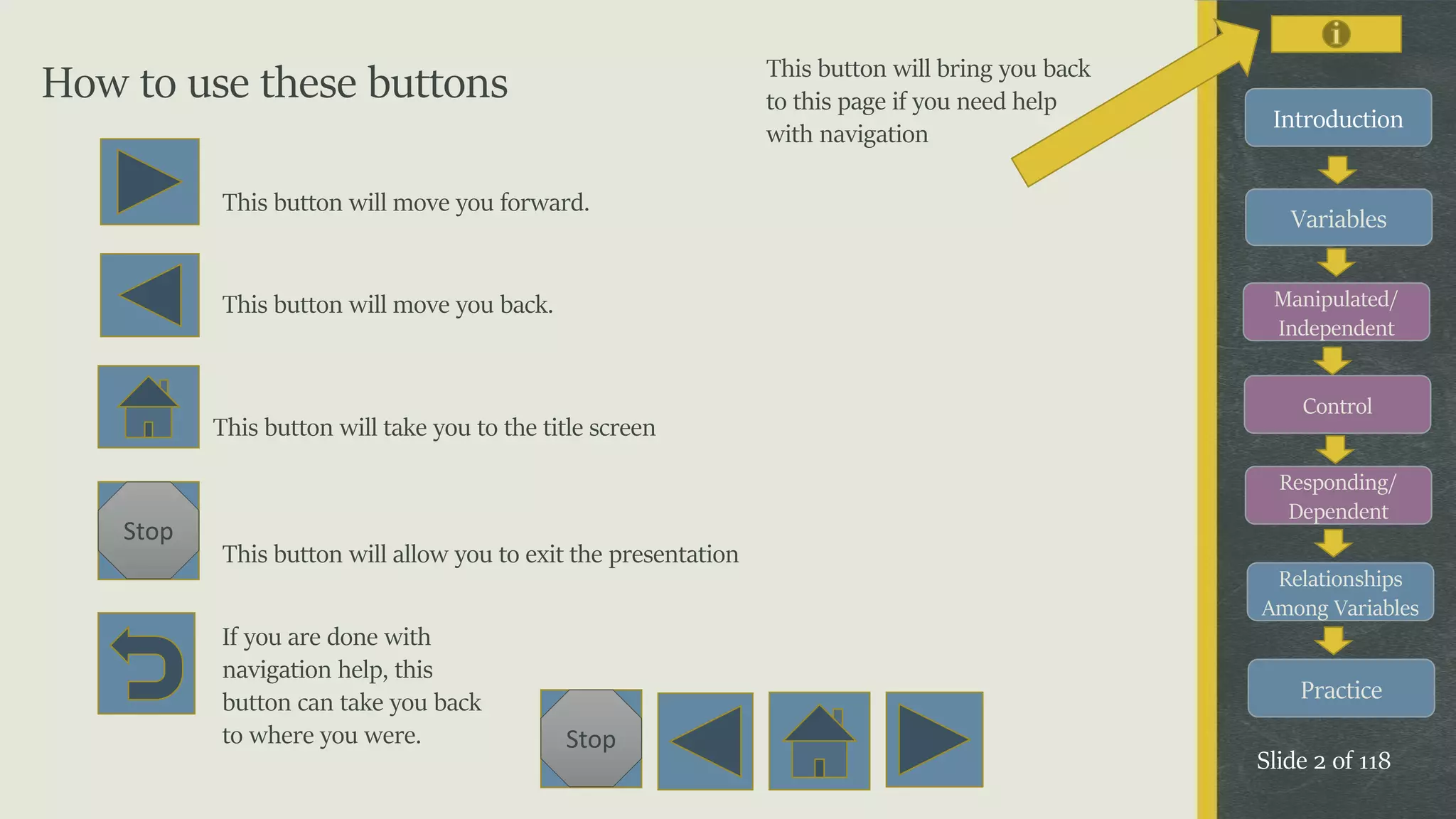

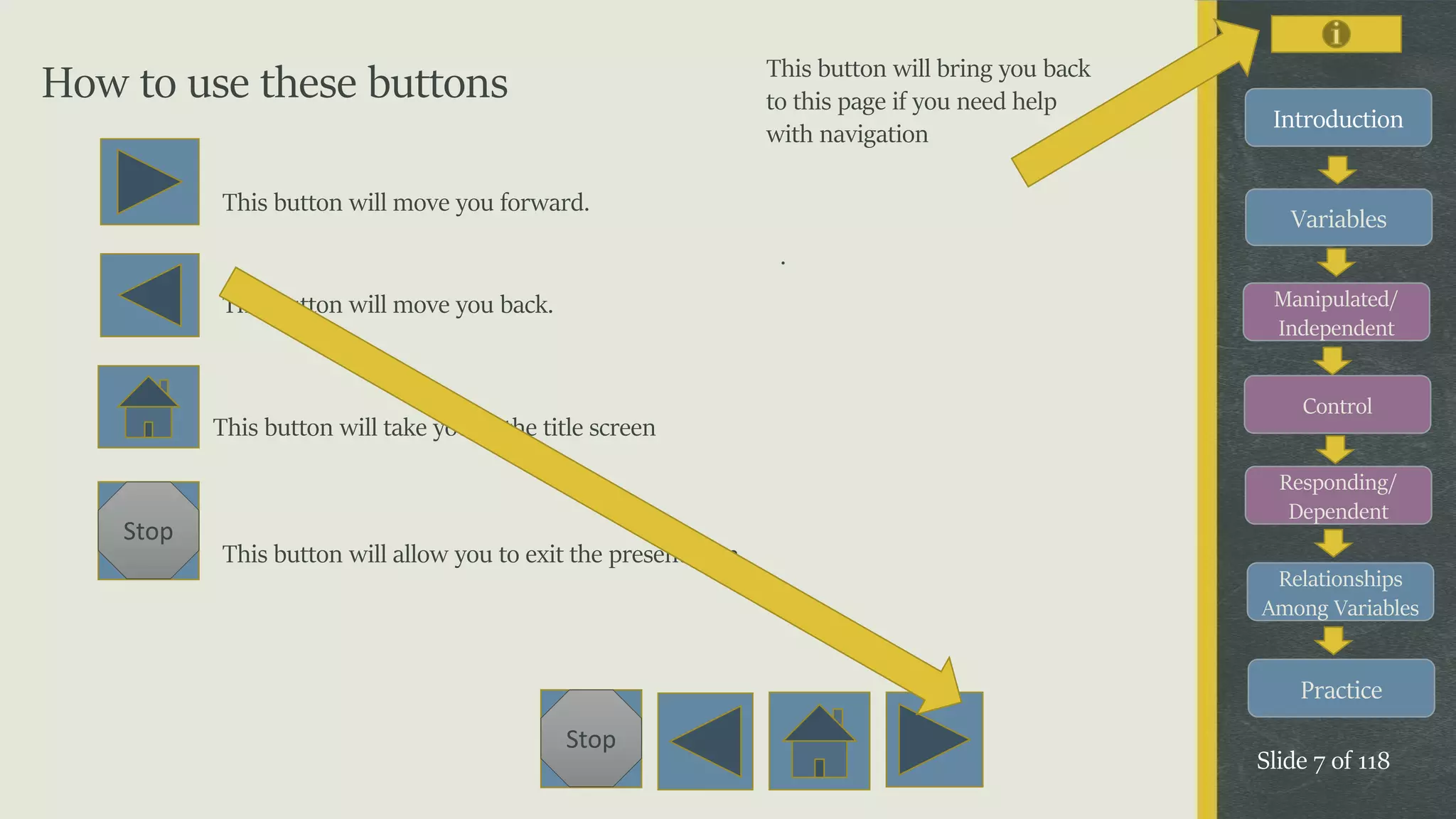

How to use these buttons
This button will move you forward.
This button will move you back.
This button will take you to the title screen
Stop
This button will allow you to exit the presentation
This button will bring you back
to this page if you need help
with navigation
If you are done with
navigation help, this
button can take you back
to where you were.
3. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 3 of 118
Stop
Introduction

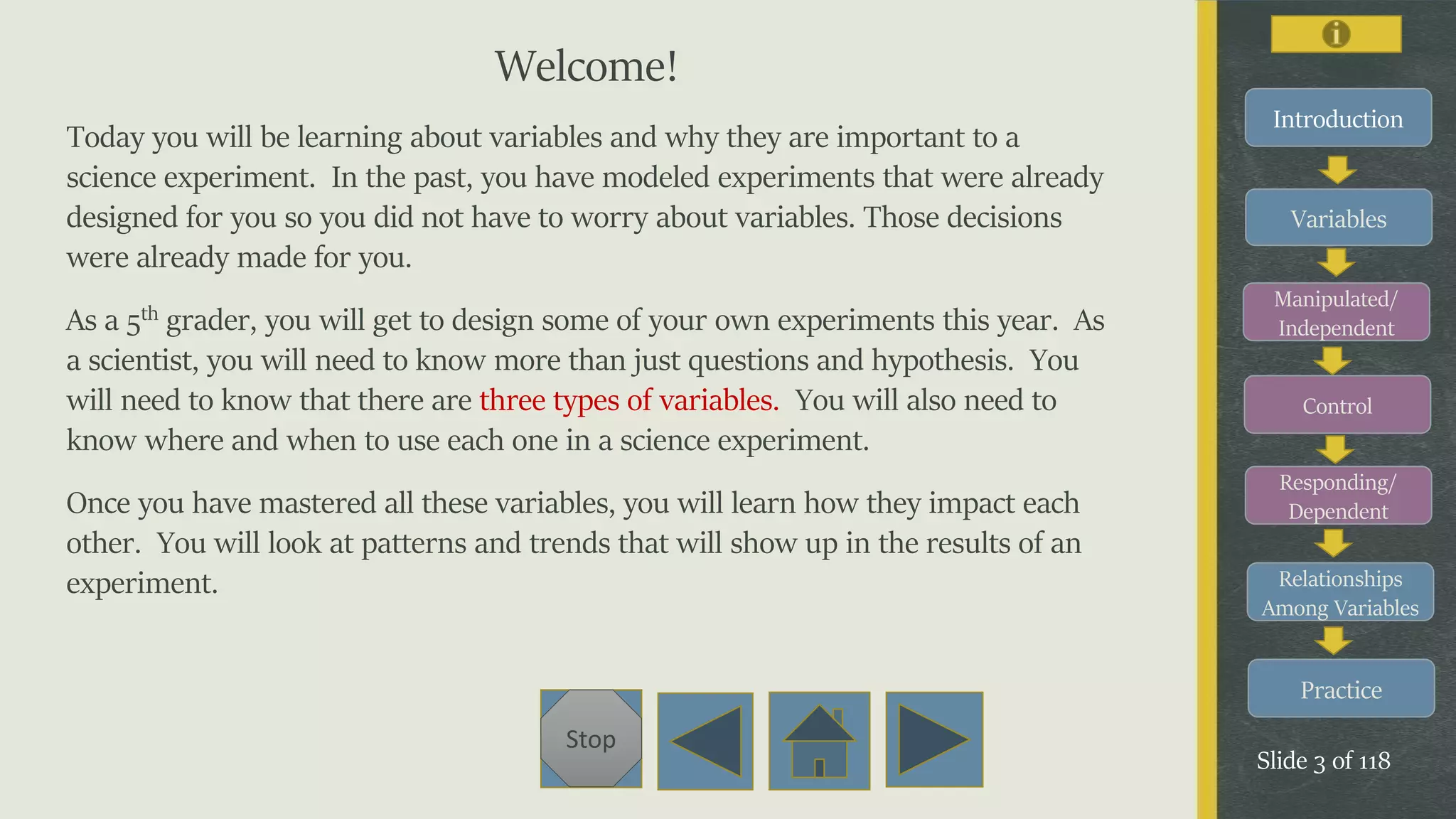

Welcome!
Today you will be learning about variables and why they are important to a
science experiment. In the past, you have modeled experiments that were already
designed for you so you did not have to worry about variables. Those decisions
were already made for you.
As a 5th grader, you will get to design some of your own experiments this year. As
a scientist, you will need to know more than just questions and hypothesis. You
will need to know that there are three types of variables. You will also need to
know where and when to use each one in a science experiment.
Once you have mastered all these variables, you will learn how they impact each
other. You will look at patterns and trends that will show up in the results of an
experiment.
4. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 4 of 118
Stop
Introduction

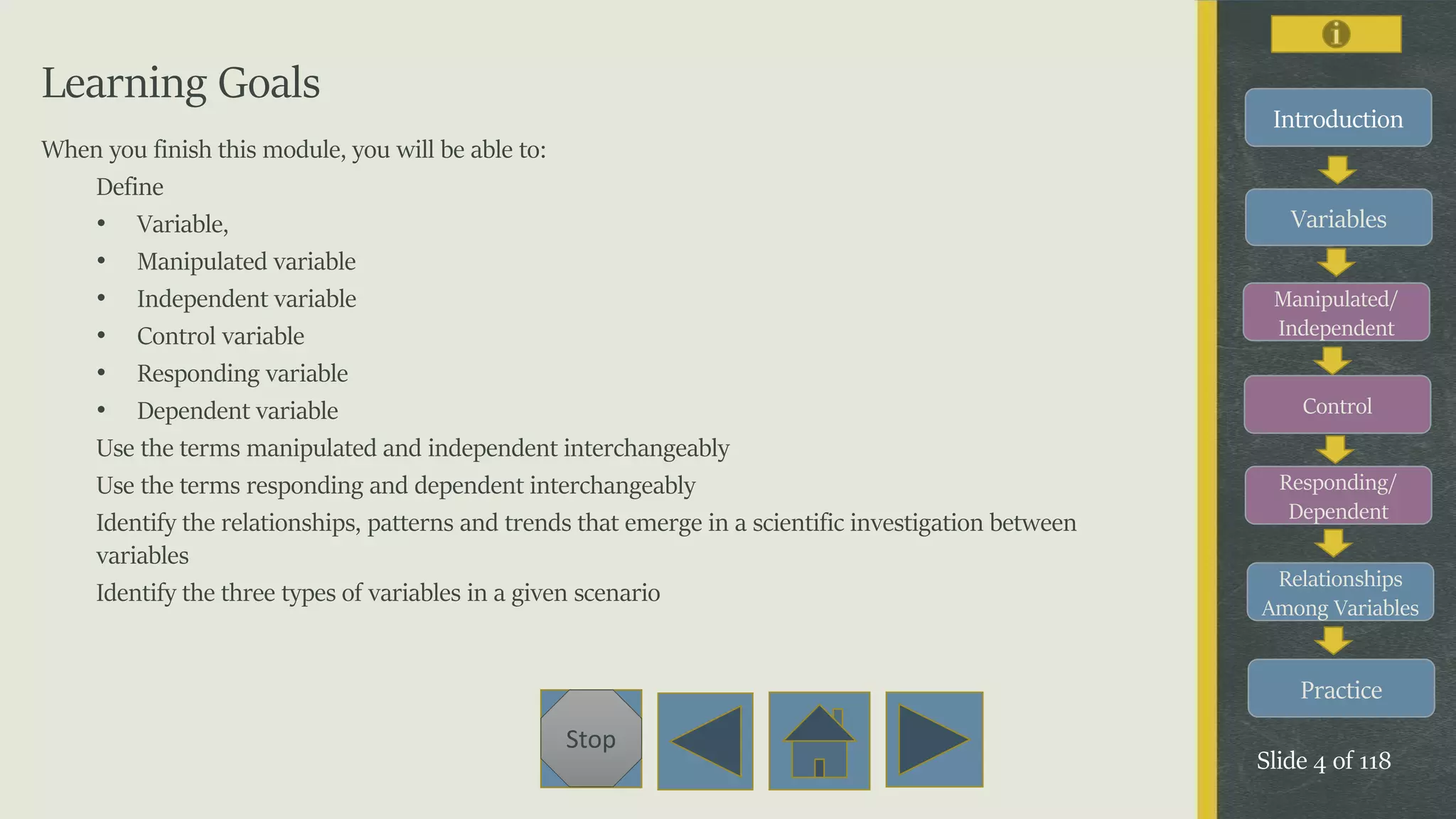

Learning Goals
When you finish this module, you will be able to:
Define
• Variable,
• Manipulated variable
• Independent variable
• Control variable
• Responding variable
• Dependent variable
Use the terms manipulated and independent interchangeably
Use the terms responding and dependent interchangeably
Identify the relationships, patterns and trends that emerge in a scientific investigation between
variables
Identify the three types of variables in a given scenario
8. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 8 of 118
Stop
Introduction

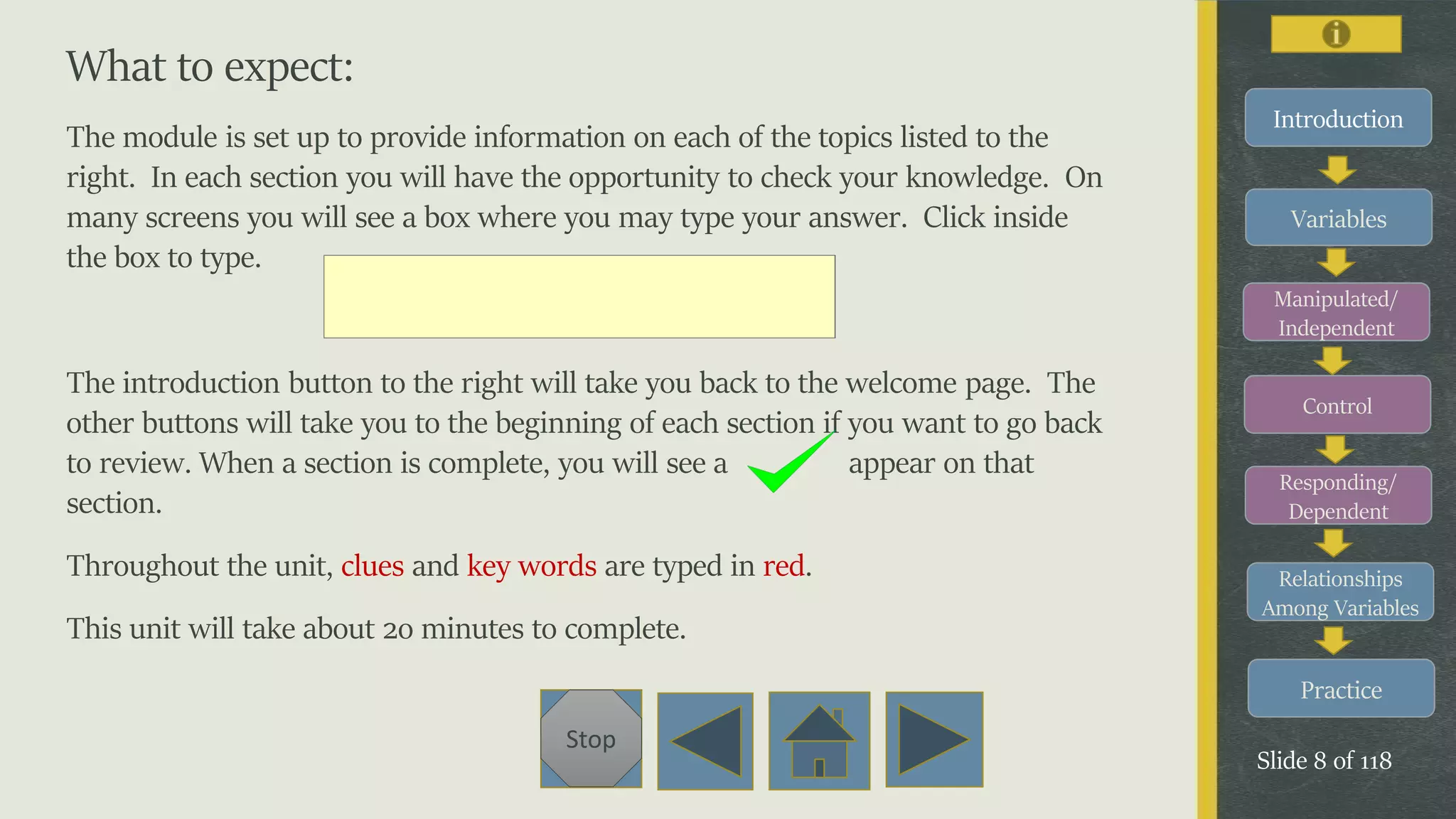

What to expect:
The module is set up to provide information on each of the topics listed to the
right. In each section you will have the opportunity to check your knowledge. On
many screens you will see a box where you may type your answer. Click inside
the box to type.
The introduction button to the right will take you back to the welcome page. The
other buttons will take you to the beginning of each section if you want to go back
to review. When a section is complete, you will see a appear on that
section.
Throughout the unit, clues and key words are typed in red.
This unit will take about 2o minutes to complete.
9. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 9 of 118

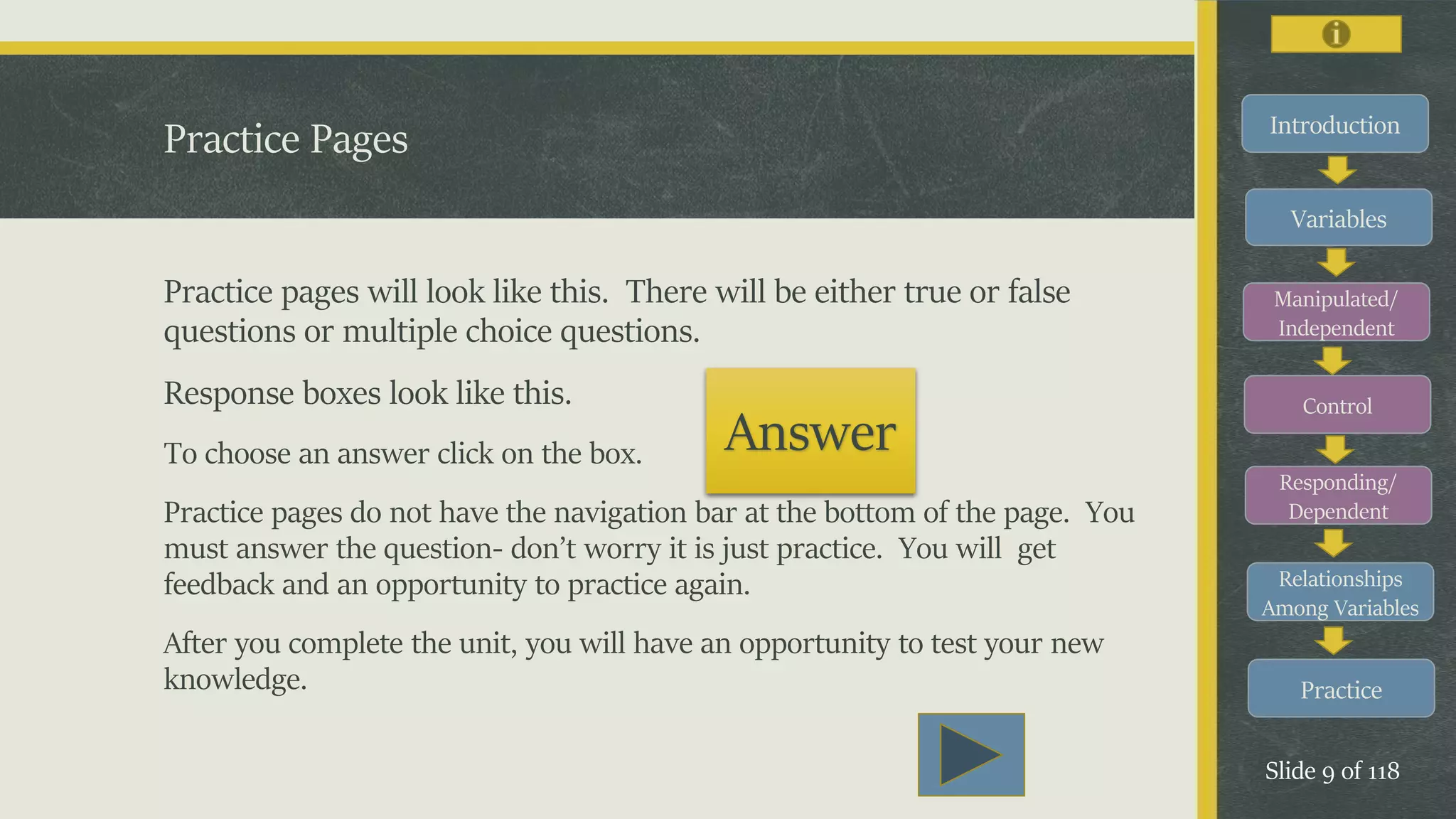

Practice pages will look like this. There will be either true or false
questions or multiple choice questions.
Response boxes look like this.
To choose an answer click on the box.
Practice pages do not have the navigation bar at the bottom of the page. You
must answer the question- don’t worry it is just practice. You will get
feedback and an opportunity to practice again.
After you complete the unit, you will have an opportunity to test your new
knowledge.
Practice Pages
Answer
10. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 10 of 118
Stop
Introduction
To be successful in this unit, you need to know
the following things about a science experiment.
1. Scientists follow the Scientific Method.
2. A science experiment begins with a question the scientist wants to answer.
3. After some research, the scientist forms a hypothesis- what they think will
happen in their experiment.
4. Scientists then follow procedures and collect data.
So! Let’s begin!
11. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 11 of 118
Stop
Introduction

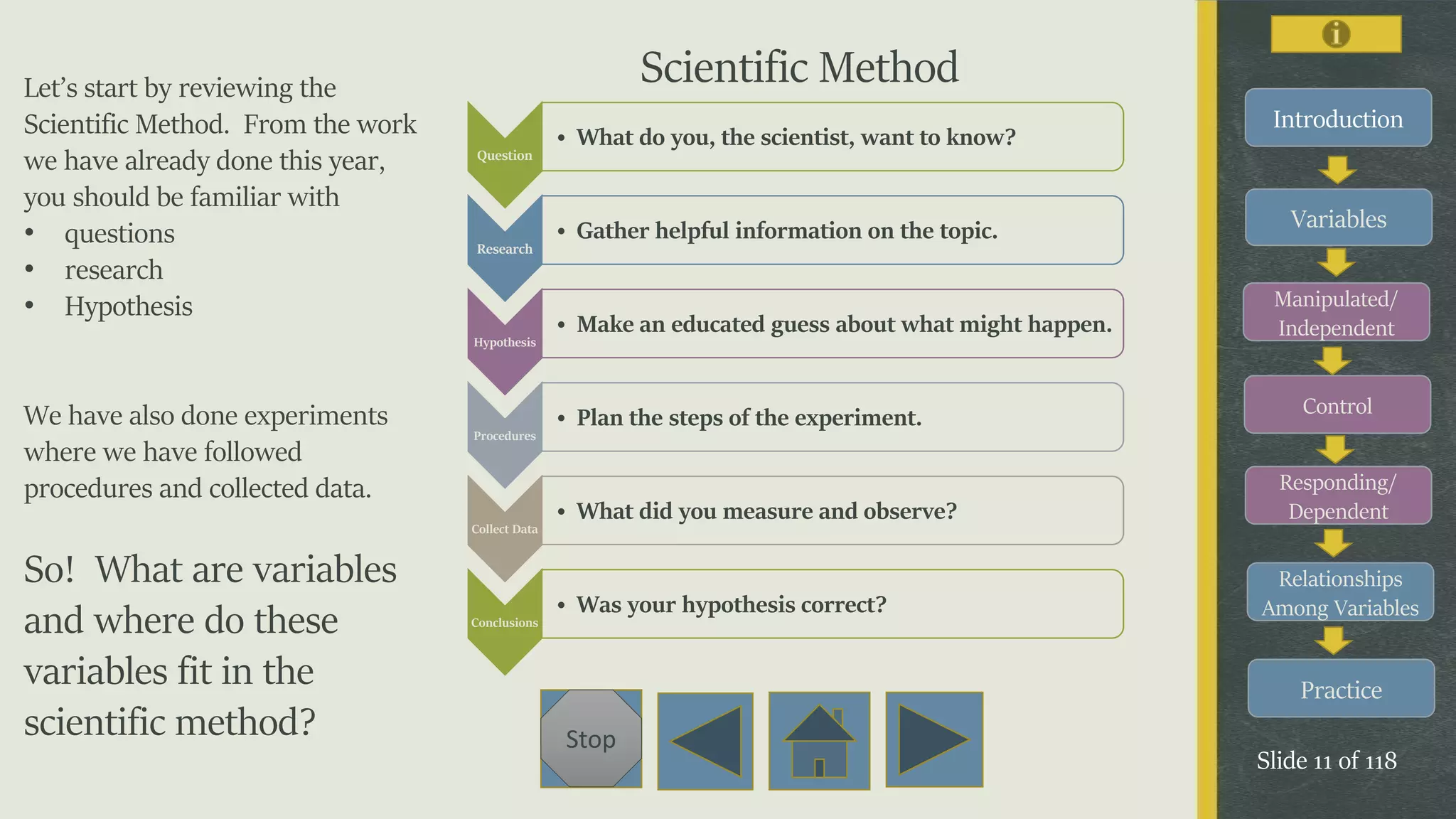

Question
• What do you, the scientist, want to know?
Research
• Gather helpful information on the topic.
Hypothesis
• Make an educated guess about what might happen.
Procedures
• Plan the steps of the experiment.
Collect Data
• What did you measure and observe?
Conclusions
• Was your hypothesis correct?
Let’s start by reviewing the
Scientific Method. From the work
we have already done this year,
you should be familiar with
• questions
• research
• Hypothesis
We have also done experiments
where we have followed
procedures and collected data.
So! What are variables
and where do these
variables fit in the
scientific method?
Scientific Method
21. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 21 of 118
Stop
Introduction

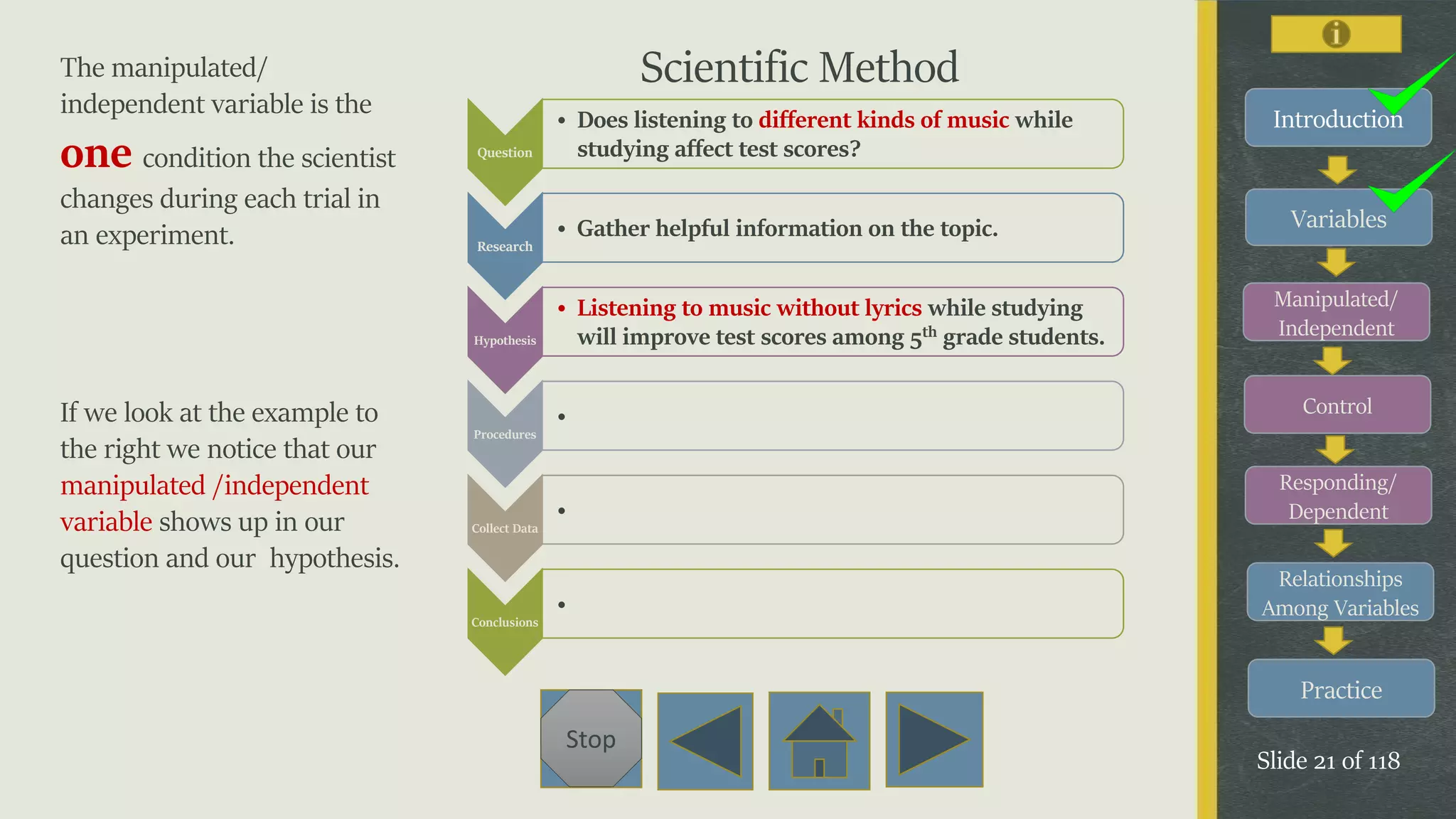

The manipulated/
independent variable is the
one condition the scientist
changes during each trial in
an experiment.
If we look at the example to
the right we notice that our
manipulated /independent
variable shows up in our
question and our hypothesis.
Question
• Does listening to different kinds of music while
studying affect test scores?
Research
• Gather helpful information on the topic.
Hypothesis
• Listening to music without lyrics while studying
will improve test scores among 5th grade students.
Procedures
•
Collect Data
•
Conclusions
•
Scientific Method
22. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 22 of 118
Stop
Introduction

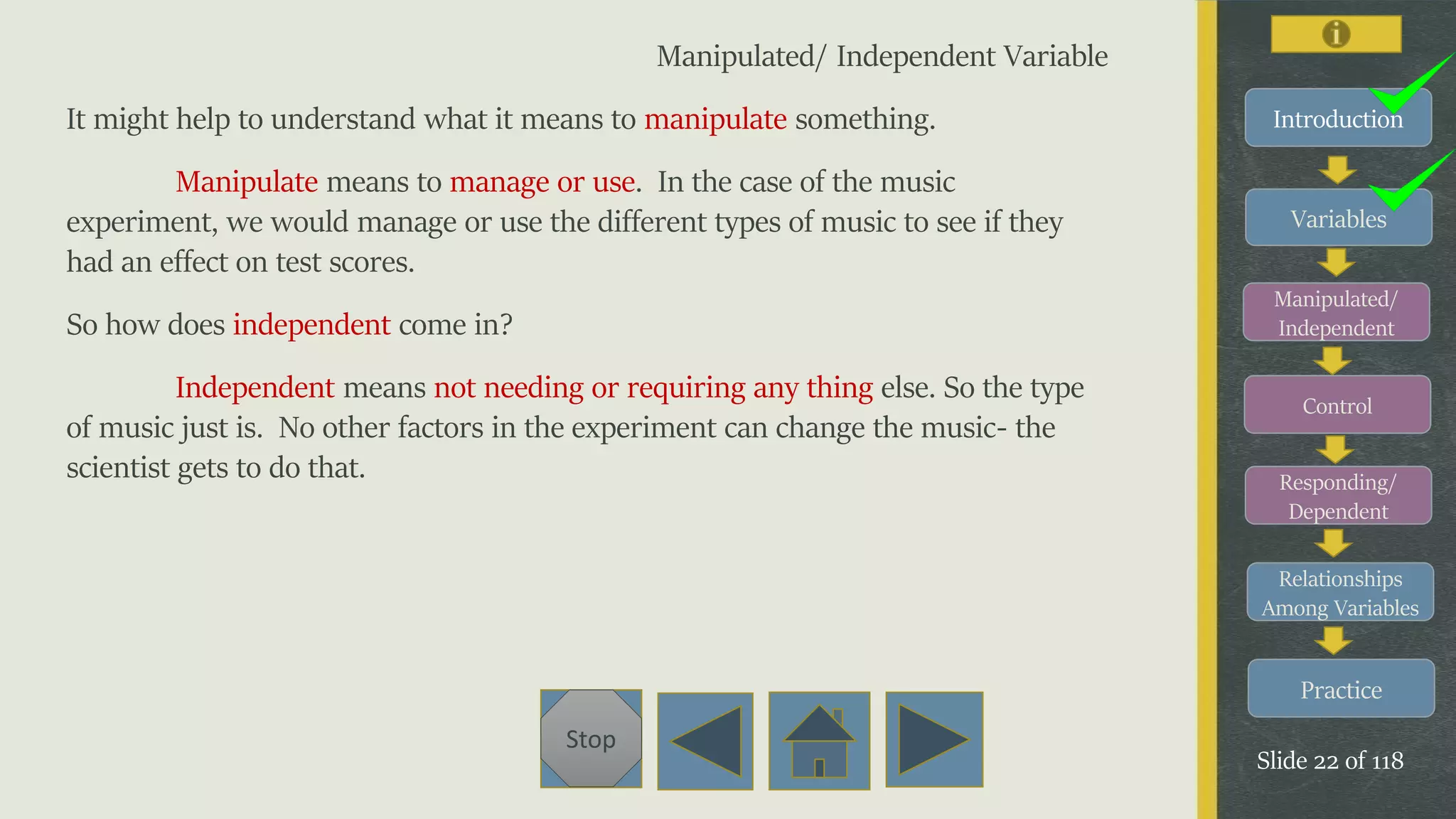

Manipulated/ Independent Variable
It might help to understand what it means to manipulate something.
Manipulate means to manage or use. In the case of the music
experiment, we would manage or use the different types of music to see if they
had an effect on test scores.
So how does independent come in?
Independent means not needing or requiring any thing else. So the type
of music just is. No other factors in the experiment can change the music- the
scientist gets to do that.
23. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 23 of 118
Stop
Introduction

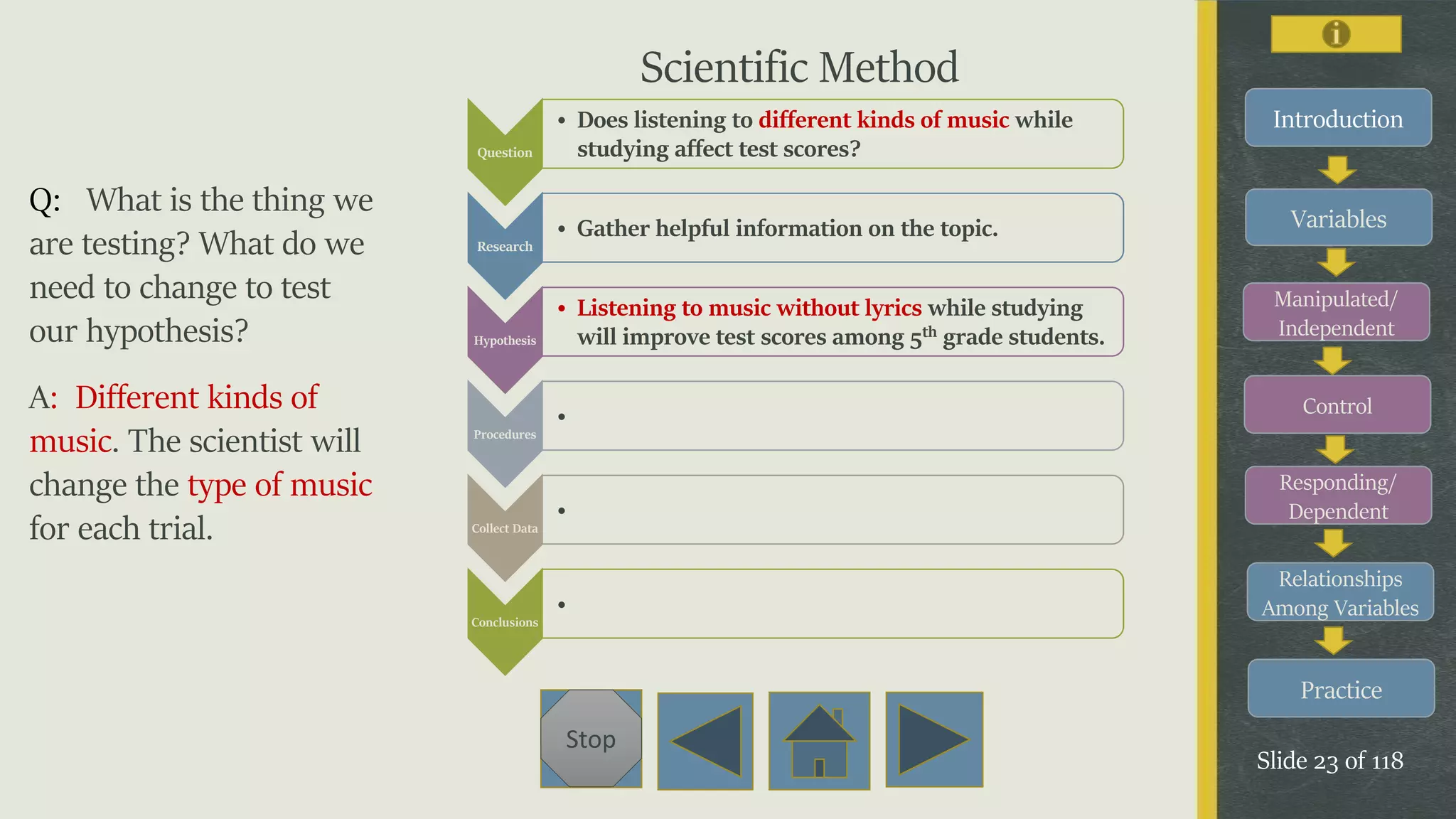

Q: What is the thing we
are testing? What do we
need to change to test
our hypothesis?
A: Different kinds of
music. The scientist will
change the type of music
for each trial.
Question
• Does listening to different kinds of music while
studying affect test scores?
Research
• Gather helpful information on the topic.
Hypothesis
• Listening to music without lyrics while studying
will improve test scores among 5th grade students.
Procedures
•
Collect Data
•
Conclusions
•
Scientific Method
33. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 33 of 118
Stop
Introduction
Manipulated/
Independent Variables

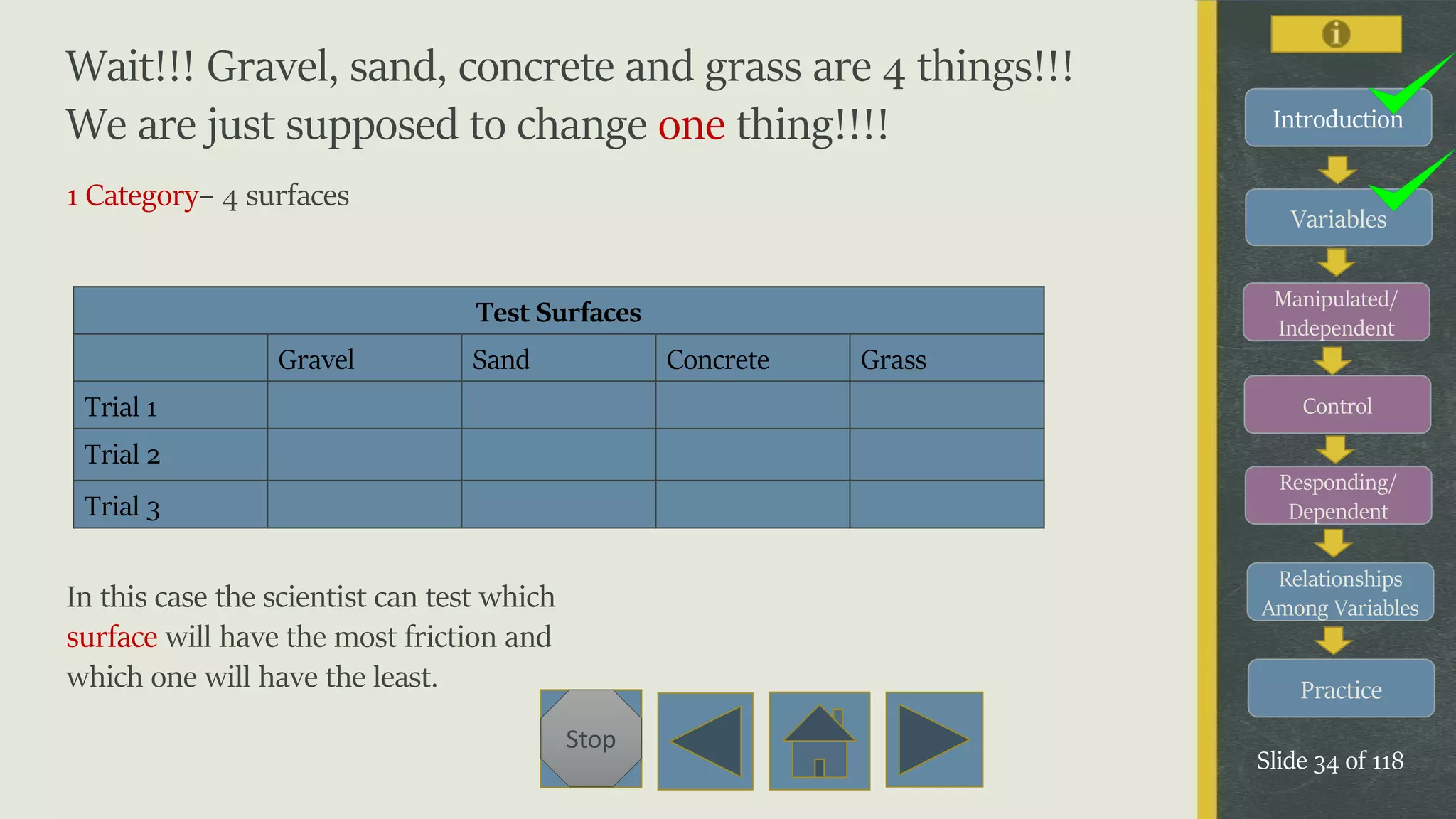

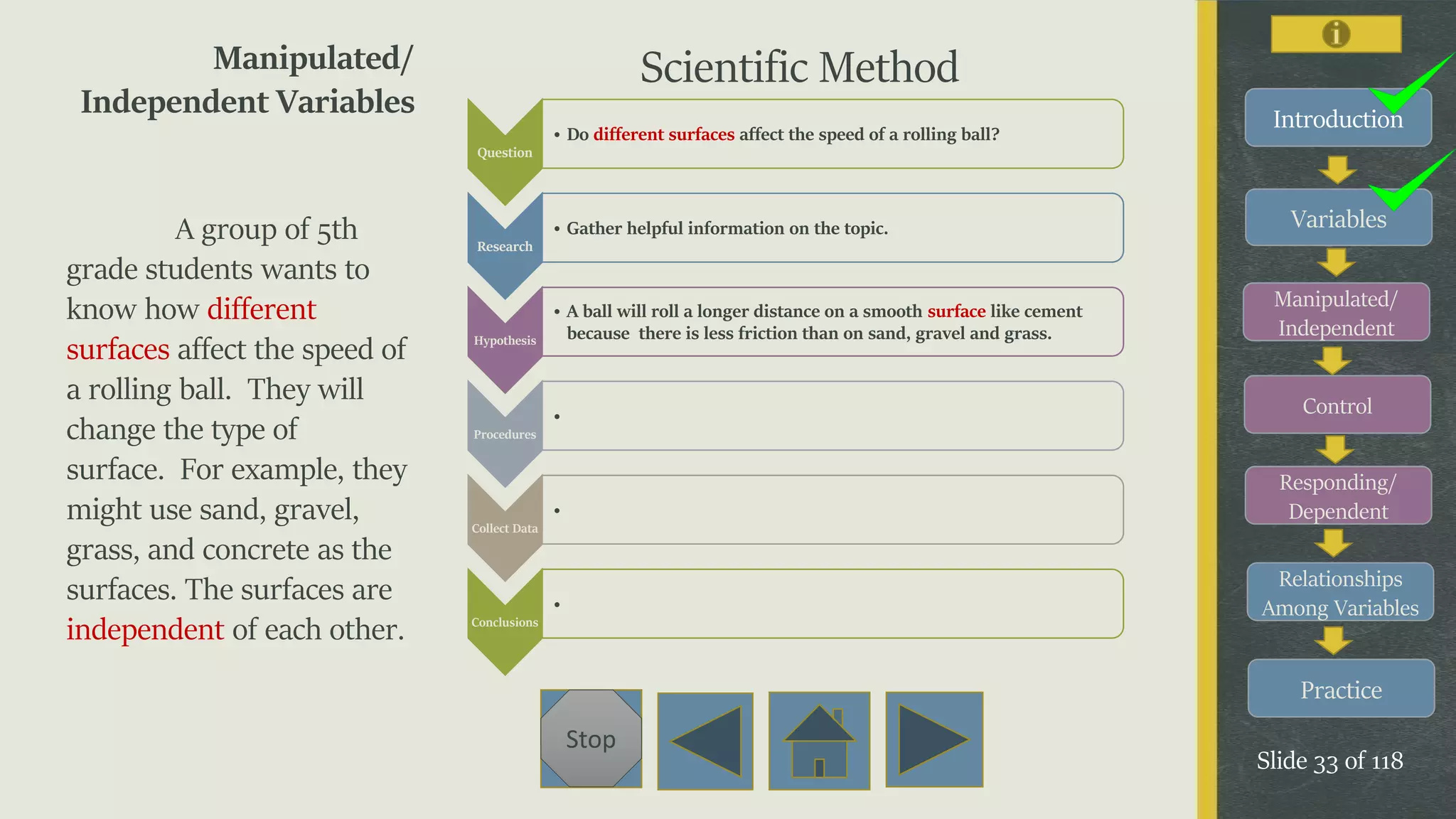

A group of 5th
grade students wants to
know how different
surfaces affect the speed of
a rolling ball. They will
change the type of
surface. For example, they
might use sand, gravel,
grass, and concrete as the
surfaces. The surfaces are
independent of each other.
Question
• Do different surfaces affect the speed of a rolling ball?
Research
• Gather helpful information on the topic.
Hypothesis
• A ball will roll a longer distance on a smooth surface like cement
because there is less friction than on sand, gravel and grass.
Procedures
•
Collect Data
•
Conclusions
•
Scientific Method

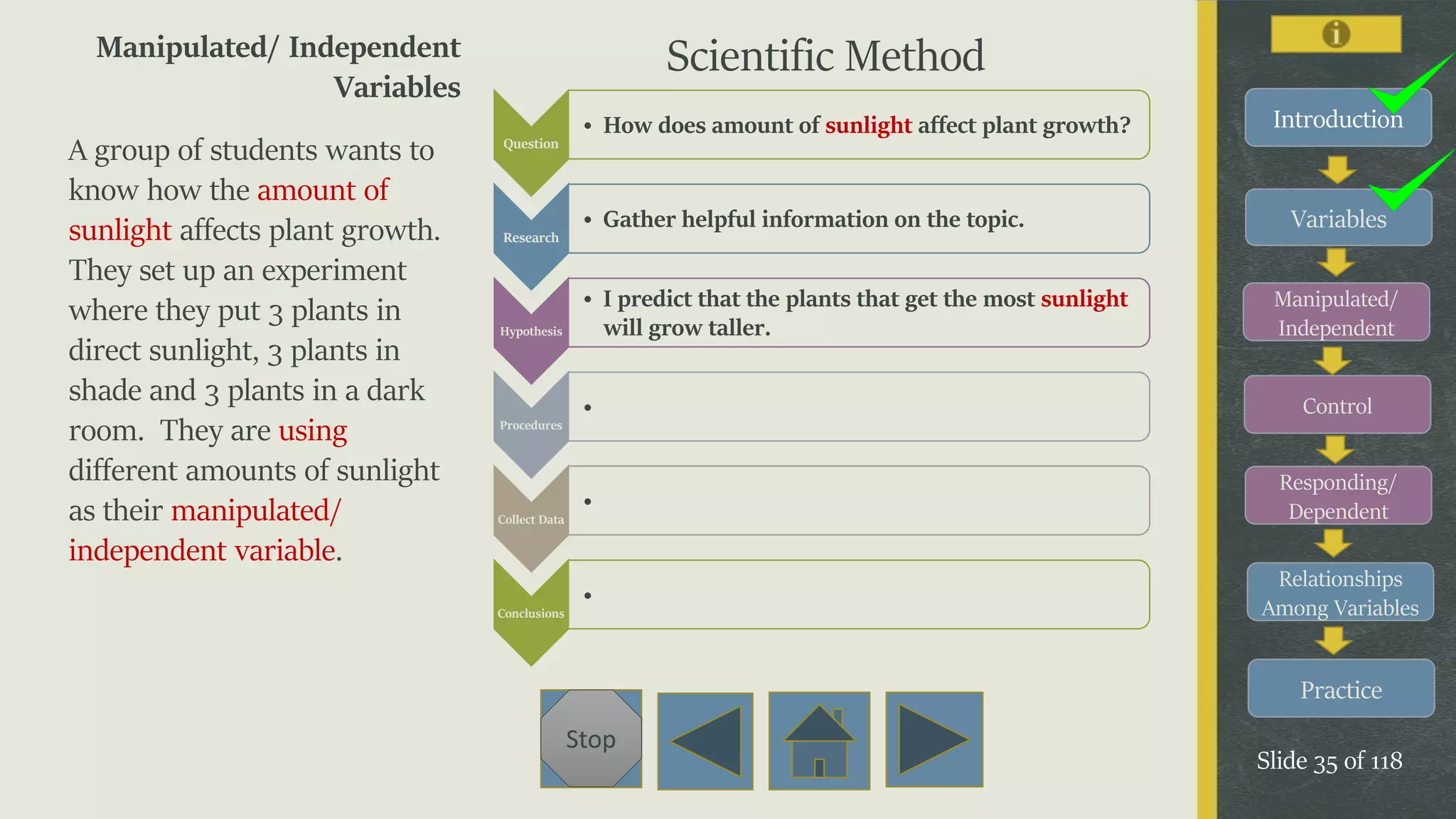

35. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 35 of 118
Stop
Introduction
Manipulated/ Independent
Variables

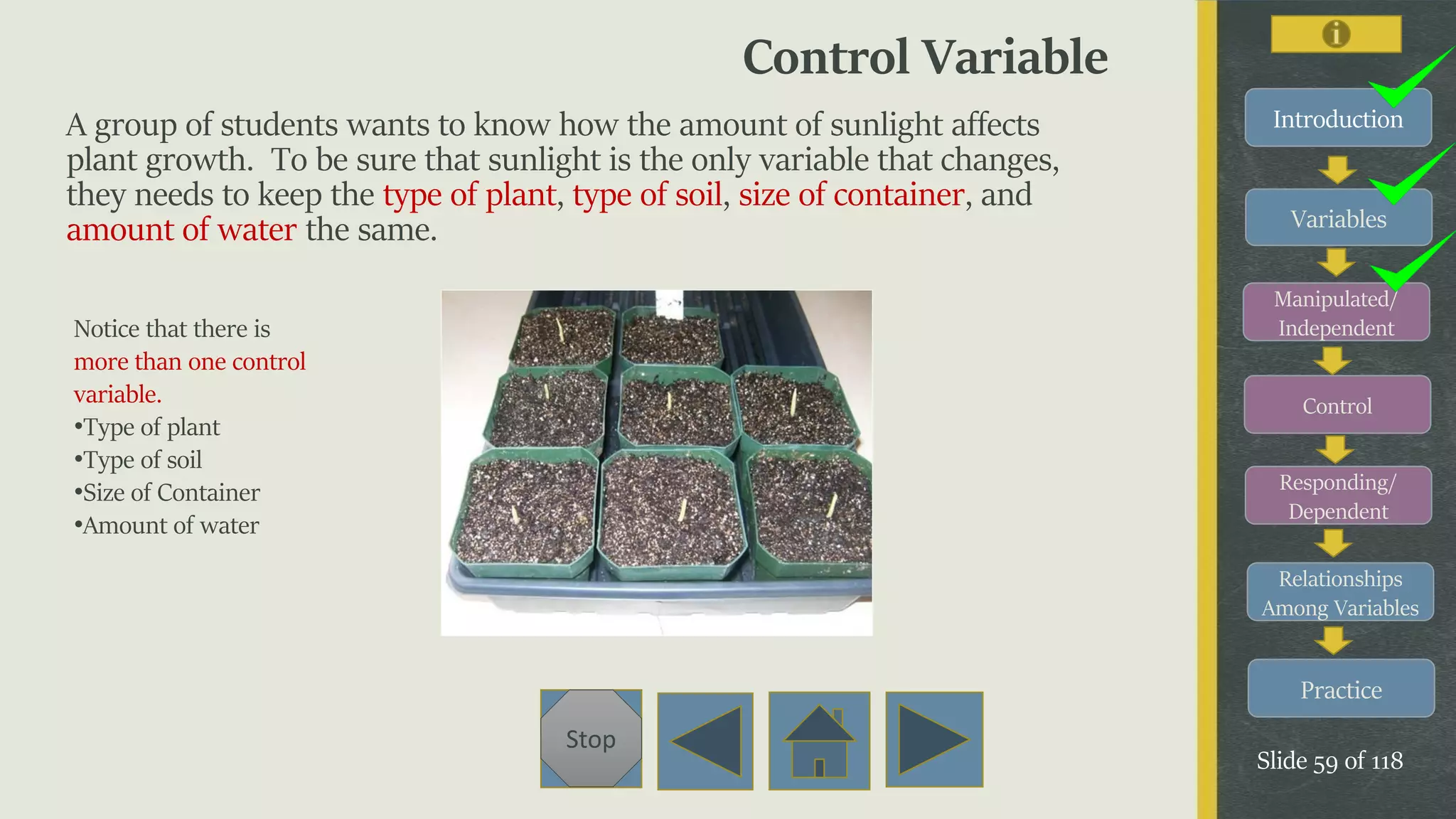

A group of students wants to
know how the amount of
sunlight affects plant growth.
They set up an experiment
where they put 3 plants in
direct sunlight, 3 plants in
shade and 3 plants in a dark
room. They are using
different amounts of sunlight
as their manipulated/
independent variable.
Question
• How does amount of sunlight affect plant growth?
Research
• Gather helpful information on the topic.
Hypothesis
• I predict that the plants that get the most sunlight
will grow taller.
Procedures
•
Collect Data
•
Conclusions
•
Scientific Method
36. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 36 of 118
Stop
Introduction

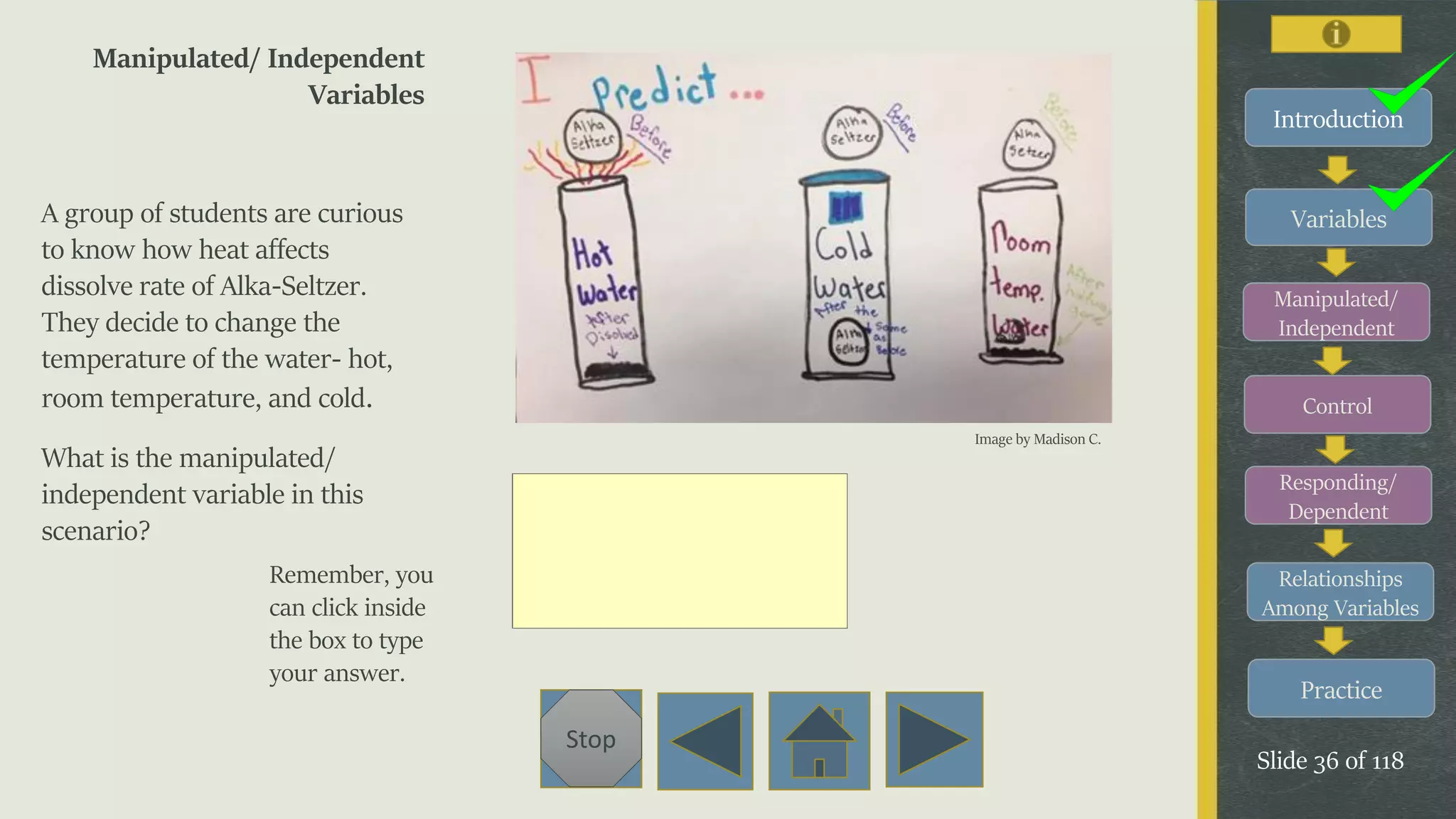

Manipulated/ Independent
Variables

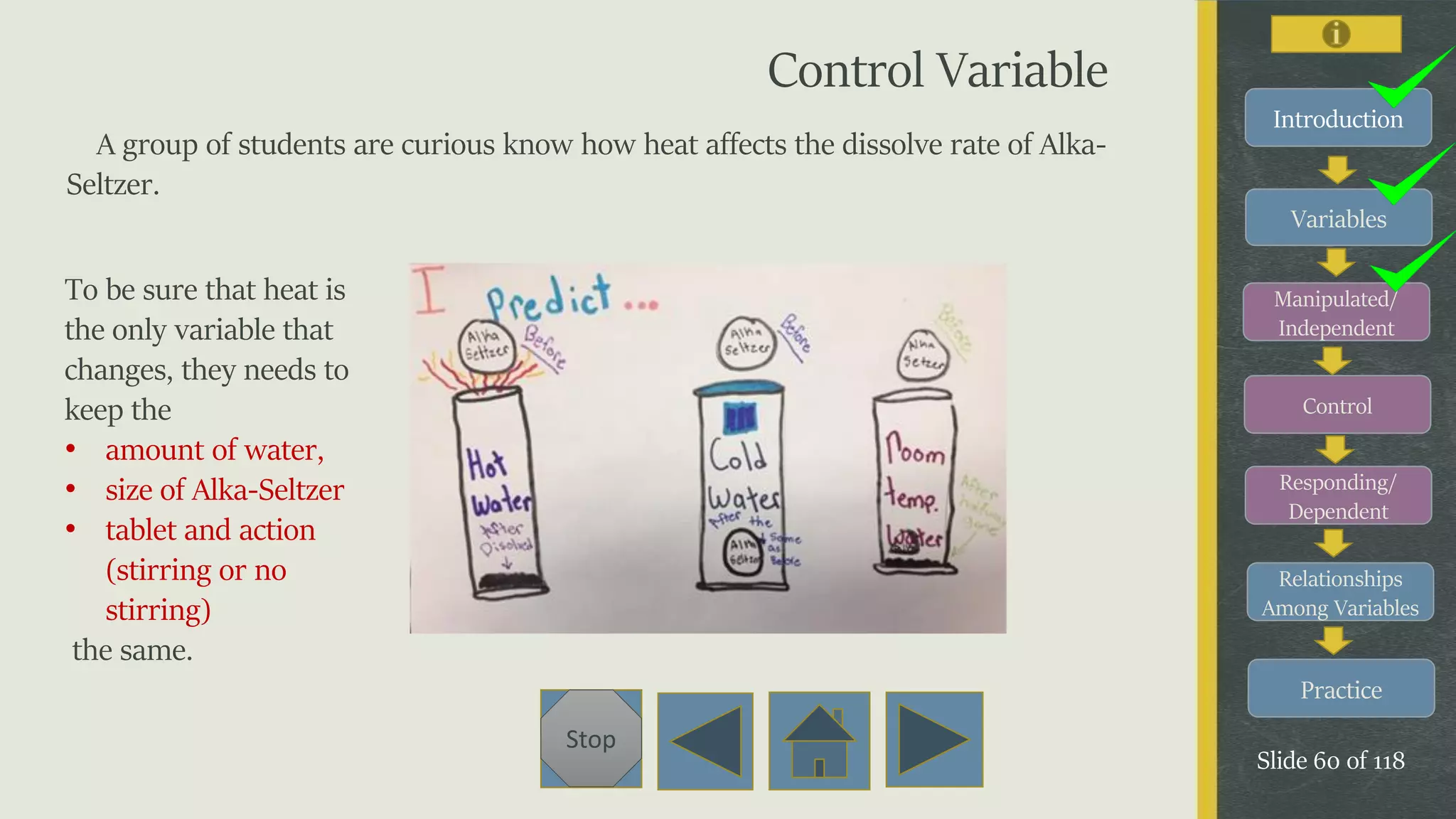

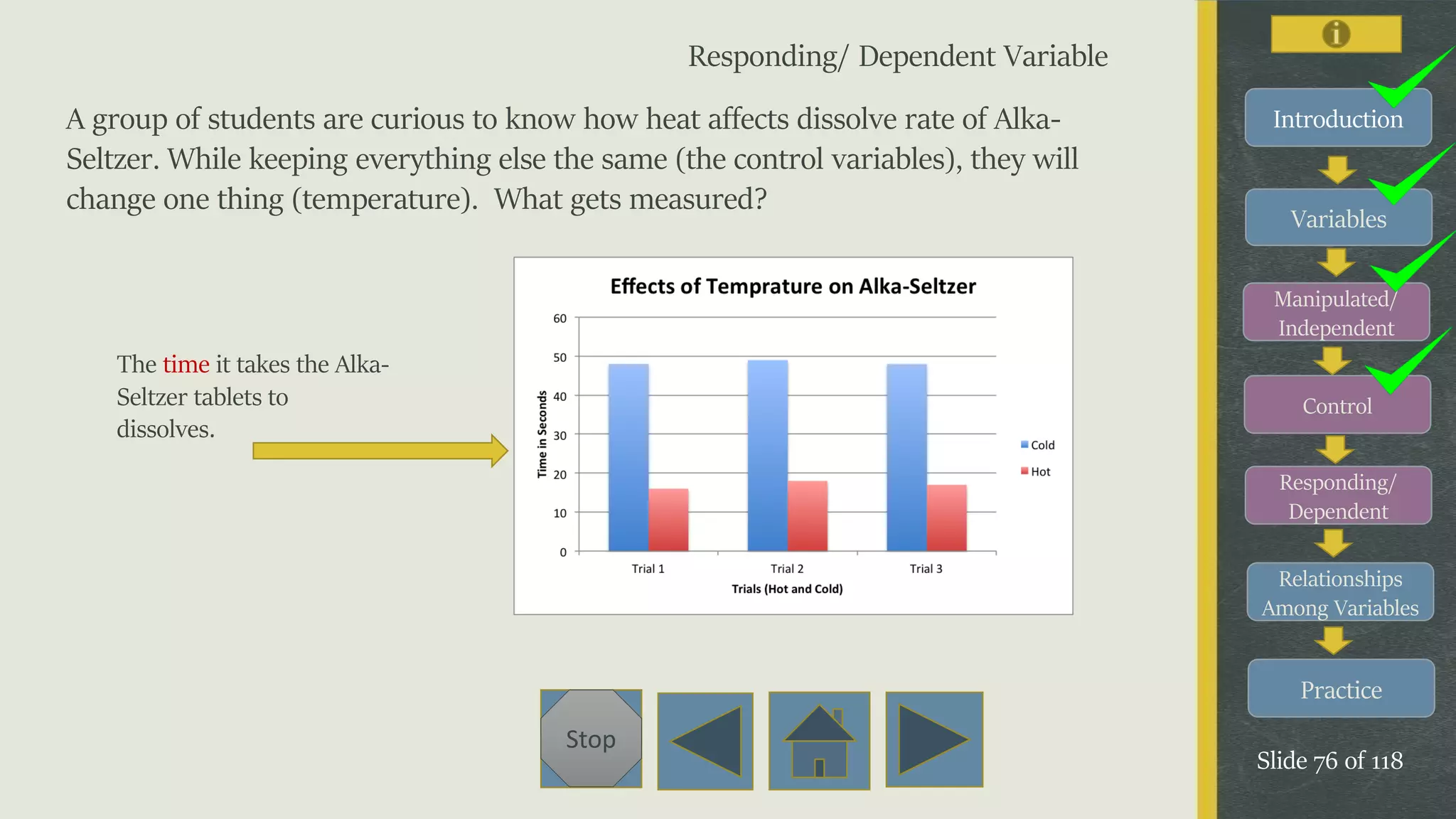

A group of students are curious
to know how heat affects
dissolve rate of Alka-Seltzer.
They decide to change the
temperature of the water- hot,
room temperature, and cold.
What is the manipulated/
independent variable in this
scenario?
Remember, you
can click inside
the box to type
your answer.
Image by Madison C.
38. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 38 of 118

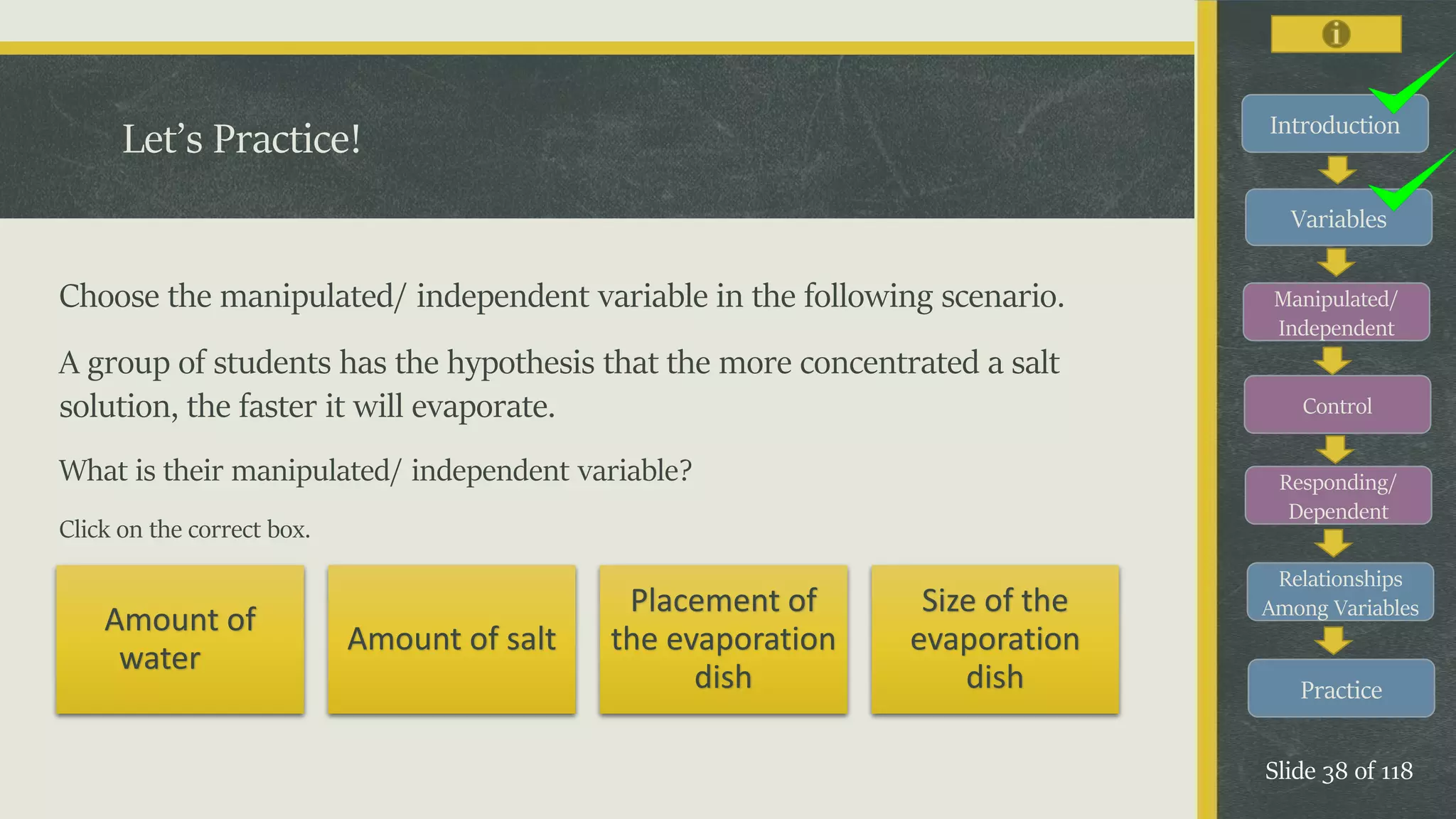

Choose the manipulated/ independent variable in the following scenario.

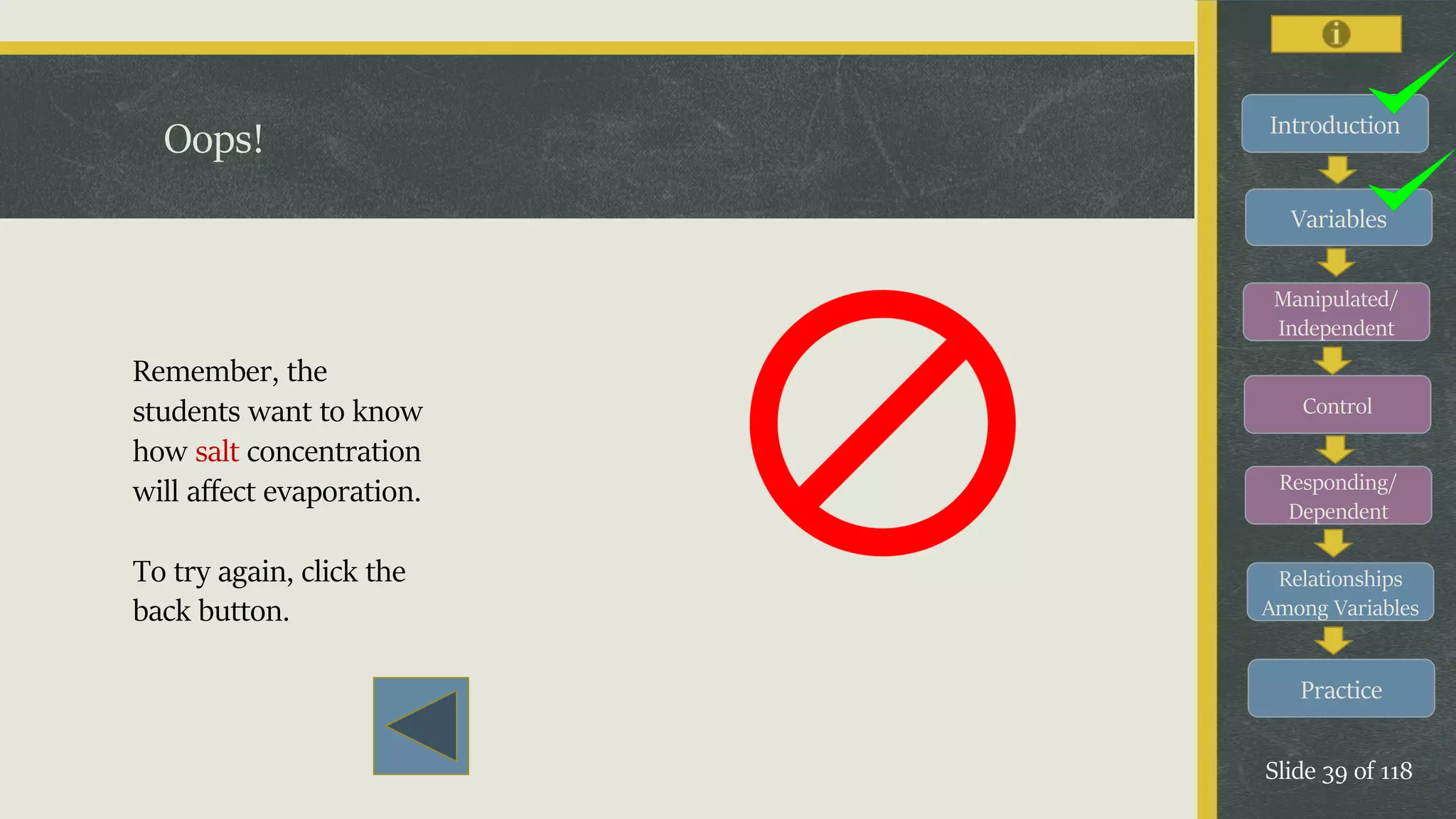

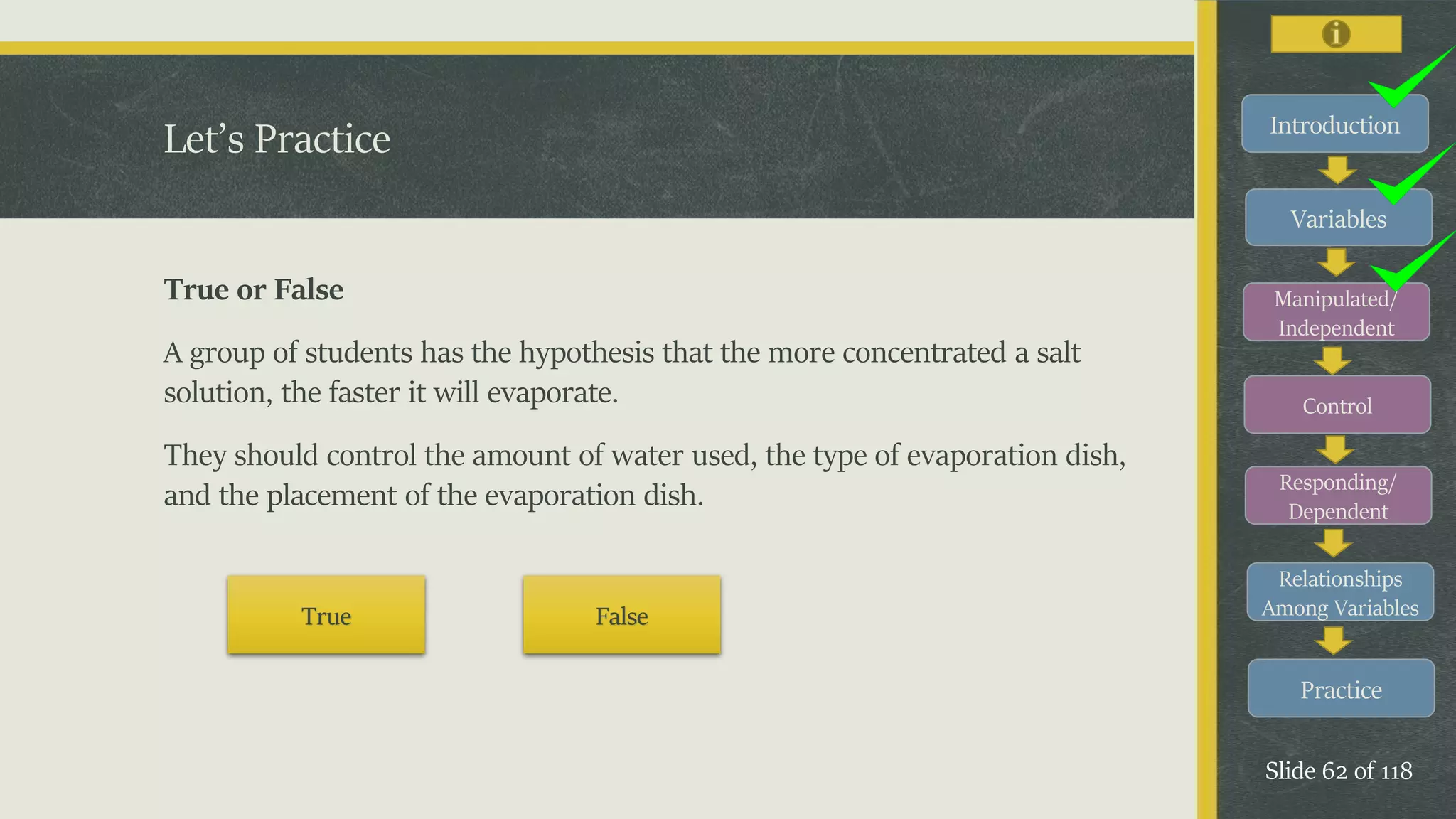

A group of students has the hypothesis that the more concentrated a salt
solution, the faster it will evaporate.
What is their manipulated/ independent variable?
Click on the correct box.
Let’s Practice!
Amount of
water
Amount of salt
Placement of
the evaporation
dish
Size of the
evaporation
dish
42. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 42 of 118
Stop
Introduction

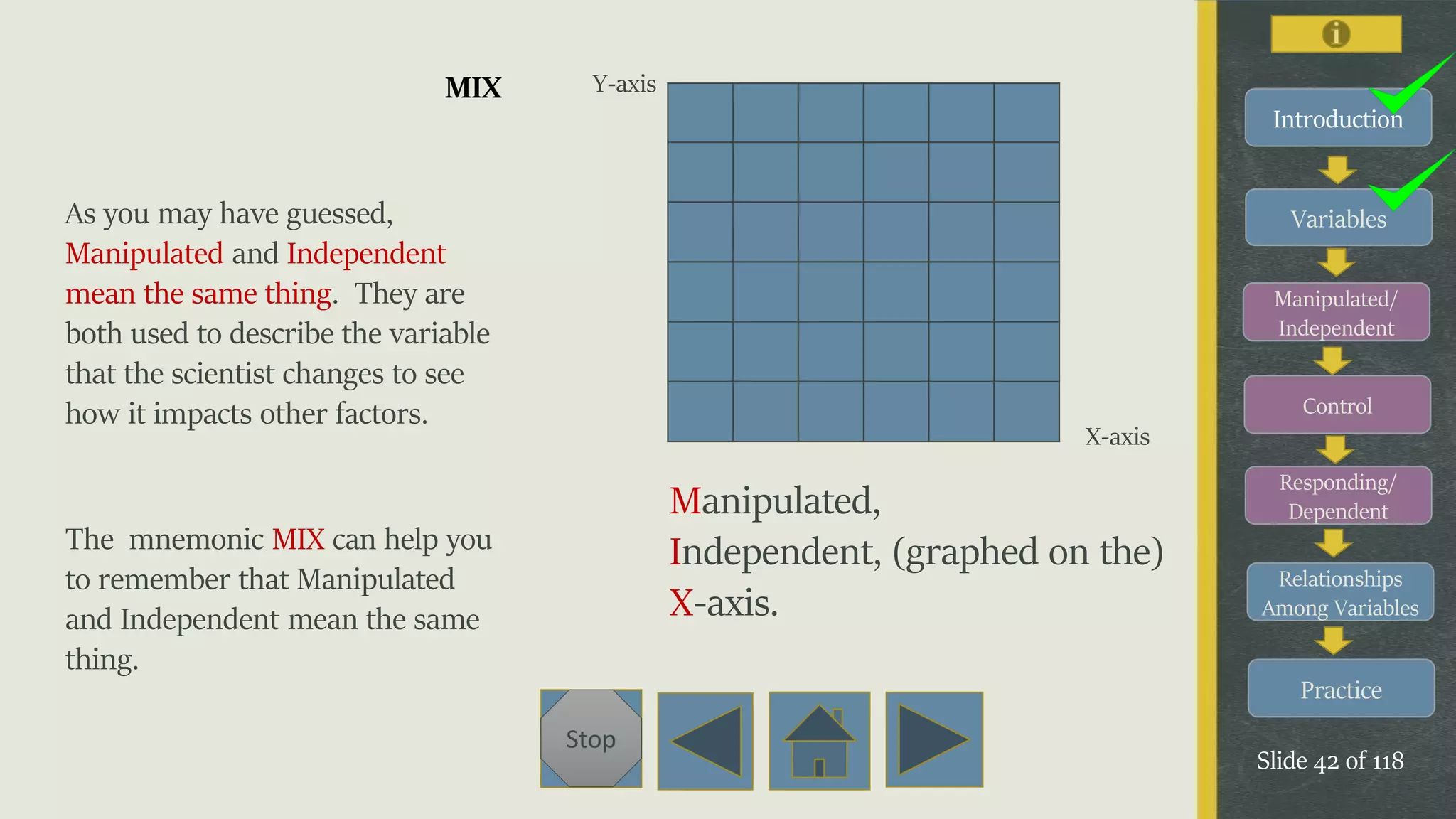

MIX
As you may have guessed,
Manipulated and Independent
mean the same thing. They are
both used to describe the variable
that the scientist changes to see
how it impacts other factors.
The mnemonic MIX can help you
to remember that Manipulated
and Independent mean the same
thing.
Manipulated,
Independent, (graphed on the)
X-axis.
X-axis
Y-axis
51. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 51 of 118
Stop

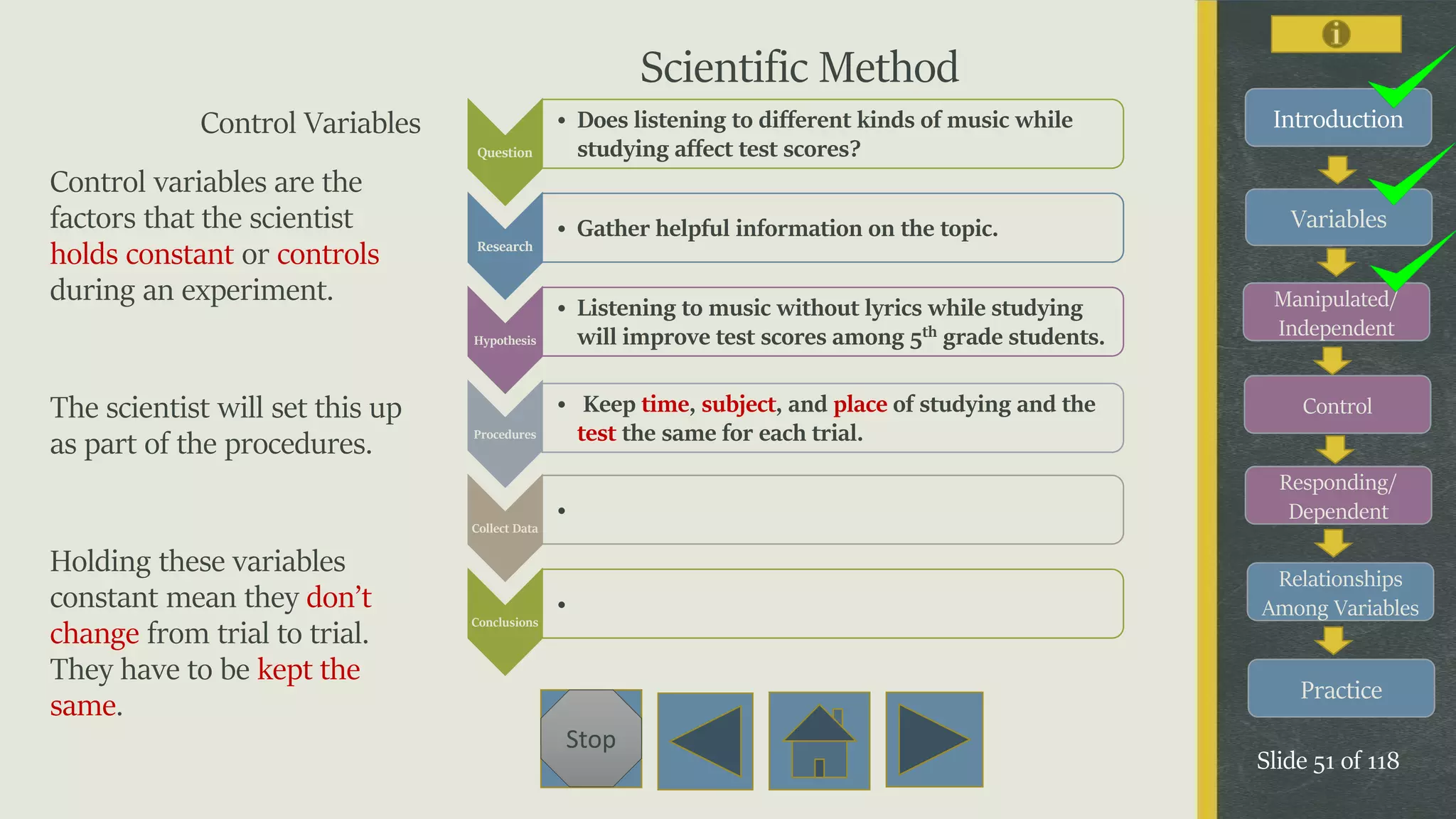

IntroductionControl Variables
Control variables are the
factors that the scientist
holds constant or controls
during an experiment.
The scientist will set this up
as part of the procedures.
Holding these variables
constant mean they don’t
change from trial to trial.
They have to be kept the
same.
Question
• Does listening to different kinds of music while
studying affect test scores?
Research
• Gather helpful information on the topic.
Hypothesis
• Listening to music without lyrics while studying
will improve test scores among 5th grade students.
Procedures
• Keep time, subject, and place of studying and the
test the same for each trial.
Collect Data
•
Conclusions
•
Scientific Method
57. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 57 of 118
Stop
IntroductionControl Variables
If everything changes, what
caused the change?
In the example to the right, if
both time and type of music
were changed, the scientist
would not know which one
affected the test scores.
More time studying might
have an effect on test scores
and music might have an
effect on test scores.
The scientist would not
know which one.
Question
• Does listening to different kinds of music while
studying affect test scores?
Research
• Gather helpful information on the topic.
Hypothesis
• Listening to music without lyrics while studying
will improve test scores among 5th grade students.
Procedures
• Keep time, subject, and place of studying and the
test the same for each trial.
Collect Data
•
Conclusions
•
Scientific Method
58. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 58 of 118
Stop
Introduction
Control
Variables

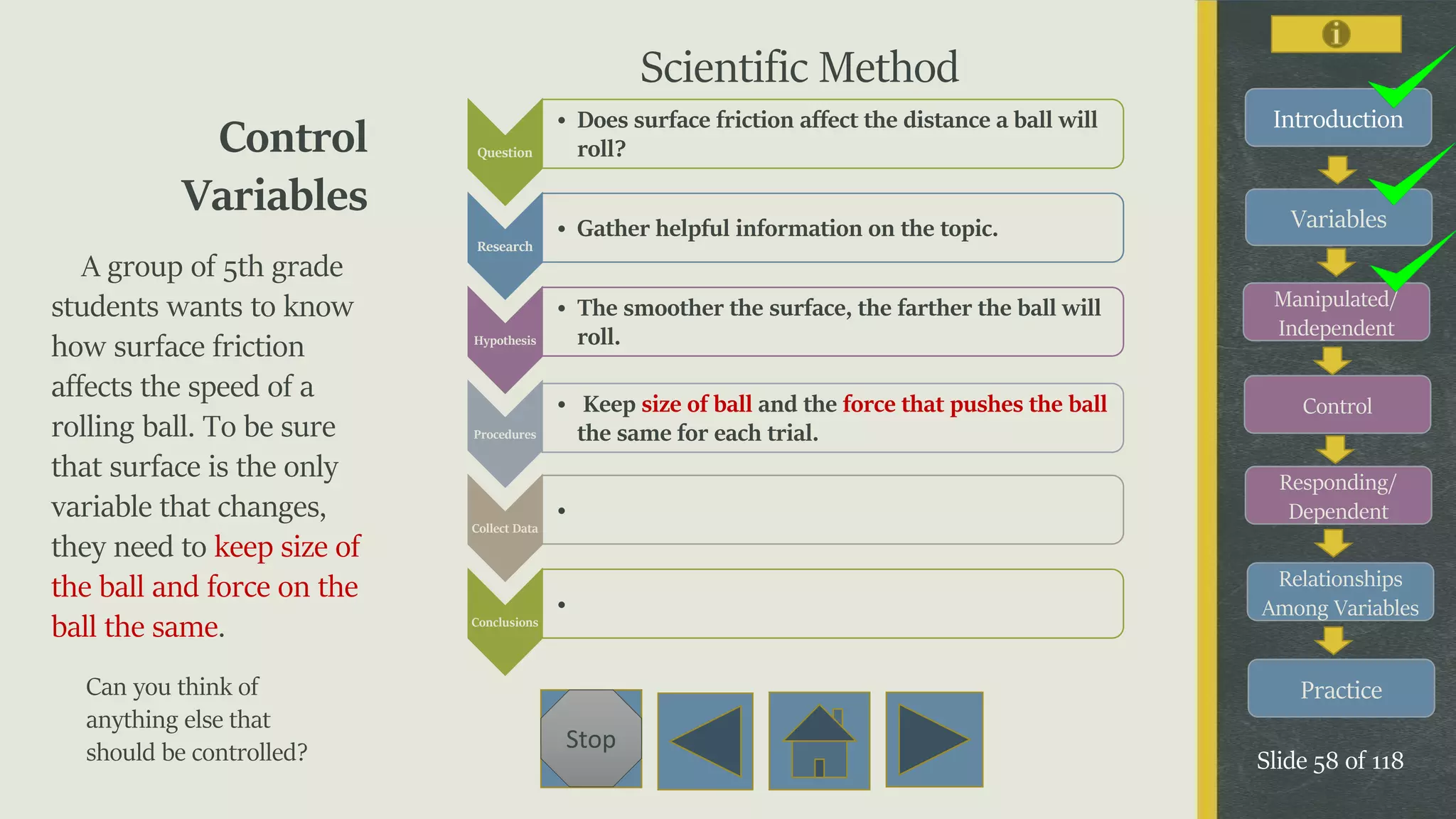

A group of 5th grade
students wants to know
how surface friction
affects the speed of a
rolling ball. To be sure
that surface is the only
variable that changes,
they need to keep size of
the ball and force on the
ball the same.
Can you think of
anything else that
should be controlled?
Question
• Does surface friction affect the distance a ball will
roll?
Research
• Gather helpful information on the topic.
Hypothesis
• The smoother the surface, the farther the ball will
roll.
Procedures
• Keep size of ball and the force that pushes the ball
the same for each trial.
Collect Data
•
Conclusions
•
Scientific Method
59. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 59 of 118
Stop
Introduction
Control Variable
A group of students wants to know how the amount of sunlight affects
plant growth. To be sure that sunlight is the only variable that changes,
they needs to keep the type of plant, type of soil, size of container, and
amount of water the same.
Notice that there is
more than one control
variable.
•Type of plant
•Type of soil
•Size of Container
•Amount of water
66. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 66 of 118
Stop

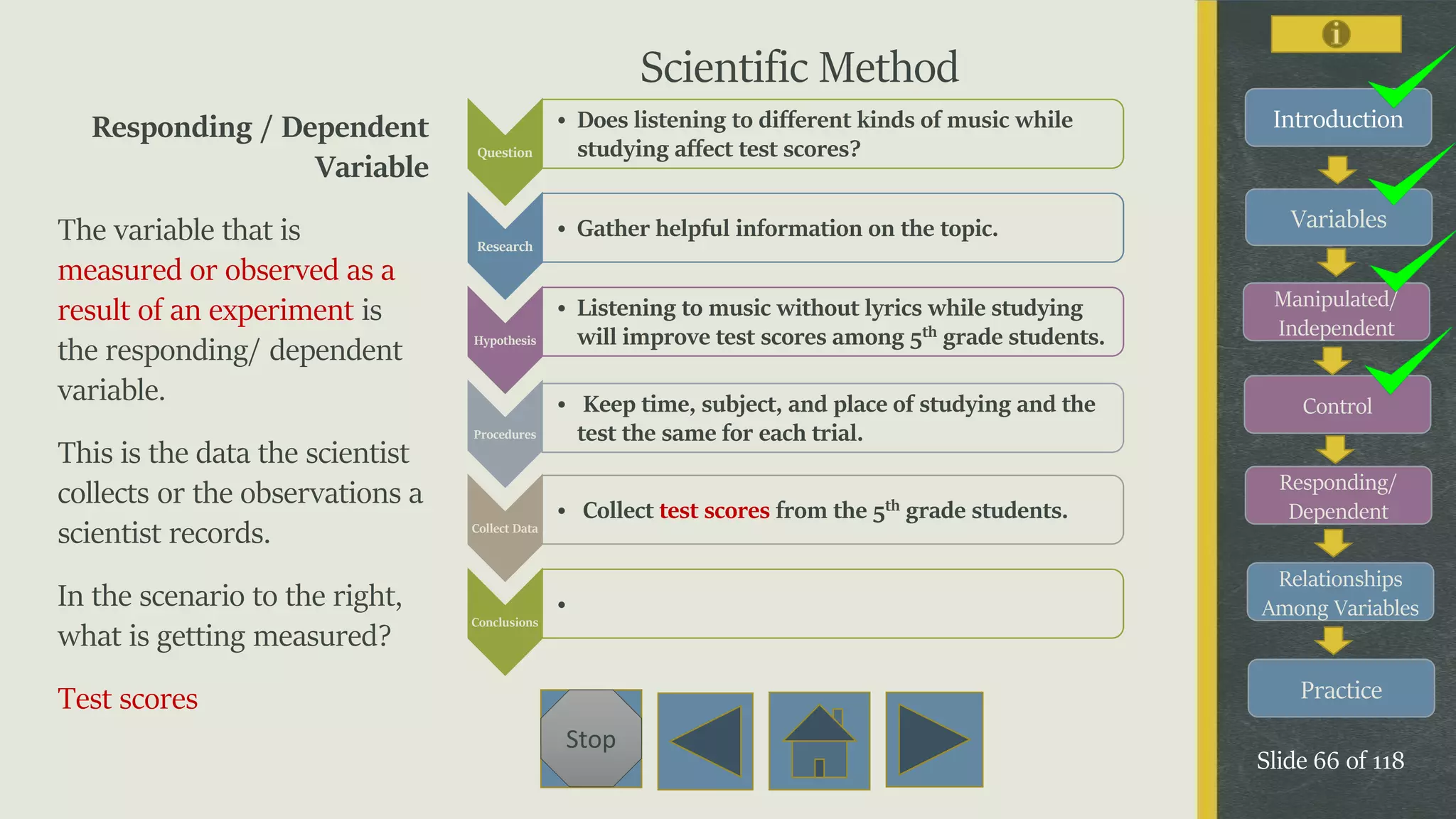

IntroductionResponding / Dependent
Variable
The variable that is
measured or observed as a
result of an experiment is
the responding/ dependent
variable.
This is the data the scientist
collects or the observations a
scientist records.
In the scenario to the right,
what is getting measured?
Test scores
Question
• Does listening to different kinds of music while
studying affect test scores?
Research
• Gather helpful information on the topic.
Hypothesis
• Listening to music without lyrics while studying
will improve test scores among 5th grade students.
Procedures
• Keep time, subject, and place of studying and the
test the same for each trial.
Collect Data
• Collect test scores from the 5th grade students.
Conclusions
•
Scientific Method
67. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 67 of 118
Stop
Introduction

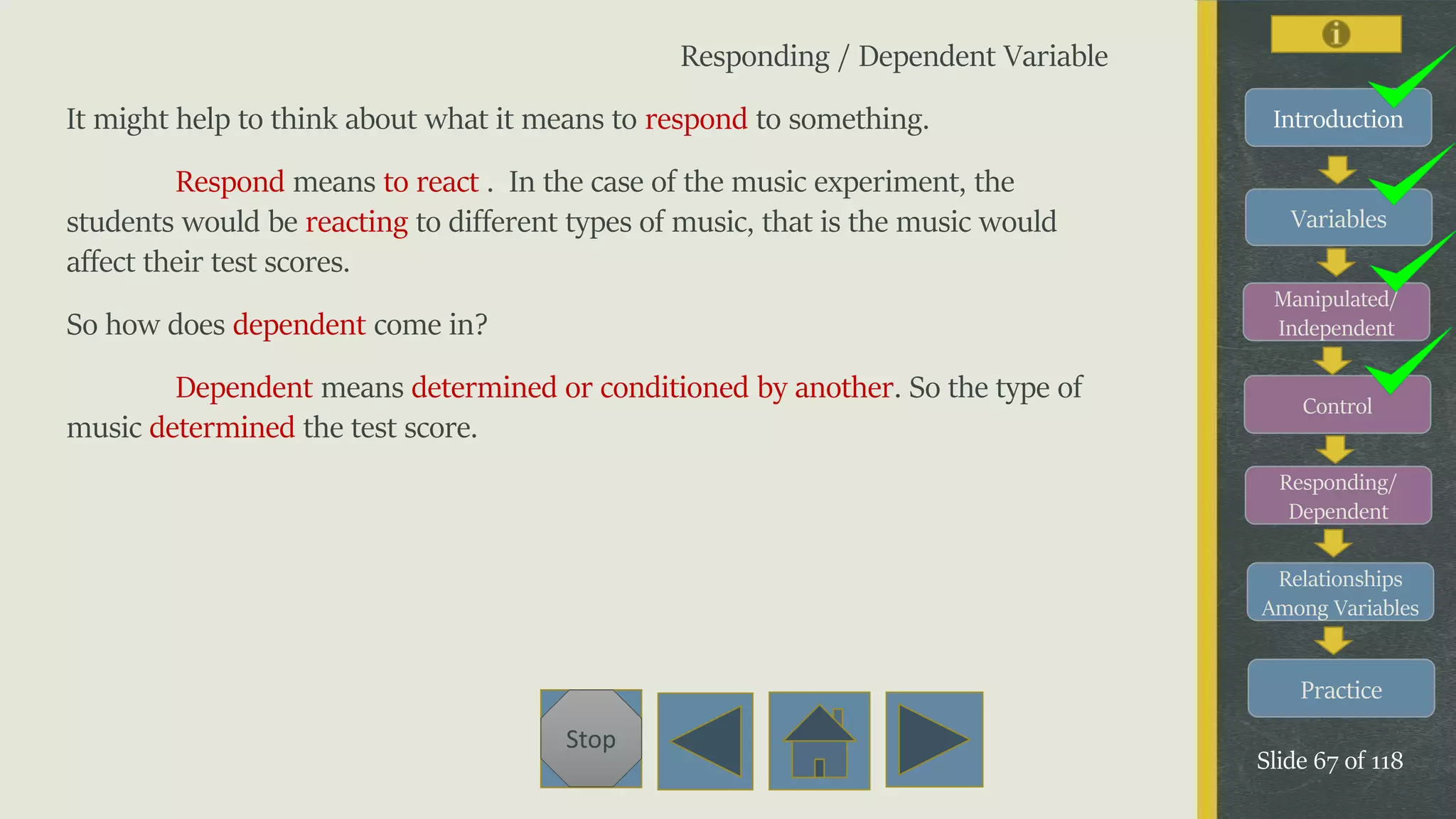

Responding / Dependent Variable
It might help to think about what it means to respond to something.
Respond means to react . In the case of the music experiment, the
students would be reacting to different types of music, that is the music would
affect their test scores.
So how does dependent come in?
Dependent means determined or conditioned by another. So the type of
music determined the test score.
73. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 73 of 118
Stop

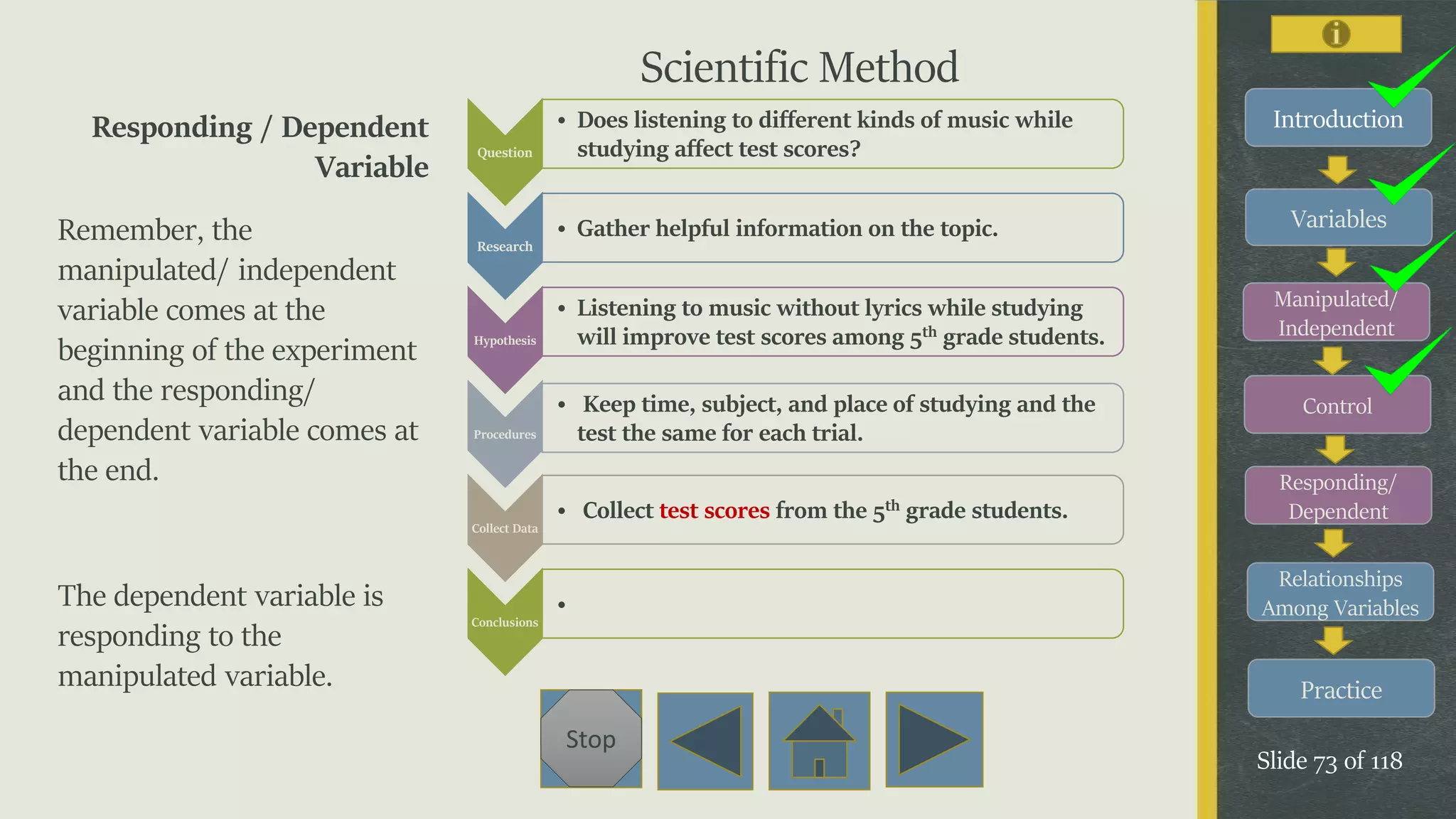

IntroductionResponding / Dependent
Variable
Remember, the
manipulated/ independent
variable comes at the
beginning of the experiment
and the responding/
dependent variable comes at
the end.
The dependent variable is
responding to the
manipulated variable.
Question
• Does listening to different kinds of music while
studying affect test scores?
Research
• Gather helpful information on the topic.
Hypothesis
• Listening to music without lyrics while studying
will improve test scores among 5th grade students.
Procedures
• Keep time, subject, and place of studying and the
test the same for each trial.
Collect Data
• Collect test scores from the 5th grade students.
Conclusions
•
Scientific Method
74. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 74 of 118
Stop

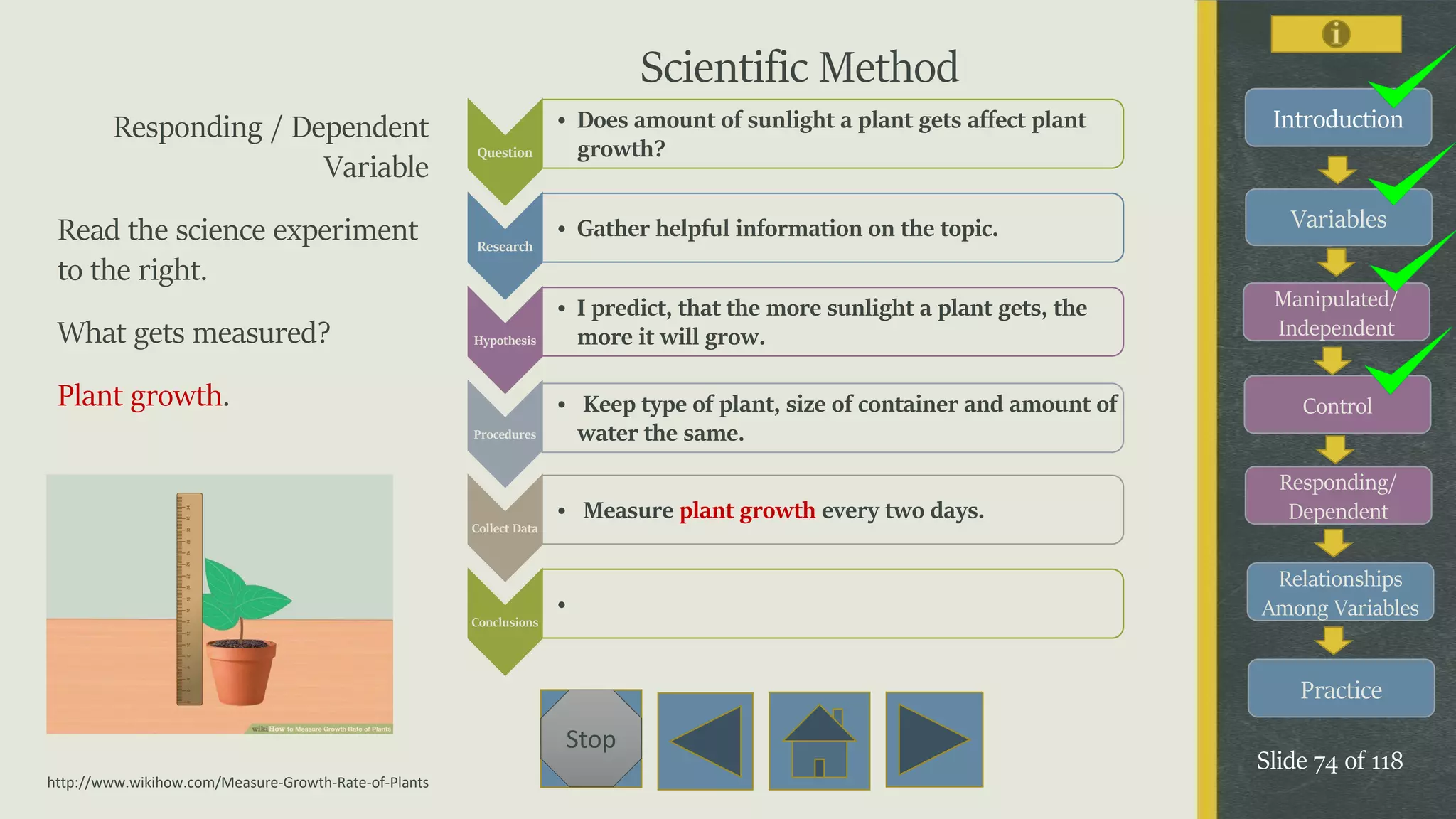

IntroductionResponding / Dependent
Variable
Read the science experiment
to the right.
What gets measured?
Plant growth.
Question
• Does amount of sunlight a plant gets affect plant
growth?
Research
• Gather helpful information on the topic.
Hypothesis
• I predict, that the more sunlight a plant gets, the
more it will grow.
Procedures
• Keep type of plant, size of container and amount of
water the same.
Collect Data
• Measure plant growth every two days.
Conclusions
•
Scientific Method
http://www.wikihow.com/Measure-Growth-Rate-of-Plants
75. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 75 of 118
Stop
Introduction

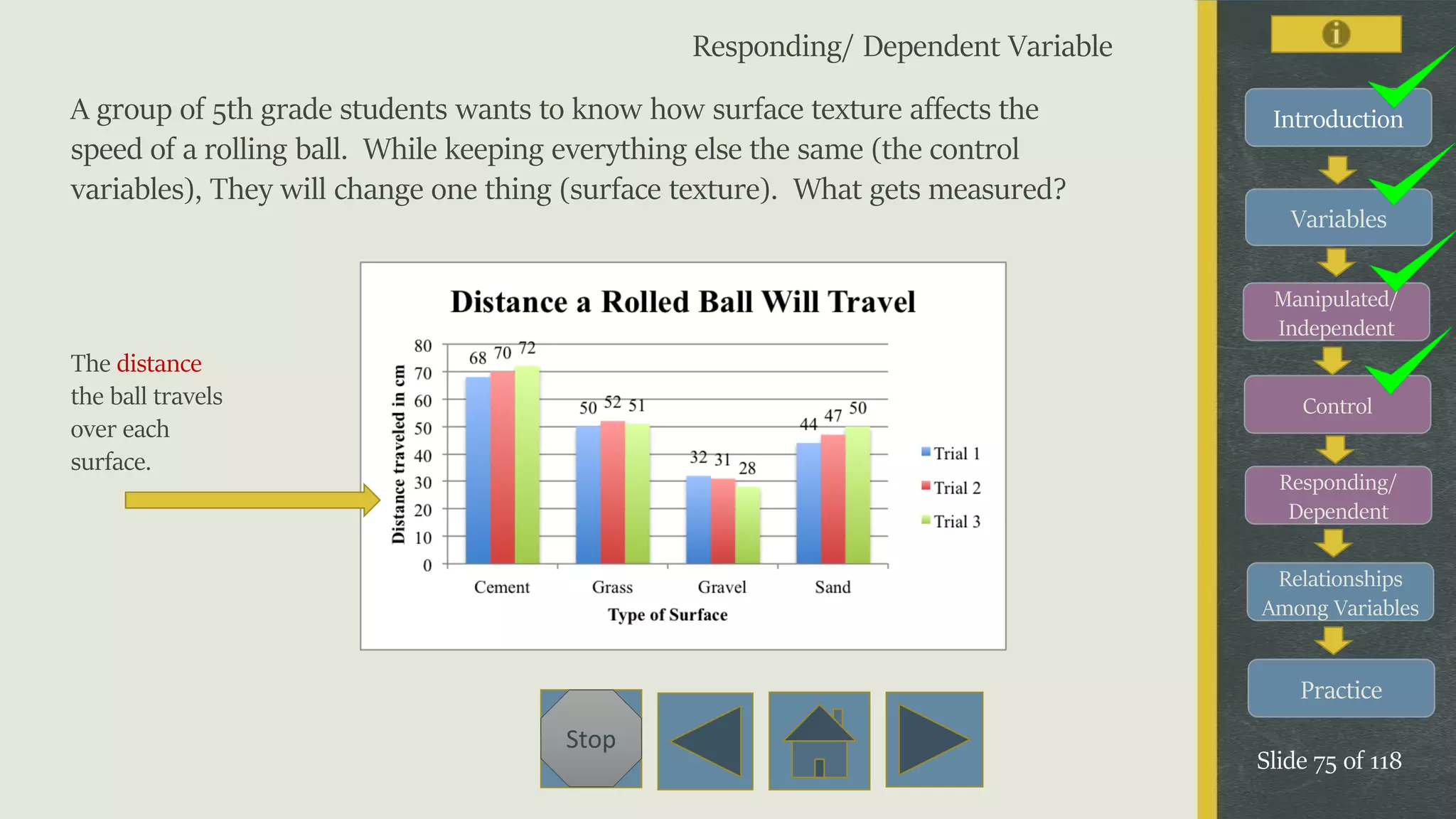

Responding/ Dependent Variable
A group of 5th grade students wants to know how surface texture affects the
speed of a rolling ball. While keeping everything else the same (the control
variables), They will change one thing (surface texture). What gets measured?
The distance
the ball travels
over each
surface.
78. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables

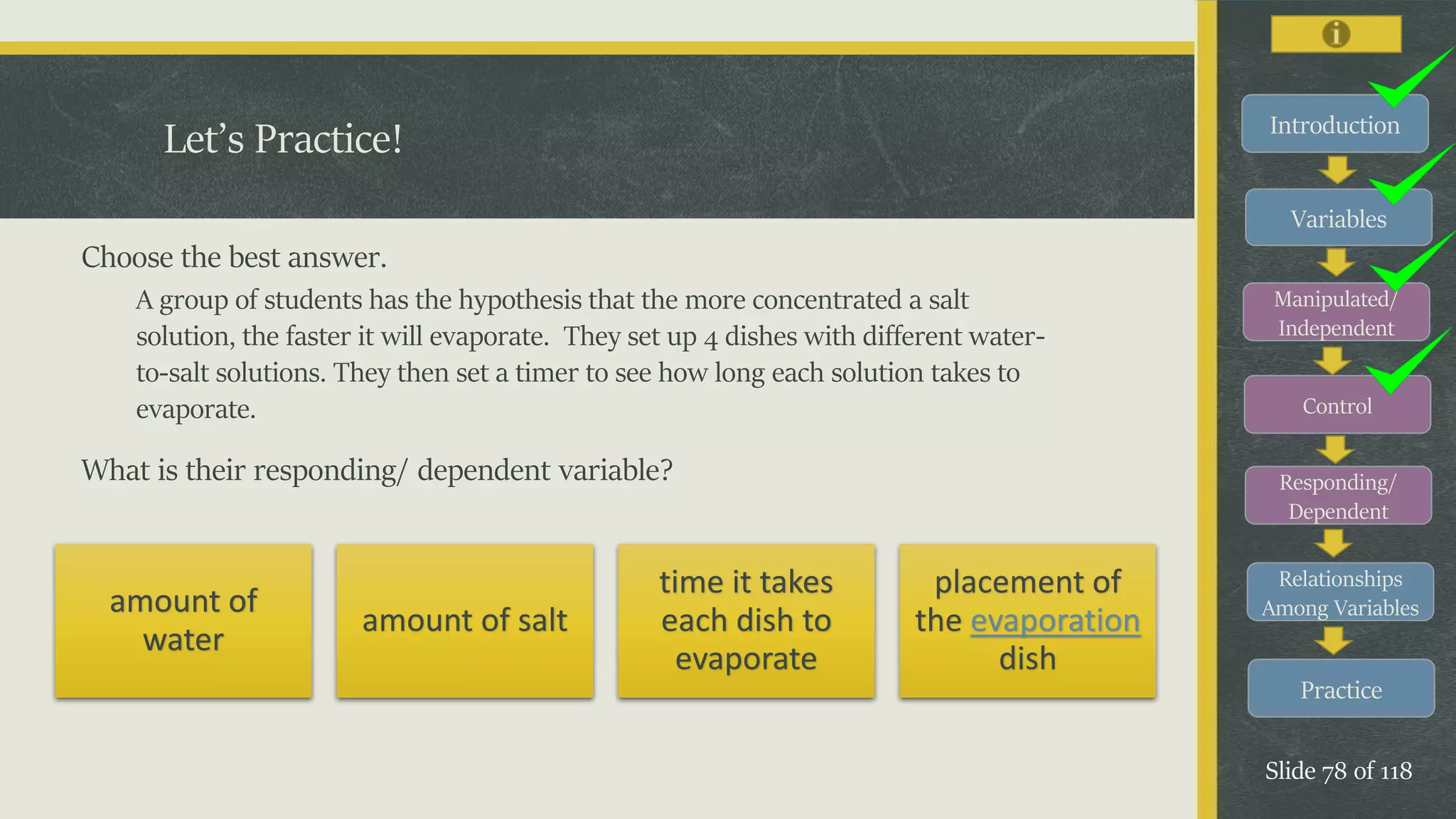

Practice
Slide 78 of 118
Choose the best answer.
A group of students has the hypothesis that the more concentrated a salt
solution, the faster it will evaporate. They set up 4 dishes with different water-
to-salt solutions. They then set a timer to see how long each solution takes to
evaporate.
What is their responding/ dependent variable?
Let’s Practice!
amount of
water
amount of salt
time it takes
each dish to
evaporate
placement of
the evaporation
dish
82. Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 82 of 118
Stop
Introduction

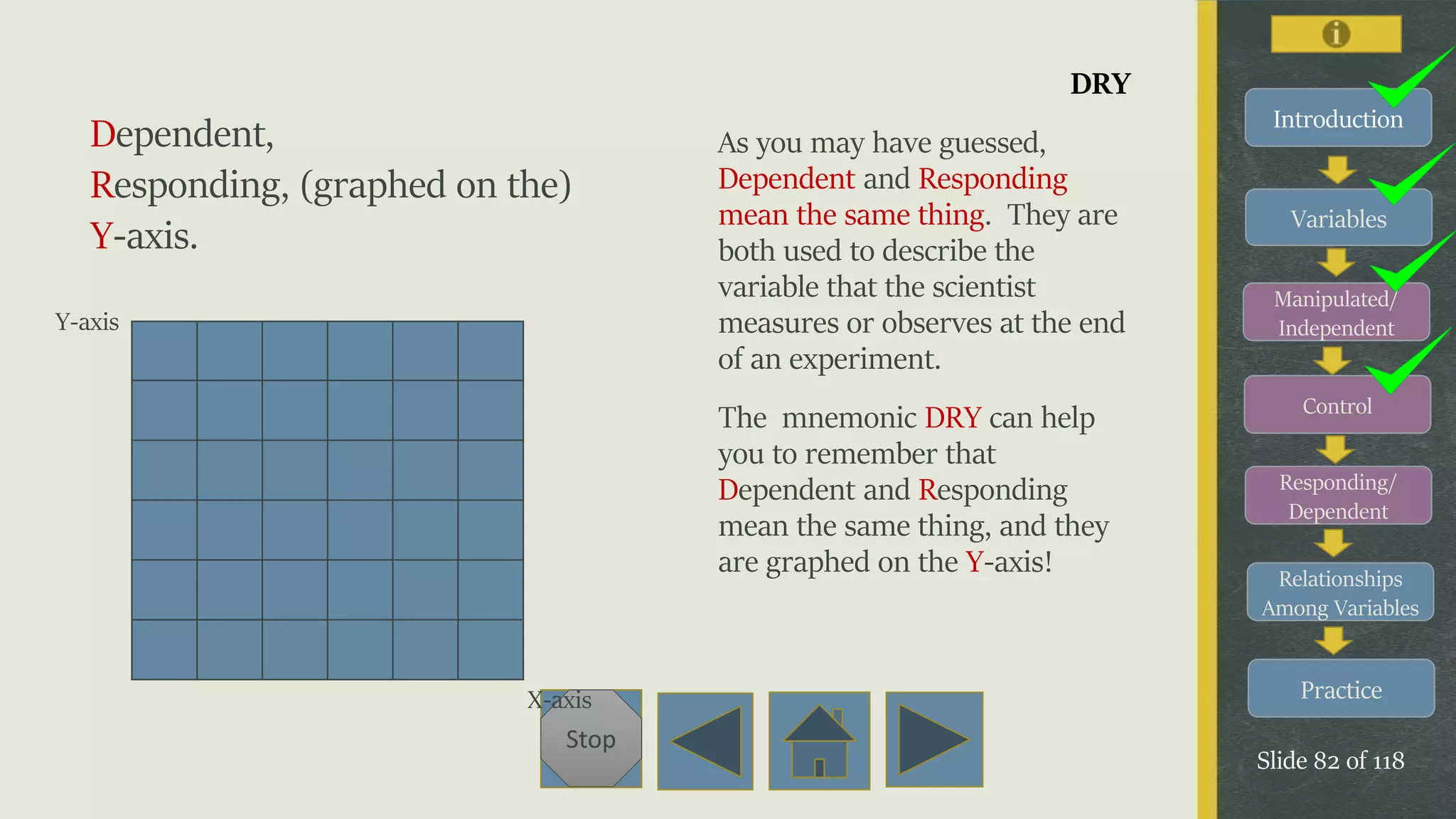

DRY
As you may have guessed,
Dependent and Responding
mean the same thing. They are
both used to describe the
variable that the scientist
measures or observes at the end
of an experiment.
The mnemonic DRY can help
you to remember that
Dependent and Responding
mean the same thing, and they
are graphed on the Y-axis!
Dependent,
Responding, (graphed on the)
Y-axis.
X-axis
Y-axis
84. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 84 of 118

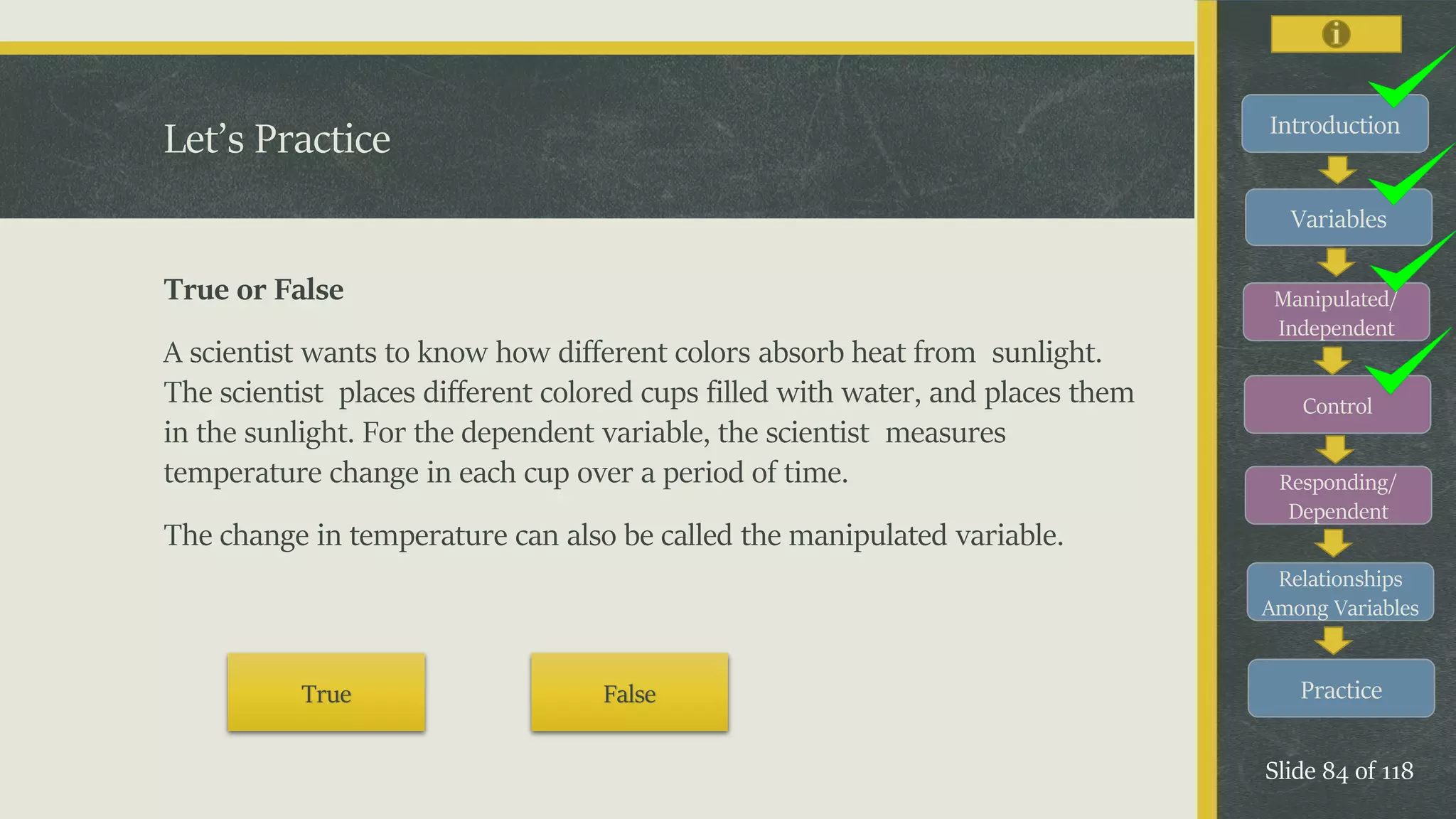

Let’s Practice
True or False
A scientist wants to know how different colors absorb heat from sunlight.
The scientist places different colored cups filled with water, and places them
in the sunlight. For the dependent variable, the scientist measures
temperature change in each cup over a period of time.
The change in temperature can also be called the manipulated variable.
True False
102. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 102 of 118

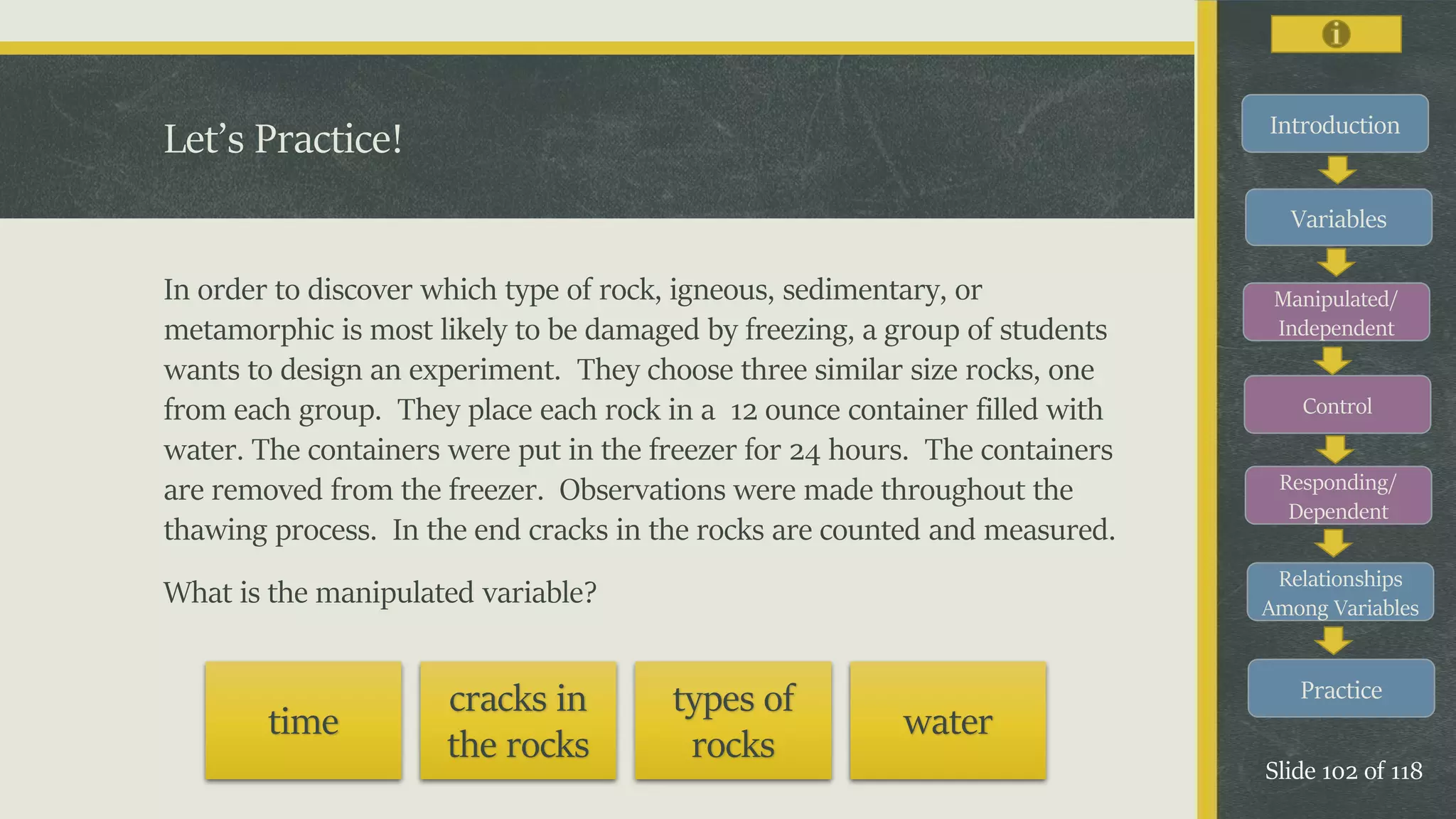

In order to discover which type of rock, igneous, sedimentary, or
metamorphic is most likely to be damaged by freezing, a group of students
wants to design an experiment. They choose three similar size rocks, one
from each group. They place each rock in a 12 ounce container filled with
water. The containers were put in the freezer for 24 hours. The containers
are removed from the freezer. Observations were made throughout the
thawing process. In the end cracks in the rocks are counted and measured.
What is the manipulated variable?
Let’s Practice!
time
cracks in
the rocks
types of
rocks
water
105. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 105 of 118

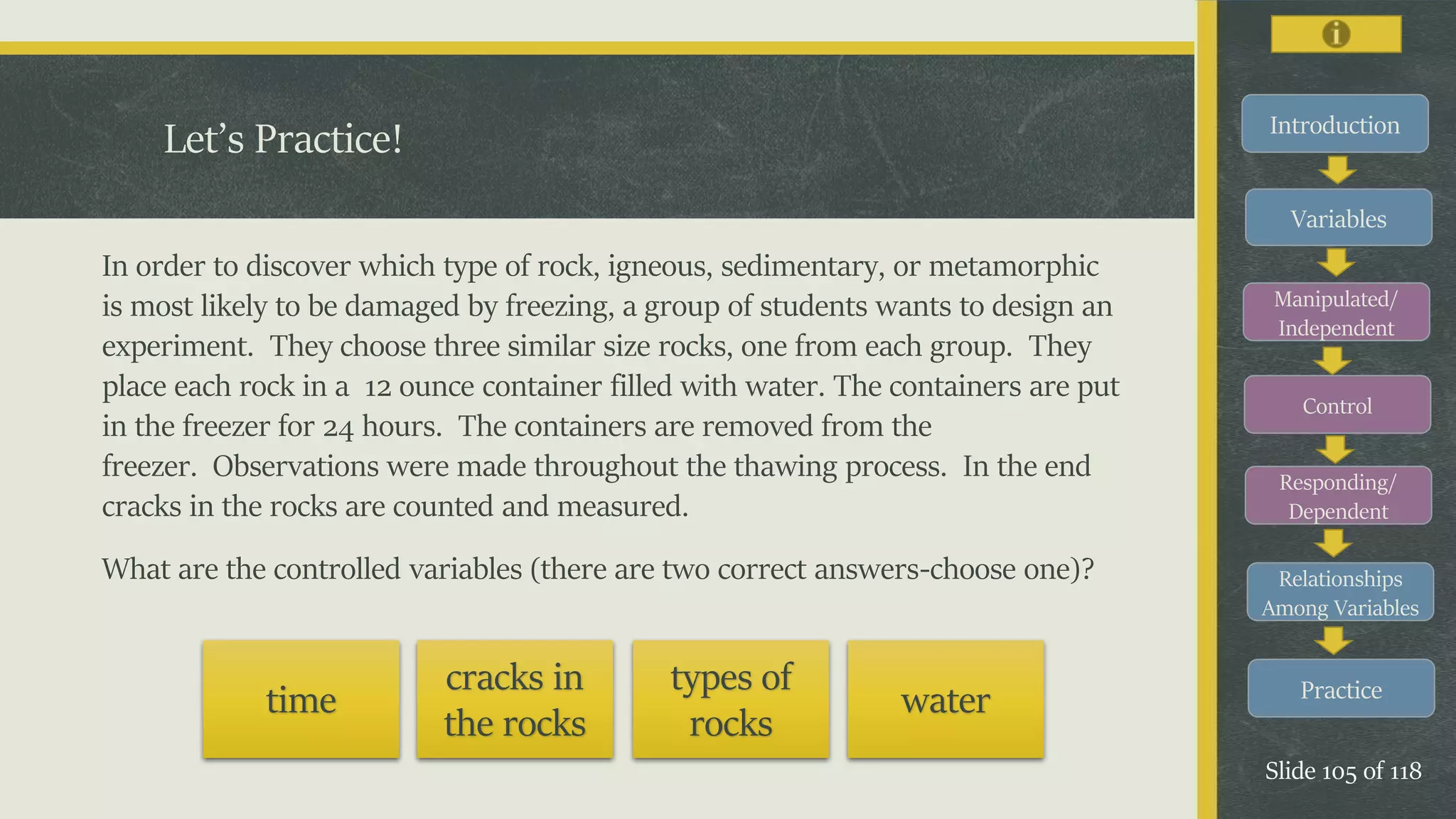

In order to discover which type of rock, igneous, sedimentary, or metamorphic
is most likely to be damaged by freezing, a group of students wants to design an
experiment. They choose three similar size rocks, one from each group. They
place each rock in a 12 ounce container filled with water. The containers are put
in the freezer for 24 hours. The containers are removed from the
freezer. Observations were made throughout the thawing process. In the end
cracks in the rocks are counted and measured.
What are the controlled variables (there are two correct answers-choose one)?
Let’s Practice!
time
cracks in
the rocks
types of
rocks
water
108. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 108 of 118

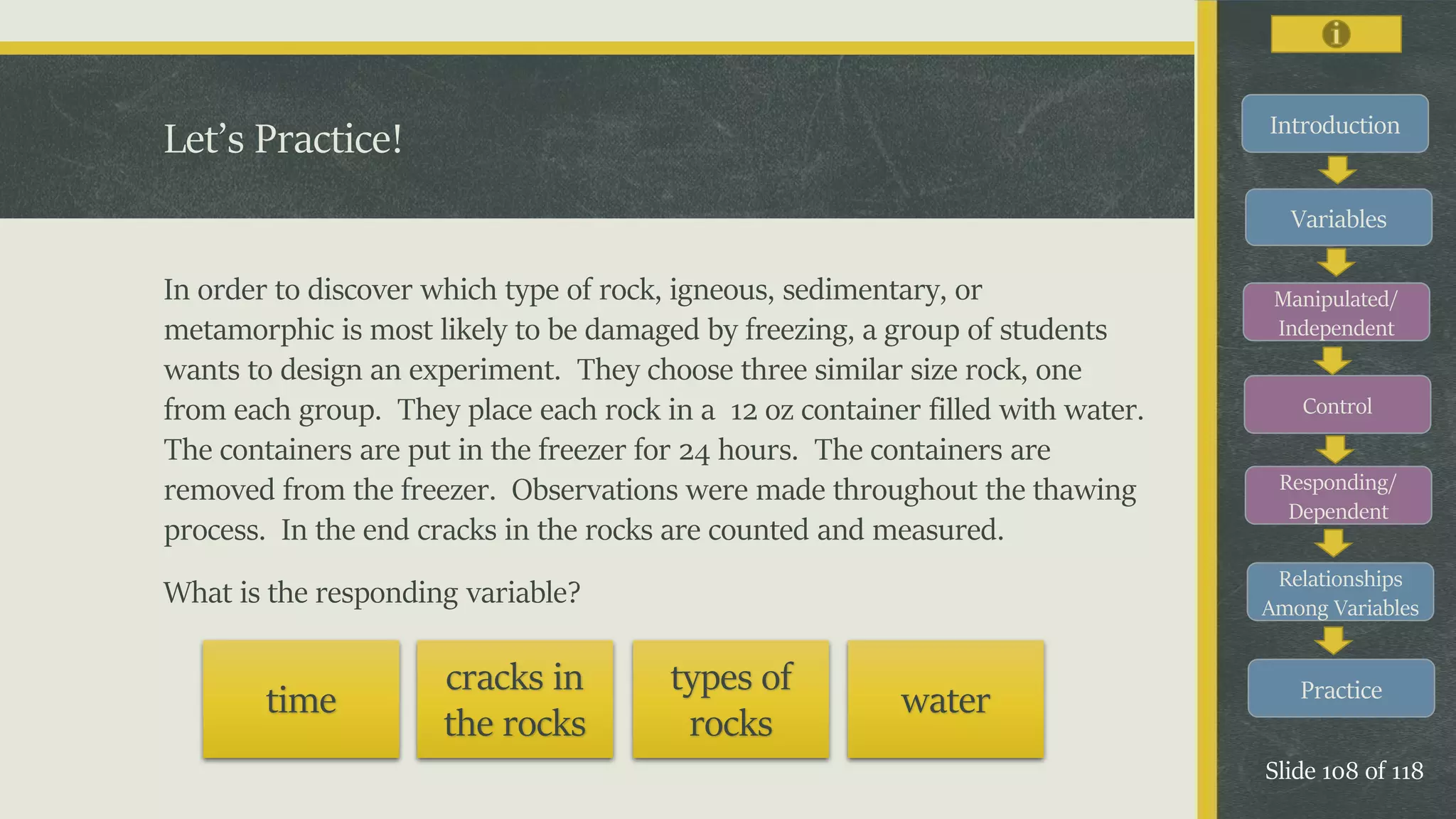

In order to discover which type of rock, igneous, sedimentary, or
metamorphic is most likely to be damaged by freezing, a group of students
wants to design an experiment. They choose three similar size rock, one
from each group. They place each rock in a 12 oz container filled with water.
The containers are put in the freezer for 24 hours. The containers are
removed from the freezer. Observations were made throughout the thawing
process. In the end cracks in the rocks are counted and measured.
What is the responding variable?
Let’s Practice!
time
cracks in
the rocks
types of
rocks
water
111. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice

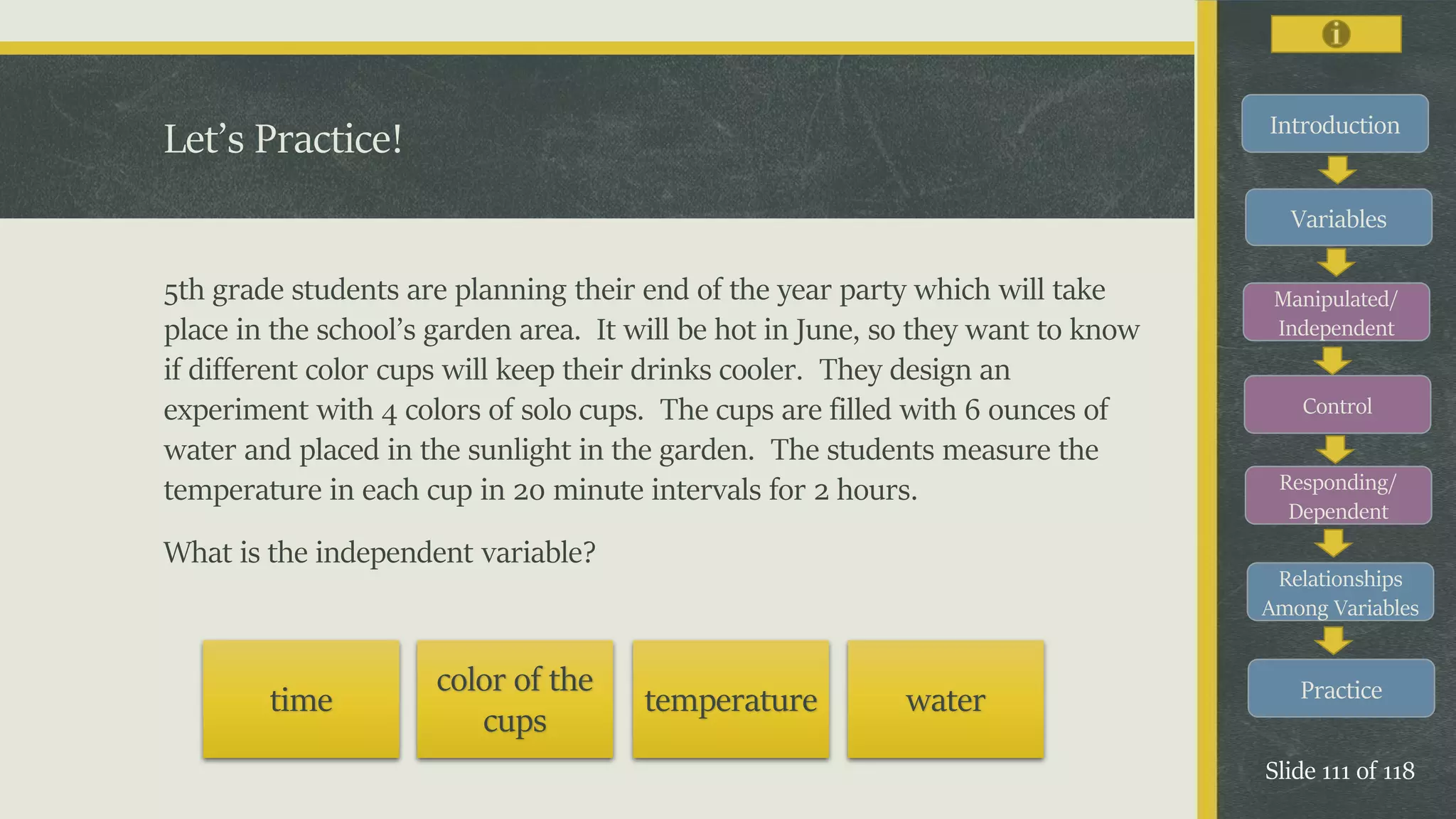

Slide 111 of 118
5th grade students are planning their end of the year party which will take
place in the school’s garden area. It will be hot in June, so they want to know
if different color cups will keep their drinks cooler. They design an
experiment with 4 colors of solo cups. The cups are filled with 6 ounces of
water and placed in the sunlight in the garden. The students measure the
temperature in each cup in 20 minute intervals for 2 hours.
What is the independent variable?
Let’s Practice!
time
color of the
cups
temperature water
114. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 114 of 118

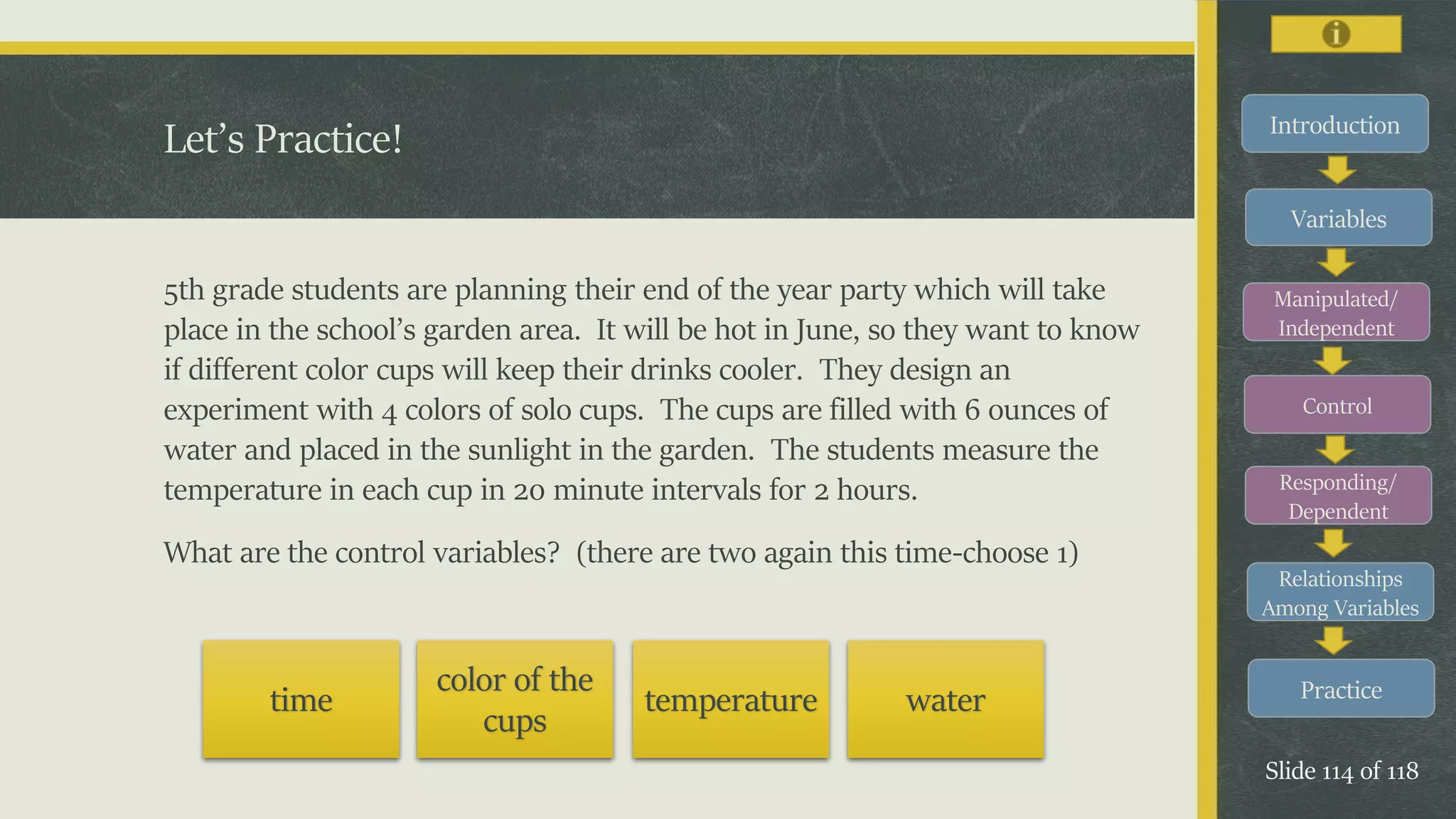

5th grade students are planning their end of the year party which will take
place in the school’s garden area. It will be hot in June, so they want to know
if different color cups will keep their drinks cooler. They design an
experiment with 4 colors of solo cups. The cups are filled with 6 ounces of
water and placed in the sunlight in the garden. The students measure the
temperature in each cup in 20 minute intervals for 2 hours.
What are the control variables? (there are two again this time-choose 1)
Let’s Practice!
time
color of the
cups
temperature water
117. Introduction
Variables
Manipulated/
Independent
Control
Responding/
Dependent
Relationships
Among Variables
Practice
Slide 117 of 118
5th grade students are planning their end of the year party which will take
place in the school’s garden area. It will be hot in June, so they want to know
if different color cups will keep their drinks cooler. They design an
experiment with 4 colors of solo cups. The cups are filled with 6 ounces of
water and placed in the sunlight in the garden. The students measure the
temperature in each cup in 20 minute intervals for 2 hours.
What is the dependent variable?
Let’s Practice!
time
color of the
cups
temperature water
