Using PostGIS to add some spatial flavor to your applications  Steven Citron-Pousty Developer Evangelist  deCarta

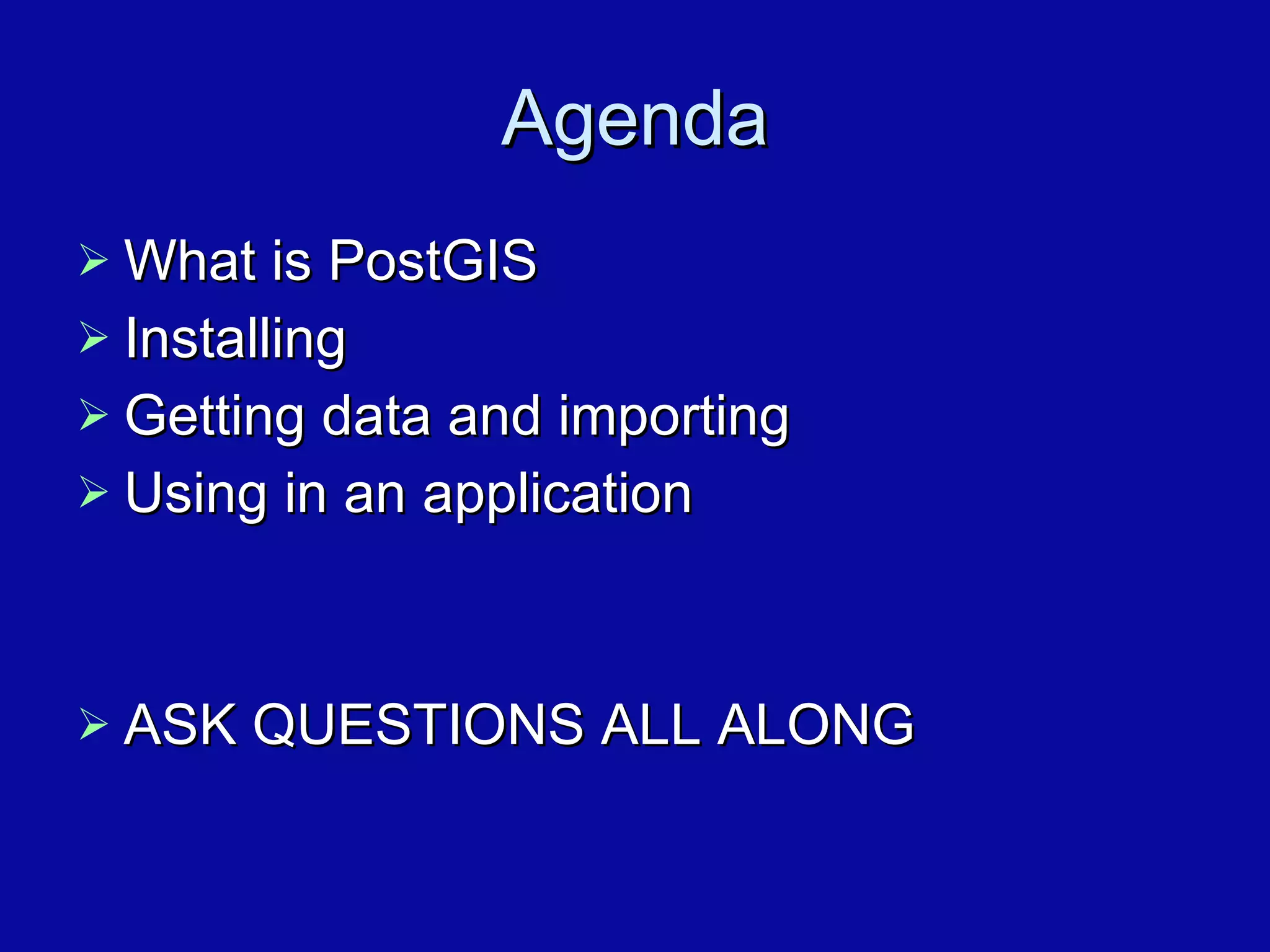

Agenda What is PostGIS Installing Getting data and importing Using in an application ASK QUESTIONS ALL ALONG

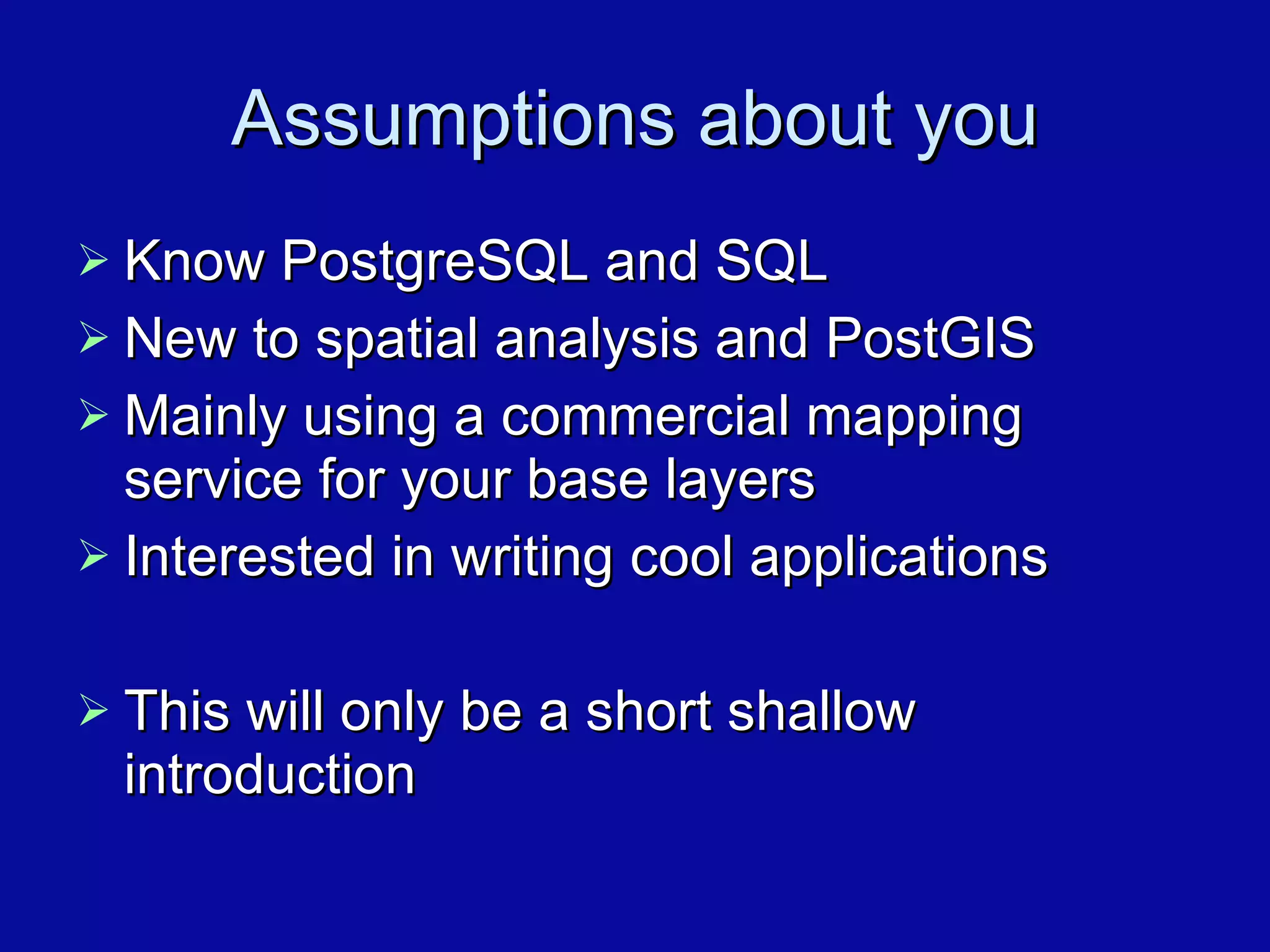

Assumptions about you Know PostgreSQL and SQL New to spatial analysis and PostGIS Mainly using a commercial mapping service for your base layers Interested in writing cool applications This will only be a short shallow introduction

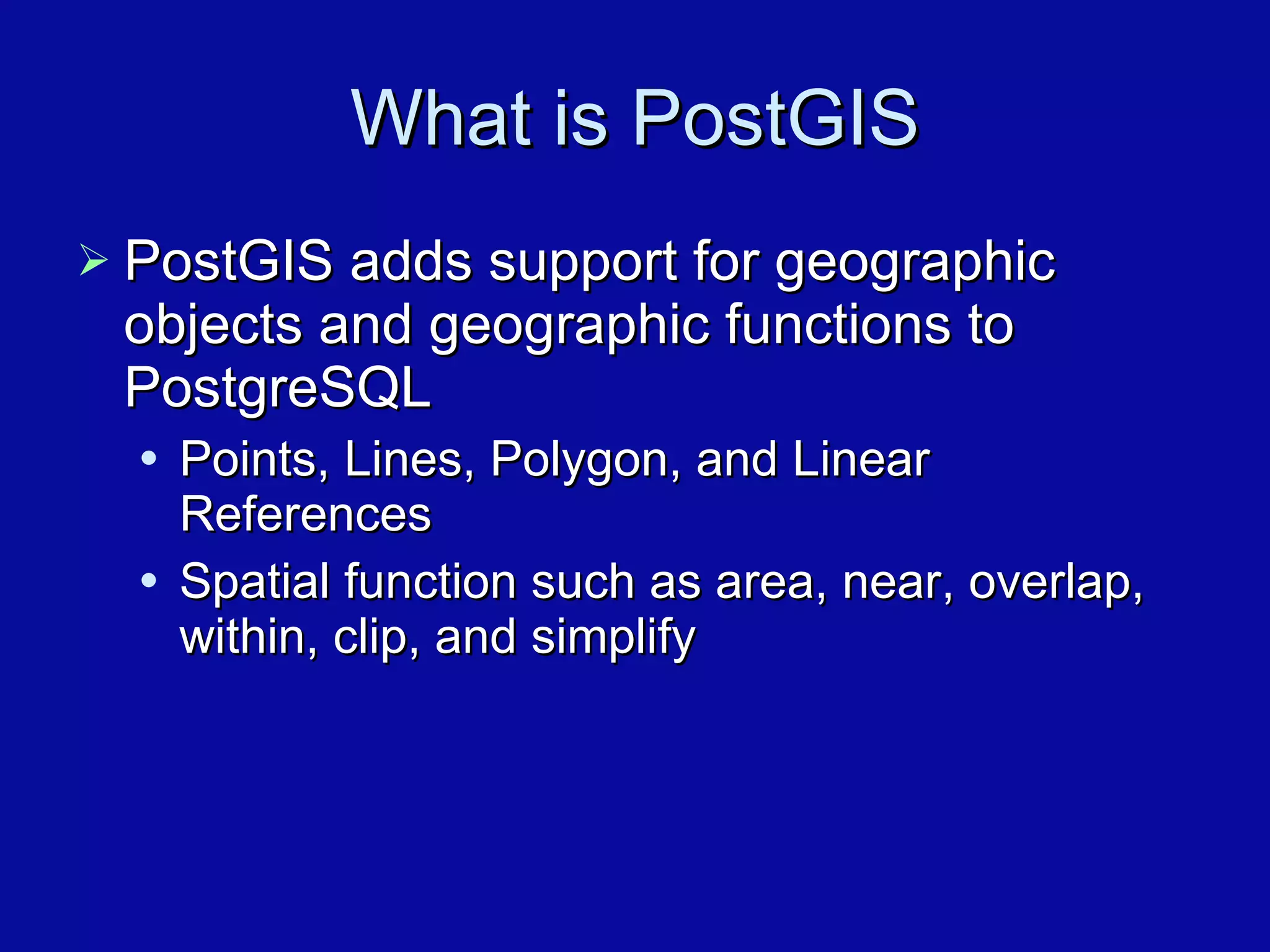

What is PostGIS PostGIS adds support for geographic objects and geographic functions to PostgreSQL Points, Lines, Polygon, and Linear References Spatial function such as area, near, overlap, within, clip, and simplify

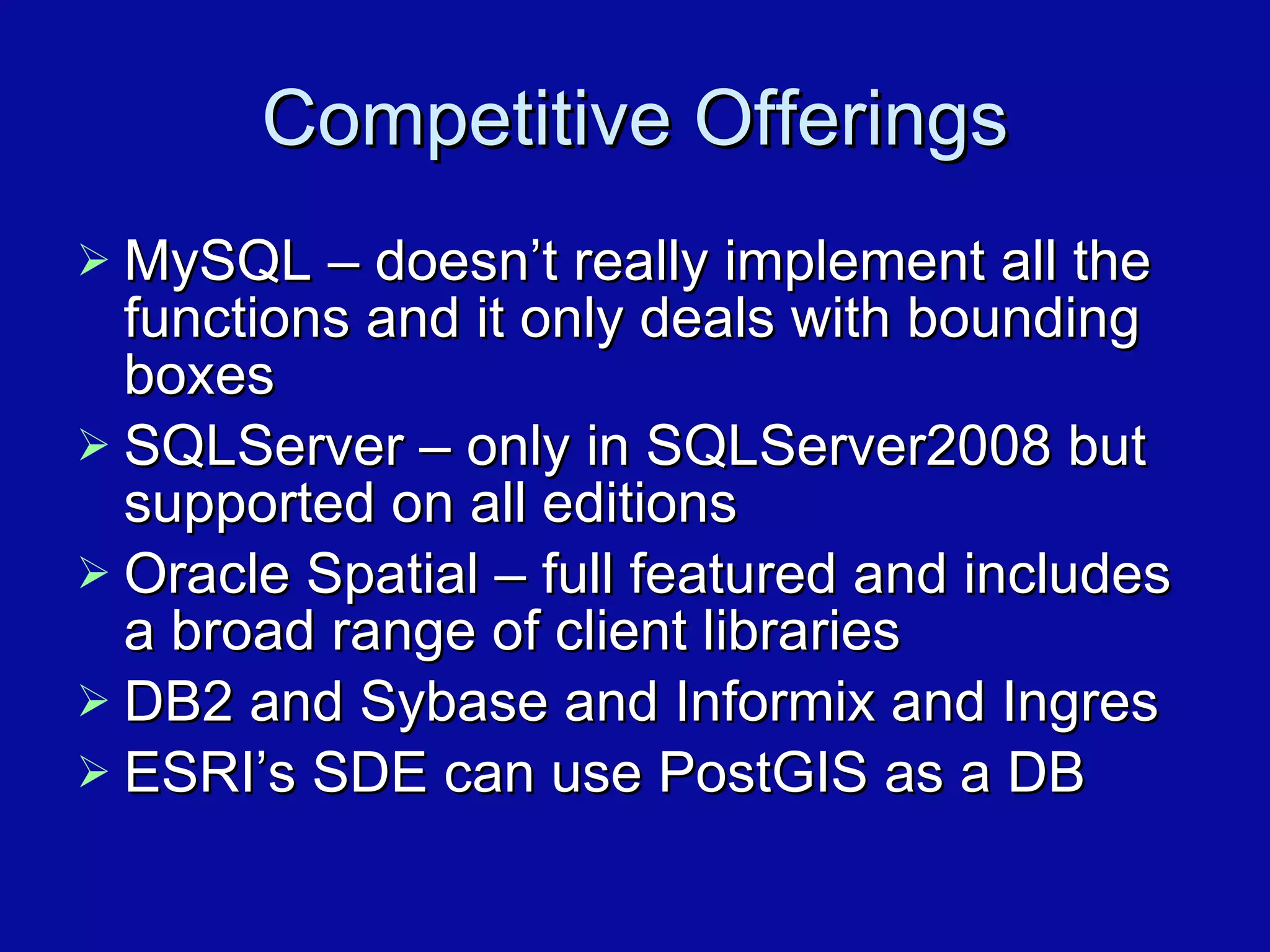

Competitive Offerings MySQL – doesn’t really implement all the functions and it only deals with bounding boxes SQLServer – only in SQLServer2008 but supported on all editions Oracle Spatial – full featured and includes a broad range of client libraries DB2 and Sybase and Informix and Ingres ESRI’s SDE can use PostGIS as a DB

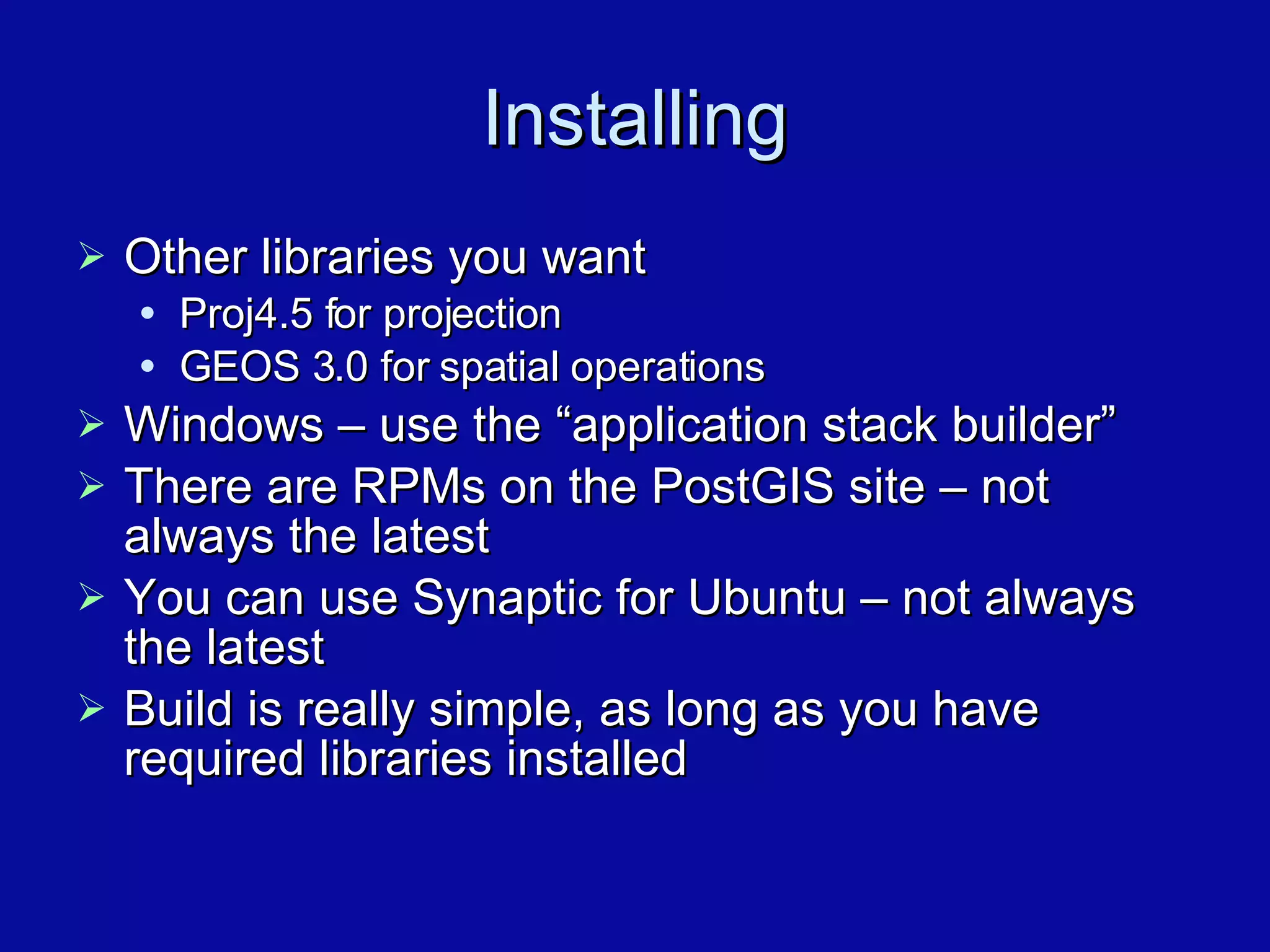

Installing Other libraries you want Proj4.5 for projection GEOS 3.0 for spatial operations Windows – use the “application stack builder” There are RPMs on the PostGIS site – not always the latest You can use Synaptic for Ubuntu – not always the latest Build is really simple, as long as you have required libraries installed

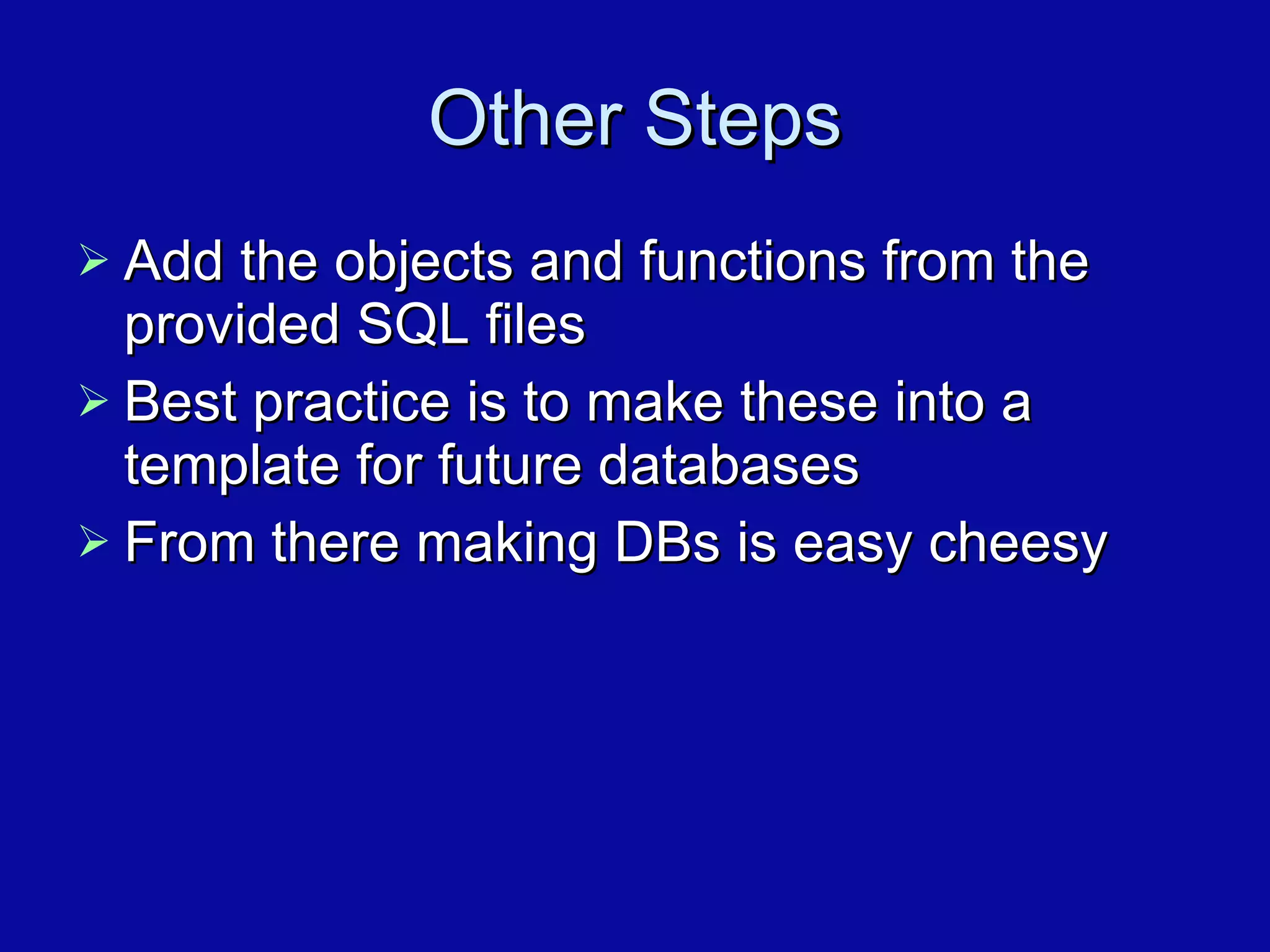

Other Steps Add the objects and functions from the provided SQL files Best practice is to make these into a template for future databases From there making DBs is easy cheesy

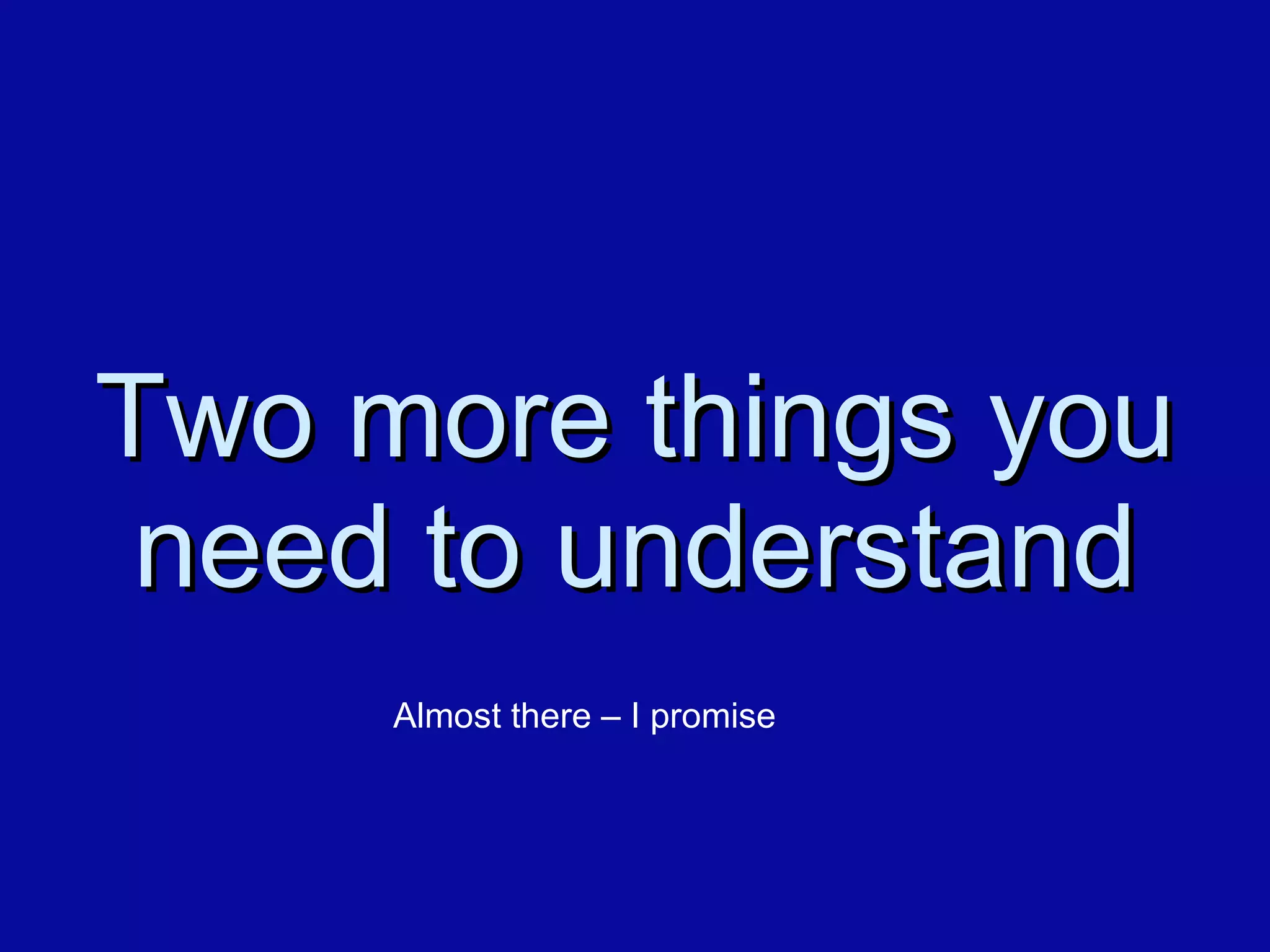

Two more things you need to understand Almost there – I promise

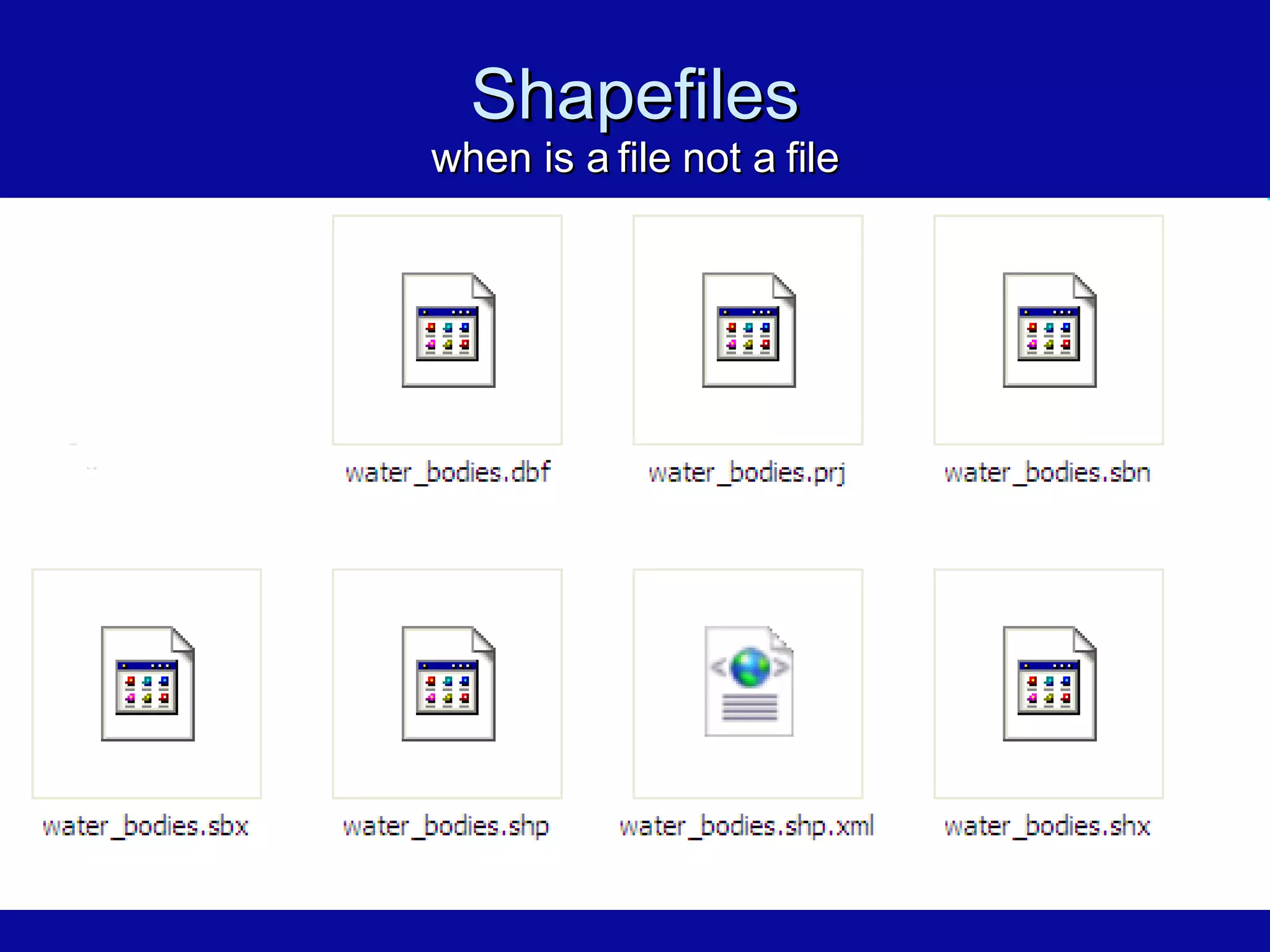

Shapefiles when is a file not a file

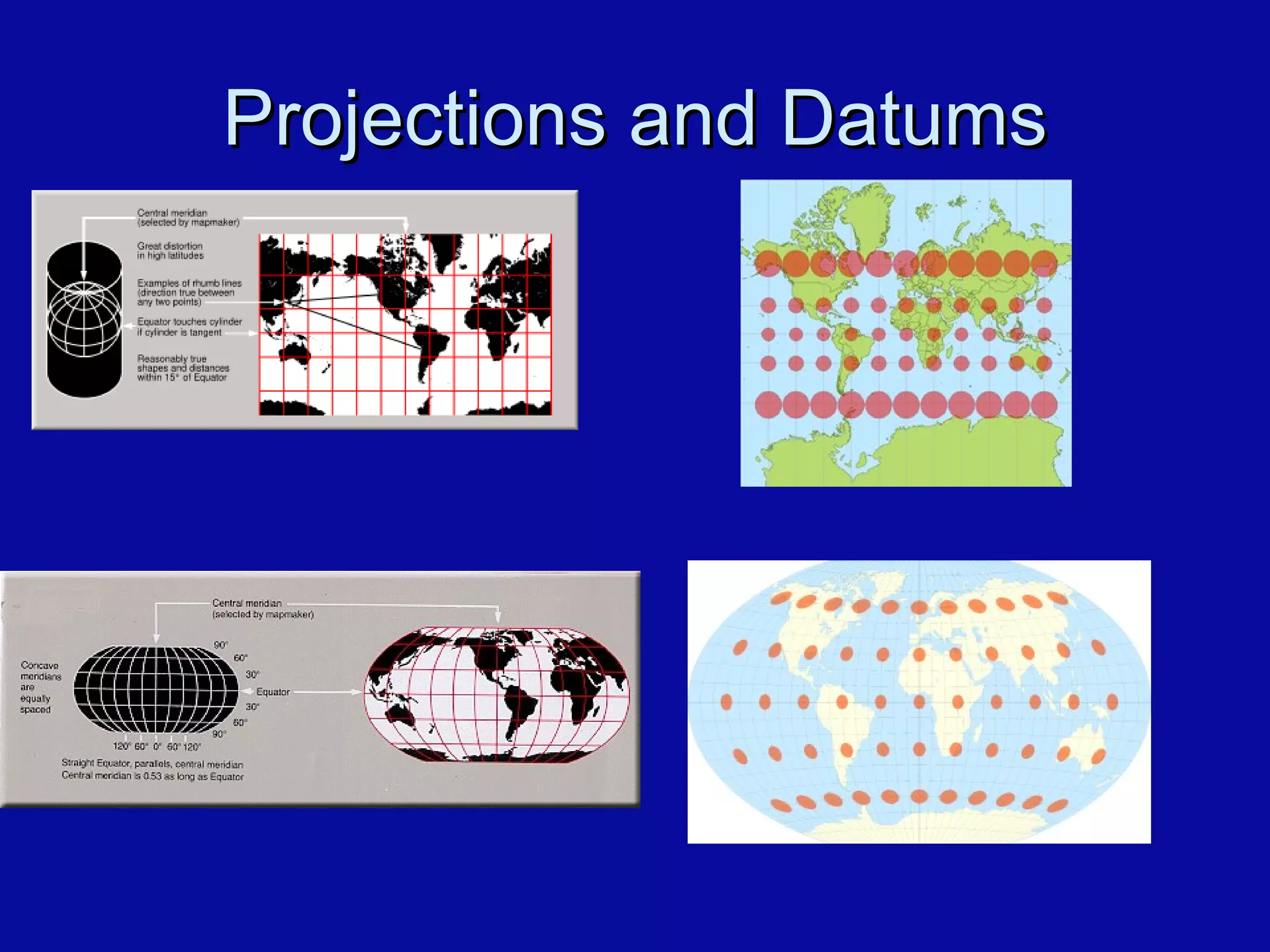

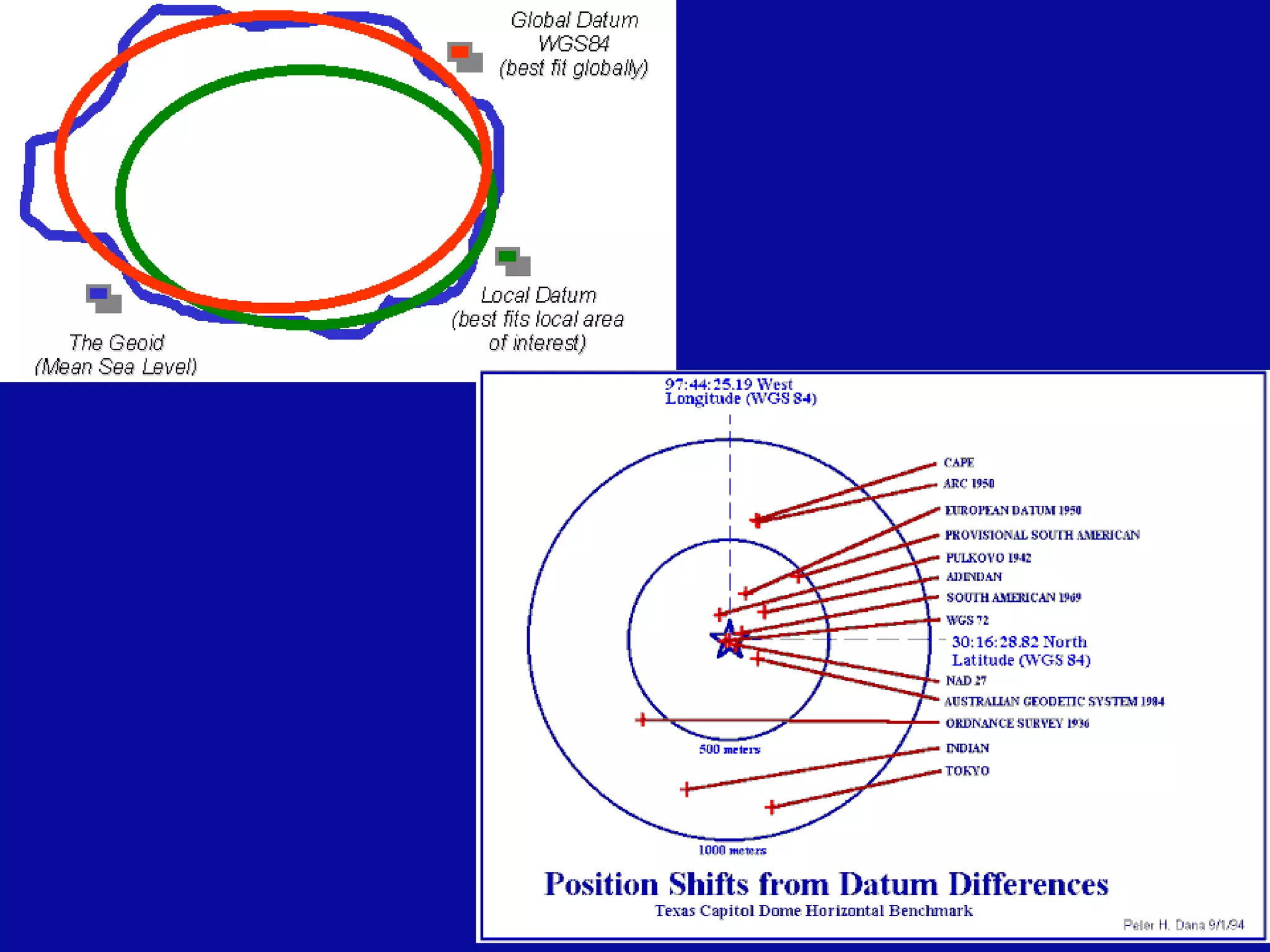

Projections and Datums

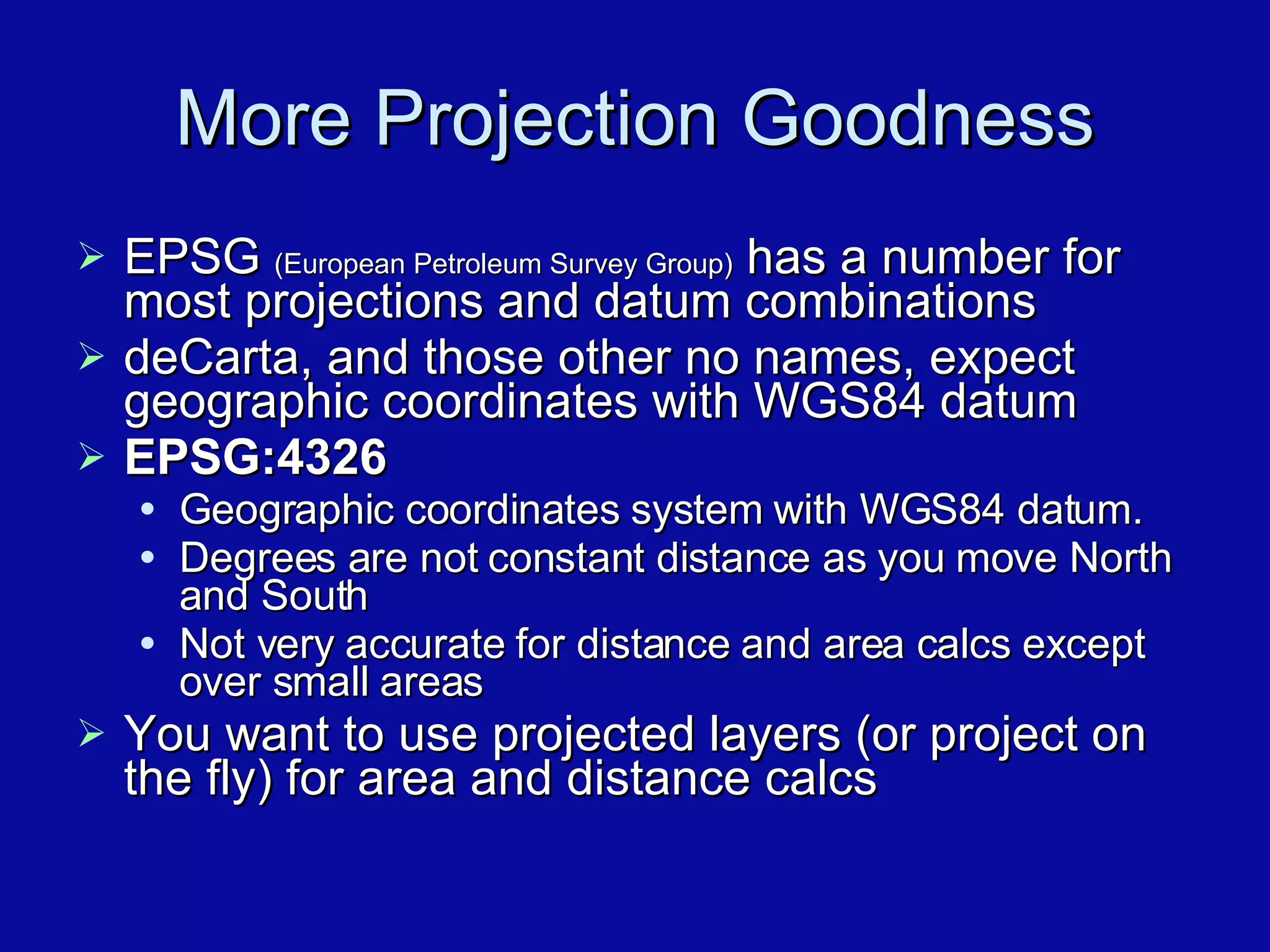

More Projection Goodness EPSG  (European Petroleum Survey Group)  has a number for most projections and datum combinations deCarta, and those other no names, expect geographic coordinates with WGS84 datum EPSG:4326   Geographic coordinates system with WGS84 datum.  Degrees are not constant distance as you move North and South Not very accurate for distance and area calcs except over small areas You want to use projected layers (or project on the fly) for area and distance calcs

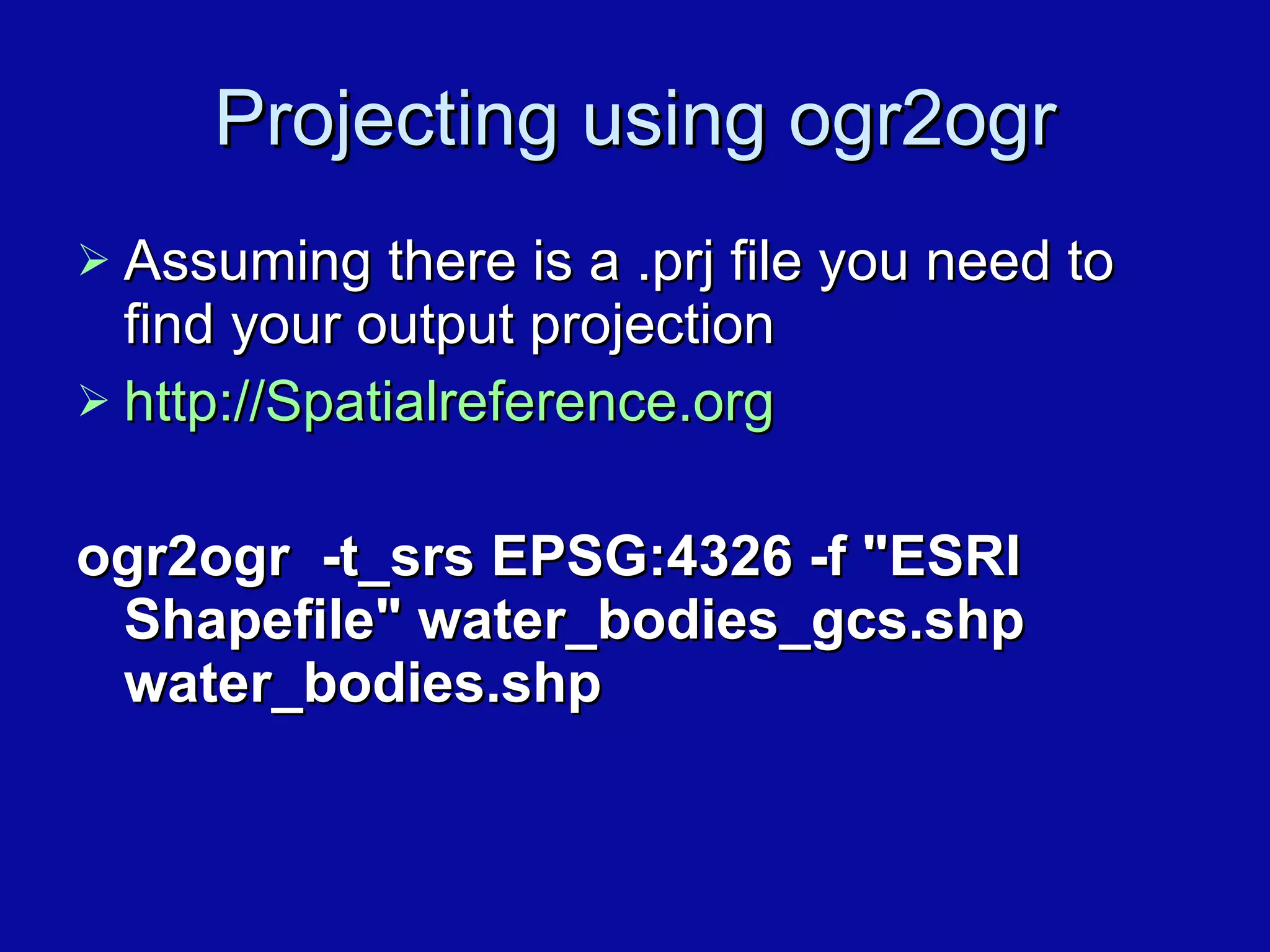

Projecting using ogr2ogr Assuming there is a .prj file you need to find your output projection http://Spatialreference.org ogr2ogr  -t_srs EPSG:4326 -f "ESRI Shapefile" water_bodies_gcs.shp water_bodies.shp

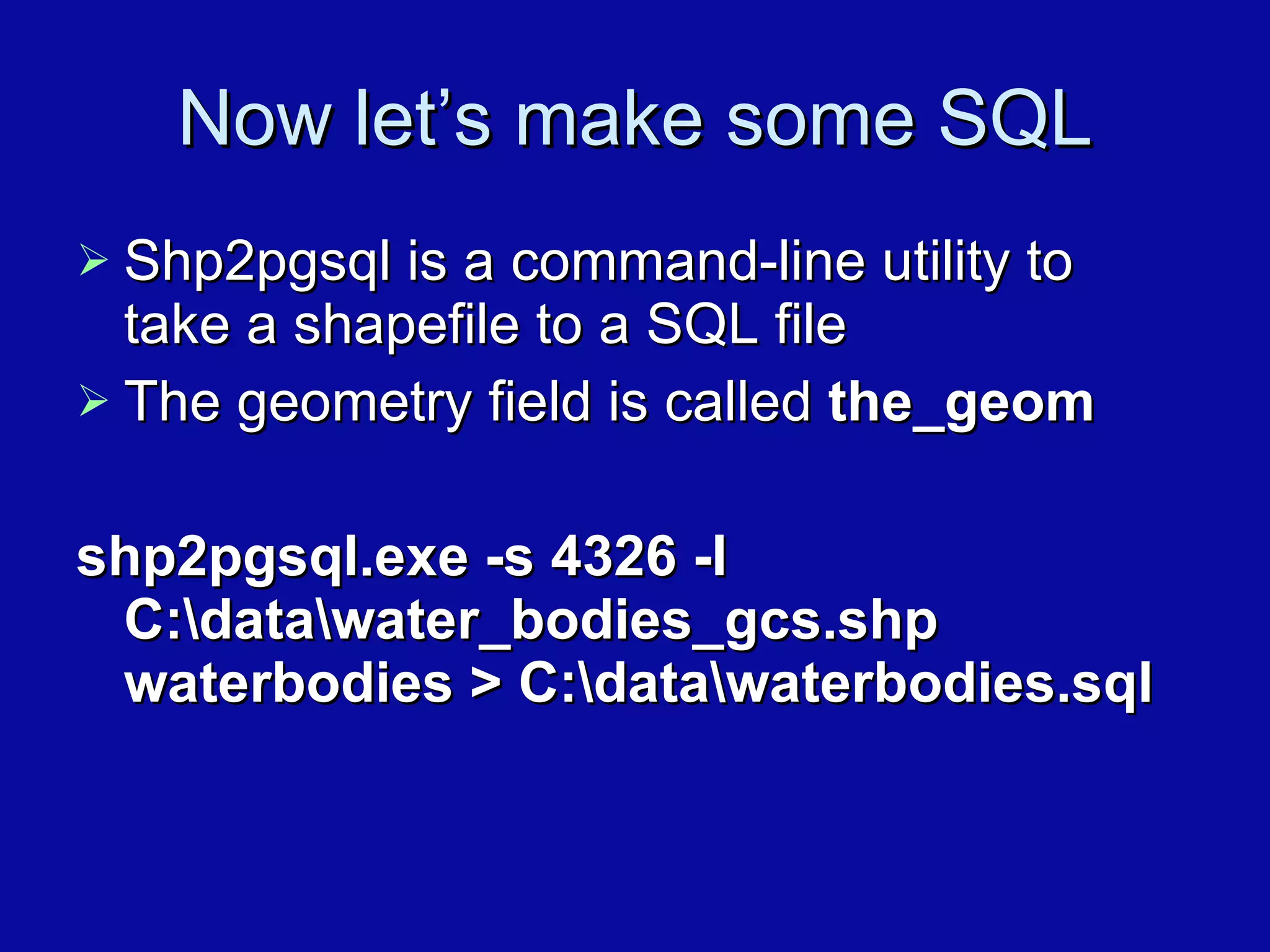

Now let’s make some SQL Shp2pgsql is a command-line utility to take a shapefile to a SQL file The geometry field is called  the_geom shp2pgsql.exe -s 4326 -I C:ataater_bodies_gcs.shp waterbodies > C:ataaterbodies.sql

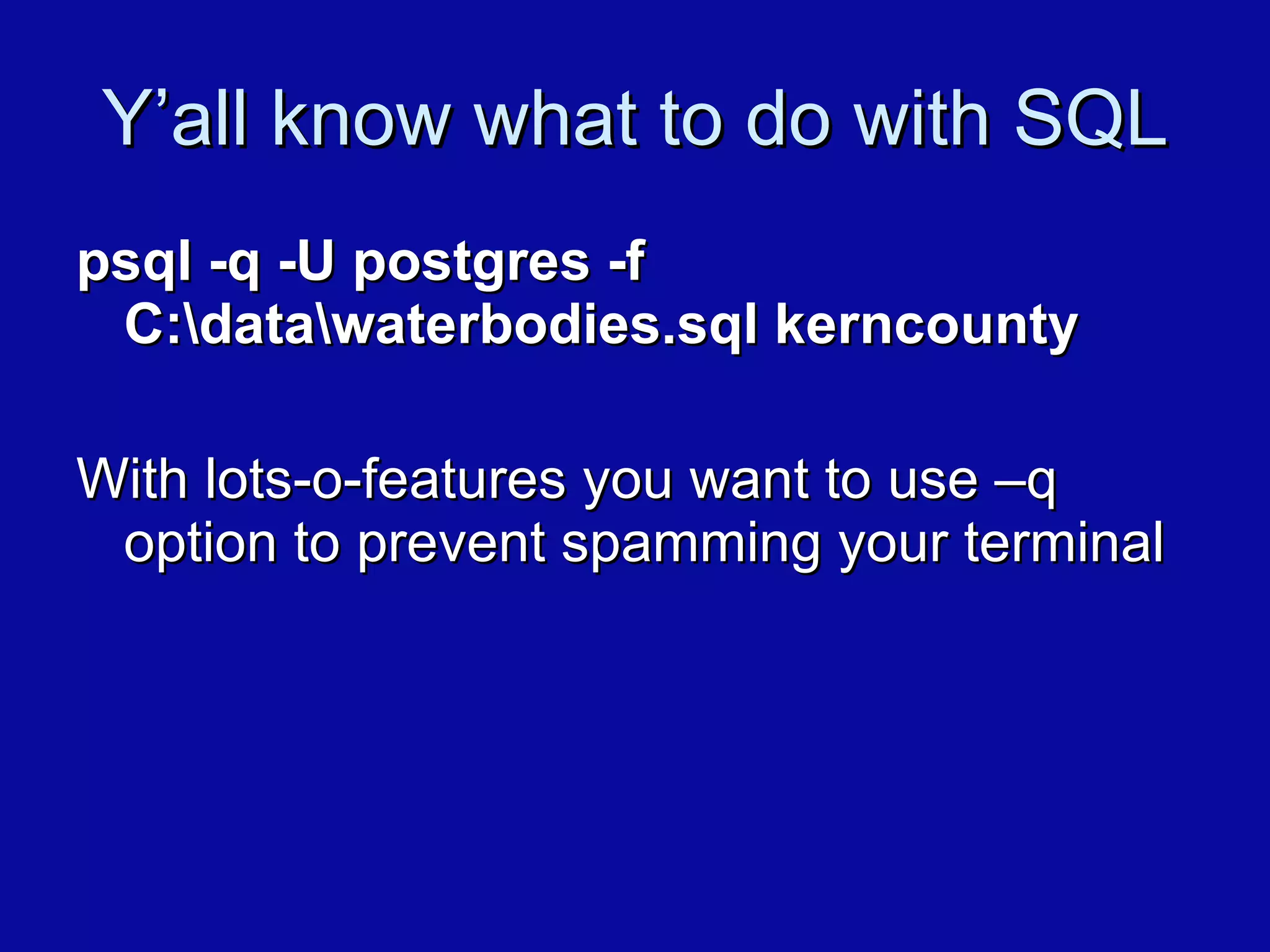

Y’all know what to do with SQL psql -q -U postgres -f C:ataaterbodies.sql kerncounty With lots-o-features you want to use –q option to prevent spamming your terminal

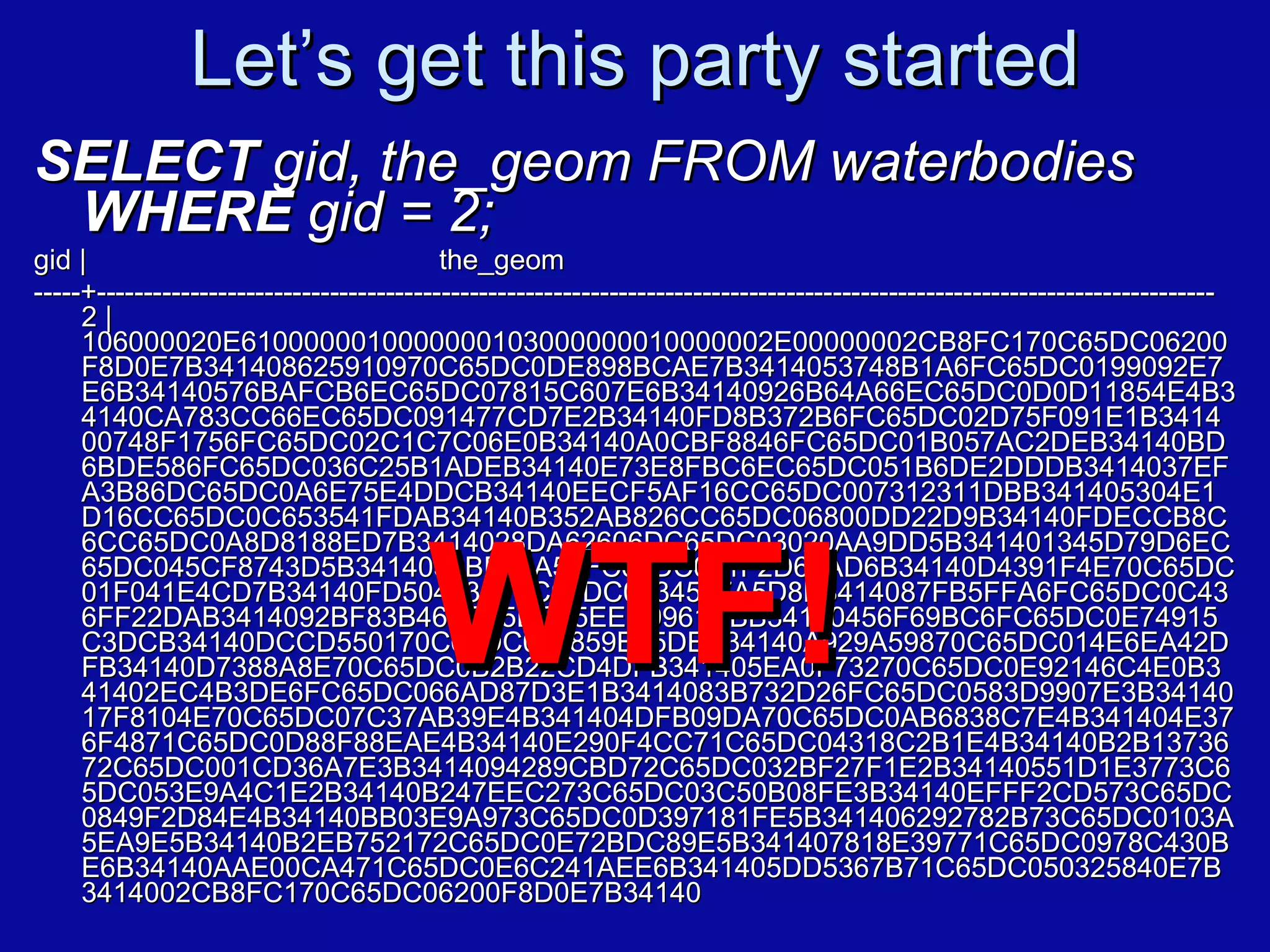

Let’s get this party started SELECT  gid, the_geom FROM waterbodies  WHERE  gid = 2; gid |  the_geom -----+------------------------------------------------------------------------------------------------------------------------  2 | 106000020E6100000010000000103000000010000002E00000002CB8FC170C65DC06200F8D0E7B341408625910970C65DC0DE898BCAE7B3414053748B1A6FC65DC0199092E7E6B34140576BAFCB6EC65DC07815C607E6B34140926B64A66EC65DC0D0D11854E4B34140CA783CC66EC65DC091477CD7E2B34140FD8B372B6FC65DC02D75F091E1B341400748F1756FC65DC02C1C7C06E0B34140A0CBF8846FC65DC01B057AC2DEB34140BD6BDE586FC65DC036C25B1ADEB34140E73E8FBC6EC65DC051B6DE2DDDB3414037EFA3B86DC65DC0A6E75E4DDCB34140EECF5AF16CC65DC007312311DBB341405304E1D16CC65DC0C653541FDAB34140B352AB826CC65DC06800DD22D9B34140FDECCB8C6CC65DC0A8D8188ED7B3414028DA62606DC65DC03020AA9DD5B341401345D79D6EC65DC045CF8743D5B3414039BFF5A56FC65DC071F2D61AD6B34140D4391F4E70C65DC01F041E4CD7B34140FD50463A70C65DC0534507A5D8B3414087FB5FFA6FC65DC0C436FF22DAB3414092BF83B46FC65DC05EEC9961DBB34140456F69BC6FC65DC0E74915C3DCB34140DCCD550170C65DC022859B35DEB34140A929A59870C65DC014E6EA42DFB34140D7388A8E70C65DC0B2B22CD4DFB341405EA0F73270C65DC0E92146C4E0B341402EC4B3DE6FC65DC066AD87D3E1B3414083B732D26FC65DC0583D9907E3B3414017F8104E70C65DC07C37AB39E4B341404DFB09DA70C65DC0AB6838C7E4B341404E376F4871C65DC0D88F88EAE4B34140E290F4CC71C65DC04318C2B1E4B34140B2B1373672C65DC001CD36A7E3B3414094289CBD72C65DC032BF27F1E2B34140551D1E3773C65DC053E9A4C1E2B34140B247EEC273C65DC03C50B08FE3B34140EFFF2CD573C65DC0849F2D84E4B34140BB03E9A973C65DC0D397181FE5B341406292782B73C65DC0103A5EA9E5B34140B2EB752172C65DC0E72BDC89E5B341407818E39771C65DC0978C430BE6B34140AAE00CA471C65DC0E6C241AEE6B341405DD5367B71C65DC050325840E7B3414002CB8FC170C65DC06200F8D0E7B34140 WTF!

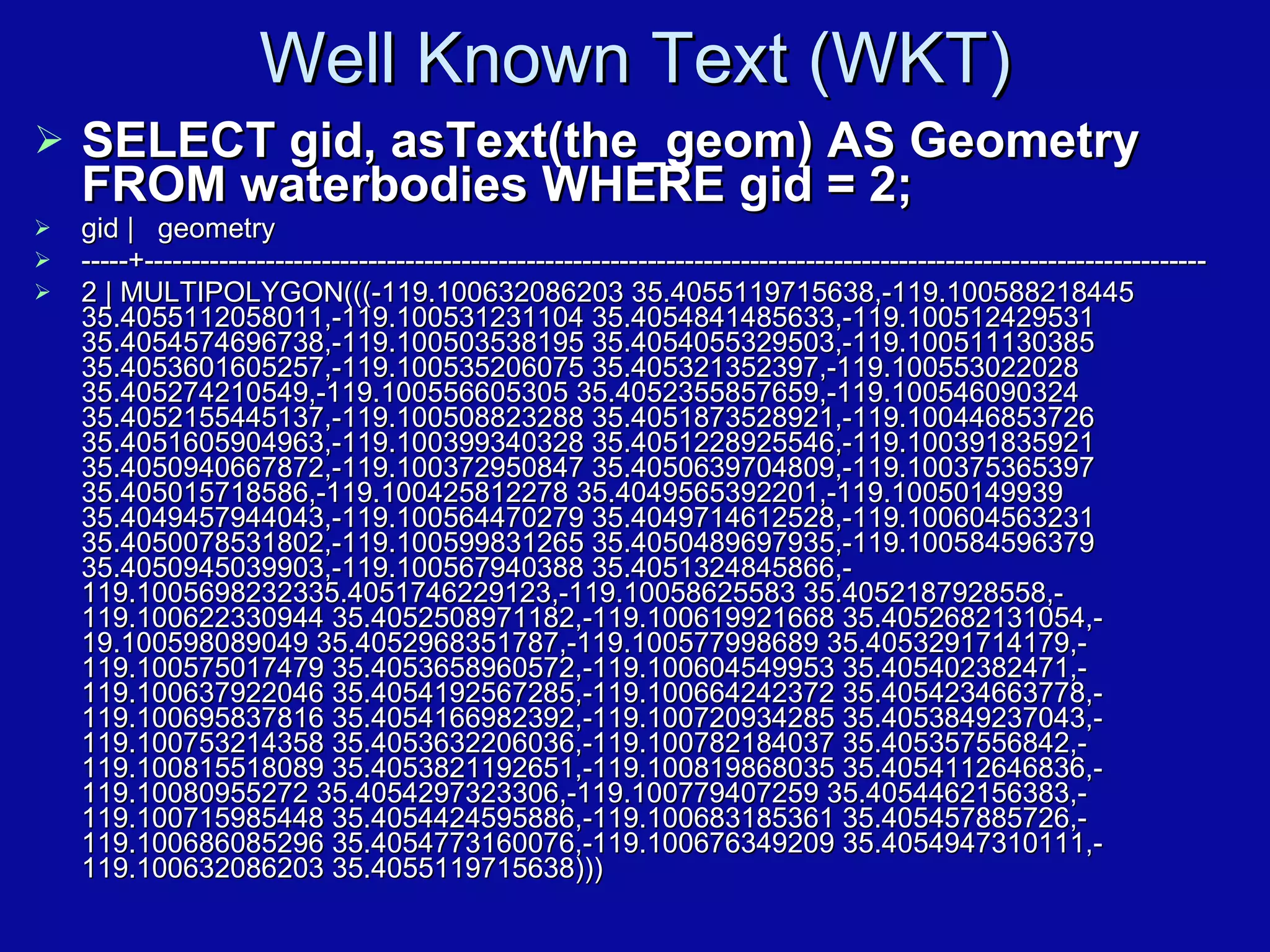

Well Known Text (WKT) SELECT gid, asText(the_geom) AS Geometry FROM waterbodies WHERE gid = 2; gid |  geometry -----+------------------------------------------------------------------------------------------------------------------ 2 | MULTIPOLYGON(((-119.100632086203 35.4055119715638,-119.100588218445 35.4055112058011,-119.100531231104 35.4054841485633,-119.100512429531 35.4054574696738,-119.100503538195 35.4054055329503,-119.100511130385 35.4053601605257,-119.100535206075 35.405321352397,-119.100553022028 35.405274210549,-119.100556605305 35.4052355857659,-119.100546090324 35.4052155445137,-119.100508823288 35.4051873528921,-119.100446853726 35.4051605904963,-119.100399340328 35.4051228925546,-119.100391835921 35.4050940667872,-119.100372950847 35.4050639704809,-119.100375365397 35.405015718586,-119.100425812278 35.4049565392201,-119.10050149939 35.4049457944043,-119.100564470279 35.4049714612528,-119.100604563231 35.4050078531802,-119.100599831265 35.4050489697935,-119.100584596379 35.4050945039903,-119.100567940388 35.4051324845866,-119.1005698232335.4051746229123,-119.10058625583 35.4052187928558,-119.100622330944 35.4052508971182,-119.100619921668 35.4052682131054,-19.100598089049 35.4052968351787,-119.100577998689 35.4053291714179,-119.100575017479 35.4053658960572,-119.100604549953 35.405402382471,-119.100637922046 35.4054192567285,-119.100664242372 35.4054234663778,-119.100695837816 35.4054166982392,-119.100720934285 35.4053849237043,-119.100753214358 35.4053632206036,-119.100782184037 35.405357556842,-119.100815518089 35.4053821192651,-119.100819868035 35.4054112646836,-119.10080955272 35.4054297323306,-119.100779407259 35.4054462156383,-119.100715985448 35.4054424595886,-119.100683185361 35.405457885726,-119.100686085296 35.4054773160076,-119.100676349209 35.4054947310111,-119.100632086203 35.4055119715638)))

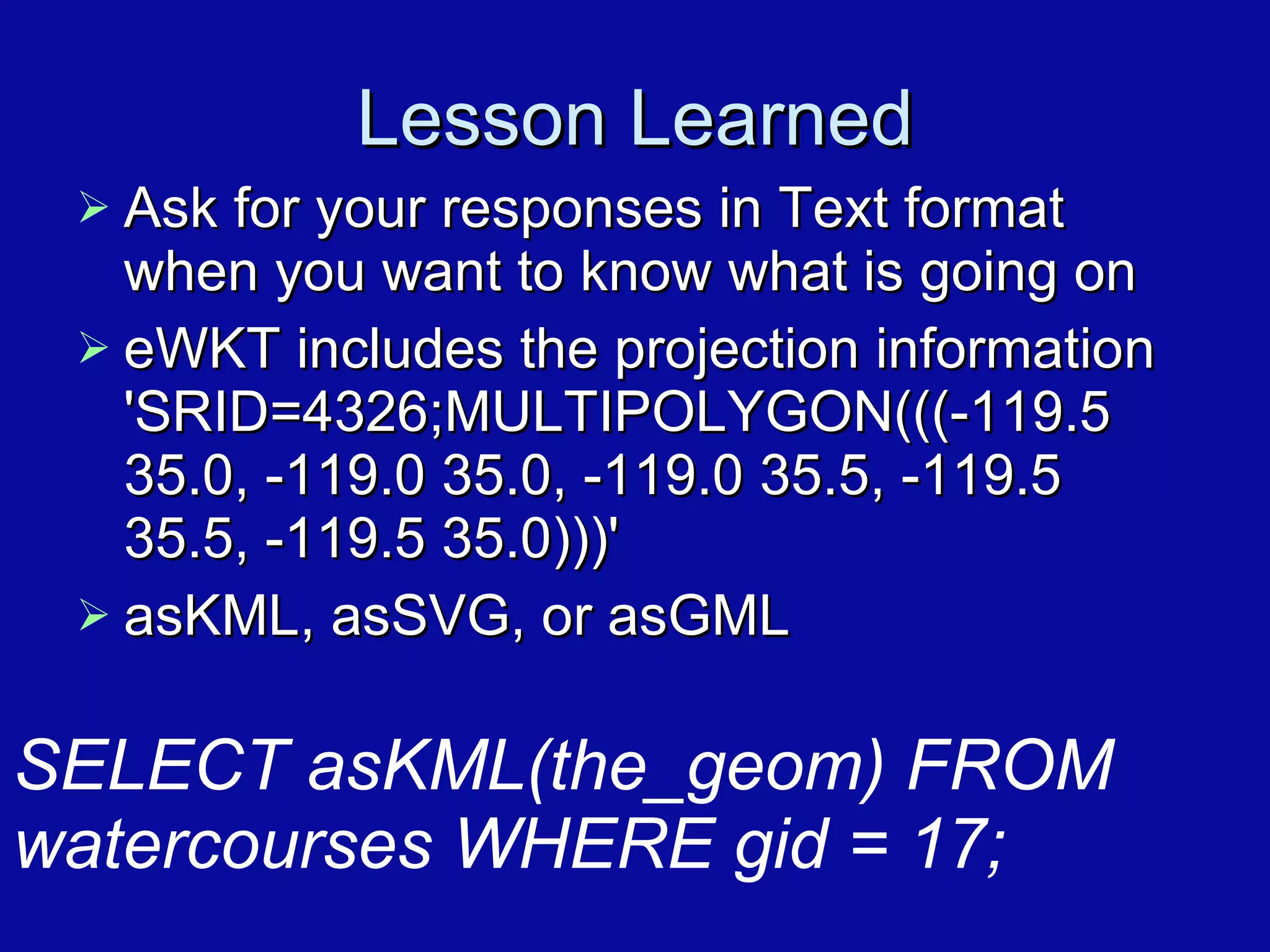

Lesson Learned Ask for your responses in Text format when you want to know what is going on eWKT includes the projection information 'SRID=4326;MULTIPOLYGON(((-119.5 35.0, -119.0 35.0, -119.0 35.5, -119.5 35.5, -119.5 35.0)))' asKML, asSVG, or asGML SELECT asKML(the_geom) FROM  watercourses WHERE gid = 17;

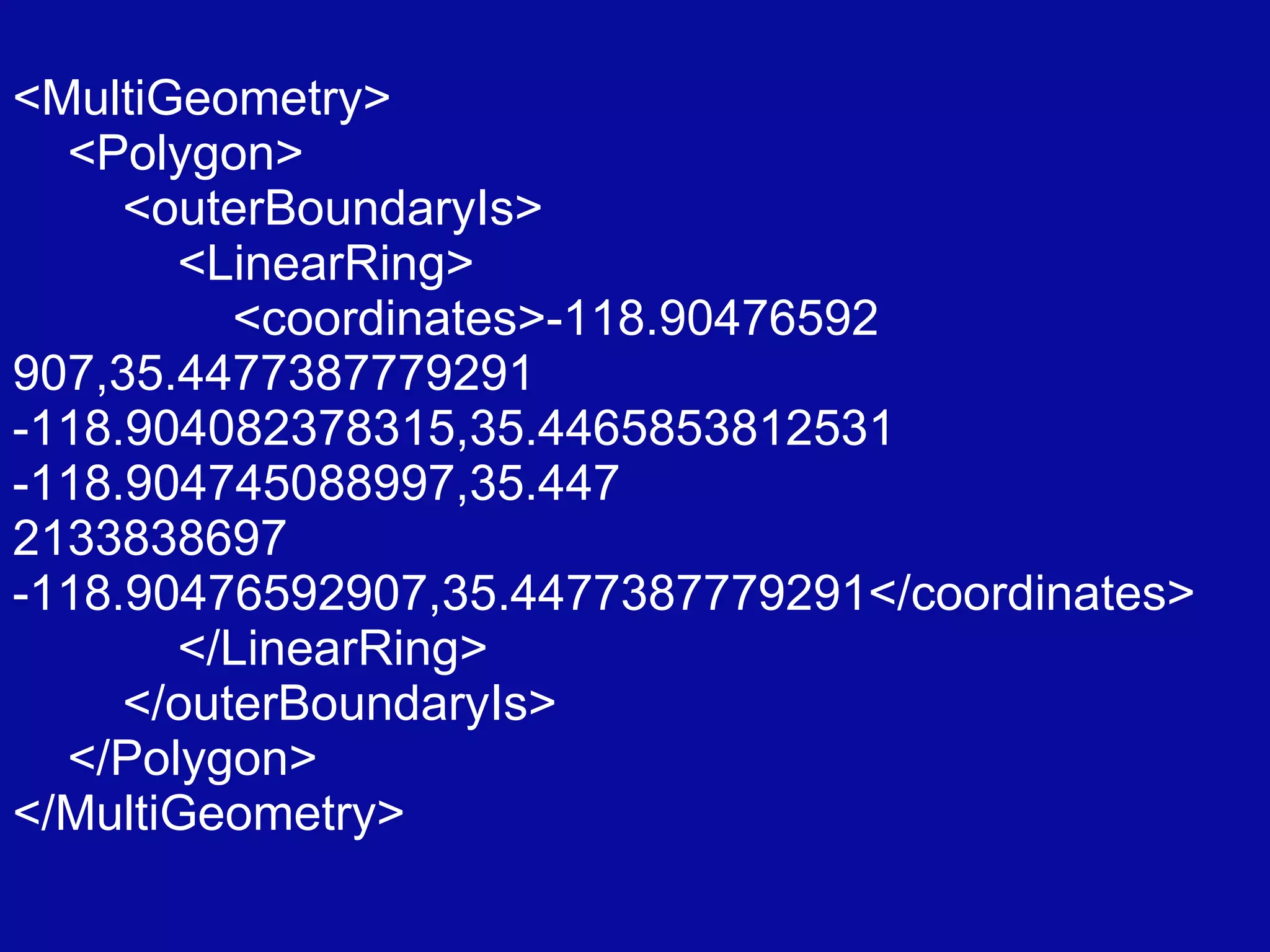

<MultiGeometry> <Polygon> <outerBoundaryIs> <LinearRing> <coordinates>-118.90476592 907,35.4477387779291  -118.904082378315,35.4465853812531  -118.904745088997,35.447 2133838697  -118.90476592907,35.4477387779291</coordinates> </LinearRing> </outerBoundaryIs> </Polygon> </MultiGeometry>

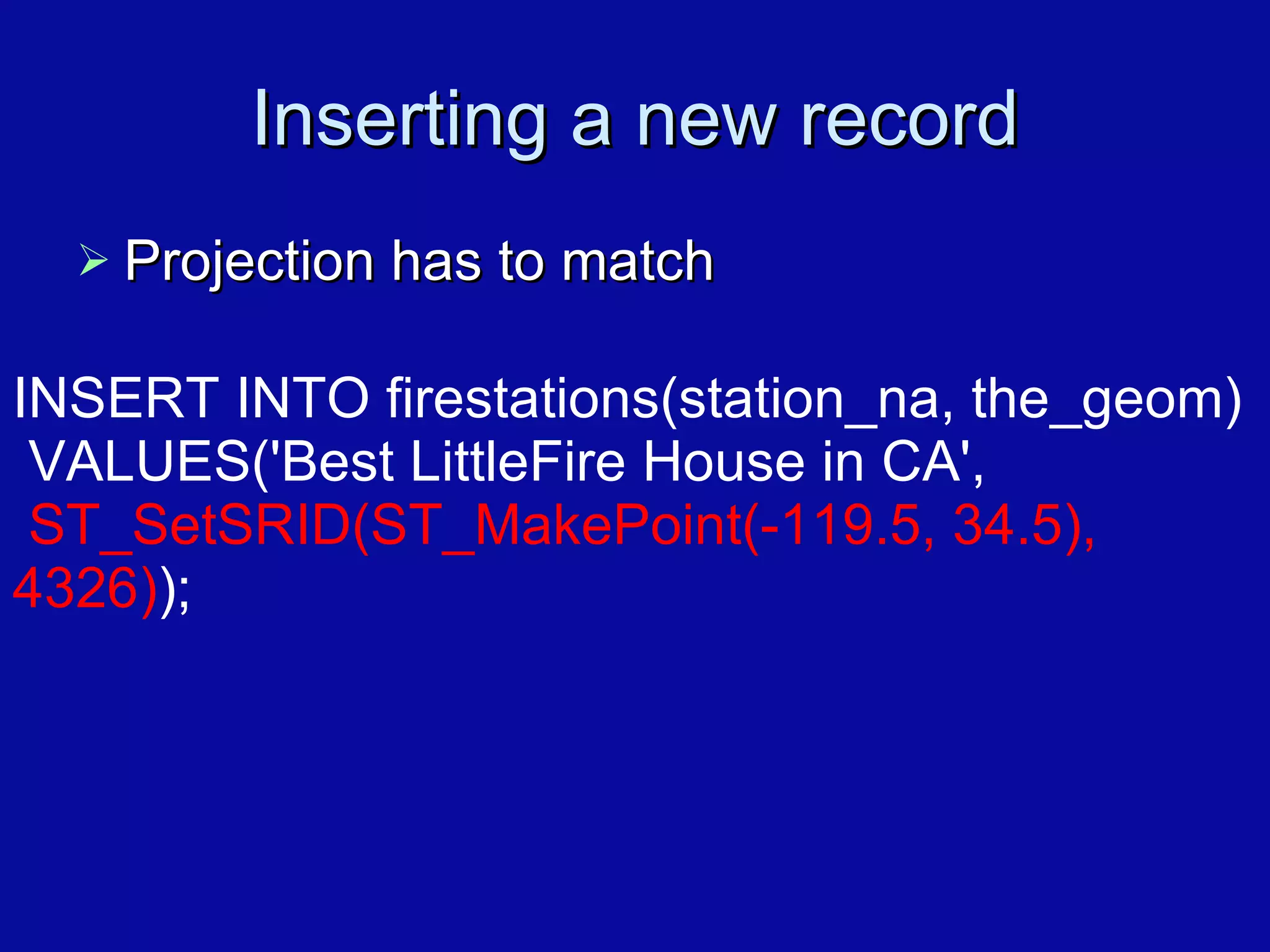

Inserting a new record Projection has to match INSERT INTO firestations(station_na, the_geom) VALUES('Best LittleFire House in CA', ST_SetSRID(ST_MakePoint(-119.5, 34.5), 4326) );

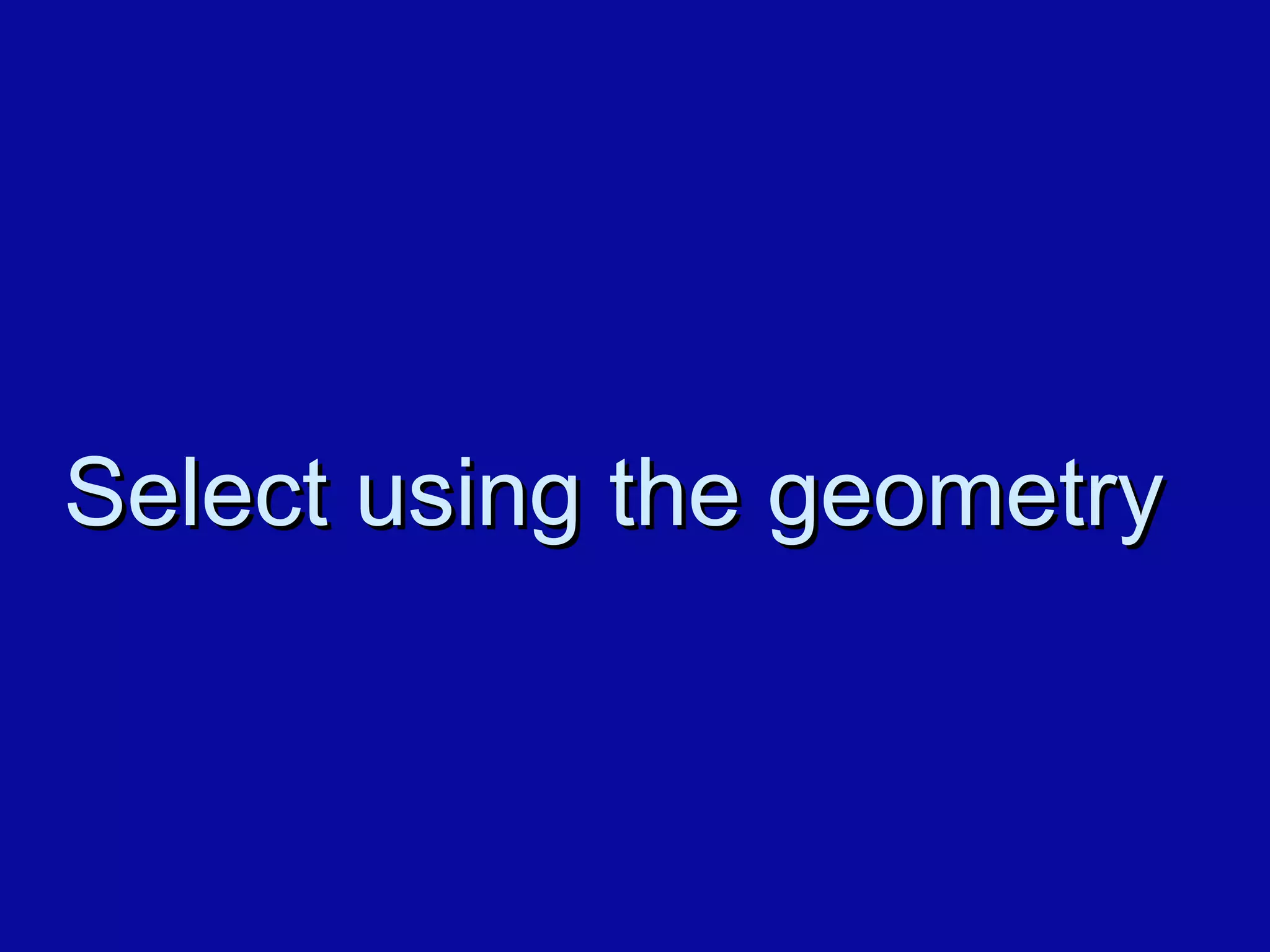

Select using the geometry

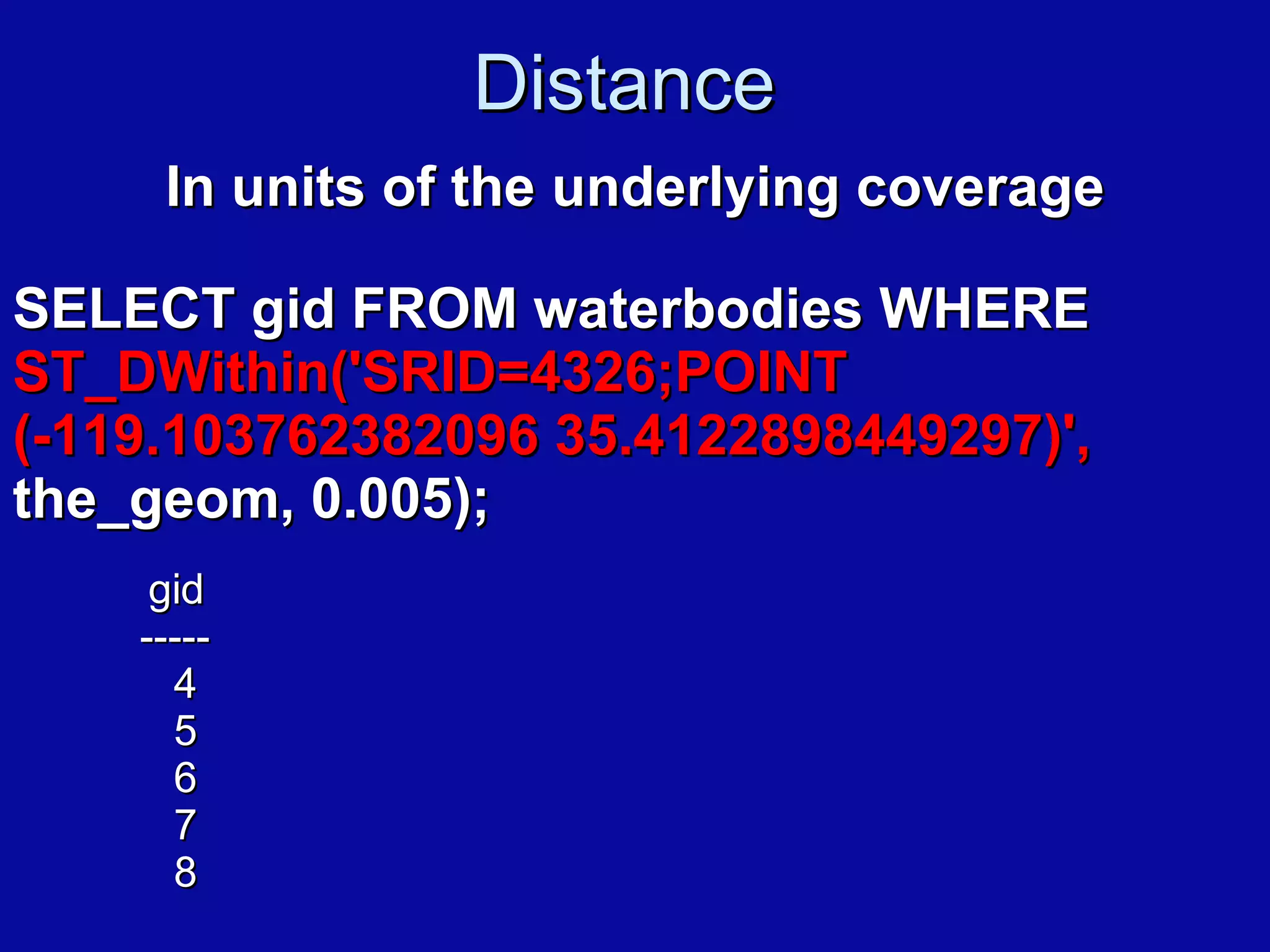

Distance  In units of the underlying coverage SELECT gid FROM waterbodies WHERE  ST_DWithin('SRID=4326;POINT (-119.103762382096 35.4122898449297)',  the_geom, 0.005);   gid -----   4   5   6   7   8

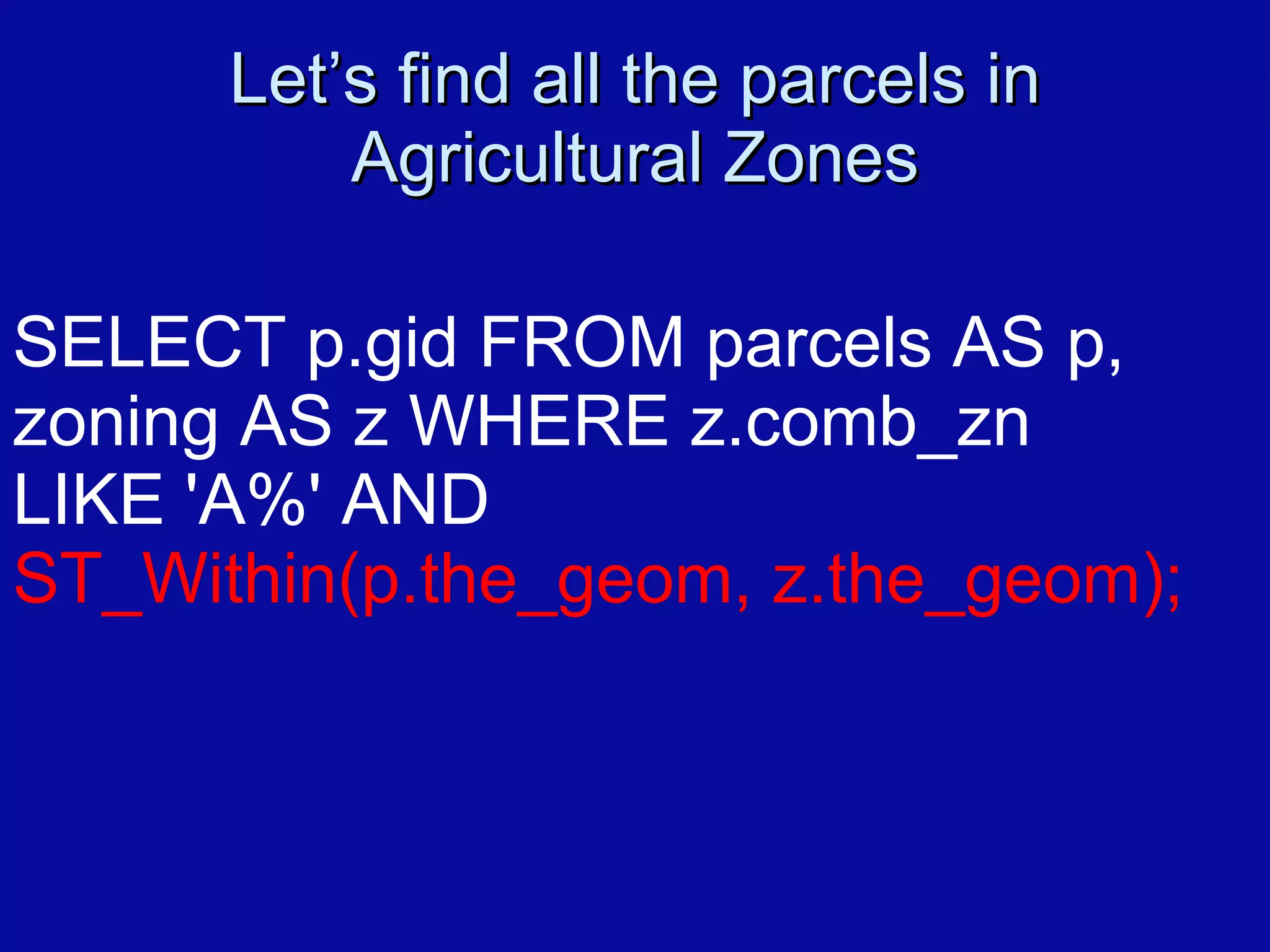

Let’s find all the parcels in Agricultural Zones SELECT p.gid FROM parcels AS p,  zoning AS z WHERE z.comb_zn  LIKE 'A%' AND  ST_Within(p.the_geom, z.the_geom);

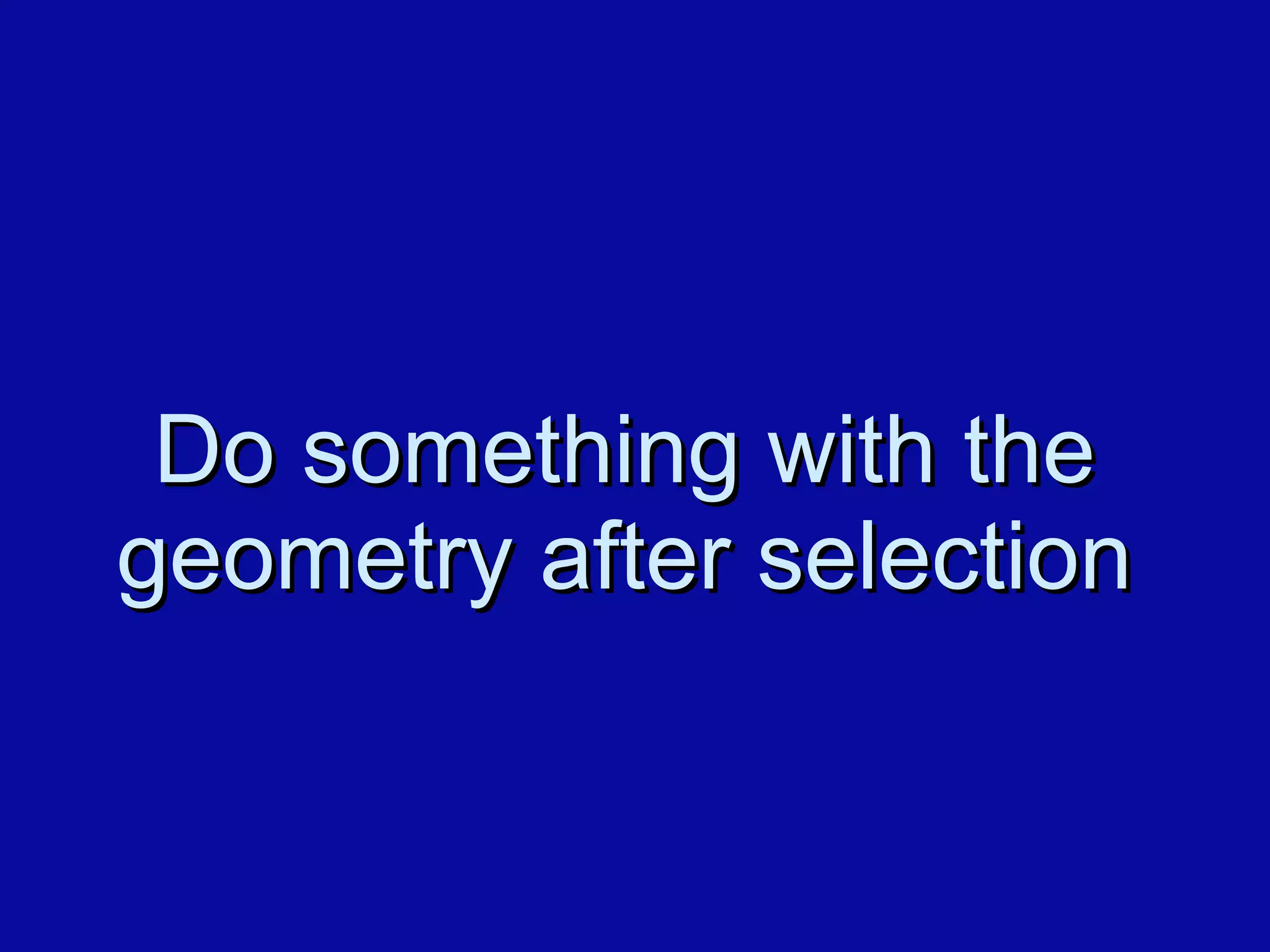

Do something with the geometry after selection

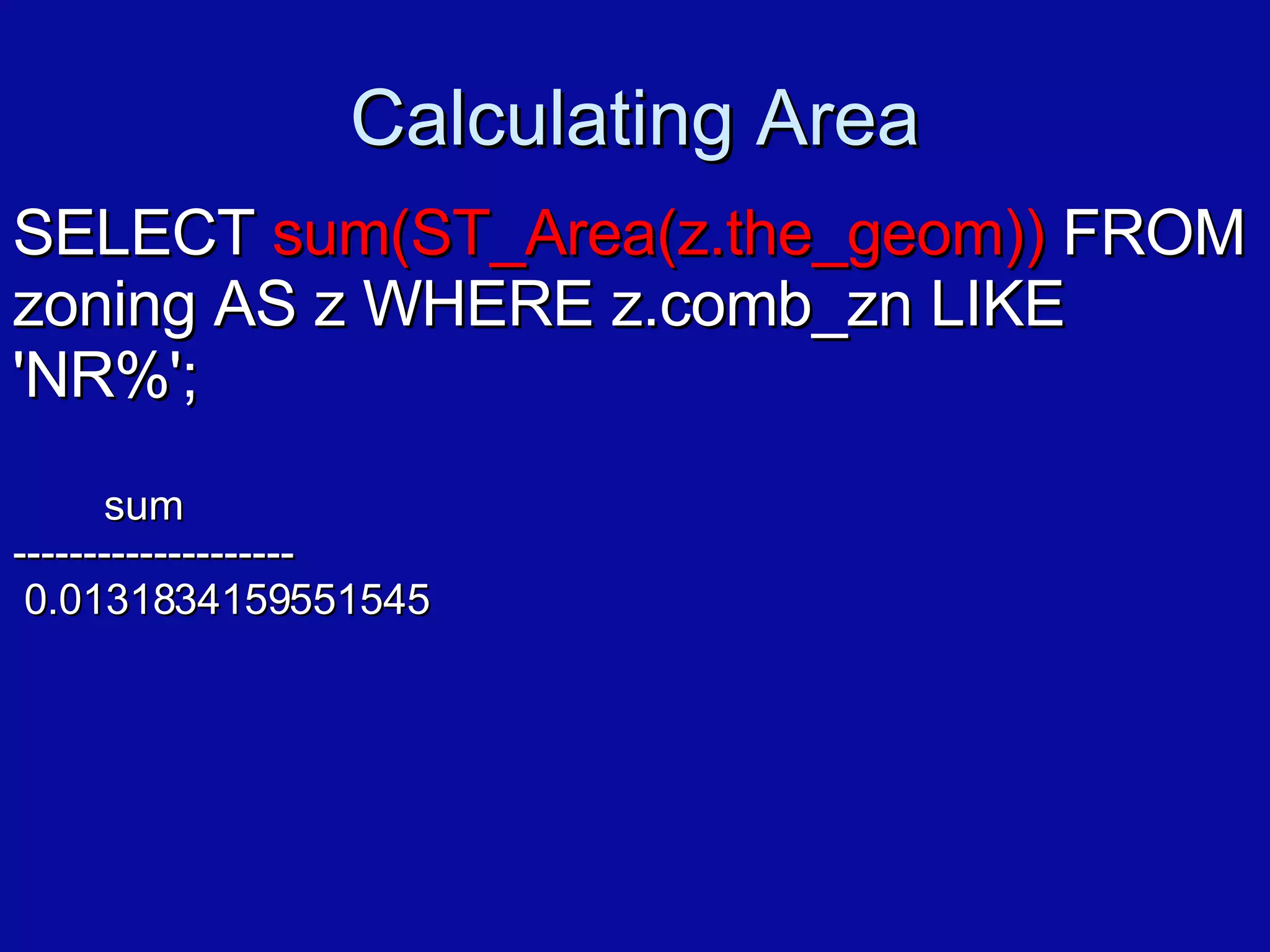

Calculating Area SELECT  sum(ST_Area(z.the_geom))  FROM zoning AS z WHERE z.comb_zn LIKE 'NR%'; sum -------------------- 0.0131834159551545

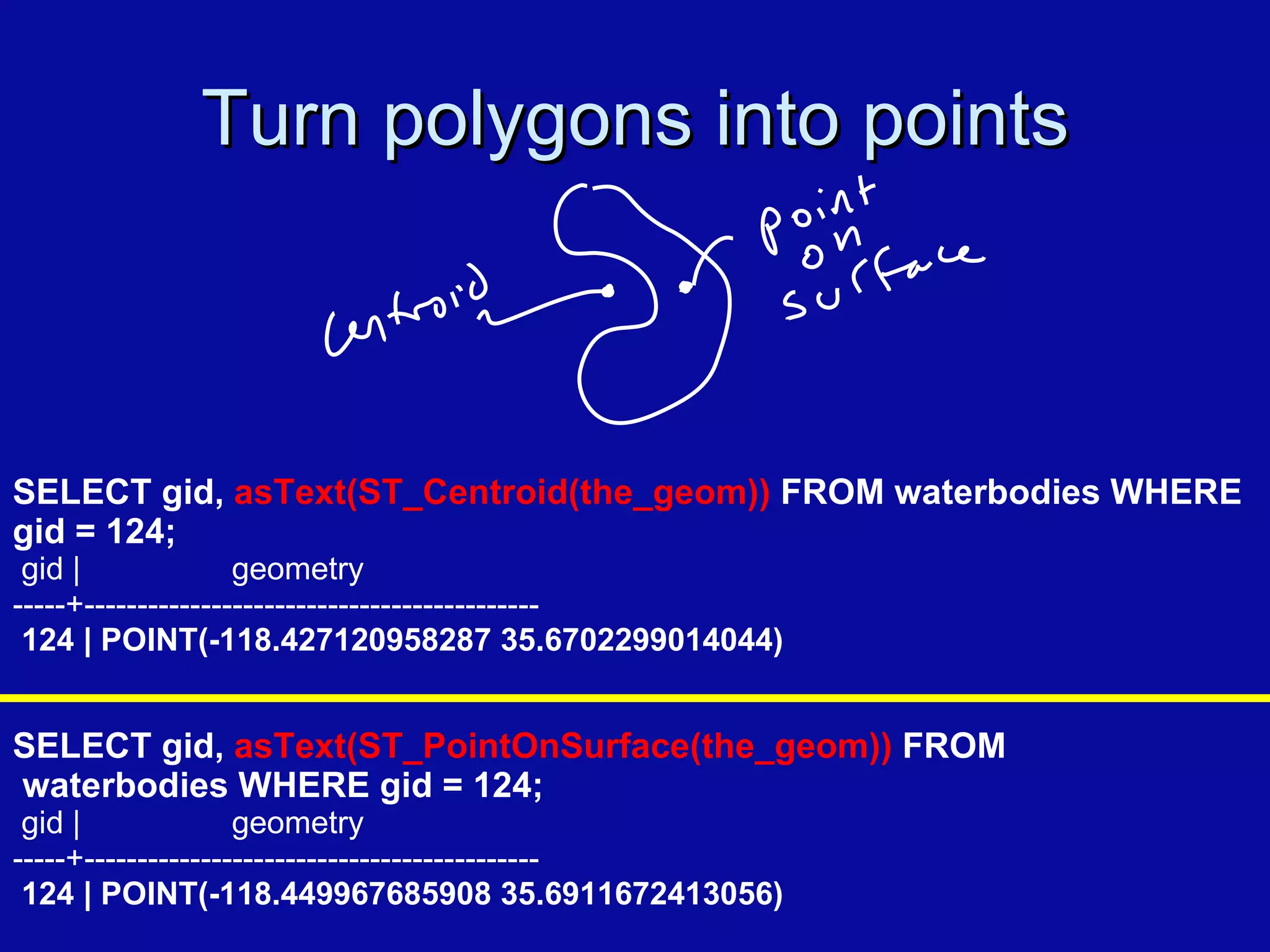

Turn polygons into points SELECT gid,  asText(ST_Centroid(the_geom))  FROM waterbodies WHERE gid = 124; gid |  geometry -----+------------------------------------------- 124 | POINT(-118.427120958287 35.6702299014044) SELECT gid,  asText(ST_PointOnSurface(the_geom))  FROM waterbodies WHERE gid = 124; gid |  geometry -----+------------------------------------------- 124 | POINT(-118.449967685908 35.6911672413056)

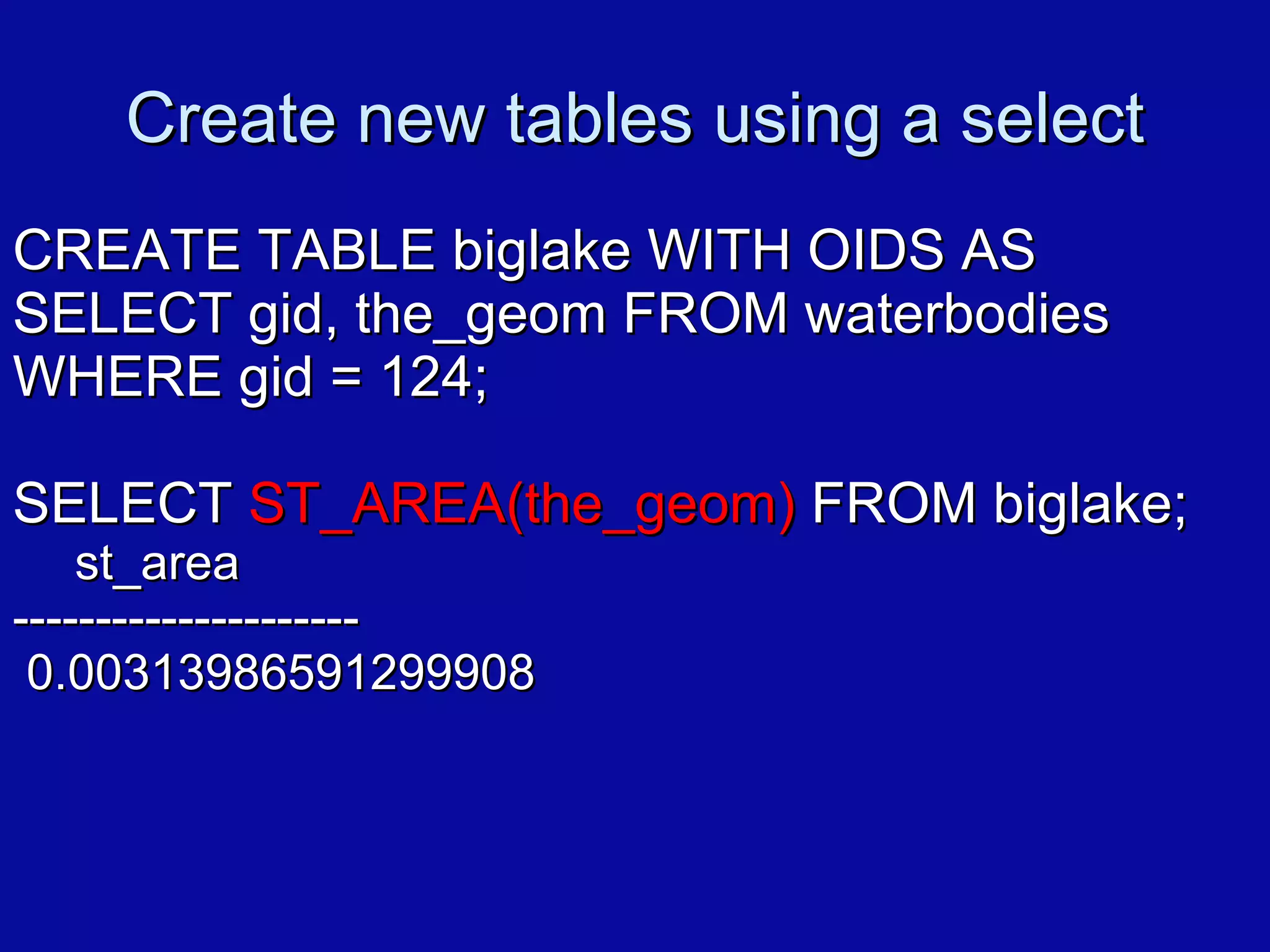

Create new tables using a select CREATE TABLE biglake WITH OIDS AS SELECT gid, the_geom FROM waterbodies WHERE gid = 124; SELECT  ST_AREA(the_geom)  FROM biglake; st_area --------------------- 0.00313986591299908

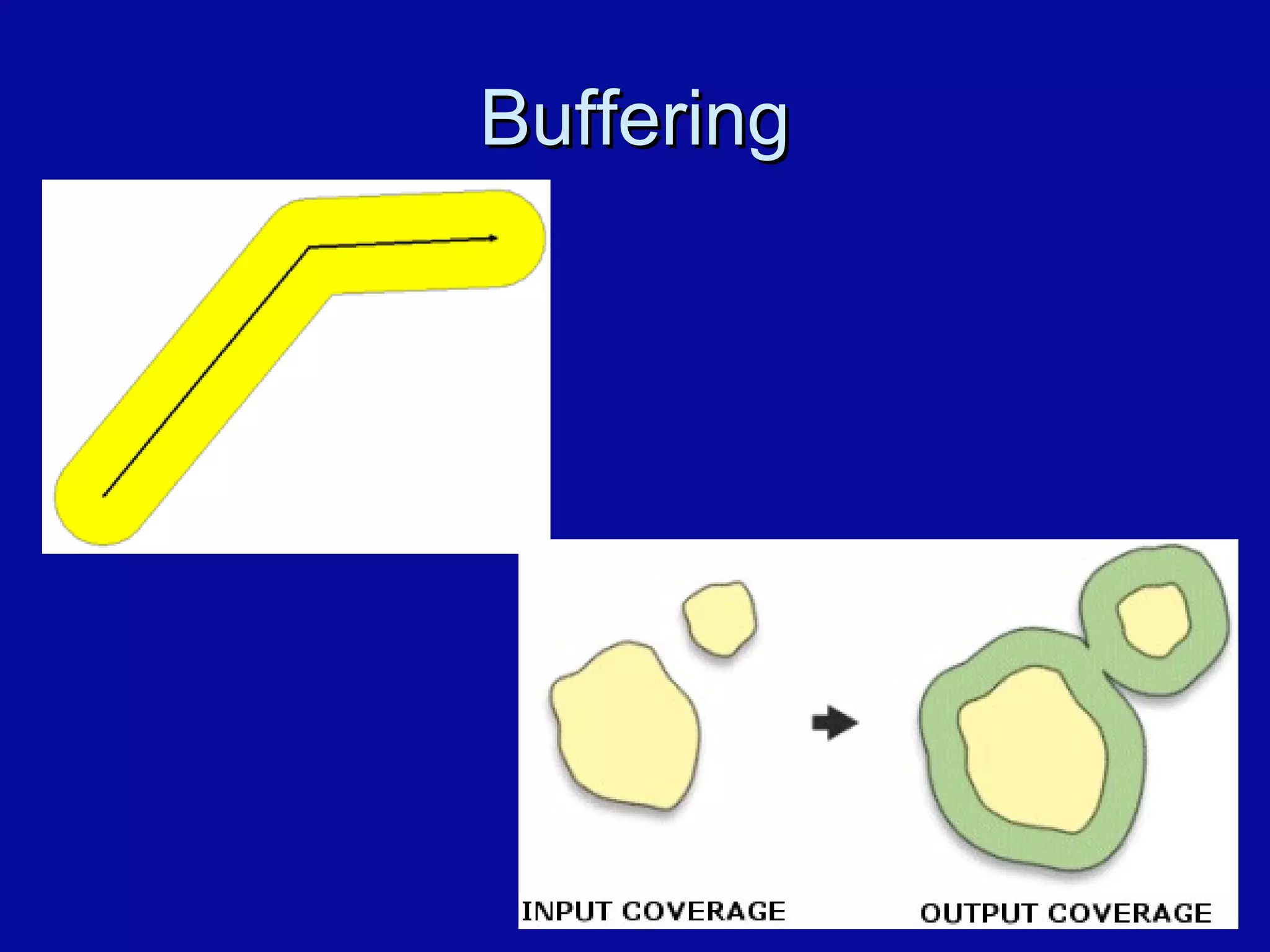

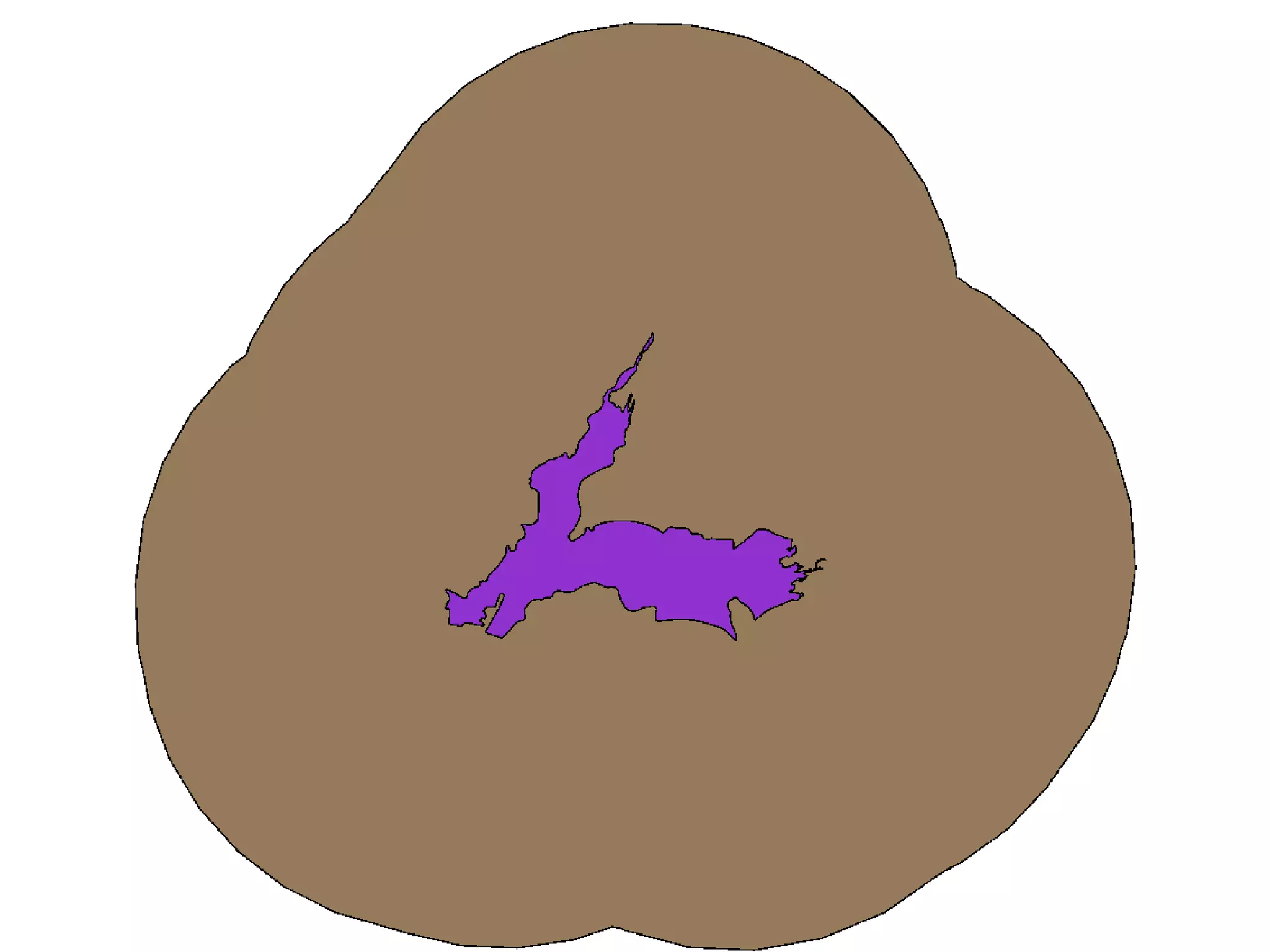

Buffering

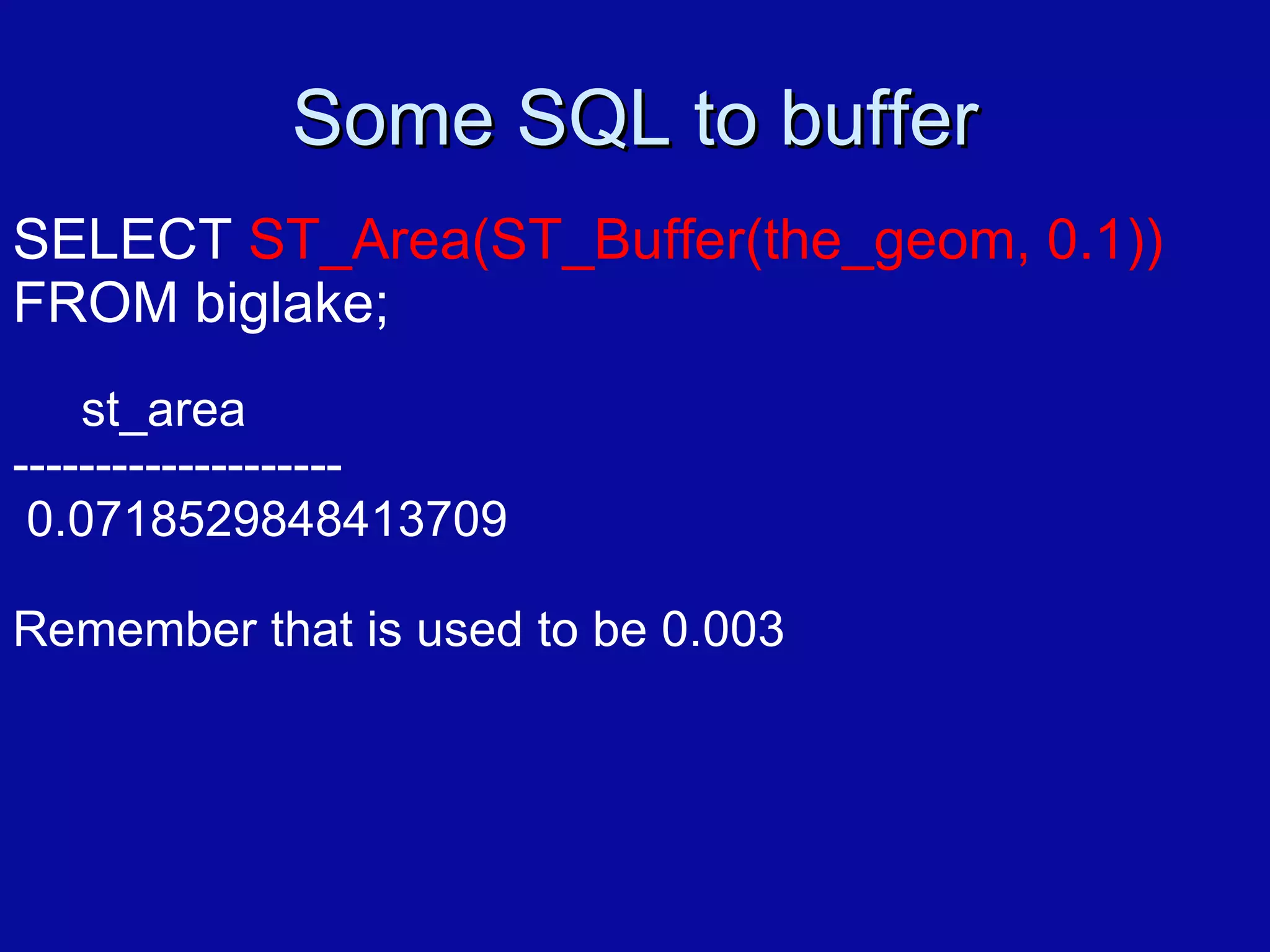

Some SQL to buffer SELECT  ST_Area(ST_Buffer(the_geom, 0.1))  FROM biglake; st_area -------------------- 0.0718529848413709 Remember that is used to be 0.003

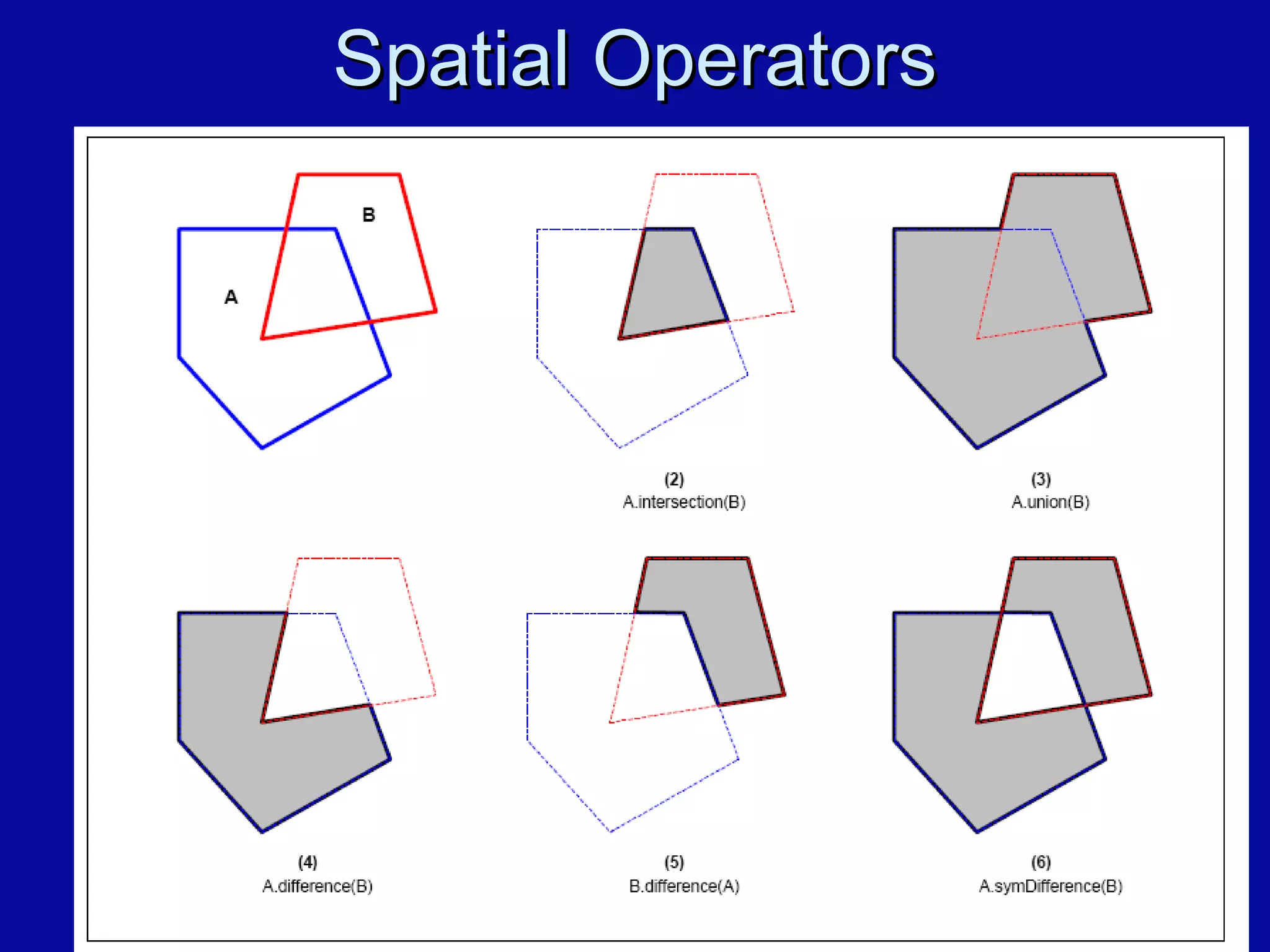

Spatial Operators

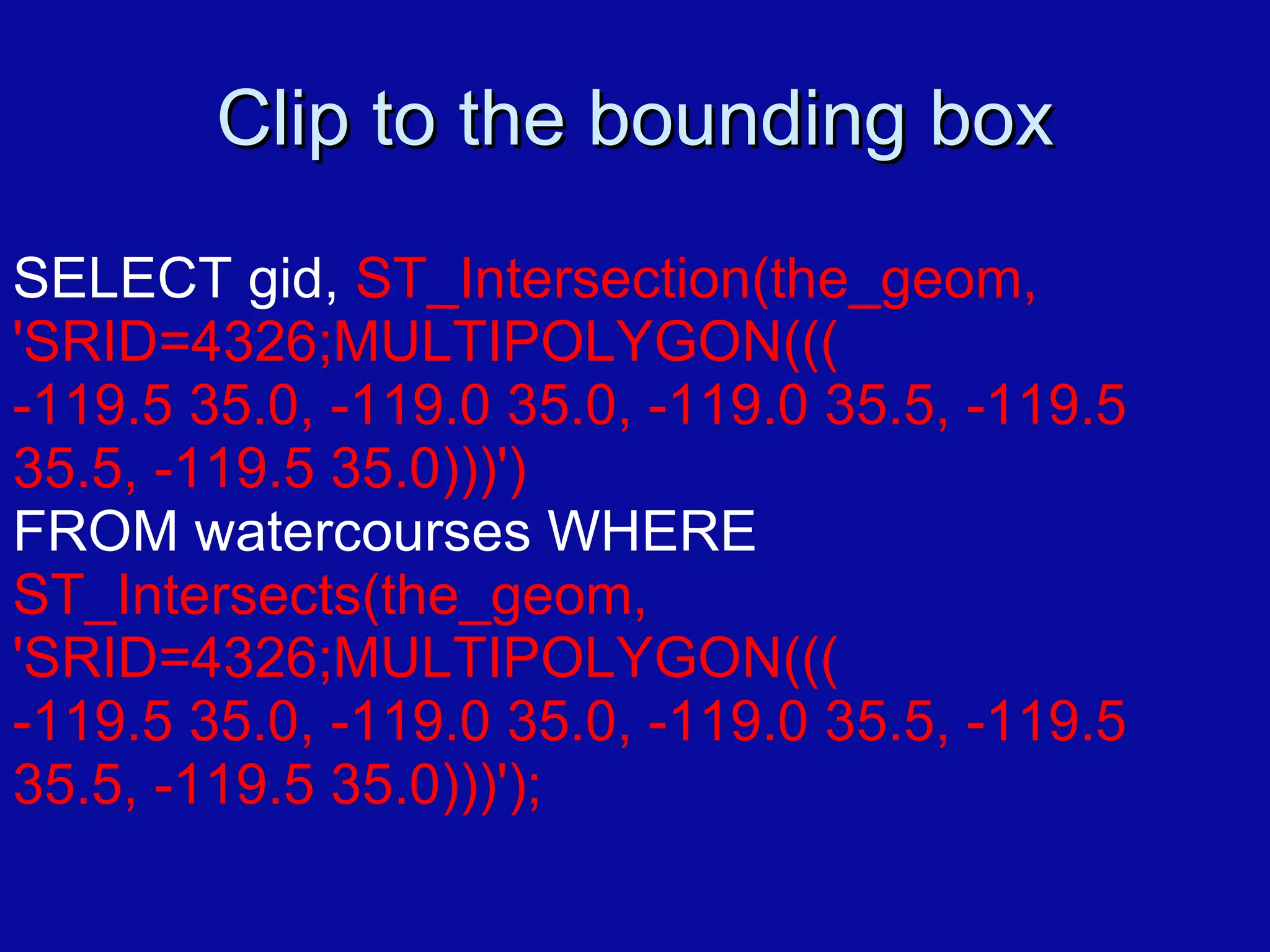

Clip to the bounding box SELECT gid,  ST_Intersection(the_geom, 'SRID=4326;MULTIPOLYGON((( -119.5 35.0, -119.0 35.0, -119.0 35.5, -119.5 35.5, -119.5 35.0)))')   FROM watercourses WHERE  ST_Intersects(the_geom,  'SRID=4326;MULTIPOLYGON((( -119.5 35.0, -119.0 35.0, -119.0 35.5, -119.5 35.5, -119.5 35.0)))');

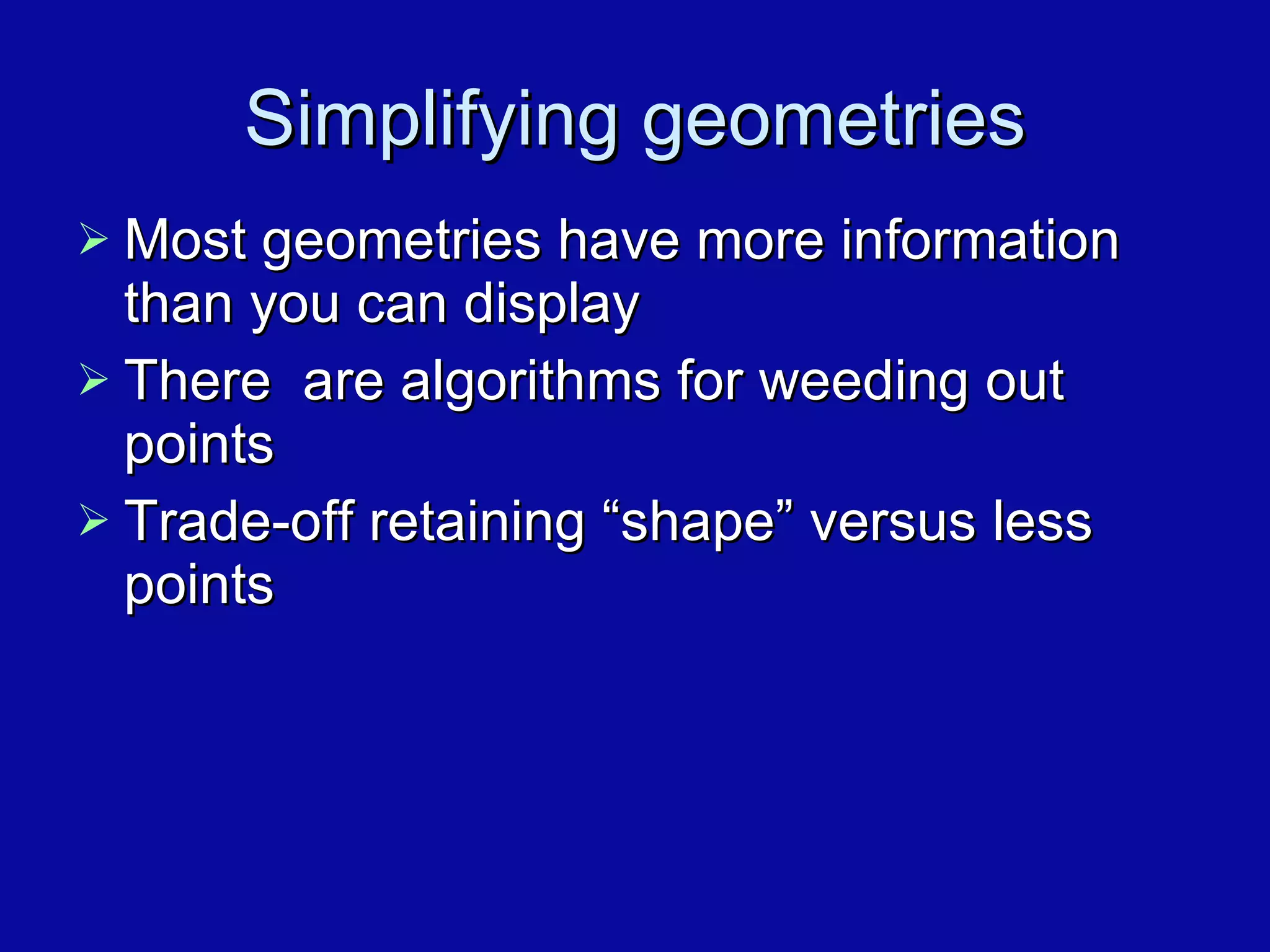

Simplifying geometries Most geometries have more information than you can display There  are algorithms for weeding out points  Trade-off retaining “shape” versus less points

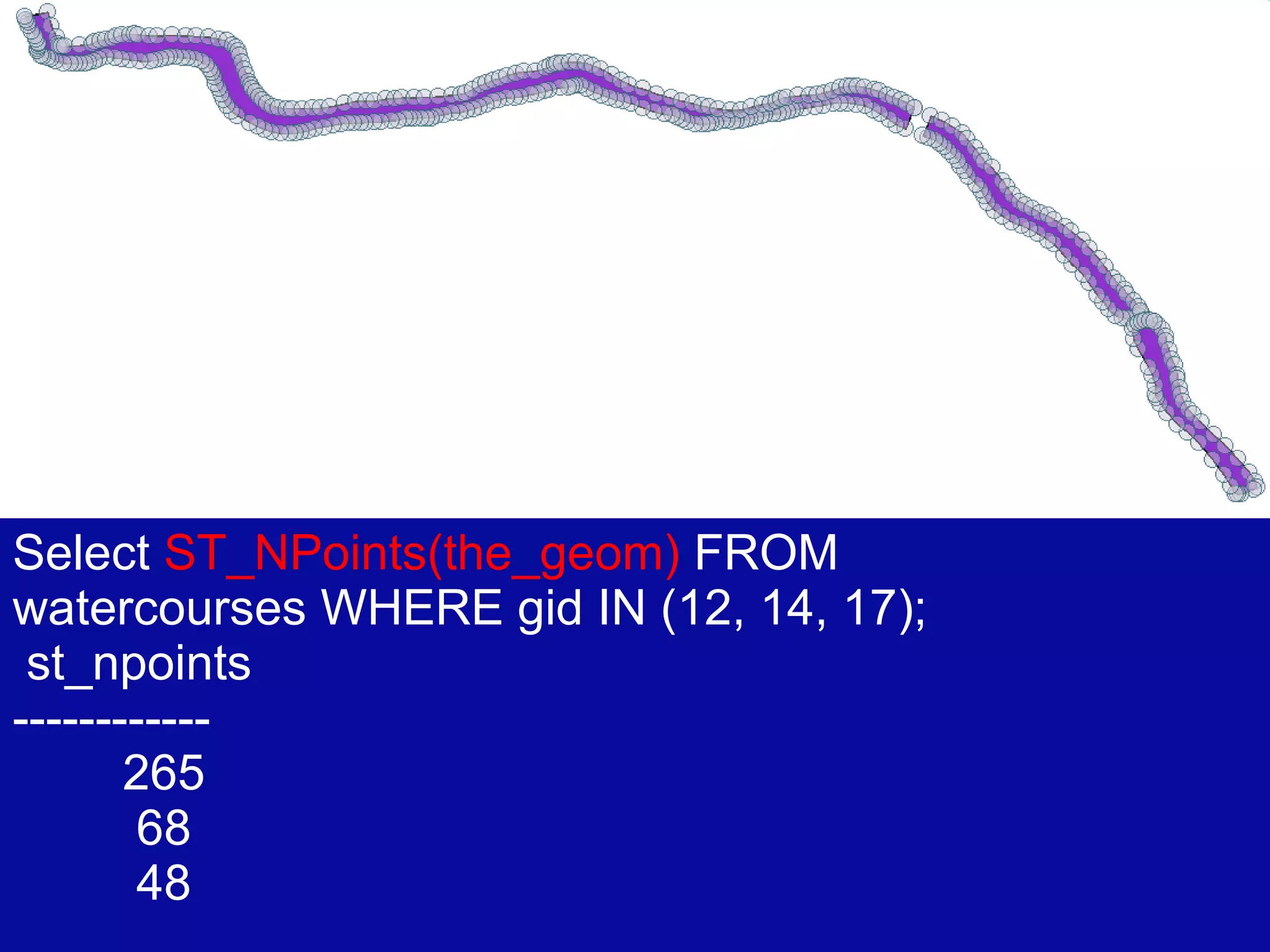

Select  ST_NPoints(the_geom)  FROM  watercourses WHERE gid IN (12, 14, 17); st_npoints ------------ 265 68 48

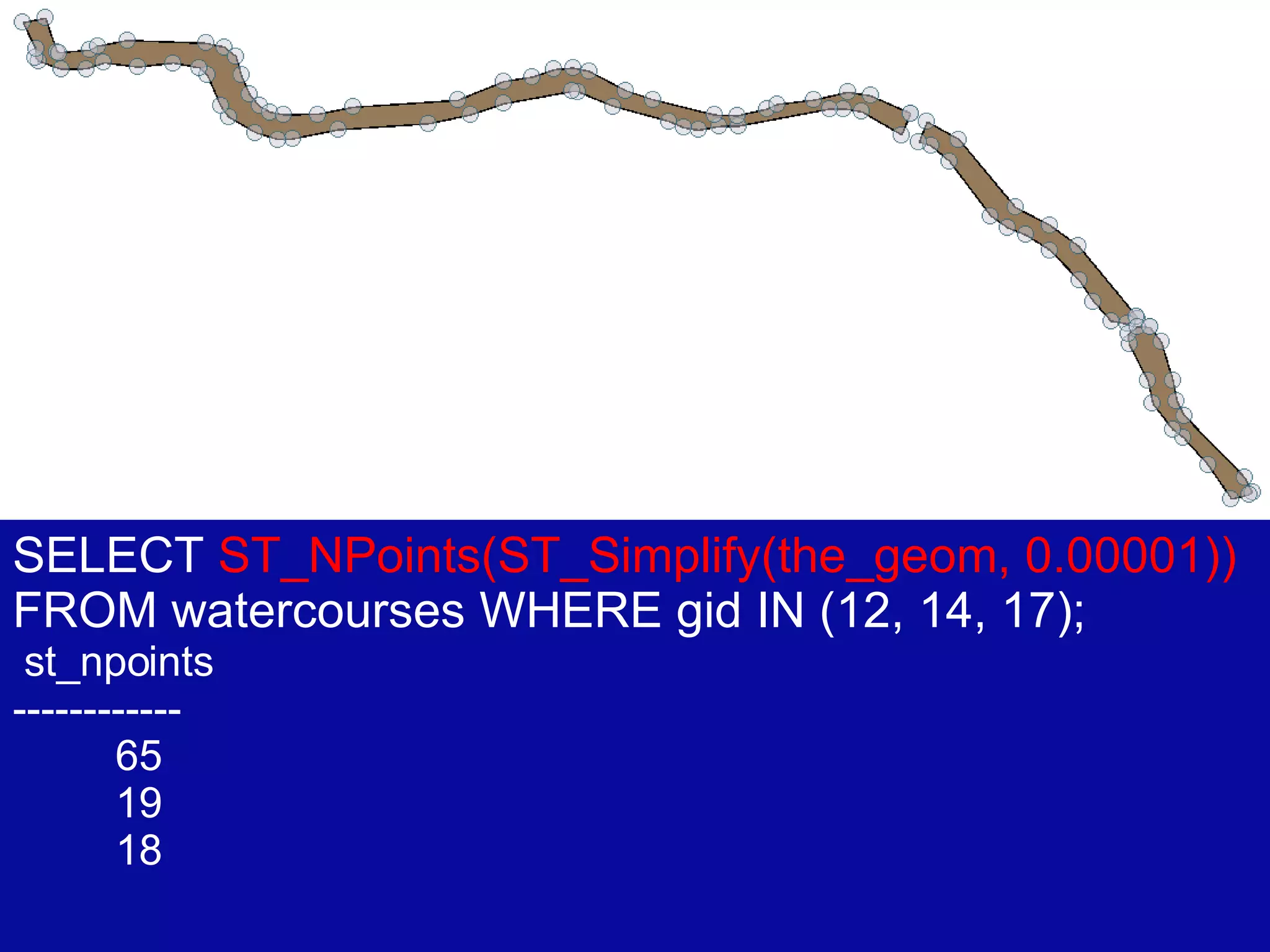

SELECT  ST_NPoints(ST_Simplify(the_geom, 0.00001))  FROM watercourses WHERE gid IN (12, 14, 17); st_npoints ------------ 65 19 18

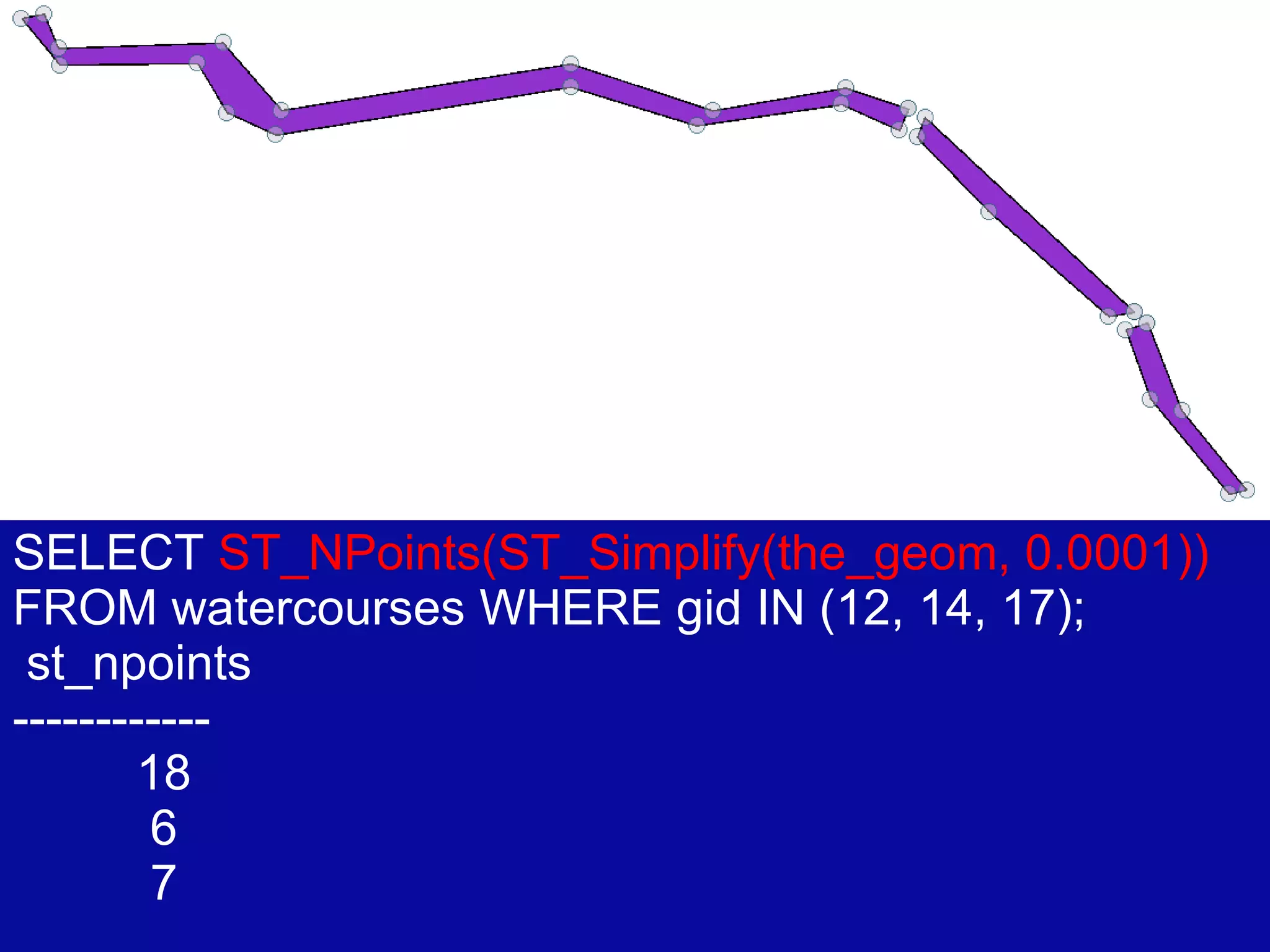

SELECT  ST_NPoints(ST_Simplify(the_geom, 0.0001))  FROM watercourses WHERE gid IN (12, 14, 17); st_npoints ------------ 18 6 7

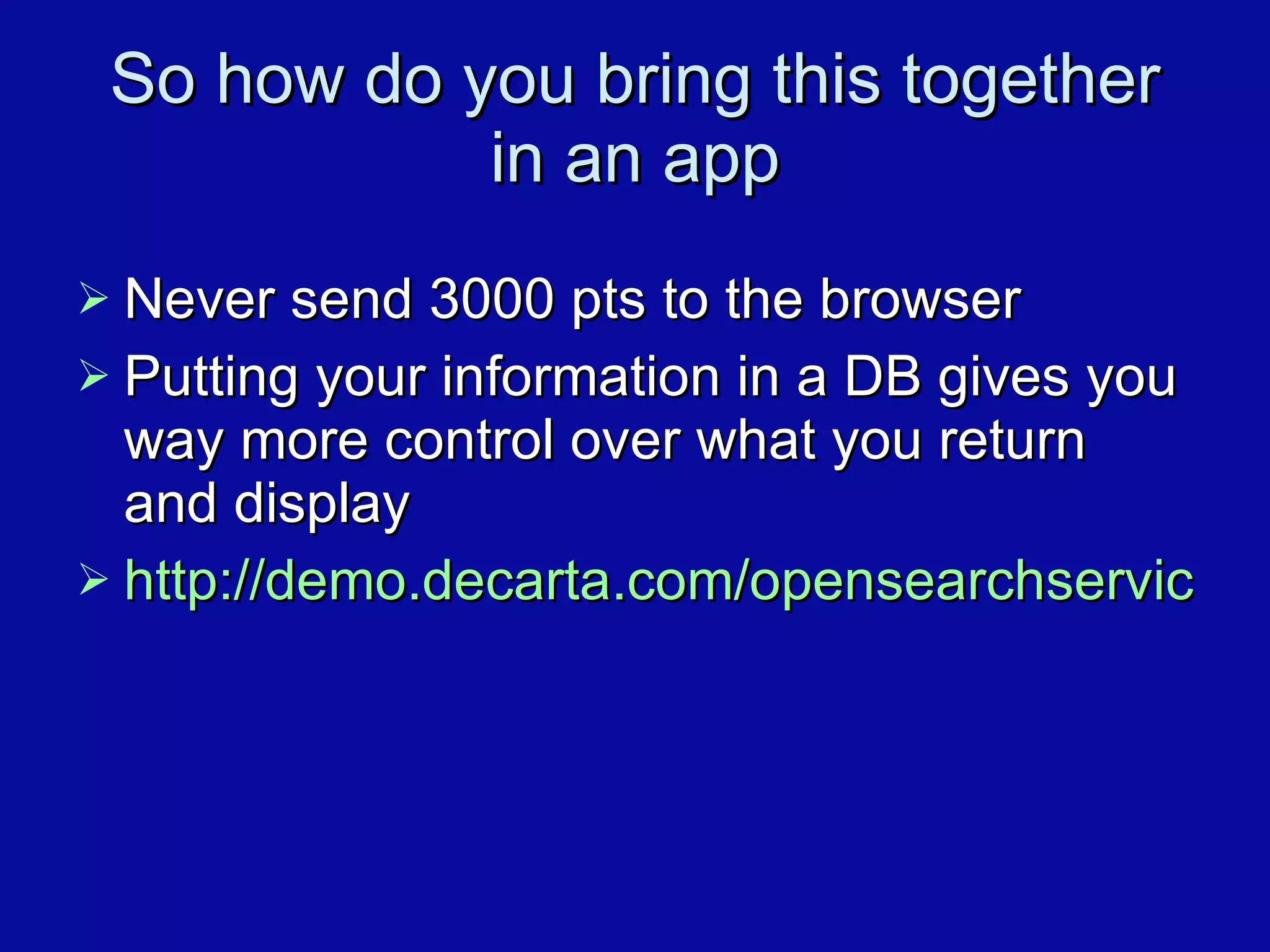

So how do you bring this together in an app Never send 3000 pts to the browser Putting your information in a DB gives you way more control over what you return and display http://demo.decarta.com/opensearchservice/index.html

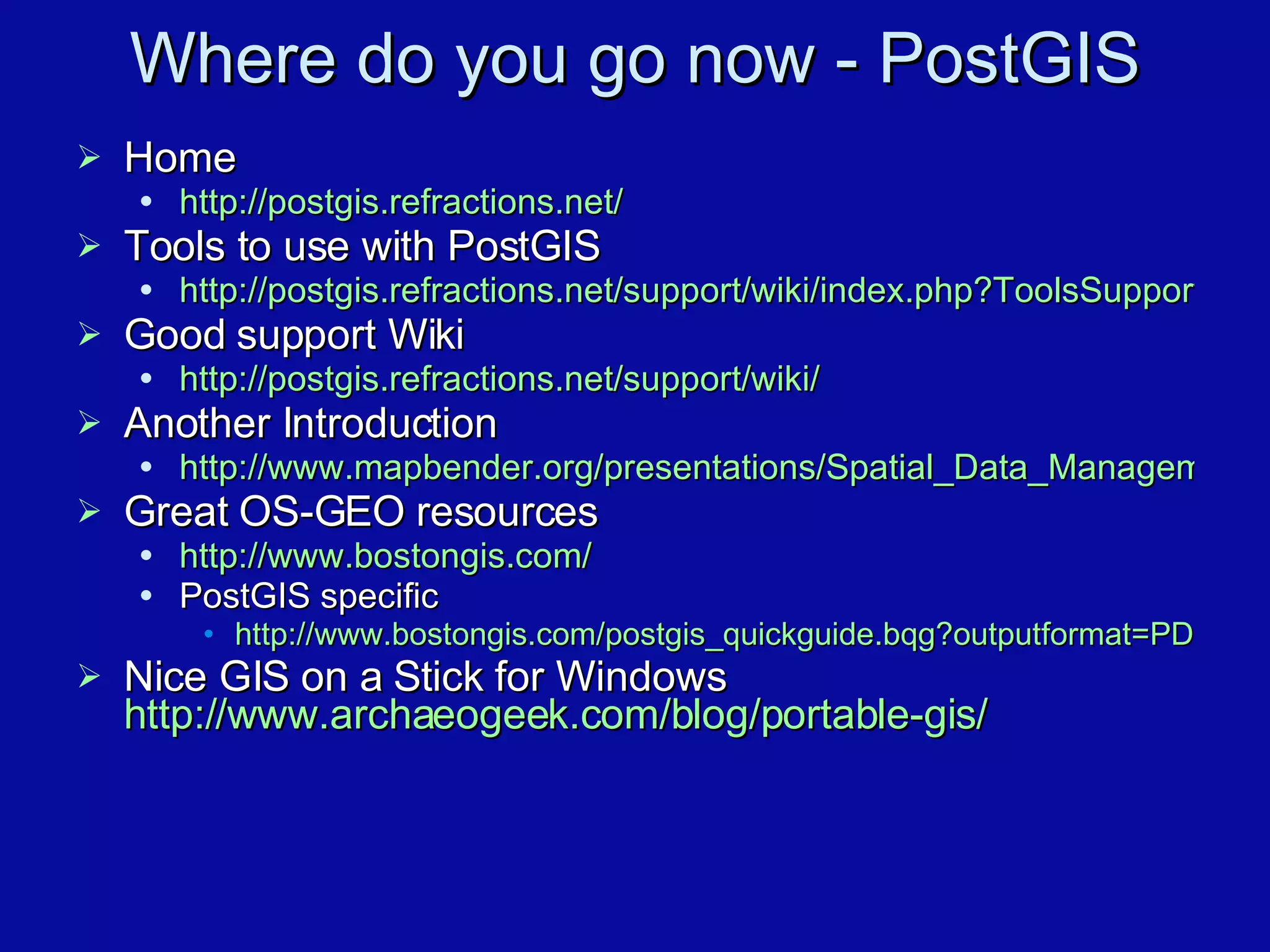

Where do you go now - PostGIS Home http://postgis.refractions.net/ Tools to use with PostGIS http://postgis.refractions.net/support/wiki/index.php?ToolsSupportPostgis Good support Wiki http://postgis.refractions.net/support/wiki/ Another Introduction http://www.mapbender.org/presentations/Spatial_Data_Management_Arnulf_Christl/Spatial_Data_Management_Arnulf_Christl.pdf Great OS-GEO resources http://www.bostongis.com/ PostGIS specific  http://www.bostongis.com/postgis_quickguide.bqg?outputformat=PDF Nice GIS on a Stick for Windows http://www.archaeogeek.com/blog/portable-gis /

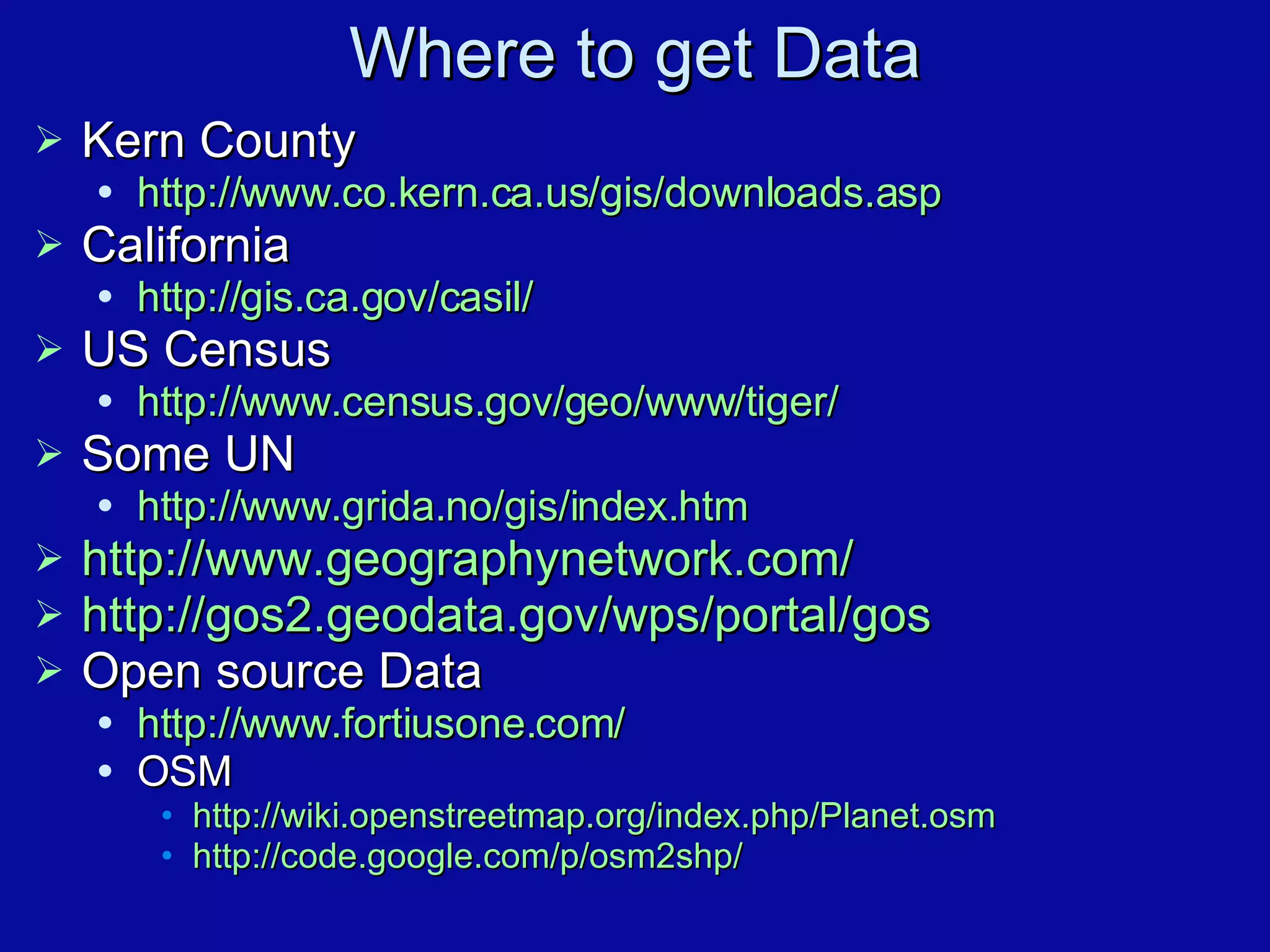

Where to get Data Kern County http://www.co.kern.ca.us/gis/downloads.asp California http://gis.ca.gov/casil/ US Census  http://www.census.gov/geo/www/tiger/ Some UN http://www.grida.no/gis/index.htm http://www.geographynetwork.com/ http://gos2.geodata.gov/wps/portal/gos Open source Data http://www.fortiusone.com/ OSM http:// wiki.openstreetmap.org/index.php/Planet.osm http://code.google.com/p/osm2shp/

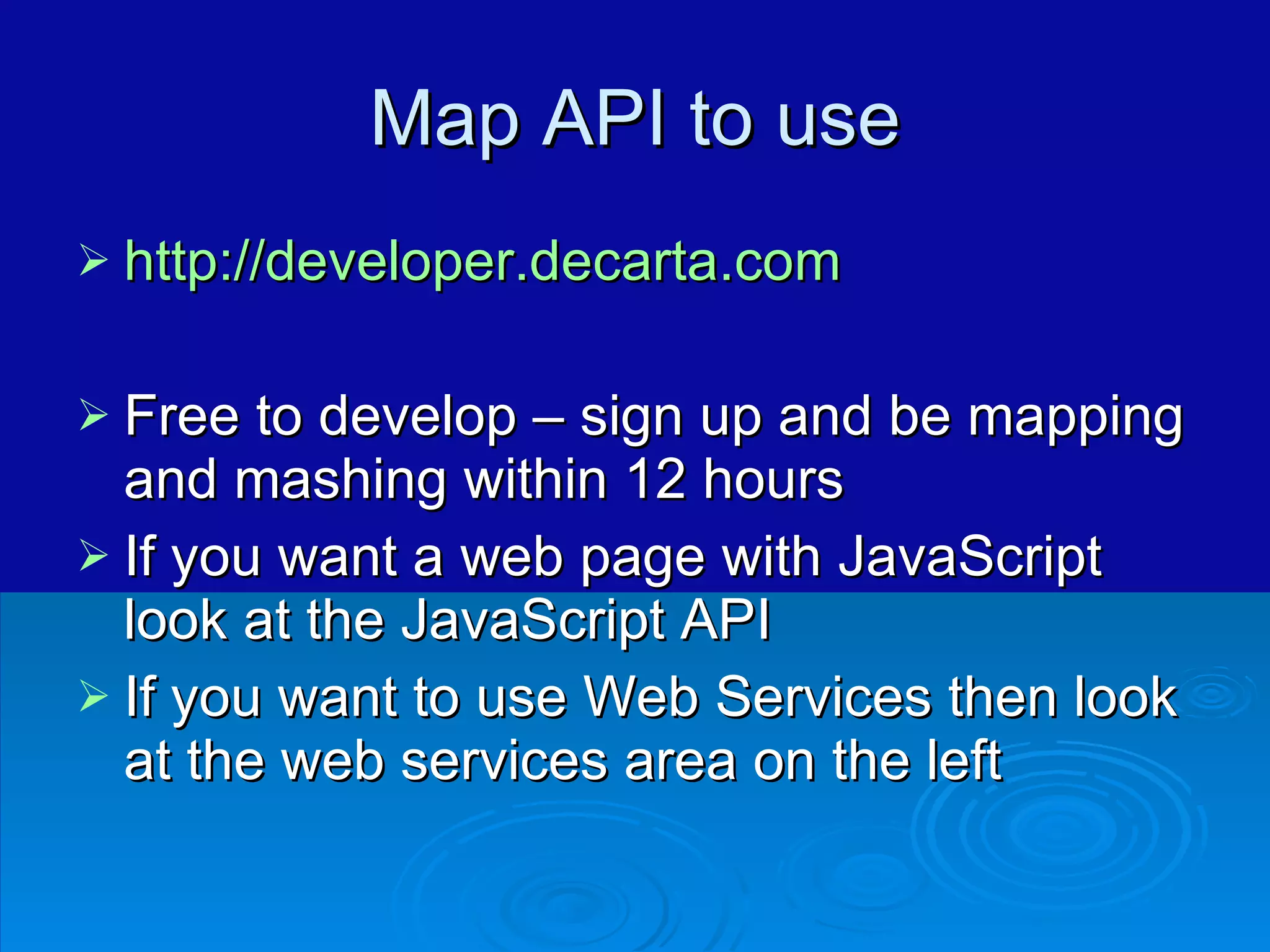

Map API to use http://developer.decarta.com Free to develop – sign up and be mapping and mashing within 12 hours If you want a web page with JavaScript look at the JavaScript API If you want to use Web Services then look at the web services area on the left
