This document provides an overview of acid/base chemistry and pH. It defines pH as a measure of hydrogen ion concentration, describes the pH scale from 0-14, and explains how to calculate pH, pOH, and hydrogen or hydroxide ion concentration from other values. Sample problems demonstrate how to determine pH from concentration and vice versa, as well as the relationship between pH and pOH. Key points are that pH is a log scale measurement of acidity, and that the sum of pH and pOH equals 14 for any aqueous solution.

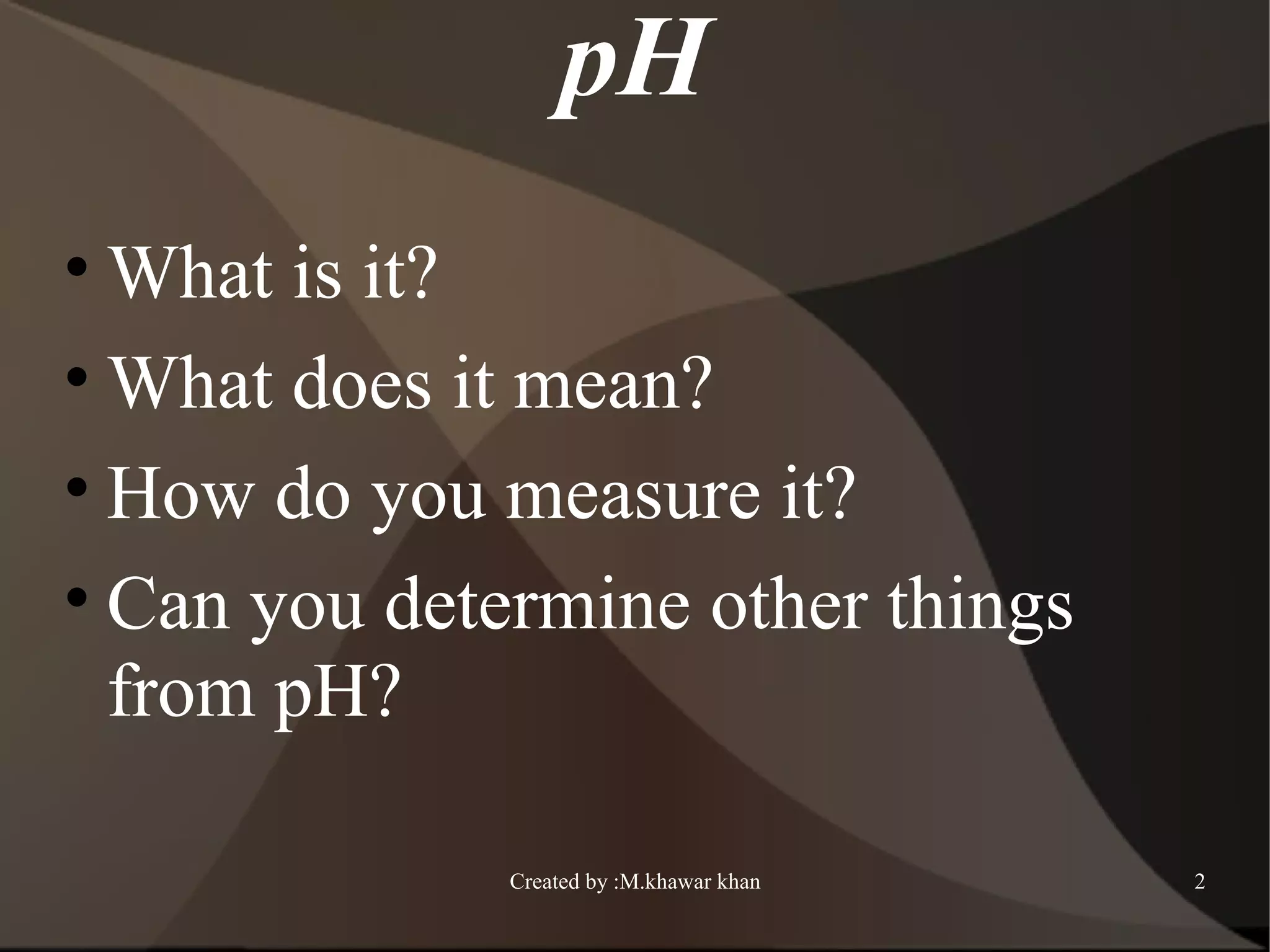

2. pH
• What is it?
• What does it mean?
• How do you measure it?
• Can you determine other things
from pH?
Created by :M.khawar khan
2

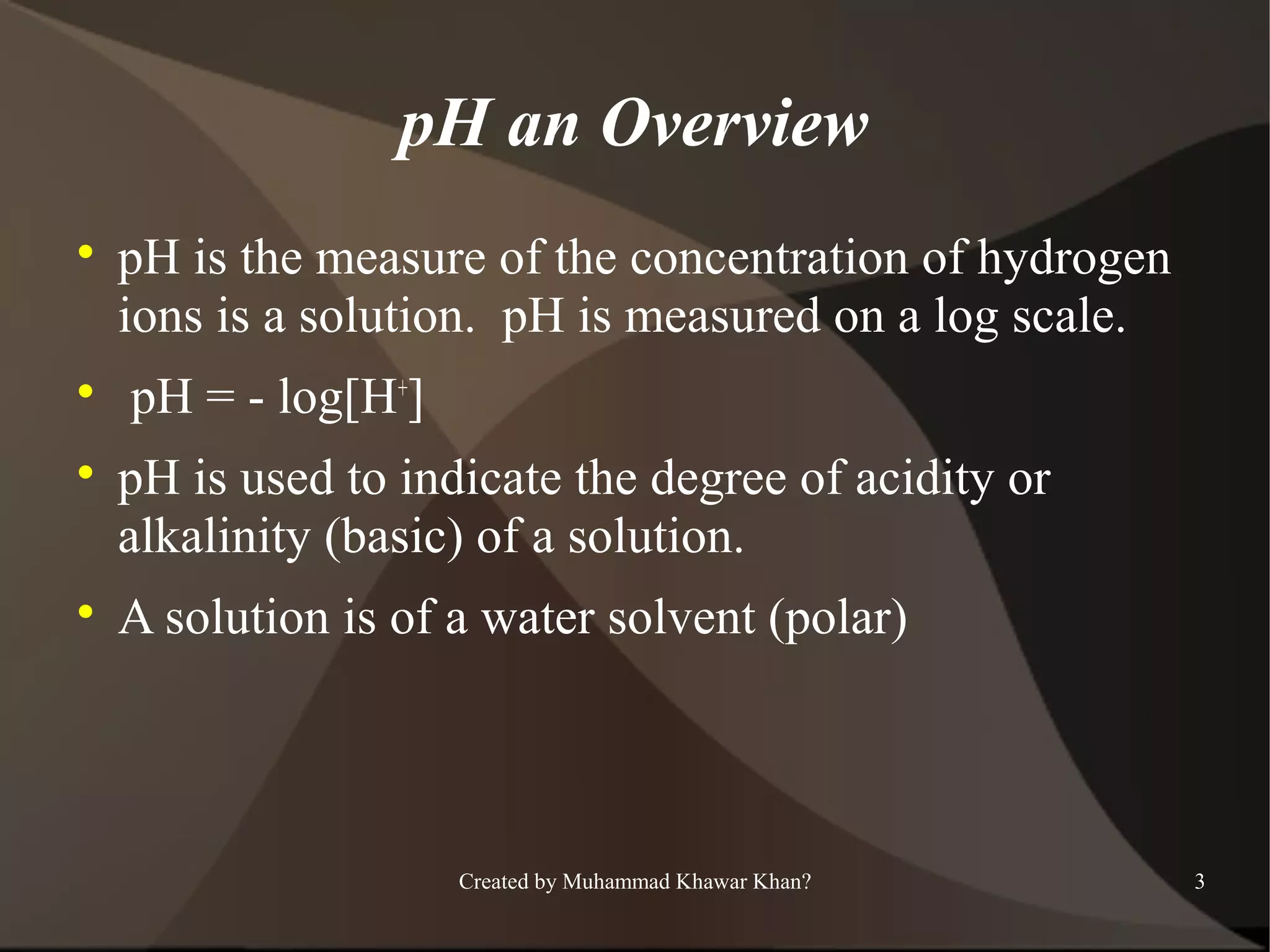

3. pH an Overview
pH is the measure of the concentration of hydrogen
ions is a solution. pH is measured on a log scale.
pH = - log[H+]
pH is used to indicate the degree of acidity or
alkalinity (basic) of a solution.
A solution is of a water solvent (polar)
Created by Muhammad Khawar Khan?
3

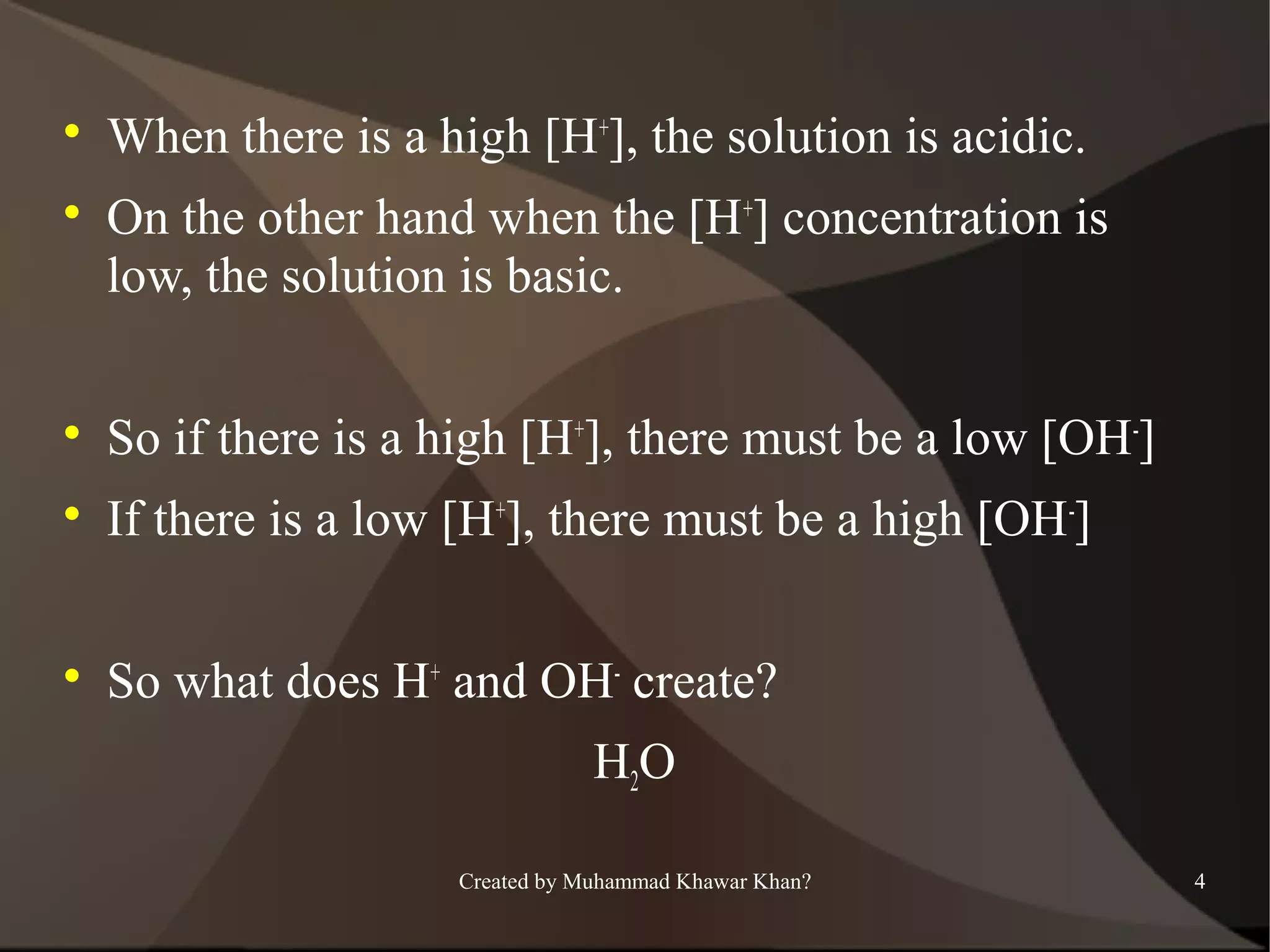

4.
When there is a high [H+], the solution is acidic.
On the other hand when the [H+] concentration is
low, the solution is basic.
So if there is a high [H+], there must be a low [OH-]
If there is a low [H+], there must be a high [OH-]
So what does H+ and OH- create?
H2O
Created by Muhammad Khawar Khan?
4

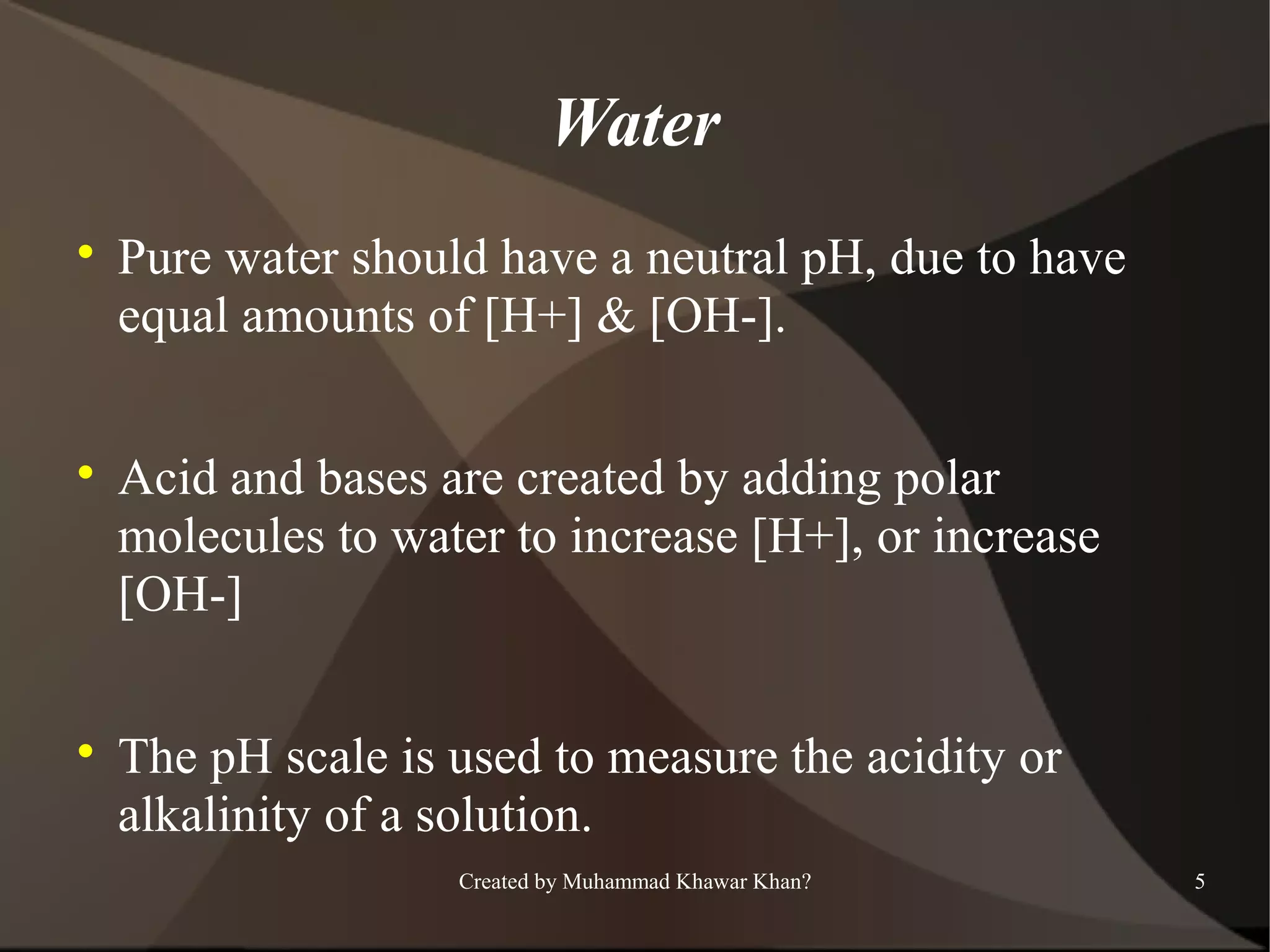

5. Water
Pure water should have a neutral pH, due to have
equal amounts of [H+] & [OH-].
Acid and bases are created by adding polar
molecules to water to increase [H+], or increase
[OH-]
The pH scale is used to measure the acidity or
alkalinity of a solution.
Created by Muhammad Khawar Khan?
5
6. pH Scale
The pH scale ranges from 0 to 14. 0
being the most acidic and 14 being
the most basic.
Representative pH Values
Substance
pH
battery acid
0.5
gastric acid
1.5-2.0
lemon juice
2.4
cola
2.5
vinegar
2.9
orange juice
3.5
acid rain
4.5-5.0
tea
5.5
milk
6.5
pure water
7.0
saliva
7.0-7.4
blood
7.3-7.5
sea water
8.0
soap
9.0-10.0
ammonia
11.5
household bleach
12.5
lye (sodium hydroxide)
13.5
So what does the pH tell us about
[H+] of a solution?
If something has a pH of:
pH 1 = [H+] = 0.1 M
pH 2 = [H+] = 0.01 M
pH 3 = [H+] = 0.001M
pH 4 = [H+] = 0.0001M
pH 5 = [H+] = 0.00001M
pH 6 = [H+] = 1X 10-6M
pH 7 = [H+] = 1X 10-7M
pH 8 = [H+] = 1X 10-8M
pH 9 = [H+] = 1X 10-9M
pH 10=[H+] = 1X 10-10M
pH 11=[H+] = 1X 10-11M
pH 12=[H+] = 1X 10-12M
pH 13=[H+] = 1X 10-13M
pH 14=[H+] = 1X 10-14M
Created by Muhammad Khawar Khan?
6

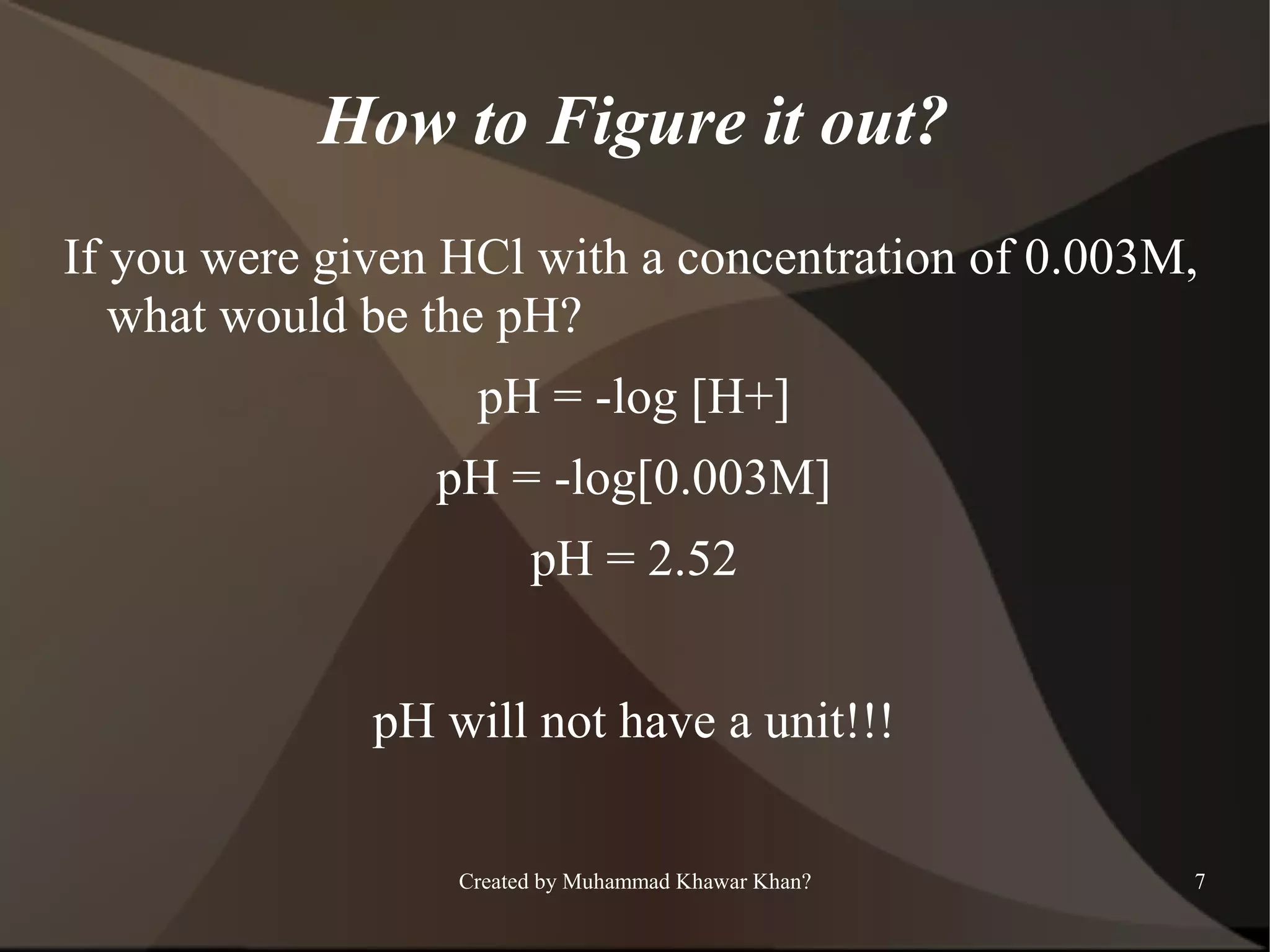

7. How to Figure it out?
If you were given HCl with a concentration of 0.003M,
what would be the pH?
pH = -log [H+]
pH = -log[0.003M]
pH = 2.52
pH will not have a unit!!!
Created by Muhammad Khawar Khan?
7
8. How does pH and pOH relate?
pH and pOH relate in the following way
pH + pOH = 14
pOH is the measure of the [OH-], in a solution.
What would be the pOH of an solution with a pH of
5.75?
pOH = 14 - 5.75
pOH = 8.25
Created by Muhammad Khawar Khan?
8
9. If given pH
To determine the concentration from pH, one must do
the following:
[H+] = 10 (-pH)
antilog
So what is the [H+] of a solution with a pH of 12.05?
[H+] = 10 (-12.05)
Created by 8.91 Khawar Khan?
[H+] = MuhammadX 10 -13 M
9
10. Sample Problem 1
What is the pH and pOH of an solution with [H+] of
3.33 X 10-9 M?
1st solve for pH
pH = -log [H+]
pH = - log[3.33 X 10-9 M]
pH = 8.48
2nd solve for pOH
pOH = 14 – pH
pOH = 14 - 8.48
pOH = 5.52 (acidic)
Created by Muhammad Khawar Khan?
10

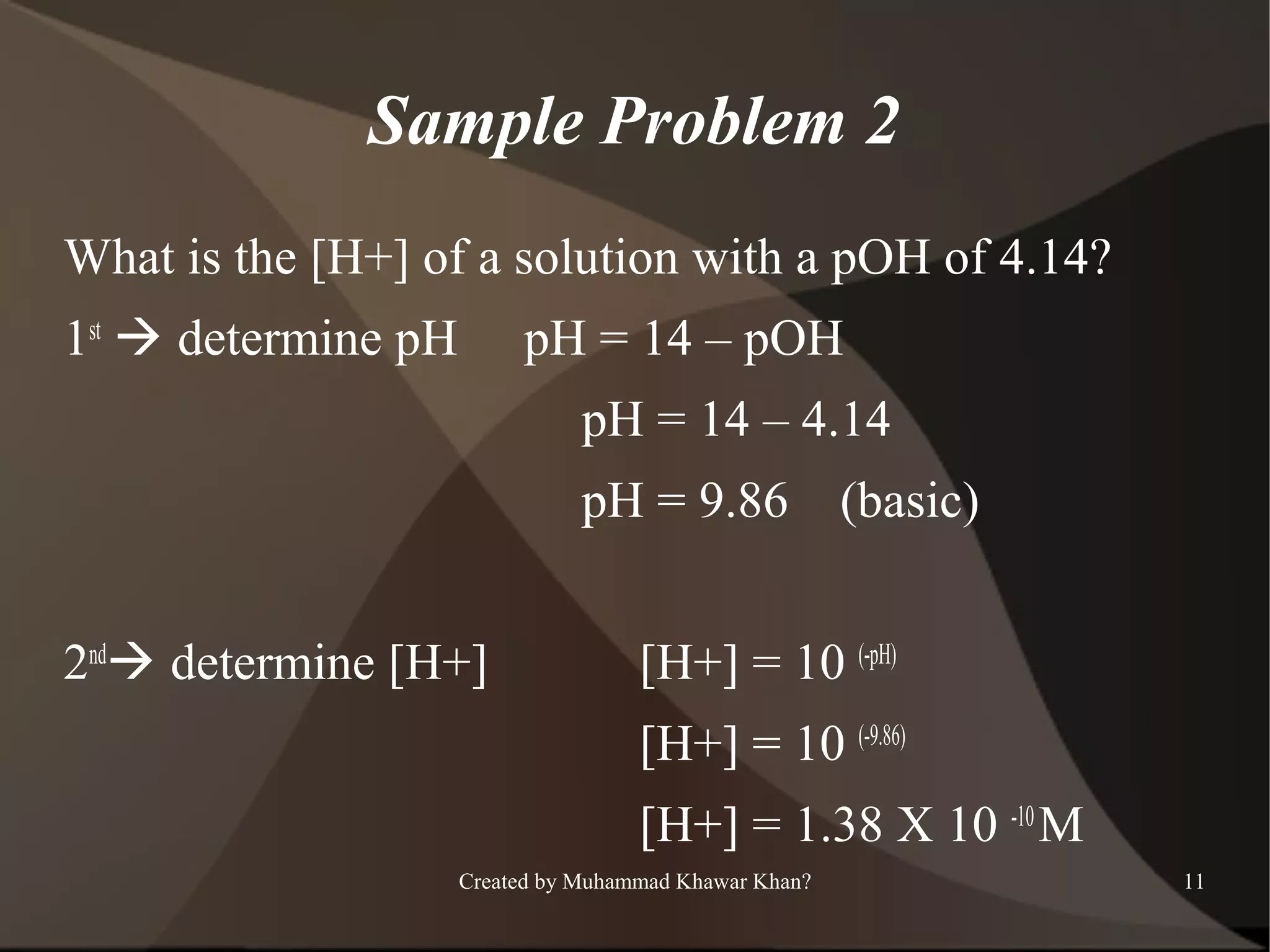

11. Sample Problem 2
What is the [H+] of a solution with a pOH of 4.14?
1st determine pH
pH = 14 – pOH
pH = 14 – 4.14
pH = 9.86
2nd determine [H+]
(basic)
[H+] = 10 (-pH)
[H+] = 10 (-9.86)
[H+] = 1.38 X 10 -10 M
Created by Muhammad Khawar Khan?
11
12. Sample Problem 3
What is the pH of a solution with a [OH-] = 2.35 X 10 -9?
1st determine pOH
pOH = -log [OH-]
pOH = -log[2.35X10-9 M]
pOH = 8.63
2nd determine pH
pH = 14 – pOH
pH = 14- 8.63
pH = 5.37
Created by Muhammad Khawar Khan?
(acidic)
12
13. Sample Problem 4
What is the pH of a solution that was made from 4.57g
of HCl dissolved in 750 mL of water?
1st determine moles of HCl
4.57g HCl
1 mol HCl = 0.125 mol
HCl
36.46 g HCl
Created by Muhammad Khawar Khan?
13
14. Sample 4 ….
2nd determine concentration of [H+], since this is an
acid the [H+] would be the same as the concentration
of the whole molecule of HCl. We will get [H+] &
[Cl-], both with the total of 0.125 moles each.
So concentration will be moles / volume (L)
[H+] = 0.125 moles/ 0.750 L
[H+] = 0.333M
Created by Muhammad Khawar Khan?
14
15. Problem 4…
Next determine pH
pH = -log [H+]
pH = -log [0.333M]
pH = 0.48 (very acidic)
Created by Muhammad Khawar Khan?
15
16. Your Turn..
1. What is the [H+] of an acid with a pH of 5.56?
2. Determine the pH of a 0.0045 M HCl?
3. Determine pOH of a solution with a pH of 8.65?
4. What is the pH of a base with an [OH-] of
3.44X10-5 M?
Ans: 1. 1.35
2. 2.75X 10-6M
3. 5.35
4. 9.54
Created by Muhammad Khawar Khan?
16
