[Unite Seoul 2020] Mobile Graphics Best Practices for Artists
This document discusses best practices for mobile graphics optimization in Unity for artists. It covers topics like texturing, geometry, shaders, and frame rendering. For texturing, it recommends techniques like mipmapping, bilinear filtering, texture compression, and channel packing. For geometry, it suggests avoiding small/thin triangles and duplicating vertices while using instancing. For shaders, it discusses precision, early Z-testing, overdraw reduction, and dynamic branching. For frame rendering, it recommends reducing state switches and framebuffer writes/clears.
More Related Content
![[Unite Seoul 2019] Mali GPU Architecture and Mobile Studio](https://cdn.slidesharecdn.com/ss_thumbnails/maligpuarchitectureandmobilestudiofinal3-190717042828-thumbnail.jpg?width=640&height=640&fit=bounds)
![[TGDF 2020] Mobile Graphics Best Practices for Artist](https://cdn.slidesharecdn.com/ss_thumbnails/mobilegraphicsbestpracticesforartist-200712102753-thumbnail.jpg?width=640&height=640&fit=bounds)
![[GDC 2012] Enhancing Graphics in Unreal Engine 3 Titles Using AMD Code Submis...](https://cdn.slidesharecdn.com/ss_thumbnails/enhancinggraphicsinunrealengine3titlesusingnewcodesubmissions-150222111053-conversion-gate02-thumbnail.jpg?width=640&height=640&fit=bounds)
![[TGDF 2019] Mali GPU Architecture and Mobile Studio](https://cdn.slidesharecdn.com/ss_thumbnails/tgdfgpuarchitecturemobilestudio-190717043007-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Unity Forum 2019] Mobile Graphics Optimization Guides](https://cdn.slidesharecdn.com/ss_thumbnails/20191108taipeiunityforum-191204024024-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to [Unite Seoul 2020] Mobile Graphics Best Practices for Artists
[Unite Seoul 2020] Mobile Graphics Best Practices for Artists
- 2. Generative Art — Made with Unity Mobile Graphics Best Practicesfor Artists Unite Seoul 2020 Owen Wu | Developer Relations Engineer, Arm | owen.wu@arm.com
- 3. Agenda 3 — Introduction — Texturing —Geometry — Shaders — Frame Rendering — Resources
- 4.
- 5. Texture Filtering -Trilinear — Trilinear - Like Bilinear but with added blur between mipmap level — Don’t use trilinear without mipmap — This filtering will remove noticeable change between mipmap by adding smooth transition — Trilinear filtering is still expensive on mobile — Use it with caution
- 6. Texture Filtering -Anisotropic — Anisotropic - Make textures look better when viewed from different angle, which is good for ground level textures — Higher anisotropic level cost higher
- 7. Texture Filtering — Usebilinear for balance between performance and visual quality — Trilinear will cost more memory bandwidth than bilinear and needs to be used selectively — Bilinear + 2x Anisotropic most of the time will look and perform better than Trilinear + 1x Anisotropic, so this combination can be better solution rather than using Trilinear — Keep the anisotropic level low — Using a level higher than 2 should be done very selectively for critical game assets – This is because higher anisotropic level will cost a lot more bandwidth and affect device battery life
- 8. Always Use MipmapIf Camera Is Not Still — Using mipmapping will improve GPU performance — Less cache miss — Mipmapping also reduce texture aliasing and improve final image quality — Don’t use it on 2D objects
- 9. Texture Color Space —Use linear color space rendering if using dynamic lighting — Check sRGB in texture inspector window — Textures that are not processed as color should NOT be used in sRGB color space (such as metallic, roughness, normal map, etc) — Current hardware supports sRGB format and hardware will do Gamma correction automatically for free

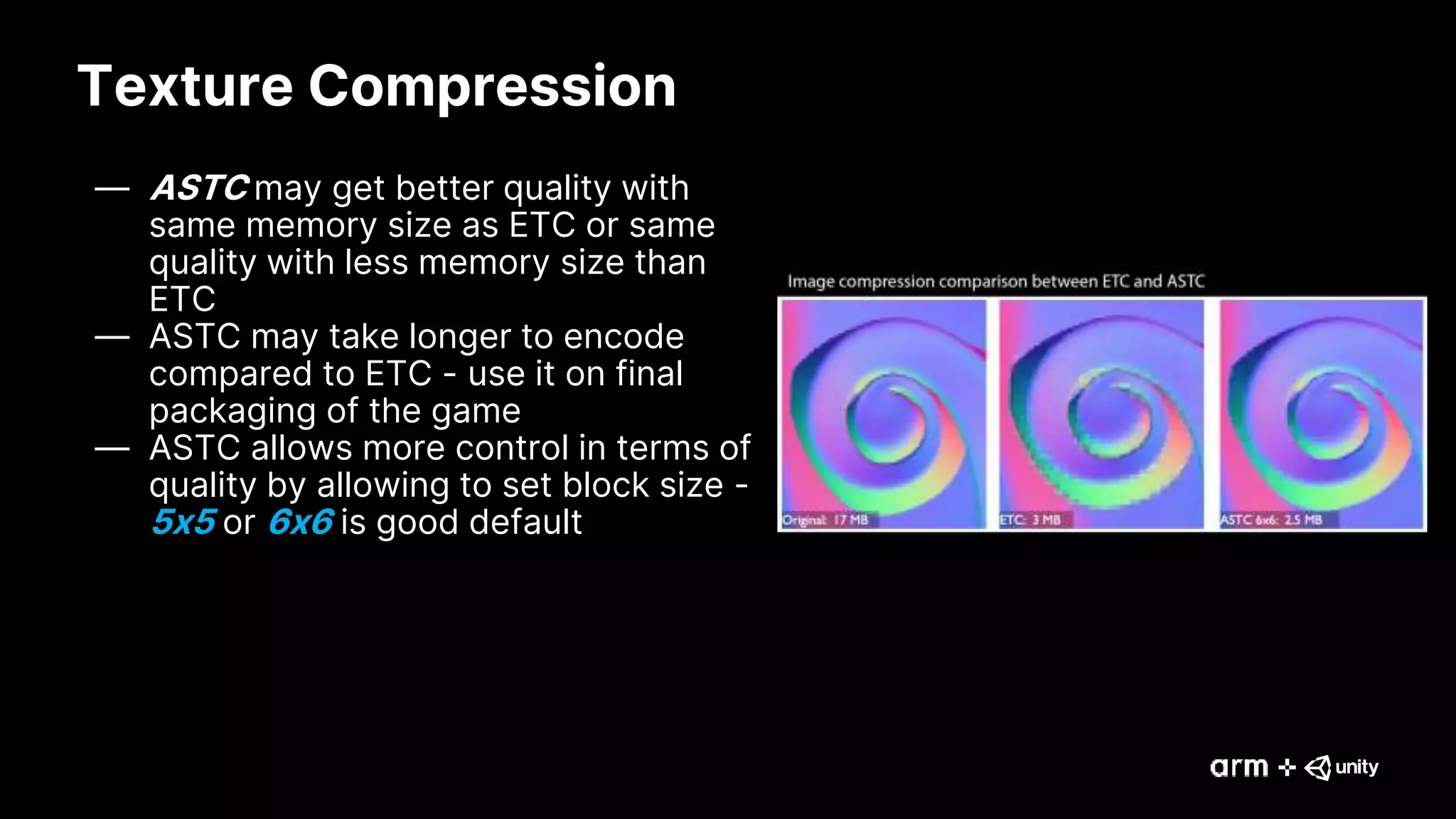

- 10. Texture Compression — ASTCmay get better quality with same memory size as ETC or same quality with less memory size than ETC — ASTC may take longer to encode compared to ETC - use it on final packaging of the game — ASTC allows more control in terms of quality by allowing to set block size - 5x5 or 6x6 is good default
- 11. Texture Channel Packing —Use texture channels to pack multiple textures into one — Commonly used to pack roughness, or smoothness, and metallic into one texture — Can be applied for any texture mask — Make good use of alpha channel
- 12.

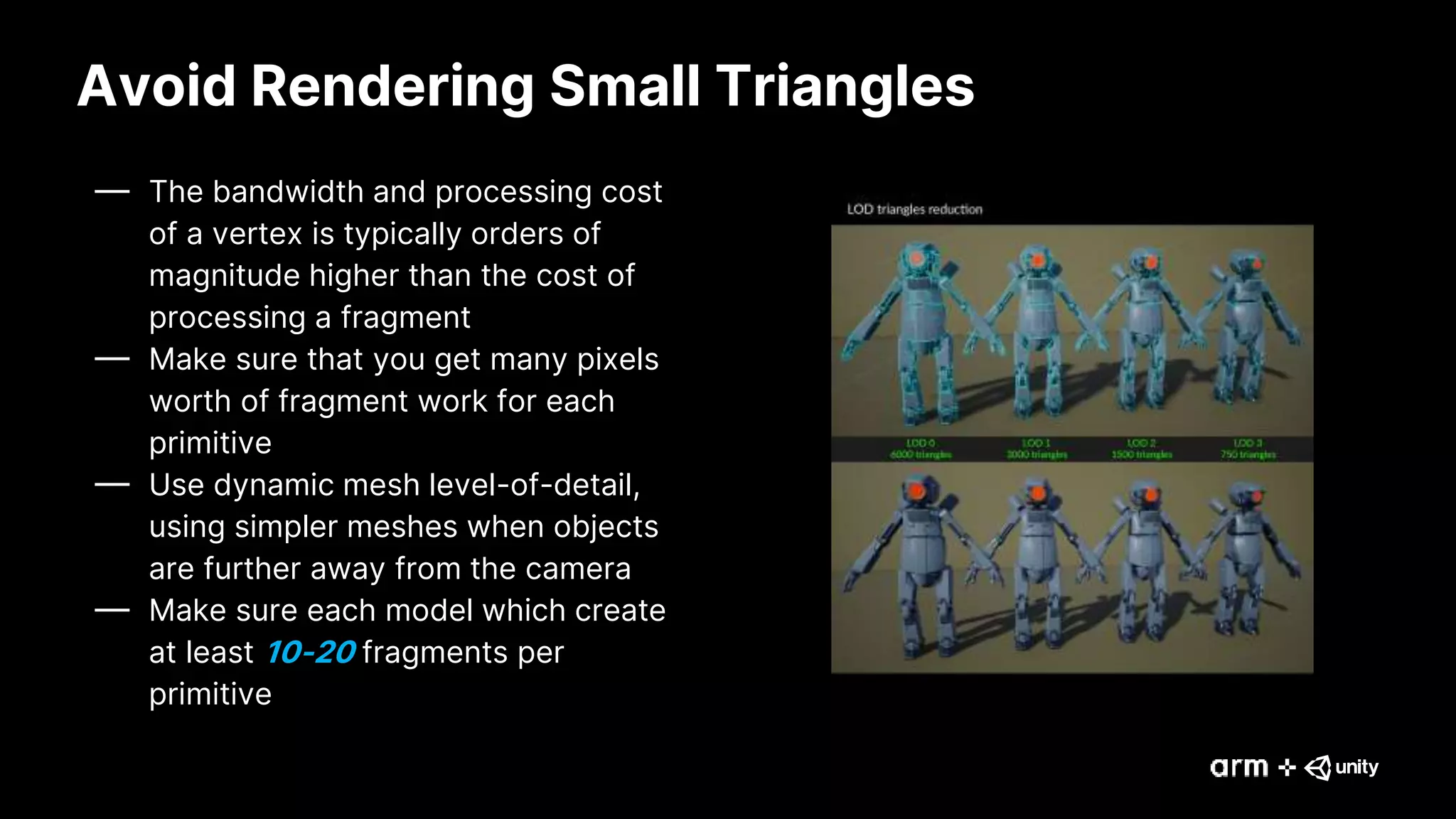

- 13. Avoid Rendering SmallTriangles — The bandwidth and processing cost of a vertex is typically orders of magnitude higher than the cost of processing a fragment — Make sure that you get many pixels worth of fragment work for each primitive — Use dynamic mesh level-of-detail, using simpler meshes when objects are further away from the camera — Make sure each model which create at least 10-20 fragments per primitive
- 14. Avoid Rendering LongThin Triangles — More expensive for the GPU to process when compared with normal triangles — GPUs process pixels in quad blocks — Long thin triangle edges will waste more GPU power to rasterize — Adjacent long thin triangles will waste doubly
- 15. Avoid Duplicating Vertices —Reuse as many vertices as possible — Transformed vertex data can be cached to save computation power — Avoid duplicating vertices unless it’s necessary V0 V1 V2 V3 V4 V0 V1 V2 V3 V5 V4 V7 V6 V8 T1 : (V0, V1, V2) T2 : (V1, V3, V2) T3 : (V2, V3, V4) T1 : (V0, V1, V2) T2 : (V3, V4, V5) T3 : (V6, V7, V8) GOOD BAD

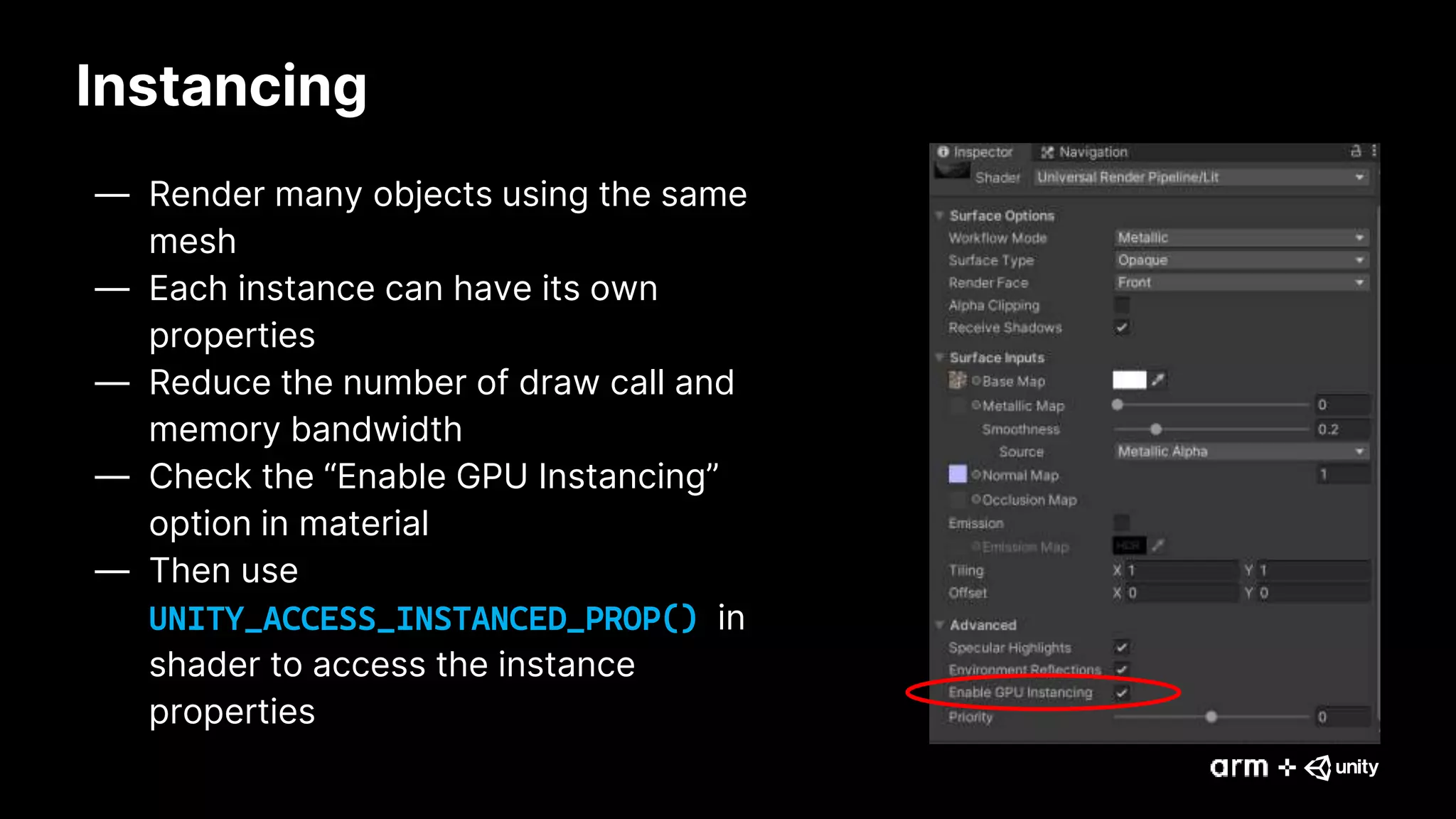

- 16. Instancing — Render manyobjects using the same mesh — Each instance can have its own properties — Reduce the number of draw call and memory bandwidth — Check the “Enable GPU Instancing” option in material — Then use UNITY_ACCESS_INSTANCED_PROP() in shader to access the instance properties
- 17.

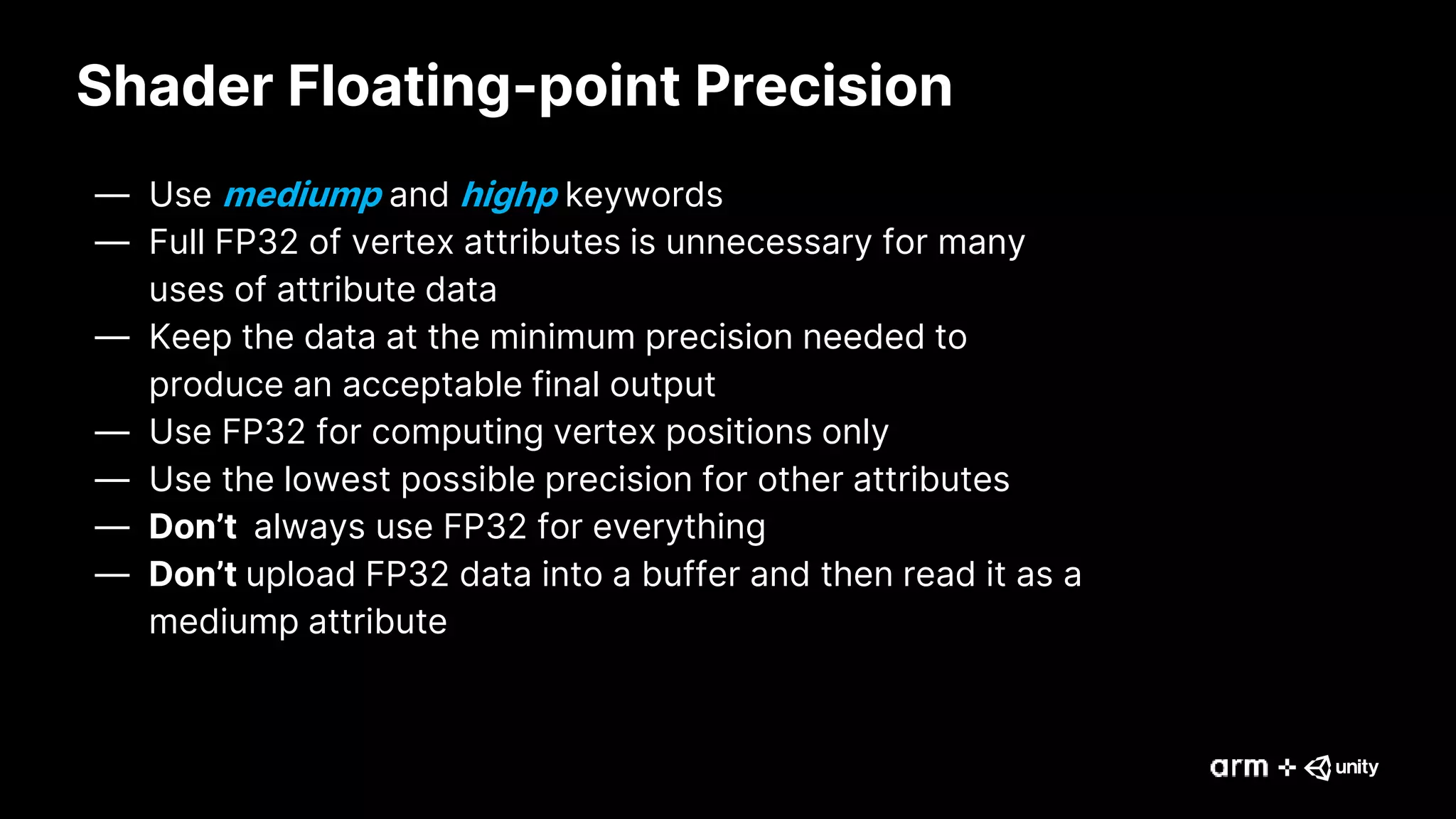

- 18. Shader Floating-point Precision —Use mediump and highp keywords — Full FP32 of vertex attributes is unnecessary for many uses of attribute data — Keep the data at the minimum precision needed to produce an acceptable final output — Use FP32 for computing vertex positions only — Use the lowest possible precision for other attributes — Don’t always use FP32 for everything — Don’t upload FP32 data into a buffer and then read it as a mediump attribute

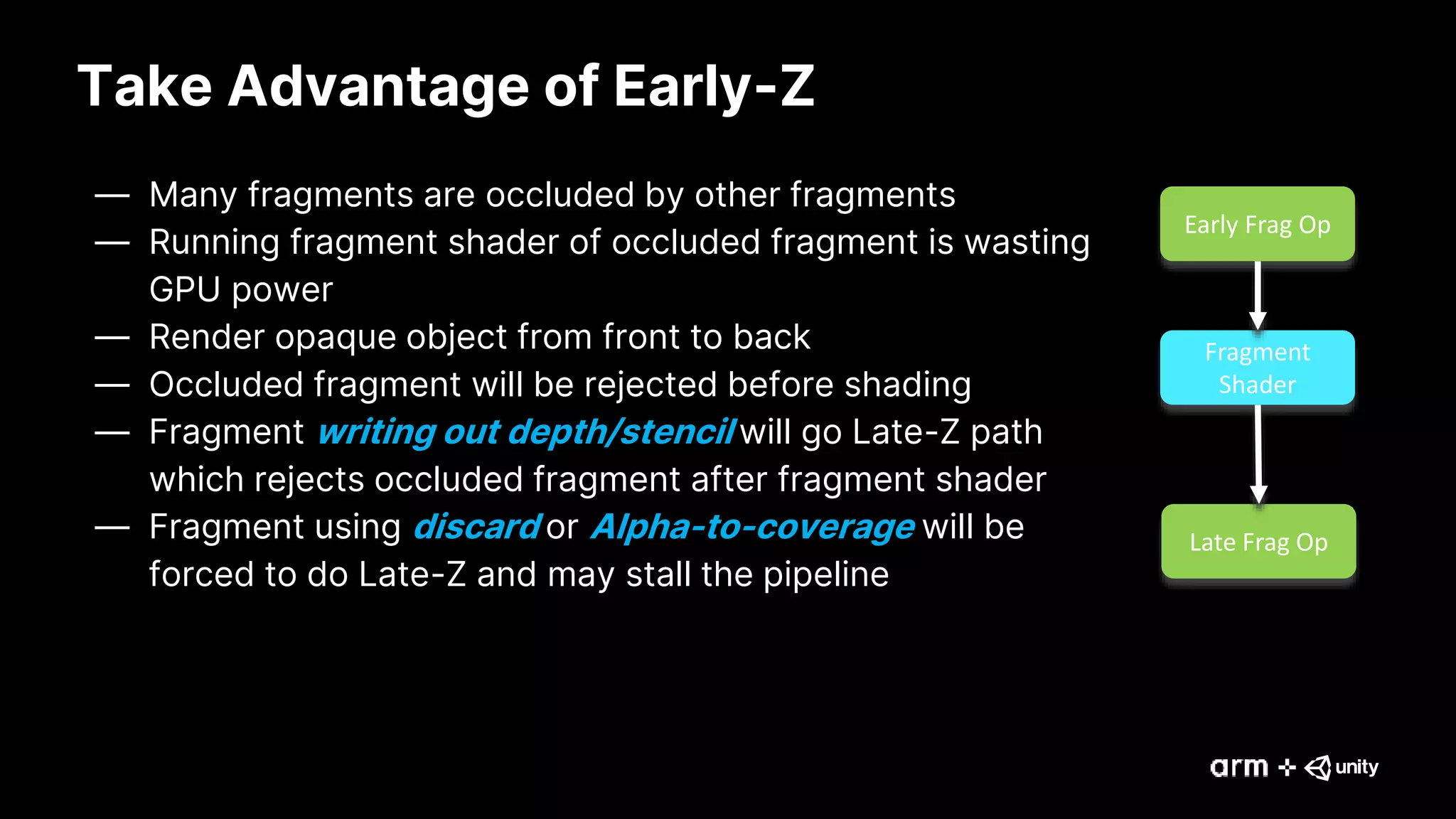

- 19. Take Advantage ofEarly-Z — Many fragments are occluded by other fragments — Running fragment shader of occluded fragment is wasting GPU power — Render opaque object from front to back — Occluded fragment will be rejected before shading — Fragment writing out depth/stencil will go Late-Z path which rejects occluded fragment after fragment shader — Fragment using discard or Alpha-to-coverage will be forced to do Late-Z and may stall the pipeline Early Frag Op Fragment Shader Late Frag Op

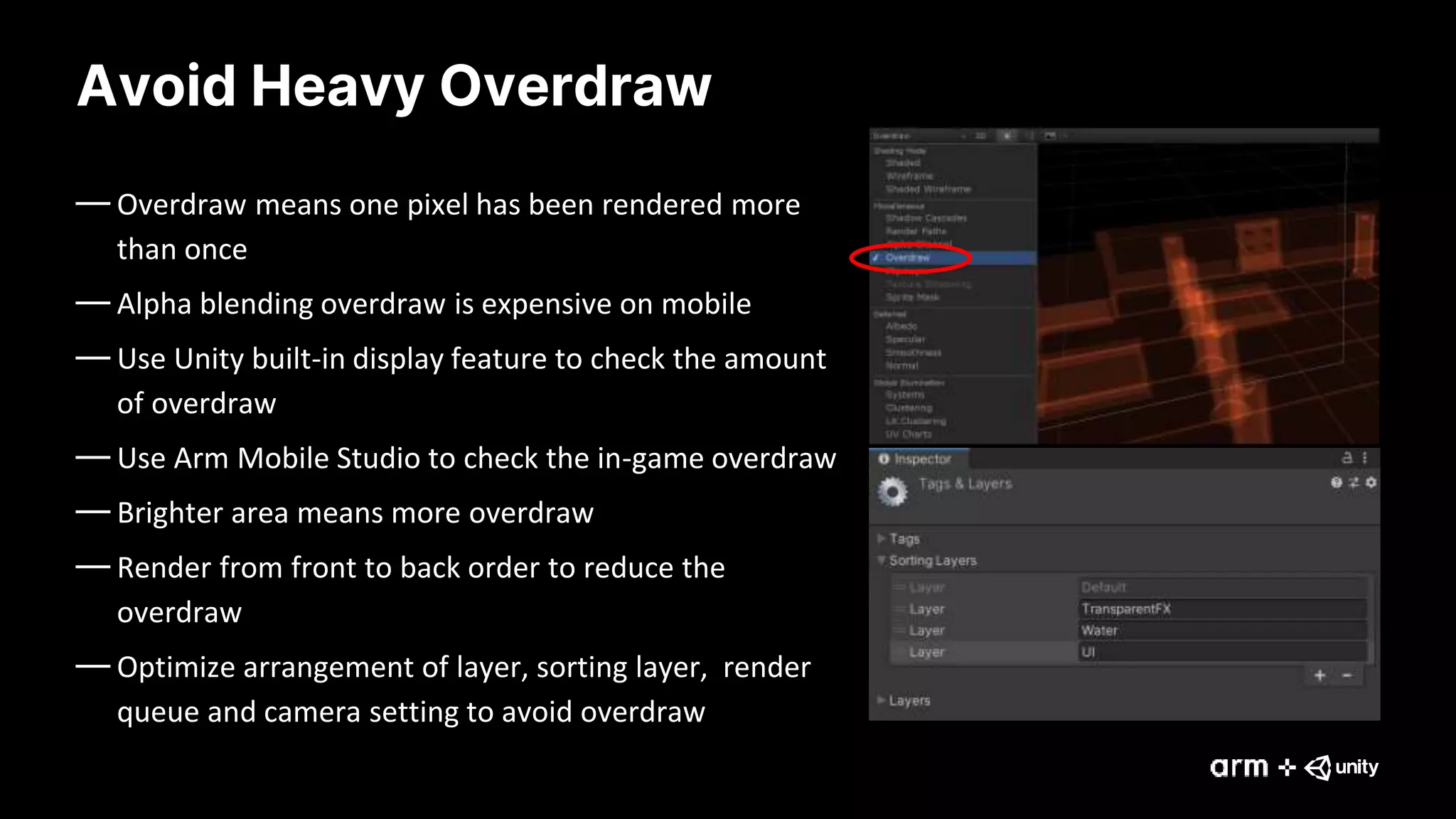

- 20. Avoid Heavy Overdraw —Overdraw means one pixel has been rendered more than once — Alpha blending overdraw is expensive on mobile — Use Unity built-in display feature to check the amount of overdraw — Use Arm Mobile Studio to check the in-game overdraw — Brighter area means more overdraw — Render from front to back order to reduce the overdraw — Optimize arrangement of layer, sorting layer, render queue and camera setting to avoid overdraw

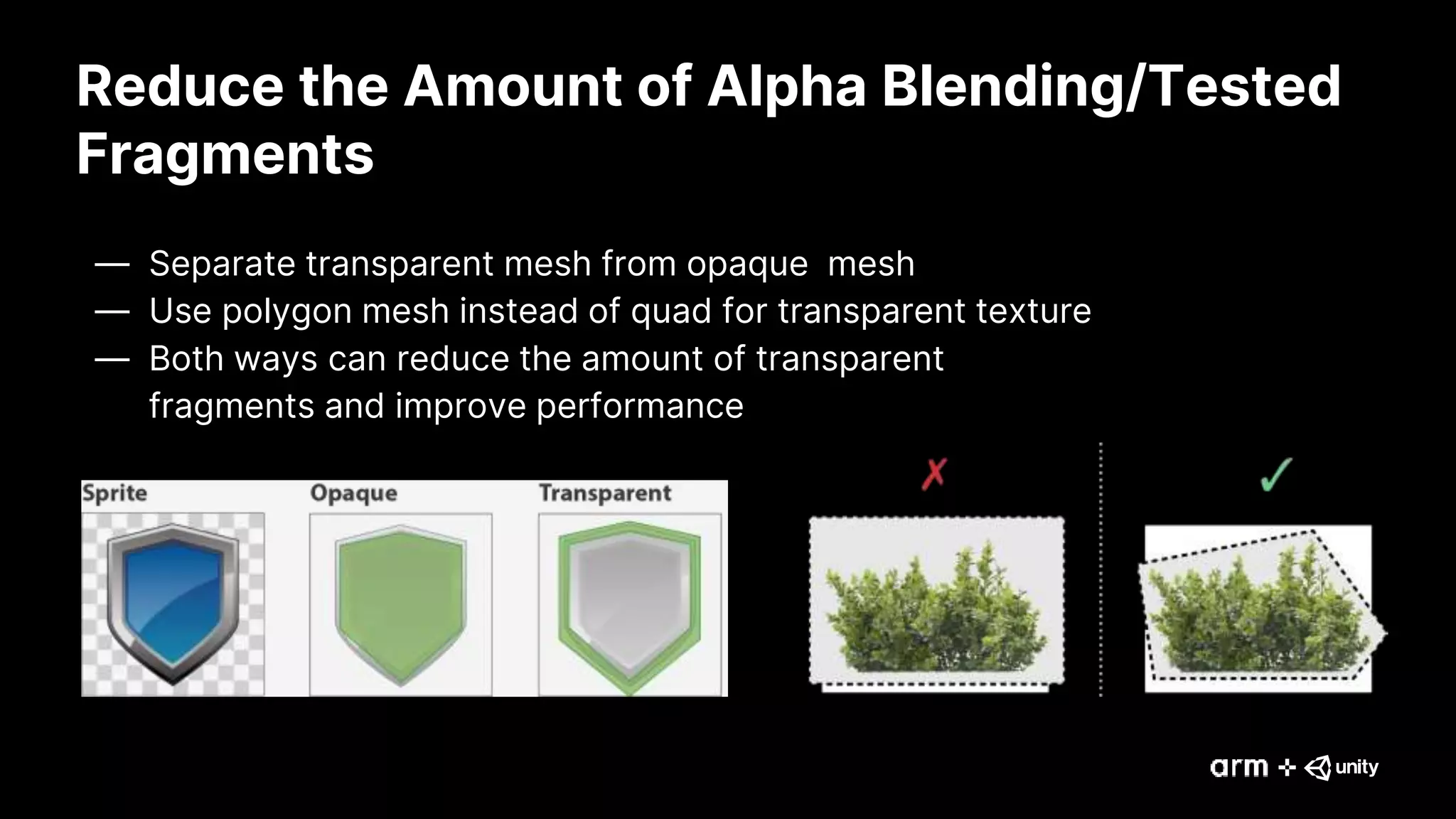

- 21. Reduce the Amountof Alpha Blending/Tested Fragments — Separate transparent mesh from opaque mesh — Use polygon mesh instead of quad for transparent texture — Both ways can reduce the amount of transparent fragments and improve performance

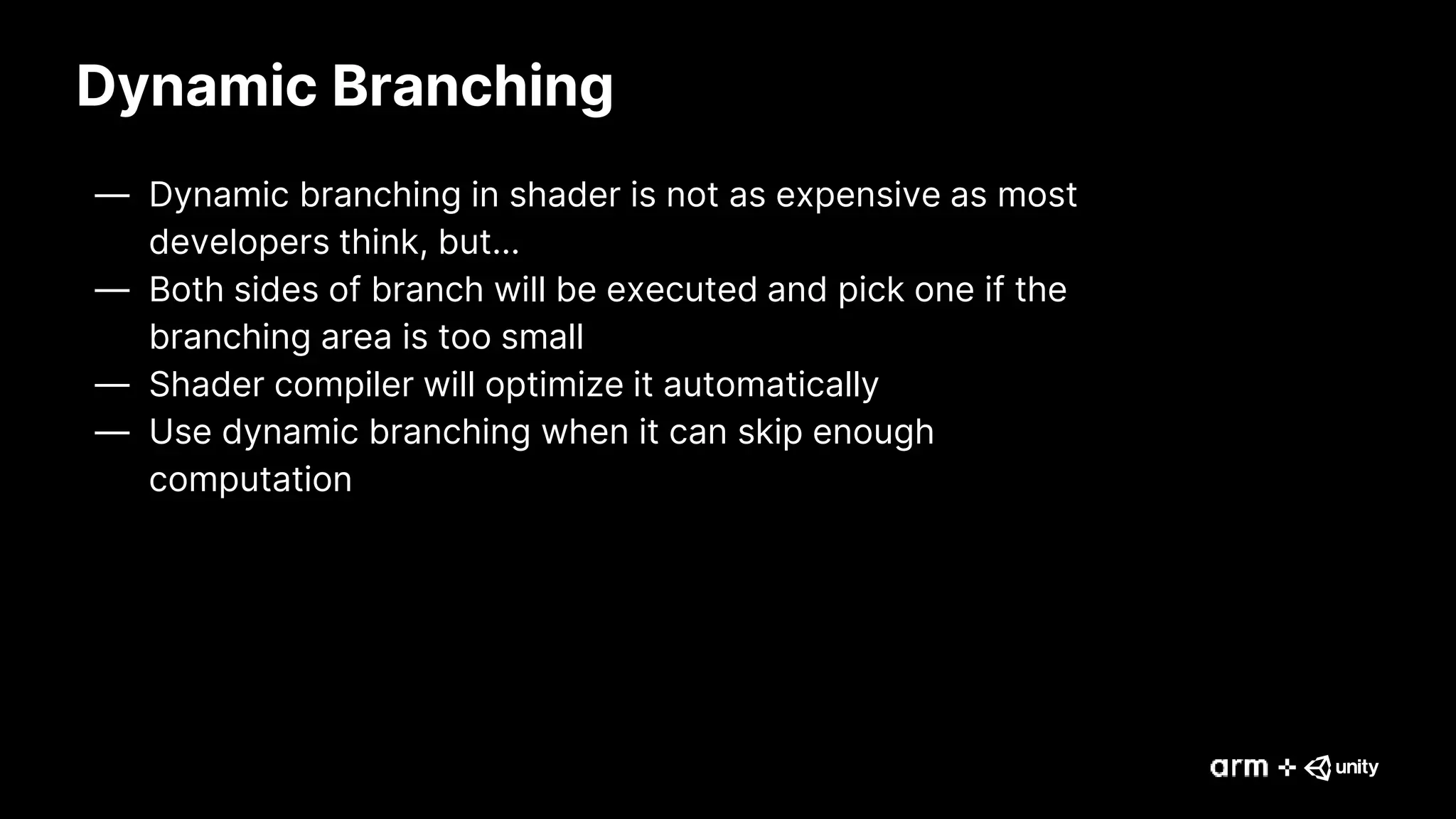

- 22. Dynamic Branching — Dynamicbranching in shader is not as expensive as most developers think, but… — Both sides of branch will be executed and pick one if the branching area is too small — Shader compiler will optimize it automatically — Use dynamic branching when it can skip enough computation
- 23.
- 24. Reduce Render StateSwitch — Render state switch is very expensive operation — Rendering as many primitives as possible before render state(SetPass) switch — Don’t just check number of draw calls or batches — Number of render state switch is also an important index — Check Tris/SetPass (i.e. 95.2K/34) — Batch as many draw calls as possible – Static batching – GPU Instancing – Dynamic batching
- 25. Reduce Frame BufferSwitch — Bind each frame buffer only once — Making all required draw calls before switching to the next frame buffer — Avoid unnecessary render buffer switch — Can reduce memory bandwidth requirement and power consumption (~100mW for 1GB/s) — Use Unity frame debugger to check — Use Arm Mobile Studio to do API level check
- 26. Clear Frame BufferBefore Rendering — Before rendering, GPU will read frame buffer into tile memory from external memory — Minimizing tile loads at renderpass start — Can cheaply initialize the tile memory to a clear color value — Ensure that you clear or invalidate all of your attachments at the start of each render pass — Use Unity frame debugger to check — Use Arm Mobile Studio to do API level check Doesn’t clear before rendering Bad for performance
- 27. Reduce Frame BufferWrite — After rendering, GPU will write result from tile memory to external memory — Minimizing tile stores at renderpass end — Avoid writing back to external memory whenever is possible — Don’t bind depth/stencil buffer if depth/stencil value is not used — Use RenderTexture.DiscardContents() to invalidate frame buffers if you don’t need the data at next frame — Use Unity frame debugger to check — Use Arm Mobile Studio to do API level check
- 28.
- 29. Generative Art — Made with Unity Arm Mobile Studio– Free Tool for Mobile Optimization • https://developer.arm.com/mobile-studio Arm Guide for Unity Developers • https://developer.arm.com/solutions/graphics-and-gaming/gaming- engine/unity/arm-guide-for-unity-developers 모바일 게임 아티스트를 위한 베스트 프랙티스 가이드 • https://blogs.unity3d.com/kr/2020/04/07/artists-best-practices-for- mobile-game-development/ Arm DevRel • developer@arm.com
