Ferro cement is a type of reinforced concrete consisting of multiple layers of wire mesh embedded in a mortar matrix. It uses cement mortar, steel reinforcement like wire mesh or rods, and has a high ratio of sand to cement. The steel reinforcement provides strength while the cement mortar encases it. Ferro cement is a durable and versatile material with applications like water tanks, floors, pipes, and bridges due to its strength, impermeability, and ability to withstand impacts and deformation.

1. Ferro Cement
Ferro cement is a form of
reinforced concrete using closely
spaced multiple layers of mesh
and/or small diameter rods
completely infiltrated with, or
encapsulated in, mortar.
Material use in Ferro Cement
1. Cement mortar mix
2. Skeleton steel
3. Steel mesh reinforcement or
Fibre- reinforced polymeric
meshes
March 25, 2020 1MIT - ACEM - RPA

2. Cement Mortar Mix
 OPC and fine aggregate matrix
is used
 The matrix constitutes 95% of
the composite and governs its
behavior
 sand occupies 60 to 75% of the
volume of the mortar
 Plasticizers and other
admixtures are used
Sand:cementratio(bymass)1.5to2.5
Water:cementratio(bymass)0.35to0.60
March 25, 2020 2MIT - ACEM - RPA

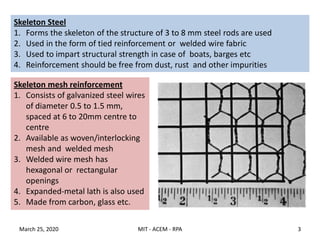

3. Skeleton Steel
1. Forms the skeleton of the structure of 3 to 8 mm steel rods are used
2. Used in the form of tied reinforcement or welded wire fabric
3. Used to impart structural strength in case of boats, barges etc
4. Reinforcement should be free from dust, rust and other impurities
Skeleton mesh reinforcement
1. Consists of galvanized steel wires
of diameter 0.5 to 1.5 mm,
spaced at 6 to 20mm centre to
centre
2. Available as woven/interlocking
mesh and welded mesh
3. Welded wire mesh has
hexagonal or rectangular
openings
4. Expanded-metal lath is also used
5. Made from carbon, glass etc.
March 25, 2020 3MIT - ACEM - RPA

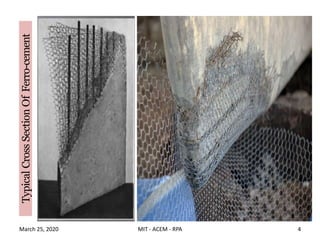

4. TypicalCrossSectionOfFerro-cement
March 25, 2020 4MIT - ACEM - RPA

5. Properties of Ferro cement
1. It is a very durable, cheap and
versatile material.
2. Low w/c ratio produces an
impermeable structures
3. less shrinkage, and low weight.
4. high tensile strength and stiffness
5. better impact and punching shear
resistance
6. undergo large deformations
before cracking or high
deflections
Application of Ferro Cement
1. Tanks, Containers And Silos
2. Floors And Roofs
3. Heavy Duty Floors Tiles
4. Waterproofing
5. Manhole Covers
6. Wall Cupboards
Application of Ferro Cement
1. Anticorrosive Membrane
Treatment
2. Ferro cement Buildings
3. Ferro cement Ducts
4. Rehabilitation Of Structures
5. Chemical Resistant Treatment
6. Irrigation Structures
7. Rural Applications
8. Marine Applications
9. Elevation Treatment
10. Fire Resistant Structures
11. Soil Stabilization
12. Pipes
13. Sewer Lines
14. Bridge
15. Foot Bridge
16. Strengthening Of RCC Structures
17. Sulphate Resistant Cement Saving
18. Pre-cast Ferro cement Structures
March 25, 2020 5MIT - ACEM - RPA

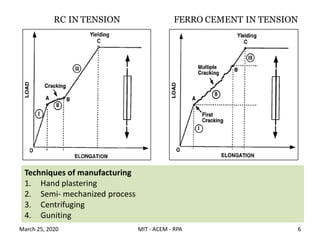

6. RC IN TENSION FERRO CEMENT IN TENSION
Techniques of manufacturing
1. Hand plastering
2. Semi- mechanized process
3. Centrifuging
4. Guniting
March 25, 2020 6MIT - ACEM - RPA
