DOMES
BY:-
SONAL BHARADIA
SAMIKSHA CHOUDHARY
INTRODUCTION
A DOME IS A THIN CURVED SURFACE OBTAINED BY REVOLUTION OF CURVED SURFACE
ABOUT A VERTICAL AXIS. IT IS AN ELEMENT OF ARCHITECTURE THAT RESEMBLES THE HOLLOW
UPPER HALF OF A SPHERE.
-THE THICKNESS OF DOME IS VERY SMALL AS COMPARED TO ITS OTHER DIMENSIONS
-IT VARIES FROM 75MM TO 150MM.
-IT IS VERY ECONOMICAL IF THE COST OF SHUTTERING IS REPETITIVE.
-THEY ARE SUBJECTED TO COMPRESSIVE STRESSES ONLY.
-IT CAN BE CIRCULAR OR CONICAL AND THIS CAN BE OBTAINED
BY REVOLUTION OF SEGMENT OF A CIRCLE OR A SLANTING LINEABOVE VERTICAL AXIS.
-A FIBRE IN A DOME IS SUBJECTED TO MERIDINAL THRUST
AND HOOP STRESS IN THE DIRECTION OF MERIDIANS AND
LATITUDES RESPECTIVELY.
-AT THE FREE EDGE OF THE DOME,MERIDINAL STRESSES HAVE
HORIZONTAL COMPONENT WHICH IS TAKEN CARE BY
PROVIDING A RING BEAM WHICH IS SUBJECTED TO HOOP
TENSION.
EVOLUTION OF DOMES
•THE EARLIEST DOMES WERE LIKELY DOMED HUTS MADE FROM SAPLINGS, REEDS,
OR TIMBERS AND COVERED WITH THATCH,TURF OR SKINS.
•THE EARLIEST DISCOVERED REMAINS OF DOMED
CONSTRUCTIONS MAY BE FOUR SMALL DWELLINGS
MADE OF MANMOTH TUSKS AND BONES.
THE FIRST WAS FOUND BY A FARMER IN UKRAINE,
IN 1965 WHILE HE WAS DIGGING IN HIS CELLAR AND
ARCHAEOLOGISTS UNEARTHED THREE MORE.
•DURING NEOLITHIC PERIOD IN THE ANCIENT NEAR EAST,
SMALL DOMES IN CORBELLED STONE OR BRICK OVER
ROUND-PLAN HOUSES WERE SERVED AS DWELLINGS FOR POORER PEOPLE BUT
DOMES DID NOT PLAY AN IMPORTANT ROLE IN MONUMENTAL ARCHITECTURE.
•ANCIENT STONE CORBELLED DOMES HAVE BEEN FOUND
FROM THE MIDDLE EAST TO WESTERN EUROPE.
CORBELLED BEEHIVE DOMES WERE USED AS GRANARIES
INANCIENT EGYPT, IN MASTABA TOMBS OF THE OLD
KINGDOM FROM THE FIRST DYNASTY, AS PRESSURE-
RELIEVING DEVICES IN PRIVATE BRICK PYRAMIDS OF
THE NEW KINGDOM.
CORBEL DOMES - THOLOS OF
ATREUS
• THE CONSTRUCTION OF THE FIRST TECHNICALLY ADVANCED TRUE
DOMES BEGAN IN THE ROMAN ARCHITECTURAL REVOLUTION
TO SHAPE LARGE INTERIOR SPACES OF TEMPLES AND PUBLIC
BUILDINGS, SUCH AS THE PANTHEON.
•SQUINCHES, THE TECHNIQUE OF MAKING A TRANSITION FROM
A SQUARE SHAPED ROOM TO A CIRCULAR DOME, WAS MOST
LIKELY INVENTED BY THE ANCIENT PERSIANS.
•THE ONION DOME BECAME ANOTHER
DISTINCTIVE FEATURE IN THE RUSSIAN
ARCHITECTURE, OFTEN IN COMBINATION
WITH THE TENTED ROOF.
PANTHEON

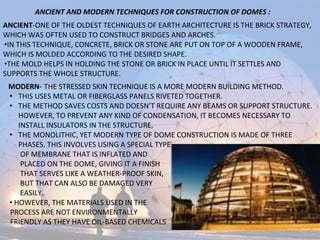

ANCIENT-ONE OF THE OLDEST TECHNIQUES OF EARTH ARCHITECTURE IS THE BRICK STRATEGY,
WHICH WAS OFTEN USED TO CONSTRUCT BRIDGES AND ARCHES.
•IN THIS TECHNIQUE, CONCRETE, BRICK OR STONE ARE PUT ON TOP OF A WOODEN FRAME,
WHICH IS MOLDED ACCORDING TO THE DESIRED SHAPE.
•THE MOLD HELPS IN HOLDING THE STONE OR BRICK IN PLACE UNTIL IT SETTLES AND
SUPPORTS THE WHOLE STRUCTURE.
MODERN- THE STRESSED SKIN TECHNIQUE IS A MORE MODERN BUILDING METHOD.
• THIS USES METAL OR FIBERGLASS PANELS RIVETED TOGETHER.
• THE METHOD SAVES COSTS AND DOESN’T REQUIRE ANY BEAMS OR SUPPORT STRUCTURE.
HOWEVER, TO PREVENT ANY KIND OF CONDENSATION, IT BECOMES NECESSARY TO
INSTALL INSULATORS IN THE STRUCTURE.
• THE MONOLITHIC, YET MODERN TYPE OF DOME CONSTRUCTION IS MADE OF THREE
PHASES. THIS INVOLVES USING A SPECIAL TYPE
OF MEMBRANE THAT IS INFLATED AND
PLACED ON THE DOME, GIVING IT A FINISH
THAT SERVES LIKE A WEATHER-PROOF SKIN,
BUT THAT CAN ALSO BE DAMAGED VERY
EASILY.
• HOWEVER, THE MATERIALS USED IN THE
PROCESS ARE NOT ENVIRONMENTALLY
FRIENDLY AS THEY HAVE OIL-BASED CHEMICALS.
ANCIENT AND MODERN TECHNIQUES FOR CONSTRUCTION OF DOMES :
HISTORY:
➢ THE CONSTRUCTION OF THE FIRST TECHNICALLY ADVANCED
TRUE DOMES BEGAN IN THE ROMAN ARCHITECTURAL
REVOLUTION TO SHAPE LARGE INTERIOR SPACES
OF TEMPLES AND PUBLIC BUILDINGS, SUCH AS
THE PANTHEON.
➢ SQUINCHES AND PENDENTIVES, THE TECHNIQUE OF MAKING
A TRANSITION FROM A SQUARE SHAPED ROOM TO A
CIRCULAR DOME, WAS MOST LIKELY INVENTED BY THE
ANCIENT PERSIANS.
➢ THE ONION DOME BECAME ANOTHER DISTINCTIVE FEATURE
IN THE RUSSIAN ARCHITECTURE, OFTEN IN COMBINATION
WITH THE TENTED ROOF.
➢ CORBEL DOMES AND TRUE DOMES HAVE BEEN FOUND IN
THE ANCIENT MIDDLE EAST IN MODEST BUILDINGS AND
TOMBS.
PANTHEON
TAJCORBEL DOMES - THOLOS OF
TYPES OF DOME :
CORBEL DOME:
o EARLIEST DOME FORMS
o IT IS FORMED BY HORIZONTAL
MASONRY CONSTRUCTIONS
THAT GRADUALLY DECREASE
IN SIZE TO CREATE A
SEMI-SPHERICAL SHAPE
ONION DOME:
o THE ONION DOME IS A
BULBOUS DOME THAT
WIDENS FROM A SMALL BASE
AND THEN TAPERS TOWARD
THE TOP, SIMILAR TO THE
DOME OF THE TAJ MAHAL
DRUM DOME:
o COMMON DOME SHAPE
o SIMPLE SEMI-SPHERICAL
SHAPE THAT EXTENDS UP
FROM A CIRCULAR BASE.
EG.PANTHEON
CORBEL DOME - THOLOS OF
ATREUS
ONION DOME – TAJ MAHA
DRUM
DOME-PANTHEON
OVAL DOME:
o THE OVAL DOME HAS AN OVAL OR EGG-SHAPED BASE
AND EXTENDS UPWARD MUCH LIKE A SPHERICAL
DOME.
o EG: BAROQUE OR LATE RENAISSANCE BUILDINGS
SAUCER DOME:
o CIRCULAR BASED DOMES
o CREATE A LOW-PITCHED SHAPE THAT LOOKS MORE
LIKE AN INVERTED SAUCER THAN A HALF SPHERE.
UMBRELLA DOME:
o ALSO CALLED AS SCALLOPED DOME.
o THE WEIGHT OF THE DOME IS SUPPORTED BY
VERTICAL STRUCTURES THAT GO FROM THE BASE TO
THE CENTER, DIVIDING THE DOME INTO SEGMENTS.
GEODESIC DOME:
o A GEODESIC DOME IS A SPHERICAL OR
PARTIAL-SPHERICAL SHELL STRUCTURE OR LATTICE
SHELL BASED ON A NETWORK OF GREAT
CIRCLES (GEODESICS) ON THE SURFACE OF A SPHERE.
o THE GEODESICS INTERSECT TO
FORM TRIANGULAR ELEMENTS THAT HAVE LOCAL
TRIANGULAR RIGIDITY AND ALSO DISTRIBUTE
THE STRESS ACROSS THE STRUCTURE.
OVAL
DOME
SAUCER
DOME
UMBRELLA
DOME
FORCES ACTING ON DOMES:-
1)SELF WEIGHT OF THE SURFACE
2)UNIFORMLY DISTRIBUTED LIVE LOAD
3)WIND LOAD
4)LOAD OF THE UPPER EDGE
•DOMES ARE ALSO CHARACTERIZED BY A THRUST.
•THE DOME’S THRUST IS COMPOSED OF ITS WEIGHT AND
THE HORIZONTAL THRUST OF THE BASIC ARCH SECTION.
•EDGE FORCES ARE TANGENTIAL TO THE SURFACE OF THE
SHELL AND CAN THEREFORE BE SUPPORTED BY A BUTTRESS
(MERIDIONAL FORCES) OR BY RING BEAM.
•DOME IS CREATED BY THE ROTATION OF AN ARCH AROUND
A VERTICAL AXIS, ANOTHER FORCE IS ACTING IN IT: THE
CIRCULAR FORCE (CF) OR HOOP FORCE WHICH ACTS IN
LATITUDINAL DIRECTION.
UNLIKE AN ARCH, A DOME CAN RESIST OUT-OF-PLANE
BENDING BECAUSE OF INTERNAL HOOP FORCES
•HOOP FORCES ALLOW RING-BY-RING CONSTRUCTION OF A
MASONRY DOME, AN UNFEASIBLE TASK FOR AN ARCH. AS A
RESULT, THOUGH AN ARCH IS UNSTABLE WITHOUT ITS
KEYSTONE, A DOME WITH AN OCULUS IS PERFECTLY STABLE
FORCES ACTING IN DOMES
ROUGH PLAN
OF RING BEAM
RING BEAM REINFORCEMENT
•THE DOME CAN BE ASSIMILATED TO AN INFINITESIMAL
NUMBER OF ARCHES WHOSE THRUST RADIATES FROM THE
CENTRE TOWARDS THE PERIPHERY.
•ON THE SPRINGER LEVEL, THE COMBINATION OF ALL THESE
HORIZONTAL THRUSTS WILL CREATE A PERIPHERAL TENSION
(PT) WHICH WILL TEND TO OPEN THE WALL SUPPORTING THE
DOME.
•THE COMBINATION OF THE MULTITUDE OF CIRCULAR FORCES
AND LINES OF THRUST WILL CREATE A NET OF COMPRESSION
FORCES WHICH WILL DEVELOP ON THE ENTIRE SURFACE OF
THE DOME.
•THEREFORE, IT CAN RESIST TREMENDOUS STRESS.
•IN CASE OF FAILURE OF ANY PART OF THE DOME, UNDER AN
EXCEPTIONAL STRESS, THIS NET OF COMPRESSIVE FORCES WILL
FIND ANOTHER WAY TO ACT IN THE DOME, AND THE LATTER
WILL RARELY COLLAPSE ENTIRELY AS LONG AS THE SUPPORTS
(WALLS OR COLUMNS) ARE INTACT.
CF = Circular force in every ring
LT = Line of thrust of “an arch” of
the dome
HT = Horizontal thrust of “an
arch” of the dome
W = Vertical weight of “an arch”
and the overload
T = Thrust, resultant force of the
horizontal thrust and weight of
“an arch”
P = Peripheral tension which is
created by the combination of
the horizontal thrusts of all the
arches, that are radiating from
the centre
•THEY CAN BE BUILT EITHER
ON CIRCULAR OR
QUADRANGULAR PLANS.
STABILITY OF DOMES
• THE EXAMPLES OF DOMES BUILT ALL OVER THE WORLD
THROUGH THE AGES SHOW THAT DOMES CAN HAVE A WIDER
VARIETY OF SHAPES THAN VAULTS.
•FOR INSTANCE, A DOME CAN BE CONICAL WITH ANY
PROPORTIONS: FROM A SHARP ONE TO A FLATTER ONE.
•BUT IT IS OBVIOUS THAT AN ARCH CANNOT HAVE A TRIANGULAR
SECTION
•THEREFORE, IT APPEARS THAT IF ARCHES OR VAULTS ARE
STABLE, DOMES OF THE SAME SECTION WILL NECESSARILY BE
STABLE. BUT THE OPPOSITE IS NOT NECESSARILY TRUE, AS WE
HAVE SEEN WITH THE CASE OF THE CONICAL DOME AND THE
TRIANGULAR ARCH.
Conical circular dome
Triangular arch
•THE MORE THE RISE OF
DOME (OR ARCH) AS
COMPARED TO THE SPAN,
THE MORE STRONGER IT IS.
•THEREFORE CATENARY
DOMES ARE MORE STABLE
AND REQUIRE LESS
SUPPORT THAN THE
SEGMENTAL DOMES.
•SOMETIMES, WHEN LOADED, THE DOME MAY NOT COINCIDE WITH
THE LINE OF PRESSURE.
•THEREFORE, AN ADDITIONAL FORCE IS REQUIRED TO RESIST BENDING.
•THAT IS TO ADD HOOP COMPRESSION RINGS WHICH PROVIDE THE
HORIZONTAL FORCE NEEDED.
•WAY TO CREATE A DOME WITHOUT HOOP COMPONENTS IS TO USE
RIBS THAT ARE COMPOSED OF TRUSSES, AS IS FOUND IN MANY STEEL
DOME SYSTEMS.
•WITH THIS DESIGN IT IS USEFUL TO ADD A COMPRESSION RING
TOWARDS THE TOP OFTHE DOME TO COUNTER THE INWARD TRUSS
TRUSSED DOME WITH COMPRESSION RING
LINE OF PRESSURE

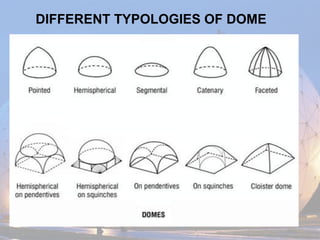

DIFFERENT TYPOLOGIES OF DOME
•THE PURPOSE OF THREE-DIMENSIONAL COMPRESSION SYSTEMS IS TO CREATE A LARGE,
UNOBSTRUCTED INTERIOR SPACE THAT CAN BE UTILIZED IN A NUMBER OF WAYS.
•IT USES COMPRESSIVE FORCES TO TRANSFER THE LOAD FROM THE TOP OF THE DOME
DOWN ALONG THE MEMBERS WHICH SUPPORT THE SYSTEM.
•SOME COMMON DOME SHAPES ARE:
OVERVIEW
1. CONICAL DOME 2. SQUARE DOME
3. ELLIPTICAL DOME
3. ELLIPTICAL DOME
IN SECTION WITH
THE USE OF A TRUSS
SYSTEM TO BEAR THE
LOAD.
1. THE CONICAL DOME
SHOWS A SERIES OF RIBS
THAT TRANSFER THE
LOAD DOWN THE
STRUCTURE TO THE
SUPPORTS BELOW.
2. THE SQUARE DOME RESTS
ON TOP OF PENDENTIVES,
WHICH CONNECT THE
BOTTOM RIM OF THE DOME
TO THE ARCHES ON WHICH
IT RESTS.
TRUSSED RIB
(SECTION)
PLAN
•REINFORCED CONCRETE COMBINES PROPERTIES OF STEEL
AND CONCRETE TO RESIST BOTH TENSION AND
COMPRESSION.
•ONE OF THE LARGEST REINFORCED CONCRETE DOMES
MEASURES 663 FEET (202METERS).
•SOME EXAMPLES OF REINFORCED CONCRETE DOMES ARE
THE KING DOME IN SEATTLE (DISMANTLED IN 2000) AND THE
ALGECIRAS MARKET IN SPAIN.
1. REINFORCED CONCRETE
TYPES OF DOMES BASED ON MATERIALS
THE KING DOME
. THE ALGECIRAS MARKET
•ONE OF THE LARGEST CONSTRUCTED STEEL
DOMES MEASURES 713 FEET (218
METERS).SOME EXAMPLES OF STEEL DOMES
ARE THE ASTRO DOME IN HOUSTON AND
THE OSAKADOME IN JAPAN.
2. STEEL
•STEELDOMES USE THREE-DIMENSIONAL TRUSSES AND HAVE A
LIGHTER CONSTRUCTION THAN CONCRETE DOMES.
•STEEL HANDLES COMPRESSION AND TENSION BETTER THAN
CONCRETE DOES.
•LARGER DOMES USE STEEL BECAUSE IT CAN HAVE A GREATER SPAN
MORE EASILY THAN CONCRETE.
3. WOOD
•WOODEN DOMES ARE MADE OF WOOD COMPOSITES
COMBINED WITH JOINTS AND STEEL FRAMES.
•WOODEN DOMES ARE FAVORED FOR THE WARMTH OF THE
WOOD ITSELF, BUT THEY CANNOT SPAN DISTANCES LIKE
CONCRETE OR STEEL.
•ONE OF THE LARGEST WOODEN DOMES MEASURES 584
FEET (178 METERS).
•SOME EXAMPLES OF WOODEN DOMES ARE THE TACOMA
DOME IN WASHINGTON AND THE ODATE JUKAI DOME IN
JAPAN.
4. MASONRY
•MASONRY WAS USED IN EARLY DOME
CONSTRUCTION BECAUSE IT WAS WIDELY AVAILABLE.
•MASONRY DOMES HAVE THE SMALLEST SPAN OF ALL
THE MATERIALS MEASURING, AT LARGEST, 141 FEET
(43 METERS).
•SOME EXAMPLES OF MASONRY DOMES ARE THE
PANTHEON IN ROME AND ST. PAUL’S CATHEDRAL IN
LONDON.
NUMERIC PARAMETERS
•THE SMALLEST SPANS ARE ACHIEVED BY USING MASONRY BECAUSE THE WEIGHT OF THE
MATERIAL IS LARGE AND THE STRENGTH IS LOWER.
•STEEL PROVIDES THE LARGEST SPANS BECAUSE LESS MATERIAL IS NEEDED AND THEREFORE
THE STRUCTURE ITSELF WEIGHS LESS. ADDITIONALLY STEEL PROVIDES A HIGH MATERIAL
STRENGTH.
•GEODESIC DOMES HAVE BEEN WIND-TUNNEL TESTED TO WITHSTAND WIND SPEEDS UP TO
200 MPH.
BASIC STEPS INVOLVED IN THE CONSTRUCTION OF DOME:-
2)MARK THE CENTER POINT AND INSERT THE
TRAMMEL.
5)BUILD THE SIDES
4)THE PIVOT WILL RISE AS THE DOME
RISES.
3)CREATE A PIVOT TO KEEP THE DOME IN
LINE.
1)START WITH A FOUNDATION
BRICK MASONRY DETAIL:-
-THIS IS HEMISPHERICAL
DOME WITH CONSTANT
RADIUS WITH THE HELP OF
TRAMMEL.
DOME MASONRY WORK
CONSISTS OF FOLLOWING
STEPS:-
-FINDING AND FIXING THE
CENTER POINT OF THE
DOME RADIUS IN RELATION
TO THE LEVEL LINE.
-LAYER BY LAYER SETTLING
OF DOME MASONRY,WITH
THE BRICKS SET IN MORTAR
POSITIONED AND ALLIGNED WITH THE TRAMMEL
AND TAPPED FOR PROPER SEATING.
-IN UPPER PART OF THE DOME, WHEN THE TRAMMEL
IS STANDING AT STEEPER ANGLE THAN 45 DEGREE,THE
BRICKS MUST BE HELD IN PLACE UNTIL EACH COURSE
IS COMPLETE.
-COURSES ARE INHERENTLY STABLE AND THEREFORE
NEED NOT TO BE HELD IN PLACE ANY LONGER.

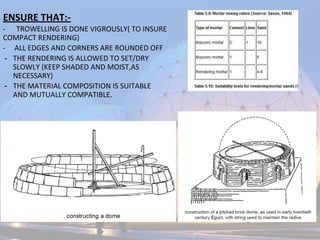

ENSURE THAT:-
- TROWELLING IS DONE VIGROUSLY( TO INSURE
COMPACT RENDERING)
- ALL EDGES AND CORNERS ARE ROUNDED OFF
- THE RENDERING IS ALLOWED TO SET/DRY
SLOWLY (KEEP SHADED AND MOIST,AS
NECESSARY)
- THE MATERIAL COMPOSITION IS SUITABLE
AND MUTUALLY COMPATIBLE.
RING BEAM
HOOPS
MERIDIAN
RCC DOME DETAIL :-
-MERIDIONAL THRUST ACTING VERTICALLY AND HOOP STRESS ACTING HORIZONTALLY
-TYPICAL SPAN= 250’-650’
-CONCRETE IS THICK NEAR THE EDGE OF THE RING BEAM AND TAPERS AS IT GOES
UPWARDS.
RING BEAM
HOOPS
MERIDIAN
STEPS FOR CONSTRUCTION OF MONOLITHIC DOME:-
MATERIALS REQUIRED:-
1)STEEL-REINFORCED CONCRETE
2)POLYURETHANE FOAM INSULATION
3)INFLATABLE AIRFORM
STEPS:-
1=DOME STARTS AS A CONCRETE RING
FOUNDATION,REINFORCED WITH STEEL REBAR.VERTICAL
STEEL BARS EMBEDDED IN THE RING LATER ATTACHED TO
THE STEEL REINFORCING OF THE DOME ITSELF.
2=AN AIRFORM,FABRICATED TO THE PROPER SHAPE AND
SIZE IS PLACED ON THE RING BASE. USING BLOWER FANS, IT
IS INFLATED AND THE AIRFORM CREATES THE SHAPE OF THE
STRUCTURE TO BE COMPLETED. THE FANS RUN
THROUGHOUT THE CONSTRUCTION OF THE DOME.
3=POLYURETHANE IS APPLIED TO THE INTERIOR SURFACE OF
THE AIRFORM.ENTRANCE INTO THE AIRFORM IS MADE
THROUGH A DOUBLE DOOR AIRLOCKWHICH KEEPS THE AIR
PRESSURE INSIDE AT A CONSTANT LEVEL.
APPROXIMATELY 3 INCHES OF FOAM IS APPLIED.THE FOAM
IS ALSO THE BASE
FOR ATTACHING THE STEEL REINFORCING REBAR.
4=STEEL REINFORCING REBAR IS ATTACHED TO THE
FOAM USING A SPECIALLY ENGINEERED LAYOUT OF
HOOP(HORIZONTAL) AND VERTICAL STEEL REBAR.
SMALL DOMES NEED SMALL DIAMETER BARS WITH
WIDE SPACING. LARGE DOMES NEED LARGE BARS
EITH CLOSER SPACING.
5=SHOTCRETE- A SPECIAL SPRAYMIX OF CONCRETE-
IS APPLIED TO THE INTERIOR SURFACE OF THE
DOME. THE STEEL REBAR IS EMBEDDED IN THE
CONCRETE AND WHEN ABOUT 3 INCHES OF
SHOTCRETE IS APPLIED,THE MONOLITHIC DOME IS
FINISHED.THE BLOWER FANS ARE SHUT OFF AFTER
THE CONCRETE IS SET.

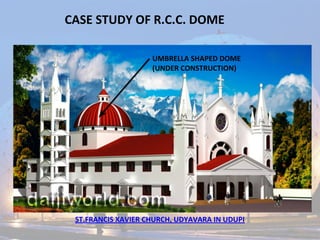

CASE STUDY OF R.C.C. DOME
ST.FRANCIS XAVIER CHURCH, UDYAVARA IN UDUPI
UMBRELLA SHAPED DOME
(UNDER CONSTRUCTION)
RING BEAM
40FT.(12.192M)
• HT. OF DOME: 40FT.(12.192M)
• DIA. OF DOME: 36FT.(10.9782M)
REINFORCEMENT BARS OVER
THE SCAFFOLDING
M25 GRADE
CONCRETE DOME
• 4FT. (1.2192M) OF CONCRETE IS LAID
PER DAY
CASE STUDY OF R.C.C. DOME

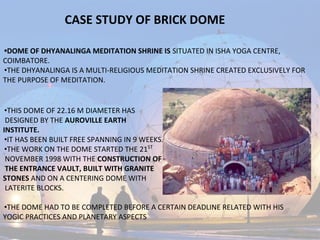

•DOME OF DHYANALINGA MEDITATION SHRINE IS SITUATED IN ISHA YOGA CENTRE,
COIMBATORE.
•THE DHYANALINGA IS A MULTI-RELIGIOUS MEDITATION SHRINE CREATED EXCLUSIVELY FOR
THE PURPOSE OF MEDITATION.
•THIS DOME OF 22.16 M DIAMETER HAS
DESIGNED BY THE AUROVILLE EARTH
INSTITUTE.
•IT HAS BEEN BUILT FREE SPANNING IN 9 WEEKS.
•THE WORK ON THE DOME STARTED THE 21ST
NOVEMBER 1998 WITH THE CONSTRUCTION OF
THE ENTRANCE VAULT, BUILT WITH GRANITE
STONES AND ON A CENTERING DOME WITH
LATERITE BLOCKS.
•THE DOME HAD TO BE COMPLETED BEFORE A CERTAIN DEADLINE RELATED WITH HIS
YOGIC PRACTICES AND PLANETARY ASPECTS
CASE STUDY OF BRICK DOME

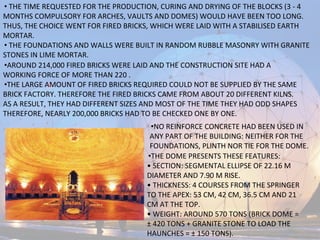

• THE TIME REQUESTED FOR THE PRODUCTION, CURING AND DRYING OF THE BLOCKS (3 - 4
MONTHS COMPULSORY FOR ARCHES, VAULTS AND DOMES) WOULD HAVE BEEN TOO LONG.
THUS, THE CHOICE WENT FOR FIRED BRICKS, WHICH WERE LAID WITH A STABILISED EARTH
MORTAR.
• THE FOUNDATIONS AND WALLS WERE BUILT IN RANDOM RUBBLE MASONRY WITH GRANITE
STONES IN LIME MORTAR.
•AROUND 214,000 FIRED BRICKS WERE LAID AND THE CONSTRUCTION SITE HAD A
WORKING FORCE OF MORE THAN 220 .
•THE LARGE AMOUNT OF FIRED BRICKS REQUIRED COULD NOT BE SUPPLIED BY THE SAME
BRICK FACTORY. THEREFORE THE FIRED BRICKS CAME FROM ABOUT 20 DIFFERENT KILNS.
AS A RESULT, THEY HAD DIFFERENT SIZES AND MOST OF THE TIME THEY HAD ODD SHAPES
THEREFORE, NEARLY 200,000 BRICKS HAD TO BE CHECKED ONE BY ONE.
•NO REINFORCE CONCRETE HAD BEEN USED IN
ANY PART OF THE BUILDING: NEITHER FOR THE
FOUNDATIONS, PLINTH NOR TIE FOR THE DOME.
•THE DOME PRESENTS THESE FEATURES:
• SECTION: SEGMENTAL ELLIPSE OF 22.16 M
DIAMETER AND 7.90 M RISE.
• THICKNESS: 4 COURSES FROM THE SPRINGER
TO THE APEX: 53 CM, 42 CM, 36.5 CM AND 21
CM AT THE TOP.
• WEIGHT: AROUND 570 TONS (BRICK DOME =
± 420 TONS + GRANITE STONE TO LOAD THE
HAUNCHES = ± 150 TONS).
DOME STABILITY STUDY
•THEY DID NOT WANT TO USE CONCRETE RING BEAMS AND THEREFORE THE METHOD
DOES NOT DEFINE THE OPTIMISED LINE OF THRUST IN THE DOME BECAUSE IT DOES NOT
TAKE IN ACCOUNT THE CONCENTRIC FORCES, WHICH ARE ACTING IN A DOME AND
ALLOW BUILDING IT WITHOUT SUPPORT.
•FINALLY THE DOME WAS STUDIED LIKE A VAULT, WHICH IS MORE SENSITIVE TO A
WRONG SHAPE THAN A DOME: IF A VAULT IS STABLE, A DOME WILL BE STABLE.WHEN
THE OPPOSITE IS NOT NECESSARILY TRUE.
•AS NO REINFORCED CONCRETE WAS USED FOR ANY TIE, IT WAS COMPULSORY TO GET
THE RESULTANT OF THE TRUST WITHIN THE MIDDLE THIRD OF THE RING WALL AND THE
FOUNDATIONS. TO DO SO, GRANITE STONES WERE USED TO LOAD THE HAUNCH OF THE
DOME.
MORTAR SPECIFICATIONS
•WITH THE DOME RISING, THE MORTAR SPECIFICATION NEEDED REGULARLY TO BE ADAPTED:
ADDING MORE SOIL, IN 3 STEPS, SO AS TO HAVE THE IDEAL ADHESION ACCORDING TO THE
ANGLE OF THE LAYERS.
•THE DIFFERENT MORTARS WERE OVER STABILISED SO AS TO GET A FAST SETTING AND
STRENGTH: 13 TO 13.37% OF CEMENT AND 19% OF LIME.
CONSTRUCTION DETAILS OF THE DOME
STARTING THE ENTRANCE VAULT WITH
GRANITE BLOCKS
BLOCK TOUCHING THE SPRINGER
AT THE INTRADOS
KEYSTONE TOUCHING AT THE INTRADOS
BEGINNING THE DOME
DOME WITH THE LINGA AND THE ROPES
TO CHECK THE ELLIPTICAL SHAPE
LAYING KEYSTONES
GROUTING THE STABILISED EARTH GLUE IN THE
JOINTS FILLING TIGHTLY MORTAR WITH STONE CHIPS STARTING THE DOME WITH 29 CM THICK BLOCKS
BONDS OF THE COURSES
GRINDING THE PARTS OF THE COURSE
WHICH ARE TOO HIGH
CHECKING THE LEVEL OF THE COURSES
CLOSING THE PIPE OF AN
ACOUSTIC CORRECTOR
PLASTERING THE PARTS OF THE
COURSE WHICH ARE TOO LOW
INSERTING THE PIPE FOR AN ACOUSTIC
CORRECTOR TO ABSORB 220 HZ
LOADING THE HAUNCHES WITH
GRANITE STONES
SMOOTHENING THE EARTH
CONCRETE WITH A STABILISED
EARTH PLASTER
LAYING THE LAST COURSES DOME NEAR COMPLETION DOME AFTER COMPLETION
THANK YOU!!!

More Related Content

What's hot

Shell structure
Shell structureShell structure
Shell structure
Susmita Paul

Case Study: High Rise Buildings
Case Study: High Rise BuildingsCase Study: High Rise Buildings
Case Study: High Rise Buildings
Prasad Thanthratey

Steel portal frames
Steel portal framesSteel portal frames
Steel portal frames
Komal Gupta

PRECAST CONCRETE STAIRS
  PRECAST CONCRETE STAIRS  PRECAST CONCRETE STAIRS
PRECAST CONCRETE STAIRS
Abhishek Mewada

Framed structures
Framed structures Framed structures
Framed structures
Shivangi Saini

Highrise structure
Highrise structureHighrise structure
Highrise structure
Bee Key Verma

Basic design criteria for high rise buildings
Basic design criteria for high rise buildings Basic design criteria for high rise buildings
Basic design criteria for high rise buildings
Parent Construction & Consultancy Ltd.

Filler slab
Filler slabFiller slab
Filler slab
Kiruthika Selvi K J

Steel trusses
Steel trussesSteel trusses
Steel trusses
Roopa Chikkalgi

Space frames1
Space frames1Space frames1
Space frames1
Akshay Bhatia

VAULT CONSTRUCTION
VAULT CONSTRUCTIONVAULT CONSTRUCTION
VAULT CONSTRUCTION
Aida Nesa

Vierendeel truss bs5
Vierendeel truss bs5Vierendeel truss bs5
Vierendeel truss bs5
Sandhya Singh

Large span structures
Large span structuresLarge span structures
Large span structures
aduiti

Structural systems in high rise buildings
Structural systems in high rise buildingsStructural systems in high rise buildings
Structural systems in high rise buildings
Karthik Suresh

presentation ON TALL BUILDING
 presentation ON TALL BUILDING presentation ON TALL BUILDING
High Rise Building Structure Systems Types
High Rise Building Structure Systems TypesHigh Rise Building Structure Systems Types
High Rise Building Structure Systems Types
Mazin Elbashkatib

Diagrid structural system
Diagrid structural systemDiagrid structural system
Diagrid structural system
vivek bhathee

Folded Plate structures
Folded Plate structures Folded Plate structures
Folded Plate structures
rohan joshi

Waffle slab
Waffle slabWaffle slab
Waffle slab
Akshay Raut

Reinforced Cement Concrete (RCC)
Reinforced Cement Concrete (RCC) Reinforced Cement Concrete (RCC)
Reinforced Cement Concrete (RCC)
Simran Aggarwal


What's hot (20)

Shell structure
Shell structureShell structure
Shell structure

Case Study: High Rise Buildings
Case Study: High Rise BuildingsCase Study: High Rise Buildings
Case Study: High Rise Buildings

Steel portal frames
Steel portal framesSteel portal frames
Steel portal frames

PRECAST CONCRETE STAIRS
  PRECAST CONCRETE STAIRS  PRECAST CONCRETE STAIRS
PRECAST CONCRETE STAIRS

Framed structures
Framed structures Framed structures
Framed structures

Highrise structure
Highrise structureHighrise structure
Highrise structure

Basic design criteria for high rise buildings
Basic design criteria for high rise buildings Basic design criteria for high rise buildings
Basic design criteria for high rise buildings

Filler slab
Filler slabFiller slab
Filler slab

Steel trusses
Steel trussesSteel trusses
Steel trusses

Space frames1
Space frames1Space frames1
Space frames1

VAULT CONSTRUCTION
VAULT CONSTRUCTIONVAULT CONSTRUCTION
VAULT CONSTRUCTION

Vierendeel truss bs5
Vierendeel truss bs5Vierendeel truss bs5
Vierendeel truss bs5

Large span structures
Large span structuresLarge span structures
Large span structures

Structural systems in high rise buildings
Structural systems in high rise buildingsStructural systems in high rise buildings
Structural systems in high rise buildings

presentation ON TALL BUILDING
 presentation ON TALL BUILDING presentation ON TALL BUILDING
presentation ON TALL BUILDING

High Rise Building Structure Systems Types
High Rise Building Structure Systems TypesHigh Rise Building Structure Systems Types
High Rise Building Structure Systems Types

Diagrid structural system
Diagrid structural systemDiagrid structural system
Diagrid structural system

Folded Plate structures
Folded Plate structures Folded Plate structures
Folded Plate structures

Waffle slab
Waffle slabWaffle slab
Waffle slab

Reinforced Cement Concrete (RCC)
Reinforced Cement Concrete (RCC) Reinforced Cement Concrete (RCC)
Reinforced Cement Concrete (RCC)


Similar to CONSTRUCTION OF DOMES

Miscellaneous Structures
Miscellaneous StructuresMiscellaneous Structures
Miscellaneous Structures
Fleming Prakash

Shell structure.pdf
Shell structure.pdfShell structure.pdf
Shell structure.pdf
Abhishek Kumawat

Steel sections-Building Construction
Steel sections-Building ConstructionSteel sections-Building Construction
Steel sections-Building Construction
RubalMehta95

Space frames!
Space frames!Space frames!
Space frames!
Sajida Shah

Steel roof trusses
Steel roof trussesSteel roof trusses
Steel roof trusses
Siddharth Gupta

Design highrise
Design highriseDesign highrise
Design highrise
Somyaa Jain

Is codes related to earthquake
Is codes related to earthquakeIs codes related to earthquake
Is codes related to earthquake
Neeraj Chourasia

Steel
SteelSteel
designhighrise-171106164907.pptx
designhighrise-171106164907.pptxdesignhighrise-171106164907.pptx
designhighrise-171106164907.pptx
Farhanullah46

Domical system
Domical systemDomical system
Domical system
MAJDQAFISHEH

Post slab presentation
Post slab presentationPost slab presentation
for reviewer JIAO89523994-truss-ppt.pptx
for reviewer JIAO89523994-truss-ppt.pptxfor reviewer JIAO89523994-truss-ppt.pptx
for reviewer JIAO89523994-truss-ppt.pptx
KyleStevenVillanueva

Materials required for concrete column construction
Materials required for concrete column constructionMaterials required for concrete column construction
Materials required for concrete column construction
builtify

FORM ACTIVE.pptx
FORM ACTIVE.pptxFORM ACTIVE.pptx
FORM ACTIVE.pptx
TaranJot7

FORM ACTIVE.pdf
FORM ACTIVE.pdfFORM ACTIVE.pdf
FORM ACTIVE.pdf
TaranJot7

Earthquack engineering
Earthquack engineeringEarthquack engineering
Earthquack engineering
saisrinivas gorugantula

Foundations seminar
Foundations seminarFoundations seminar
Foundations seminar
Akanksha Rajput

ARCHES
ARCHESARCHES
ARCHES
Kavin Raval

Part 2 Architecture 1 st yr. Understanding stresses in structures compressio...
Part 2 Architecture 1 st yr. Understanding stresses in structures  compressio...Part 2 Architecture 1 st yr. Understanding stresses in structures  compressio...
Part 2 Architecture 1 st yr. Understanding stresses in structures compressio...
HARSHADABRAMHERAJAN

Lotus Temple Delhi
Lotus Temple DelhiLotus Temple Delhi
Lotus Temple Delhi
Archistudent Portal


Similar to CONSTRUCTION OF DOMES (20)

Miscellaneous Structures
Miscellaneous StructuresMiscellaneous Structures
Miscellaneous Structures

Shell structure.pdf
Shell structure.pdfShell structure.pdf
Shell structure.pdf

Steel sections-Building Construction
Steel sections-Building ConstructionSteel sections-Building Construction
Steel sections-Building Construction

Space frames!
Space frames!Space frames!
Space frames!

Steel roof trusses
Steel roof trussesSteel roof trusses
Steel roof trusses

Design highrise
Design highriseDesign highrise
Design highrise

Is codes related to earthquake
Is codes related to earthquakeIs codes related to earthquake
Is codes related to earthquake

Steel
SteelSteel
Steel

designhighrise-171106164907.pptx
designhighrise-171106164907.pptxdesignhighrise-171106164907.pptx
designhighrise-171106164907.pptx

Domical system
Domical systemDomical system
Domical system

Post slab presentation
Post slab presentationPost slab presentation
Post slab presentation

for reviewer JIAO89523994-truss-ppt.pptx
for reviewer JIAO89523994-truss-ppt.pptxfor reviewer JIAO89523994-truss-ppt.pptx
for reviewer JIAO89523994-truss-ppt.pptx

Materials required for concrete column construction
Materials required for concrete column constructionMaterials required for concrete column construction
Materials required for concrete column construction

FORM ACTIVE.pptx
FORM ACTIVE.pptxFORM ACTIVE.pptx
FORM ACTIVE.pptx

FORM ACTIVE.pdf
FORM ACTIVE.pdfFORM ACTIVE.pdf
FORM ACTIVE.pdf

Earthquack engineering
Earthquack engineeringEarthquack engineering
Earthquack engineering

Foundations seminar
Foundations seminarFoundations seminar
Foundations seminar

ARCHES
ARCHESARCHES
ARCHES

Part 2 Architecture 1 st yr. Understanding stresses in structures compressio...
Part 2 Architecture 1 st yr. Understanding stresses in structures  compressio...Part 2 Architecture 1 st yr. Understanding stresses in structures  compressio...
Part 2 Architecture 1 st yr. Understanding stresses in structures compressio...

Lotus Temple Delhi
Lotus Temple DelhiLotus Temple Delhi
Lotus Temple Delhi


Recently uploaded

Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
imrankhan141184

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used
ssuser13ffe4

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub
danielkiash986

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory
Celine George

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation
TechSoup

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Vivekanand Anglo Vedic Academy

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf
BoudhayanBhattachari

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)
nitinpv4ai

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
GeorgeMilliken2

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
PECB

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
سمير بسيوني

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
Himanshu Rai

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.
deepaannamalai16

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
Nguyen Thanh Tu Collection

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx
Denish Jangid

Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.pptLevel 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt
Henry Hollis

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx
zuzanka

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor
JomonJoseph58


Recently uploaded (20)

Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...
Traditional Musical Instruments of Arunachal Pradesh and Uttar Pradesh - RAYH...

math operations ued in python and all used
math operations ued in python and all usedmath operations ued in python and all used
math operations ued in python and all used

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...

ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx

Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.pptLevel 3 NCEA - NZ: A  Nation In the Making 1872 - 1900 SML.ppt
Level 3 NCEA - NZ: A Nation In the Making 1872 - 1900 SML.ppt

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

Stack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 MicroprocessorStack Memory Organization of 8086 Microprocessor
Stack Memory Organization of 8086 Microprocessor


CONSTRUCTION OF DOMES

  • 2. INTRODUCTION A DOME IS A THIN CURVED SURFACE OBTAINED BY REVOLUTION OF CURVED SURFACE ABOUT A VERTICAL AXIS. IT IS AN ELEMENT OF ARCHITECTURE THAT RESEMBLES THE HOLLOW UPPER HALF OF A SPHERE. -THE THICKNESS OF DOME IS VERY SMALL AS COMPARED TO ITS OTHER DIMENSIONS -IT VARIES FROM 75MM TO 150MM. -IT IS VERY ECONOMICAL IF THE COST OF SHUTTERING IS REPETITIVE. -THEY ARE SUBJECTED TO COMPRESSIVE STRESSES ONLY. -IT CAN BE CIRCULAR OR CONICAL AND THIS CAN BE OBTAINED BY REVOLUTION OF SEGMENT OF A CIRCLE OR A SLANTING LINEABOVE VERTICAL AXIS. -A FIBRE IN A DOME IS SUBJECTED TO MERIDINAL THRUST AND HOOP STRESS IN THE DIRECTION OF MERIDIANS AND LATITUDES RESPECTIVELY. -AT THE FREE EDGE OF THE DOME,MERIDINAL STRESSES HAVE HORIZONTAL COMPONENT WHICH IS TAKEN CARE BY PROVIDING A RING BEAM WHICH IS SUBJECTED TO HOOP TENSION.
  • 3. EVOLUTION OF DOMES •THE EARLIEST DOMES WERE LIKELY DOMED HUTS MADE FROM SAPLINGS, REEDS, OR TIMBERS AND COVERED WITH THATCH,TURF OR SKINS. •THE EARLIEST DISCOVERED REMAINS OF DOMED CONSTRUCTIONS MAY BE FOUR SMALL DWELLINGS MADE OF MANMOTH TUSKS AND BONES. THE FIRST WAS FOUND BY A FARMER IN UKRAINE, IN 1965 WHILE HE WAS DIGGING IN HIS CELLAR AND ARCHAEOLOGISTS UNEARTHED THREE MORE. •DURING NEOLITHIC PERIOD IN THE ANCIENT NEAR EAST, SMALL DOMES IN CORBELLED STONE OR BRICK OVER ROUND-PLAN HOUSES WERE SERVED AS DWELLINGS FOR POORER PEOPLE BUT DOMES DID NOT PLAY AN IMPORTANT ROLE IN MONUMENTAL ARCHITECTURE. •ANCIENT STONE CORBELLED DOMES HAVE BEEN FOUND FROM THE MIDDLE EAST TO WESTERN EUROPE. CORBELLED BEEHIVE DOMES WERE USED AS GRANARIES INANCIENT EGYPT, IN MASTABA TOMBS OF THE OLD KINGDOM FROM THE FIRST DYNASTY, AS PRESSURE- RELIEVING DEVICES IN PRIVATE BRICK PYRAMIDS OF THE NEW KINGDOM. CORBEL DOMES - THOLOS OF ATREUS
  • 4. • THE CONSTRUCTION OF THE FIRST TECHNICALLY ADVANCED TRUE DOMES BEGAN IN THE ROMAN ARCHITECTURAL REVOLUTION TO SHAPE LARGE INTERIOR SPACES OF TEMPLES AND PUBLIC BUILDINGS, SUCH AS THE PANTHEON. •SQUINCHES, THE TECHNIQUE OF MAKING A TRANSITION FROM A SQUARE SHAPED ROOM TO A CIRCULAR DOME, WAS MOST LIKELY INVENTED BY THE ANCIENT PERSIANS. •THE ONION DOME BECAME ANOTHER DISTINCTIVE FEATURE IN THE RUSSIAN ARCHITECTURE, OFTEN IN COMBINATION WITH THE TENTED ROOF. PANTHEON
  • 5. ANCIENT-ONE OF THE OLDEST TECHNIQUES OF EARTH ARCHITECTURE IS THE BRICK STRATEGY, WHICH WAS OFTEN USED TO CONSTRUCT BRIDGES AND ARCHES. •IN THIS TECHNIQUE, CONCRETE, BRICK OR STONE ARE PUT ON TOP OF A WOODEN FRAME, WHICH IS MOLDED ACCORDING TO THE DESIRED SHAPE. •THE MOLD HELPS IN HOLDING THE STONE OR BRICK IN PLACE UNTIL IT SETTLES AND SUPPORTS THE WHOLE STRUCTURE. MODERN- THE STRESSED SKIN TECHNIQUE IS A MORE MODERN BUILDING METHOD. • THIS USES METAL OR FIBERGLASS PANELS RIVETED TOGETHER. • THE METHOD SAVES COSTS AND DOESN’T REQUIRE ANY BEAMS OR SUPPORT STRUCTURE. HOWEVER, TO PREVENT ANY KIND OF CONDENSATION, IT BECOMES NECESSARY TO INSTALL INSULATORS IN THE STRUCTURE. • THE MONOLITHIC, YET MODERN TYPE OF DOME CONSTRUCTION IS MADE OF THREE PHASES. THIS INVOLVES USING A SPECIAL TYPE OF MEMBRANE THAT IS INFLATED AND PLACED ON THE DOME, GIVING IT A FINISH THAT SERVES LIKE A WEATHER-PROOF SKIN, BUT THAT CAN ALSO BE DAMAGED VERY EASILY. • HOWEVER, THE MATERIALS USED IN THE PROCESS ARE NOT ENVIRONMENTALLY FRIENDLY AS THEY HAVE OIL-BASED CHEMICALS. ANCIENT AND MODERN TECHNIQUES FOR CONSTRUCTION OF DOMES :
  • 6. HISTORY: ➢ THE CONSTRUCTION OF THE FIRST TECHNICALLY ADVANCED TRUE DOMES BEGAN IN THE ROMAN ARCHITECTURAL REVOLUTION TO SHAPE LARGE INTERIOR SPACES OF TEMPLES AND PUBLIC BUILDINGS, SUCH AS THE PANTHEON. ➢ SQUINCHES AND PENDENTIVES, THE TECHNIQUE OF MAKING A TRANSITION FROM A SQUARE SHAPED ROOM TO A CIRCULAR DOME, WAS MOST LIKELY INVENTED BY THE ANCIENT PERSIANS. ➢ THE ONION DOME BECAME ANOTHER DISTINCTIVE FEATURE IN THE RUSSIAN ARCHITECTURE, OFTEN IN COMBINATION WITH THE TENTED ROOF. ➢ CORBEL DOMES AND TRUE DOMES HAVE BEEN FOUND IN THE ANCIENT MIDDLE EAST IN MODEST BUILDINGS AND TOMBS. PANTHEON TAJCORBEL DOMES - THOLOS OF
  • 7. TYPES OF DOME : CORBEL DOME: o EARLIEST DOME FORMS o IT IS FORMED BY HORIZONTAL MASONRY CONSTRUCTIONS THAT GRADUALLY DECREASE IN SIZE TO CREATE A SEMI-SPHERICAL SHAPE ONION DOME: o THE ONION DOME IS A BULBOUS DOME THAT WIDENS FROM A SMALL BASE AND THEN TAPERS TOWARD THE TOP, SIMILAR TO THE DOME OF THE TAJ MAHAL DRUM DOME: o COMMON DOME SHAPE o SIMPLE SEMI-SPHERICAL SHAPE THAT EXTENDS UP FROM A CIRCULAR BASE. EG.PANTHEON CORBEL DOME - THOLOS OF ATREUS ONION DOME – TAJ MAHA DRUM DOME-PANTHEON
  • 8. OVAL DOME: o THE OVAL DOME HAS AN OVAL OR EGG-SHAPED BASE AND EXTENDS UPWARD MUCH LIKE A SPHERICAL DOME. o EG: BAROQUE OR LATE RENAISSANCE BUILDINGS SAUCER DOME: o CIRCULAR BASED DOMES o CREATE A LOW-PITCHED SHAPE THAT LOOKS MORE LIKE AN INVERTED SAUCER THAN A HALF SPHERE. UMBRELLA DOME: o ALSO CALLED AS SCALLOPED DOME. o THE WEIGHT OF THE DOME IS SUPPORTED BY VERTICAL STRUCTURES THAT GO FROM THE BASE TO THE CENTER, DIVIDING THE DOME INTO SEGMENTS. GEODESIC DOME: o A GEODESIC DOME IS A SPHERICAL OR PARTIAL-SPHERICAL SHELL STRUCTURE OR LATTICE SHELL BASED ON A NETWORK OF GREAT CIRCLES (GEODESICS) ON THE SURFACE OF A SPHERE. o THE GEODESICS INTERSECT TO FORM TRIANGULAR ELEMENTS THAT HAVE LOCAL TRIANGULAR RIGIDITY AND ALSO DISTRIBUTE THE STRESS ACROSS THE STRUCTURE. OVAL DOME SAUCER DOME UMBRELLA DOME
  • 9. FORCES ACTING ON DOMES:- 1)SELF WEIGHT OF THE SURFACE 2)UNIFORMLY DISTRIBUTED LIVE LOAD 3)WIND LOAD 4)LOAD OF THE UPPER EDGE
  • 10. •DOMES ARE ALSO CHARACTERIZED BY A THRUST. •THE DOME’S THRUST IS COMPOSED OF ITS WEIGHT AND THE HORIZONTAL THRUST OF THE BASIC ARCH SECTION. •EDGE FORCES ARE TANGENTIAL TO THE SURFACE OF THE SHELL AND CAN THEREFORE BE SUPPORTED BY A BUTTRESS (MERIDIONAL FORCES) OR BY RING BEAM. •DOME IS CREATED BY THE ROTATION OF AN ARCH AROUND A VERTICAL AXIS, ANOTHER FORCE IS ACTING IN IT: THE CIRCULAR FORCE (CF) OR HOOP FORCE WHICH ACTS IN LATITUDINAL DIRECTION. UNLIKE AN ARCH, A DOME CAN RESIST OUT-OF-PLANE BENDING BECAUSE OF INTERNAL HOOP FORCES •HOOP FORCES ALLOW RING-BY-RING CONSTRUCTION OF A MASONRY DOME, AN UNFEASIBLE TASK FOR AN ARCH. AS A RESULT, THOUGH AN ARCH IS UNSTABLE WITHOUT ITS KEYSTONE, A DOME WITH AN OCULUS IS PERFECTLY STABLE FORCES ACTING IN DOMES ROUGH PLAN OF RING BEAM RING BEAM REINFORCEMENT
  • 11. •THE DOME CAN BE ASSIMILATED TO AN INFINITESIMAL NUMBER OF ARCHES WHOSE THRUST RADIATES FROM THE CENTRE TOWARDS THE PERIPHERY. •ON THE SPRINGER LEVEL, THE COMBINATION OF ALL THESE HORIZONTAL THRUSTS WILL CREATE A PERIPHERAL TENSION (PT) WHICH WILL TEND TO OPEN THE WALL SUPPORTING THE DOME. •THE COMBINATION OF THE MULTITUDE OF CIRCULAR FORCES AND LINES OF THRUST WILL CREATE A NET OF COMPRESSION FORCES WHICH WILL DEVELOP ON THE ENTIRE SURFACE OF THE DOME. •THEREFORE, IT CAN RESIST TREMENDOUS STRESS. •IN CASE OF FAILURE OF ANY PART OF THE DOME, UNDER AN EXCEPTIONAL STRESS, THIS NET OF COMPRESSIVE FORCES WILL FIND ANOTHER WAY TO ACT IN THE DOME, AND THE LATTER WILL RARELY COLLAPSE ENTIRELY AS LONG AS THE SUPPORTS (WALLS OR COLUMNS) ARE INTACT. CF = Circular force in every ring LT = Line of thrust of “an arch” of the dome HT = Horizontal thrust of “an arch” of the dome W = Vertical weight of “an arch” and the overload T = Thrust, resultant force of the horizontal thrust and weight of “an arch” P = Peripheral tension which is created by the combination of the horizontal thrusts of all the arches, that are radiating from the centre •THEY CAN BE BUILT EITHER ON CIRCULAR OR QUADRANGULAR PLANS.
  • 12. STABILITY OF DOMES • THE EXAMPLES OF DOMES BUILT ALL OVER THE WORLD THROUGH THE AGES SHOW THAT DOMES CAN HAVE A WIDER VARIETY OF SHAPES THAN VAULTS. •FOR INSTANCE, A DOME CAN BE CONICAL WITH ANY PROPORTIONS: FROM A SHARP ONE TO A FLATTER ONE. •BUT IT IS OBVIOUS THAT AN ARCH CANNOT HAVE A TRIANGULAR SECTION •THEREFORE, IT APPEARS THAT IF ARCHES OR VAULTS ARE STABLE, DOMES OF THE SAME SECTION WILL NECESSARILY BE STABLE. BUT THE OPPOSITE IS NOT NECESSARILY TRUE, AS WE HAVE SEEN WITH THE CASE OF THE CONICAL DOME AND THE TRIANGULAR ARCH. Conical circular dome Triangular arch •THE MORE THE RISE OF DOME (OR ARCH) AS COMPARED TO THE SPAN, THE MORE STRONGER IT IS. •THEREFORE CATENARY DOMES ARE MORE STABLE AND REQUIRE LESS SUPPORT THAN THE SEGMENTAL DOMES.
  • 13. •SOMETIMES, WHEN LOADED, THE DOME MAY NOT COINCIDE WITH THE LINE OF PRESSURE. •THEREFORE, AN ADDITIONAL FORCE IS REQUIRED TO RESIST BENDING. •THAT IS TO ADD HOOP COMPRESSION RINGS WHICH PROVIDE THE HORIZONTAL FORCE NEEDED. •WAY TO CREATE A DOME WITHOUT HOOP COMPONENTS IS TO USE RIBS THAT ARE COMPOSED OF TRUSSES, AS IS FOUND IN MANY STEEL DOME SYSTEMS. •WITH THIS DESIGN IT IS USEFUL TO ADD A COMPRESSION RING TOWARDS THE TOP OFTHE DOME TO COUNTER THE INWARD TRUSS TRUSSED DOME WITH COMPRESSION RING LINE OF PRESSURE
  • 15. •THE PURPOSE OF THREE-DIMENSIONAL COMPRESSION SYSTEMS IS TO CREATE A LARGE, UNOBSTRUCTED INTERIOR SPACE THAT CAN BE UTILIZED IN A NUMBER OF WAYS. •IT USES COMPRESSIVE FORCES TO TRANSFER THE LOAD FROM THE TOP OF THE DOME DOWN ALONG THE MEMBERS WHICH SUPPORT THE SYSTEM. •SOME COMMON DOME SHAPES ARE: OVERVIEW 1. CONICAL DOME 2. SQUARE DOME 3. ELLIPTICAL DOME 3. ELLIPTICAL DOME IN SECTION WITH THE USE OF A TRUSS SYSTEM TO BEAR THE LOAD. 1. THE CONICAL DOME SHOWS A SERIES OF RIBS THAT TRANSFER THE LOAD DOWN THE STRUCTURE TO THE SUPPORTS BELOW. 2. THE SQUARE DOME RESTS ON TOP OF PENDENTIVES, WHICH CONNECT THE BOTTOM RIM OF THE DOME TO THE ARCHES ON WHICH IT RESTS. TRUSSED RIB (SECTION) PLAN
  • 16. •REINFORCED CONCRETE COMBINES PROPERTIES OF STEEL AND CONCRETE TO RESIST BOTH TENSION AND COMPRESSION. •ONE OF THE LARGEST REINFORCED CONCRETE DOMES MEASURES 663 FEET (202METERS). •SOME EXAMPLES OF REINFORCED CONCRETE DOMES ARE THE KING DOME IN SEATTLE (DISMANTLED IN 2000) AND THE ALGECIRAS MARKET IN SPAIN. 1. REINFORCED CONCRETE TYPES OF DOMES BASED ON MATERIALS THE KING DOME . THE ALGECIRAS MARKET •ONE OF THE LARGEST CONSTRUCTED STEEL DOMES MEASURES 713 FEET (218 METERS).SOME EXAMPLES OF STEEL DOMES ARE THE ASTRO DOME IN HOUSTON AND THE OSAKADOME IN JAPAN. 2. STEEL •STEELDOMES USE THREE-DIMENSIONAL TRUSSES AND HAVE A LIGHTER CONSTRUCTION THAN CONCRETE DOMES. •STEEL HANDLES COMPRESSION AND TENSION BETTER THAN CONCRETE DOES. •LARGER DOMES USE STEEL BECAUSE IT CAN HAVE A GREATER SPAN MORE EASILY THAN CONCRETE.
  • 17. 3. WOOD •WOODEN DOMES ARE MADE OF WOOD COMPOSITES COMBINED WITH JOINTS AND STEEL FRAMES. •WOODEN DOMES ARE FAVORED FOR THE WARMTH OF THE WOOD ITSELF, BUT THEY CANNOT SPAN DISTANCES LIKE CONCRETE OR STEEL. •ONE OF THE LARGEST WOODEN DOMES MEASURES 584 FEET (178 METERS). •SOME EXAMPLES OF WOODEN DOMES ARE THE TACOMA DOME IN WASHINGTON AND THE ODATE JUKAI DOME IN JAPAN. 4. MASONRY •MASONRY WAS USED IN EARLY DOME CONSTRUCTION BECAUSE IT WAS WIDELY AVAILABLE. •MASONRY DOMES HAVE THE SMALLEST SPAN OF ALL THE MATERIALS MEASURING, AT LARGEST, 141 FEET (43 METERS). •SOME EXAMPLES OF MASONRY DOMES ARE THE PANTHEON IN ROME AND ST. PAUL’S CATHEDRAL IN LONDON.
  • 18. NUMERIC PARAMETERS •THE SMALLEST SPANS ARE ACHIEVED BY USING MASONRY BECAUSE THE WEIGHT OF THE MATERIAL IS LARGE AND THE STRENGTH IS LOWER. •STEEL PROVIDES THE LARGEST SPANS BECAUSE LESS MATERIAL IS NEEDED AND THEREFORE THE STRUCTURE ITSELF WEIGHS LESS. ADDITIONALLY STEEL PROVIDES A HIGH MATERIAL STRENGTH. •GEODESIC DOMES HAVE BEEN WIND-TUNNEL TESTED TO WITHSTAND WIND SPEEDS UP TO 200 MPH.
  • 19. BASIC STEPS INVOLVED IN THE CONSTRUCTION OF DOME:- 2)MARK THE CENTER POINT AND INSERT THE TRAMMEL. 5)BUILD THE SIDES 4)THE PIVOT WILL RISE AS THE DOME RISES. 3)CREATE A PIVOT TO KEEP THE DOME IN LINE. 1)START WITH A FOUNDATION
  • 20. BRICK MASONRY DETAIL:- -THIS IS HEMISPHERICAL DOME WITH CONSTANT RADIUS WITH THE HELP OF TRAMMEL. DOME MASONRY WORK CONSISTS OF FOLLOWING STEPS:- -FINDING AND FIXING THE CENTER POINT OF THE DOME RADIUS IN RELATION TO THE LEVEL LINE. -LAYER BY LAYER SETTLING OF DOME MASONRY,WITH THE BRICKS SET IN MORTAR POSITIONED AND ALLIGNED WITH THE TRAMMEL AND TAPPED FOR PROPER SEATING. -IN UPPER PART OF THE DOME, WHEN THE TRAMMEL IS STANDING AT STEEPER ANGLE THAN 45 DEGREE,THE BRICKS MUST BE HELD IN PLACE UNTIL EACH COURSE IS COMPLETE. -COURSES ARE INHERENTLY STABLE AND THEREFORE NEED NOT TO BE HELD IN PLACE ANY LONGER.
  • 21. ENSURE THAT:- - TROWELLING IS DONE VIGROUSLY( TO INSURE COMPACT RENDERING) - ALL EDGES AND CORNERS ARE ROUNDED OFF - THE RENDERING IS ALLOWED TO SET/DRY SLOWLY (KEEP SHADED AND MOIST,AS NECESSARY) - THE MATERIAL COMPOSITION IS SUITABLE AND MUTUALLY COMPATIBLE.
  • 22. RING BEAM HOOPS MERIDIAN RCC DOME DETAIL :- -MERIDIONAL THRUST ACTING VERTICALLY AND HOOP STRESS ACTING HORIZONTALLY -TYPICAL SPAN= 250’-650’ -CONCRETE IS THICK NEAR THE EDGE OF THE RING BEAM AND TAPERS AS IT GOES UPWARDS. RING BEAM HOOPS MERIDIAN
  • 23. STEPS FOR CONSTRUCTION OF MONOLITHIC DOME:- MATERIALS REQUIRED:- 1)STEEL-REINFORCED CONCRETE 2)POLYURETHANE FOAM INSULATION 3)INFLATABLE AIRFORM STEPS:- 1=DOME STARTS AS A CONCRETE RING FOUNDATION,REINFORCED WITH STEEL REBAR.VERTICAL STEEL BARS EMBEDDED IN THE RING LATER ATTACHED TO THE STEEL REINFORCING OF THE DOME ITSELF. 2=AN AIRFORM,FABRICATED TO THE PROPER SHAPE AND SIZE IS PLACED ON THE RING BASE. USING BLOWER FANS, IT IS INFLATED AND THE AIRFORM CREATES THE SHAPE OF THE STRUCTURE TO BE COMPLETED. THE FANS RUN THROUGHOUT THE CONSTRUCTION OF THE DOME. 3=POLYURETHANE IS APPLIED TO THE INTERIOR SURFACE OF THE AIRFORM.ENTRANCE INTO THE AIRFORM IS MADE THROUGH A DOUBLE DOOR AIRLOCKWHICH KEEPS THE AIR PRESSURE INSIDE AT A CONSTANT LEVEL. APPROXIMATELY 3 INCHES OF FOAM IS APPLIED.THE FOAM IS ALSO THE BASE FOR ATTACHING THE STEEL REINFORCING REBAR.
  • 24. 4=STEEL REINFORCING REBAR IS ATTACHED TO THE FOAM USING A SPECIALLY ENGINEERED LAYOUT OF HOOP(HORIZONTAL) AND VERTICAL STEEL REBAR. SMALL DOMES NEED SMALL DIAMETER BARS WITH WIDE SPACING. LARGE DOMES NEED LARGE BARS EITH CLOSER SPACING. 5=SHOTCRETE- A SPECIAL SPRAYMIX OF CONCRETE- IS APPLIED TO THE INTERIOR SURFACE OF THE DOME. THE STEEL REBAR IS EMBEDDED IN THE CONCRETE AND WHEN ABOUT 3 INCHES OF SHOTCRETE IS APPLIED,THE MONOLITHIC DOME IS FINISHED.THE BLOWER FANS ARE SHUT OFF AFTER THE CONCRETE IS SET.
  • 25. CASE STUDY OF R.C.C. DOME ST.FRANCIS XAVIER CHURCH, UDYAVARA IN UDUPI UMBRELLA SHAPED DOME (UNDER CONSTRUCTION)
  • 26. RING BEAM 40FT.(12.192M) • HT. OF DOME: 40FT.(12.192M) • DIA. OF DOME: 36FT.(10.9782M) REINFORCEMENT BARS OVER THE SCAFFOLDING M25 GRADE CONCRETE DOME • 4FT. (1.2192M) OF CONCRETE IS LAID PER DAY CASE STUDY OF R.C.C. DOME
  • 27. •DOME OF DHYANALINGA MEDITATION SHRINE IS SITUATED IN ISHA YOGA CENTRE, COIMBATORE. •THE DHYANALINGA IS A MULTI-RELIGIOUS MEDITATION SHRINE CREATED EXCLUSIVELY FOR THE PURPOSE OF MEDITATION. •THIS DOME OF 22.16 M DIAMETER HAS DESIGNED BY THE AUROVILLE EARTH INSTITUTE. •IT HAS BEEN BUILT FREE SPANNING IN 9 WEEKS. •THE WORK ON THE DOME STARTED THE 21ST NOVEMBER 1998 WITH THE CONSTRUCTION OF THE ENTRANCE VAULT, BUILT WITH GRANITE STONES AND ON A CENTERING DOME WITH LATERITE BLOCKS. •THE DOME HAD TO BE COMPLETED BEFORE A CERTAIN DEADLINE RELATED WITH HIS YOGIC PRACTICES AND PLANETARY ASPECTS CASE STUDY OF BRICK DOME
  • 28. • THE TIME REQUESTED FOR THE PRODUCTION, CURING AND DRYING OF THE BLOCKS (3 - 4 MONTHS COMPULSORY FOR ARCHES, VAULTS AND DOMES) WOULD HAVE BEEN TOO LONG. THUS, THE CHOICE WENT FOR FIRED BRICKS, WHICH WERE LAID WITH A STABILISED EARTH MORTAR. • THE FOUNDATIONS AND WALLS WERE BUILT IN RANDOM RUBBLE MASONRY WITH GRANITE STONES IN LIME MORTAR. •AROUND 214,000 FIRED BRICKS WERE LAID AND THE CONSTRUCTION SITE HAD A WORKING FORCE OF MORE THAN 220 . •THE LARGE AMOUNT OF FIRED BRICKS REQUIRED COULD NOT BE SUPPLIED BY THE SAME BRICK FACTORY. THEREFORE THE FIRED BRICKS CAME FROM ABOUT 20 DIFFERENT KILNS. AS A RESULT, THEY HAD DIFFERENT SIZES AND MOST OF THE TIME THEY HAD ODD SHAPES THEREFORE, NEARLY 200,000 BRICKS HAD TO BE CHECKED ONE BY ONE. •NO REINFORCE CONCRETE HAD BEEN USED IN ANY PART OF THE BUILDING: NEITHER FOR THE FOUNDATIONS, PLINTH NOR TIE FOR THE DOME. •THE DOME PRESENTS THESE FEATURES: • SECTION: SEGMENTAL ELLIPSE OF 22.16 M DIAMETER AND 7.90 M RISE. • THICKNESS: 4 COURSES FROM THE SPRINGER TO THE APEX: 53 CM, 42 CM, 36.5 CM AND 21 CM AT THE TOP. • WEIGHT: AROUND 570 TONS (BRICK DOME = ± 420 TONS + GRANITE STONE TO LOAD THE HAUNCHES = ± 150 TONS).
  • 29. DOME STABILITY STUDY •THEY DID NOT WANT TO USE CONCRETE RING BEAMS AND THEREFORE THE METHOD DOES NOT DEFINE THE OPTIMISED LINE OF THRUST IN THE DOME BECAUSE IT DOES NOT TAKE IN ACCOUNT THE CONCENTRIC FORCES, WHICH ARE ACTING IN A DOME AND ALLOW BUILDING IT WITHOUT SUPPORT. •FINALLY THE DOME WAS STUDIED LIKE A VAULT, WHICH IS MORE SENSITIVE TO A WRONG SHAPE THAN A DOME: IF A VAULT IS STABLE, A DOME WILL BE STABLE.WHEN THE OPPOSITE IS NOT NECESSARILY TRUE. •AS NO REINFORCED CONCRETE WAS USED FOR ANY TIE, IT WAS COMPULSORY TO GET THE RESULTANT OF THE TRUST WITHIN THE MIDDLE THIRD OF THE RING WALL AND THE FOUNDATIONS. TO DO SO, GRANITE STONES WERE USED TO LOAD THE HAUNCH OF THE DOME. MORTAR SPECIFICATIONS •WITH THE DOME RISING, THE MORTAR SPECIFICATION NEEDED REGULARLY TO BE ADAPTED: ADDING MORE SOIL, IN 3 STEPS, SO AS TO HAVE THE IDEAL ADHESION ACCORDING TO THE ANGLE OF THE LAYERS. •THE DIFFERENT MORTARS WERE OVER STABILISED SO AS TO GET A FAST SETTING AND STRENGTH: 13 TO 13.37% OF CEMENT AND 19% OF LIME.
  • 30. CONSTRUCTION DETAILS OF THE DOME STARTING THE ENTRANCE VAULT WITH GRANITE BLOCKS BLOCK TOUCHING THE SPRINGER AT THE INTRADOS KEYSTONE TOUCHING AT THE INTRADOS BEGINNING THE DOME DOME WITH THE LINGA AND THE ROPES TO CHECK THE ELLIPTICAL SHAPE LAYING KEYSTONES GROUTING THE STABILISED EARTH GLUE IN THE JOINTS FILLING TIGHTLY MORTAR WITH STONE CHIPS STARTING THE DOME WITH 29 CM THICK BLOCKS
  • 31. BONDS OF THE COURSES GRINDING THE PARTS OF THE COURSE WHICH ARE TOO HIGH CHECKING THE LEVEL OF THE COURSES CLOSING THE PIPE OF AN ACOUSTIC CORRECTOR PLASTERING THE PARTS OF THE COURSE WHICH ARE TOO LOW INSERTING THE PIPE FOR AN ACOUSTIC CORRECTOR TO ABSORB 220 HZ LOADING THE HAUNCHES WITH GRANITE STONES SMOOTHENING THE EARTH CONCRETE WITH A STABILISED EARTH PLASTER LAYING THE LAST COURSES DOME NEAR COMPLETION DOME AFTER COMPLETION
