Unit 1 power electronics devices
•
0 likes
•
666 views
E
Er.Meraj Akhtar
Follow
Unit 1 power electronics devices
Read less
Read more
Engineering
Report
Share
Report
Share
1 of 79
Recommended
Streamer theory
Streamer theory
Mohammed Almatri
application of power electronics
application of power electronics
Yasir Hashmi
Control of hvdc system
Control of hvdc system
Aazim Rasool
Firing Angle Control & Constant Current Control
Firing Angle Control & Constant Current Control
Kaushik Naik
INTERLINE FLOW CONTROLLER
INTERLINE FLOW CONTROLLER
Nitish NIT
Static var compensator
Static var compensator
Vinay Vishwakarma
Dynamic breaking
Dynamic breaking
Karansinh Parmar
Thyristor family
Thyristor family
Vinod Srivastava
Recommended
Streamer theory
Streamer theory
Mohammed Almatri
application of power electronics
application of power electronics
Yasir Hashmi
Control of hvdc system
Control of hvdc system
Aazim Rasool
Firing Angle Control & Constant Current Control
Firing Angle Control & Constant Current Control
Kaushik Naik
INTERLINE FLOW CONTROLLER
INTERLINE FLOW CONTROLLER
Nitish NIT
Static var compensator
Static var compensator
Vinay Vishwakarma
Dynamic breaking
Dynamic breaking
Karansinh Parmar
Thyristor family
Thyristor family
Vinod Srivastava
Three Phase to Three phase Cycloconverter
Three Phase to Three phase Cycloconverter
Jayanshu Gundaniya
Exp 8 (1)8. Load-frequency dynamics of single area power system
Exp 8 (1)8. Load-frequency dynamics of single area power system
Shweta Yadav
Switchgear and protection 2
Switchgear and protection 2
Md Irshad Ahmad
V and inverted v curves of synchronous motor
V and inverted v curves of synchronous motor
karthi1017
Phase Lock Loop control of dc drive
Phase Lock Loop control of dc drive
raviarmugam
Chapter 01- High Voltage Engineering Introduction
Chapter 01- High Voltage Engineering Introduction
MUET SZAB Campus Khairpur Mir's Sindh Pakistan
Single area load frequency control by using pi,fuzzy logic control1
Single area load frequency control by using pi,fuzzy logic control1
SAI SREE
Load Frequency Control of Two Area System
Load Frequency Control of Two Area System
Manash Deka
Input output , heat rate characteristics and Incremental cost
Input output , heat rate characteristics and Incremental cost
Eklavya Sharma
WIDE AREA MONITORING SYSTEMS(WAMS)
WIDE AREA MONITORING SYSTEMS(WAMS)
Vikram Purohit
Power quality
Power quality
Badar Aaqili
Swing equation
Swing equation
Darshil Shah
MTDC SYSTEMS
MTDC SYSTEMS
Prashant Kumar
Multi terminal dc systems (mtdc)
Multi terminal dc systems (mtdc)
jawaharramaya
Power system fault analysis ppt
Power system fault analysis ppt
karikalan123
EE6004 FACTS
EE6004 FACTS
rmkceteee
Power flow through transmission line.
Power flow through transmission line.
SHI SAD VIDYA MANDAL INSTITUTE OF TECHNOLOGY
Mechanism for breakdown for
Mechanism for breakdown for
vishalgohel12195
Electric Energy Generation, Utilization and Conservation PROBLEMS
Electric Energy Generation, Utilization and Conservation PROBLEMS
Velalar College of Engineering and Technology
POWER QUALITY IMPROVEMENT
POWER QUALITY IMPROVEMENT
Uday Wankar
Unit 2 svc4
Unit 2 svc4
Er.Meraj Akhtar
Unit 5 inverters
Unit 5 inverters
Er.Meraj Akhtar
More Related Content
What's hot
Three Phase to Three phase Cycloconverter
Three Phase to Three phase Cycloconverter
Jayanshu Gundaniya
Exp 8 (1)8. Load-frequency dynamics of single area power system
Exp 8 (1)8. Load-frequency dynamics of single area power system
Shweta Yadav
Switchgear and protection 2
Switchgear and protection 2
Md Irshad Ahmad
V and inverted v curves of synchronous motor
V and inverted v curves of synchronous motor
karthi1017
Phase Lock Loop control of dc drive
Phase Lock Loop control of dc drive
raviarmugam
Chapter 01- High Voltage Engineering Introduction
Chapter 01- High Voltage Engineering Introduction
MUET SZAB Campus Khairpur Mir's Sindh Pakistan
Single area load frequency control by using pi,fuzzy logic control1
Single area load frequency control by using pi,fuzzy logic control1
SAI SREE
Load Frequency Control of Two Area System
Load Frequency Control of Two Area System
Manash Deka
Input output , heat rate characteristics and Incremental cost
Input output , heat rate characteristics and Incremental cost
Eklavya Sharma
WIDE AREA MONITORING SYSTEMS(WAMS)
WIDE AREA MONITORING SYSTEMS(WAMS)
Vikram Purohit
Power quality
Power quality
Badar Aaqili
Swing equation
Swing equation
Darshil Shah
MTDC SYSTEMS
MTDC SYSTEMS
Prashant Kumar
Multi terminal dc systems (mtdc)
Multi terminal dc systems (mtdc)
jawaharramaya
Power system fault analysis ppt
Power system fault analysis ppt
karikalan123
EE6004 FACTS
EE6004 FACTS
rmkceteee
Power flow through transmission line.
Power flow through transmission line.
SHI SAD VIDYA MANDAL INSTITUTE OF TECHNOLOGY
Mechanism for breakdown for
Mechanism for breakdown for
vishalgohel12195
Electric Energy Generation, Utilization and Conservation PROBLEMS
Electric Energy Generation, Utilization and Conservation PROBLEMS
Velalar College of Engineering and Technology
POWER QUALITY IMPROVEMENT
POWER QUALITY IMPROVEMENT
Uday Wankar
What's hot
(20)
Three Phase to Three phase Cycloconverter
Three Phase to Three phase Cycloconverter
Exp 8 (1)8. Load-frequency dynamics of single area power system
Exp 8 (1)8. Load-frequency dynamics of single area power system
Switchgear and protection 2
Switchgear and protection 2
V and inverted v curves of synchronous motor
V and inverted v curves of synchronous motor
Phase Lock Loop control of dc drive
Phase Lock Loop control of dc drive
Chapter 01- High Voltage Engineering Introduction
Chapter 01- High Voltage Engineering Introduction
Single area load frequency control by using pi,fuzzy logic control1
Single area load frequency control by using pi,fuzzy logic control1
Load Frequency Control of Two Area System
Load Frequency Control of Two Area System
Input output , heat rate characteristics and Incremental cost
Input output , heat rate characteristics and Incremental cost
WIDE AREA MONITORING SYSTEMS(WAMS)
WIDE AREA MONITORING SYSTEMS(WAMS)
Power quality
Power quality
Swing equation
Swing equation
MTDC SYSTEMS
MTDC SYSTEMS
Multi terminal dc systems (mtdc)
Multi terminal dc systems (mtdc)
Power system fault analysis ppt
Power system fault analysis ppt
EE6004 FACTS
EE6004 FACTS
Power flow through transmission line.
Power flow through transmission line.
Mechanism for breakdown for
Mechanism for breakdown for
Electric Energy Generation, Utilization and Conservation PROBLEMS
Electric Energy Generation, Utilization and Conservation PROBLEMS
POWER QUALITY IMPROVEMENT
POWER QUALITY IMPROVEMENT
More from Er.Meraj Akhtar
Unit 2 svc4
Unit 2 svc4
Er.Meraj Akhtar
Unit 5 inverters
Unit 5 inverters
Er.Meraj Akhtar
Unit 4 cycloconverter
Unit 4 cycloconverter
Er.Meraj Akhtar
Unit 4 ac voltage controller
Unit 4 ac voltage controller
Er.Meraj Akhtar
Unit 3 phase controlled converters
Unit 3 phase controlled converters
Er.Meraj Akhtar
Unit 2 choppers
Unit 2 choppers
Er.Meraj Akhtar
Unit 1 thyristors protection
Unit 1 thyristors protection
Er.Meraj Akhtar
Unit 2 servo motor
Unit 2 servo motor
Er.Meraj Akhtar
Unit 5 series motor (universal)motors
Unit 5 series motor (universal)motors
Er.Meraj Akhtar
Unit v repulsion type motor
Unit v repulsion type motor
Er.Meraj Akhtar
Unit v linear induction motor
Unit v linear induction motor
Er.Meraj Akhtar
Unit 2 single phase induction motor
Unit 2 single phase induction motor
Er.Meraj Akhtar
Unit 4 pmbldc1
Unit 4 pmbldc1
Er.Meraj Akhtar
Unit 4 PMBLDC MOTORS
Unit 4 PMBLDC MOTORS
Er.Meraj Akhtar
Unit 4 permanent magnent synchronous macnine
Unit 4 permanent magnent synchronous macnine
Er.Meraj Akhtar
Unit 3 steppermotors
Unit 3 steppermotors
Er.Meraj Akhtar
Unit 1 poly phase ac machine deep bar and double cage rotors
Unit 1 poly phase ac machine deep bar and double cage rotors
Er.Meraj Akhtar
More from Er.Meraj Akhtar
(17)
Unit 2 svc4
Unit 2 svc4
Unit 5 inverters
Unit 5 inverters
Unit 4 cycloconverter
Unit 4 cycloconverter
Unit 4 ac voltage controller
Unit 4 ac voltage controller
Unit 3 phase controlled converters
Unit 3 phase controlled converters
Unit 2 choppers
Unit 2 choppers
Unit 1 thyristors protection
Unit 1 thyristors protection
Unit 2 servo motor
Unit 2 servo motor
Unit 5 series motor (universal)motors
Unit 5 series motor (universal)motors
Unit v repulsion type motor
Unit v repulsion type motor
Unit v linear induction motor
Unit v linear induction motor
Unit 2 single phase induction motor
Unit 2 single phase induction motor
Unit 4 pmbldc1
Unit 4 pmbldc1
Unit 4 PMBLDC MOTORS
Unit 4 PMBLDC MOTORS
Unit 4 permanent magnent synchronous macnine
Unit 4 permanent magnent synchronous macnine
Unit 3 steppermotors
Unit 3 steppermotors
Unit 1 poly phase ac machine deep bar and double cage rotors
Unit 1 poly phase ac machine deep bar and double cage rotors
Recently uploaded
Russian Call Girls in Nagpur Grishma Call 7001035870 Meet With Nagpur Escorts
Russian Call Girls in Nagpur Grishma Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur High Profile
UNIT-II FMM-Flow Through Circular Conduits
UNIT-II FMM-Flow Through Circular Conduits
rknatarajan
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
ranjana rawat
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
Call Girls in Nagpur High Profile
Call Girls Service Nashik Vaishnavi 7001305949 Independent Escort Service Nashik
Call Girls Service Nashik Vaishnavi 7001305949 Independent Escort Service Nashik
Call Girls in Nagpur High Profile
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
SIVASHANKAR N
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
ranjana rawat
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Dr.Costas Sachpazis
Water Industry Process Automation & Control Monthly - April 2024
Water Industry Process Automation & Control Monthly - April 2024
Water Industry Process Automation & Control
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
Asst.prof M.Gokilavani
Java Programming :Event Handling(Types of Events)
Java Programming :Event Handling(Types of Events)
simmis5
University management System project report..pdf
University management System project report..pdf
Kamal Acharya
MANUFACTURING PROCESS-II UNIT-5 NC MACHINE TOOLS
MANUFACTURING PROCESS-II UNIT-5 NC MACHINE TOOLS
SIVASHANKAR N
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
Call Girls in Nagpur High Profile Call Girls
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Christo Ananth
College Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
College Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
Call Girls in Nagpur High Profile
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
roncy bisnoi
KubeKraft presentation @CloudNativeHooghly
KubeKraft presentation @CloudNativeHooghly
sanyuktamishra911
Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptx
pranjaldaimarysona
ONLINE FOOD ORDER SYSTEM PROJECT REPORT.pdf
ONLINE FOOD ORDER SYSTEM PROJECT REPORT.pdf
Kamal Acharya
Recently uploaded
(20)
Russian Call Girls in Nagpur Grishma Call 7001035870 Meet With Nagpur Escorts
Russian Call Girls in Nagpur Grishma Call 7001035870 Meet With Nagpur Escorts
UNIT-II FMM-Flow Through Circular Conduits
UNIT-II FMM-Flow Through Circular Conduits
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
(ANVI) Koregaon Park Call Girls Just Call 7001035870 [ Cash on Delivery ] Pun...
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
High Profile Call Girls Nagpur Meera Call 7001035870 Meet With Nagpur Escorts
Call Girls Service Nashik Vaishnavi 7001305949 Independent Escort Service Nashik
Call Girls Service Nashik Vaishnavi 7001305949 Independent Escort Service Nashik
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
MANUFACTURING PROCESS-II UNIT-2 LATHE MACHINE
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
The Most Attractive Pune Call Girls Manchar 8250192130 Will You Miss This Cha...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Structural Analysis and Design of Foundations: A Comprehensive Handbook for S...
Water Industry Process Automation & Control Monthly - April 2024
Water Industry Process Automation & Control Monthly - April 2024
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
CCS335 _ Neural Networks and Deep Learning Laboratory_Lab Complete Record
Java Programming :Event Handling(Types of Events)
Java Programming :Event Handling(Types of Events)
University management System project report..pdf
University management System project report..pdf
MANUFACTURING PROCESS-II UNIT-5 NC MACHINE TOOLS
MANUFACTURING PROCESS-II UNIT-5 NC MACHINE TOOLS
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
(INDIRA) Call Girl Aurangabad Call Now 8617697112 Aurangabad Escorts 24x7
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
Call for Papers - African Journal of Biological Sciences, E-ISSN: 2663-2187, ...
College Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
College Call Girls Nashik Nehal 7001305949 Independent Escort Service Nashik
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
Call Girls Pimpri Chinchwad Call Me 7737669865 Budget Friendly No Advance Boo...
KubeKraft presentation @CloudNativeHooghly
KubeKraft presentation @CloudNativeHooghly
Processing & Properties of Floor and Wall Tiles.pptx
Processing & Properties of Floor and Wall Tiles.pptx
ONLINE FOOD ORDER SYSTEM PROJECT REPORT.pdf
ONLINE FOOD ORDER SYSTEM PROJECT REPORT.pdf

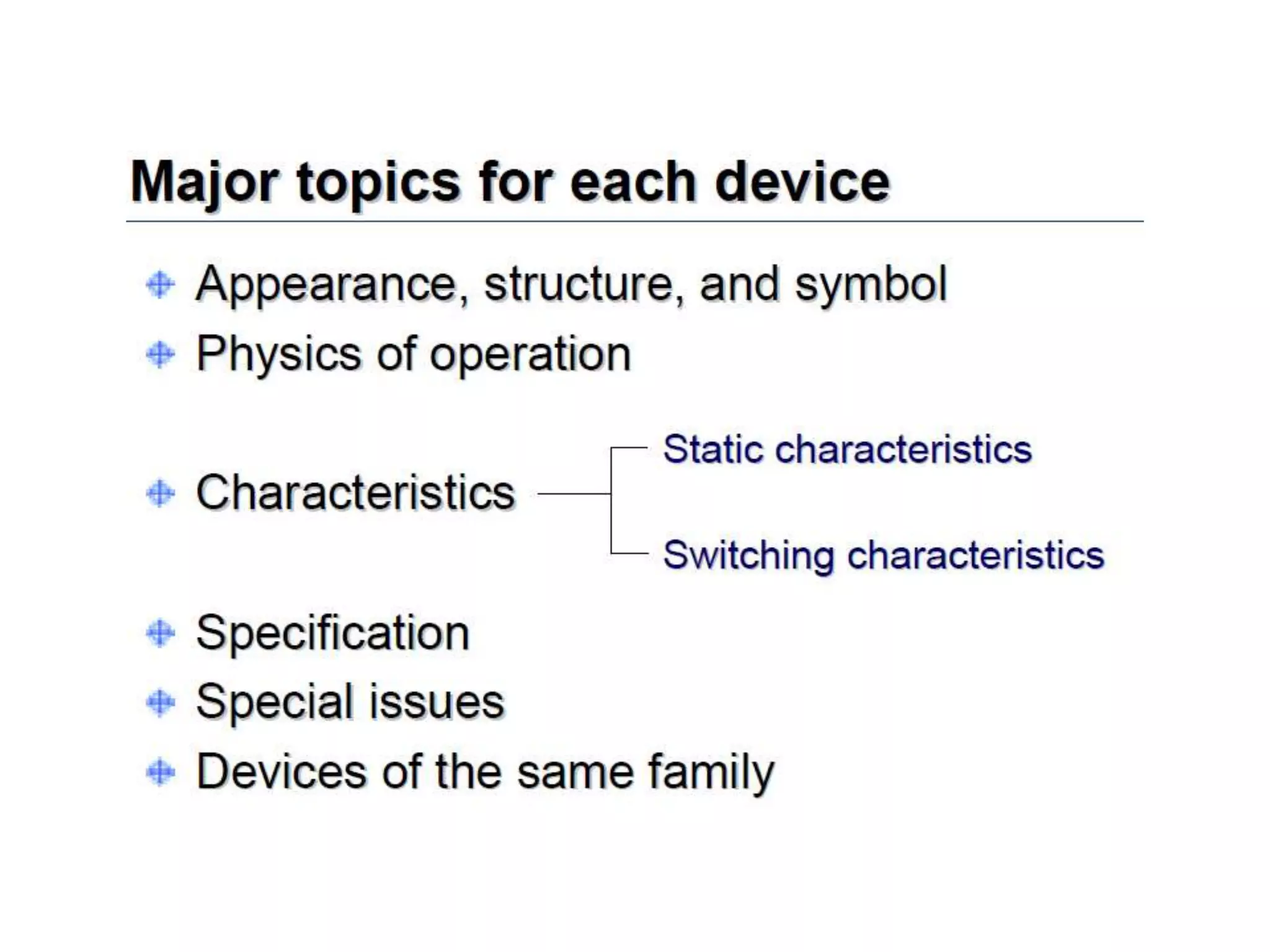

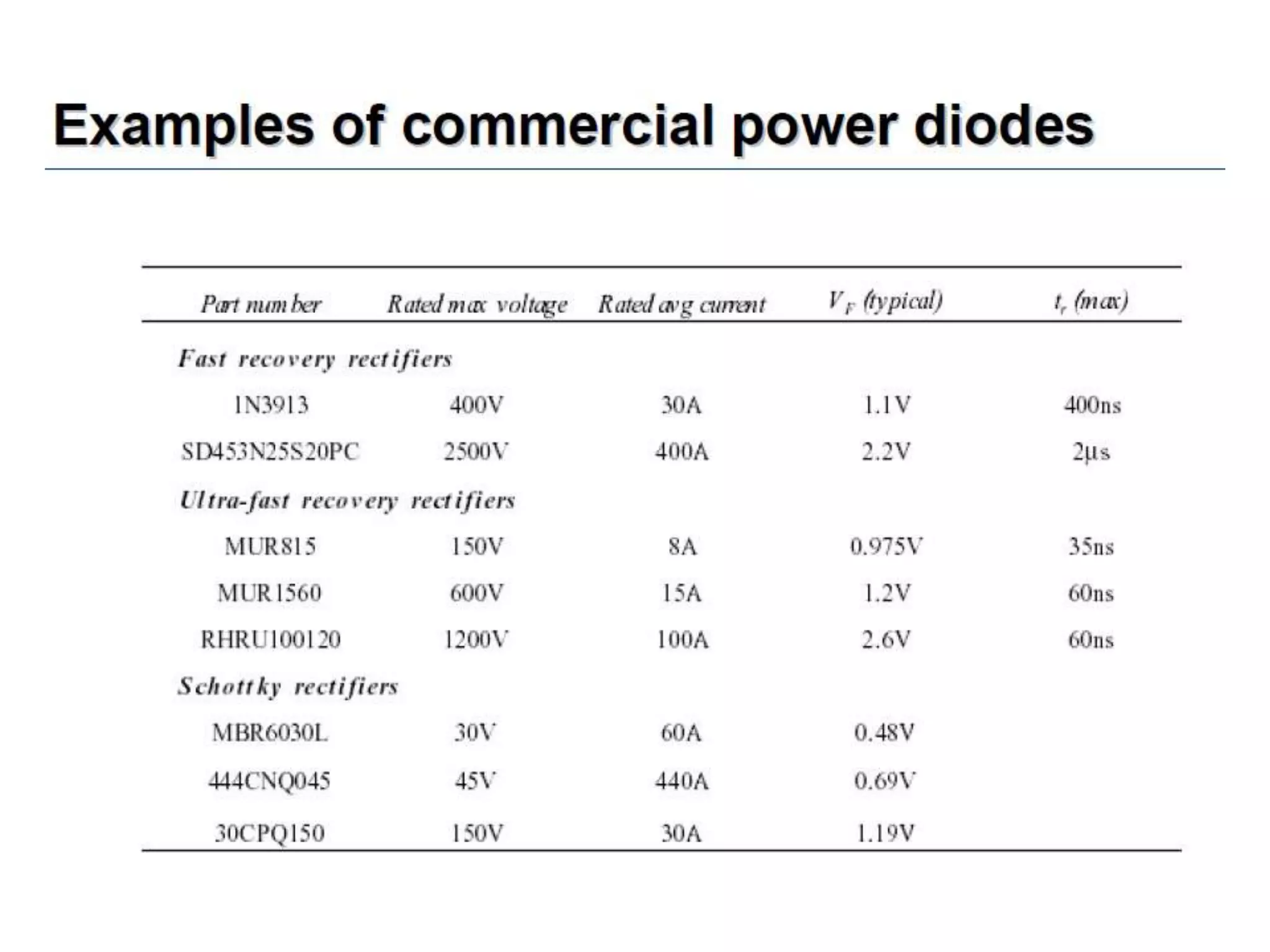

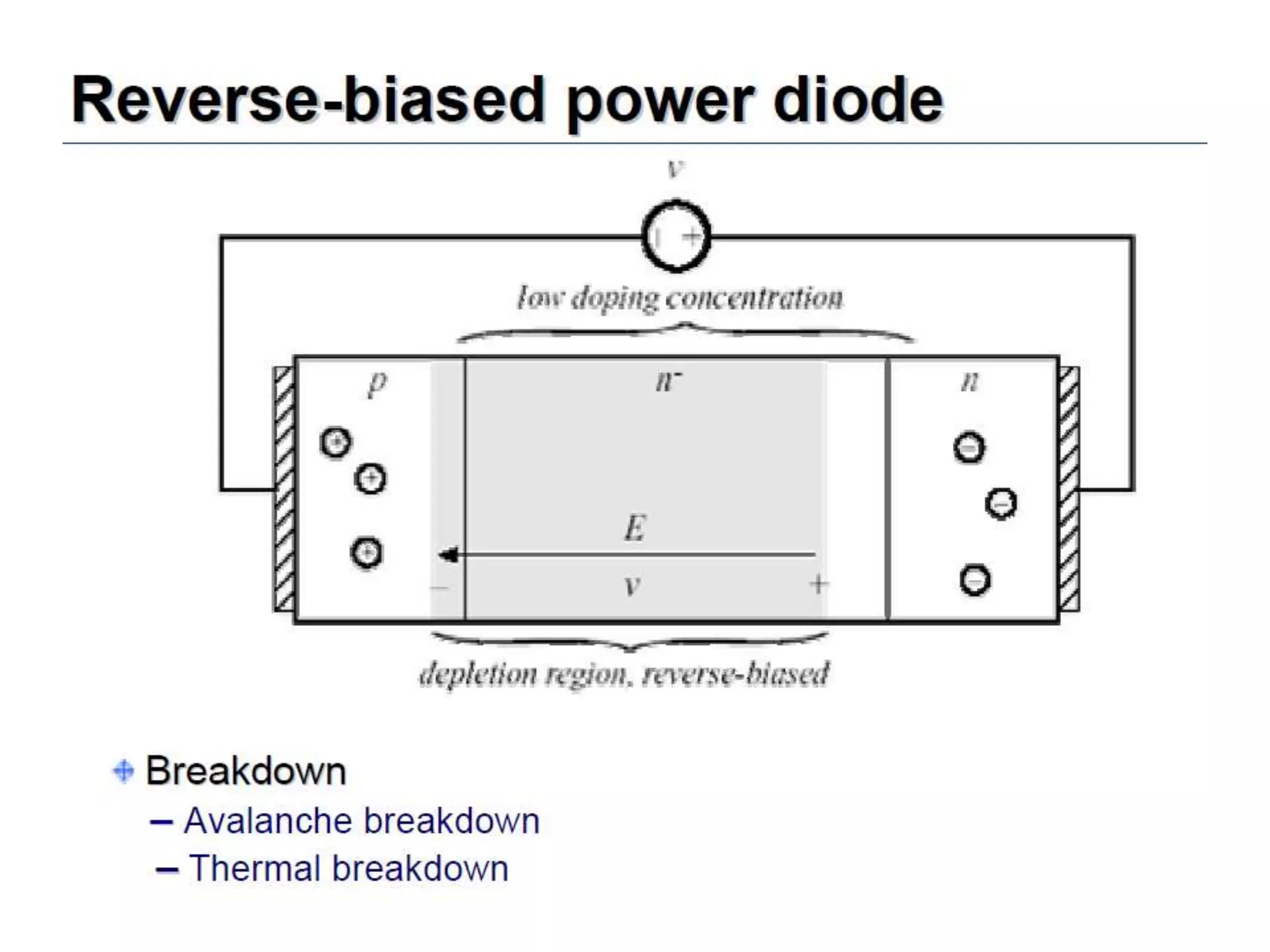

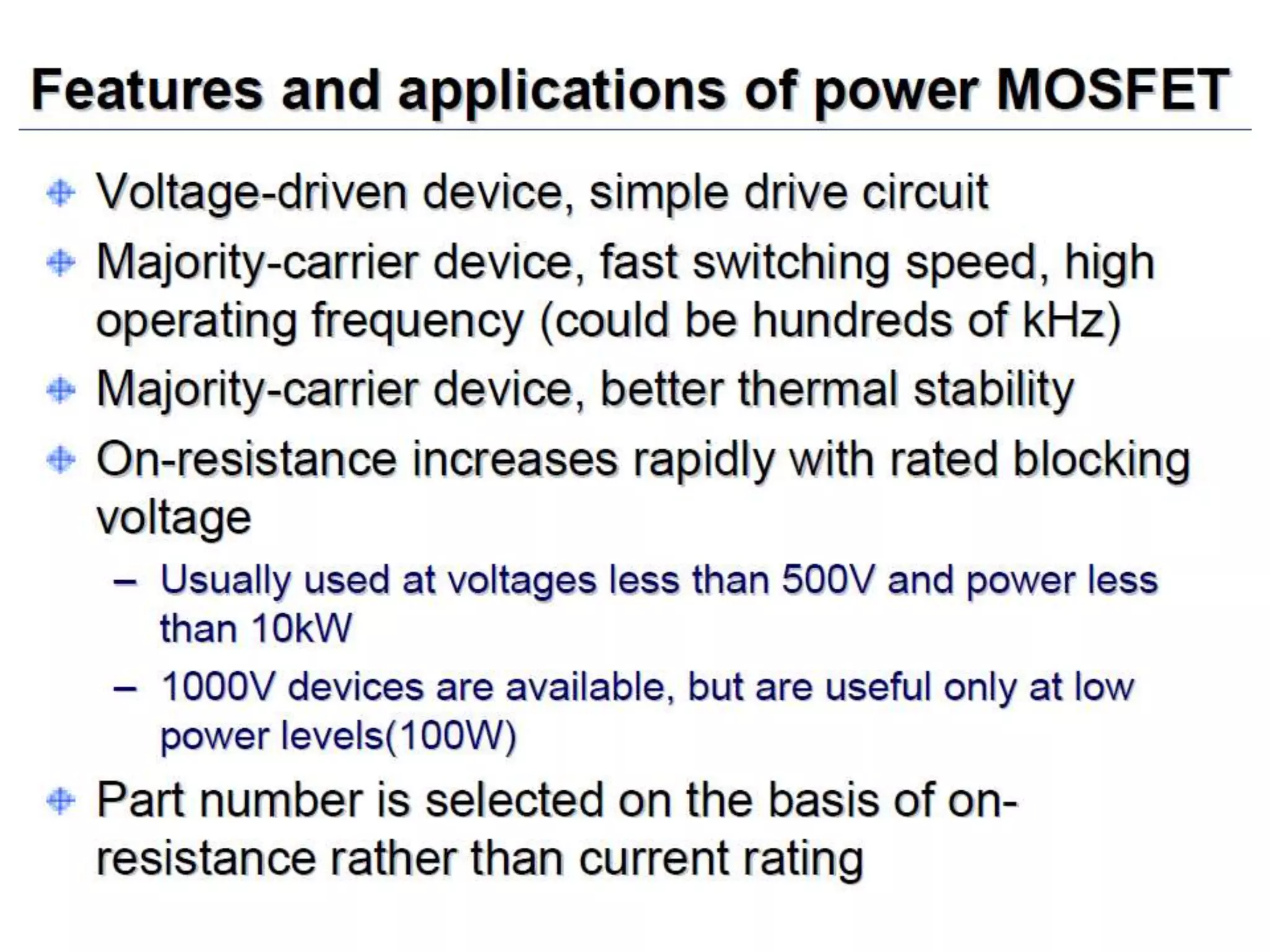

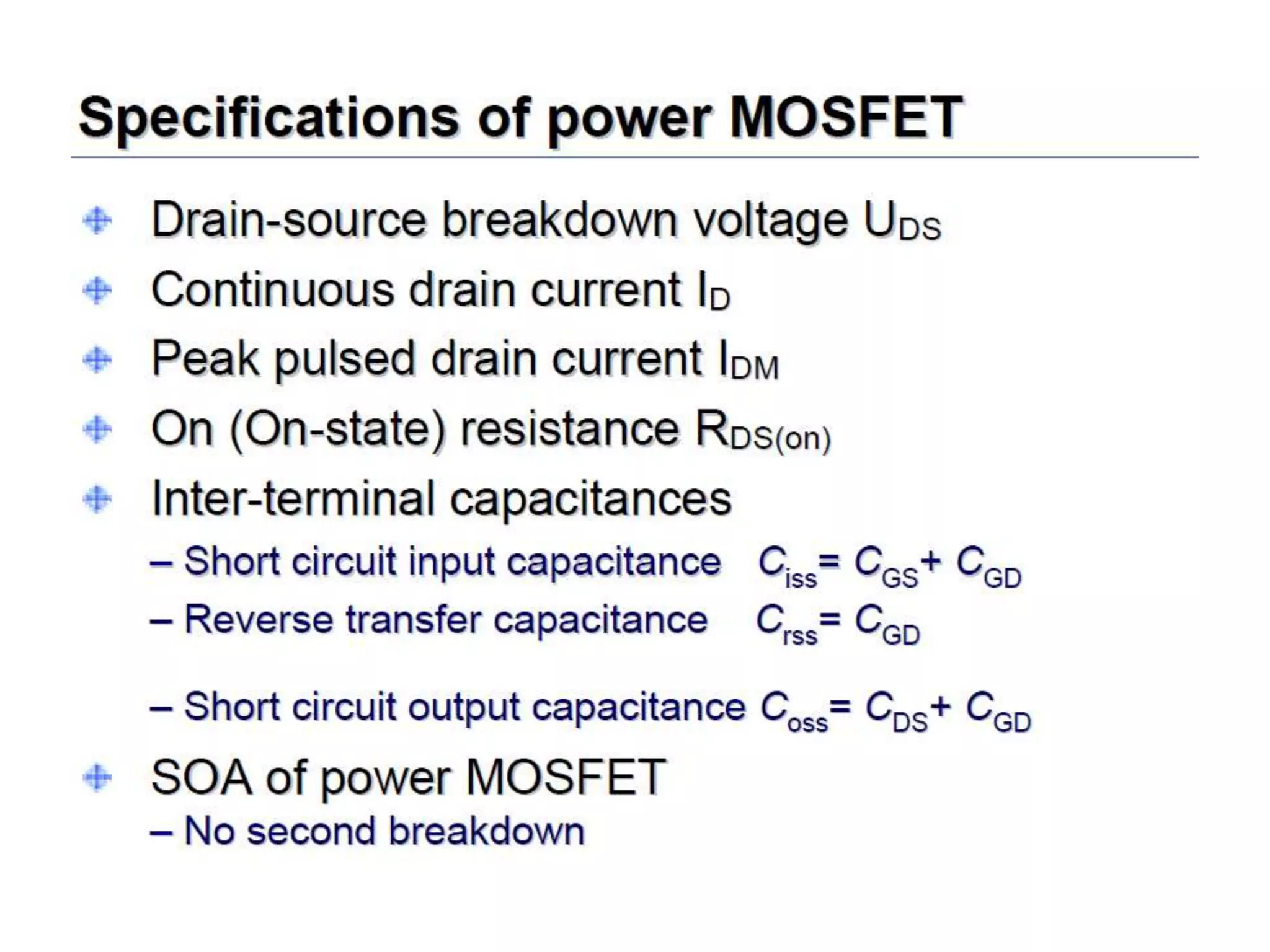

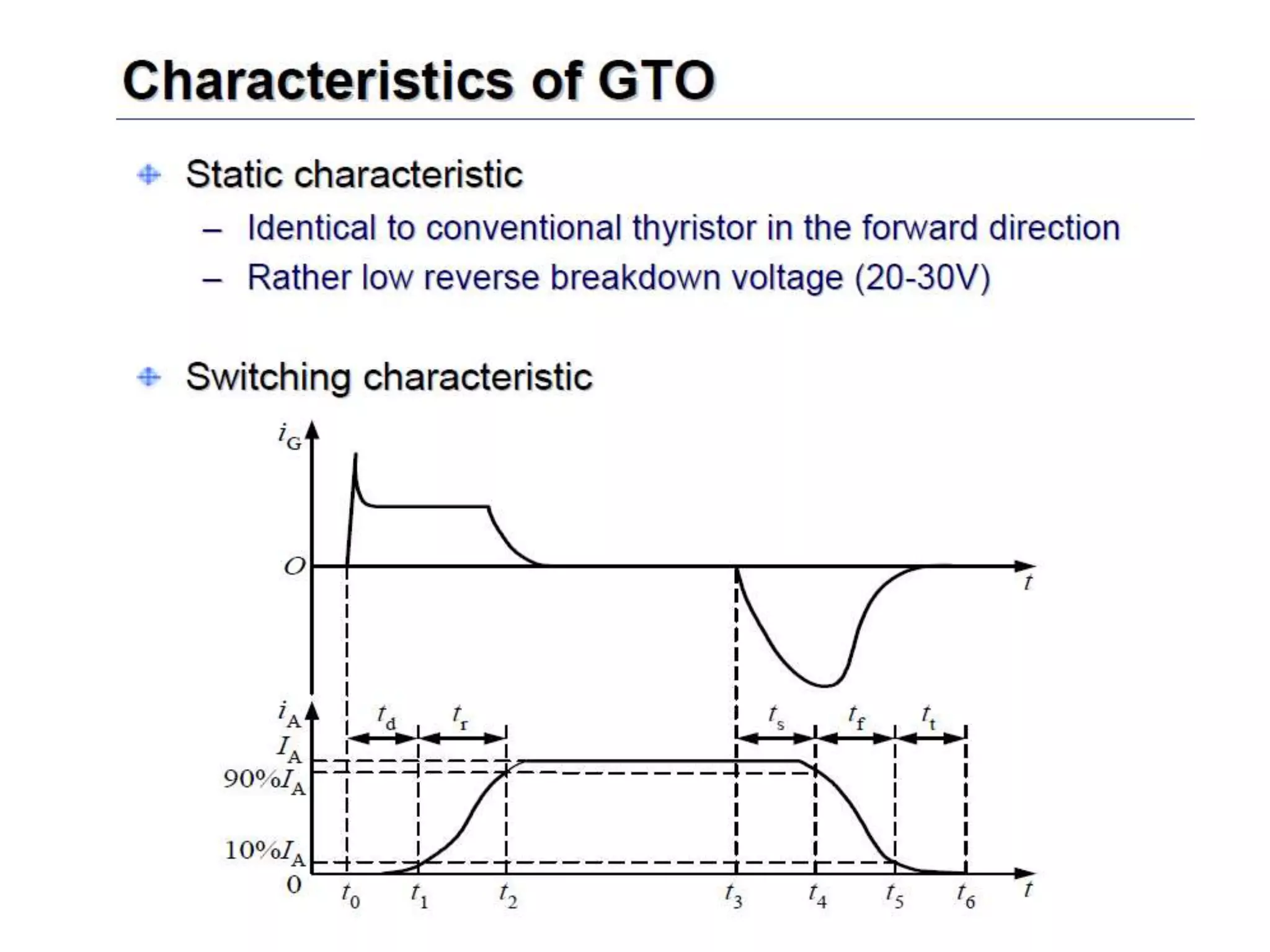

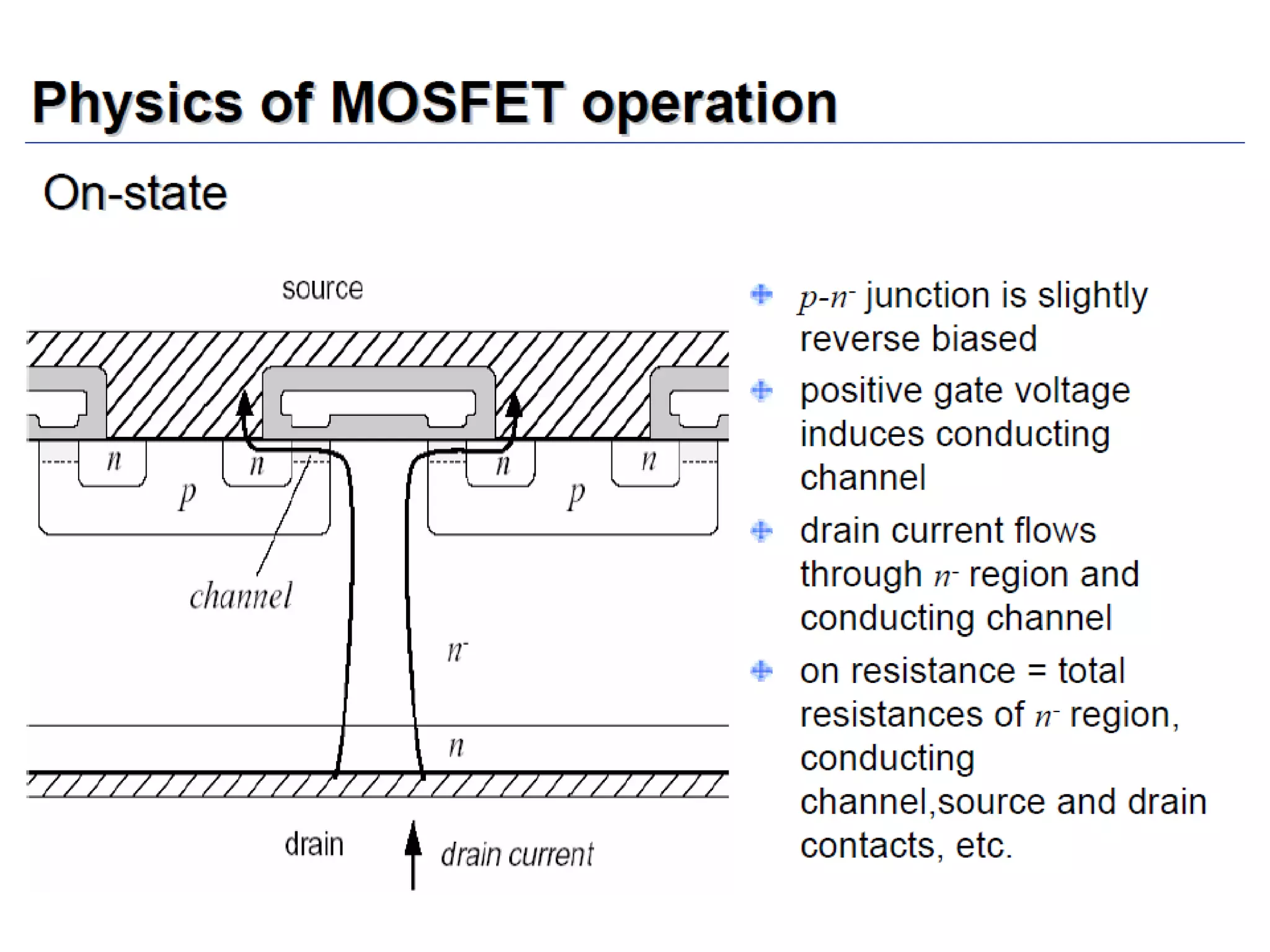

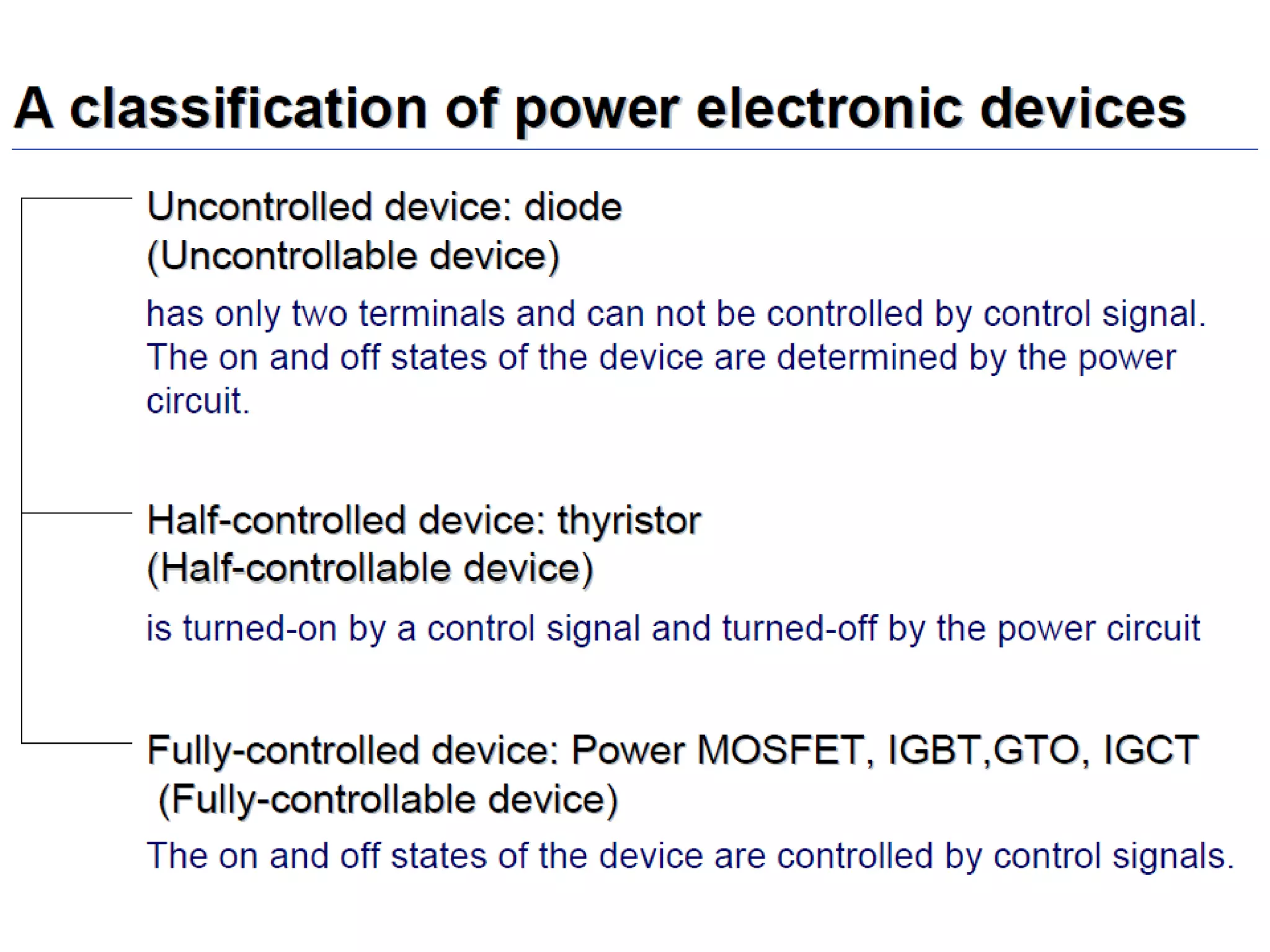

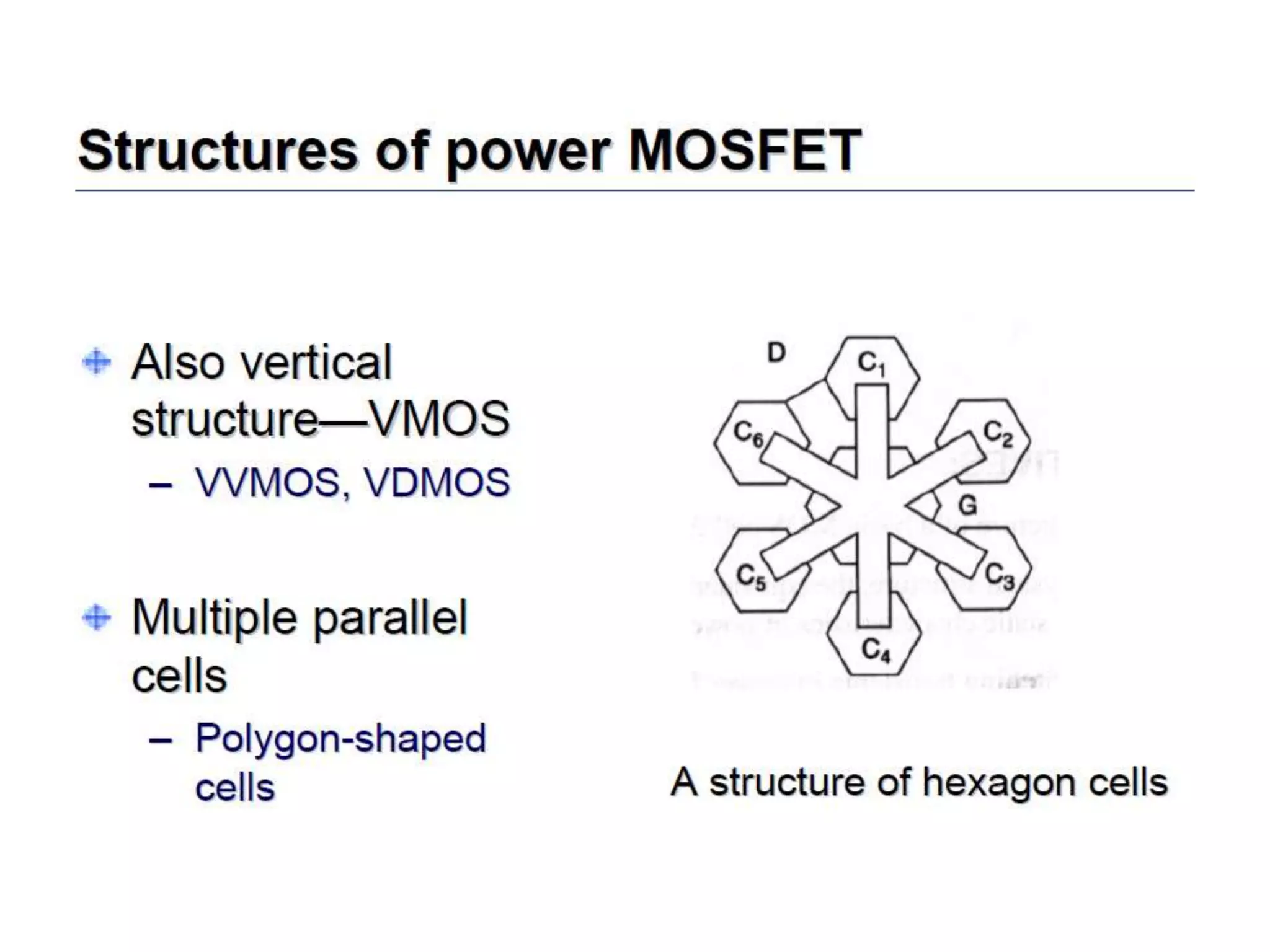

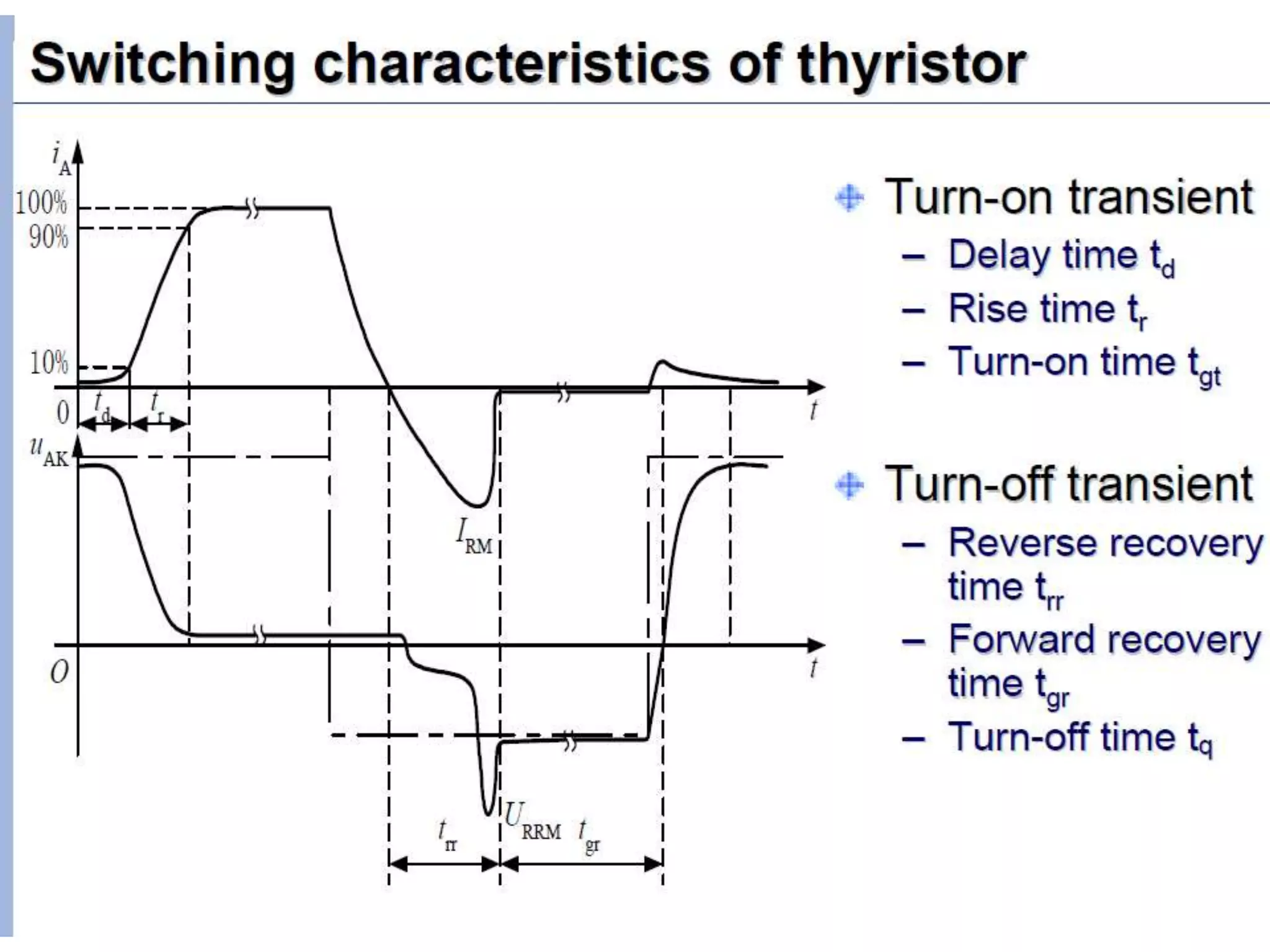

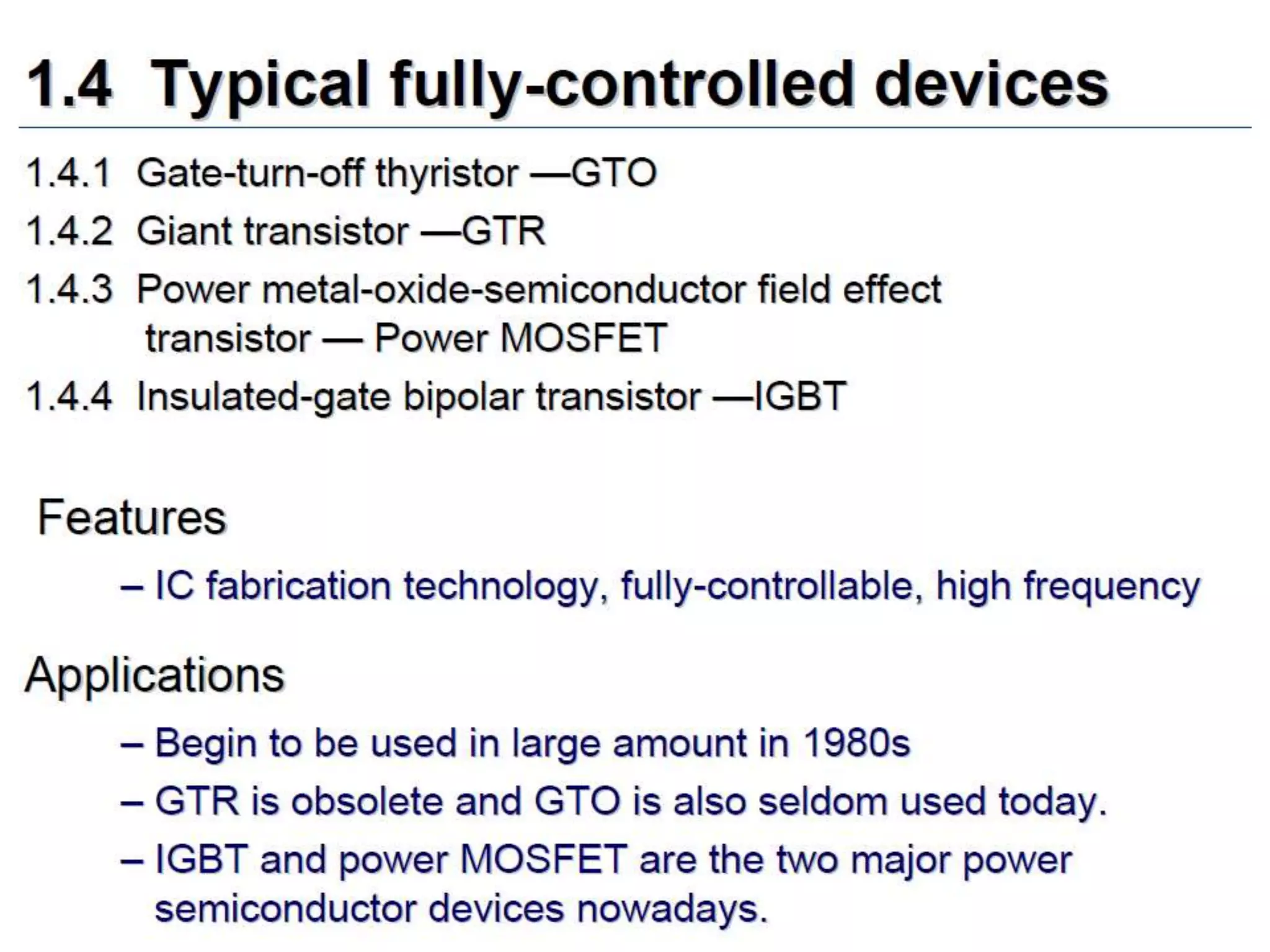

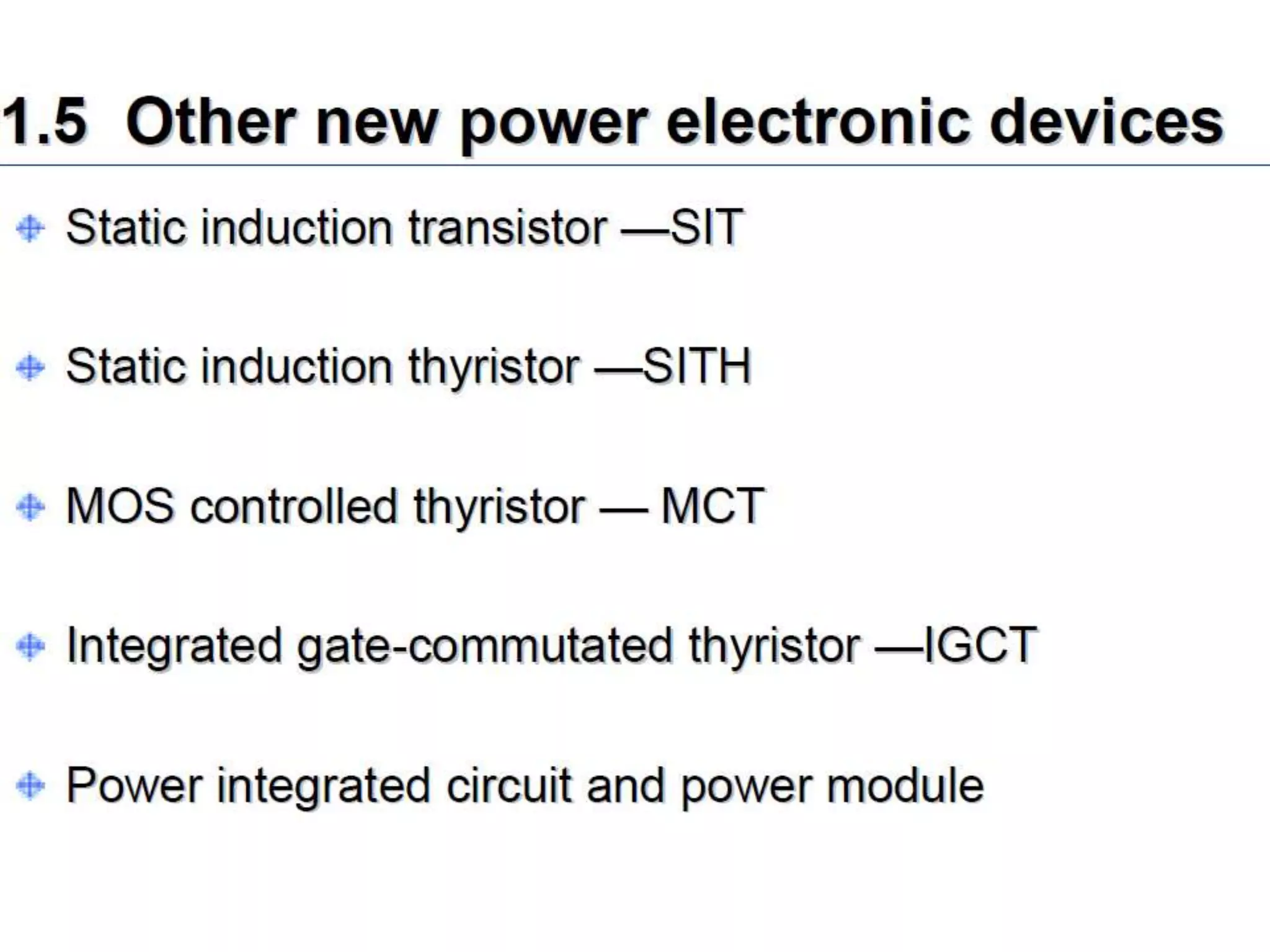

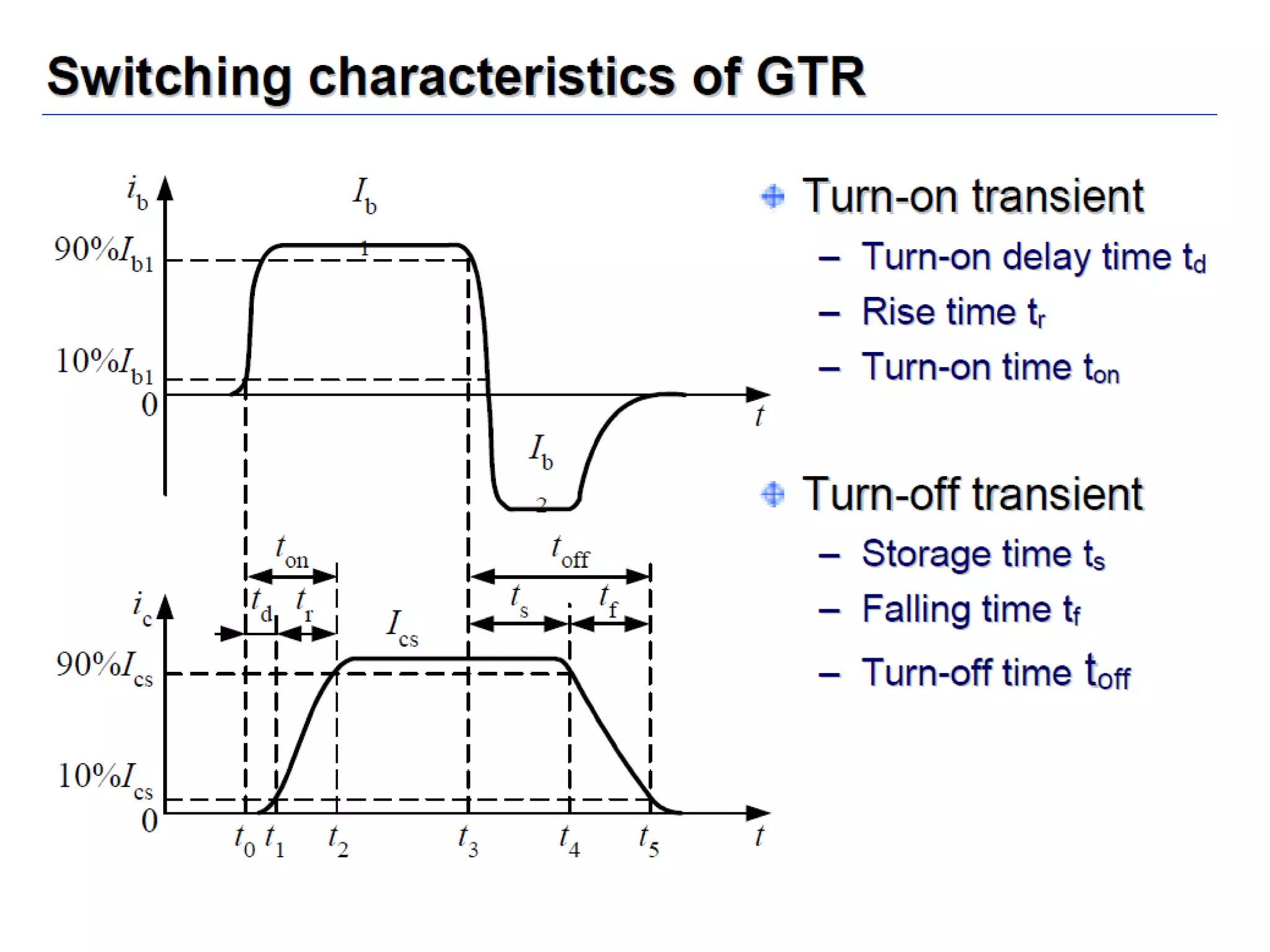

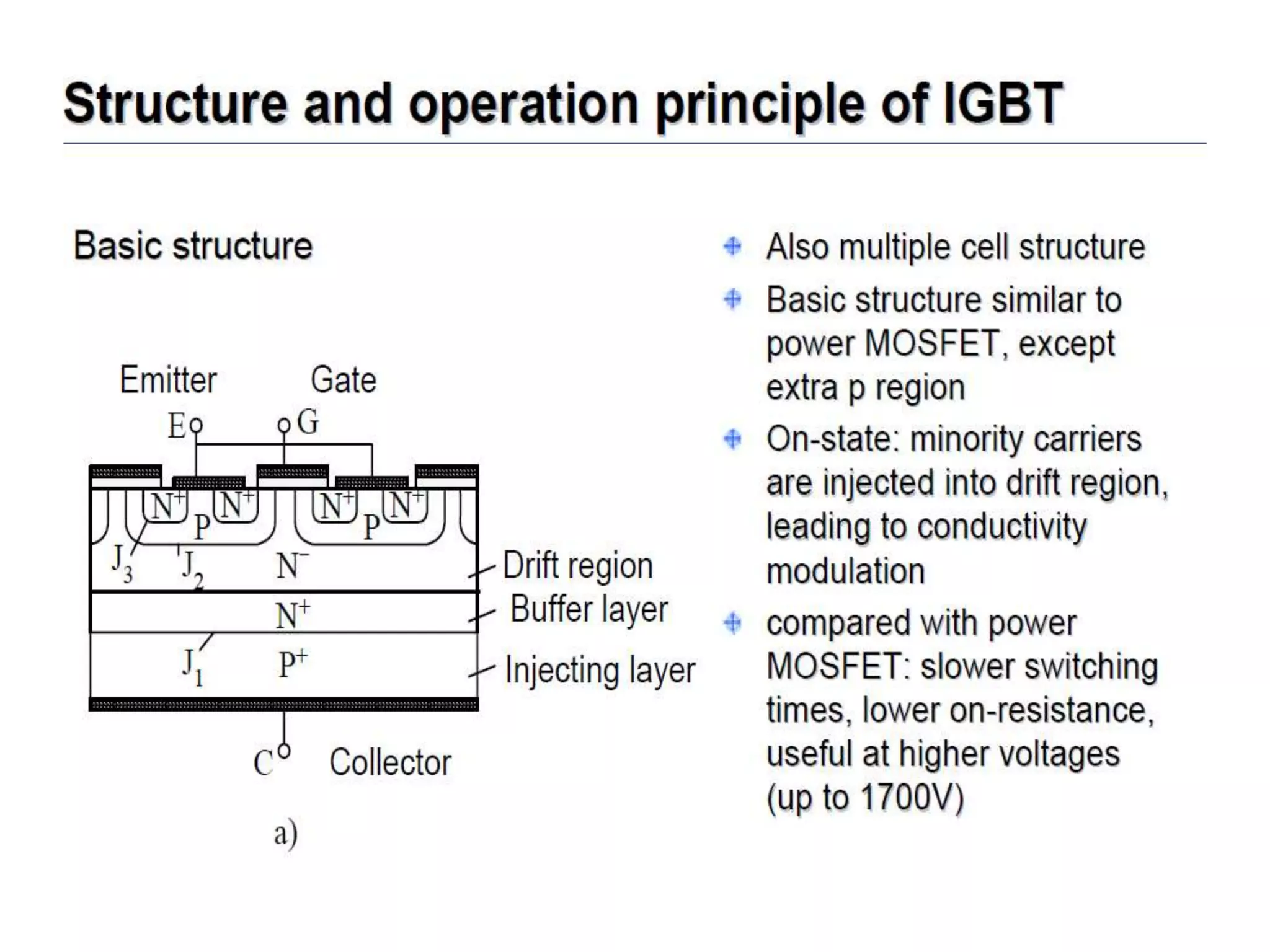

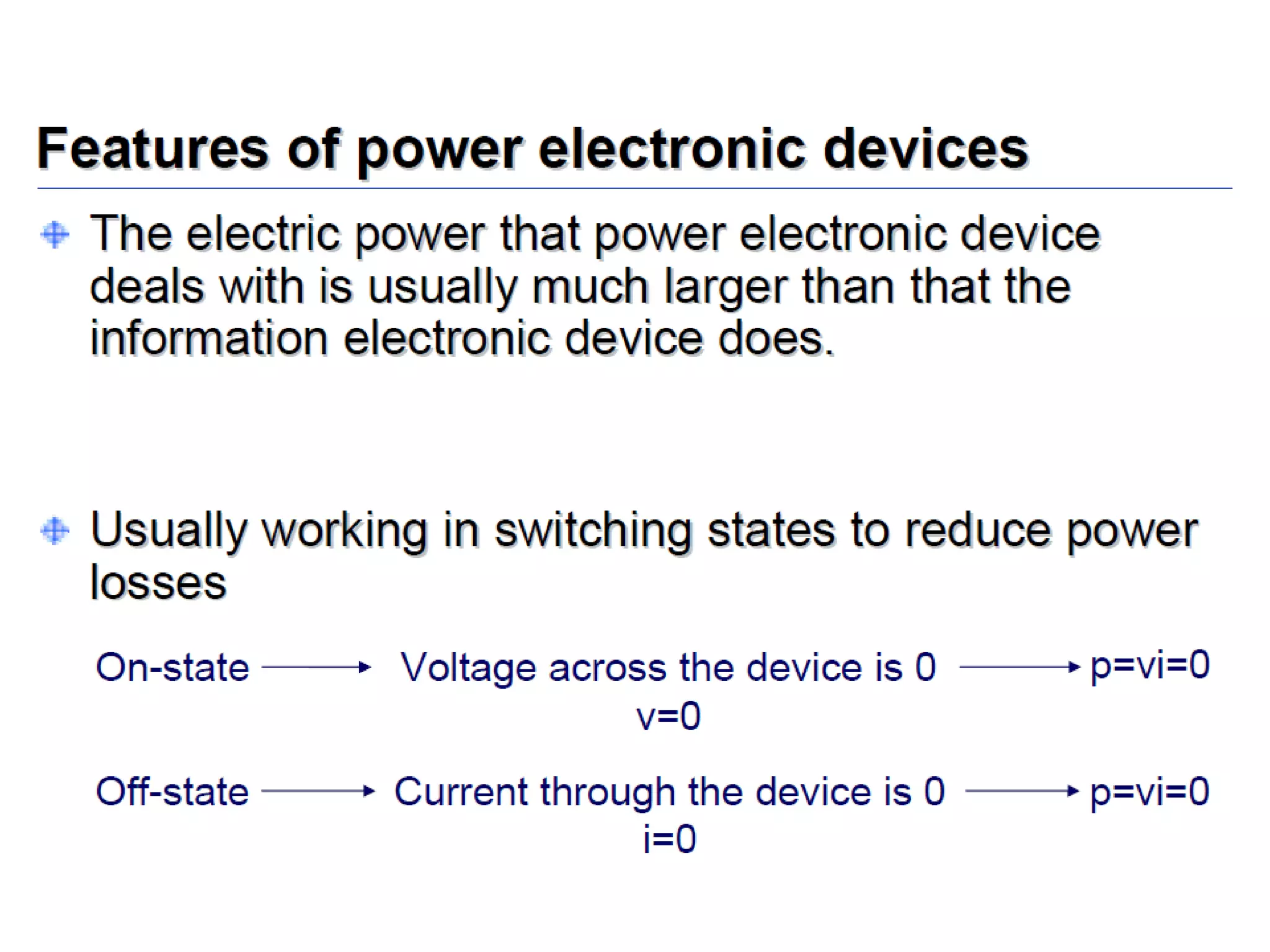

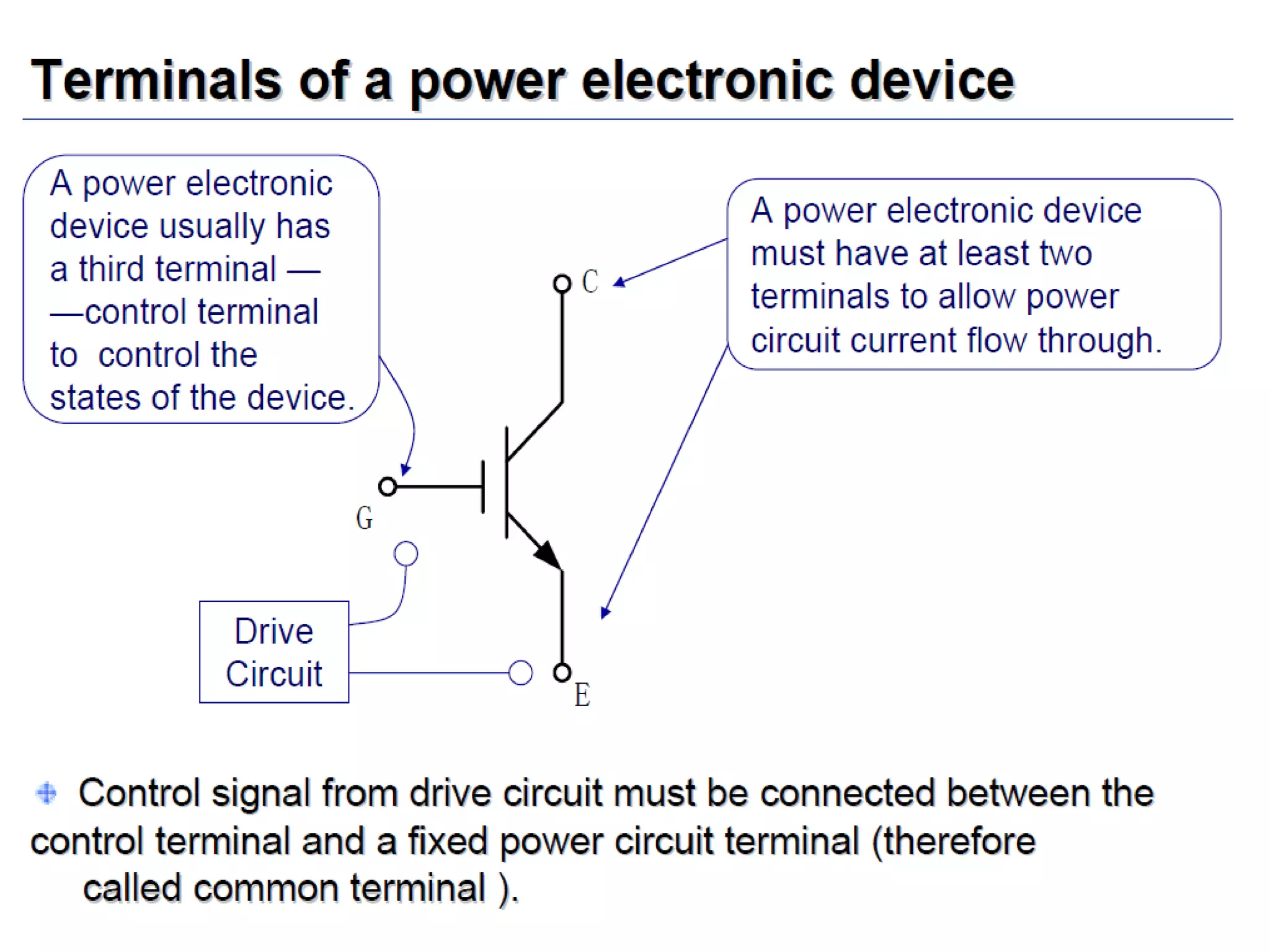

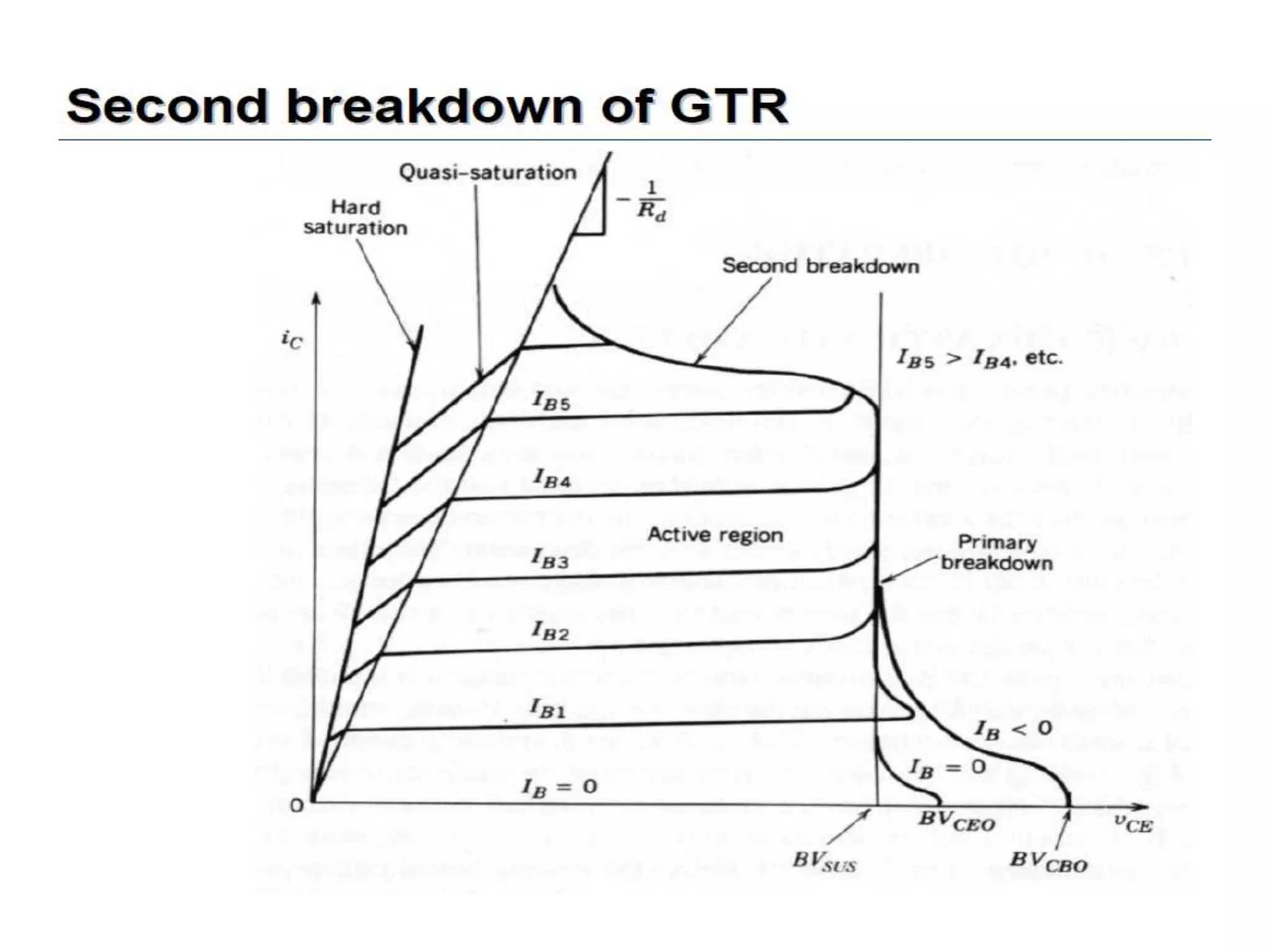

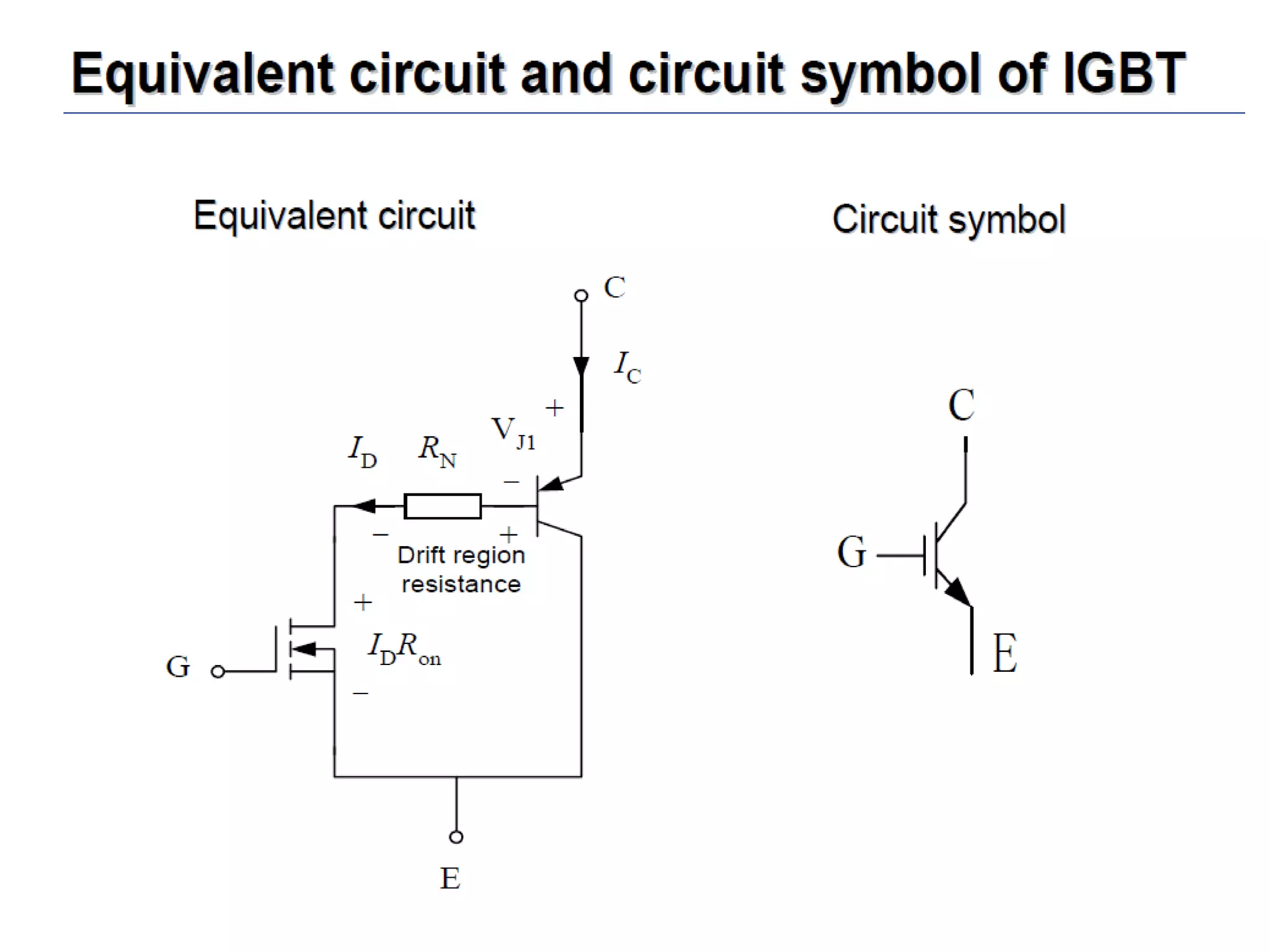

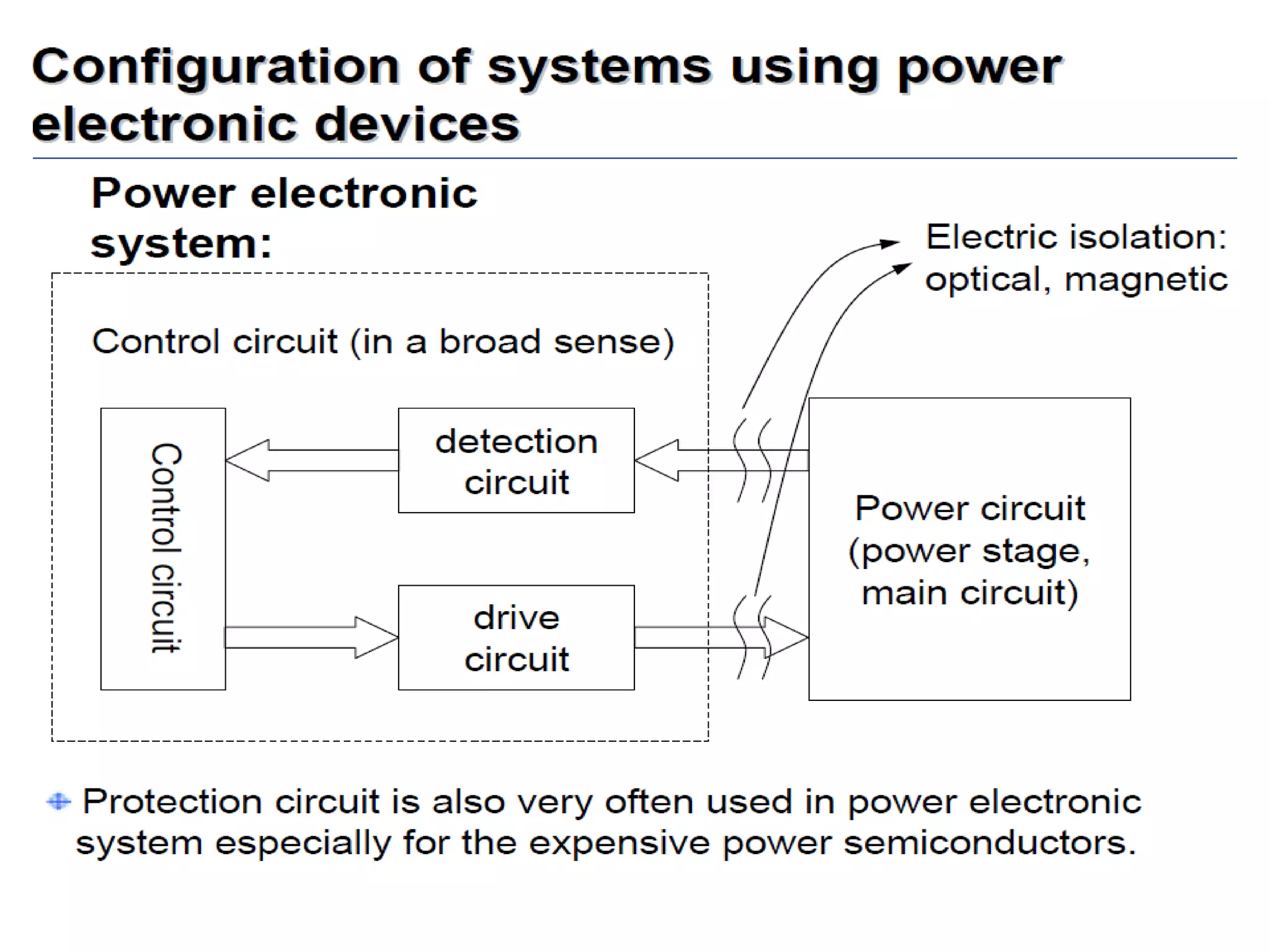

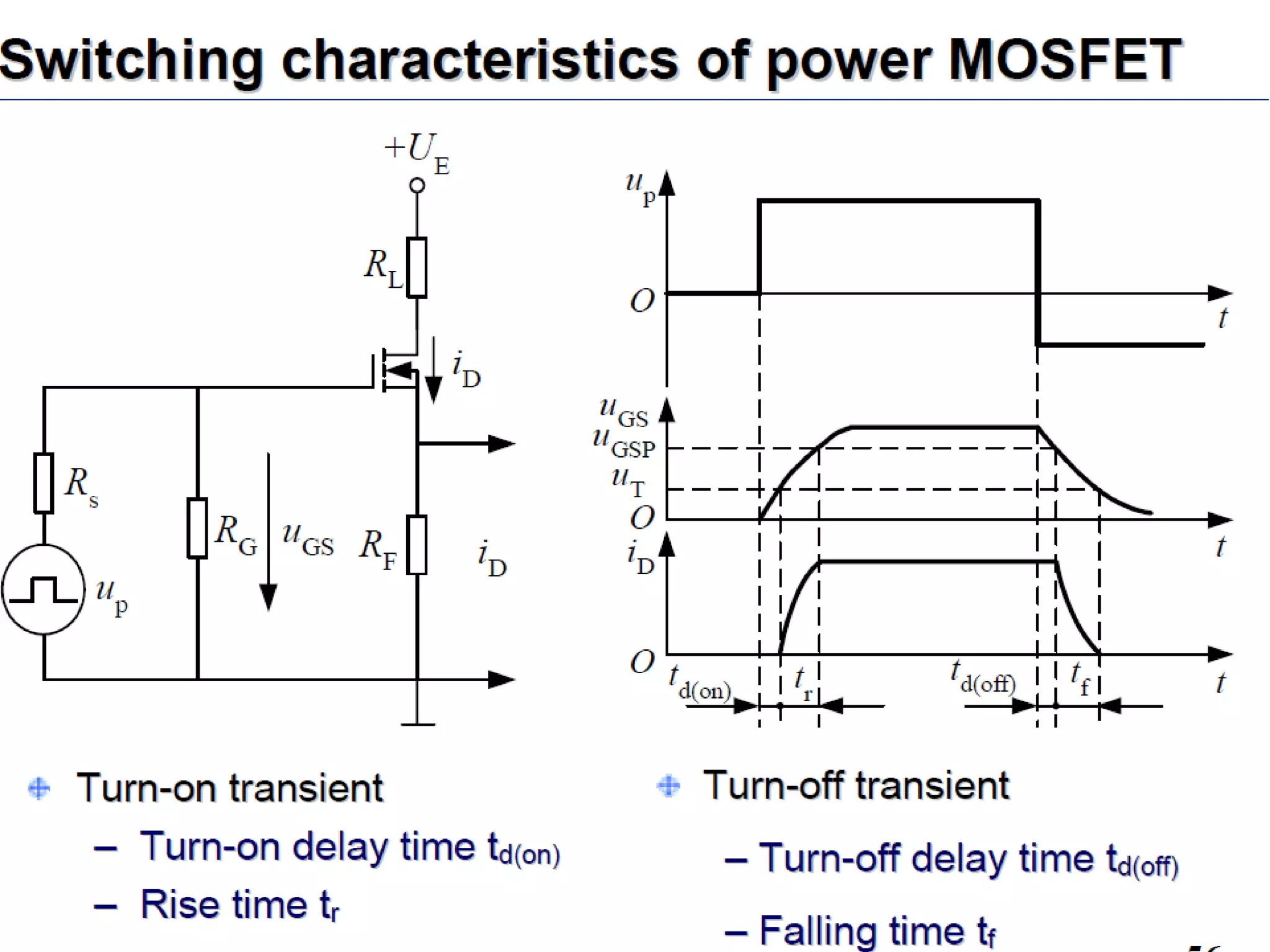

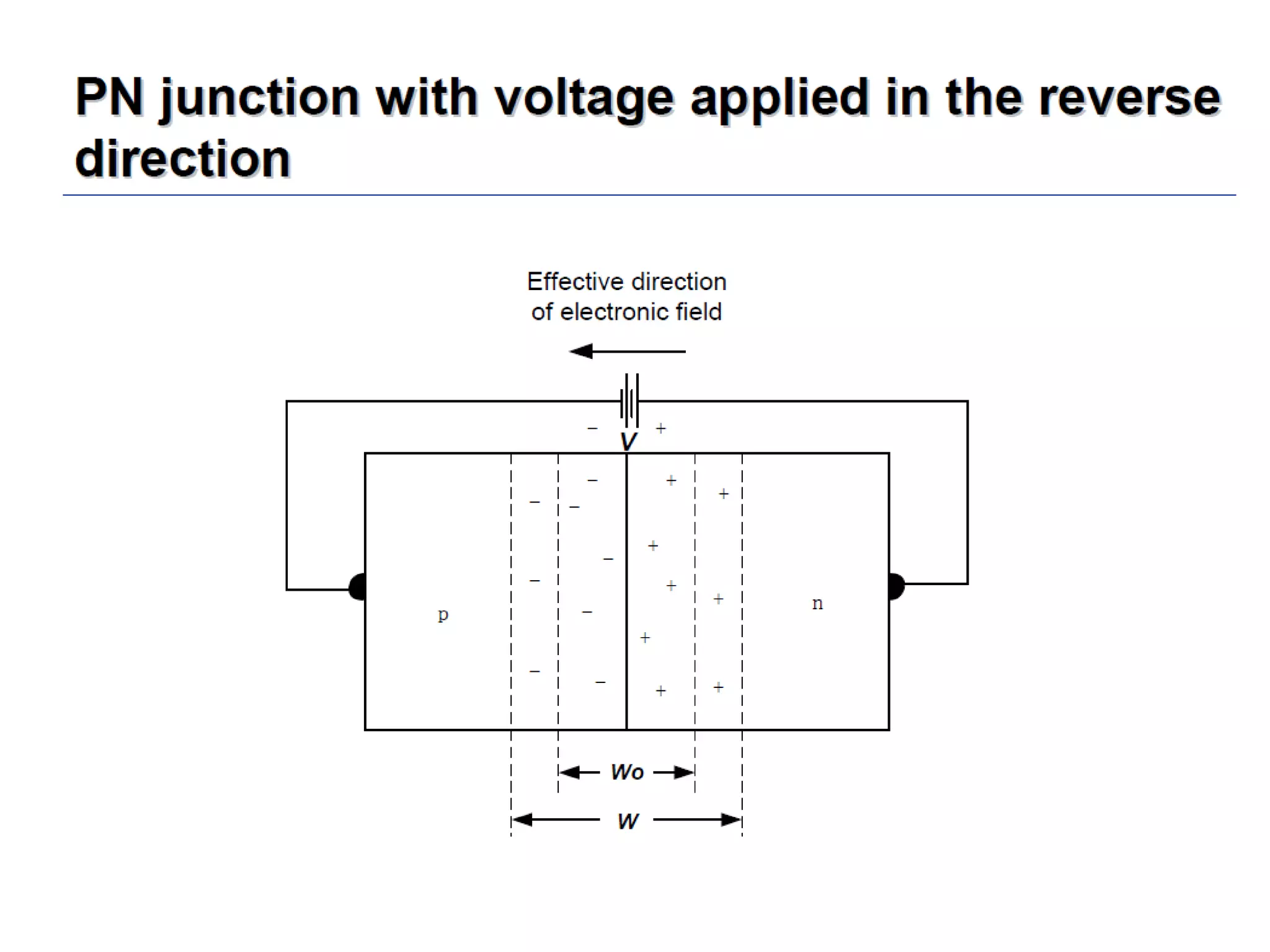

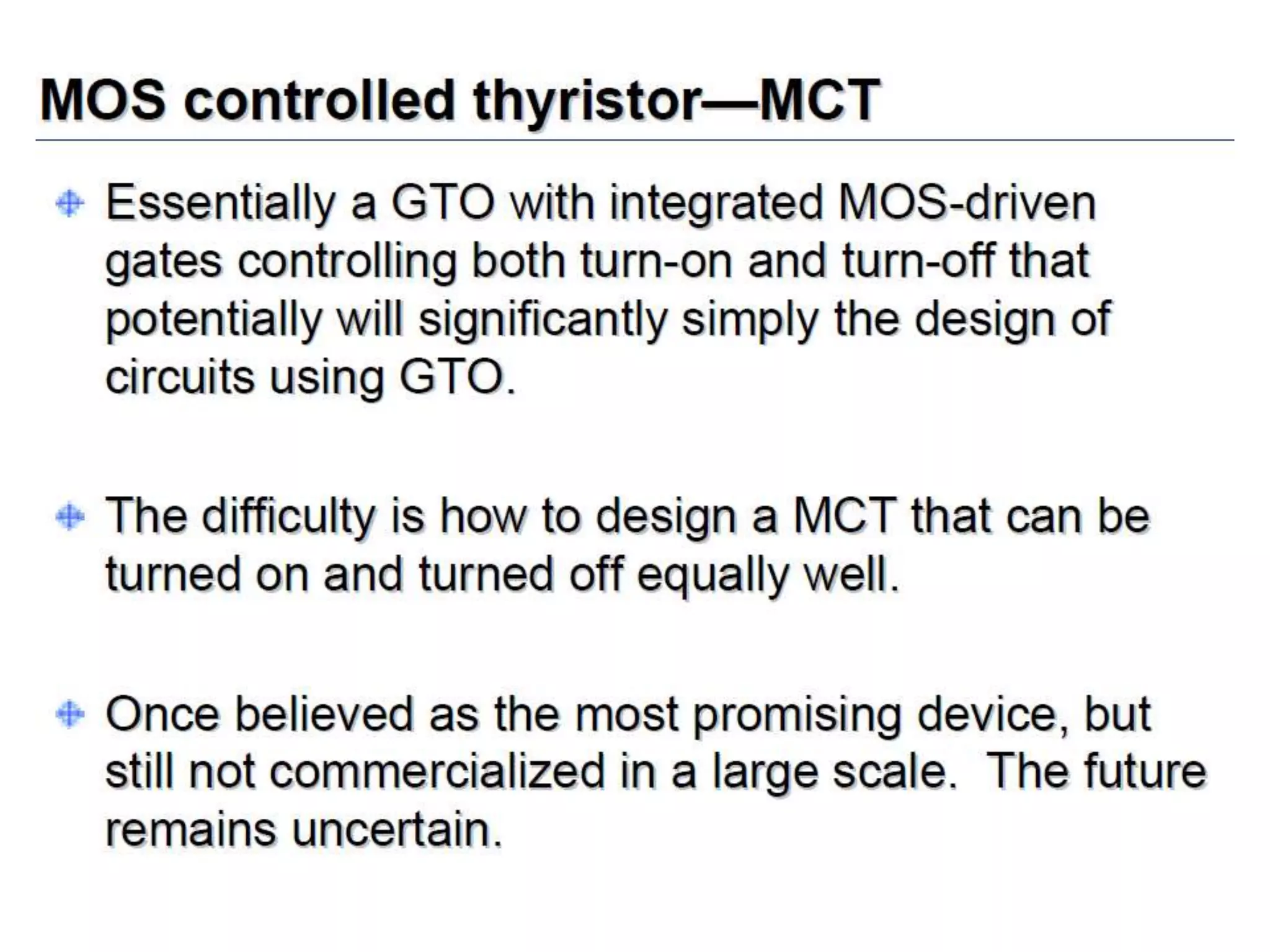

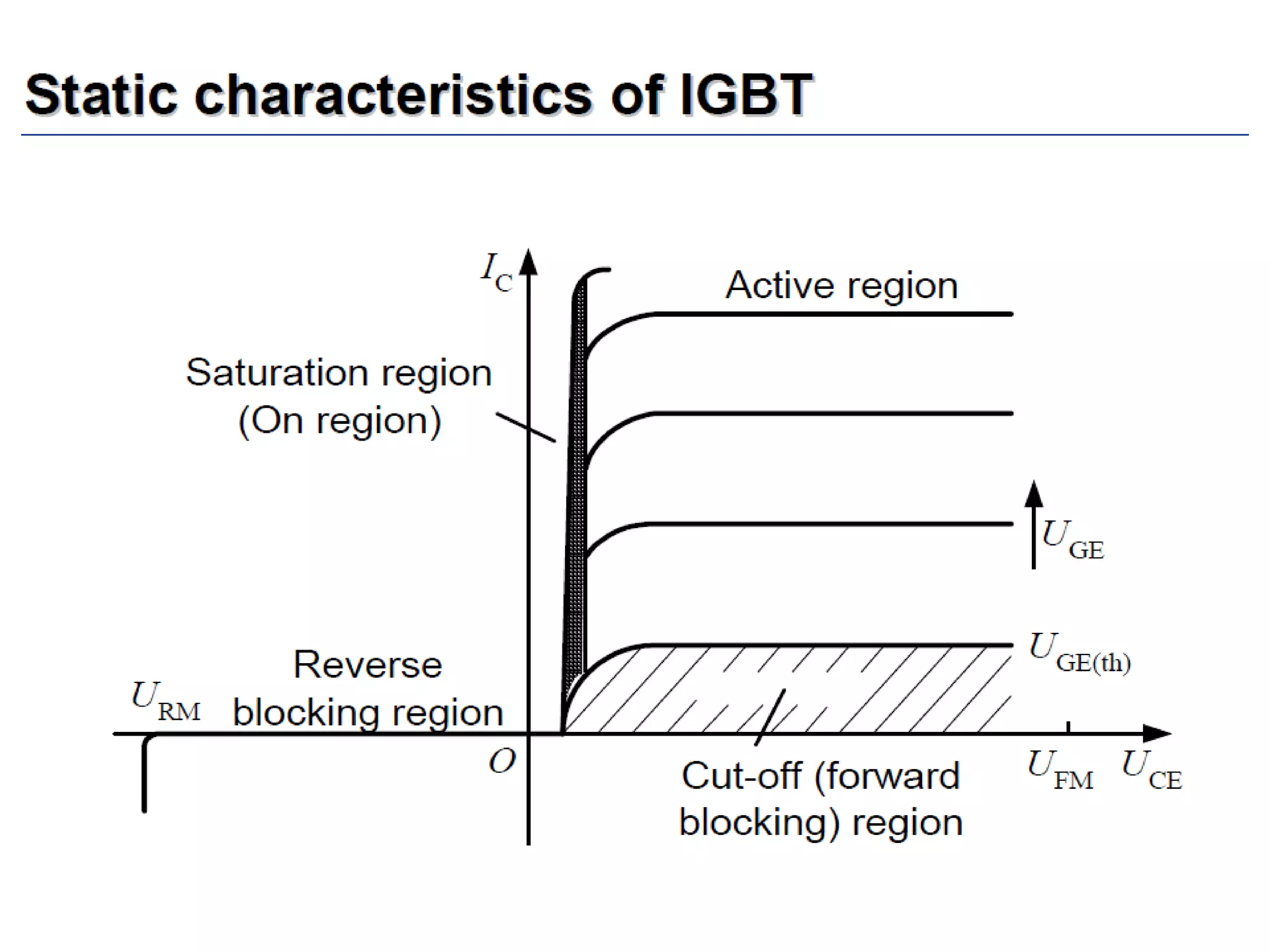

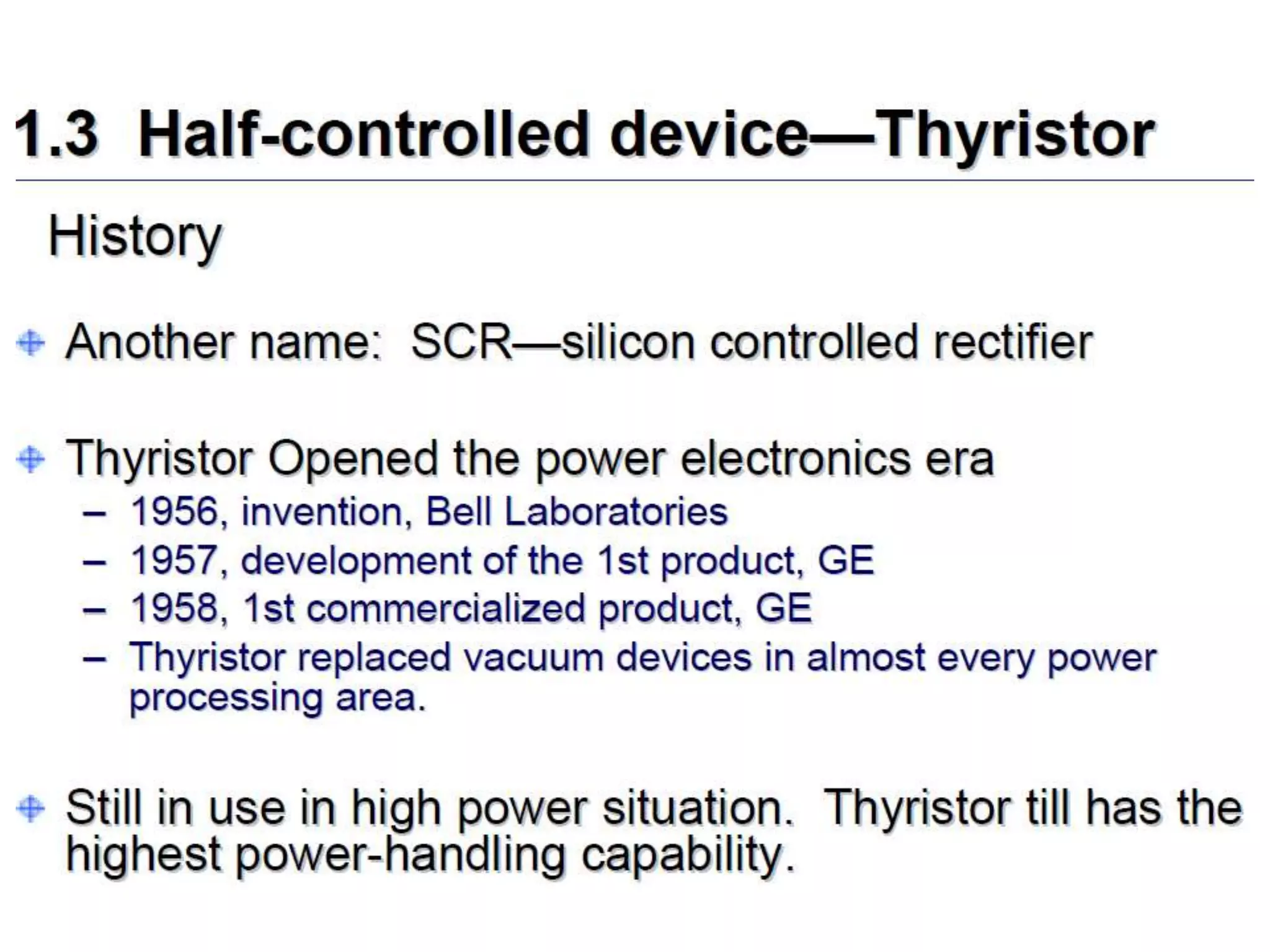

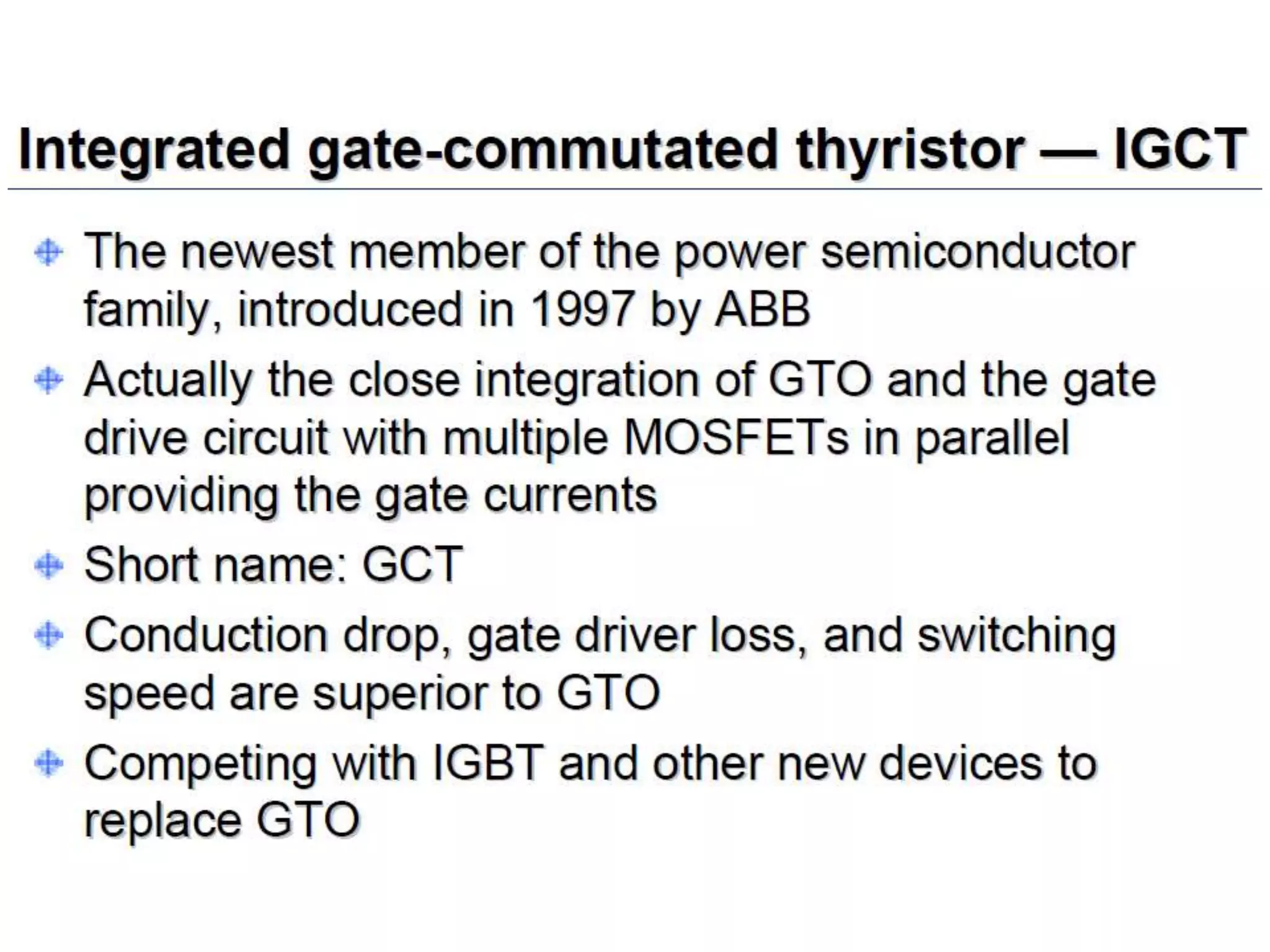

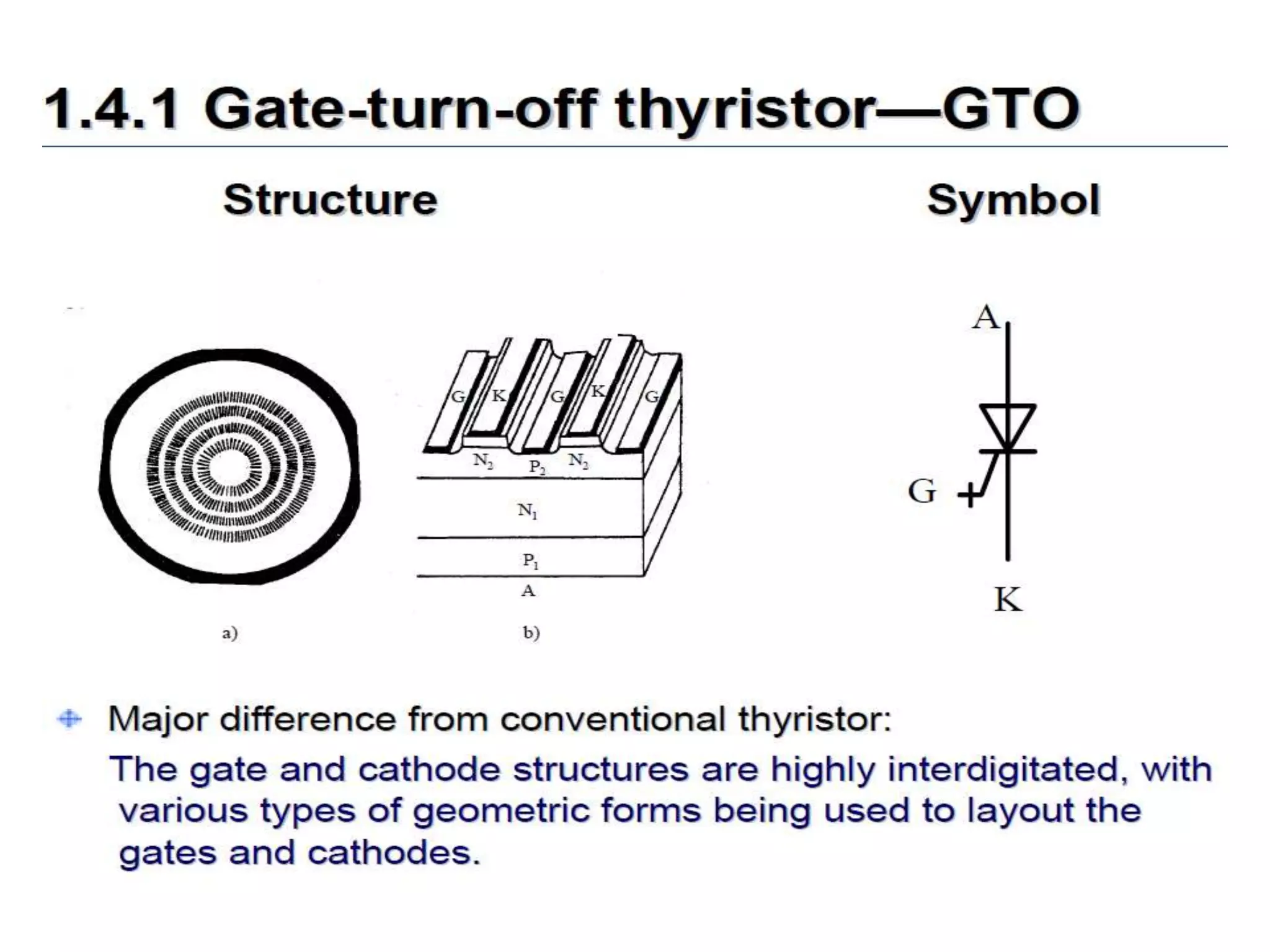

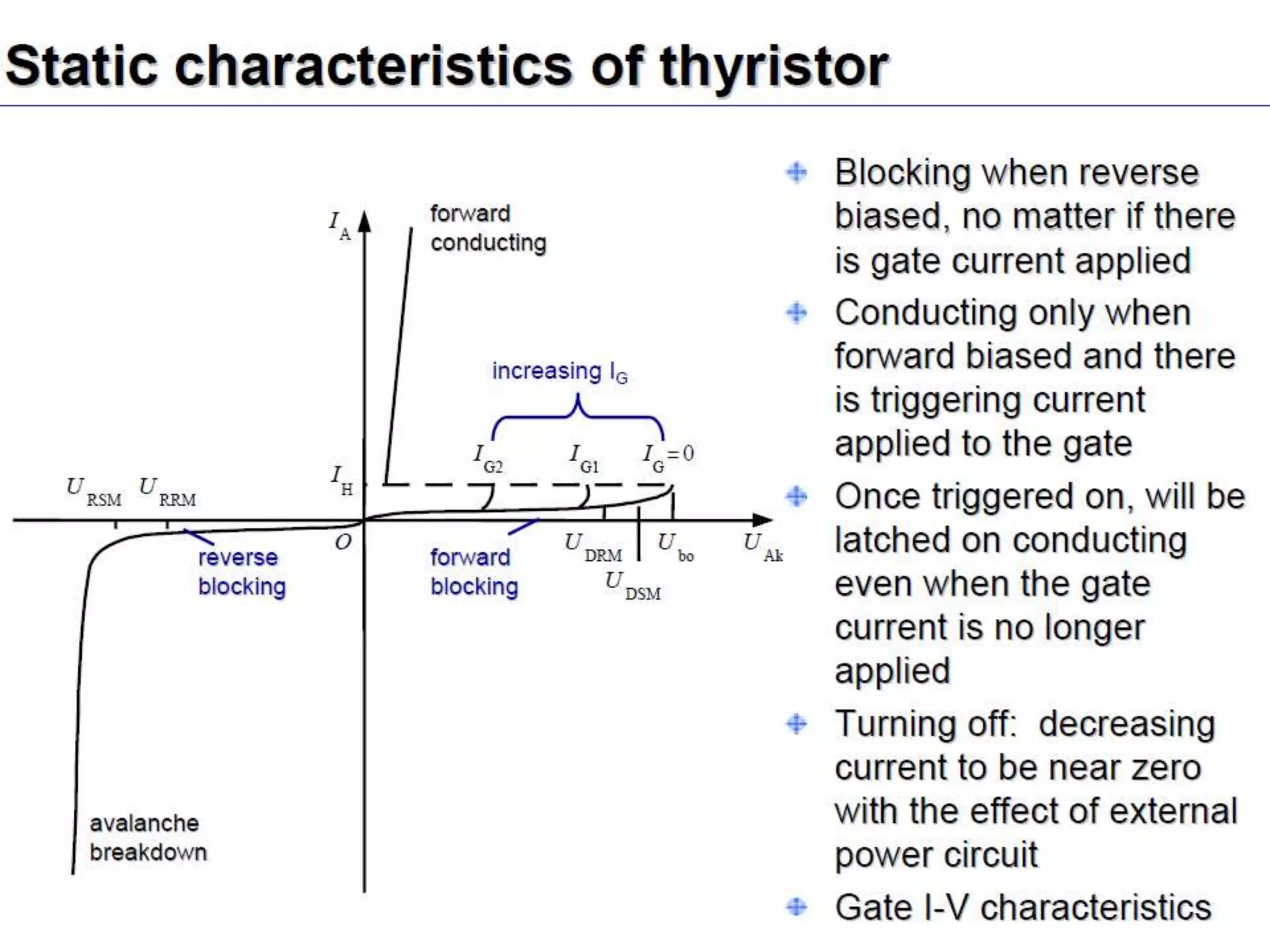

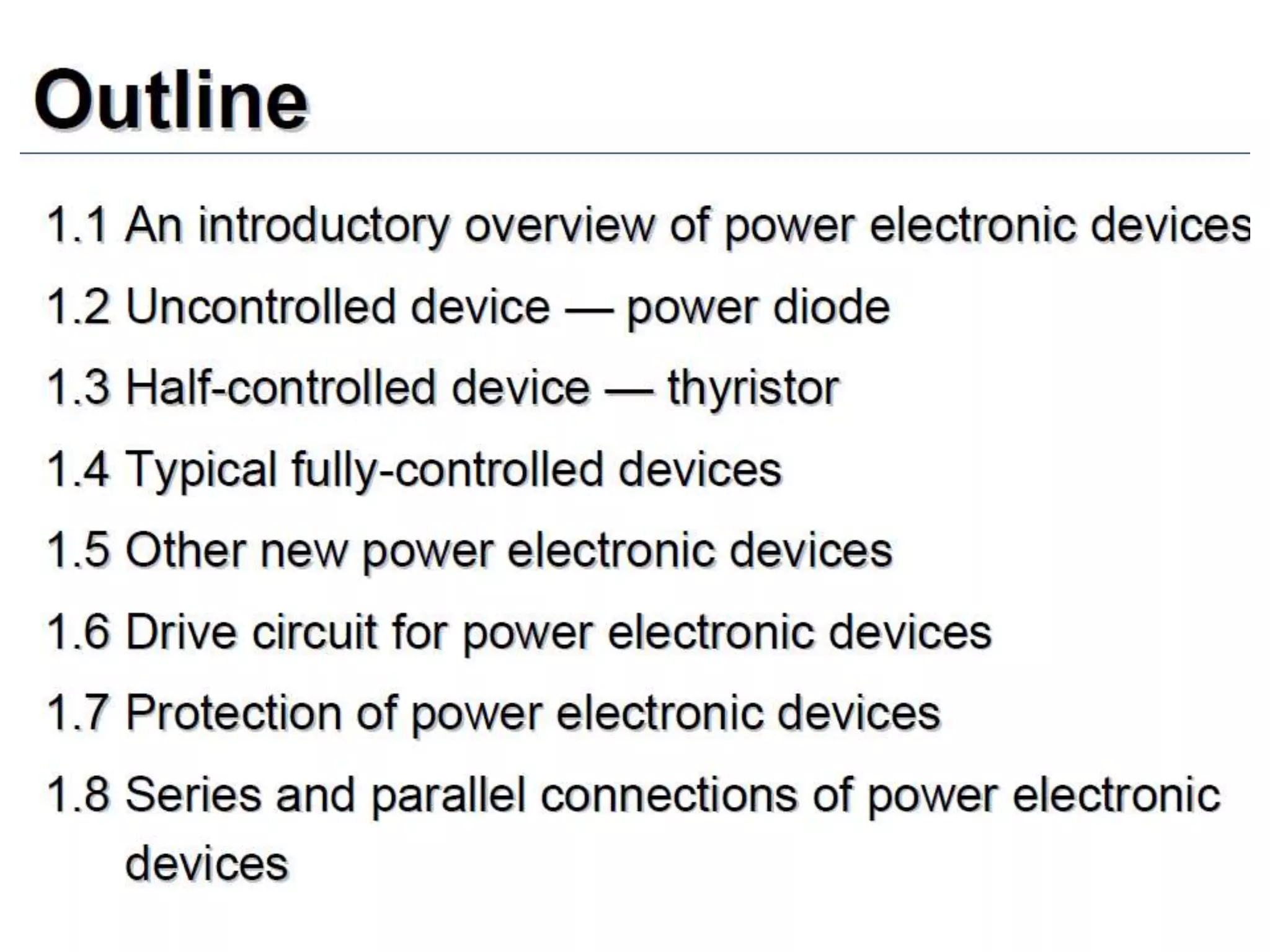

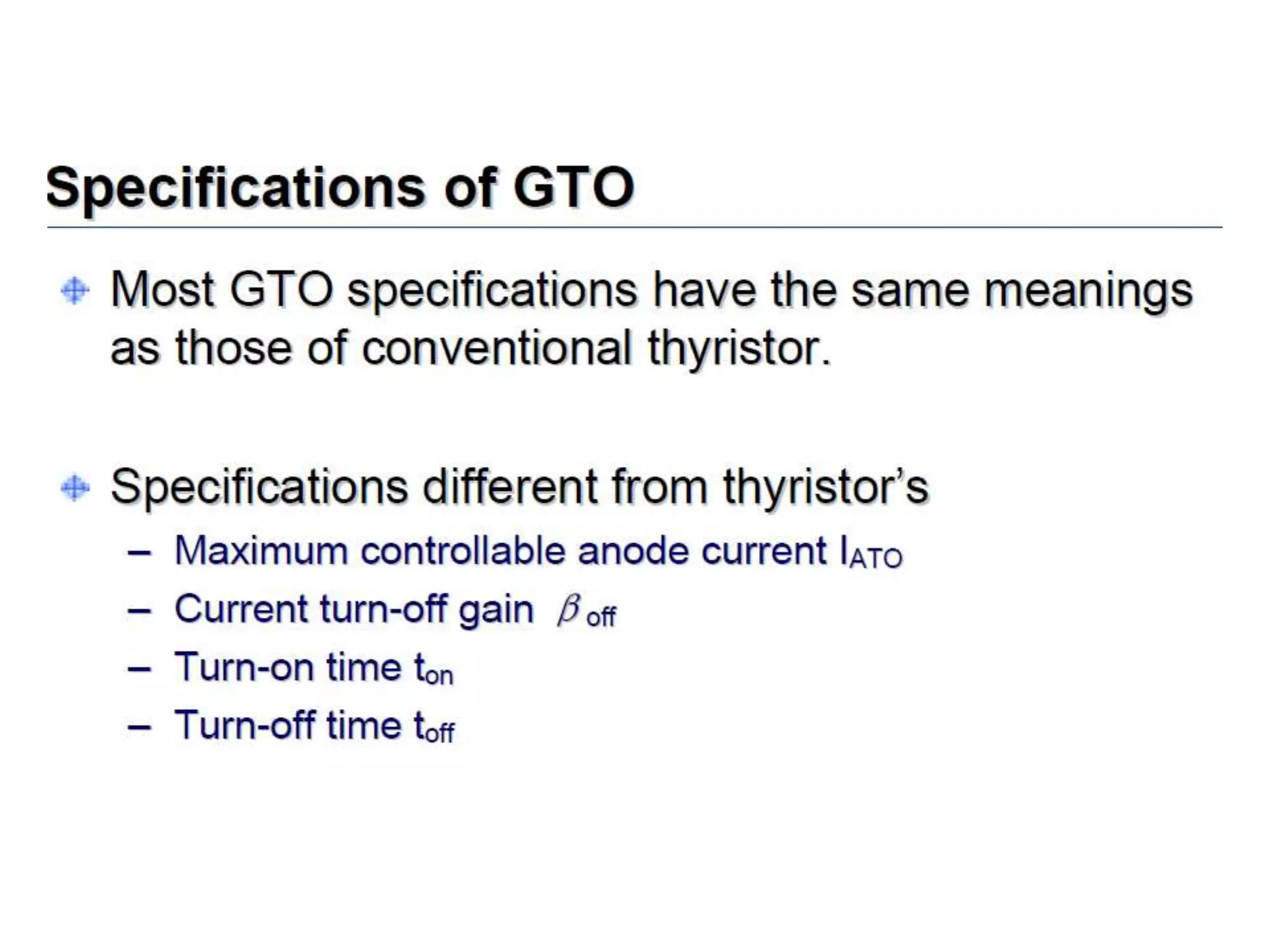

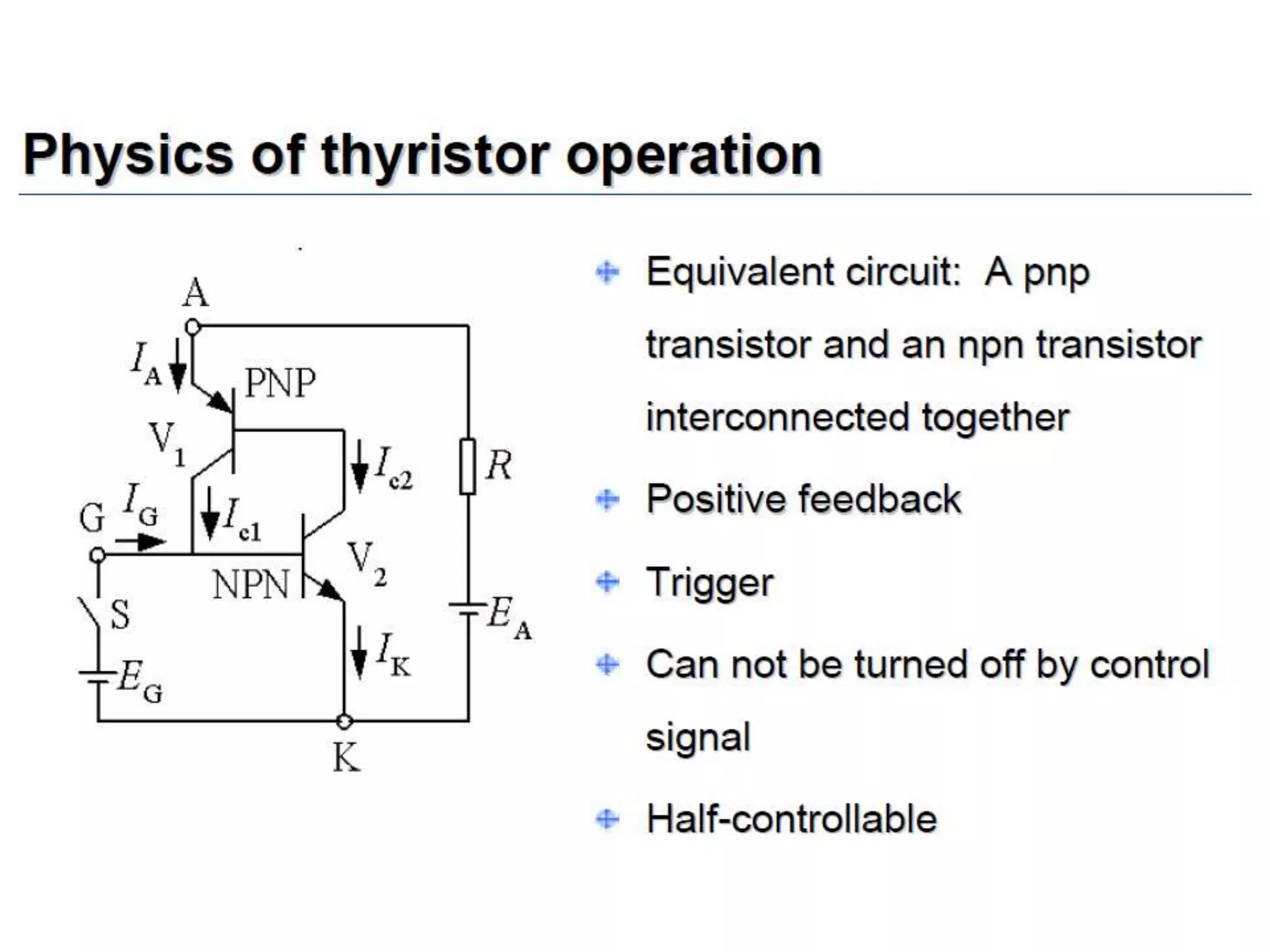

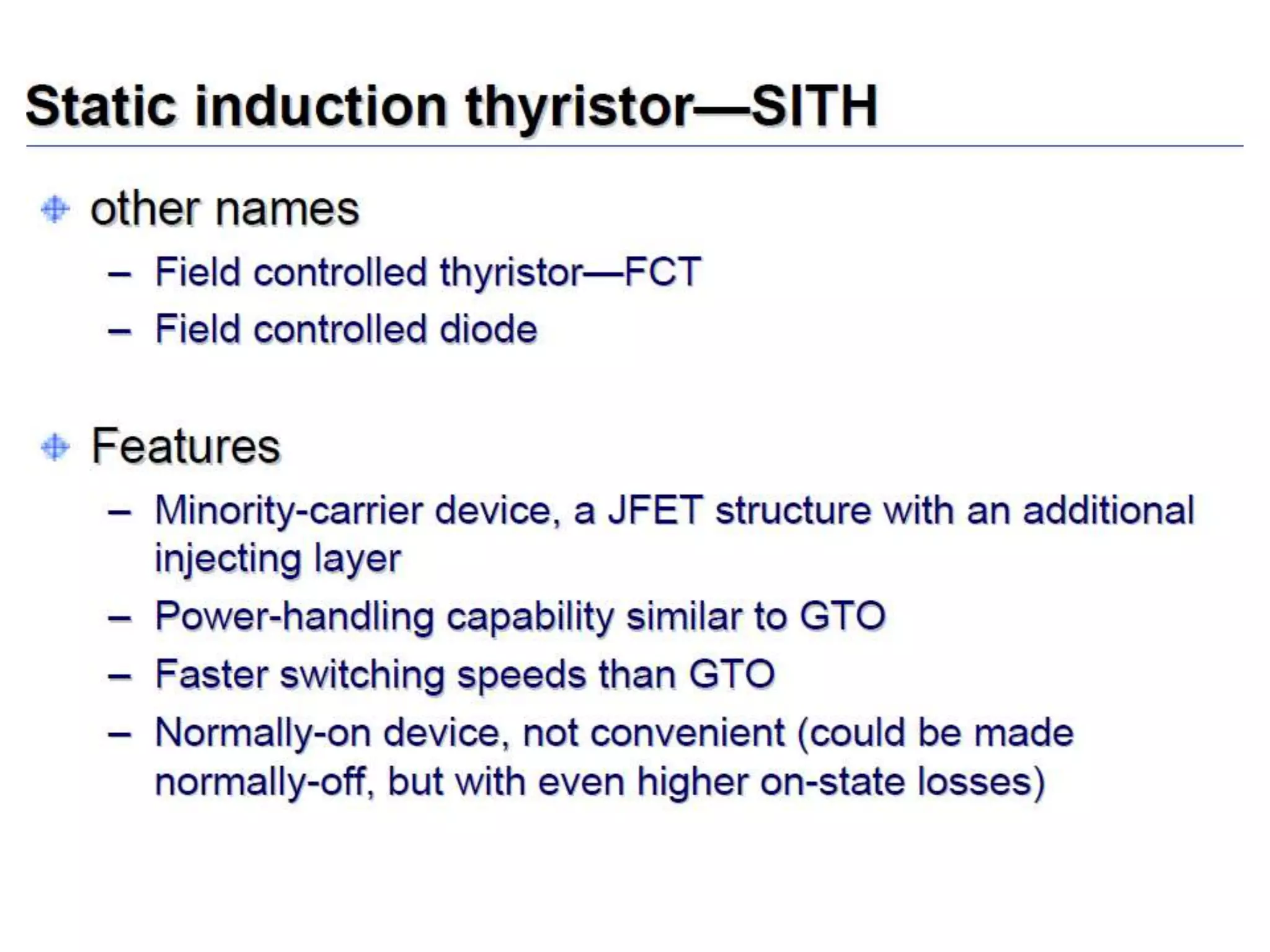

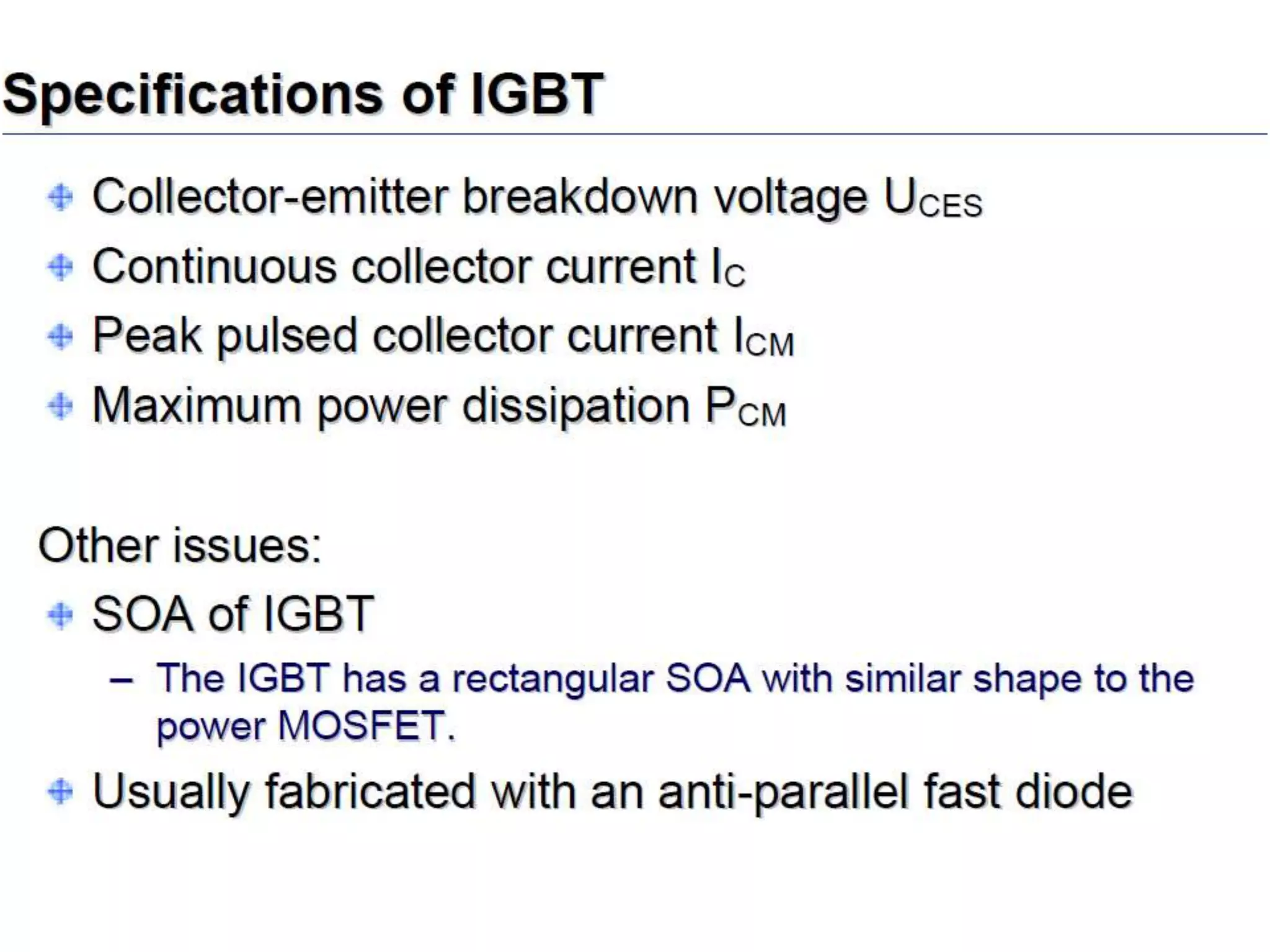

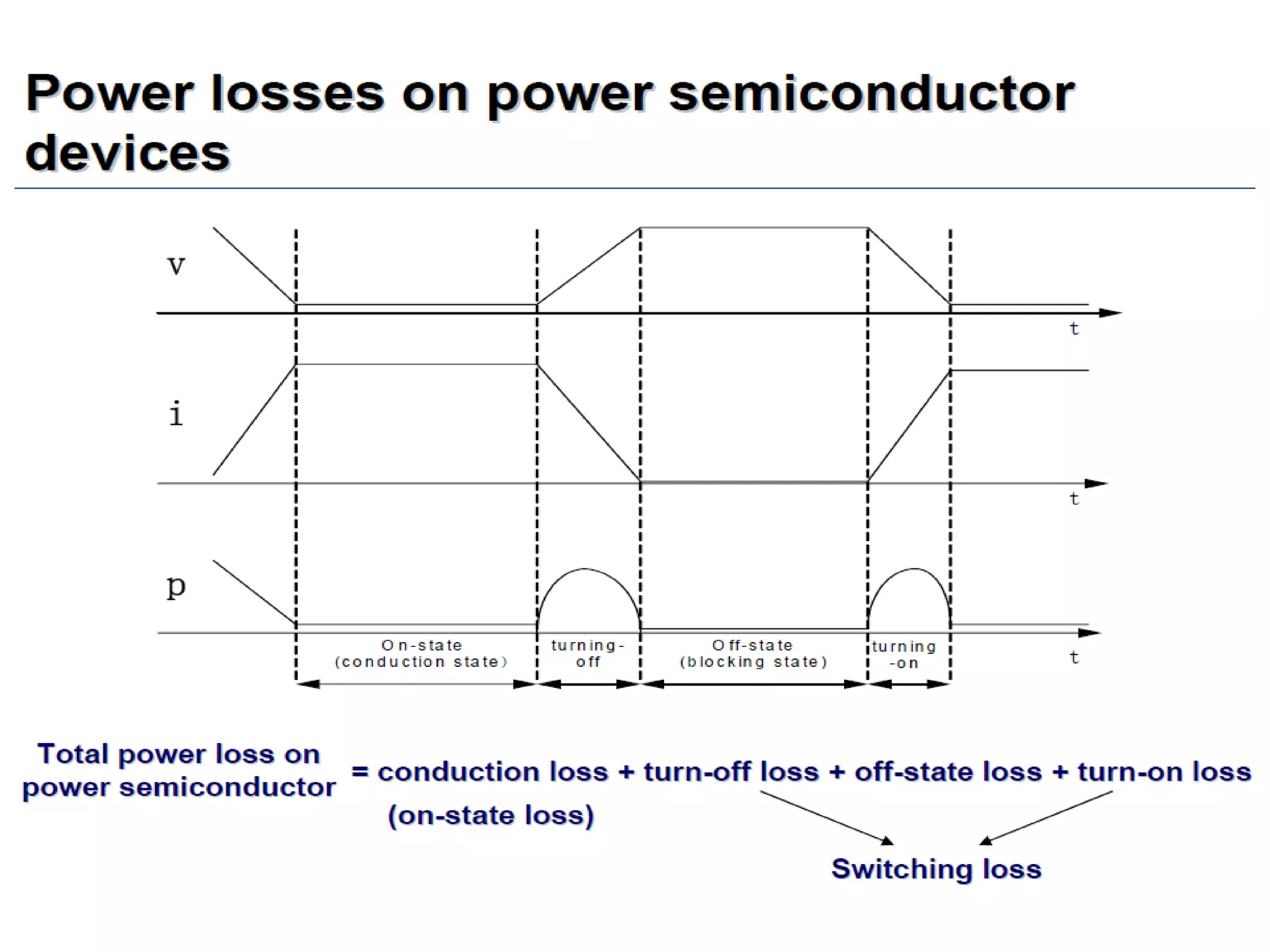

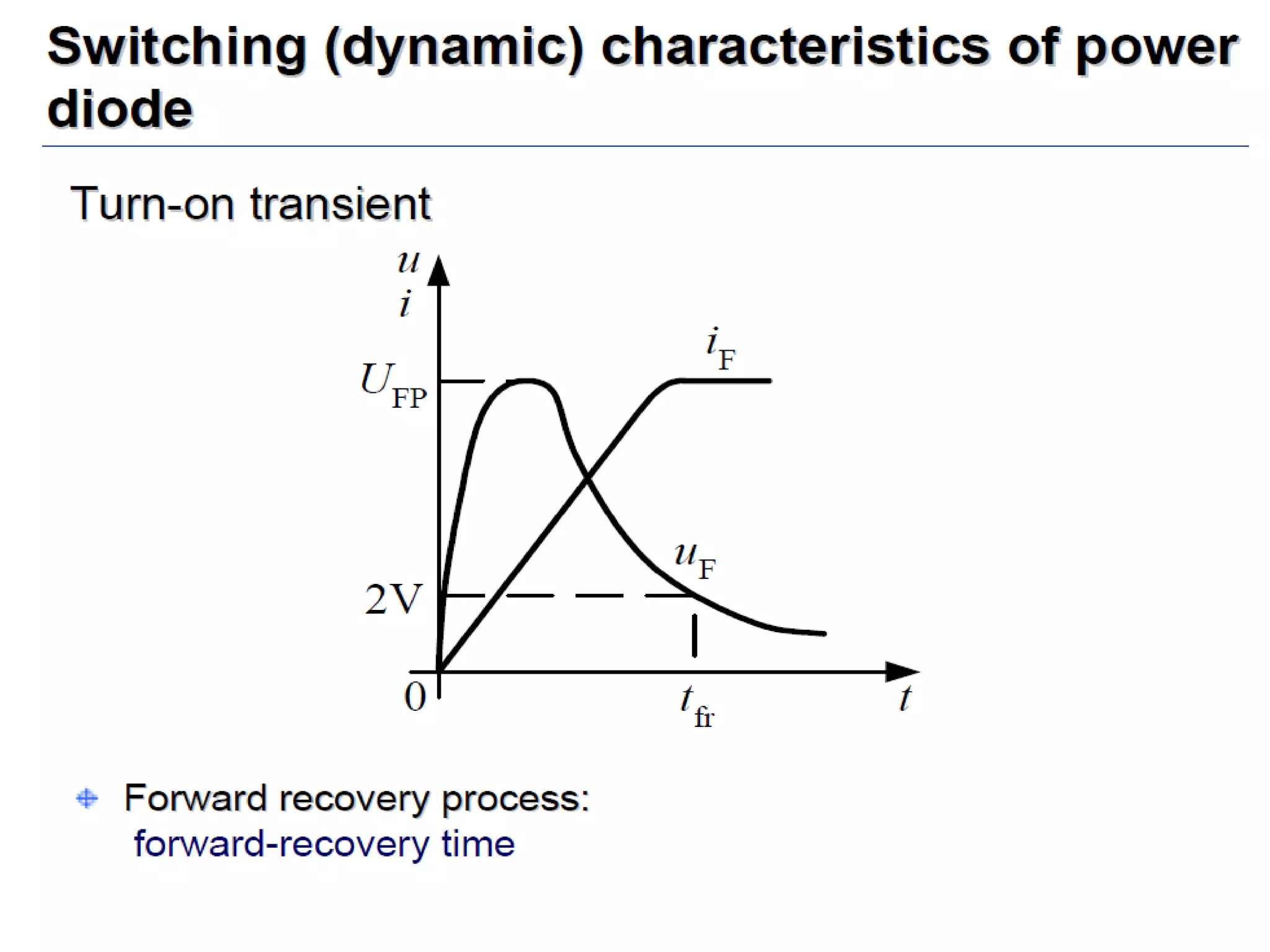

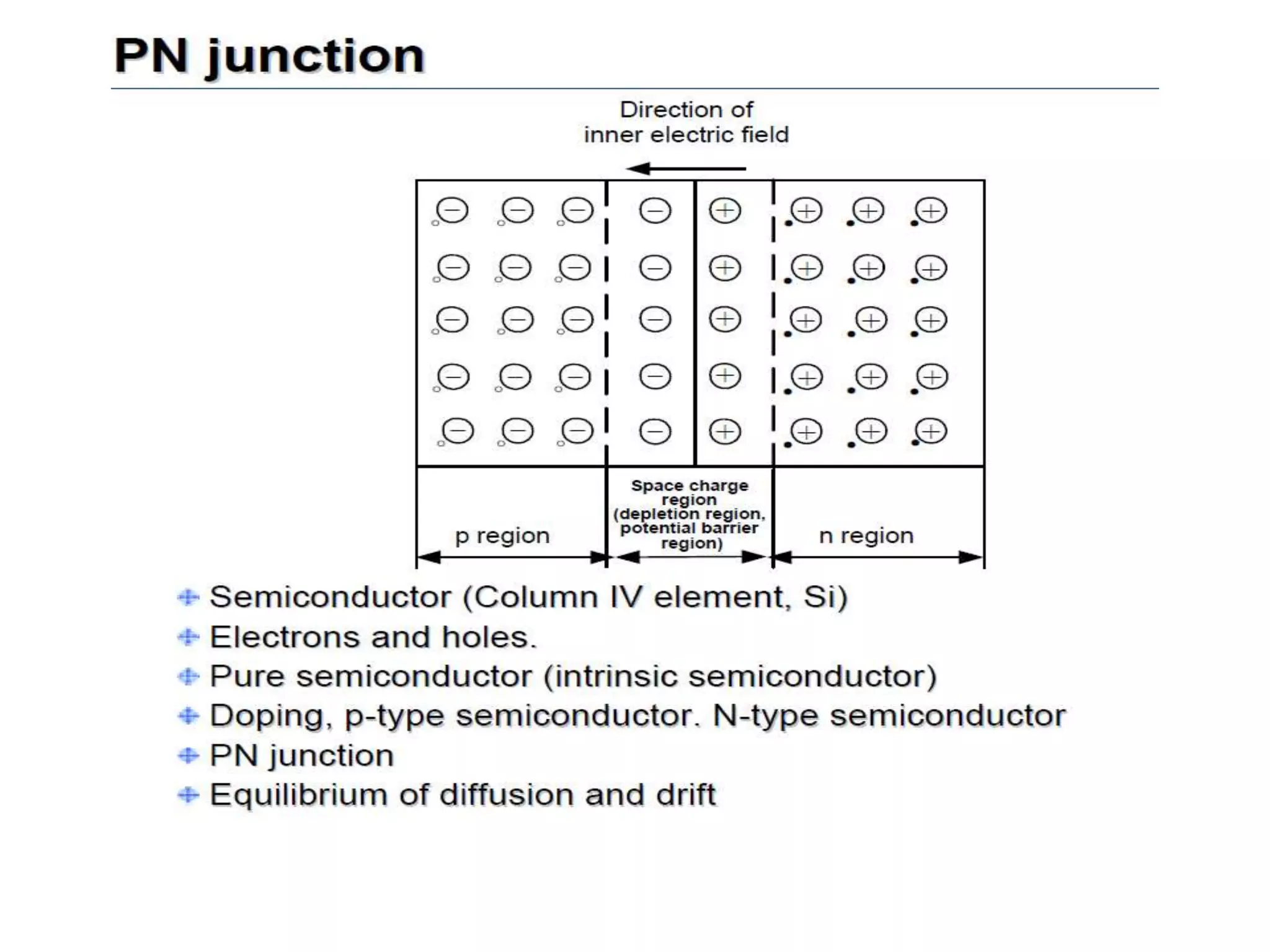

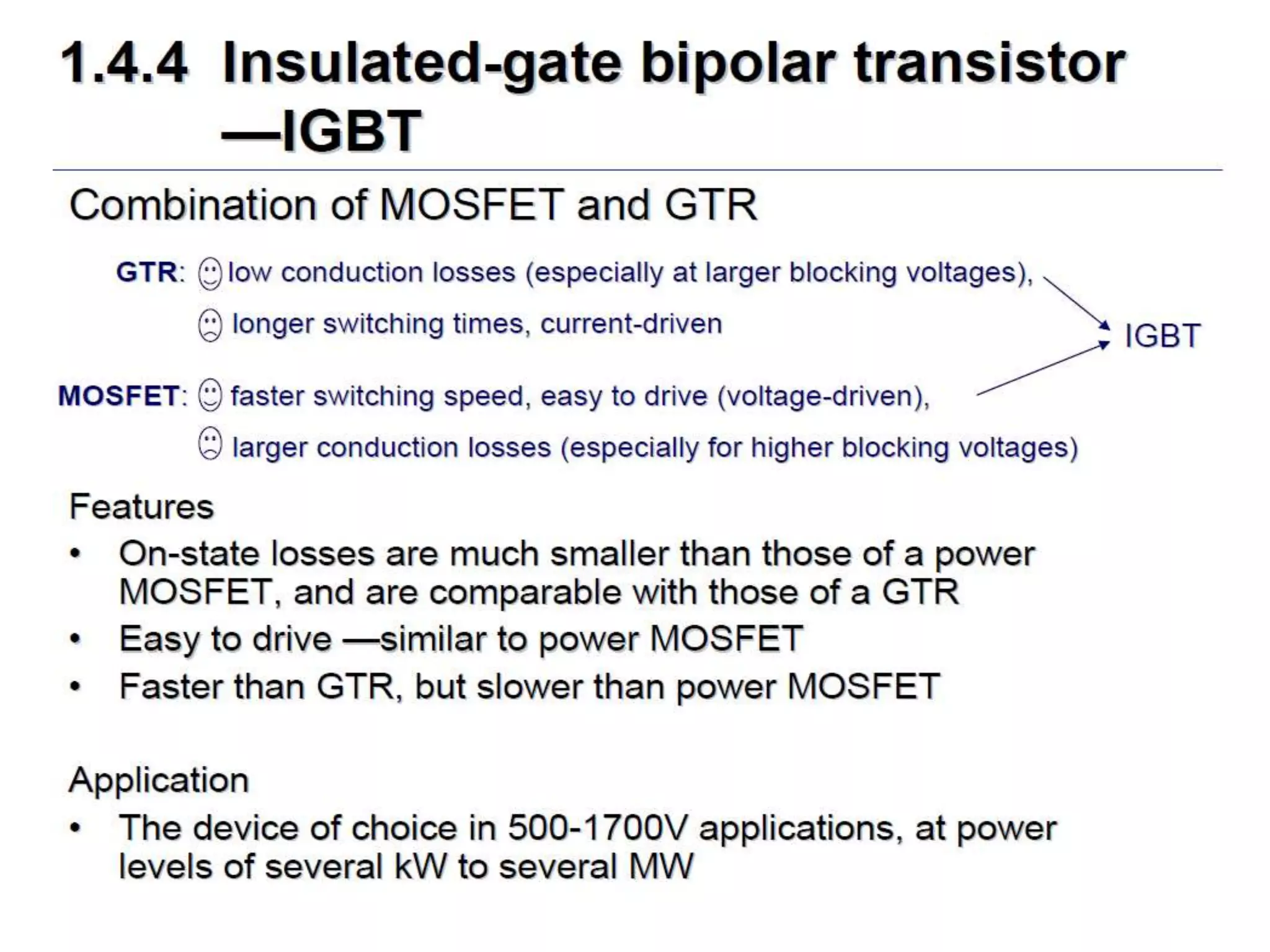

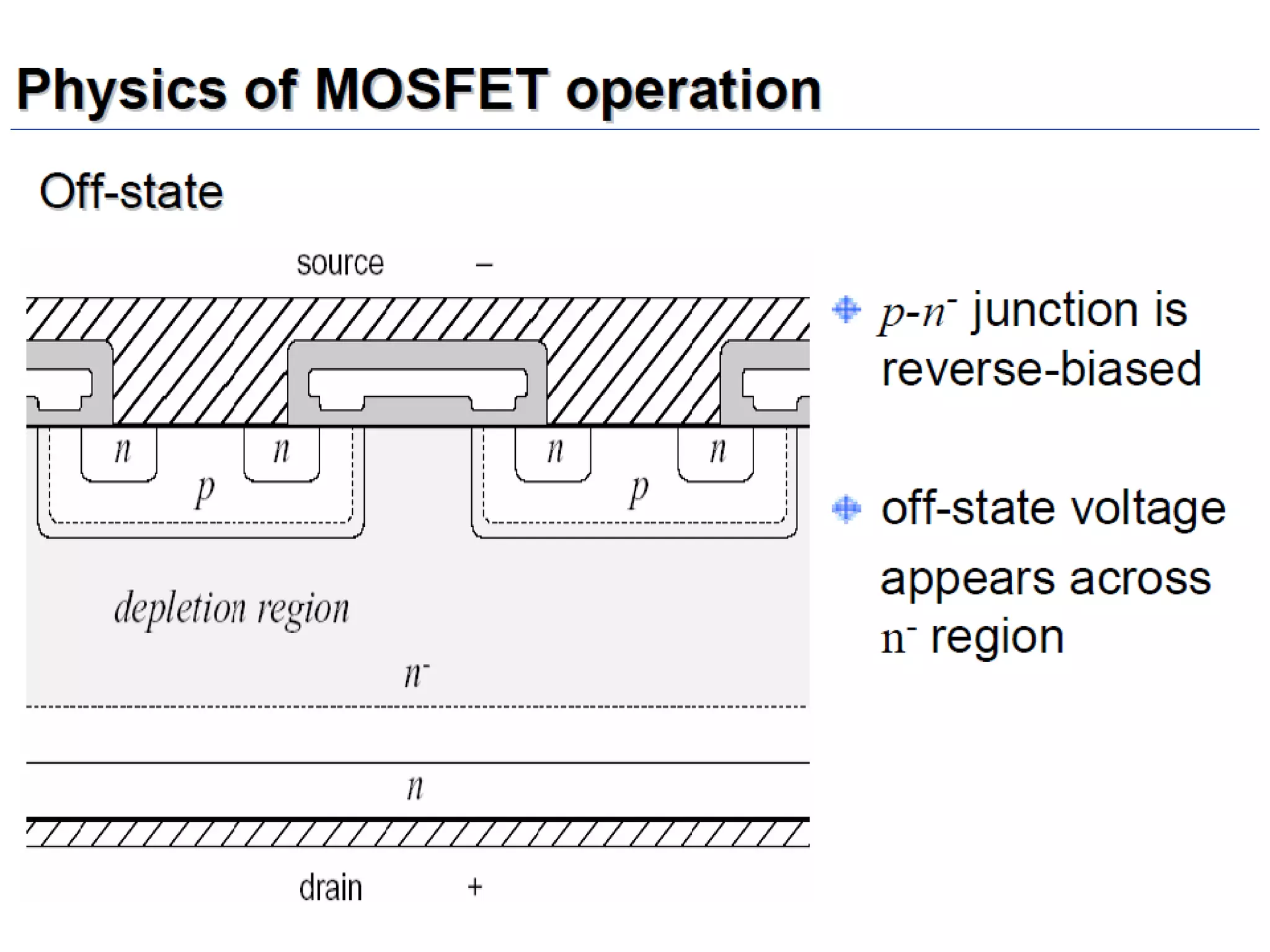

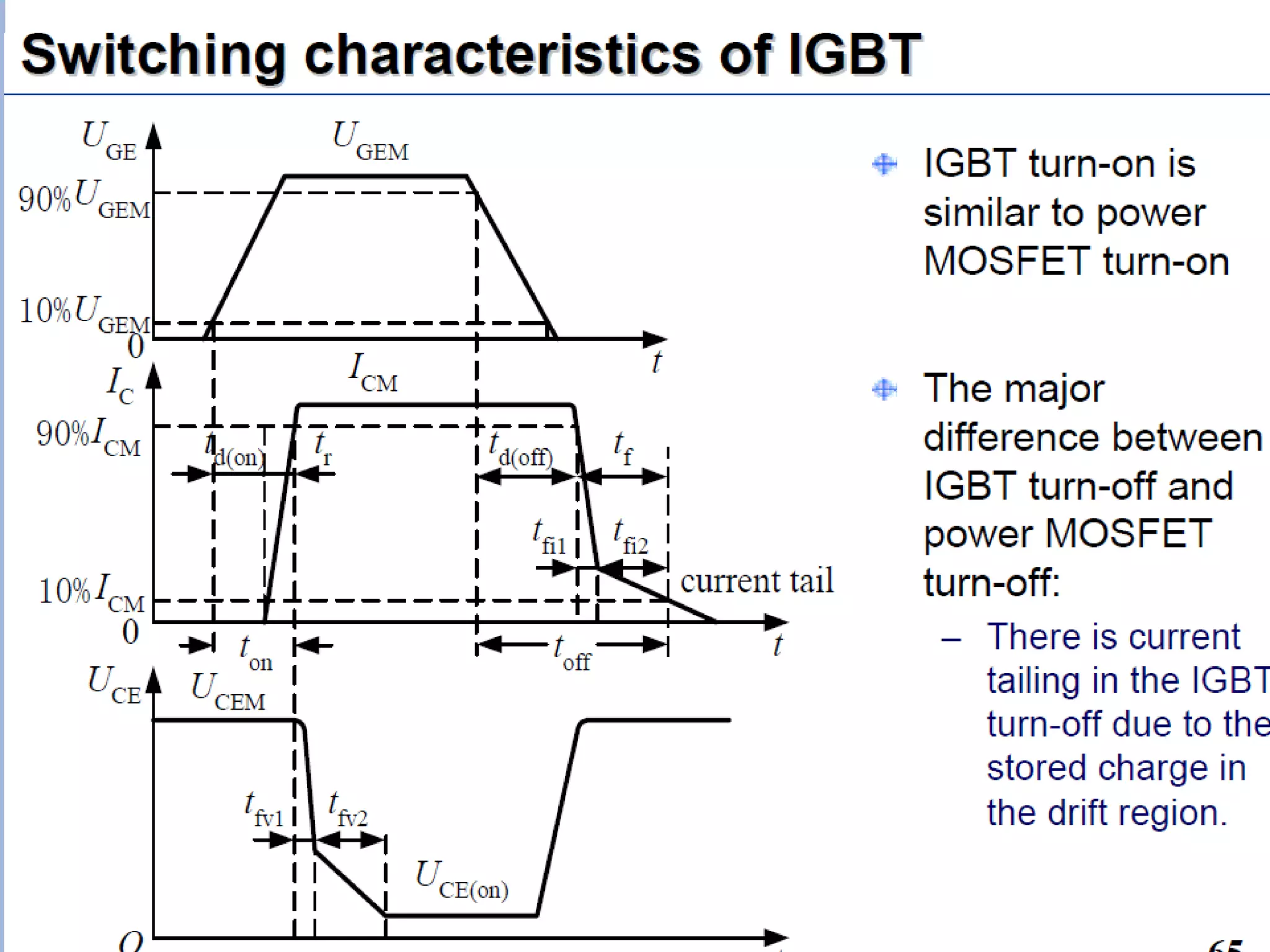

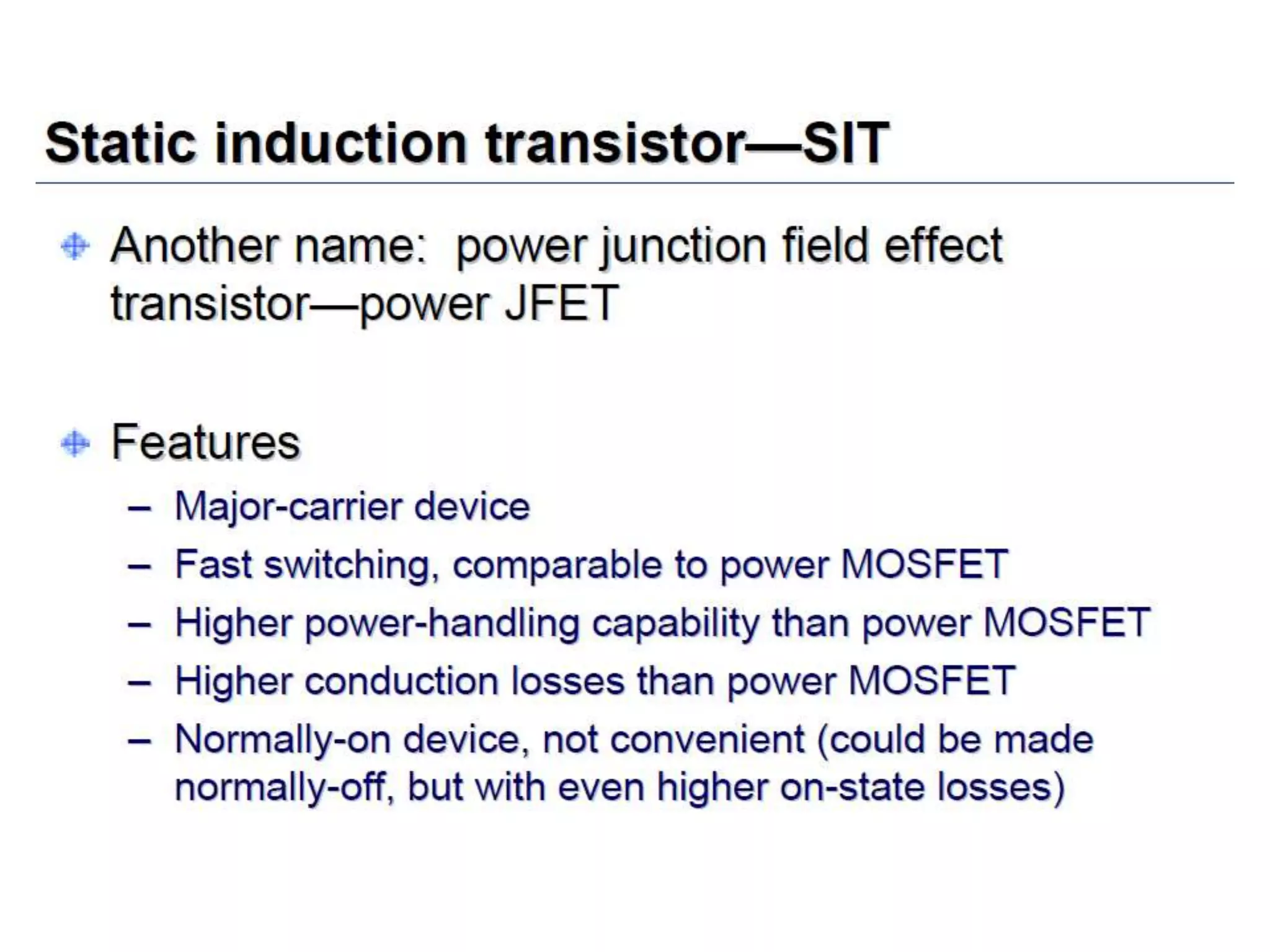

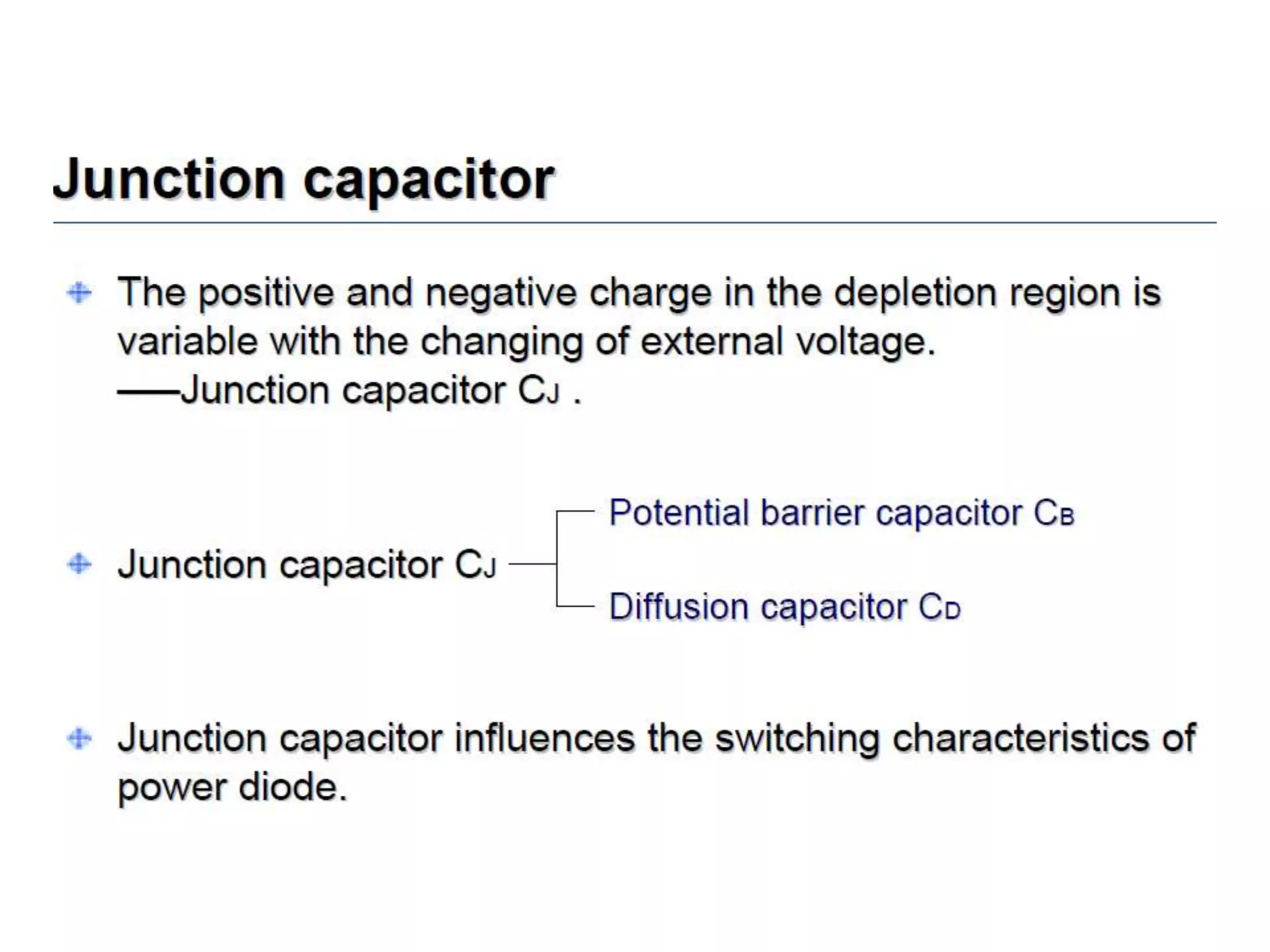

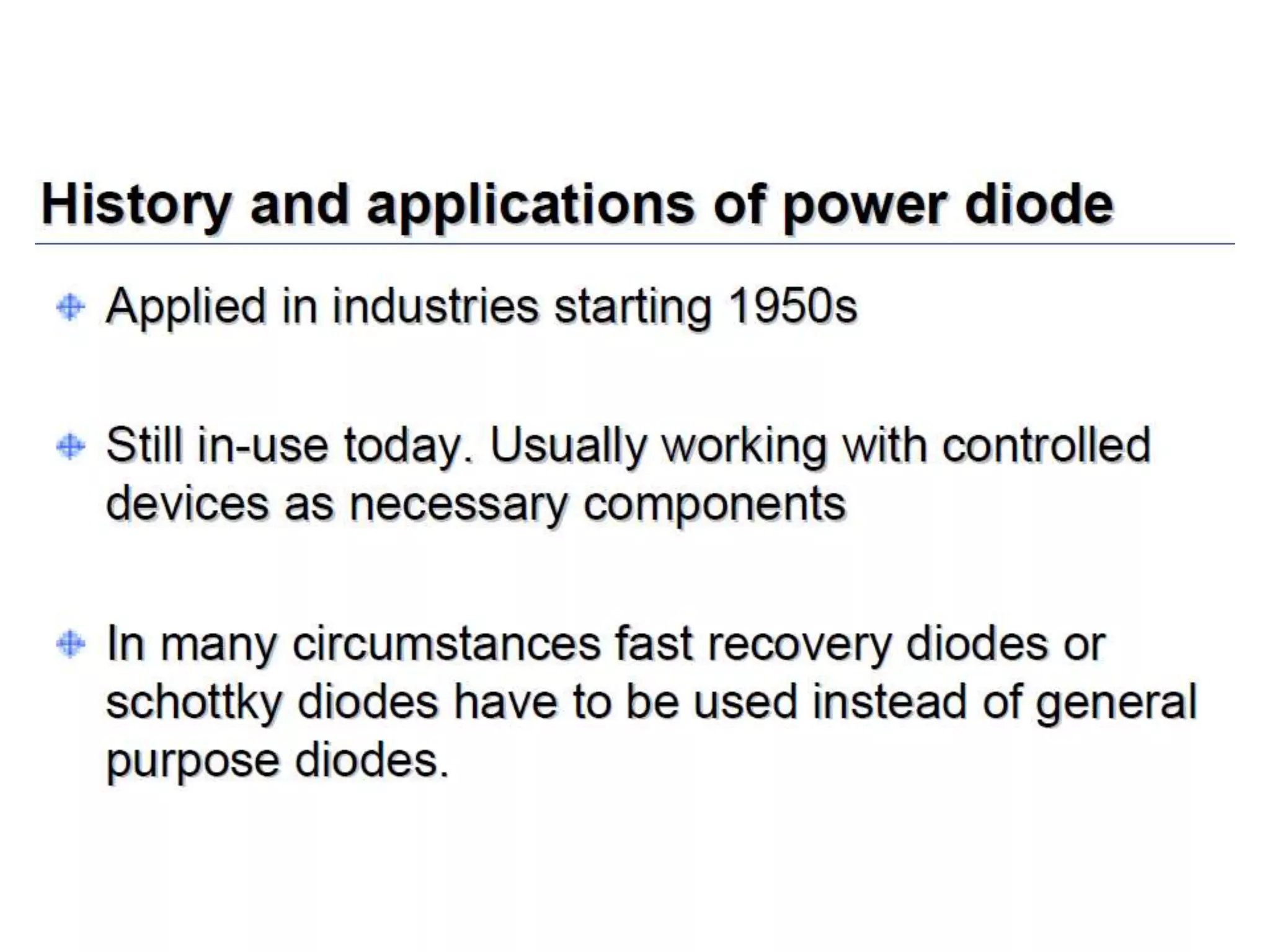

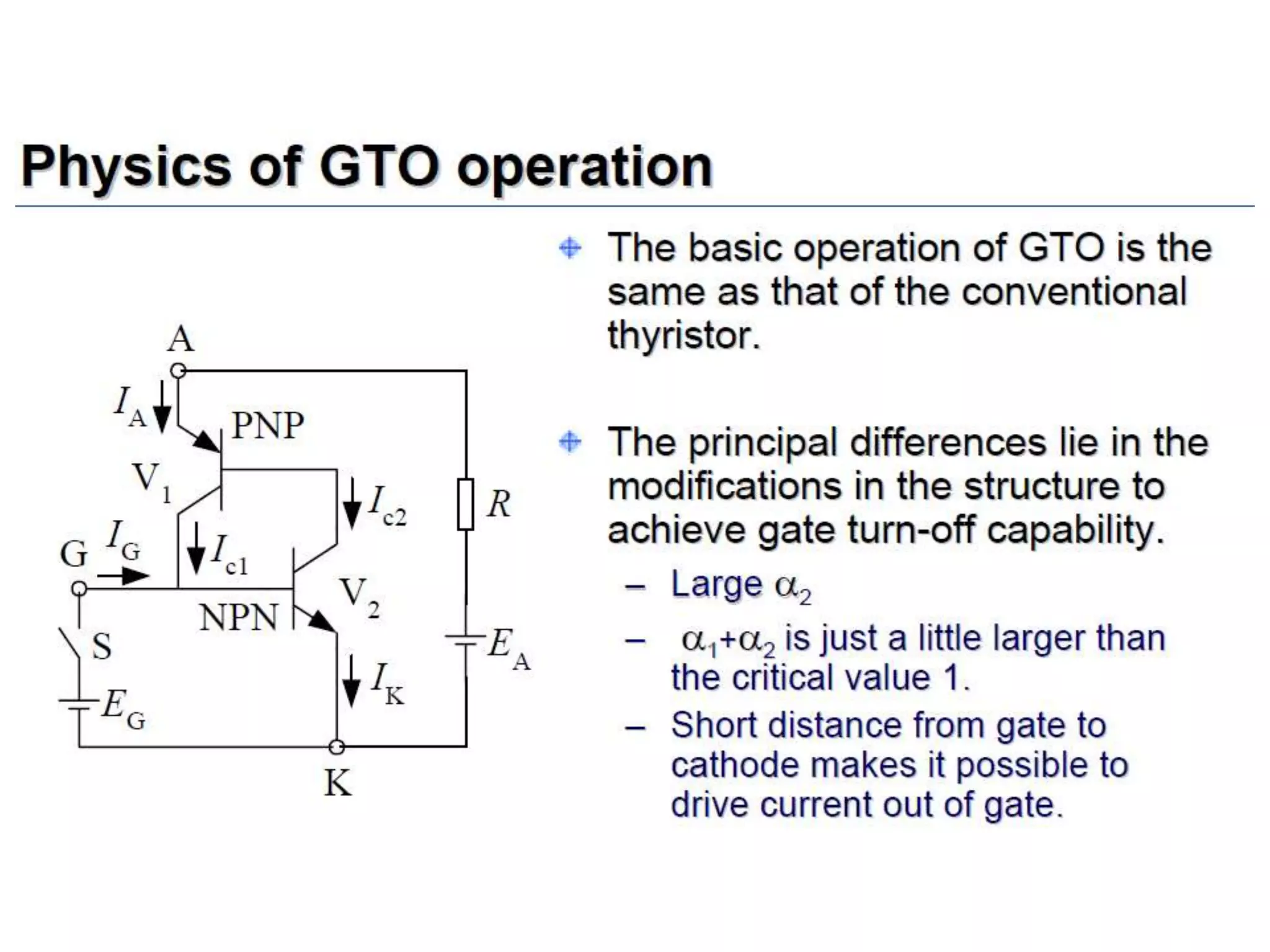

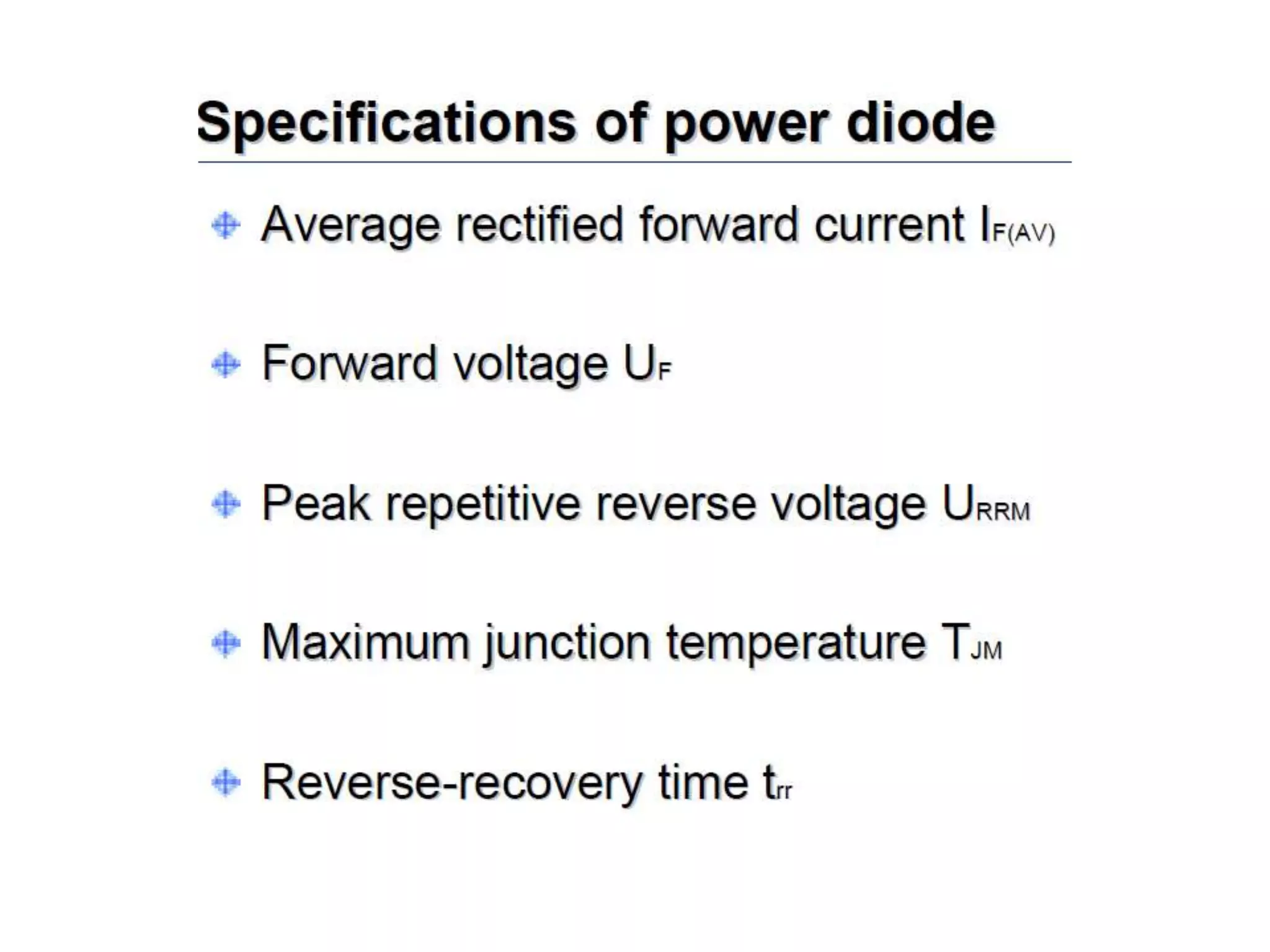

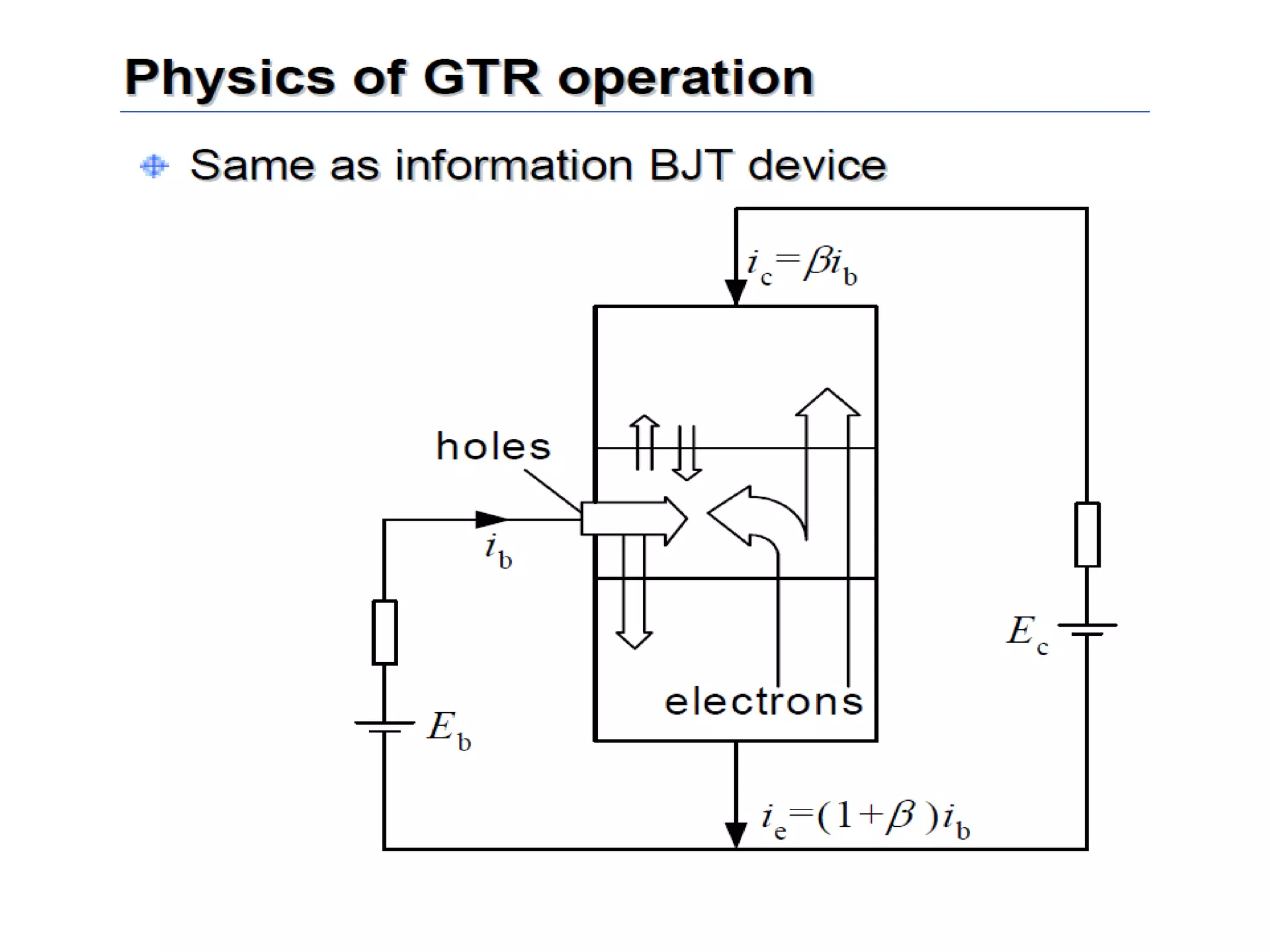

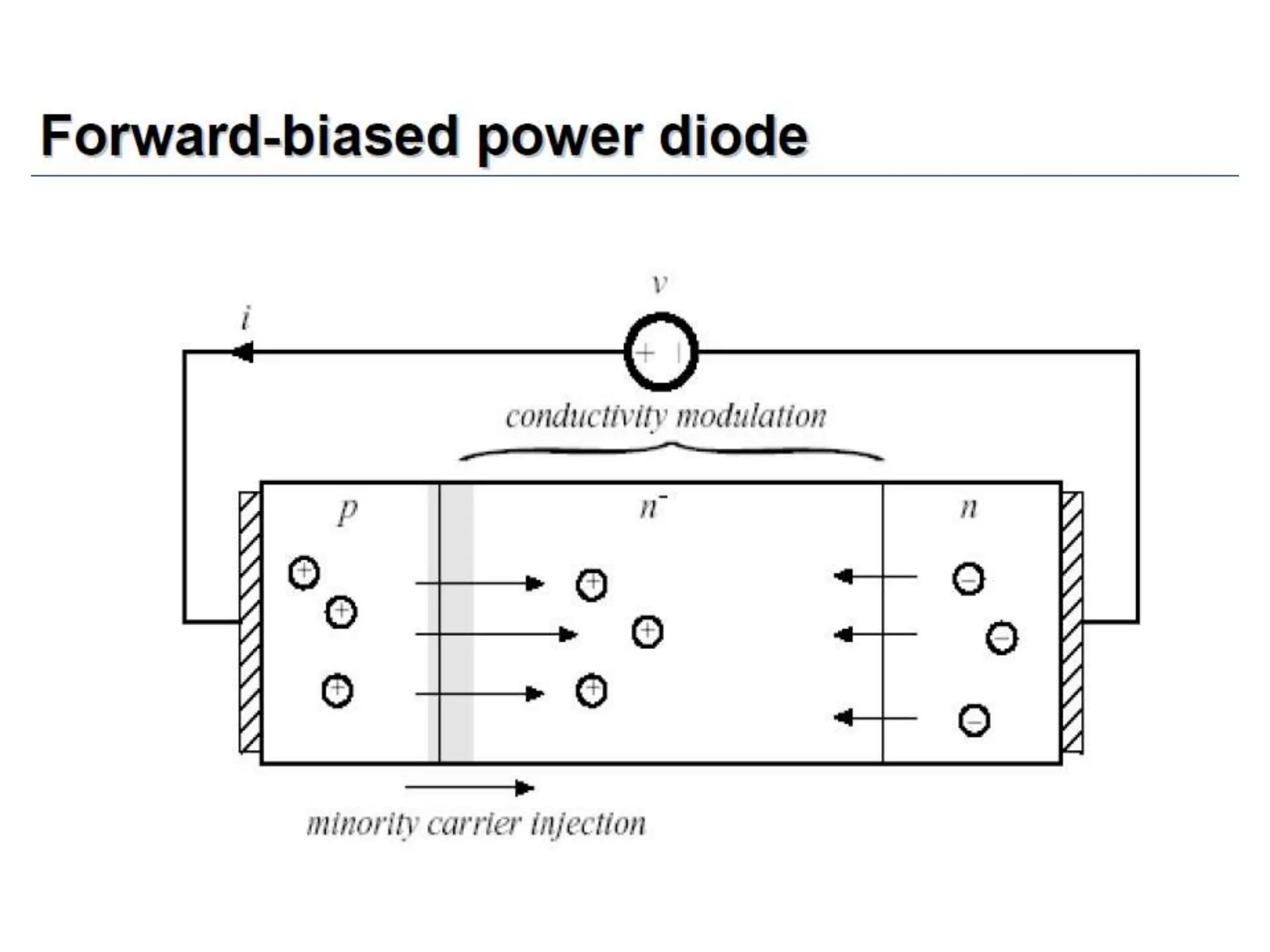

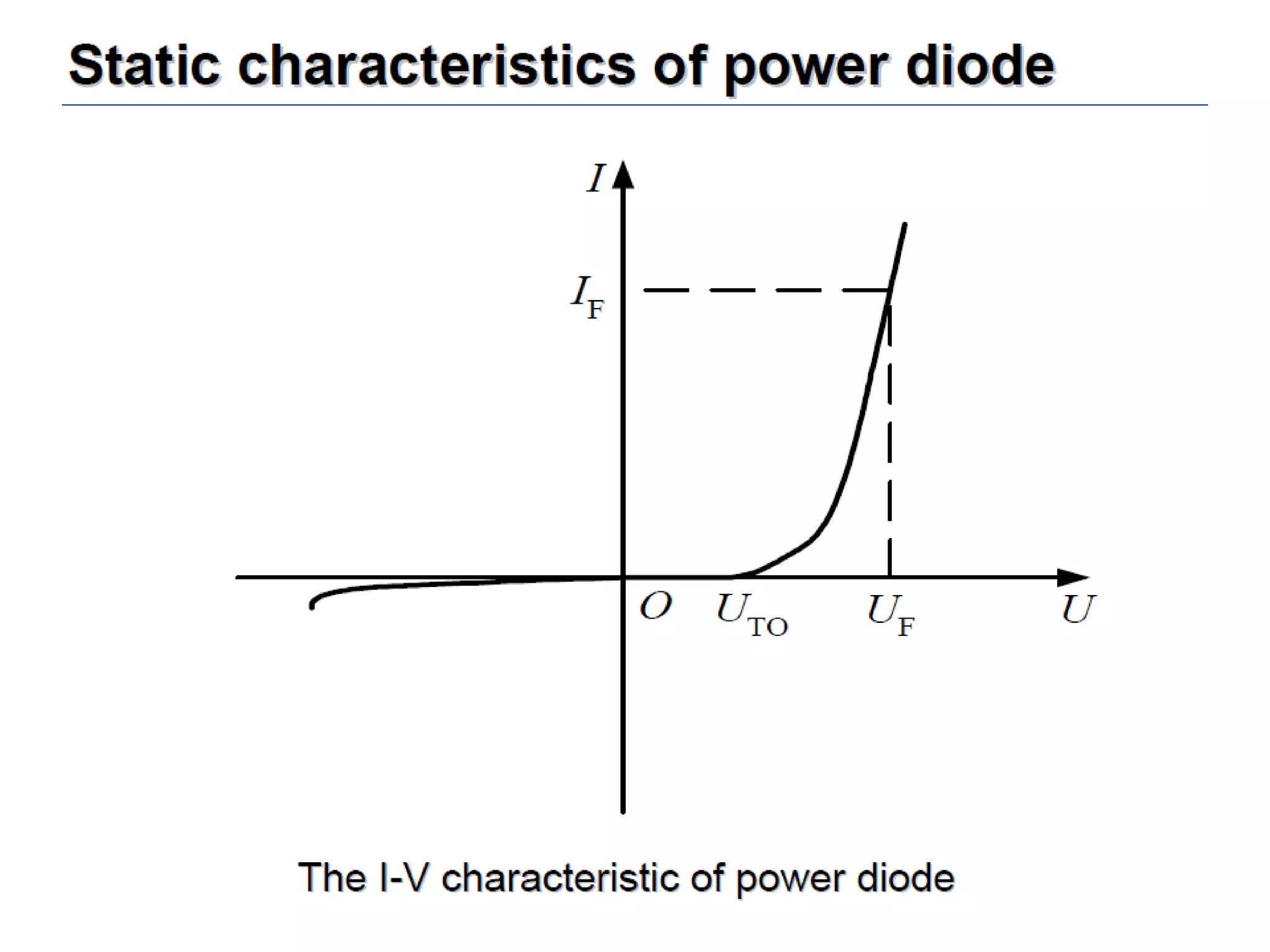

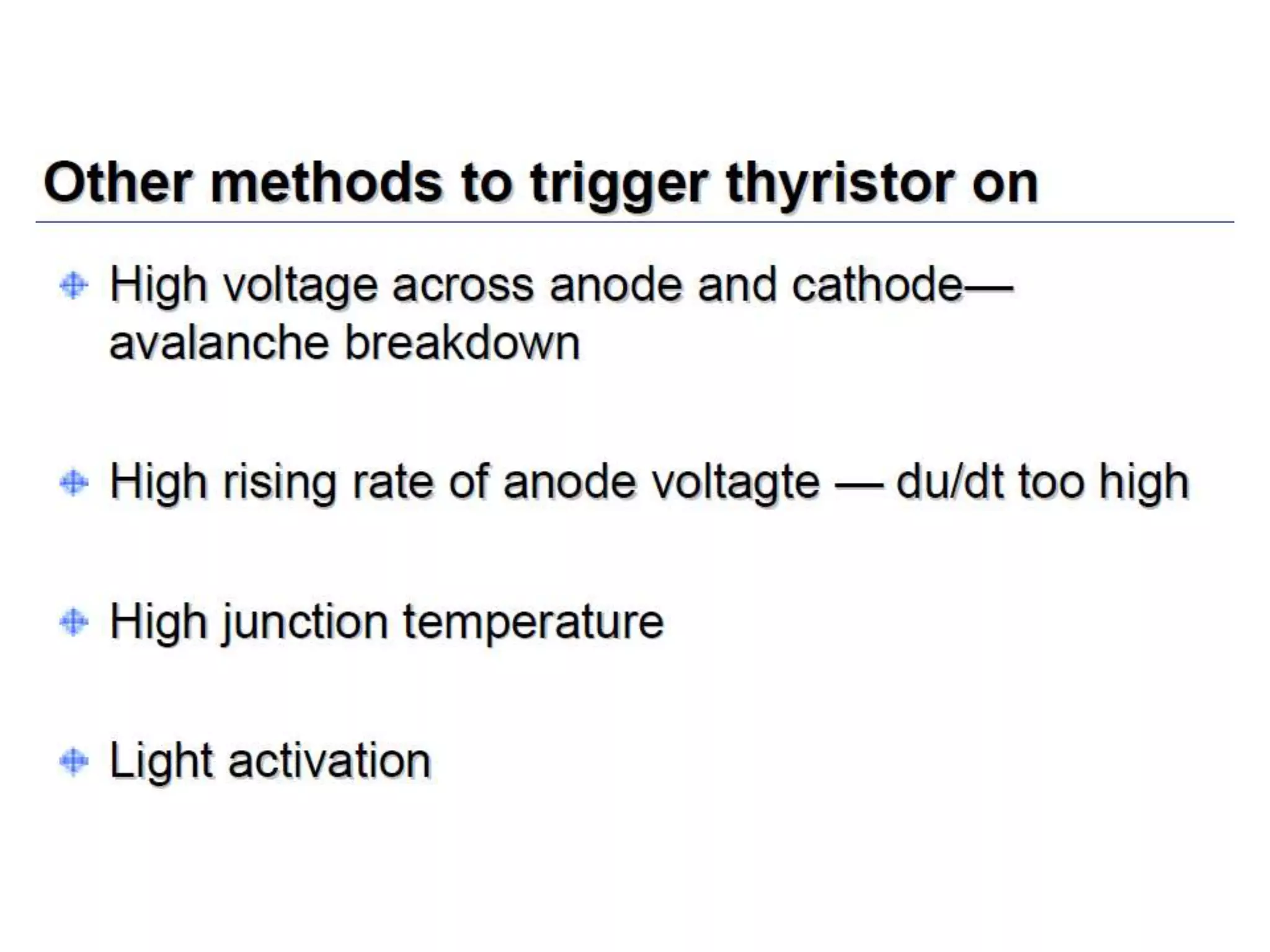

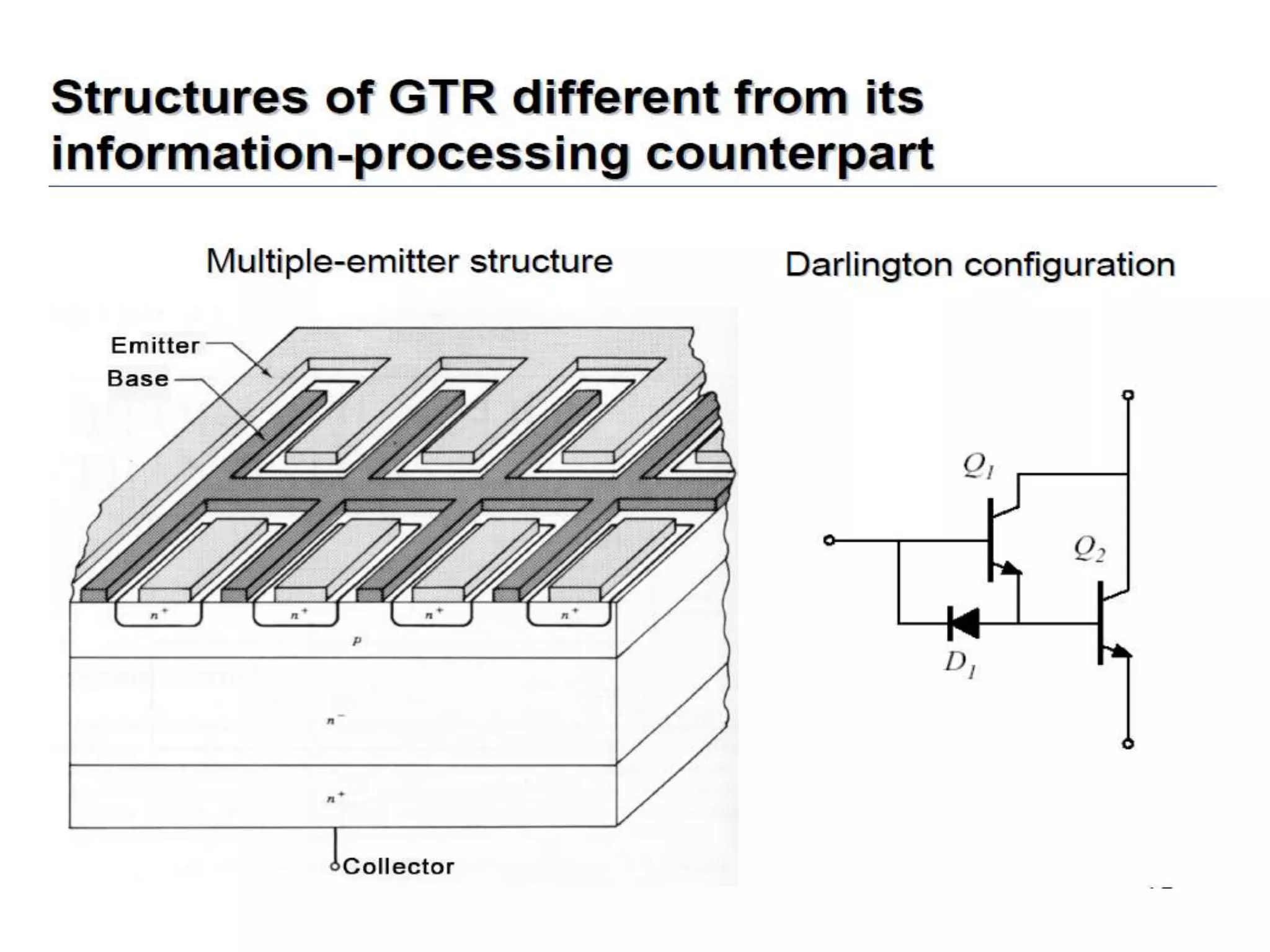

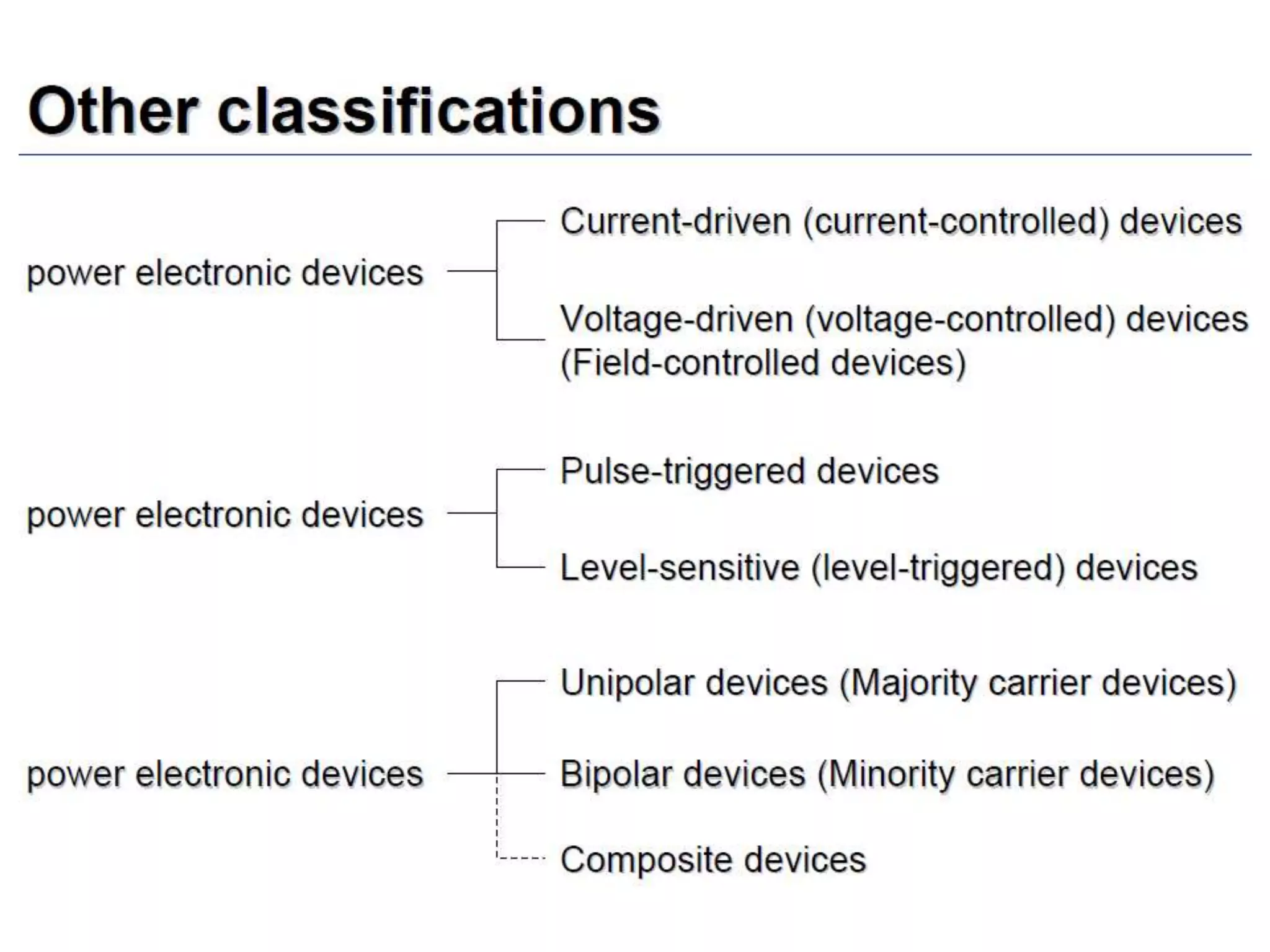

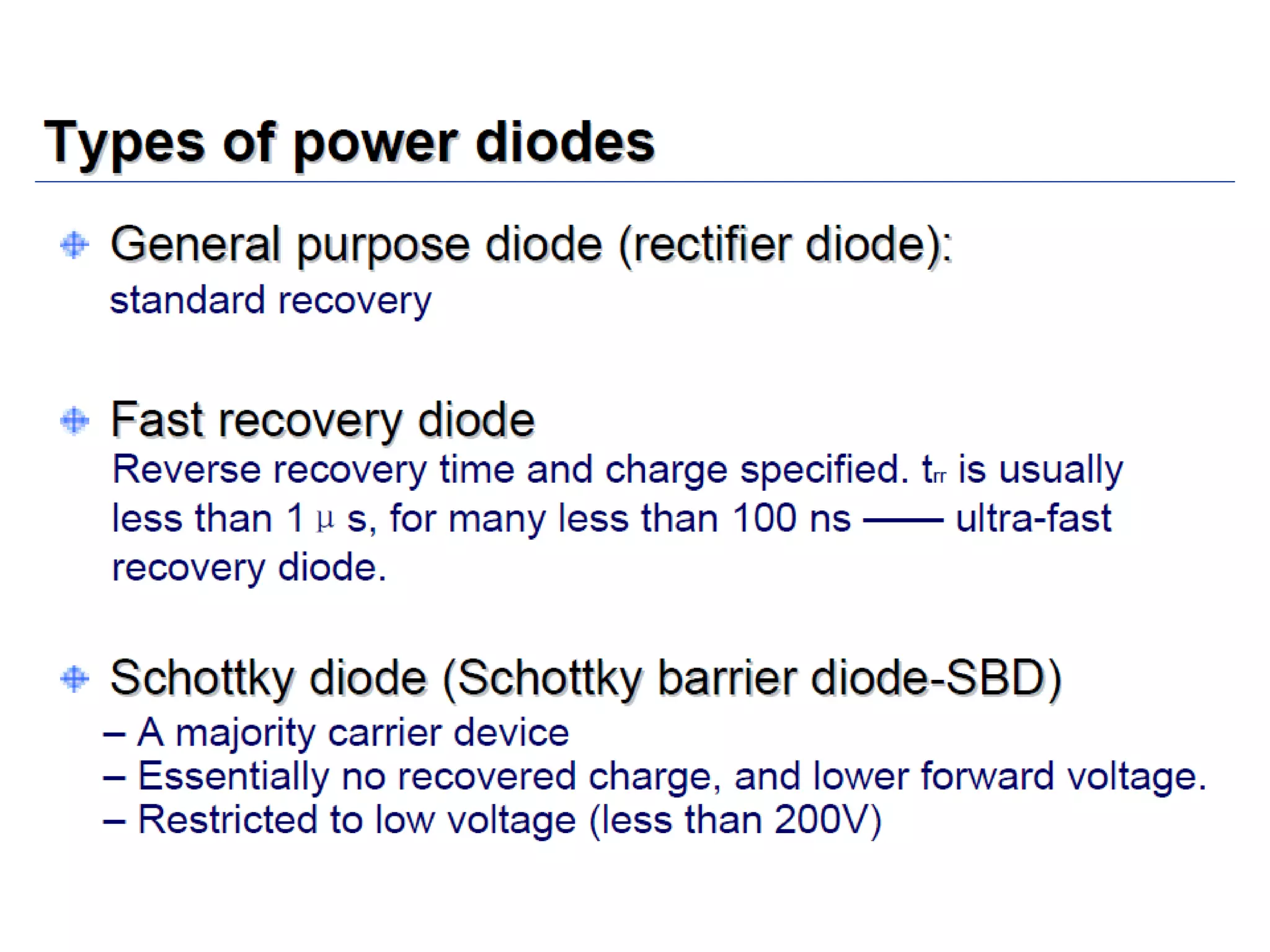

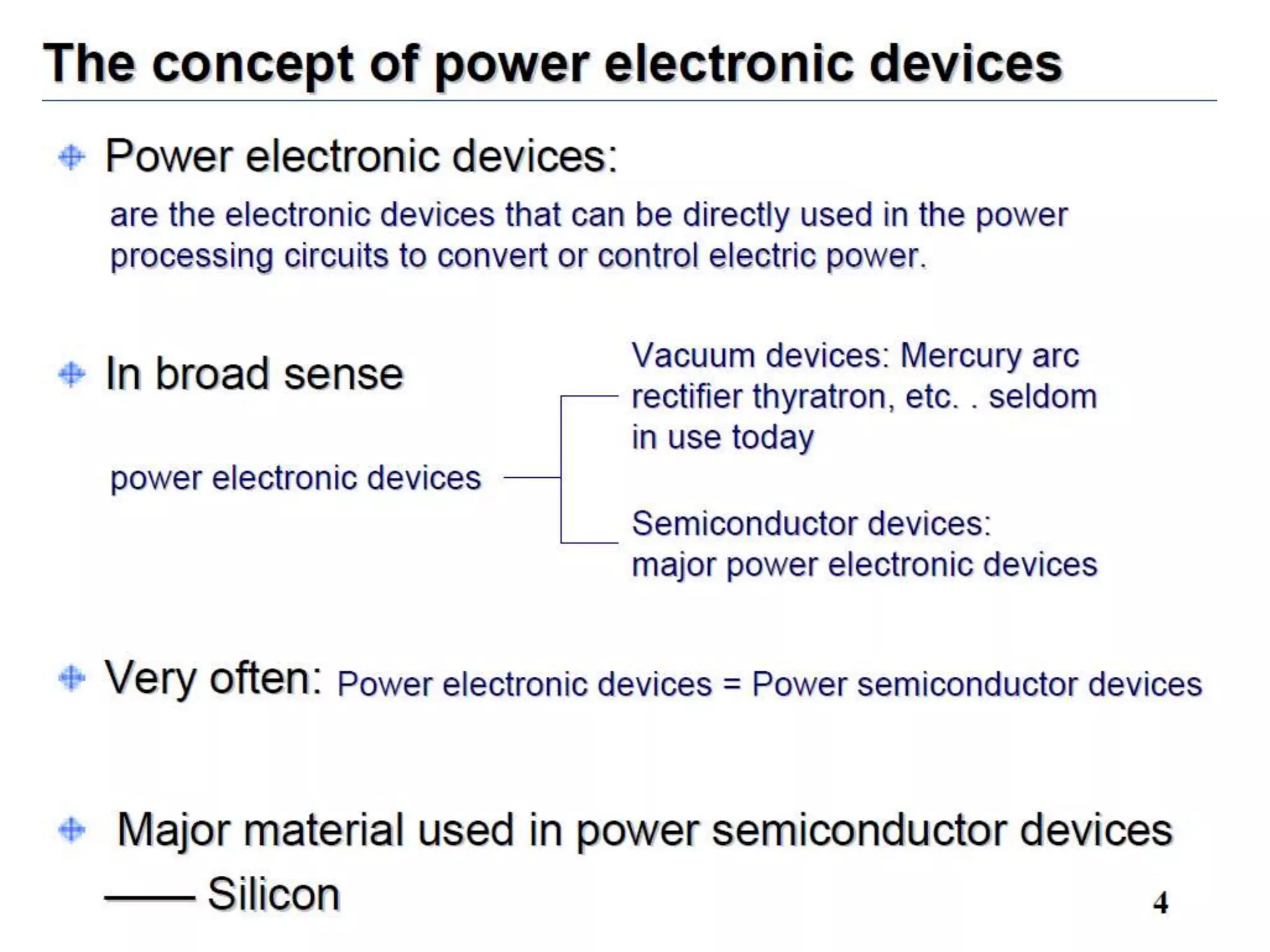

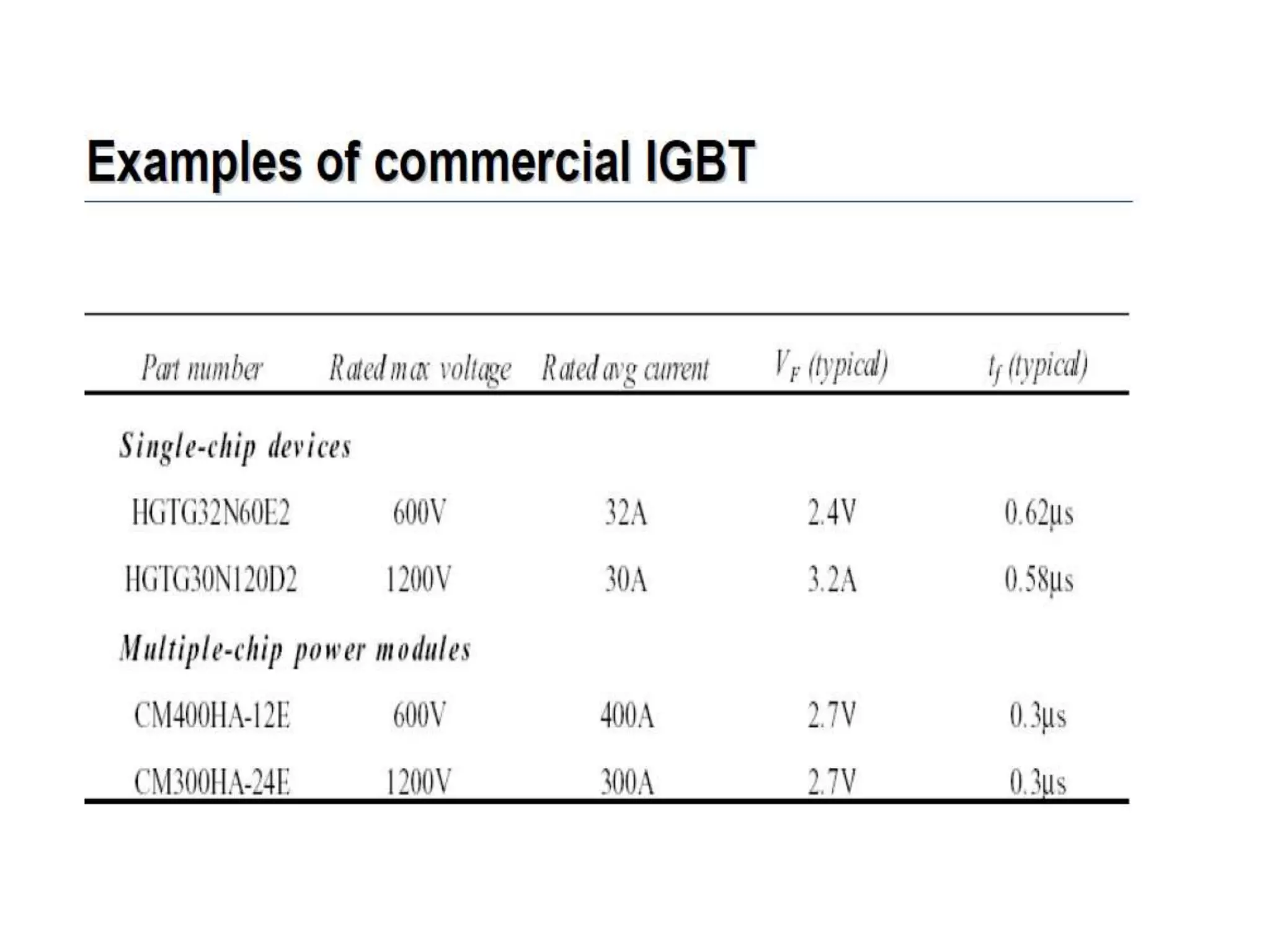

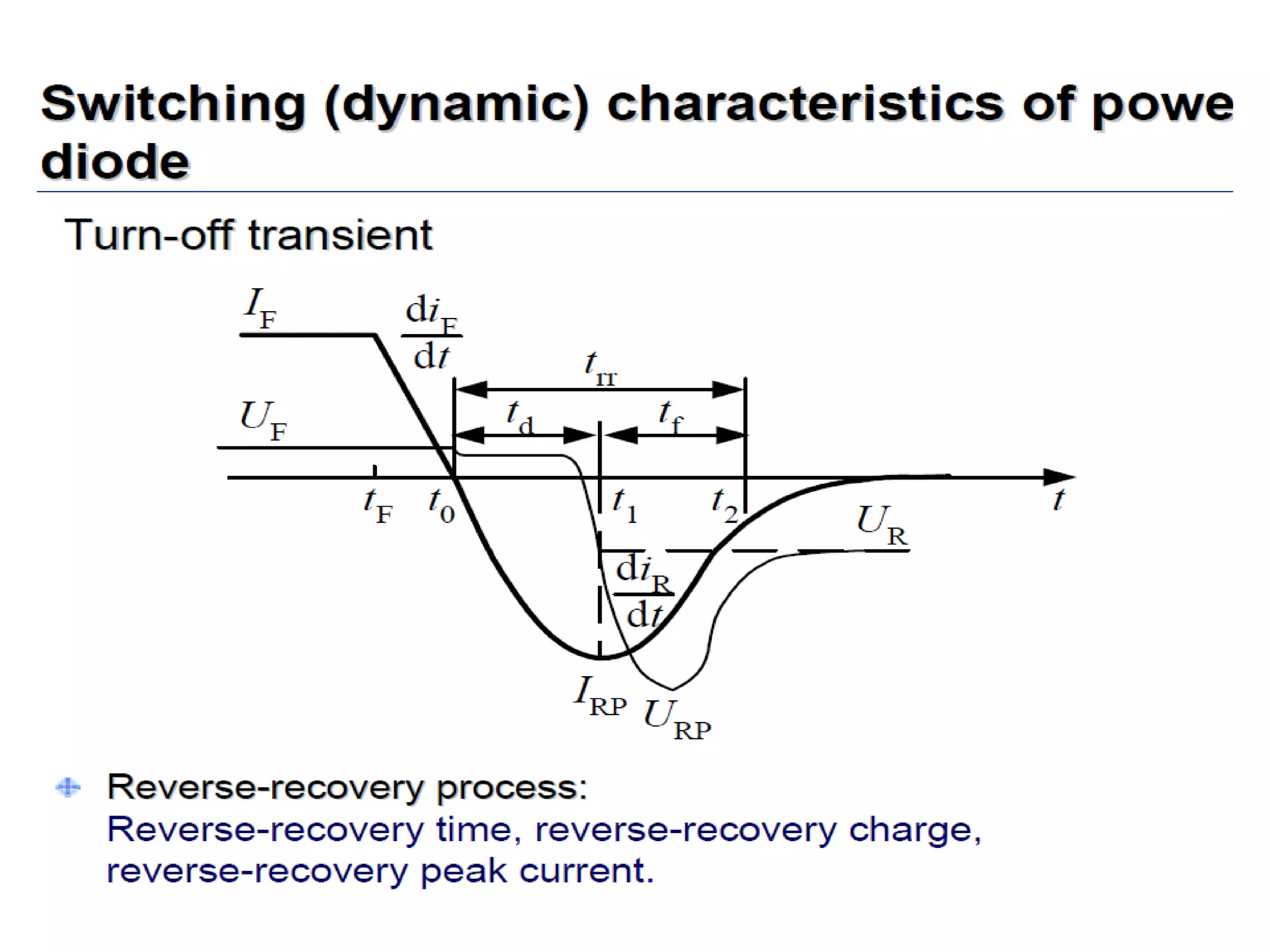

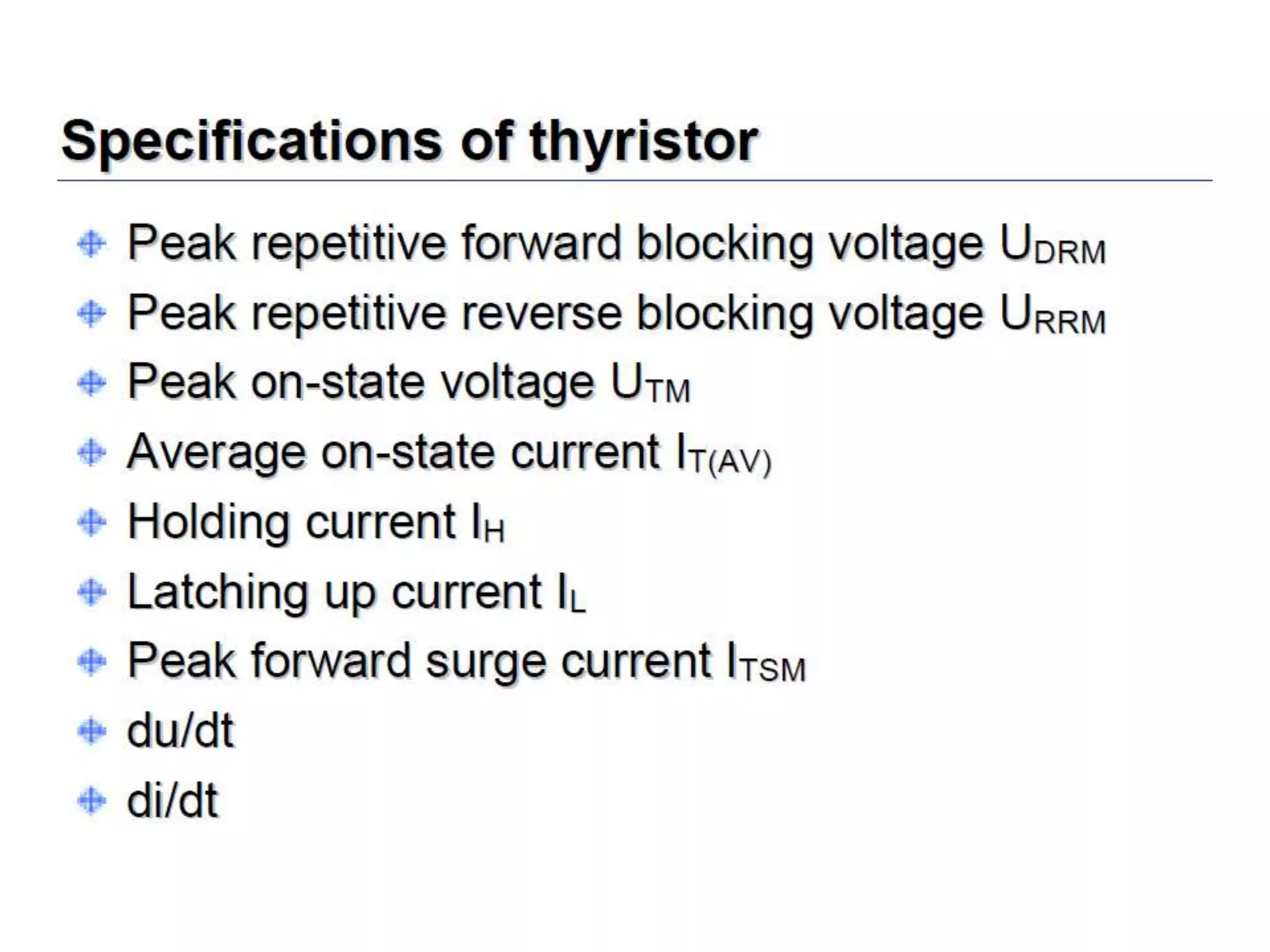

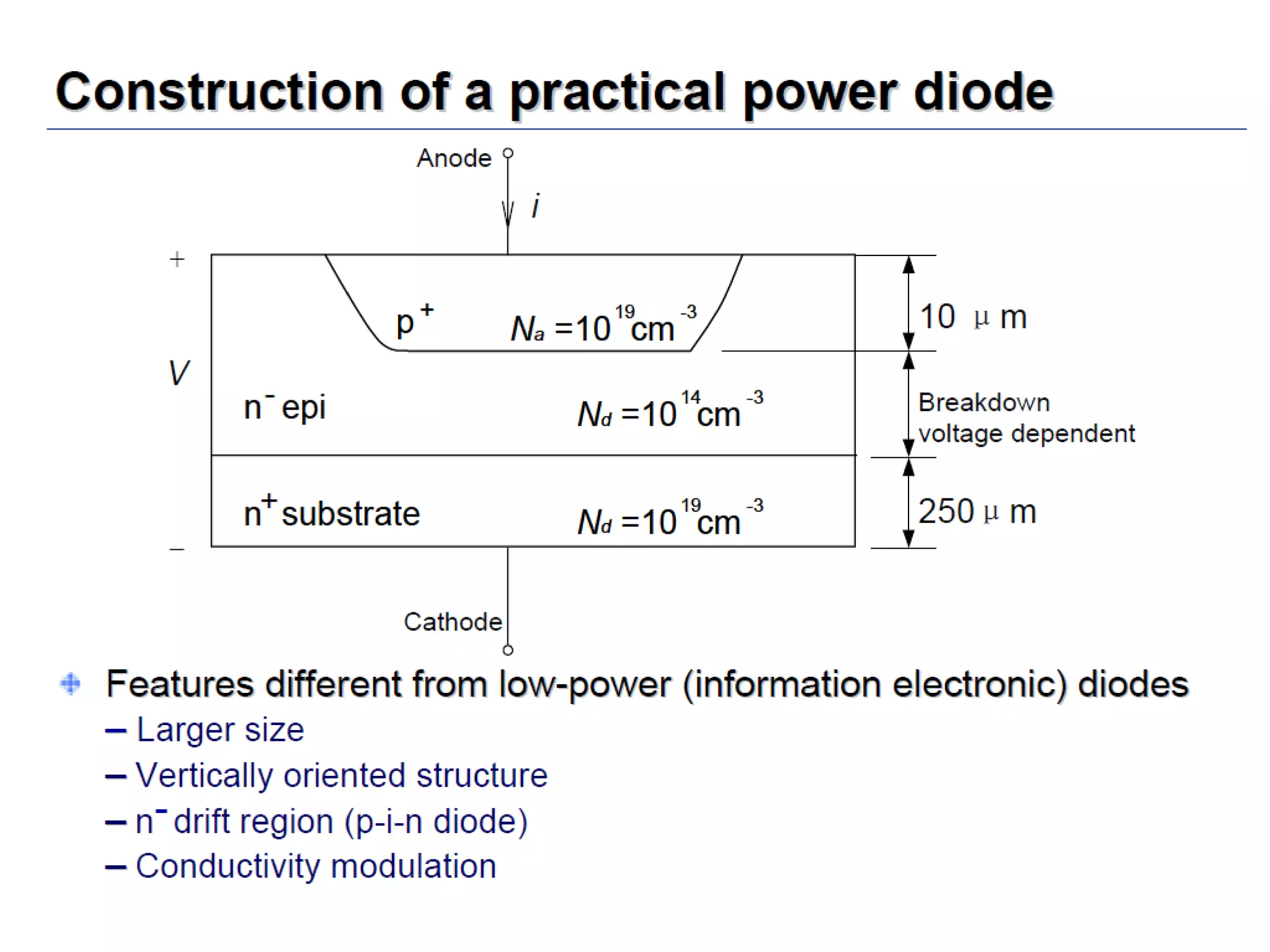

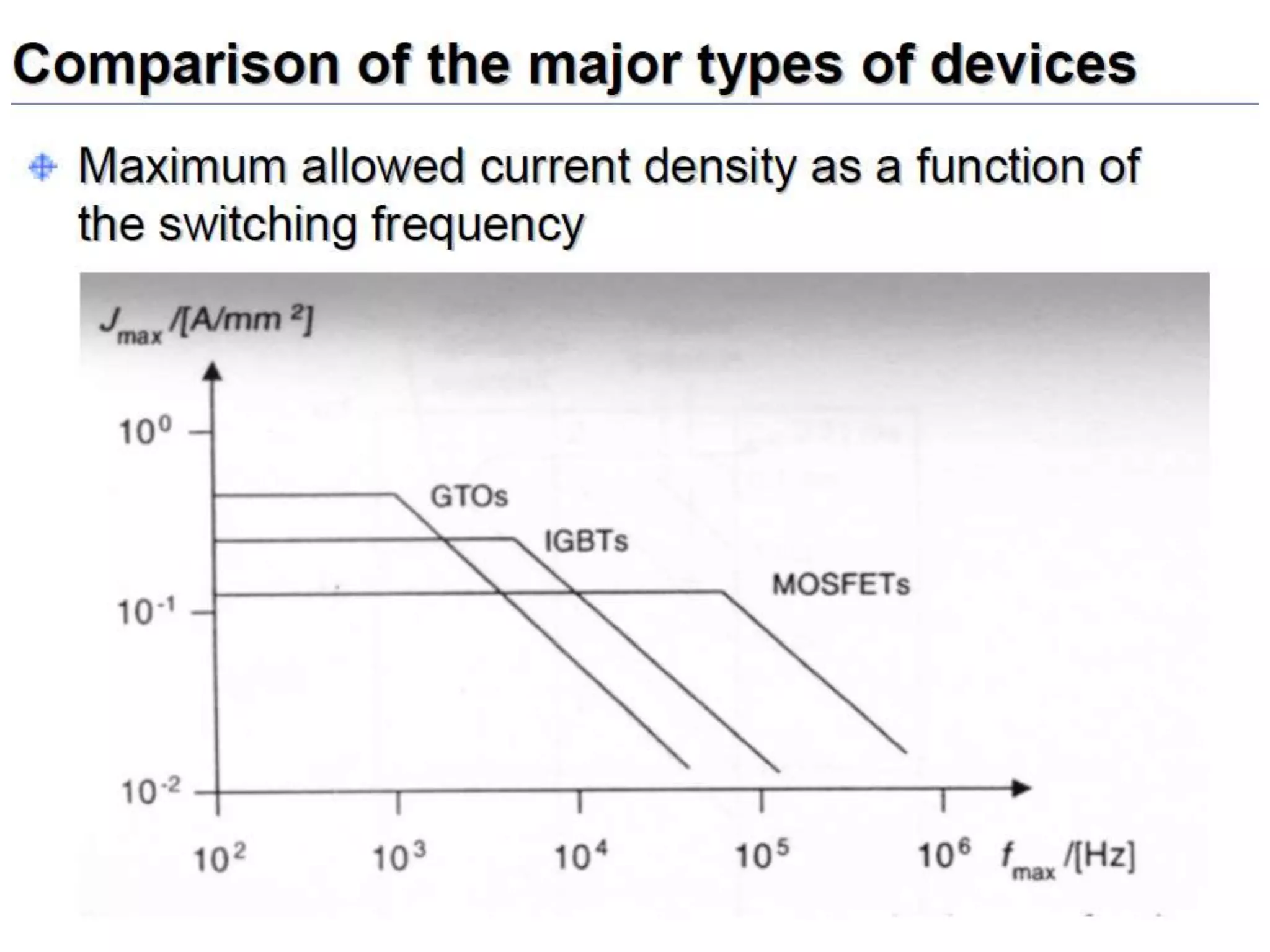

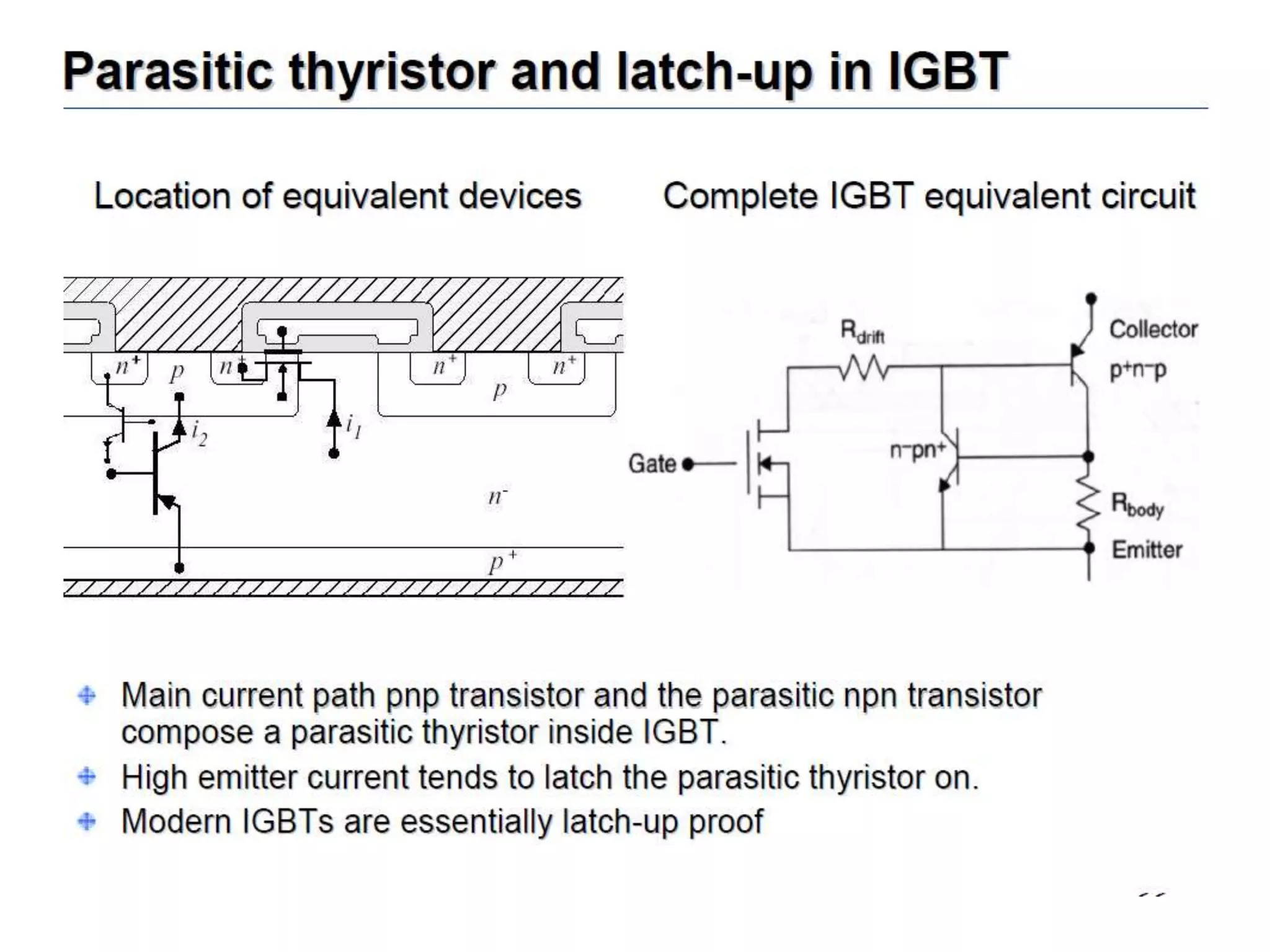

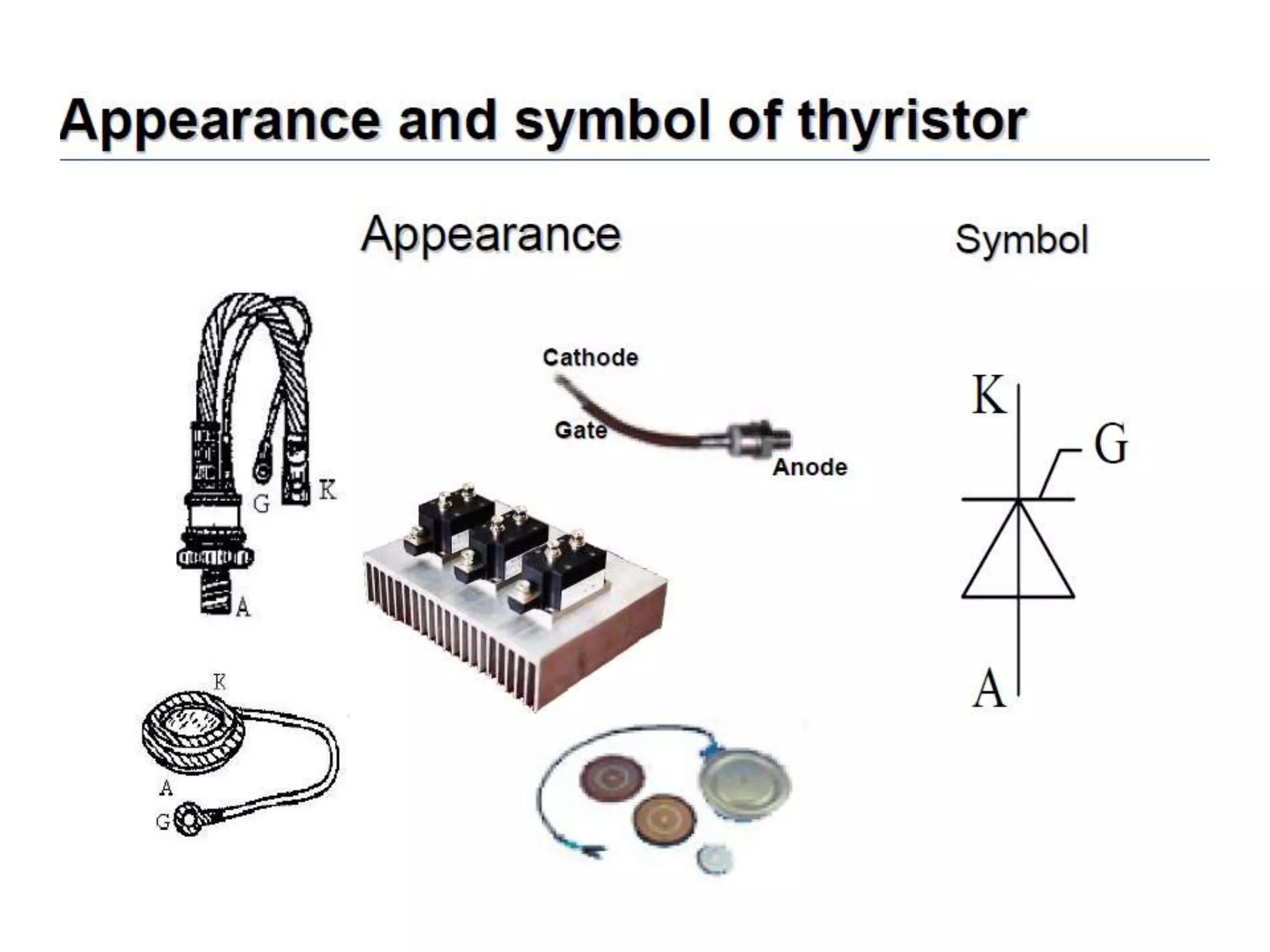

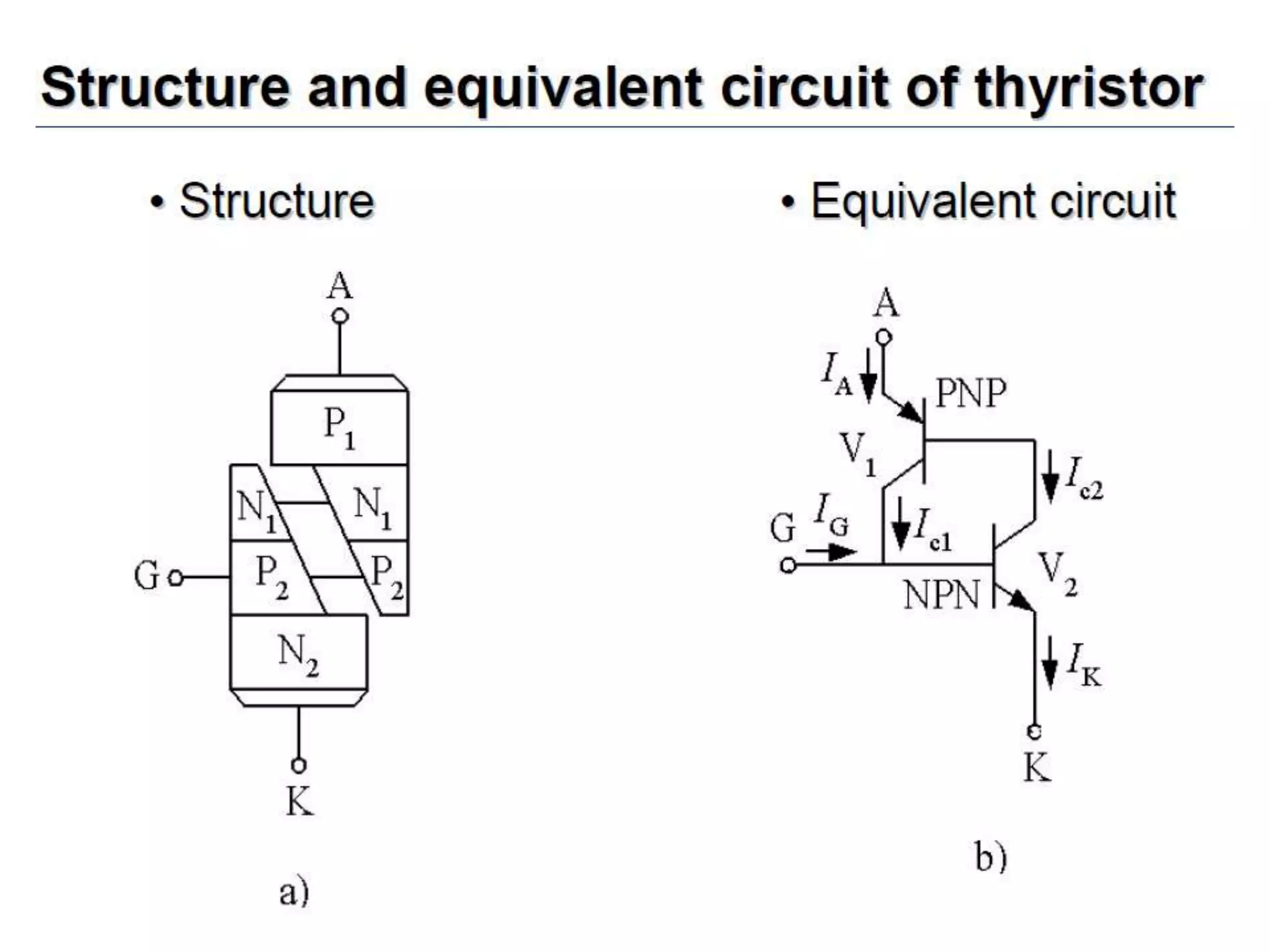

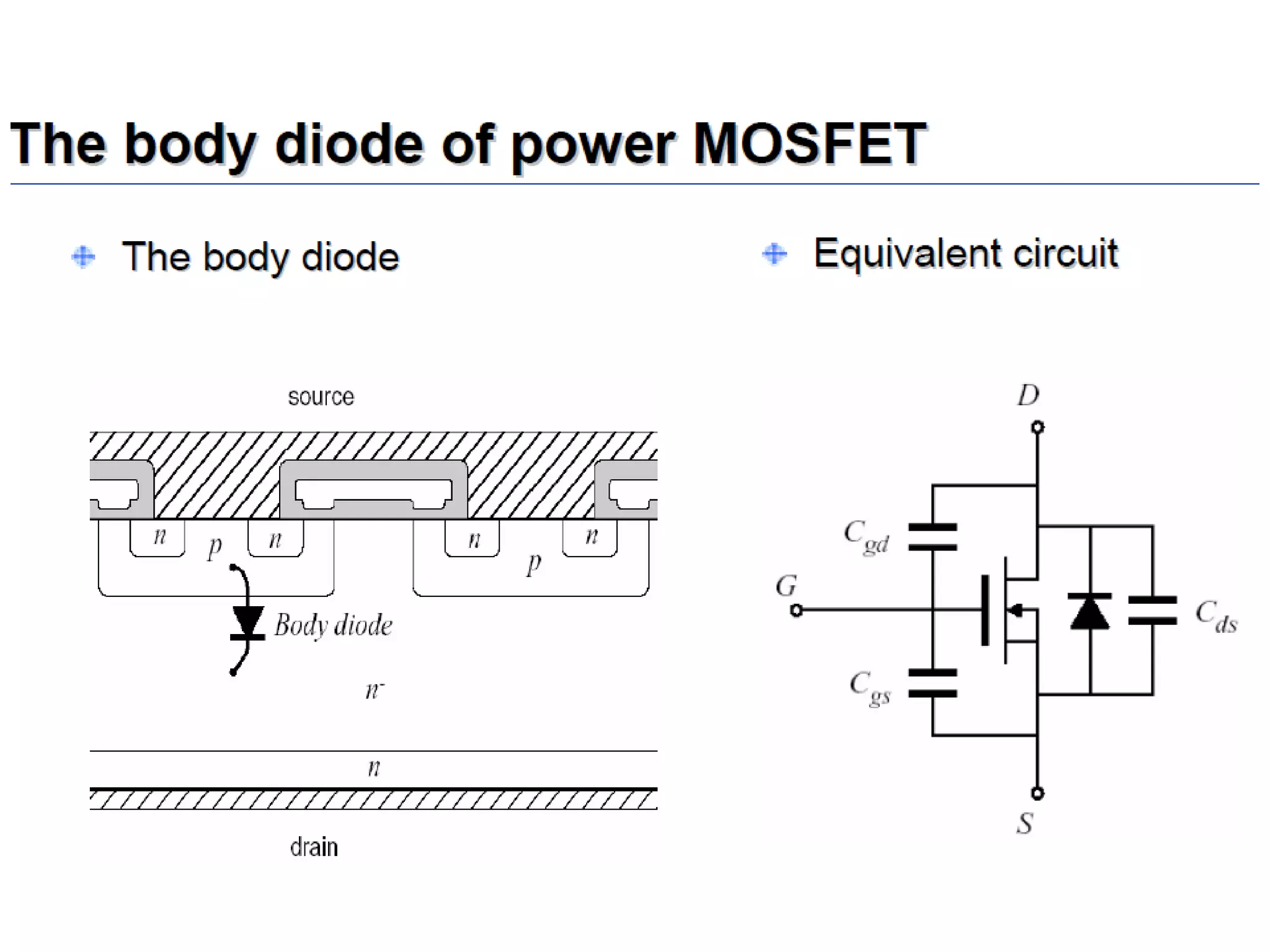

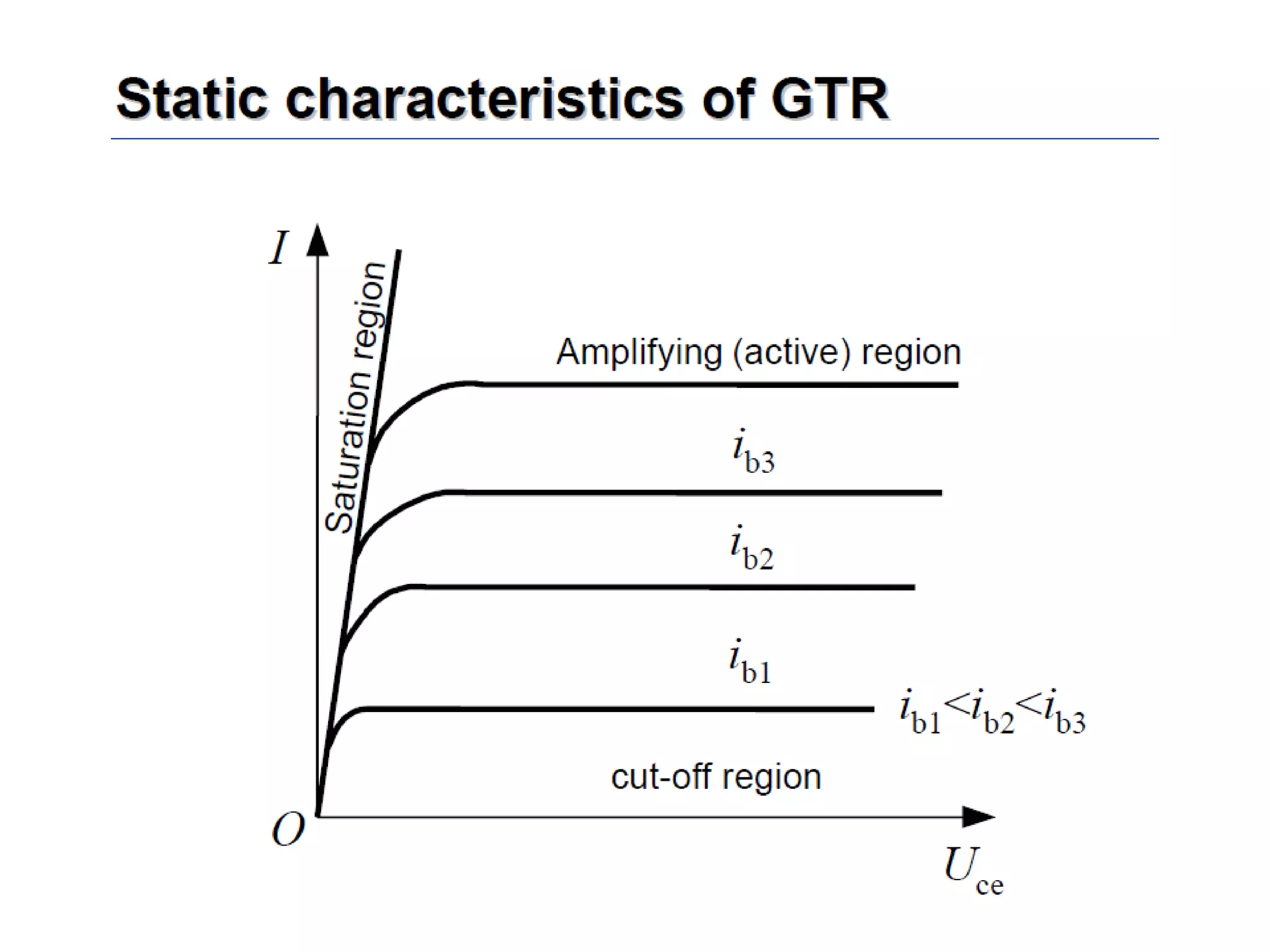

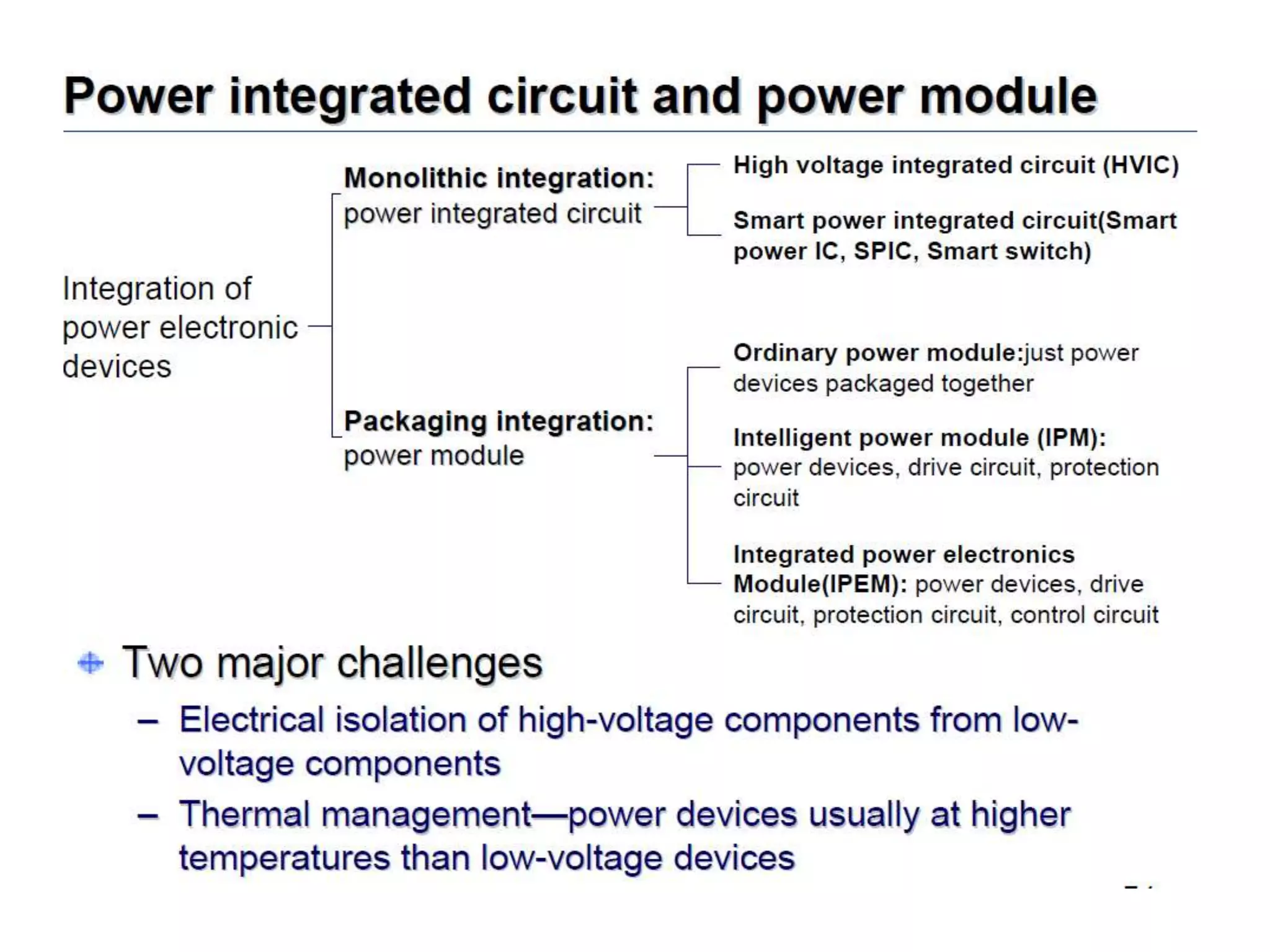

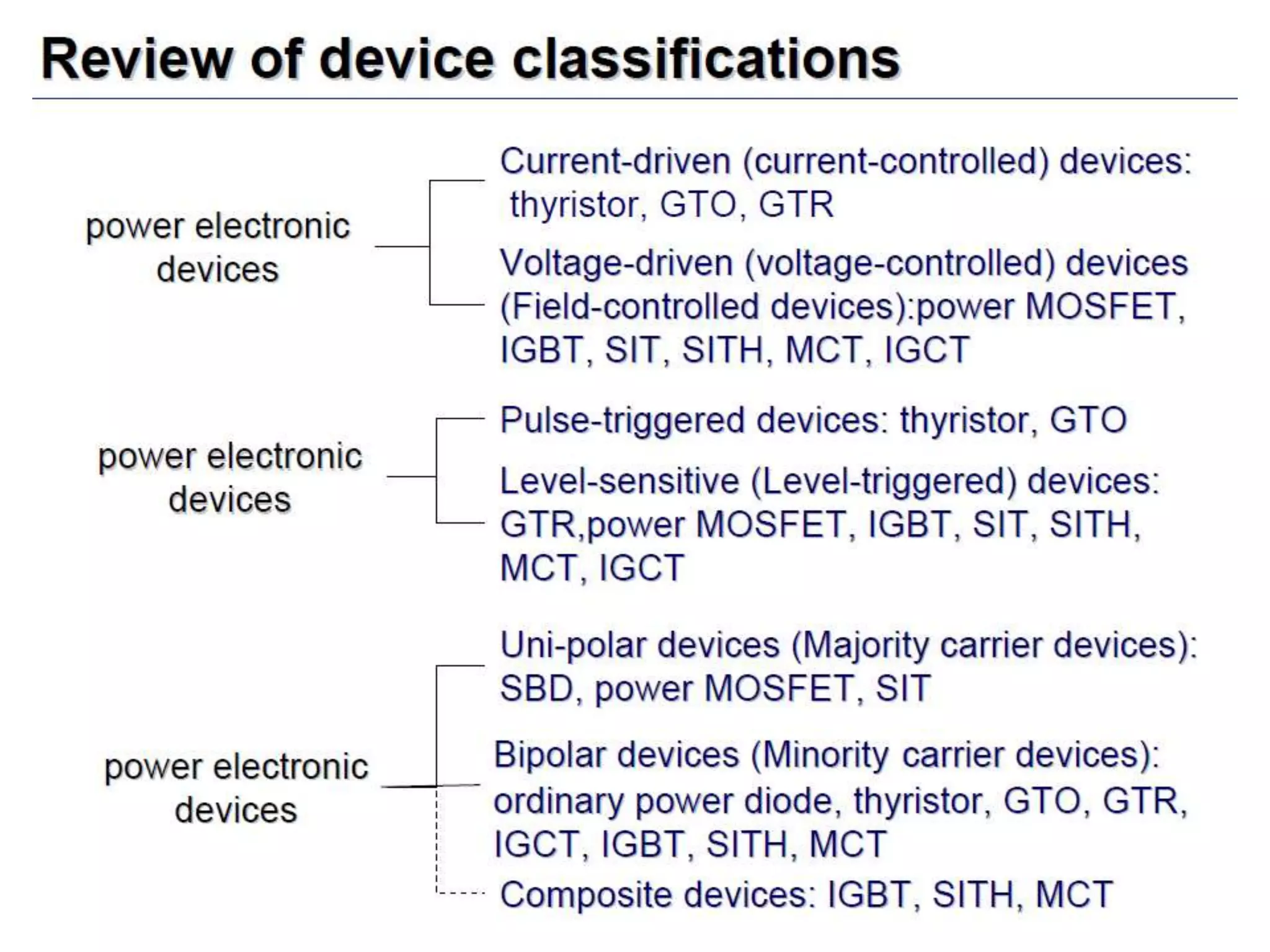

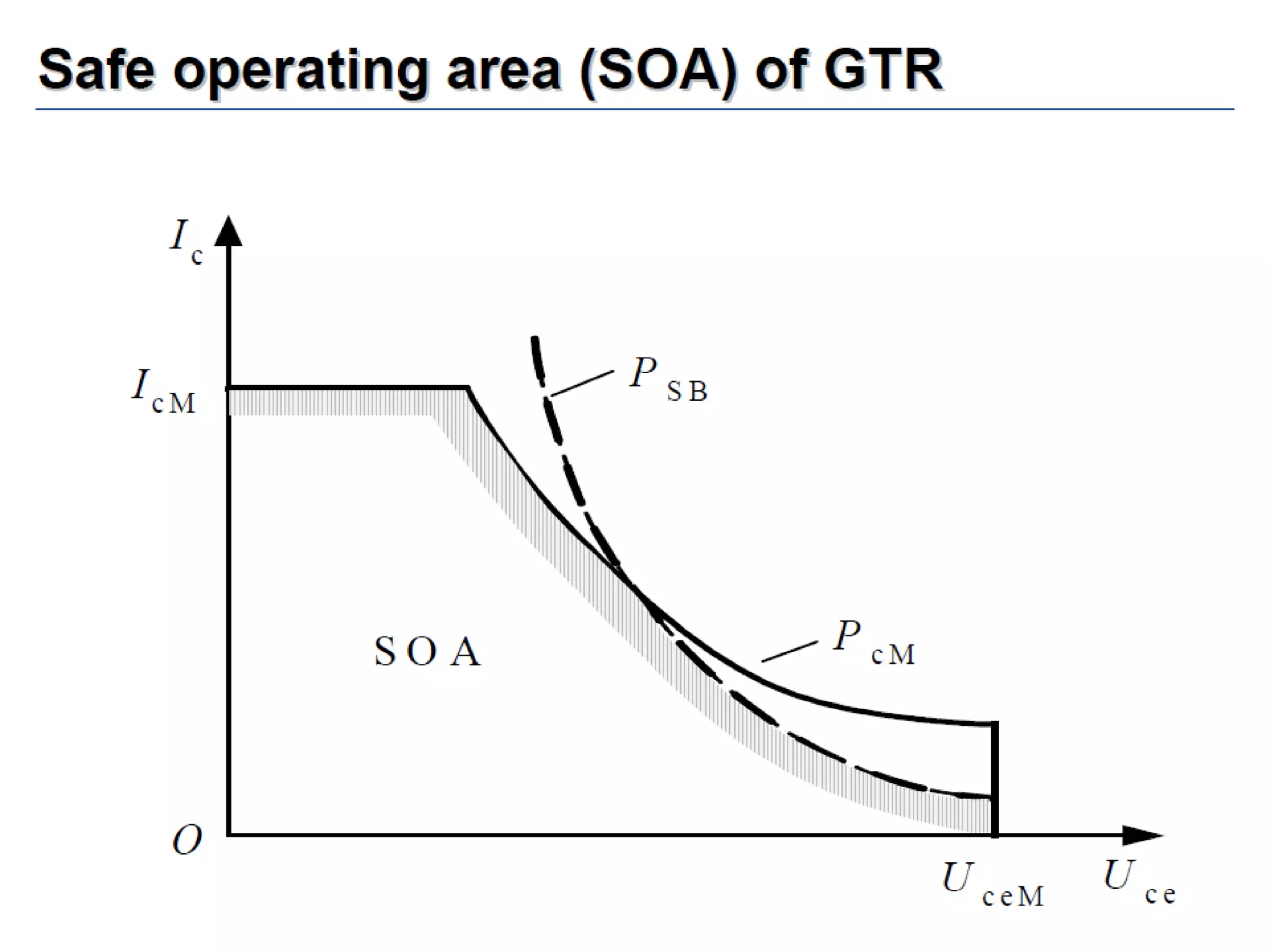

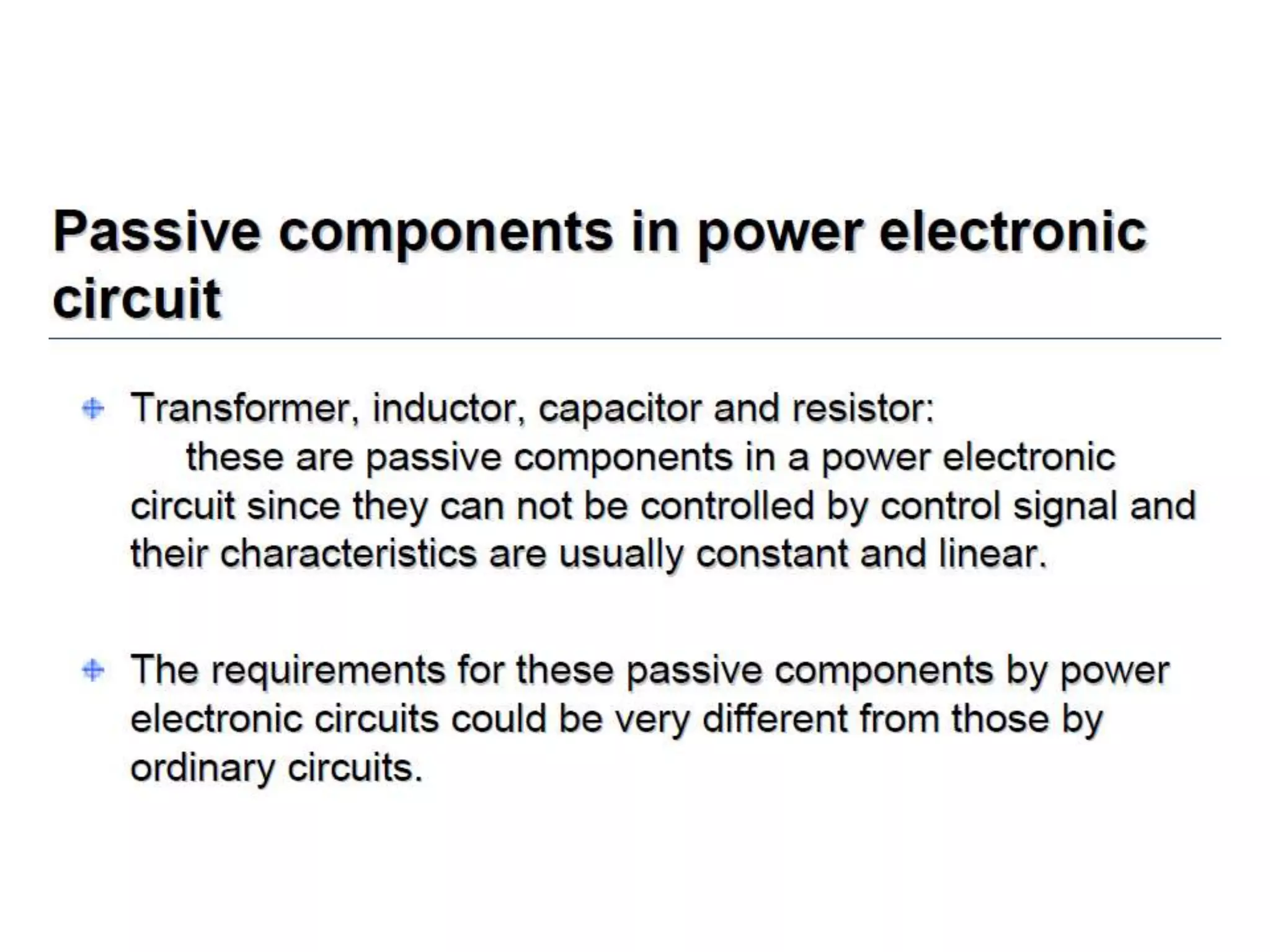

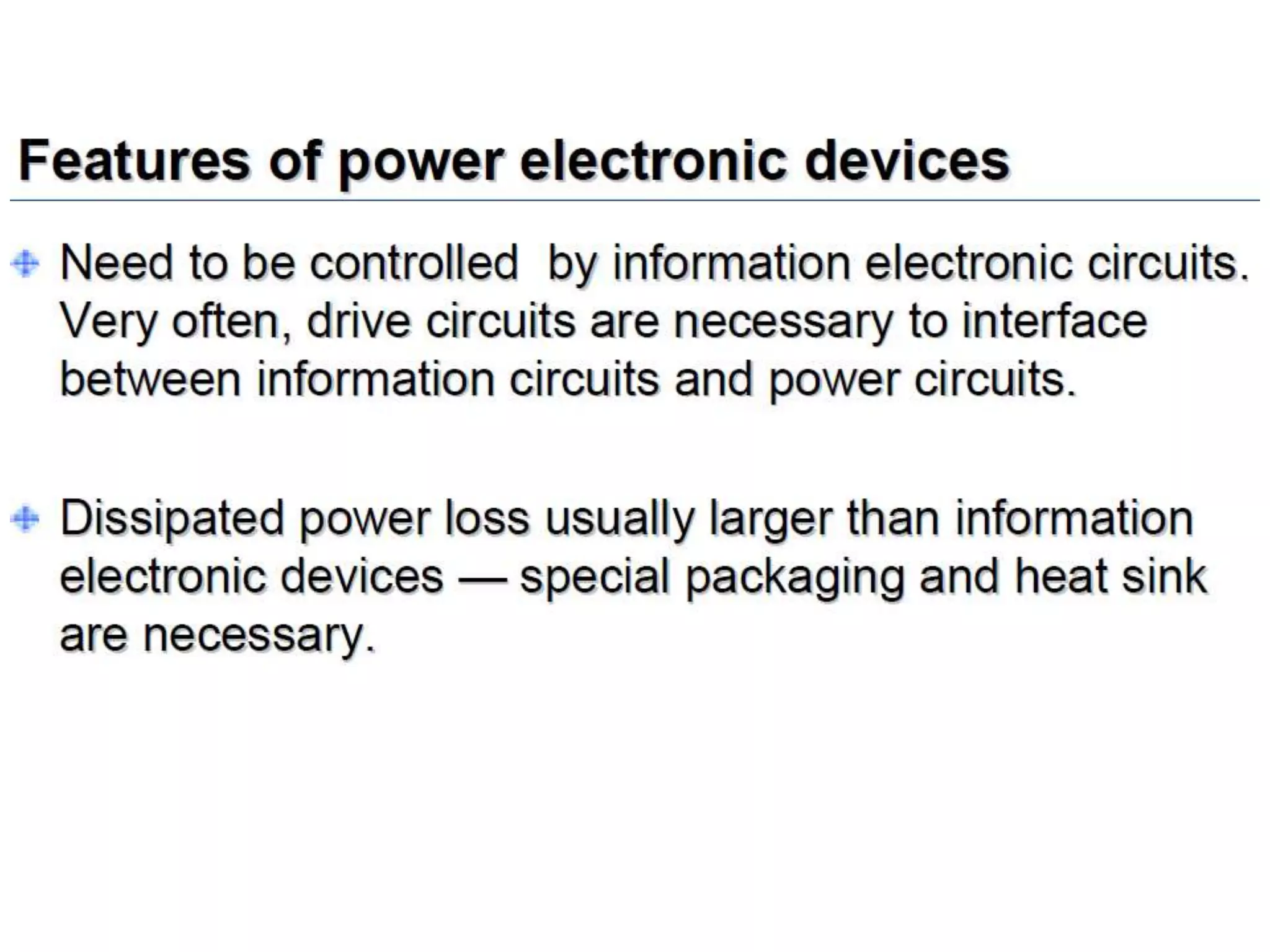

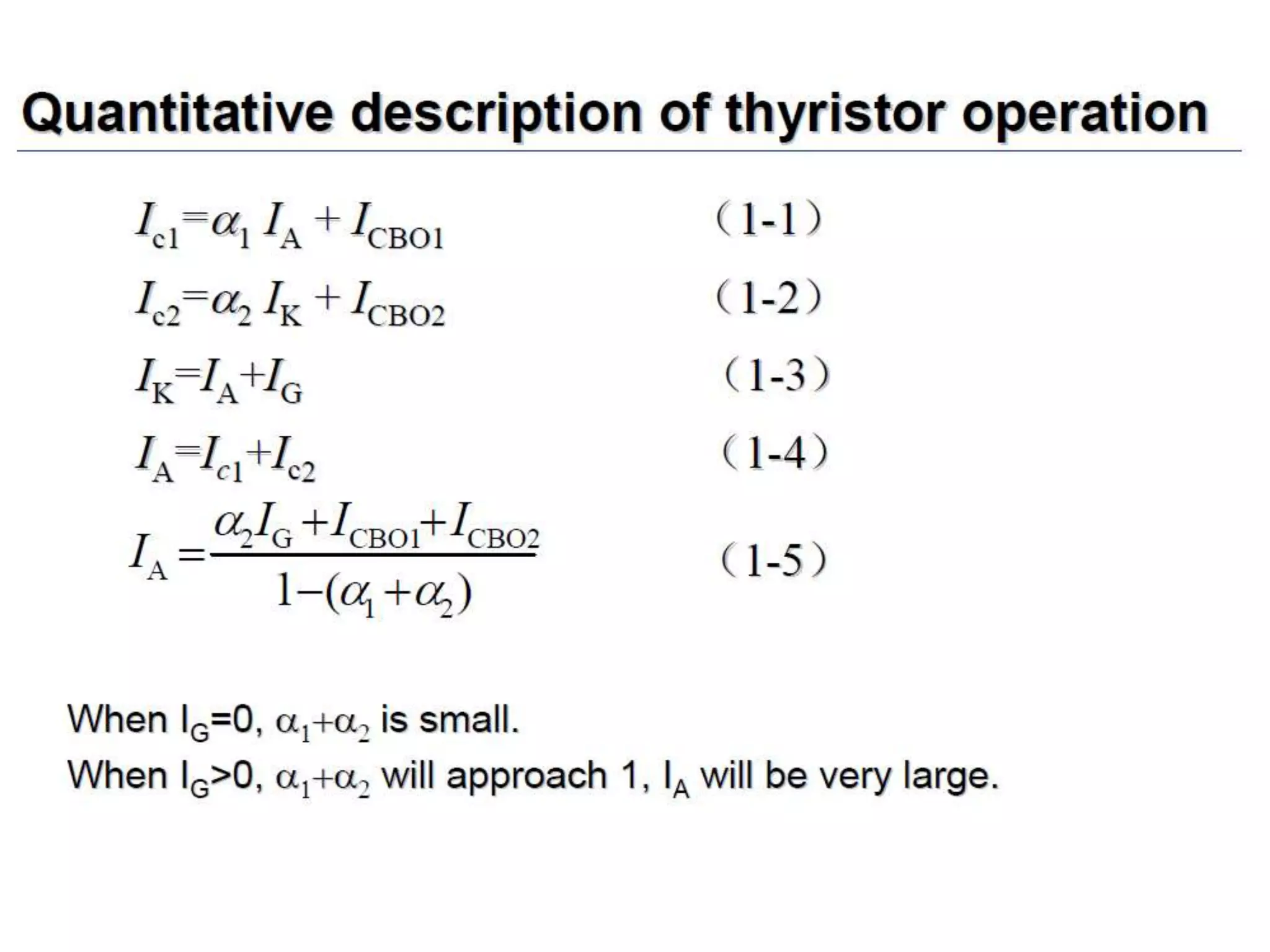

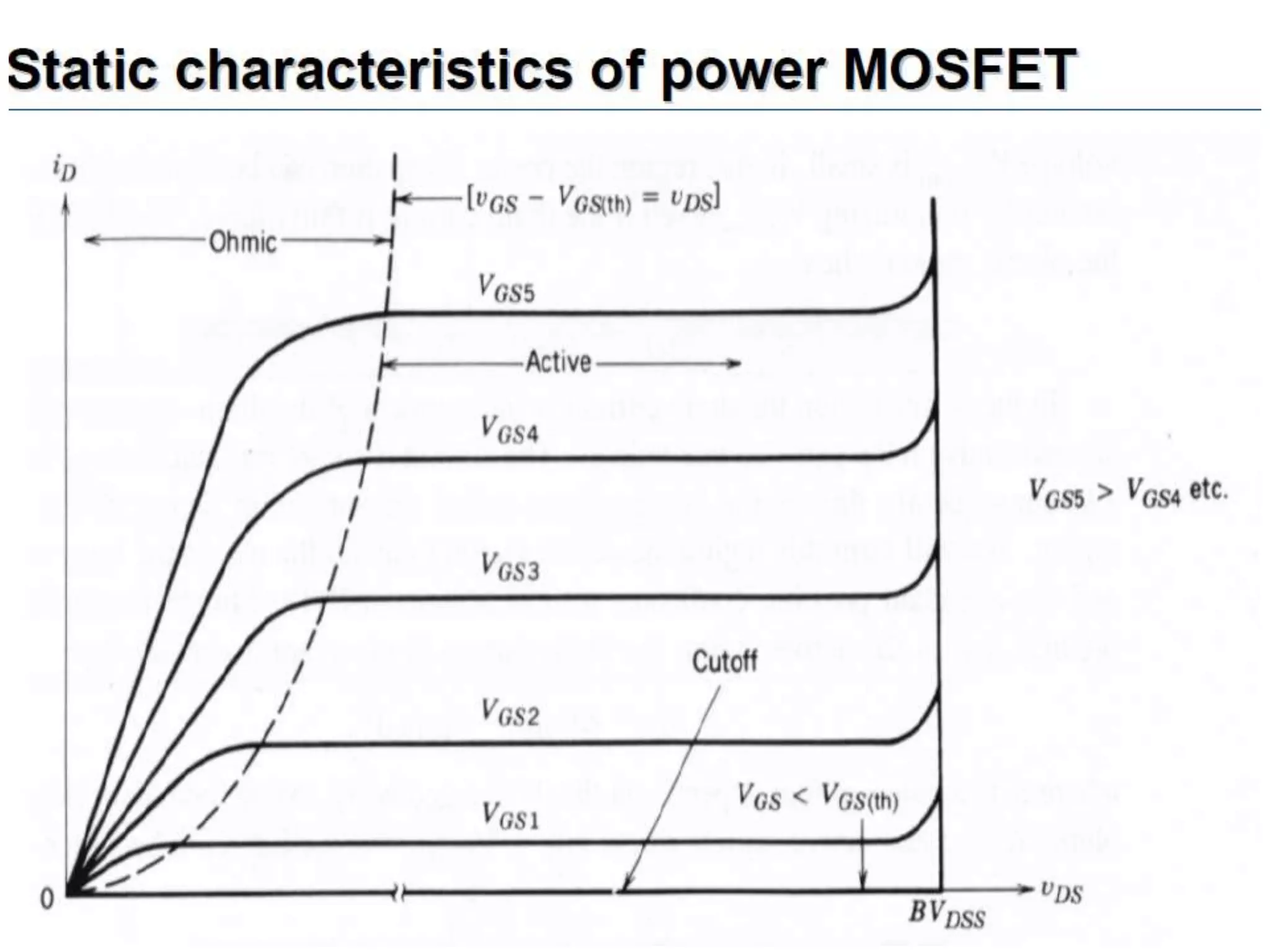

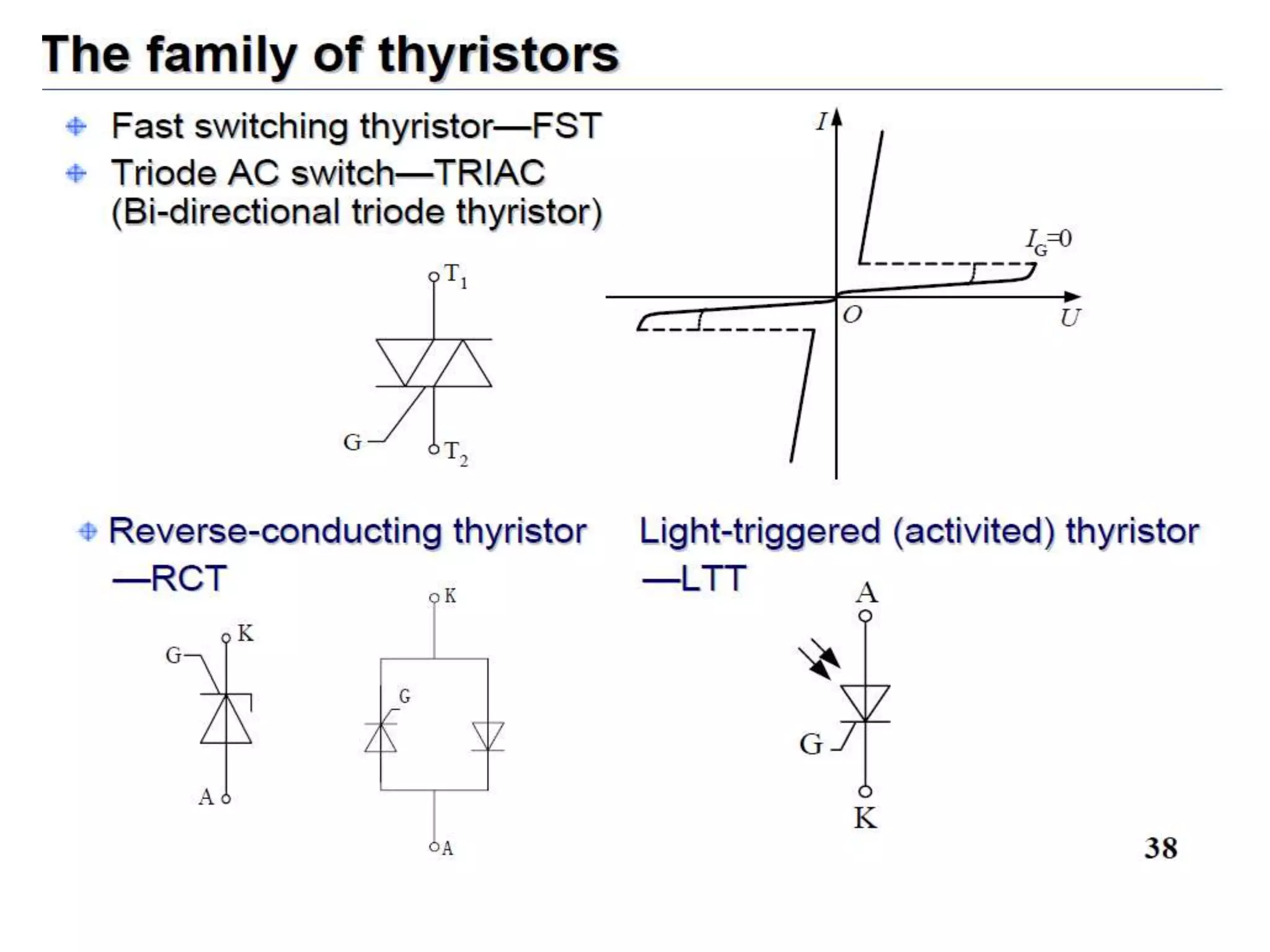

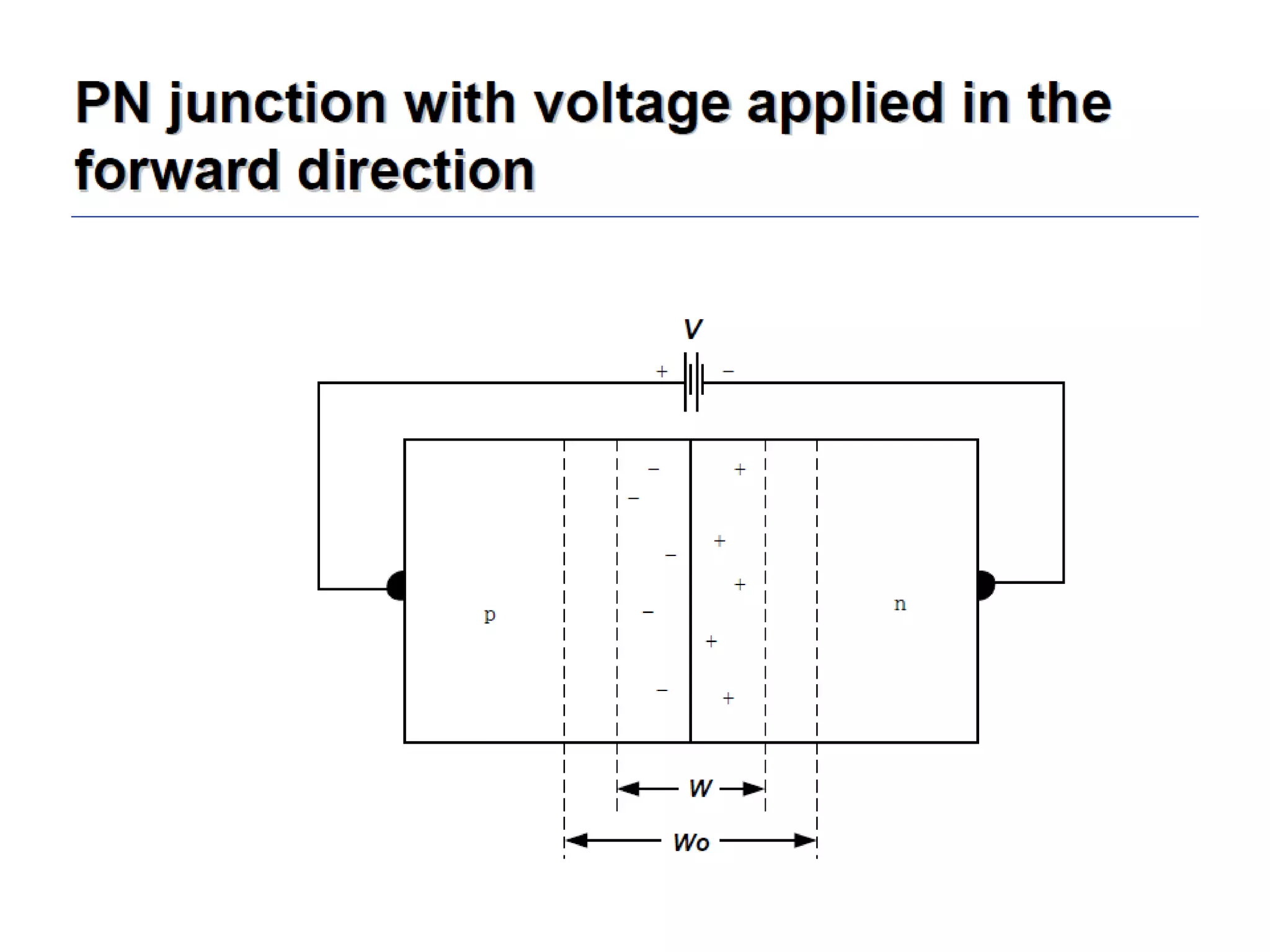

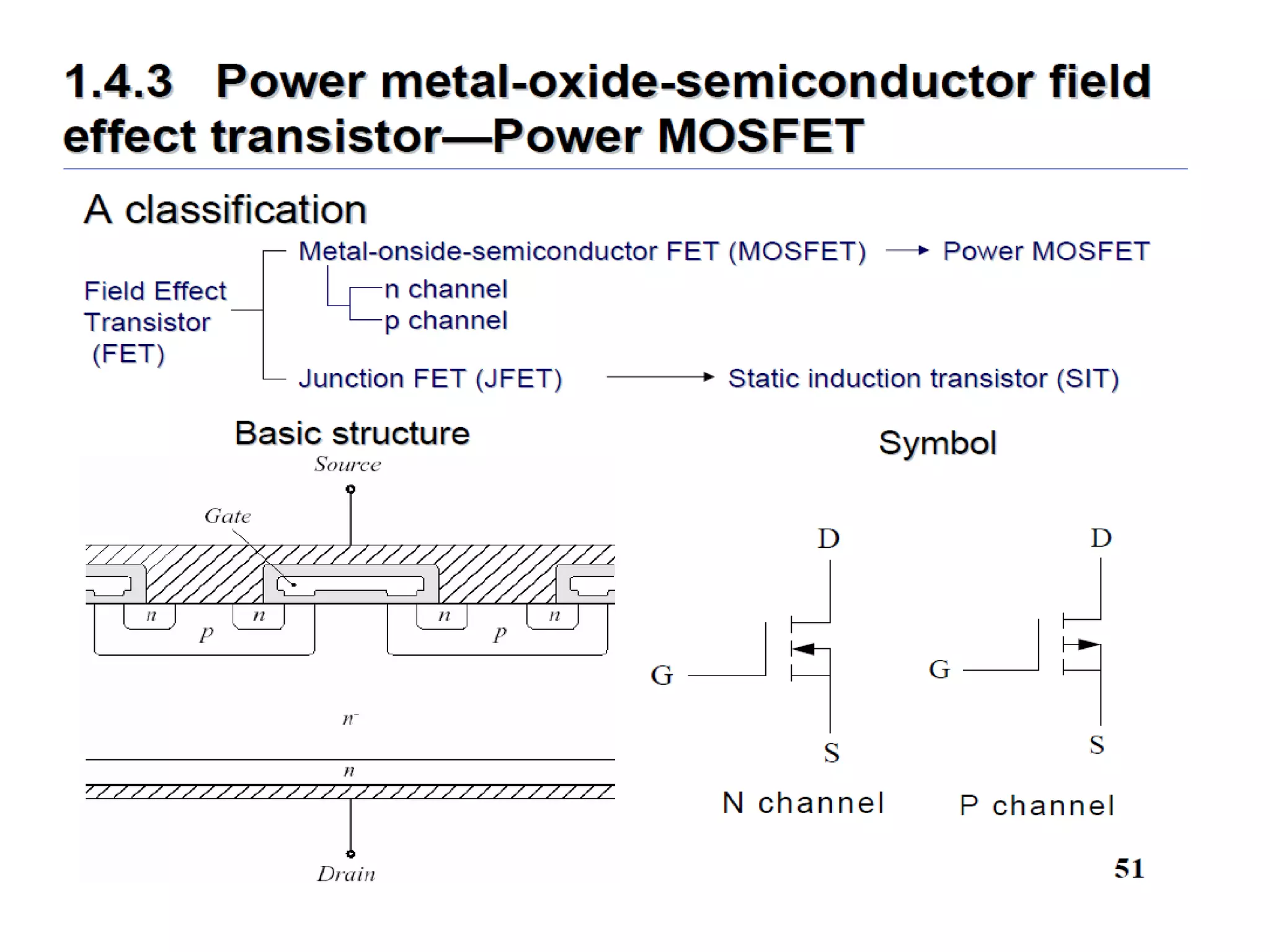

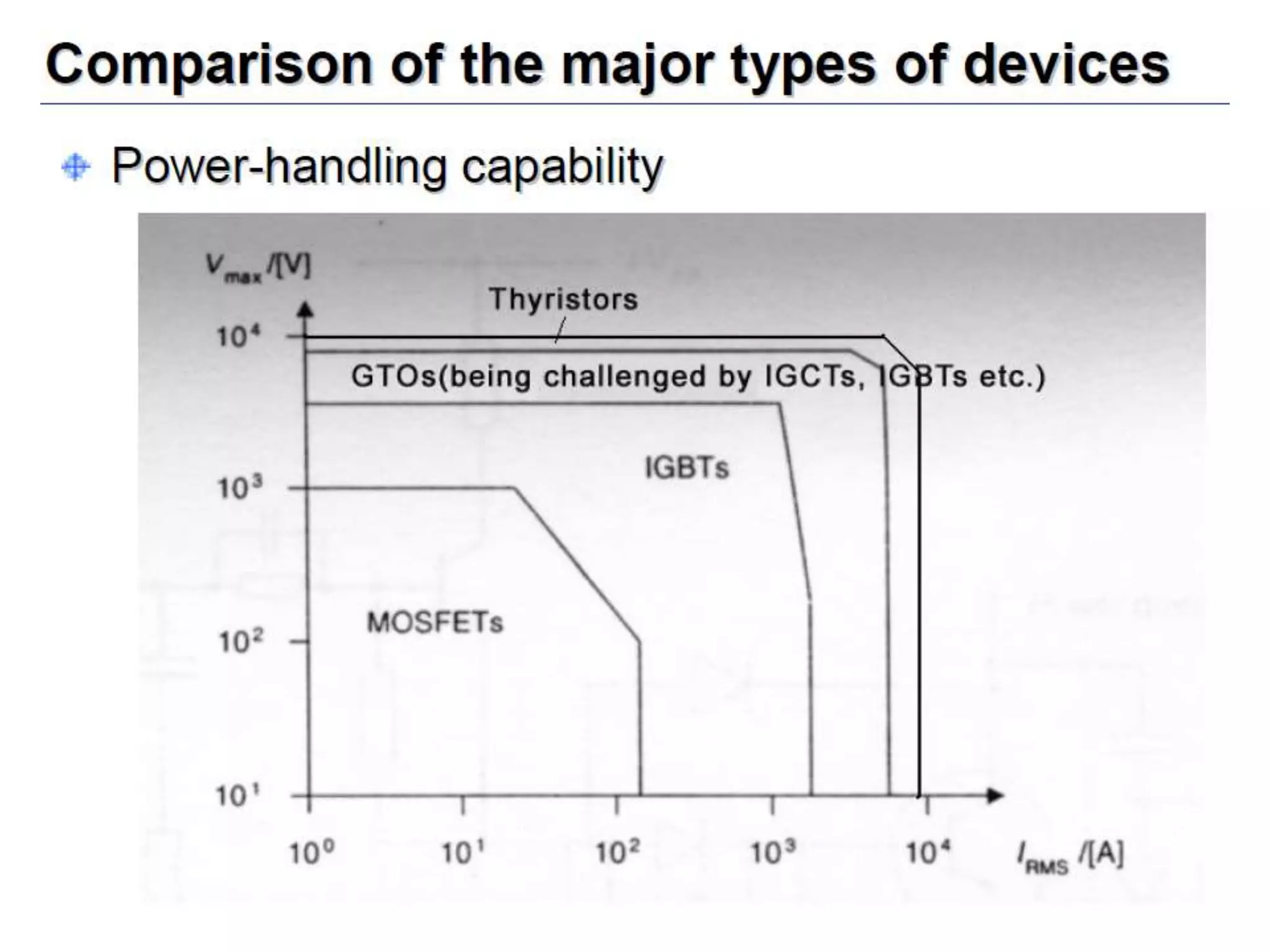

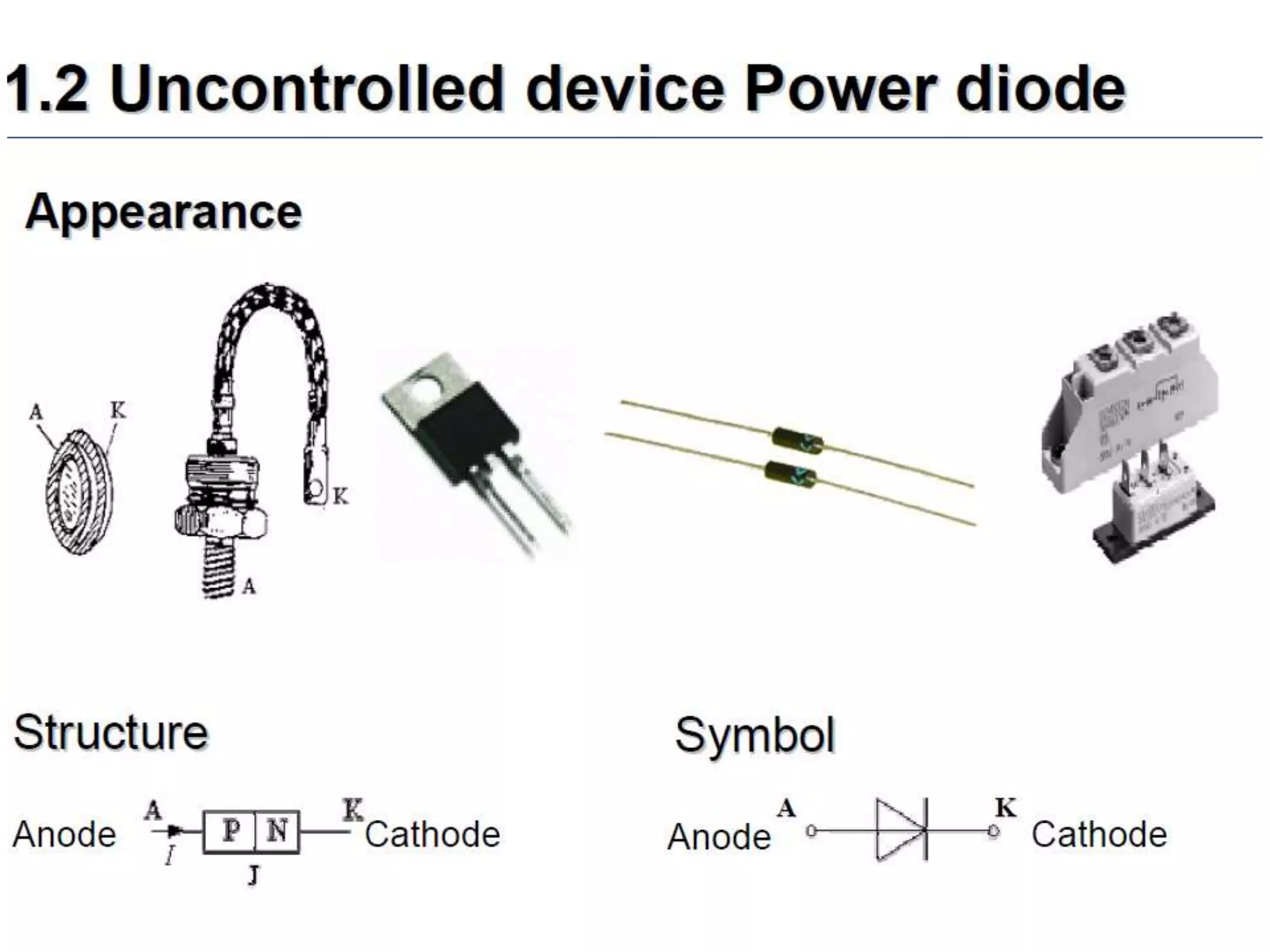

Unit 1 power electronics devices
1.
2.
3.
PREPARED BY : MERAJ
AKHTAR ELECTRICAL DEPARTMENT JAHANGIRABAD INSTITUTE OF TECHNOLOGY BARABANKI-UP
