This document discusses different types of unbiased clippers. It explains that a clipper is a circuit that limits the amplitude of an output wave. There are two main categories of clippers: parallel and series. For unbiased parallel clippers, the input is a sine wave and the diode acts as a half-wave rectifier, either clipping out the positive or negative portion of the wave. Unbiased series clippers also act as half-wave rectifiers, clipping either the positive or negative half of the input sine wave. Graphical representations are provided to illustrate the clipping action.

2. Muhammad Haroon Bhutta
Electronics
BS(CS)
07
Introduction
Name:
Subject
Section
Roll No.

3. Topic
•Diode Unbiased Clippers

4. What is a clipper?
• The process of limiting a wave to some arbitrary levels is called Clipping.
• The circuit that limit the amplitude of an output is called a clipping circuit.
• This is known as CLIPPER.

5. General Categories of Clippers
• There areTwo majorCategories of Clippers.
• 1 Parallel
• 2 Series

6. Unbiased parallel Clipper
Unbiased parallel clipper acts as a half
wave rectifier.
In this case input is a sine wave and diode is
considered to be an ideal diode.

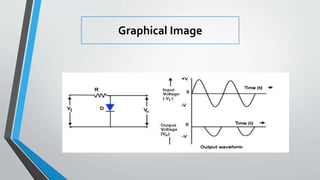

7. Graphical Image

8. Unbiased Parallel Positive Clipper
• In positive unbiased Clipper , Positive portion of sine wave clipped out and
we got only negative portion of sine wave.

9. Graphical Represetation

10. +ve half cycle

11. For –ve half cycle

12. Unbiased Parallel Negative Clipper
• In positive unbiased Clipper , negative portion of sine wave clipped out and
we got only positive portion of sine wave.

13. Graphical Represetation

14. +ve half cycle

15. For –ve half cycle

16. Unbiased Series Clipper
Unbiased series clipper acts as a half wave
rectifier.
In this case input is a sine wave and diode is
considered to be an ideal diode.

17. Graphical Image

18. Unbiased series Positive Clipper
• In positive unbiased Clipper , Positive portion of sine wave clipped out and
we got only negative portion of sine wave.

19. Graphical Represetation

20. +ve half cycle

21. For –ve half cycle

22. Unbiased Series Negative Clipper
• In negative series unbiased Clipper , negative portion of sine wave clipped
out and
we got only positive portion of sine wave.

23. Graphical Represntation

24. +ve half cycle

25. For –ve half cycle
