About us How we do Products & Application Q & A Introducing Our Products & Services

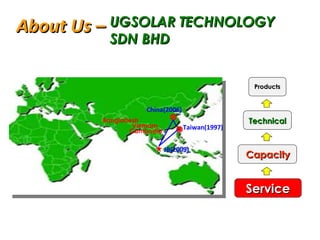

About Us –  Technical Service Products Capacity UGSOLAR TECHNOLOGY SDN BHD Taiwan(1997) China(2006) JB(2009 ) Cambodia Vietnam Bangladesh
How We Do

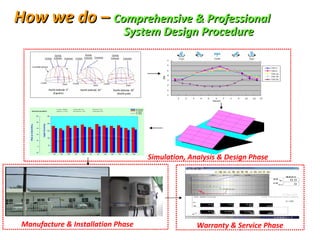

How we do –  Comprehensive & Professional System Design Procedure Warranty & Service Phase Manufacture & Installation Phase Simulation, Analysis & Design Phase

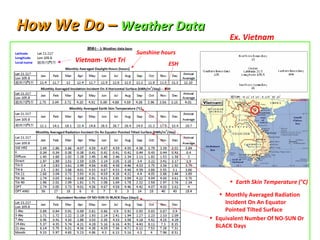

How We Do –  Weather Data Vietnam- Viet Tri Sunshine hours ESH Earth Skin Temperature (°C) Monthly Averaged Radiation Incident On An Equator Pointed Tilted Surface Equivalent Number Of NO-SUN Or BLACK Days Ex. Vietnam

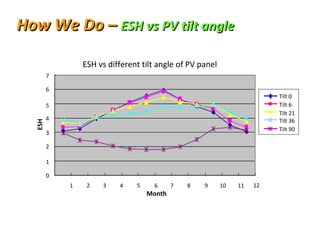

12 1 2 3 4 5 6 7 8 9 10 11 Month 0 1 2 3 4 5 6 7 ESH ESH vs different tilt angle of PV panel How We Do –  ESH vs PV tilt angle Tilt 0 Tilt 6 Tilt 21 Tilt 36 Tilt 90
How We Do –  Estimated Power Output System loss Estimated power output of PV system- tilt at Lat for Amorphous Ex. Vietnam
How we do -  Estimated Power Output System loss Estimated power output of PV system- tilt at Lat for Crystalline Ex. Vietnam

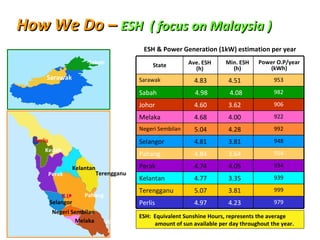

How We Do –  ESH  ( focus on  Malaysia ) Sabah Sarawak Johor Johor Melaka Selangor Terengganu Pahang Perak Kelantan Kedah K .L Negeri Sembilan Perlis 979 4.23 4.97 Perlis 999 3.81 5.07 Terengganu 939 3.35 4.77 Kelantan 934 4.05 4.74 Perak 954 3.64 4.84 Pahang 948 3.81 4.81 Se langor 992 4.28 5.04 Negeri Sembilan 922 4.00 4.68 Melaka 906 3.62 4.60 Johor 982 4.08 4.98 Sabah 953 4.51 4.83 Sarawak Power O.P/year (kWh) Min. ESH (h ) Ave. ESH (h) State ESH:  Equivalent Sunshine Hours, represents the average amount of sun available per day throughout the year. ESH & Power Generation (1kW) estimation per year
KWh How  We Do –  ORIENTATION & TILT ANGLE with KWH  ( focus on Malaysia ) Orientation ORIENTATION & TILIT ANGLE  with KWH S-15-W S S-30-W S-45-W S-60-W S-75-W W S-15-E S-30-E S-45-E S-60-E S-75-E E E W S E-45-S E-30-S W-45-S W-30-S W-15-S S-15-S E-75-S E-60-S W-60-S E-15-S

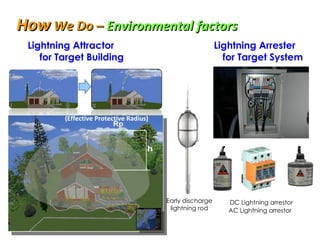

DC Lightning arrestor AC Lightning arrestor Lightning Attractor  for Target Building How  We Do –  Environmental factors Lightning Arrester for Target System Early discharge lightning rod (Effective Protective Radius)
Q & A
Our Products Commercial Application Kit Public  Application Kit Project  or Specific  Application System (Kit)
KEY FEATURES: Micro Solar Lighting Kit High quality, i.e. charge efficient > 90% Long life span All-In-One, Easy to transport Easy installation (DIY) & User friendly Reasonable priced, High customers’ affordability

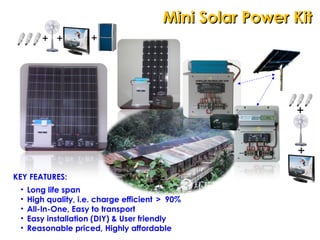

UGSOLAR TECHNOLOGY SDN BHD Mini Solar Power Kit + + + + + KEY FEATURES: Long life span High quality, i.e. charge efficient > 90% All-In-One, Easy to transport Easy installation (DIY) & User friendly Reasonable priced, Highly affordable

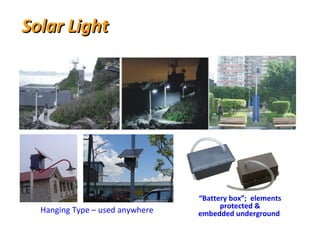

Solar Light “ Battery box”;  elements protected & embedded underground  Hanging Type – used anywhere

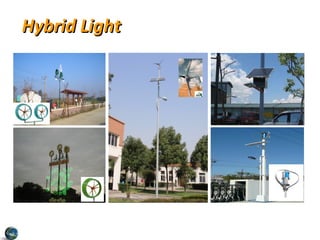

Hybrid Light

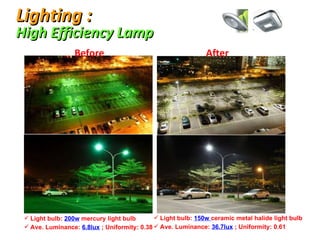

Lighting : High Efficiency Lamp Before Light bulb:  200w  mercury light bulb Ave. Luminance:   6.8lux  ; Uniformity: 0.38 After Light bulb:  150w  ceramic metal halide light bulb Ave. Luminance:  36.7lux  ; Uniformity: 0.61 LED HID
Solar Home System (SHS) Solar Kit Australia  Australia  Taiwan Indonesia
Solar  Water Pump System Solar Pump Kit Rural pumping station   Rural pumping station   Island pumping facilities   Island pumping facilities

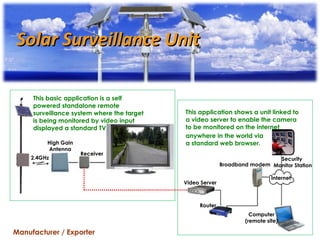

Manufacturer / Exporter Solar Surveillance Unit  This basic application is a self powered standalone remote surveillance system where the target is being monitored by video input displayed a standard TV  2.4GHz High Gain Antenna Receiver Router Computer (remote site) Internet Security  Monitor Station This application shows a unit linked to a video server to enable the camera to be monitored on the internet  Broadband modem Video Server anywhere in the world via a standard web browser.

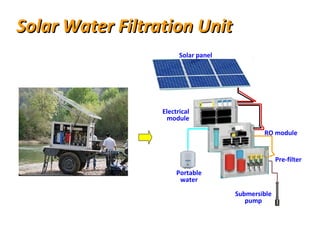

Solar Water Filtration Unit  Submersible pump RO module Portable water Pre-filter Solar panel Electrical module
Portable Solar Water Filtration Kit  Economical Reliable Versatile Compact Unique Features UGSOLAR Series MC-S Solar W$ater Filtration system for: All-in-one, easy setup, easy operation, easy maintenance; Solar-electric powered:  no fuel or external power required; Produces high quality drinking water from almost any non salty water; Operates on solar power, battery power, or combination solar/battery Built  to last: rugged, corrosion-resistant aluminum frame construction. 25-30 years expected life expectancy of solar panel. Portable or Permanent Service; Military maneuver, Military training, Troops marching;  Drinking Water Supply for Boy-Scouts Camping; Rural Water Supply Projects in Remote Locations; Water Supply for Remote Ranches, Communities and Vacation Cabins; MC-200S

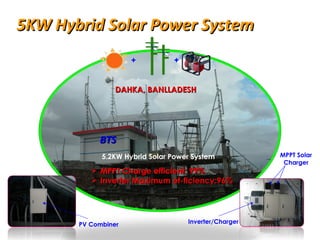

DAHKA, BANLLADESH 5.2KW Hybrid Solar Power System 5KW Hybrid Solar Power System  BTS PV Combiner Inverter/Charger MPPT Solar Charger + + MPPT Charge efficient: 99% Inverter Maximum ef­ficiency:96%

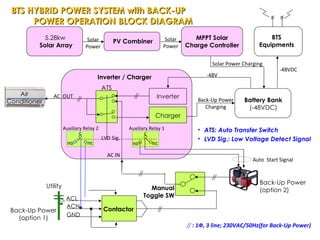

5.28kw  Solar Array PV Combiner MPPT Solar Charge Controller Battery Bank (-48VDC) BTS Equipments Solar Power Solar Power Inverter / Charger -48V Manual Toggle SW Back-Up Power Charging Inverter Charger ATS Auxiliary Relay 2 AC IN Utility LVD Sig. Auto  Start Signal ACL ACN GND Contactor Back-Up Power (option 1) Back-Up Power (option 2) Solar Power Charging BTS HYBRID POWER SYSTEM with BACK-UP  POWER OPERATION BLOCK DIAGRAM  -48VDC AC  OUT Air Conditioner ATS: Auto Transfer Switch  LVD Sig.: Low Voltage Detect Signal c nc no : 1 Ф , 3 line; 230VAC/50Hz(for Back-Up Power) Auxiliary Relay 1 c nc no
Finally – Why We Emphasize !! Then; executable after-sale service All components are certified; ie. CE, UL, IEC,…. Cost Analysis Analysis Design Simulation Create long-term service contract with the customer Testing Installation Purchase
Thank you for your patient UGSOLAR TECHNOLOGY SDN BHD Q & A
