1. TRI-BRID ENERGY
Nate Codington

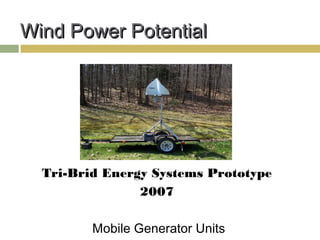

2. Wind Power Potential
Tri-Brid Energy Systems Prototype
2007
Mobile Generator Units

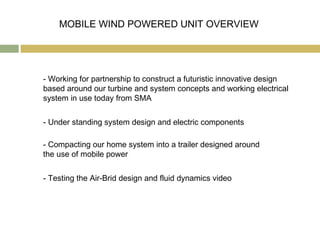

3. MOBILE WIND POWERED UNIT OVERVIEW
- Working for partnership to construct a futuristic innovative design
based around our turbine and system concepts and working electrical
system in use today from SMA
- Under standing system design and electric components
- Compacting our home system into a trailer designed around
the use of mobile power
- Testing the Air-Brid design and fluid dynamics video

4. Long-term Goal

Implement units to School's, Business's,
Farms, and City Buildings for backup power

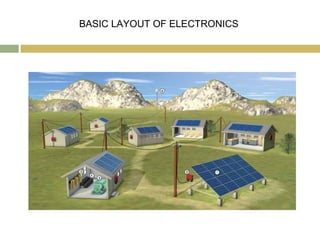

5. BASIC LAYOUT OF ELECTRONICS

6. Tri-Brid Energy Systems
INVOICE
DATE: March 25, 2011
403 Thorpe Road INVOICE # 108
Sidney NY, 13838
Phone: 607-643-5040
Bill To:
Mobile Power Station (Quote)Wind/Solar 10KW
# DESCRIPTION AMOUNT
1 main on- off switch
1 m ain dc dis connect box 300.00
1 10 KW Air-Brid Wind turbine 6,000.00
1 Tower/Platform = trailer 5,000.00
1 s unny Central 10000 Watt Inverter with overvoltage s witch/battery controller 7,000.00
1 Wire Roll 300.00
1 Windy boy protection box 2,000.00
1 Trailer Chas s is -
1 R&D reas earch large s cale m odels
8 Concord Sun Xtender battery 3050t 1,800.00
SUBTOTAL $22,400.00
TAX RATE 8.00%
Make all checks payable to Tri-Brid Energy Systems LLC.. If you have any SALES TAX 1,792.00
questions concerning this invoice, contact Nathan Codington, 607-643-4930,
E-mail at sales@tribridgreenenergies.coml OTHER -
THANK YOU FOR YOUR BUSINESS! TOTAL $24,192.00

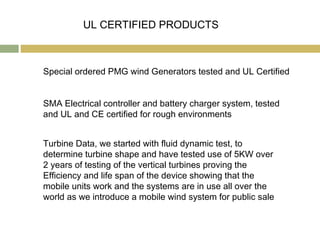

7. UL CERTIFIED PRODUCTS
Special ordered PMG wind Generators tested and UL Certified
SMA Electrical controller and battery charger system, tested
and UL and CE certified for rough environments
Turbine Data, we started with fluid dynamic test, to
determine turbine shape and have tested use of 5KW over
2 years of testing of the vertical turbines proving the
Efficiency and life span of the device showing that the
mobile units work and the systems are in use all over the
world as we introduce a mobile wind system for public sale

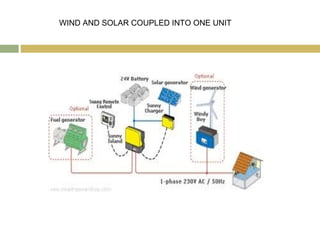

8. WIND AND SOLAR COUPLED INTO ONE UNIT

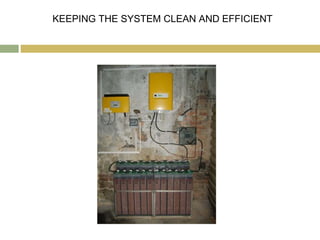

9. KEEPING THE SYSTEM CLEAN AND EFFICIENT

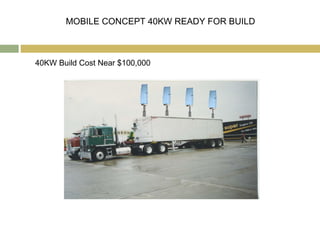

10. MOBILE CONCEPT 40KW READY FOR BUILD
40KW Build Cost Near $100,000

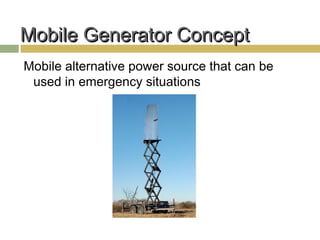

11. Mobile Generator Concept
Mobile alternative power source that can be
used in emergency situations

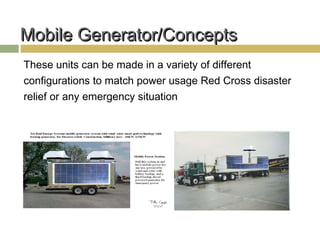

12. Mobile Generator/Concepts
These units can be made in a variety of different
configurations to match power usage Red Cross disaster
relief or any emergency situation

13. Air-BridTurbines

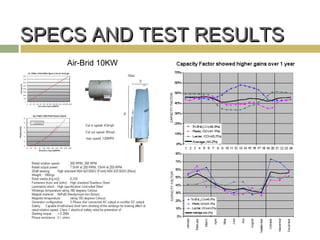

14. SPECS AND TEST RESULTS
Air-Brid 10KW

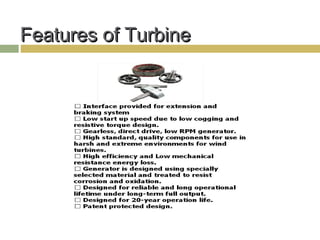

15. Features of Turbine

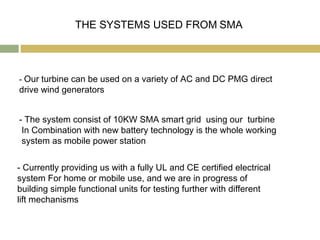

16. THE SYSTEMS USED FROM SMA
- Our turbine can be used on a variety of AC and DC PMG direct
drive wind generators
- The system consist of 10KW SMA smart grid using our turbine
In Combination with new battery technology is the whole working
system as mobile power station
- Currently providing us with a fully UL and CE certified electrical
system For home or mobile use, and we are in progress of
building simple functional units for testing further with different
lift mechanisms

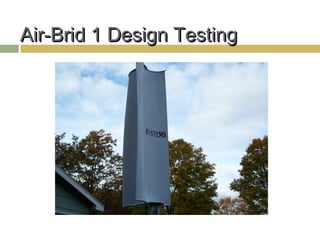

17. Air-Brid 1 Design Testing

18. Air-Brid Turbine Testing

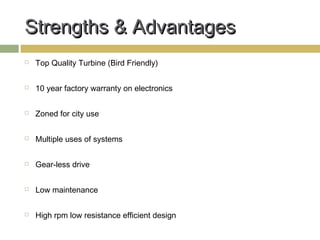

19. Strengths & Advantages
 Top Quality Turbine (Bird Friendly)
 10 year factory warranty on electronics
 Zoned for city use
 Multiple uses of systems
 Gear-less drive
 Low maintenance
 High rpm low resistance efficient design

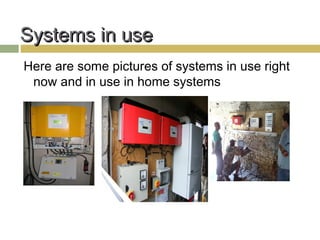

20. Systems in use
Here are some pictures of systems in use right
now and in use in home systems
