1. EAST WEST UNIERSITY
Department of EEE, Summer 2016
Presentation on a grid connected Solar
PV system
Presented By
Ashik mahmud 2013-1-80-003
Prosenjit kumar Ghosh 2013-1-83-014
8/9/2016 Renewable Energy, EEE 445 1

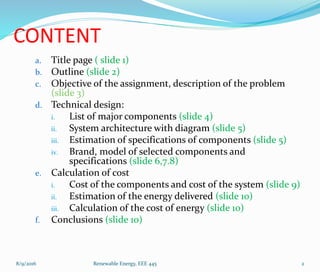

2. CONTENT
a. Title page ( slide 1)
b. Outline (slide 2)
c. Objective of the assignment, description of the problem
(slide 3)
d. Technical design:
i. List of major components (slide 4)
ii. System architecture with diagram (slide 5)
iii. Estimation of specifications of components (slide 5)
iv. Brand, model of selected components and
specifications (slide 6,7.8)
e. Calculation of cost
i. Cost of the components and cost of the system (slide 9)
ii. Estimation of the energy delivered (slide 10)
iii. Calculation of the cost of energy (slide 10)
f. Conclusions (slide 10)
8/9/2016 Renewable Energy, EEE 445 2

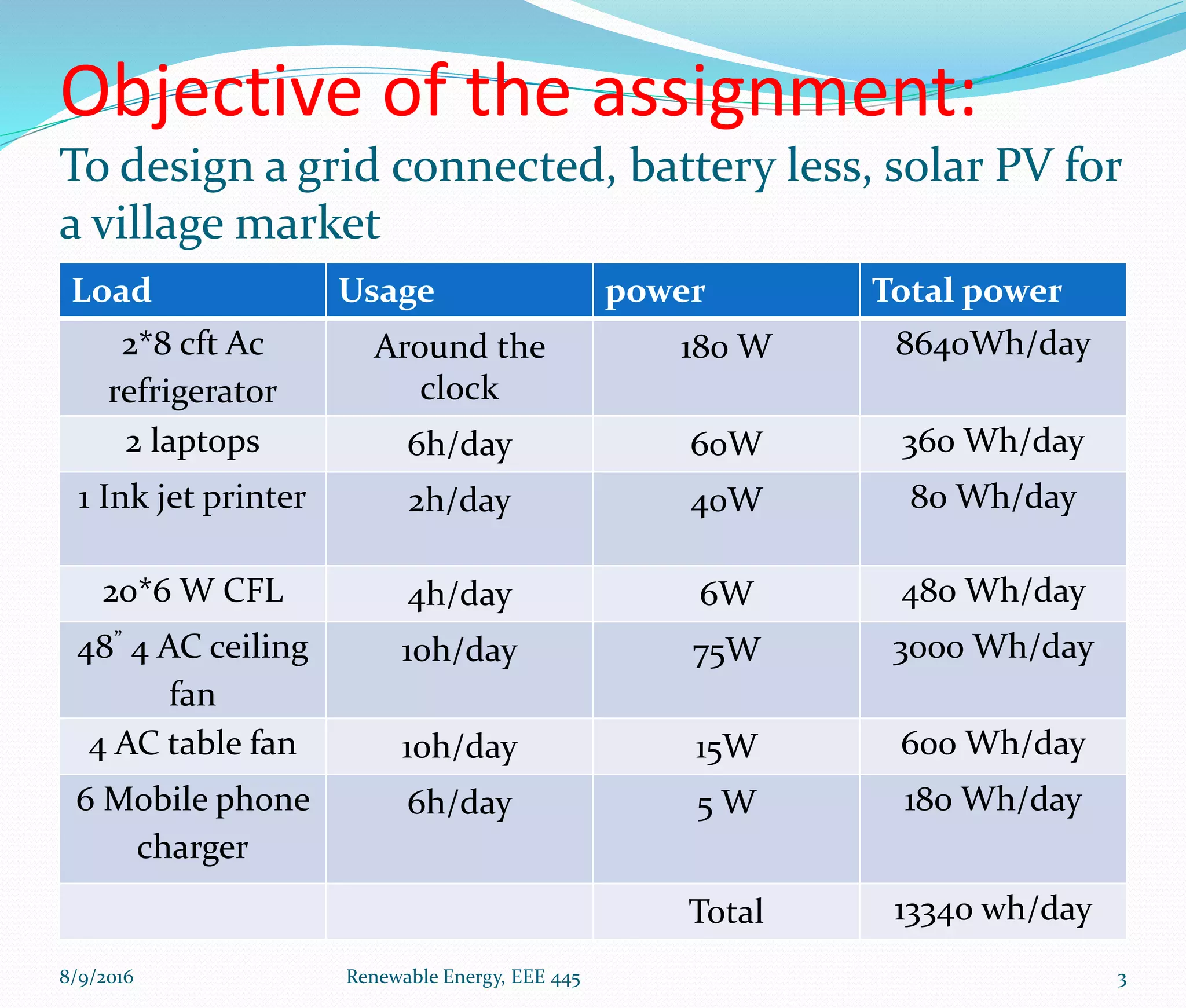

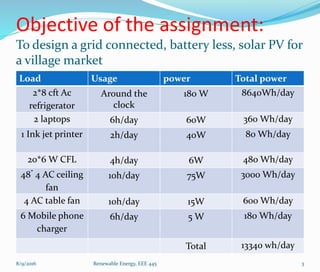

3. Objective of the assignment:
To design a grid connected, battery less, solar PV for
a village market
Load Usage power Total power
2*8 cft Ac
refrigerator
Around the
clock
180 W 8640Wh/day
2 laptops 6h/day 60W 360 Wh/day
1 Ink jet printer 2h/day 40W 80 Wh/day
20*6 W CFL 4h/day 6W 480 Wh/day
48” 4 AC ceiling
fan
10h/day 75W 3000 Wh/day
4 AC table fan 10h/day 15W 600 Wh/day
6 Mobile phone
charger
6h/day 5 W 180 Wh/day
Total 13340 wh/day
8/9/2016 Renewable Energy, EEE 445 3

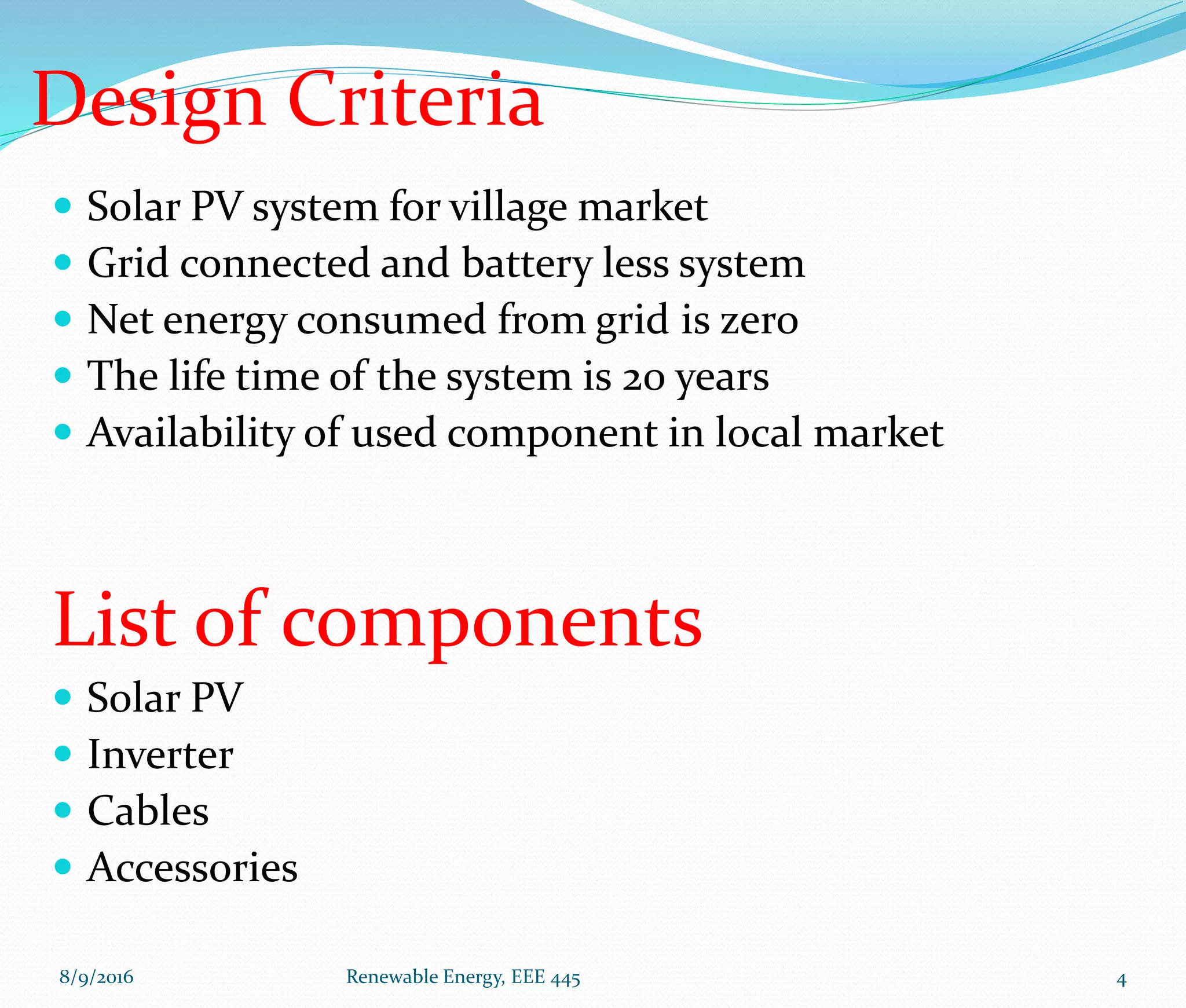

4. Design Criteria
 Solar PV system for village market
 Grid connected and battery less system
 Net energy consumed from grid is zero
 The life time of the system is 20 years
 Availability of used component in local market
List of components
 Solar PV
 Inverter
 Cables
 Accessories
8/9/2016 Renewable Energy, EEE 445 4

5. 8/9/2016 Renewable Energy, EEE 445 5

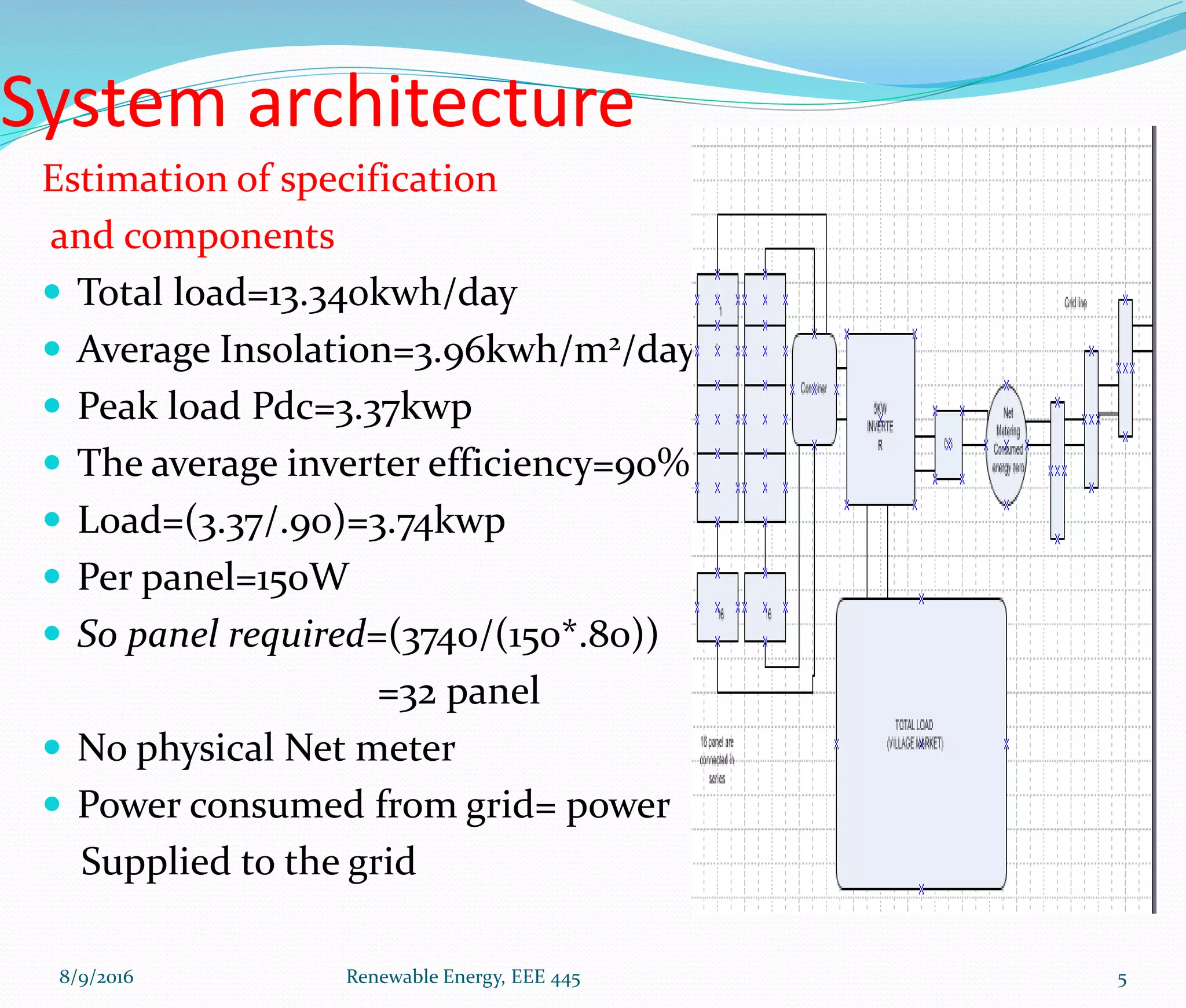

System architecture
Estimation of specification
and components
 Total load=13.340kwh/day
 Average Insolation=3.96kwh/m2/day
 Peak load Pdc=3.37kwp
 The average inverter efficiency=90%
 Load=(3.37/.90)=3.74kwp
 Per panel=150W
 So panel required=(3740/(150*.80))
=32 panel
 No physical Net meter
 Power consumed from grid= power
Supplied to the grid

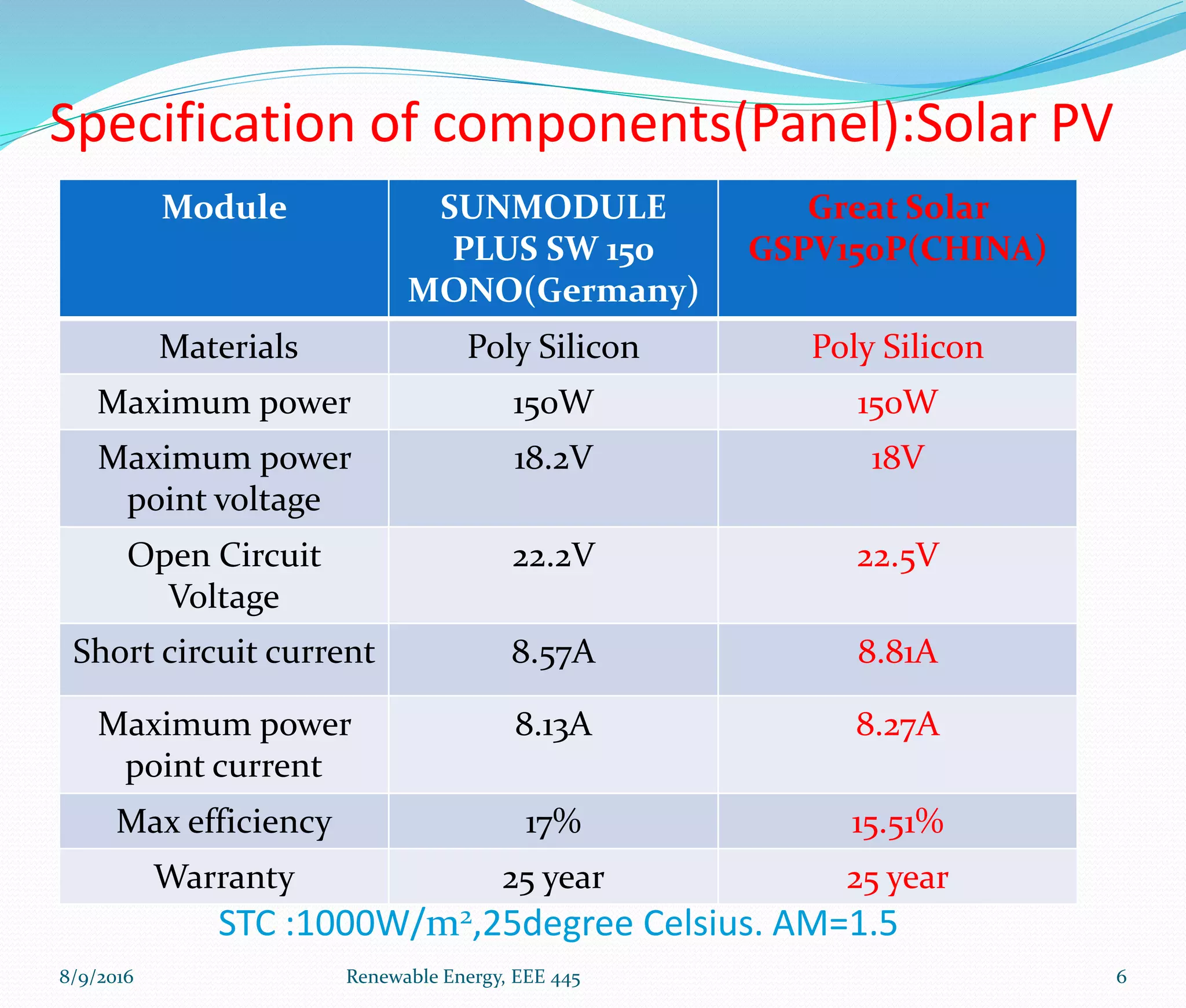

6. Specification of components(Panel):Solar PV
Module SUNMODULE
PLUS SW 150
MONO(Germany)
Great Solar
GSPV150P(CHINA)
Materials Poly Silicon Poly Silicon
Maximum power 150W 150W
Maximum power
point voltage
18.2V 18V
Open Circuit
Voltage
22.2V 22.5V
Short circuit current 8.57A 8.81A
Maximum power
point current
8.13A 8.27A
Max efficiency 17% 15.51%
Warranty 25 year 25 year
STC :1000W/m2,25degree Celsius. AM=1.5
8/9/2016 Renewable Energy, EEE 445 6

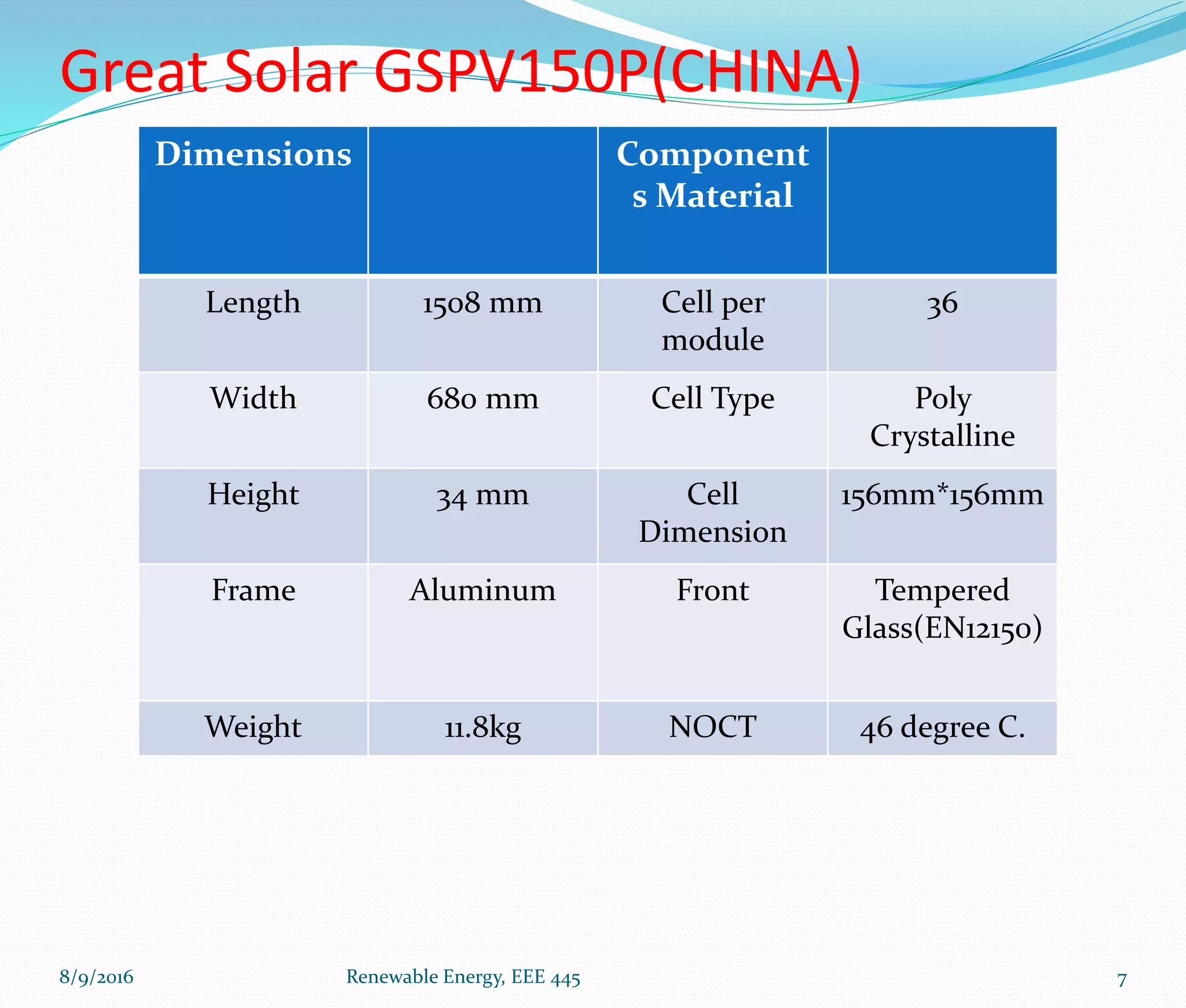

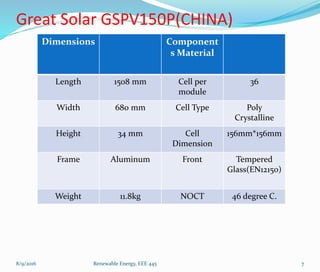

7. Great Solar GSPV150P(CHINA)
Dimensions Component
s Material
Length 1508 mm Cell per
module
36
Width 680 mm Cell Type Poly
Crystalline
Height 34 mm Cell
Dimension
156mm*156mm
Frame Aluminum Front Tempered
Glass(EN12150)
Weight 11.8kg NOCT 46 degree C.
8/9/2016 Renewable Energy, EEE 445 7

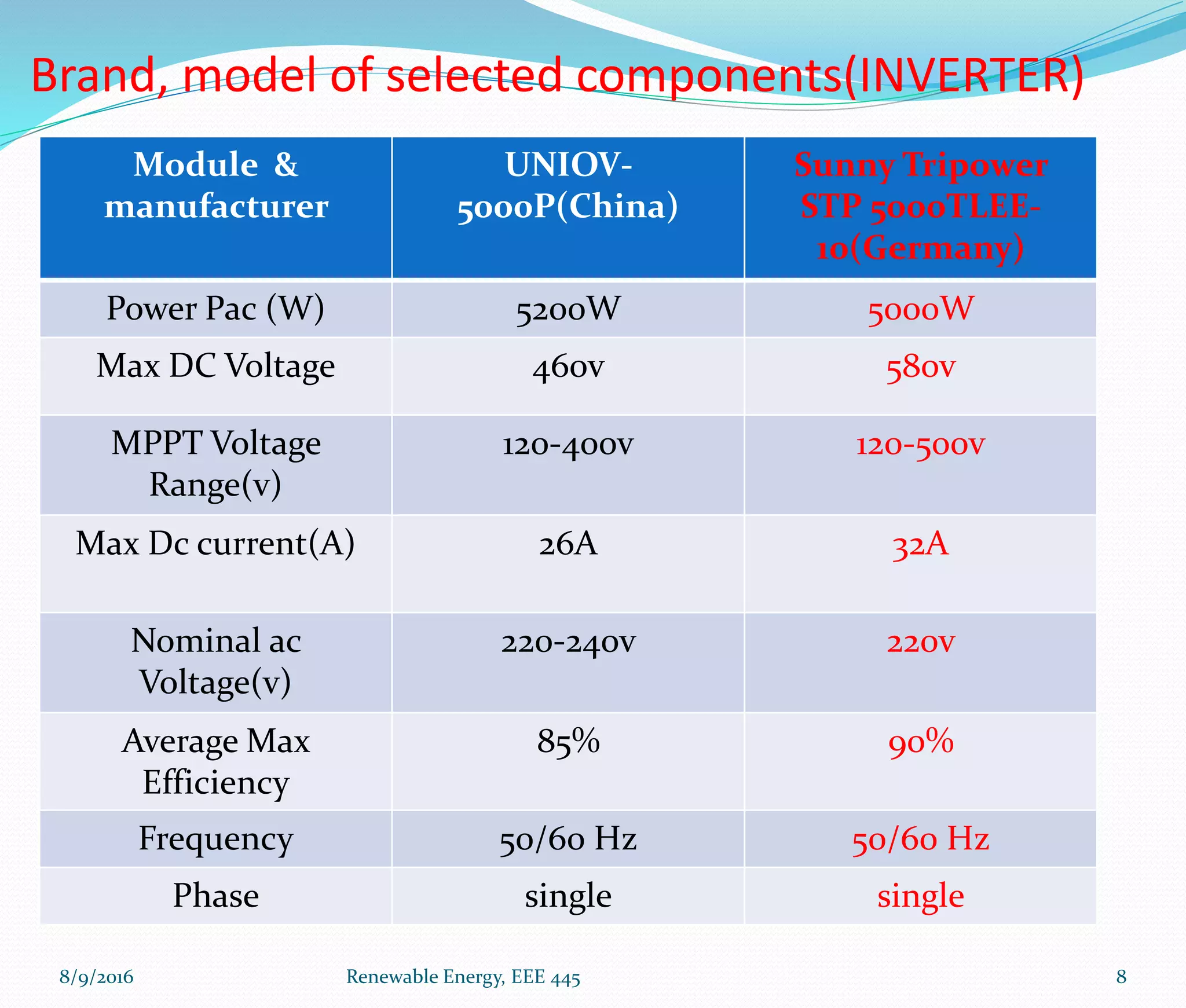

8. Brand, model of selected components(INVERTER)
Module &
manufacturer
UNIOV-
5000P(China)
Sunny Tripower
STP 5000TLEE-
10(Germany)
Power Pac (W) 5200W 5000W
Max DC Voltage 460v 580v
MPPT Voltage
Range(v)
120-400v 120-500v
Max Dc current(A) 26A 32A
Nominal ac
Voltage(v)
220-240v 220v
Average Max
Efficiency
85% 90%
Frequency 50/60 Hz 50/60 Hz
Phase single single
8/9/2016 Renewable Energy, EEE 445 8

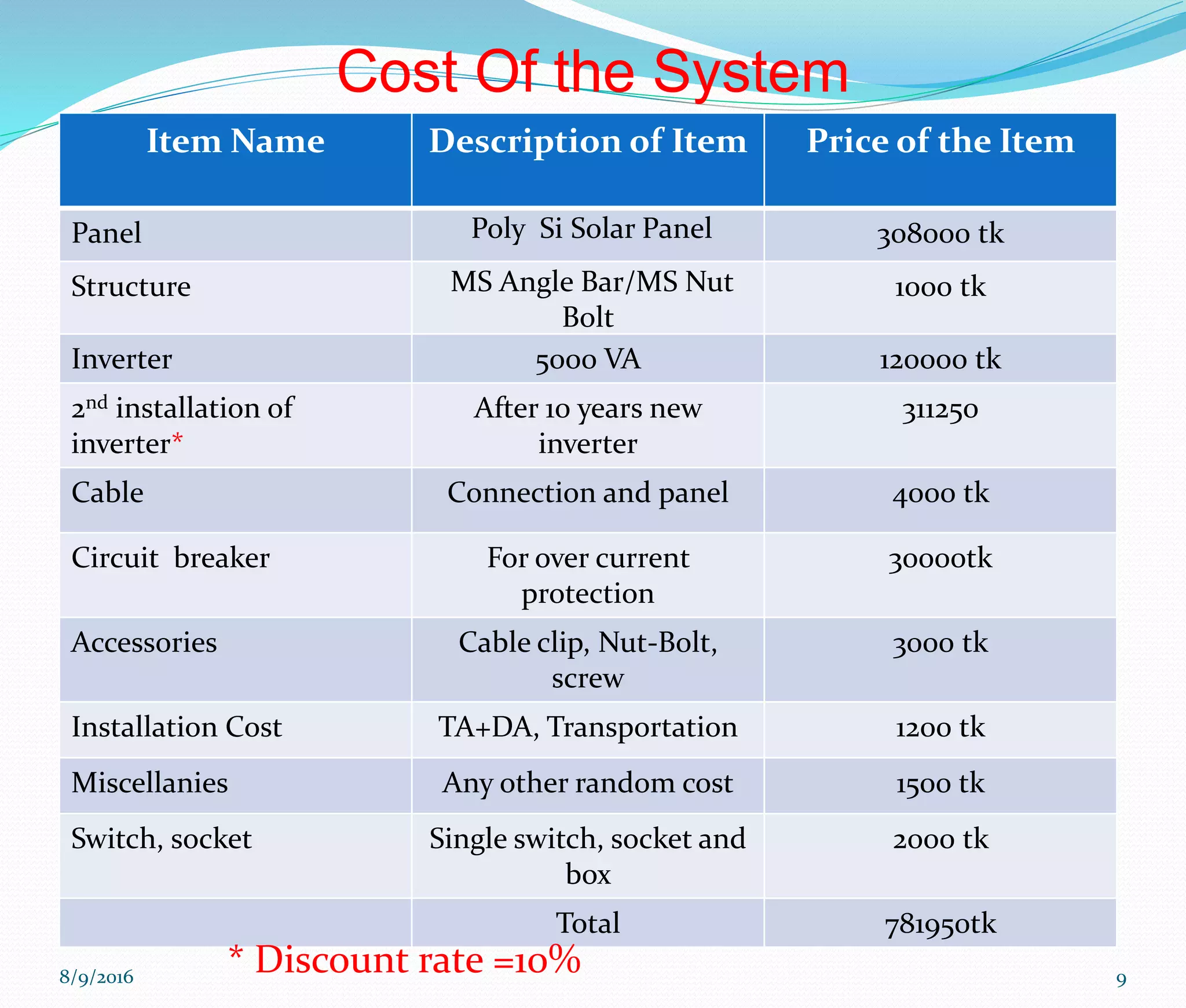

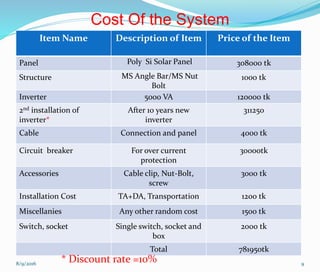

9. Cost Of the System
Item Name Description of Item Price of the Item
Panel Poly Si Solar Panel 308000 tk
Structure MS Angle Bar/MS Nut
Bolt
1000 tk
Inverter 5000 VA 120000 tk
2nd installation of
inverter*
After 10 years new
inverter
311250
Cable Connection and panel 4000 tk
Circuit breaker For over current
protection
30000tk
Accessories Cable clip, Nut-Bolt,
screw
3000 tk
Installation Cost TA+DA, Transportation 1200 tk
Miscellanies Any other random cost 1500 tk
Switch, socket Single switch, socket and
box
2000 tk
Total 781950tk
8/9/2016 9
* Discount rate =10%

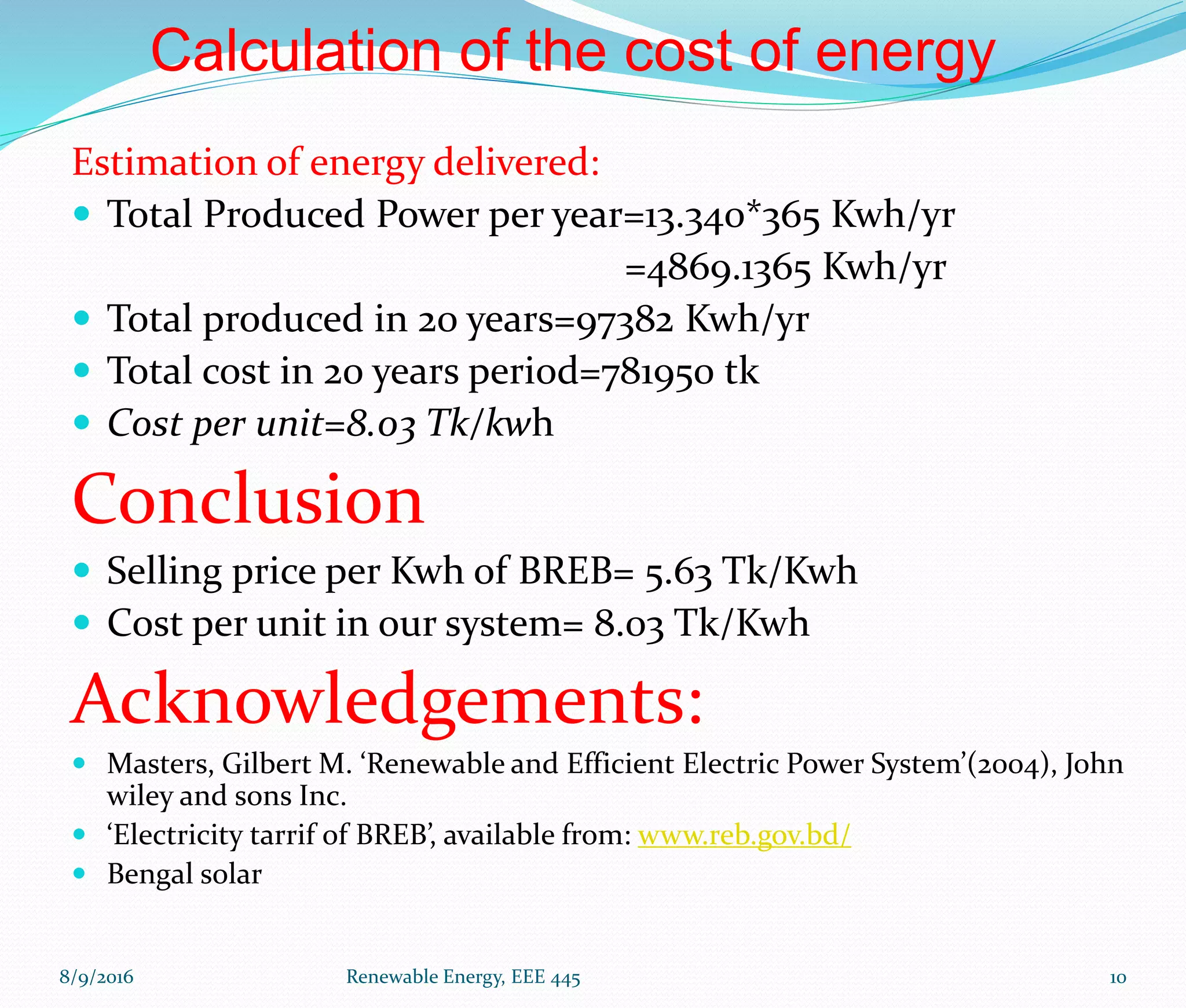

10. Calculation of the cost of energy
Estimation of energy delivered:
 Total Produced Power per year=13.340*365 Kwh/yr
=4869.1365 Kwh/yr
 Total produced in 20 years=97382 Kwh/yr
 Total cost in 20 years period=781950 tk
 Cost per unit=8.03 Tk/kwh
Conclusion
 Selling price per Kwh of BREB= 5.63 Tk/Kwh
 Cost per unit in our system= 8.03 Tk/Kwh
Acknowledgements:
 Masters, Gilbert M. ‘Renewable and Efficient Electric Power System’(2004), John
wiley and sons Inc.
 ‘Electricity tarrif of BREB’, available from: www.reb.gov.bd/
 Bengal solar
8/9/2016 Renewable Energy, EEE 445 10
