Tutorial on Deep Learning
- 2. Introduction of Deep Learning! Zaikun Xu USI, Master of Informatics HPC Advisory Council Switzerland Conference 2016 2!
- 3. Overview! Introduction to deep learning! Big data + Big computational power (GPUs)! Latest updates of deep learning! Examples! Feature extraction! 3!
- 4. Machine Learning! source : http://www.cs.utexas.edu/~eladlieb/RLRG.html! Reinforcement learning Introduction to deep learning! 4!
- 5. Inspiration from Human brain! Introduction to deep learning! • Over 100 billion neurons ! • Around 1000 connections ! • Electrical signal transmitted through axon, can be inhibitory or excitatory! • Activation of a neuron depends on inputs! 5!

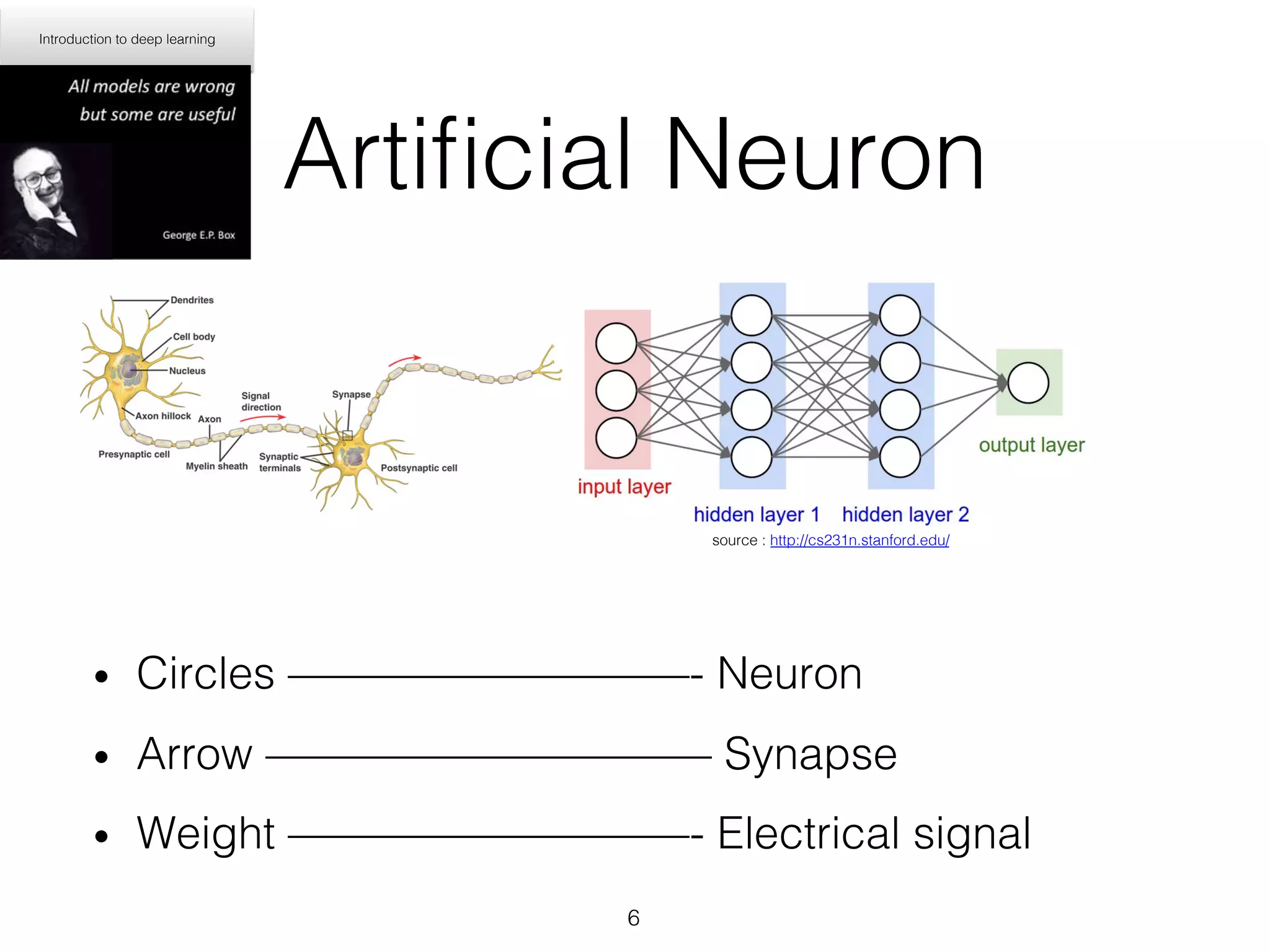

- 6. Artificial Neuron! • Circles —————————- Neuron! source : http://cs231n.stanford.edu/! • Arrow —————————— Synapse! • Weight —————————- Electrical signal! Introduction to deep learning! 6!
- 7. Nonlinearity! Introduction to deep learning! • Neural network learns complicated structured data with non-linear activation functions! 7!

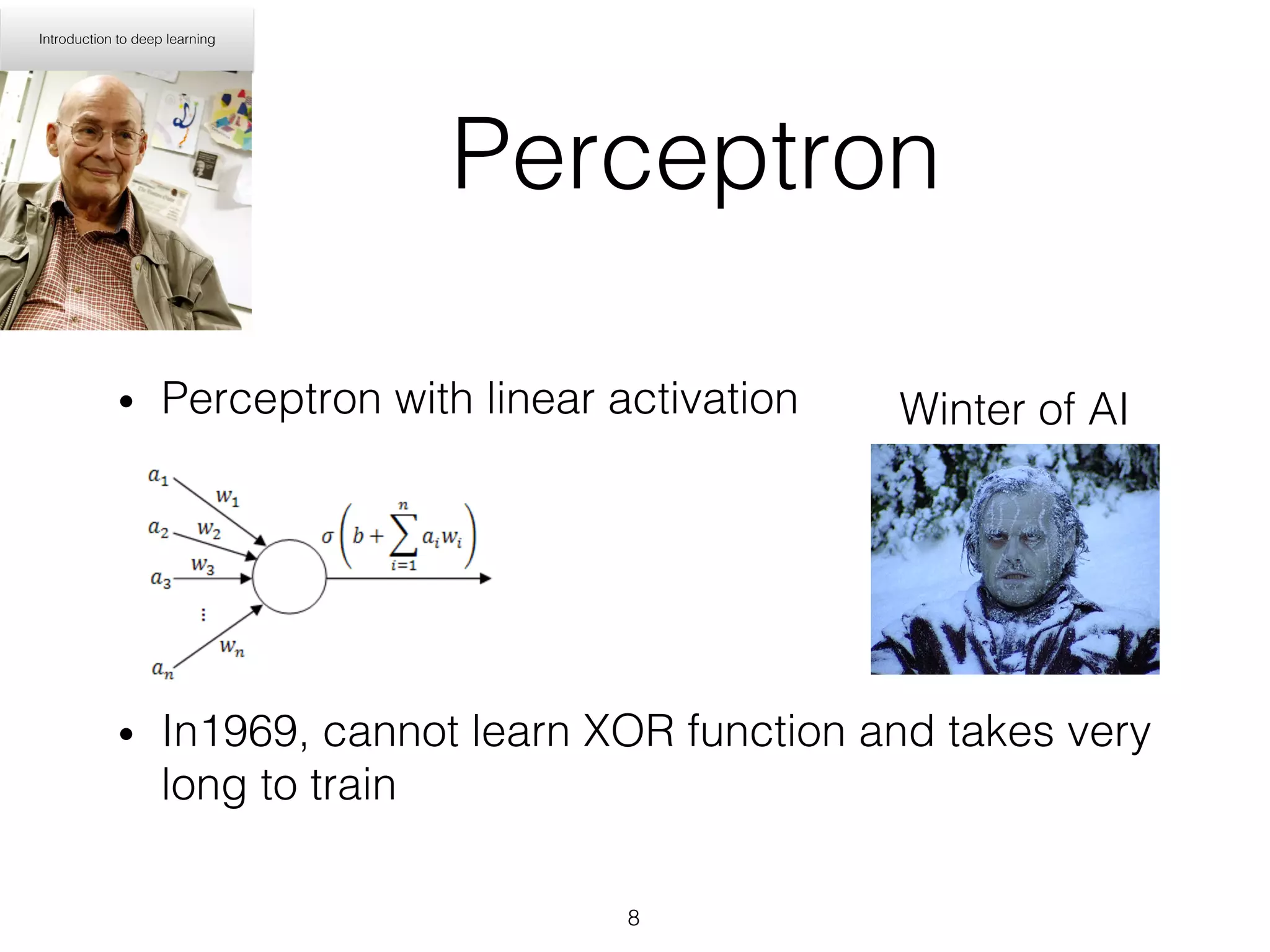

- 8. Perceptron! • Perceptron with linear activation! Introduction to deep learning! • In1969, cannot learn XOR function and takes very long to train! Winter of AI! 8!

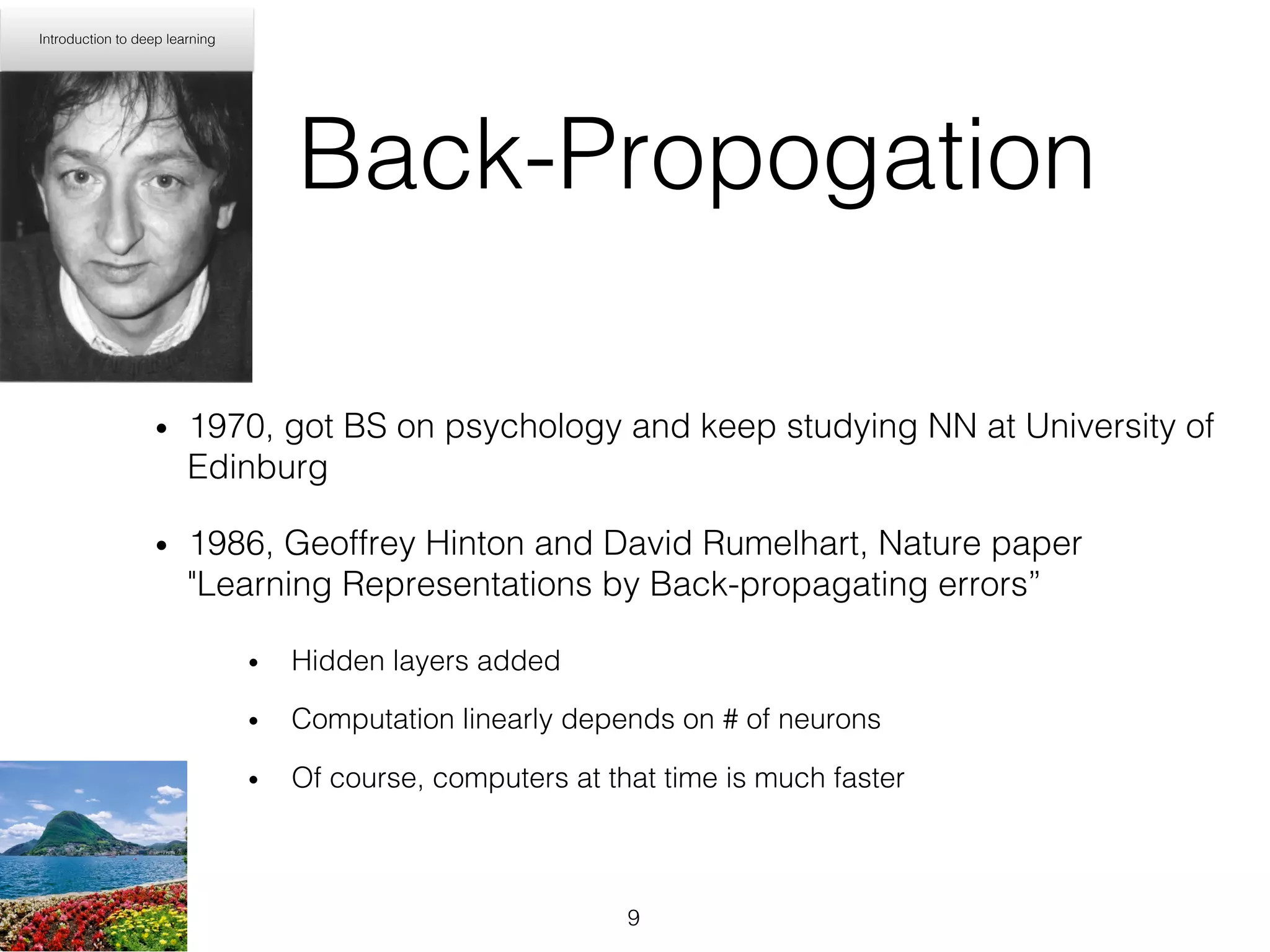

- 9. Back-Propogation! • 1970, got BS on psychology and keep studying NN at University of Edinburg ! Introduction to deep learning! • 1986, Geoffrey Hinton and David Rumelhart, Nature paper "Learning Representations by Back-propagating errors”! • Hidden layers added! • Computation linearly depends on # of neurons ! • Of course, computers at that time is much faster! 9!
- 10. Convolutionary NN! • Yann Lecun, born at Paris, post-doc of Hinton at U Toronto.! Introduction to deep learning! • LeNet on hand-digital recognition at Bell Labs, 5% error rate! • Attack skill : convolution, pooling! 10!

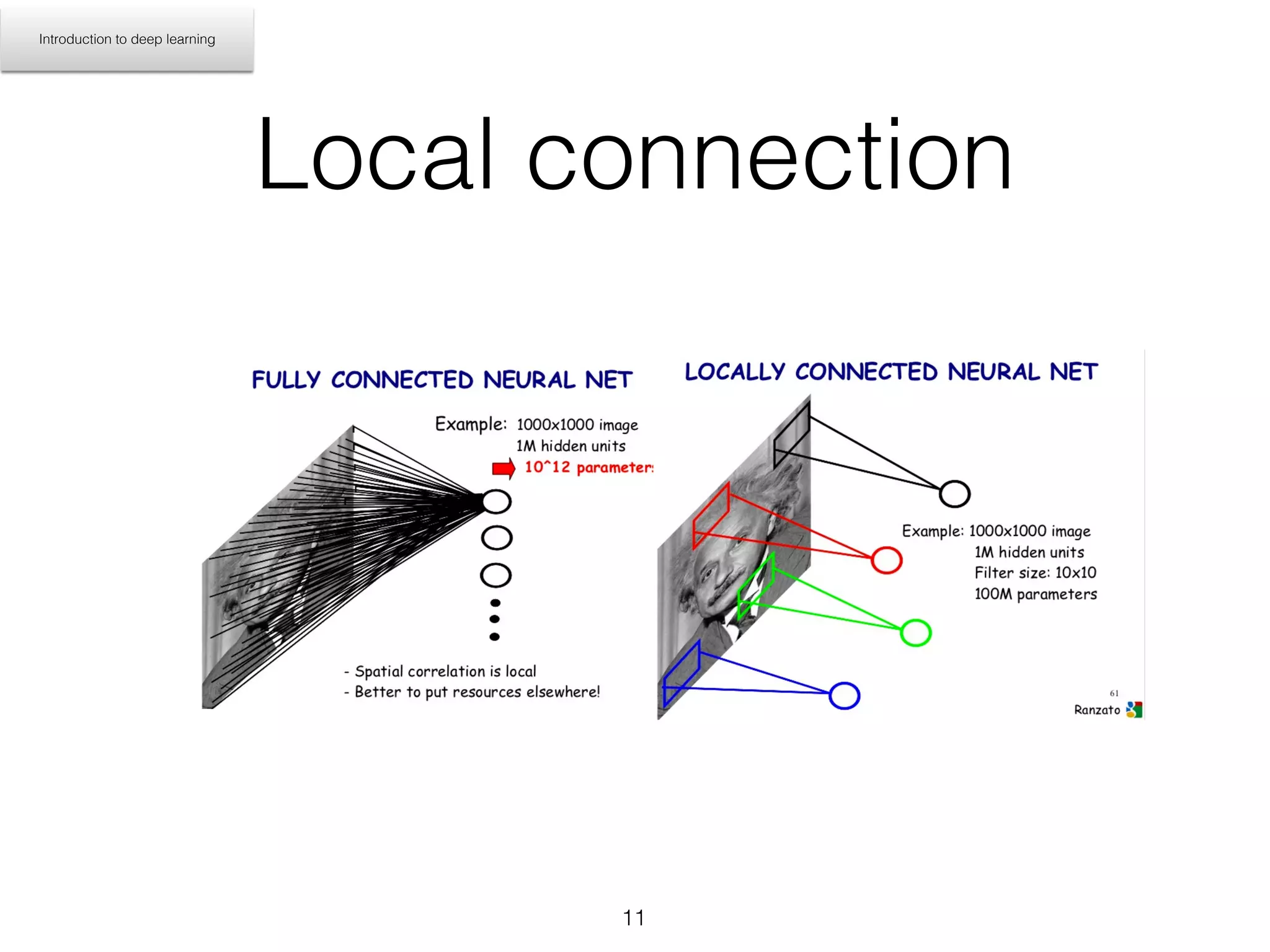

- 11. Local connection! 11! Introduction to deep learning!

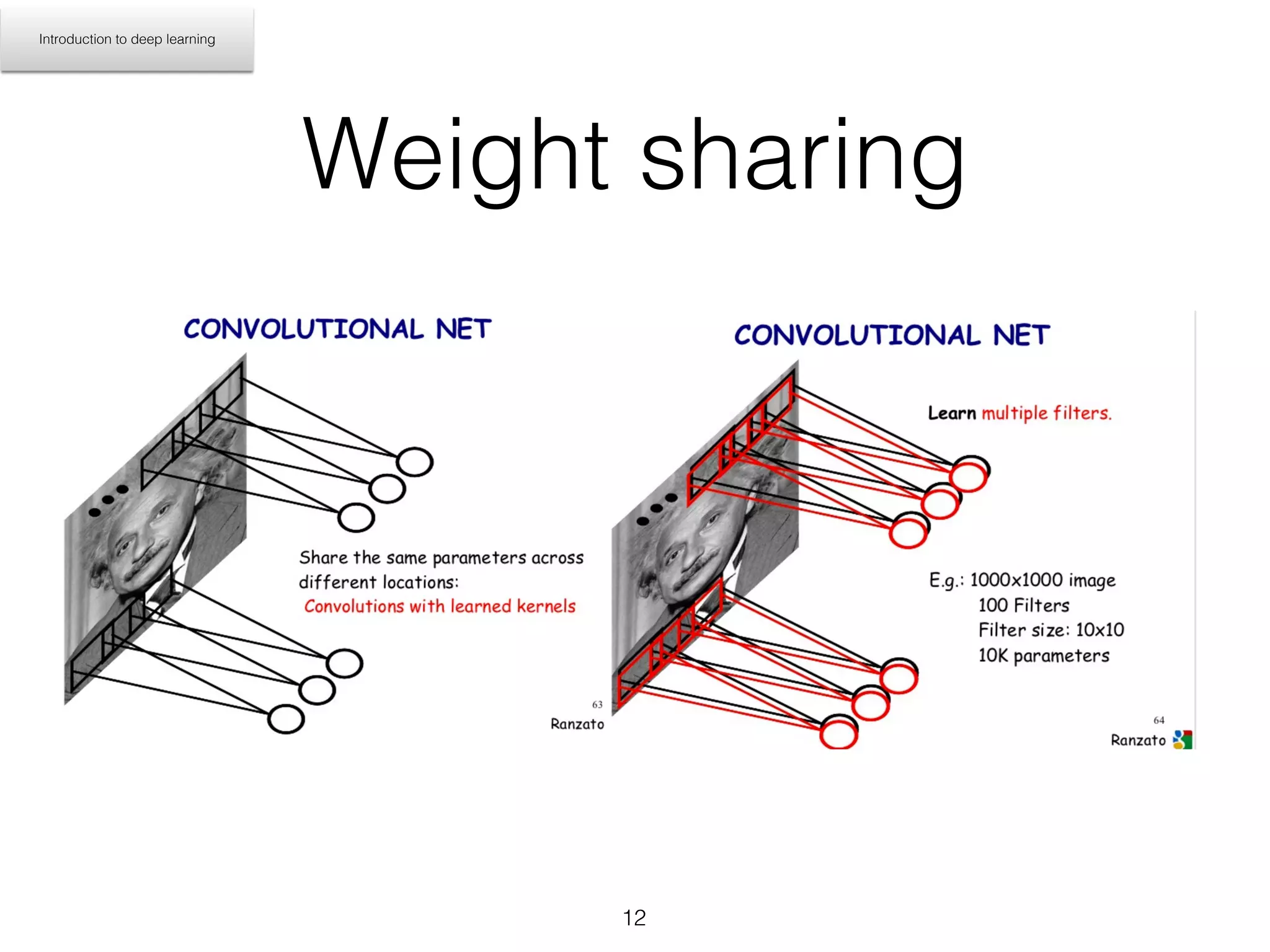

- 12. Weight sharing! 12! Introduction to deep learning!

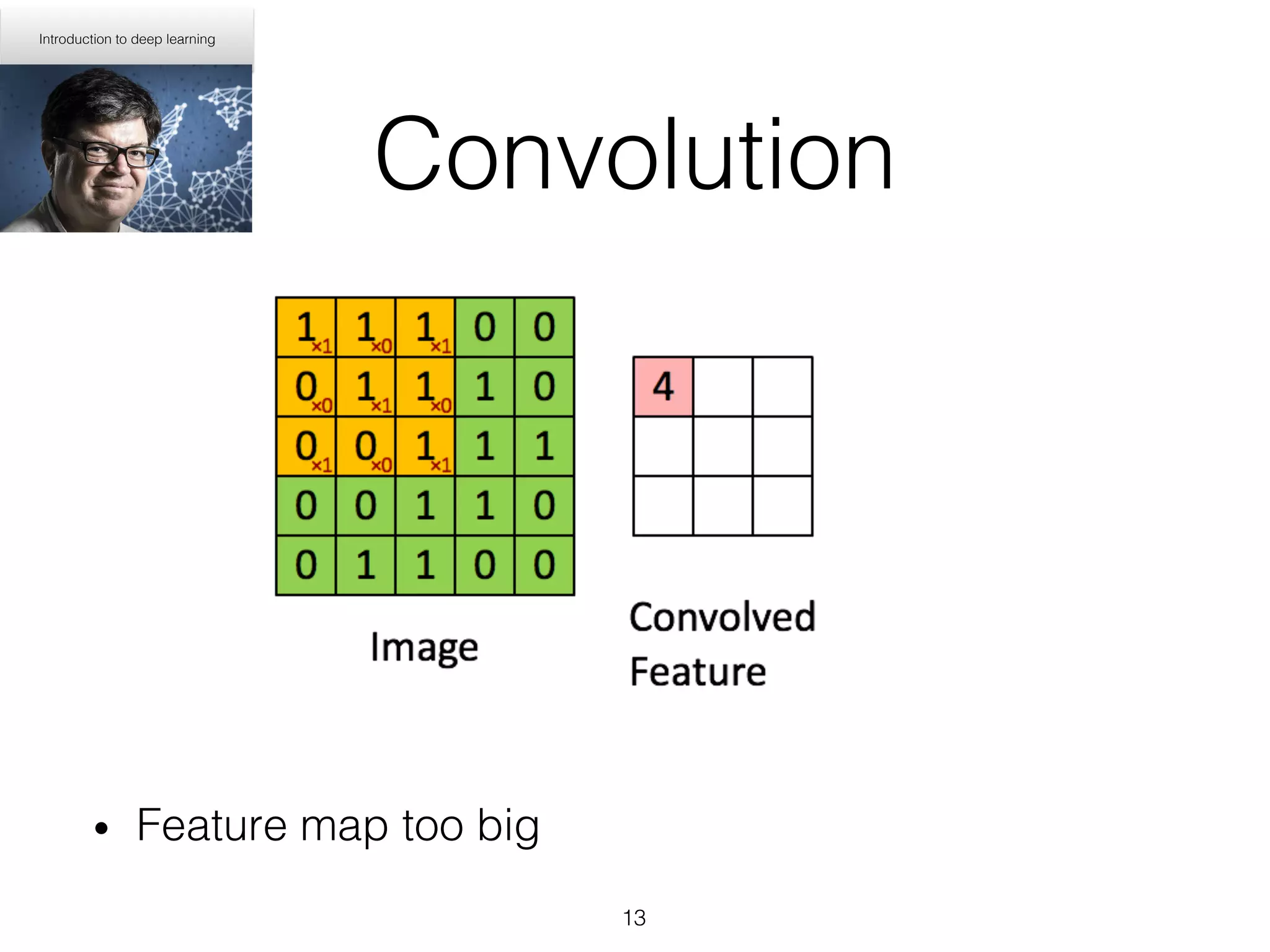

- 13. Convolution! • Feature map too big! 13! Introduction to deep learning!

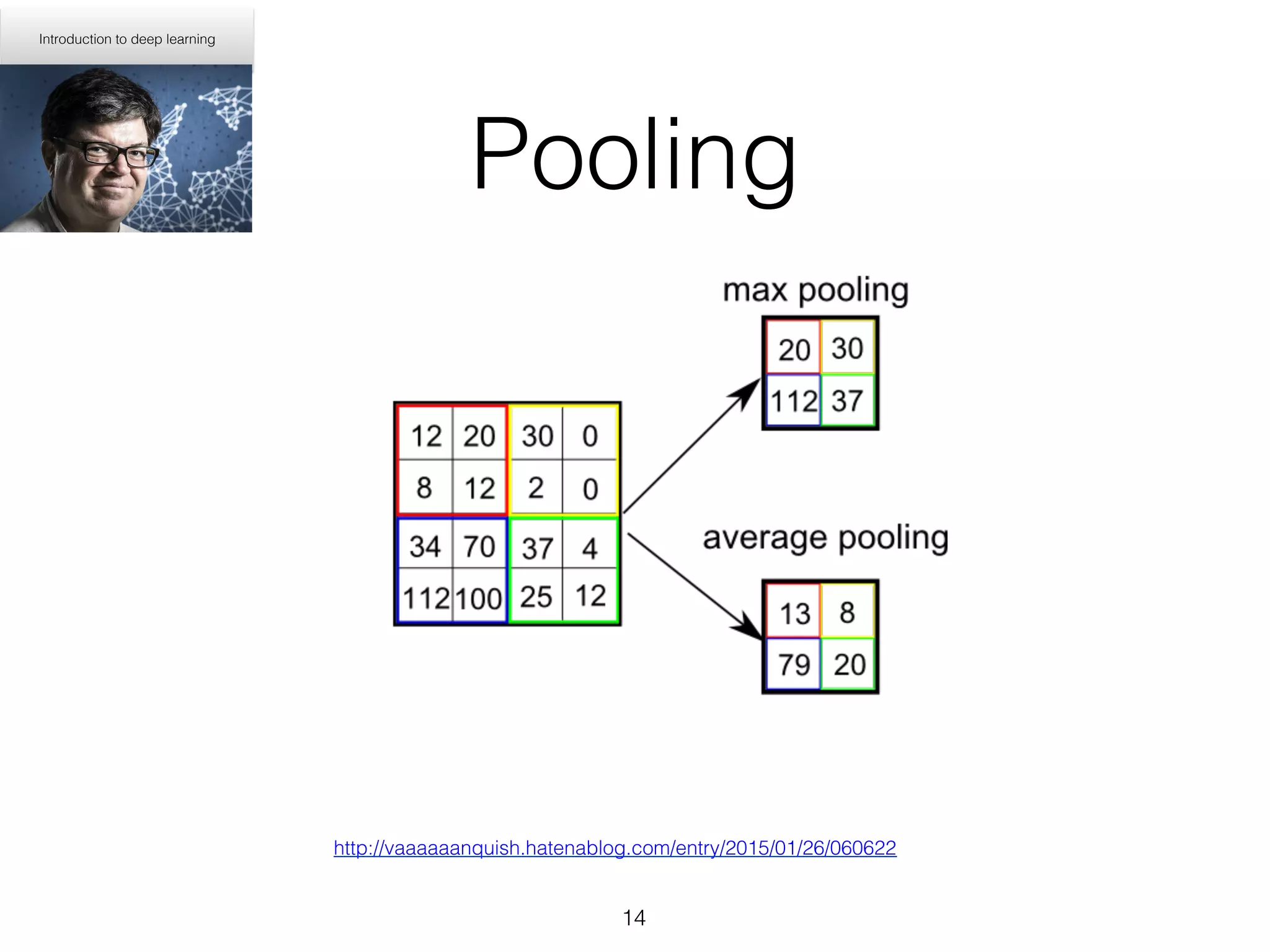

- 14. Pooling! 14! Introduction to deep learning! http://vaaaaaanquish.hatenablog.com/entry/2015/01/26/060622!

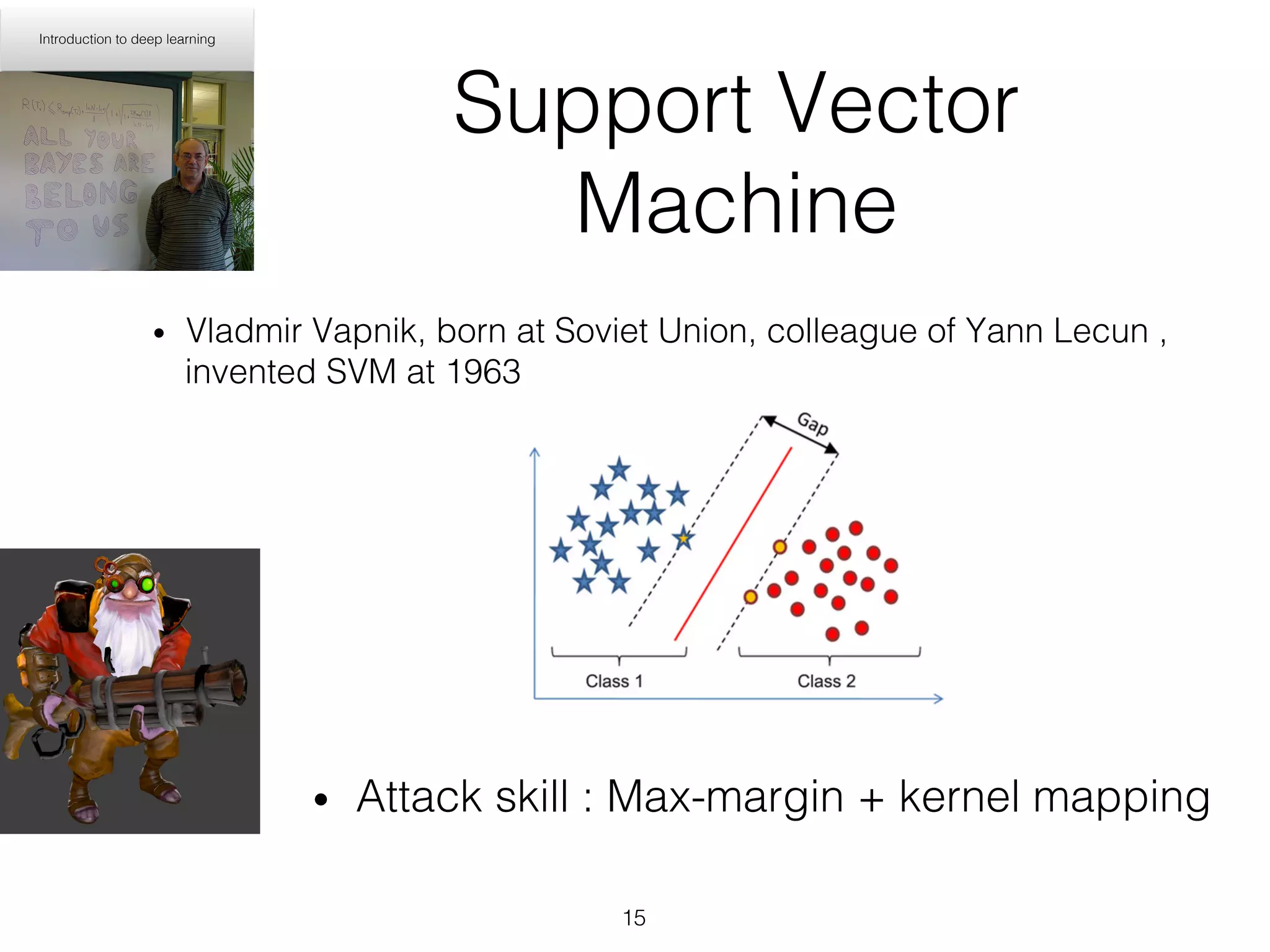

- 15. Support Vector Machine! Introduction to deep learning! • Vladmir Vapnik, born at Soviet Union, colleague of Yann Lecun , invented SVM at 1963! • Attack skill : Max-margin + kernel mapping! 15!

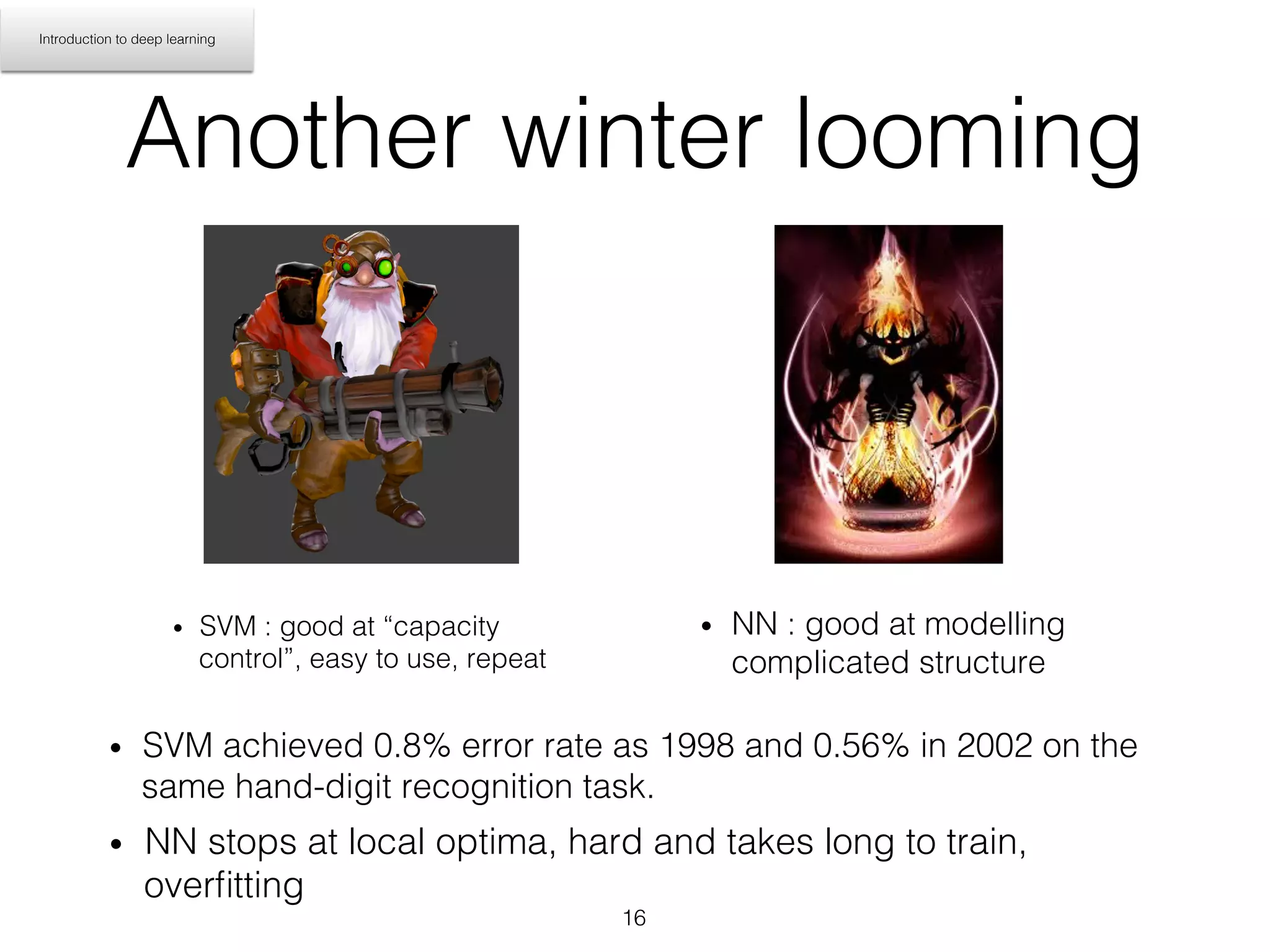

- 16. Another winter looming! Introduction to deep learning! • SVM : good at “capacity control”, easy to use, repeat! • NN : good at modelling complicated structure! • SVM achieved 0.8% error rate as 1998 and 0.56% in 2002 on the same hand-digit recognition task. ! • NN stops at local optima, hard and takes long to train, overfitting! 16!

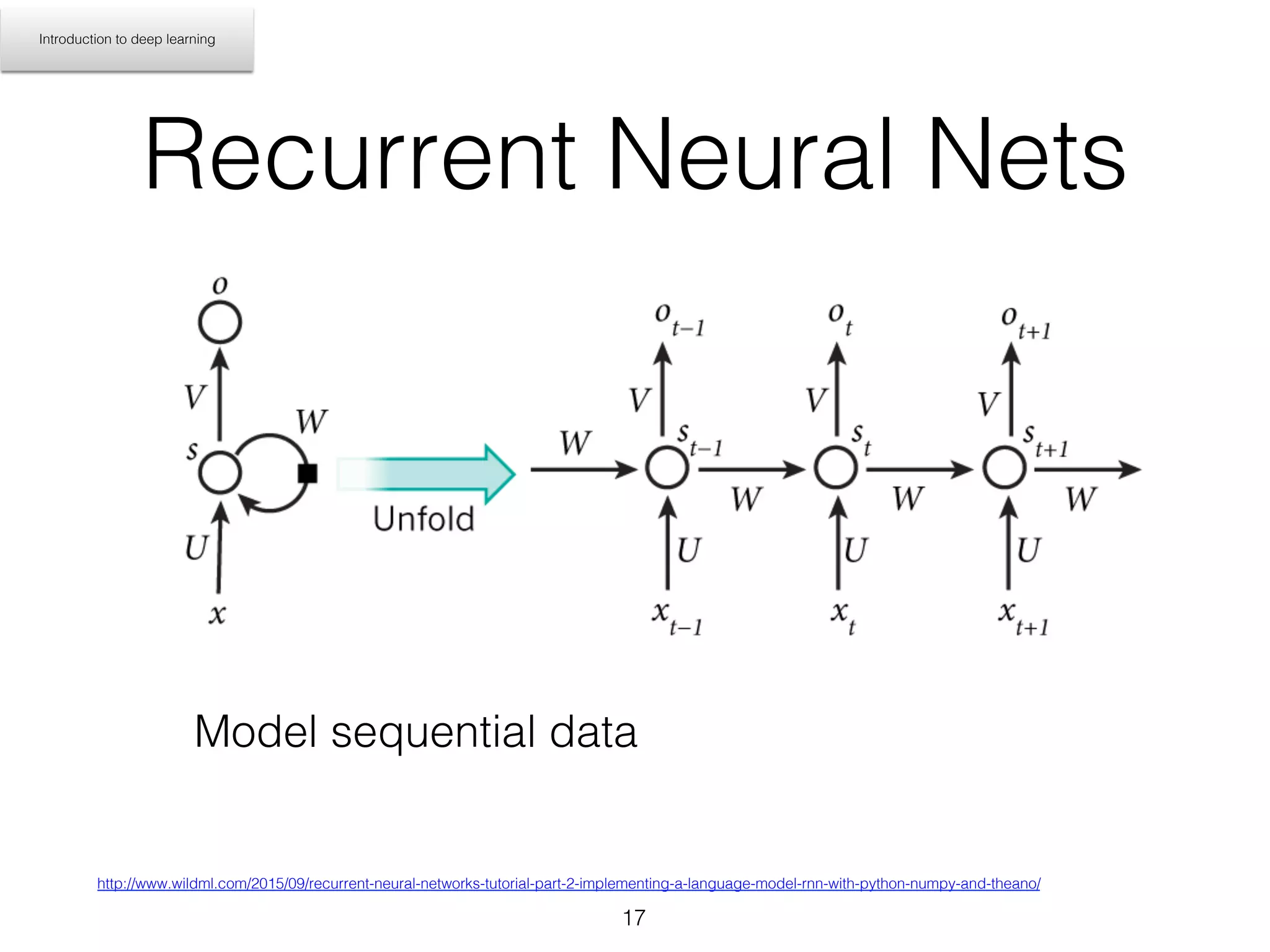

- 17. Recurrent Neural Nets! Introduction to deep learning! http://www.wildml.com/2015/09/recurrent-neural-networks-tutorial-part-2-implementing-a-language-model-rnn-with-python-numpy-and-theano/! 17! Model sequential data!

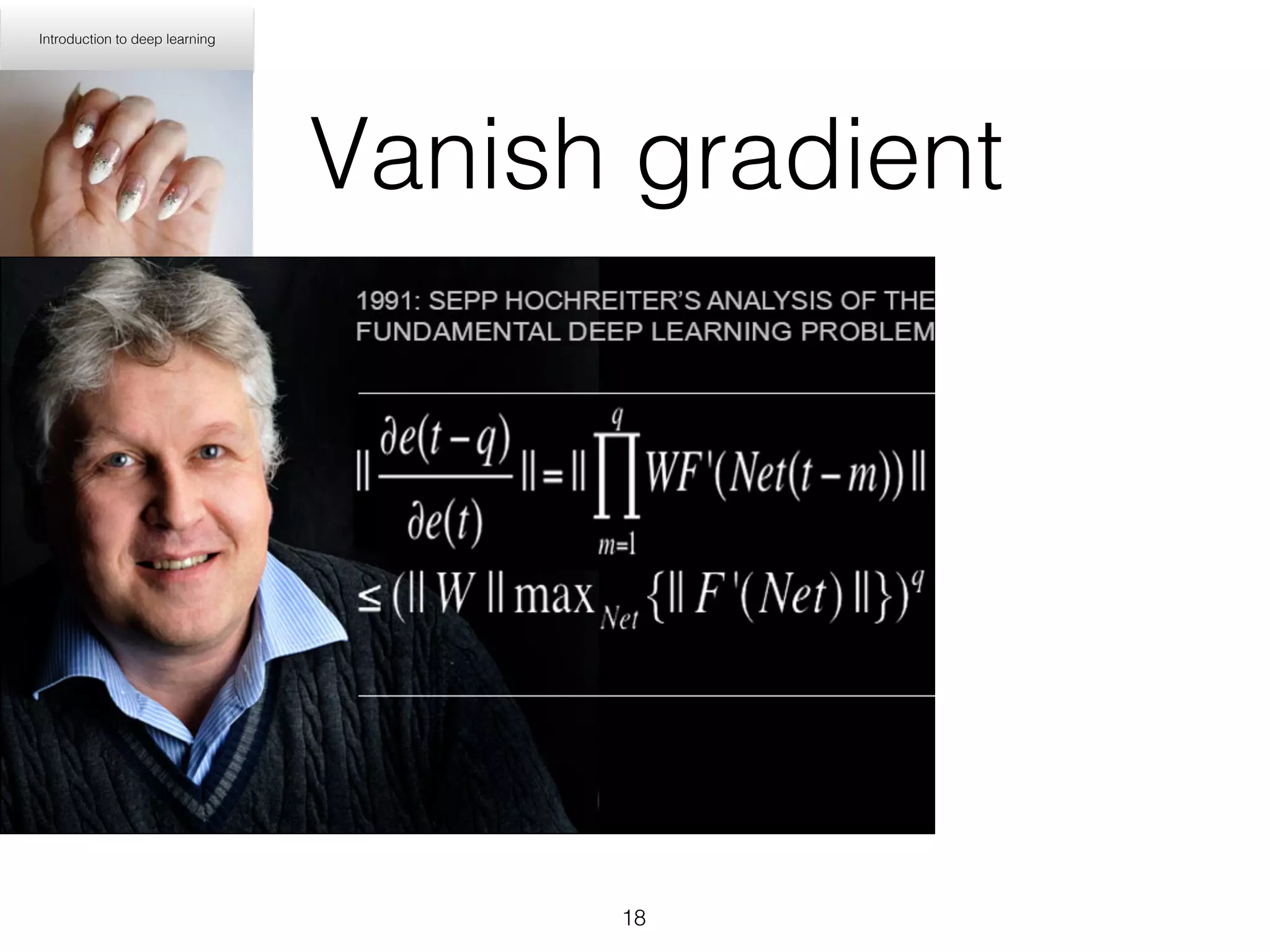

- 18. Vanish gradient! Introduction to deep learning! 18!
- 20. 10 years funding! • Hinton was happy and rebranded its neural network to deep learning. The story goes on …………..! Introduction to deep learning! 20!
- 21. Other Pioneers! Introduction to deep learning! 21!

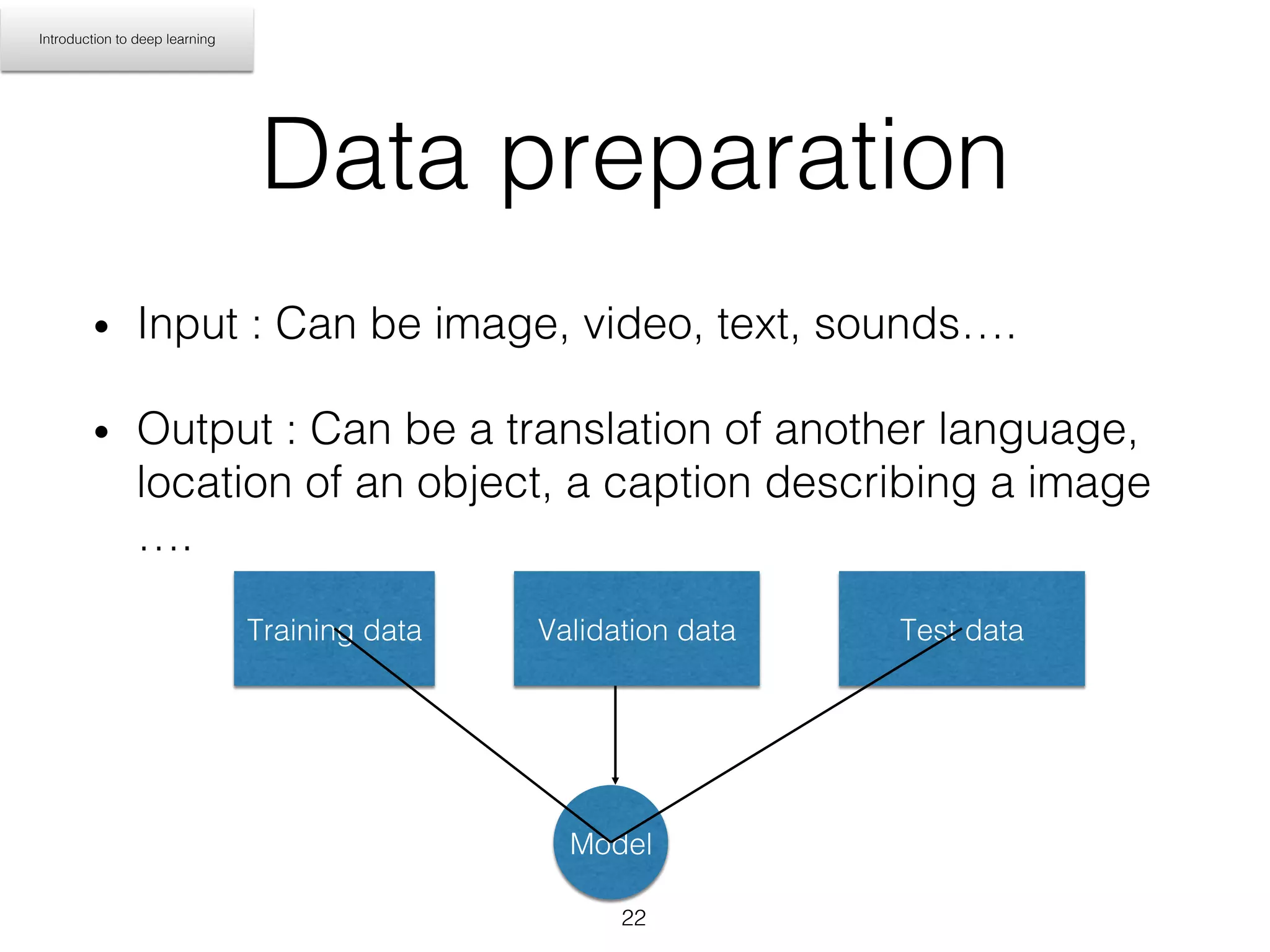

- 22. Data preparation! • Input : Can be image, video, text, sounds….! • Output : Can be a translation of another language, location of an object, a caption describing a image ….! Introduction to deep learning! Training data! Validation data ! Test data ! Model! 22!

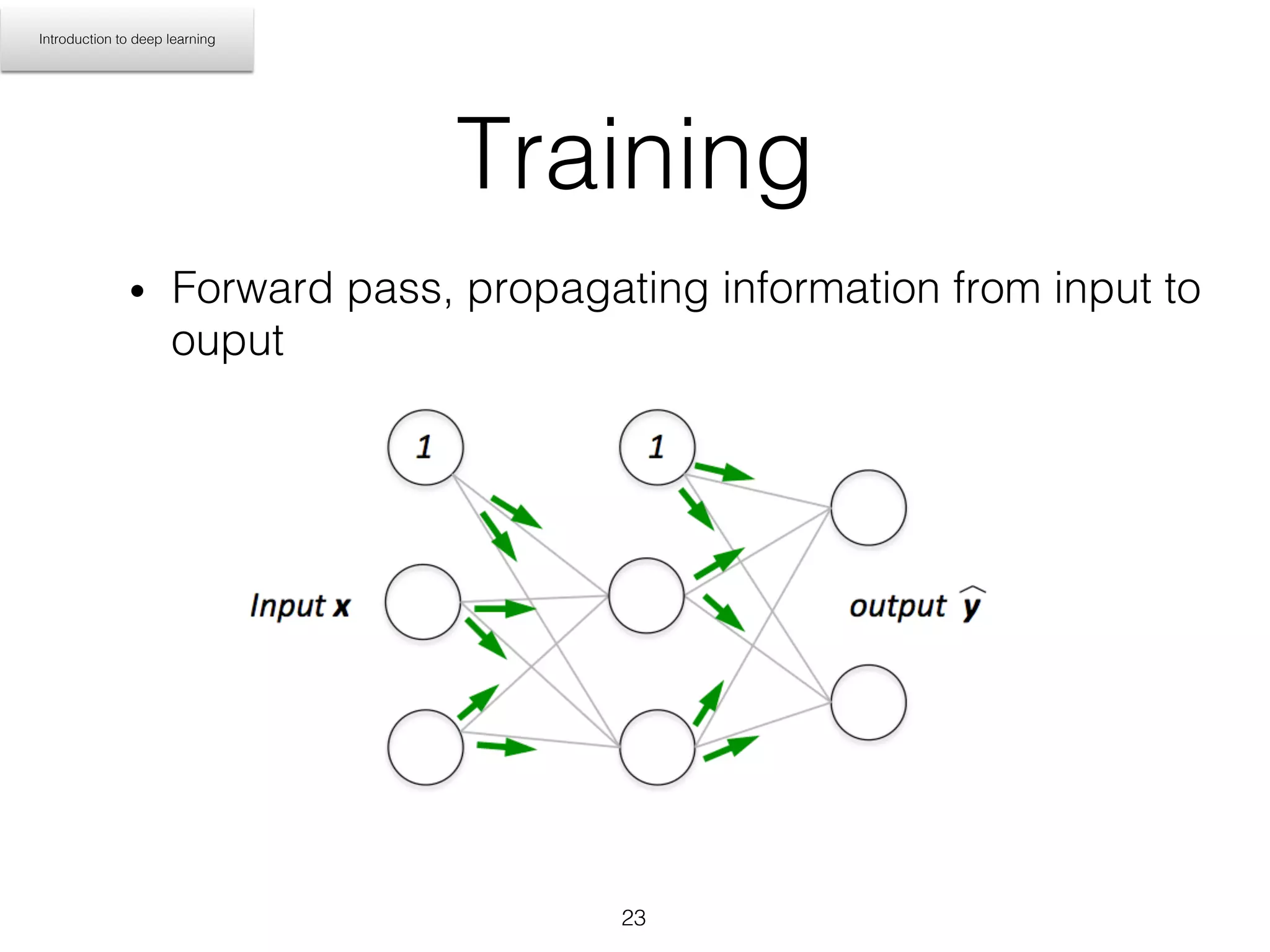

- 23. Training ! • Forward pass, propagating information from input to ouput! Introduction to deep learning! 23!

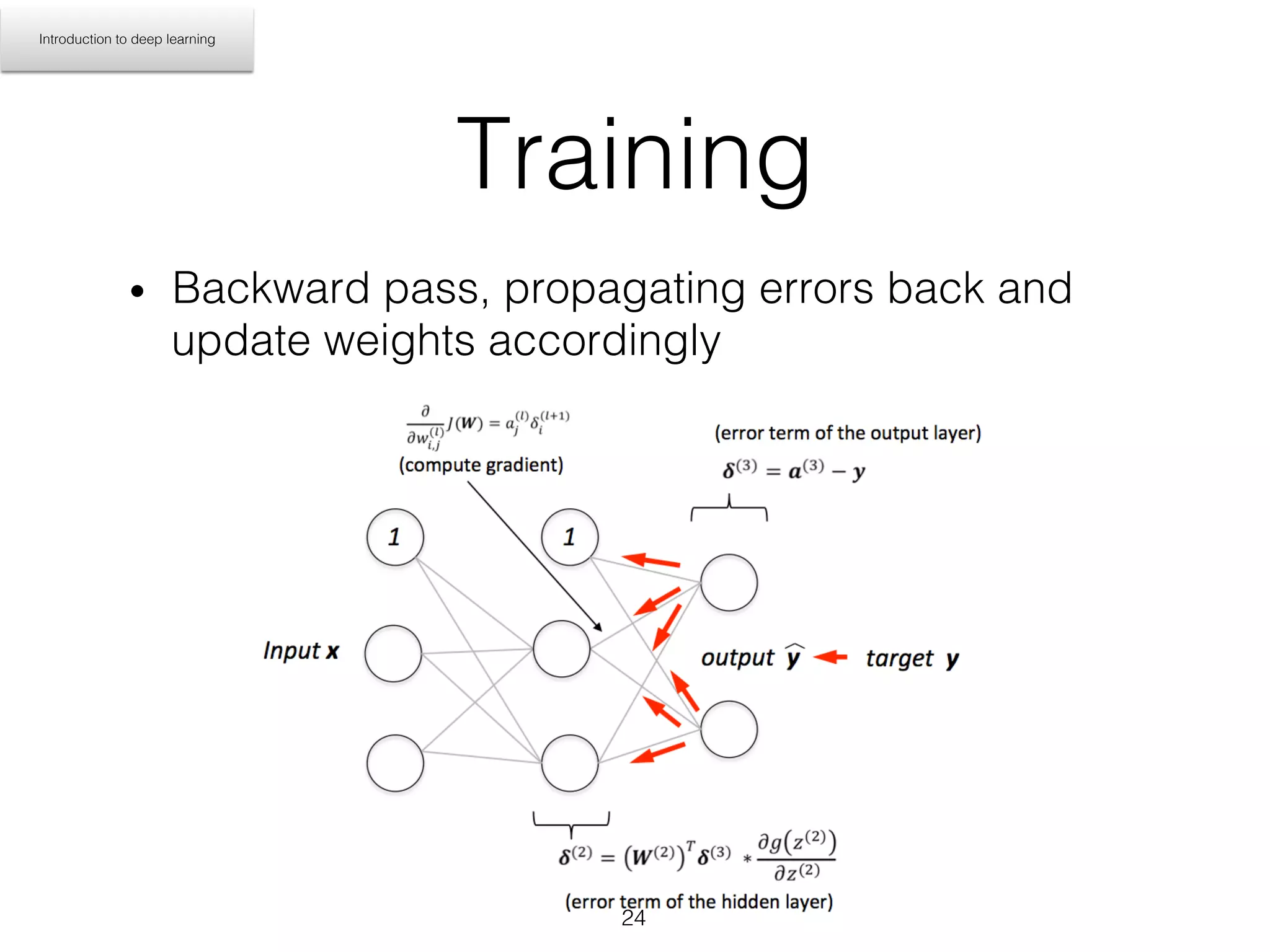

- 24. Training! • Backward pass, propagating errors back and update weights accordingly! Introduction to deep learning! 24!
- 25. Parameter update! • Gradient descent (sgd, mini-batch)! Introduction to deep learning! animation by Alec Radford! • x = x - lr * dx! source : http://cs231n.stanford.edu/! 25!

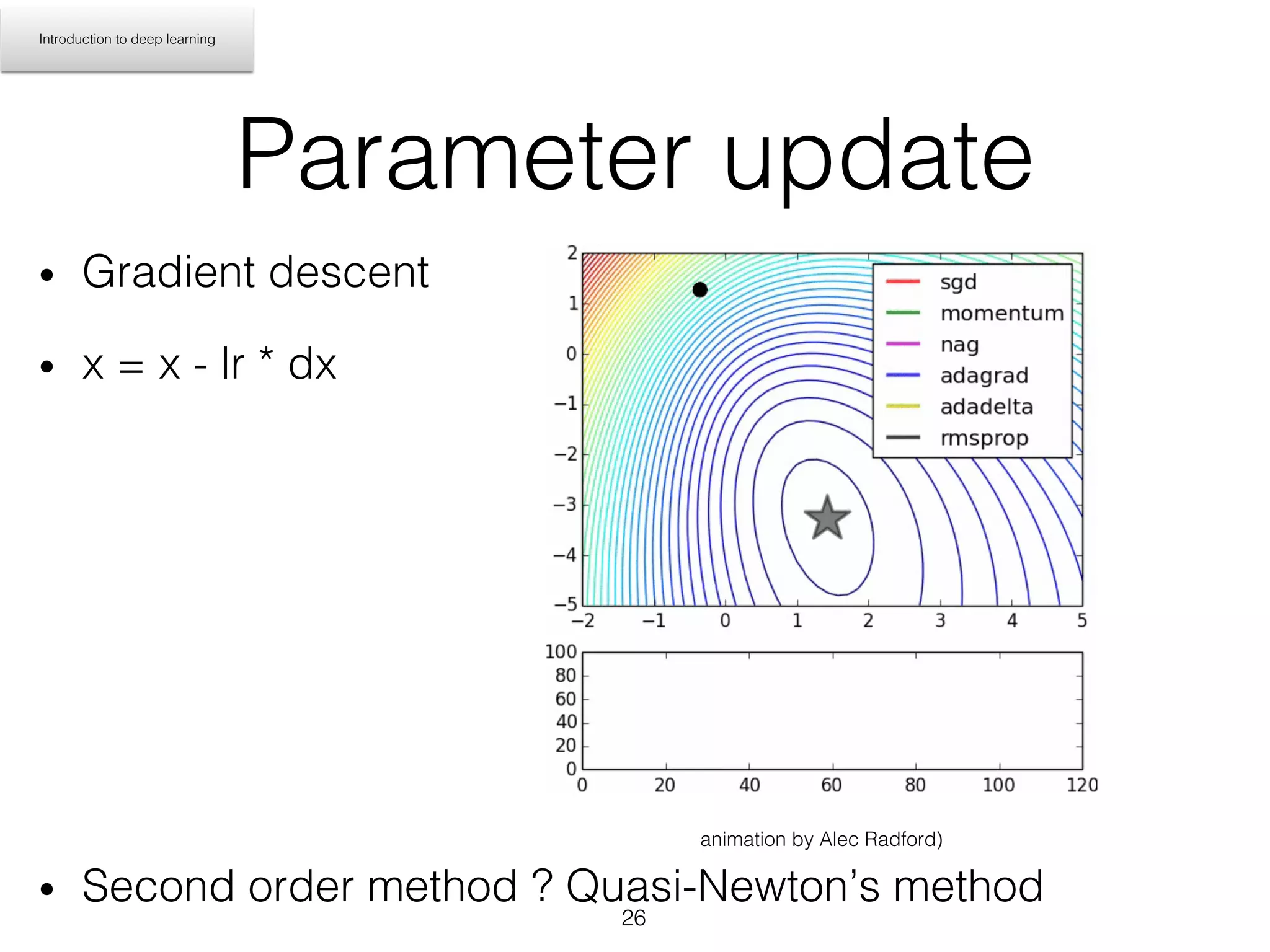

- 26. Parameter update! • Gradient descent! Introduction to deep learning! • x = x - lr * dx! animation by Alec Radford)! • Second order method ? Quasi-Newton’s method! 26!

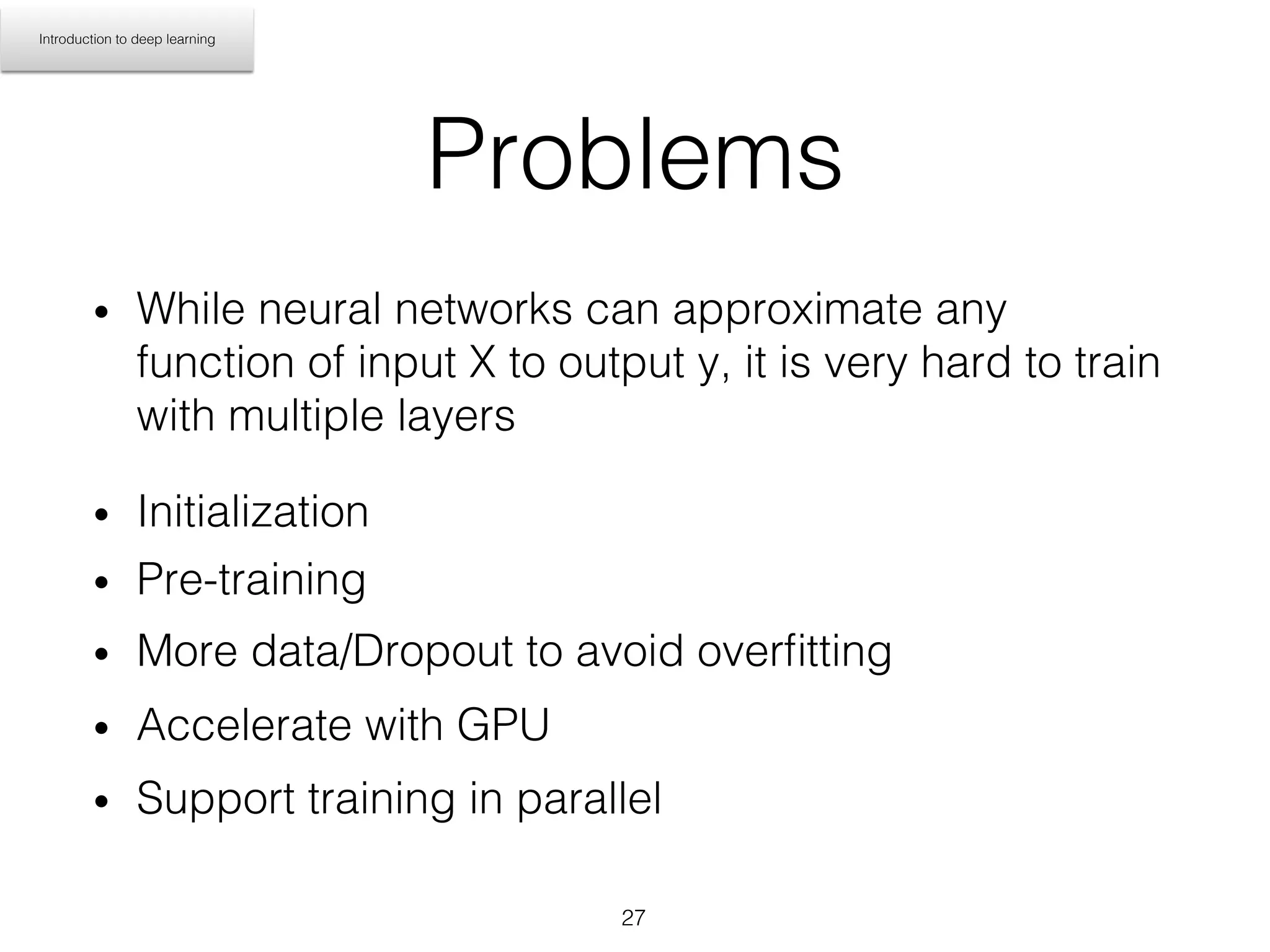

- 27. Problems! • While neural networks can approximate any function of input X to output y, it is very hard to train with multiple layers! • Initialization! Introduction to deep learning! • Pre-training! • More data/Dropout to avoid overfitting! • Accelerate with GPU! • Support training in parallel! 27!
- 28. ImageNet! • source : https://devblogs.nvidia.com/parallelforall/nvidia-ibm-cloud-support-imagenet-large-scale-visual-recognition- challenge/! Big data + Big computational power! • >1M well labeled images of 1000 classes! 28!

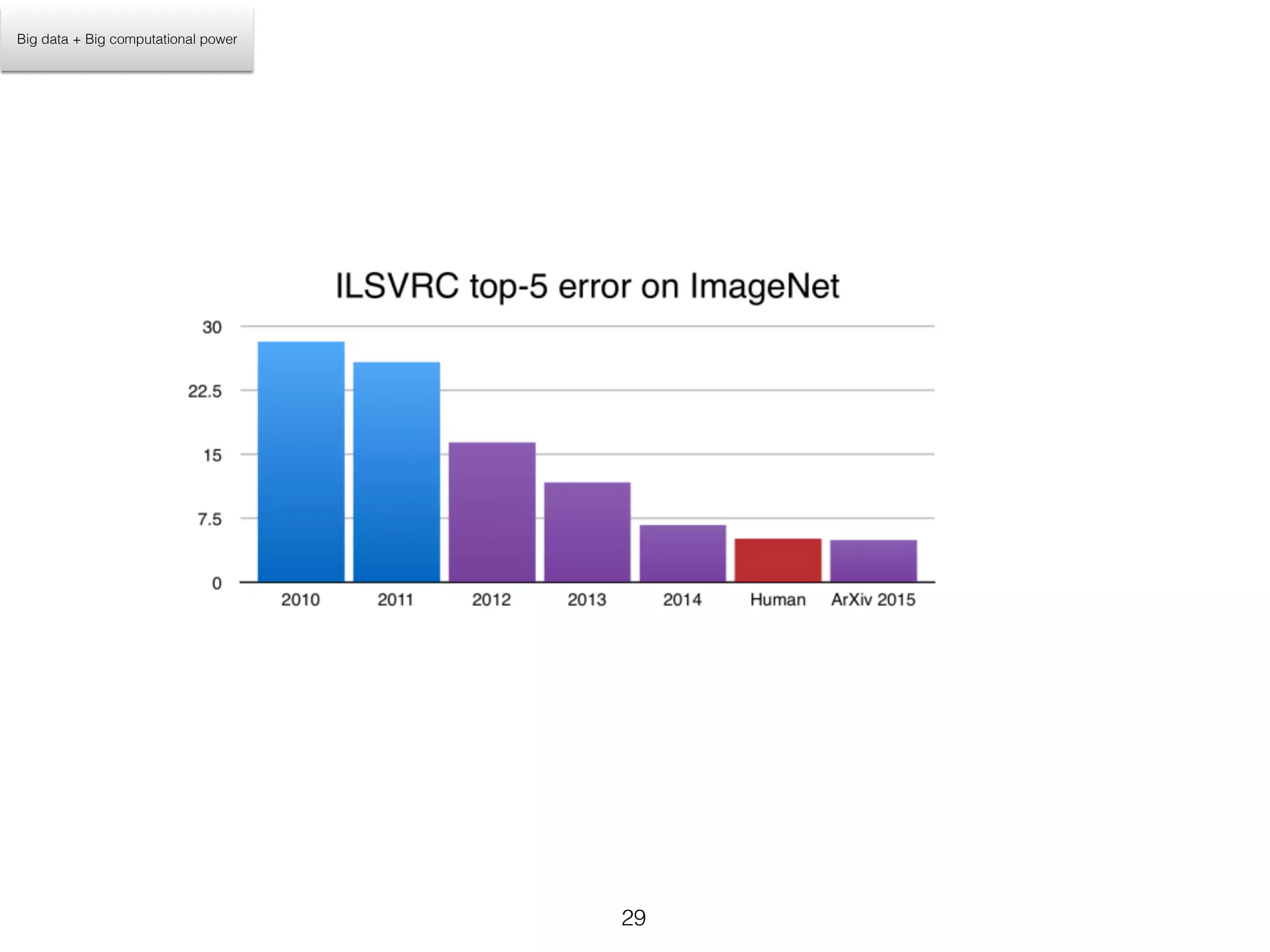

- 29. Big data + Big computational power! 29!

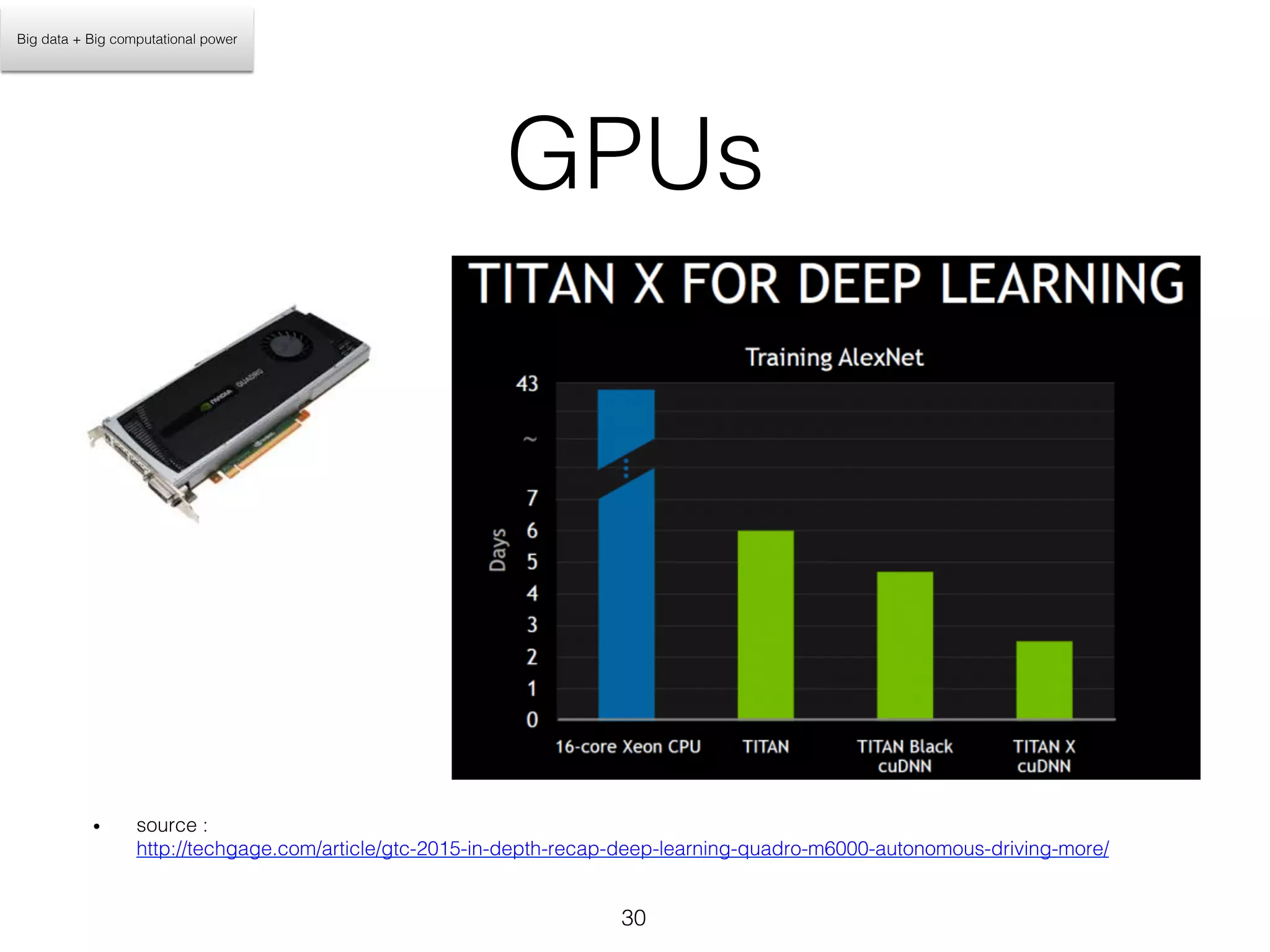

- 30. GPUs! • source : http://techgage.com/article/gtc-2015-in-depth-recap-deep-learning-quadro-m6000-autonomous-driving-more/! Big data + Big computational power! 30!

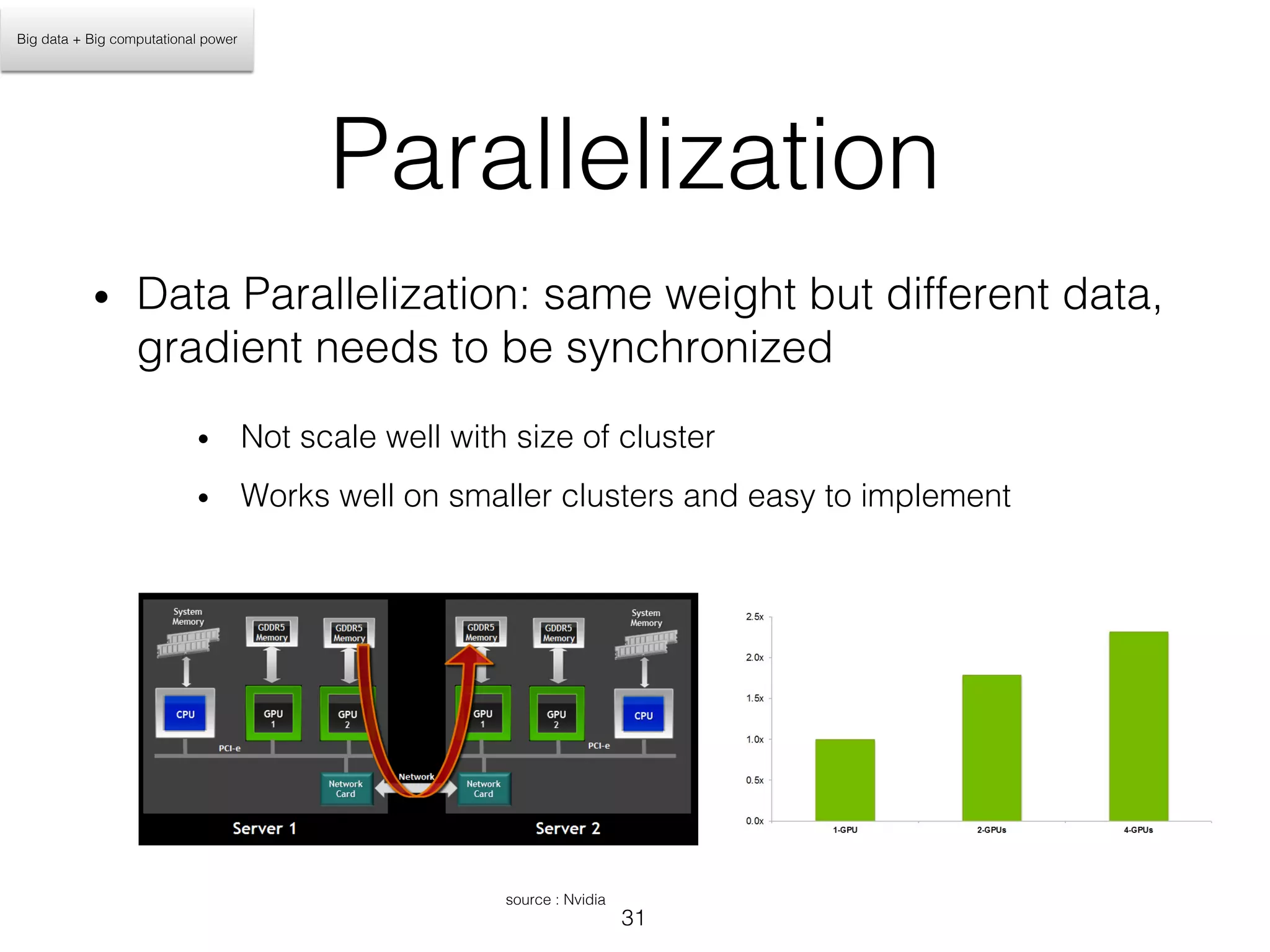

- 31. Parallelization! • Data Parallelization: same weight but different data, gradient needs to be synchronized! Big data + Big computational power! • Not scale well with size of cluster! • Works well on smaller clusters and easy to implement ! source : Nvidia! 31!

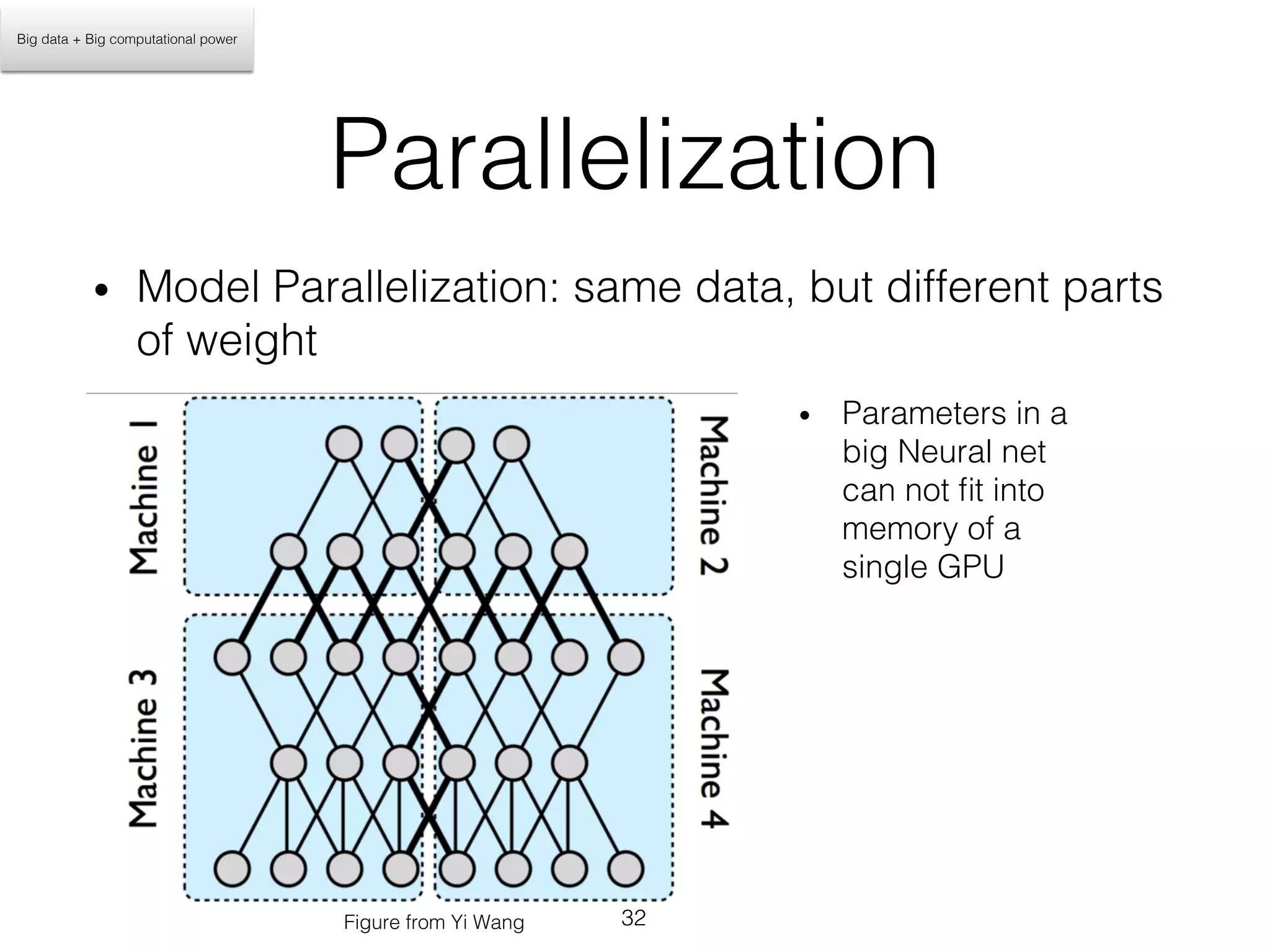

- 32. • Model Parallelization: same data, but different parts of weight! Parallelization! Big data + Big computational power! • Parameters in a big Neural net can not fit into memory of a single GPU! Figure from Yi Wang! 32!
- 33. Model+Data Parallelization! Big data + Big computational power! Krizhevsky et al. 2014! computation! heavy! weight heavy! 33!
- 34. ! • Trained on 30M moves + Computation + Clear Reward scheme! Big data + Big computational power! 34!

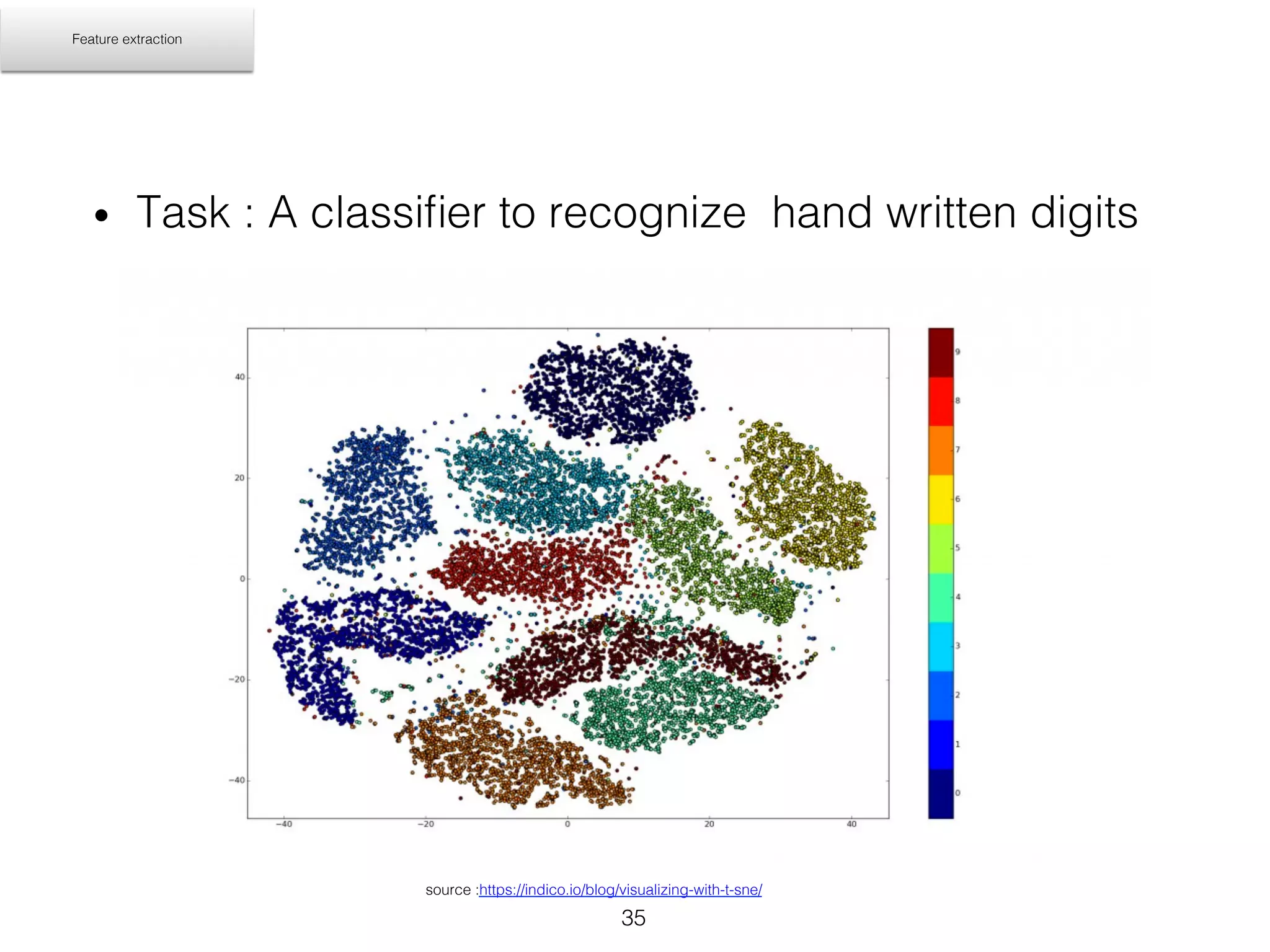

- 35. • Task : A classifier to recognize hand written digits! Feature extraction! source :https://indico.io/blog/visualizing-with-t-sne/! 35!

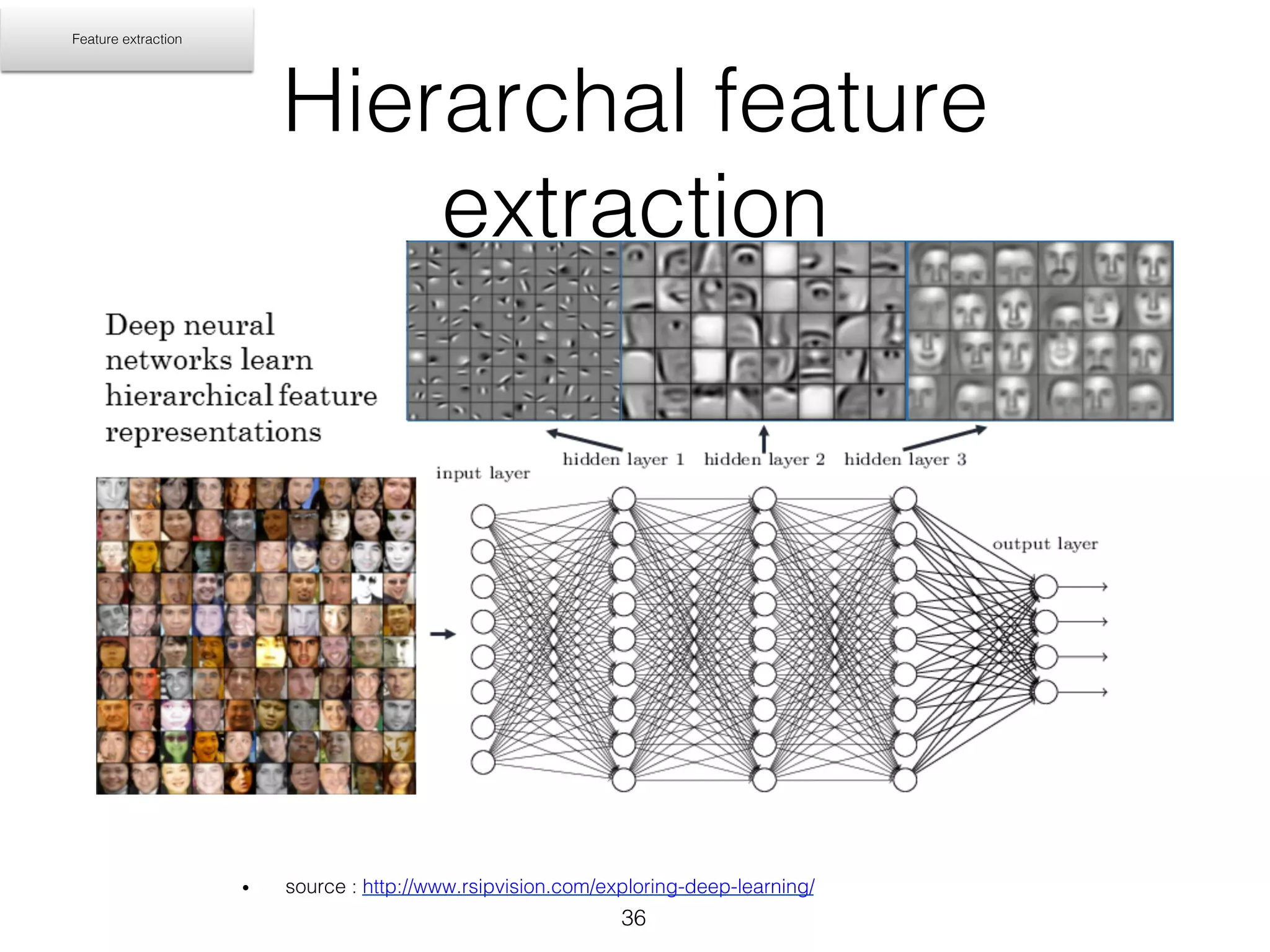

- 36. Hierarchal feature extraction! Feature extraction! • source : http://www.rsipvision.com/exploring-deep-learning/! 36!
- 37. Transfer learning! • Use features learned on ImageNet to tune your only classifier on other tasks.! Feature extraction! • 9 categories + 200, 000 images! • extract features from last 2 layers + linear SVM! 37!

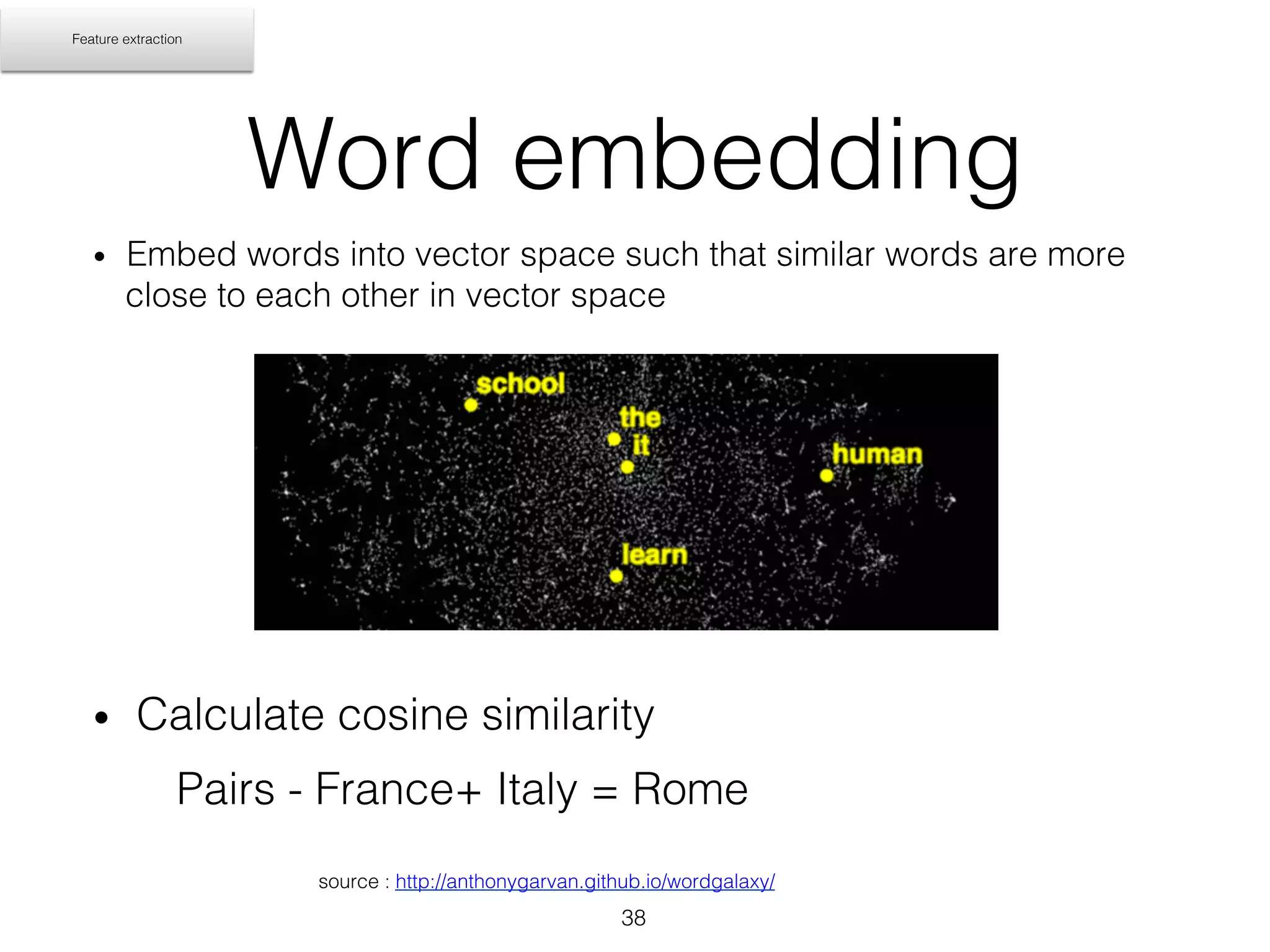

- 38. Word embedding! • Embed words into vector space such that similar words are more close to each other in vector space! Feature extraction! source : http://anthonygarvan.github.io/wordgalaxy/! • Calculate cosine similarity ! Pairs - France+ Italy = Rome! 38!
- 39. Examples! 39!

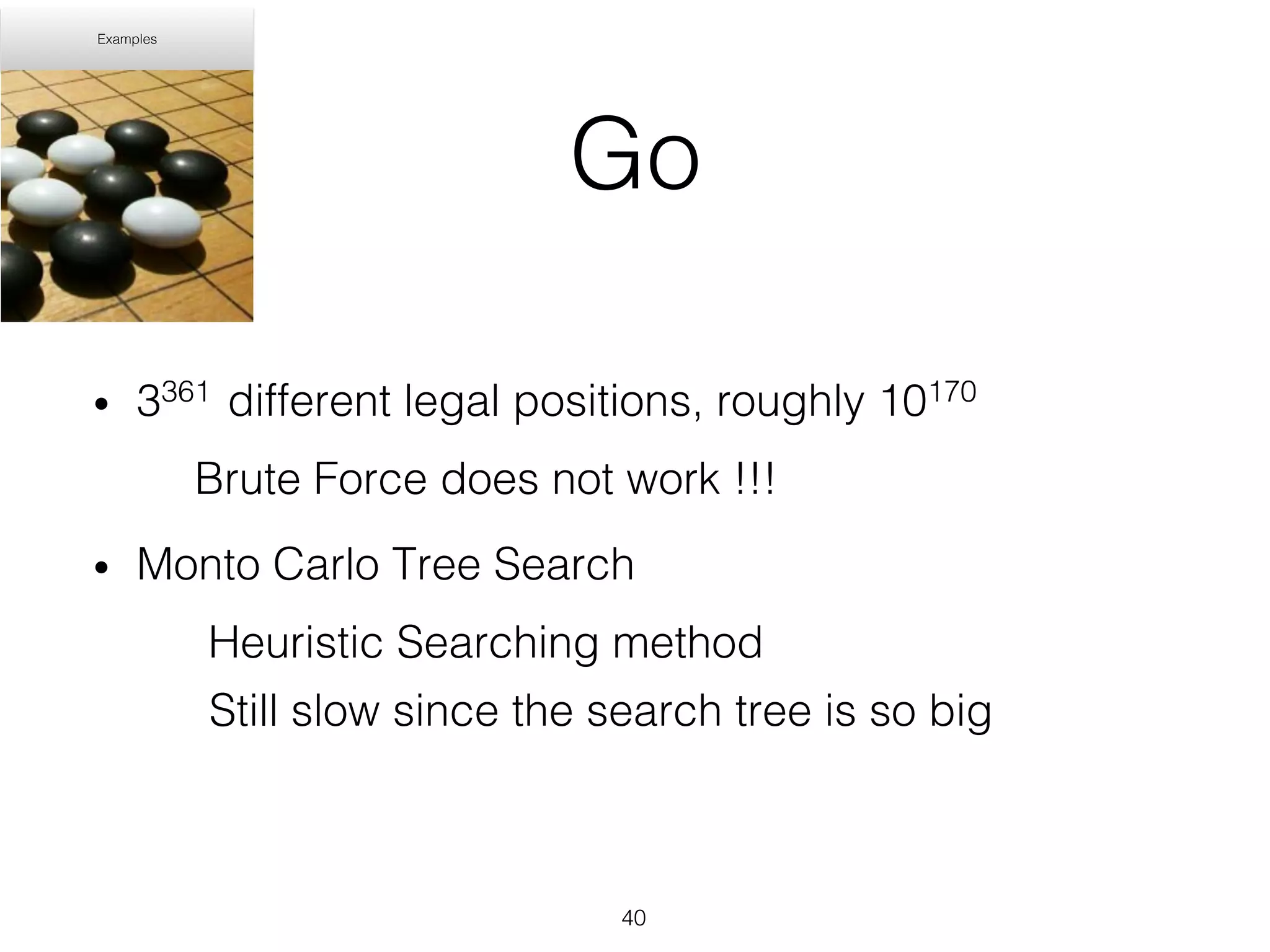

- 40. Go! • 3361 different legal positions, roughly 10170! Examples! Brute Force does not work !!!! • Monto Carlo Tree Search ! Heuristic Searching method! Still slow since the search tree is so big! 40!

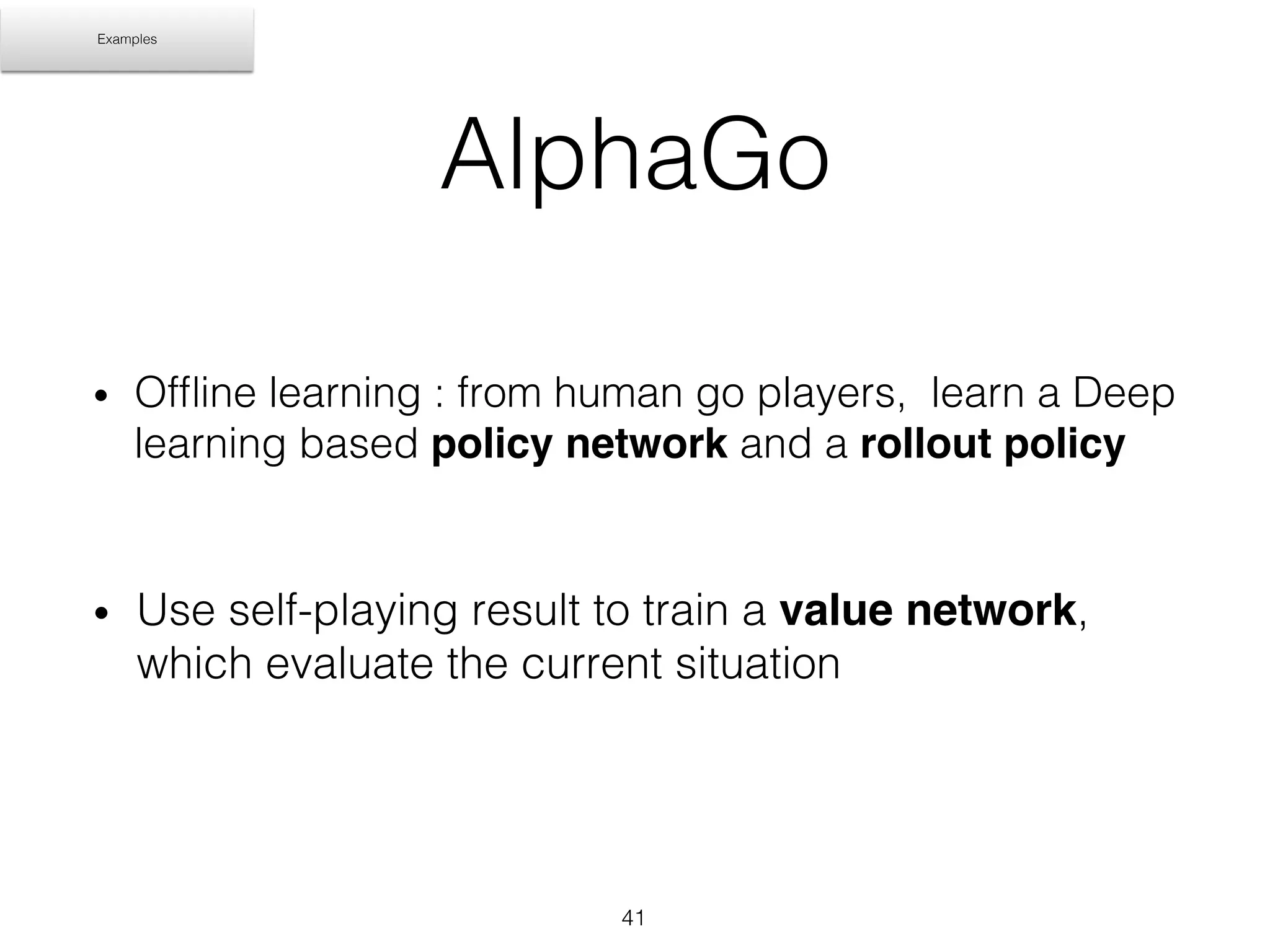

- 41. AlphaGo! Examples! • Offline learning : from human go players, learn a Deep learning based policy network and a rollout policy • Use self-playing result to train a value network, which evaluate the current situation! 41!

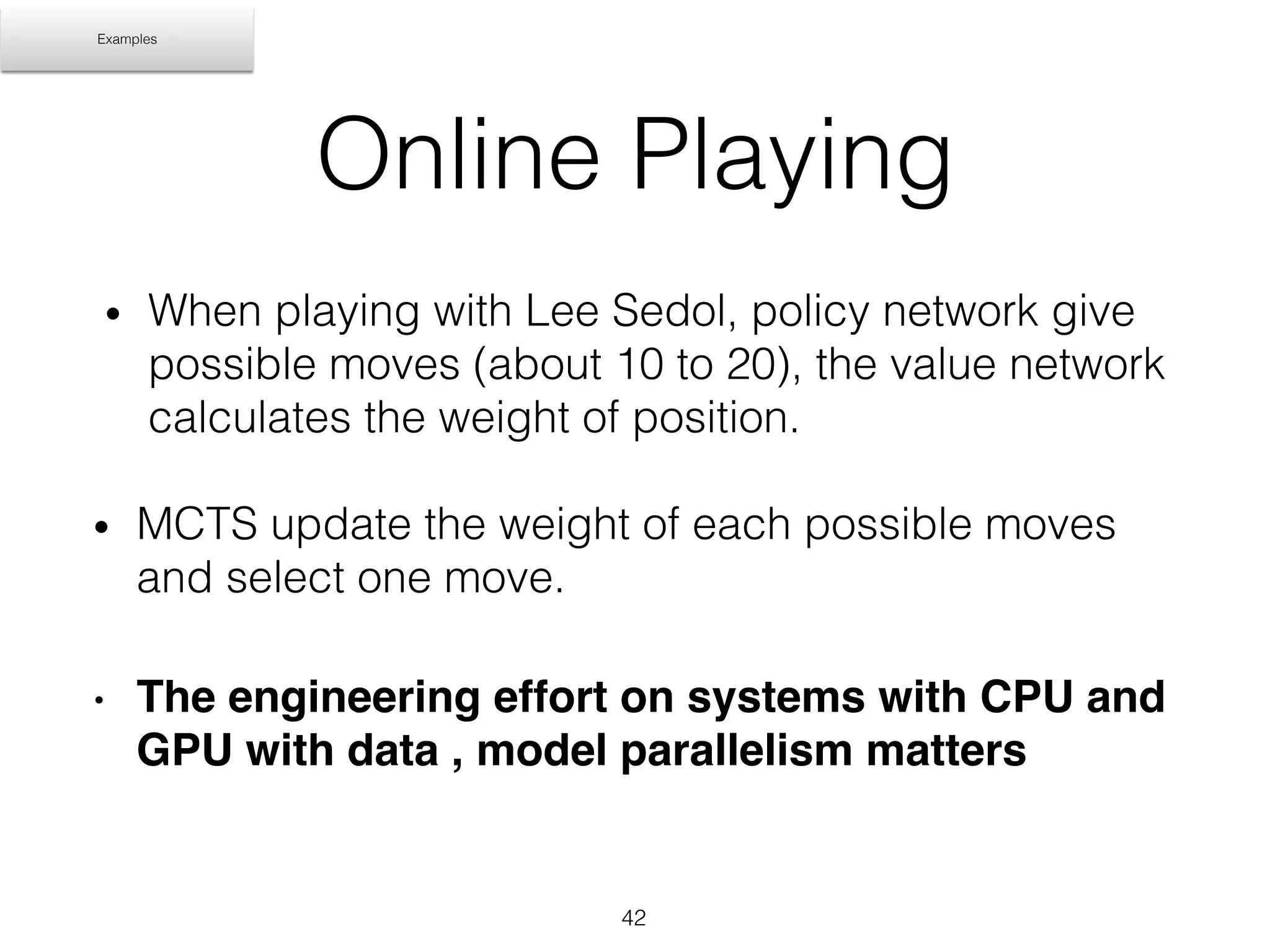

- 42. Online Playing! Examples! • When playing with Lee Sedol, policy network give possible moves (about 10 to 20), the value network calculates the weight of position.! • MCTS update the weight of each possible moves and select one move.! • The engineering effort on systems with CPU and GPU with data , model parallelism matters 42!
- 43. Image recognition! Examples! Train in a supervised fashion !43!

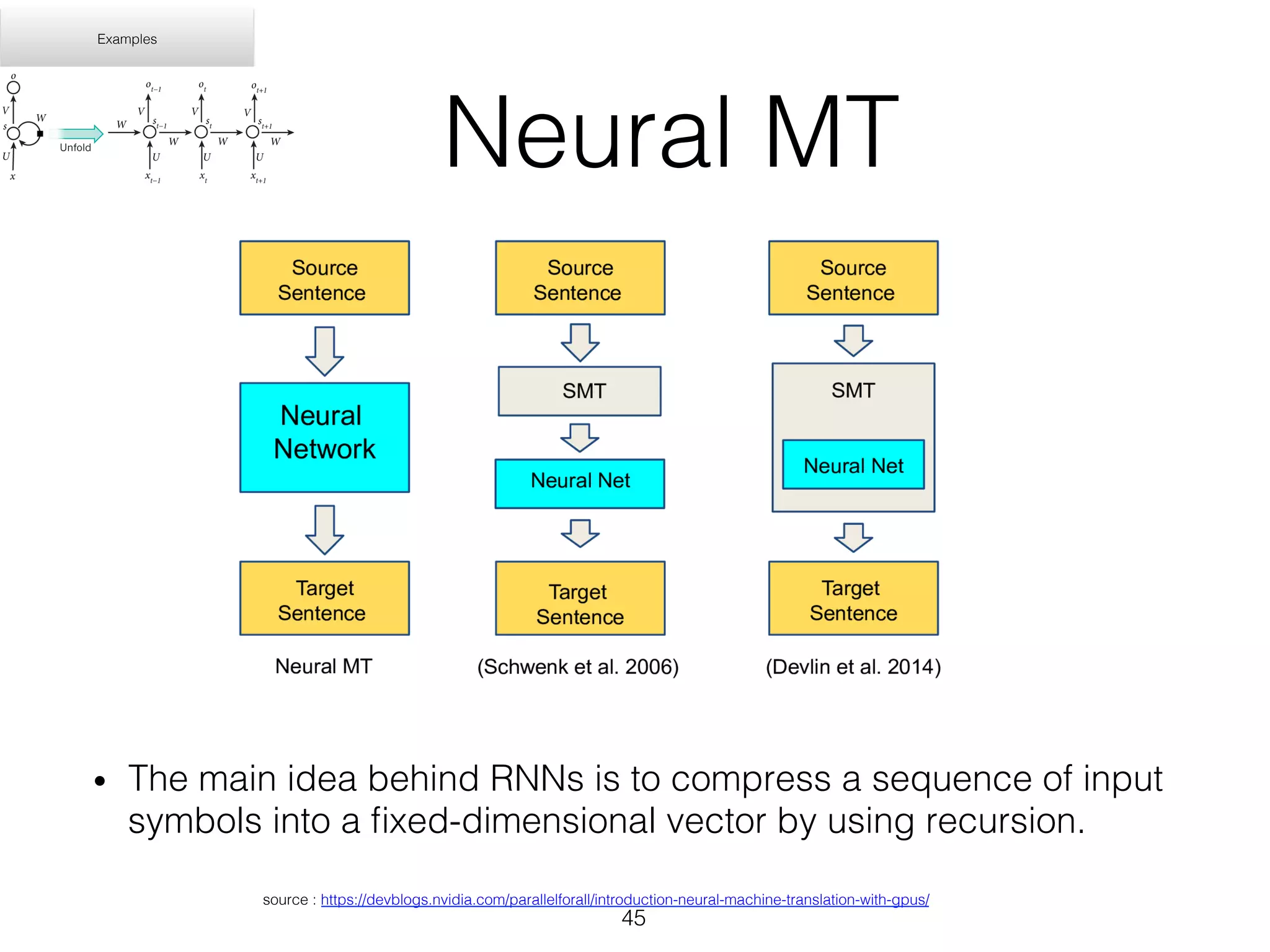

- 45. Neural MT! • The main idea behind RNNs is to compress a sequence of input symbols into a fixed-dimensional vector by using recursion.! Examples! source : https://devblogs.nvidia.com/parallelforall/introduction-neural-machine-translation-with-gpus/! 45!
- 47. Go deeper ! Updates of deep learning! • Deep Residual Learning for Image Recognition, MSRA, 2015!47!

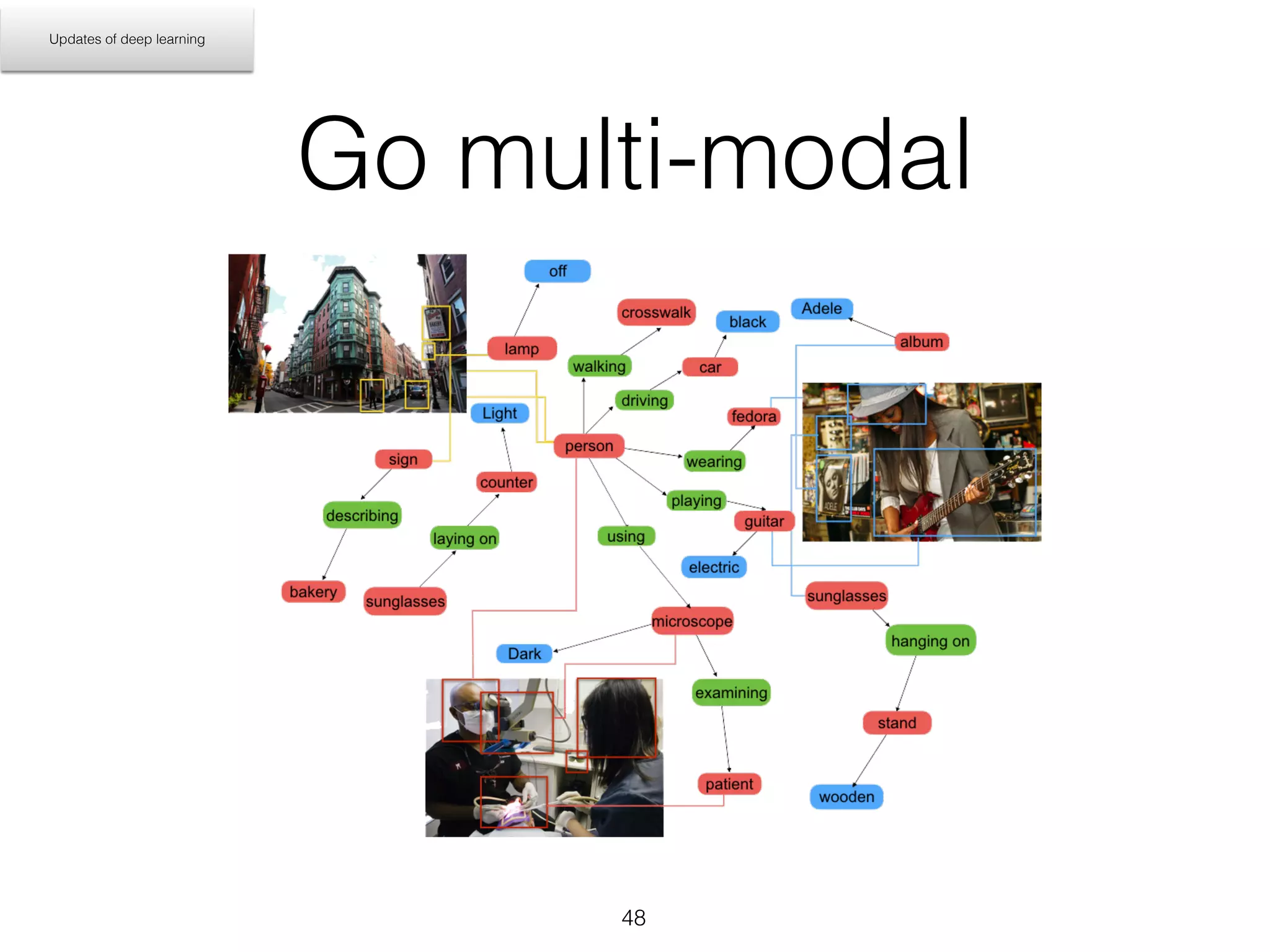

- 48. Go multi-modal! Updates of deep learning! 48!
- 49. Go End-End! Updates of deep learning! ps://devblogs.nvidia.com/parallelforall/deep-speech-accurate-speech-recognition-gpu-accelerated-deep-learning/#.VO56E8ZtEkM.google_plus 49!
- 50. Go with attention! Updates of deep learning! 50!

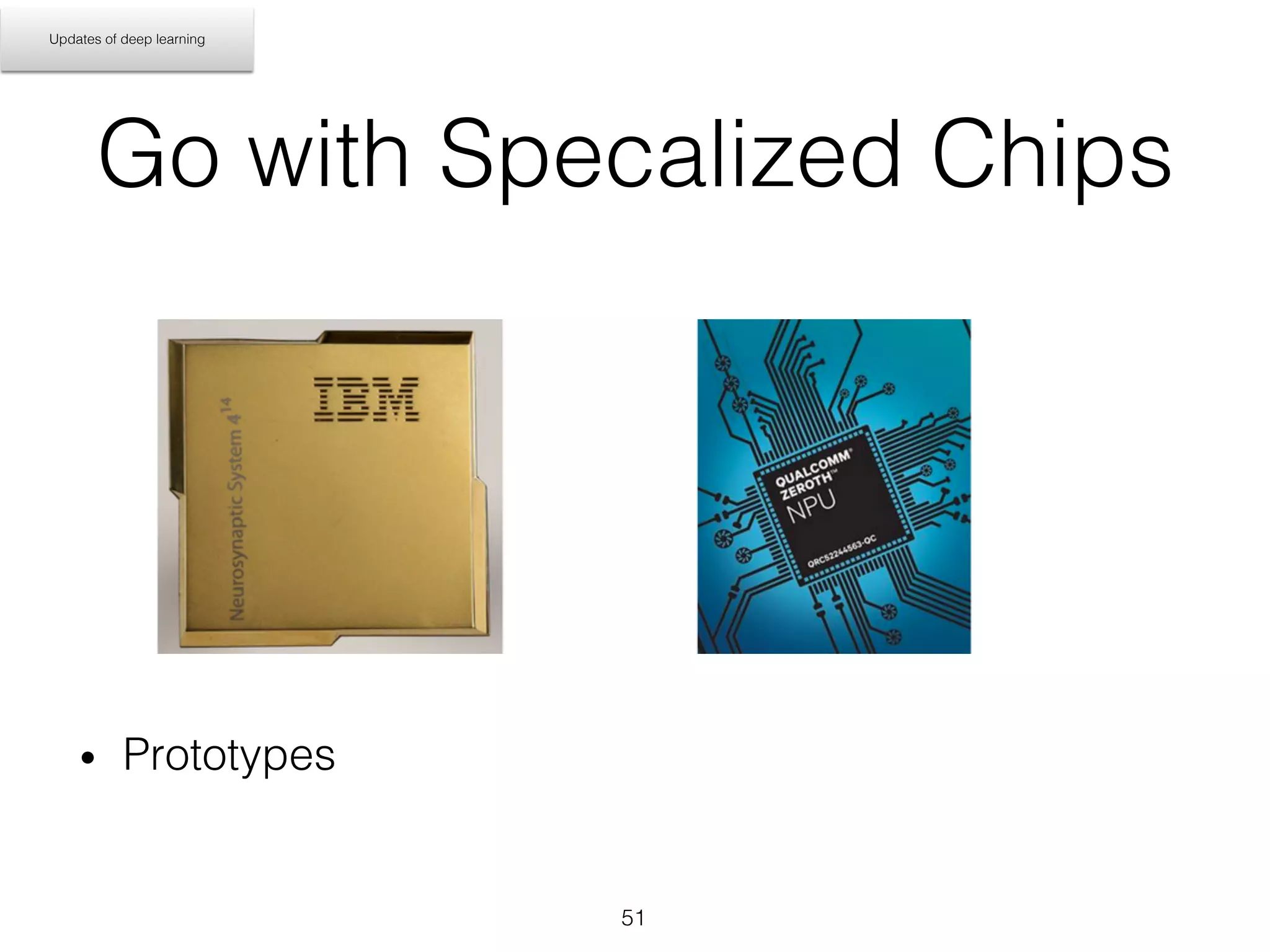

- 51. Go with Specalized Chips! Updates of deep learning! • Prototypes! 51!
- 52. Go where! • Video understanding! Updates of deep learning! • Deep reinforcement learning! • Natural language understanding! • Unsupervised learning !!!! 52!
- 54. 54!
- 55. 55!
- 56. Summary! • “The takeaway is that deep learning excels in tasks where the basic unit, a single pixel, a single frequency, or a single word/character has little meaning in and of itself, but a combination of such units has a useful meaning.” — Dallin Akagi! • Structured data + well defined cost function/ rewards ! • learning in a End-End fashion is nice trend! 56!

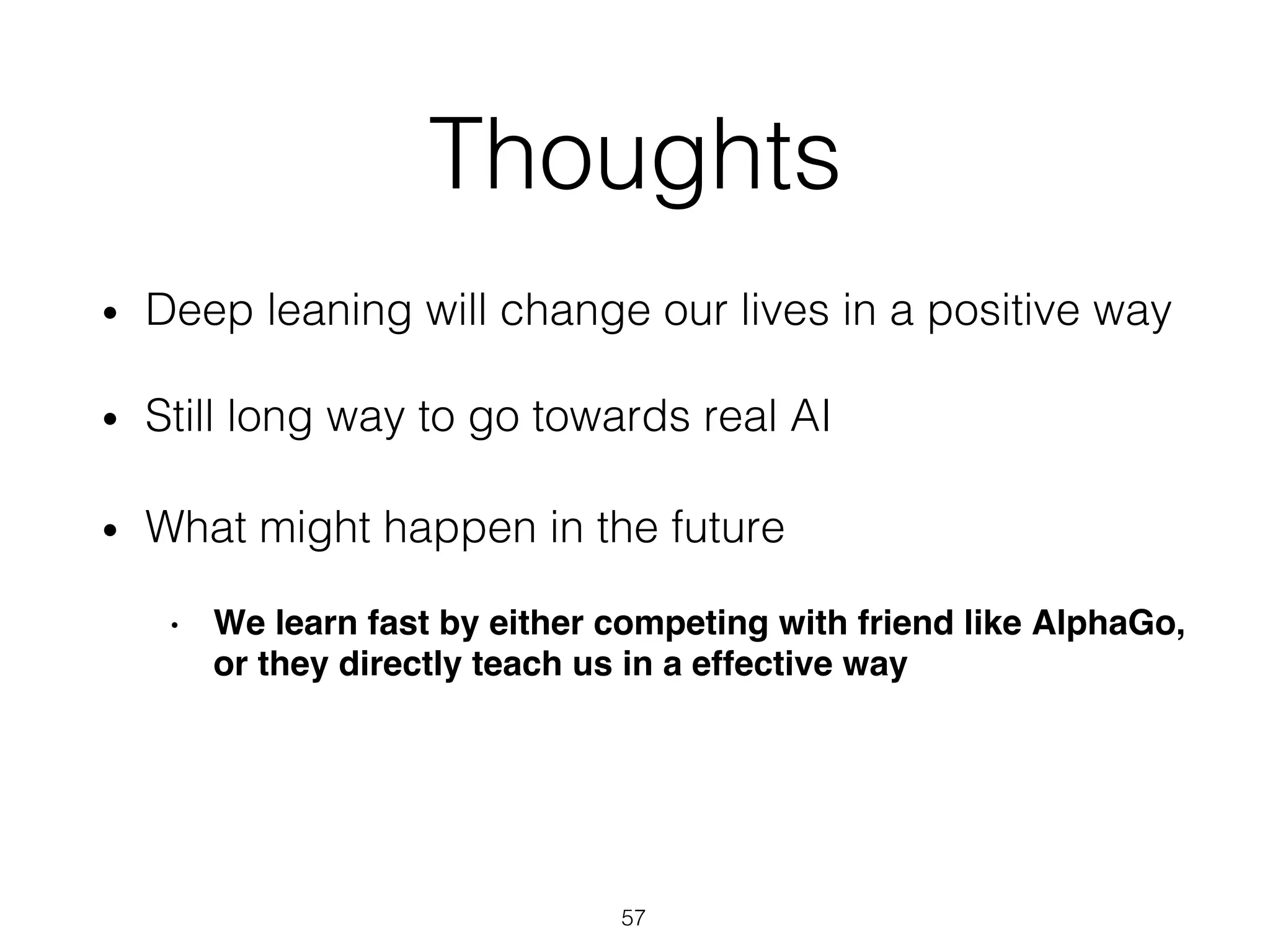

- 57. Thoughts! • Deep leaning will change our lives in a positive way! • We learn fast by either competing with friend like AlphaGo, or they directly teach us in a effective way • What might happen in the future! • Still long way to go towards real AI! 57!

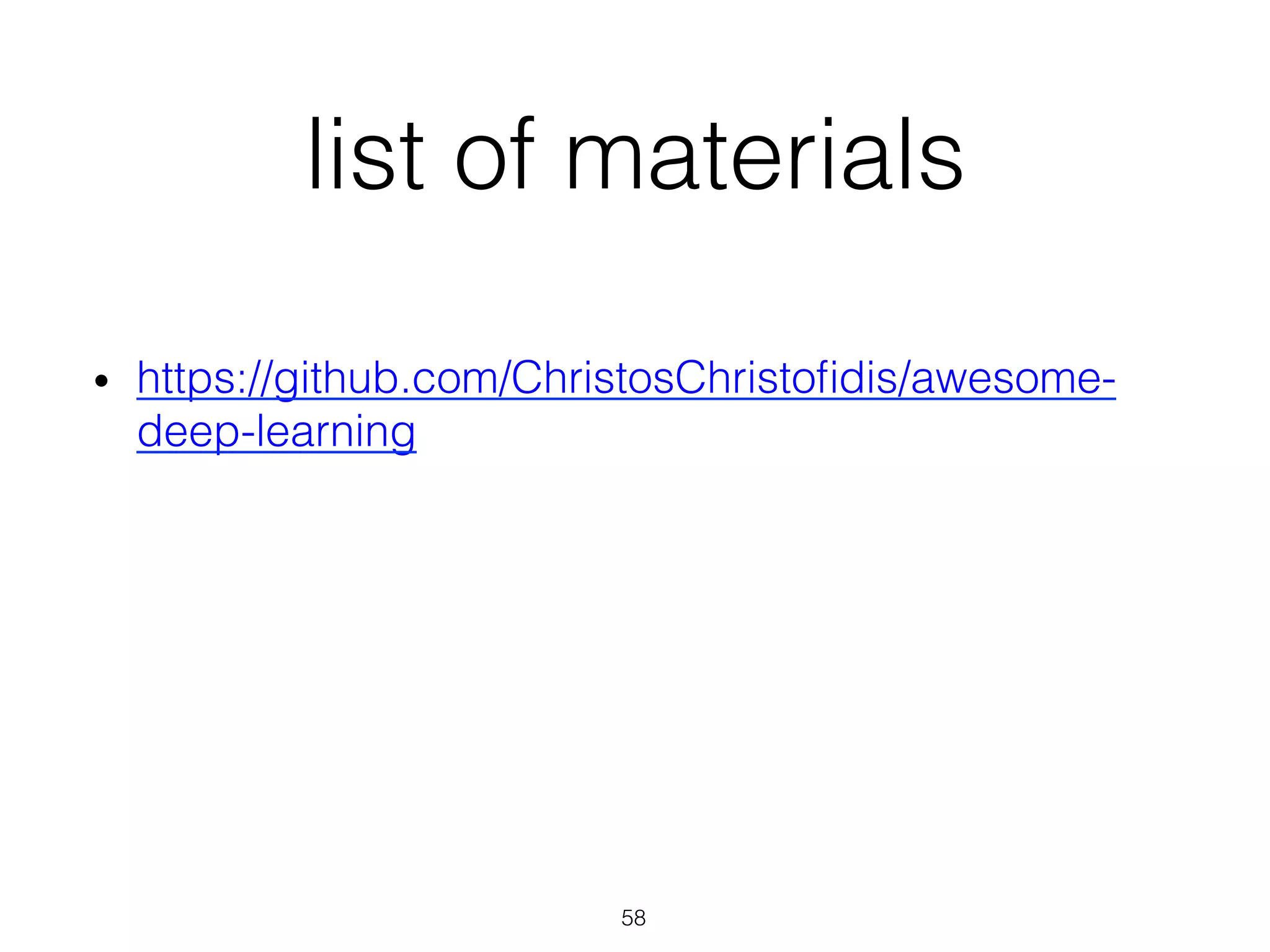

- 58. list of materials! • https://github.com/ChristosChristofidis/awesome- deep-learning! 58!
- 59. Acknowledgement! • Tim Dettmers! • Lyu xiyu! 59!
