Thin layer chromatography (TLC) is a technique used to separate mixtures based on differences in how compounds partition between a stationary phase and a mobile phase. TLC uses a glass, plastic, or aluminum plate coated with a thin layer of adsorbent material (typically silica gel) as the stationary phase. A sample mixture is applied near one edge of the plate, and the plate is placed in a developing chamber with a small amount of mobile phase solvent. As the solvent rises through the plate by capillary action, it carries different analytes with it at different rates based on their interactions with the two phases, separating the mixture into individual components visible as spots on the plate. TLC is a simple, inexpensive technique

1. THIN LAYER
CHROMATOGRAPHY
Submitted by :
HRISHAV VARDWAJ
1ST SEMESTER M.PHARM
Dept. of Pharmaceutics

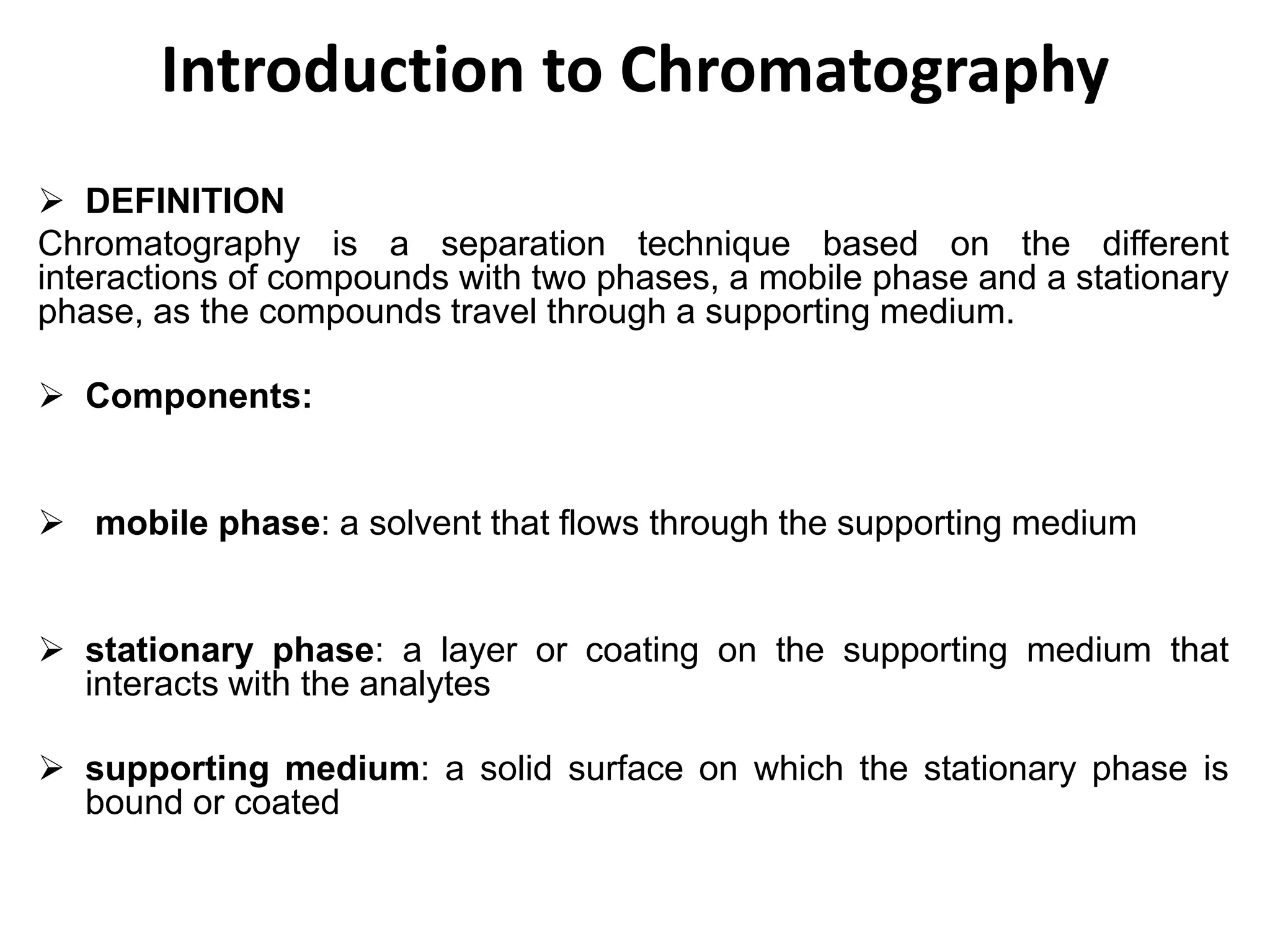

2. Introduction to Chromatography
 DEFINITION
Chromatography is a separation technique based on the different
interactions of compounds with two phases, a mobile phase and a stationary
phase, as the compounds travel through a supporting medium.
 Components:
 mobile phase: a solvent that flows through the supporting medium
 stationary phase: a layer or coating on the supporting medium that
interacts with the analytes
 supporting medium: a solid surface on which the stationary phase is
bound or coated

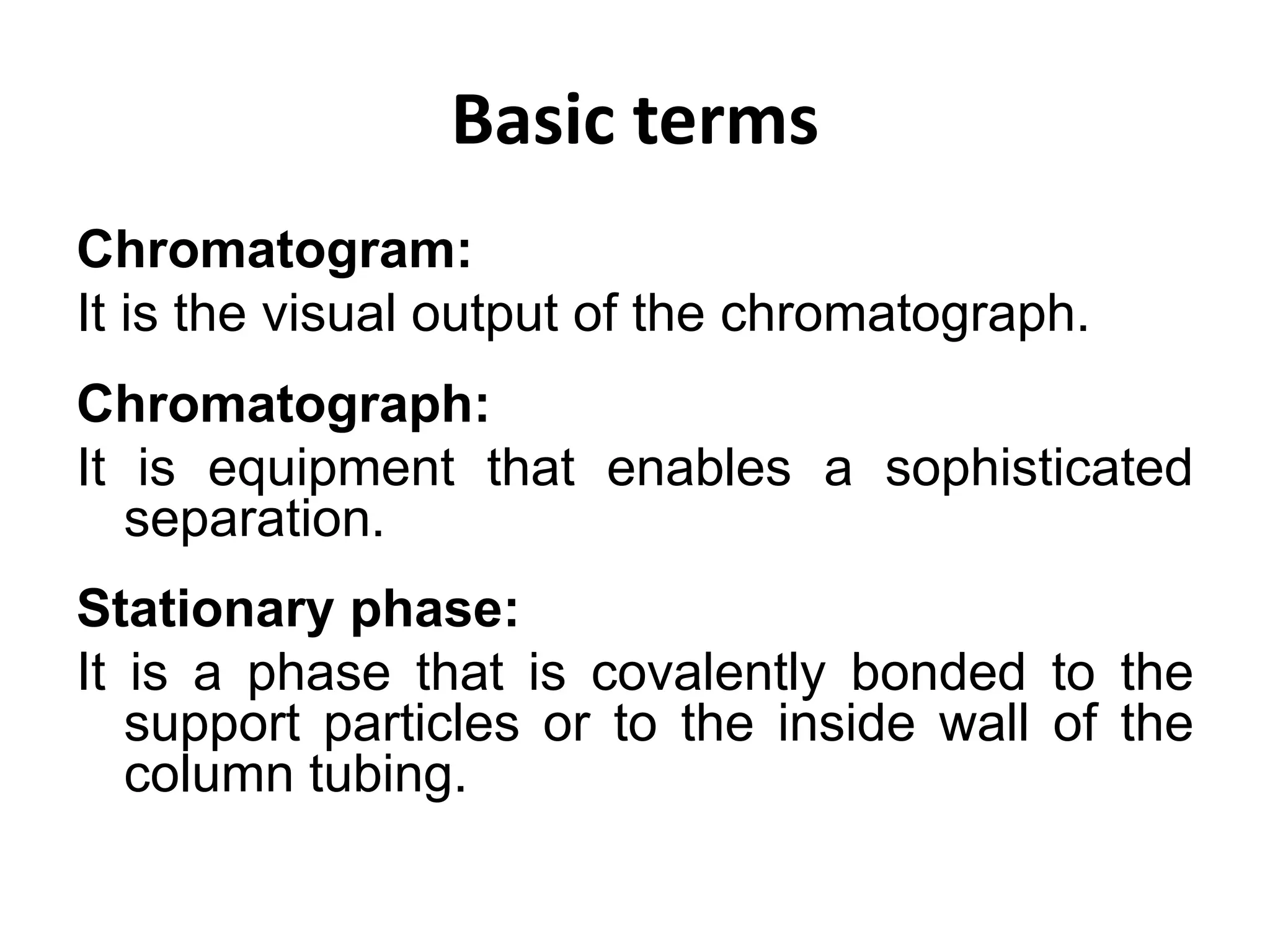

3. Basic terms
Chromatogram:
It is the visual output of the chromatograph.
Chromatograph:
It is equipment that enables a sophisticated
separation.
Stationary phase:
It is a phase that is covalently bonded to the
support particles or to the inside wall of the
column tubing.

4. Basic terms
Mobile phase:
It is the phase which moves in a definite
direction.
Analyte (Sample):
It is the substance to be separated during
chromatography.
Eluate:
It is the mobile phase leaving the column.

5. Basic terms
Retention time:
It is the characteristic time it takes for a
particular analyte to pass through the
system (from the column inlet to the
detector) under set conditions.
Eluent:
It is the solvent that will carry the analyte.

6. Basic terms
• Retardation Factor(Rf value):
It is defined as the distance traveled by the
compound divided by the distance traveled by
the solvent.

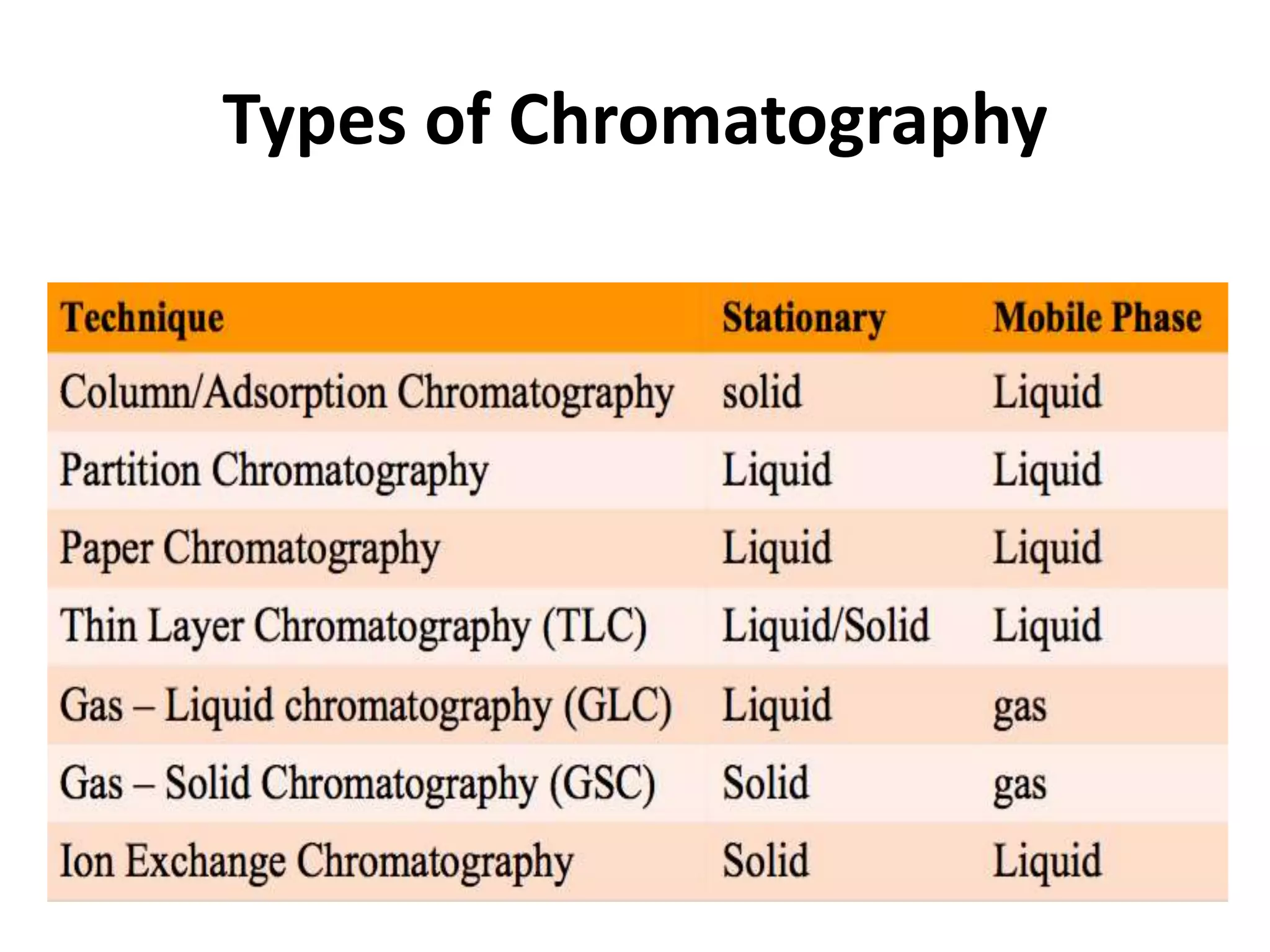

7. Types of Chromatography

8. TLC
• Thin Layer Chromatography can be defined as a method of
separation or identification of a mixture of components into
individual components by using finely divided adsorbent solid
/ (liquid) spread over a glass plate and liquid as a mobile
phase.
• Principle:
• - Adsorption or retention or partition or both or any other
• principle of a substance (s ) on the stationary phase
• - Separation of the adsorbed substances by the mobile phase
• - Recovery of the separated substances by a continuous flow
of the mobile phase (elution)
• - Qualitative and quantitative analysis of the eluted
substances

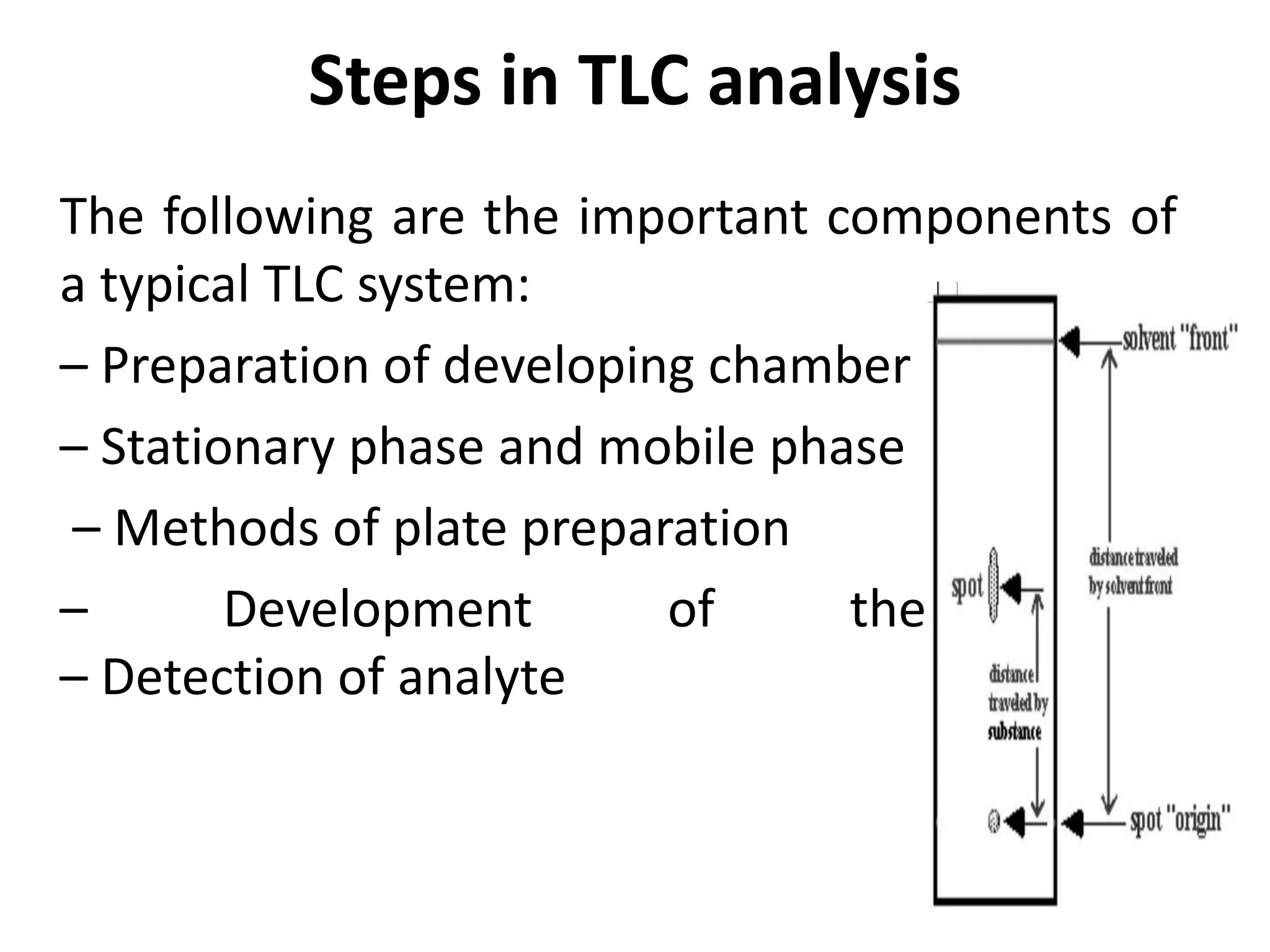

9. Steps in TLC analysis
The following are the important components of
a typical TLC system:
– Preparation of developing chamber
– Stationary phase and mobile phase
– Methods of plate preparation
– Development of the plate
– Detection of analyte

10. Preparation of the developing chamber
• It can be a specially designed chamber, a jar with
a lid, or a beaker with a watch glass on the top
• Pour solvent into the chamber to a depth of just
less than 0.5 cm.
• To aid in the saturation of the TLC chamber with
solvent vapours, you can line part of the inside of
the beaker with filter paper.
Cover the beaker with a watch glass
• Allow it to stand while you prepare your TLC
plate.

11. Why silica is used?
• Silica (SiO
2
) is a solid with an extended
structure of tetrahedral silica atoms bridged
together by bent oxygen atoms.
• On the surface of the silica particles, the
solid terminates in very polar silanol
groups(Si-O-H) .
• The silica is the stationary phase
because it remains adhered to the glass
plate and does not move during the
chromatography process.

12. Adsorbent : Water ratio

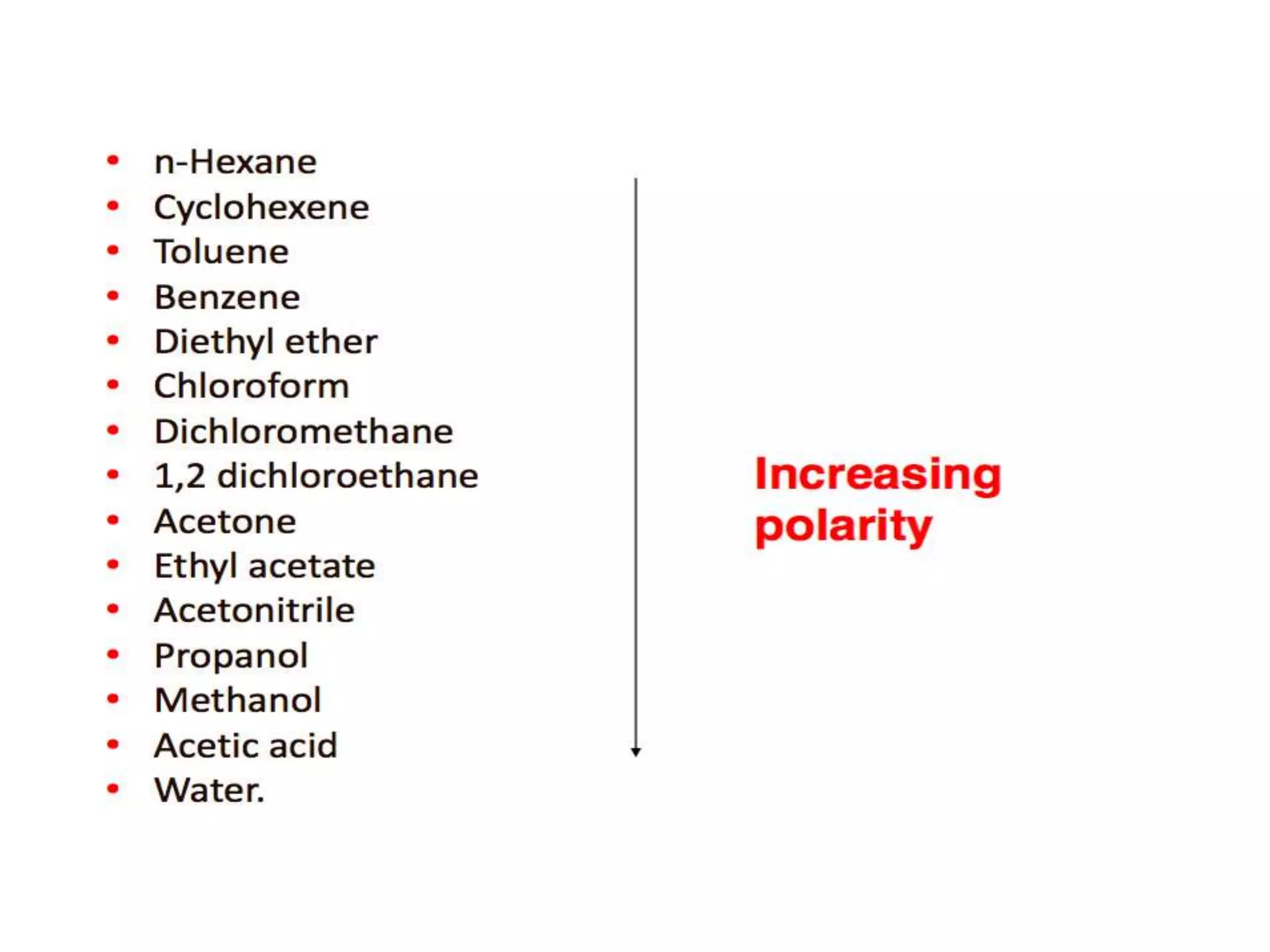

13. Mobile Phase
• The eluting solvent should also show a
maximum of selectivity in its ability to
dissolve the substances being separated.
• A more important property of the solvent is
its ability to be itself adsorbed on the
adsorbent.
• Mixtures of solvents can be used and, since
increasing eluting power results (0.5 to 2%
by volume)

15. Methods of plate preparation
• • Pouring: The adsorbent of finely divided and
homogeneous particle size is made into slurry and is
poured on a plate and allowed to flow over it so that it is
evenly covered.
• Dipping : This technique is used for small plates by
dipping the two plates at a time, back to back in a slurry
of adsorbent in chloroform or other volatile solvents.
Exact thickness of layer is not known and evenness of
layer may not be good.

16. • • Spraying : Slurry is diluted further for the operation of
sprayer. But this technique is not used now a days as it
is difficult to get uniform layer.
• • Spreading : All the above methods fail to give thin and
uniform layers. Modern methods utilize the spreading
devices for preparation of uniform thin layers on glass
plates. Commercial spreaders are of two types (a)
Moving spreader, (b) Moving plate type.
• It gives layer thickness from 0.2 to 2.0 mm.

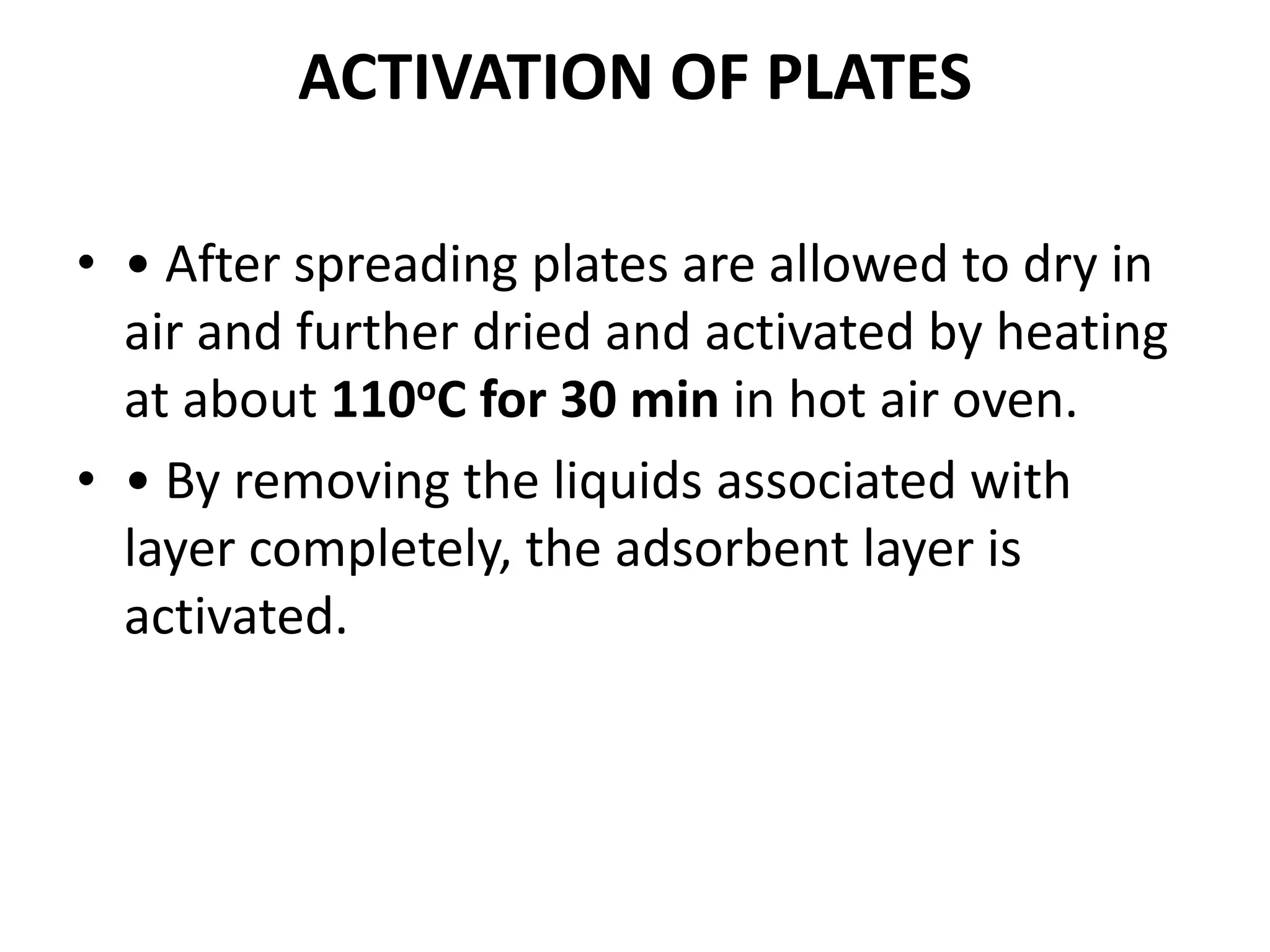

17. ACTIVATION OF PLATES
• • After spreading plates are allowed to dry in
air and further dried and activated by heating
at about 110oC for 30 min in hot air oven.
• • By removing the liquids associated with
layer completely, the adsorbent layer is
activated.

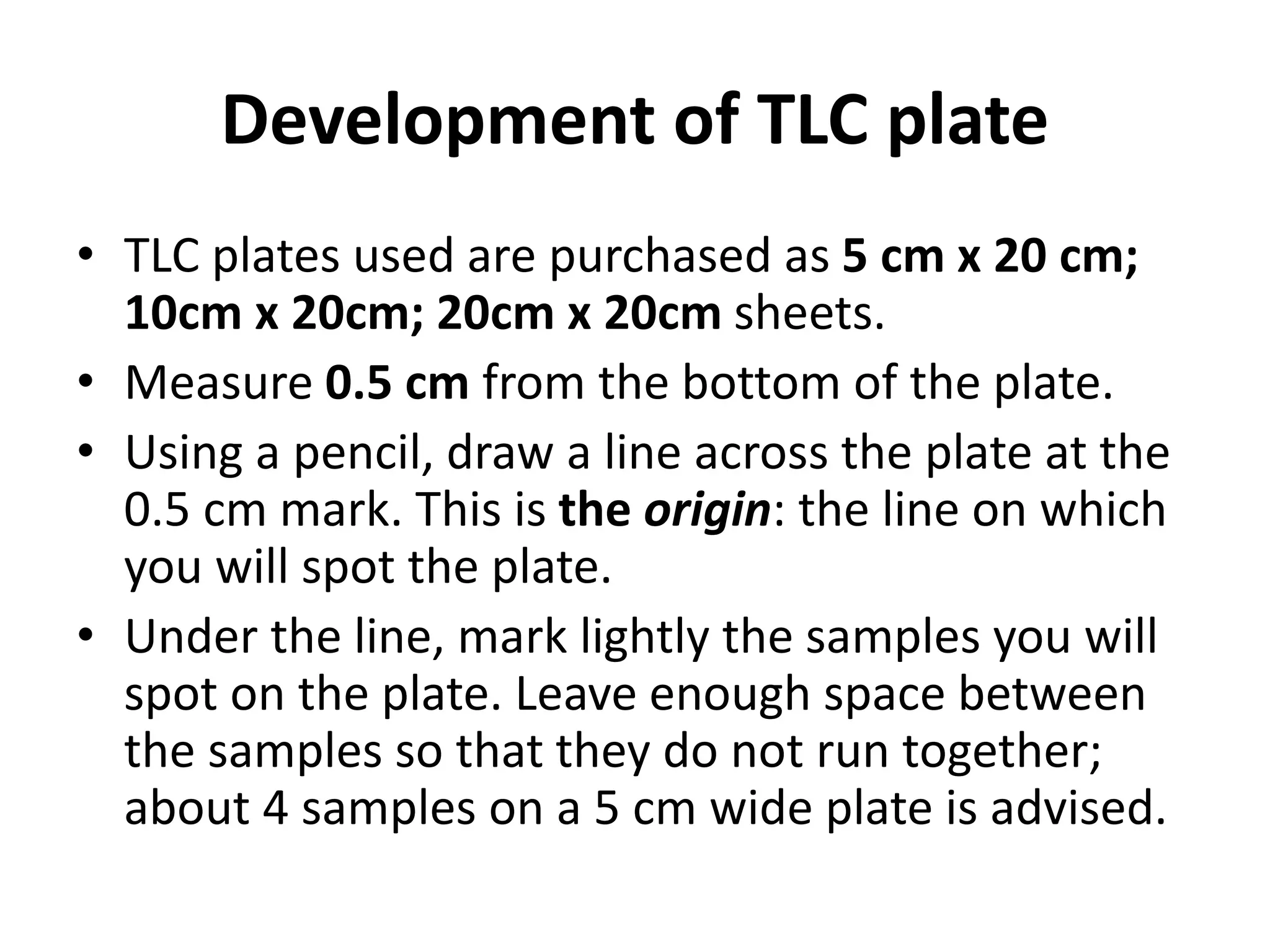

18. Development of TLC plate
• TLC plates used are purchased as 5 cm x 20 cm;
10cm x 20cm; 20cm x 20cm sheets.
• Measure 0.5 cm from the bottom of the plate.
• Using a pencil, draw a line across the plate at the
0.5 cm mark. This is the origin: the line on which
you will spot the plate.
• Under the line, mark lightly the samples you will
spot on the plate. Leave enough space between
the samples so that they do not run together;
about 4 samples on a 5 cm wide plate is advised.

19. Thin Layer Chromatography Development
• Place the prepared TLC plate in the developing
beaker, cover the beaker with the watch glass, and
leave it undisturbed on your bench top.
• The solvent will rise up the TLC plate by capillary
action. Make sure the solvent does not cover the
spot.
• Allow the plate to develop until the solvent is about
half a centimeter below the top of the plate.
• Remove the plate from the beaker and immediately
mark the solvent front with a pencil.
• Allow the plate to dry

20. Factors affecting Rf value
• It depends on following factors:
• Nature adsorbent
• Mobile phase
• Thickness of layer
• Temperature
• Saturation
• Dipping zone
• Chromatographic techniques

21. TLC development

22. DETECTING OR VISUALISING AGENTS
Non specific methods
• Iodine chamber method
• Sulphuric acid spray reagent
• UV chamber for fluorescent compounds Using
fluorescent stationary phase
Specific methods
• Spray reagents or Detecting agents or Visualizing agents
• Same as Paper chromatography

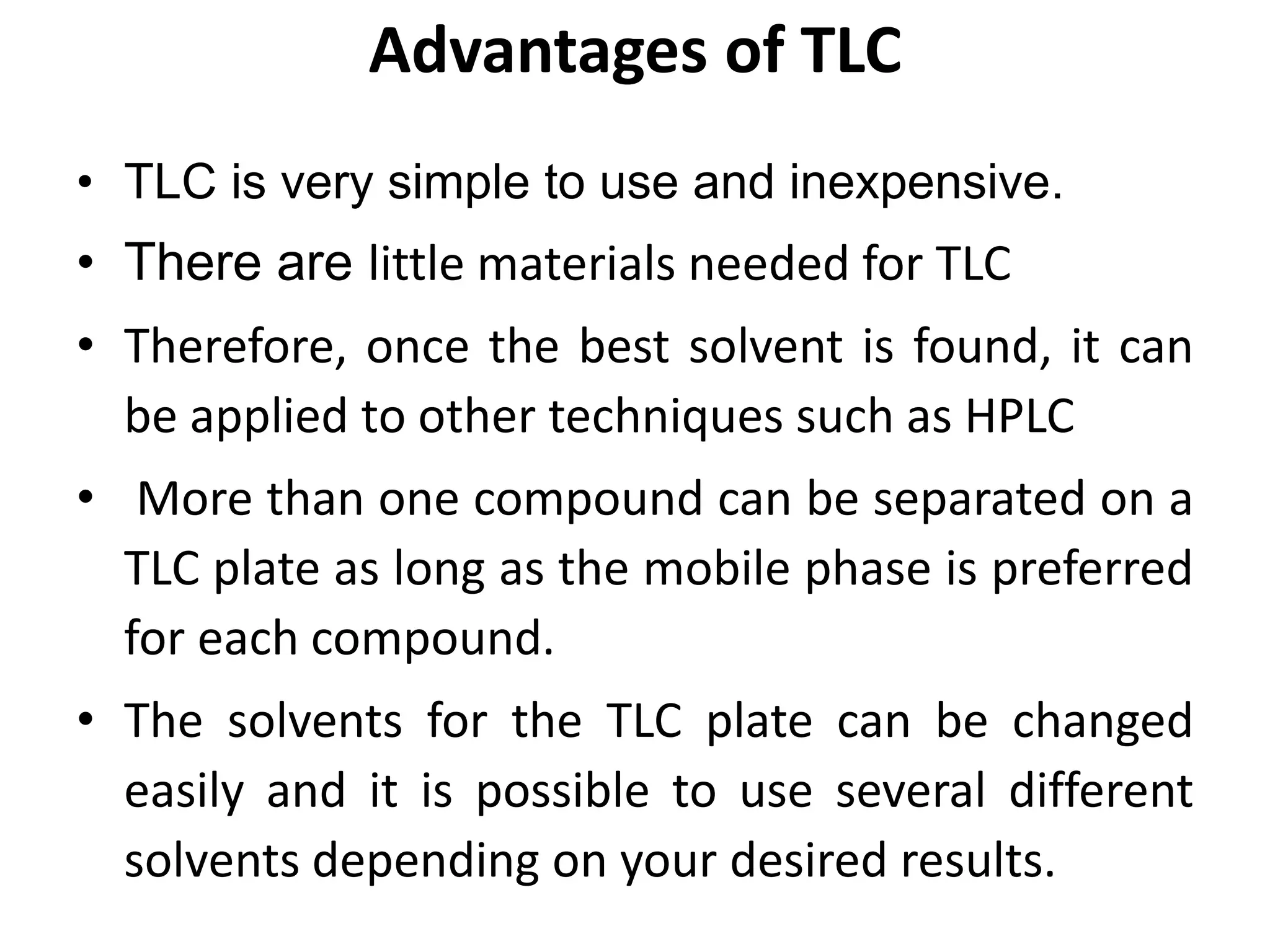

23. Advantages of TLC
• TLC is very simple to use and inexpensive.
• There are little materials needed for TLC
• Therefore, once the best solvent is found, it can
be applied to other techniques such as HPLC
• More than one compound can be separated on a
TLC plate as long as the mobile phase is preferred
for each compound.
• The solvents for the TLC plate can be changed
easily and it is possible to use several different
solvents depending on your desired results.

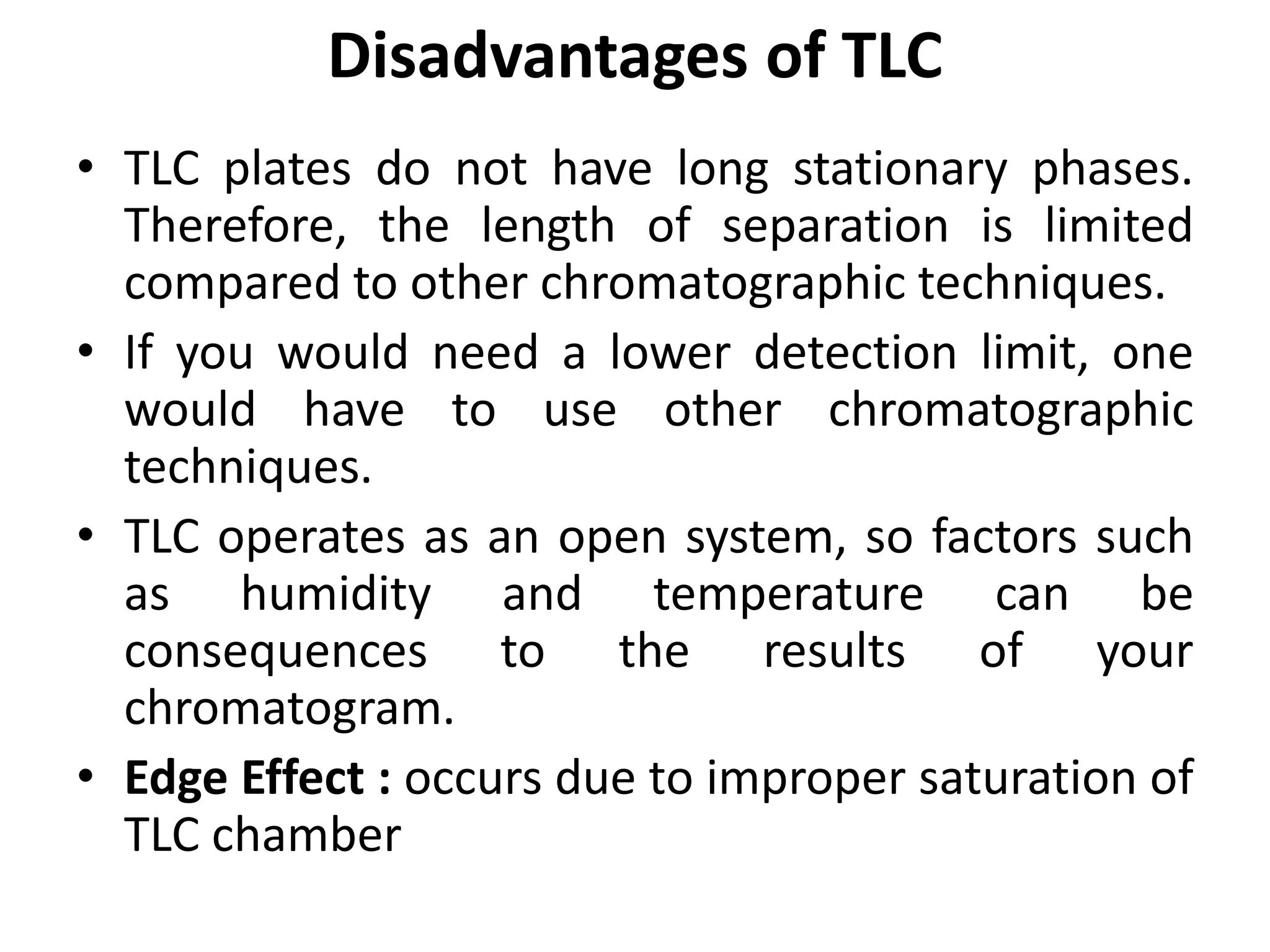

24. Disadvantages of TLC
• TLC plates do not have long stationary phases.
Therefore, the length of separation is limited
compared to other chromatographic techniques.
• If you would need a lower detection limit, one
would have to use other chromatographic
techniques.
• TLC operates as an open system, so factors such
as humidity and temperature can be
consequences to the results of your
chromatogram.
• Edge Effect : occurs due to improper saturation of
TLC chamber

26. Applications of TLC
• It is used for separation of all classes of
natural products and is established as an
analytical tool.
• - E.g. Acids, alcohols, glycols, alkaloids,
amines, macromolecules like amino acids,
proteins and peptides, and antibiotics .
• Extensively used as an identification test
and test for purity.

27. Applications
• Applications of TLC for separation of
Inorganic Ions – Used for separating
cationic, anionic, purely covalent species
and also some organic derivatives of the
metals.
• Separation of Amino Acids- two
dimensional thin – layer chromatography
• Separation of vitamins – vitamin E,
Vitamin D3, vitamin A
