Friedrich Miescher first isolated nucleic acid from cell nuclei in 1869. There are two main types of nucleic acids: DNA and RNA. DNA is found in the cell nucleus and mitochondria/chloroplasts, while RNA is found throughout the cell. DNA serves as the genetic material based on several lines of evidence. Nucleic acids are composed of nucleotides, which contain a phosphate, a sugar (ribose or deoxyribose), and a nitrogenous base. The nucleotides bond together via the phosphate and sugar components to form the backbone of nucleic acids. In DNA, the bases adenine and thymine pair together, as do cytosine and guanine, via hydrogen bonds between the strands to form the double hel

1. THE NUCLEIC
ACIDS
© 2007 Paul Billiet ODWS

2. Friedrich Miescher in 1869
 isolated what he called nuclein from the nuclei of
pus cells
 Nuclein was shown to have acidic properties,
hence it became called nucleic acid
© 2007 Paul Billiet ODWS

3. Two types of nucleic acid are
found
 Deoxyribonucleic acid (DNA)
 Ribonucleic acid (RNA)
© 2007 Paul Billiet ODWS

4. The distribution of nucleic
acids in the eukaryotic cell
 DNA is found in the nucleus
with small amounts in mitochondria and chloroplasts
 RNA is found throughout the cell
© 2007 Paul Billiet ODWS

5. DNA as genetic material: The
circumstantial evidence
1. Present in all cells and virtually restricted to the nucleus
2. The amount of DNA in somatic cells (body cells) of any given
species is constant (like the number of chromosomes)
3. The DNA content of gametes (sex cells) is half that of somatic
cells.
In cases of polyploidy (multiple sets of chromosomes) the DNA
content increases by a proportional factor
4. The mutagenic effect of UV light peaks at 253.7nm. The peak for
the absorption of UV light by DNA
© 2007 Paul Billiet ODWS

6. NUCLEIC ACID STRUCTURE
 Nucleic acids are polynucleotides
 Their building blocks are nucleotides
© 2007 Paul Billiet ODWS

7. NUCLEOTIDE STRUCTURE
PHOSPATE SUGAR
Ribose or
Deoxyribose
NUCLEOTIDE
BASE
PURINES PYRIMIDINES
Adenine (A)
Guanine(G)
Cytocine (C)
Thymine (T)
Uracil (U)
© 2007 Paul Billiet ODWS

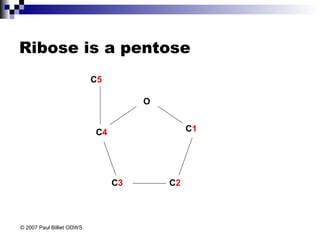

8. Ribose is a pentose
C1
C5
C4
C3 C2
O
© 2007 Paul Billiet ODWS

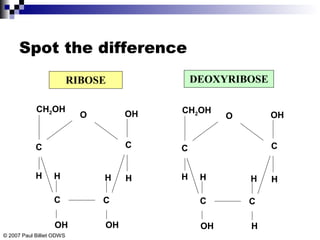

9. RIBOSE DEOXYRIBOSE
CH2OH
H
OH
C
C
OH OH
C
O
H HH
C
CH2OH
H
OH
C
C
OH H
C
O
H HH
C
Spot the difference
© 2007 Paul Billiet ODWS

10. THE SUGAR-
PHOSPHATE
BACKBONE
 The nucleotides are all
orientated in the same direction
 The phosphate group joins the 3rd
Carbon of one sugar to the 5th
Carbon of the next in line.
P
P
P
P
P
P
© 2007 Paul Billiet ODWS

11. ADDING IN THE BASES
 The bases are attached
to the 1st
Carbon
 Their order is important
It determines the
genetic information of
the molecule
P
P
P
P
P
P
G
C
C
A
T
T© 2007 Paul Billiet ODWS

12. DNA IS MADE OF
TWO STRANDS OF
POLYNUCLEOTIDE
P
P
P
P
P
P
C
G
G
T
A
A
P
P
P
P
P
P
G
C
C
A
T
T
Hydrogen bonds
© 2007 Paul Billiet ODWS

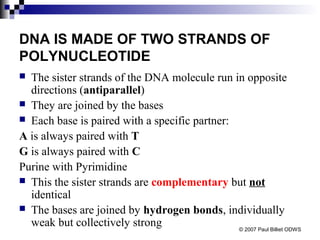

13. DNA IS MADE OF TWO STRANDS OF
POLYNUCLEOTIDE
 The sister strands of the DNA molecule run in opposite
directions (antiparallel)
 They are joined by the bases
 Each base is paired with a specific partner:
A is always paired with T
G is always paired with C
Purine with Pyrimidine
 This the sister strands are complementary but not
identical
 The bases are joined by hydrogen bonds, individually
weak but collectively strong © 2007 Paul Billiet ODWS

14. Erwin Chargaff’s Data (1950-51)

15. Wilkins & Franklin (1952): X-ray
crystallography
© Norman Collection on the History of Molecular Biology in Novato, CA

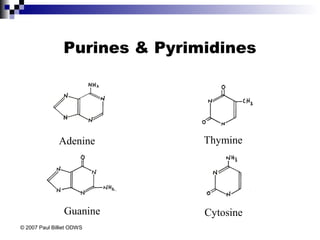

16. Purines & Pyrimidines
Adenine
CytosineGuanine
Thymine
© 2007 Paul Billiet ODWS

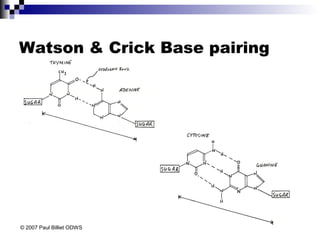

17. Watson & Crick Base pairing
© 2007 Paul Billiet ODWS

18. The Double Helix (1953)
© Dr Kalju Kahn USBC Chemistry and Biochemistry
Public Domain image
