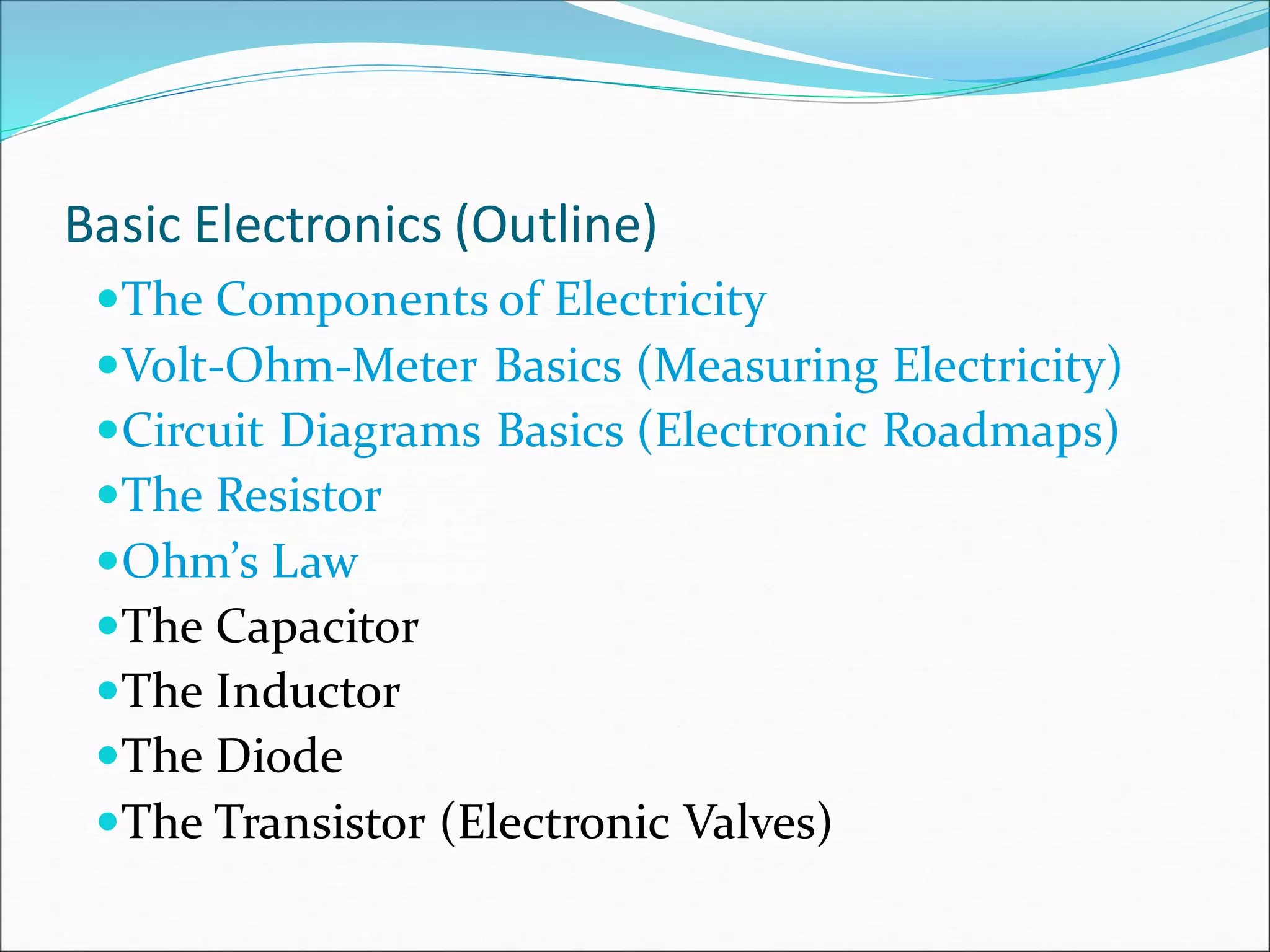

The document provides an overview of basic electronics concepts including:
- The components of electricity such as voltage, current, and resistance.
- How to use a volt-ohm-meter to measure voltage, current, and resistance. Safety precautions are discussed.
- Circuit diagrams and the symbols used to represent common electronic components like resistors, capacitors, diodes, and transistors.
- Resistors including how resistance is defined, resistor color codes to determine resistance values, and how resistors function in series and parallel circuits.
This Presentation can be used by the Students of Engineering who Deals with the Subject Industrial Measurement and use it for Refrence (Anyways you Guys will Copy Paste or Download it) ;)
PPT on earthing, grounding and isolation made by the students of SVIT,Vasad under the valuable guidance of the faculties teaching us Electronics and Electrical workshop(EEW) under the course of GTU.
A detailed presentation on Power meters which includes watt meter , poly phase power measurement , VAR meter, Energy (kilo-watt/hour) meter ,power factor meter
These slides will give you a brief discussion on history, working and applications of Piezoelectric sensors and transducers.
The slides have been made by me and other 3 members during 2nd yr of college.
MR3491 SENSORS AND INSTRUMENTATION (UNIT III - FORCE, MAGNETIC AND HEADING SE...A R SIVANESH M.E., (Ph.D)
MR3491 SENSORS AND INSTRUMENTATION
UNIT III - FORCE, MAGNETIC AND HEADING SENSORS
Strain Gage, Load Cell, Magnetic Sensors –types, principle, requirement and advantages: Magneto resistive – Hall Effect – Current sensor Heading Sensors – Compass, Gyroscope, Inclinometers
This Presentation can be used by the Students of Engineering who Deals with the Subject Industrial Measurement and use it for Refrence (Anyways you Guys will Copy Paste or Download it) ;)
PPT on earthing, grounding and isolation made by the students of SVIT,Vasad under the valuable guidance of the faculties teaching us Electronics and Electrical workshop(EEW) under the course of GTU.
A detailed presentation on Power meters which includes watt meter , poly phase power measurement , VAR meter, Energy (kilo-watt/hour) meter ,power factor meter
These slides will give you a brief discussion on history, working and applications of Piezoelectric sensors and transducers.
The slides have been made by me and other 3 members during 2nd yr of college.
MR3491 SENSORS AND INSTRUMENTATION (UNIT III - FORCE, MAGNETIC AND HEADING SE...A R SIVANESH M.E., (Ph.D)
MR3491 SENSORS AND INSTRUMENTATION
UNIT III - FORCE, MAGNETIC AND HEADING SENSORS
Strain Gage, Load Cell, Magnetic Sensors –types, principle, requirement and advantages: Magneto resistive – Hall Effect – Current sensor Heading Sensors – Compass, Gyroscope, Inclinometers
Digital Voltmeter, Digital Ammeter and Digital MultimeterPraveen Kumar
This ppt deals with Digital meters,the digital components used in them,principle behind the working of Digital Voltmeter(DC) Digital Voltmeter(AC) and mechanism of Measurement of Current and Measurement of Resistance. Finally A complete DMM also the Measurement of hfe. A small project on constructing digital voltmeter and ohmmeter using Arduino.
Pin, Suspension, and Strain insulators are used in medium to high voltage systems. While Stay and Shackle Insulators are mainly used in low voltage applications.
Simple, basic principles and techiniques for flow measurement.
college presentation
Please like and leave a comment if it was useful.
Also leave suggestions, if any.
It will help me improve.
Digital Voltmeter, Digital Ammeter and Digital MultimeterPraveen Kumar
This ppt deals with Digital meters,the digital components used in them,principle behind the working of Digital Voltmeter(DC) Digital Voltmeter(AC) and mechanism of Measurement of Current and Measurement of Resistance. Finally A complete DMM also the Measurement of hfe. A small project on constructing digital voltmeter and ohmmeter using Arduino.
Pin, Suspension, and Strain insulators are used in medium to high voltage systems. While Stay and Shackle Insulators are mainly used in low voltage applications.
Simple, basic principles and techiniques for flow measurement.
college presentation
Please like and leave a comment if it was useful.
Also leave suggestions, if any.
It will help me improve.
A piece of computer hardware and software that is designed to achieve a specific goal, either independently or as part of a larger system, is referred to as embedded system programming.
Introduction to Digital Marketing Certification Course.pdfThe IOT Academy
Digital marketing refers to the promotion of products, services, or brands using digital technologies such as the Internet, social media, search engines, mobile devices, and other digital channels. Digital marketing involves a range of strategies that are used to reach and engage with target audiences through various digital platforms.
Table of Contents
● What is SEO?
● Examples of popular Search Engines
● Search Engines Market share
● Why is Search Engine marketing important?
● Advantages of SEO
● Disadvantages of SEO
● What is a SEO Algorithm?
● Steps to developing a good SEO Strategy
● SEO Ranking Factors
● Basic tips for optimization
● Top SEO Tools
● Conclusion
C++ is an Object-Oriented Programming Language which was developed by Bjarne Stroustrup at Bell Labs in the year 1980. It is based on C Language. It is created for writing programs for different purposes. It is procedural / functional / object-oriented / generic / imperative in nature. You can create Softwares and Video Games in C++. You can make Desktop Applications, GUI Applications, Game Applications, Graphic Designing Applications in C++.
Machine Learning (ML) gives computers the capability to learn without being explicitly programmed. It is a subset of artificial intelligence. We can use Machine Learning with Python Programming for Face Recognition/ Online customer support/ Product recommendations/ Online Fraud Detection/ Video Surveillance/ Social media services/ Refining search-engine results /Automatic Translation /Self-driving cars/ Virtual Personal Assistants/ Predicting Music Choices, etc.
DevOps and Testing slides at DASA ConnectKari Kakkonen
My and Rik Marselis slides at 30.5.2024 DASA Connect conference. We discuss about what is testing, then what is agile testing and finally what is Testing in DevOps. Finally we had lovely workshop with the participants trying to find out different ways to think about quality and testing in different parts of the DevOps infinity loop.
The Art of the Pitch: WordPress Relationships and SalesLaura Byrne
Clients don’t know what they don’t know. What web solutions are right for them? How does WordPress come into the picture? How do you make sure you understand scope and timeline? What do you do if sometime changes?
All these questions and more will be explored as we talk about matching clients’ needs with what your agency offers without pulling teeth or pulling your hair out. Practical tips, and strategies for successful relationship building that leads to closing the deal.
Builder.ai Founder Sachin Dev Duggal's Strategic Approach to Create an Innova...Ramesh Iyer
In today's fast-changing business world, Companies that adapt and embrace new ideas often need help to keep up with the competition. However, fostering a culture of innovation takes much work. It takes vision, leadership and willingness to take risks in the right proportion. Sachin Dev Duggal, co-founder of Builder.ai, has perfected the art of this balance, creating a company culture where creativity and growth are nurtured at each stage.
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...James Anderson
Effective Application Security in Software Delivery lifecycle using Deployment Firewall and DBOM
The modern software delivery process (or the CI/CD process) includes many tools, distributed teams, open-source code, and cloud platforms. Constant focus on speed to release software to market, along with the traditional slow and manual security checks has caused gaps in continuous security as an important piece in the software supply chain. Today organizations feel more susceptible to external and internal cyber threats due to the vast attack surface in their applications supply chain and the lack of end-to-end governance and risk management.
The software team must secure its software delivery process to avoid vulnerability and security breaches. This needs to be achieved with existing tool chains and without extensive rework of the delivery processes. This talk will present strategies and techniques for providing visibility into the true risk of the existing vulnerabilities, preventing the introduction of security issues in the software, resolving vulnerabilities in production environments quickly, and capturing the deployment bill of materials (DBOM).
Speakers:
Bob Boule
Robert Boule is a technology enthusiast with PASSION for technology and making things work along with a knack for helping others understand how things work. He comes with around 20 years of solution engineering experience in application security, software continuous delivery, and SaaS platforms. He is known for his dynamic presentations in CI/CD and application security integrated in software delivery lifecycle.
Gopinath Rebala
Gopinath Rebala is the CTO of OpsMx, where he has overall responsibility for the machine learning and data processing architectures for Secure Software Delivery. Gopi also has a strong connection with our customers, leading design and architecture for strategic implementations. Gopi is a frequent speaker and well-known leader in continuous delivery and integrating security into software delivery.
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Tobias Schneck
As AI technology is pushing into IT I was wondering myself, as an “infrastructure container kubernetes guy”, how get this fancy AI technology get managed from an infrastructure operational view? Is it possible to apply our lovely cloud native principals as well? What benefit’s both technologies could bring to each other?
Let me take this questions and provide you a short journey through existing deployment models and use cases for AI software. On practical examples, we discuss what cloud/on-premise strategy we may need for applying it to our own infrastructure to get it to work from an enterprise perspective. I want to give an overview about infrastructure requirements and technologies, what could be beneficial or limiting your AI use cases in an enterprise environment. An interactive Demo will give you some insides, what approaches I got already working for real.
UiPath Test Automation using UiPath Test Suite series, part 3DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 3. In this session, we will cover desktop automation along with UI automation.
Topics covered:
UI automation Introduction,
UI automation Sample
Desktop automation flow
Pradeep Chinnala, Senior Consultant Automation Developer @WonderBotz and UiPath MVP
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
GraphRAG is All You need? LLM & Knowledge GraphGuy Korland
Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs.
1. Unifying Large Language Models and Knowledge Graphs: A Roadmap.
https://arxiv.org/abs/2306.08302
2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs:
https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/
Slack (or Teams) Automation for Bonterra Impact Management (fka Social Soluti...Jeffrey Haguewood
Sidekick Solutions uses Bonterra Impact Management (fka Social Solutions Apricot) and automation solutions to integrate data for business workflows.
We believe integration and automation are essential to user experience and the promise of efficient work through technology. Automation is the critical ingredient to realizing that full vision. We develop integration products and services for Bonterra Case Management software to support the deployment of automations for a variety of use cases.
This video focuses on the notifications, alerts, and approval requests using Slack for Bonterra Impact Management. The solutions covered in this webinar can also be deployed for Microsoft Teams.
Interested in deploying notification automations for Bonterra Impact Management? Contact us at sales@sidekicksolutionsllc.com to discuss next steps.
Search and Society: Reimagining Information Access for Radical FuturesBhaskar Mitra
The field of Information retrieval (IR) is currently undergoing a transformative shift, at least partly due to the emerging applications of generative AI to information access. In this talk, we will deliberate on the sociotechnical implications of generative AI for information access. We will argue that there is both a critical necessity and an exciting opportunity for the IR community to re-center our research agendas on societal needs while dismantling the artificial separation between the work on fairness, accountability, transparency, and ethics in IR and the rest of IR research. Instead of adopting a reactionary strategy of trying to mitigate potential social harms from emerging technologies, the community should aim to proactively set the research agenda for the kinds of systems we should build inspired by diverse explicitly stated sociotechnical imaginaries. The sociotechnical imaginaries that underpin the design and development of information access technologies needs to be explicitly articulated, and we need to develop theories of change in context of these diverse perspectives. Our guiding future imaginaries must be informed by other academic fields, such as democratic theory and critical theory, and should be co-developed with social science scholars, legal scholars, civil rights and social justice activists, and artists, among others.
Accelerate your Kubernetes clusters with Varnish CachingThijs Feryn
A presentation about the usage and availability of Varnish on Kubernetes. This talk explores the capabilities of Varnish caching and shows how to use the Varnish Helm chart to deploy it to Kubernetes.
This presentation was delivered at K8SUG Singapore. See https://feryn.eu/presentations/accelerate-your-kubernetes-clusters-with-varnish-caching-k8sug-singapore-28-2024 for more details.
UiPath Test Automation using UiPath Test Suite series, part 4DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 4. In this session, we will cover Test Manager overview along with SAP heatmap.
The UiPath Test Manager overview with SAP heatmap webinar offers a concise yet comprehensive exploration of the role of a Test Manager within SAP environments, coupled with the utilization of heatmaps for effective testing strategies.
Participants will gain insights into the responsibilities, challenges, and best practices associated with test management in SAP projects. Additionally, the webinar delves into the significance of heatmaps as a visual aid for identifying testing priorities, areas of risk, and resource allocation within SAP landscapes. Through this session, attendees can expect to enhance their understanding of test management principles while learning practical approaches to optimize testing processes in SAP environments using heatmap visualization techniques
What will you get from this session?
1. Insights into SAP testing best practices
2. Heatmap utilization for testing
3. Optimization of testing processes
4. Demo
Topics covered:
Execution from the test manager
Orchestrator execution result
Defect reporting
SAP heatmap example with demo
Speaker:
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
State of ICS and IoT Cyber Threat Landscape Report 2024 previewPrayukth K V
The IoT and OT threat landscape report has been prepared by the Threat Research Team at Sectrio using data from Sectrio, cyber threat intelligence farming facilities spread across over 85 cities around the world. In addition, Sectrio also runs AI-based advanced threat and payload engagement facilities that serve as sinks to attract and engage sophisticated threat actors, and newer malware including new variants and latent threats that are at an earlier stage of development.
The latest edition of the OT/ICS and IoT security Threat Landscape Report 2024 also covers:
State of global ICS asset and network exposure
Sectoral targets and attacks as well as the cost of ransom
Global APT activity, AI usage, actor and tactic profiles, and implications
Rise in volumes of AI-powered cyberattacks
Major cyber events in 2024
Malware and malicious payload trends
Cyberattack types and targets
Vulnerability exploit attempts on CVEs
Attacks on counties – USA
Expansion of bot farms – how, where, and why
In-depth analysis of the cyber threat landscape across North America, South America, Europe, APAC, and the Middle East
Why are attacks on smart factories rising?
Cyber risk predictions
Axis of attacks – Europe
Systemic attacks in the Middle East
Download the full report from here:
https://sectrio.com/resources/ot-threat-landscape-reports/sectrio-releases-ot-ics-and-iot-security-threat-landscape-report-2024/
3. The Components of Electricity
Voltage
Current
Resistance
Types of Current: AC and DC
Circuits
Close
Open
Short
4. Voltage, Current, and Resistance
Water flowing through a
hose is a good way to look
at electricity
Water is like Electrons in a wire
(flowing electronsis called
Current)
Pressure is theforce pushing water
througha hose – Voltage is the
force pushing electronsthrough
a wire
Friction againstthe holewallsslows
the flow of water– Resistance
is the force that slows the flow
of electrons
5. Types of Current
There are 2 types of current
The type is determined only by the direction the
current flows through a conductor
Direct Current (DC)
Flows in only one direction negative toward positive
pole of source
Alternating Current (AC)
Flows back and forth because the poles of the source
alternate between positive and negative
7. Circuits
A circuit is a path for current to flow
Three basic kinds of circuits
Open – the path is broken and interrupts
current flow
Close – the path is complete and current flows
were it is intended
Short – the path is corrupted in some way and
current does not flow were it is intended
12. Volt-Ohm-Meter Basics
(Measuring Electricity)
Measuring voltage
Voltagetype
Scaling
Safety
Physical (personal)
Equipment
Measuring current
Current type
Scaling
Safety
Physical (personal)
Equipment
Measuring resistance
Scaling
13. Measuring voltage
Voltage type – DC and AC
When measuring voltage, the meter probes are
placed across the voltage source.
The VOM uses two separate functions and ranges to
measure DC and AC.
Because AC is a constantly changing wave form,
measuring AC voltages is not a simple matter.
This VOM measures pseudo-RMS voltages
14. Measuring voltage
Meter Set-up
Scale set to highest
predictable
Probes into right
jacks
Note voltage polarity
+
15. Measuring Voltage
Set-up VOM on 600V DC
Scale
Touch red probe to (+)
Touch black probe to (–
)
Read voltage to nearest 1
volt
16. Measuring Voltage
Now touch the red
probe to (-)
Touch the black probe
to (+)
Read voltage to
nearest 1 volt, note the
minus sign that
signifies a negative
voltage
17. Measuring Voltage
Set-up VOM on 200V DC
Scale
Touch red probe to (+)
Touch black probe to (–
)
Read voltage to nearest .1
volt
18. Measuring Voltage
Set-up VOM on 20V DC
Scale
Touch red probe to (+)
Touch black probe to (–
)
Read voltage to nearest .01
volt
19. Measuring Voltage
Set-up VOM on 20V DC
Scale
Touch red probe to (+)
Touch black probe to (–)
Using a 1.5 volt battery -
read voltage to nearest .01
volt
20. Measuring Voltage
Set-up VOM on 2000mV
DC Scale
This scale is reading 2000
milli-volts
(or 2 volts)
Touch red probe to (+)
Touch black probe to (–)
Using a 1.5 volt battery - read
voltage to nearest .001 volt
21. Measuring Voltage
Set-up VOM on 2000m V
DC Scale
Touch red probe to (+)
Touch black probe to (–
)
Using a 9 volt battery
This is clearly an over-
voltage situation, note
the reading.
22. Measuring Voltage - Safety
When measuring voltage, the voltage being
measured is exposed to the operator and flowing
through the probes. Be cautious, be attentive,
watch what you touch!
The probes have sharp points so that you can make
precise contacts. Use the protective shields when
probes not in use.
Observe the meter maximum limits for voltage and
current. Fuses are a last resort protection feature.
If you blow a fuse, you made a mistake!
23. Measuring Current
There is greatest potential for meter damage when
measuring current than any other function.
Just as in voltage, there is two kinds of current
associated with the voltage, AC and DC
This meter will only measure DC, more expensive
meters will measure both currents
To measure current, the VOM must be inserted
into the circuit so that the current flows through
the meter.
24. Measuring Current
There are two current ranges, high – up to 10
amps, and low – 200 milliamps (.2 amps) and
below.
Internal fuses provide some meter protection for
over current situations.
Because there is such a wide range of current scales,
there are two physical probe jacks for the two ranges
This allows for better protection, a hardy fuse to handle
up to 10 amps of current and a more fragile fuse to
protect the sensitive circuits needed to measure small
currents.
25. Measuring Current
CAUTION!!!!!!! There must be some resistance
in the circuit or the current flow through the
circuit will be the maximum the source will
produce, AND THIS CURRENT LEVEL
COULD DAMAGE THE VOM!
In other words, DO NOT CONNECT THE
VOM PROBES DIRECTLY ACROSS THE
BATTERY POLES IN THE CURRENT
MEASURMENT FUNCTION!
26. Measuring Current
We will be using some concepts during the
current measurement exercises that will be
covered in more detail later, so be patient, it
will all come together in the end.
In the following exercises you will use various
resistors to limit the current flow in a simple
circuit.
29. First Current Measurement
Set up the circuit using a
100 ohm resistor (brown,
black, brown).
Connect a wire to the +
power source, connect
another wire to the top end
of the resistor (the non
grounded end).
Set VOM current scale to
200m.
Without connecting the
battery, practice touching
the VOM probes to the
exposed wire ends.
30. First Current Measurement
Connect the battery.
With the VOM set to the
200m current scale, touch
the black lead to the wire
hooked to the high side of
the resistor.
Touch the red lead to the
lead coming from the +
side of the battery.
Note the VOM reading.
32. First Current Measurement
Return the VOM leads so
that the red is connected
to the battery.
Change the VOM current
ranges down and note the
display readings
What is the best range for
measuring the current
from a 9 volt source
through a 100 ohm
resistor?
200m Range
20m Range
33. Measuring Current
Wire the circuit
with a 1k ohm
resistor (brown,
black, red).
Measure current
with 200m range.
34. Measuring Current
What is the best
range to measure
the current through
a 1 k resistor?
200m
20m
2000u
35. Measuring Current
Wire the circuit with a
10 k ohm resistor
(brown, black, orange).
Measure current with
the 2000u range.
36. Measuring Current
What is the best
range to use to
measure the
current through a
10 k ohm resistor at
9 volts?
2000u
200u
37. Measuring Current
Wire the circuit
with a 100 k ohm
resistor (brown,
black, yellow).
Begin with the
2000m range, and
measure the current
at each range.
What is the best
range to use to
measure the current
trough a 100 k ohm
resistor at 9 volts?
38. Measuring Resistance
When the VOM is used to measure resistance,
what actually is measured is a small voltage and
current applied to the component.
There are 5 ranges, an out of resistance reading
will indicate a single 1 digit. Remember k means
multiply the reading by 1000.
Operating voltages should be removed from
the component under test or you could damage
the VOM at worst, or the reading could be false
at best.
39. Measuring Resistance
Disconnect the battery
from the board,
remember to measure
resistance the circuit
should be un-powered.
Put the 100 ohm
resistor in place, no
additional wires are
required.
Select the 200 range
and touch the probe
leads to either side of
the resistor.
41. Measuring Resistance
Now using the 100 ohm
resistor, measure the
resistance using each of
the other ranges.
Note that the resolution
of the reading decreases
as the maximum ohm
reading increases, down
to the point where it is
difficult to get a good
resistance reading.
2000
20k
200k
2000k
42. Measuring Resistance
Now use the 1k ohm
resistor and the 200
range.
Explain the reading
you observe.
Find the appropriate
range to measuring
1,000 ohms (1k).
200
2000
52. The Resistor
Resistance defined
Resistance values
Ohms – color code interpretation
Power dissipation
Resistors in circuits
Series
Parallel
Mixed
53. Resistance Defined
Resistance is the impediment to the free flow of
electrons through a conductor
(friction to moving electrons)
Where there’s friction, there is heat generated
All materials exhibit some resistance, even the best
of conductors
Unit measured in Ohm(s)
From 1/10st of Ohms to millions of Ohms
54. Resistor Types
Fixed Value
Variable value
Composite resistive material
Wire wound
Two parameter associated with resistors
Resistance value in Ohms
Power handling capabilities in watts
56. Reading Resistor Color Codes
1. Turn resistor so gold or silver band is at right
2. Note the color of the two left hand color
bands
3. The left most band is the left hand value digit
4. The next band to the right is the second value
digit
5. Note the color of the third band from the left,
this is the multiplier
6. Multiply the 2 value digits by the multiplier
59. Power dissipation
Resistance generates heat and the component
must be able to dissipate this heat to prevent
damage.
Physical size (the surface area available to
dissipate heat) is a good indicator of how much
heat (power) a resistor can handle
Measured in watts
Common values ¼, ½, 1, 5, 10 etc.
62. Resistors in Circuits Series
On your proto board set
up the following circuit
using the resistance values
indicated on the next
slide.
Calculate the equivalent
resistant RE and measure
the resistance with your
VOM
R1
R2
66. Resistors in Circuits Parallel
On your proto board
set up the following
circuit using the
resistance values
indicated on the next
slide.
Calculate the
equivalentresistant RE
and measure the
resistance with your
VOM
R1
R2
67. Resistors in Circuits Parallel
R1 R2 Calculated
RE
Measured
RE
100 100
100K 10K
4.7K 10K
330 4.7K
68. Resistors in Circuits (Parallel
Challenge)
Make a circuit with 3 resistors in parallel, calculate
the equivalent resistance then measure it.
R1 = 330
R2 = 10K
R3 = 4.7K
69. Resistors in Circuits
Mixed
If the path for the
current in a portion
of the circuit is a
single path, and in
another portion of
the circuit has
multiple routes, the
circuit is a mix of
series and parallel.
Series
Parallel
Series
R
70. Resistors in Circuits Mixed
Let’s start with a
relatively simple
mixed circuit. Build
this using:
R1 = 330
R2 = 4.7K
R3 = 2.2K
R1
R2
R3
71. Resistors in Circuits (Mixed)
Take the parallel
segment of the
circuit and calculate
the equivalent
resistance:
R1
R2
R3
32
32
RR
RR
72. Resistors in Circuits (Mixed)
We now can look at
the simplifiedcircuit
as shown here, the
parallel resistors have
been replaced by a
single resistor with a
value of 1498 ohms.
Calculate the
resistance now of this
series circuit:
ERR 1
R1
RE=1498
73. Resistors in Circuits (Mixed)
In this problem,
dividethe problem
into section, solve
each section and then
combine them all
back into the whole.
R1 = 330
R2 = 1K
R3 = 2.2K
R4 = 4.7K
Series
Parallel
Series
R1
R2
R3
R4
74. Resistors in Circuits
Mixed
The final calculations
involve R1 and the new RE
from the previous parallel
calculation.
R1 = 330
RE = 1.9K
R1
RE
ERR 1
75. Ohm’s Law
The mathematical relationship
E (or V)=I*R
Doing the math
kirchhoff’s Law
A way to predict circuit behavior
It all adds up
Nothingis lost
76. Ohm’s Law
There is a
mathematical
relationship between
the three components
of electricity. That
relationship is Ohm’s
Law.
E = volts
R = resistance in ohms
I = current in amps
RIE *
I
E
R
R
E
I
78. Ohm’s Law
This is the basic
circuit that you
will use for the
following
exercises.
The VOM will be
moved to
measure
voltage/resistanc
e and current.
A
V
79. Ohm’s Law Exercise 1
Wire this circuit using
a 100 ohm resistor.
Without power
applied measure the
resistance of the
resistor.
Connect the 9 volt
battery and measure
the voltage across the
resistor.
Record your data.
V
80. Ohm’s Law Exercise 1
Using the voltage and
resistance data in
Ohm’s Law, calculate
the anticipated
current.
Example data results
in a current of .09
amps or 90 milli-
amps
R
E
I
ohms
volts
amps
1.98
8.8
09.
81. Ohm’s Law Exercise 1
Insert the VOM into
the circuit as indicated
in this diagram.
Using the appropriate
current range, measure
the actual current in
the circuit.
How does the current
compare to your
prediction using Ohm’s
Law?
A
82. Ohm’s Law Exercise 2
Select the 1K ohm resistor
and create the illustrated
circuit.
Pretend for this exercise
that you do not know what
the voltage of the battery is.
Measure the resistance with
power removed and then
the current with power.
Record your data.
A
83. Ohm’s Law Exercise 2
Using the current and
resistance data in Ohm’s
Law, calculate the
anticipated voltage.
Example data results in a
voltage of 9.73 volts
RIE *
84. Ohm’s Law Exercise 2
Connect the VOM into
the circuit as indicated
in this diagram.
Using the appropriate
voltage range, measure
the actual voltage
across the resistor.
How does the current
compare to your
prediction using
Ohm’s Law?
V
85. Ohm’s Law Exercise 3
In this exercise you
will use an unknown
resistor supplied by
your instructor.
Create the circuit
illustrated and
measure the voltage
and current.
Record your data.
V
A
86. Ohm’s Law Exercise 3
Using the voltage and
current data in Ohm’s
Law, calculate the
unknown resistance.
Example data results
in a resistance of 3844
ohms. I
E
R
87. Ohm’s Law In Practice
The next series of exercises will put Ohm’s Law
to use to illustrate some principles of basic
electronics.
As in the previous exercise you will build the
circuits and insert the VOM into the circuit in
the appropriate way to make current and
voltage measurements.
Throughout the exercise record your data so
that you can compare it to calculations.
88. Ohm’s Law In Practice
Build up the
illustrated circuit.
R1 = 1K
R2 = 1K
R3 = 2.2K
R4 = 300
Measure the current
flowing through the
circuit.
R1
R2
R3
R4
A
89. Ohm’s Law In Practice
Now move the VOM
to the other side of
the circuit and
measure the current.
The current should
be the same as the
previous
measurement.
A
90. Ohm’s Law In Practice
Insert the VOM at
the indicated
location and
measure the
current.
There should be no
surprise that the
current is the same.
A
91. Ohm’s Law In Practice
Measure the voltage
across R1.
Using Ohm’s law,
calculate the voltage
drop across a 1K
ohm resistor at the
current you
measured
Compare the result.
V
92. Ohm’s Law In Practice
In this next step, you
will insert the VOM in
the circuit at two
places illustrated at
the right as #1 and #2.
Record your current
readings for both
places.
Add the currents and
compare and contrast
to the current
measured entering the
total circuit.
A A
#1 #2
93. Ohm’s Law In Practice
Using the current measured through #1 and the
resistance value of R2, 1k ohms, calculate the
voltage drop across the resistor.
Likewise do the same with the current measured
through #2 and the resistance value of R3, 2.2k
ohms.
Compare and contrast these two voltage values
94. Ohm’s Law In Practice
Measure the voltage
across the parallel
resistors and record
your answer.
Compare and
contrast the voltage
measured to the
voltage drop
calculated.
V
95. Ohm’s Law In Practice
In the next step, insert
the VOM into the
circuit as illustrated,
measure and record the
current.
Compare and contrast
the current measured to
the total current
measured in a previous
step.
Were there any
surprises?
A
96. Ohm’s Law In Practice
Using the current you just
measured and the
resistance of R4 (330
ohms), calculate what the
voltage drop across R4
should be.
Insert the VOM into the
circuit as illustrated and
measure the voltage.
Compare and contrast the
measured and calculated
voltages.
V
97. Ohm’s Law In Practice
There is one final
measurement to complete
this portion of the exercise.
Insert the VOM as
indicated.
Recall the 3 voltages
measured previously;
across R1, R2 and R3, and
across R4.
Add these three voltages
together and then compare
and contrast the result
with the total voltage just
measured.
V
98. Ohm’s Law In Practice
What you observed was:
The sum of the individual currents was equal to the
total current flowing through the circuit.
The sum of the voltage drops was equal to the total
voltage across the circuit.
This is Kirchhoff’s Law and is very useful in
the study of electronic circuit.
You also noted that Ohm’s Law applied
throughout the circuit.
99. The Capacitor
Capacitance defined
Physical construction
Types
How construction
affects values
Power ratings
Capacitor performance
with AC and DC
currents
Capacitance values
Numbering system
Capacitors in circuits
Series
Parallel
Mixed
101. The Capacitor (Defined)
A device that stores energy in
electric field.
Two conductive plates
separated by a non
conductive material.
Electrons accumulate on one
plate forcing electrons away
from the other plate leaving a
net positive charge.
Think of a capacitor as very
small, temporary storage
battery.
102. The Capacitor (Physical Construction)
Capacitors are rated by:
Amount of charge that
can be held.
The voltage handling
capabilities.
Insulating material
between plates.
103. The Capacitor (Ability to Hold a
Charge)
Ability to hold a charge
depends on:
Conductive plate surface
area.
Space between plates.
Material between plates.
105. Charging a Capacitor
In the following activityyou will
charge a capacitor by connecting
a power source (9 volt battery) to
a capacitor.
You will be using an electrolytic
capacitor, a capacitor that uses
polaritysensitive insulating
material between the conductive
plates to increase charge
capabilityin a small physical
package.
Notice the component has
polarity identification + or -.
+
106. Charging a Capacitor
Touch the two leads of the capacitor together.
This short circuits the capacitor to make sure there
is no residual charge left in the capacitor.
Using your VOM, measure the voltageacross the
leads of the capacitor
107. Charging a Capacitor
Wire up the circuit illustrated
and charge the capacitor.
Power will only have to be
applied for a moment to fully
charge the capacitor.
Quickly remove the capacitor
from the circuit and touch the
VOM probes to the capacitor
leads to measure the voltage.
Carefully observe the voltage
reading over time until the
voltage is at a very low level
(down to zero volts).
+
109. The Capacitor (Behavior in DC)
When exposed to DC, the capacitor charges and
holds the charge as long as the DC voltage is
applied.
The capacitor essentially blocks DC voltage from
passing through.
110. The Capacitor (Behavior in AC)
When AC current is applied, during one half of the
cycle the capacitor accepts a charge in one
direction.
During the next half of the cycle, the capacitor is
discharges then recharged in the reverse direction.
During the next half cycle the pattern reverses.
Essentially, it appears that AC current passes
through a capacitor
112. The Capacitor (Capacitance Value)
The unit of capacitance is the farad.
A single farad is a huge amount of capacitance.
Most electronic devices use capacitors that have a
very tiny fraction of a farad.
Common capacitance ranges are:
Micro - 10-6
Nano - 10-9
Pico - 10-12
p
n
113. The Capacitor (Capacitance Value)
Capacitor identification
depends on the capacitor
type.
Could be color bands, dots,
or numbers.
Wise to keep capacitors
organized and identified to
prevent a lot of work trying
to re-identify the values.
114. Capacitors in Circuits
Two physical factors
affect capacitance
values.
Plate spacing
Plate surface area
In series, plates are
far apart making
capacitance less
21
21
CC
CC
+
-
Charged plates
far apart
115. Capacitors in Circuits
In parallel, the surface
area of the plates add
up to be greater, and
close together.
This makes the
capacitance more the
Capacitor
21 CC
+
-
116. The Inductor
Inductance defined
Physical construction
How construction
affects values
Inductor performance
with AC and DC
currents
117. The Inductor
There are two fundamental principles of
electronics:
1. Moving electrons create a magnetic field.
2. Moving or changing magnetic fields cause
electrons to move.
An inductor is a coil of wire through which
electrons move, and energy is stored in the
resulting magnetic field.
118. The Inductor
Like capacitors,
inductors temporarily
store energy.
Unlike capacitors:
Inductors store energy
in a magnetic field, not
an electric field.
When the source of
electrons is removed,
the magnetic field
collapses immediately.
119. The Inductor
Inductors are simply
coils of wire.
Can be air wound
(nothing in the middle
of the coil)
Can be wound around
a permeable material
(material that
concentrates magnetic
fields)
Can be wound around
a circular form (toroid)
120. The Inductor
Inductance is measured in Henry(s).
A Henry is a measure of the intensity of the magnetic
field that is produced.
Typical inductor valuesused in electronics are in the
range of milli Henry (1/1000) and micro Henry
(1/1,000,000)
121. The Inductor
The amount of
inductance is
influenced by a
number of factors:
Number of coil turns.
Diameter of coil.
Spacing between
turns.
Size of the wire used.
Type of material
inside the coil.
122. Inductor Performance With
DC Currents
When DC current is applied to an inductor, the wire in the
inductor momentarily appears as a short circuit and
maximum current flows.
As the magnetic field builds (changes) there is a tendency
for the current flow to slow down (due to an opposition
cause the the changing magnetic field).
Finally, the magnetic field is at its maximum and the
current flows to maintain the field.
As soon as the current source is removed, the magnetic
field begins to collapse and creates a rush of current in the
other direction, sometimes at very high voltages.
123. Inductor Performance With AC
Currents
When AC current is applied to an inductor, during
the first half of the cycle, the magnetic field builds
as if it were a DC voltage.
During the next half of the cycle, the current is
reversed and the magnetic field first has to
decrease the reverse polarity in step with the
changing current.
Depending on the value of inductance, these
forces can work against each other, making for a
less than simple situation.
124. The Inductor
Because the magnetic
field surrounding an
inductor can cut
across another
inductor in close
proximity, the
changing magnetic
field in one can cause
current to flow in the
other … the basis of
transformers
125. The Diode
The semi-conductor phenomena
Diode performance with AC and DC currents
Diode types
Basic
LED
Zenier
126. The Diode (The semi-conductor
phenomena)
Electrons in a metal form a “sea” of electrons
that are relatively fee to move about.
Semiconducting materials like Silicon and
Germanium have fewer free electrons.
Impurities added to semiconductor material can
either add free electrons or create an absence of
electrons (holes).
127. The Diode (The semi-conductor phenomena)
Consider the bar of silicon at the right.
One side of the bar is doped with negative material
(excess electrons). The cathode.
The other side is doped with positive material
(excess holes). The anode
In between is a no man’s land called the P-N
Junction.
128. The Diode (The semi-conductor
phenomena)
Consider now applying a negative voltage to the
anode and positive voltage to the cathode.
This diode is reverse biased meaning no current
will flow.
129. The Diode (The semi-conductor
phenomena)
Consider now applying a positive voltage to the
anode and a negative voltage to the cathode.
This diode is forward biased meaning current will
flow.
130. The Diode
Set up the circuit
illustrated on the
proto board.
Ensure to note the
cathode (banded end)
of the diode.
Use a 330 ohm
resistor. The resistor
in the circuit is a
current limiting
resistor.
A
330
131. The Diode
Set up the circuit
illustrated on the
proto board (reverse
the diode).
Ensure to note the
cathode (banded
end) of the diode.
A
132. The Diode
Build the illustrated
circuit.
Measure the voltage
drop across the diode
that is forward biased.
V
133. The Diode with AC Current
If AC is applied to a diode:
During one half of the cycle the diode is forward
biased and current flows.
During the other half of the cycle, the diode is
reversed biased and current stops.
This is the process of rectification, allowing
current to flow in only one direction.
i.e., changing AC into DC
134. The Diode with AC Current
Input AC
Output
Pulsed DC
Diode
conducts
Diode off
135. The Light Emitting Diode
In normal diodes, when electrons combine with
holes heat is produced.
With some materials, when electrons combine
with holes, photons of light are emitted.
LEDs are generally used as indicators though they
have the same properties as a regular diode.
136. The Light Emitting Diode
Build the illustrated
circuit on the proto
board.
The longer LED lead is
the anode (positiveend).
Then reverse the LED
and observe what
happens.
The current limiting
resistor not only limits
the current but also
controls LED brightness.
330
137. Zener Diode
A Zener diode is
designed through
appropriate doping so
that it conducts at a
predetermined reverse
voltage.
The diode begins to
conduct and then
maintains that
predetermined voltage
The over-voltageand
associated current must
be dissipated by the
diode as heat
9V 4.7V
138. The Transistor (Electronic Valves)
How they works, an inside look
Basic types
NPN
PNP
The basic transistor circuits
Switch
Amplifier
140. The Transistor
N P N
collector emitter
base e -e -
forward bias
conducting
e -
141. The Transistor
N P N
collector emitter
base e -e -
reverse bias
no-conducting
142. The Transistor
There are two basic types of
transistors depending of the
arrangement of the material.
PNP
NPN
An easy phrase to help
remember the appropriate
symbol is to look at the arrow.
PNP – pointing in proudly.
NPN – not pointing in.
The only operational difference
is the source polarity.
PNP
NPN
143. The Transistor Switch
During the next two
activities you will
build a transistor
switch and a transistor
amplifier.
The pin out of the
2N3904 transistor is
indicated here.
C
B
E
144. The Transistor Switch
Build the circuit on the
proto board.
Use hook up wire to
serve as “switches” to
connect the current to
the transistor base.
What happens when
you first apply power
when the base is left
floating (not
connected)?
330
1000
145. The Transistor Switch
Make the illustrated
adjustment to the
circuit.
Connect one end of
some hook-up wire to
the positive side of the 9
volt battery.
Touch the other end
(supply9 volts) to the
resistor in the base line
and observe what
happens.
330
1000
146. The Transistor Switch
Now replace the hook-
up wire connection with
a connection to a 1.5 volt
battery as shown.
What happens when
+1.5 volts is applied to
the base?
What happens when the
battery is reversed and –
1.5 volts is applied to the
base?
330
10001.5V
9V
