This document discusses programming concepts for the 8051 microcontroller including instruction classification, addressing modes, assembler directives, I/O programming, and 8051 programming in C. It covers instruction set, addressing modes like immediate, register, direct, indirect and relative. Assembly directives like ORG, END, DB, EQU are described with examples. I/O programming for LED and seven segment display using assembly language is outlined. Introduction to 8051 programming in C is also mentioned.

1.  Instruction classification,
 Instruction set,
 Addressing Modes: Immediate, register, direct, indirect
and relative,
 assembler directives (org, end), features with example,
 I/O Bit & Byte programming using assembly language for

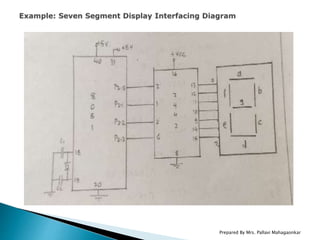

LED and seven segment display (SSD) interfacing.

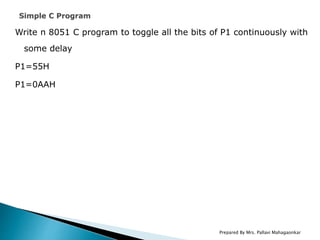

 Introduction to 8051 programming in C
Prepared By Mrs. Pallavi Mahagaonkar

2. Chapter 2
Programming Model

3.  An 8051 Instruction consists of an Opcode (short of
Operation – Code) followed by Operand(s) of size Zero
Byte, One Byte or Two Bytes Instruction set
 The Op-Code part of the instruction contains the Mnemonic,
which specifies the type of operation to be performed.
 OPCODE DESTINATION, SOURCE
 MOV A, #20H
 MOV A , #01101011B
Prepared By Mrs. Pallavi Mahagaonkar

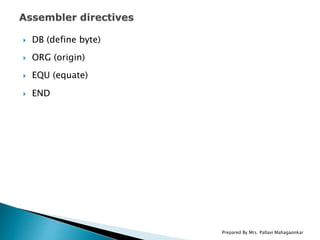

4.  DB (define byte)
 ORG (origin)
 EQU (equate)
 END
Prepared By Mrs. Pallavi Mahagaonkar

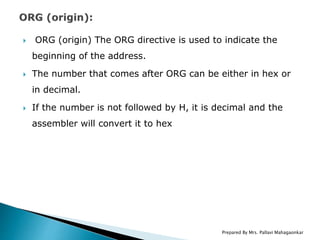

5.  ORG (origin) The ORG directive is used to indicate the
beginning of the address.
 The number that comes after ORG can be either in hex or
in decimal.
 If the number is not followed by H, it is decimal and the
assembler will convert it to hex
Prepared By Mrs. Pallavi Mahagaonkar

6.  END directive Another important pseudocode is the END
directive.
 This indicates to the assembler the end of the source (asm)
file.
 The END directive is the last line of an 8051 program,
meaning that in the source code anything after the END
directive is ignored by the assembler.
Prepared By Mrs. Pallavi Mahagaonkar

7.  DB (define byte): The DB directive is the most widely
used data directive in the assembler.
 It is used to define the 8-bit data.
 When DB is used to define data, the numbers can be in
decimal, binary, hex, or ASCII formats.
Prepared By Mrs. Pallavi Mahagaonkar

8.  EQU (equate) This is used to define a constant without
occupying a memory location.
 The EQU directive does not set aside storage for a data
item but associates a constant value with a data label so
that when the label appears in the program, its constant
value will be substituted for the label.
 The following uses EQU for the counter constant and then
the constant is used to load the R3 register. When
executing the instruction “MOV R3, #COUNT”, the register
R3 will be loaded with the value 25 (notice the # sign).
Prepared By Mrs. Pallavi Mahagaonkar

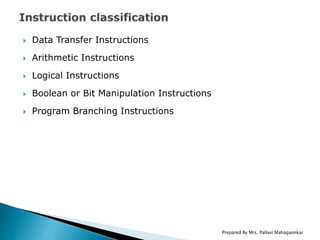

9.  Data Transfer Instructions
 Arithmetic Instructions
 Logical Instructions
 Boolean or Bit Manipulation Instructions
 Program Branching Instructions
Prepared By Mrs. Pallavi Mahagaonkar

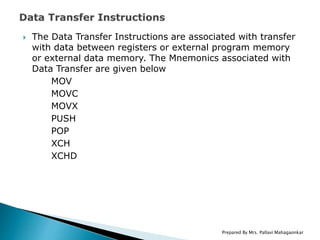

10.  The Data Transfer Instructions are associated with transfer
with data between registers or external program memory
or external data memory. The Mnemonics associated with
Data Transfer are given below
MOV
MOVC
MOVX
PUSH
POP
XCH
XCHD
Prepared By Mrs. Pallavi Mahagaonkar

11. ADD A, #32H
This is an instruction of type ADD A, #d8. The immediate data
32H is added to register A. The result is also stored in A.
ADDC A, @R1
This is an instruction of type ADDC A, @Ri. It means the content
on internal RAM location which is pointed by register R1 is added
to A.
SUBB A, R5
This is SUBB A, Rn type instruction. The SUBB stands for Subtract
with borrow. So the content of R5 will be subtracted from A.
INC A Increment A by 1
DEC A Decrement A by 1
Prepared By Mrs. Pallavi Mahagaonkar

12. MUL AB
This instruction is used to multiply the content of register A and
B. The 16-bit address will be stored at B and A registers. The B
will hold the MSByte and A will hold the LSByte
ORG 00H
MOV A, #55H
MOV B,#10H
MUL AB
Prepared By Mrs. Pallavi Mahagaonkar

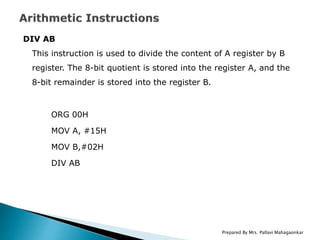

13. DIV AB
This instruction is used to divide the content of A register by B
register. The 8-bit quotient is stored into the register A, and the
8-bit remainder is stored into the register B.
ORG 00H
MOV A, #15H
MOV B,#02H
DIV AB
Prepared By Mrs. Pallavi Mahagaonkar

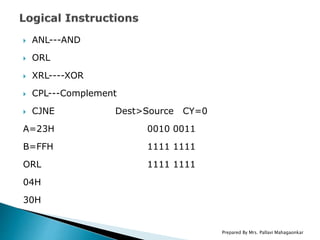

14.  ANL---AND
 ORL
 XRL----XOR
 CPL---Complement
 CJNE Dest>Source CY=0
A=23H 0010 0011
B=FFH 1111 1111
ORL 1111 1111
04H
30H
Prepared By Mrs. Pallavi Mahagaonkar

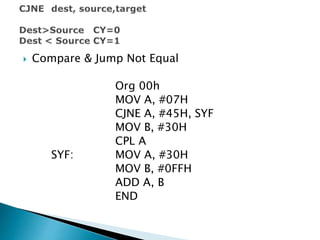

15.  Compare & Jump Not Equal
Org 00h
MOV A, #07H
CJNE A, #45H, SYF
MOV B, #30H
CPL A
SYF: MOV A, #30H
MOV B, #0FFH
ADD A, B
END

16.  Repeating a sequence of instruction a certain number of times is called loop
 In 8051, the loop action is performed by the instruction “DJNZ reg,label”
 Example: Write a program to clear Accumulator and then ADD 3 to the accumulator
10 times
ORG 00H
MOV A, #00
ADD A, #03
ADD A, #03
ADD A, #03
ADD A, #03
ADD A, #03
ADD A, #03
ADD A, #03
ADD A, #03
ADD A, #03
ADD A, #03

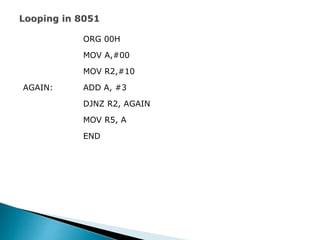

17. ORG 00H
MOV A,#00
MOV R2,#10
AGAIN: ADD A, #3
DJNZ R2, AGAIN
MOV R5, A
END

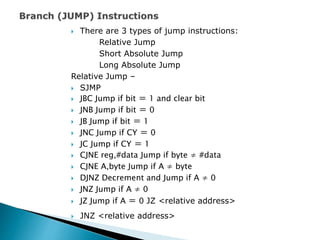

18.  There are 3 types of jump instructions:
Relative Jump
Short Absolute Jump
Long Absolute Jump
Relative Jump –
 SJMP
 JBC Jump if bit ＝ 1 and clear bit
 JNB Jump if bit ＝ 0
 JB Jump if bit ＝ 1
 JNC Jump if CY ＝ 0
 JC Jump if CY ＝ 1
 CJNE reg,#data Jump if byte ≠ #data
 CJNE A,byte Jump if A ≠ byte
 DJNZ Decrement and Jump if A ≠ 0
 JNZ Jump if A ≠ 0
 JZ Jump if A ＝ 0 JZ <relative address>
 JNZ <relative address>

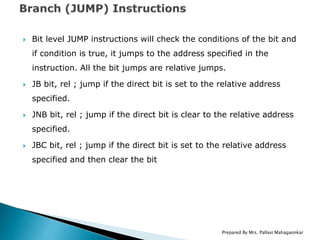

19.  Bit level JUMP instructions will check the conditions of the bit and
if condition is true, it jumps to the address specified in the
instruction. All the bit jumps are relative jumps.
 JB bit, rel ; jump if the direct bit is set to the relative address
specified.
 JNB bit, rel ; jump if the direct bit is clear to the relative address
specified.
 JBC bit, rel ; jump if the direct bit is set to the relative address
specified and then clear the bit
Prepared By Mrs. Pallavi Mahagaonkar

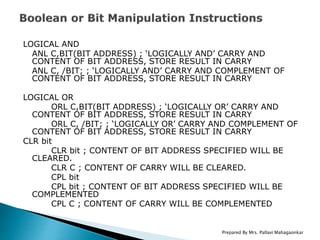

20. LOGICAL AND
ANL C,BIT(BIT ADDRESS) ; ‘LOGICALLY AND’ CARRY AND
CONTENT OF BIT ADDRESS, STORE RESULT IN CARRY
ANL C, /BIT; ; ‘LOGICALLY AND’ CARRY AND COMPLEMENT OF
CONTENT OF BIT ADDRESS, STORE RESULT IN CARRY
LOGICAL OR
ORL C,BIT(BIT ADDRESS) ; ‘LOGICALLY OR’ CARRY AND
CONTENT OF BIT ADDRESS, STORE RESULT IN CARRY
ORL C, /BIT; ; ‘LOGICALLY OR’ CARRY AND COMPLEMENT OF
CONTENT OF BIT ADDRESS, STORE RESULT IN CARRY
CLR bit
CLR bit ; CONTENT OF BIT ADDRESS SPECIFIED WILL BE
CLEARED.
CLR C ; CONTENT OF CARRY WILL BE CLEARED.
CPL bit
CPL bit ; CONTENT OF BIT ADDRESS SPECIFIED WILL BE
COMPLEMENTED
CPL C ; CONTENT OF CARRY WILL BE COMPLEMENTED
Prepared By Mrs. Pallavi Mahagaonkar

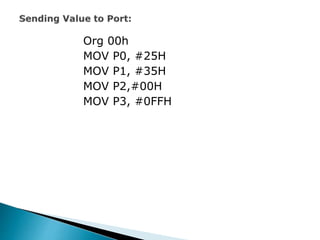

21. Org 00h
MOV P0, #25H
MOV P1, #35H
MOV P2,#00H
MOV P3, #0FFH

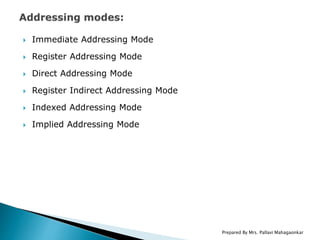

22.  Immediate Addressing Mode
 Register Addressing Mode
 Direct Addressing Mode
 Register Indirect Addressing Mode
 Indexed Addressing Mode
 Implied Addressing Mode
Prepared By Mrs. Pallavi Mahagaonkar

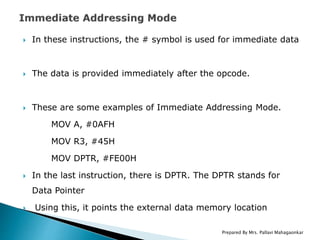

23.  In these instructions, the # symbol is used for immediate data
 The data is provided immediately after the opcode.
 These are some examples of Immediate Addressing Mode.
MOV A, #0AFH
MOV R3, #45H
MOV DPTR, #FE00H
 In the last instruction, there is DPTR. The DPTR stands for
Data Pointer
 Using this, it points the external data memory location
Prepared By Mrs. Pallavi Mahagaonkar

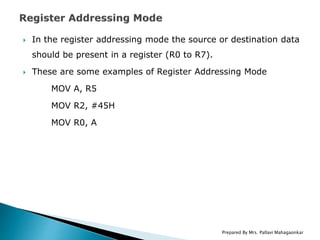

24.  In the register addressing mode the source or destination data
should be present in a register (R0 to R7).
 These are some examples of Register Addressing Mode
MOV A, R5
MOV R2, #45H
MOV R0, A
Prepared By Mrs. Pallavi Mahagaonkar

25.  In the Direct Addressing Mode, the source or destination
address is specified by using 8-bit data in the instruction. Only
the internal data memory can be used in this mode.
 Here some of the examples of direct Addressing Mode.
MOV 80H, R6
MOV R2, 45H
MOV R0, 05H
 The first instruction will send the content of registerR6 to port
P0 (Address of Port 0 is 80H).
 The second one is forgetting content from 45H to R2.
 The third one is used to get data from Register R5 (When
register bank RB0 is selected) to register R5.
Prepared By Mrs. Pallavi Mahagaonkar

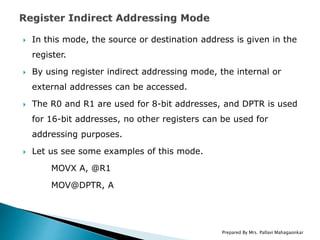

26.  In this mode, the source or destination address is given in the
register.
 By using register indirect addressing mode, the internal or
external addresses can be accessed.
 The R0 and R1 are used for 8-bit addresses, and DPTR is used
for 16-bit addresses, no other registers can be used for
addressing purposes.
 Let us see some examples of this mode.
MOVX A, @R1
MOV@DPTR, A
Prepared By Mrs. Pallavi Mahagaonkar

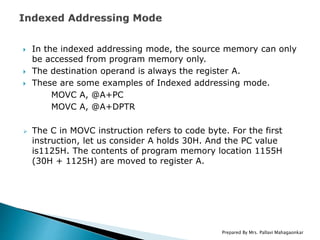

27.  In the indexed addressing mode, the source memory can only
be accessed from program memory only.
 The destination operand is always the register A.
 These are some examples of Indexed addressing mode.
MOVC A, @A+PC
MOVC A, @A+DPTR
 The C in MOVC instruction refers to code byte. For the first
instruction, let us consider A holds 30H. And the PC value
is1125H. The contents of program memory location 1155H
(30H + 1125H) are moved to register A.
Prepared By Mrs. Pallavi Mahagaonkar

28.  In the implied addressing mode, there will be a single operand.
 These types of instruction can work on specific registers only.
These types of instructions are also known as register specific
instruction.
 Here are some examples of Implied Addressing Mode.
RLA
SWAPA
 These are 1- byte instruction. The first one is used to rotate the A
register content to the Left.
 The second one is used to swap the nibbles in A.
Prepared By Mrs. Pallavi Mahagaonkar

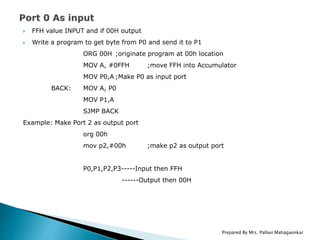

29.  FFH value INPUT and if 00H output
 Write a program to get byte from P0 and send it to P1
ORG 00H ;originate program at 00h location
MOV A, #0FFH ;move FFH into Accumulator
MOV P0,A ;Make P0 as input port
BACK: MOV A, P0
MOV P1,A
SJMP BACK
Example: Make Port 2 as output port
org 00h
mov p2,#00h ;make p2 as output port
P0,P1,P2,P3-----Input then FFH
------Output then 00H
Prepared By Mrs. Pallavi Mahagaonkar

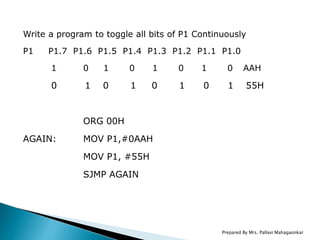

30. Write a program to toggle all bits of P1 Continuously
P1 P1.7 P1.6 P1.5 P1.4 P1.3 P1.2 P1.1 P1.0
1 0 1 0 1 0 1 0 AAH
0 1 0 1 0 1 0 1 55H
ORG 00H
AGAIN: MOV P1,#0AAH
MOV P1, #55H
SJMP AGAIN
Prepared By Mrs. Pallavi Mahagaonkar

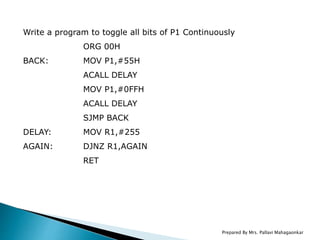

31. Write a program to toggle all bits of P1 Continuously
ORG 00H
BACK: MOV P1,#55H
ACALL DELAY
MOV P1,#0FFH
ACALL DELAY
SJMP BACK
DELAY: MOV R1,#255
AGAIN: DJNZ R1,AGAIN
RET
Prepared By Mrs. Pallavi Mahagaonkar

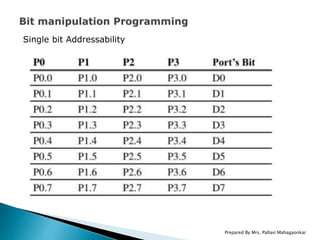

32. Single bit Addressability
Prepared By Mrs. Pallavi Mahagaonkar

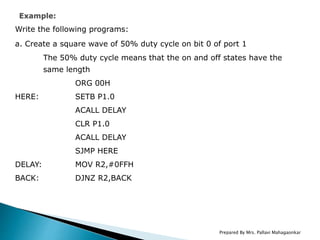

33. Write the following programs:
a. Create a square wave of 50% duty cycle on bit 0 of port 1
The 50% duty cycle means that the on and off states have the
same length
ORG 00H
HERE: SETB P1.0
ACALL DELAY
CLR P1.0
ACALL DELAY
SJMP HERE
DELAY: MOV R2,#0FFH
BACK: DJNZ R2,BACK
Prepared By Mrs. Pallavi Mahagaonkar

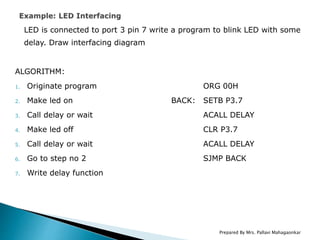

34. LED is connected to port 3 pin 7 write a program to blink LED with some
delay. Draw interfacing diagram
ALGORITHM:
1. Originate program ORG 00H
2. Make led on BACK: SETB P3.7
3. Call delay or wait ACALL DELAY
4. Make led off CLR P3.7
5. Call delay or wait ACALL DELAY
6. Go to step no 2 SJMP BACK
7. Write delay function
Prepared By Mrs. Pallavi Mahagaonkar

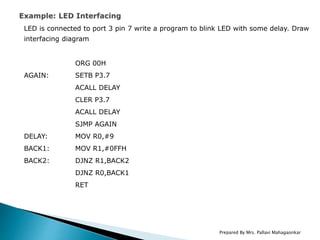

35. LED is connected to port 3 pin 7 write a program to blink LED with some delay. Draw
interfacing diagram
ORG 00H
AGAIN: SETB P3.7
ACALL DELAY
CLER P3.7
ACALL DELAY
SJMP AGAIN
DELAY: MOV R0,#9
BACK1: MOV R1,#0FFH
BACK2: DJNZ R1,BACK2
DJNZ R0,BACK1
RET
Prepared By Mrs. Pallavi Mahagaonkar

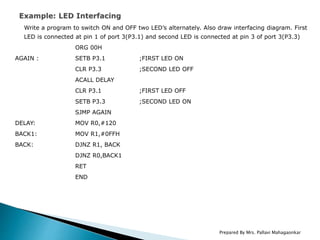

36. Write a program to switch ON and OFF two LED’s alternately. Also draw interfacing diagram. First
LED is connected at pin 1 of port 3(P3.1) and second LED is connected at pin 3 of port 3(P3.3)
ORG 00H
AGAIN : SETB P3.1 ;FIRST LED ON
CLR P3.3 ;SECOND LED OFF
ACALL DELAY
CLR P3.1 ;FIRST LED OFF
SETB P3.3 ;SECOND LED ON
SJMP AGAIN
DELAY: MOV R0,#120
BACK1: MOV R1,#0FFH
BACK: DJNZ R1, BACK
DJNZ R0,BACK1
RET
END
Prepared By Mrs. Pallavi Mahagaonkar

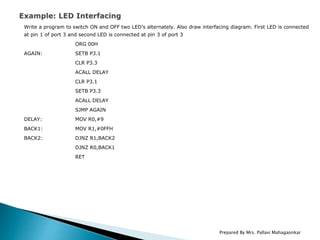

37. Write a program to switch ON and OFF two LED’s alternately. Also draw interfacing diagram. First LED is connected
at pin 1 of port 3 and second LED is connected at pin 3 of port 3
ORG 00H
AGAIN: SETB P3.1
CLR P3.3
ACALL DELAY
CLR P3.1
SETB P3.3
ACALL DELAY
SJMP AGAIN
DELAY: MOV R0,#9
BACK1: MOV R1,#0FFH
BACK2: DJNZ R1,BACK2
DJNZ R0,BACK1
RET
Prepared By Mrs. Pallavi Mahagaonkar

38. Prepared By Mrs. Pallavi Mahagaonkar

39. ORG 00H
AGAIN: MOV A, #00H
UP: MOV P2,A ;P2=01H
ACALL DELAY
INC A ;A=01H
CJNE A,#0AH,UP ;A =01 Source=0AH Not equal so jmp to titile UP
SJMP AGAIN
DELAY: MOV R0,#9
BACK1: MOV R1,#0FFH
BACK2: DJNZ R1,BACK2
DJNZ R0,BACK1
RET
Prepared By Mrs. Pallavi Mahagaonkar

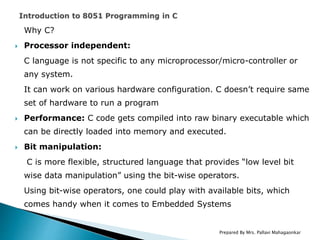

40. Why C?
 Processor independent:
C language is not specific to any microprocessor/micro-controller or
any system.
It can work on various hardware configuration. C doesn’t require same
set of hardware to run a program
 Performance: C code gets compiled into raw binary executable which
can be directly loaded into memory and executed.
 Bit manipulation:
C is more flexible, structured language that provides “low level bit
wise data manipulation” using the bit-wise operators.
Using bit-wise operators, one could play with available bits, which
comes handy when it comes to Embedded Systems
Prepared By Mrs. Pallavi Mahagaonkar

41. Write n 8051 C program to toggle all the bits of P1 continuously with
some delay
P1=55H
P1=0AAH
Prepared By Mrs. Pallavi Mahagaonkar
