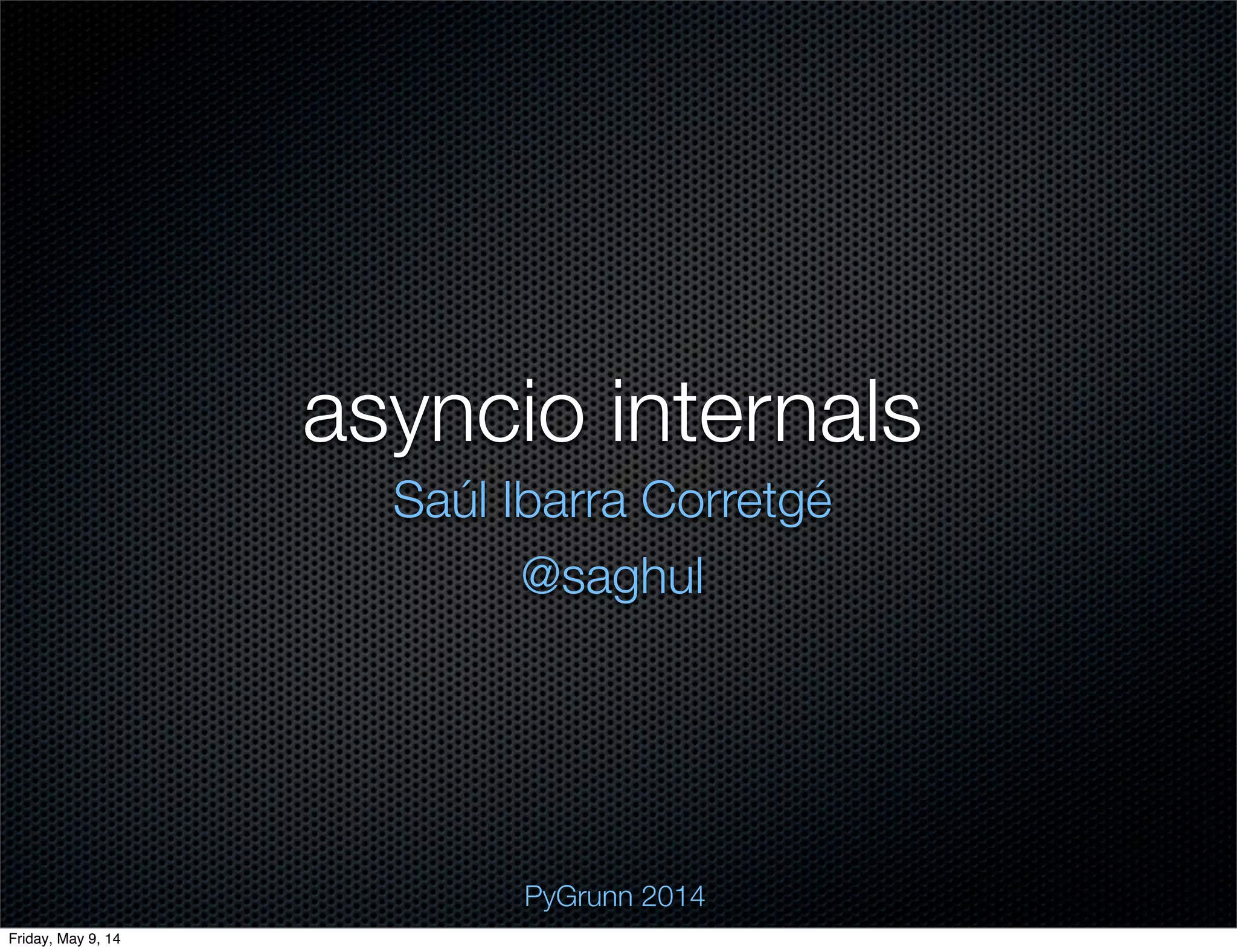

1. asyncio internals
Saúl Ibarra Corretgé
@saghul
PyGrunn 2014
Friday, May 9, 14

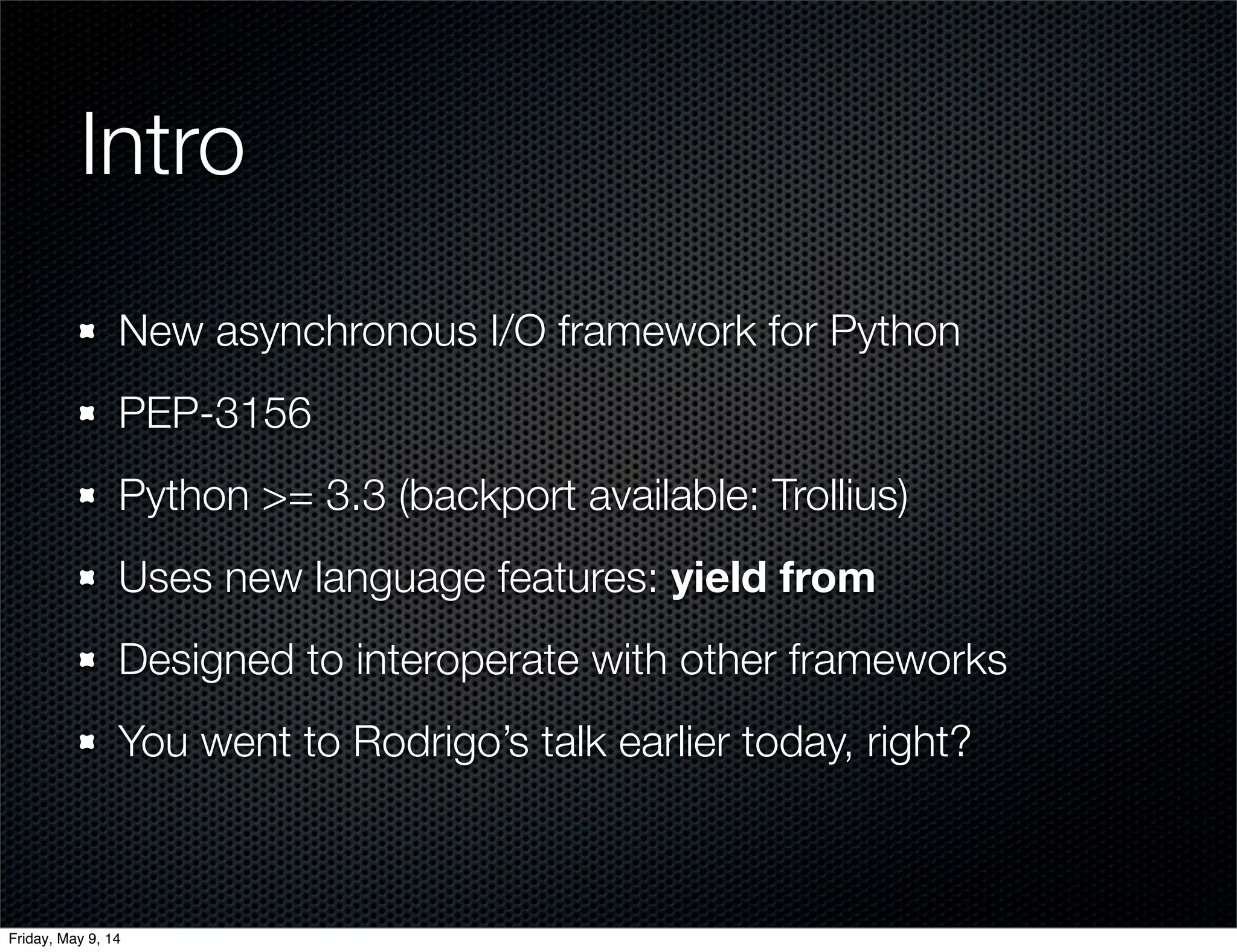

2. Intro
New asynchronous I/O framework for Python
PEP-3156
Python >= 3.3 (backport available: Trollius)
Uses new language features: yield from
Designed to interoperate with other frameworks
You went to Rodrigo’s talk earlier today, right?
Friday, May 9, 14

3. Friday, May 9, 14

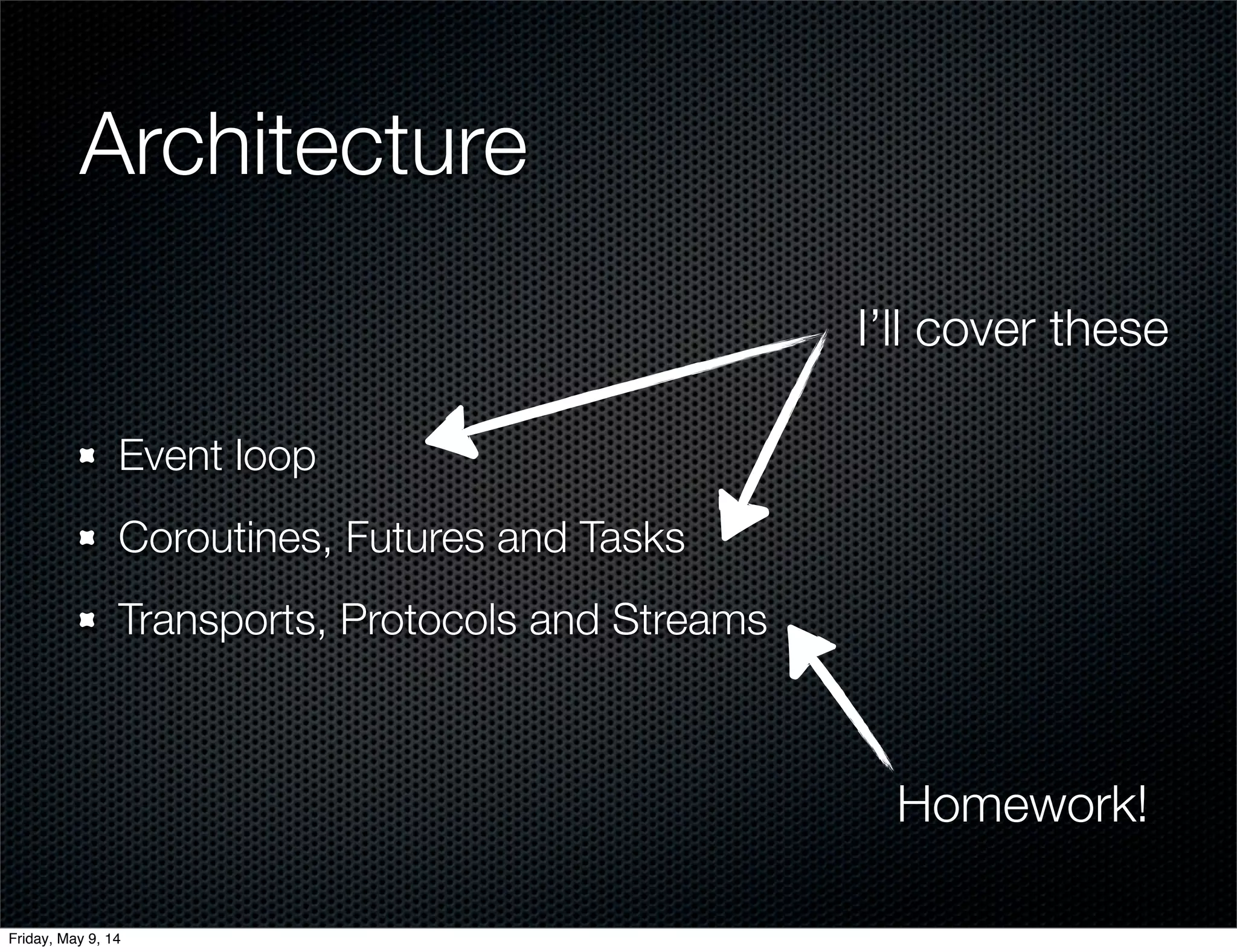

4. Architecture
Event loop
Coroutines, Futures and Tasks
Transports, Protocols and Streams
I’ll cover these
Homework!
Friday, May 9, 14

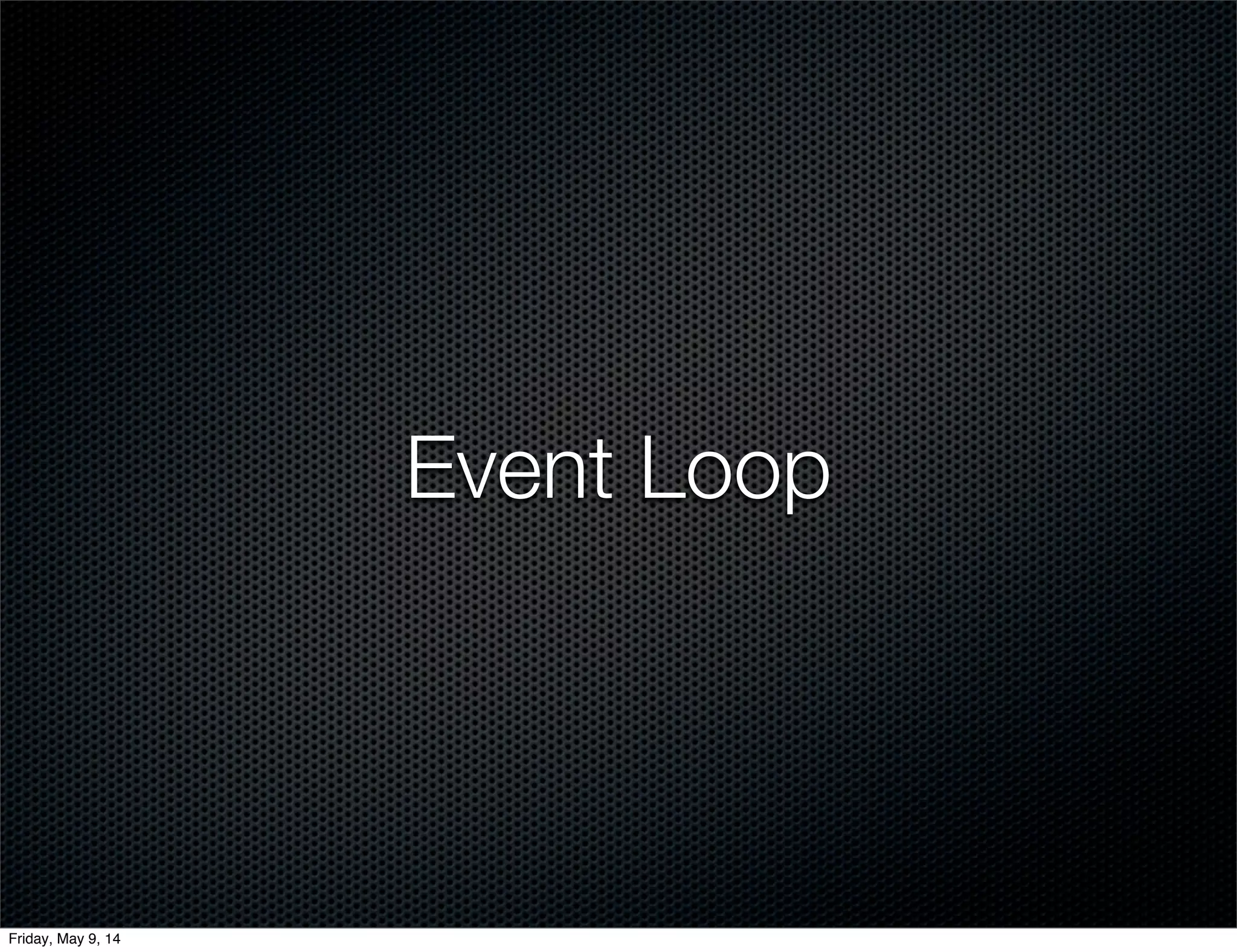

5. Event Loop
Friday, May 9, 14

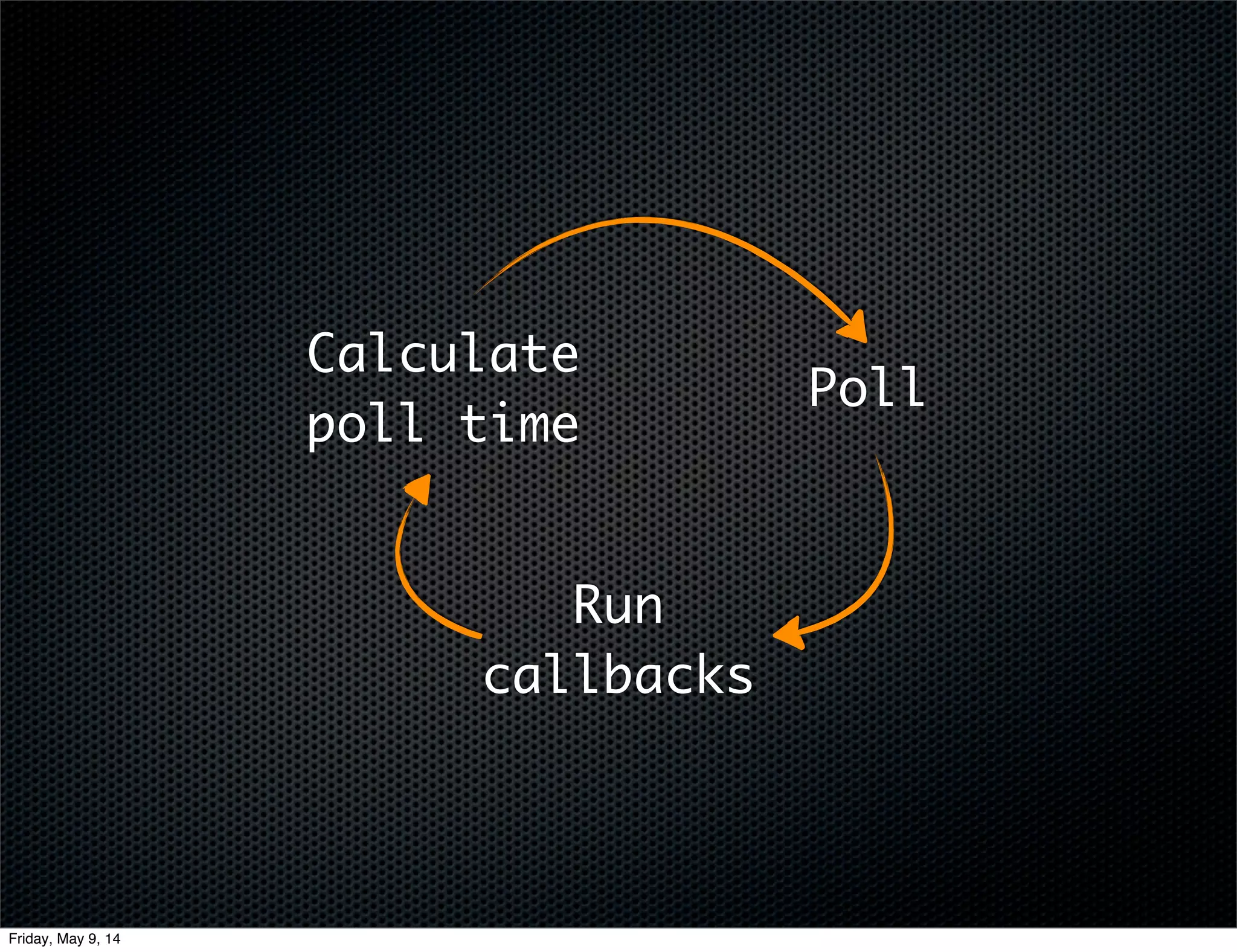

6. Calculate
poll time
Poll
Run
callbacks
Friday, May 9, 14

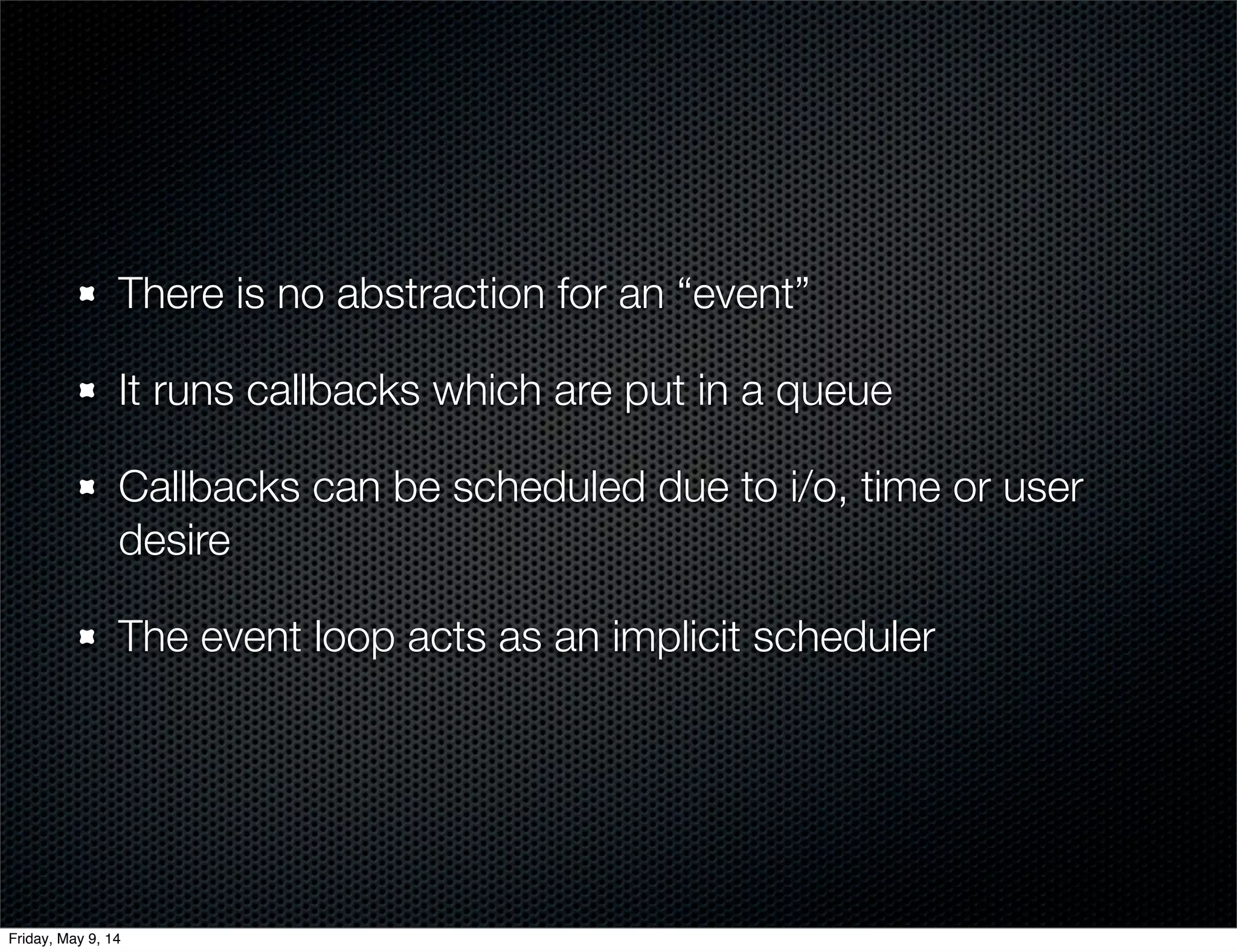

7. There is no abstraction for an “event”
It runs callbacks which are put in a queue
Callbacks can be scheduled due to i/o, time or user
desire
The event loop acts as an implicit scheduler
Friday, May 9, 14

8. Sim
plified

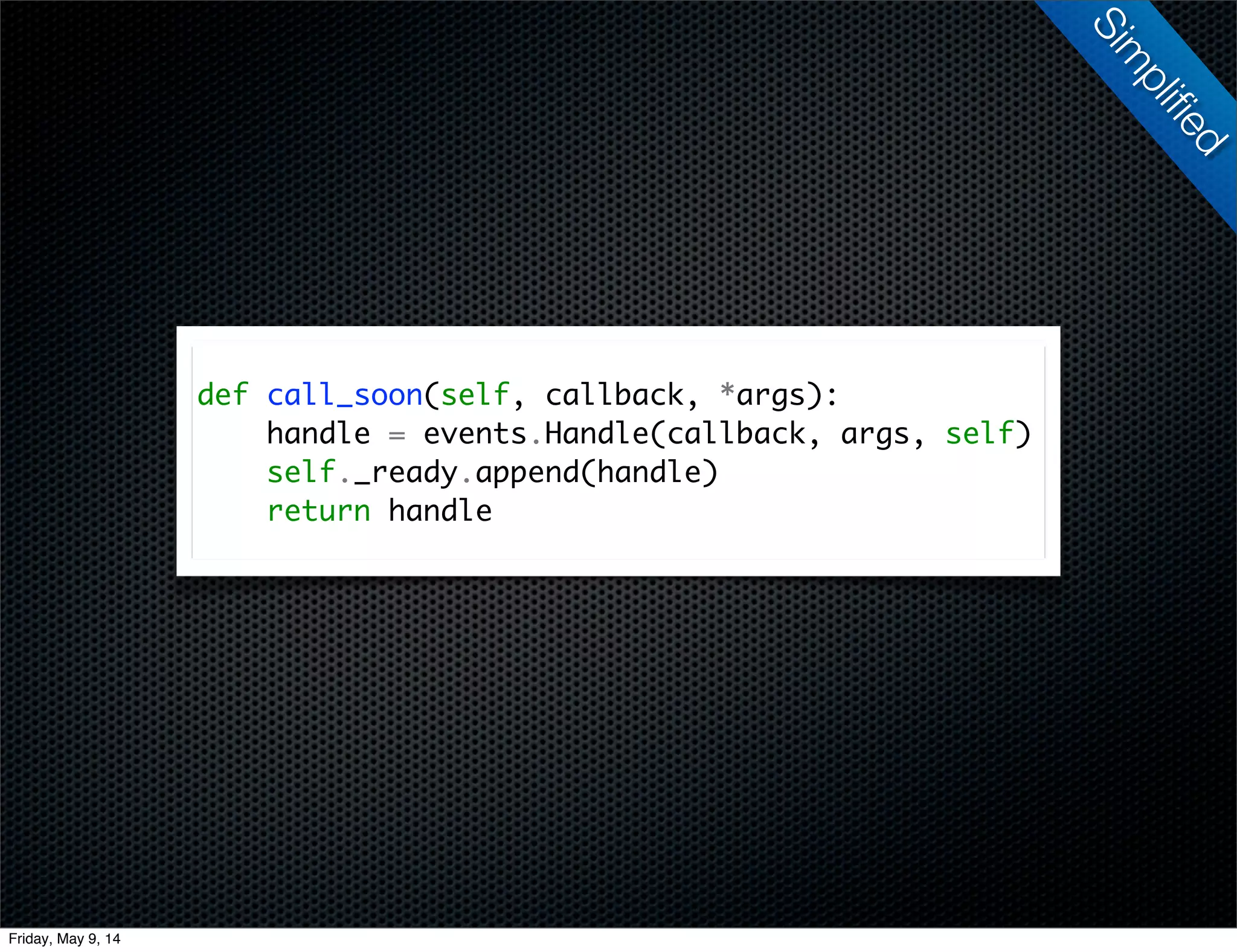

def call_soon(self, callback, *args):
handle = events.Handle(callback, args, self)
self._ready.append(handle)
return handle
Friday, May 9, 14

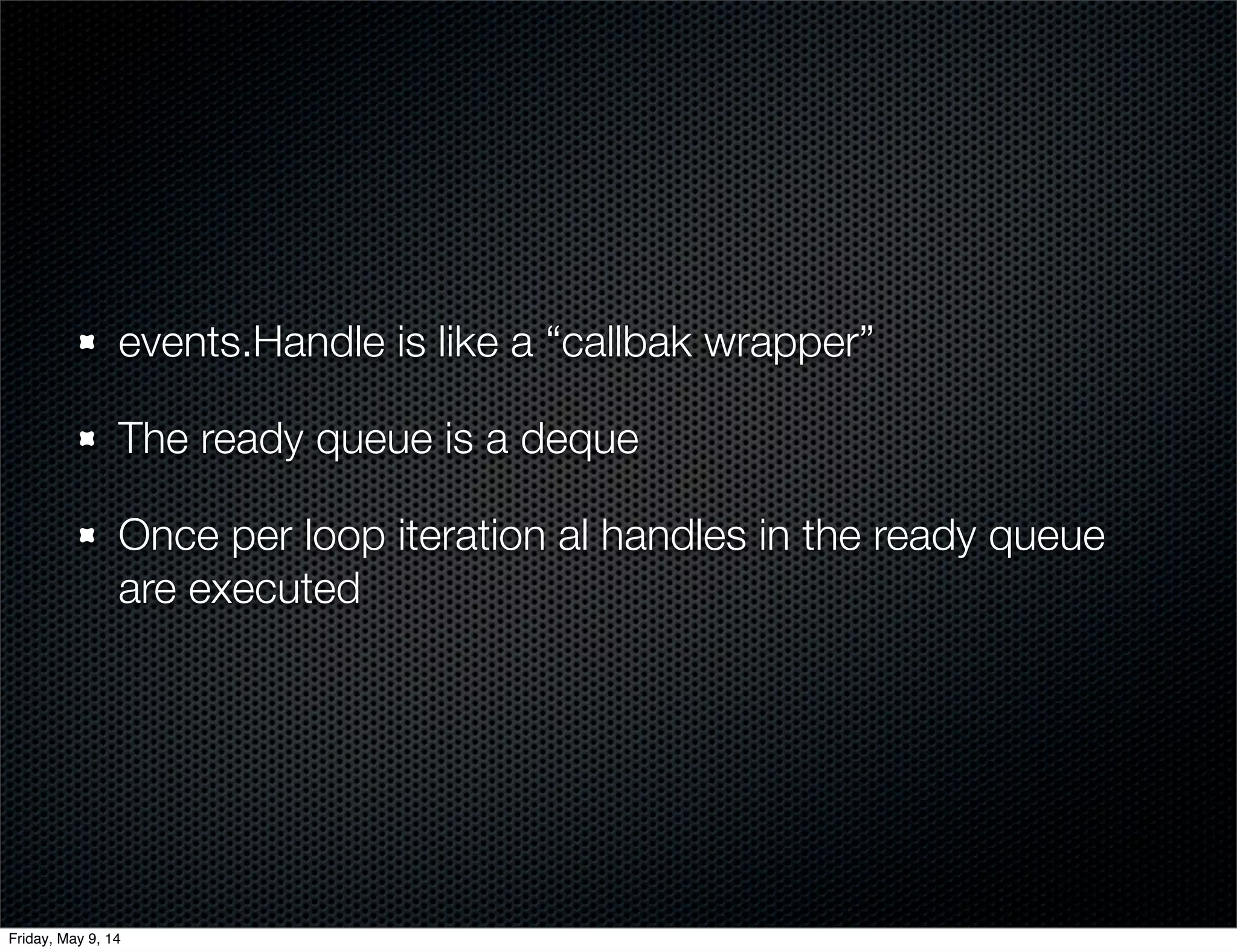

9. events.Handle is like a “callbak wrapper”
The ready queue is a deque
Once per loop iteration al handles in the ready queue
are executed
Friday, May 9, 14

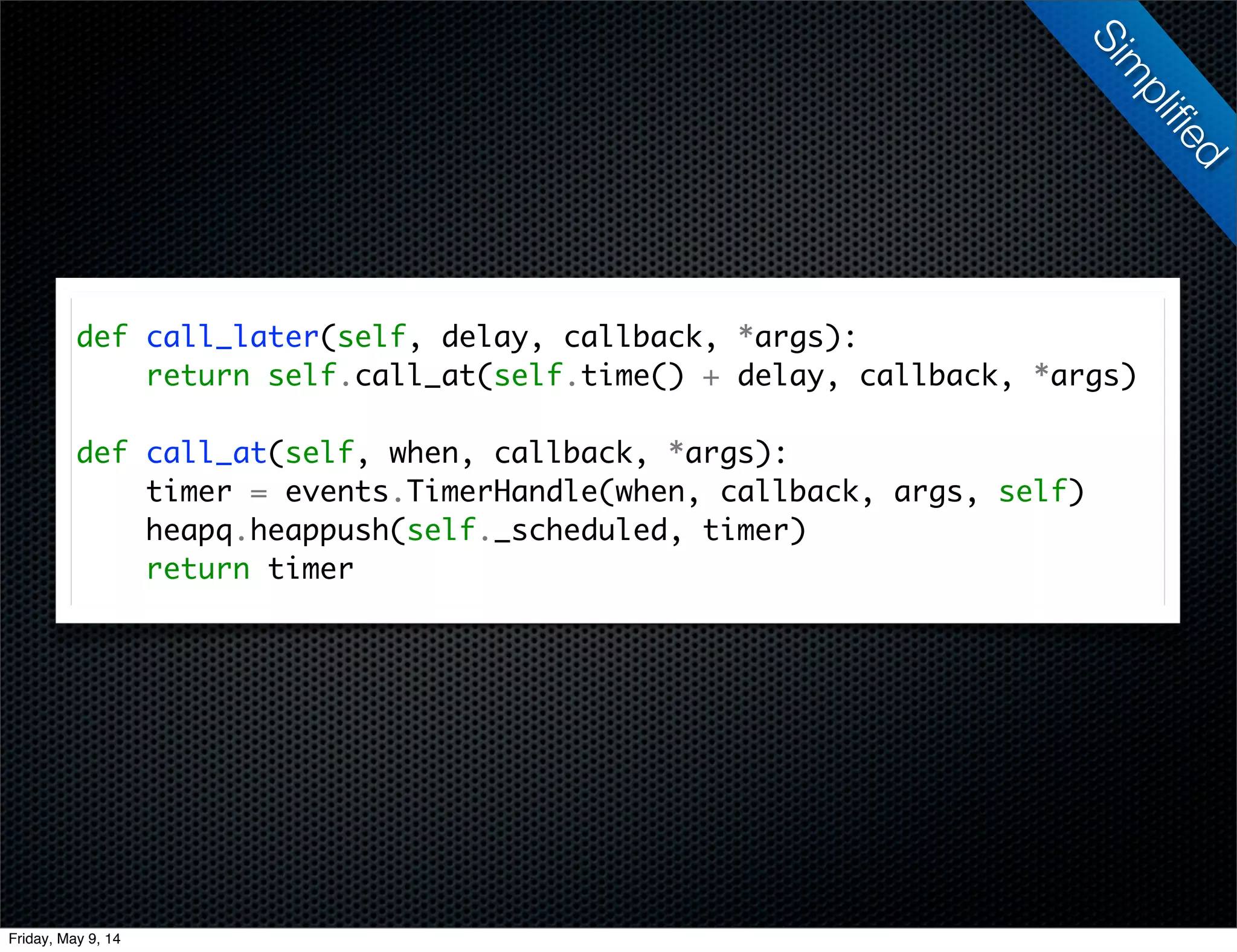

10. def call_later(self, delay, callback, *args):
return self.call_at(self.time() + delay, callback, *args)
def call_at(self, when, callback, *args):
timer = events.TimerHandle(when, callback, args, self)
heapq.heappush(self._scheduled, timer)
return timer
Sim
plified
Friday, May 9, 14

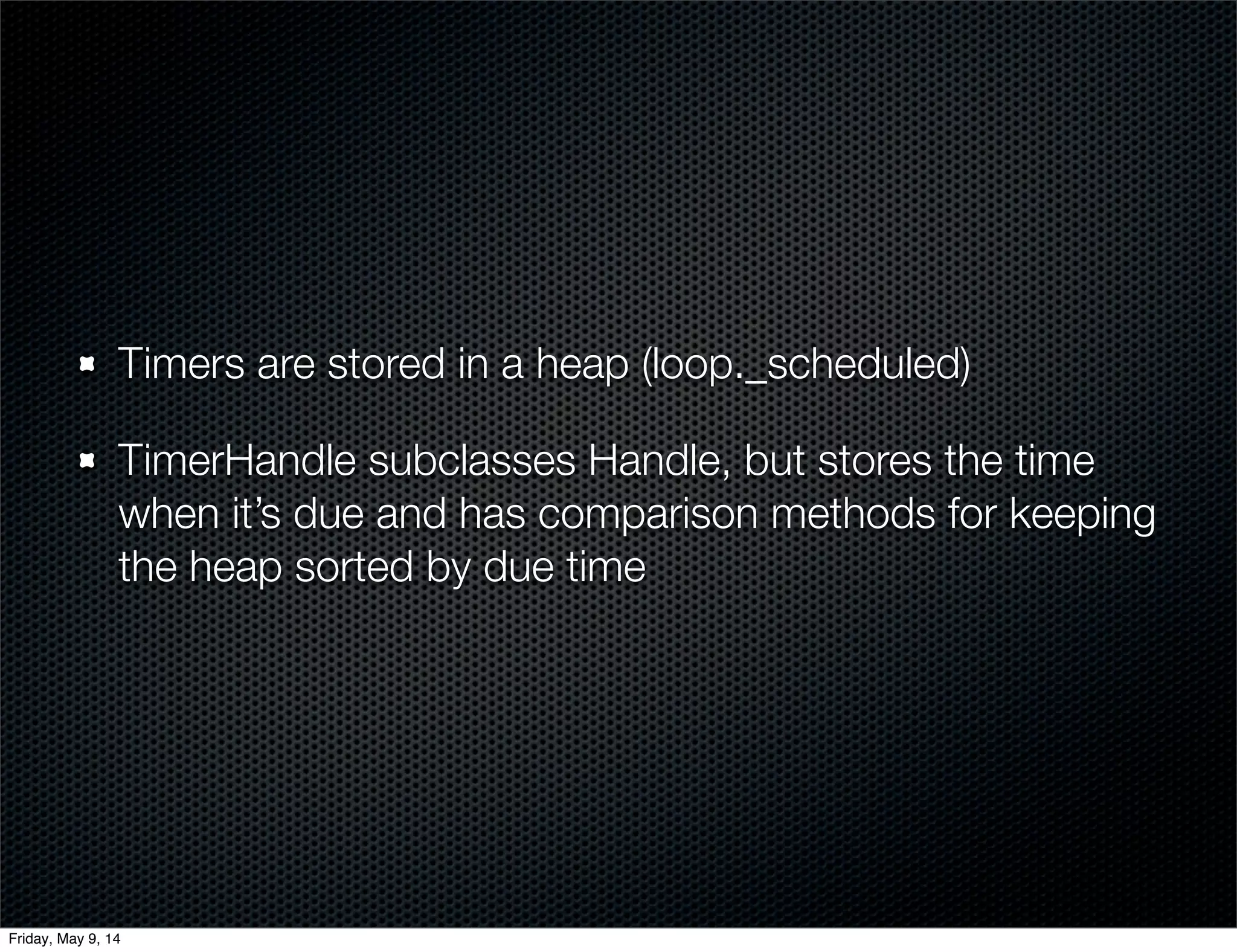

11. Timers are stored in a heap (loop._scheduled)
TimerHandle subclasses Handle, but stores the time
when it’s due and has comparison methods for keeping
the heap sorted by due time
Friday, May 9, 14

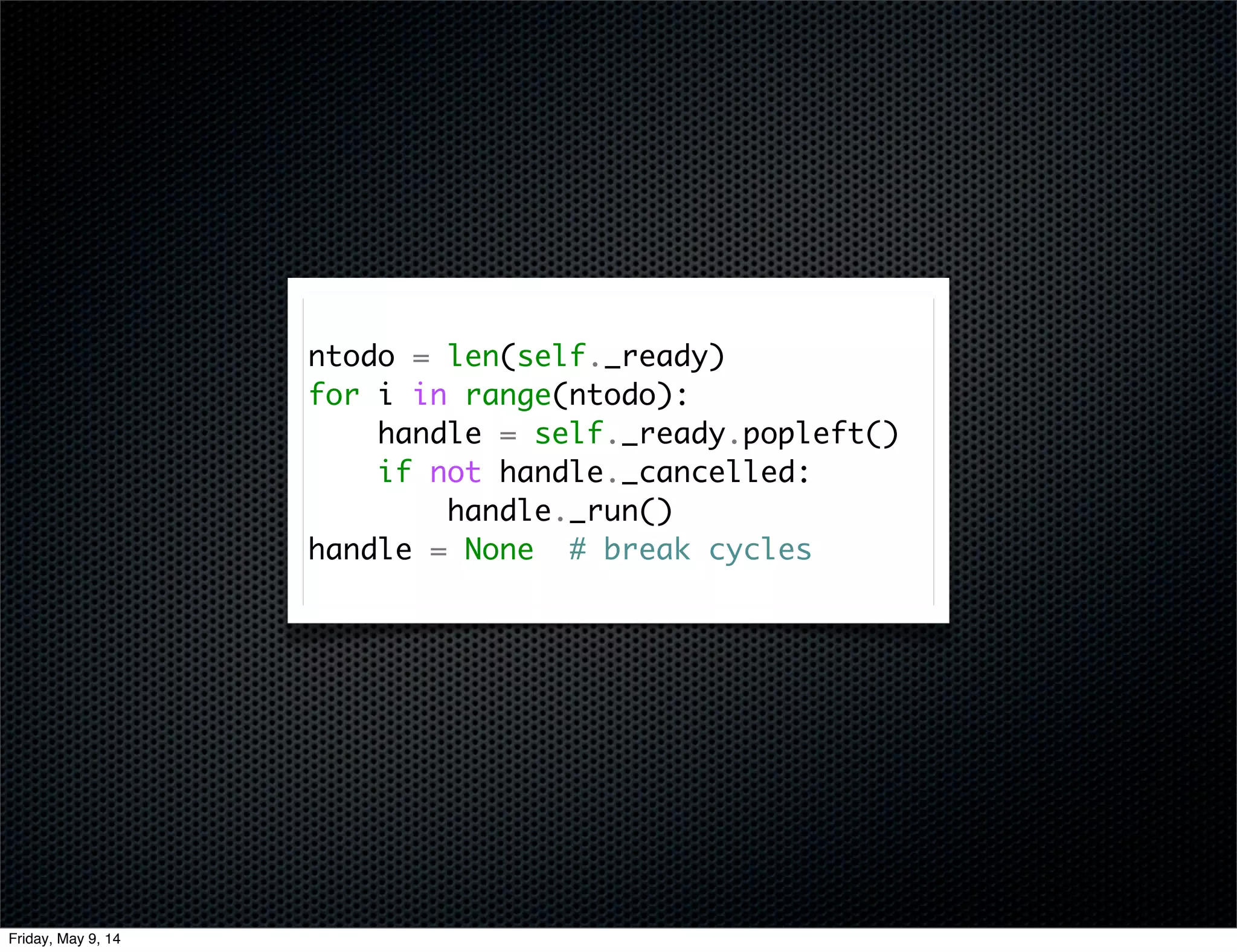

12. ntodo = len(self._ready)
for i in range(ntodo):
handle = self._ready.popleft()
if not handle._cancelled:
handle._run()
handle = None # break cycles
Friday, May 9, 14

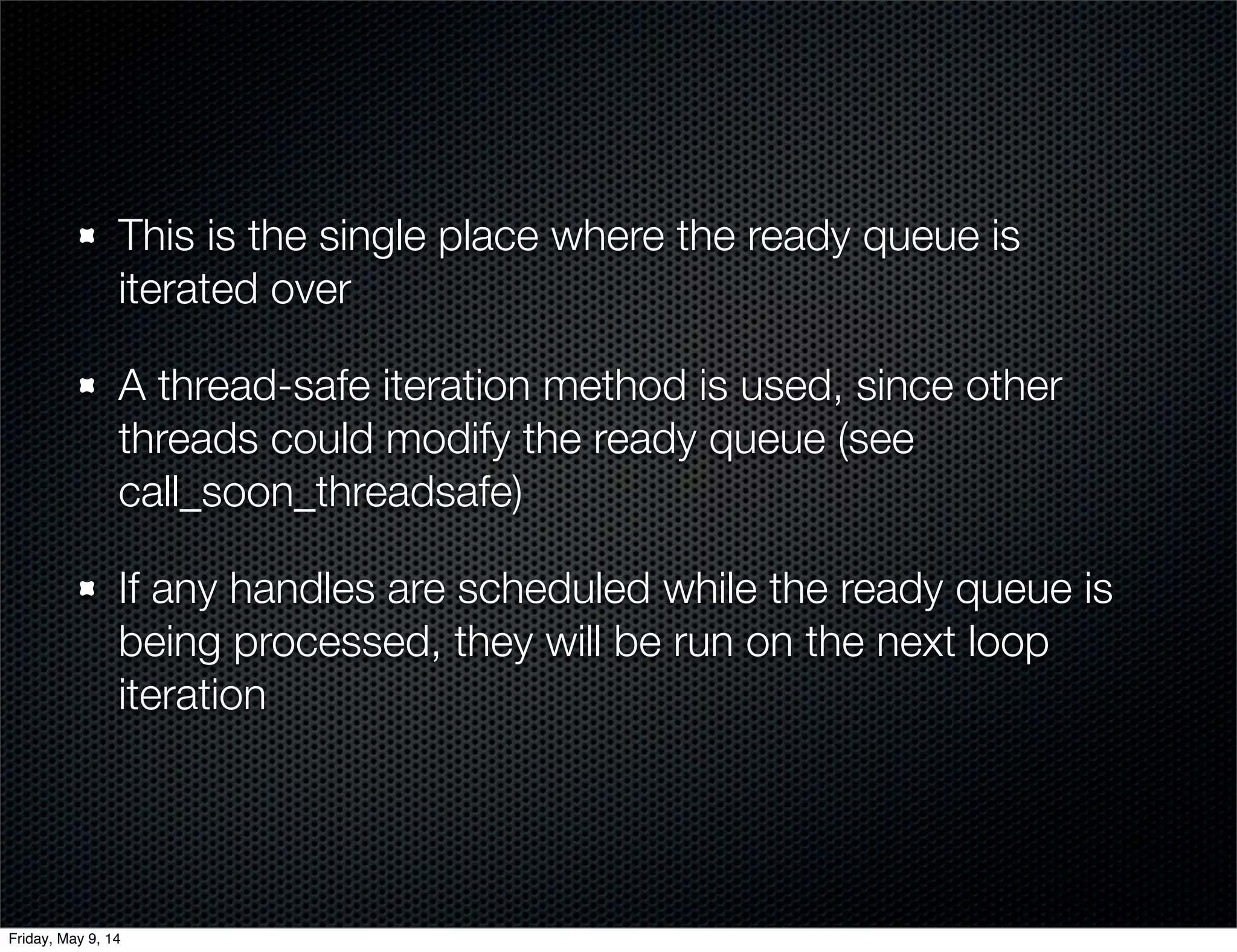

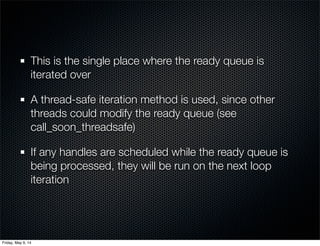

13. This is the single place where the ready queue is
iterated over
A thread-safe iteration method is used, since other
threads could modify the ready queue (see
call_soon_threadsafe)
If any handles are scheduled while the ready queue is
being processed, they will be run on the next loop
iteration
Friday, May 9, 14

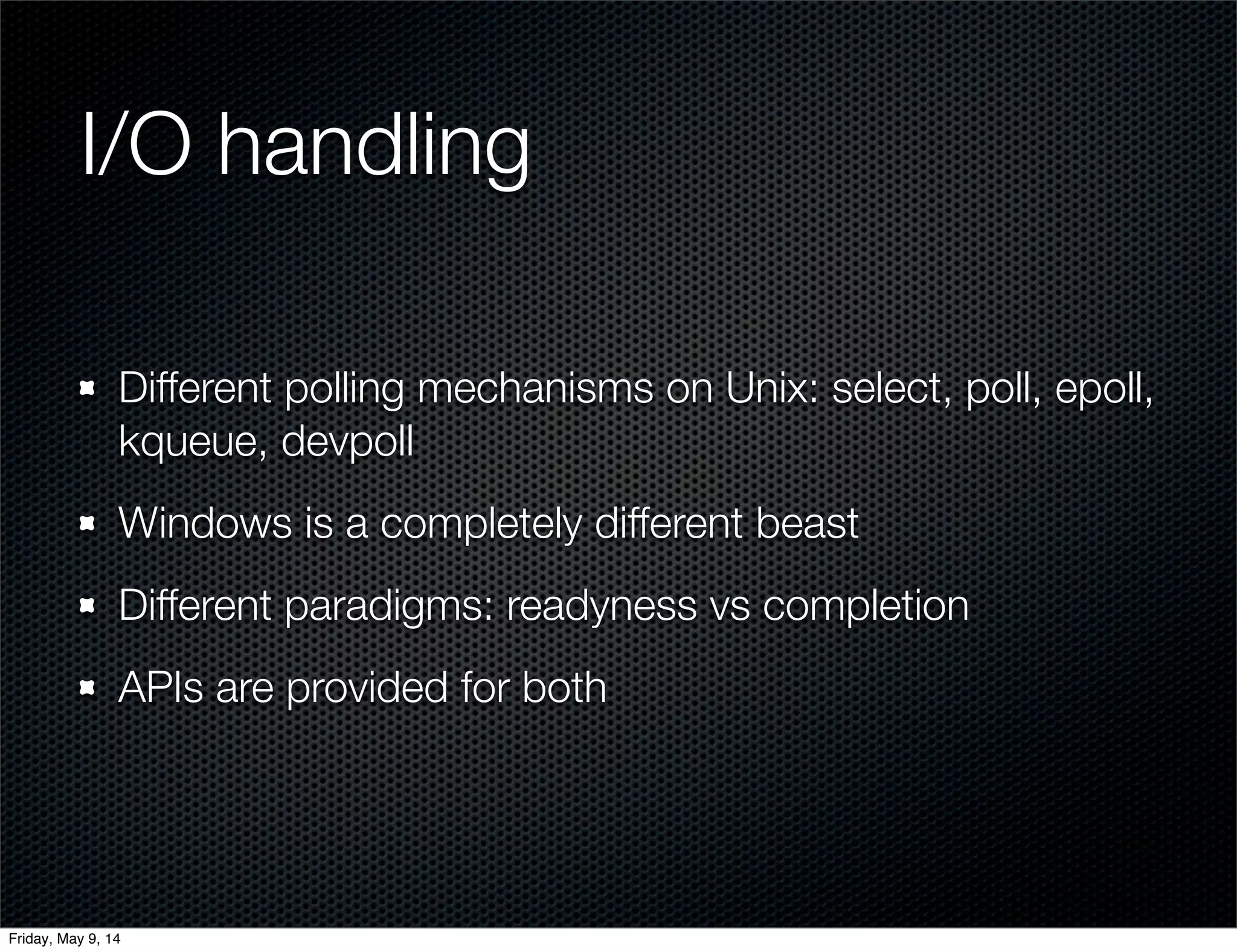

14. Different polling mechanisms on Unix: select, poll, epoll,
kqueue, devpoll
Windows is a completely different beast
Different paradigms: readyness vs completion
APIs are provided for both
I/O handling
Friday, May 9, 14

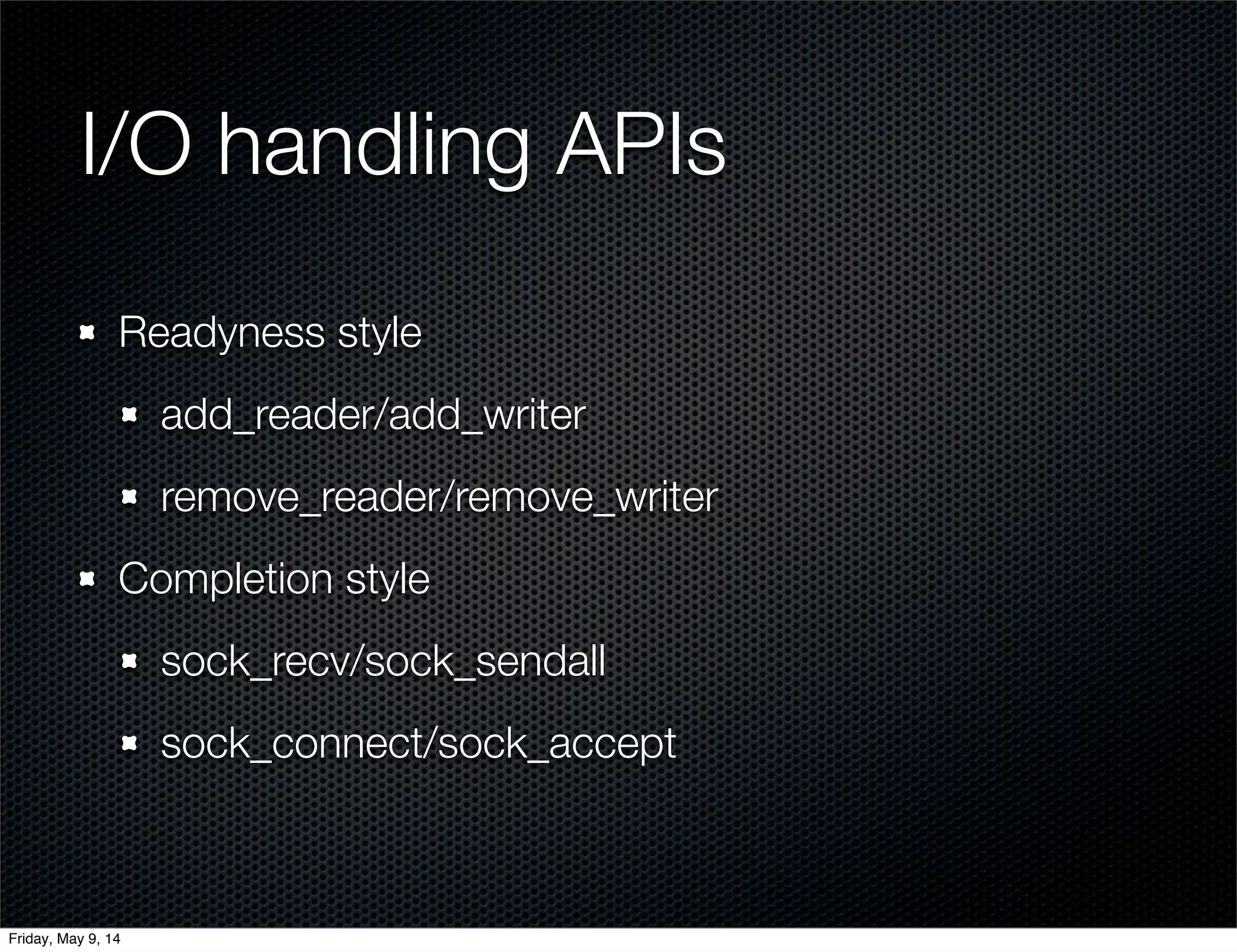

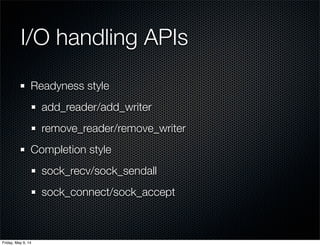

15. I/O handling APIs
Readyness style
add_reader/add_writer
remove_reader/remove_writer
Completion style
sock_recv/sock_sendall
sock_connect/sock_accept
Friday, May 9, 14

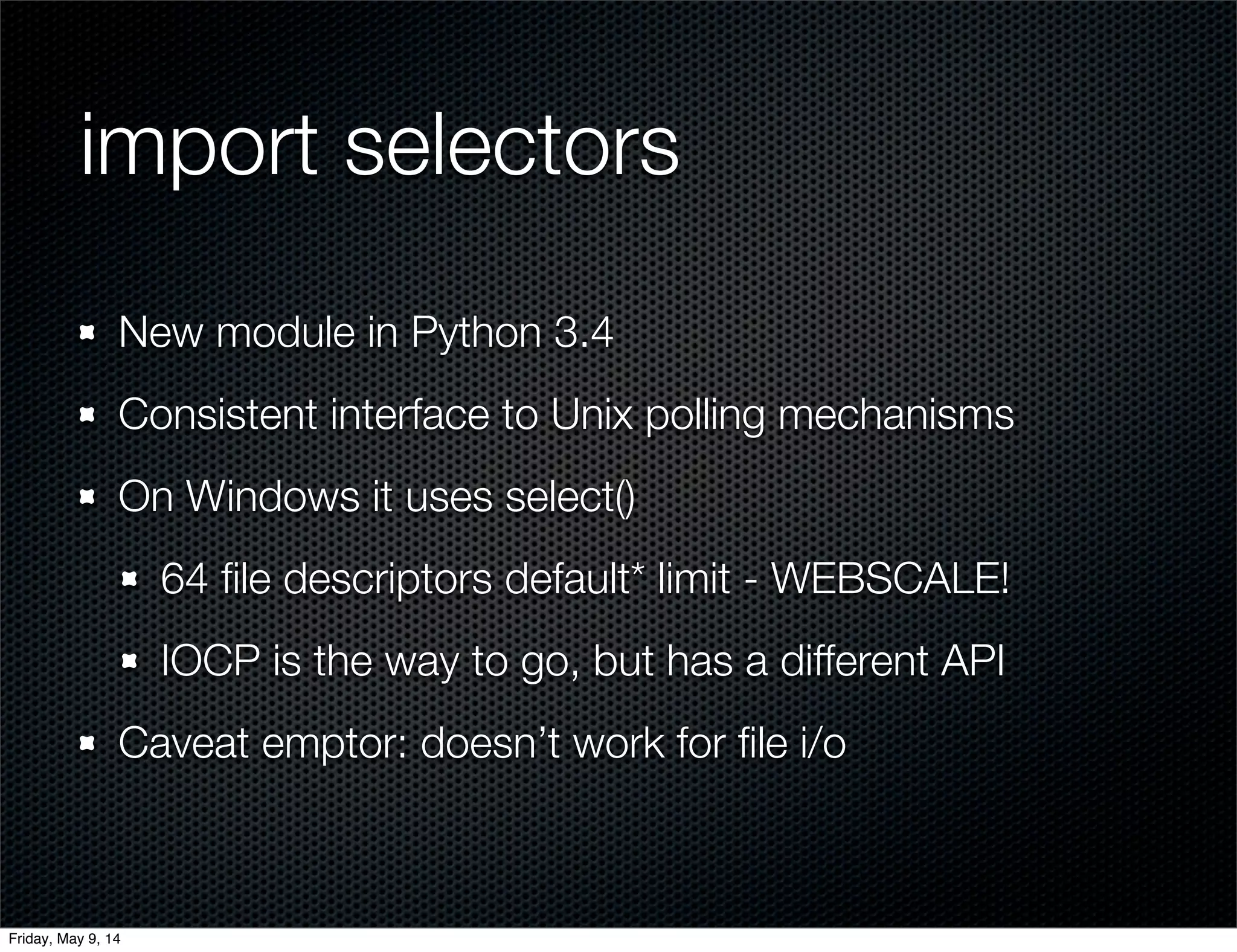

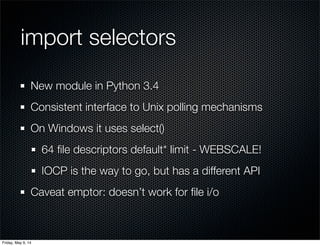

16. import selectors
New module in Python 3.4
Consistent interface to Unix polling mechanisms
On Windows it uses select()
64 file descriptors default* limit - WEBSCALE!
IOCP is the way to go, but has a different API
Caveat emptor: doesn’t work for file i/o
Friday, May 9, 14

17. Sim
plified

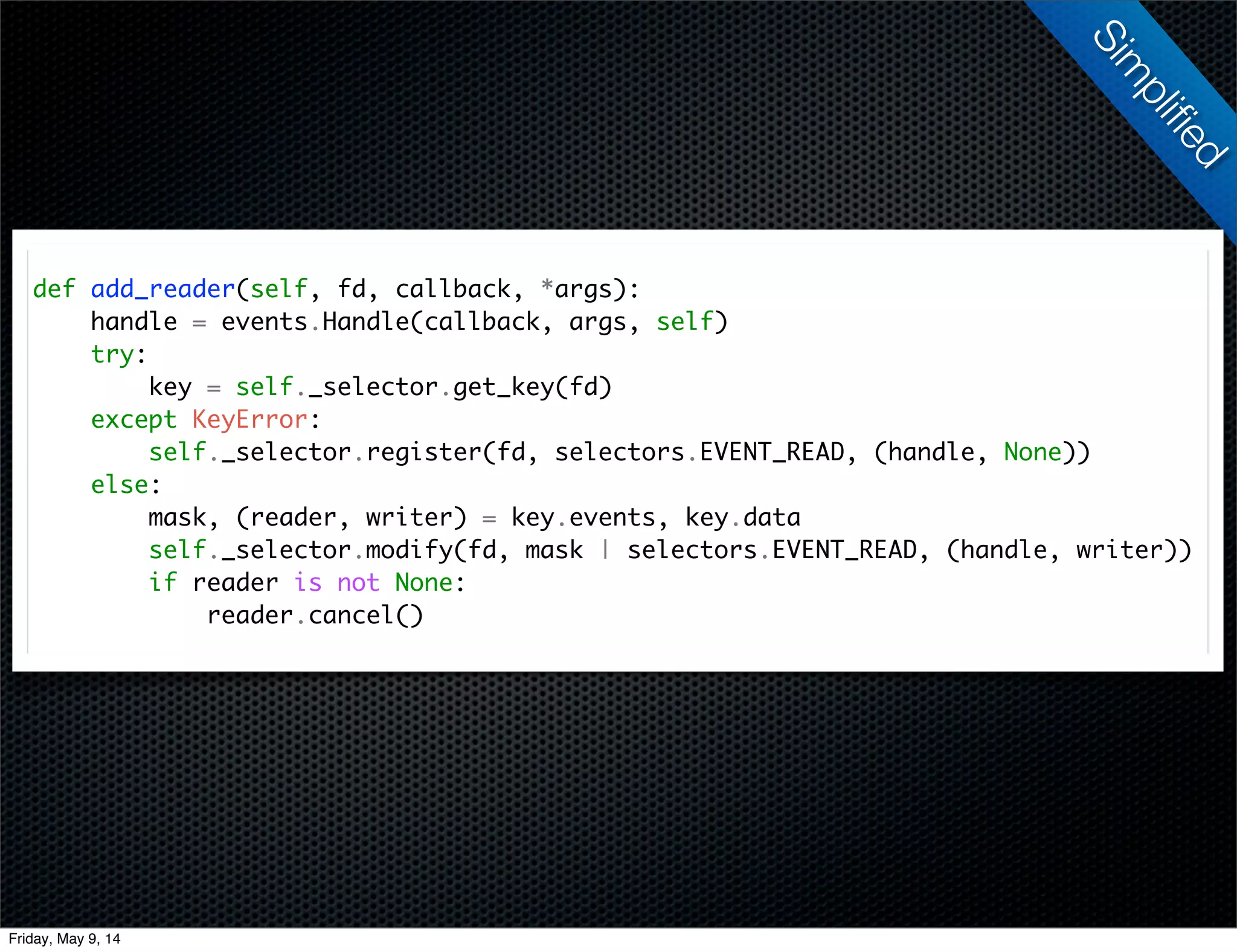

def add_reader(self, fd, callback, *args):
handle = events.Handle(callback, args, self)
try:
key = self._selector.get_key(fd)
except KeyError:
self._selector.register(fd, selectors.EVENT_READ, (handle, None))
else:
mask, (reader, writer) = key.events, key.data
self._selector.modify(fd, mask | selectors.EVENT_READ, (handle, writer))
if reader is not None:
reader.cancel()
Friday, May 9, 14

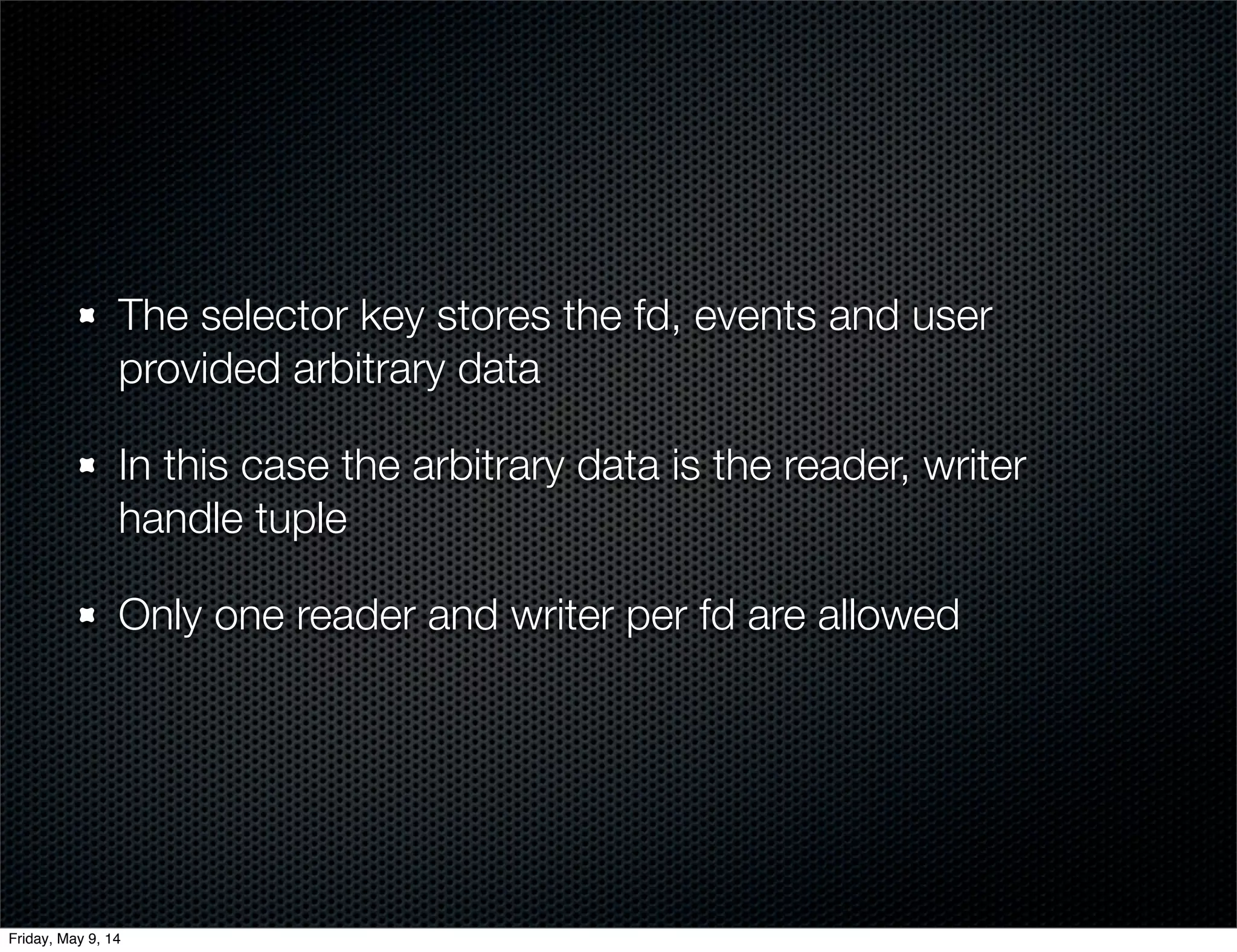

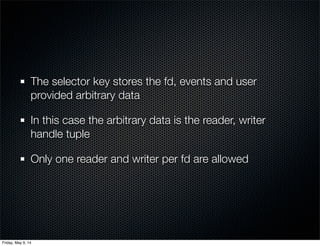

18. The selector key stores the fd, events and user
provided arbitrary data
In this case the arbitrary data is the reader, writer
handle tuple
Only one reader and writer per fd are allowed
Friday, May 9, 14

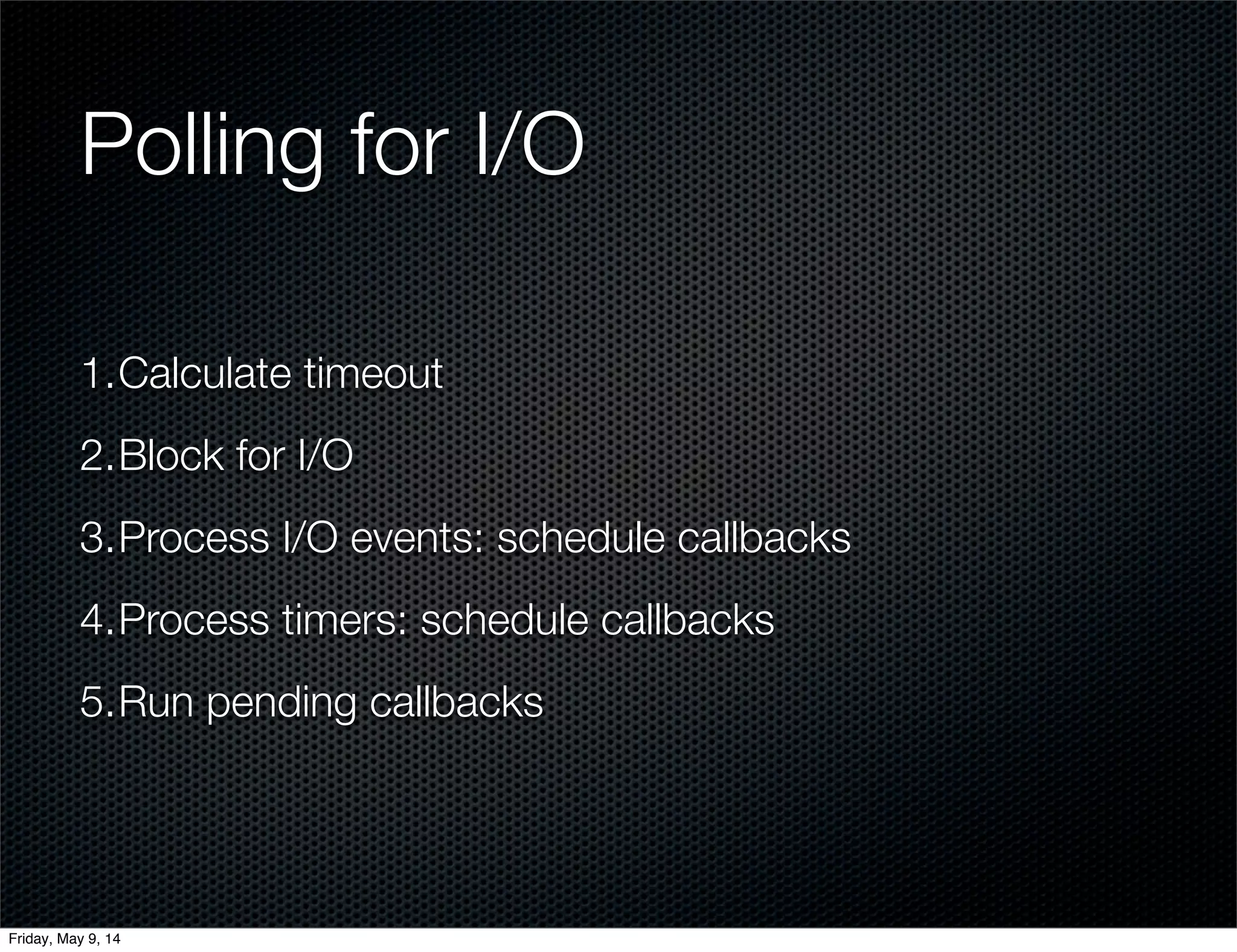

19. 1.Calculate timeout
2.Block for I/O
3.Process I/O events: schedule callbacks
4.Process timers: schedule callbacks
5.Run pending callbacks
Polling for I/O
Friday, May 9, 14

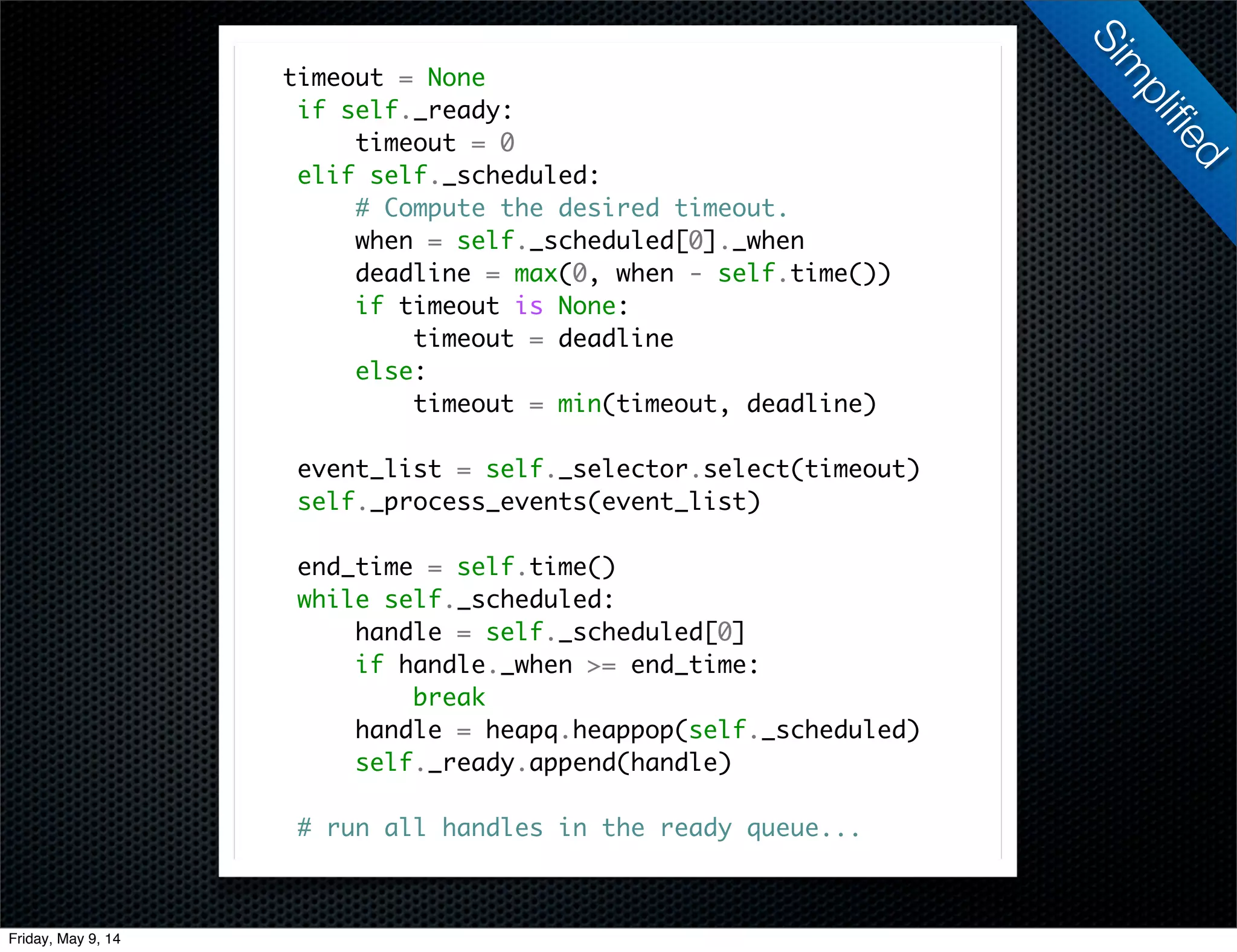

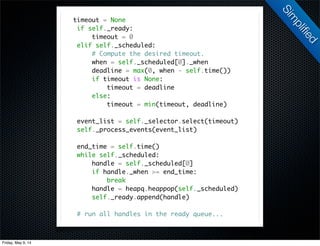

20. timeout = None
if self._ready:
timeout = 0
elif self._scheduled:
# Compute the desired timeout.
when = self._scheduled[0]._when
deadline = max(0, when - self.time())
if timeout is None:
timeout = deadline
else:
timeout = min(timeout, deadline)
event_list = self._selector.select(timeout)
self._process_events(event_list)
end_time = self.time()
while self._scheduled:
handle = self._scheduled[0]
if handle._when >= end_time:
break
handle = heapq.heappop(self._scheduled)
self._ready.append(handle)
# run all handles in the ready queue...
Sim
plified
Friday, May 9, 14

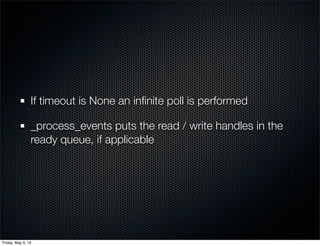

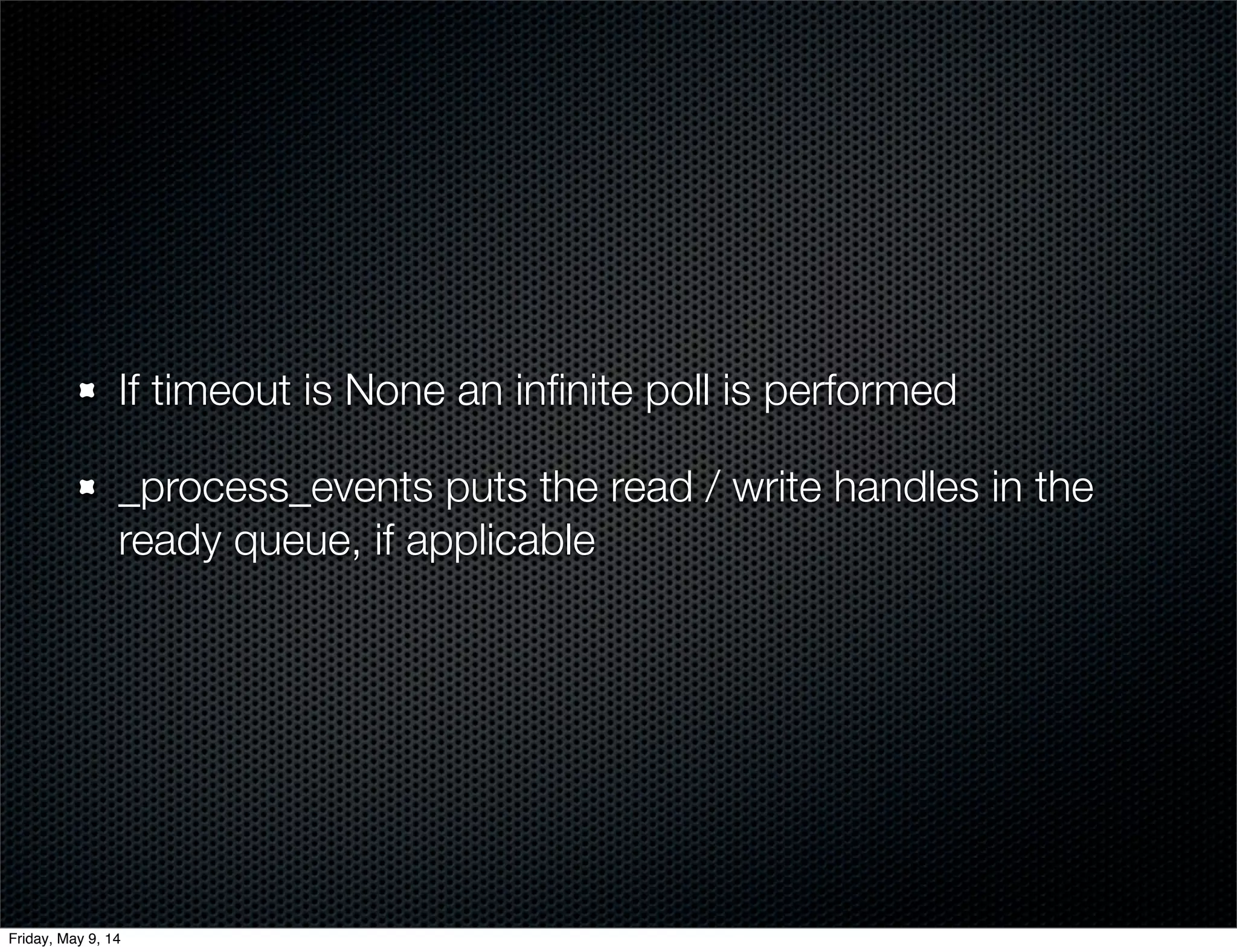

21. If timeout is None an infinite poll is performed
_process_events puts the read / write handles in the
ready queue, if applicable
Friday, May 9, 14

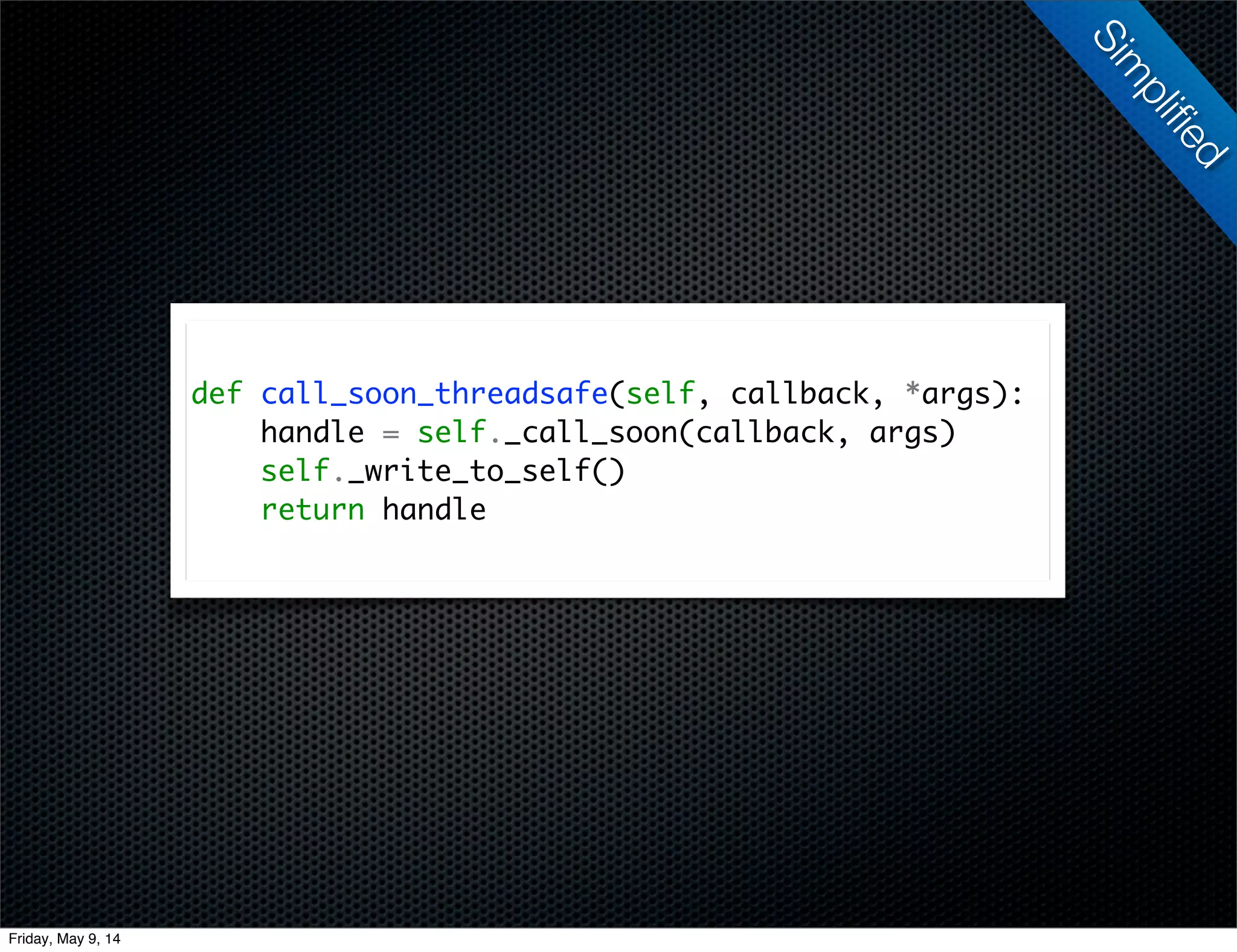

22. def call_soon_threadsafe(self, callback, *args):
handle = self._call_soon(callback, args)
self._write_to_self()
return handle
Sim
plified
Friday, May 9, 14

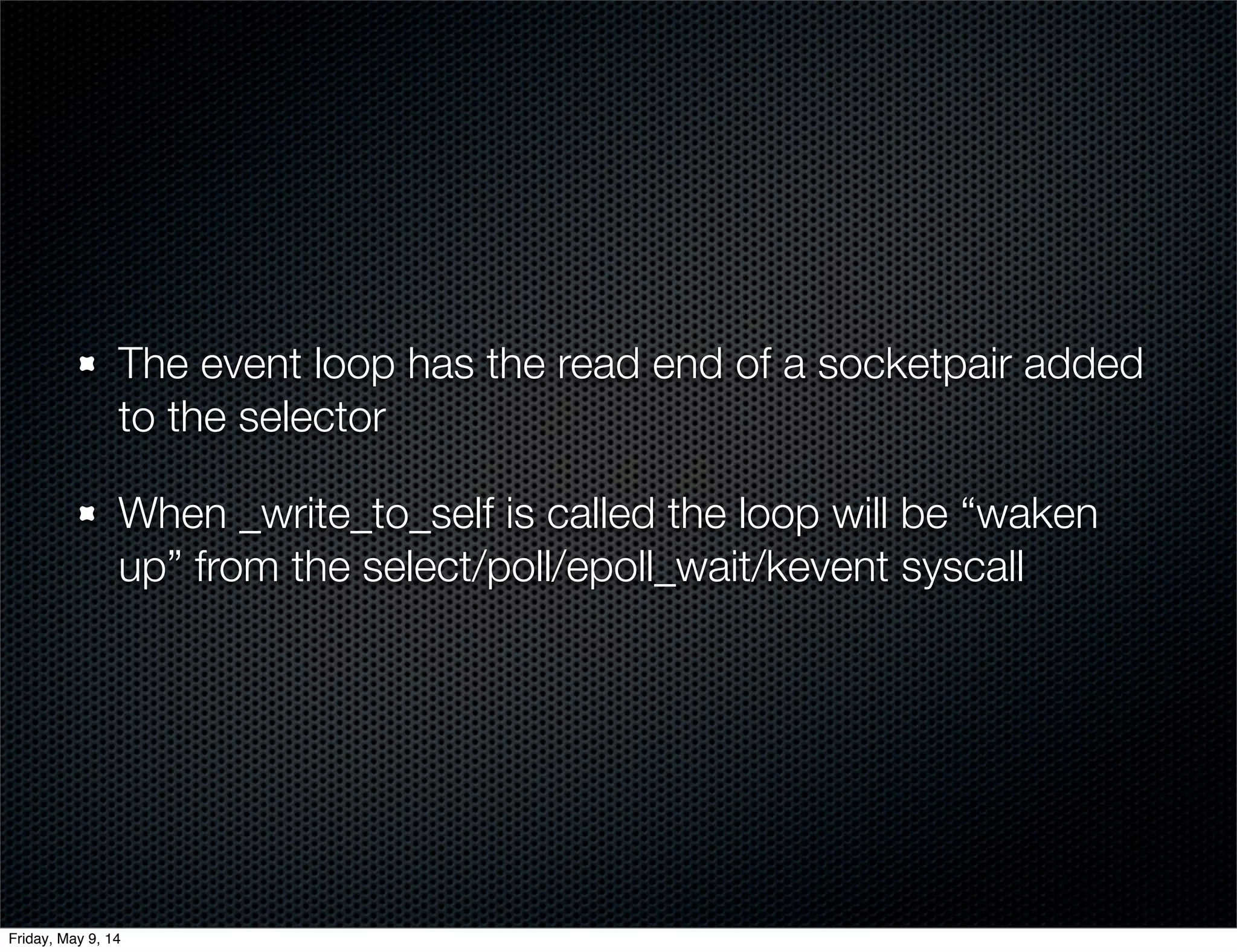

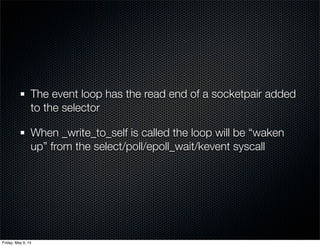

23. The event loop has the read end of a socketpair added
to the selector
When _write_to_self is called the loop will be “waken
up” from the select/poll/epoll_wait/kevent syscall
Friday, May 9, 14

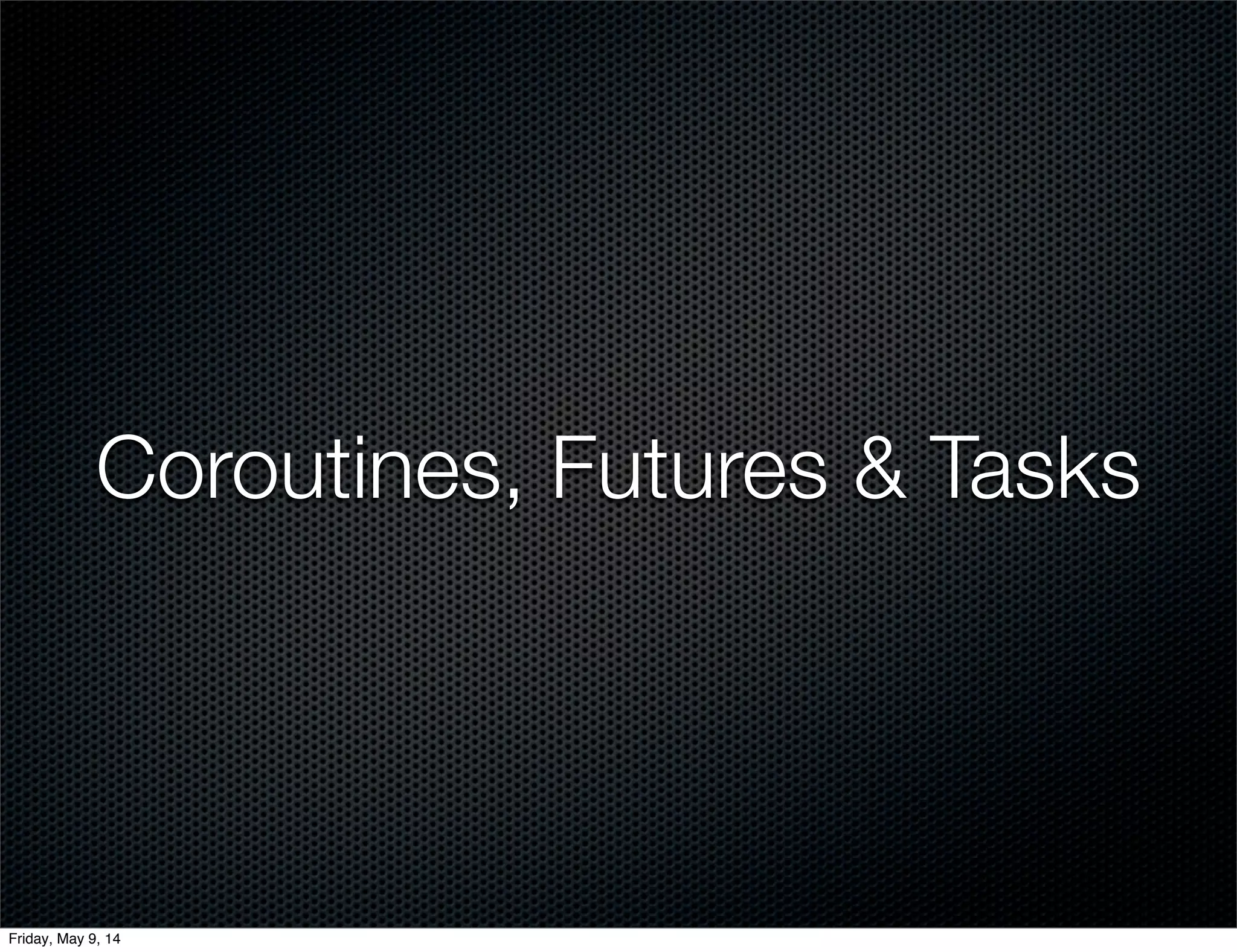

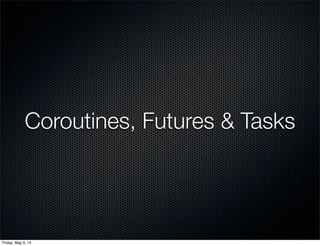

24. Coroutines, Futures & Tasks
Friday, May 9, 14

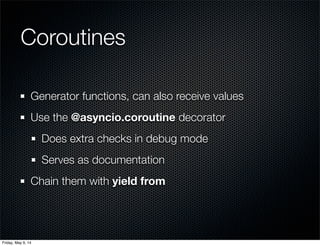

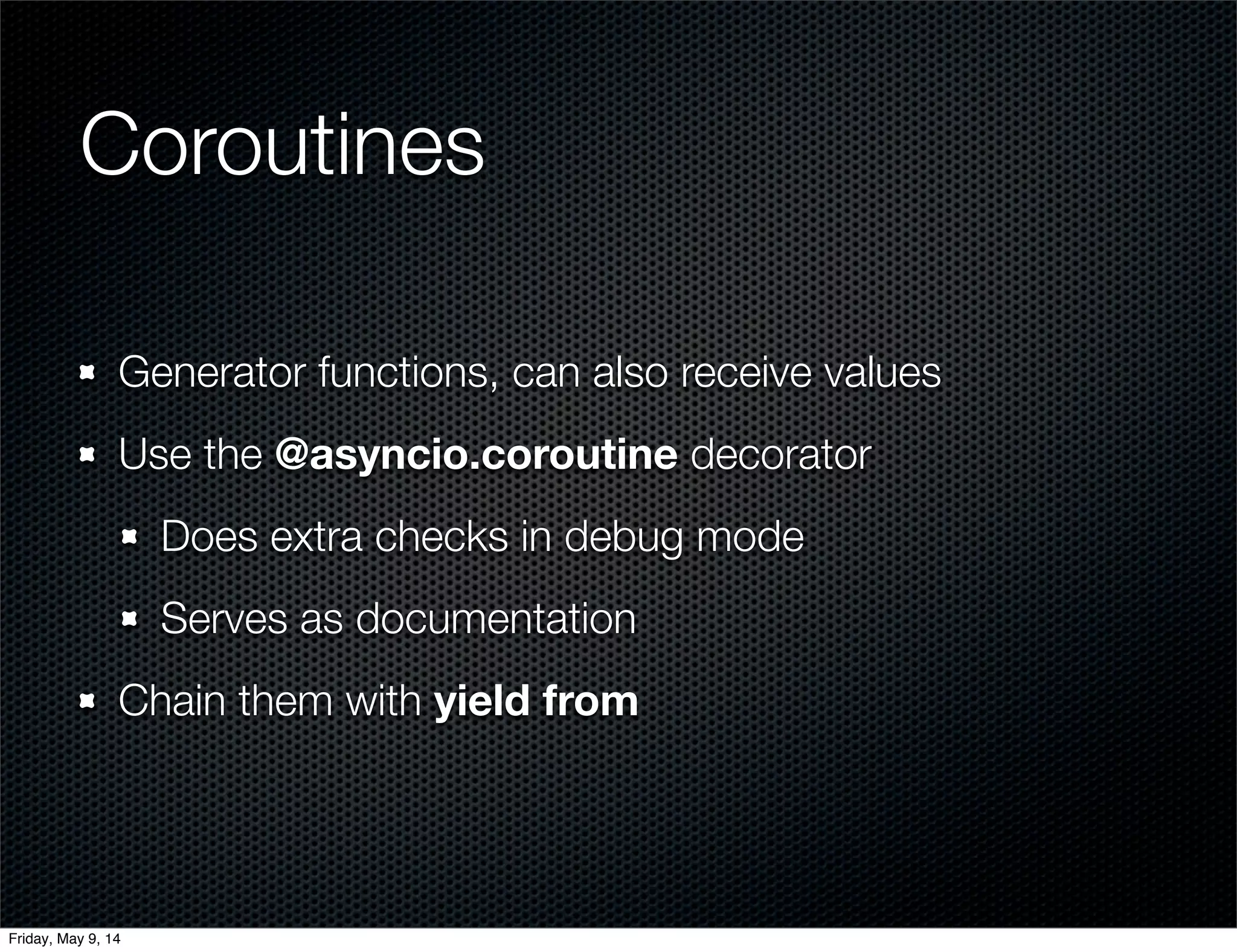

25. Generator functions, can also receive values
Use the @asyncio.coroutine decorator
Does extra checks in debug mode
Serves as documentation
Chain them with yield from
Coroutines
Friday, May 9, 14

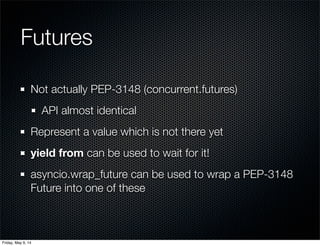

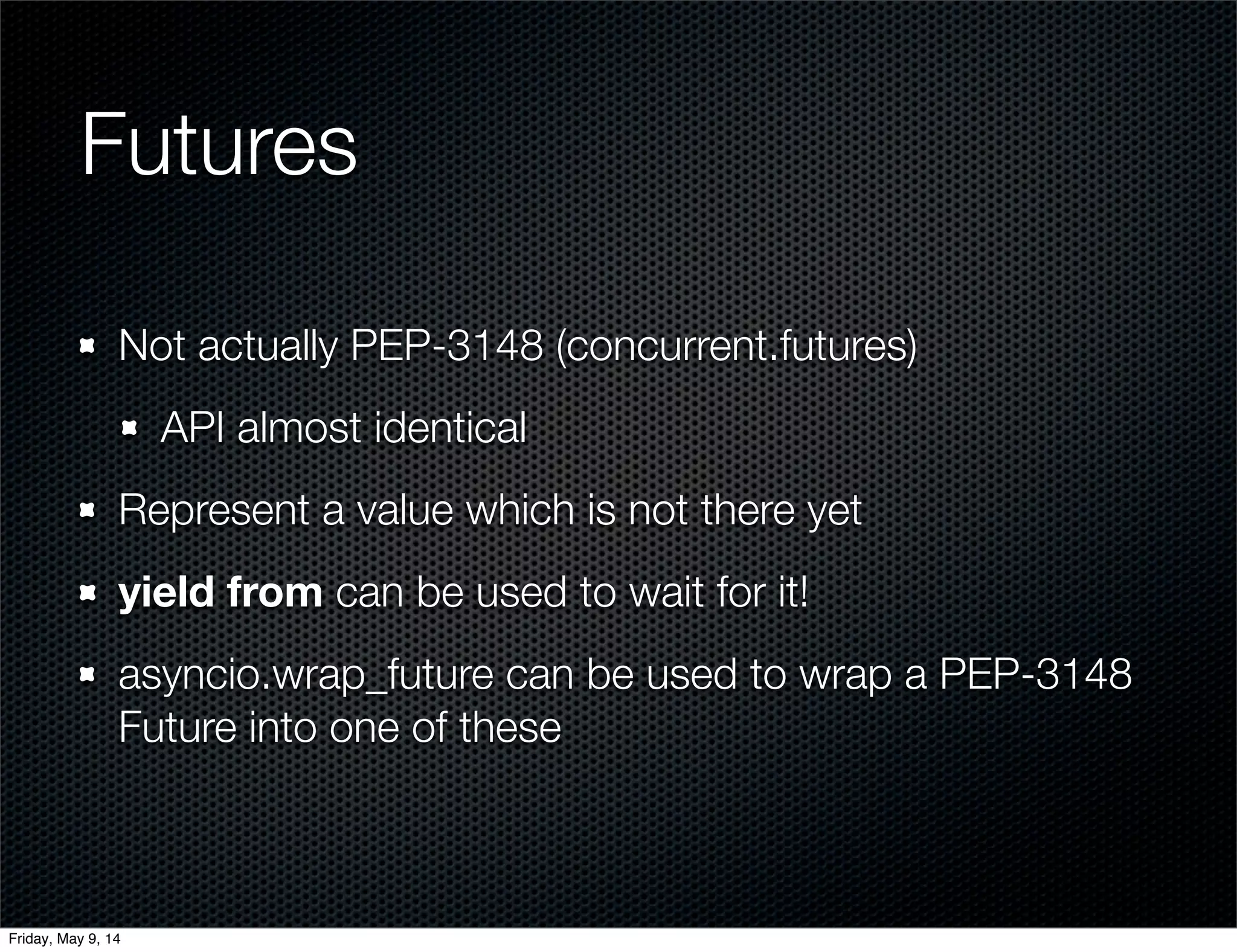

26. Not actually PEP-3148 (concurrent.futures)
API almost identical
Represent a value which is not there yet
yield from can be used to wait for it!
asyncio.wrap_future can be used to wrap a PEP-3148
Future into one of these
Futures
Friday, May 9, 14

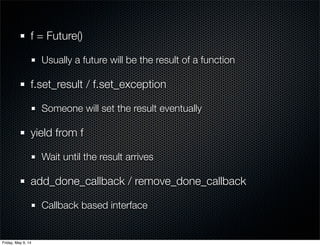

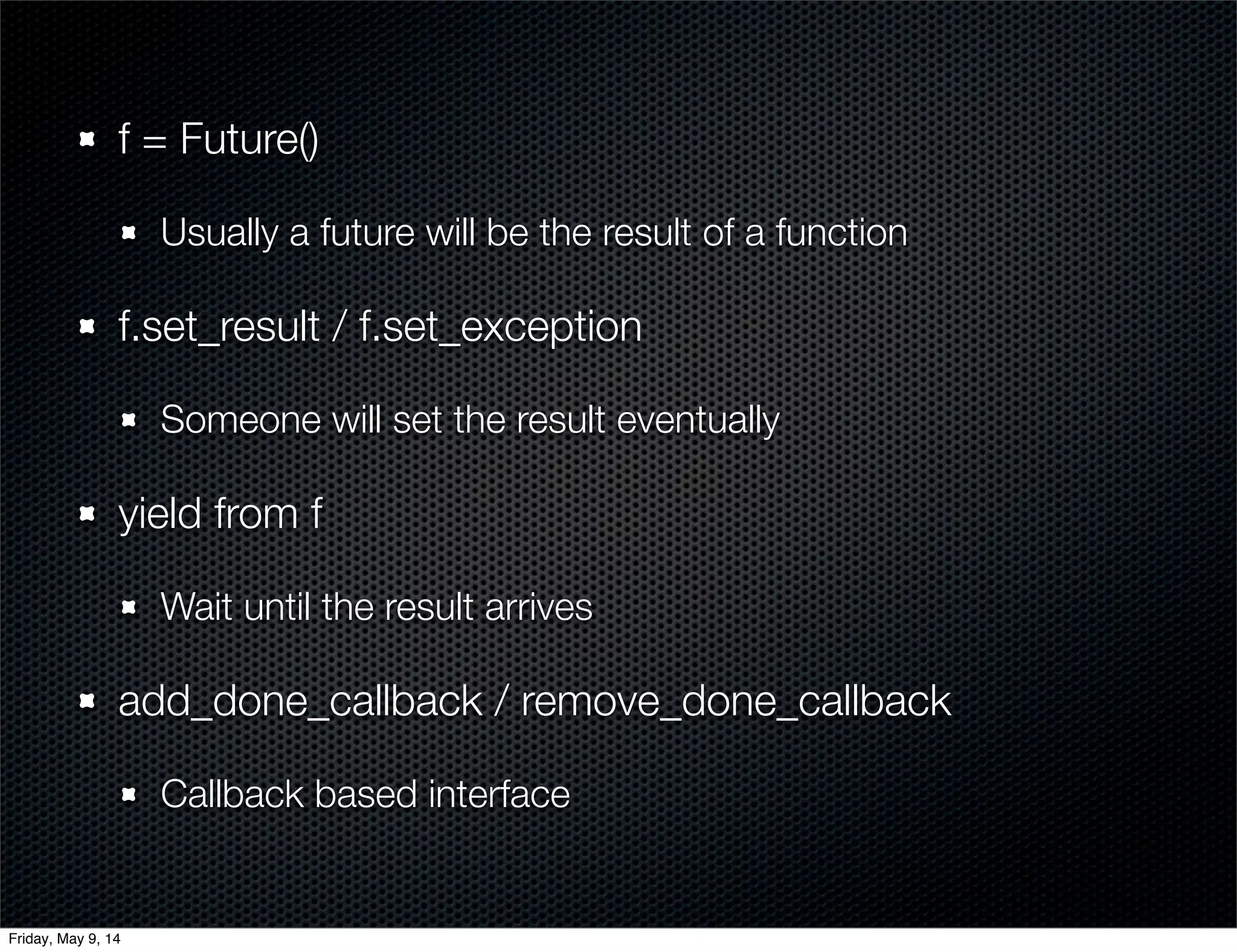

27. f = Future()
Usually a future will be the result of a function
f.set_result / f.set_exception
Someone will set the result eventually
yield from f
Wait until the result arrives
add_done_callback / remove_done_callback
Callback based interface
Friday, May 9, 14

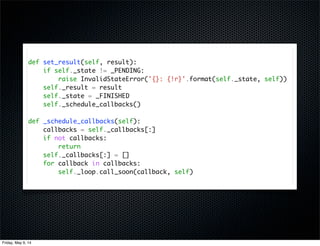

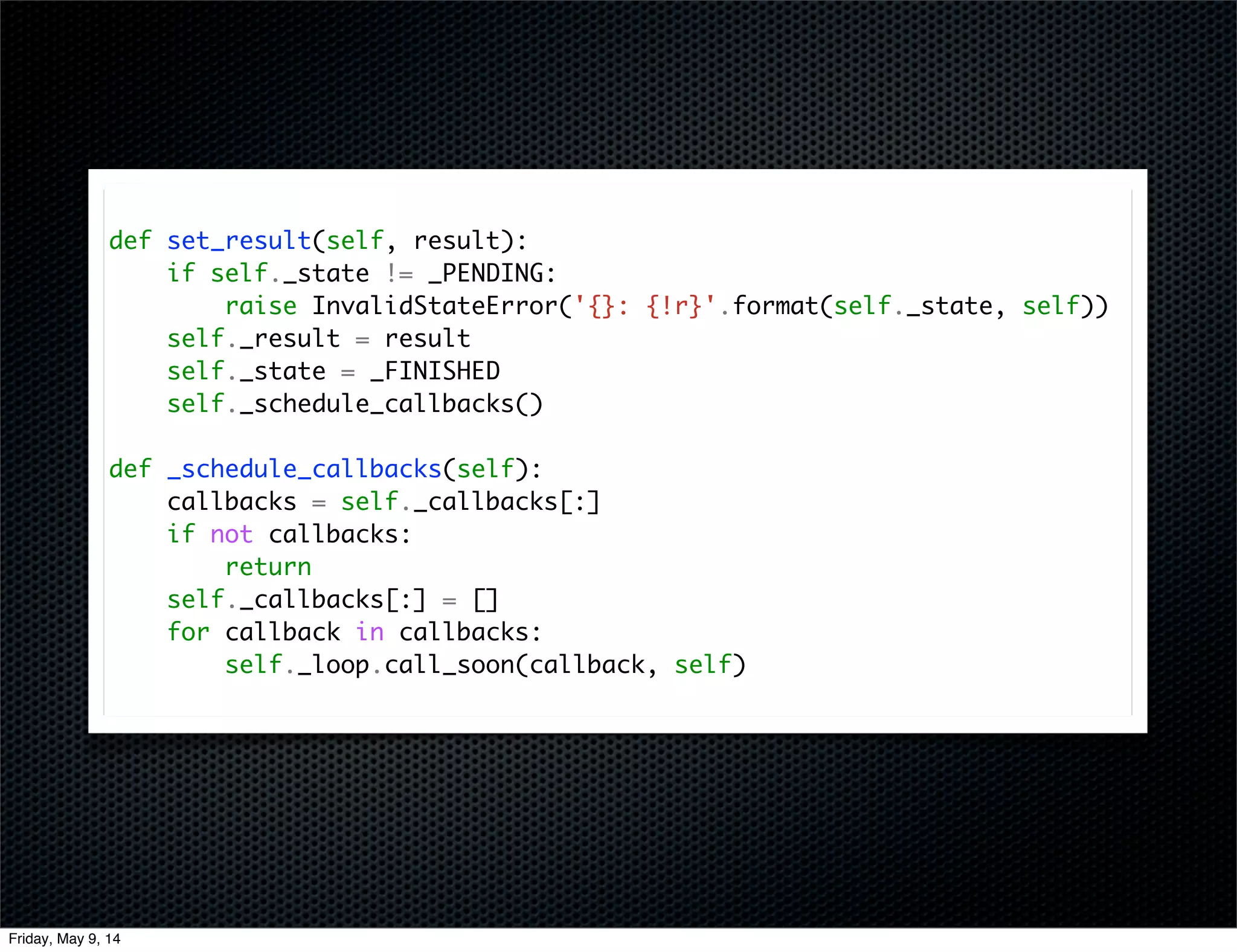

28. def set_result(self, result):
if self._state != _PENDING:
raise InvalidStateError('{}: {!r}'.format(self._state, self))
self._result = result
self._state = _FINISHED
self._schedule_callbacks()
def _schedule_callbacks(self):
callbacks = self._callbacks[:]
if not callbacks:
return
self._callbacks[:] = []
for callback in callbacks:
self._loop.call_soon(callback, self)
Friday, May 9, 14

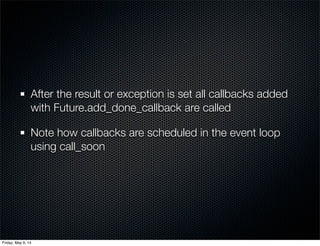

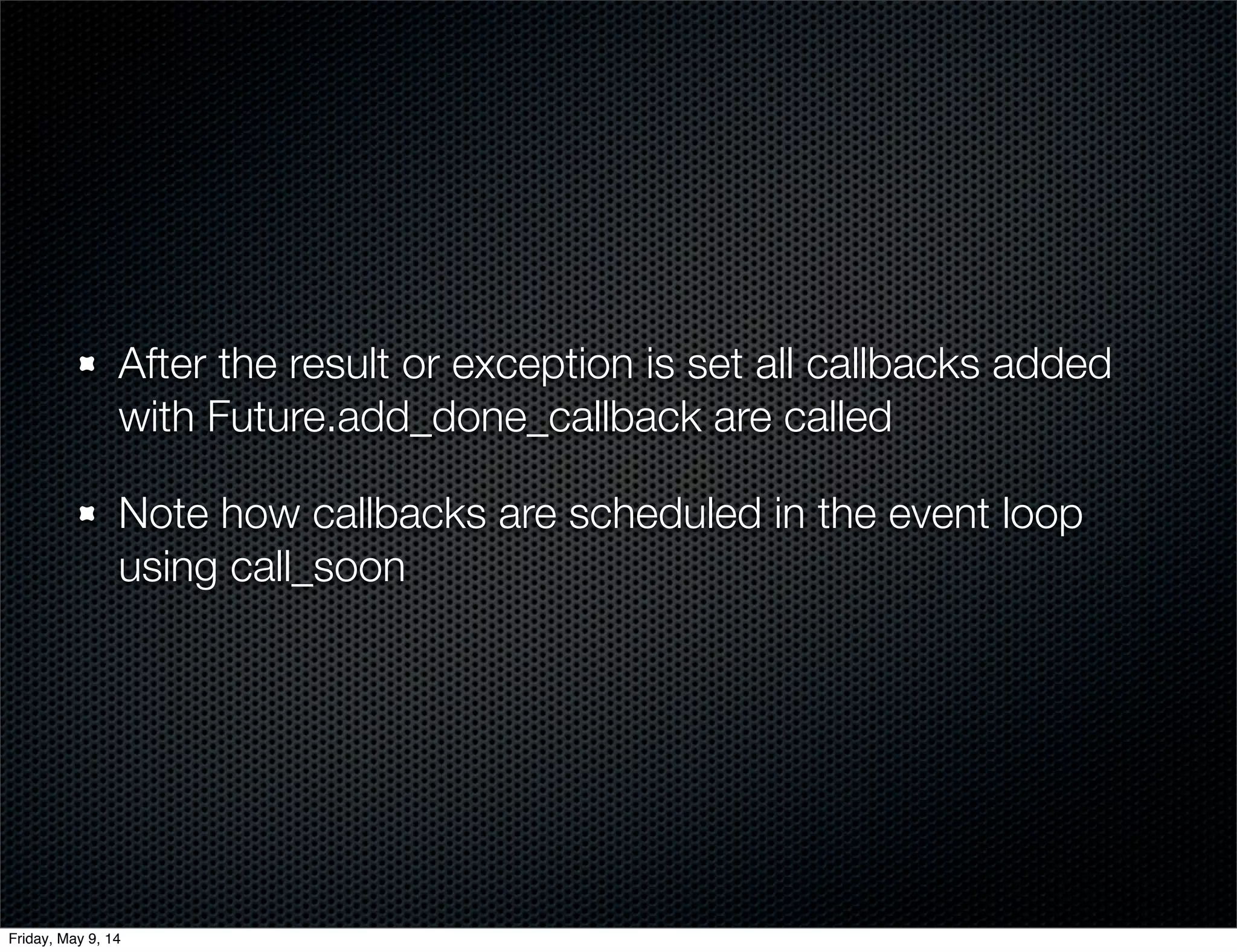

29. After the result or exception is set all callbacks added
with Future.add_done_callback are called
Note how callbacks are scheduled in the event loop
using call_soon
Friday, May 9, 14

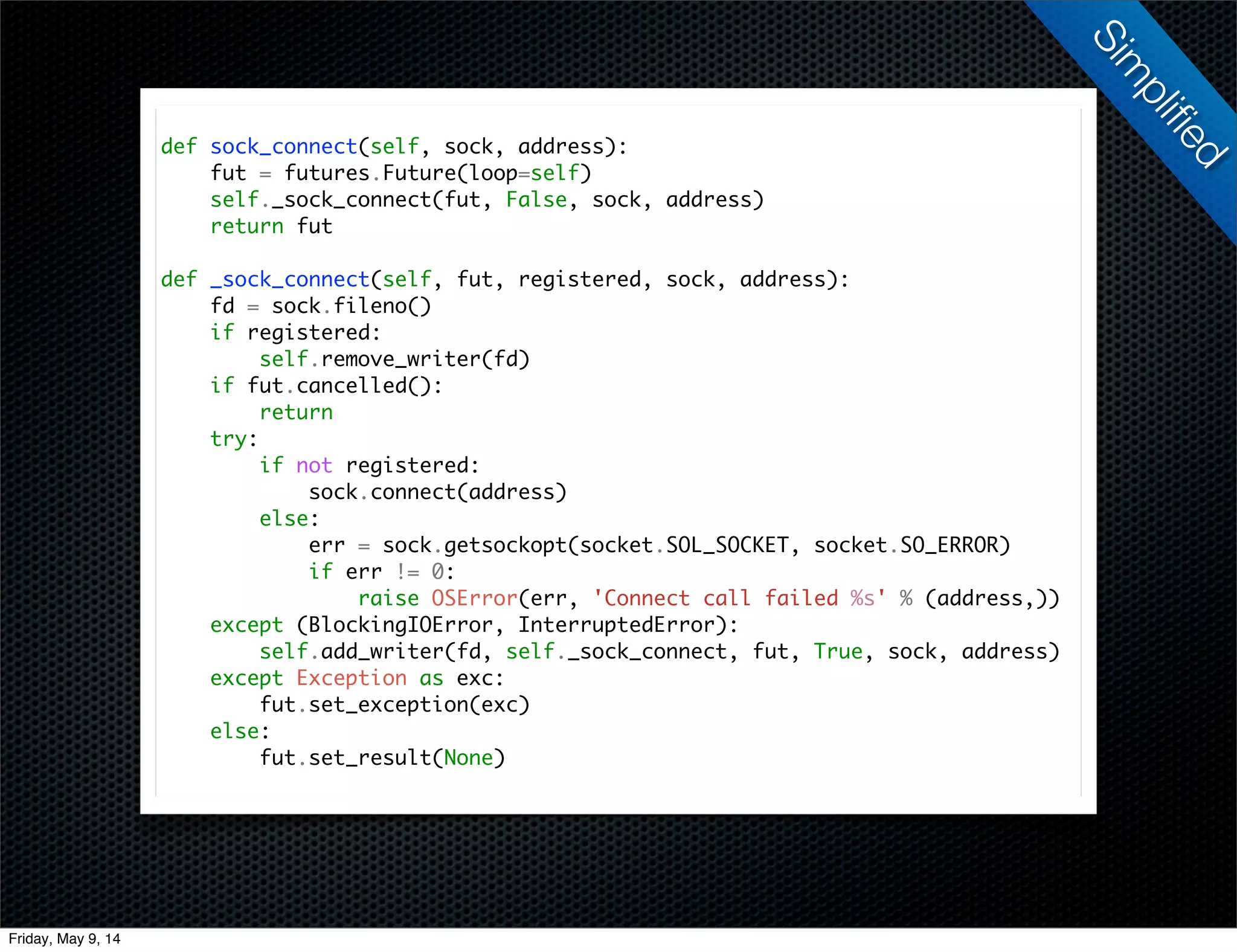

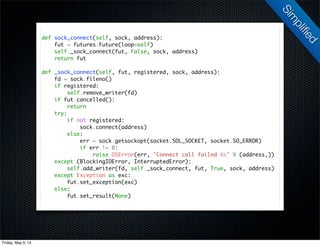

30. Sim
plified
def sock_connect(self, sock, address):
fut = futures.Future(loop=self)
self._sock_connect(fut, False, sock, address)
return fut
def _sock_connect(self, fut, registered, sock, address):
fd = sock.fileno()
if registered:
self.remove_writer(fd)
if fut.cancelled():
return
try:
if not registered:
sock.connect(address)
else:
err = sock.getsockopt(socket.SOL_SOCKET, socket.SO_ERROR)
if err != 0:
raise OSError(err, 'Connect call failed %s' % (address,))
except (BlockingIOError, InterruptedError):
self.add_writer(fd, self._sock_connect, fut, True, sock, address)
except Exception as exc:
fut.set_exception(exc)
else:
fut.set_result(None)
Friday, May 9, 14

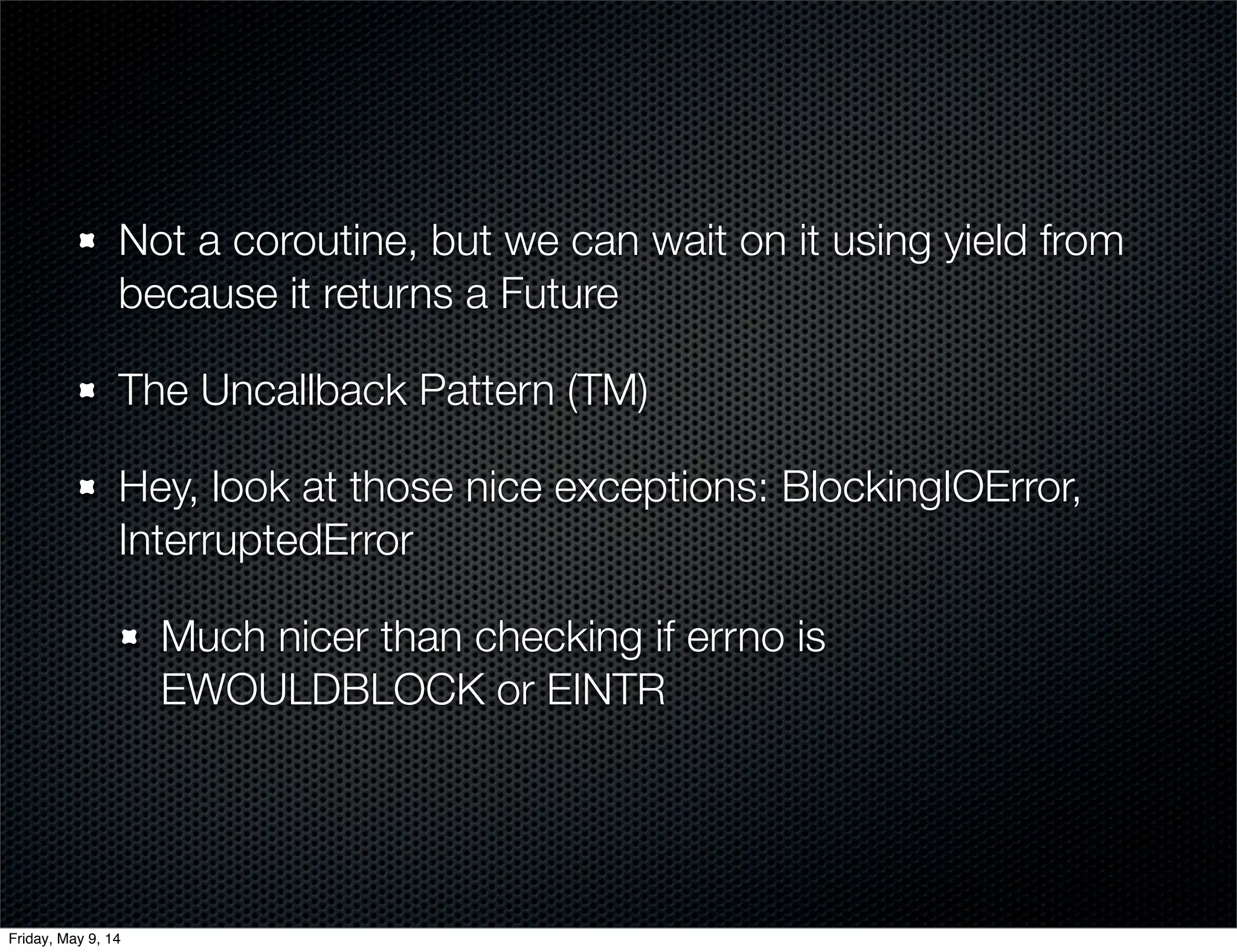

31. Not a coroutine, but we can wait on it using yield from
because it returns a Future
The Uncallback Pattern (TM)
Hey, look at those nice exceptions: BlockingIOError,
InterruptedError
Much nicer than checking if errno is
EWOULDBLOCK or EINTR
Friday, May 9, 14

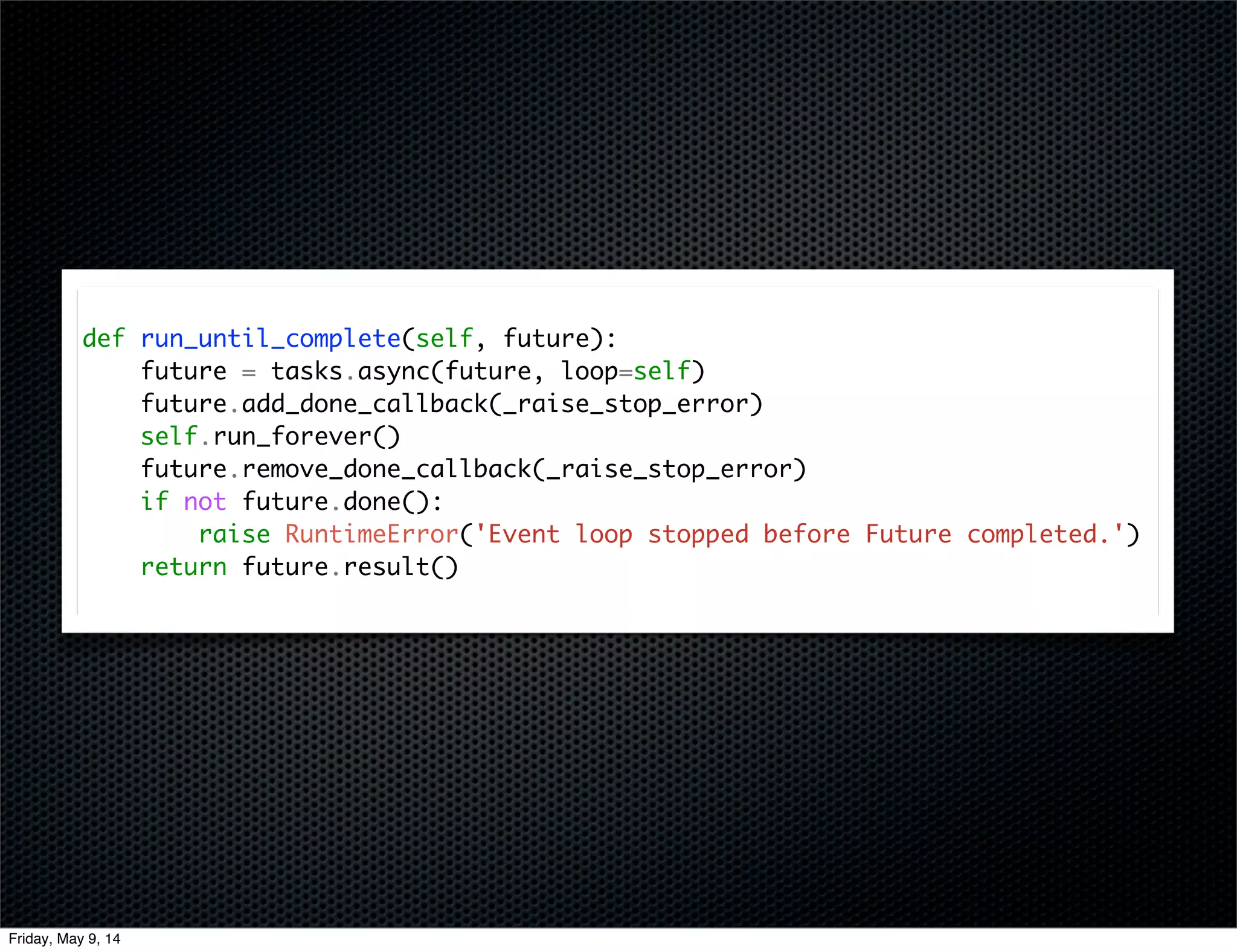

32. def run_until_complete(self, future):
future = tasks.async(future, loop=self)
future.add_done_callback(_raise_stop_error)
self.run_forever()
future.remove_done_callback(_raise_stop_error)
if not future.done():
raise RuntimeError('Event loop stopped before Future completed.')
return future.result()
Friday, May 9, 14

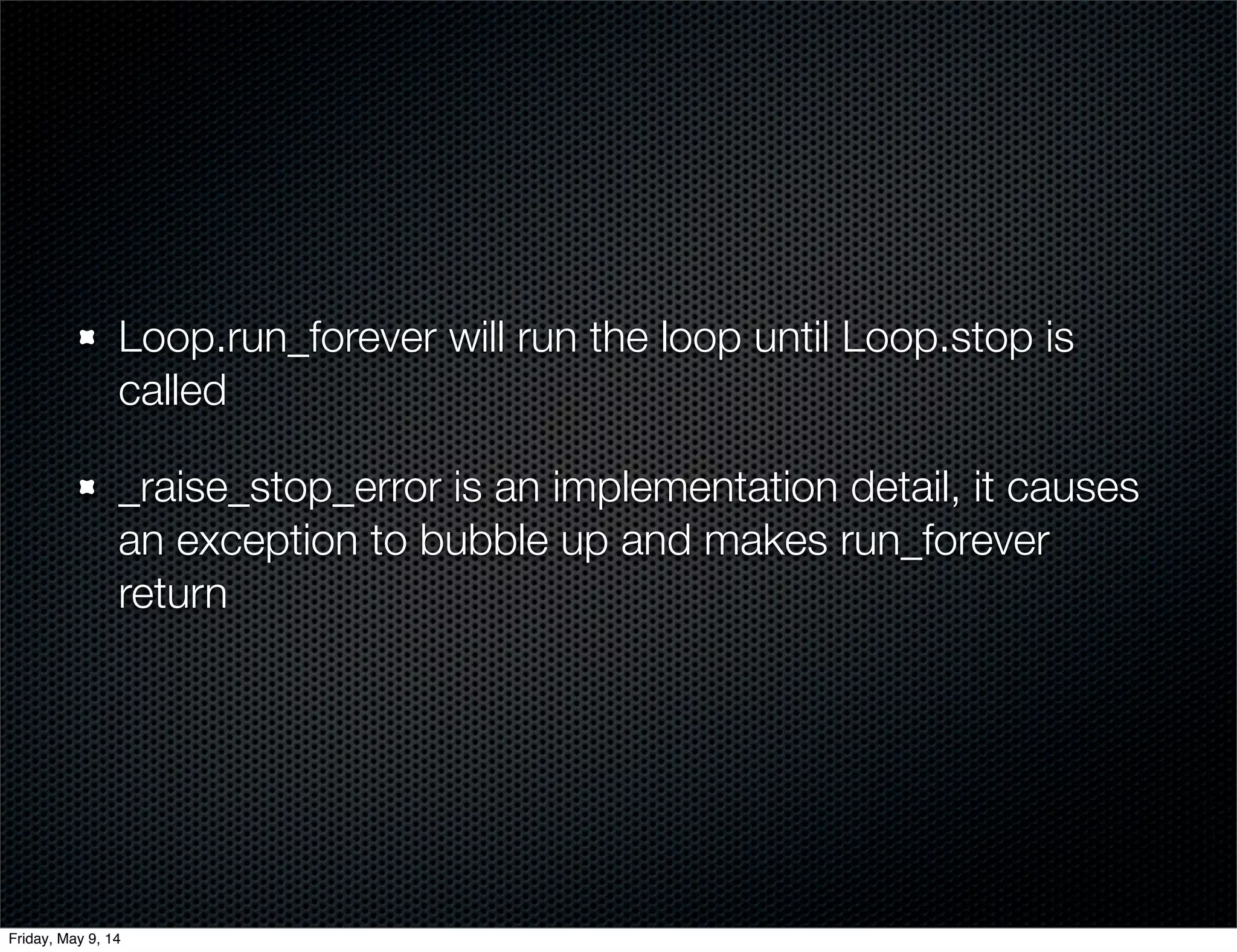

33. Loop.run_forever will run the loop until Loop.stop is
called
_raise_stop_error is an implementation detail, it causes
an exception to bubble up and makes run_forever
return
Friday, May 9, 14

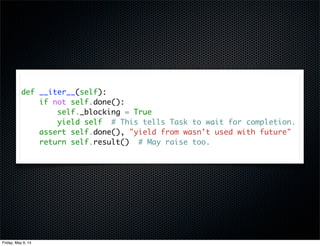

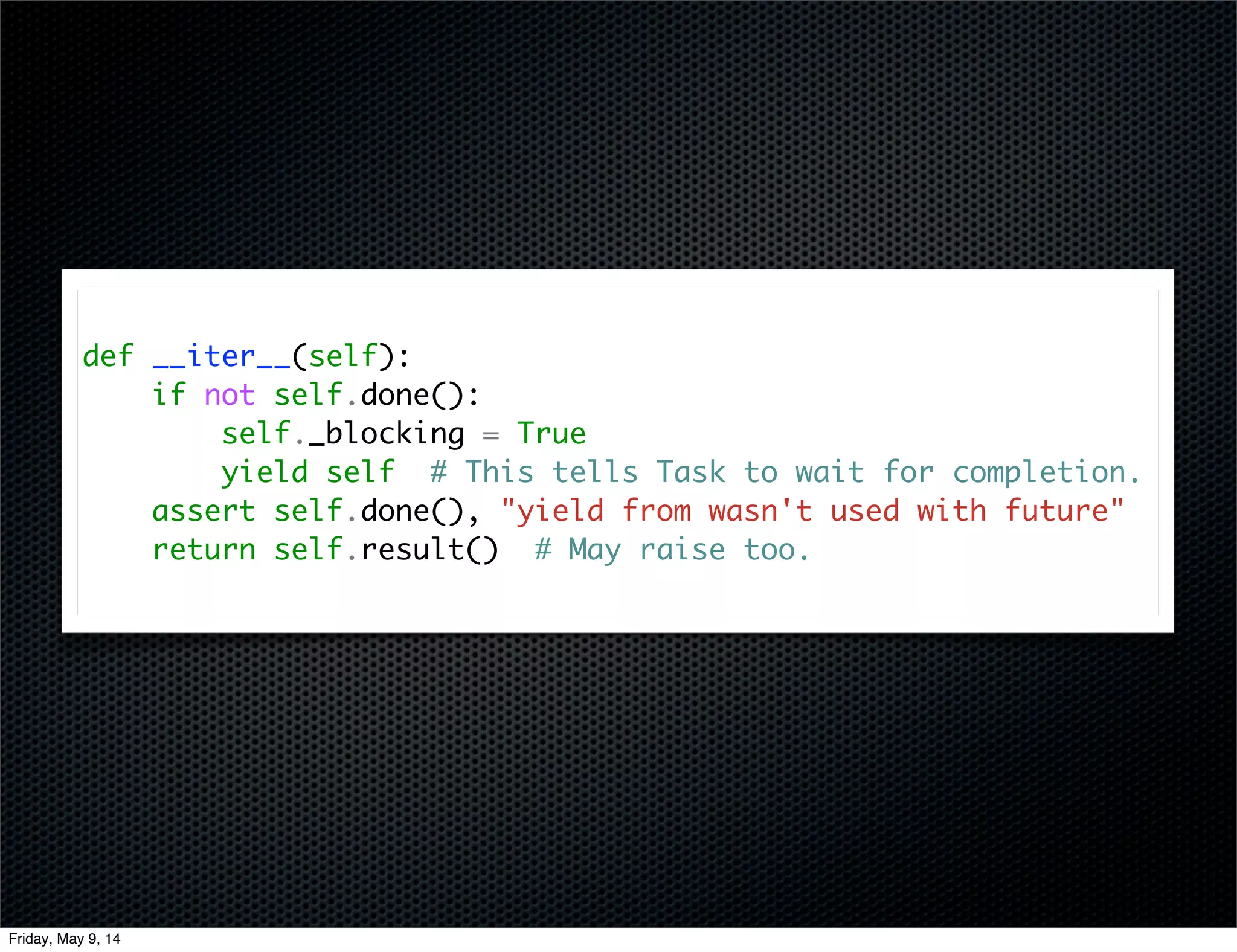

34. def __iter__(self):
if not self.done():
self._blocking = True
yield self # This tells Task to wait for completion.
assert self.done(), "yield from wasn't used with future"
return self.result() # May raise too.
Friday, May 9, 14

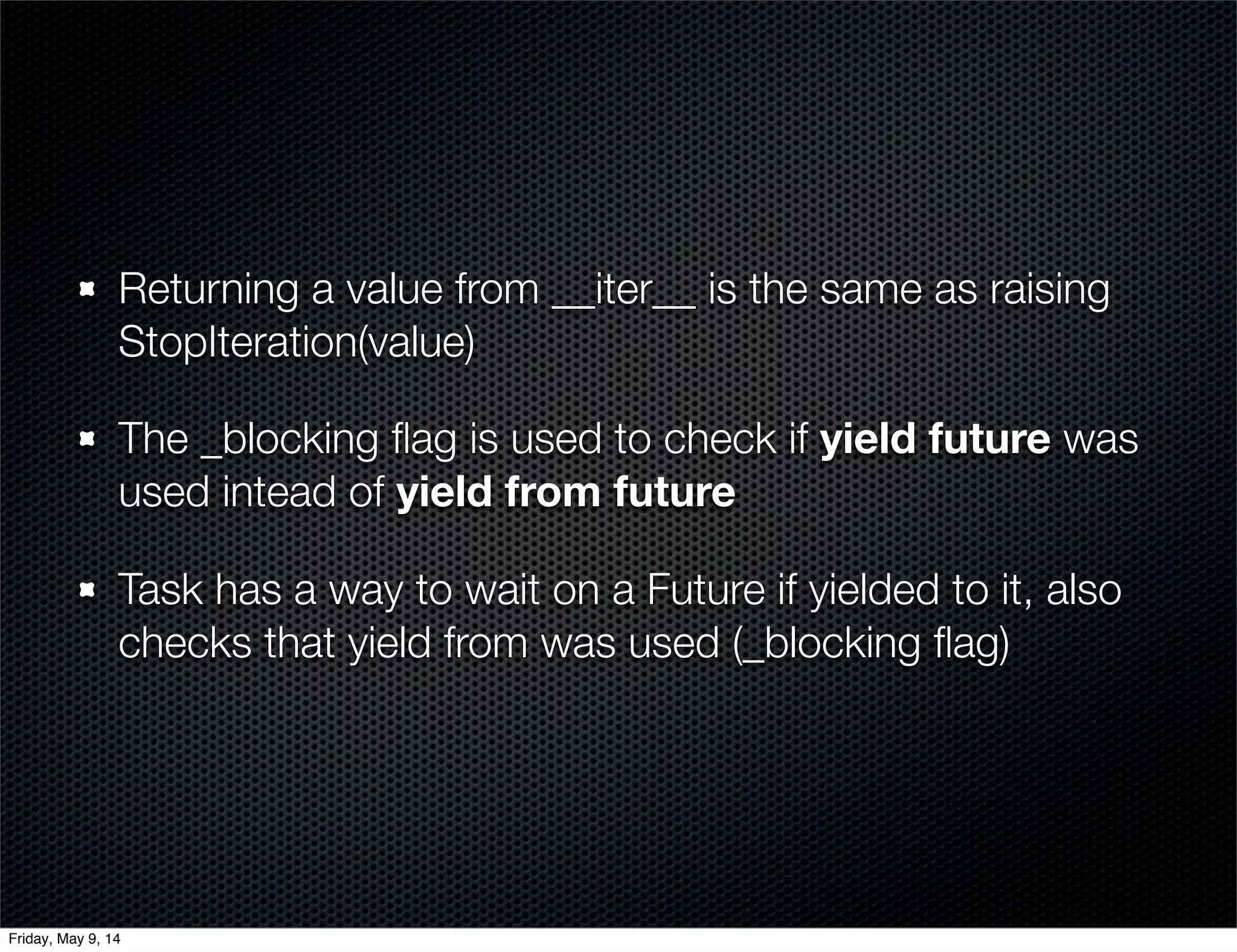

35. Returning a value from __iter__ is the same as raising
StopIteration(value)
The _blocking flag is used to check if yield future was
used intead of yield from future
Task has a way to wait on a Future if yielded to it, also
checks that yield from was used (_blocking flag)
Friday, May 9, 14

36. Friday, May 9, 14

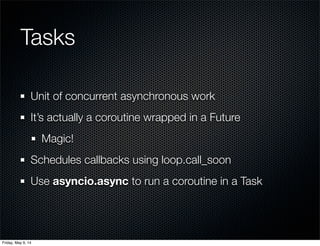

37. Unit of concurrent asynchronous work
It’s actually a coroutine wrapped in a Future
Magic!
Schedules callbacks using loop.call_soon
Use asyncio.async to run a coroutine in a Task
Tasks
Friday, May 9, 14

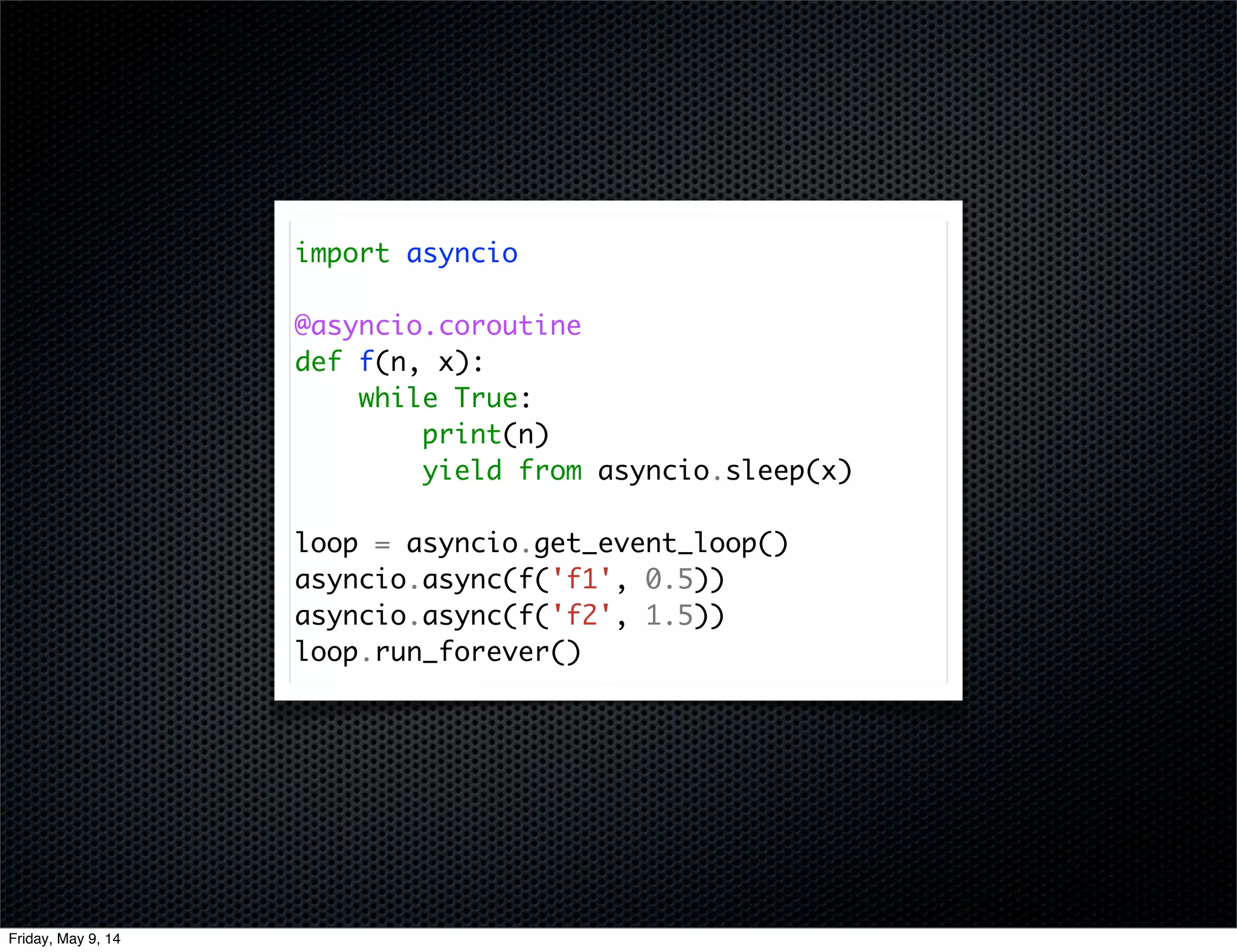

38. import asyncio
@asyncio.coroutine
def f(n, x):
while True:
print(n)
yield from asyncio.sleep(x)
loop = asyncio.get_event_loop()
asyncio.async(f('f1', 0.5))
asyncio.async(f('f2', 1.5))
loop.run_forever()
Friday, May 9, 14

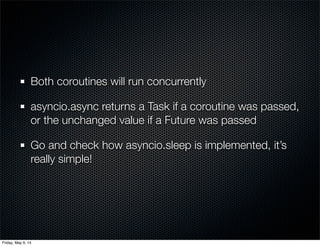

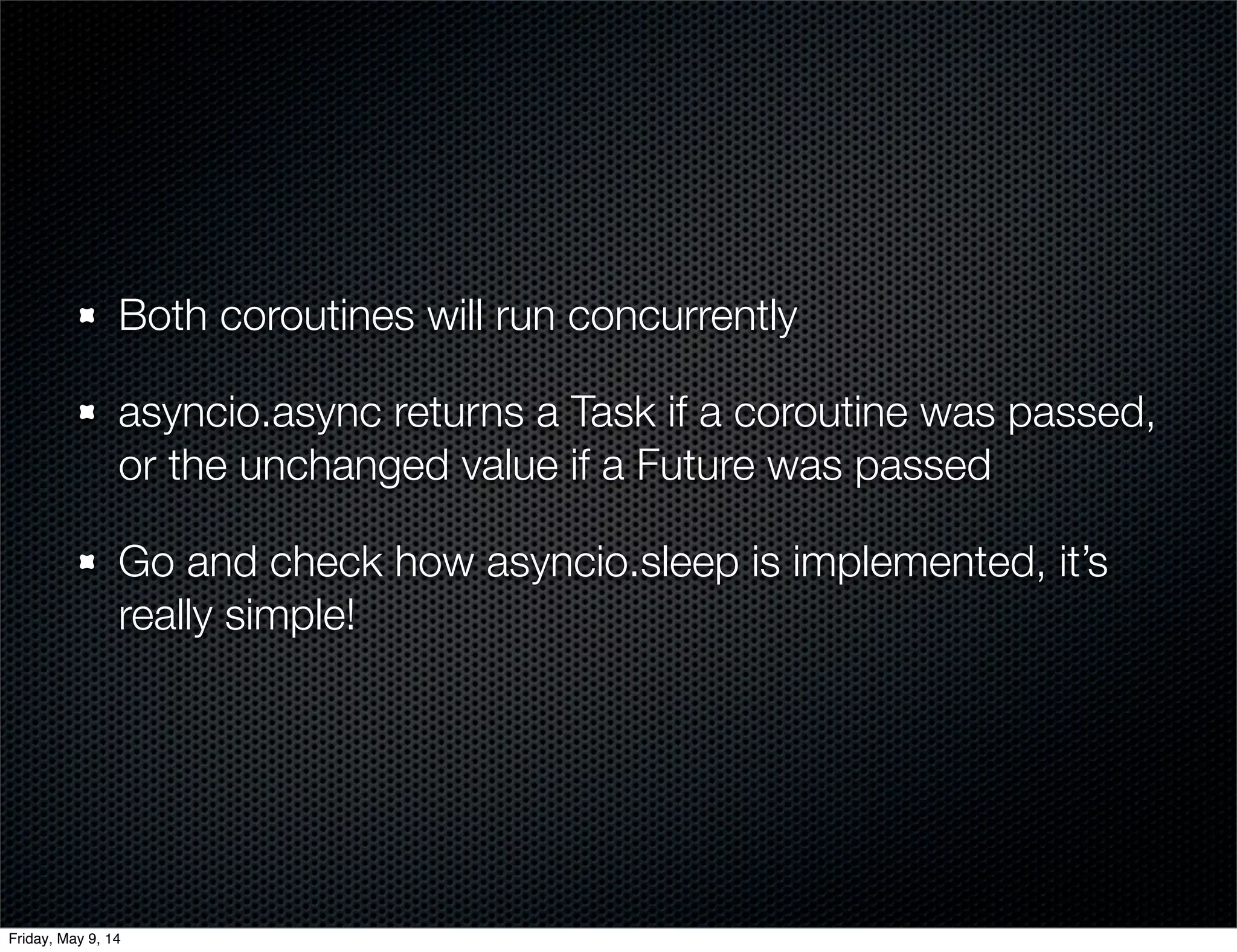

39. Both coroutines will run concurrently
asyncio.async returns a Task if a coroutine was passed,
or the unchanged value if a Future was passed
Go and check how asyncio.sleep is implemented, it’s
really simple!
Friday, May 9, 14

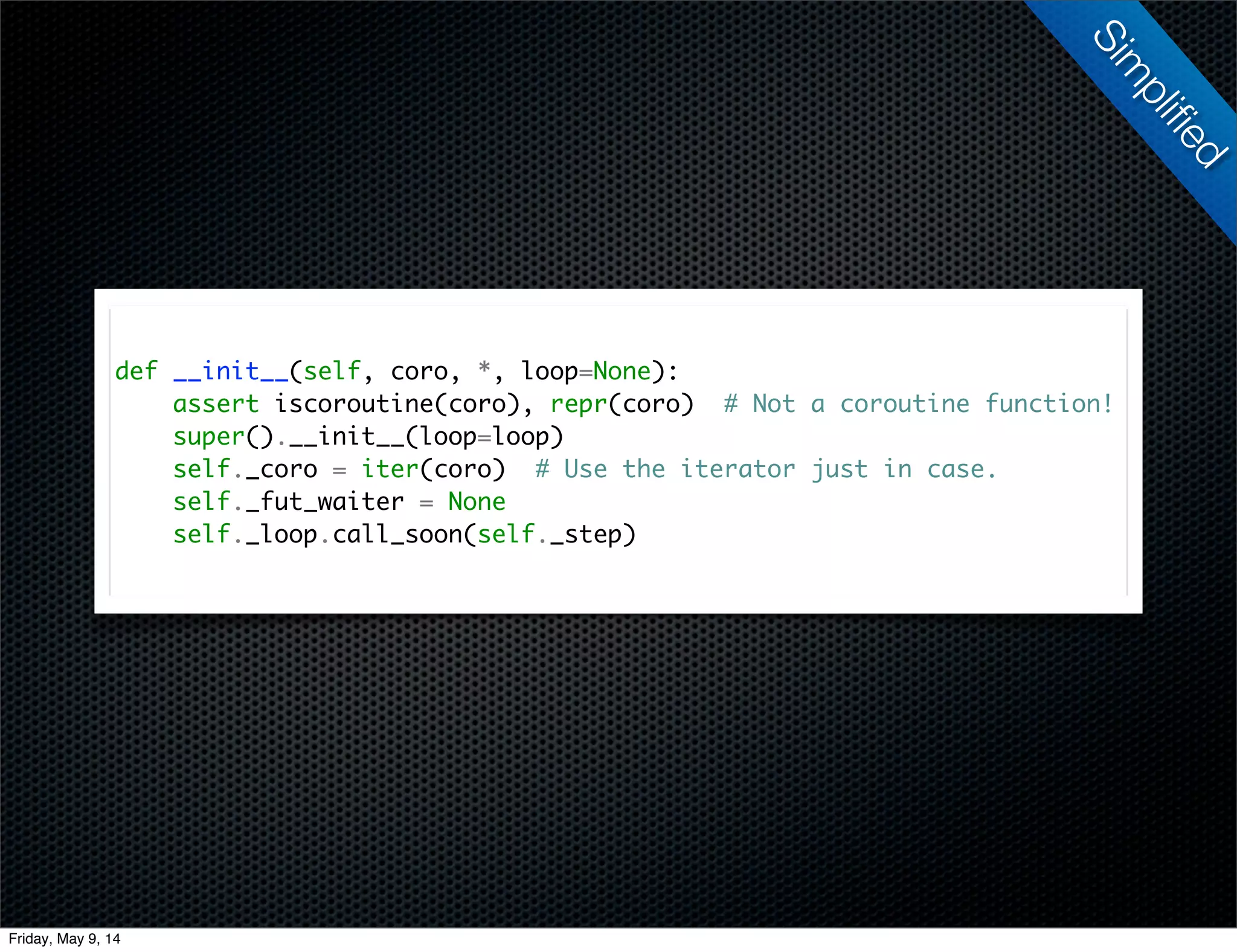

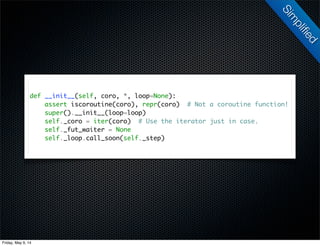

40. def __init__(self, coro, *, loop=None):
assert iscoroutine(coro), repr(coro) # Not a coroutine function!
super().__init__(loop=loop)
self._coro = iter(coro) # Use the iterator just in case.
self._fut_waiter = None
self._loop.call_soon(self._step)
Sim
plified
Friday, May 9, 14

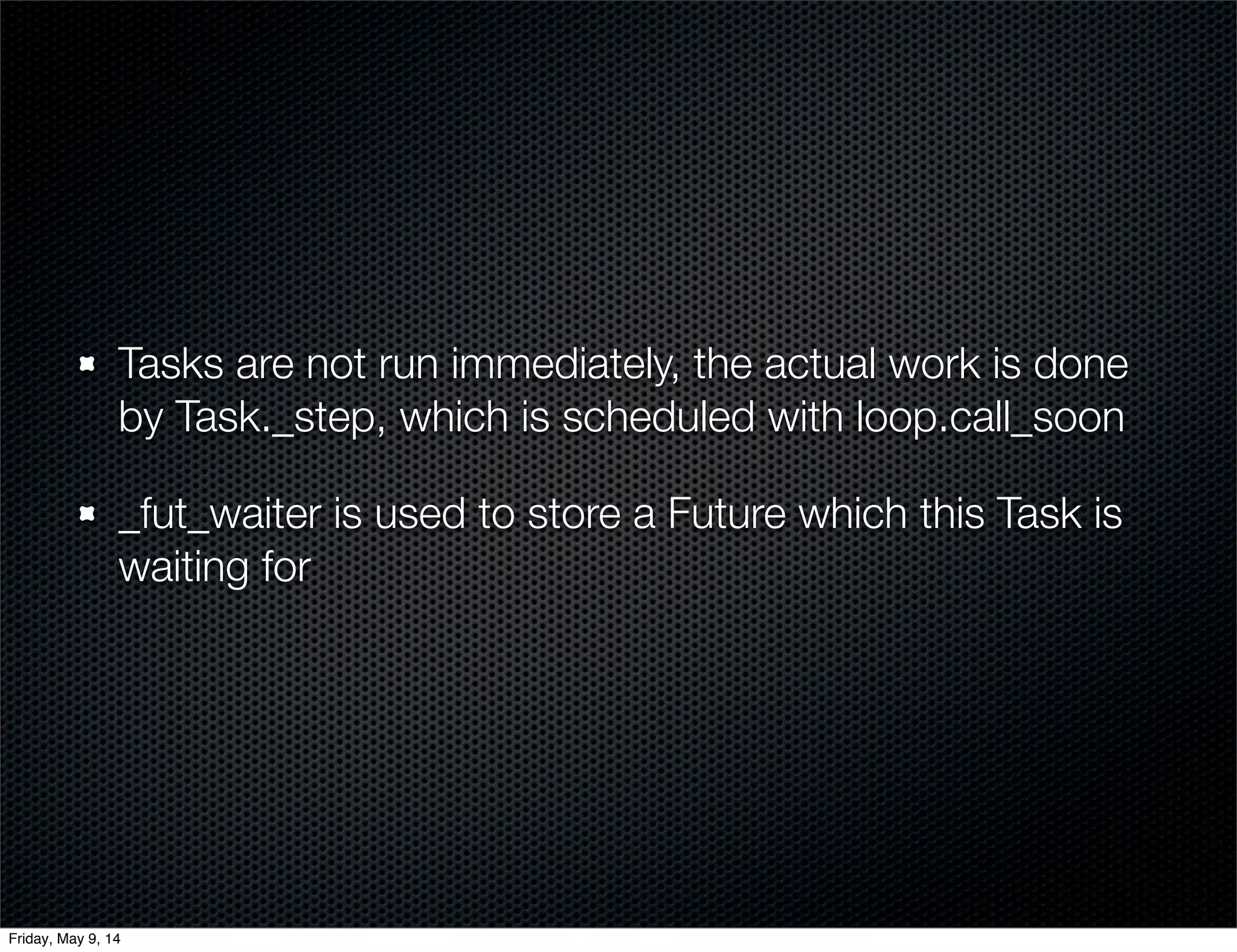

41. Tasks are not run immediately, the actual work is done
by Task._step, which is scheduled with loop.call_soon
_fut_waiter is used to store a Future which this Task is
waiting for
Friday, May 9, 14

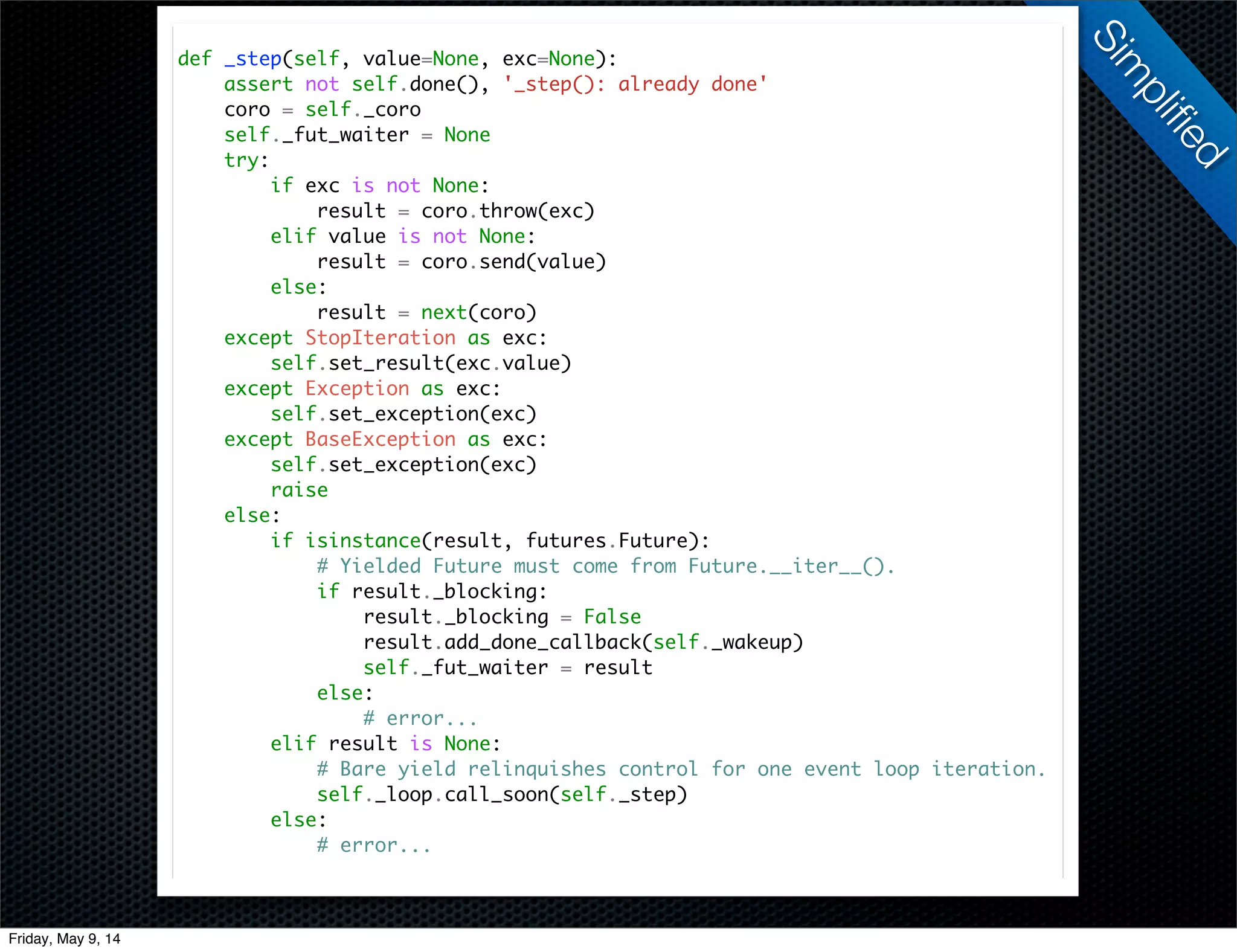

42. Sim
plified
def _step(self, value=None, exc=None):
assert not self.done(), '_step(): already done'
coro = self._coro
self._fut_waiter = None
try:
if exc is not None:
result = coro.throw(exc)
elif value is not None:
result = coro.send(value)
else:
result = next(coro)
except StopIteration as exc:
self.set_result(exc.value)
except Exception as exc:
self.set_exception(exc)
except BaseException as exc:
self.set_exception(exc)
raise
else:
if isinstance(result, futures.Future):
# Yielded Future must come from Future.__iter__().
if result._blocking:
result._blocking = False
result.add_done_callback(self._wakeup)
self._fut_waiter = result
else:
# error...
elif result is None:
# Bare yield relinquishes control for one event loop iteration.
self._loop.call_soon(self._step)
else:
# error...
Friday, May 9, 14

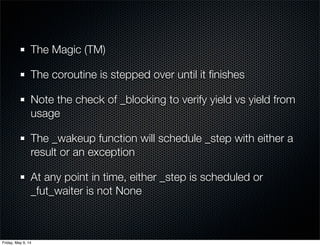

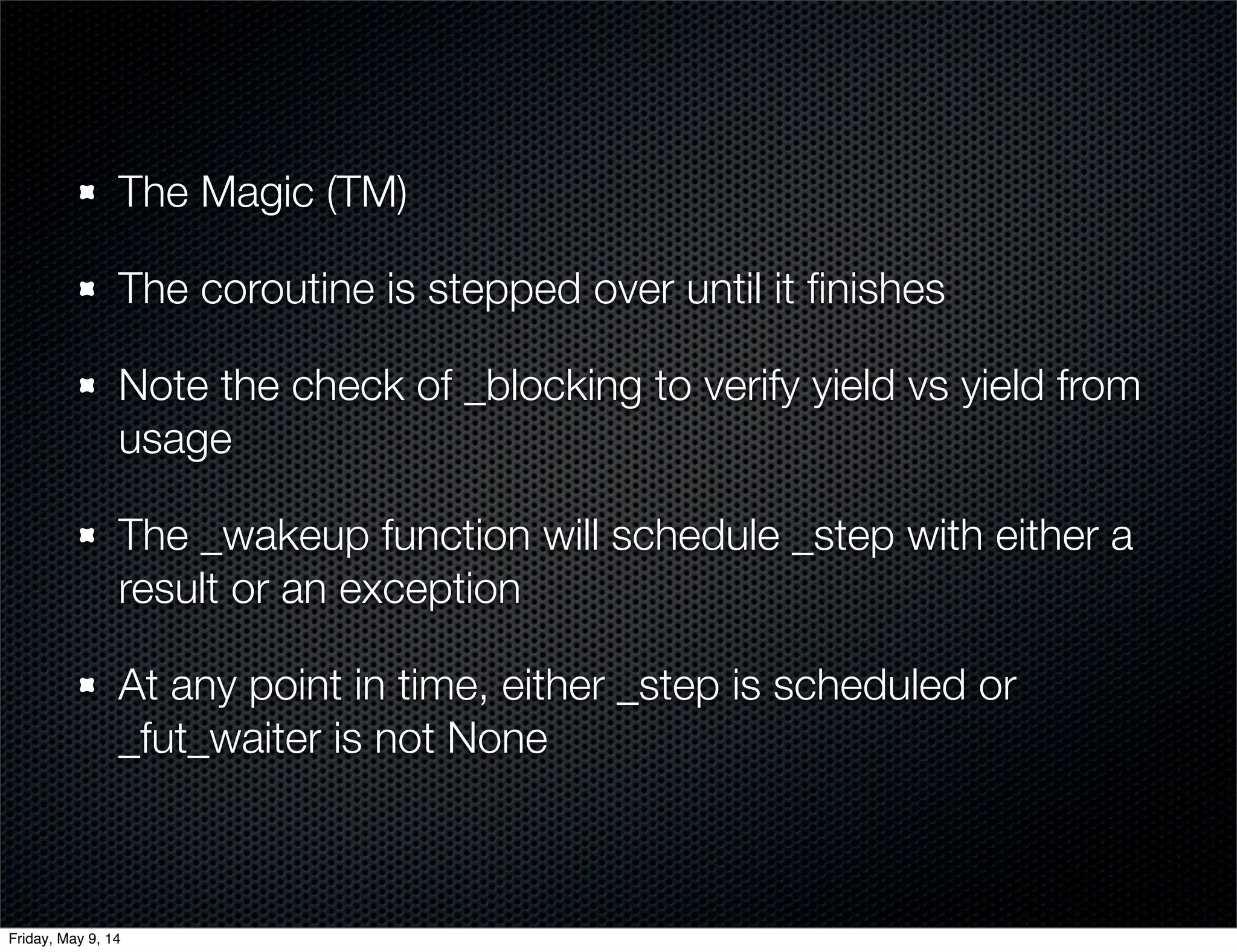

43. The Magic (TM)
The coroutine is stepped over until it finishes
Note the check of _blocking to verify yield vs yield from
usage
The _wakeup function will schedule _step with either a
result or an exception
At any point in time, either _step is scheduled or
_fut_waiter is not None
Friday, May 9, 14

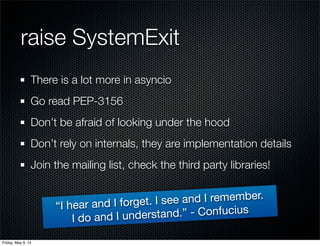

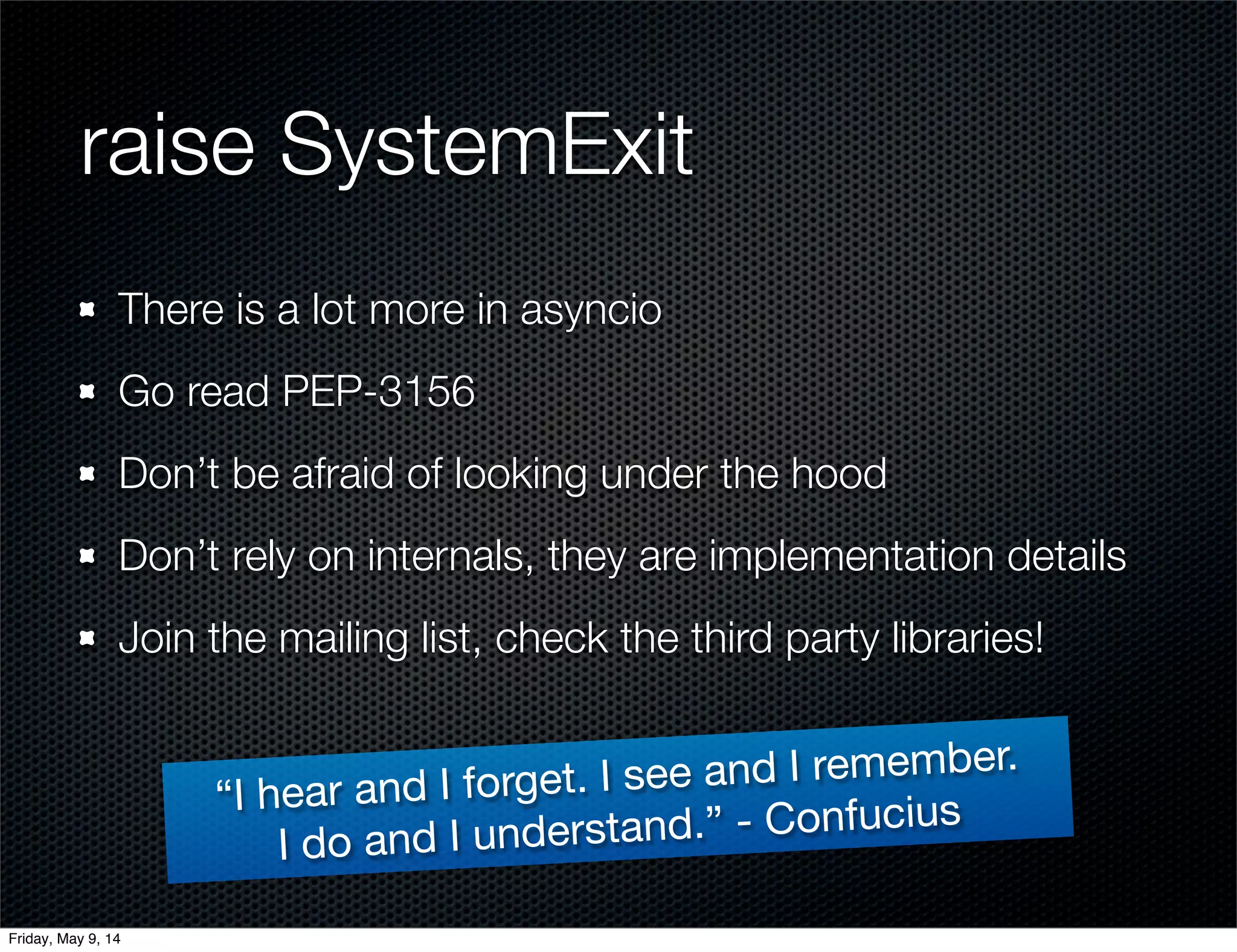

44. There is a lot more in asyncio
Go read PEP-3156
Don’t be afraid of looking under the hood
Don’t rely on internals, they are implementation details
Join the mailing list, check the third party libraries!
raise SystemExit
“I hear and I forget. I see and I remember.
I do and I understand.” - Confucius
Friday, May 9, 14

45. Questions?
bettercallsaghul.com
@saghul
Friday, May 9, 14
