The document outlines the transition to ob1k, an asynchronous IO framework based on Netty, which enhances performance by enabling each module to operate in its own isolated JVM with tailored configurations. Key features include seamless RPC functionality, asynchronous client support for various services, and enhanced deployment processes that simplify service monitoring and upgrades. It also discusses the infrastructure's design, focusing on non-blocking IO operations, and emphasizes the benefits of streams for handling requests efficiently.

1. ⇨ Asy Ronen (A.K.A Async)
⇨ Eran Harel (@eran_ha)

2. Before OB1K...
● Multitenancy on a single Tomcat JVM
● Our API hosts actually executed 8 modules
on a single JVM

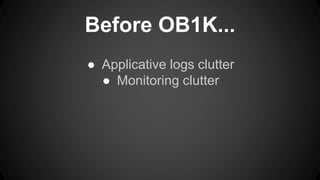

3. Before OB1K...
● Applicative logs clutter
● Monitoring clutter

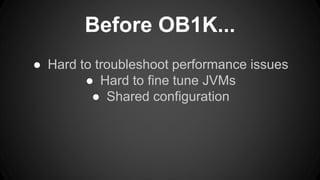

4. Before OB1K...
● Hard to troubleshoot performance issues
● Hard to fine tune JVMs
● Shared configuration

5. Before OB1K...
● Deployments means start / stop for several
modules
● Sub optimal for CD environment...

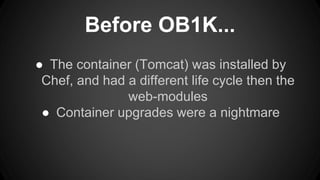

6. Before OB1K...
● The container (Tomcat) was installed by
Chef, and had a different life cycle then the
web-modules
● Container upgrades were a nightmare

7. What is OB1K?

8. Asynchronous IO based on Netty

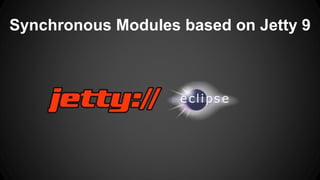

9. Synchronous Modules based on Jetty 9

10. Drop-in replacement for Tomcat
apps

11. Kick A$$ Performance :)

13. Self Contained

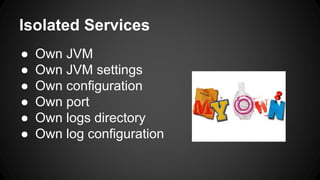

14. Isolated Services
● Own JVM
● Own JVM settings
● Own configuration
● Own port
● Own logs directory
● Own log configuration

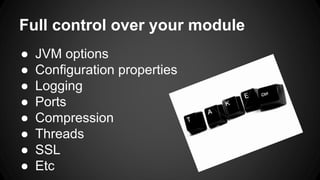

15. Full control over your module
● JVM options
● Configuration properties
● Logging
● Ports
● Compression
● Threads
● SSL
● Etc

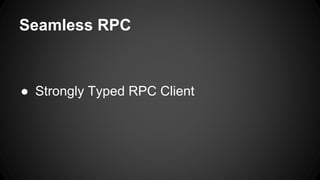

16. Seamless RPC
● Strongly Typed RPC Client

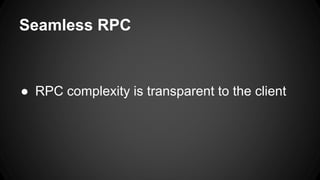

17. Seamless RPC
● RPC complexity is transparent to the client

18. Seamless RPC
● Server implementation only worries about
the business logic

19. Seamless RPC
● Configurable client behavior (e.g. retries)

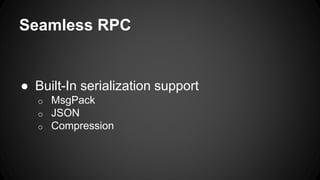

20. Seamless RPC
● Built-In serialization support
o MsgPack
o JSON
o Compression

21. HTTP Streams

22. Configuration as code

23. Free Standard API entry points
● /selftest
● /version
● /help (/)
● /properties
● /ping
● /presence
● /jmx
● /tailLog
● /endPoints

24. Free Service Monitoring

25. Service Discovery Integration

26. Easier upgrades, easier deployment

27. Same execution path for
Dev / Prod / JUnit

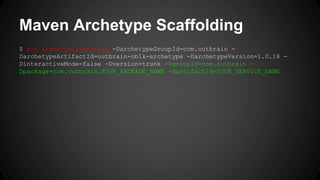

28. Maven Archetype Scaffolding
$ mvn archetype:generate -DarchetypeGroupId=com.outbrain -
DarchetypeArtifactId=outbrain-ob1k-archetype -DarchetypeVersion=1.0.18 -
DinteractiveMode=false -Dversion=trunk -DgroupId=com.outbrain -
Dpackage=com.outbrain.YOUR_PACKAGE_NAME -DartifactId=YOUR_SERVICE_NAME

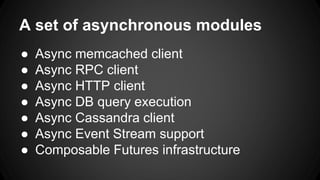

29. A set of asynchronous modules
● Async memcached client
● Async RPC client
● Async HTTP client
● Async DB query execution
● Async Cassandra client
● Async Event Stream support
● Composable Futures infrastructure

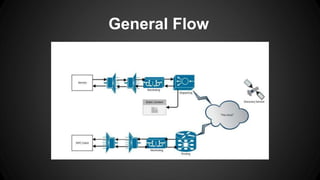

30. General Flow

32. The main class

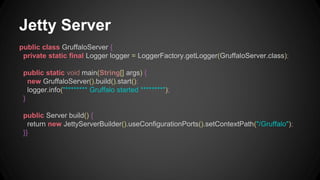

33. Jetty Server
public class GruffaloServer {
private static final Logger logger = LoggerFactory.getLogger(GruffaloServer.class);
public static void main(String[] args) {
new GruffaloServer().build().start();
logger.info("******** Gruffalo started ********");
}
public Server build() {
return new JettyServerBuilder().useConfigurationPorts().setContextPath("/Gruffalo");
}}

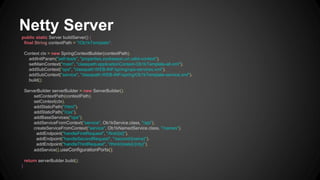

34. Netty Server
public static Server buildServer() {
final String contextPath = "/Ob1kTemplate";
Context ctx = new SpringContextBuilder(contextPath).
addInitParam("self-tests", "properties,zookeeper,url,valid-context").
setMainContext("main", "classpath:applicationContext-Ob1kTemplate-all.xml").
addSubContext("ops", "classpath:WEB-INF/spring/ops-services.xml").
addSubContext("service", "classpath:WEB-INF/spring/Ob1kTemplate-service.xml").
build();
ServerBuilder serverBuilder = new ServerBuilder().
setContextPath(contextPath).
setContext(ctx).
addStaticPath("/html").
addStaticPath("/css").
addBaseServices("ops").
addServiceFromContext("service", Ob1kService.class, "/api").
createServiceFromContext("service", Ob1kNamedService.class, "/names").
addEndpoint("handleFirstRequest", "/first/{id}").
addEndpoint("handleSecondRequest", "/second/{name}").
addEndpoint("handleThirdRequest", "/third/{state}/{city}").
addService().useConfigurationPorts();
return serverBuilder.build();
}

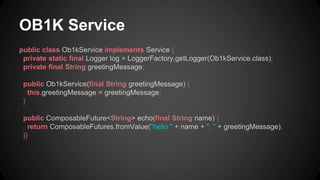

35. OB1K Service
public class Ob1kService implements Service {
private static final Logger log = LoggerFactory.getLogger(Ob1kService.class);
private final String greetingMessage;
public Ob1kService(final String greetingMessage) {
this.greetingMessage = greetingMessage;
}
public ComposableFuture<String> echo(final String name) {
return ComposableFutures.fromValue("hello " + name + ". " + greetingMessage);
}}

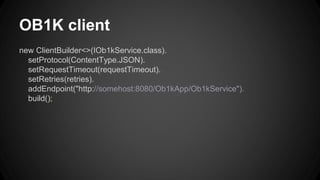

36. OB1K client
new ClientBuilder<>(IOb1kService.class).
setProtocol(ContentType.JSON).
setRequestTimeout(requestTimeout).
setRetries(retries).
addEndpoint("http://somehost:8080/Ob1kApp/Ob1kService").
build();

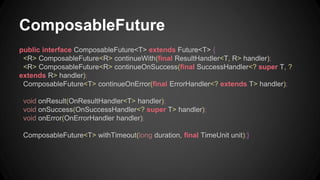

37. ComposableFuture
public interface ComposableFuture<T> extends Future<T> {
<R> ComposableFuture<R> continueWith(final ResultHandler<T, R> handler);
<R> ComposableFuture<R> continueOnSuccess(final SuccessHandler<? super T, ?
extends R> handler);
ComposableFuture<T> continueOnError(final ErrorHandler<? extends T> handler);
void onResult(OnResultHandler<T> handler);
void onSuccess(OnSuccessHandler<? super T> handler);
void onError(OnErrorHandler handler);
ComposableFuture<T> withTimeout(long duration, final TimeUnit unit);}

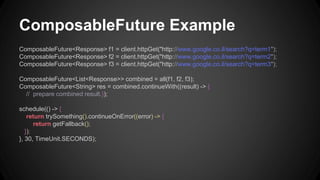

38. ComposableFuture Example
ComposableFuture<Response> f1 = client.httpGet("http://www.google.co.il/search?q=term1");
ComposableFuture<Response> f2 = client.httpGet("http://www.google.co.il/search?q=term2");
ComposableFuture<Response> f3 = client.httpGet("http://www.google.co.il/search?q=term3");
ComposableFuture<List<Response>> combined = all(f1, f2, f3);
ComposableFuture<String> res = combined.continueWith((result) -> {
// prepare combined result.});
schedule(() -> {
return trySomething().continueOnError((error) -> {
return getFallback();
});
}, 30, TimeUnit.SECONDS);

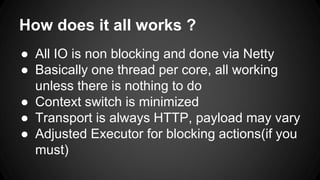

39. How does it all works ?
● All IO is non blocking and done via Netty
● Basically one thread per core, all working
unless there is nothing to do
● Context switch is minimized
● Transport is always HTTP, payload may vary
● Adjusted Executor for blocking actions(if you
must)

40. Why Streams ?
● Time to serve is limited, better to serve results as
they come
● A stream of results is, well… a stream
● Request/response model is not a good fit for all
scenarios, thing twitter streaming API
● Streams can be combined in all sorts of wonderful
ways
● Implementation uses RxJava
● Ask netflix :)

41. What is the catch?
● Blocking code is (almost)forbidden in the
async mode
● Writing asynchronous code has a learning
curve
● Libraries have to be adapted

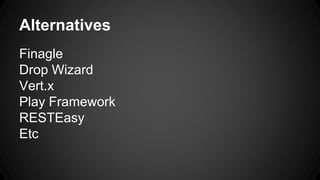

42. Alternatives
Finagle
Drop Wizard
Vert.x
Play Framework
RESTEasy
Etc

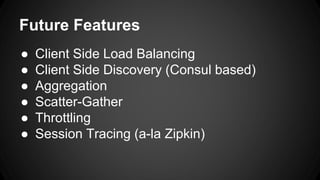

43. Future Features
● Client Side Load Balancing
● Client Side Discovery (Consul based)
● Aggregation
● Scatter-Gather
● Throttling
● Session Tracing (a-la Zipkin)
