A sequence diagram shows the interactions between objects in a system. It displays objects arranged along a timeline, with messages passed between objects over time. Key elements include object lifelines that run vertically, messages shown as horizontal arrows, and activation boxes that indicate when an object is processing a message. Sequence diagrams are useful for illustrating the flow of control in response to events generated by external actors on the system.

1. System Sequence Diagrams
By Ashwini G. Munagekar
9922946280

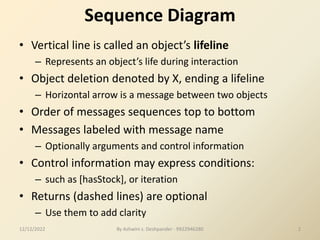

2. Sequence Diagram
• Vertical line is called an object’s lifeline
– Represents an object’s life during interaction
• Object deletion denoted by X, ending a lifeline
– Horizontal arrow is a message between two objects
• Order of messages sequences top to bottom
• Messages labeled with message name
– Optionally arguments and control information
• Control information may express conditions:
– such as [hasStock], or iteration
• Returns (dashed lines) are optional
– Use them to add clarity
12/12/2022 2
By Ashwini s. Deshpander - 9922946280

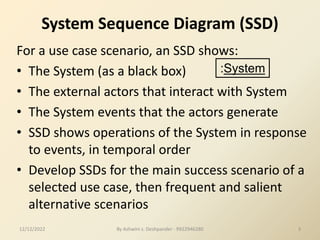

3. System Sequence Diagram (SSD)
For a use case scenario, an SSD shows:
• The System (as a black box)
• The external actors that interact with System
• The System events that the actors generate
• SSD shows operations of the System in response
to events, in temporal order
• Develop SSDs for the main success scenario of a
selected use case, then frequent and salient
alternative scenarios
:System
12/12/2022 3
By Ashwini s. Deshpander - 9922946280

4. 12/12/2022 By Ashwini s. Deshpander - 9922946280
7

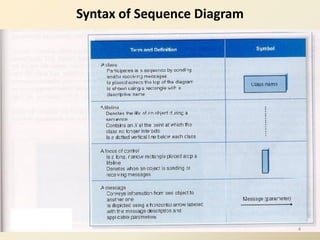

Syntax of Sequence Diagram
4

5. 5

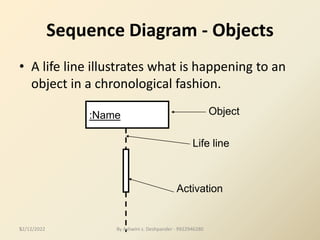

Sequence Diagram - Objects
• A life line illustrates what is happening to an
object in a chronological fashion.
:Name
Life line
Activation
Object
12/12/2022 By Ashwini s. Deshpander - 9922946280

6. 6

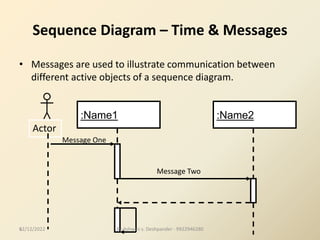

Sequence Diagram – Time & Messages
• Messages are used to illustrate communication between
different active objects of a sequence diagram.
:Name1 :Name2
Message Two
Actor
Message One
12/12/2022 By Ashwini s. Deshpander - 9922946280

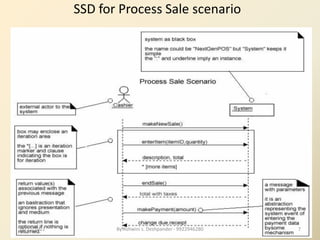

7. SSD for Process Sale scenario
12/12/2022 7
By Ashwini s. Deshpander - 9922946280

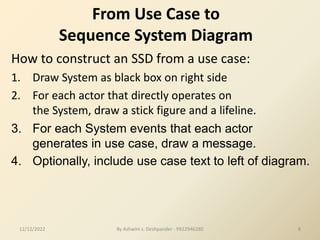

8. From Use Case to
Sequence System Diagram
How to construct an SSD from a use case:
1. Draw System as black box on right side
2. For each actor that directly operates on
the System, draw a stick figure and a lifeline.
3. For each System events that each actor
generates in use case, draw a message.
4. Optionally, include use case text to left of diagram.
12/12/2022 8
By Ashwini s. Deshpander - 9922946280

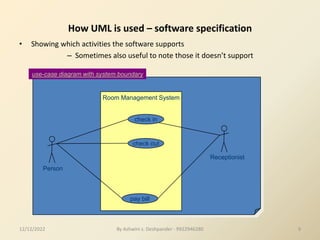

9. Room Management System
How UML is used – software specification
• Showing which activities the software supports
– Sometimes also useful to note those it doesn’t support
Person
check in
check out
Receptionist
pay bill
use-case diagram with system boundary
12/12/2022 9
By Ashwini s. Deshpander - 9922946280

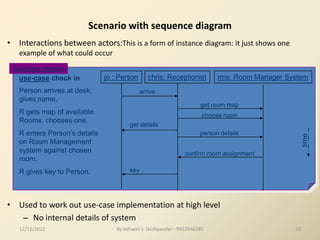

10. Scenario with sequence diagram
• Interactions between actors:This is a form of instance diagram: it just shows one
example of what could occur
• Used to work out use-case implementation at high level
– No internal details of system
Person arrives at desk,
gives name.
R gets map of available
Rooms, chooses one.
R enters Person’s details
on Room Management
system against chosen
room.
R gives key to Person.
jo : Person chris: Receptionist rms: Room Manager System
arrive
get room map
choose room
person details
get details
key
confirm room assignment
time
Sequence diagram
use-case check in
12/12/2022 10
By Ashwini s. Deshpander - 9922946280

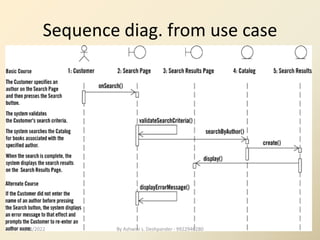

11. 11
Sequence diag. from use case
12/12/2022 By Ashwini s. Deshpander - 9922946280

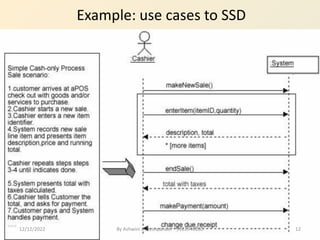

12. Example: use cases to SSD
12/12/2022 12
By Ashwini s. Deshpander - 9922946280

13. By Ashwini s. Deshpander - 9922946280 13
A Sequence Diagram
member:
LibraryMember
book:Book
:Book
Copy
borrow(book)
ok = mayBorrow()
[ok] borrow(member)
setTaken(member)
12/12/2022

14. By Ashwini s. Deshpander - 9922946280 14

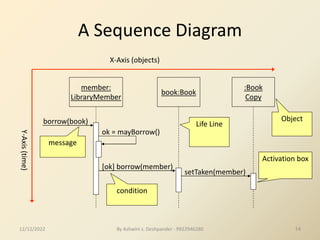

A Sequence Diagram
member:
LibraryMember
book:Book
:Book
Copy
borrow(book)
ok = mayBorrow()
[ok] borrow(member)
setTaken(member)
X-Axis (objects)
Y-Axis
(time)
Object
Life Line
message
Activation box
condition
12/12/2022

15. By Ashwini s. Deshpander - 9922946280 15
Object

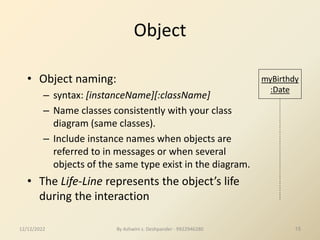

• Object naming:
– syntax: [instanceName][:className]
– Name classes consistently with your class
diagram (same classes).
– Include instance names when objects are
referred to in messages or when several
objects of the same type exist in the diagram.
• The Life-Line represents the object’s life
during the interaction
myBirthdy
:Date
12/12/2022

16. 16

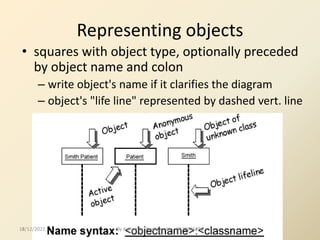

Representing objects
• squares with object type, optionally preceded
by object name and colon
– write object's name if it clarifies the diagram
– object's "life line" represented by dashed vert. line
12/12/2022 By Ashwini s. Deshpander - 9922946280

17. By Ashwini s. Deshpander - 9922946280 17
Messages
• An interaction between two objects is
performed as a message sent from one
object to another (simple operation call,
Signaling, RPC)
• If object obj1 sends a message to another
object obj2 some link must exist between
those two objects (dependency, same
objects)
12/12/2022

18. By Ashwini s. Deshpander - 9922946280 18

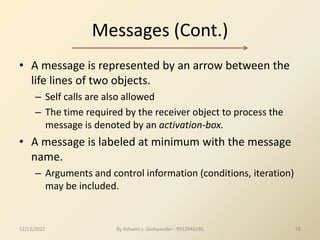

Messages (Cont.)
• A message is represented by an arrow between the
life lines of two objects.
– Self calls are also allowed
– The time required by the receiver object to process the
message is denoted by an activation-box.
• A message is labeled at minimum with the message
name.
– Arguments and control information (conditions, iteration)
may be included.
12/12/2022

19. By Ashwini s. Deshpander - 9922946280 19

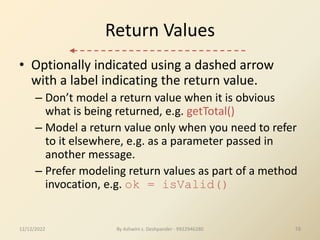

Return Values
• Optionally indicated using a dashed arrow
with a label indicating the return value.
– Don’t model a return value when it is obvious
what is being returned, e.g. getTotal()
– Model a return value only when you need to refer
to it elsewhere, e.g. as a parameter passed in
another message.
– Prefer modeling return values as part of a method
invocation, e.g. ok = isValid()
12/12/2022

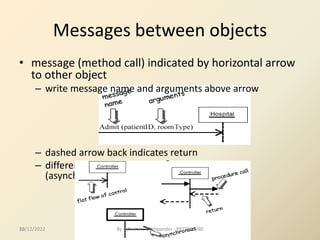

20. 20
• message (method call) indicated by horizontal arrow
to other object
– write message name and arguments above arrow
– dashed arrow back indicates return
– different arrowheads for normal / concurrent
(asynchronous) methods
Messages between objects
12/12/2022 By Ashwini s. Deshpander - 9922946280

21. 12/12/2022 By Ashwini s. Deshpander - 9922946280
• Sequence diagrams have two features:
– Object lifeline
• Vertical dashed line that represents the existence of an object over
a period of time
– Focus of control
• A tall, thin rectangle that shows the period of time during which an
object is performing an action, either directly or through a
subordinate procedure
Sequence Diagrams
21

22. 22

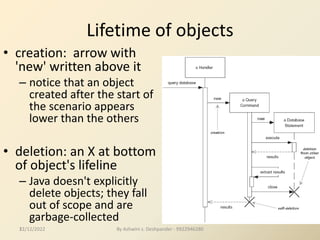

Lifetime of objects
• creation: arrow with
'new' written above it
– notice that an object
created after the start of
the scenario appears
lower than the others
• deletion: an X at bottom
of object's lifeline
– Java doesn't explicitly
delete objects; they fall
out of scope and are
garbage-collected
12/12/2022 By Ashwini s. Deshpander - 9922946280

23. 23

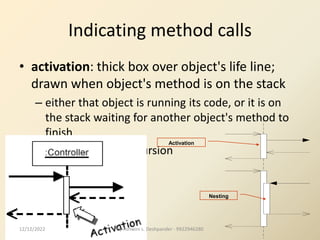

Indicating method calls
• activation: thick box over object's life line;
drawn when object's method is on the stack
– either that object is running its code, or it is on
the stack waiting for another object's method to
finish
– nest to indicate recursion
Activation
Nesting
12/12/2022 By Ashwini s. Deshpander - 9922946280

24. 24

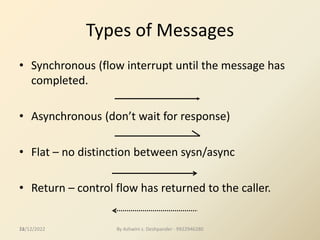

Types of Messages
• Synchronous (flow interrupt until the message has
completed.
• Asynchronous (don’t wait for response)
• Flat – no distinction between sysn/async
• Return – control flow has returned to the caller.
12/12/2022 By Ashwini s. Deshpander - 9922946280

25. By Ashwini s. Deshpander - 9922946280 25

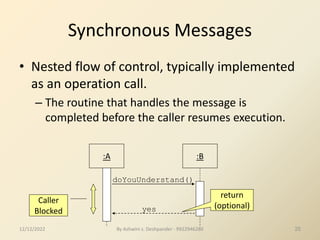

Synchronous Messages
• Nested flow of control, typically implemented
as an operation call.
– The routine that handles the message is
completed before the caller resumes execution.
:A :B
doYouUnderstand()
Caller
Blocked
return
(optional)
yes
12/12/2022

26. By Ashwini s. Deshpander - 9922946280 26

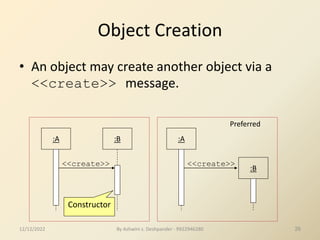

Object Creation
• An object may create another object via a
<<create>> message.
:A :B
<<create>>
Constructor
:A
<<create>>
:B
Preferred
12/12/2022

27. By Ashwini s. Deshpander - 9922946280 27

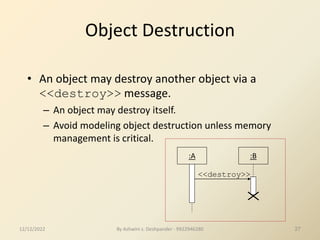

Object Destruction
• An object may destroy another object via a
<<destroy>> message.
– An object may destroy itself.
– Avoid modeling object destruction unless memory
management is critical.
:A :B
<<destroy>>
12/12/2022

28. By Ashwini s. Deshpander - 9922946280 28

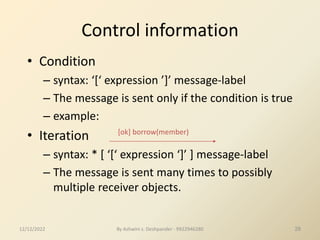

Control information
• Condition
– syntax: ‘*‘ expression ’+’ message-label
– The message is sent only if the condition is true
– example:
• Iteration
– syntax: * * ‘*‘ expression ‘+’ + message-label
– The message is sent many times to possibly
multiple receiver objects.
[ok] borrow(member)
12/12/2022

29. By Ashwini s. Deshpander - 9922946280 29
Control Information (Cont.)
• Iteration examples:
:Driver
*[until full] insert()
:Bus
The syntax of
expressions is
not a standard
:CompoundShape :Shape
*draw()
draw()
12/12/2022

30. By Ashwini s. Deshpander - 9922946280 30

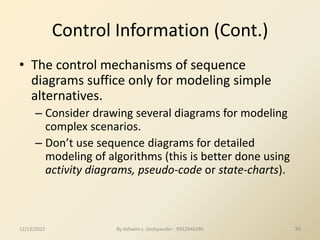

Control Information (Cont.)
• The control mechanisms of sequence
diagrams suffice only for modeling simple
alternatives.
– Consider drawing several diagrams for modeling
complex scenarios.
– Don’t use sequence diagrams for detailed
modeling of algorithms (this is better done using
activity diagrams, pseudo-code or state-charts).
12/12/2022

31. Identifying the right Actor
• In the process Sale example, does the customer
interact directly with the POS system?
• Who does?
• Cashier interacts with the system directly
• Cashier is the generator of the system events
• Why is this an important observation?
12/12/2022 31
By Ashwini s. Deshpander - 9922946280

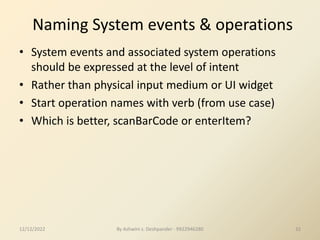

32. Naming System events & operations
• System events and associated system operations
should be expressed at the level of intent
• Rather than physical input medium or UI widget
• Start operation names with verb (from use case)
• Which is better, scanBarCode or enterItem?
12/12/2022 32
By Ashwini s. Deshpander - 9922946280

33. By Ashwini s. Deshpander -
9922946280

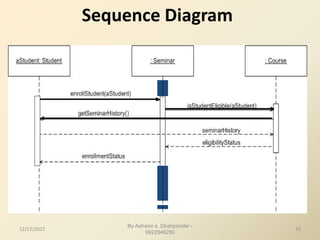

Sequence Diagram
12/12/2022 33

34. Sequence Diagram
Time
Increasing
-->

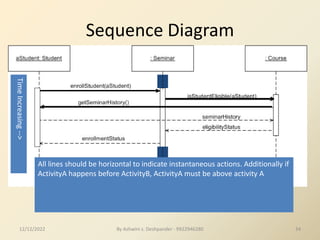

All lines should be horizontal to indicate instantaneous actions. Additionally if
ActivityA happens before ActivityB, ActivityA must be above activity A
12/12/2022 34
By Ashwini s. Deshpander - 9922946280

35. By Ashwini s. Deshpander -
9922946280

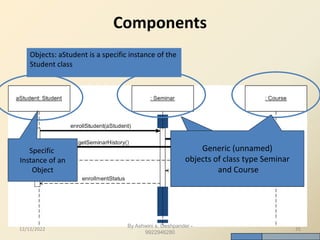

Components
Objects: aStudent is a specific instance of the
Student class
Specific
Instance of an
Object
Generic (unnamed)
objects
Generic (unnamed)
objects of class type Seminar
and Course
12/12/2022 35

36. By Ashwini s. Deshpander -
9922946280
Components
lifeline
execution
12/12/2022 36

37. By Ashwini s. Deshpander -
9922946280
Components

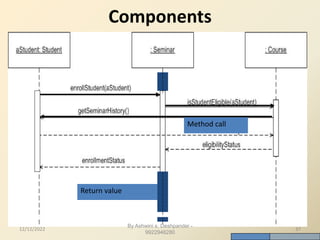

Return value
Method call
12/12/2022 37

38. By Ashwini s. Deshpander -
9922946280

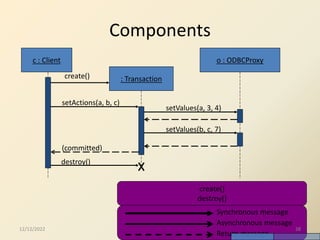

Components
c : Client
: Transaction
o : ODBCProxy
create()
setActions(a, b, c)
setValues(a, 3, 4)
setValues(b, c, 7)
(committed)
destroy()
Synchronous message
Asynchronous message
create()
destroy()
Return message
12/12/2022 38

39. 39

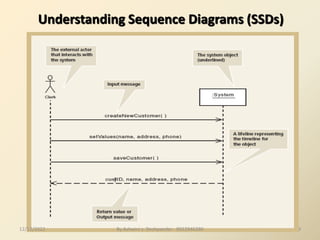

Understanding Sequence Diagrams (SSDs)
12/12/2022 By Ashwini s. Deshpander - 9922946280

40. 12/12/2022 By Ashwini s. Deshpander - 9922946280
Sequence Diagram: Example
40

41. By Ashwini s. Deshpander - 9922946280 41
print(doc,client)

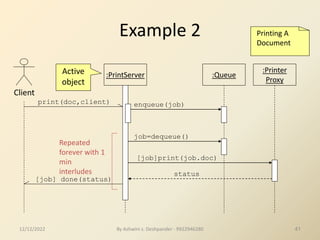

Example 2
Client
:PrintServer :Queue
:Printer
Proxy
enqueue(job)
status
Printing A
Document
job=dequeue()
[job]print(job.doc)
[job] done(status)
Repeated
forever with 1
min
interludes
Active
object
12/12/2022

42. 42

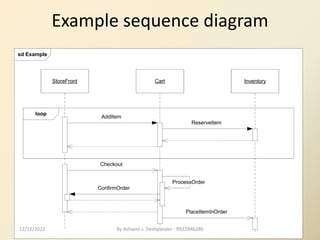

Example sequence diagram
sd Example
loop
StoreFront Cart Inventory
AddItem
ReserveItem
PlaceItemInOrder
Checkout
ProcessOrder
ConfirmOrder
12/12/2022 By Ashwini s. Deshpander - 9922946280

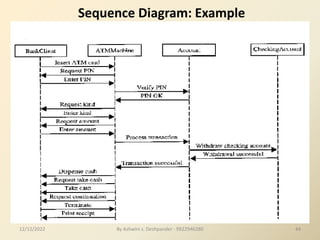

43. Sequence Diagram: Example
12/12/2022 43
By Ashwini s. Deshpander - 9922946280

44. Sequence Diagram: Example
12/12/2022 44
By Ashwini s. Deshpander - 9922946280

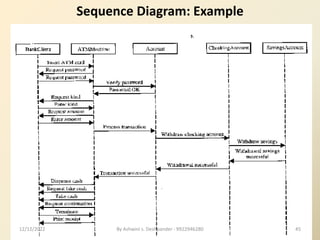

45. Sequence Diagram: Example
12/12/2022 45
By Ashwini s. Deshpander - 9922946280

46. 46

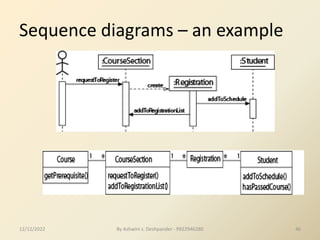

Sequence diagrams – an example
12/12/2022 By Ashwini s. Deshpander - 9922946280

47. 47

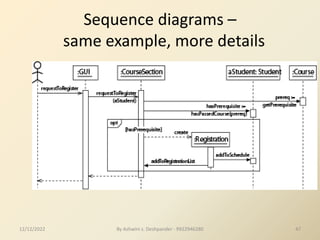

Sequence diagrams –
same example, more details
12/12/2022 By Ashwini s. Deshpander - 9922946280

48. 48

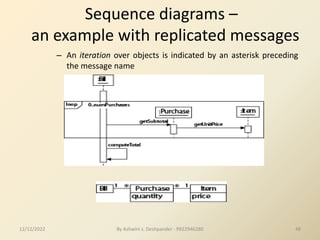

Sequence diagrams –
an example with replicated messages
– An iteration over objects is indicated by an asterisk preceding
the message name
12/12/2022 By Ashwini s. Deshpander - 9922946280

49. 49

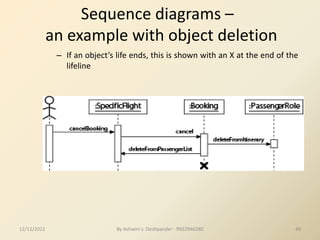

Sequence diagrams –
an example with object deletion
– If an object’s life ends, this is shown with an X at the end of the
lifeline
12/12/2022 By Ashwini s. Deshpander - 9922946280

50. 50
Detailed Sequence Diagram
12/12/2022 By Ashwini s. Deshpander - 9922946280

51. 51

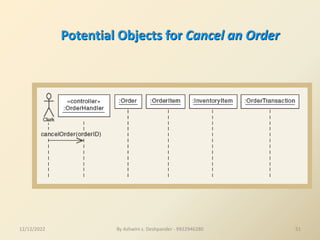

Potential Objects for Cancel an Order
12/12/2022 By Ashwini s. Deshpander - 9922946280

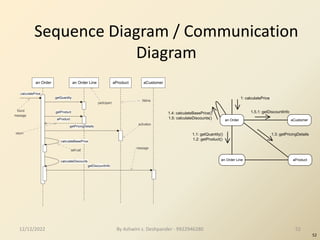

52. Sequence Diagram / Communication
Diagram
52
an Order an Order Line aProduct aCustomer
calculatePrice
getQuantity
getProduct
aProduct
getPricingDetails
calculateBasePrice
calculateDiscounts
getDiscountInfo
found
message
return
self-call
activation
lifeline
message
participant
an Order aCustomer
an Order Line aProduct
1: calculatePrice
1.5.1: getDiscountInfo
1.3: getPricingDetails
1.4: calculateBasePrice()
1.5: calculateDiscounts()
1.1: getQuantity()
1.2: getProduct()
12/12/2022 52
By Ashwini s. Deshpander - 9922946280

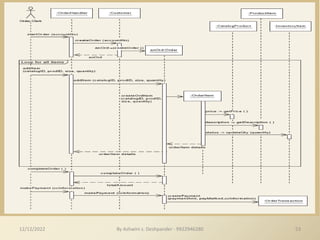

53. 53
12/12/2022 By Ashwini s. Deshpander - 9922946280

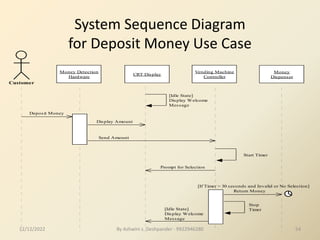

54. System Sequence Diagram
for Deposit Money Use Case
Customer
Money Detection
Hardware
CRT Display
Vending Machine
Controller
Deposit Money
[Idle State]
Display Welcome
Message
Display Amount
Send Amount
Prompt for Selection
Start Timer
[If Timer > 30 seconds and Invalid or No Selection]
Return Money
Money
Dispenser
Stop
Timer
[Idle State]
Display Welcome
Message
12/12/2022 54
By Ashwini s. Deshpander - 9922946280
