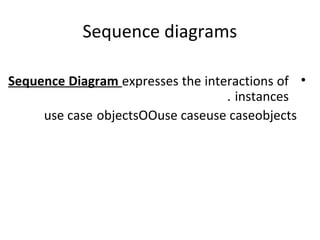

- 2. •Sequence Diagram expressesthe interactions of instances. objectsuse caseuse caseOOobjectsuse case Sequence diagrams
- 3. When to useSequence Diagrams • • • •
- 4. Sequence Diagrams : Customer :Order : item : payment 1. CreateOrder 2. request 3. addToOrder(:item) 4. Checkout 4.1. CreatePayment 4.1.1. GetPaymentInfo 4.1.1.1. PaymentInfo 4.1.1.1.1. Success 4.3. Order Result 4.2. Save or decline

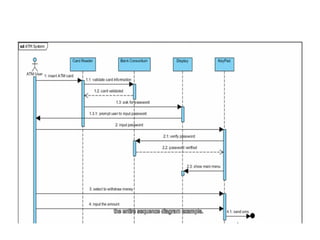

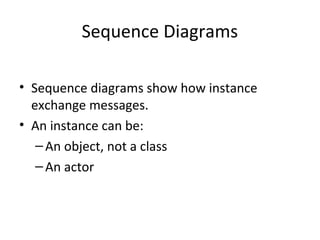

- 6. Sequence Diagrams • Sequencediagrams show how instance exchange messages. • An instance can be: –An object, not a class –An actor

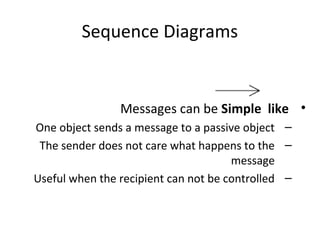

- 7. Sequence Diagrams •Messages canbe Simple like –One object sends a message to a passive object –The sender does not care what happens to the message –Useful when the recipient can not be controlled
- 8. Sequence Diagrams • Messagescan be Synchronous – The sender sends the message – The recipient accepts the message, and notifies the sender with a message result. – The sender accepts the message result. • If the sender does not accept the message result, then the whole operation will not continue. • Synchronous messages are useful to represent procedure calls or modal dialogs.
- 9. Sequence Diagrams • Messagescan be Asynchronous – The sender sends the message – The sender does not wait for the return of the message, it immediately continues execution. – The recipient may or may not send a reply.

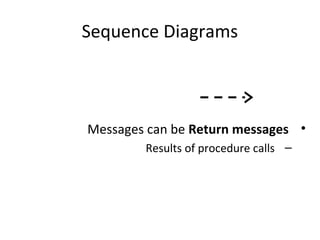

- 10. Sequence Diagrams •Messages canbe Return messages –Results of procedure calls

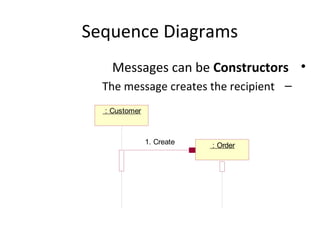

- 11. Sequence Diagrams •Messages canbe Constructors –The message creates the recipient : Customer : Order1. Create

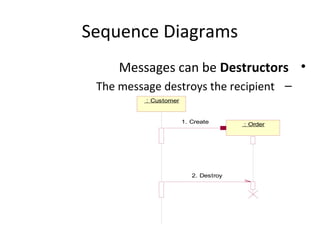

- 12. Sequence Diagrams •Messages canbe Destructors –The message destroys the recipient : Customer : Order1. Create 2. Destroy

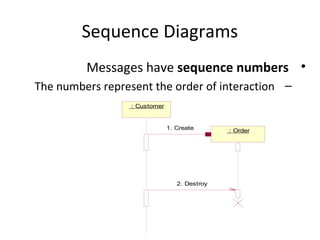

- 13. Sequence Diagrams •Messages havesequence numbers –The numbers represent the order of interaction : Customer : Order1. Create 2. Destroy

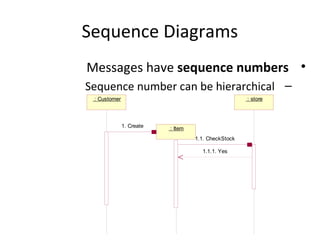

- 14. Sequence Diagrams •Messages havesequence numbers –Sequence number can be hierarchical : Customer : Item : store 1. Create 1.1. CheckStock 1.1.1. Yes

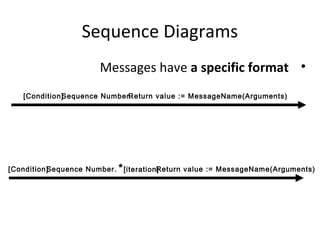

- 15. Sequence Diagrams •Messages havea specific format [Condition]Sequence Number.Return value := MessageName(Arguments) [Condition]Sequence Number. Return value := MessageName(Arguments)*[iteration]

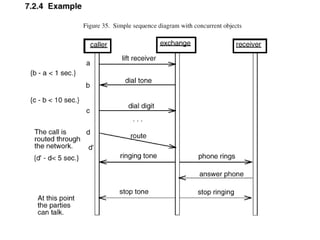

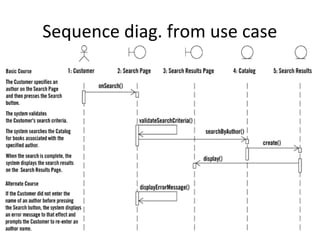

- 17. 17 Sequence diag. fromuse case

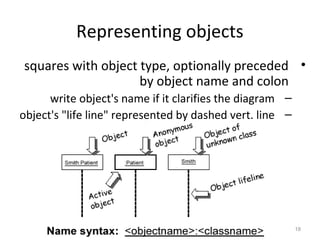

- 18. 18 Representing objects •squares withobject type, optionally preceded by object name and colon –write object's name if it clarifies the diagram –object's "life line" represented by dashed vert. line
- 19. 19 •message (method call)indicated by horizontal arrow to other object –write message name and arguments above arrow Messages between objects

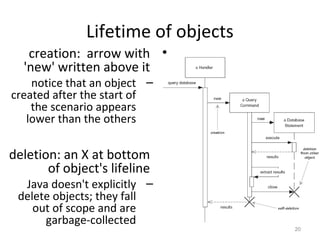

- 20. 20 Lifetime of objects •creation:arrow with 'new' written above it –notice that an object created after the start of the scenario appears lower than the others •deletion: an X at bottom of object's lifeline –Java doesn't explicitly delete objects; they fall out of scope and are garbage-collected

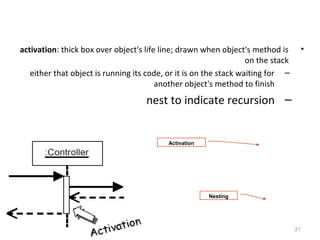

- 21. 21 •activation: thick boxover object's life line; drawn when object's method is on the stack –either that object is running its code, or it is on the stack waiting for another object's method to finish –nest to indicate recursion Activation Nesting

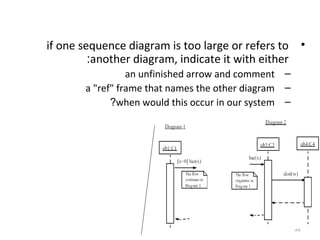

- 22. 22 •if one sequencediagram is too large or refers to another diagram, indicate it with either: –an unfinished arrow and comment –a "ref" frame that names the other diagram –when would this occur in our system?

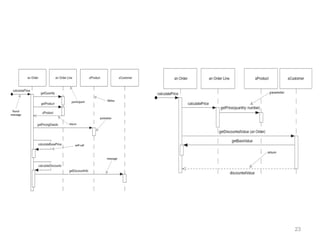

- 23.
- 24.

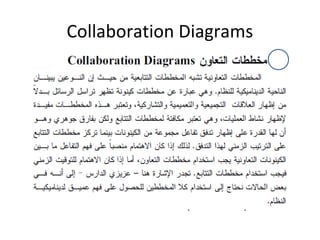

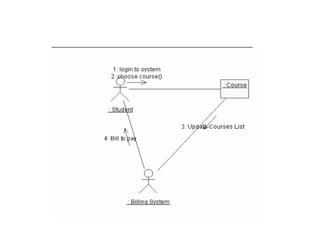

- 26. Collaboration Diagrams : Customer :Order : item : payment 4.2. Save or decline 4.1.1. GetPaymentInfo 4.1.1.1. PaymentInfo 1. CreateOrder 3. addToOrder(:item) 4. Checkout 4.3. Order Result 2. request 4.1. CreatePayment 4.1.1.1.1. Success
- 28.

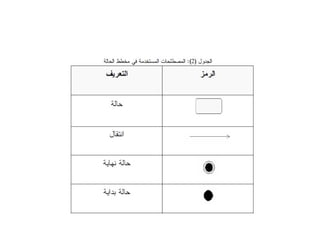

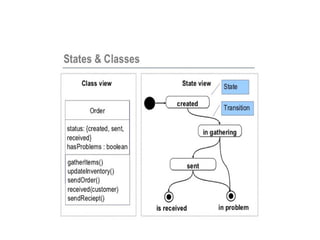

- 30. The following diagram modelsthe login part of an online banking system. Logging in consists of entering a valid social security number and personal id number, then submitting the information for validation. Logging in can be factored into four non- overlapping states: Getting SSN, Getting PIN, Validating, and Rejecting.
