Surveillance and Rescue Robot using Android Smartphone and the Internet

Surveillance and Rescue Robot using
Android Smartphone and the
Internet
By
Mohammad Shoeb Shah
M Tech EXTC
Under the guidance of
Prof. P. B. Borole
Department of Electrical Engineering
Veermata Jijabai Technological Institute
Mumbai - 400019

7/24/2016 M Tech EXTC - Final Stage Seminar 2

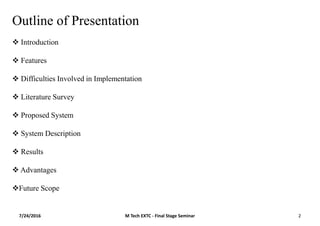

Outline of Presentation
 Introduction
 Features
 Difficulties Involved in Implementation
 Literature Survey
 Proposed System
 System Description
 Results
 Advantages
Future Scope

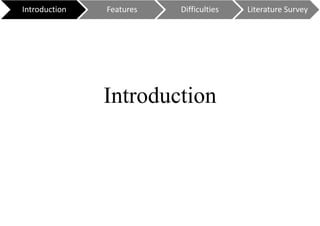

Introduction
Introduction Features Difficulties Literature Survey

Surveillance and its Requirements
• Surveillance is the process in which people, places, or things are monitored
usually for the purpose of influencing, managing, directing, or protecting
them.
• Indoor and Outdoor Surveillance
• Country borders, public places, government offices – Outdoor Surveillance
• Warehouses, homes, garages – Indoor surveillance.

OUTDOOR SURVEILLANCE REQUIRED AT FOLLOWING PLACES

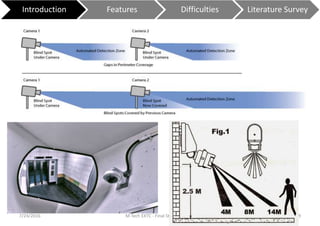

Current Techniques

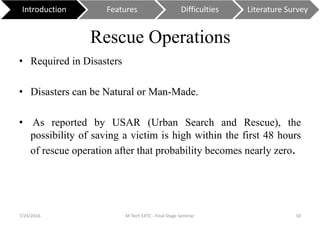

Rescue Operations
• Required in Disasters
• Disasters can be Natural or Man-Made.
• As reported by USAR (Urban Search and Rescue), the
possibility of saving a victim is high within the first 48 hours
of rescue operation after that probability becomes nearly zero.

Disaster caused by Nature

Man Made Disasters

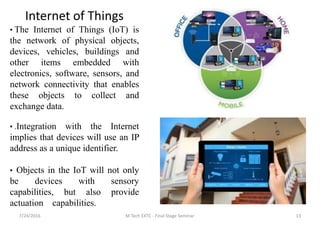

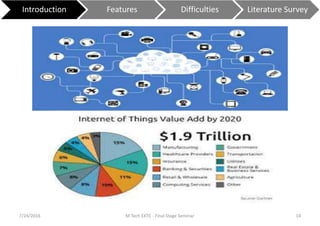

Internet of Things
• The Internet of Things (IoT) is
the network of physical objects,
devices, vehicles, buildings and
other items embedded with
electronics, software, sensors, and
network connectivity that enables
these objects to collect and
exchange data.
• .Integration with the Internet
implies that devices will use an IP
address as a unique identifier.
• Objects in the IoT will not only
be devices with sensory
capabilities, but also provide
actuation capabilities.

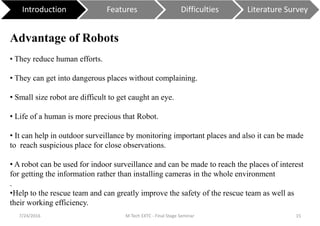

Advantage of Robots
• They reduce human efforts.
• They can get into dangerous places without complaining.
• Small size robot are difficult to get caught an eye.
• Life of a human is more precious that Robot.
• It can help in outdoor surveillance by monitoring important places and also it can be made
to reach suspicious place for close observations.
• A robot can be used for indoor surveillance and can be made to reach the places of interest
for getting the information rather than installing cameras in the whole environment
.
•Help to the rescue team and can greatly improve the safety of the rescue team as well as
their working efficiency.

Types of Robots
• Industrial Robots
• Domestic or household robots
• Medical robots
• Service robots
• Military robots
• Space robots
• Hobby and competition robots

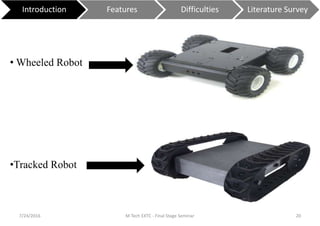

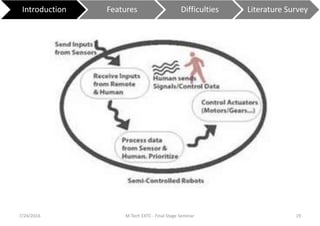

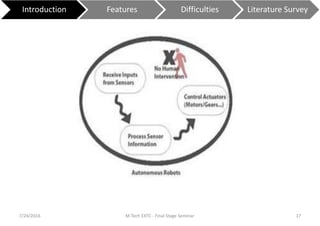

• Wheeled Robot
•Tracked Robot

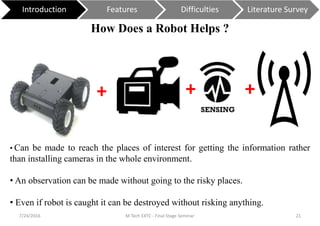

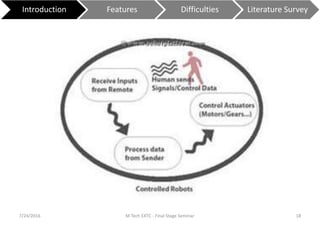

How Does a Robot Helps ?
+ + +
• Can be made to reach the places of interest for getting the information rather
than installing cameras in the whole environment.
• An observation can be made without going to the risky places.
• Even if robot is caught it can be destroyed without risking anything.

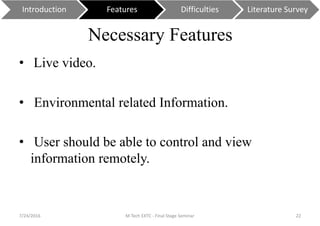

Necessary Features
• Live video.
• Environmental related Information.
• User should be able to control and view
information remotely.

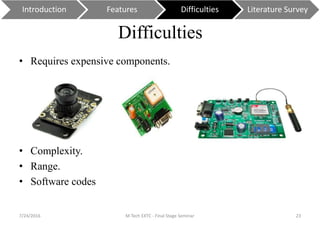

Difficulties

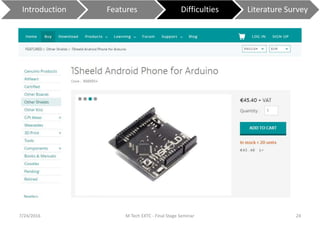

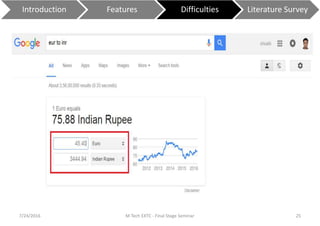

• Requires expensive components.
• Complexity.
• Range.
• Software codes

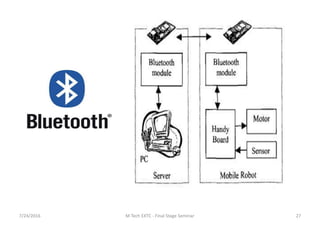

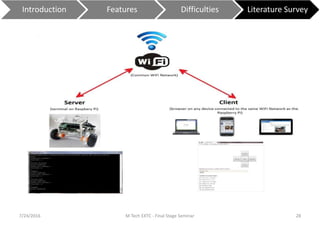

Related Work

• DTMF (Dual Tone Multi Frequency)
• The DTMF controlling does not provide
smooth and instantaneous control of the Robot.
• Call Drops.
• Cost

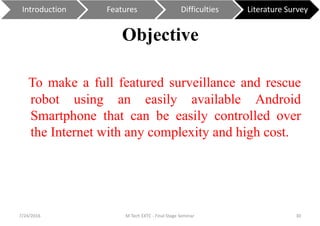

Objective
To make a full featured surveillance and rescue
robot using an easily available Android
Smartphone that can be easily controlled over
the Internet with any complexity and high cost.

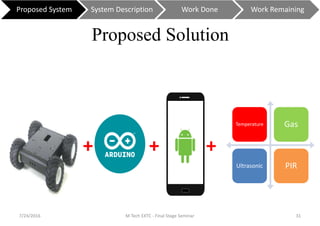

Proposed Solution
Proposed System System Description Work Done Work Remaining
+ +
Temperature Gas
Ultrasonic PIR
+

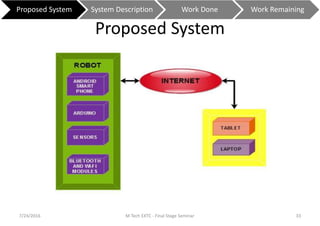

Proposed System

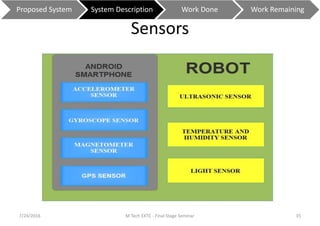

Sensors

Working
SENSORS

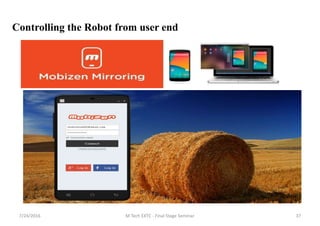

Controlling the Robot from user end

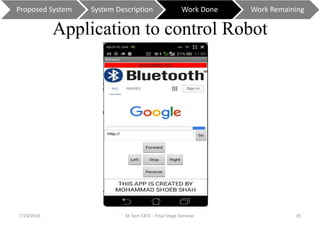

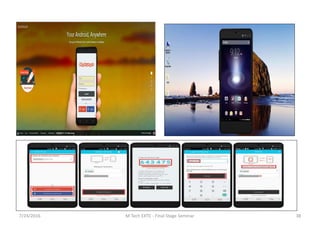

Application to control Robot

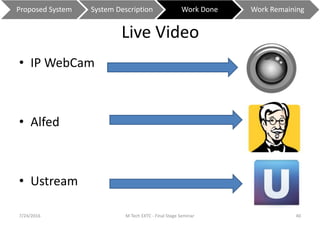

Live Video
• IP WebCam
• Alfed
• Ustream

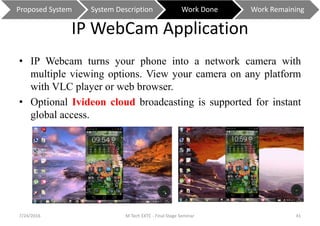

IP WebCam Application
• IP Webcam turns your phone into a network camera with
multiple viewing options. View your camera on any platform
with VLC player or web browser.
• Optional Ivideon cloud broadcasting is supported for instant
global access.

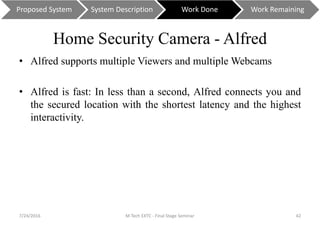

Home Security Camera - Alfred
• Alfred supports multiple Viewers and multiple Webcams
• Alfred is fast: In less than a second, Alfred connects you and
the secured location with the shortest latency and the highest
interactivity.

Ustream
• Watch live video and broadcast live on your phone or tablet -
anytime, anywhere!
• Broadcasting in 720p HD and 360p HQ is available

Live Video (IP WEBCAM)

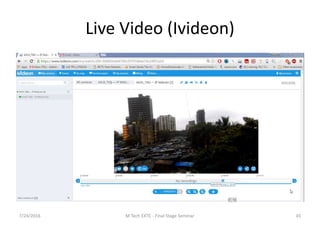

Live Video (Ivideon)

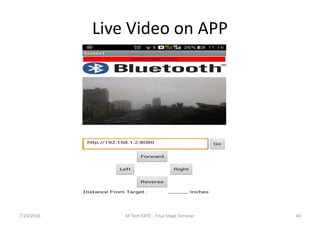

Live Video on APP

The Robot

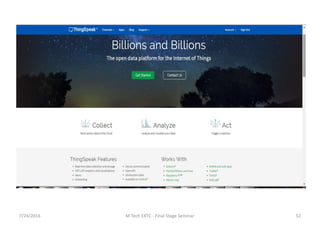

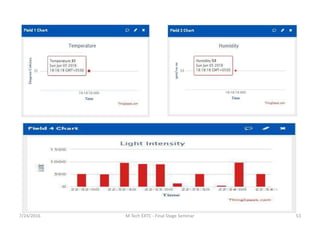

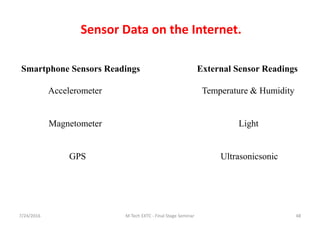

Sensor Data on the Internet.
Smartphone Sensors Readings External Sensor Readings
Accelerometer Temperature & Humidity
Magnetometer Light
GPS Ultrasonicsonic

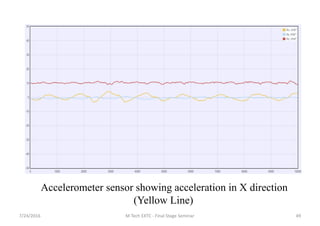

Accelerometer sensor showing acceleration in X direction
(Yellow Line)

Accelerometer sensor showing acceleration in Y direction
(Blue Line).

Accelerometer sensor showing acceleration in Z direction
(Red Line).

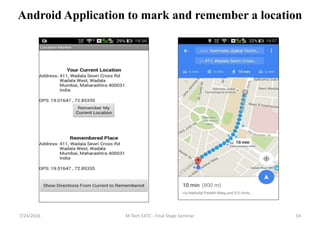

Android Application to mark and remember a location

Prototype Development
Length : 195mm.
Width : 105mm.
High durable.
High non- flexible.
More strength.
Light weight.
Resistant to corrosion.

Design of the Chassis

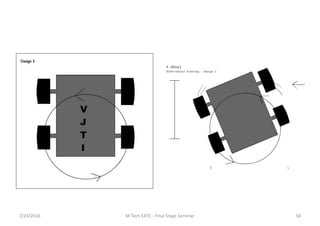

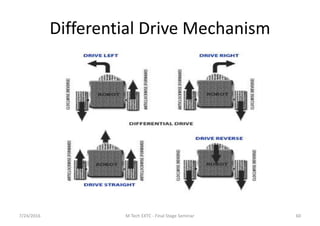

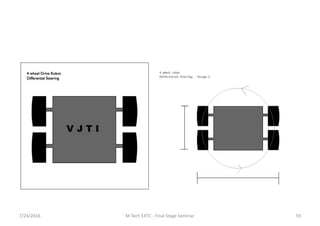

Differential Drive Mechanism

L293D Motor Driving Module

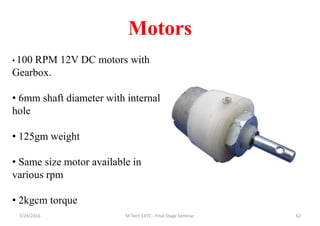

Motors
• 100 RPM 12V DC motors with
Gearbox.
• 6mm shaft diameter with internal
hole
• 125gm weight
• Same size motor available in
various rpm
• 2kgcm torque

Arduino UNO
• ATmega328P
• 32 KB (Kilo Bytes) of flash
memory
• 14 digital input/output pins, 6
analog inputs.

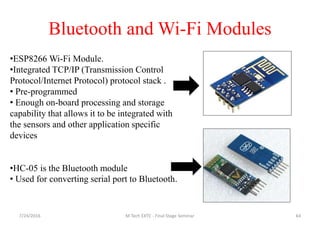

Bluetooth and Wi-Fi Modules
•ESP8266 Wi-Fi Module.
•Integrated TCP/IP (Transmission Control
Protocol/Internet Protocol) protocol stack .
• Pre-programmed
• Enough on-board processing and storage
capability that allows it to be integrated with
the sensors and other application specific
devices
•HC-05 is the Bluetooth module
• Used for converting serial port to Bluetooth.

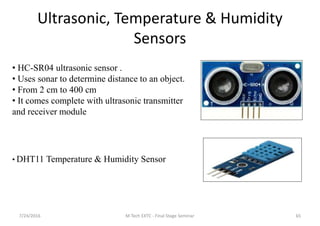

Ultrasonic, Temperature & Humidity
Sensors
• HC-SR04 ultrasonic sensor .
• Uses sonar to determine distance to an object.
• From 2 cm to 400 cm
• It comes complete with ultrasonic transmitter
and receiver module
• DHT11 Temperature & Humidity Sensor

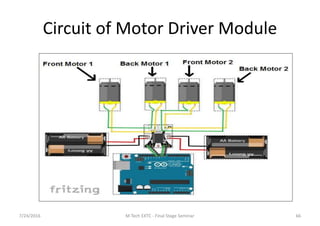

Circuit of Motor Driver Module

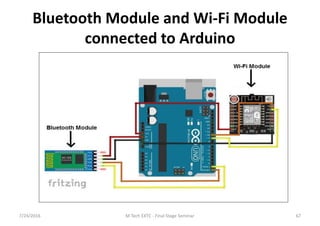

Bluetooth Module and Wi-Fi Module
connected to Arduino

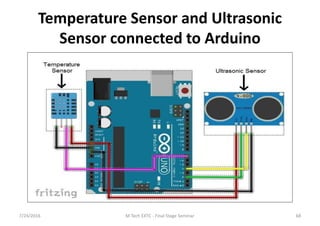

Temperature Sensor and Ultrasonic
Sensor connected to Arduino

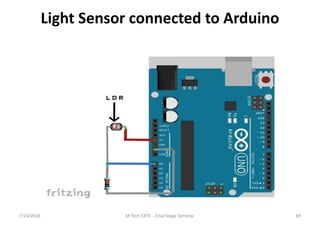

Light Sensor connected to Arduino

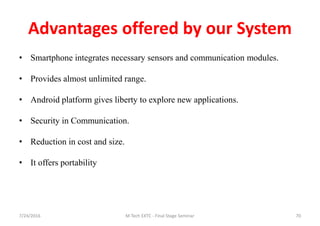

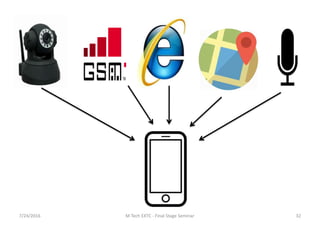

Advantages offered by our System
• Smartphone integrates necessary sensors and communication modules.
• Provides almost unlimited range.
• Android platform gives liberty to explore new applications.
• Security in Communication.
• Reduction in cost and size.
• It offers portability

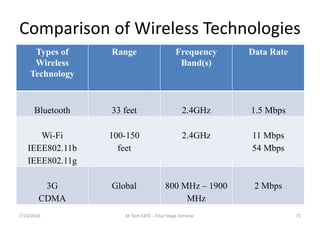

Comparison of Wireless Technologies
Types of
Wireless
Technology
Range Frequency
Band(s)
Data Rate
Bluetooth 33 feet 2.4GHz 1.5 Mbps
Wi-Fi
IEEE802.11b
IEEE802.11g
100-150
feet
2.4GHz 11 Mbps
54 Mbps
3G
CDMA
Global 800 MHz – 1900
MHz
2 Mbps

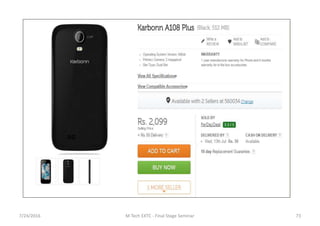

Reduction in Cost

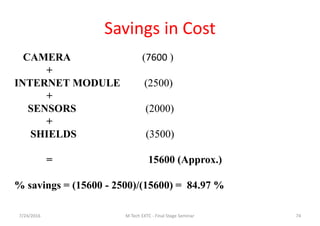

Savings in Cost
CAMERA (7600 )
+
INTERNET MODULE (2500)
+
SENSORS (2000)
+
SHIELDS (3500)
= 15600 (Approx.)
% savings = (15600 - 2500)/(15600) = 84.97 %

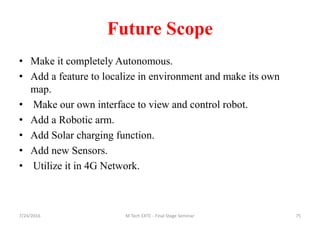

Future Scope
• Make it completely Autonomous.
• Add a feature to localize in environment and make its own
map.
• Make our own interface to view and control robot.
• Add a Robotic arm.
• Add Solar charging function.
• Add new Sensors.
• Utilize it in 4G Network.

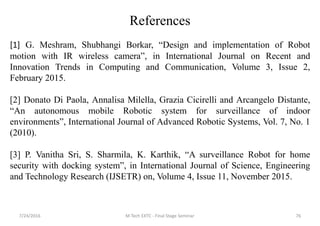

References
[1] G. Meshram, Shubhangi Borkar, “Design and implementation of Robot
motion with IR wireless camera”, in International Journal on Recent and
Innovation Trends in Computing and Communication, Volume 3, Issue 2,
February 2015.
[2] Donato Di Paola, Annalisa Milella, Grazia Cicirelli and Arcangelo Distante,
“An autonomous mobile Robotic system for surveillance of indoor
environments”, International Journal of Advanced Robotic Systems, Vol. 7, No. 1
(2010).
[3] P. Vanitha Sri, S. Sharmila, K. Karthik, “A surveillance Robot for home
security with docking system”, in International Journal of Science, Engineering
and Technology Research (IJSETR) on, Volume 4, Issue 11, November 2015.

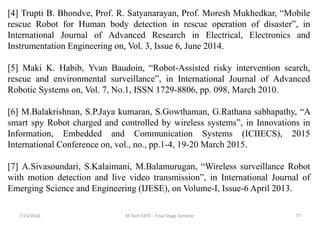

[4] Trupti B. Bhondve, Prof. R. Satyanarayan, Prof. Moresh Mukhedkar, “Mobile
rescue Robot for Human body detection in rescue operation of disaster”, in
International Journal of Advanced Research in Electrical, Electronics and
Instrumentation Engineering on, Vol. 3, Issue 6, June 2014.
[5] Maki K. Habib, Yvan Baudoin, “Robot-Assisted risky intervention search,
rescue and environmental surveillance”, in International Journal of Advanced
Robotic Systems on, Vol. 7, No.1, ISSN 1729-8806, pp. 098, March 2010.
[6] M.Balakrishnan, S.P.Jaya kumaran, S.Gowthaman, G.Rathana sabhapathy, “A
smart spy Robot charged and controlled by wireless systems”, in Innovations in
Information, Embedded and Communication Systems (ICIIECS), 2015
International Conference on, vol., no., pp.1-4, 19-20 March 2015.
[7] A.Sivasoundari, S.Kalaimani, M.Balamurugan, “Wireless surveillance Robot
with motion detection and live video transmission”, in International Journal of
Emerging Science and Engineering (IJESE), on Volume-I, Issue-6 April 2013.

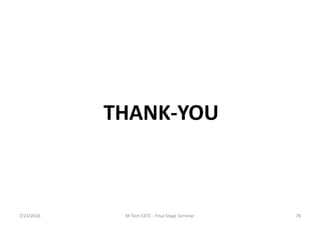

THANK-YOU
