The MISO CIP Process Improvement Program, as of September 2013, focuses on enhancing compliance and operational excellence through a structured process-driven approach that includes ownership delineation, Six Sigma methodology, and various process improvement tools. It emphasizes the importance of defined roles such as requirement owners, process owners, and control activity owners in ensuring compliance with regulatory requirements. The program aims to integrate these processes with technology for better governance and ongoing self-assessment while promoting a culture of continuous improvement among employees.

1. MISO CIP Process
Improvement
Program
September 2013

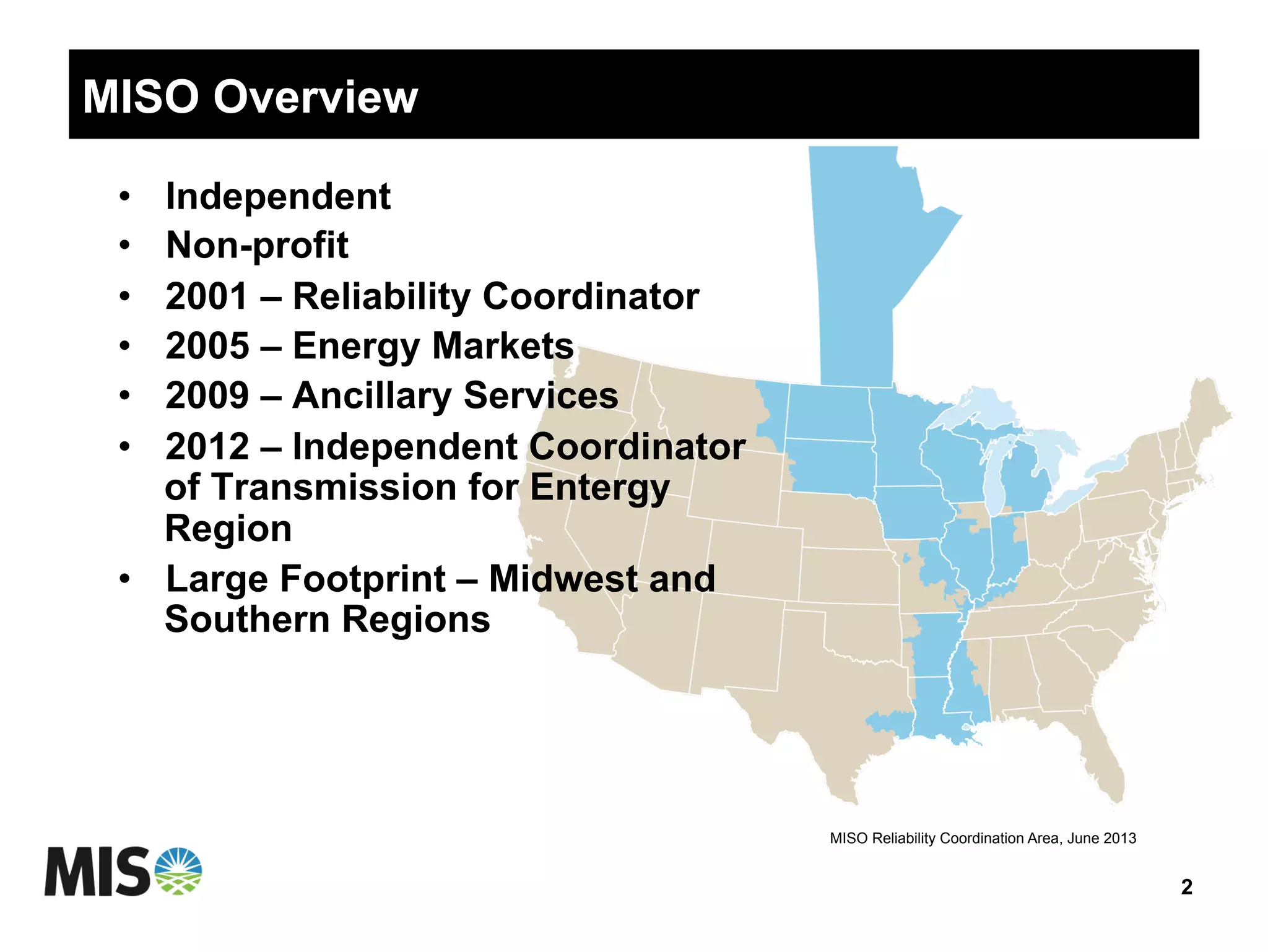

2. MISO Overview
2
MISO Reliability Coordination Area, June 2013
• Independent
• Non-profit
• 2001 – Reliability Coordinator
• 2005 – Energy Markets
• 2009 – Ancillary Services
• 2012 – Independent Coordinator
of Transmission for Entergy
Region
• Large Footprint – Midwest and
Southern Regions

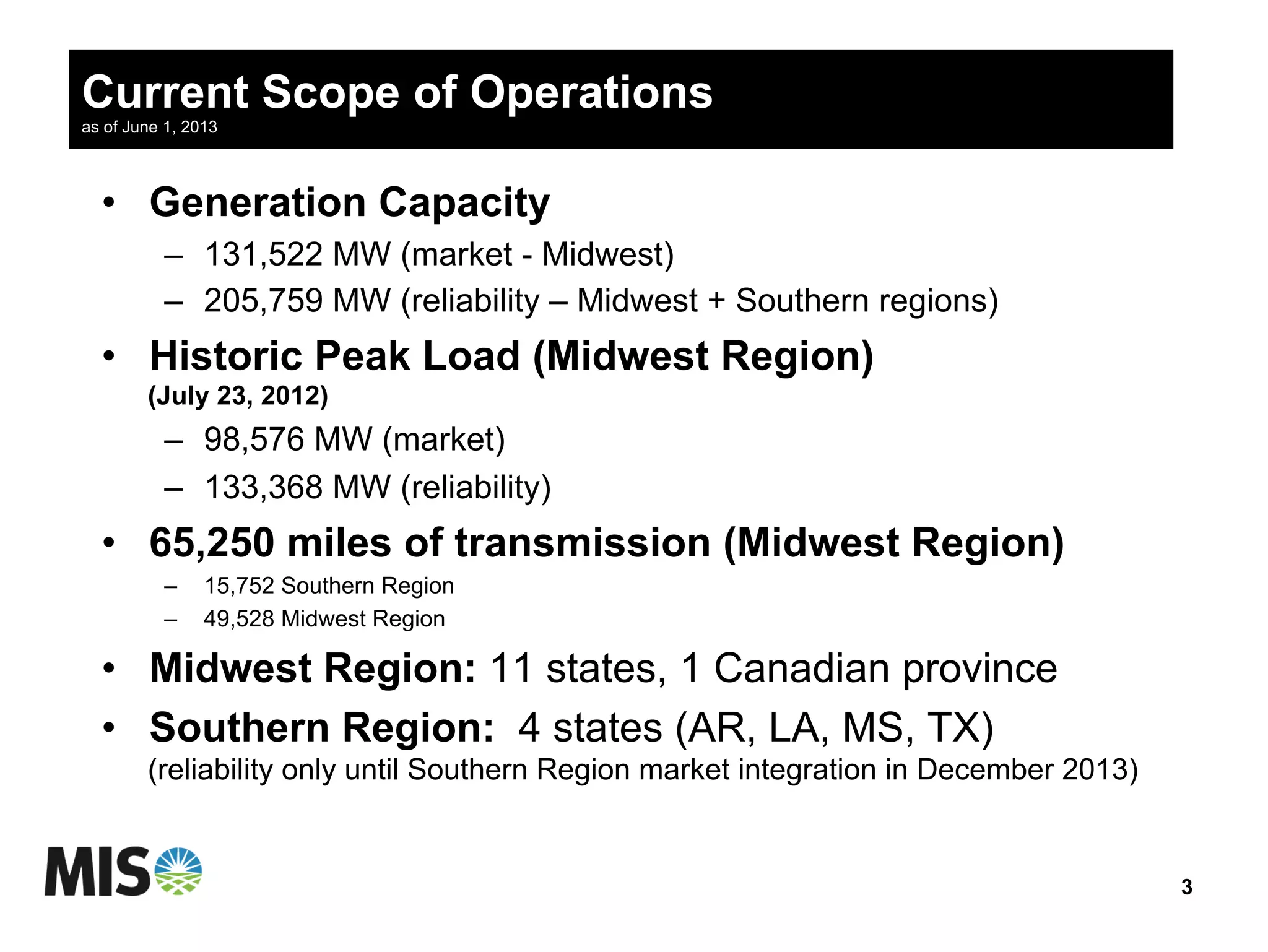

3. Current Scope of Operations
as of June 1, 2013
• Generation Capacity
– 131,522 MW (market - Midwest)
– 205,759 MW (reliability – Midwest + Southern regions)
• Historic Peak Load (Midwest Region)
(July 23, 2012)
– 98,576 MW (market)
– 133,368 MW (reliability)
• 65,250 miles of transmission (Midwest Region)
– 15,752 Southern Region
– 49,528 Midwest Region
• Midwest Region: 11 states, 1 Canadian province
• Southern Region: 4 states (AR, LA, MS, TX)
(reliability only until Southern Region market integration in December 2013)
3

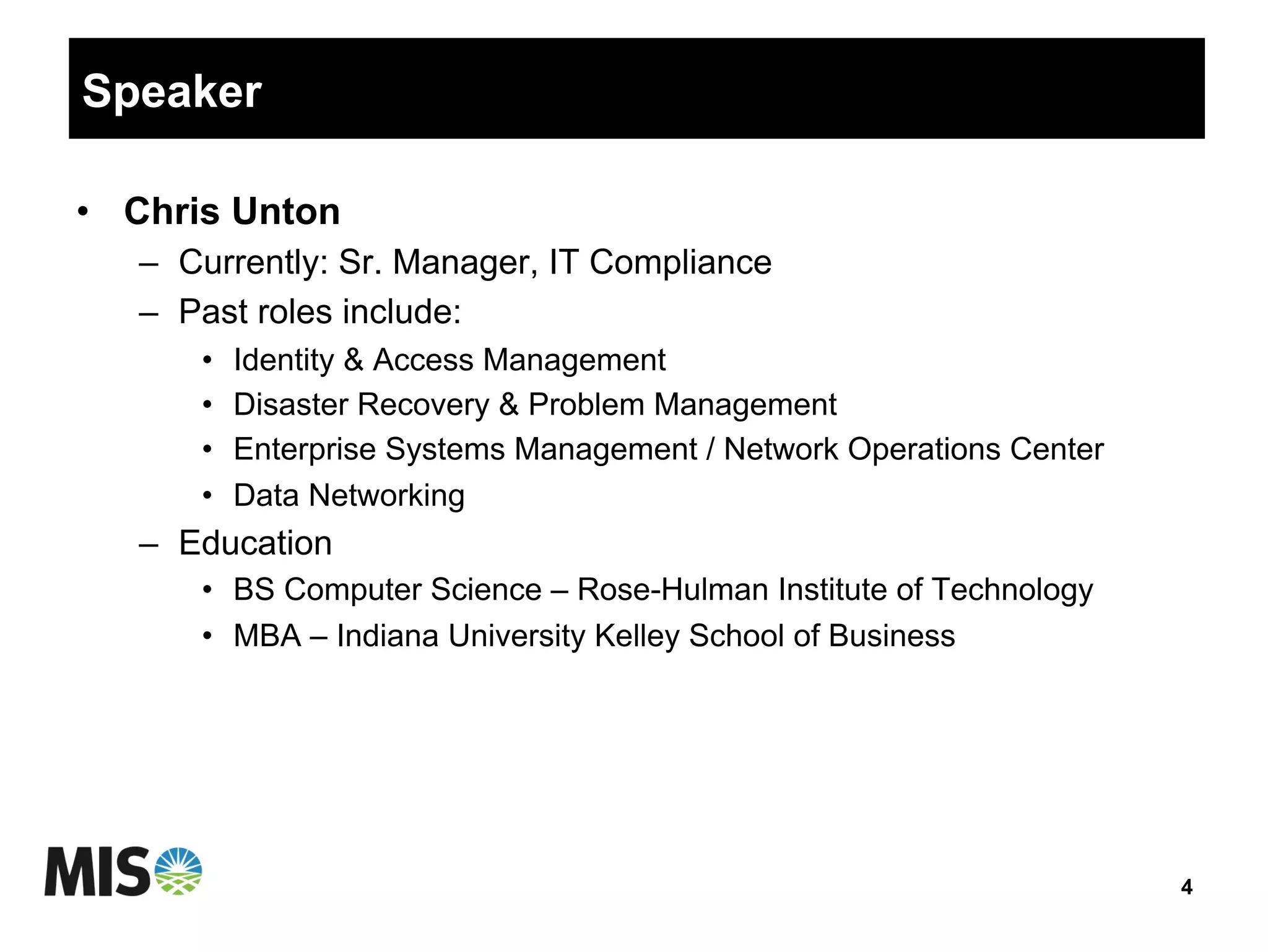

4. Speaker
• Chris Unton
– Currently: Sr. Manager, IT Compliance
– Past roles include:
• Identity & Access Management
• Disaster Recovery & Problem Management
• Enterprise Systems Management / Network Operations Center
• Data Networking
– Education
• BS Computer Science – Rose-Hulman Institute of Technology
• MBA – Indiana University Kelley School of Business
4

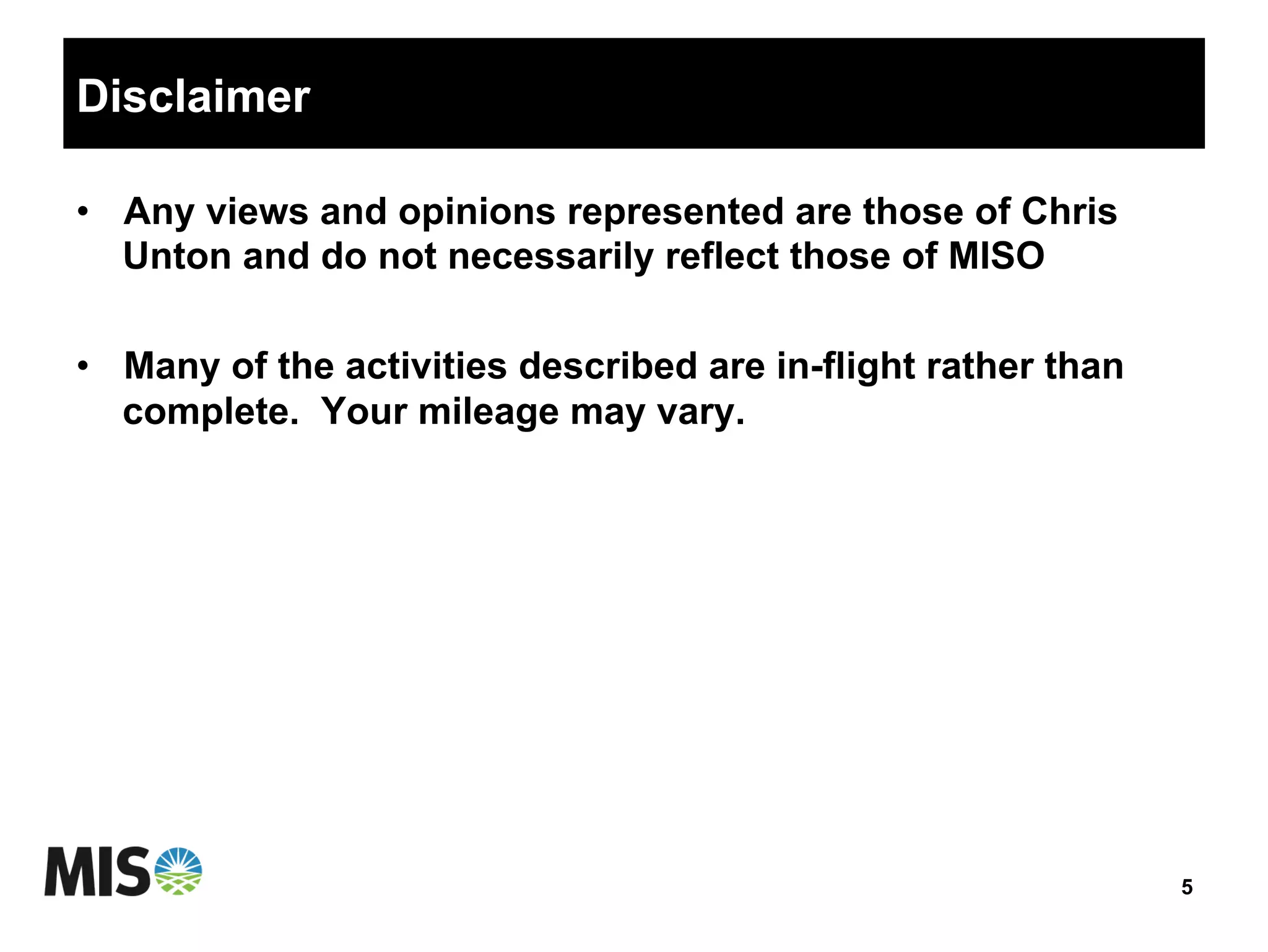

5. Disclaimer
• Any views and opinions represented are those of Chris
Unton and do not necessarily reflect those of MISO
• Many of the activities described are in-flight rather than
complete. Your mileage may vary.
5

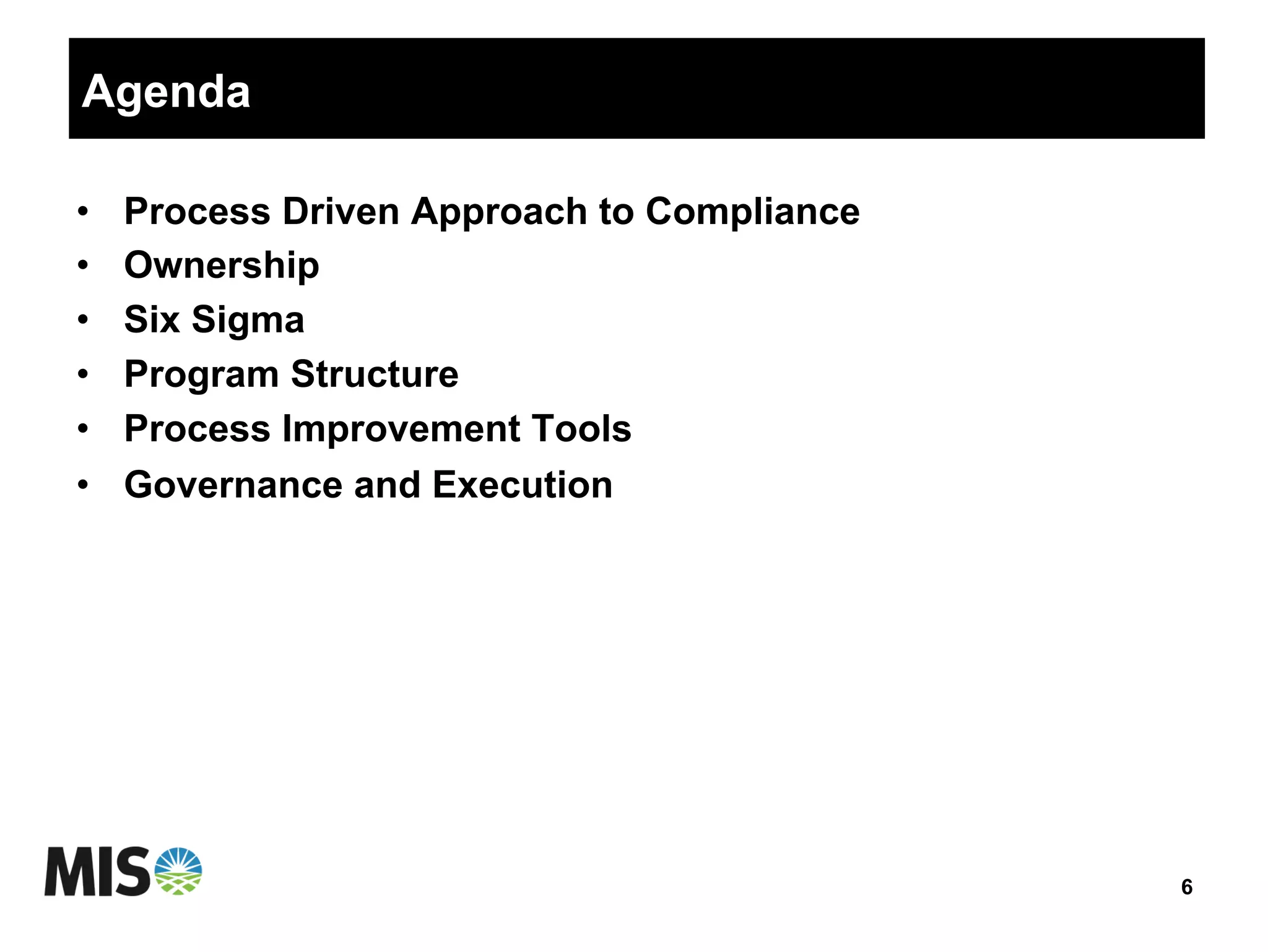

6. Agenda
• Process Driven Approach to Compliance
• Ownership
• Six Sigma
• Program Structure
• Process Improvement Tools
• Governance and Execution
6

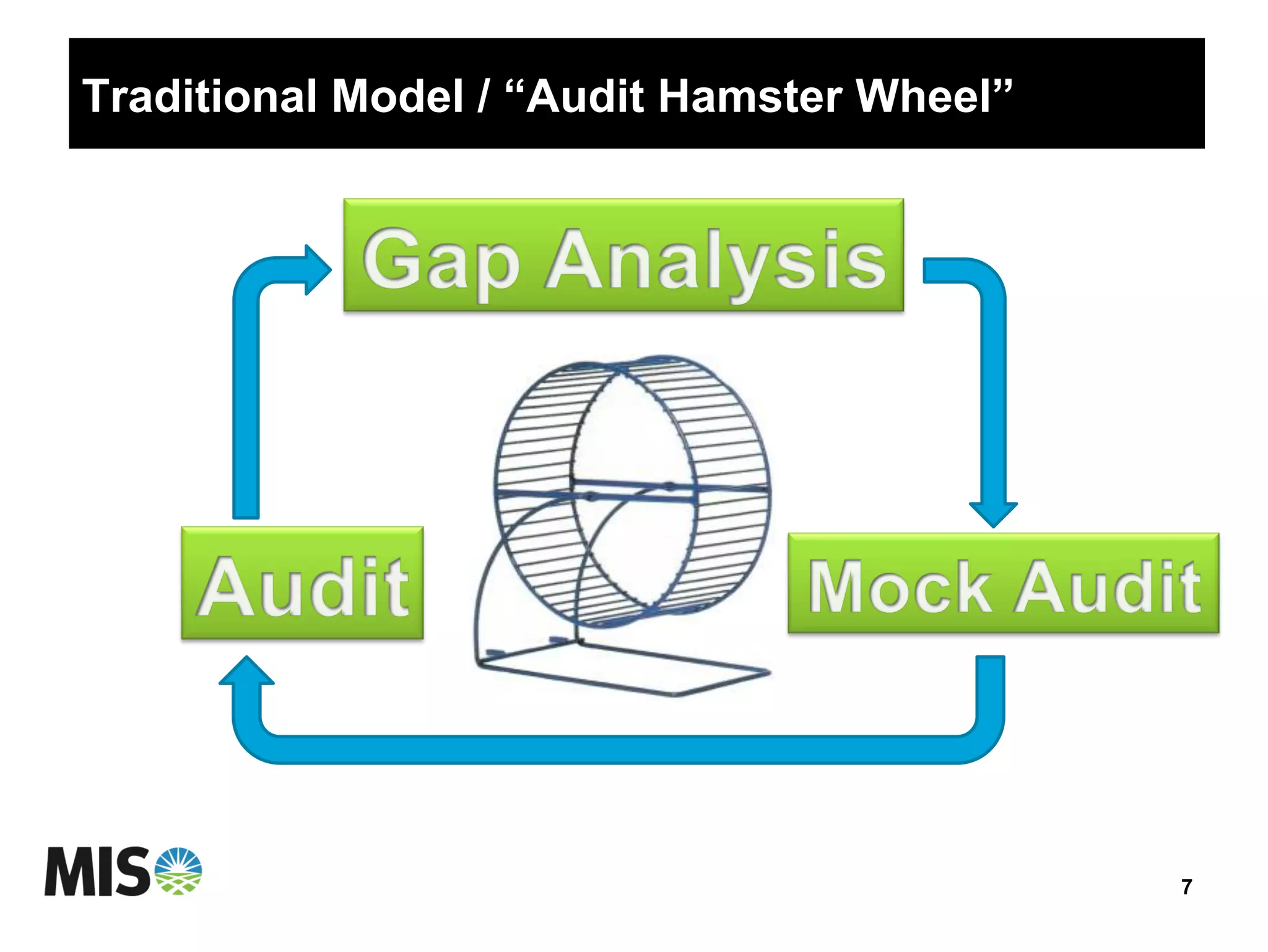

7. Traditional Model / “Audit Hamster Wheel”
7

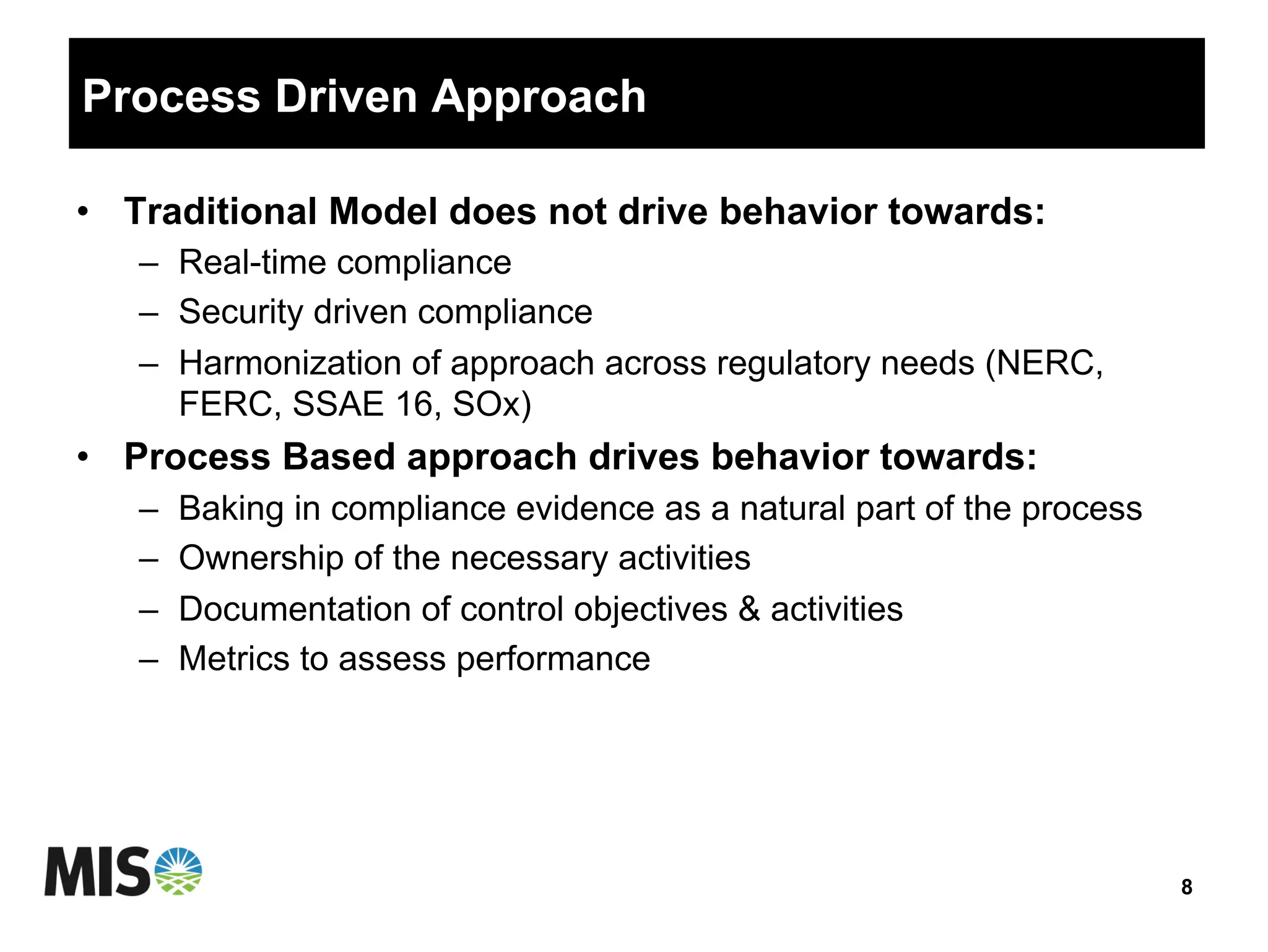

8. Process Driven Approach
• Traditional Model does not drive behavior towards:
– Real-time compliance
– Security driven compliance
– Harmonization of approach across regulatory needs (NERC,
FERC, SSAE 16, SOx)
• Process Based approach drives behavior towards:
– Baking in compliance evidence as a natural part of the process
– Ownership of the necessary activities
– Documentation of control objectives & activities
– Metrics to assess performance
8

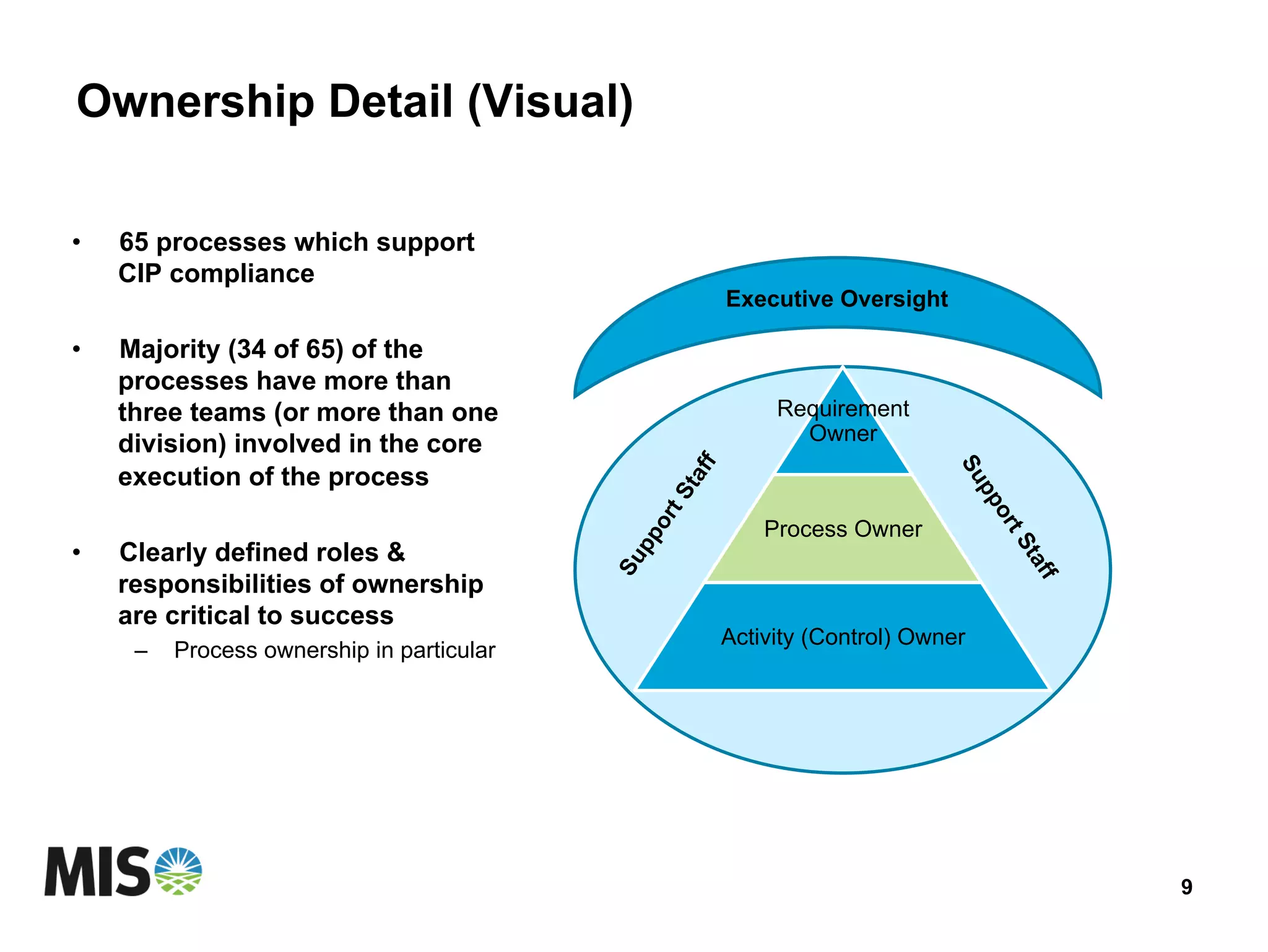

9. Ownership Detail (Visual)
9
Requirement
Owner
Process Owner
Activity (Control) Owner
Executive Oversight
• 65 processes which support
CIP compliance
• Majority (34 of 65) of the
processes have more than
three teams (or more than one
division) involved in the core
execution of the process
• Clearly defined roles &
responsibilities of ownership
are critical to success
– Process ownership in particular

10. 10

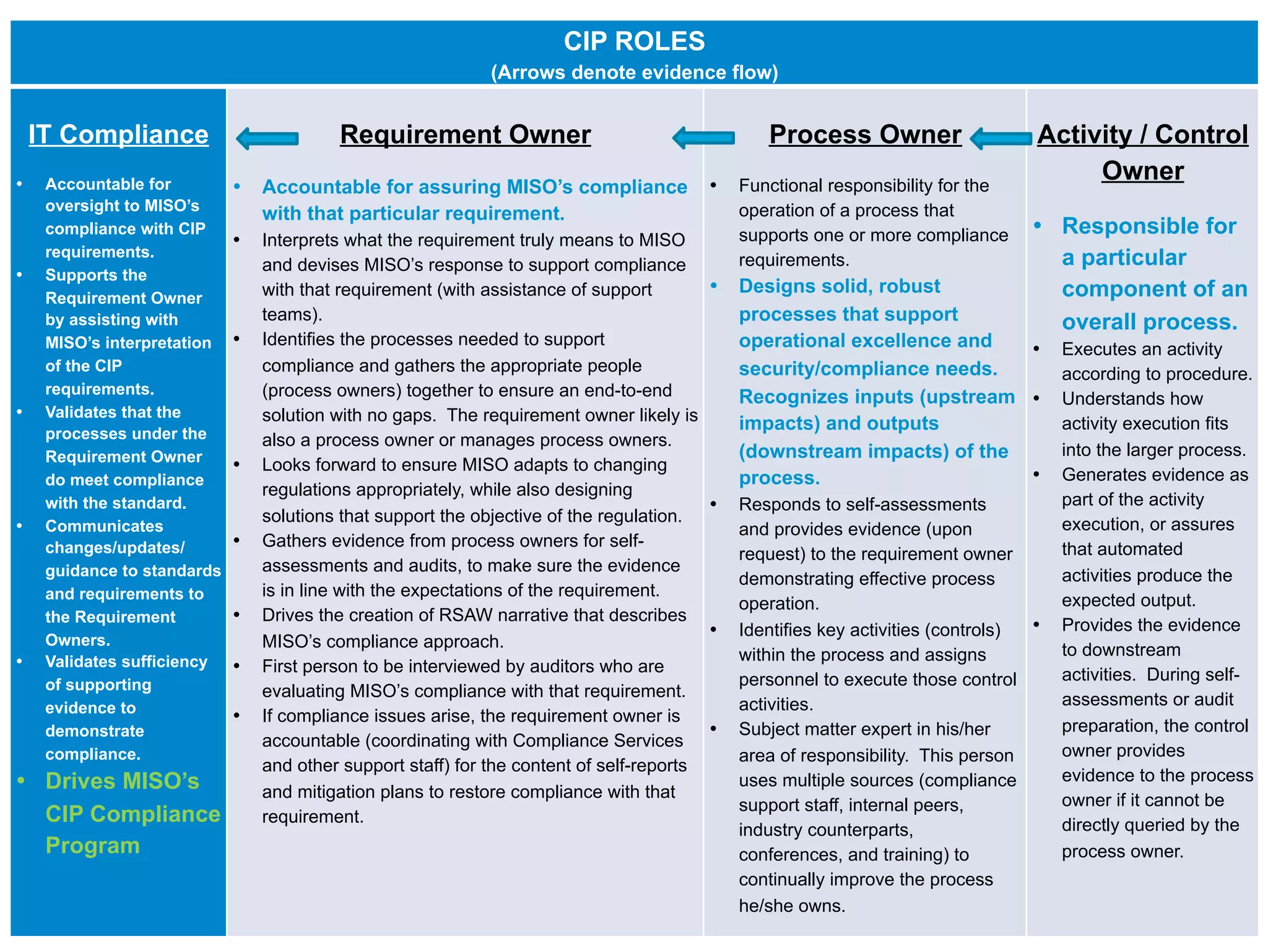

CIP ROLES
(Arrows denote evidence flow)
IT Compliance
• Accountable for
oversight to MISO’s
compliance with CIP
requirements.
• Supports the
Requirement Owner
by assisting with
MISO’s interpretation
of the CIP
requirements.
• Validates that the
processes under the
Requirement Owner
do meet compliance
with the standard.
• Communicates
changes/updates/
guidance to standards
and requirements to
the Requirement
Owners.
• Validates sufficiency
of supporting
evidence to
demonstrate
compliance.
• Drives MISO’s
CIP Compliance
Program
Requirement Owner
• Accountable for assuring MISO’s compliance
with that particular requirement.
• Interprets what the requirement truly means to MISO
and devises MISO’s response to support compliance
with that requirement (with assistance of support
teams).
• Identifies the processes needed to support
compliance and gathers the appropriate people
(process owners) together to ensure an end-to-end
solution with no gaps. The requirement owner likely is
also a process owner or manages process owners.
• Looks forward to ensure MISO adapts to changing
regulations appropriately, while also designing
solutions that support the objective of the regulation.
• Gathers evidence from process owners for self-
assessments and audits, to make sure the evidence
is in line with the expectations of the requirement.
• Drives the creation of RSAW narrative that describes
MISO’s compliance approach.
• First person to be interviewed by auditors who are
evaluating MISO’s compliance with that requirement.
• If compliance issues arise, the requirement owner is
accountable (coordinating with Compliance Services
and other support staff) for the content of self-reports
and mitigation plans to restore compliance with that
requirement.
Process Owner
• Functional responsibility for the
operation of a process that
supports one or more compliance
requirements.
• Designs solid, robust
processes that support
operational excellence and
security/compliance needs.
Recognizes inputs (upstream
impacts) and outputs
(downstream impacts) of the
process.
• Responds to self-assessments
and provides evidence (upon
request) to the requirement owner
demonstrating effective process
operation.
• Identifies key activities (controls)
within the process and assigns
personnel to execute those control
activities.
• Subject matter expert in his/her
area of responsibility. This person
uses multiple sources (compliance
support staff, internal peers,
industry counterparts,
conferences, and training) to
continually improve the process
he/she owns.
Activity / Control
Owner
• Responsible for
a particular
component of an
overall process.
• Executes an activity
according to procedure.
• Understands how
activity execution fits
into the larger process.
• Generates evidence as
part of the activity
execution, or assures
that automated
activities produce the
expected output.
• Provides the evidence
to downstream
activities. During self-
assessments or audit
preparation, the control
owner provides
evidence to the process
owner if it cannot be
directly queried by the
process owner.

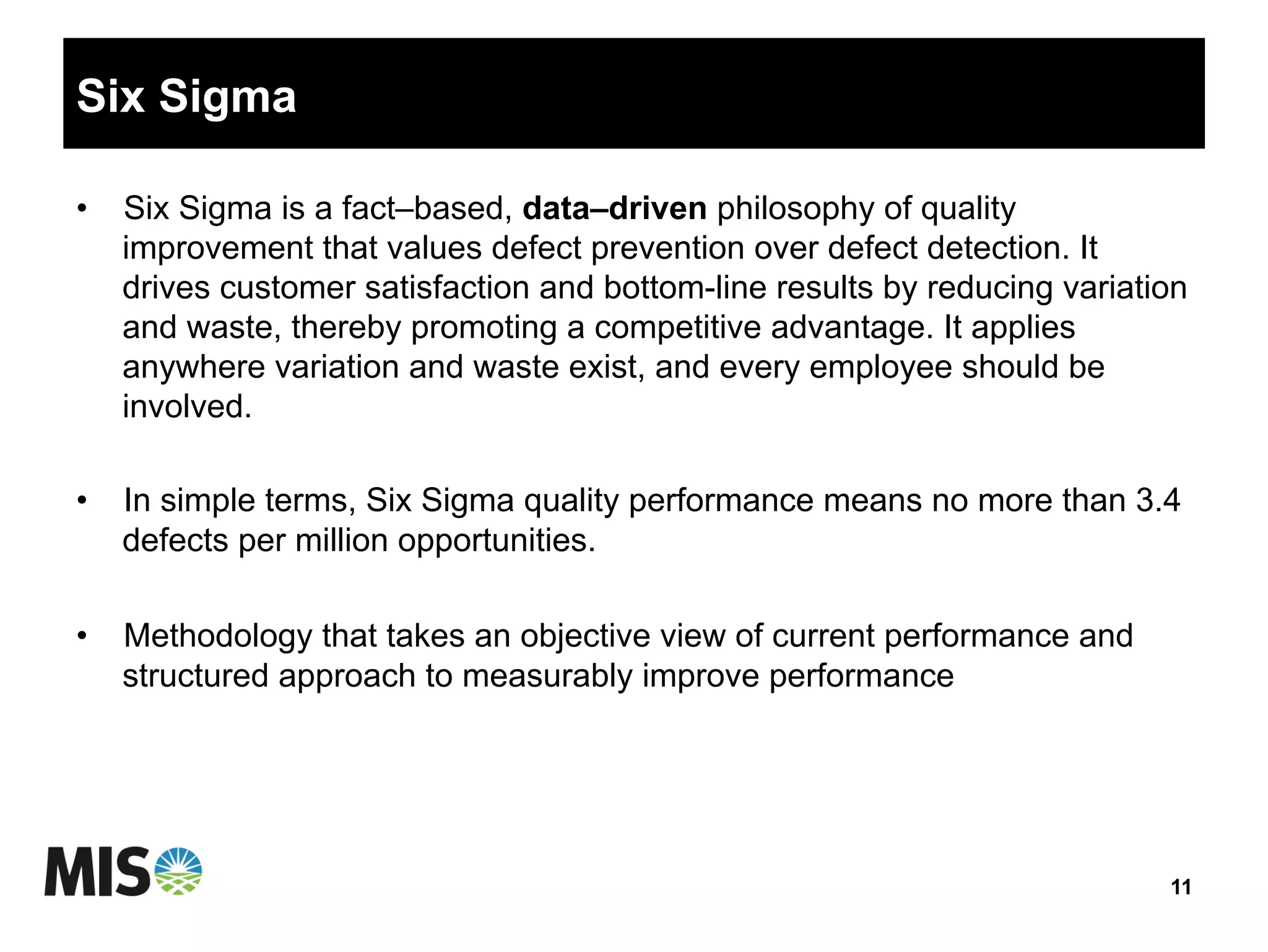

11. Six Sigma
11
• Six Sigma is a fact–based, data–driven philosophy of quality
improvement that values defect prevention over defect detection. It
drives customer satisfaction and bottom-line results by reducing variation
and waste, thereby promoting a competitive advantage. It applies
anywhere variation and waste exist, and every employee should be
involved.
• In simple terms, Six Sigma quality performance means no more than 3.4
defects per million opportunities.
• Methodology that takes an objective view of current performance and
structured approach to measurably improve performance

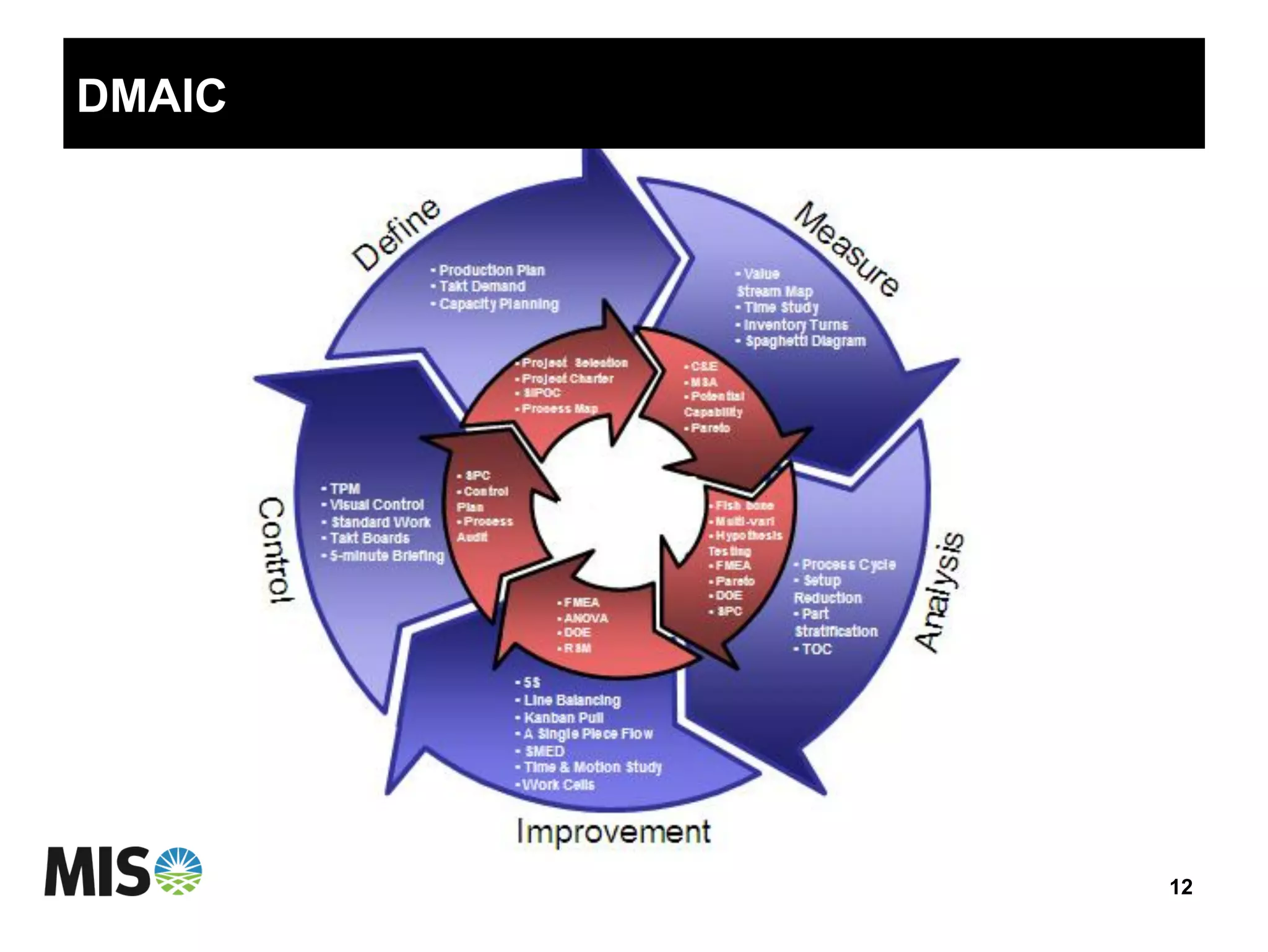

12. DMAIC
12

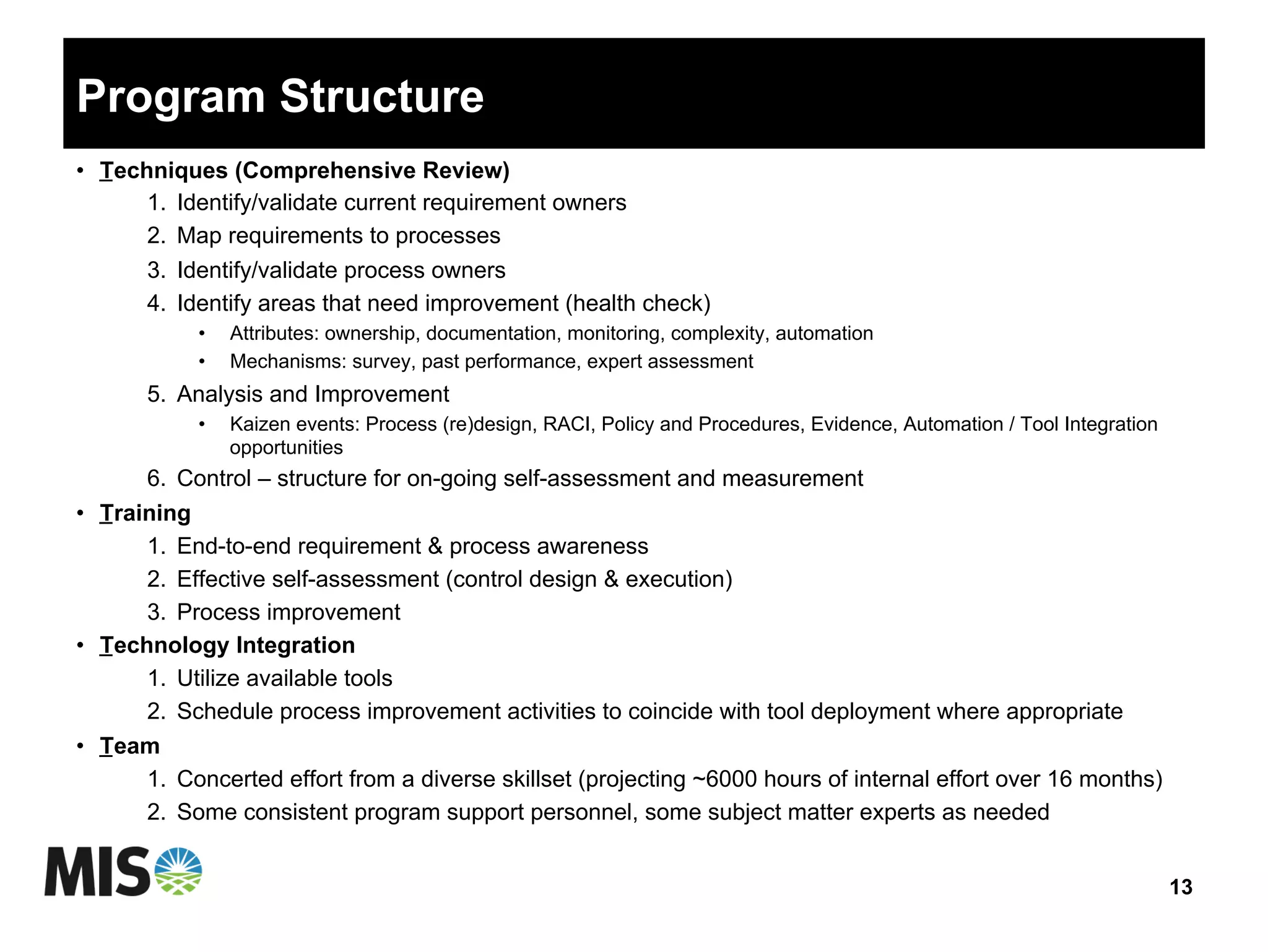

13. Program Structure
• Techniques (Comprehensive Review)
1. Identify/validate current requirement owners
2. Map requirements to processes
3. Identify/validate process owners
4. Identify areas that need improvement (health check)
• Attributes: ownership, documentation, monitoring, complexity, automation
• Mechanisms: survey, past performance, expert assessment
5. Analysis and Improvement
• Kaizen events: Process (re)design, RACI, Policy and Procedures, Evidence, Automation / Tool Integration
opportunities
6. Control – structure for on-going self-assessment and measurement
• Training
1. End-to-end requirement & process awareness
2. Effective self-assessment (control design & execution)
3. Process improvement
• Technology Integration
1. Utilize available tools
2. Schedule process improvement activities to coincide with tool deployment where appropriate
• Team
1. Concerted effort from a diverse skillset (projecting ~6000 hours of internal effort over 16 months)
2. Some consistent program support personnel, some subject matter experts as needed
13

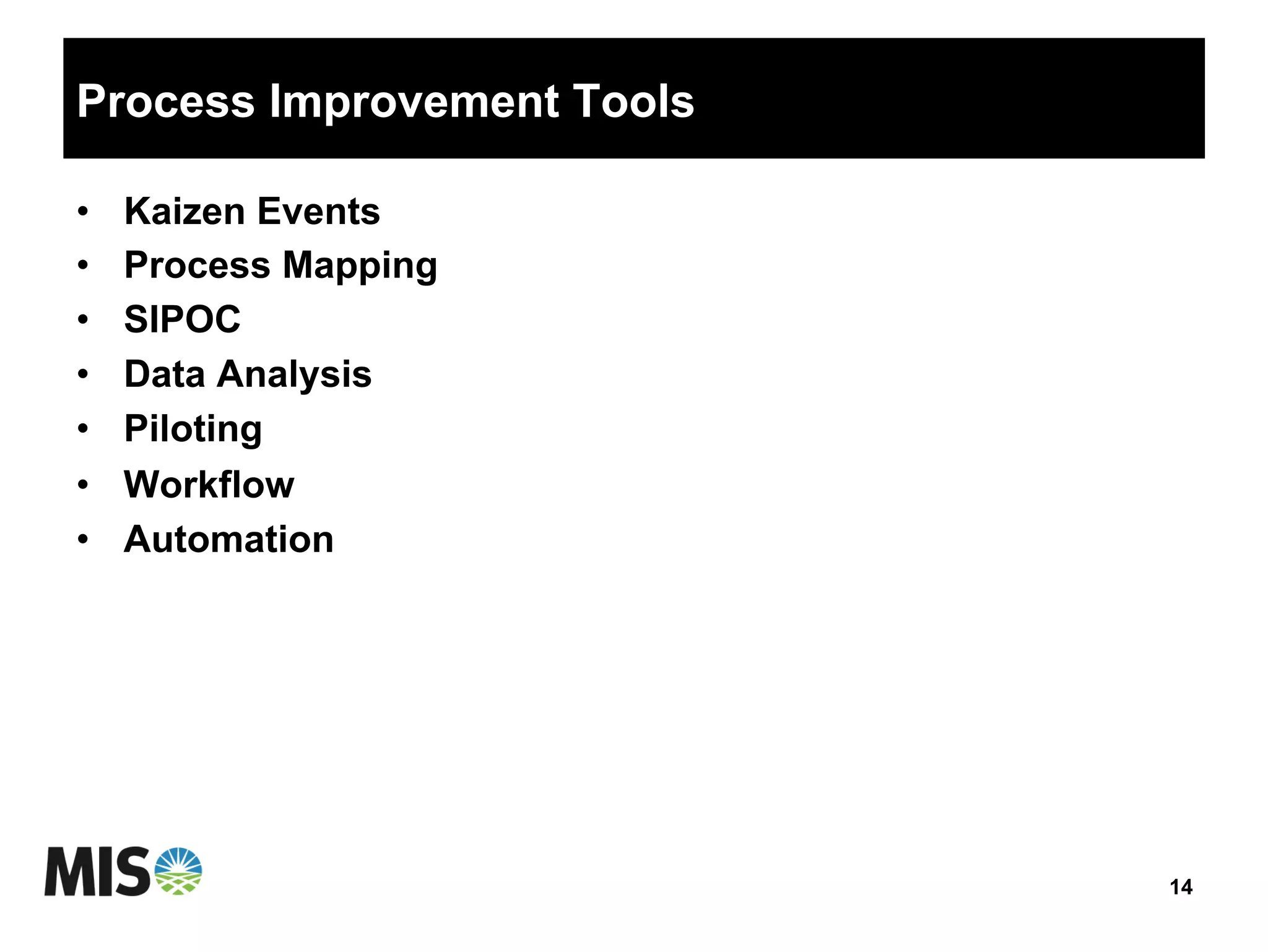

14. Process Improvement Tools
• Kaizen Events
• Process Mapping
• SIPOC
• Data Analysis
• Piloting
• Workflow
• Automation
14

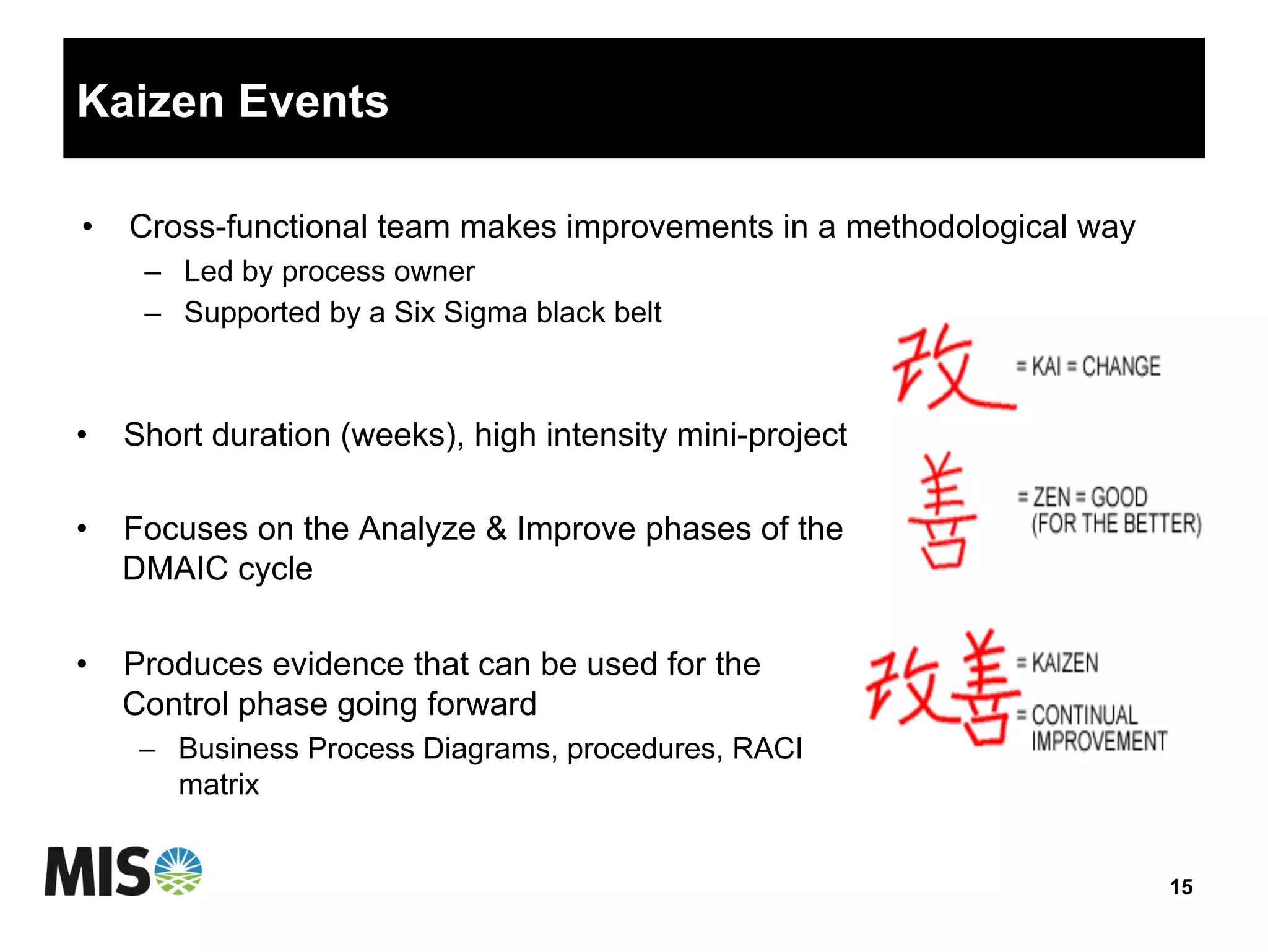

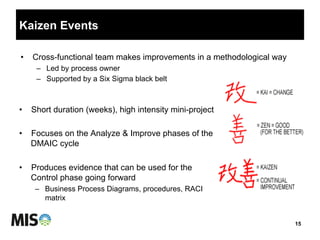

15. Kaizen Events
• Short duration (weeks), high intensity mini-project
• Focuses on the Analyze & Improve phases of the
DMAIC cycle
• Produces evidence that can be used for the
Control phase going forward
– Business Process Diagrams, procedures, RACI
matrix
15
• Cross-functional team makes improvements in a methodological way
– Led by process owner
– Supported by a Six Sigma black belt

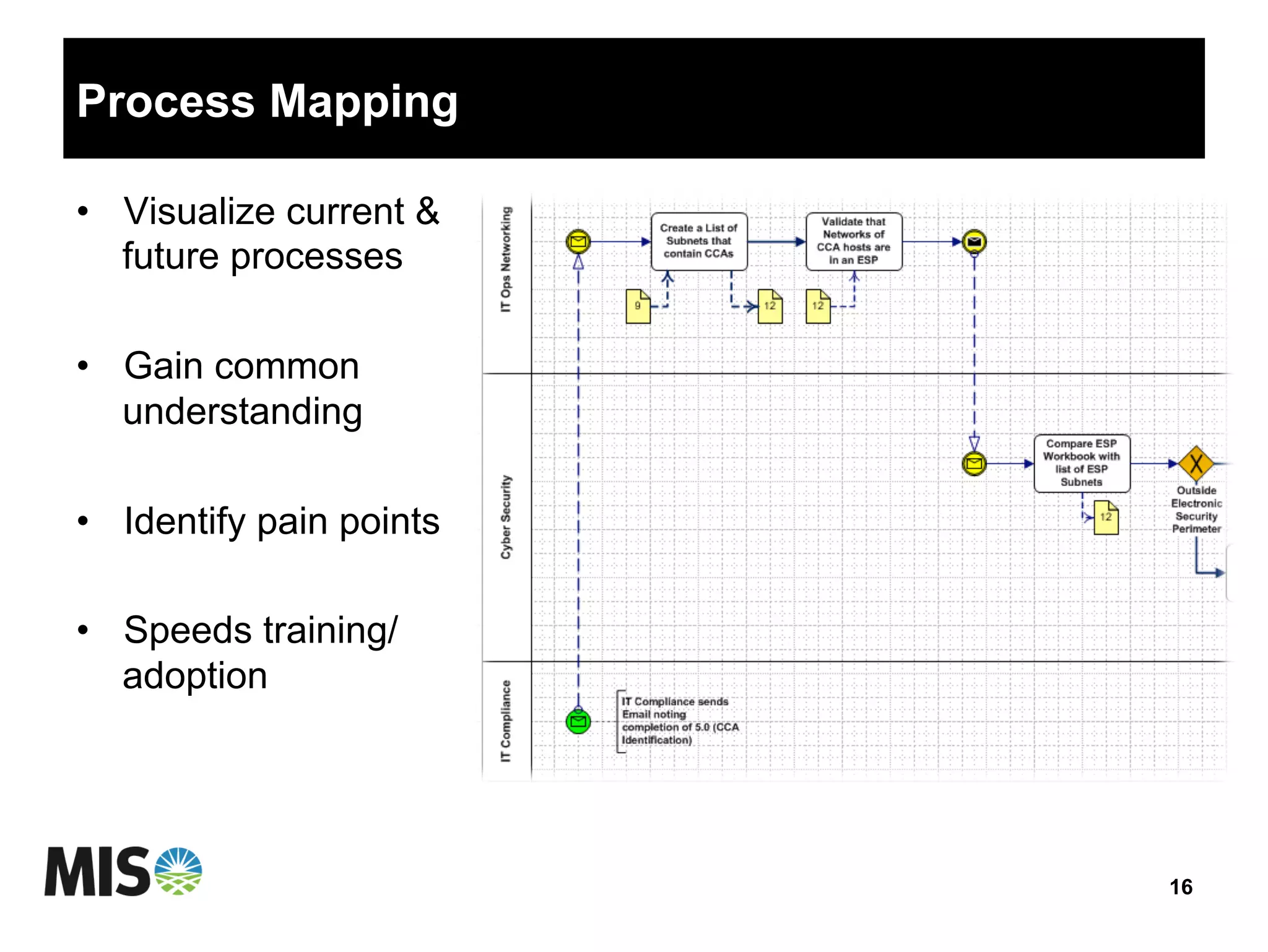

16. Process Mapping
• Visualize current &
future processes
• Gain common
understanding
• Identify pain points
• Speeds training/
adoption
16

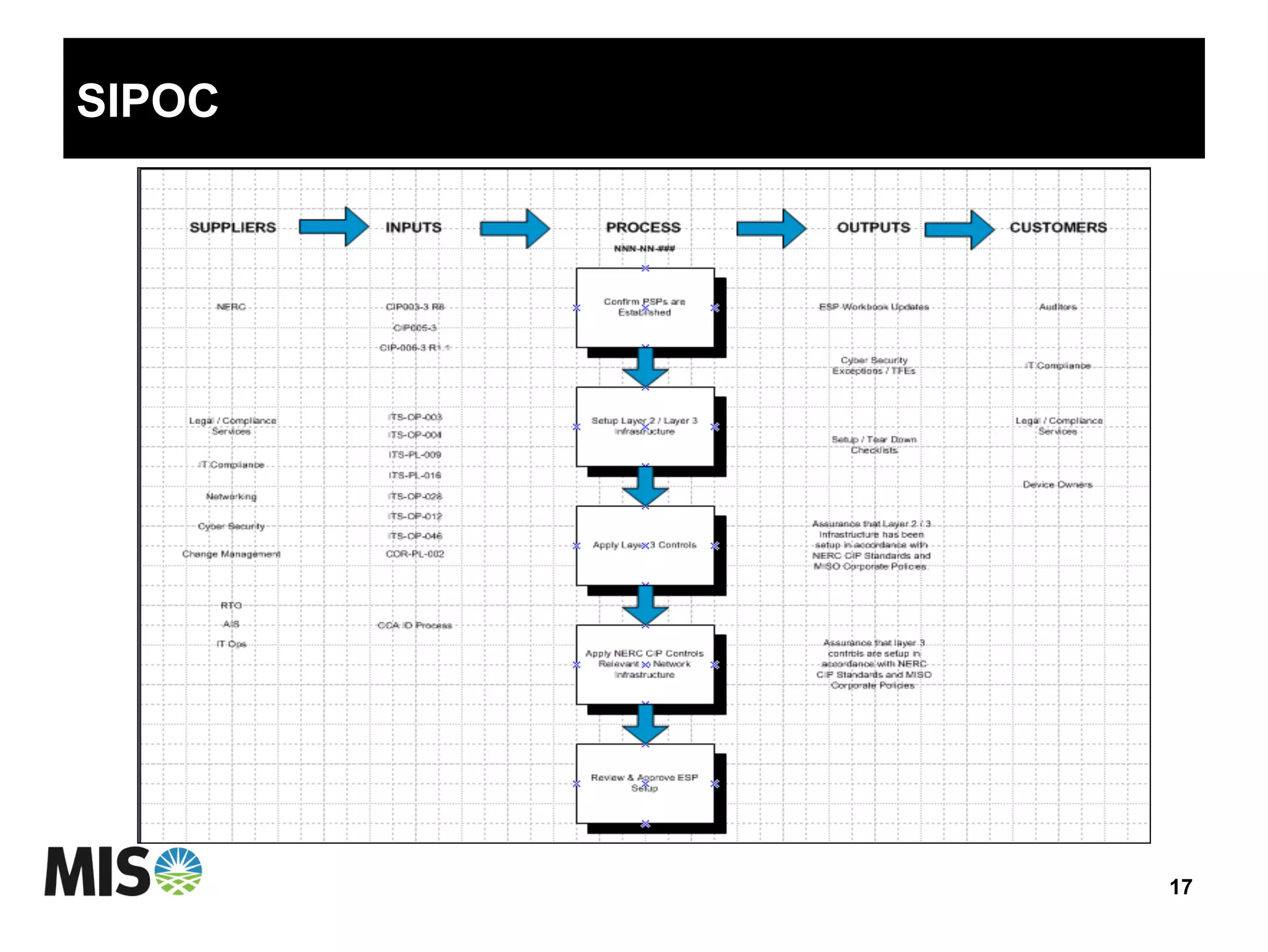

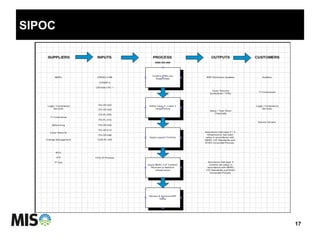

17. SIPOC
17

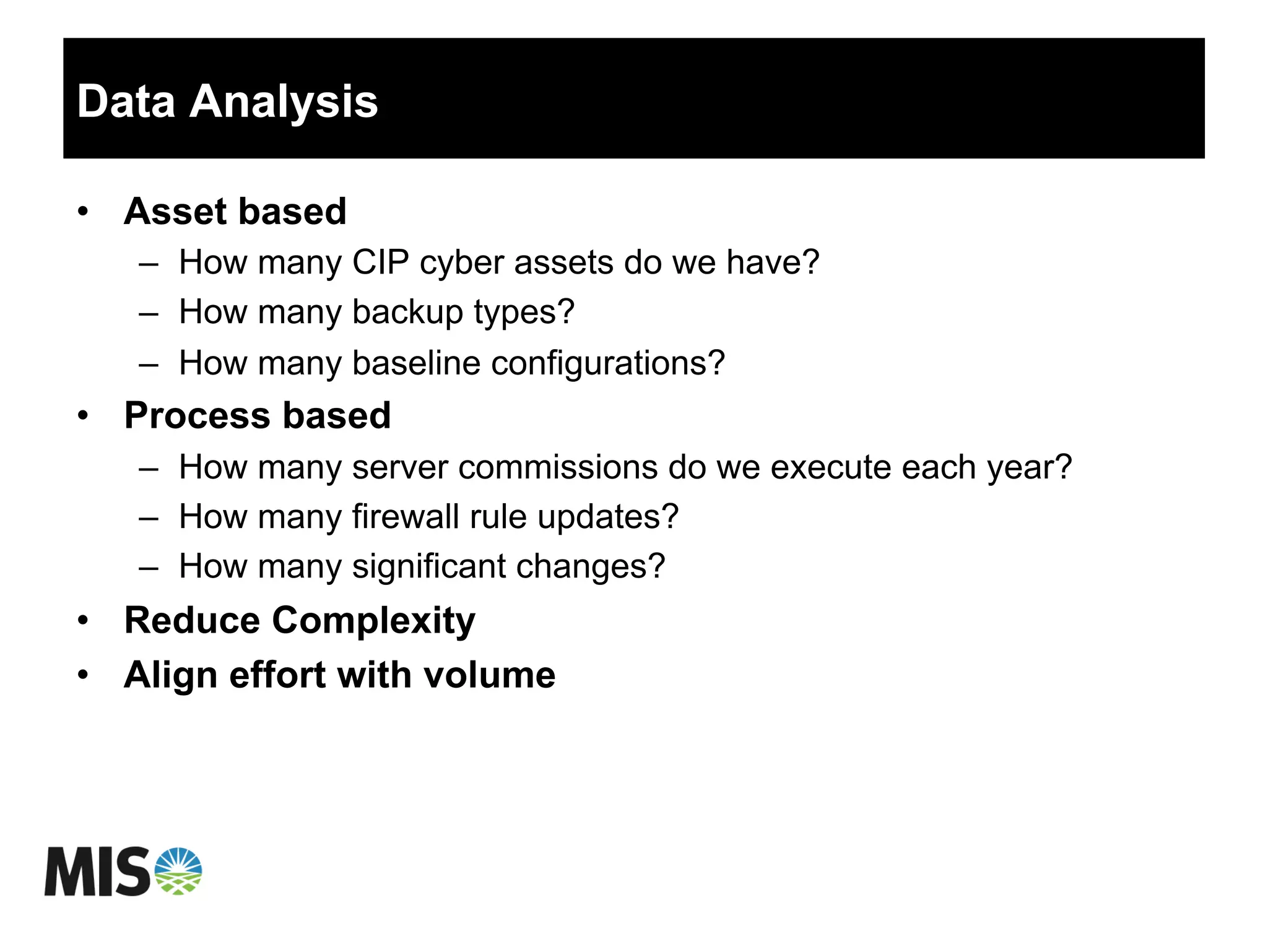

18. Data Analysis
• Asset based
– How many CIP cyber assets do we have?
– How many backup types?
– How many baseline configurations?
• Process based
– How many server commissions do we execute each year?
– How many firewall rule updates?
– How many significant changes?
• Reduce Complexity
• Align effort with volume

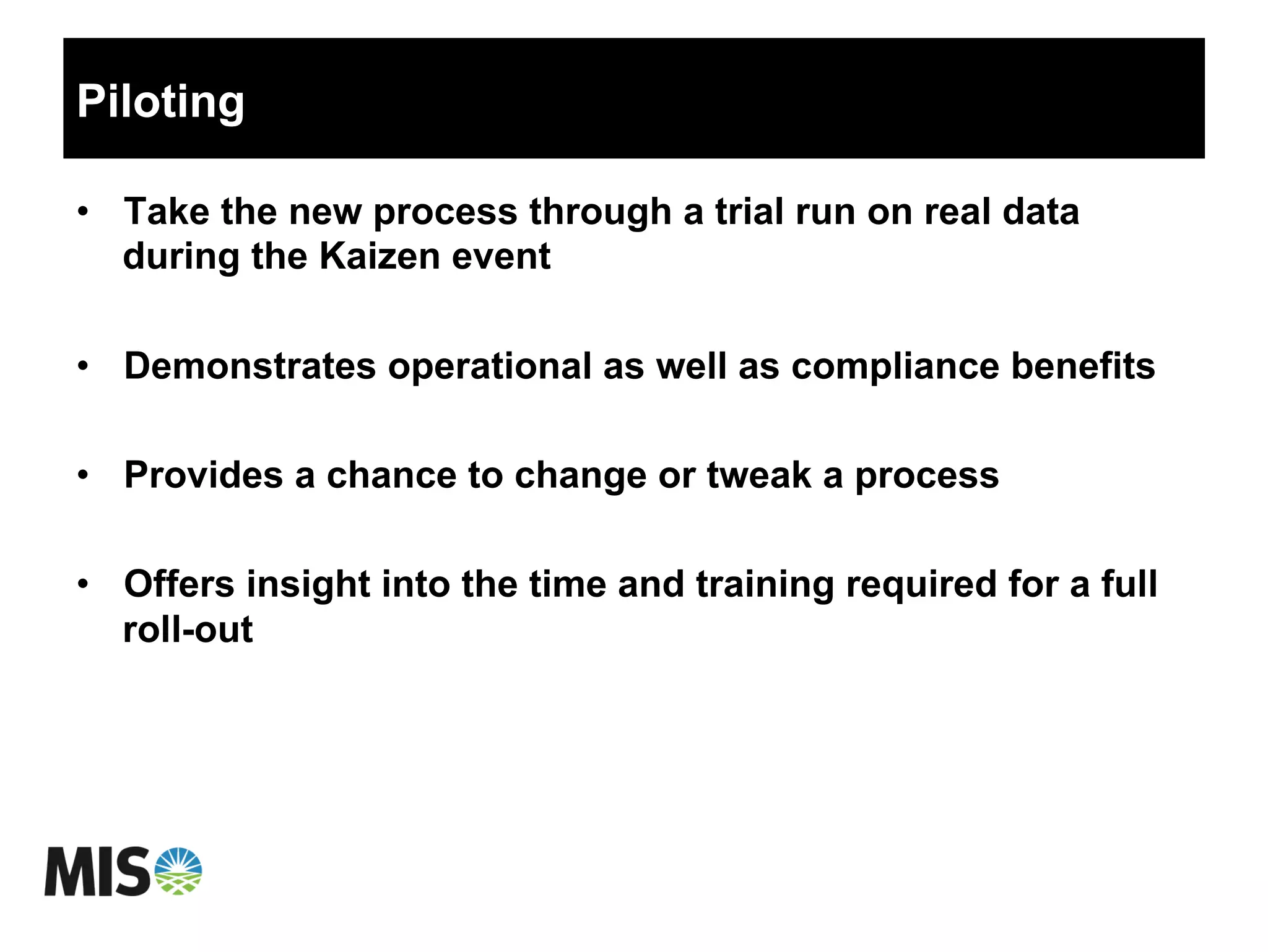

19. Piloting
• Take the new process through a trial run on real data
during the Kaizen event
• Demonstrates operational as well as compliance benefits
• Provides a chance to change or tweak a process
• Offers insight into the time and training required for a full
roll-out

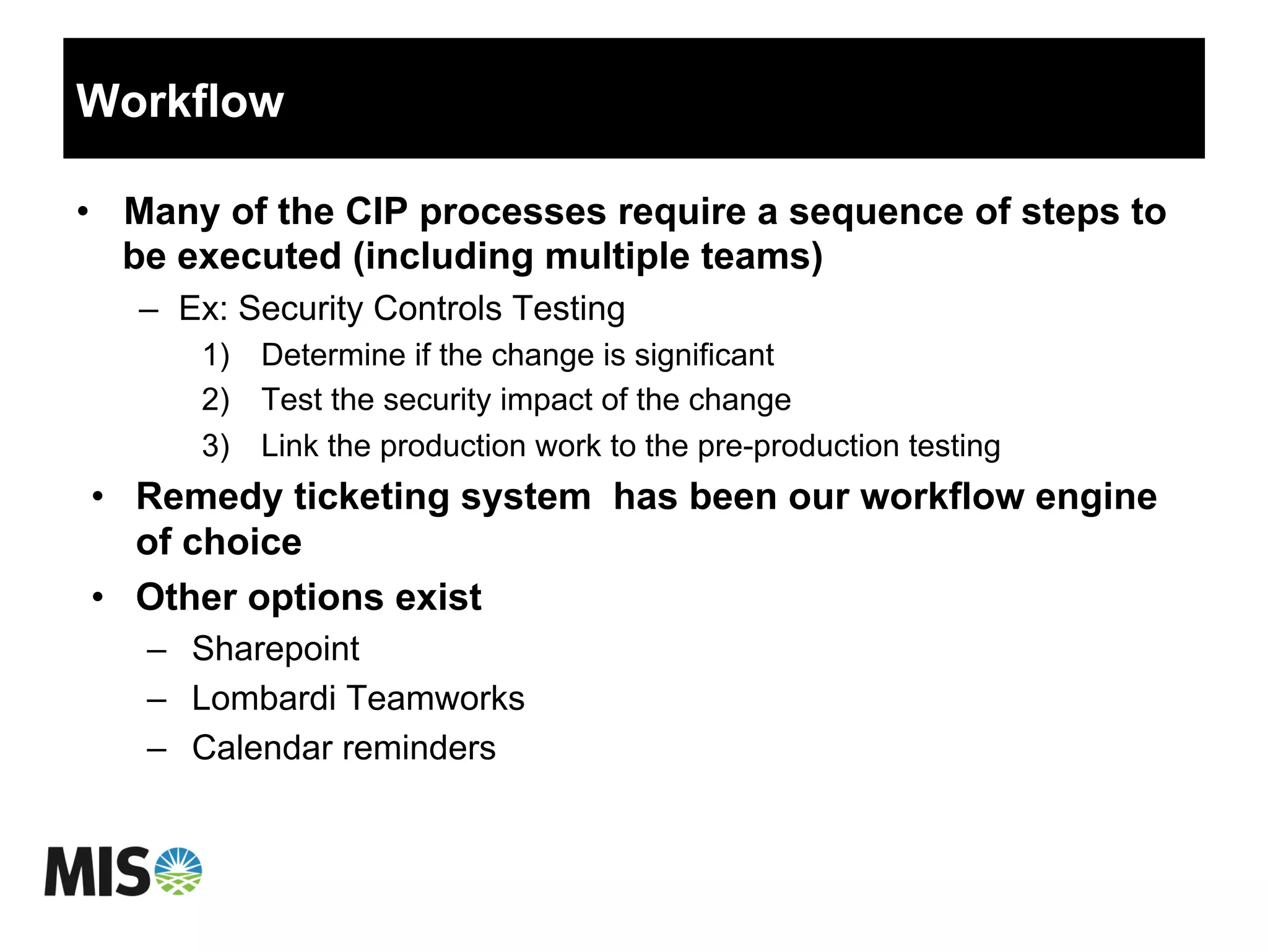

20. Workflow
• Many of the CIP processes require a sequence of steps to
be executed (including multiple teams)
– Ex: Security Controls Testing
1) Determine if the change is significant
2) Test the security impact of the change
3) Link the production work to the pre-production testing
• Remedy ticketing system has been our workflow engine
of choice
• Other options exist
– Sharepoint
– Lombardi Teamworks
– Calendar reminders

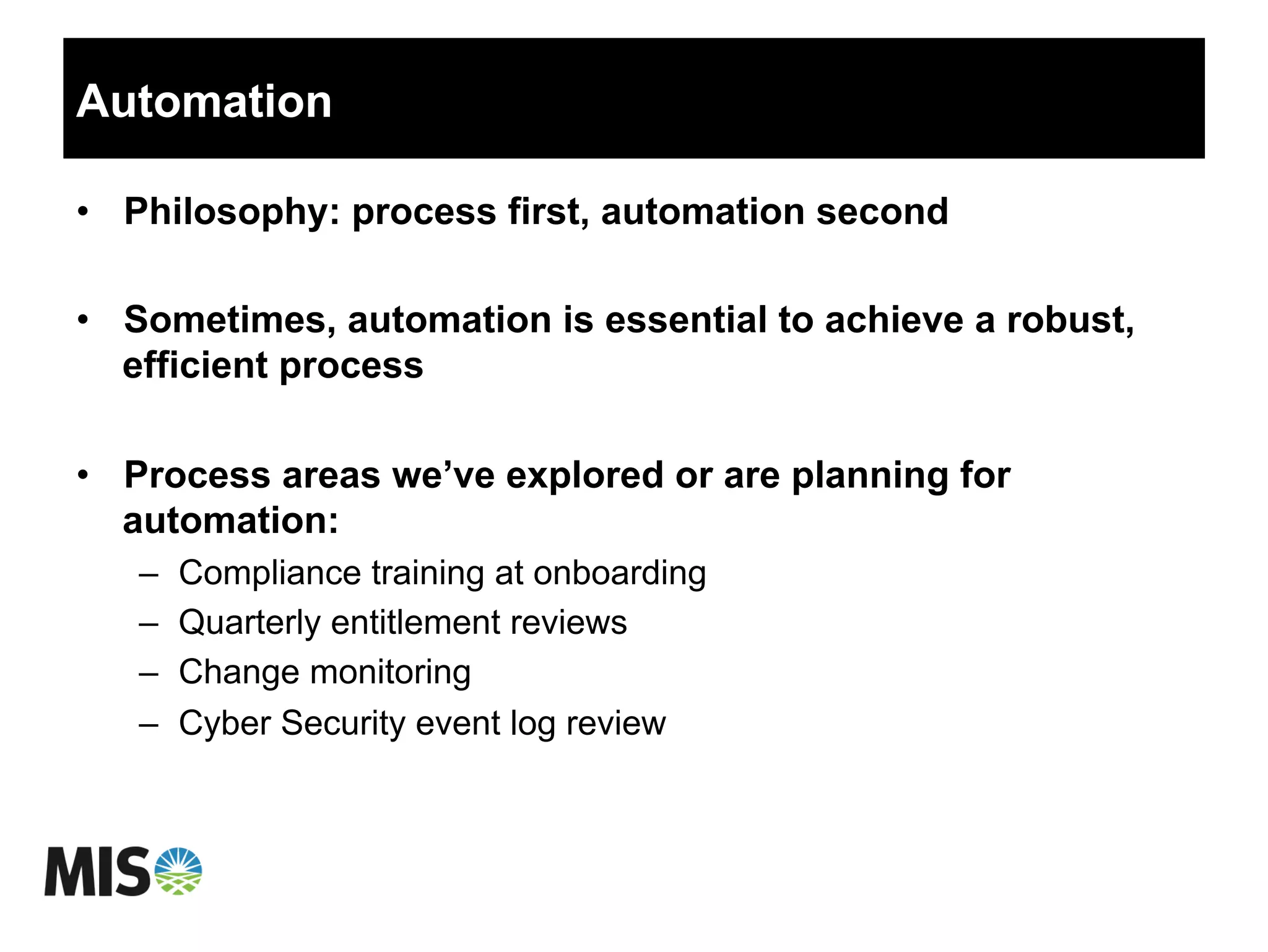

21. Automation
• Philosophy: process first, automation second
• Sometimes, automation is essential to achieve a robust,
efficient process
• Process areas we’ve explored or are planning for
automation:
– Compliance training at onboarding
– Quarterly entitlement reviews
– Change monitoring
– Cyber Security event log review

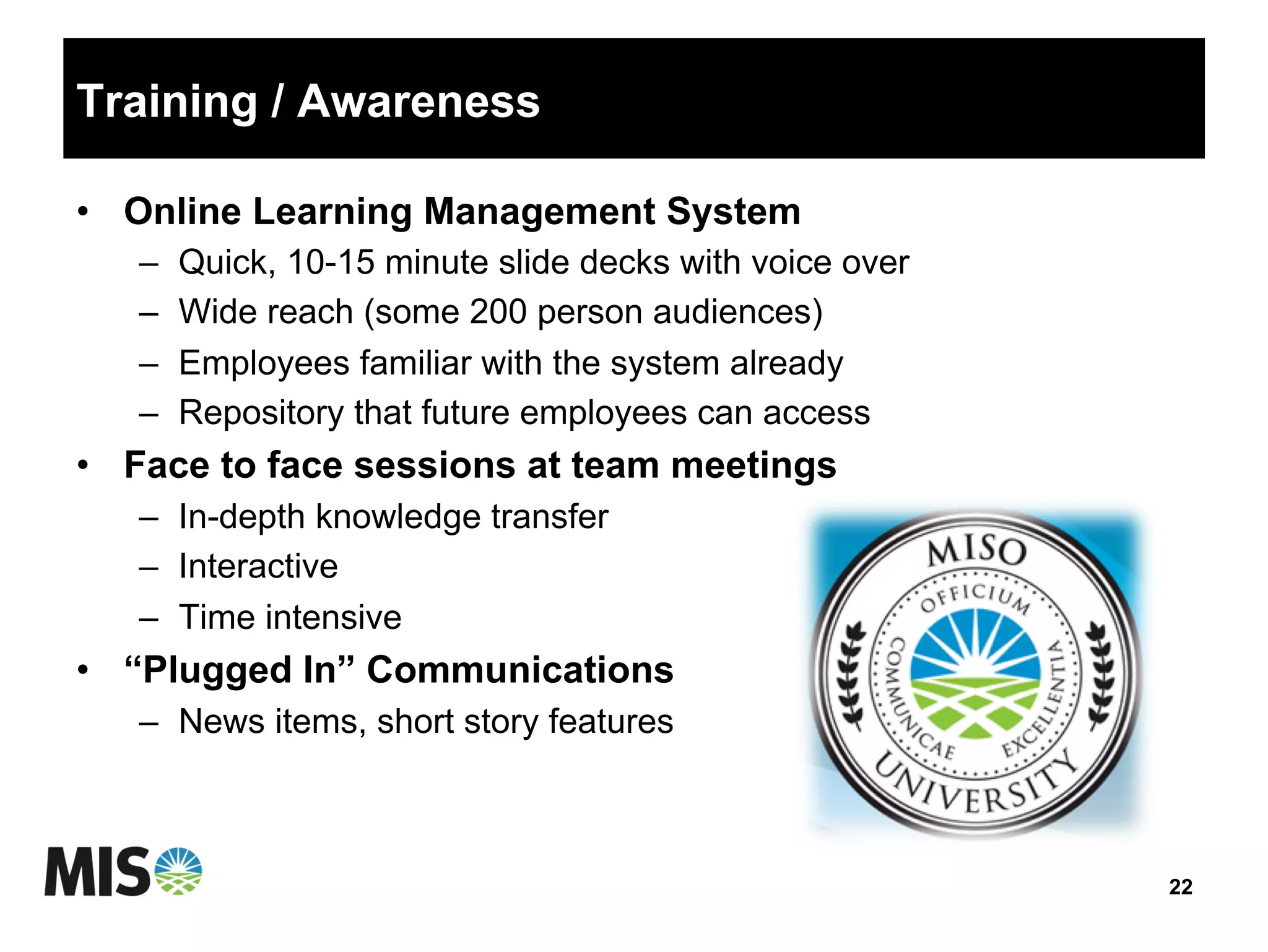

22. Training / Awareness
• Online Learning Management System
– Quick, 10-15 minute slide decks with voice over
– Wide reach (some 200 person audiences)
– Employees familiar with the system already
– Repository that future employees can access
• Face to face sessions at team meetings
– In-depth knowledge transfer
– Interactive
– Time intensive
• “Plugged In” Communications
– News items, short story features
22

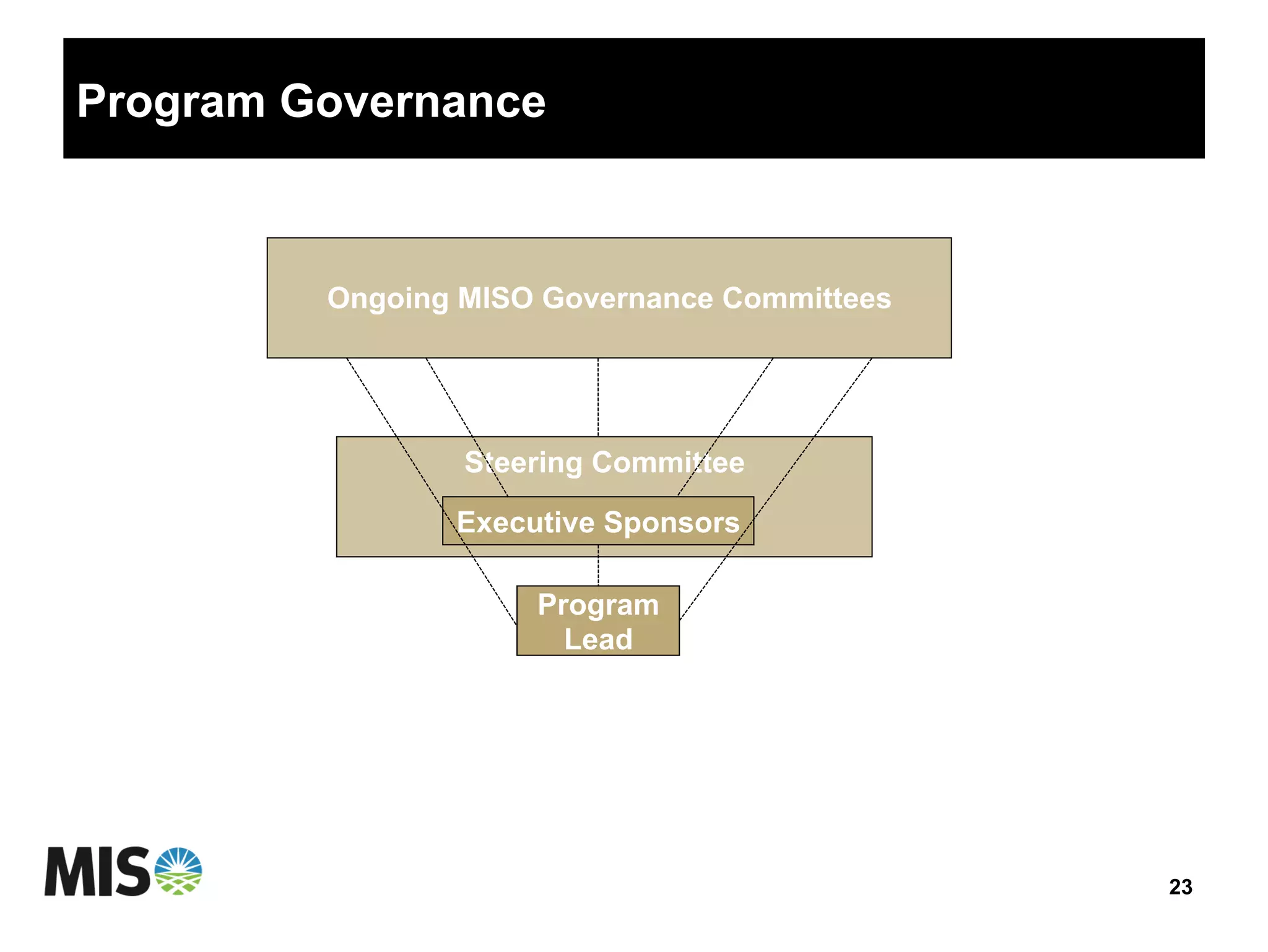

23. Steering Committee
Program Governance
23
Executive Sponsors
Program
Lead
Ongoing MISO Governance Committees

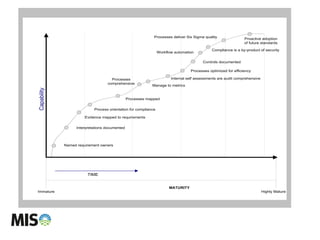

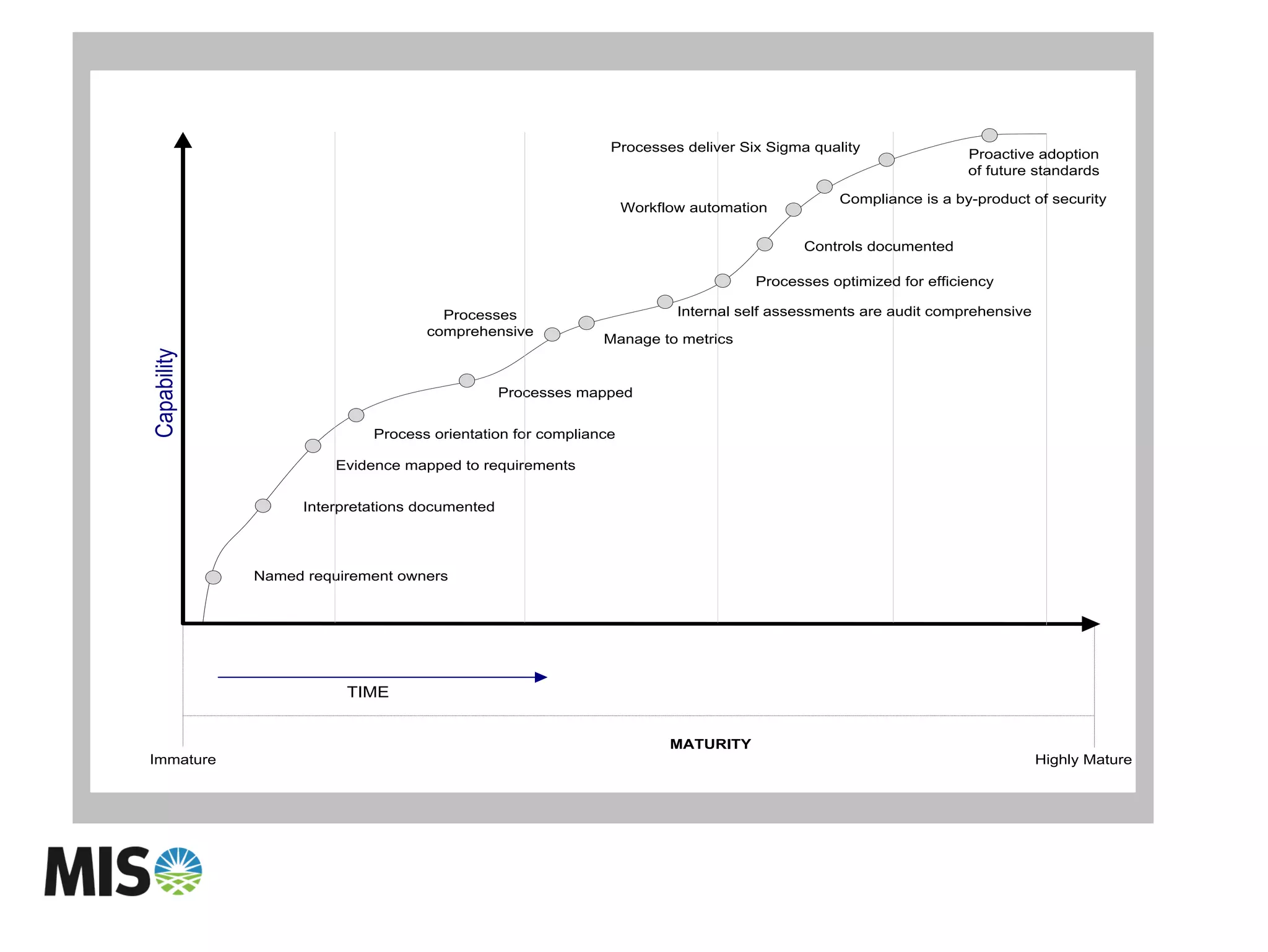

24. Capability
MATURITY
Highly MatureImmature
TIME
Named requirement owners
Evidence mapped to requirements
Process orientation for compliance
Processes mapped
Processes
comprehensive
Manage to metrics
Internal self assessments are audit comprehensive
Processes optimized for efficiency
Proactive adoption
of future standards
Controls documented
Processes deliver Six Sigma quality
Workflow automation
Interpretations documented
Compliance is a by-product of security

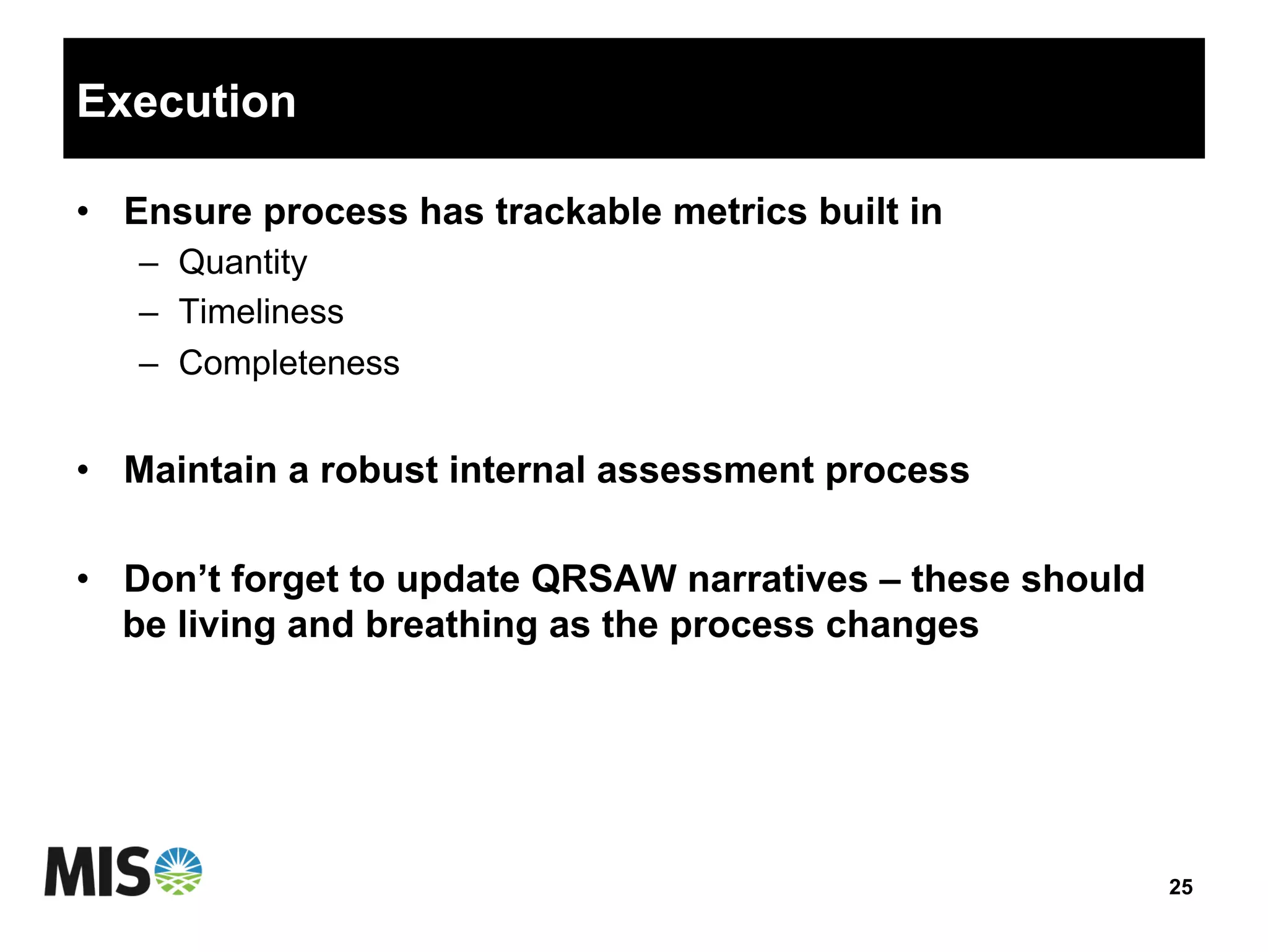

25. Execution
• Ensure process has trackable metrics built in
– Quantity
– Timeliness
– Completeness
• Maintain a robust internal assessment process
• Don’t forget to update QRSAW narratives – these should
be living and breathing as the process changes
25

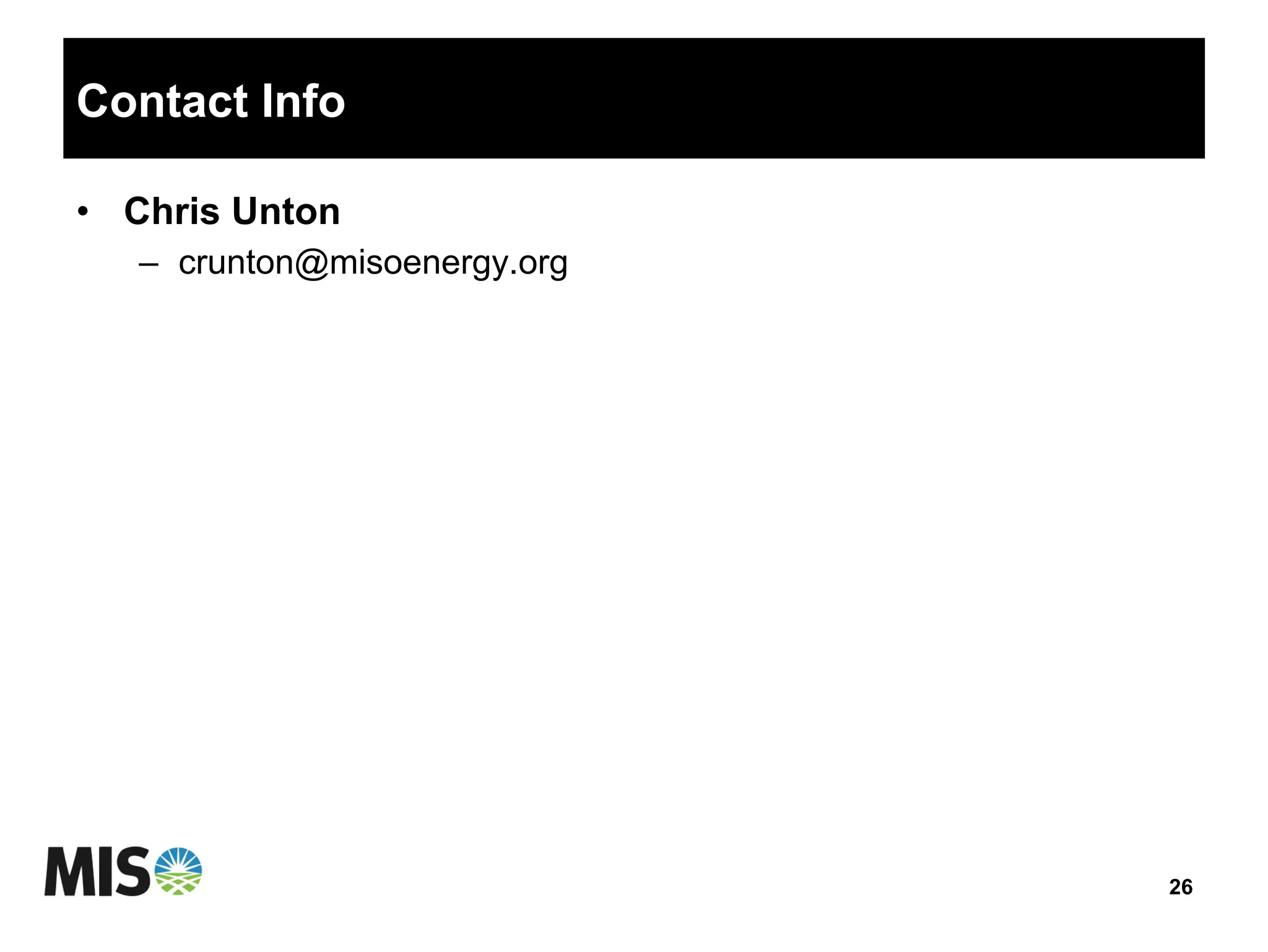

26. Contact Info
• Chris Unton
– crunton@misoenergy.org
26
