Structural Metadata in RDF (IS575)
The document discusses structural metadata in RDF, emphasizing its various types including descriptive, technical, and administrative metadata, and outlines the challenges associated with RDF and linked data platforms. It also covers initiatives like OAI-ORE, the Portland Common Data Model, and the IIIF presentation API, as well as design principles for creating effective APIs and metadata models. The speaker highlights the importance of usability and interoperability in structuring and representing data within digital libraries and scholarly communication.
More Related Content
Similar to Structural Metadata in RDF (IS575)
Structural Metadata in RDF (IS575)
- 1. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Structural Metadata inRDF IS 575: Metadata in Theory & Practice University of Illinois, Urbana-Champaign Dr. Robert Sanderson 10/20/2020
- 2. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Structural Metadata? • Descriptive: Aboutthe intellectual resource • Technical: About the digital resource • Administrative: Access, Rights, Provenance • Meta: Metadata about the metadata record • Structural: Set Membership / Entity Partitioning

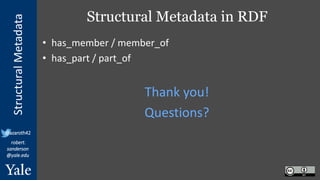

- 3. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Structural Metadata inRDF • has_member / member_of • has_part / part_of Thank you! Questions?
- 4. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Overview • Structure ismore than just membership/partitioning • OAI - Object Reuse and Exchange • Portland Common Data Model • Web Annotation Model • IIIF Presentation API • Linked Open Usable Data / Linked.Art • Conclusions

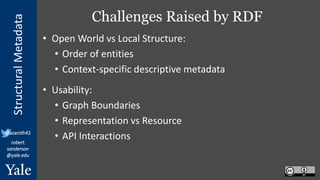

- 5. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Challenges Raised byRDF • Open World vs Local Structure: • Order of entities • Context-specific descriptive metadata • Usability: • Graph Boundaries • Representation vs Resource • API Interactions

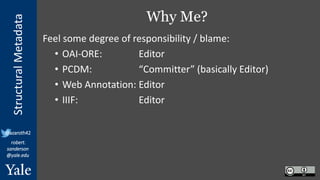

- 6. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Why Me? Feel somedegree of responsibility / blame: • OAI-ORE: Editor • PCDM: “Committer” (basically Editor) • Web Annotation: Editor • IIIF: Editor
- 7.

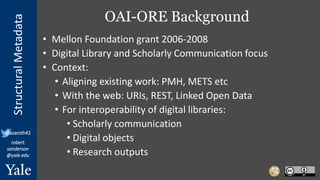

- 8. StructuralMetadata @azaroth42 robert. sanderson @yale.edu OAI-ORE Background • MellonFoundation grant 2006-2008 • Digital Library and Scholarly Communication focus • Context: • Aligning existing work: PMH, METS etc • With the web: URIs, REST, Linked Open Data • For interoperability of digital libraries: • Scholarly communication • Digital objects • Research outputs
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.
- 17. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Proxies Considered Harmful Proxiesare a Usability nightmare! • Now two places to look for all metadata • Range/Domain inferences are out the window • Can’t validate an application profile, as proxies are the union of all other classes • Can’t create a database structure other than triples But at least they’re optional … no one will use them… Right???

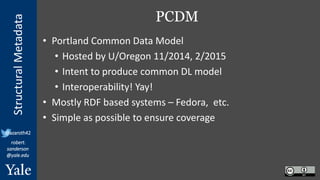

- 18. StructuralMetadata @azaroth42 robert. sanderson @yale.edu PCDM • Portland CommonData Model • Hosted by U/Oregon 11/2014, 2/2015 • Intent to produce common DL model • Interoperability! Yay! • Mostly RDF based systems – Fedora, etc. • Simple as possible to ensure coverage
- 19. StructuralMetadata @azaroth42 robert. sanderson @yale.edu White Stag DataModel (WSDM) https://www.pdxmonthly.com/producers/courtesy-historic-photo-archive-hugh-ackroyd
- 20.
- 21.

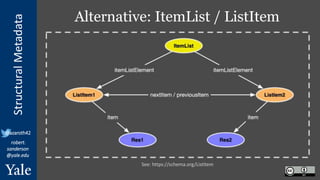

- 22. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Alternative: ItemList /ListItem See: https://schema.org/ListItem

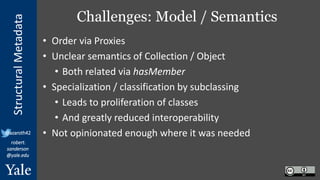

- 23. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Challenges: Model /Semantics • Order via Proxies • Unclear semantics of Collection / Object • Both related via hasMember • Specialization / classification by subclassing • Leads to proliferation of classes • And greatly reduced interoperability • Not opinionated enough where it was needed

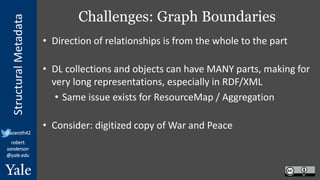

- 24. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Challenges: Graph Boundaries •Direction of relationships is from the whole to the part • DL collections and objects can have MANY parts, making for very long representations, especially in RDF/XML • Same issue exists for ResourceMap / Aggregation • Consider: digitized copy of War and Peace

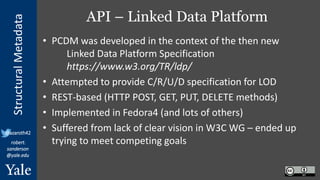

- 25. StructuralMetadata @azaroth42 robert. sanderson @yale.edu API – LinkedData Platform • PCDM was developed in the context of the then new Linked Data Platform Specification https://www.w3.org/TR/ldp/ • Attempted to provide C/R/U/D specification for LOD • REST-based (HTTP POST, GET, PUT, DELETE methods) • Implemented in Fedora4 (and lots of others) • Suffered from lack of clear vision in W3C WG – ended up trying to meet competing goals

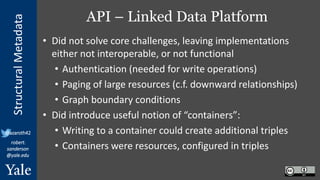

- 26. StructuralMetadata @azaroth42 robert. sanderson @yale.edu API – LinkedData Platform • Did not solve core challenges, leaving implementations either not interoperable, or not functional • Authentication (needed for write operations) • Paging of large resources (c.f. downward relationships) • Graph boundary conditions • Did introduce useful notion of “containers”: • Writing to a container could create additional triples • Containers were resources, configured in triples

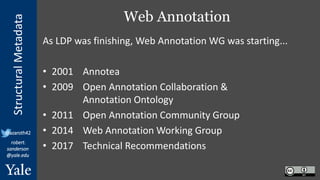

- 27. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Web Annotation As LDPwas finishing, Web Annotation WG was starting... • 2001 Annotea • 2009 Open Annotation Collaboration & Annotation Ontology • 2011 Open Annotation Community Group • 2014 Web Annotation Working Group • 2017 Technical Recommendations
- 28.
- 29.
- 30.
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.

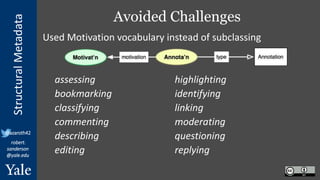

- 38. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Avoided Challenges Used Motivationvocabulary instead of subclassing assessing highlighting bookmarking identifying classifying linking commenting moderating describing questioning editing replying

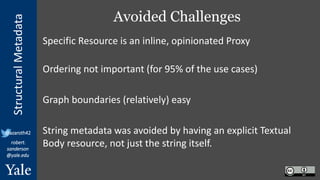

- 39. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Avoided Challenges Specific Resourceis an inline, opinionated Proxy Ordering not important (for 95% of the use cases) Graph boundaries (relatively) easy String metadata was avoided by having an explicit Textual Body resource, not just the string itself.

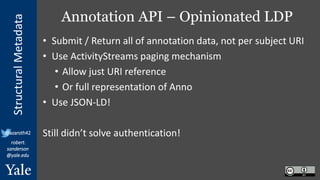

- 40. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Annotation API –Opinionated LDP • Submit / Return all of annotation data, not per subject URI • Use ActivityStreams paging mechanism • Allow just URI reference • Or full representation of Anno • Use JSON-LD! Still didn’t solve authentication!

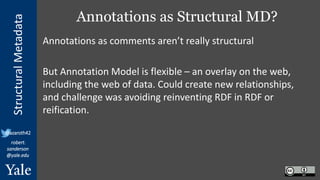

- 41. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Annotations as StructuralMD? Annotations as comments aren’t really structural But Annotation Model is flexible – an overlay on the web, including the web of data. Could create new relationships, and challenge was avoiding reinventing RDF in RDF or reification.

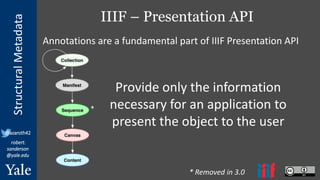

- 42. StructuralMetadata @azaroth42 robert. sanderson @yale.edu IIIF – PresentationAPI Annotations are a fundamental part of IIIF Presentation API Provide only the information necessary for an application to present the object to the user * * Removed in 3.0
- 43.

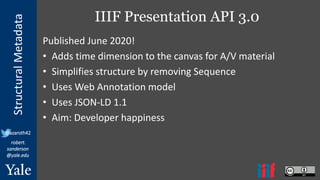

- 44. StructuralMetadata @azaroth42 robert. sanderson @yale.edu IIIF Presentation API3.0 Published June 2020! • Adds time dimension to the canvas for A/V material • Simplifies structure by removing Sequence • Uses Web Annotation model • Uses JSON-LD 1.1 • Aim: Developer happiness

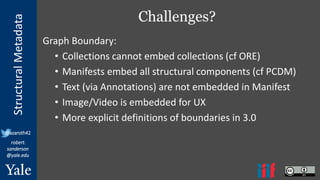

- 45. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Challenges? Graph Boundary: • Collectionscannot embed collections (cf ORE) • Manifests embed all structural components (cf PCDM) • Text (via Annotations) are not embedded in Manifest • Image/Video is embedded for UX • More explicit definitions of boundaries in 3.0

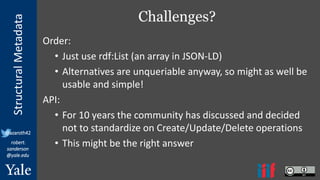

- 46. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Challenges? Order: • Just userdf:List (an array in JSON-LD) • Alternatives are unqueriable anyway, so might as well be usable and simple! API: • For 10 years the community has discussed and decided not to standardize on Create/Update/Delete operations • This might be the right answer
- 47. StructuralMetadata @azaroth42 robert. sanderson @yale.edu IIIF Design Principles 1.Scope design through shared use cases 2. Design for international use 3. As simple as possible, but no simpler 4. Make easy things easy, complex things possible 5. Avoid dependency on specific technologies 6. Use REST / Don’t break the web 7. Separate concerns, keep APIs loosely coupled 8. Design for JSON-LD, using LOD principles 9. Follow existing standards, best practices 10. Define success, not failure (for extensibility)

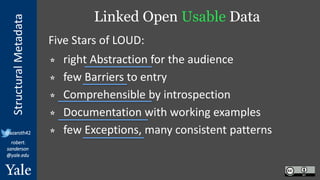

- 48. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Linked Open UsableData ⭐ right Abstraction for the audience ⭐ few Barriers to entry ⭐ Comprehensible by introspection ⭐ Documentation with working examples ⭐ few Exceptions, many consistent patterns Five Stars of LOUD:
- 49. StructuralMetadata @azaroth42 robert. sanderson @yale.edu With thanks toPatrick Hochstenbach, @hochstenbach Who is the Audience for LOD?
- 50. StructuralMetadata @azaroth42 robert. sanderson @yale.edu LOUD: Easy toUse … by Developers!

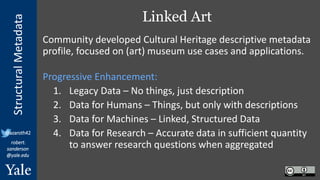

- 51. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Linked Art Community developedCultural Heritage descriptive metadata profile, focused on (art) museum use cases and applications. Progressive Enhancement: 1. Legacy Data – No things, just description 2. Data for Humans – Things, but only with descriptions 3. Data for Machines – Linked, Structured Data 4. Data for Research – Accurate data in sufficient quantity to answer research questions when aggregated

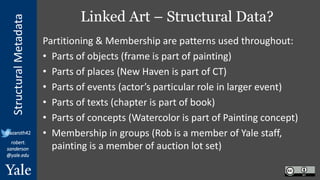

- 52. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Linked Art –Structural Data? Partitioning & Membership are patterns used throughout: • Parts of objects (frame is part of painting) • Parts of places (New Haven is part of CT) • Parts of events (actor’s particular role in larger event) • Parts of texts (chapter is part of book) • Parts of concepts (Watercolor is part of Painting concept) • Membership in groups (Rob is a member of Yale staff, painting is a member of auction lot set)
- 53. StructuralMetadata @azaroth42 robert. sanderson @yale.edu Conclusions • Open Worldvs Local Structure: • Order of entities: Just use rdf:List, JSON-LD arrays • Context-specific data: Needs a Ph.D. or two please! • Usability: • Graph Boundaries: Don’t Repeat Yourself, API as guide • Representation vs Resource: Problem in theory only • API Interactions: Get retrieval right, focus on usability
- 54.
Editor's Notes
- #4 Okay, we’re not quite done…
- #6 Why? Because structure is about localized relationships, whereas RDF or LOD has an open world assumption – together with more general issues, they make usability and adoption a challenge.

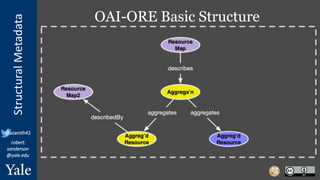

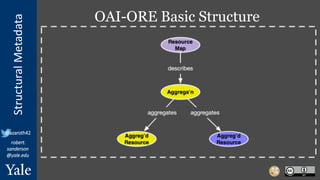

- #10 ReM – the file that describes the aggregation. Each ReM can describe exactly one aggregation. Agg – Set of resources, either digital or conceptual Agg’d Resource – Any resource with a URI

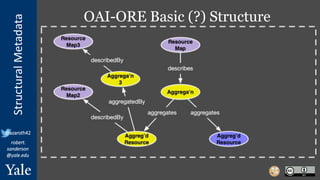

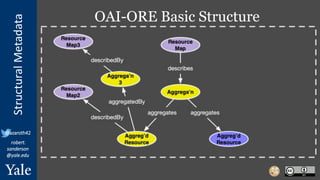

- #11 Aggregations can be aggregated, and as the only way to get to them is via their resourcemap, we can add a reference to it Now we have a recursive structure not just a flat list, but mandated to be in separate representations
- #12 Resources (including aggregations) can be aggregated by many aggregations, which can be added, along with their resource map.
- #13 History has shown that while the ontology is concise … it’s not all that basic!

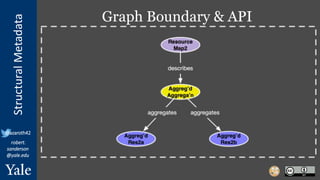

- #14 ORE takes a firm position on the boundary of the graph and how you can retrieve the set of relationships that make up the graph. The aggregated aggregation in the first resource map cannot include its aggregated resources, they can only be in that aggregations resource map (resource map 2) Aggregated resources could point to other aggregations, but aggregations could not. Aggregated aggregations could not point to their aggregated resources but could point to their resource map. Retrieval was also forced by this decision – you requested the ResourceMap by its URI and got the triples that fit within the boundary. No official position about Create, Update and Delete.
- #15 Introduced the notion of a Proxy – a resource that stood for an aggregated resource in the context of the aggregation. Assertions about the proxy are about the resource, but are only valid in the context of the aggregation.
- #16 This gives us a way to specify order, without globally asserting that that in all aggregations (or any context) the resource comes before or after another.

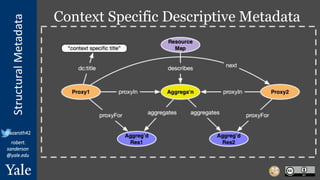

- #17 And for non structural metadata as well, such as a title for the resource in the context of the aggregation.
- #18 In a pure RDF worldview, there’s nothing theoretically wrong with Proxies. They’re a resource, and they can have relationships associated with them. However…
- #19 As simple as possible … and then a bit more simple, but we’ll get to that.

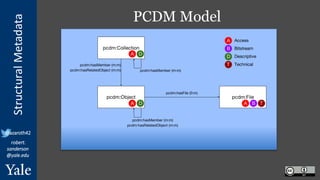

- #21 (Explain) Collection and Object are subclasses of ORE Aggregation, hasMember, hasFile and relatedObject are subProperties of aggregates. So this is exactly the same as ORE … just ignoring the resourcemap requirement. Opinionated: No ReMs. No descMD on Files. Distinction between a collection and an “object” (never very clear boundaries)

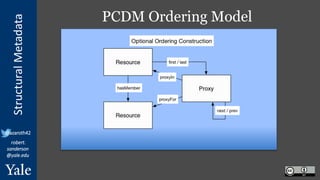

- #22 Not everything is ordered, so Proxies (often called Poxies during PCDM implementation) are a sensible choice … theoretically. Mea culpa. Some further local constraints: Files cannot be ordered, nor related objects, only actual members of collections or objects.
- #23 During PCDM, we discussed the Schema structure as alternative where ListItems can be the object of itemListElement (as well as resources generally) in order to assert order. Didn’t want to /require/ ListItems and didn’t want to have both resources and listitems as object of the property (schema.org is very loose!)
- #28 But there was a long history before that.

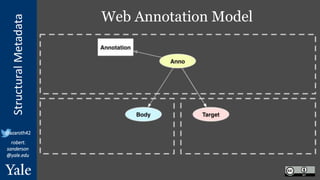

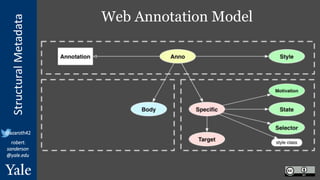

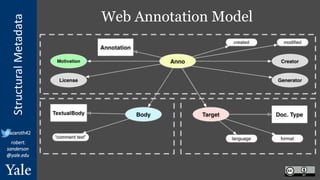

- #30 Motivation, TextualBody, three core components.

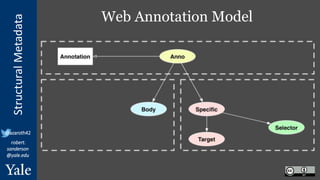

- #31 Note Selector + Target = Specific Resource. Similar to ListItem / Proxy…
- #34 Protocol – Also LDP, but opinionated for usability, not theoretical correctness.
- #49 LOUD is the application of those design principles to LOD. We can summarize the five stars of LOUD as…
- #50 Another way to think about it is … who is the audience for linked data?
- #53 Try to learn from success of Usable data, and apply it in a more challenging environment than IIIF. Need to deal with all aspects of metadata, including especially structural.
