Streaming, Database & Distributed Systems Bridging the Divide
The document discusses stateful stream processing (SSP) as a framework for building data-centric systems that combine elements from databases, analytics, messaging, and distributed logs. It emphasizes the importance of stream processing engines, particularly Kafka, in managing data flows and ensuring scalability and fault tolerance in real-time applications. Additionally, it addresses challenges such as correctness guarantees in topologies and the importance of idempotence and distributed snapshots for reliable data processing.
More Related Content
Similar to Streaming, Database & Distributed Systems Bridging the Divide
Streaming, Database & Distributed Systems Bridging the Divide
- 1. Streaming, Database & DistributedSystems: Bridging the Divide Ben Stopford (@benstopford) Codemesh 2016
- 3. Event Driven Systems Most statefulsystems have to pull from these three worlds
- 4. Today we have2 goals 1. Understand Stateful Stream Processing (now & near future) 2. Case for SSP as a general framework for building data-centric systems.
- 5. Data systems comein different forms • Database (OLTP) • Analytics Database (OLAP/Hadoop) • Messaging • Distributed log • Stream Processing • Stateful Stream Processing
- 6. Database (OLTP) Focuses onproviding a consistent view that supports updates and queries on individual tuples.
- 7. Analytics Database (OLAP/Hadoop) 1. Focuses on aggregations via table scans. 2. Executes as distributed system
- 8. Messaging Focuses on asynchronousinformation transfer with limited state
- 9. Distributed Log 1. Similarto messaging, but data can be retained 2. Executes as distributed system (scale + fault tolerance)
- 10. Stream Processing Manipulate concurrentstreams of events Comes from CEP background (ephemeral)
- 11. Stateful Stream Processing Movesstream processing to be a more general framework for building data-centric systems.

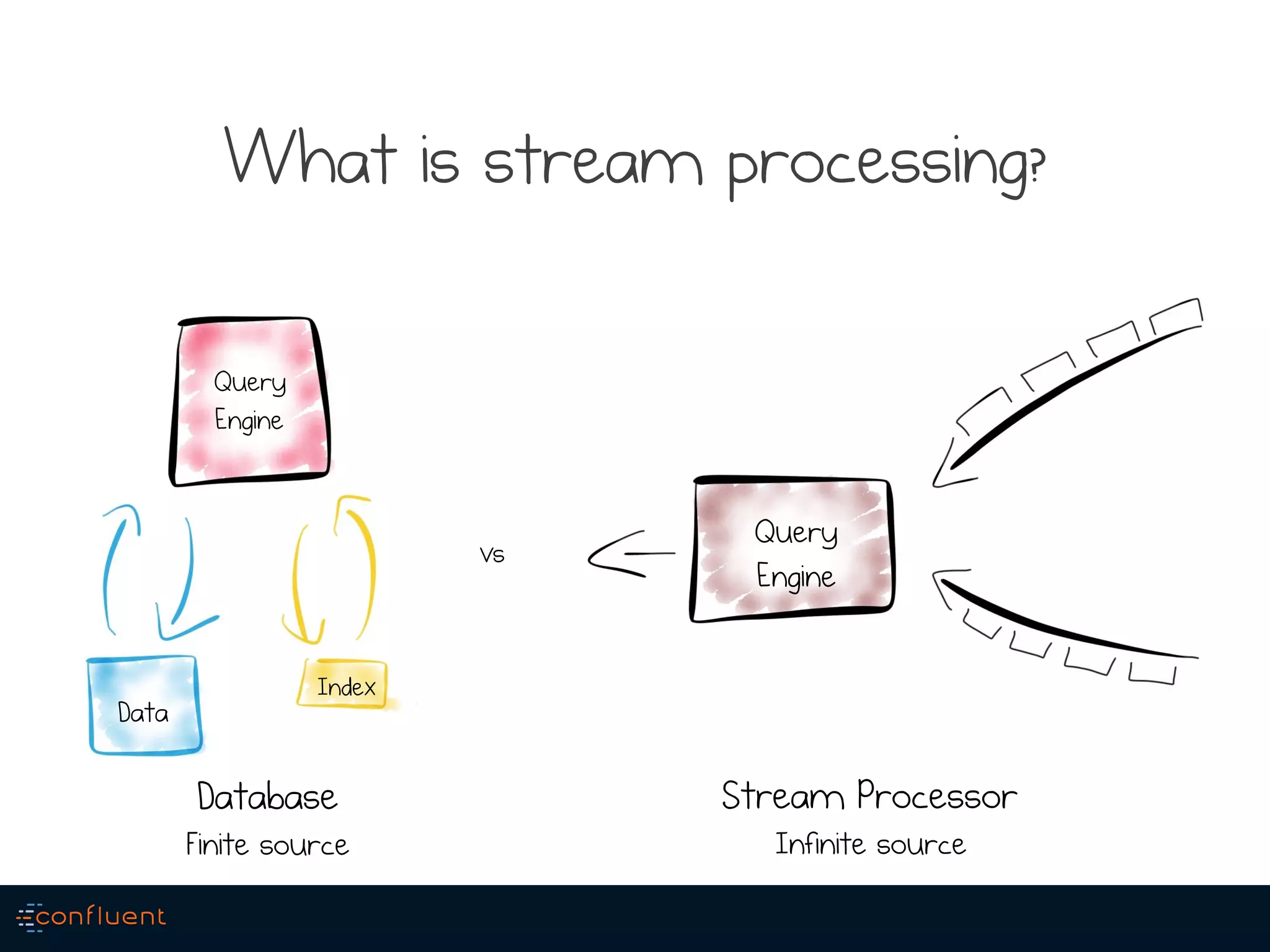

- 12. What is streamprocessing? Data Index Query Engine Query Engine vs Database Finite source Stream Processor Infinite source
- 13. Infinite streams need windows Howmany items will we bring into the machine at one time?
- 14. Windows bound acomputation How many items will we bring into the machine at one time?
- 15. Buffering allows usto handle late events How many items will we bring into the machine at one time?

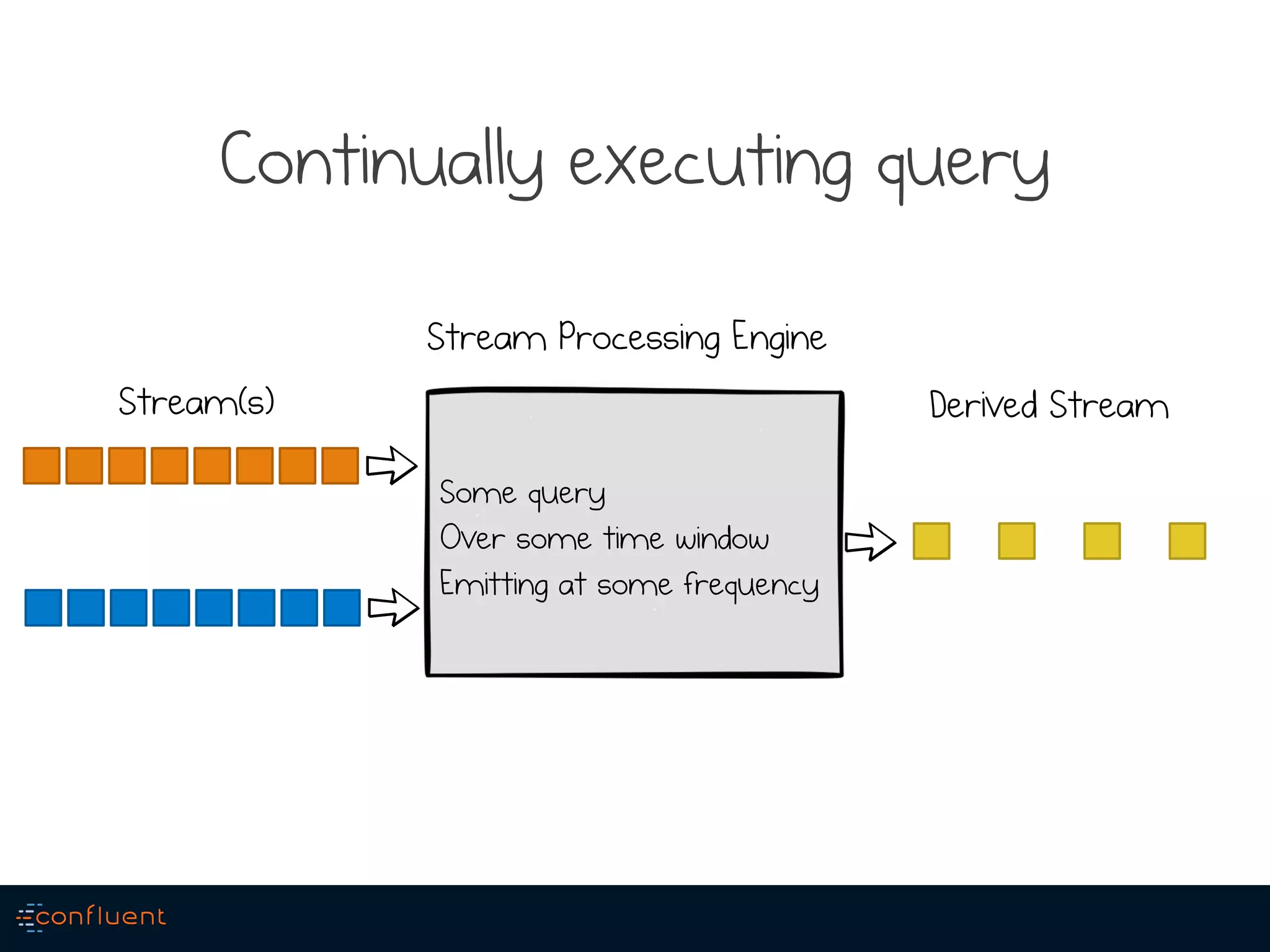

- 16. Some query Over sometime window Emitting at some frequency Continually executing query Stream(s) Stream Processing Engine Derived Stream

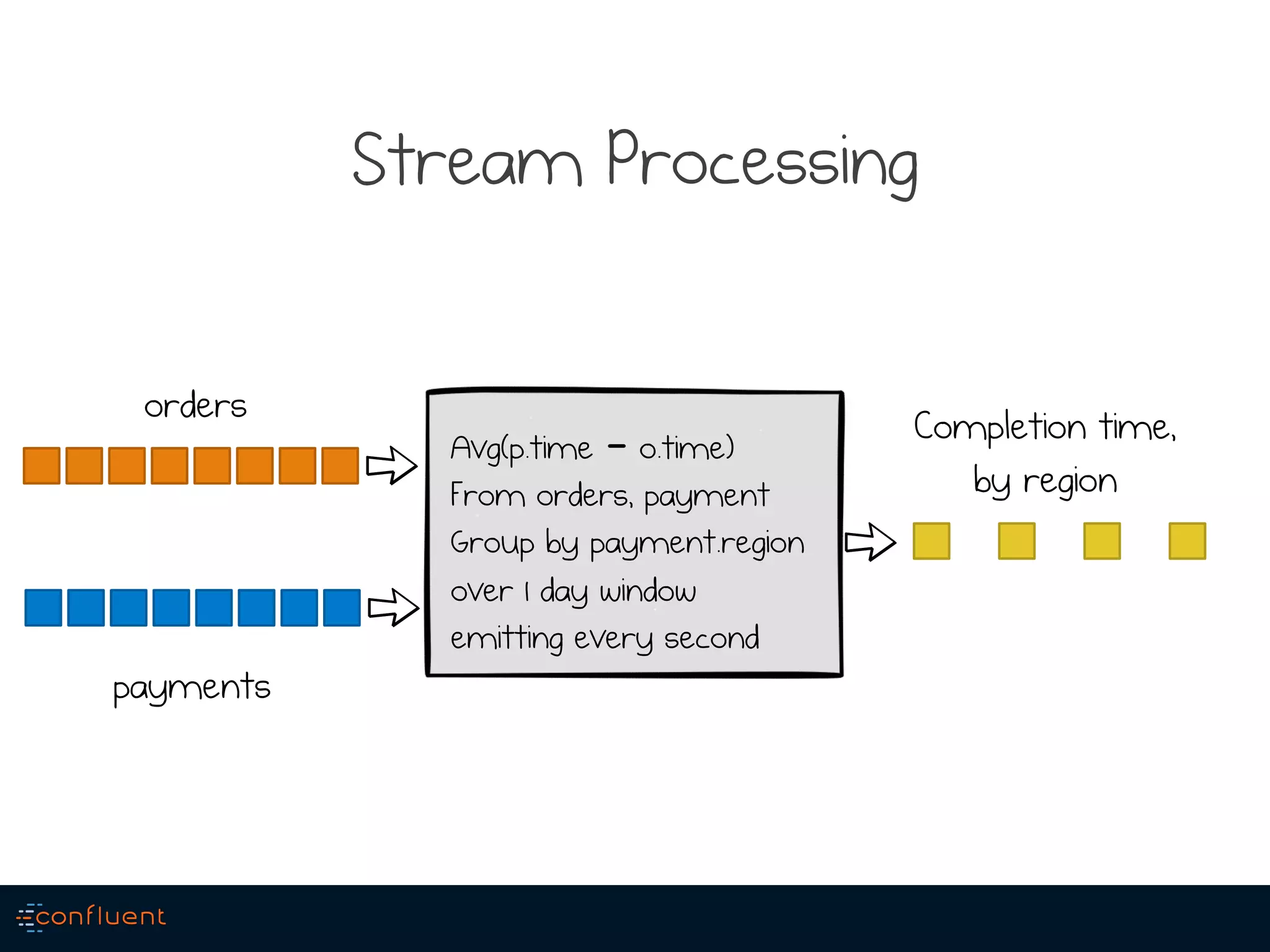

- 17. Avg(p.time – o.time) Fromorders, payment Group by payment.region over 1 day window emitting every second Stream Processing orders! payments! Completion time, by region!

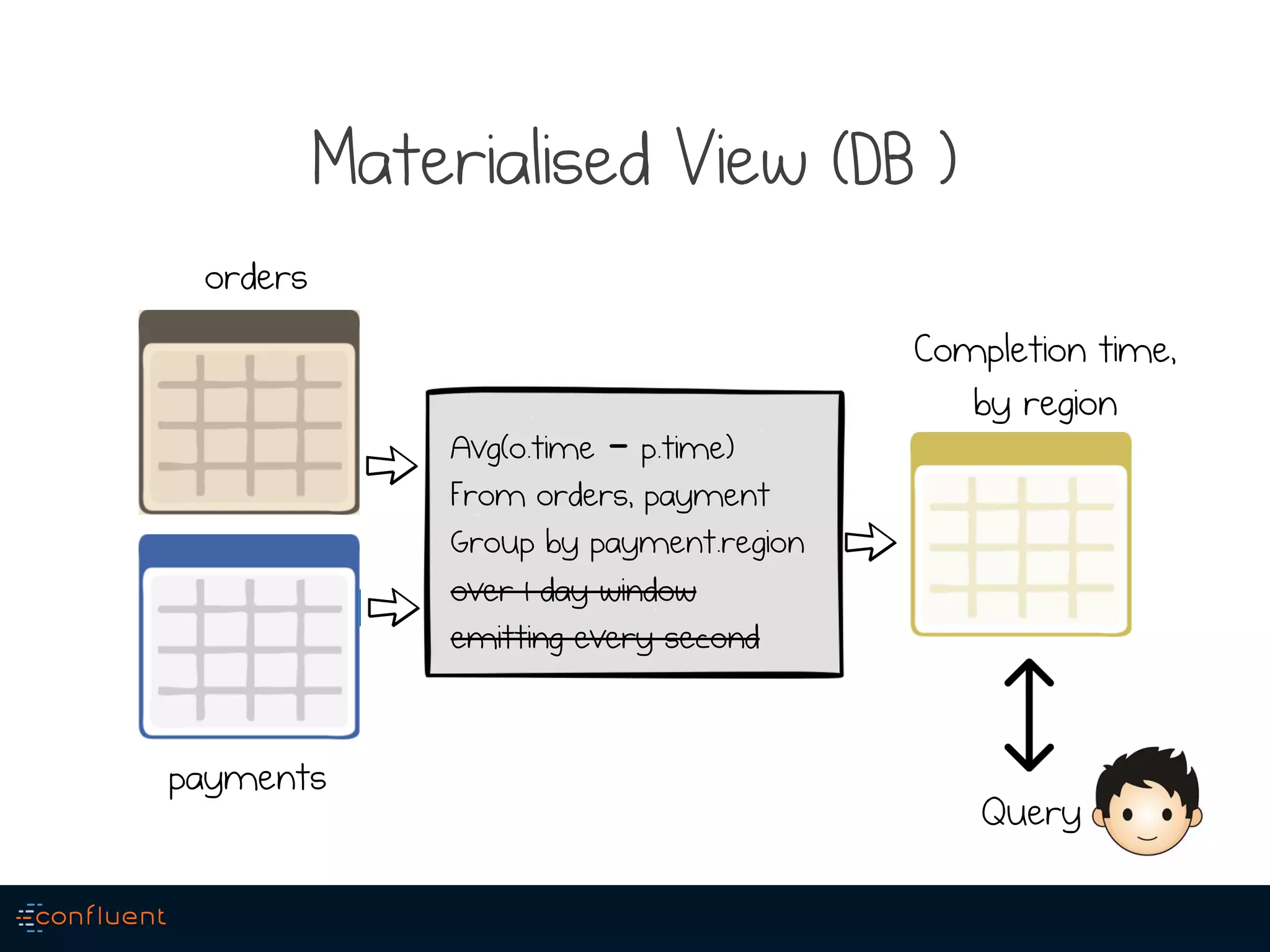

- 18. Avg(o.time – p.time) Fromorders, payment Group by payment.region over 1 day window emitting every second Materialised View (DB ) Query orders! payments! Completion time, by region!

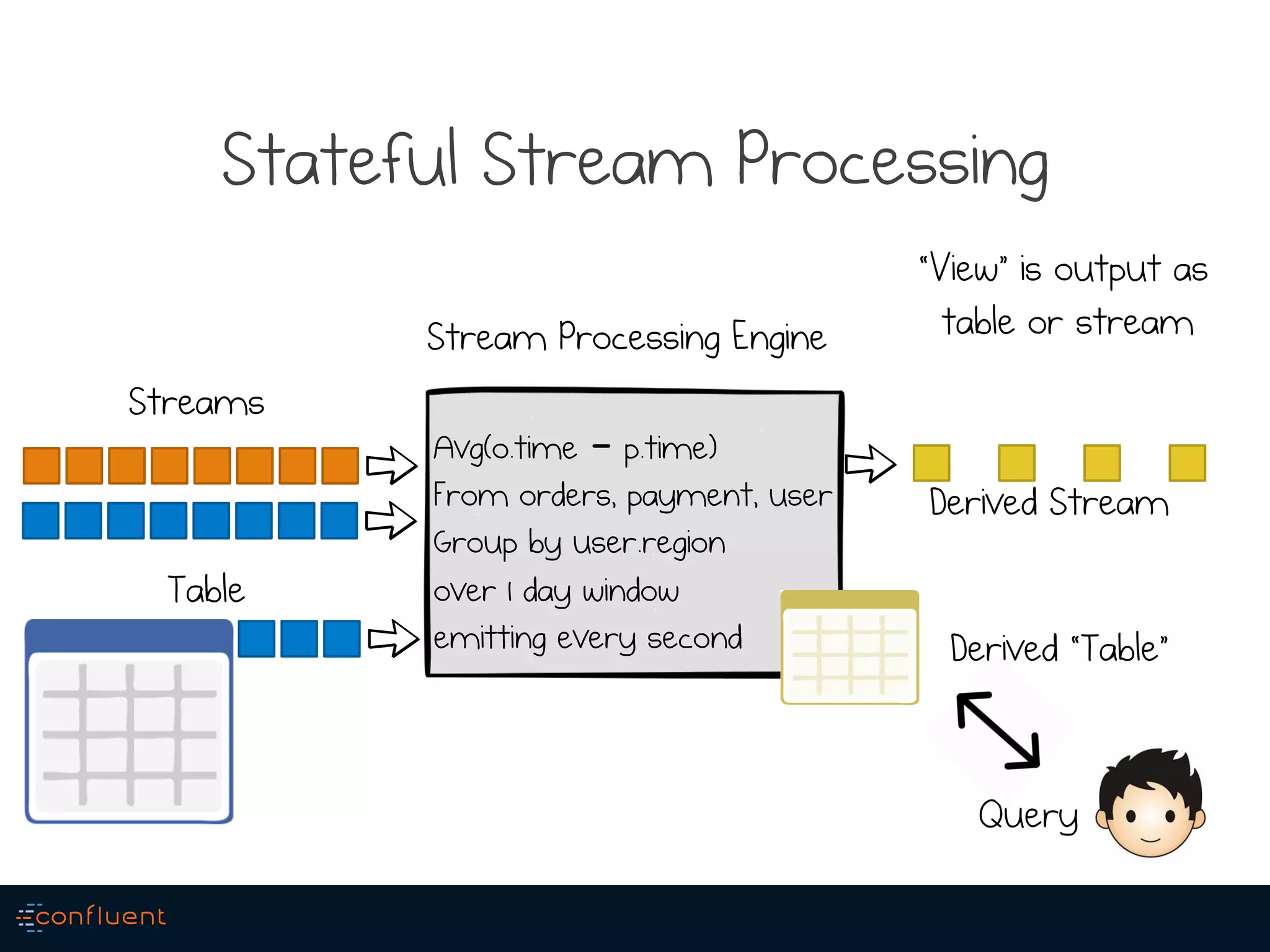

- 19. Avg(o.time – p.time) Fromorders, payment, user Group by user.region over 1 day window emitting every second Stateful Stream Processing Streams Stream Processing Engine Derived Stream Query Derived “Table” Table “View” is output as table or stream

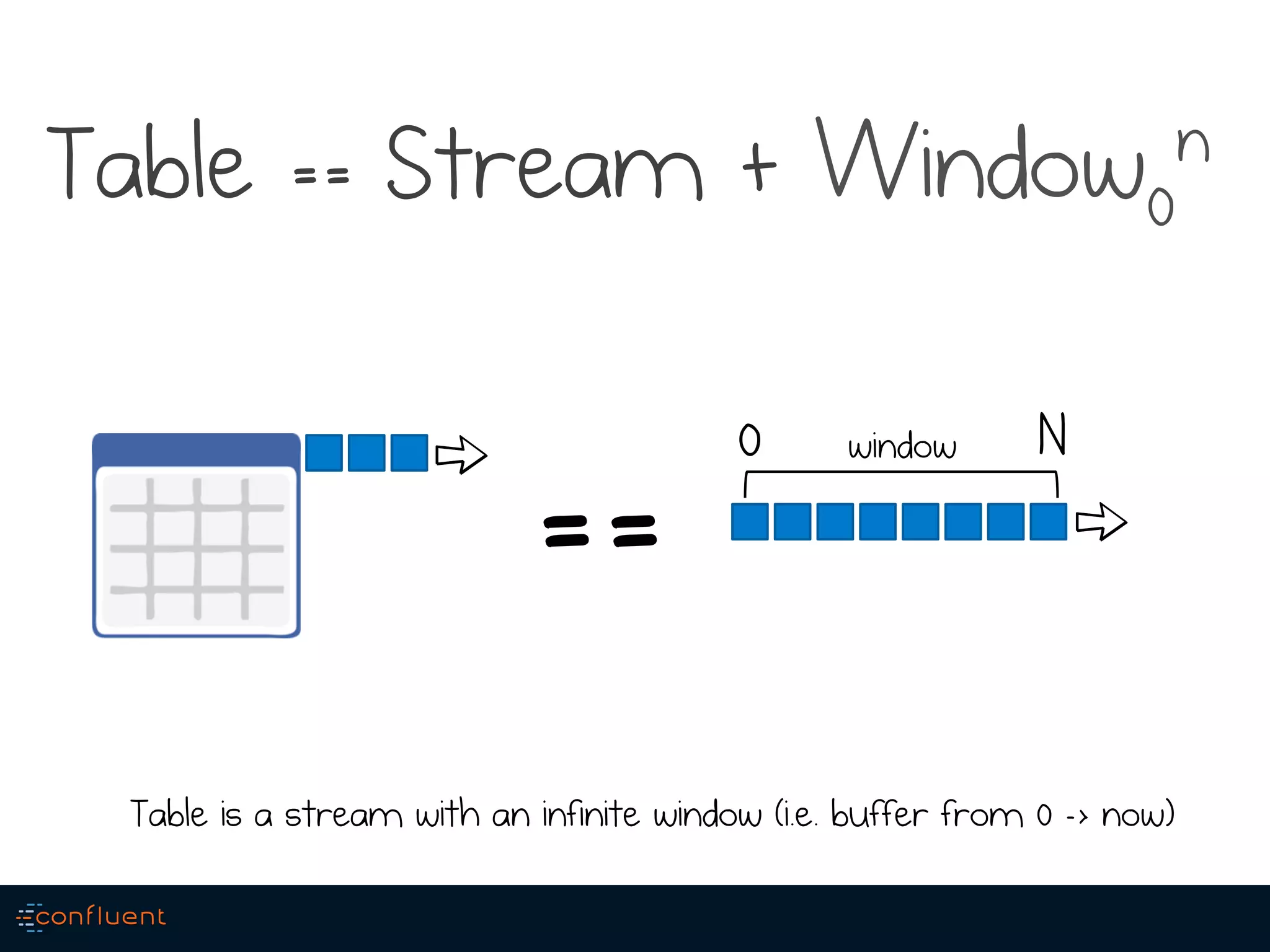

- 20. Table == Stream+ Window0 n == 0 N Table is a stream with an infinite window (i.e. buffer from 0 -> now) window !
- 21. SSP is aboutcreating materialised views. Materialised as a table, or materialised as a stream

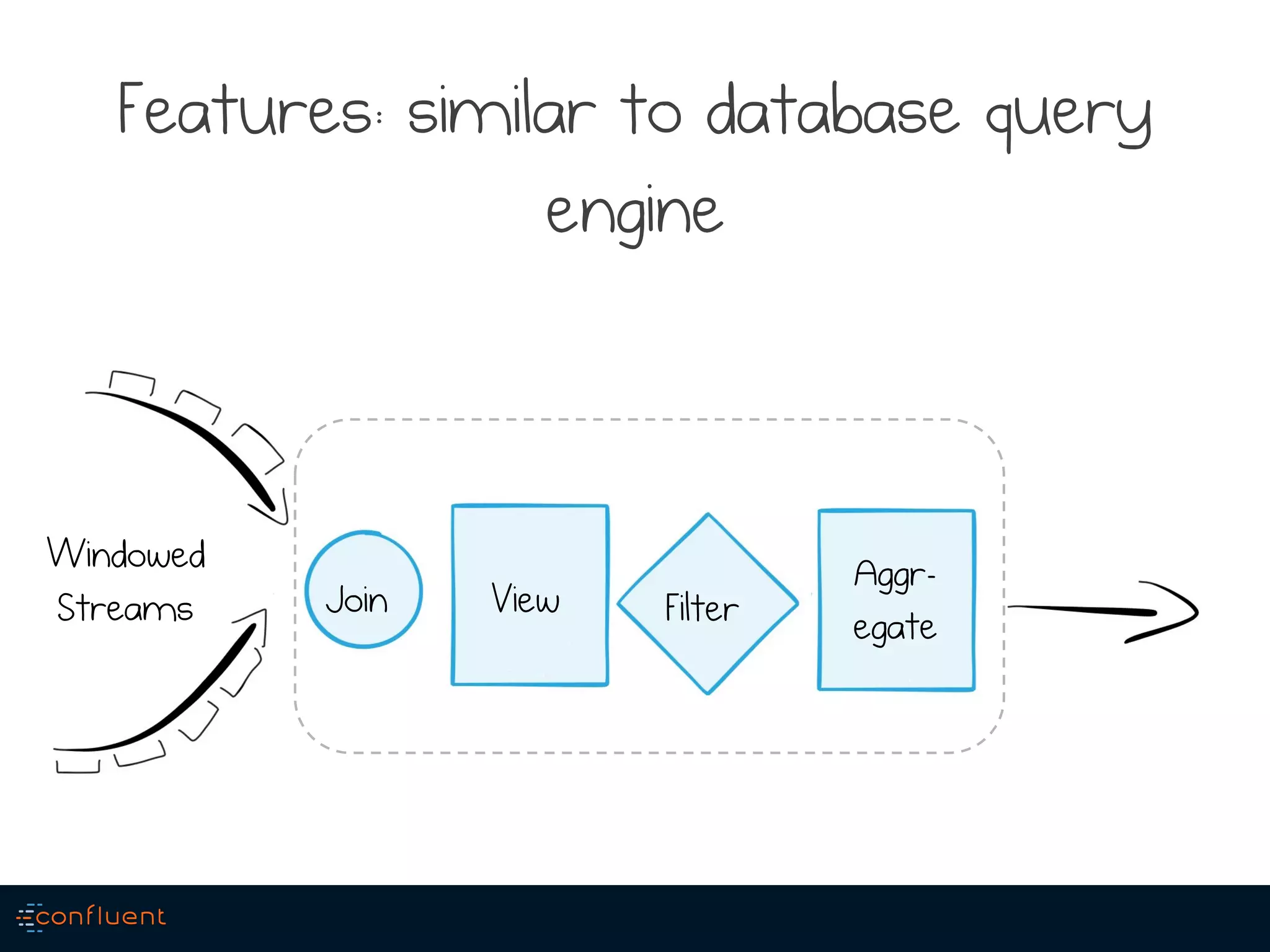

- 22. Features: similar todatabase query engine Join Filter Aggr- egate View Windowed Streams

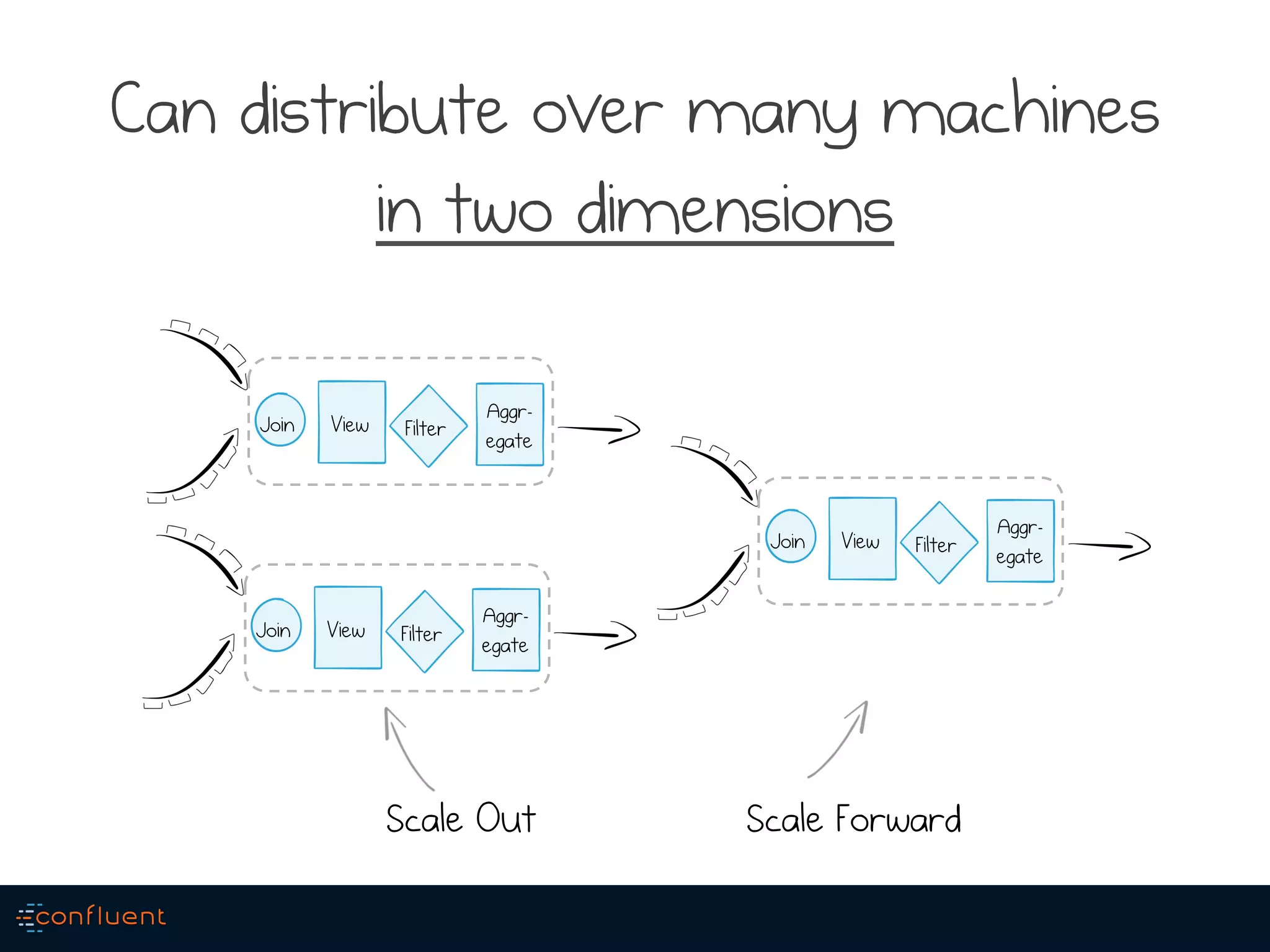

- 23. Can distribute overmany machines in two dimensions Join Filter Aggr- egate View Join Filter Aggr- egate View Join Filter Aggr- egate View Scale Out Scale Forward

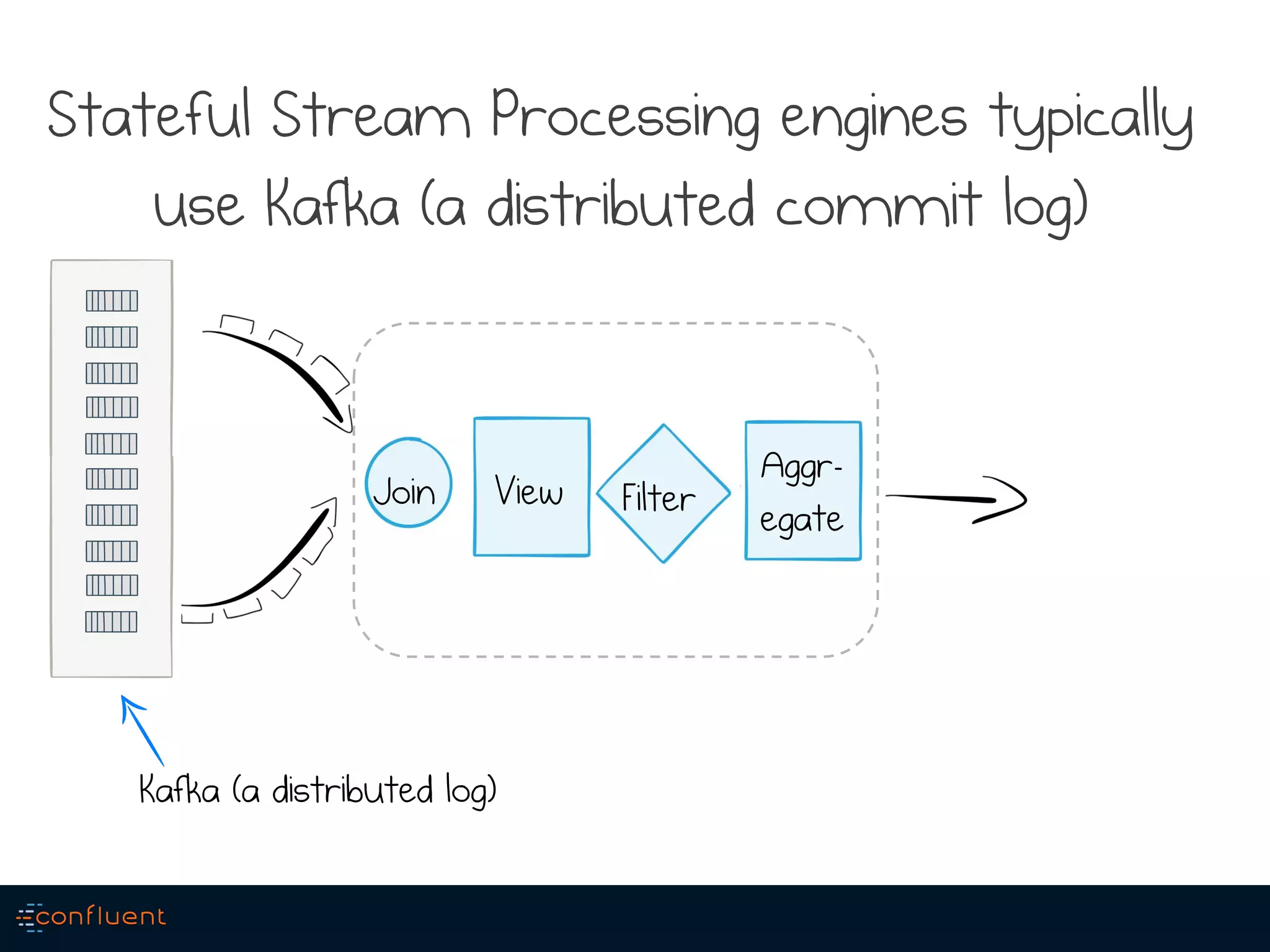

- 24. Stateful Stream Processingengines typically use Kafka (a distributed commit log) Join Filter Aggr- egate View Kafka (a distributed log)

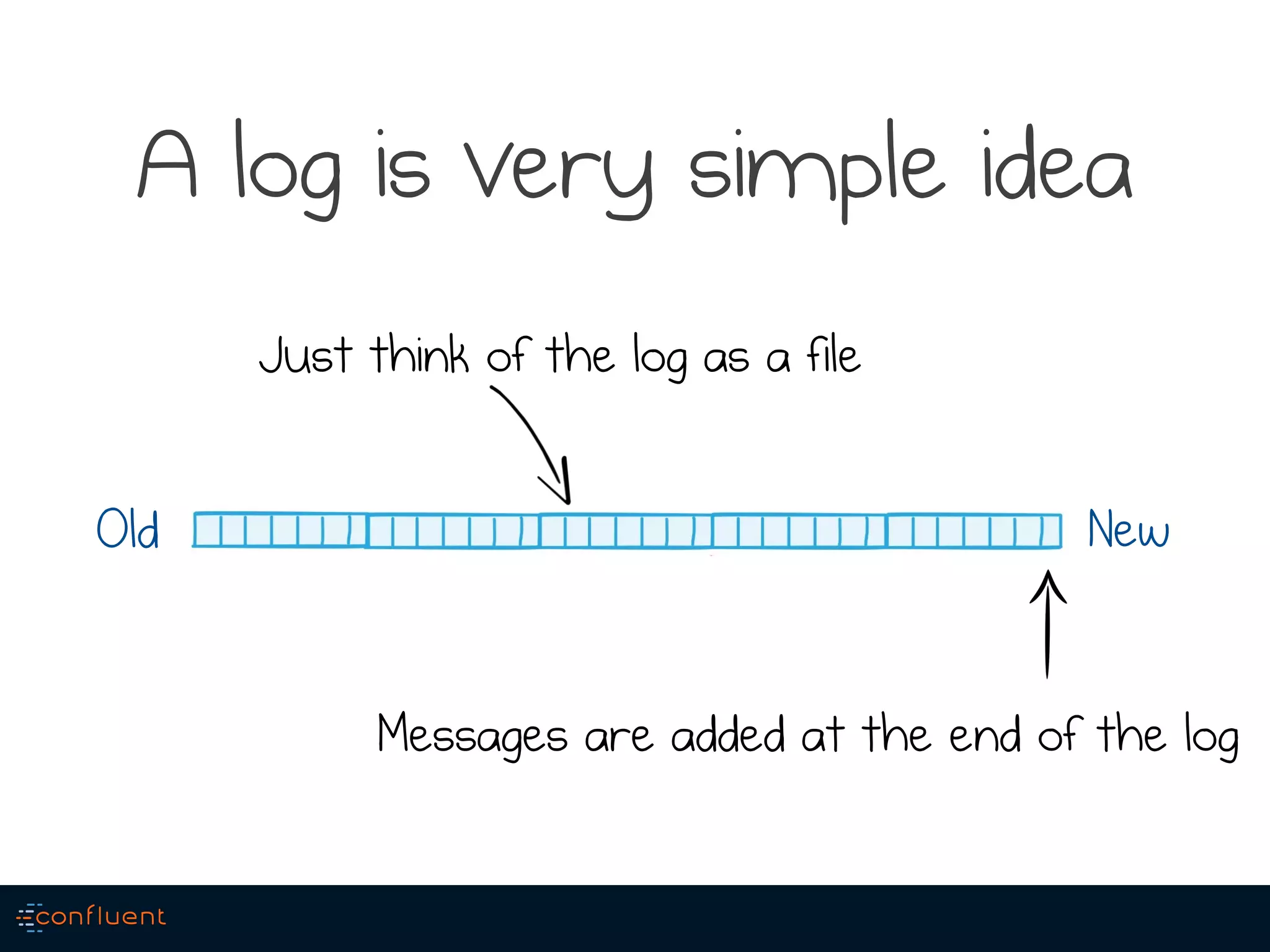

- 25. A log isvery simple idea Messages are added at the end of the log Just think of the log as a file Old New
- 26. Readers have aposition & scan Sally is here George is here Fred is here Old New Scan Scan Scan

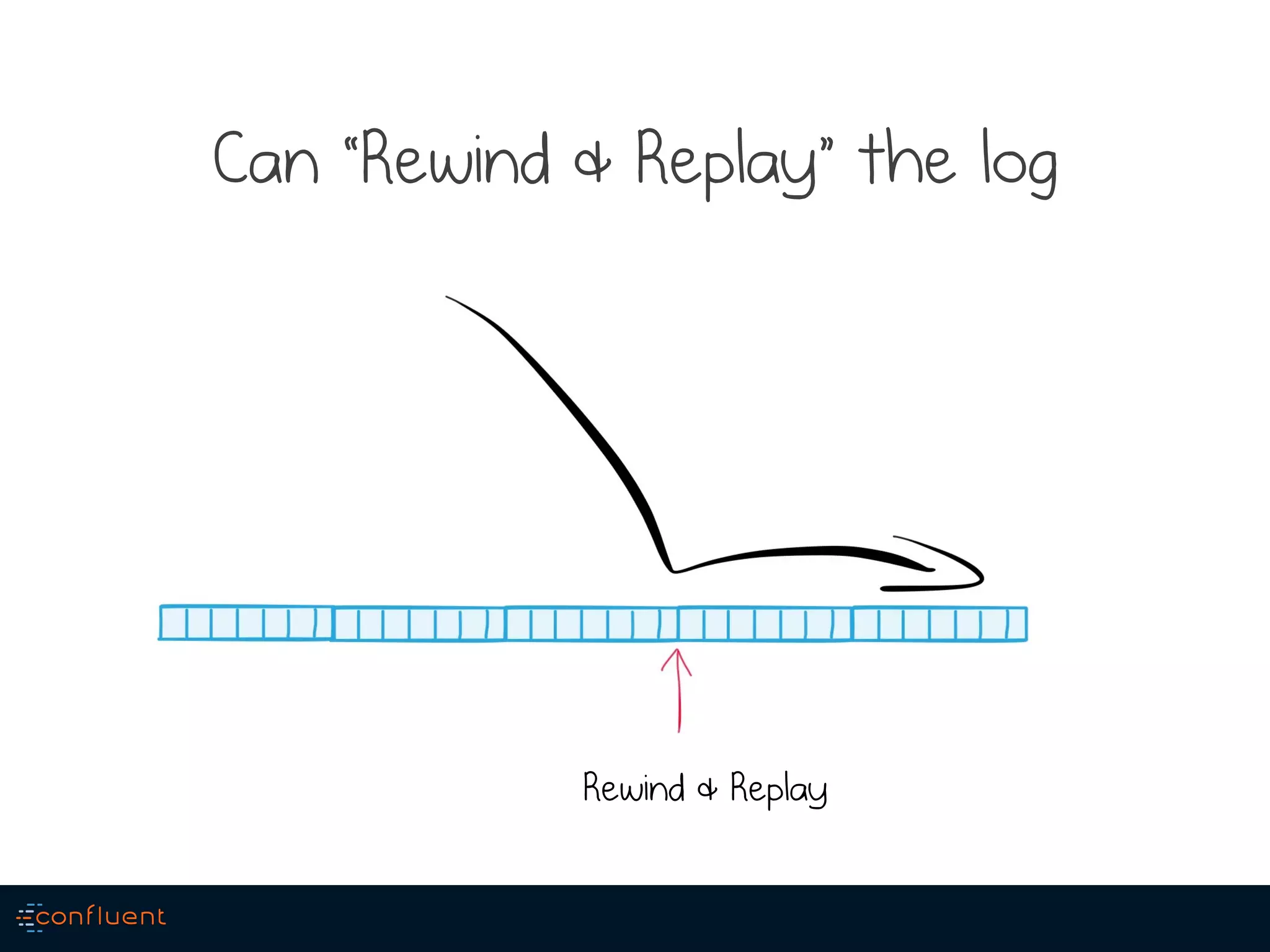

- 27. Can “Rewind &Replay” the log Rewind & Replay

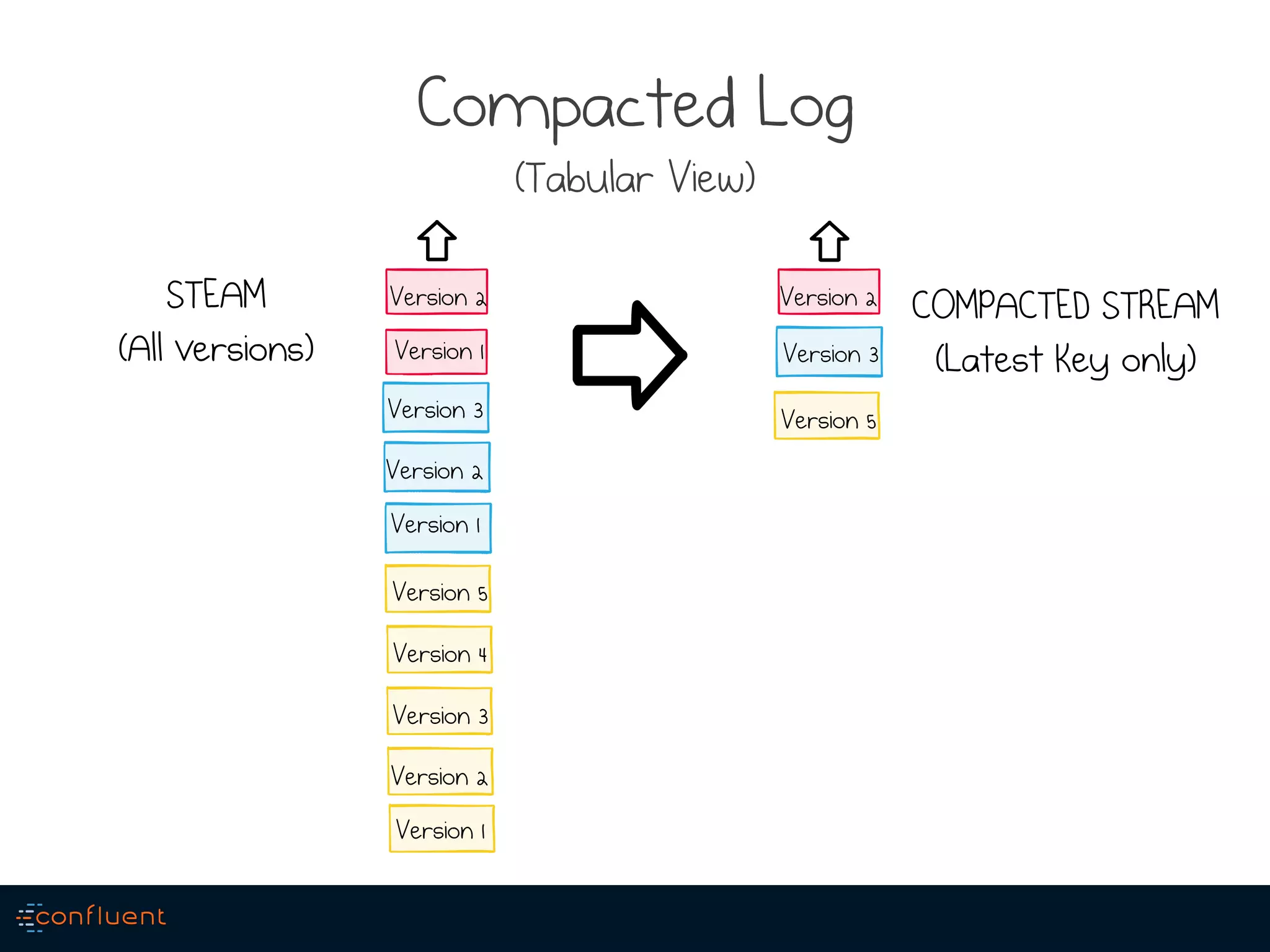

- 28. Compacted Log (Tabular View) Version3 Version 2 Version 1 Version 2 Version 1 Version 5 Version 4 Version 3 Version 2 Version 1 Version 2 Version 3 Version 5 STEAM (All versions) COMPACTED STREAM (Latest Key only)
- 29. The log isa Distributed System For scalability and fault tolerance

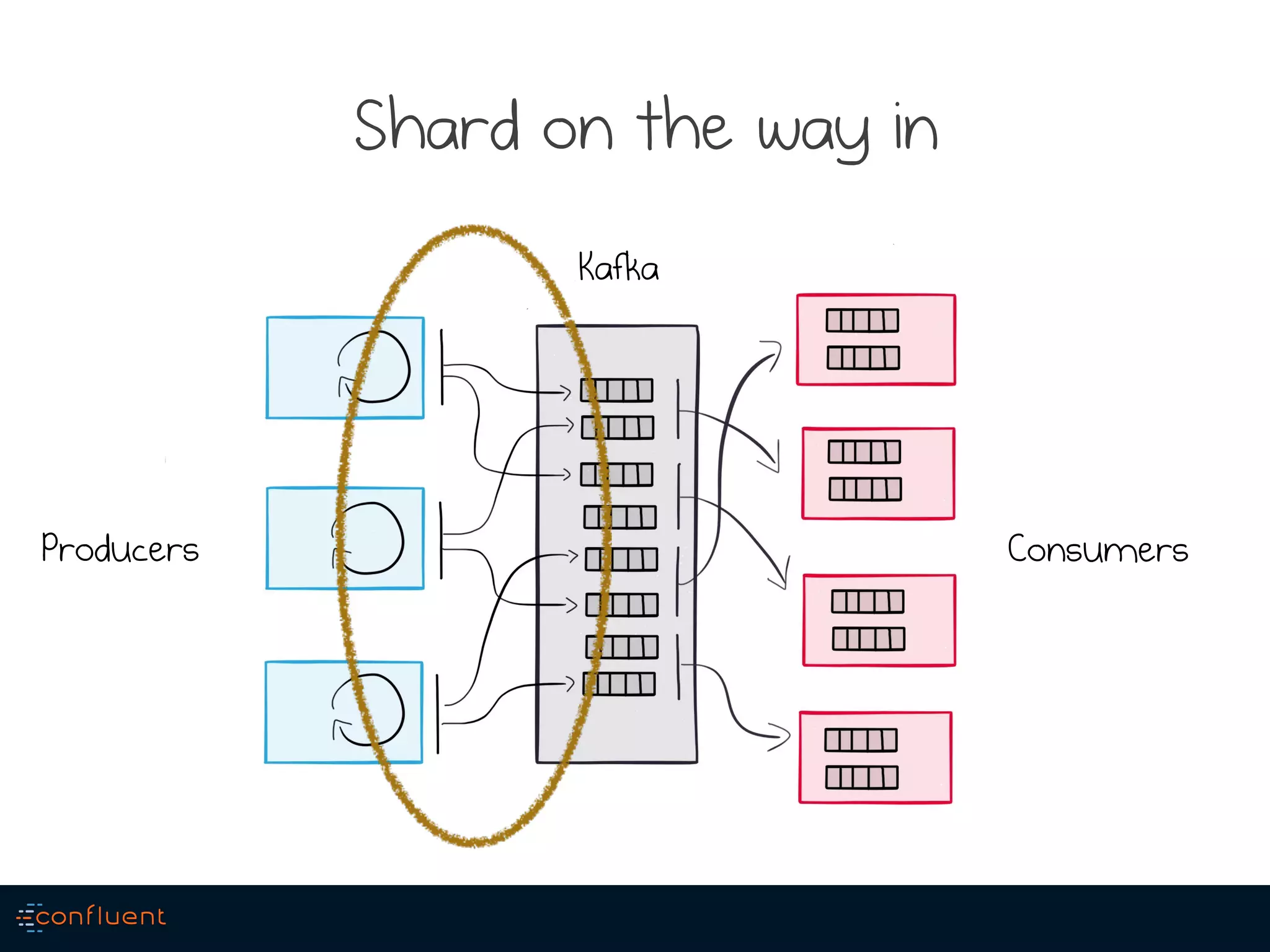

- 30. Shard on theway in Producers Kafka Consumers

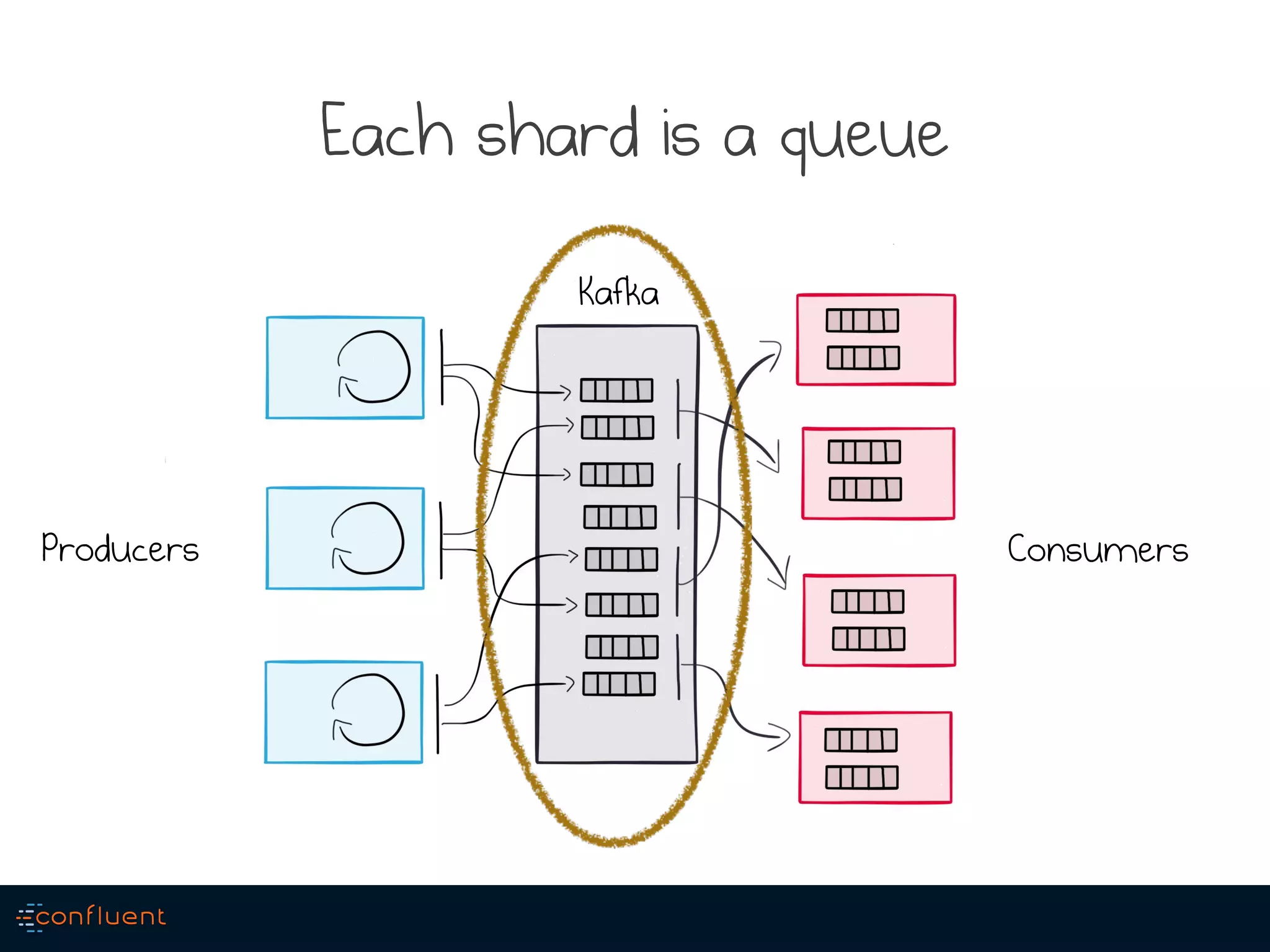

- 31. Each shard isa queue Producers Kafka Consumers

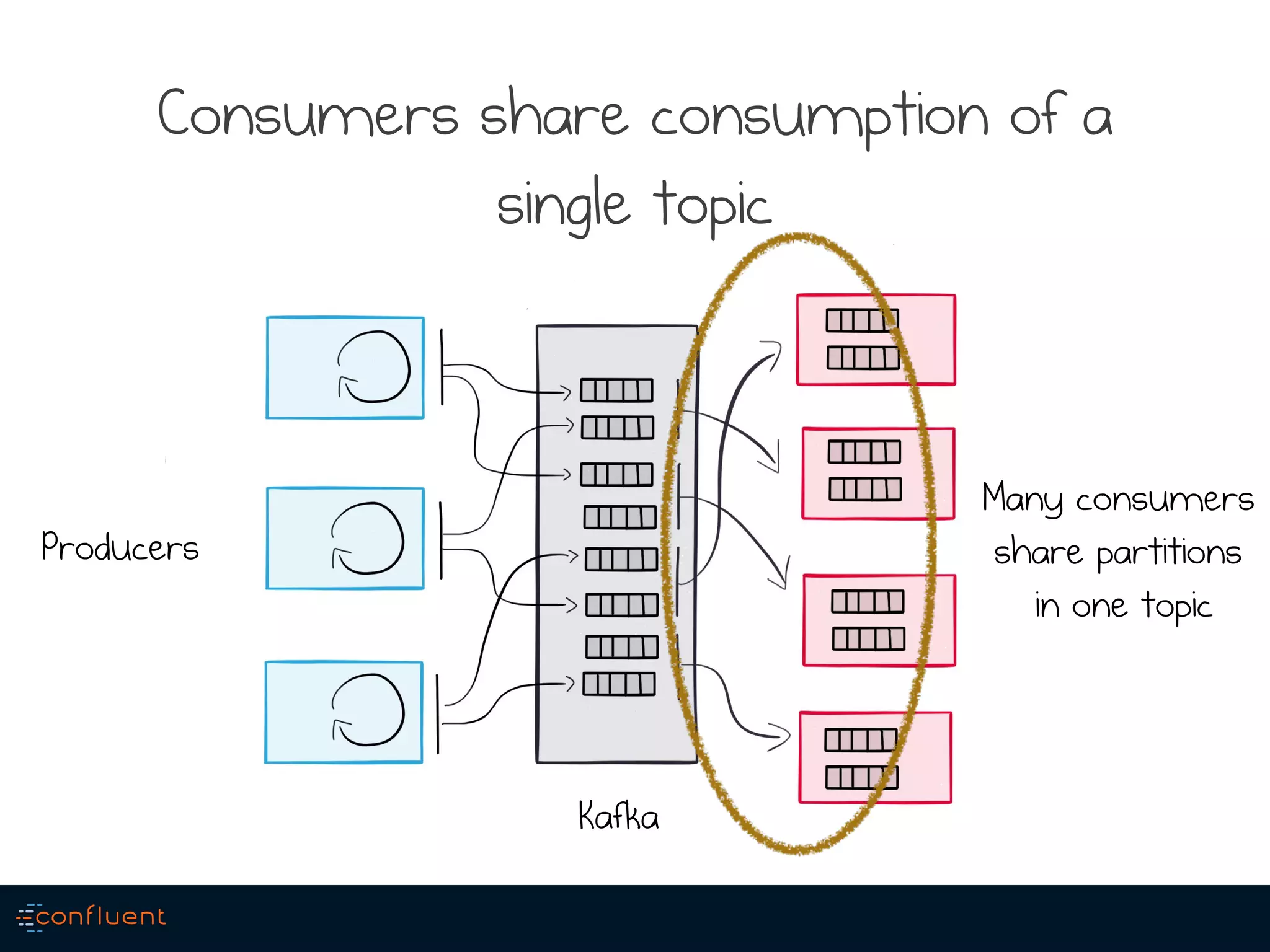

- 32. Producers Kafka Many consumers share partitions inone topic Consumers share consumption of a single topic

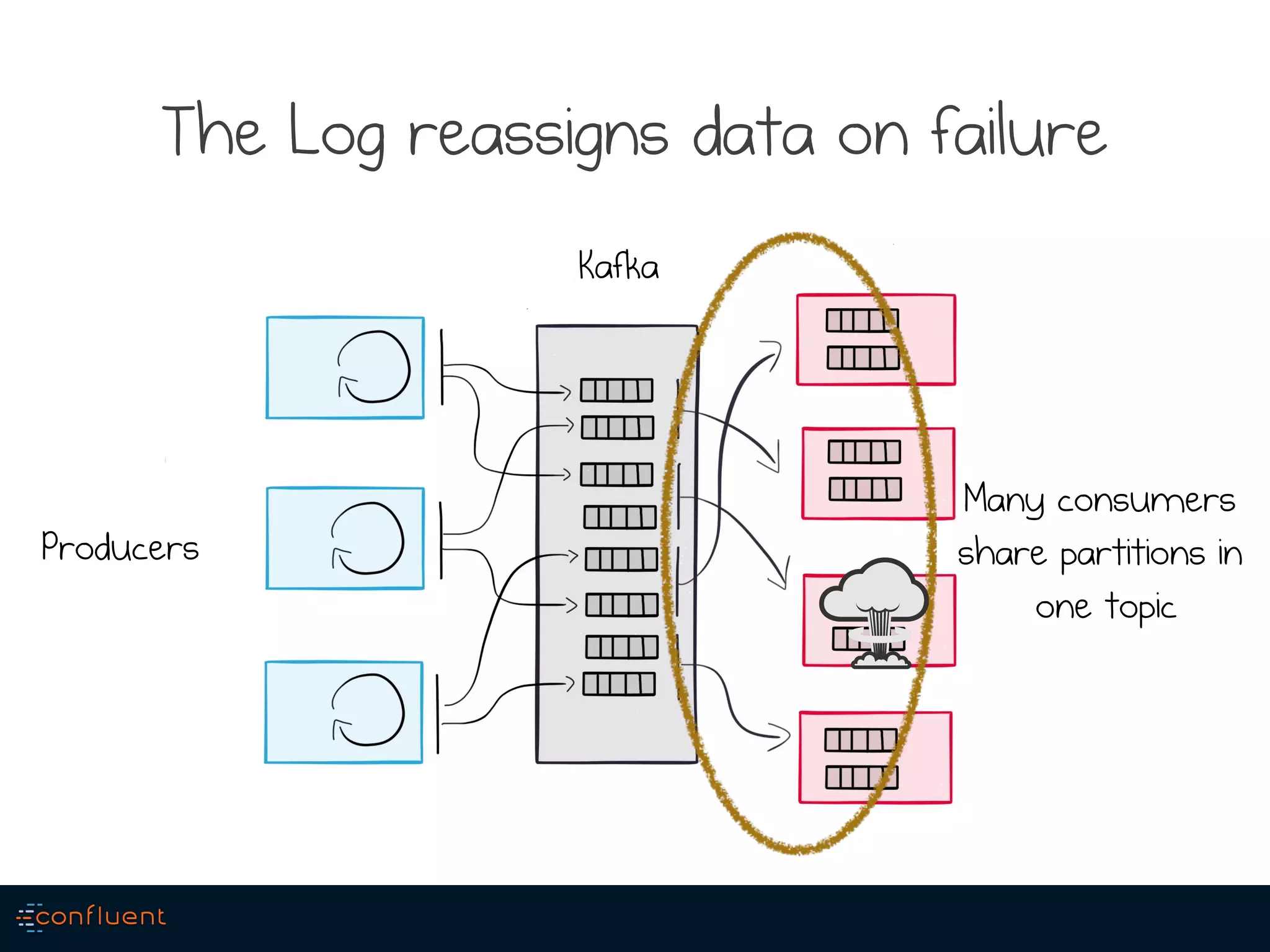

- 33. The Log reassignsdata on failure Producers Kafka Many consumers share partitions in one topic

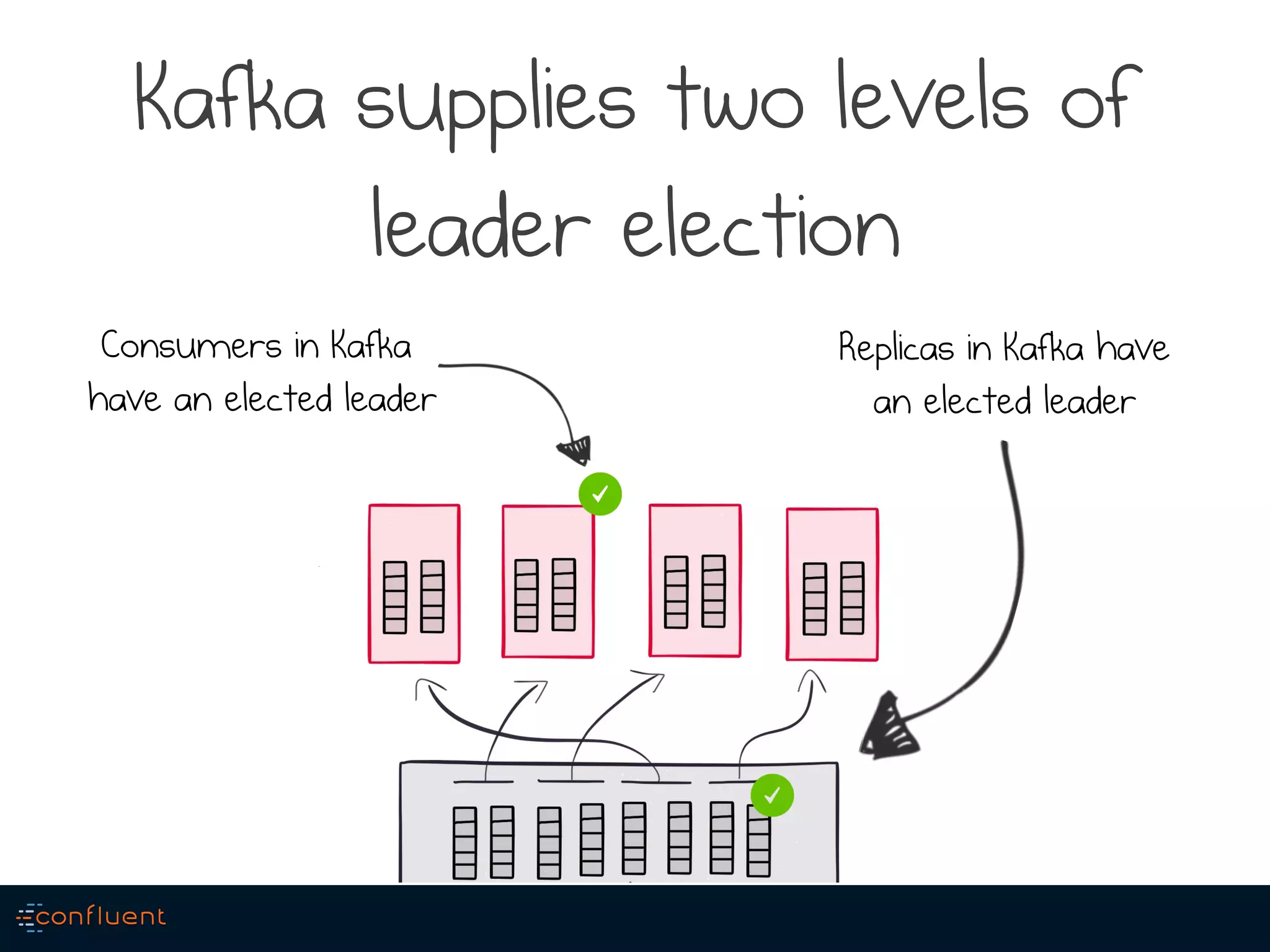

- 34. Kafka supplies twolevels of leader election Replicas in Kafka have an elected leader Consumers in Kafka have an elected leader

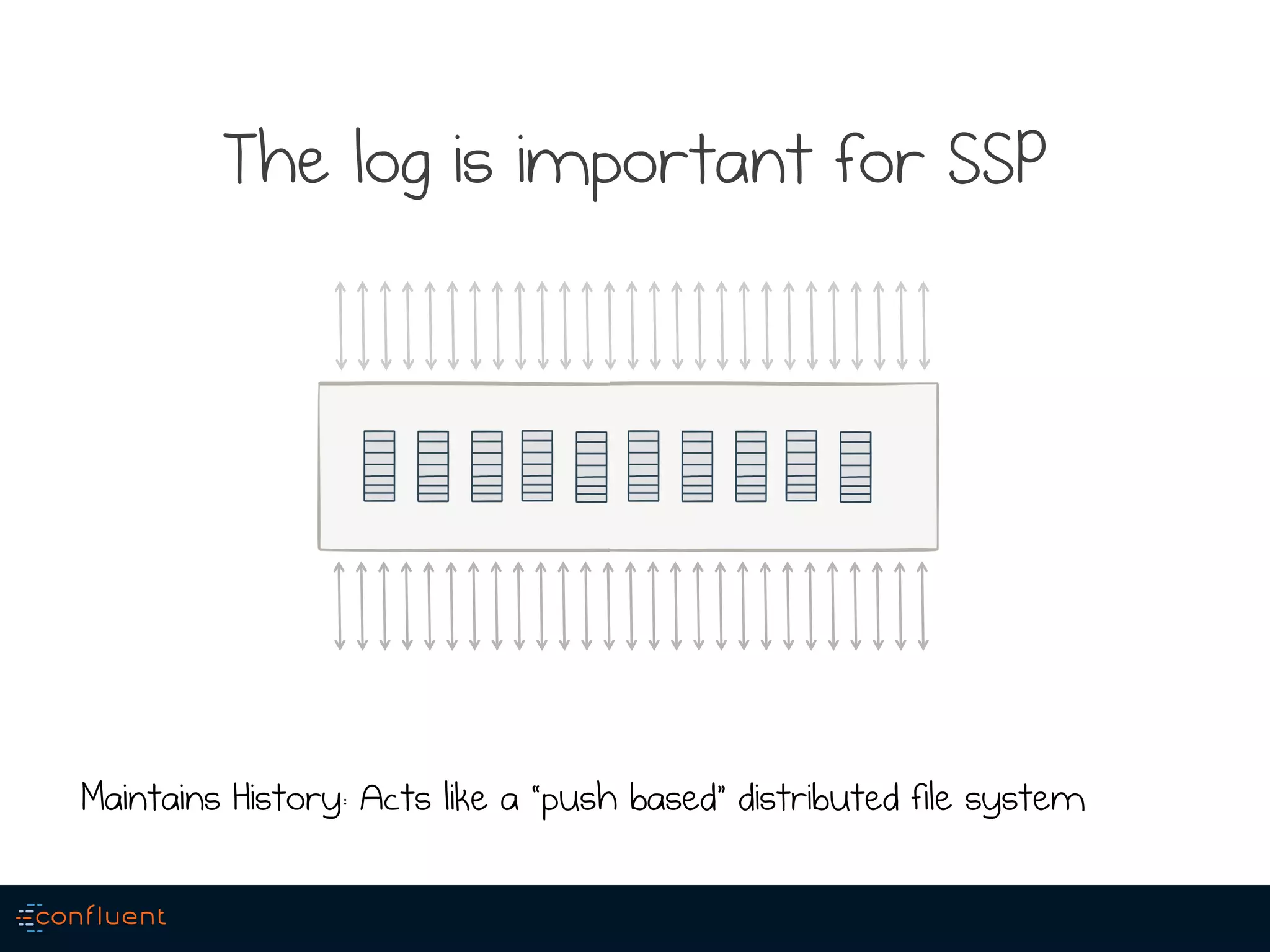

- 35. The log isimportant for SSP Maintains History: Acts like a “push based” distributed file system

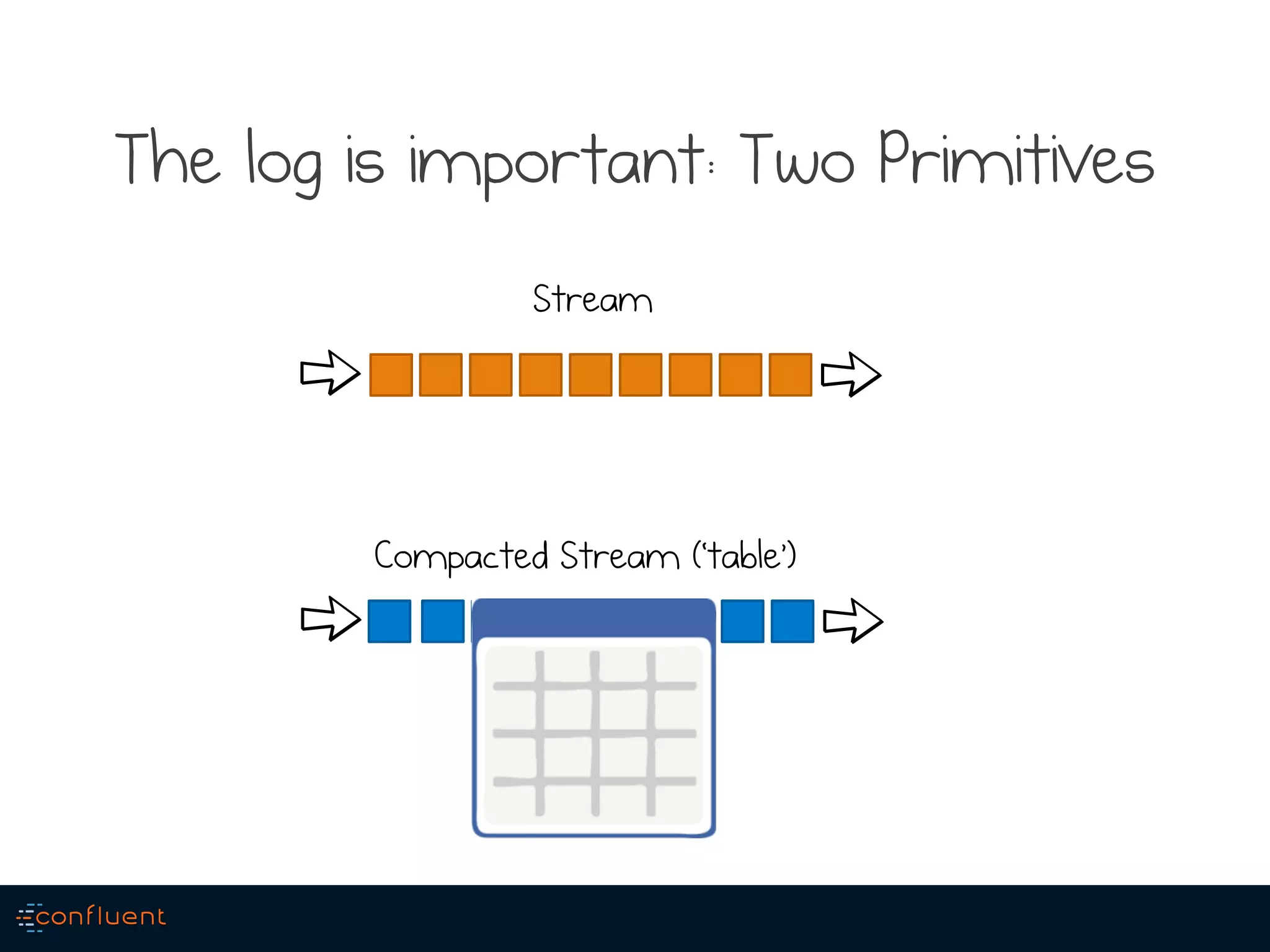

- 36. The log isimportant: Two Primitives Stream Compacted Stream (‘table’)

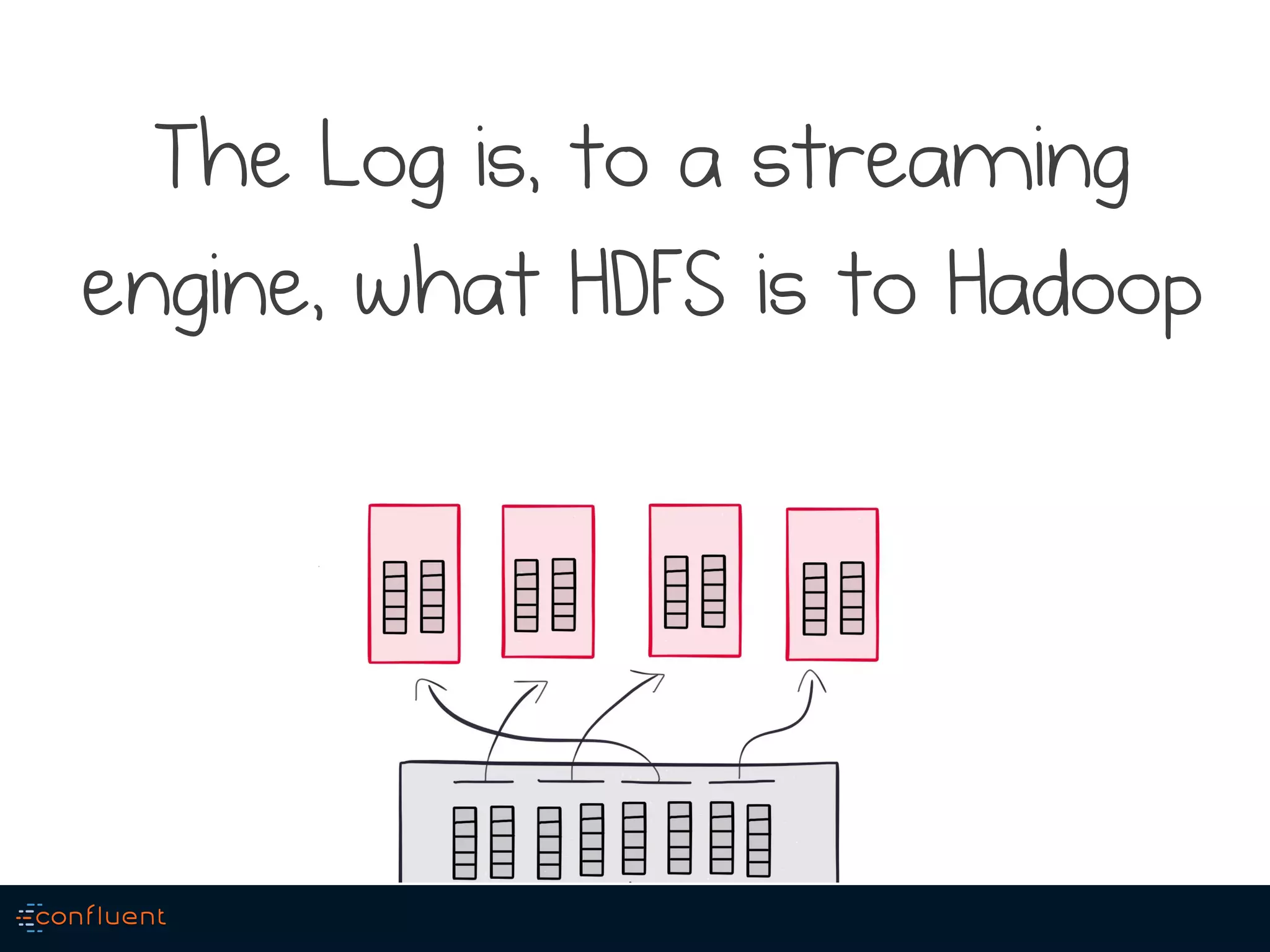

- 37. The Log is,to a streaming engine, what HDFS is to Hadoop

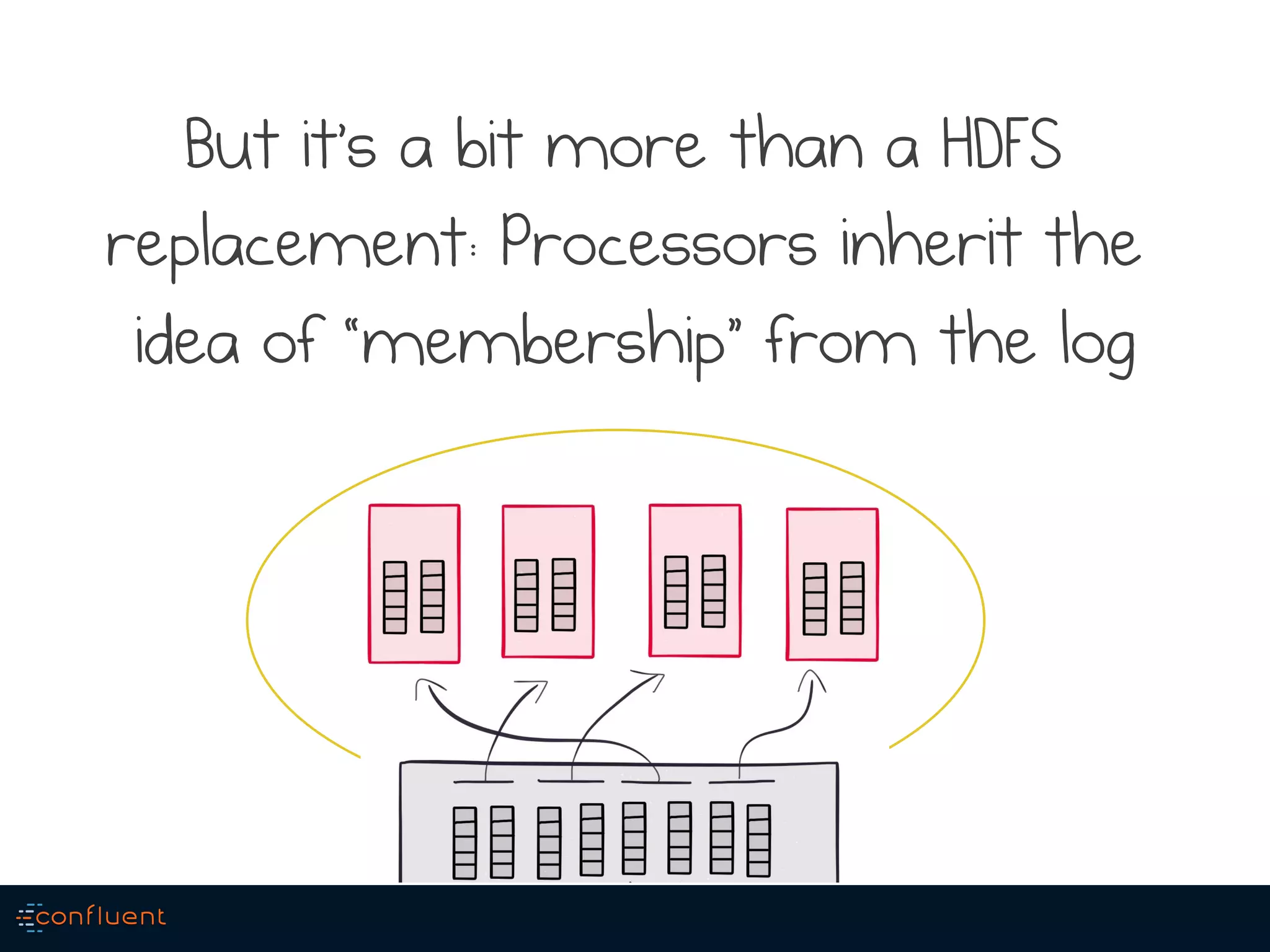

- 38. But it’s abit more than a HDFS replacement: Processors inherit the idea of “membership” from the log

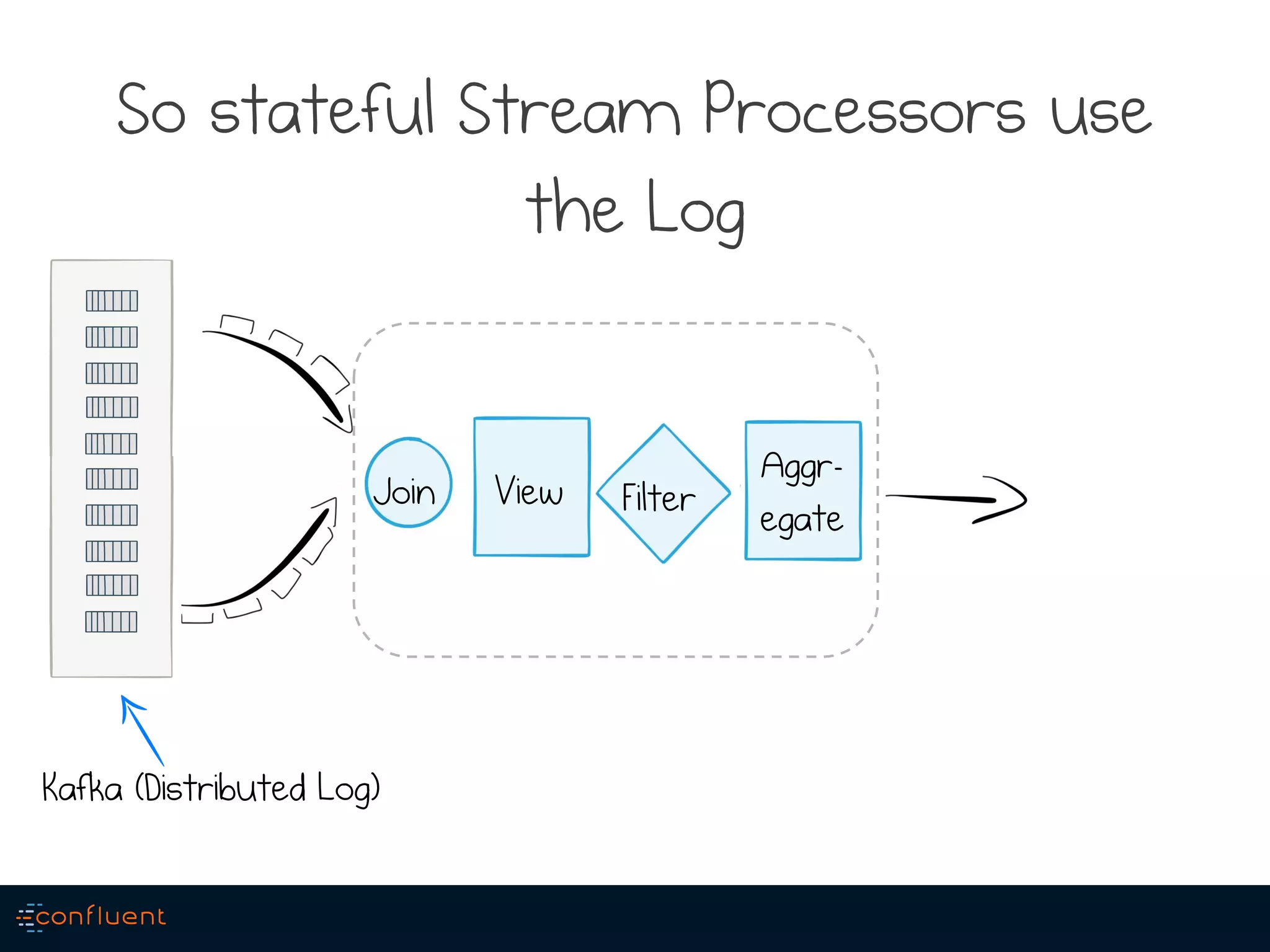

- 39. So stateful StreamProcessors use the Log Join Filter Aggr- egate View Kafka (Distributed Log)

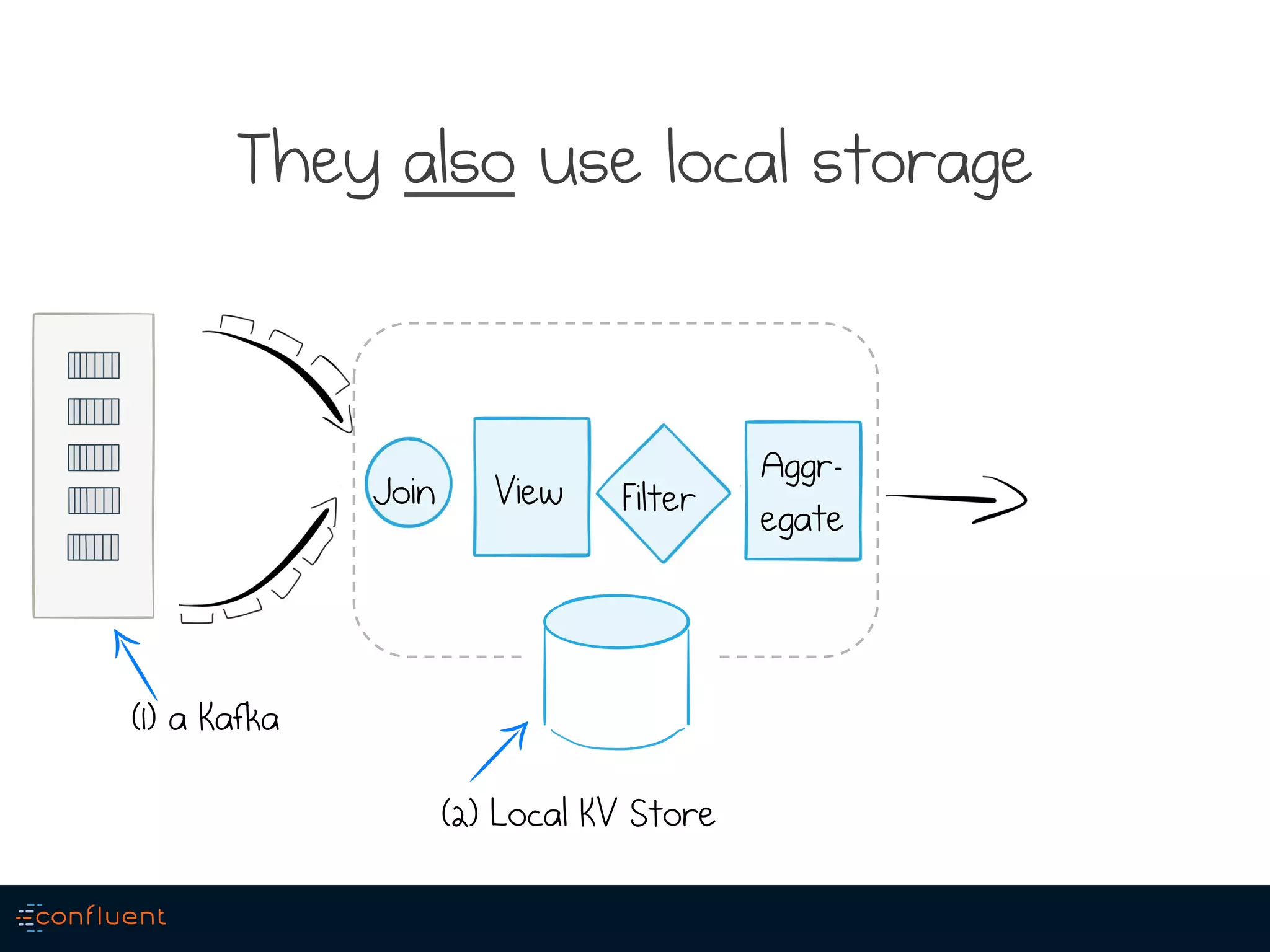

- 40. They also uselocal storage Join Filter Aggr- egate View (1) a Kafka (2) Local KV Store

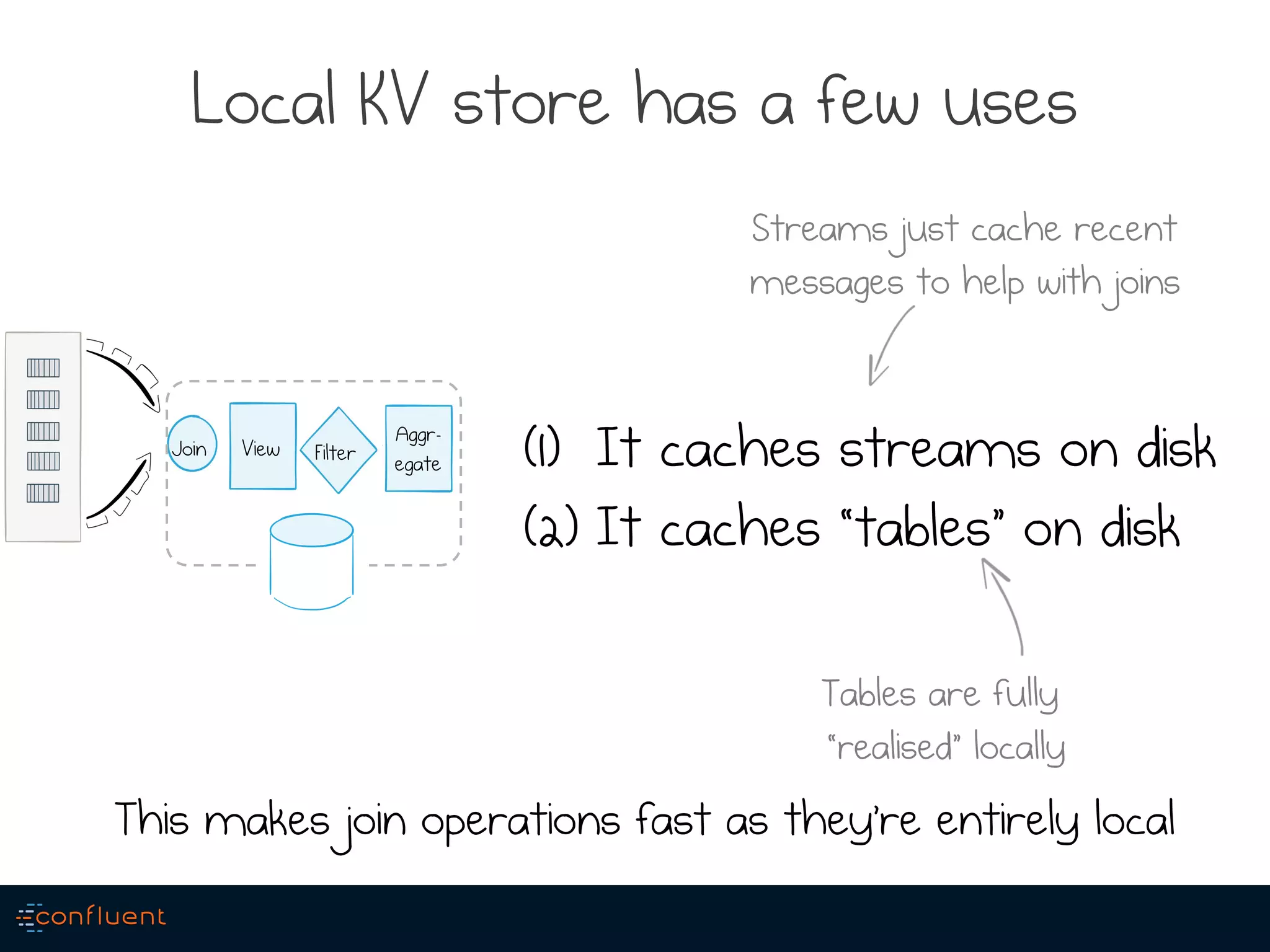

- 41. Local KV storehas a few uses (1) It caches streams on disk (2) It caches “tables” on disk Join Filter Aggr- egate View This makes join operations fast as they’re entirely local Streams just cache recent messages to help with joins Tables are fully “realised” locally

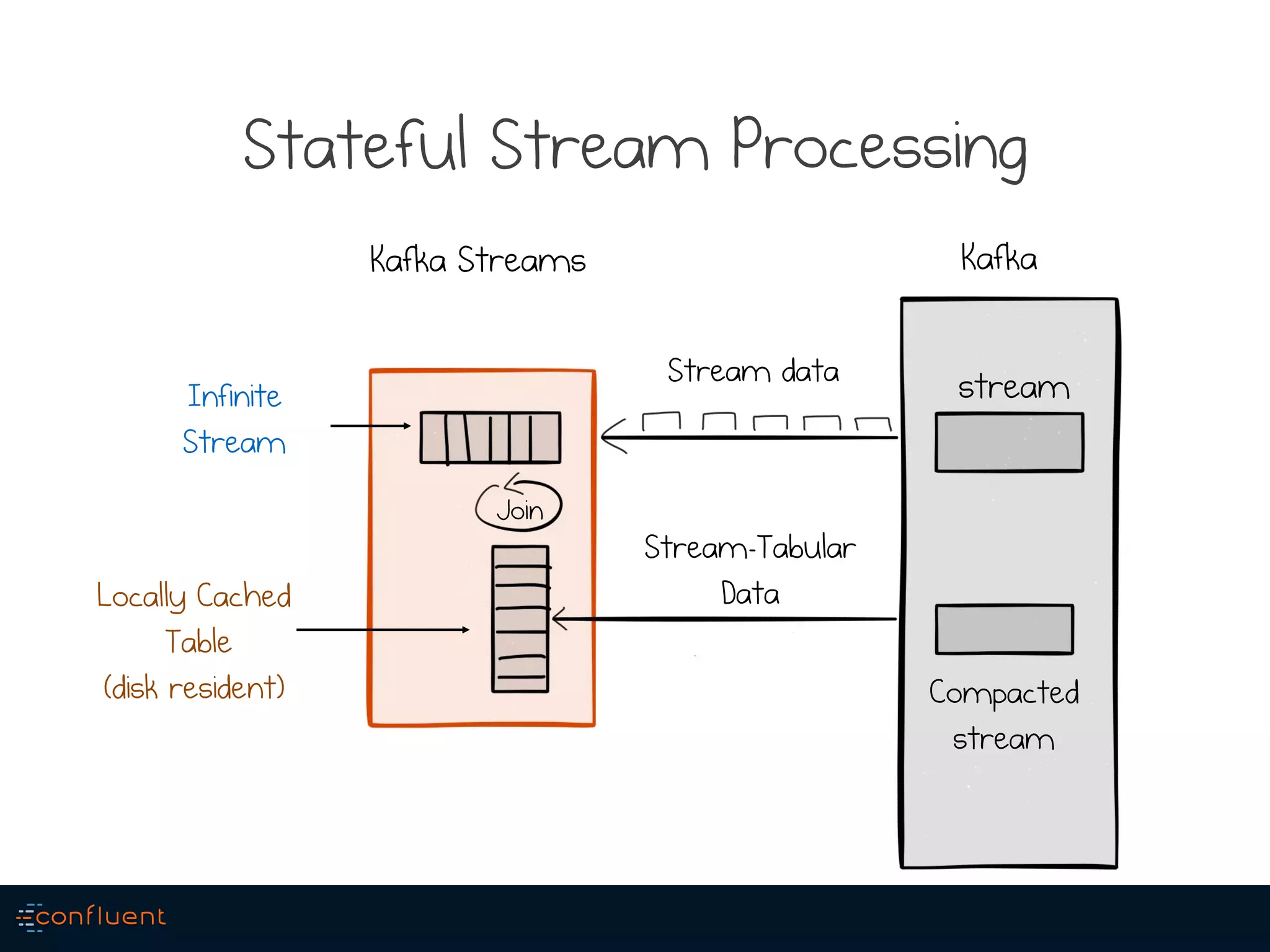

- 42. Stateful Stream Processing stream Compacted stream Join Streamdata Stream-Tabular Data Infinite Stream Locally Cached Table (disk resident) KafkaKafka Streams

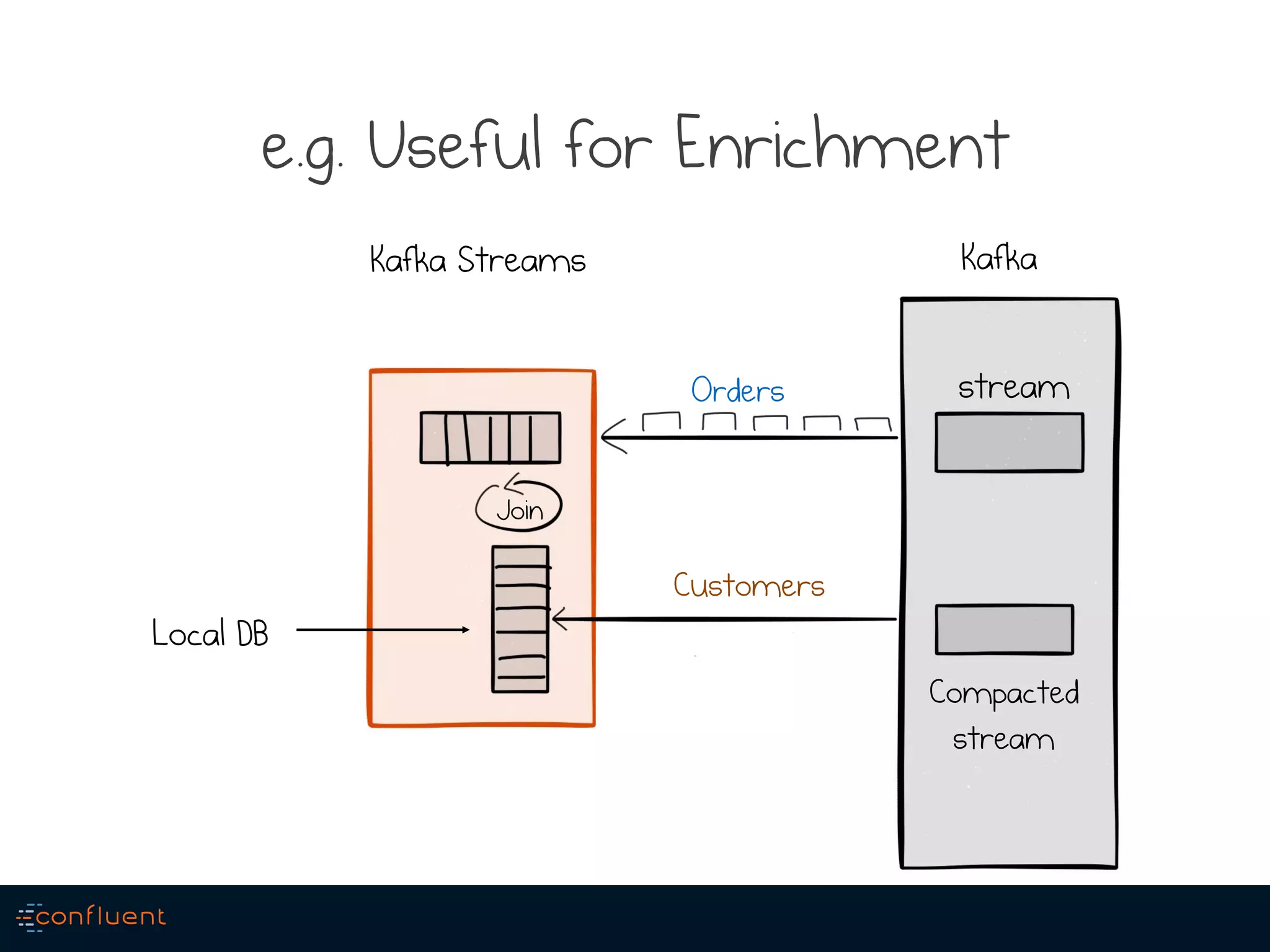

- 43. e.g. Useful forEnrichment stream Compacted stream Join Orders Customers KafkaKafka Streams Local DB

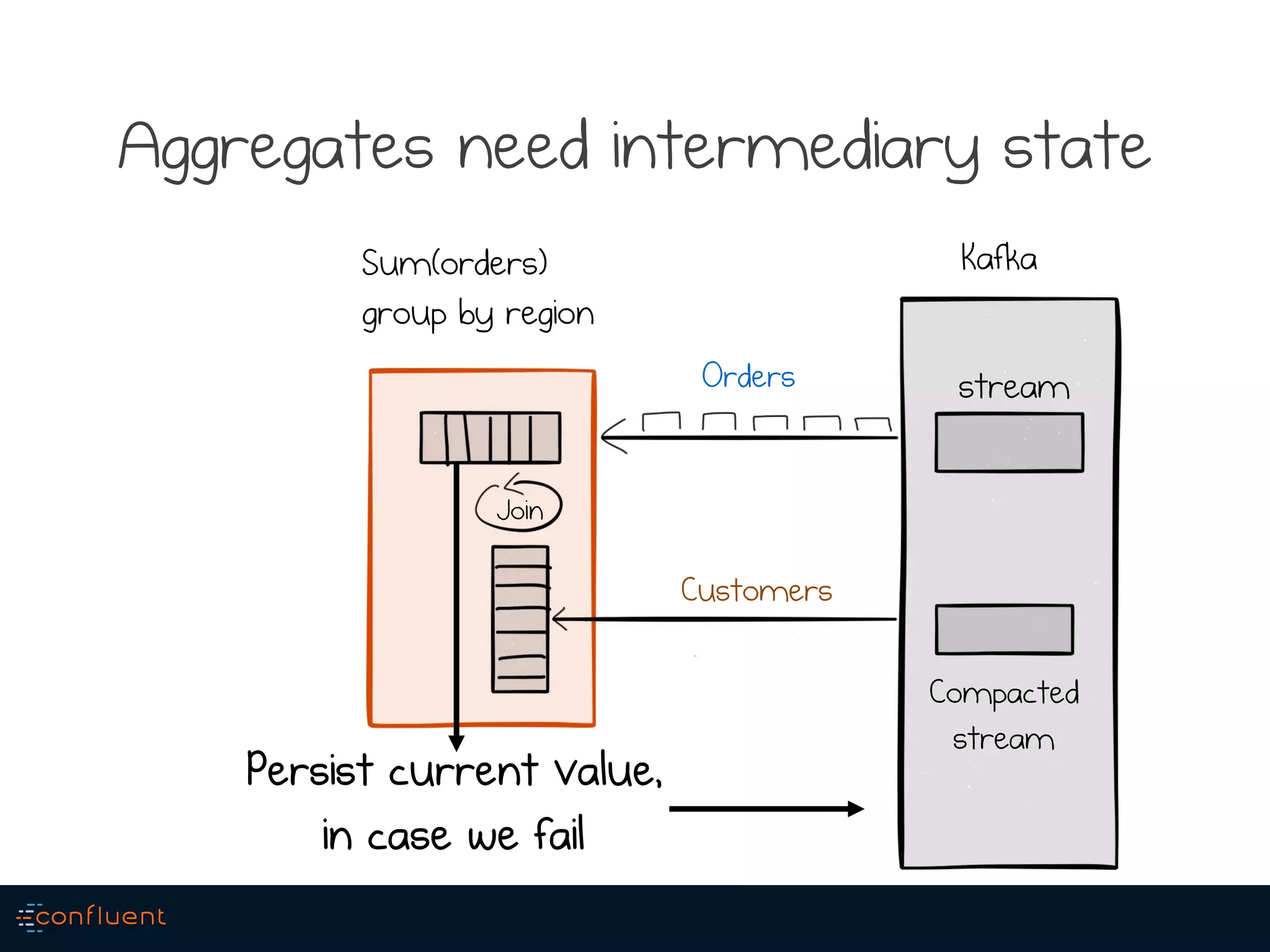

- 44. Aggregates need intermediarystate stream Compacted stream Join Orders Customers KafkaSum(orders) group by region Persist current value, in case we fail

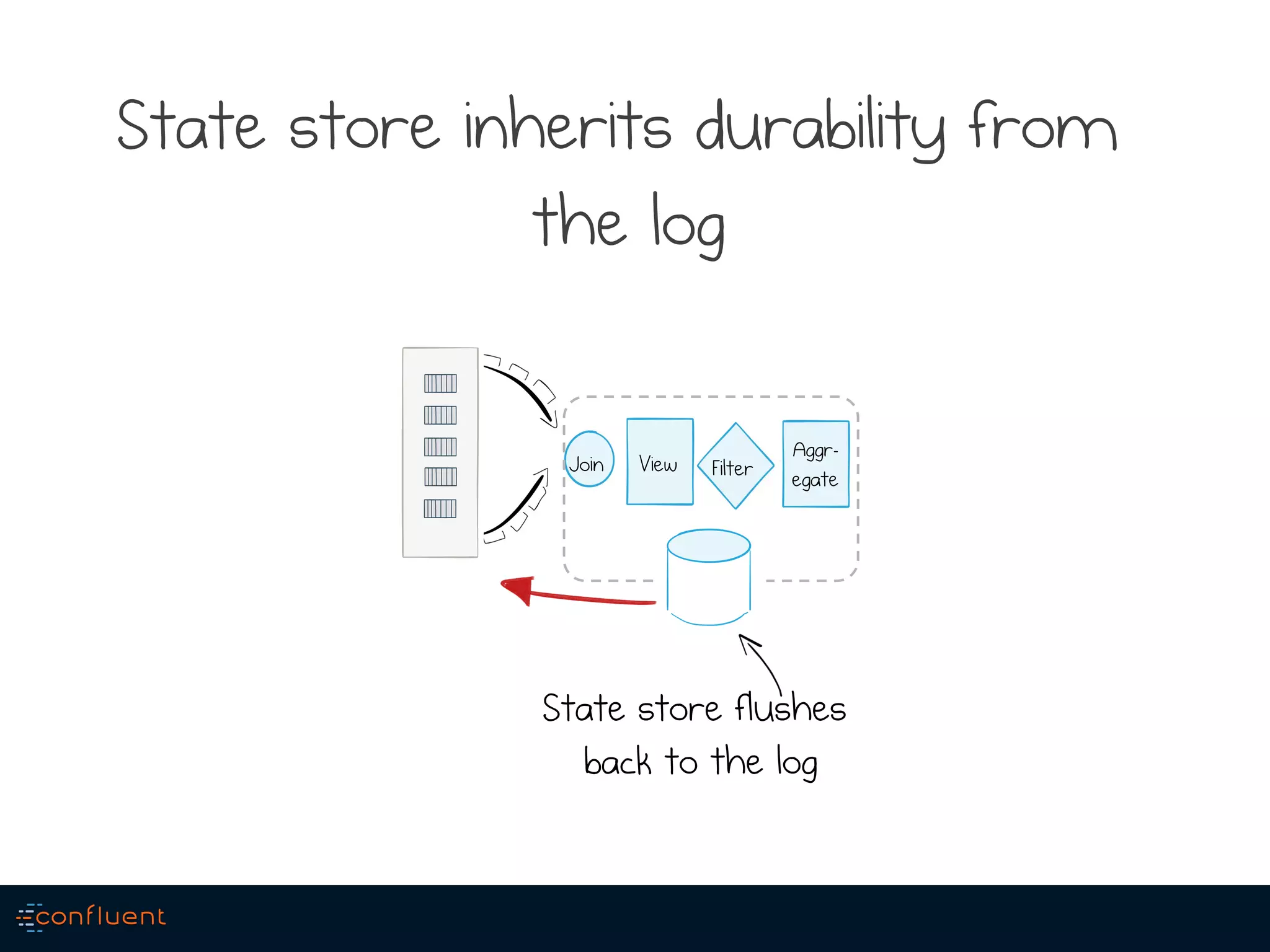

- 45. State store inheritsdurability from the log State store flushes back to the log Join Filter Aggr- egate View

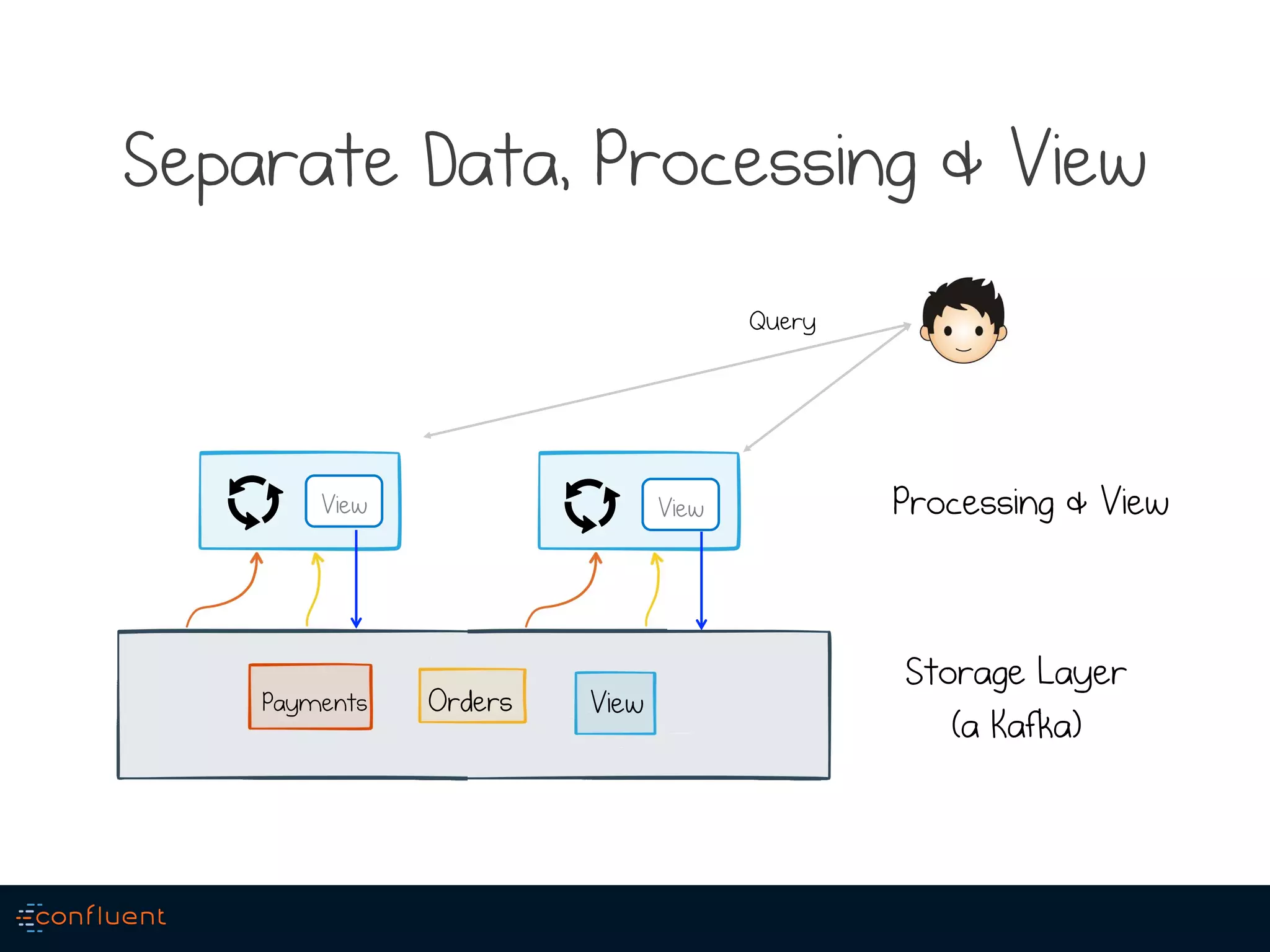

- 46. Separate Data, Processing& View View OrdersPayments View View Storage Layer (a Kafka) Processing & View Query

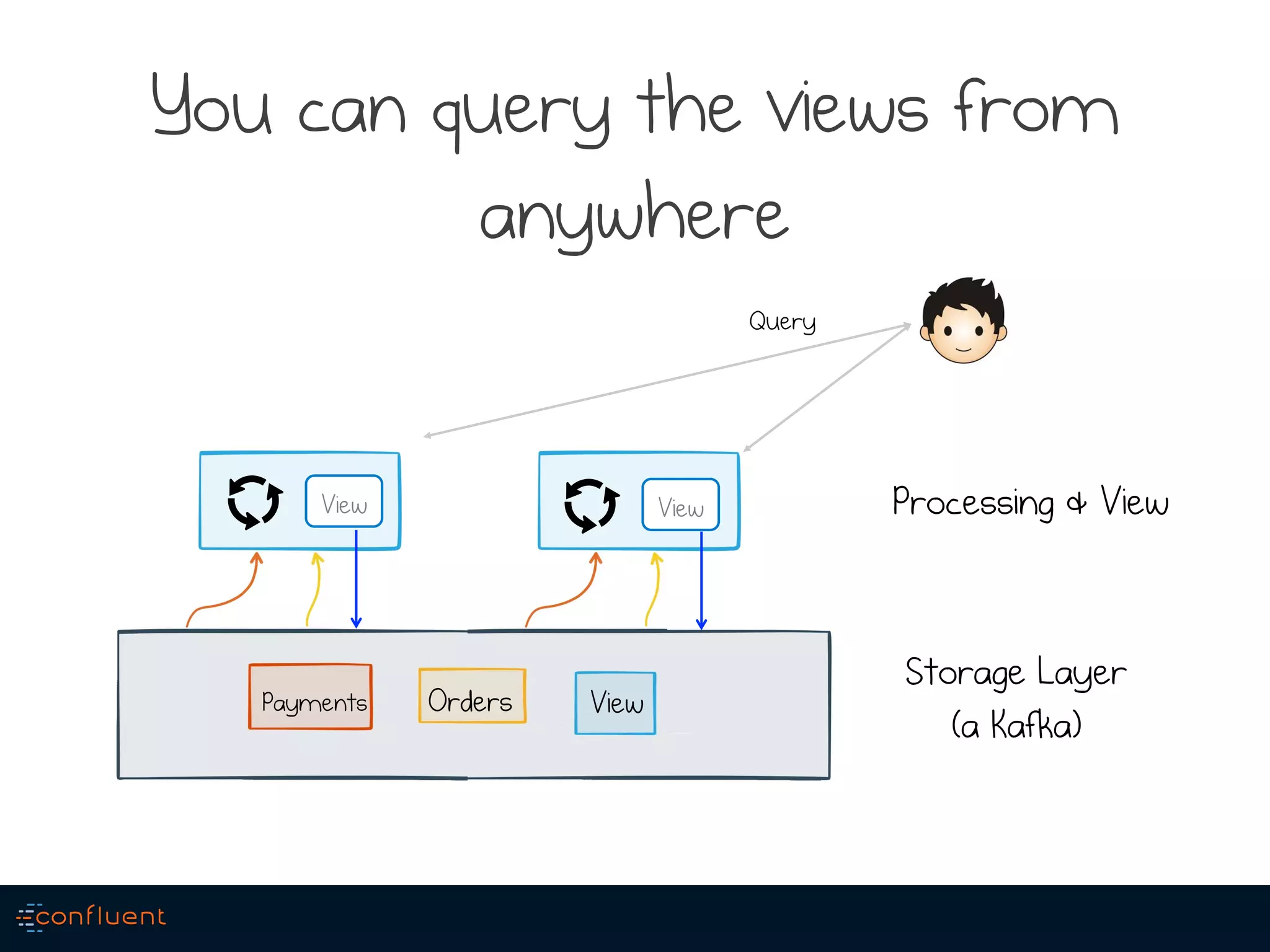

- 47. You can querythe views from anywhere View OrdersPayments View View Storage Layer (a Kafka) Processing & View Query

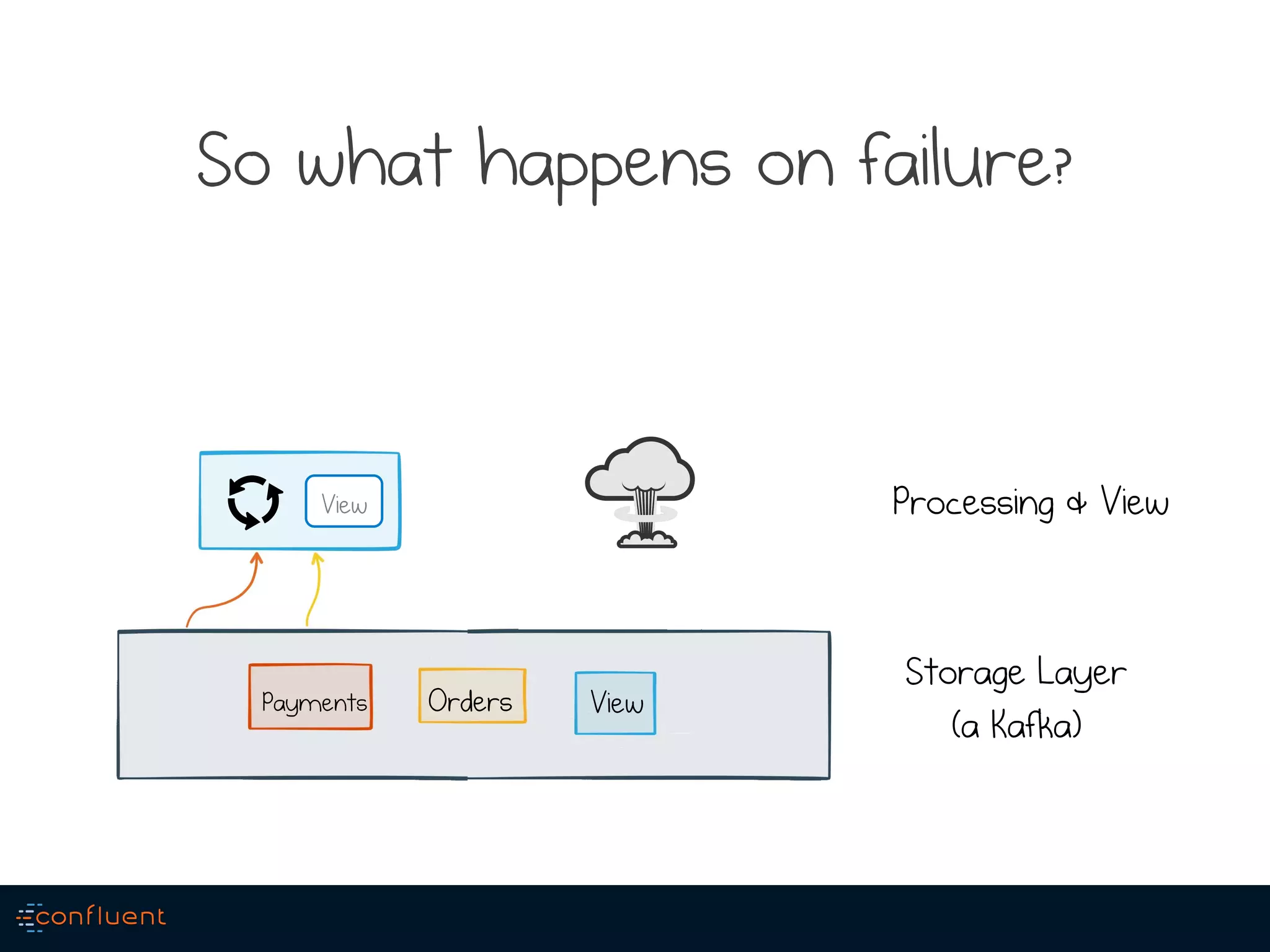

- 48. So what happenson failure? View OrdersPayments View View Storage Layer (a Kafka) Processing & View

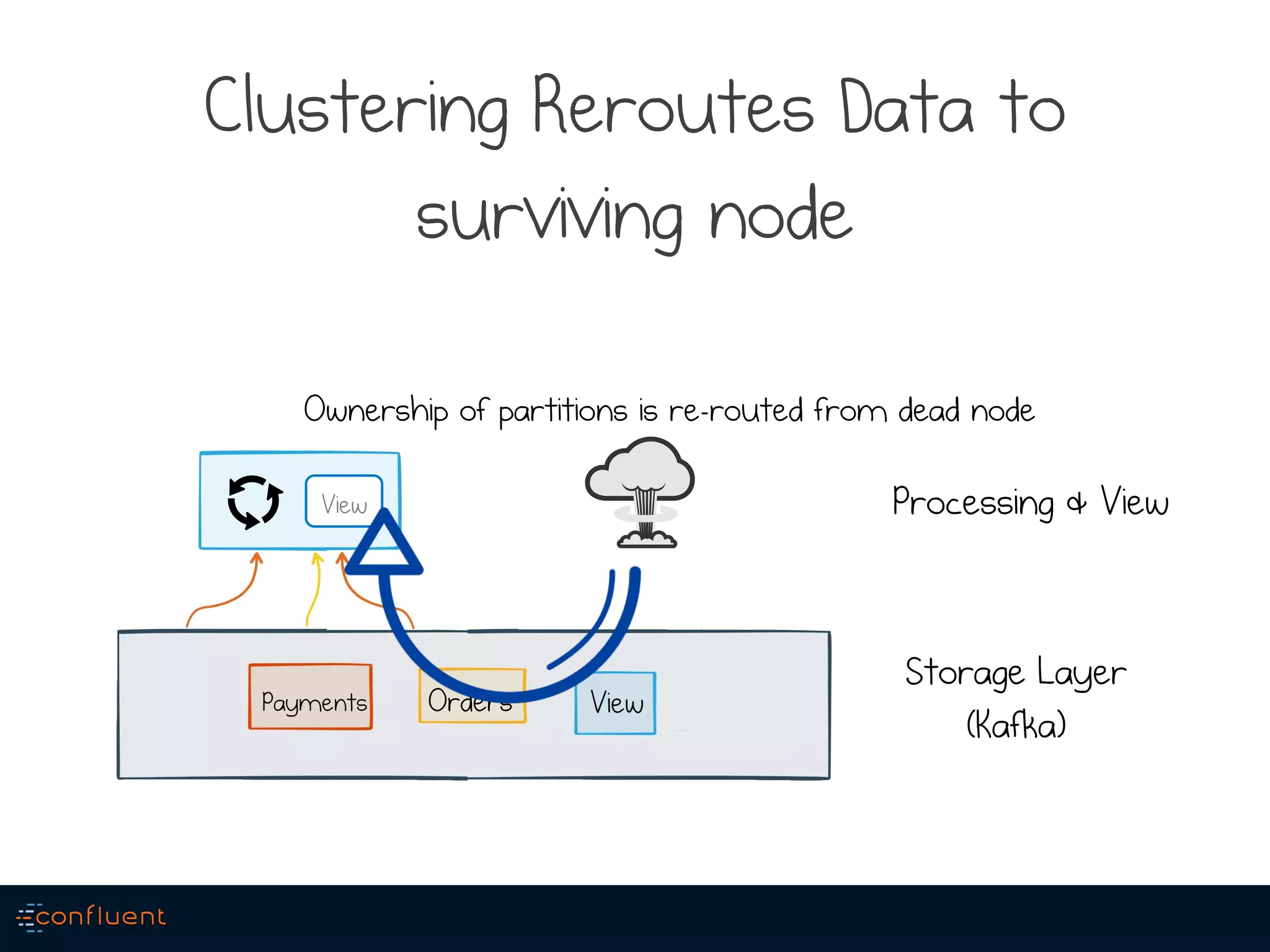

- 49. Clustering Reroutes Datato surviving node View OrdersPayments View View Storage Layer (Kafka) Ownership of partitions is re-routed from dead node Processing & View

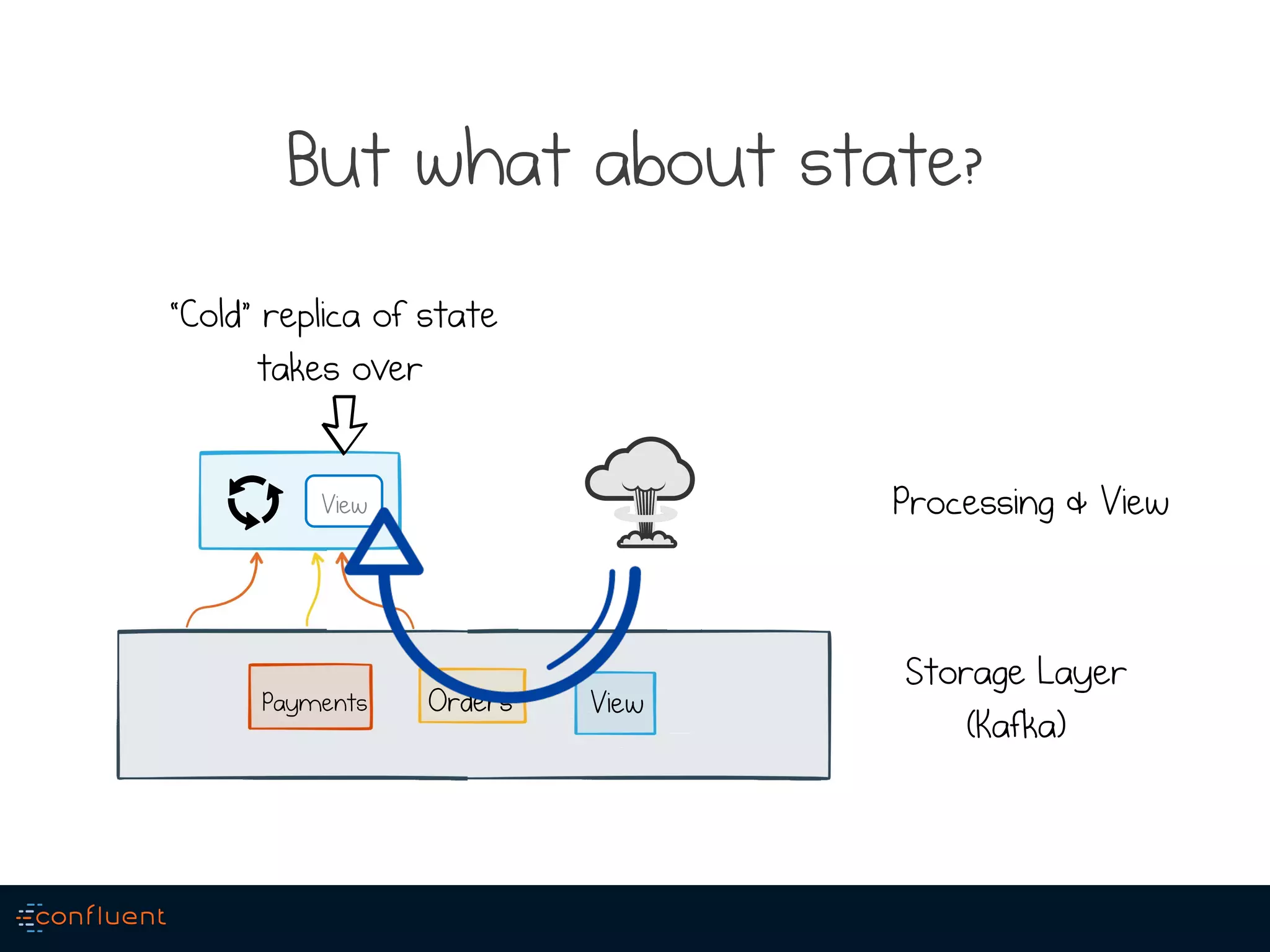

- 50. But what aboutstate? View OrdersPayments View View Storage Layer (Kafka) “Cold” replica of state takes over Processing & View

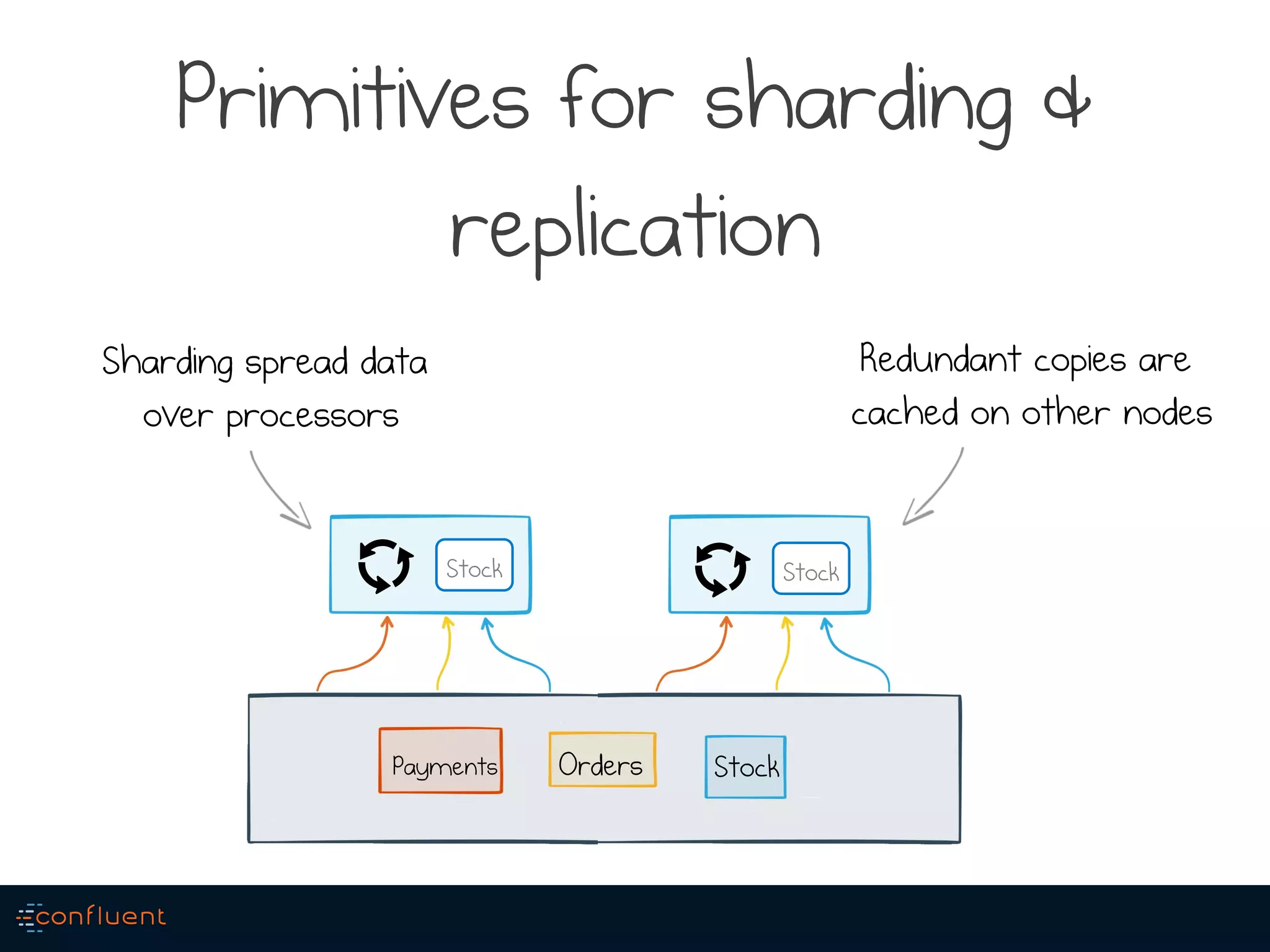

- 51. Primitives for sharding& replication Stock OrdersPayments Stock Stock Redundant copies are cached on other nodes Sharding spread data over processors

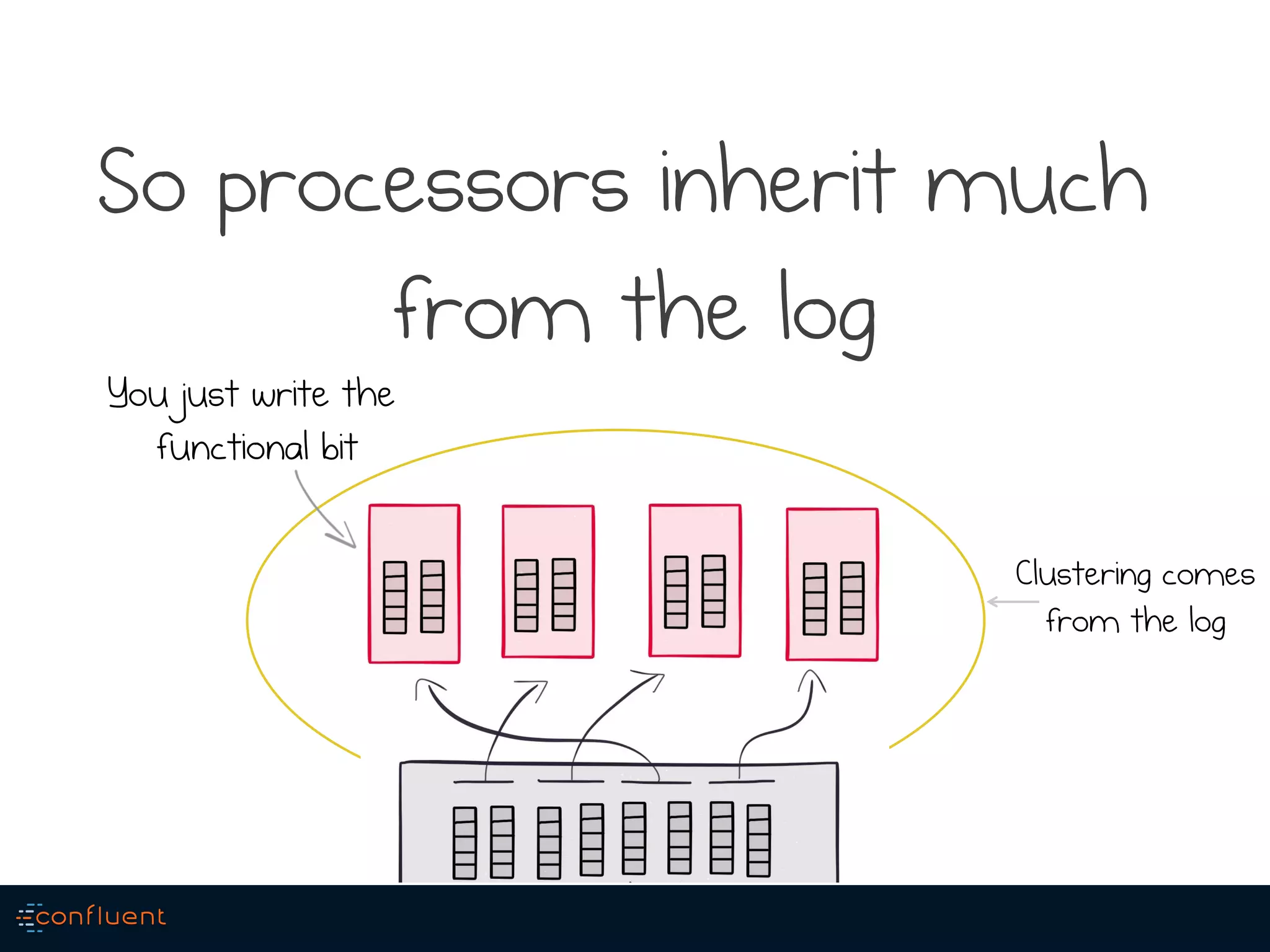

- 52. So processors inheritmuch from the log Clustering comes from the log You just write the functional bit

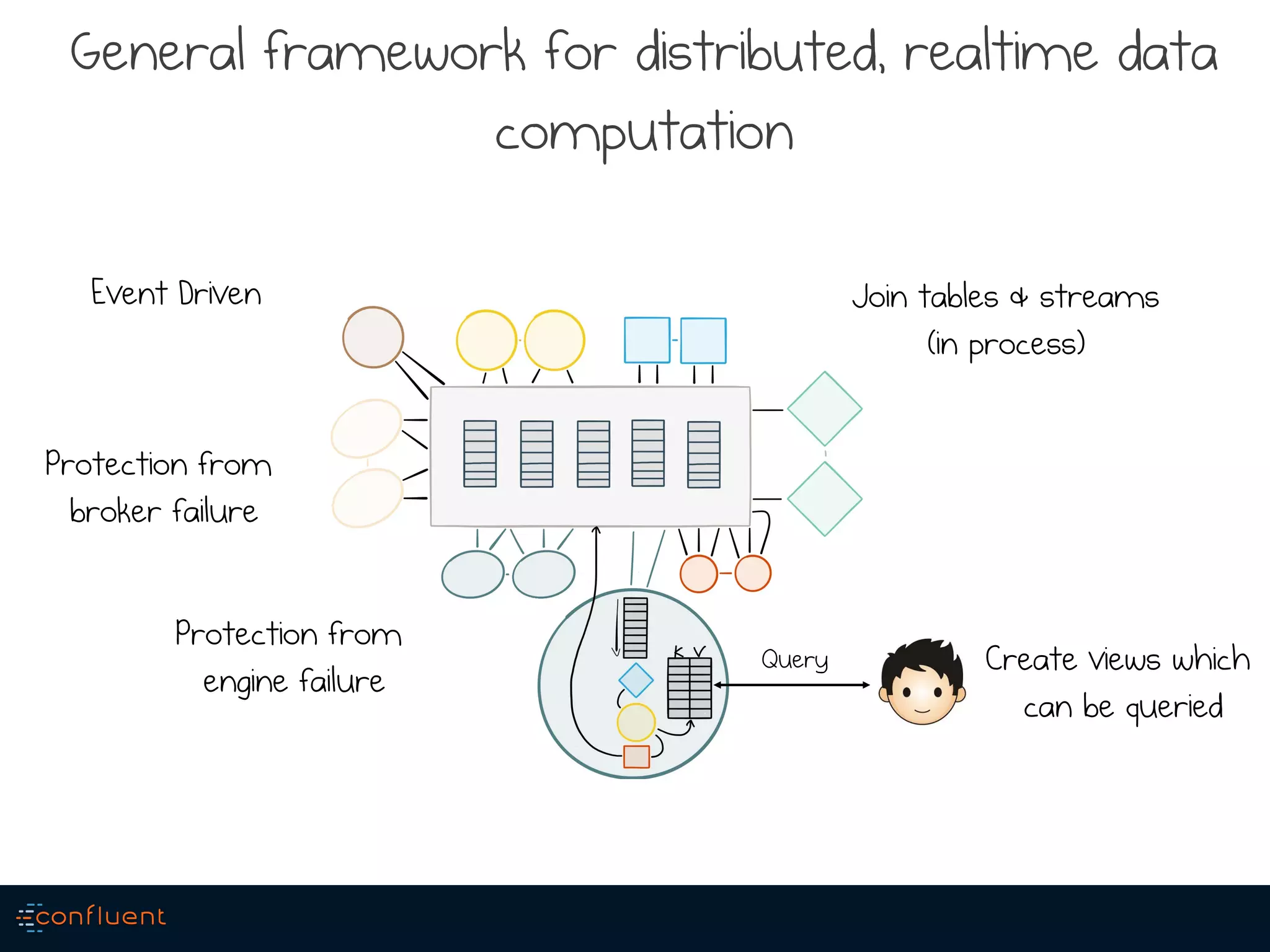

- 53. General framework fordistributed, realtime data computation Protection from broker failure Protection from engine failure Join tables & streams (in process) Event Driven Create views which can be queried Query
- 54. But stream processing hasa problem

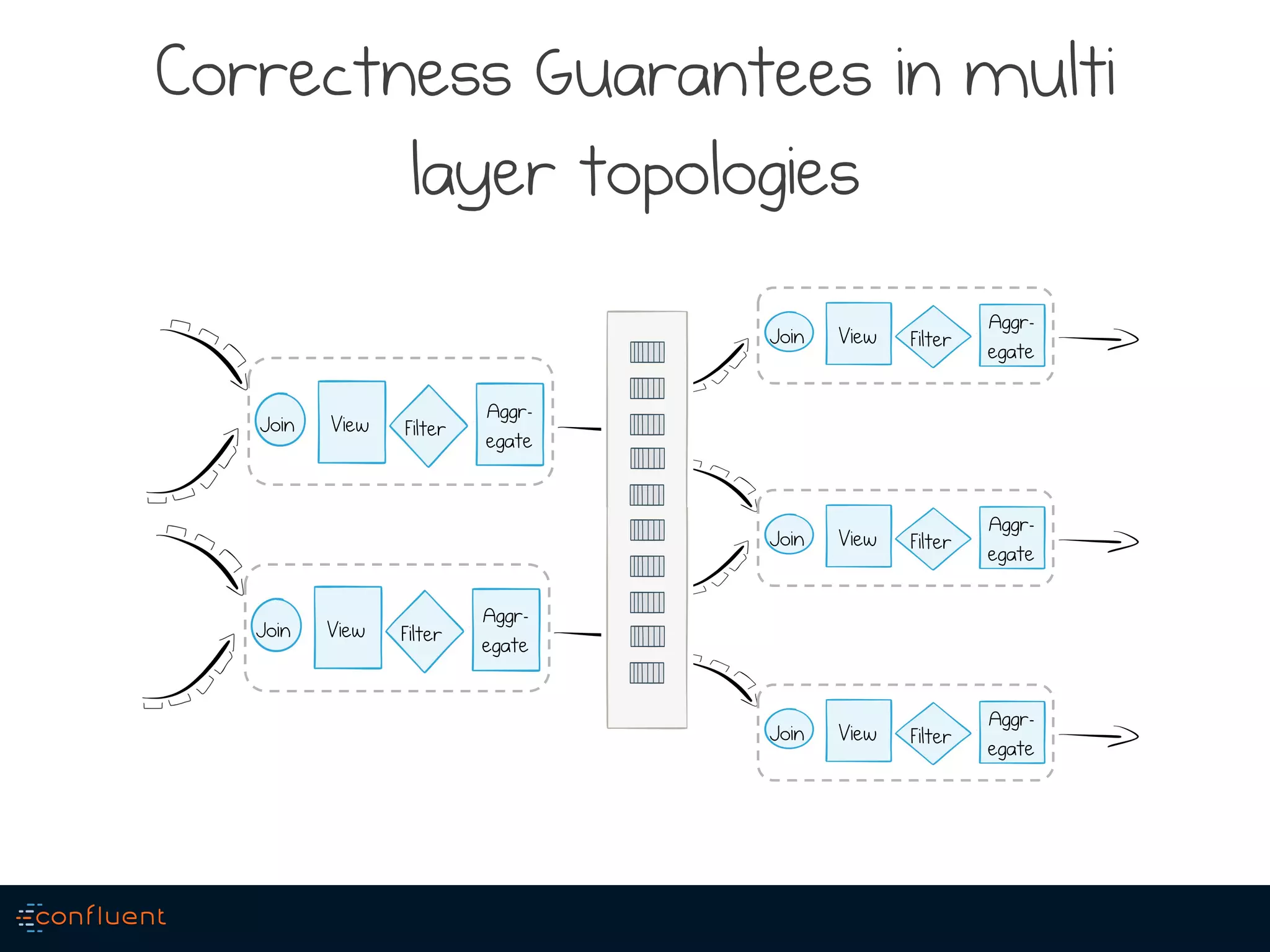

- 55. Correctness Guarantees inmulti layer topologies Join Filter Aggr- egate View Join Filter Aggr- egate View Join Filter Aggr- egate View Join Filter Aggr- egate View Join Filter Aggr- egate View

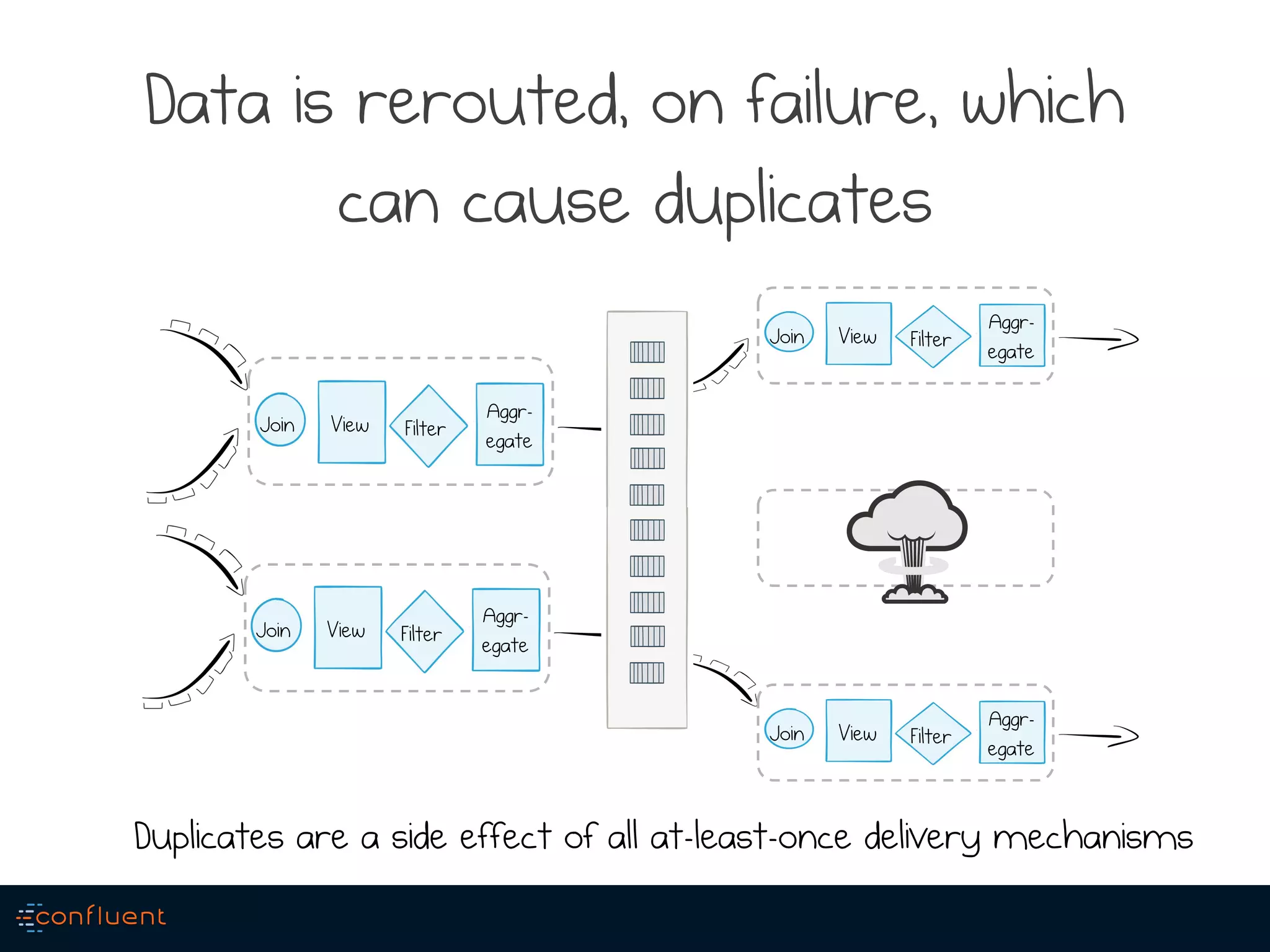

- 56. Join Filter Aggr- egate View Join Filter Aggr- egate View JoinFilter Aggr- egate View Join Filter Aggr- egate View Duplicates are a side effect of all at-least-once delivery mechanisms Data is rerouted, on failure, which can cause duplicates

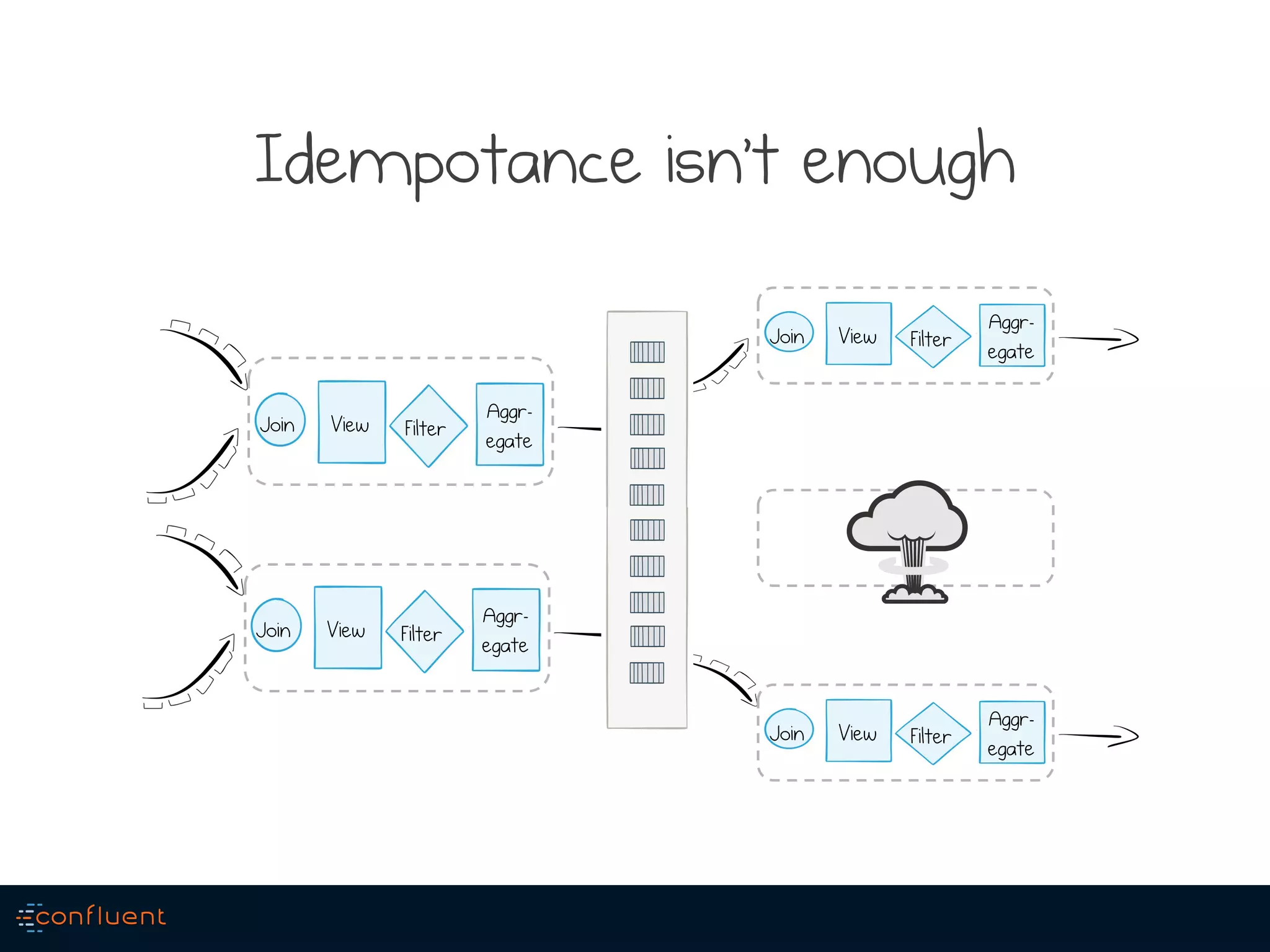

- 57. Idempotance isn’t enough JoinFilter Aggr- egate View Join Filter Aggr- egate View Filter Join Filter Aggr- egate View Join Filter Aggr- egate View

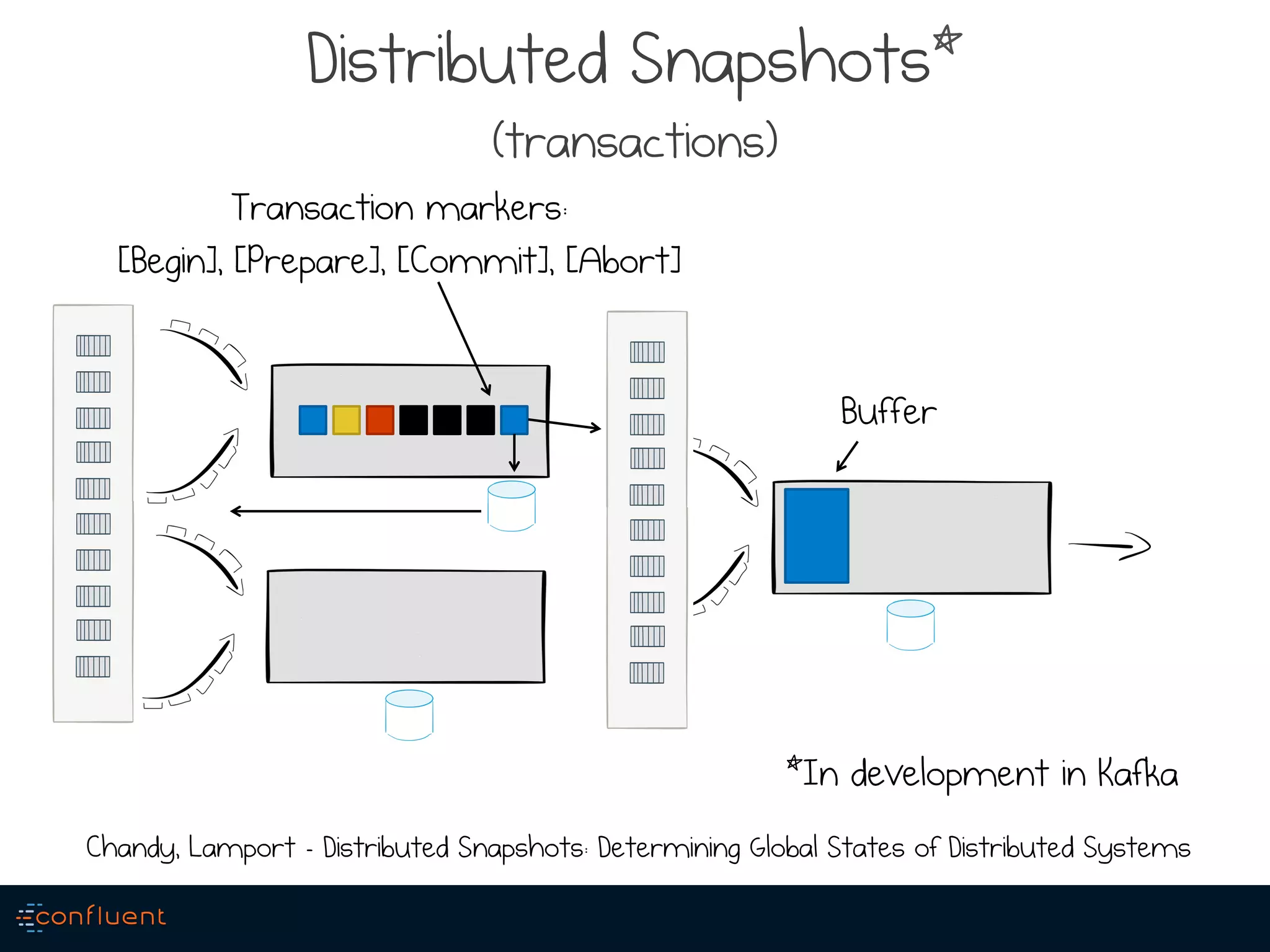

- 58. Distributed Snapshots* (transactions) Join Filter Aggr- egate View JoinFilter Aggr- egate View Join Filter Aggr- egate View Transaction markers: [Begin], [Prepare], [Commit], [Abort] Buffer Chandy, Lamport - Distributed Snapshots: Determining Global States of Distributed Systems *In development in Kafka
- 61. So why usethese tools?
- 62. (1) Streaming isa superset of batch
- 63.

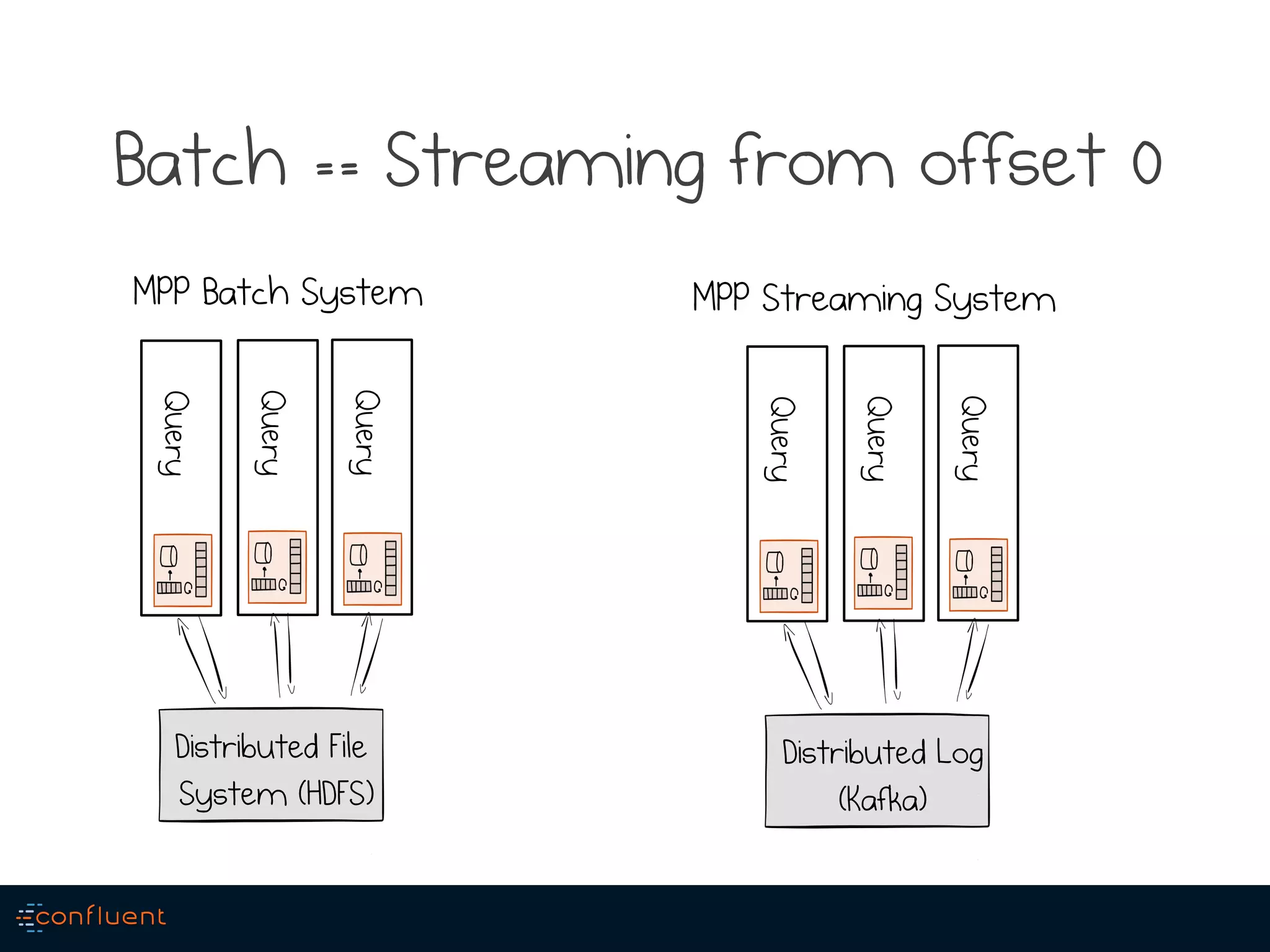

- 64. Batch == Streamingfrom offset 0 Query Query Query Distributed File System (HDFS) Query Query QueryDistributed Log (Kafka) MPP Batch System MPP Streaming System

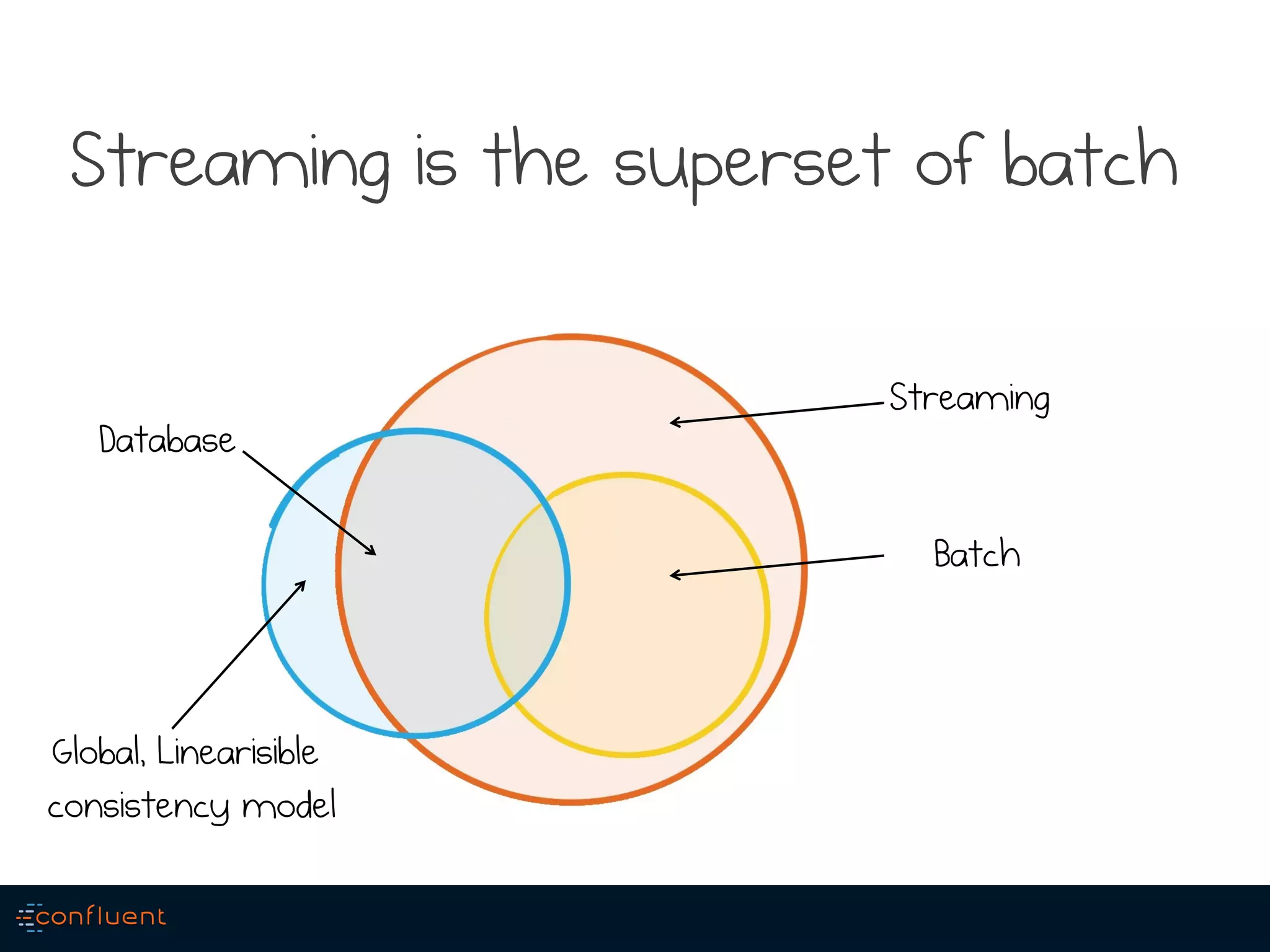

- 65. Streaming is thesuperset of batch Streaming Batch Database Global, Linearisible consistency model
- 66. (2) Separates store& view
- 67. “Engine” part islightweight but stateful Storage Just a java process which uses a library Log handles fault tolerance of both layers

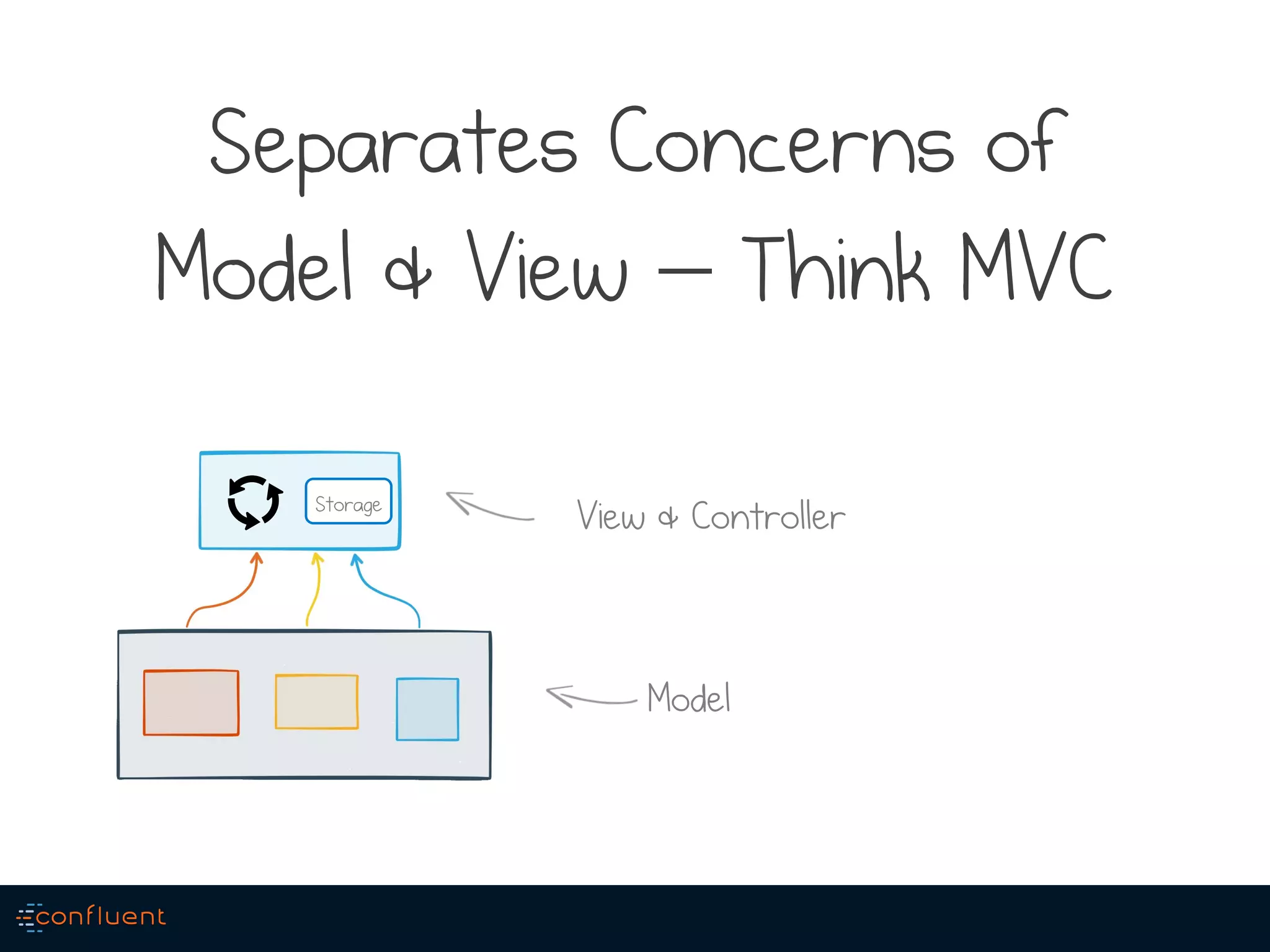

- 68. Separates Concerns of Model& View – Think MVC Storage View & Controller Model
- 69. Physically Separates Read& Write – Think CQRS Storage View & Controller Model
- 70. Database vs SSP Data Index Query Engine Query Engine vs DatabaseStateful Stream Processor Query Query View Index Data
- 71. (3) Decentralised approaches aremore general
- 72. Rather than pushingprocessing into an “appliance” (code -> data) Centralised Processing App

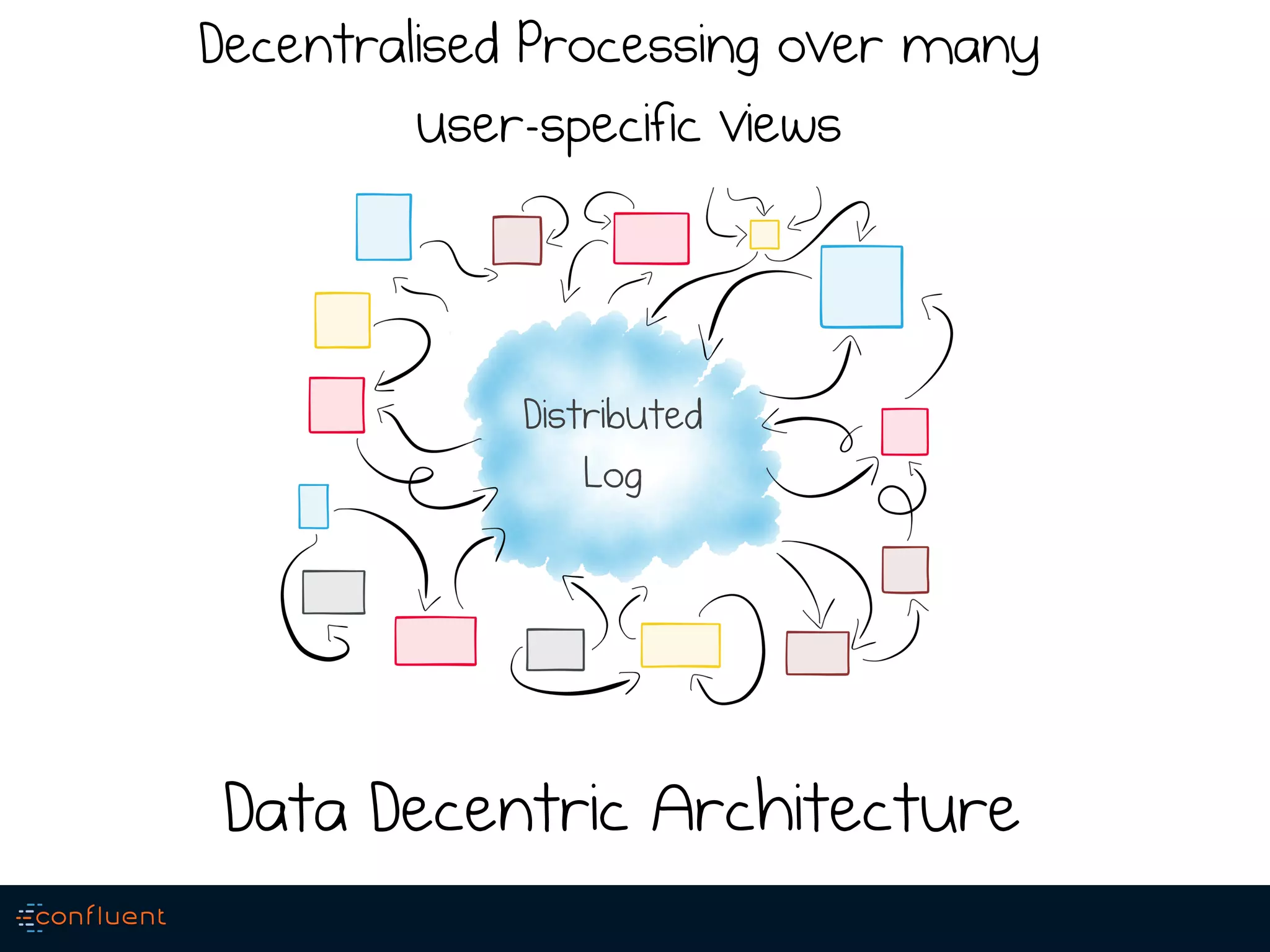

- 73. Data Decentric Architecture Distributed Log DecentralisedProcessing over many user-specific views
- 74. This more general thanthan just analytics use cases

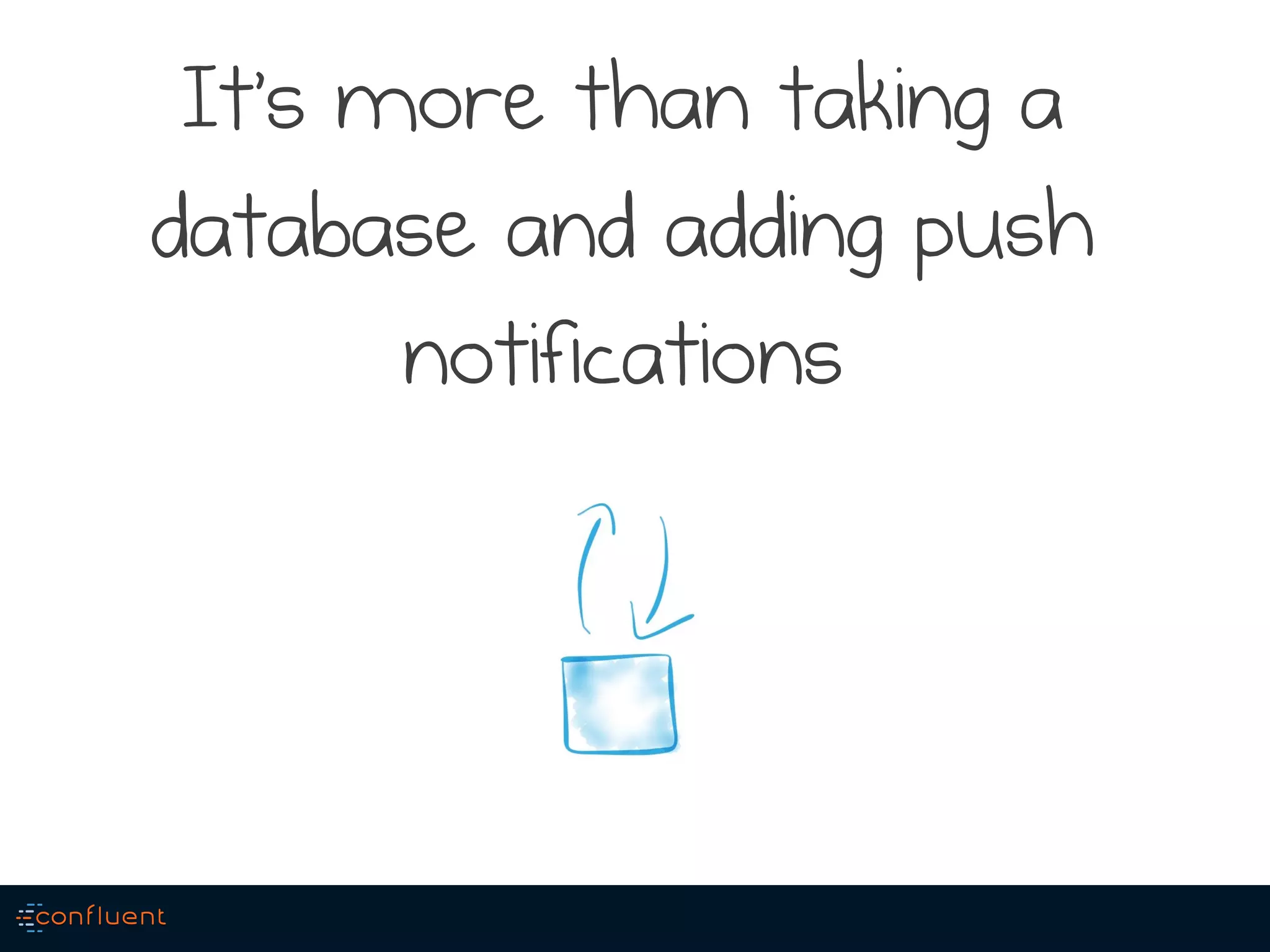

- 75. It’s more thantaking a database and adding push notifications

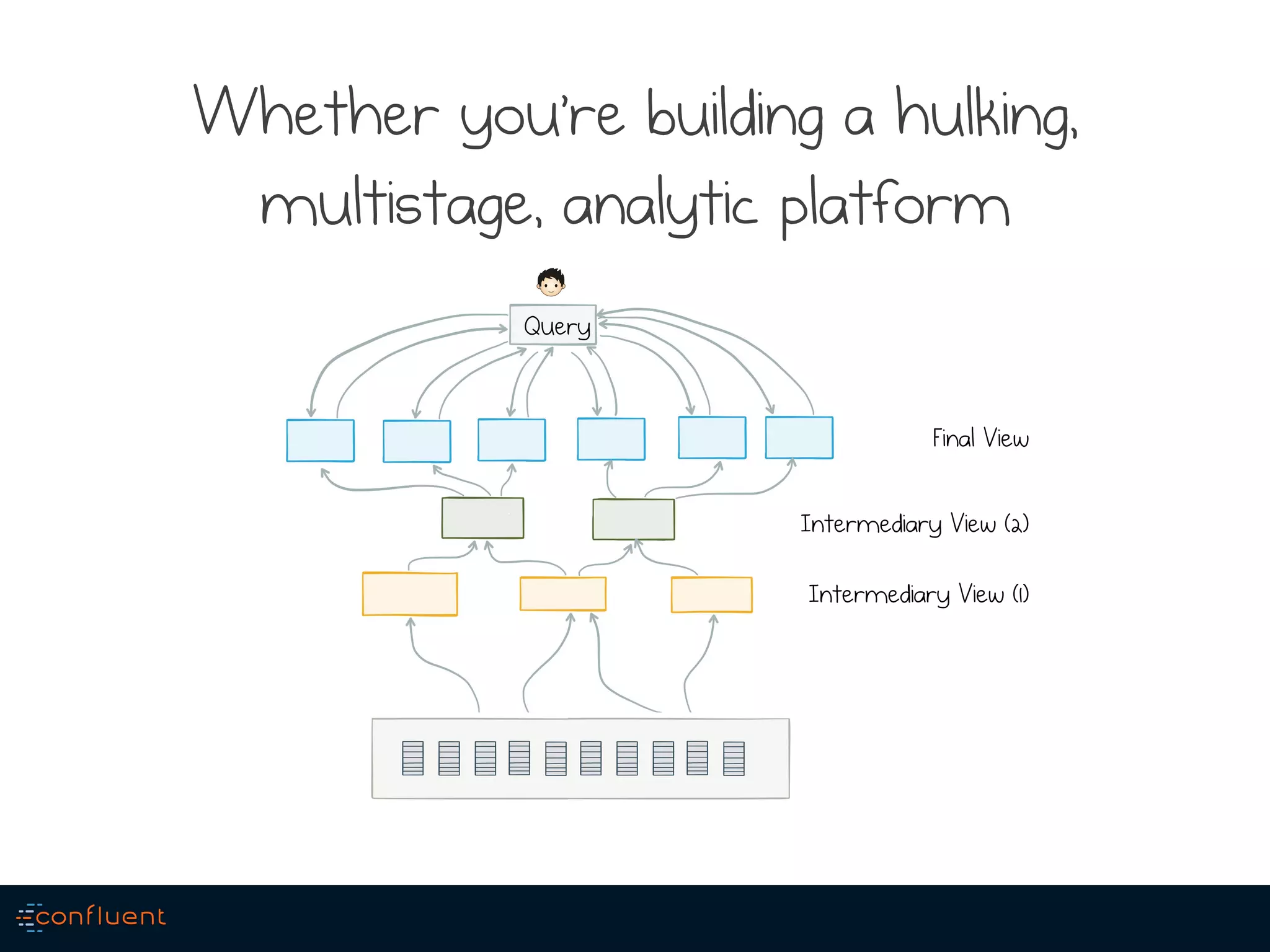

- 76. Whether you’re buildinga hulking, multistage, analytic platform Query Final View Intermediary View (2) Intermediary View (1)

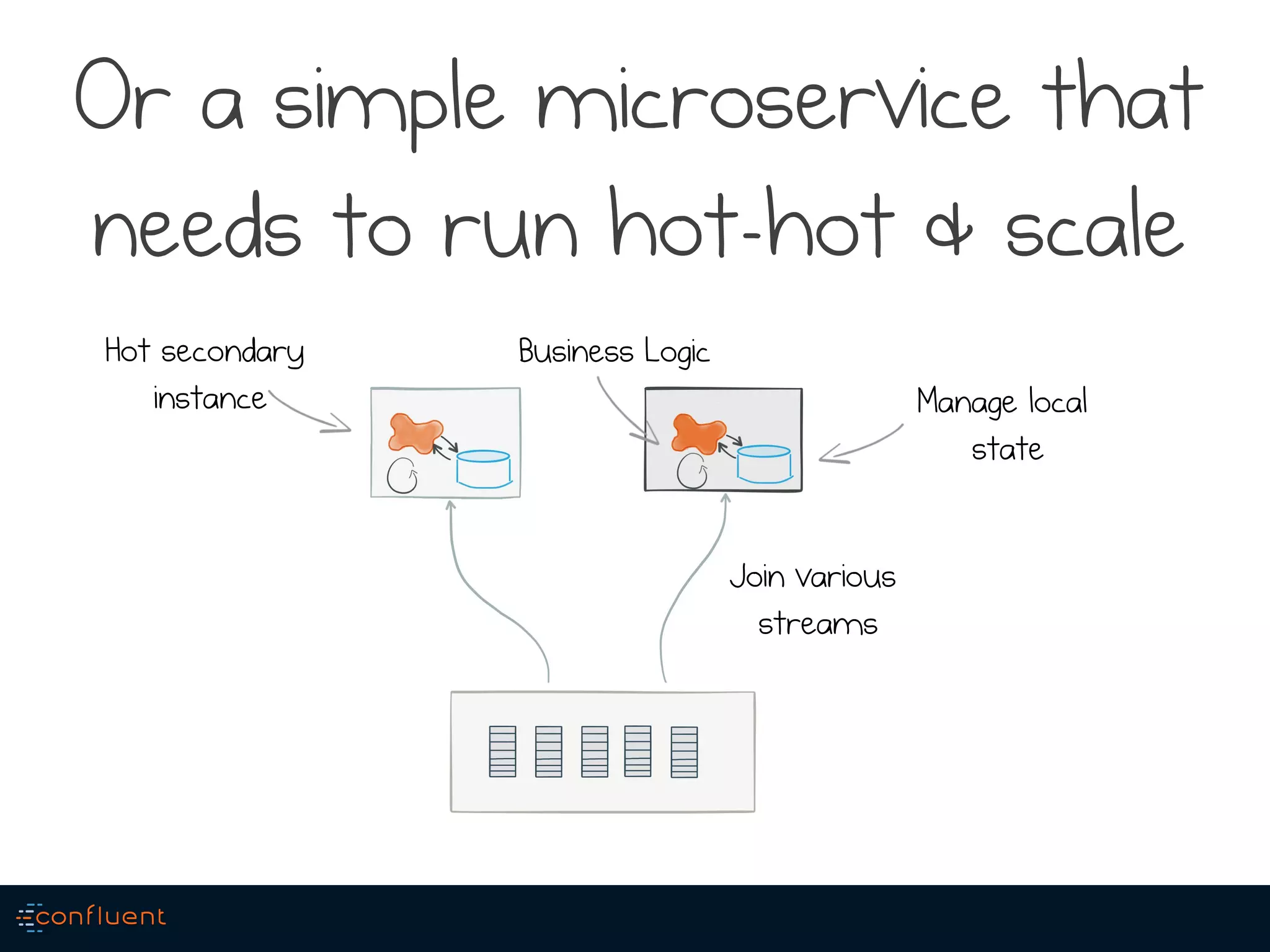

- 77. Or a simplemicroservice that needs to run hot-hot & scale Business Logic Manage local state Join various streams Hot secondary instance

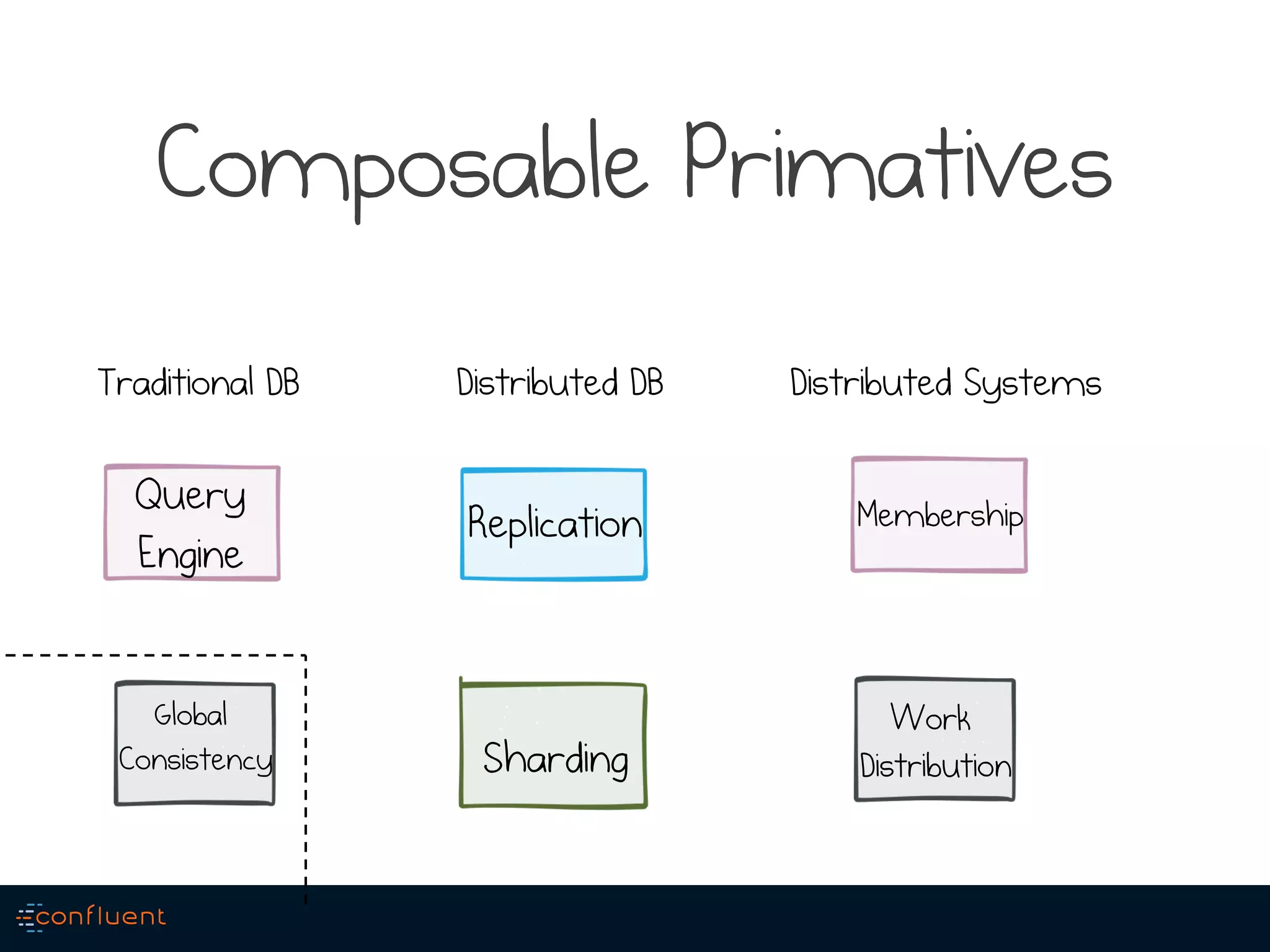

- 78. Composable Primatives Declarative Function Traditional DB Work Distribution Replication Sharding Query Engine DistributedDB Distributed Systems Membership Global Consistency

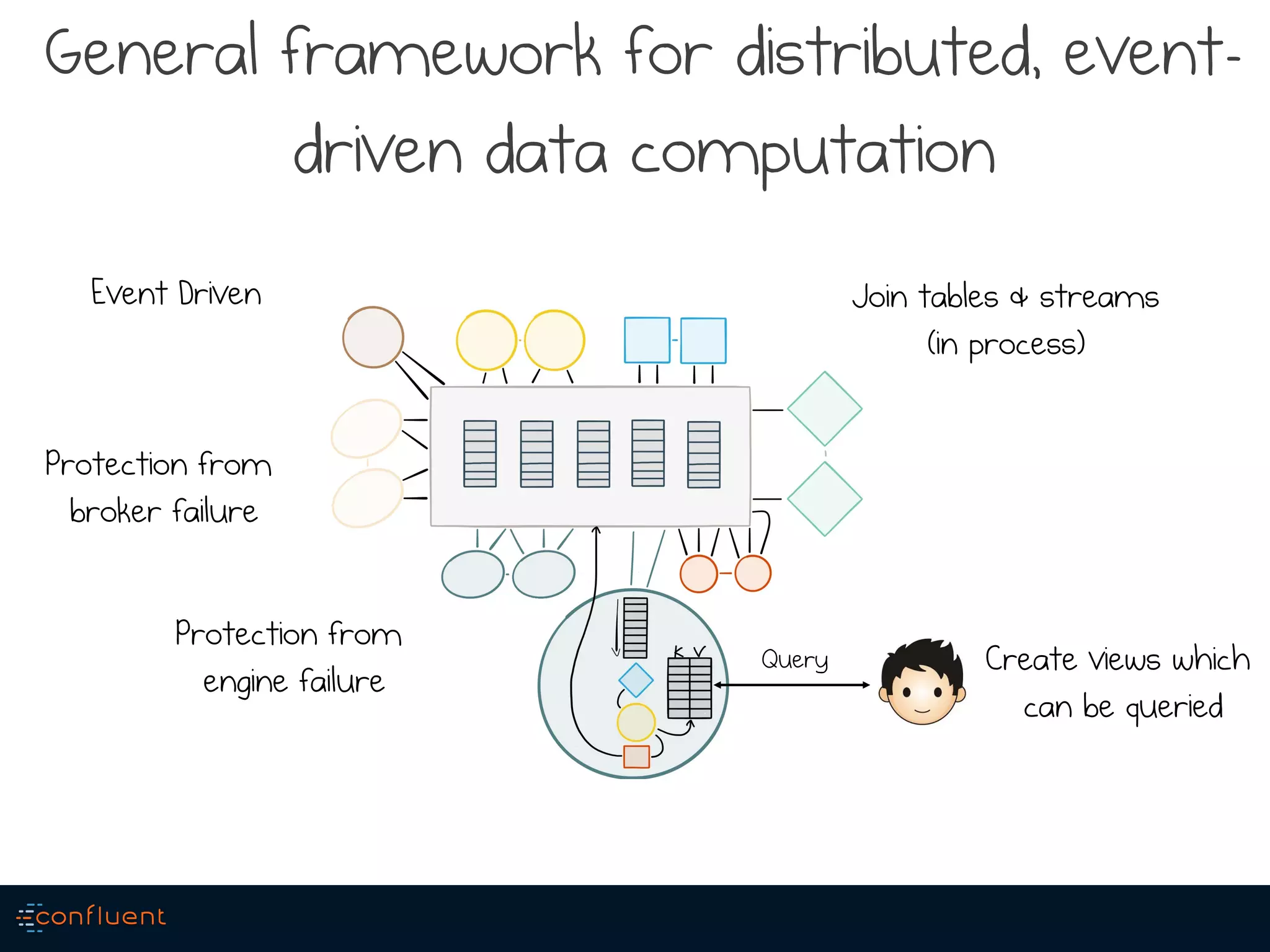

- 79. General framework fordistributed, event- driven data computation Protection from broker failure Protection from engine failure Join tables & streams (in process) Event Driven Create views which can be queried Query
- 80. Stateful Stream Processing Frameworkfor building a streaming data systems, just for you “~)
- 81. Find out more: • http://www.confluent.io/blog/introducing-kafka-streams-stream-processing-made-simple/ • https://martin.kleppmann.com/2015/02/11/database-inside-out-at-salesforce.html • http://cidrdb.org/cidr2015/Papers/CIDR15_Paper16.pdf • https://www.microsoft.com/en-us/research/wp-content/uploads/2016/02/cidr07p42.pdf • http://highscalability.com/blog/2015/5/4/elements-of-scale-composing-and-scaling-data- platforms.html • https://speakerdeck.com/bobbycalderwood/commander-decoupled-immutable-rest-apis-with- kafka-streams • https://timothyrenner.github.io/engineering/2016/08/11/kafka-streams-not-looking-at-facebook.html • https://www.madewithtea.com/processing-tweets-with-kafka-streams.html • http://www.infolace.com/blog/2016/07/14/simple-spatial-windowing-with-kafka-streams/ • http://www.slideshare.net/zacharycox/updating-materialized-views-and-caches-using-kafka
