This document discusses free space optics (FSO) as a next generation wireless communication technique. FSO uses infrared rays to transmit data, voice, and video through the air without using optical fibers or dealing with issues like jamming. It operates using similar concepts as fiber optics, but transmission and reception are done optically and electrically. FSO can provide very high bandwidth and is a more secure and cost-effective alternative to traditional wireless communication methods. However, FSO systems face challenges from physical obstructions in the transmission path and atmospheric effects that can absorb, scatter, or interfere with the infrared beams.

1. FREE SPACE OPTICSFREE SPACE OPTICS
A NEXT GENRATION WIRELESS COMMUNICATION
Presented By
B. Chandu AVINASH
G.V.P college of engg.M . Naga SRINIVAS
J.N.T.U KAKINADA

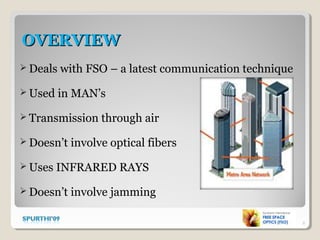

2. OVERVIEWOVERVIEW
 Deals with FSO – a latest communication technique
 Used in MAN’s
 Transmission through air
 Doesn’t involve optical fibers
 Uses INFRARED RAYS
 Doesn’t involve jamming
2

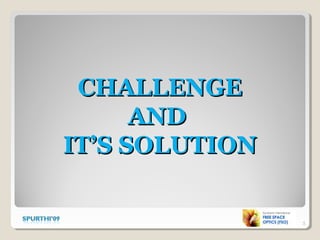

3. CHALLENGECHALLENGE
ANDAND
IT’S SOLUTIONIT’S SOLUTION
3

4. BASICSBASICS
Optical wireless
Different topologies
Involves transmission of data, voice and video
Many advantages when compared to fibers
4

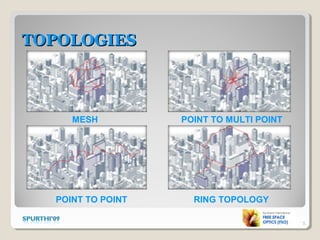

5. TOPOLOGIESTOPOLOGIES
5
MESH POINT TO MULTI POINT
POINT TO POINT RING TOPOLOGY

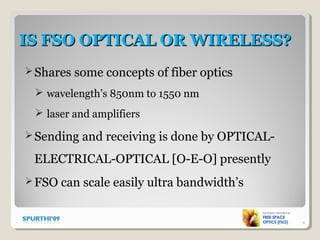

6. IS FSO OPTICAL OR WIRELESS?IS FSO OPTICAL OR WIRELESS?
Shares some concepts of fiber optics
 wavelength’s 850nm to 1550 nm
 laser and amplifiers
Sending and receiving is done by OPTICAL-
ELECTRICAL-OPTICAL [O-E-O] presently
FSO can scale easily ultra bandwidth’s
6

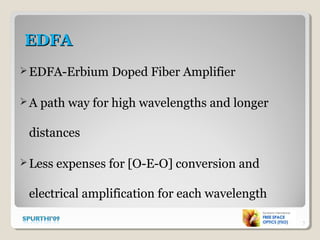

7. EDFAEDFA
EDFA-Erbium Doped Fiber Amplifier
A path way for high wavelengths and longer
distances
Less expenses for [O-E-O] conversion and
electrical amplification for each wavelength
7

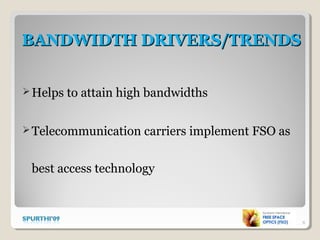

8. BANDWIDTH DRIVERS/TRENDSBANDWIDTH DRIVERS/TRENDS
Helps to attain high bandwidths
Telecommunication carriers implement FSO as
best access technology
8

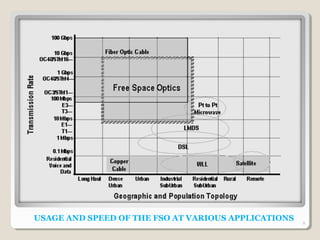

9. USAGE AND SPEED OF THE FSO AT VARIOUS APPLICATIONS 9

10. FEATURESFEATURES
FULLDUPLEX (bidirectional)
Uses lenses, optical wireless
unit, telescope for
transmission
 Very sensitive transmission
10

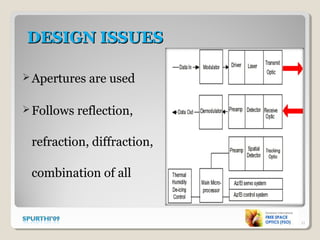

11. DESIGN ISSUESDESIGN ISSUES
Apertures are used
Follows reflection,
refraction, diffraction,
combination of all
11

12. TRANSMITTER APERTURETRANSMITTER APERTURE
Important aspects
Size
Quality
Size determines maximum eye safe laser
Quality with f-number tells us minimum
divergence
12

13. RECIEVER APERTURERECIEVER APERTURE
Follows aperture size and f-number
Aperture size gives amount of collected data
f-number gives the detector field of view
13

14. FSO SYSTEMSFSO SYSTEMS
 Doesn’t require any license
 Wavelength is about 1micrometer
 1 micrometer beam can translate into frequencies of
several hundred terahertz
 Better than the micro wave transmission (40gHz)
14

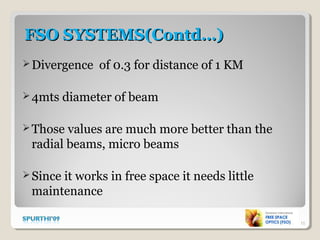

15. FSO SYSTEMS(Contd…)FSO SYSTEMS(Contd…)
Divergence of 0.3 for distance of 1 KM
4mts diameter of beam
Those values are much more better than the
radial beams, micro beams
Since it works in free space it needs little
maintenance
15

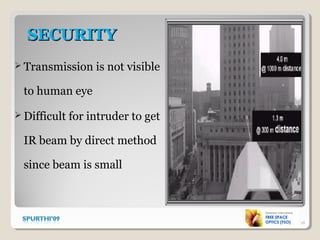

16. SECURITYSECURITY
 Transmission is not visible
to human eye
 Difficult for intruder to get
IR beam by direct method
since beam is small
16

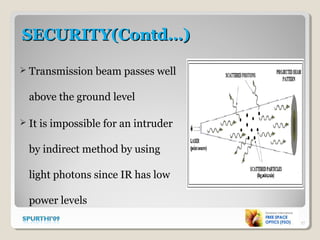

17. SECURITY(Contd…)SECURITY(Contd…)
 Transmission beam passes well
above the ground level
 It is impossible for an intruder
by indirect method by using
light photons since IR has low
power levels
17

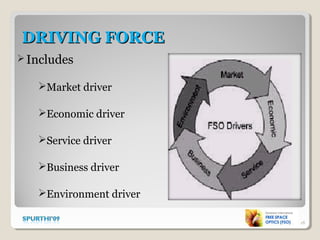

18. DRIVING FORCEDRIVING FORCE
Includes
Market driver
Economic driver
Service driver
Business driver
Environment driver
18

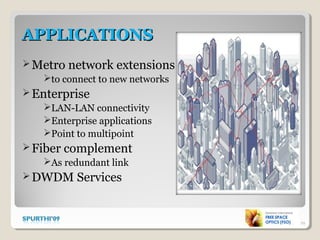

19. APPLICATIONSAPPLICATIONS
Metro network extensions
to connect to new networks
Enterprise
LAN-LAN connectivity
Enterprise applications
Point to multipoint
Fiber complement
As redundant link
DWDM Services
19

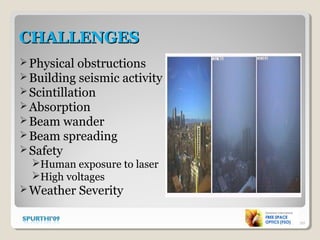

20. CHALLENGESCHALLENGES
Physical obstructions
Building seismic activity
Scintillation
Absorption
Beam wander
Beam spreading
Safety
Human exposure to laser
High voltages
Weather Severity
20

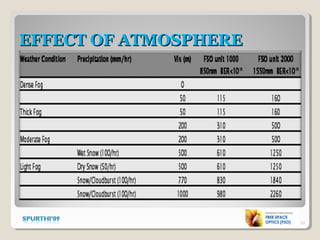

21. EFFECT OF ATMOSPHEREEFFECT OF ATMOSPHERE
21

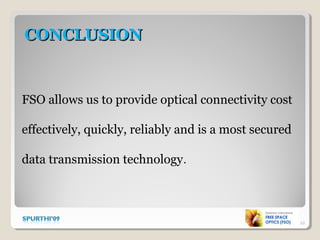

22. CONCLUSIONCONCLUSION
22
FSO allows us to provide optical connectivity cost
effectively, quickly, reliably and is a most secured
data transmission technology.

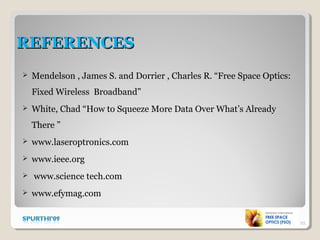

23. REFERENCESREFERENCES
 Mendelson , James S. and Dorrier , Charles R. “Free Space Optics:
Fixed Wireless Broadband”
 White, Chad “How to Squeeze More Data Over What’s Already
There ”
 www.laseroptronics.com
 www.ieee.org
 www.science tech.com
 www.efymag.com
23

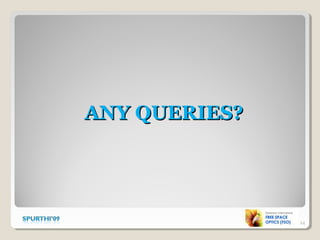

24. ANY QUERIES?ANY QUERIES?
