1. Model-based Testing using Microsoft’s
Spec Explorer Tool: A Case Study
Dharmalingam Ganesan
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
1

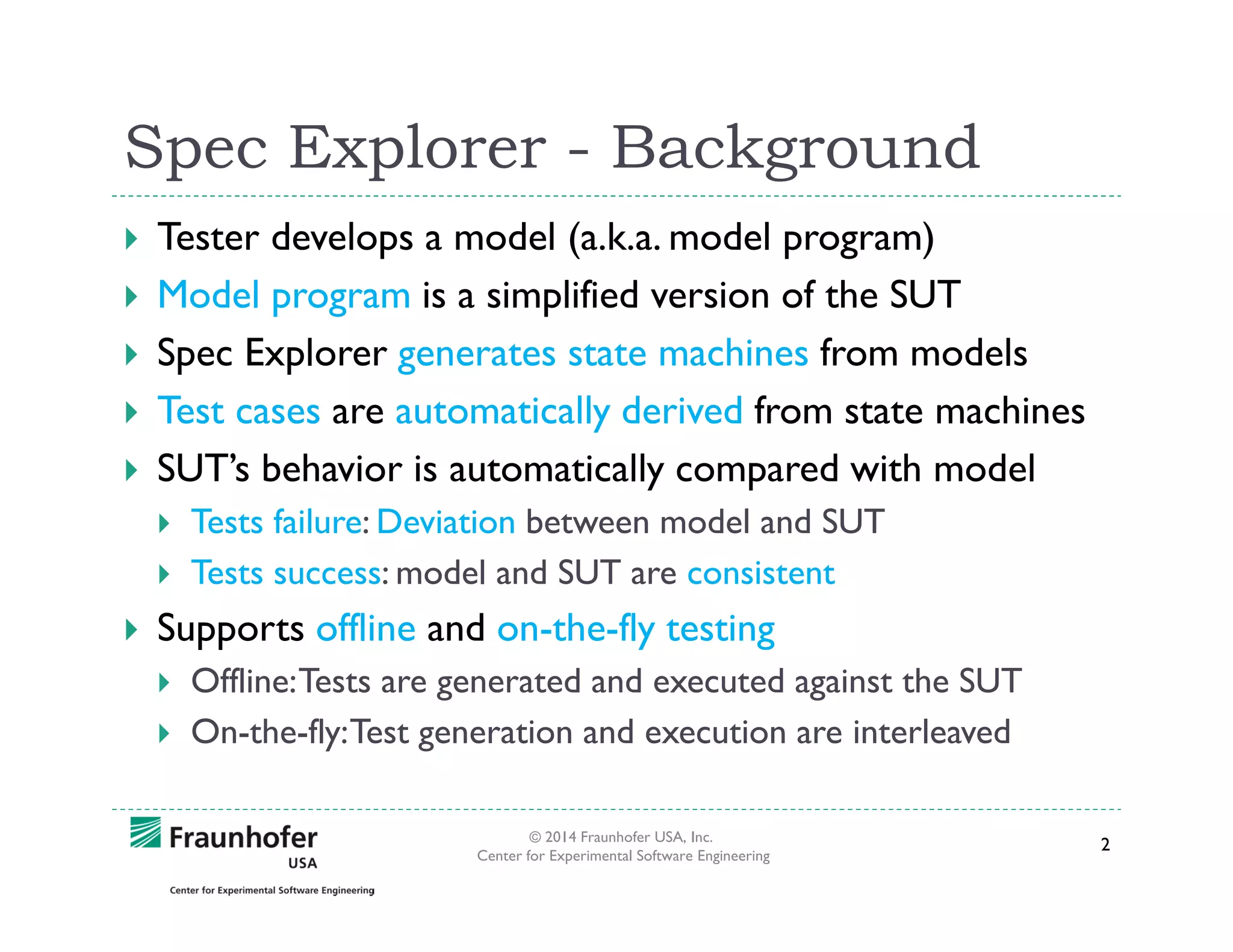

2. Spec Explorer - Background
Tester develops a model (a.k.a. model program)
Model program is a simplified version of the SUT
Spec Explorer generates state machines from models
Test cases are automatically derived from state machines
SUT’s behavior is automatically compared with model
Tests failure: Deviation between model and SUT
Tests success: model and SUT are consistent
Supports offline and on-the-fly testing
Offline: Tests are generated and executed against the SUT
On-the-fly: Test generation and execution are interleaved
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
2

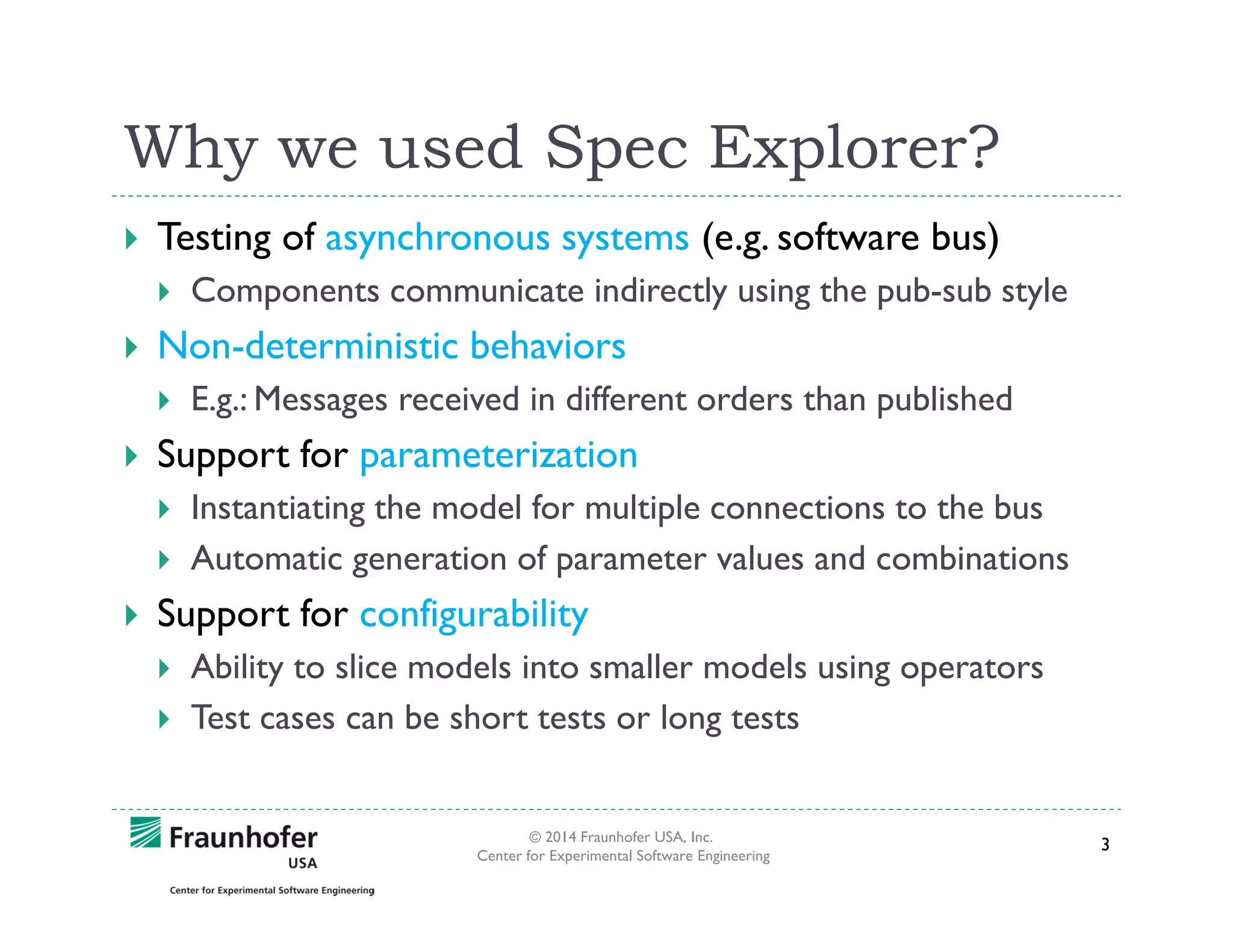

3. Why we used Spec Explorer?
Testing of asynchronous systems (e.g. software bus)
Components communicate indirectly using the pub-sub style
Non-deterministic behaviors
E.g.: Messages received in different orders than published
Support for parameterization
Instantiating the model for multiple connections to the bus
Automatic generation of parameter values and combinations
Support for configurability
Ability to slice models into smaller models using operators
Test cases can be short tests or long tests
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
3

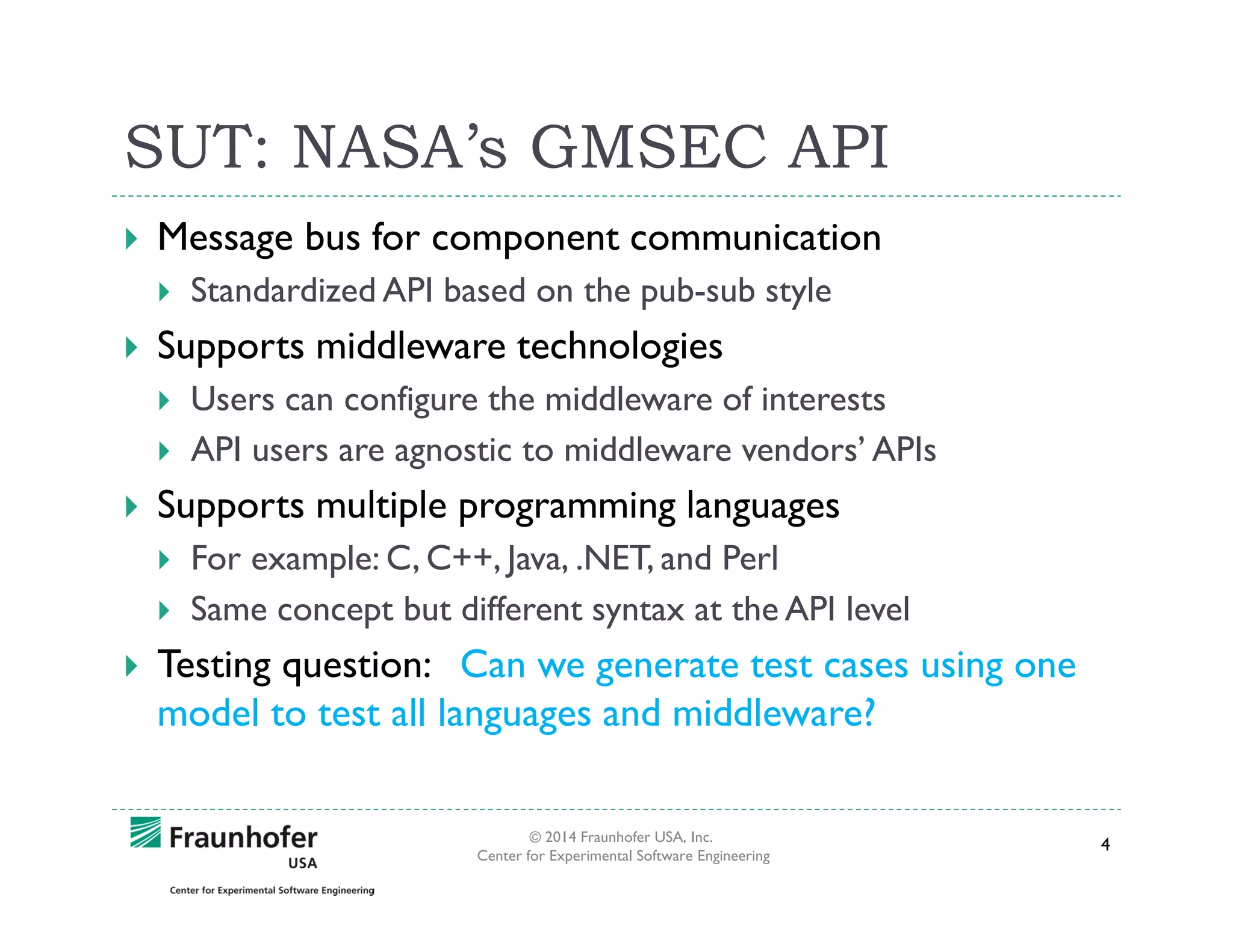

4. SUT: NASA’s GMSEC API
Message bus for component communication
Standardized API based on the pub-sub style
Supports middleware technologies
Users can configure the middleware of interests
API users are agnostic to middleware vendors’ APIs
Supports multiple programming languages
For example: C, C++, Java, .NET, and Perl
Same concept but different syntax at the API level
Testing question: Can we generate test cases using one
model to test all languages and middleware?
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
4

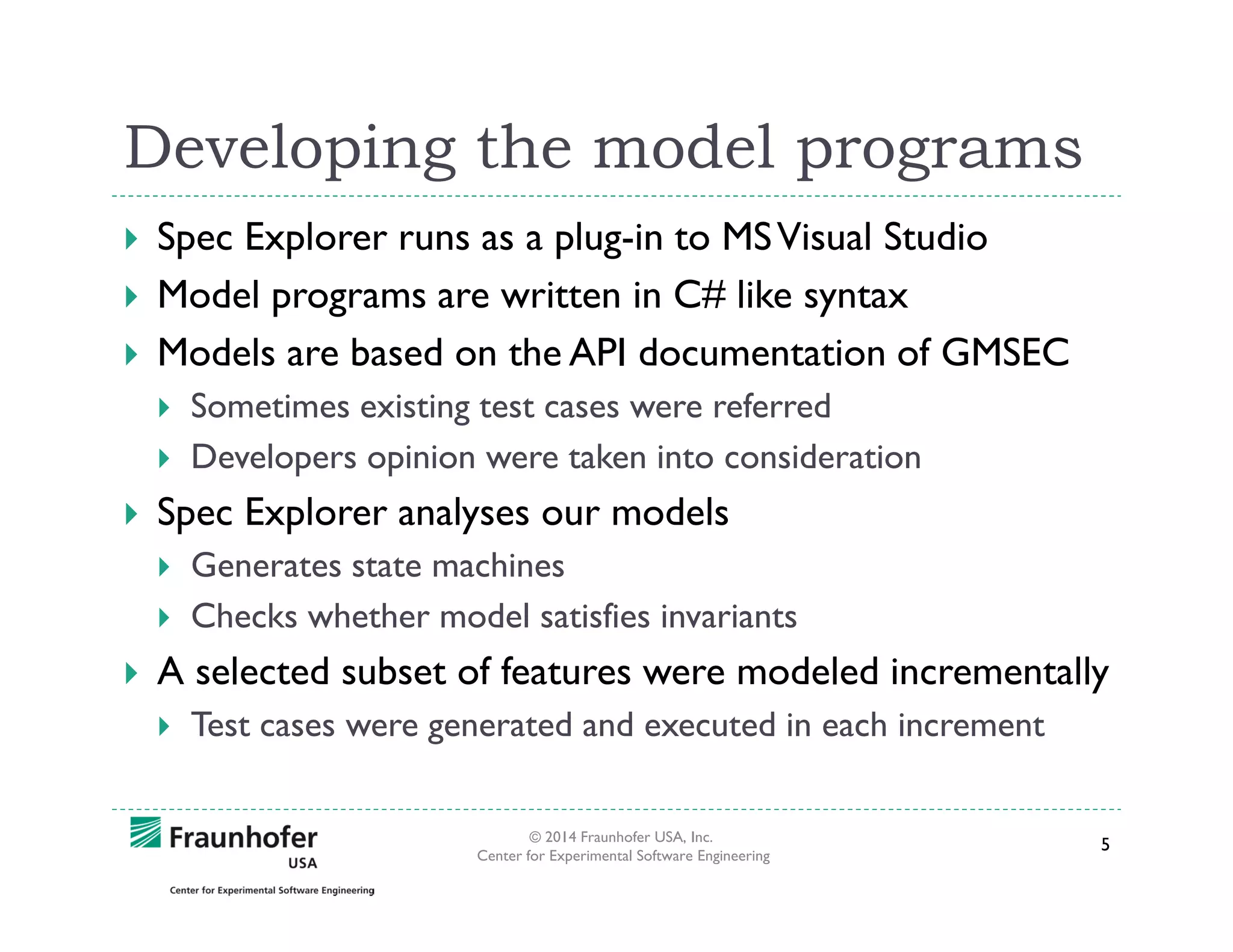

5. Developing the model programs
Spec Explorer runs as a plug-in to MS Visual Studio
Model programs are written in C# like syntax
Models are based on the API documentation of GMSEC
Sometimes existing test cases were referred
Developers opinion were taken into consideration
Spec Explorer analyses our models
Generates state machines
Checks whether model satisfies invariants
A selected subset of features were modeled incrementally
Test cases were generated and executed in each increment
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
5

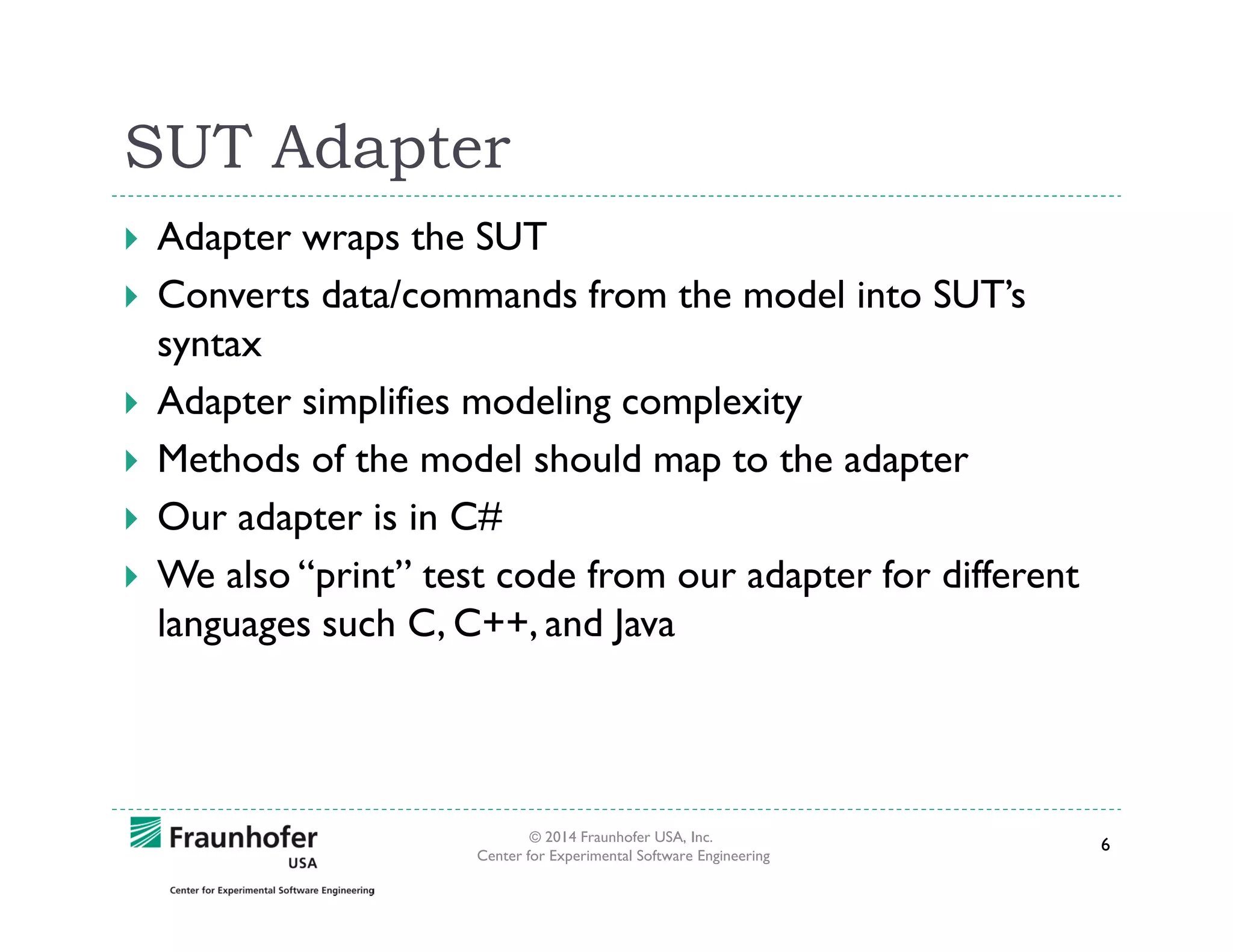

6. SUT Adapter
Adapter wraps the SUT
Converts data/commands from the model into SUT’s
syntax
Adapter simplifies modeling complexity
Methods of the model should map to the adapter
Our adapter is in C#
We also “print” test code from our adapter for different
languages such C, C++, and Java
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
6

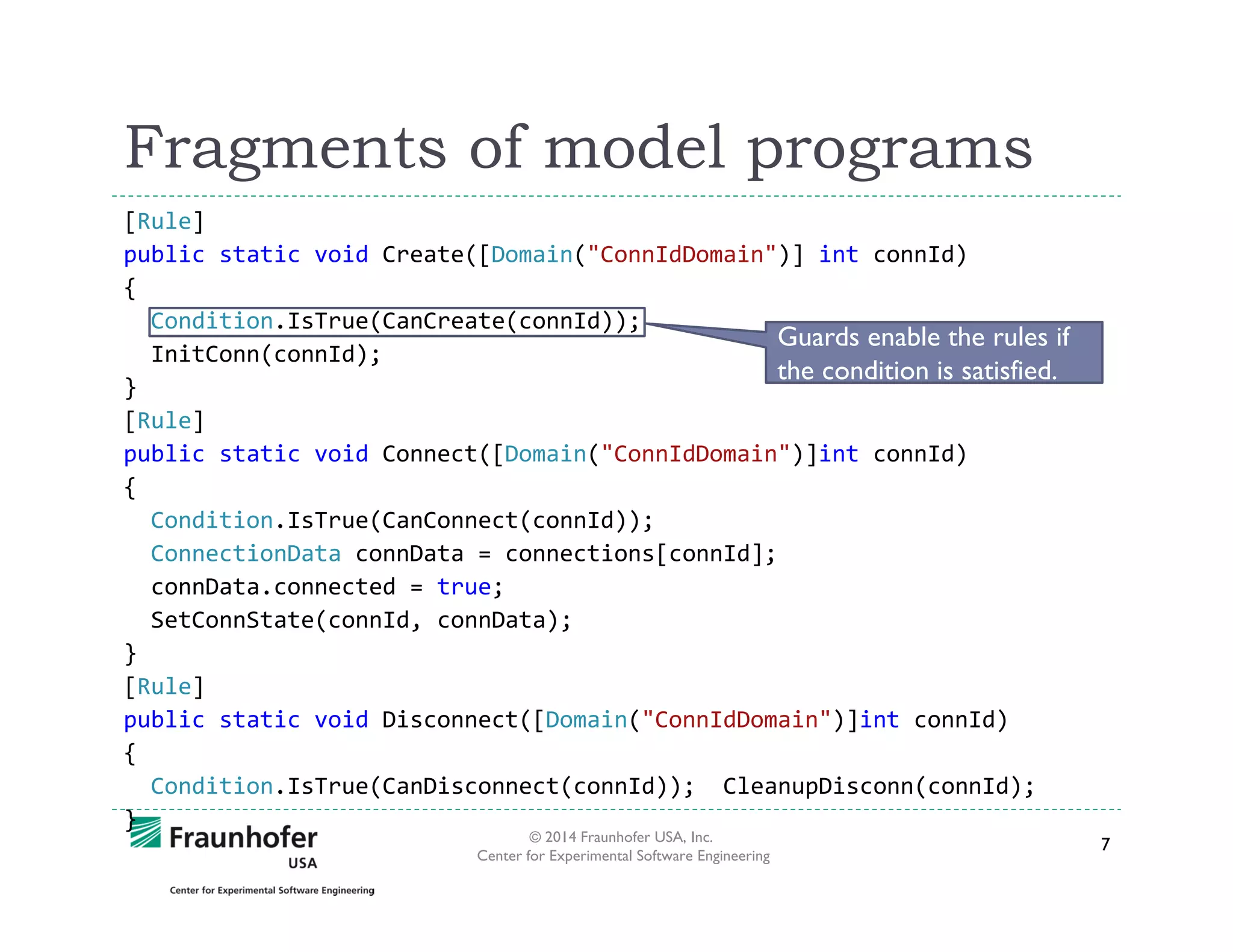

7. Fragments of model programs
[Rule]
public static void Create([Domain("ConnIdDomain")] int connId)
{
Condition.IsTrue(CanCreate(connId));
Guards enable the rules if
InitConn(connId);
the condition is satisfied.
}
[Rule]
public static void Connect([Domain("ConnIdDomain")]int connId)
{
Condition.IsTrue(CanConnect(connId));
ConnectionData connData = connections[connId];
connData.connected = true;
SetConnState(connId, connData);
}
[Rule]
public static void Disconnect([Domain("ConnIdDomain")]int connId)
{
Condition.IsTrue(CanDisconnect(connId)); CleanupDisconn(connId);
}
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
7

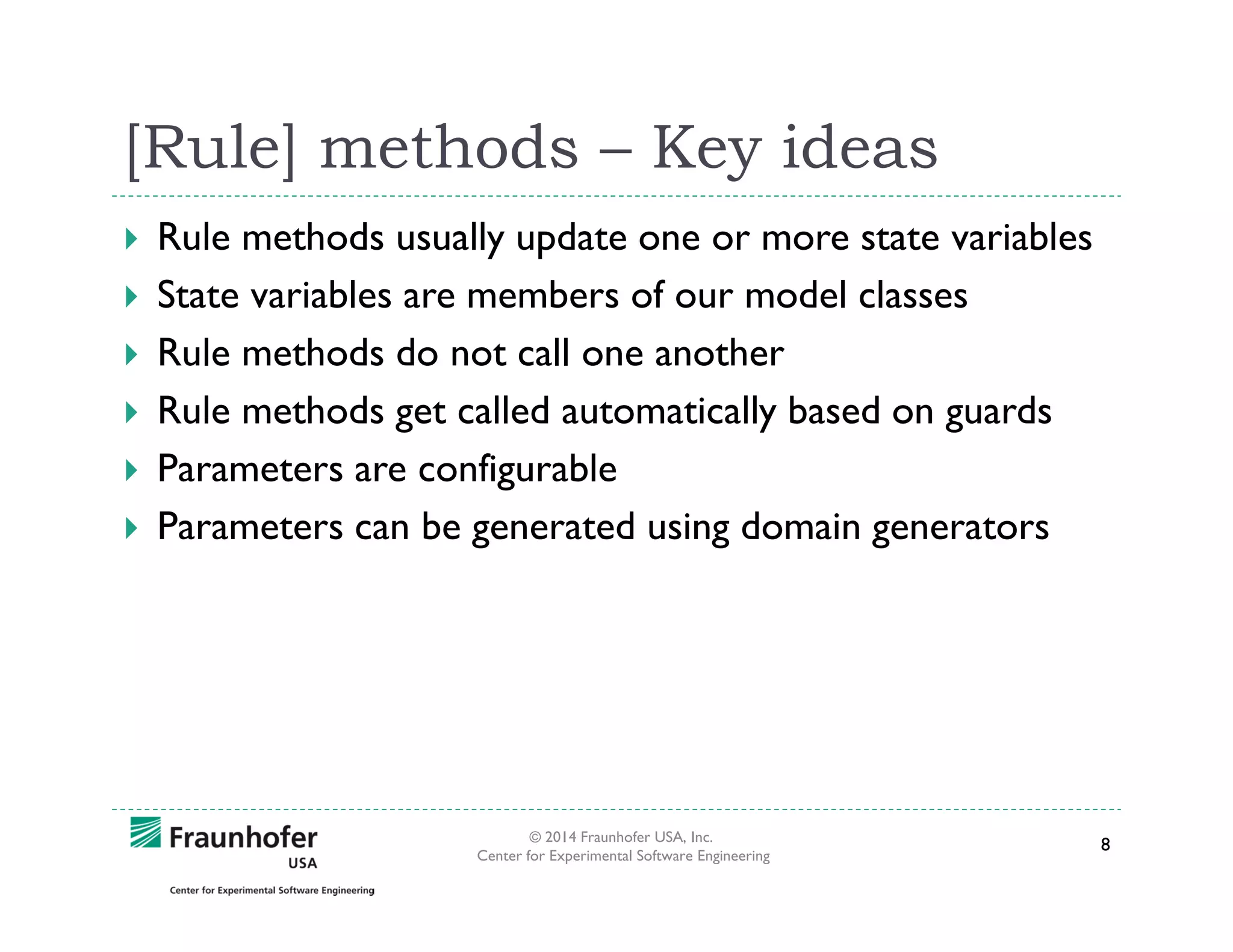

8. [Rule] methods – Key ideas
Rule methods usually update one or more state variables
State variables are members of our model classes
Rule methods do not call one another
Rule methods get called automatically based on guards
Parameters are configurable
Parameters can be generated using domain generators
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
8

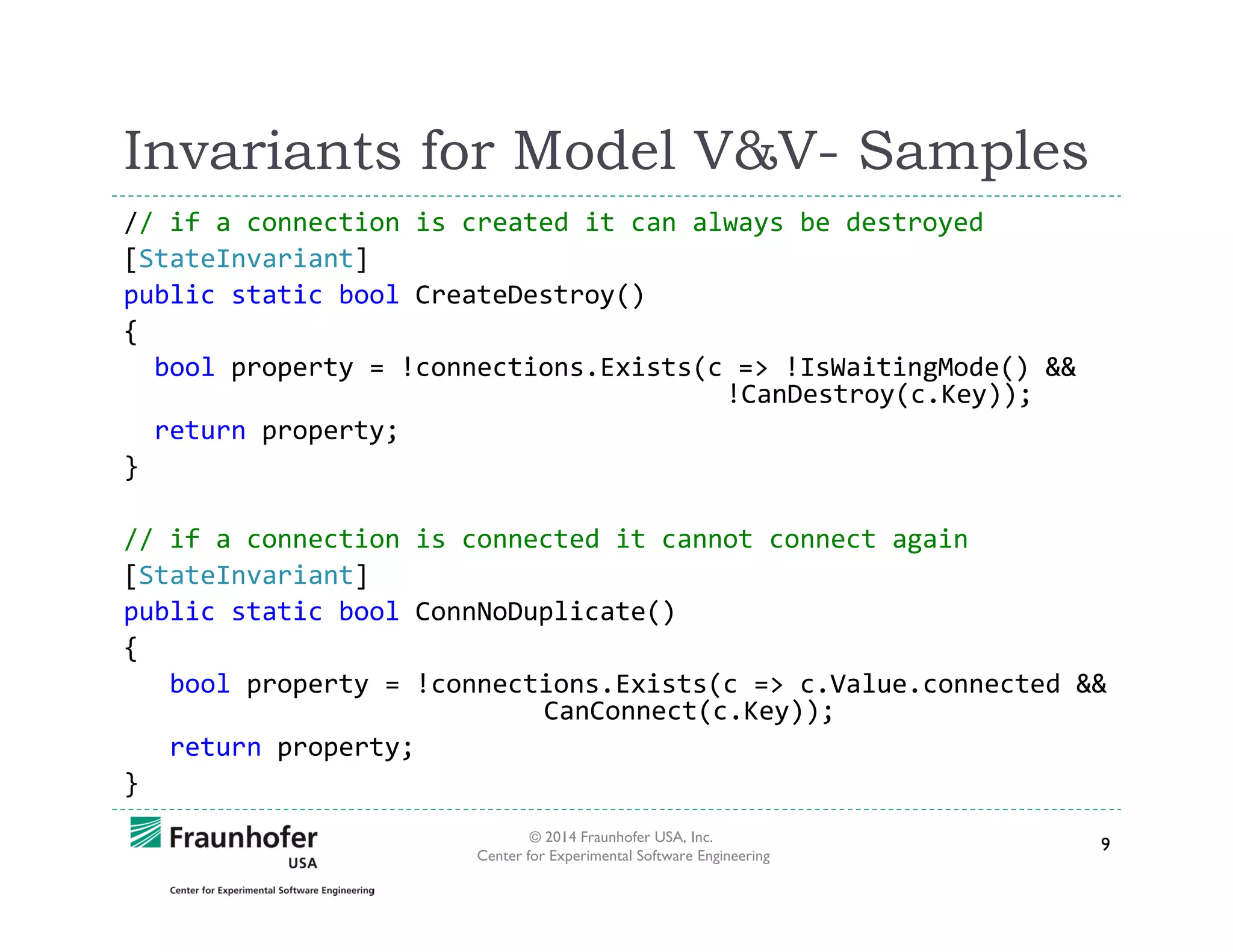

9. Invariants for Model V&V- Samples
// if a connection is created it can always be destroyed
[StateInvariant]
public static bool CreateDestroy()
{
bool property = !connections.Exists(c => !IsWaitingMode() &&
!CanDestroy(c.Key));
return property;
}
// if a connection is connected it cannot connect again
[StateInvariant]
public static bool ConnNoDuplicate()
{
bool property = !connections.Exists(c => c.Value.connected &&
CanConnect(c.Key));
return property;
}
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
9

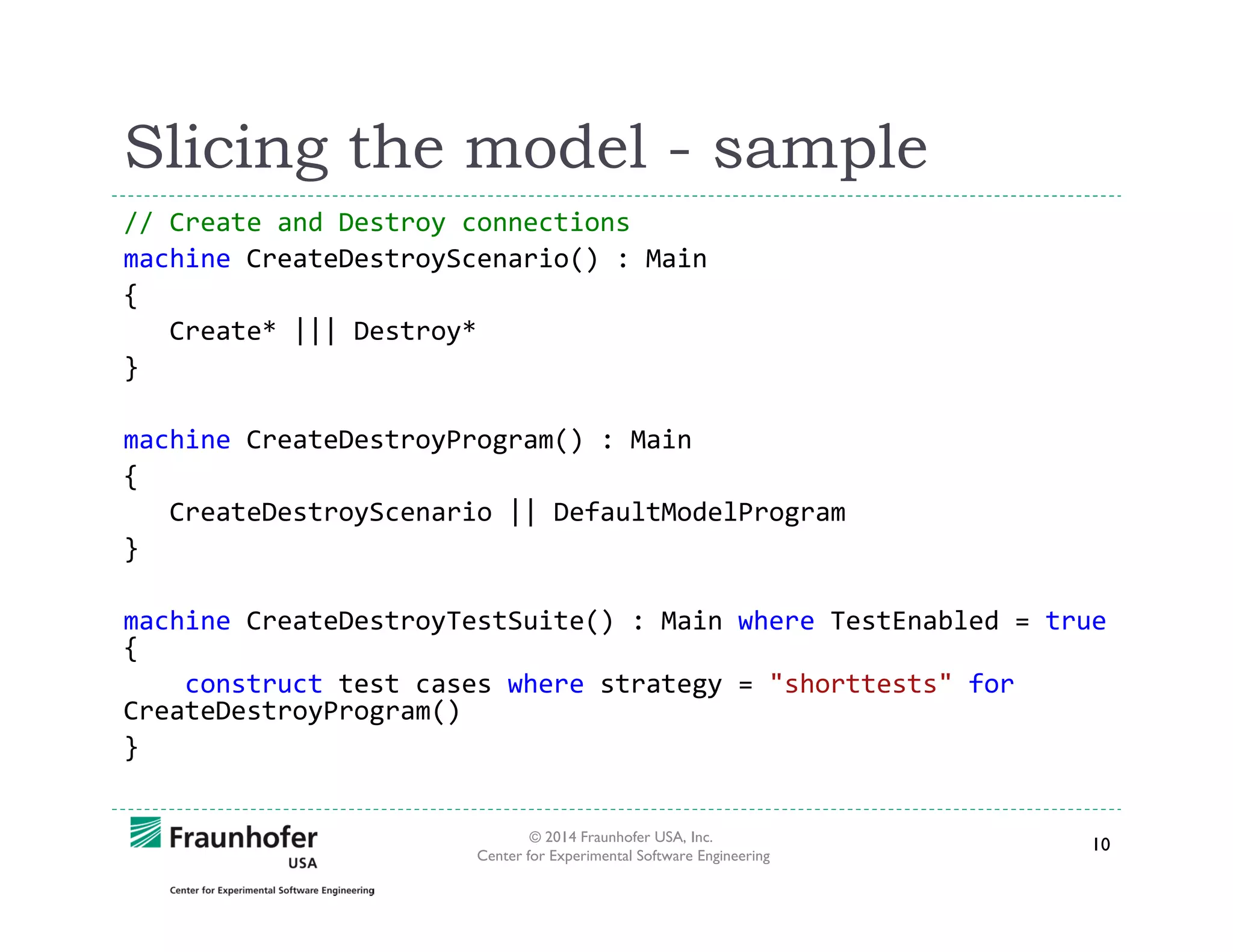

10. Slicing the model - sample
// Create and Destroy connections
machine CreateDestroyScenario() : Main
{
Create* ||| Destroy*
}
machine CreateDestroyProgram() : Main
{
CreateDestroyScenario || DefaultModelProgram
}
machine CreateDestroyTestSuite() : Main where TestEnabled = true
{
construct test cases where strategy = "shorttests" for
CreateDestroyProgram()
}
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
10

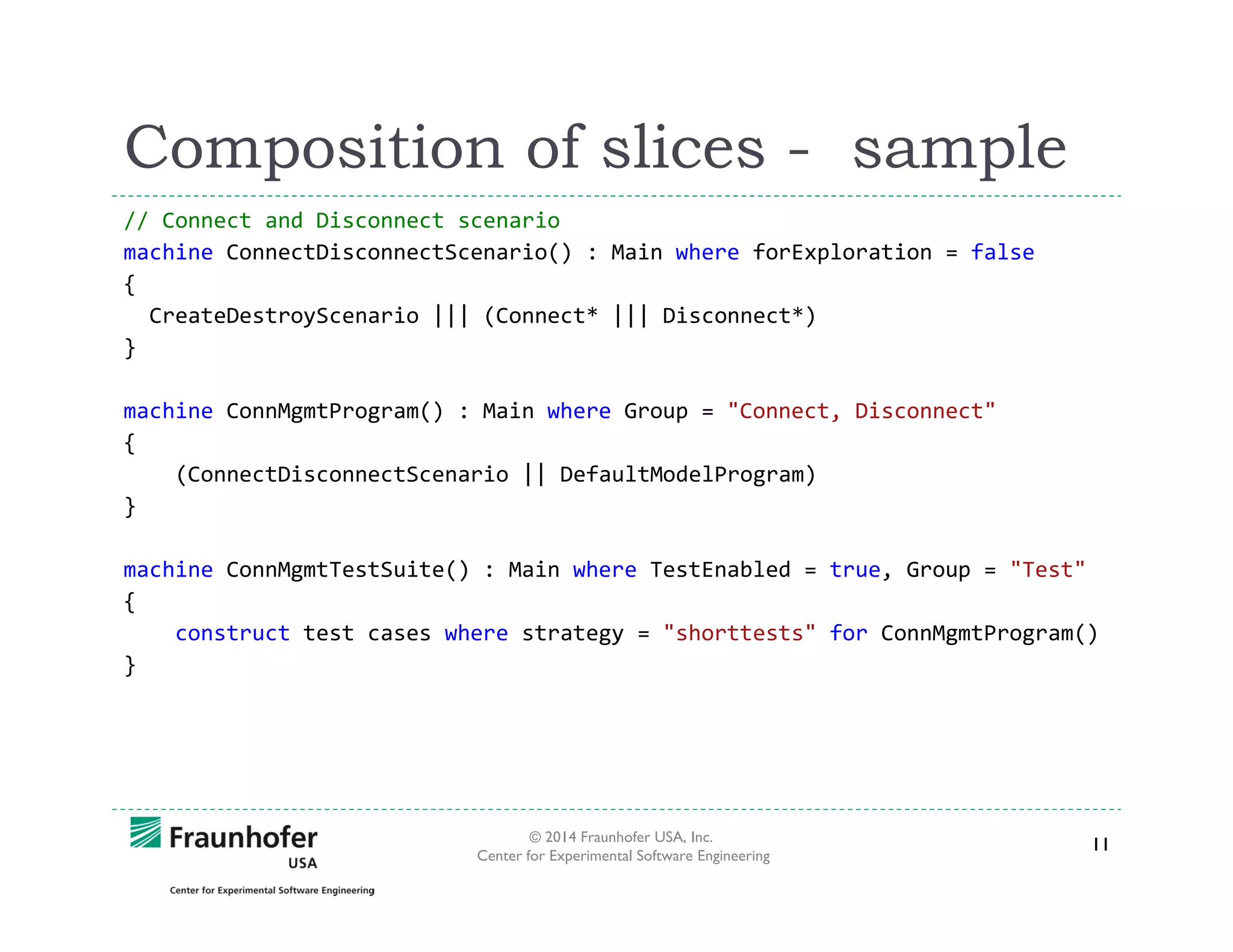

11. Composition of slices - sample
// Connect and Disconnect scenario
machine ConnectDisconnectScenario() : Main where forExploration = false
{
CreateDestroyScenario ||| (Connect* ||| Disconnect*)
}
machine ConnMgmtProgram() : Main where Group = "Connect, Disconnect"
{
(ConnectDisconnectScenario || DefaultModelProgram)
}
machine ConnMgmtTestSuite() : Main where TestEnabled = true, Group = "Test"
{
construct test cases where strategy = "shorttests" for ConnMgmtProgram()
}
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
11

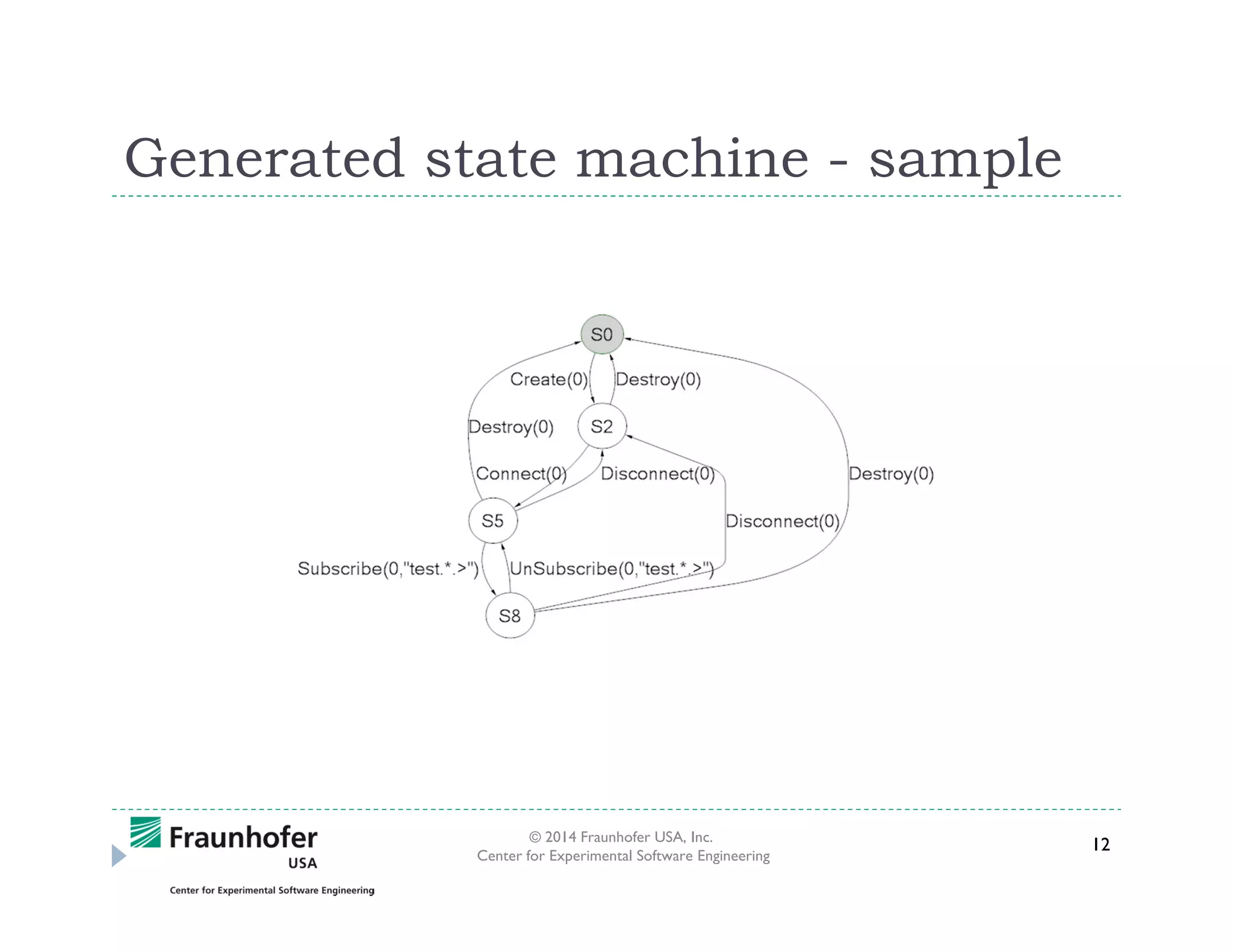

12. Generated state machine - sample
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
12

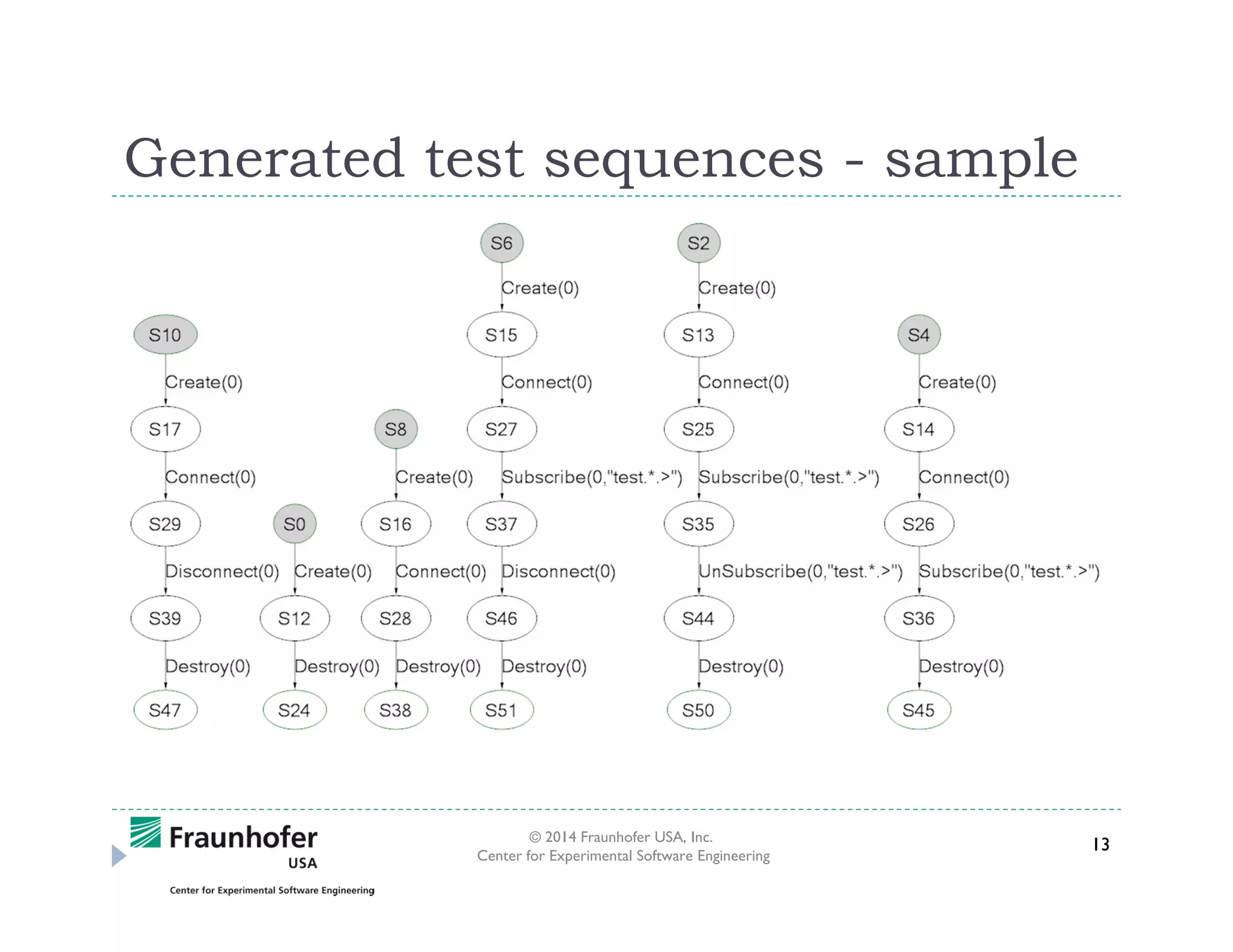

13. Generated test sequences - sample
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
13

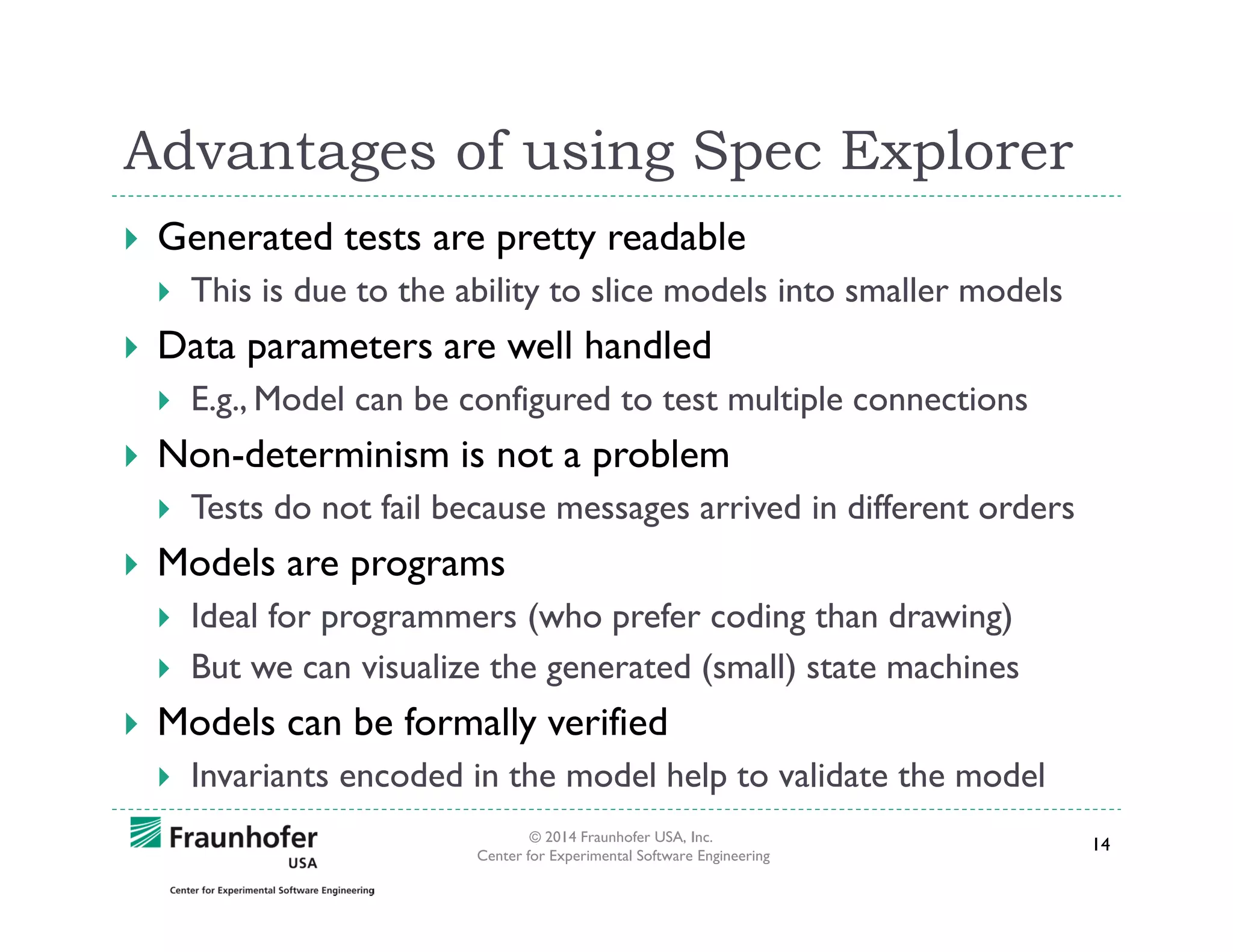

14. Advantages of using Spec Explorer
Generated tests are pretty readable
This is due to the ability to slice models into smaller models
Data parameters are well handled
E.g., Model can be configured to test multiple connections
Non-determinism is not a problem
Tests do not fail because messages arrived in different orders
Models are programs
Ideal for programmers (who prefer coding than drawing)
But we can visualize the generated (small) state machines
Models can be formally verified
Invariants encoded in the model help to validate the model
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
14

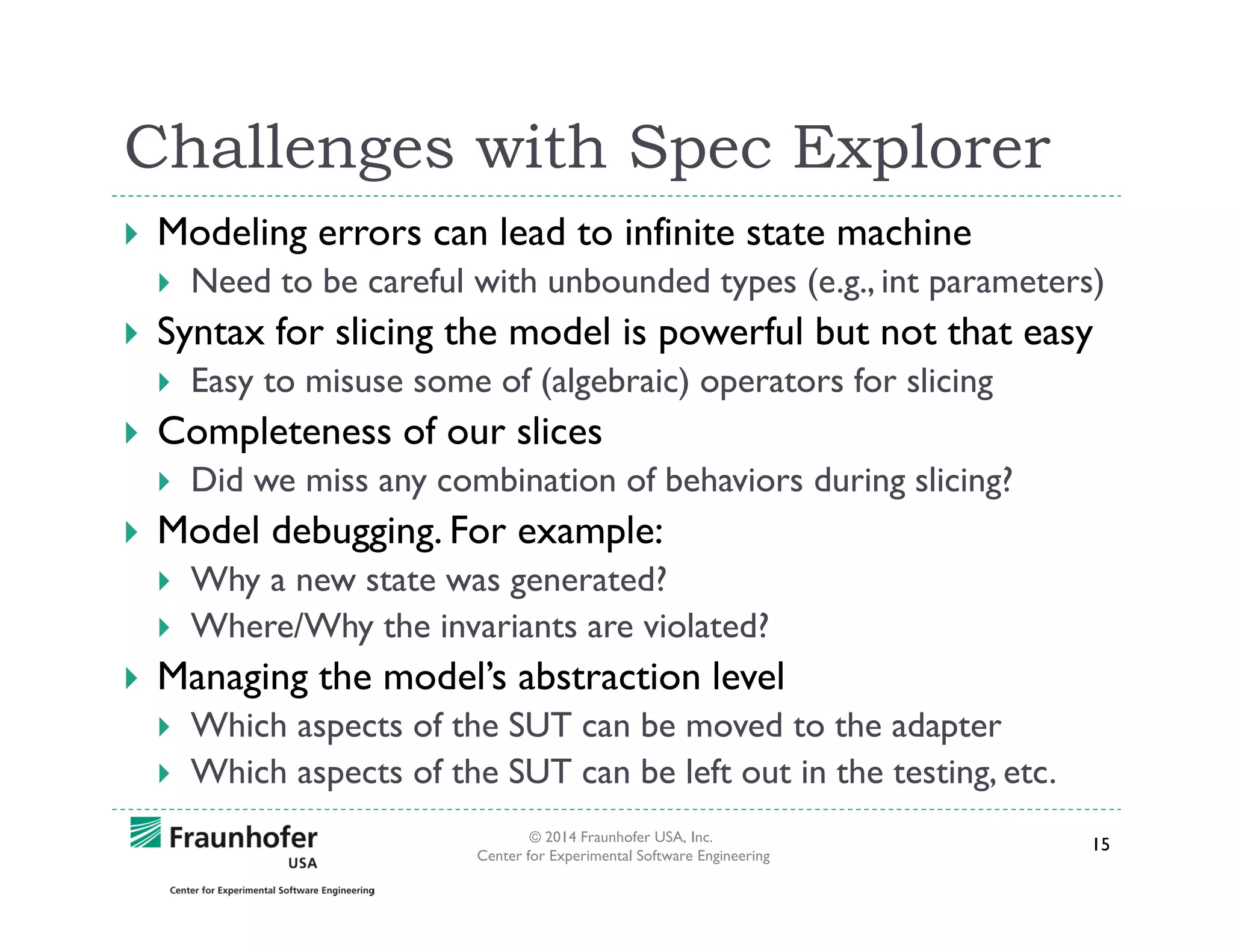

15. Challenges with Spec Explorer
Modeling errors can lead to infinite state machine
Need to be careful with unbounded types (e.g., int parameters)
Syntax for slicing the model is powerful but not that easy
Easy to misuse some of (algebraic) operators for slicing
Completeness of our slices
Did we miss any combination of behaviors during slicing?
Model debugging. For example:
Why a new state was generated?
Where/Why the invariants are violated?
Managing the model’s abstraction level
Which aspects of the SUT can be moved to the adapter
Which aspects of the SUT can be left out in the testing, etc.
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
15

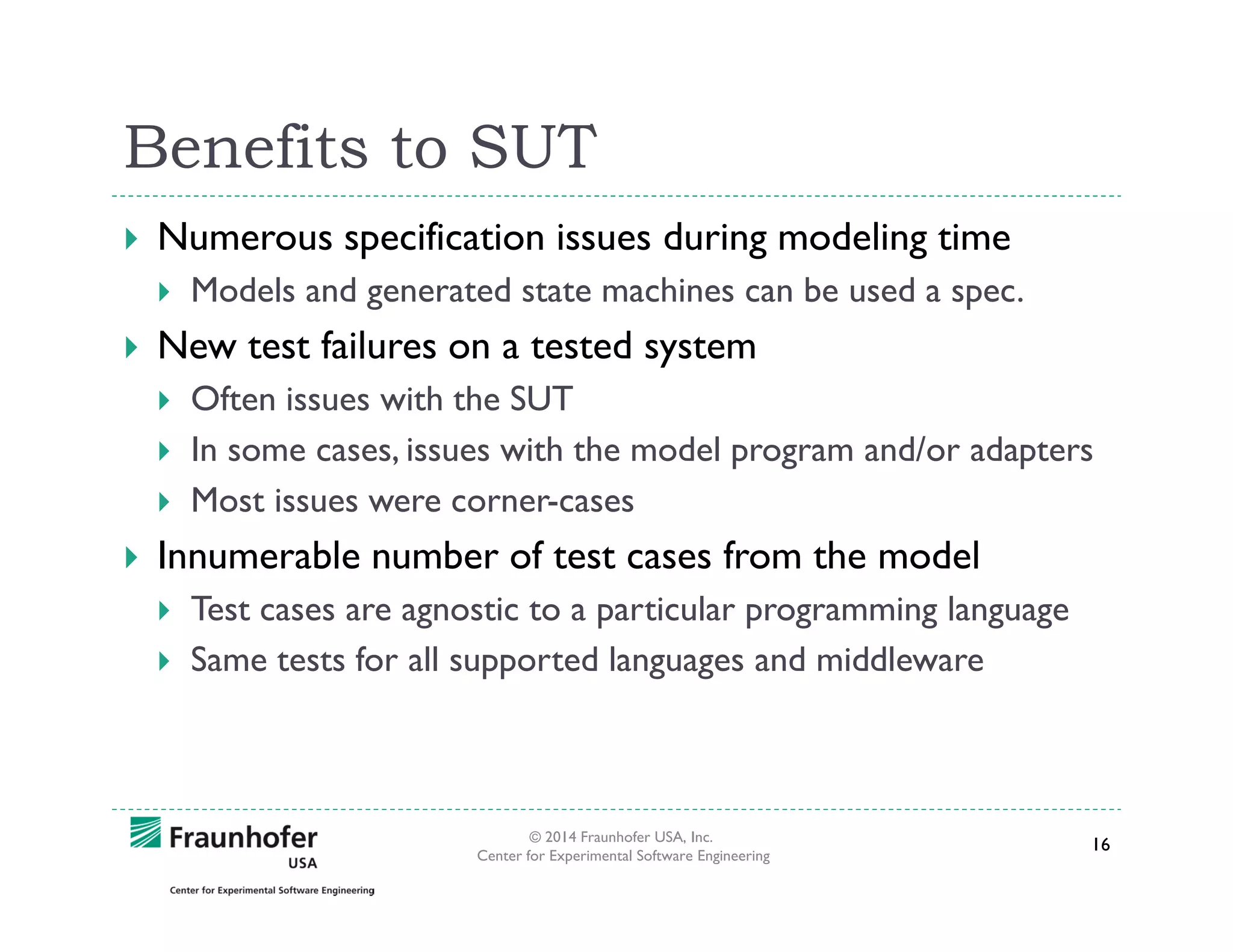

16. Benefits to SUT
Numerous specification issues during modeling time
Models and generated state machines can be used a spec.
New test failures on a tested system
Often issues with the SUT
In some cases, issues with the model program and/or adapters
Most issues were corner-cases
Innumerable number of test cases from the model
Test cases are agnostic to a particular programming language
Same tests for all supported languages and middleware
© 2014 Fraunhofer USA, Inc.
Center for Experimental Software Engineering
16

17. Questions
Dharma Ganesan (dganesan@fc-md.umd.edu)
