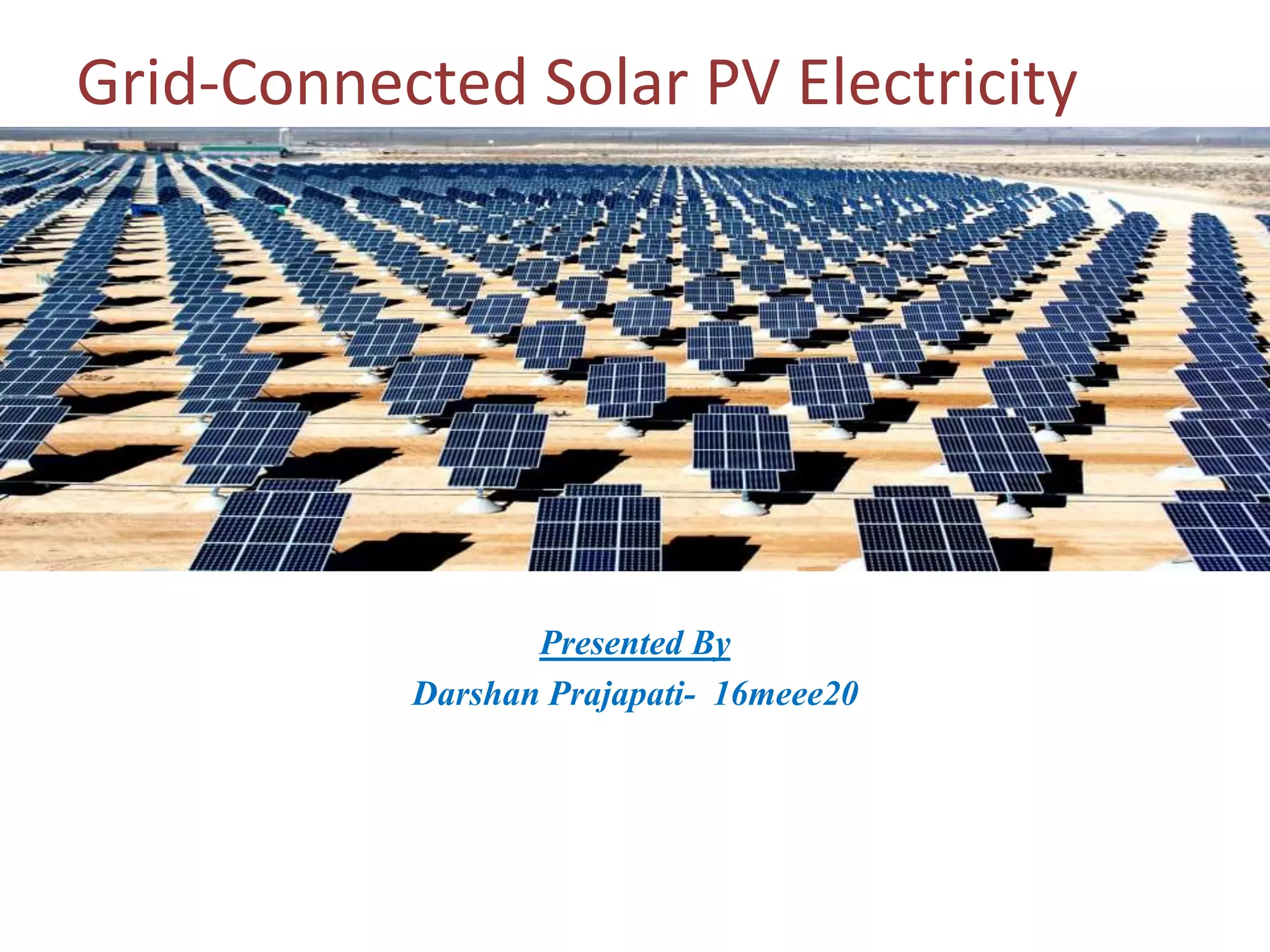

1. Presented By
Darshan Prajapati- 16meee20
Grid-Connected Solar PV Electricity

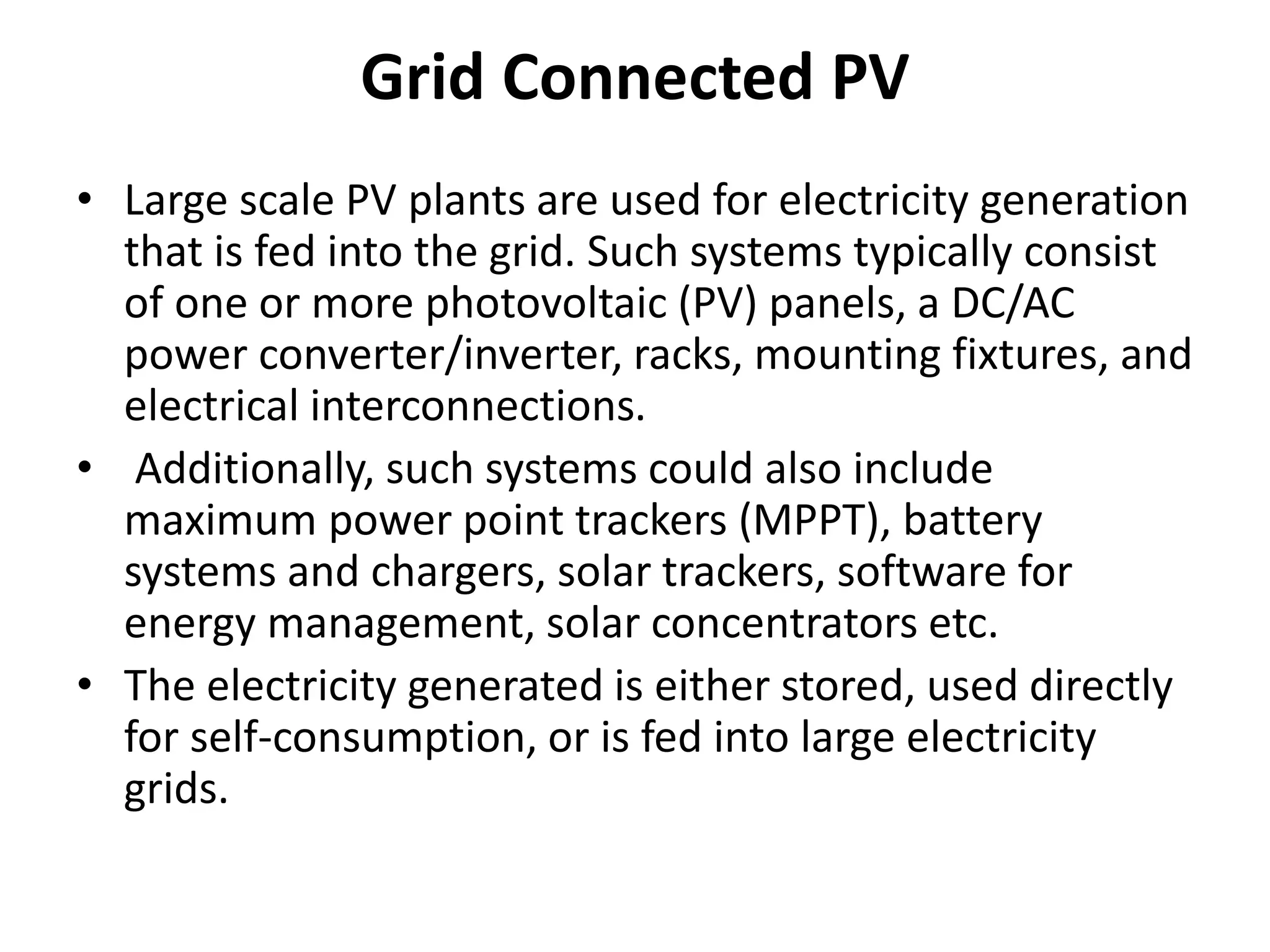

2. Grid Connected PV
• Large scale PV plants are used for electricity generation
that is fed into the grid. Such systems typically consist
of one or more photovoltaic (PV) panels, a DC/AC
power converter/inverter, racks, mounting fixtures, and
electrical interconnections.
• Additionally, such systems could also include
maximum power point trackers (MPPT), battery
systems and chargers, solar trackers, software for
energy management, solar concentrators etc.
• The electricity generated is either stored, used directly
for self-consumption, or is fed into large electricity
grids.

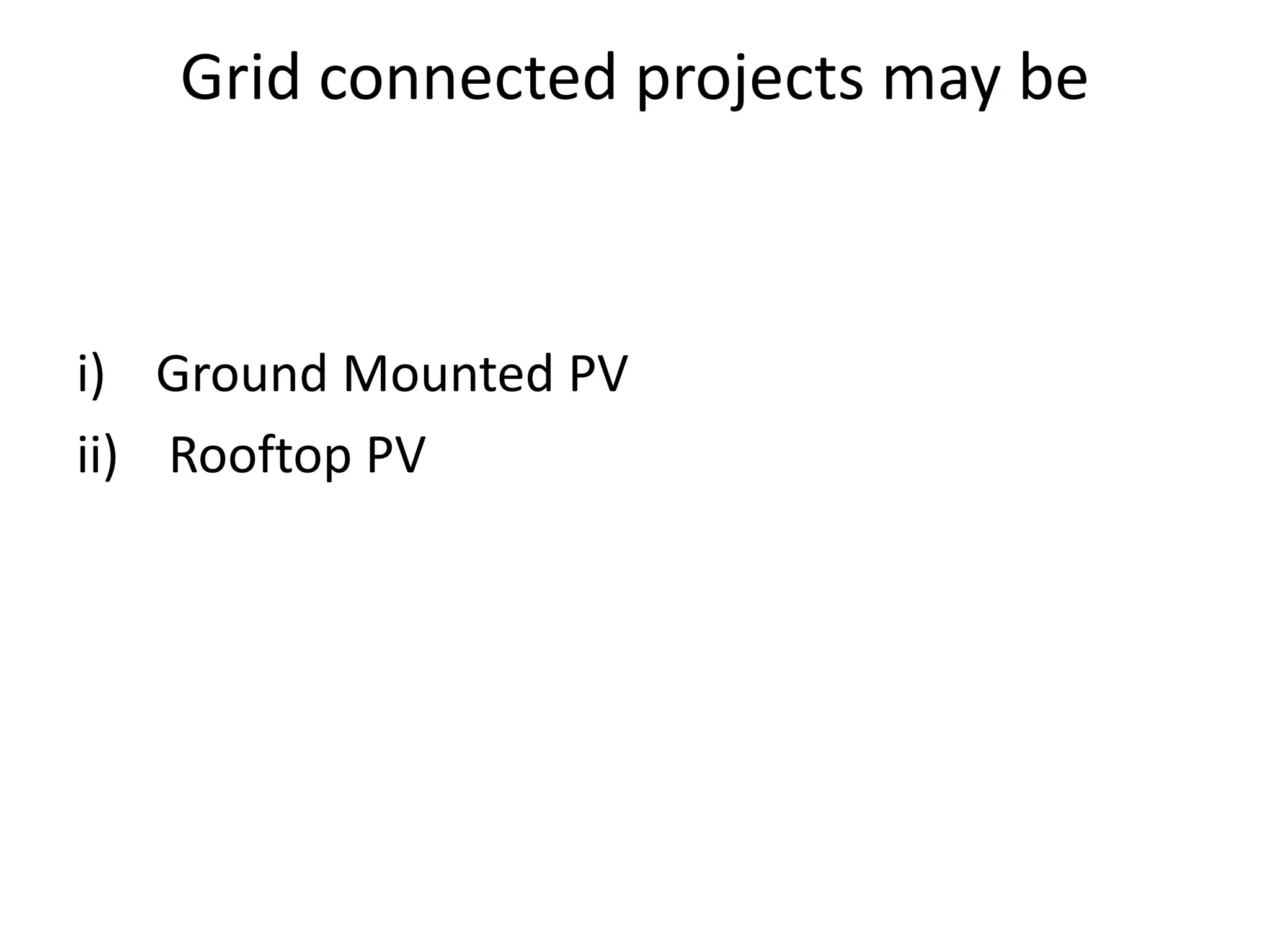

3. Grid connected projects may be
i) Ground Mounted PV
ii) Rooftop PV

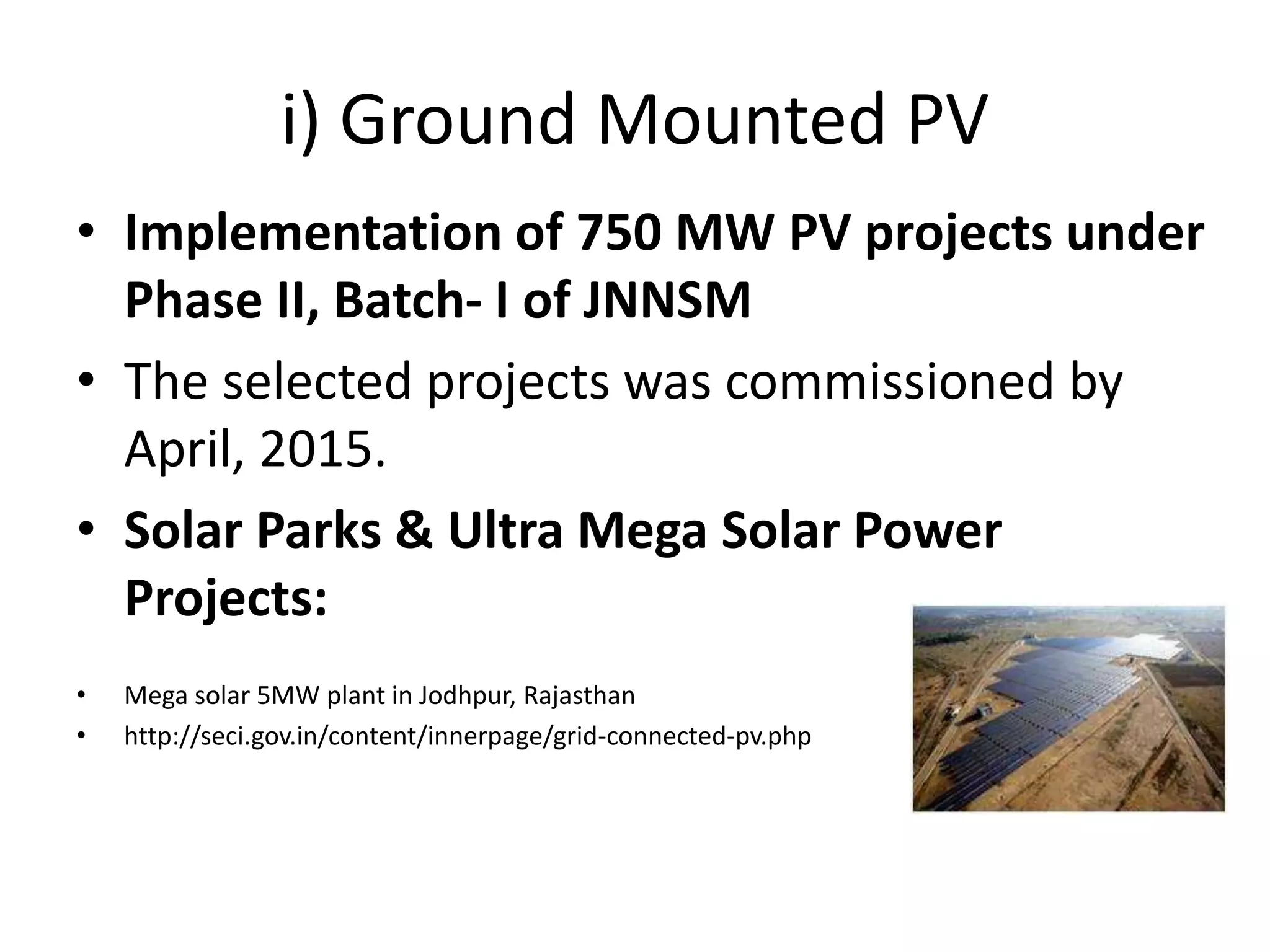

4. i) Ground Mounted PV
• Implementation of 750 MW PV projects under
Phase II, Batch- I of JNNSM
• The selected projects was commissioned by
April, 2015.
• Solar Parks & Ultra Mega Solar Power
Projects:
• Mega solar 5MW plant in Jodhpur, Rajasthan
• http://seci.gov.in/content/innerpage/grid-connected-pv.php

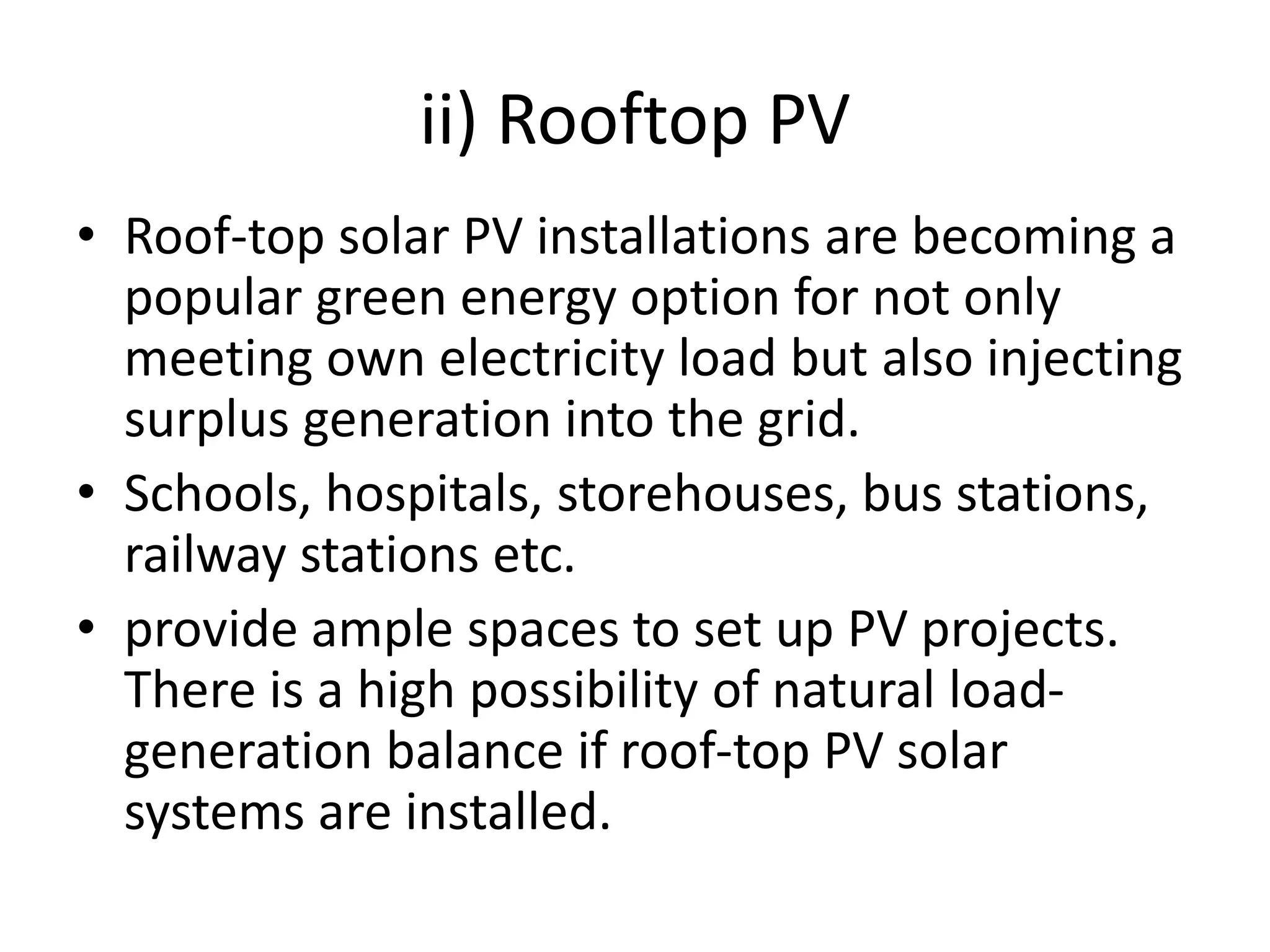

5. ii) Rooftop PV
• Roof-top solar PV installations are becoming a
popular green energy option for not only
meeting own electricity load but also injecting
surplus generation into the grid.
• Schools, hospitals, storehouses, bus stations,
railway stations etc.
• provide ample spaces to set up PV projects.
There is a high possibility of natural load-
generation balance if roof-top PV solar
systems are installed.

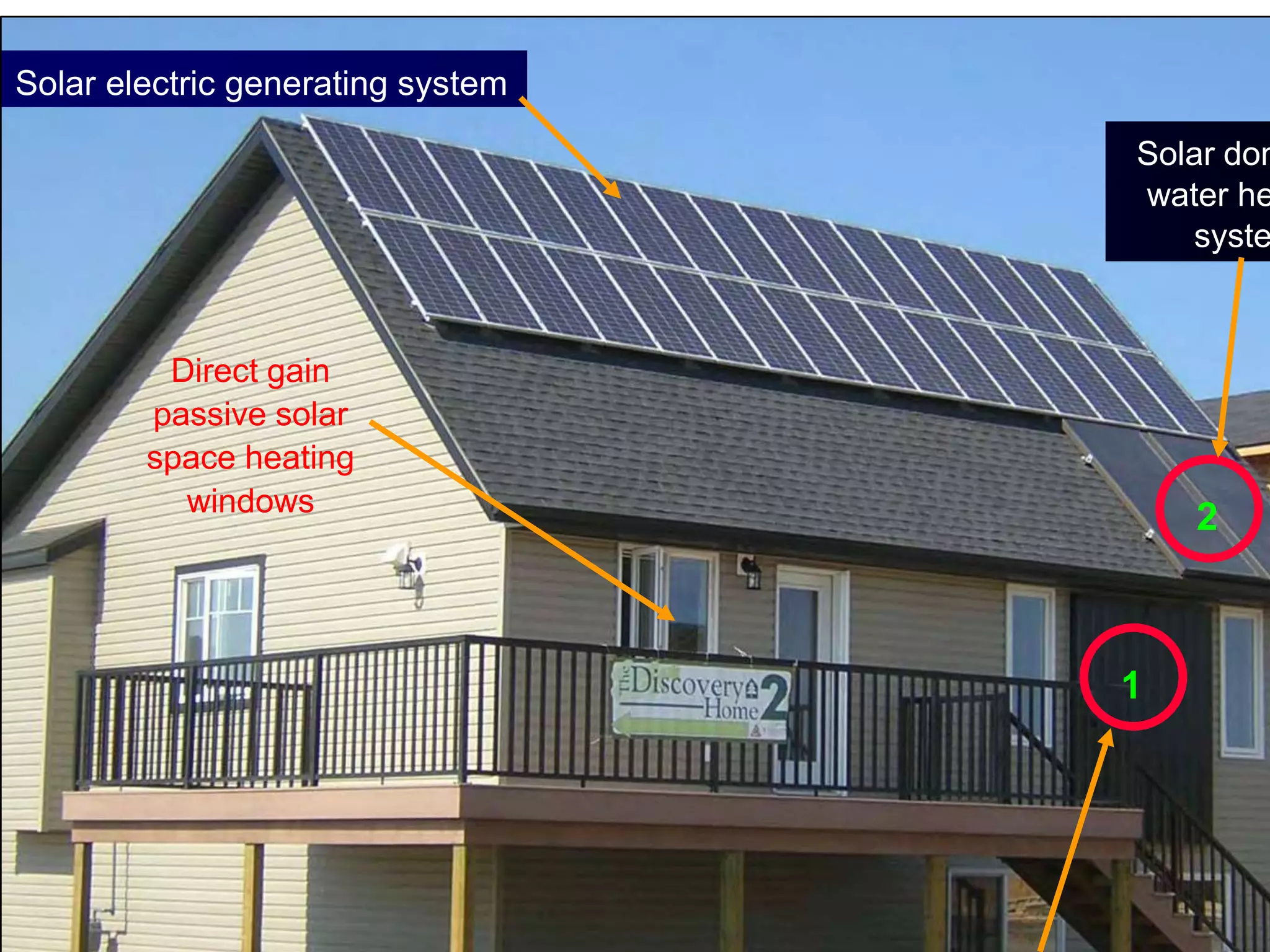

6. How many solar panels do you see here
Solar Energy Development Specialists 41
2
1
Solar dom
water he
syste
Solar electric generating system
Direct gain
passive solar
space heating
windows

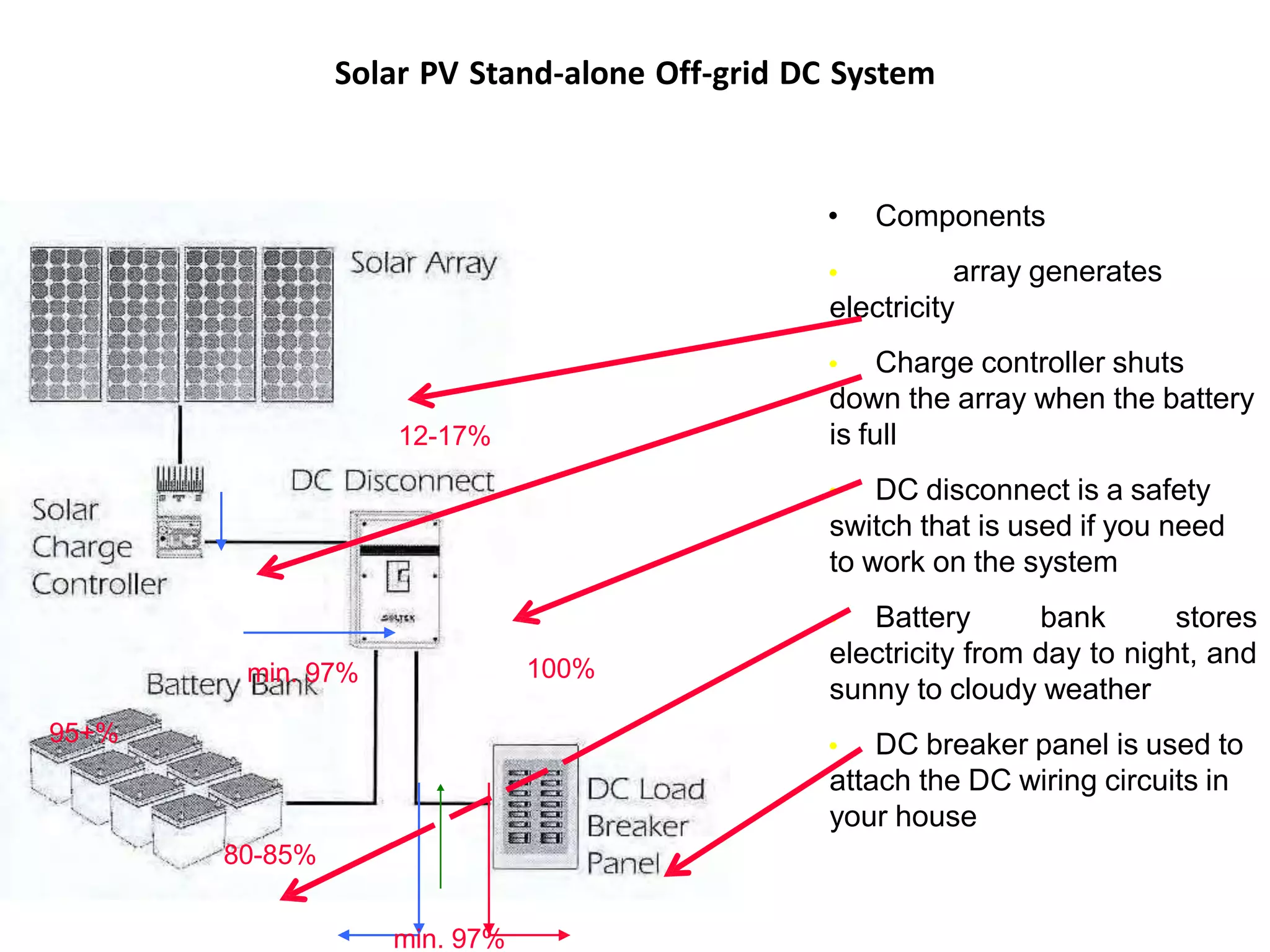

7. Solar PV Stand-alone Off-grid DC System
• Components:
 Solar array generates
electricity
 Charge controller shuts
down the array when the battery
is full
 DC disconnect is a safety
switch that is used if you need
to work on the system
 Battery bank stores
electricity from day to night, and
sunny to cloudy weather
 DC breaker panel is used to
attach the DC wiring circuits in
your house
95+%
80-85%
100%min. 97%
min. 97%
12-17%

8. Solar PV Stand-alone Off-grid AC System
Solar Energy Development Specialists 45Additional Components:
Inverter changes DC
electricity from the solar array
and the battery bank to AC
electricity for your house
AC breaker panel is used to
attach the AC wiring circuits
in your house
95+
%
80-
85%
100
%
min.
97%
85-
94%
min.
97%
12-
17%
Overall system efficiency:
- array to loads: 59% to 74%
- sun to loads: 7% to 12%

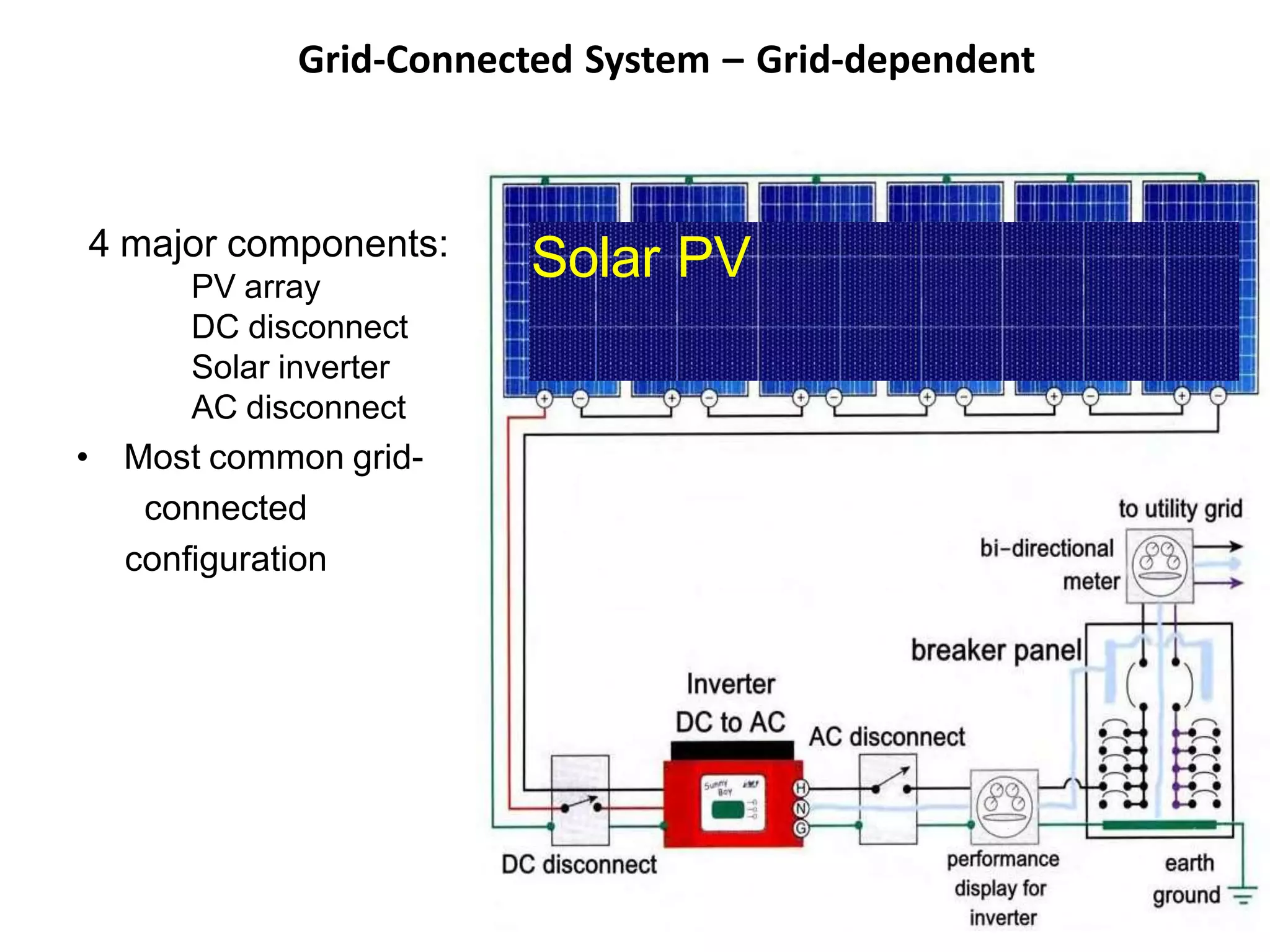

9. Grid-Connected System – Grid-dependent
4 major components:
– PV array
– DC disconnect
– Solar inverter
– AC disconnect
• Most common grid-
connected
configuration
Solar PV

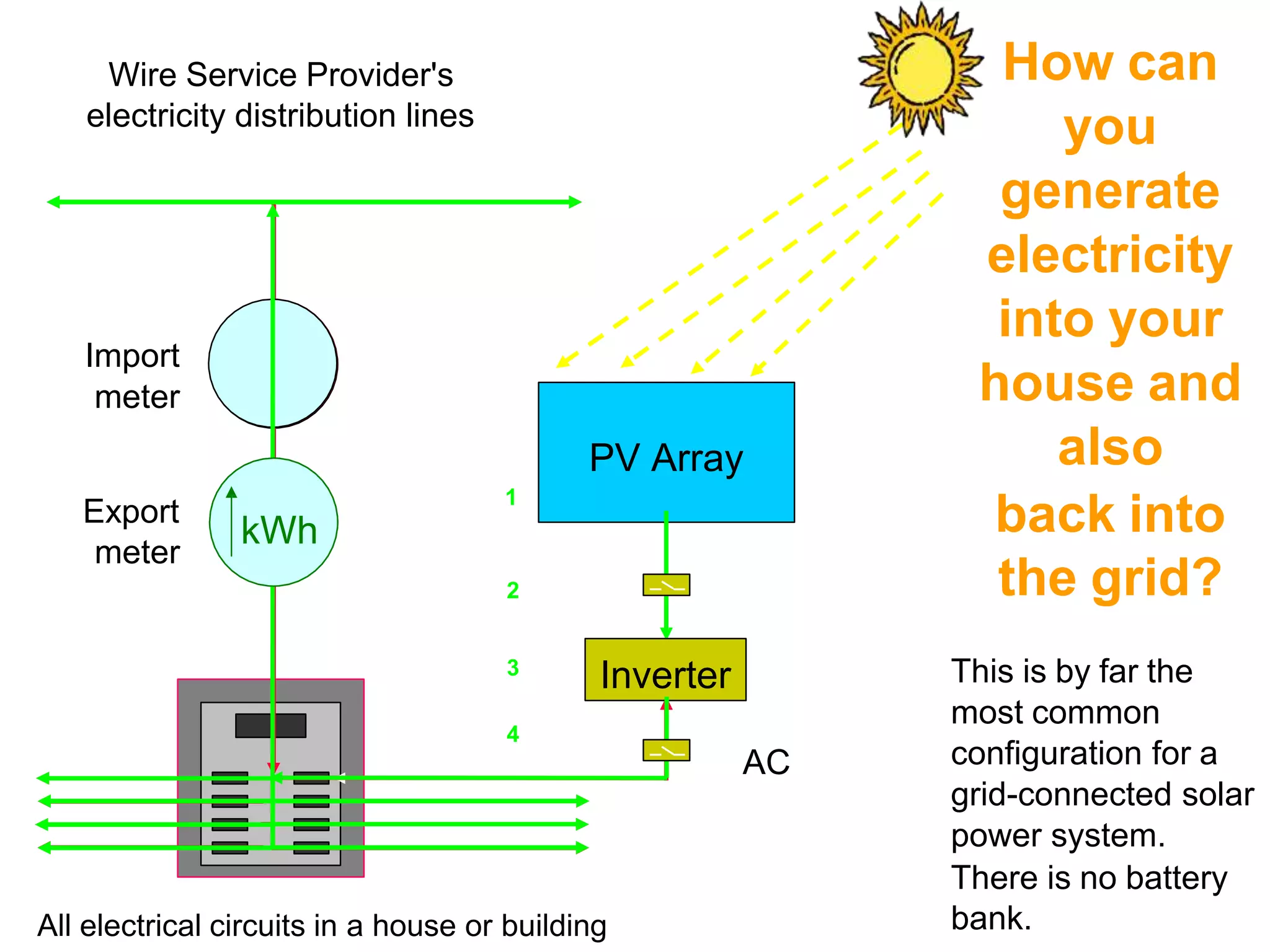

10. PV Array
DC
Wire Service Provider's
electricity distribution lines
AC
All electrical circuits in a house or building
Import
meter
Export
meter
1
2
3
4
Inverter
How can
you
generate
electricity
into your
house and
also
back into
the grid?
This is by far the
most common
configuration for a
grid-connected solar
power system.
There is no battery
bank.
kWh
kWh

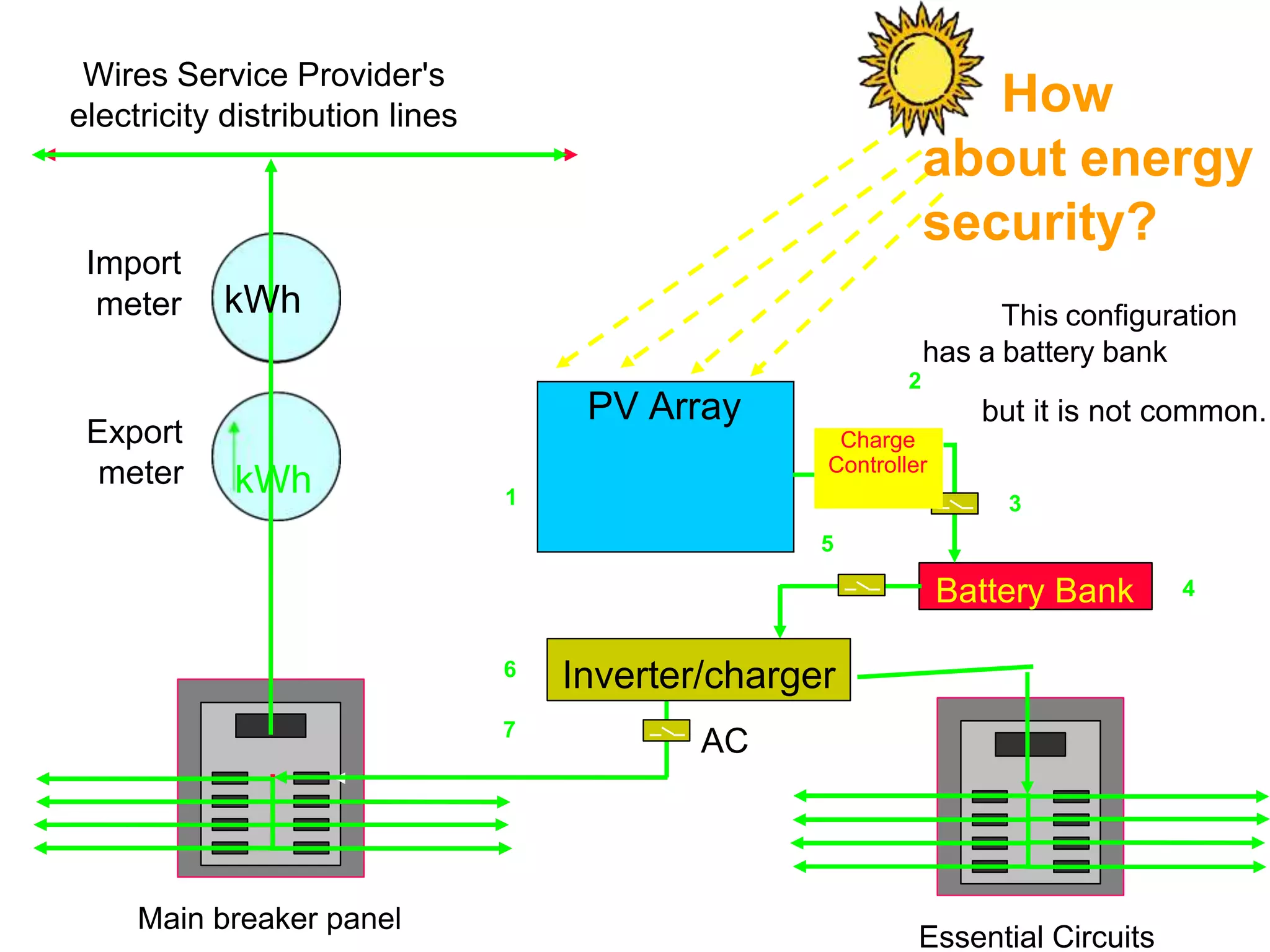

11. AC
1 3
4
but it is not common.
Main breaker panel
Essential Circuits
AC
5
Battery Bank
DC
6
7
Export
meter kWh
Inverter/charger
DC
Wires Service Provider's
electricity distribution lines
2
How
about energy
security?
This configuration
has a battery bank
kWh
Import
meter
PV Array
Charge
Controller

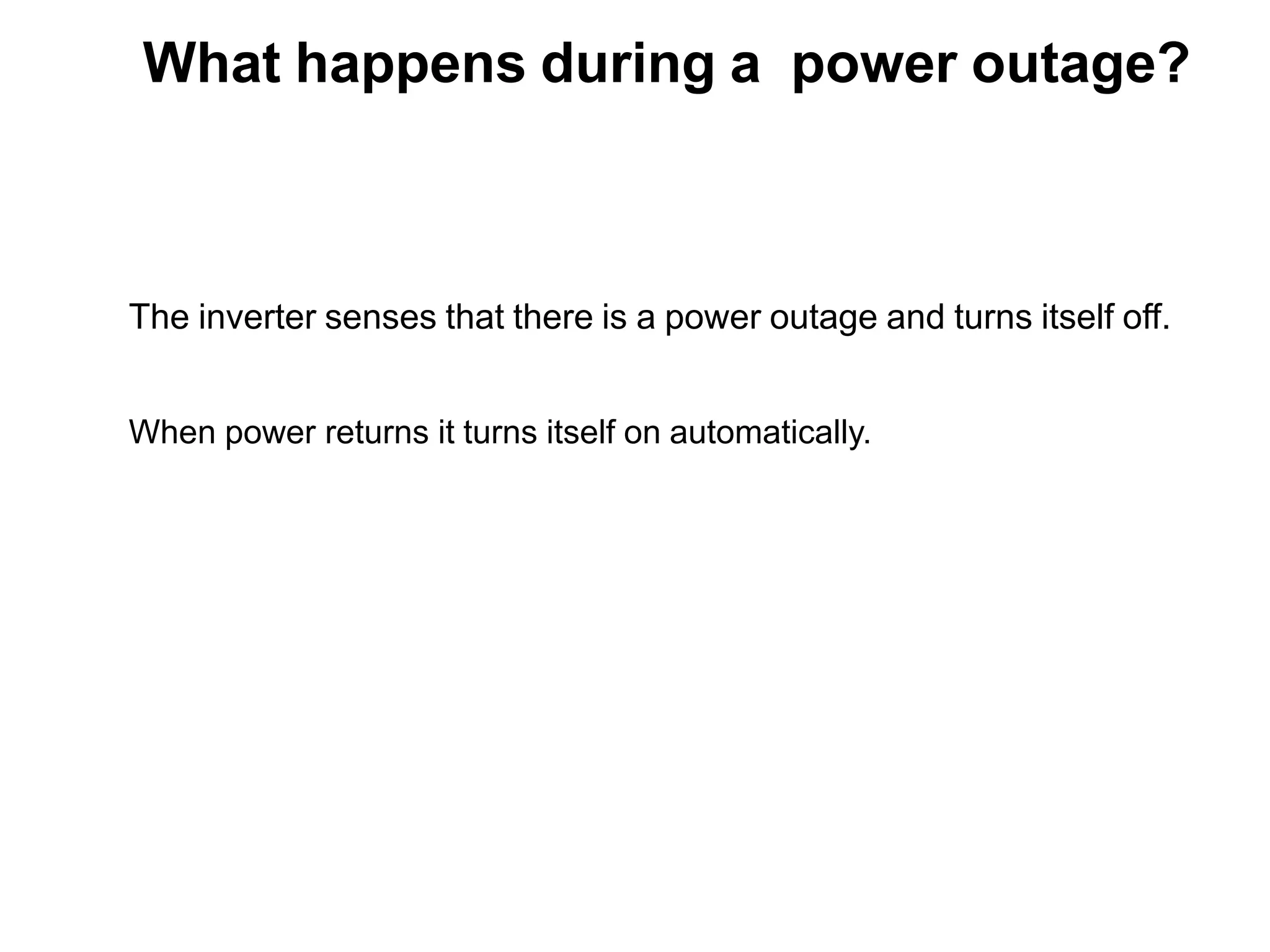

12. What happens during a power outage?
The inverter senses that there is a power outage and turns itself off.
When power returns it turns itself on automatically.

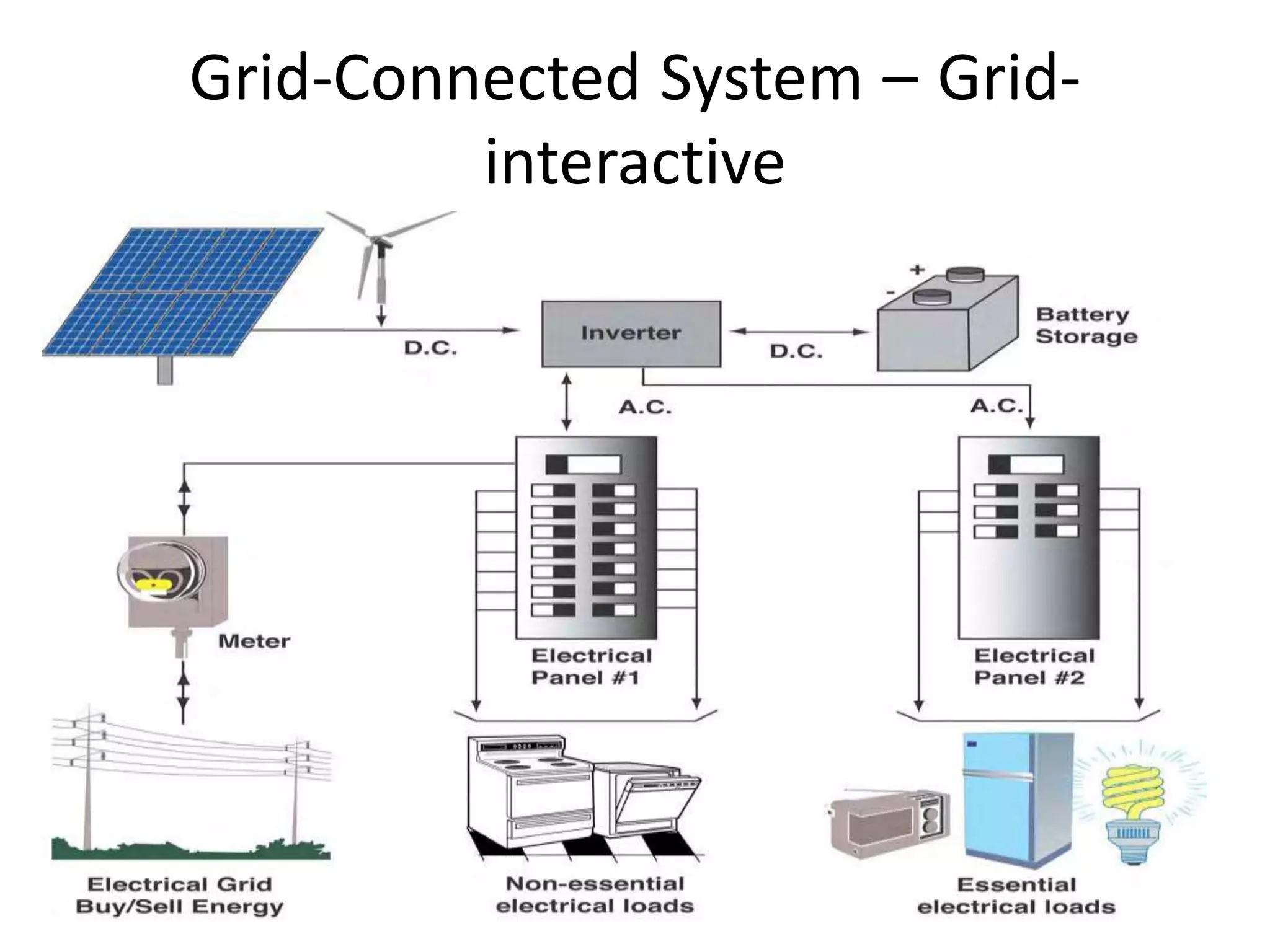

13. Grid-Connected System – Grid-
interactive

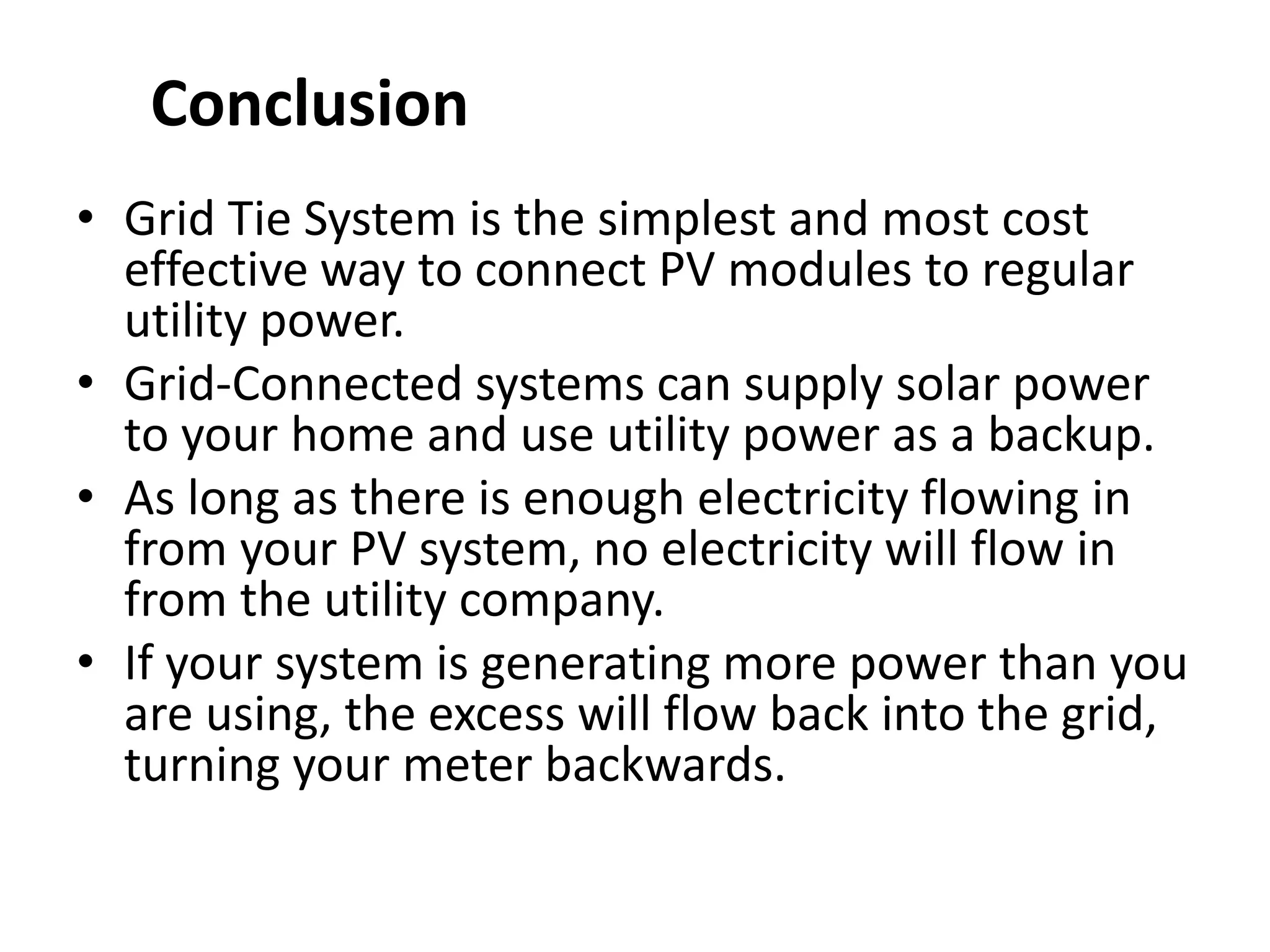

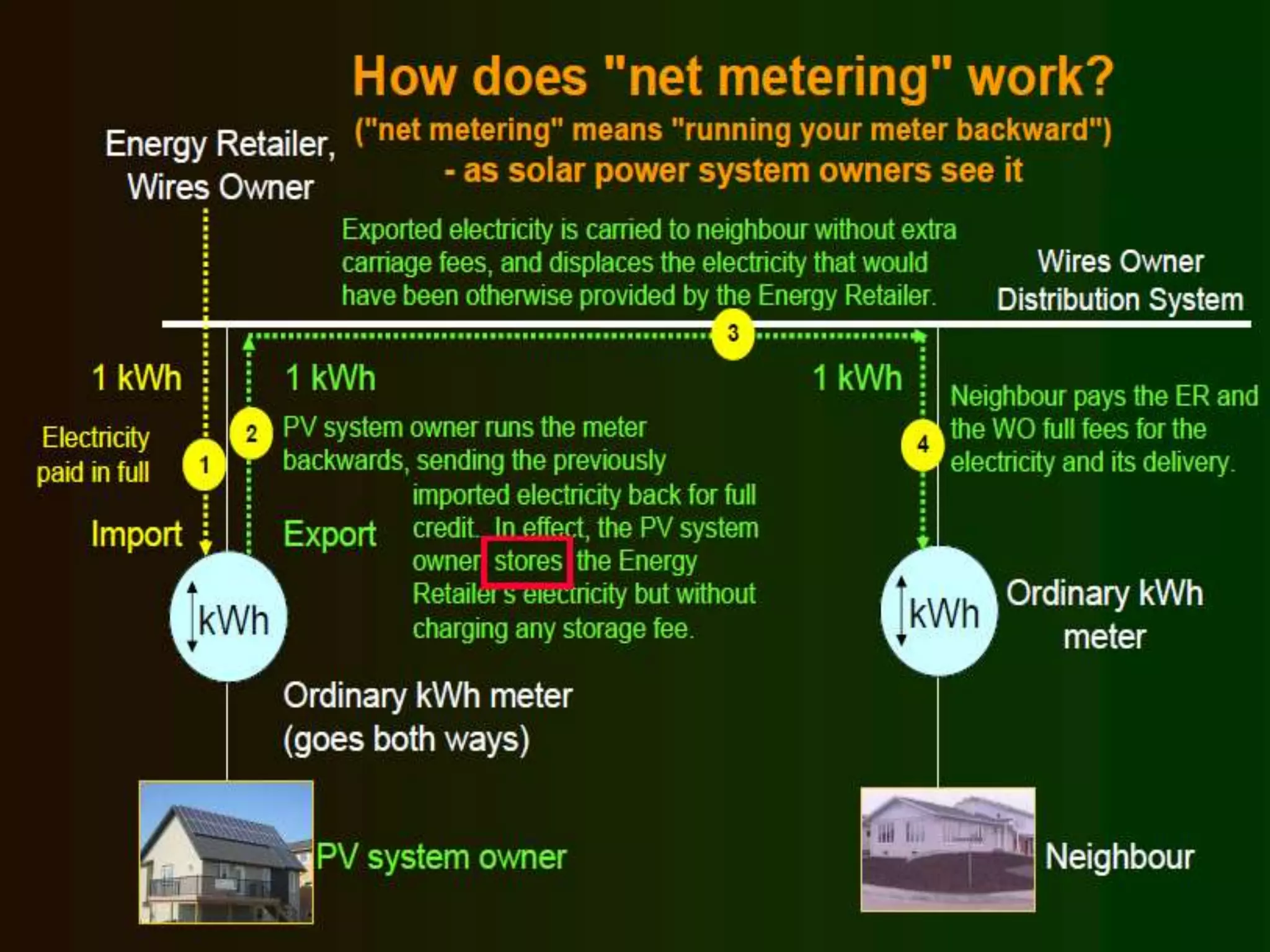

15. • Grid Tie System is the simplest and most cost
effective way to connect PV modules to regular
utility power.
• Grid-Connected systems can supply solar power
to your home and use utility power as a backup.
• As long as there is enough electricity flowing in
from your PV system, no electricity will flow in
from the utility company.
• If your system is generating more power than you
are using, the excess will flow back into the grid,
turning your meter backwards.
Conclusion
