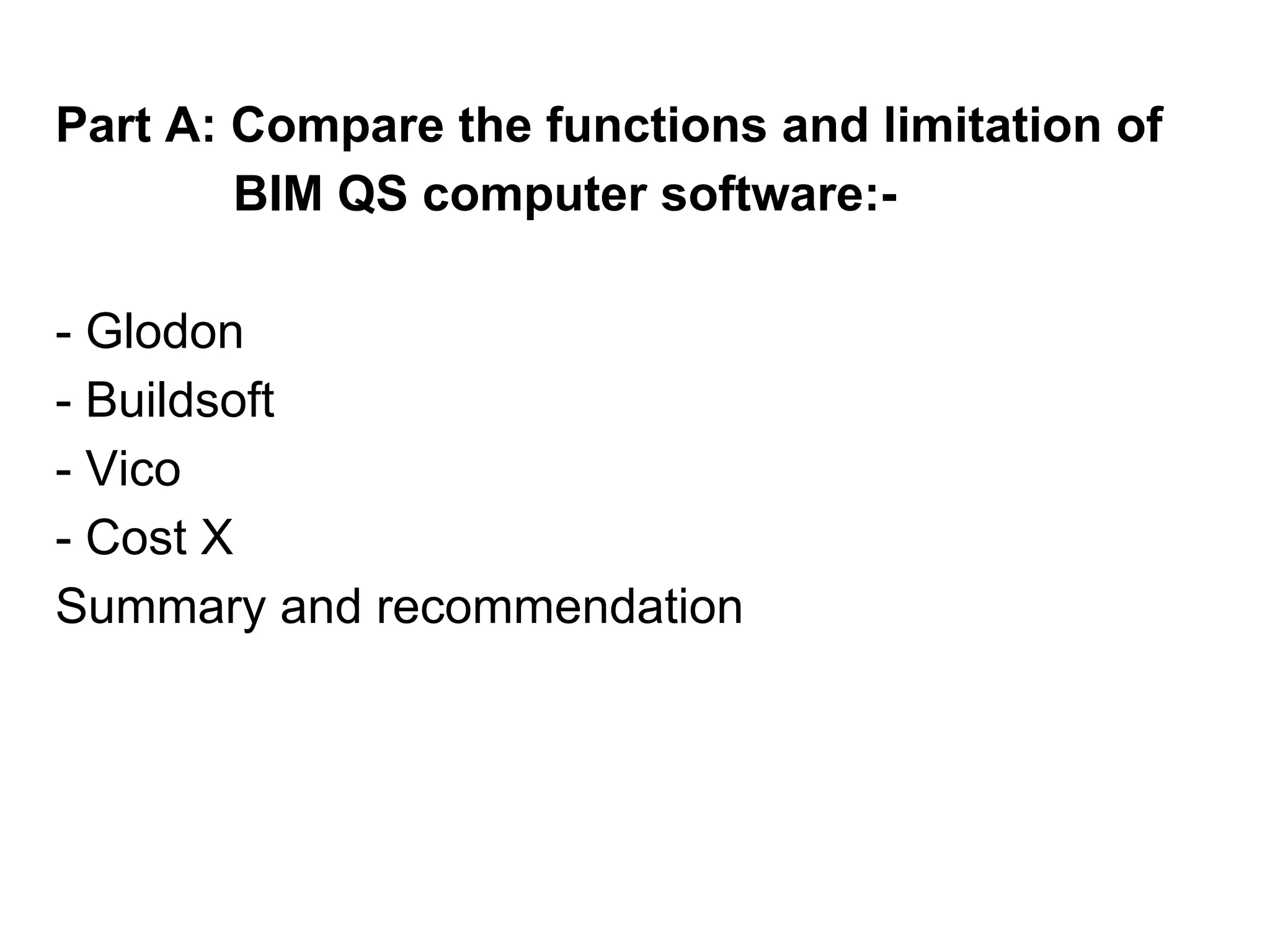

Part A: Compare the functions and limitation of
BIM QS computer software:-
- Glodon
- Buildsoft
- Vico
- Cost X
Summary and recommendation
● Known as TAS.
● Is a measurement tool for QS in construction field.
● Utilize environment data to 3D Visualization effect.
● Enable modeling BIM drawing directly from DWG or PDF files.
● It allow user to carry out measurement calculation.
● Or adjusting model for variation calculation.

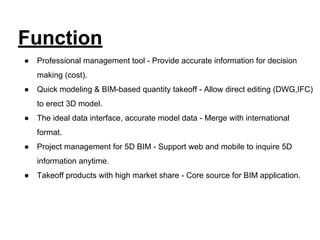

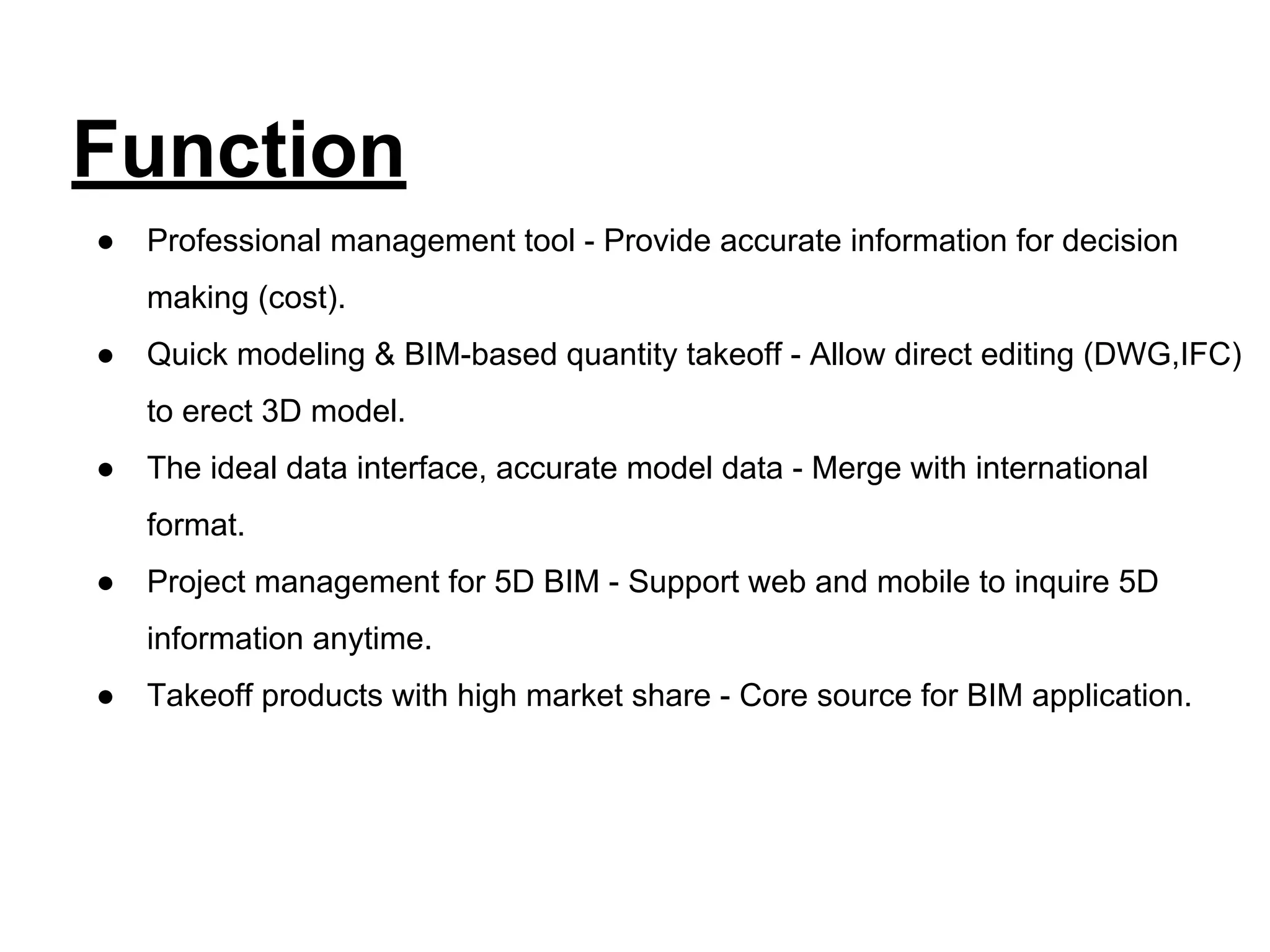

Function
● Professional management tool - Provide accurate information for decision
making (cost).
● Quick modeling & BIM-based quantity takeoff - Allow direct editing (DWG,IFC)
to erect 3D model.
● The ideal data interface, accurate model data - Merge with international
format.
● Project management for 5D BIM - Support web and mobile to inquire 5D
information anytime.
● Takeoff products with high market share - Core source for BIM application.

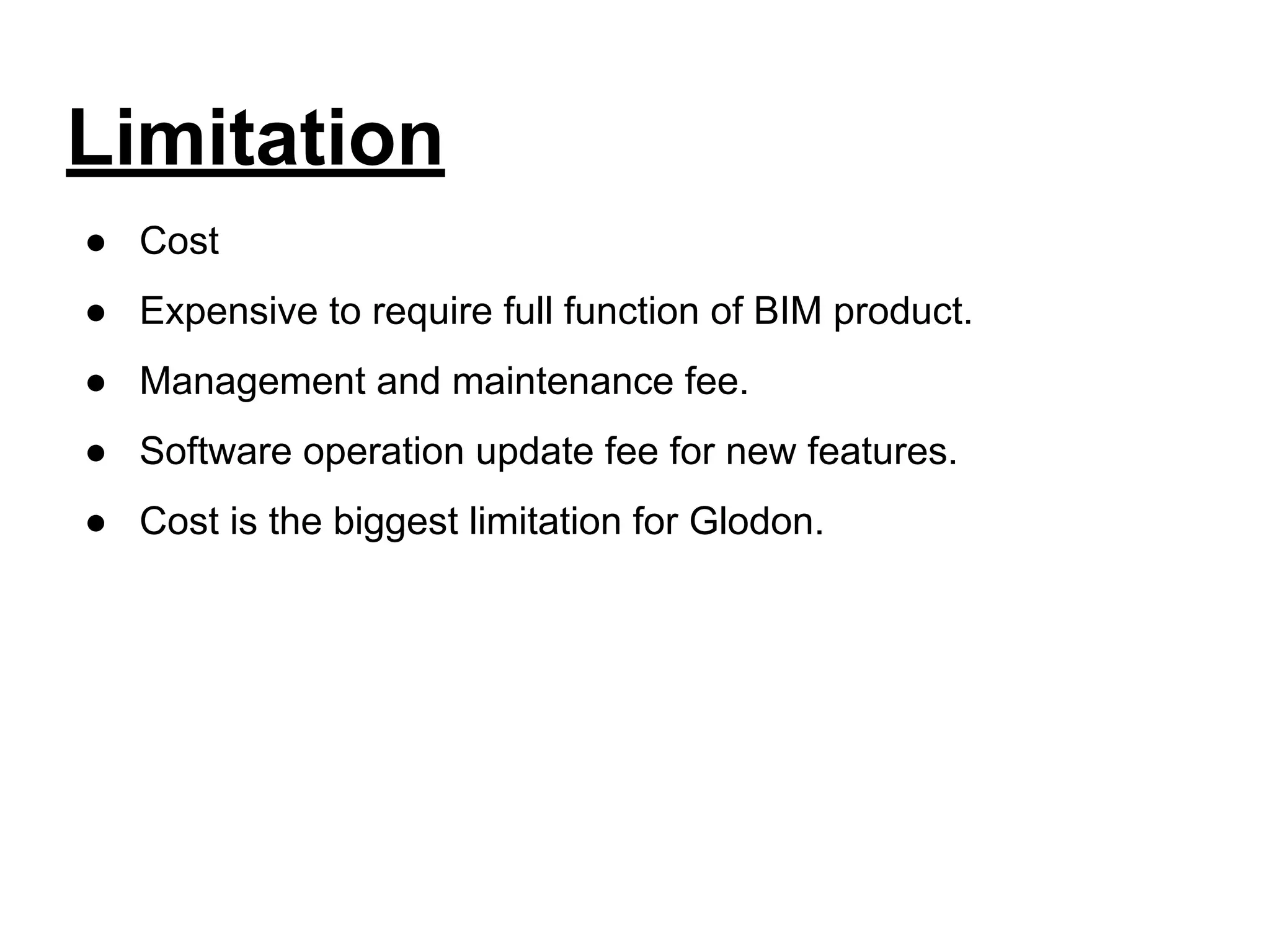

Limitation
● Cost
● Expensive to require full function of BIM product.
● Management and maintenance fee.
● Software operation update fee for new features.
● Cost is the biggest limitation for Glodon.

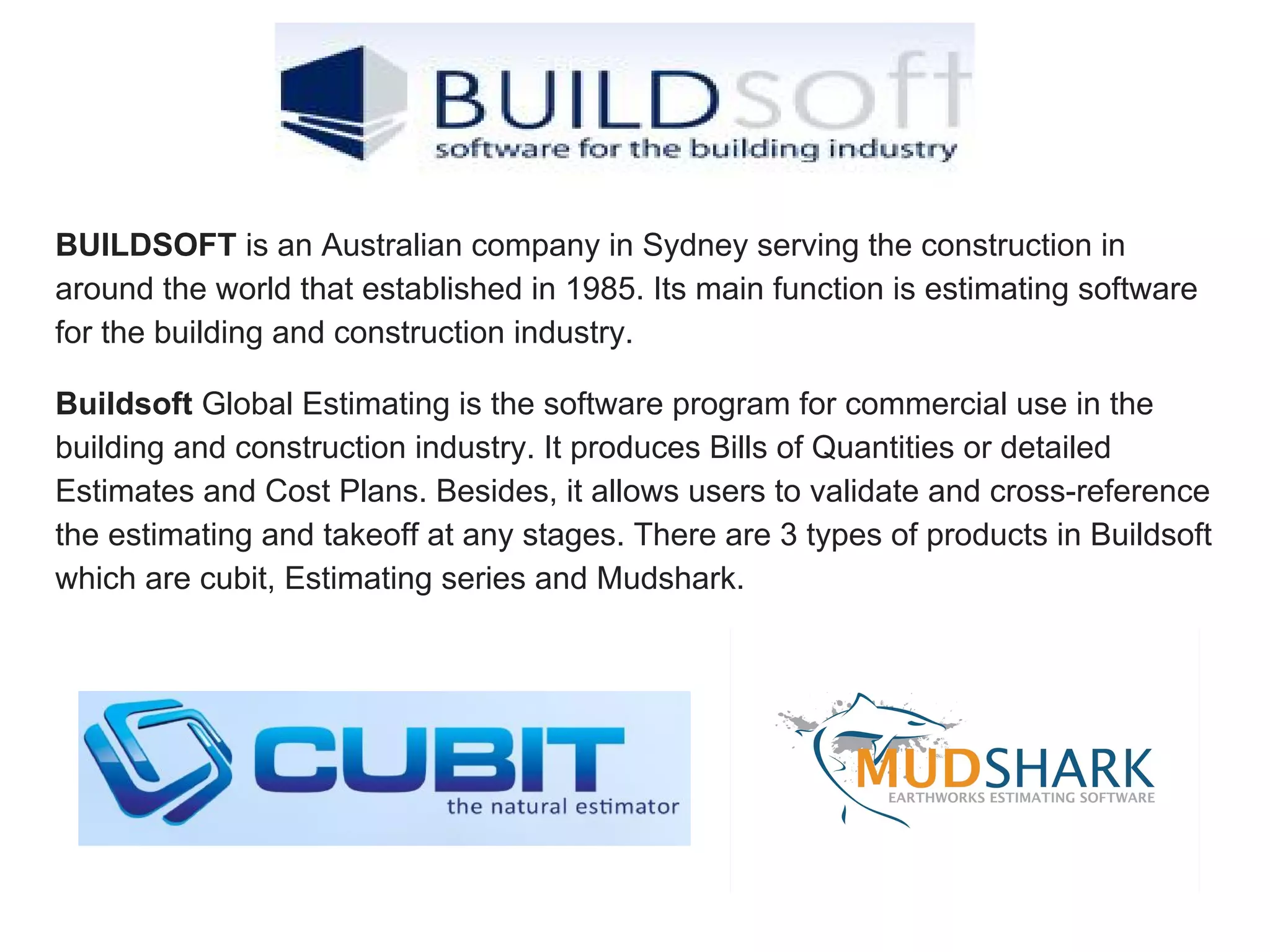

BUILDSOFT is an Australian company in Sydney serving the construction in
around the world that established in 1985. Its main function is estimating software
for the building and construction industry.
Buildsoft Global Estimating is the software program for commercial use in the
building and construction industry. It produces Bills of Quantities or detailed
Estimates and Cost Plans. Besides, it allows users to validate and cross-reference
the estimating and takeoff at any stages. There are 3 types of products in Buildsoft
which are cubit, Estimating series and Mudshark.

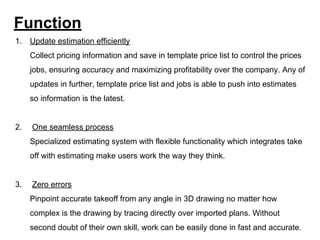

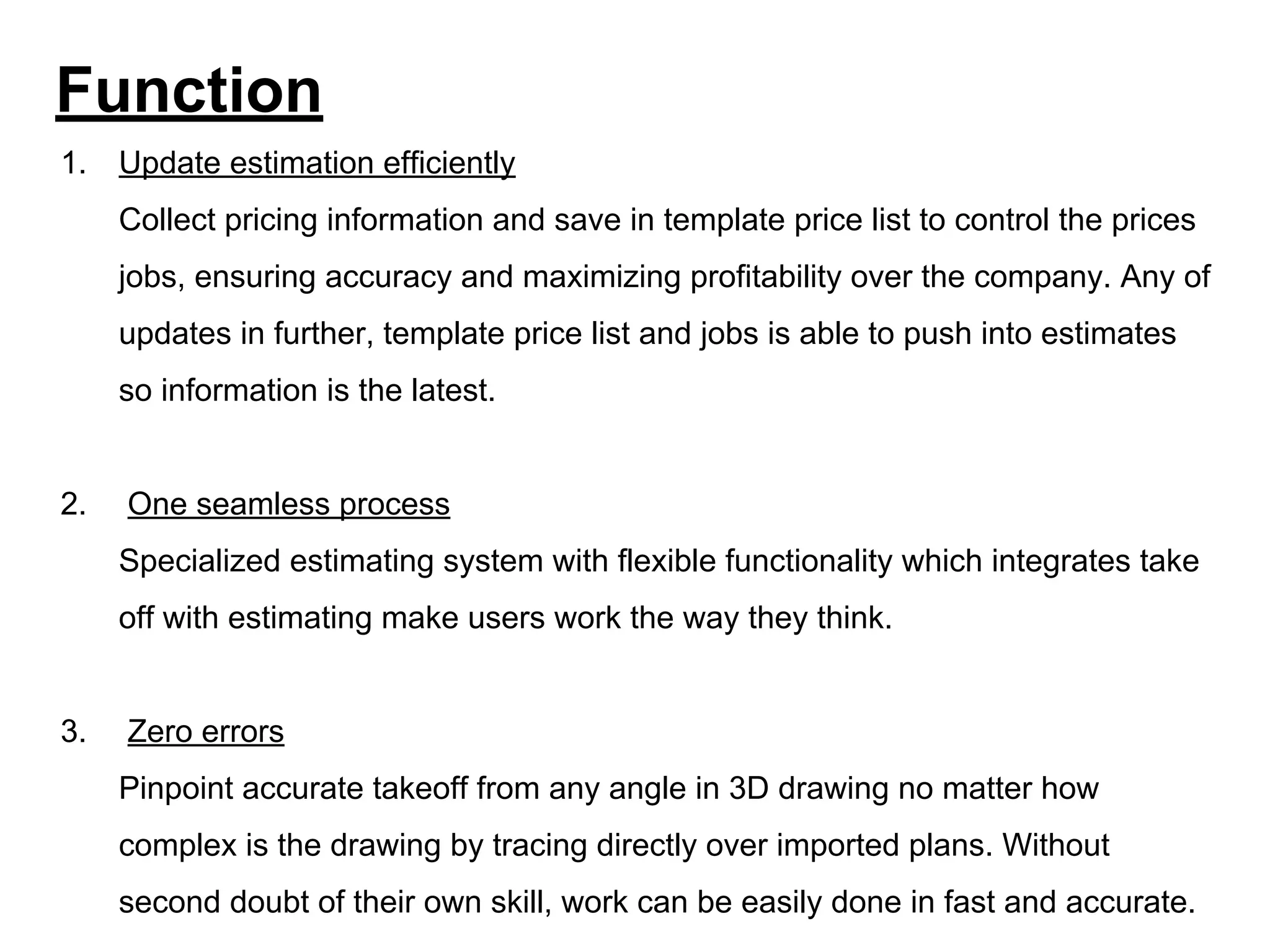

Function
1. Update estimation efficiently
Collect pricing information and save in template price list to control the prices
jobs, ensuring accuracy and maximizing profitability over the company. Any of
updates in further, template price list and jobs is able to push into estimates
so information is the latest.
2. One seamless process
Specialized estimating system with flexible functionality which integrates take
off with estimating make users work the way they think.
3. Zero errors
Pinpoint accurate takeoff from any angle in 3D drawing no matter how
complex is the drawing by tracing directly over imported plans. Without
second doubt of their own skill, work can be easily done in fast and accurate.
5. Greater control, insights and analysis
It is handy if jobs are grouped together and make more visibility. Codes the
estimating allows users to differentiate formats and giving a quick or breakdown a
job by cost code or material.

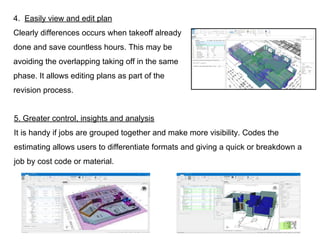

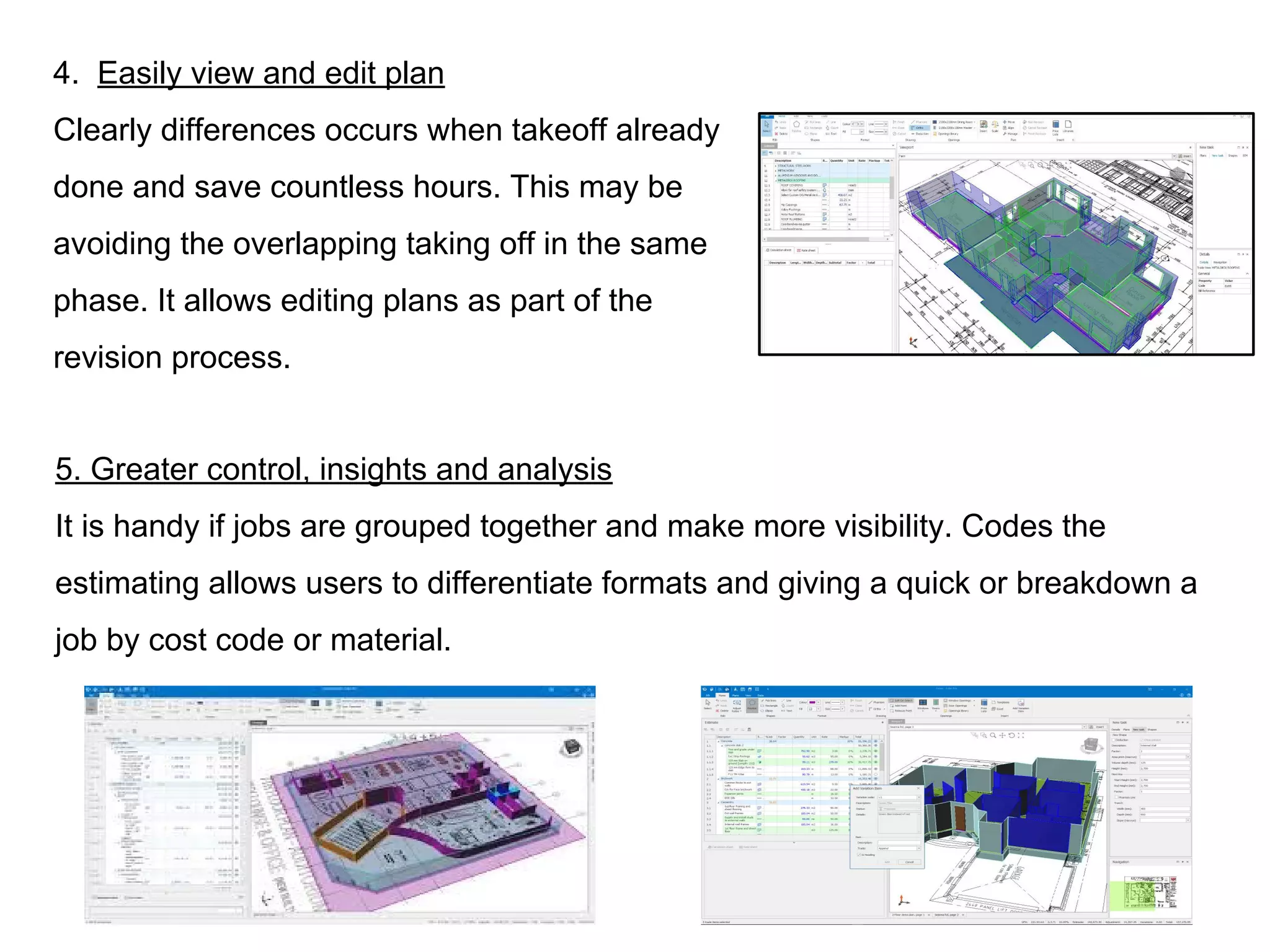

4. Easily view and edit plan
Clearly differences occurs when takeoff already
done and save countless hours. This may be
avoiding the overlapping taking off in the same
phase. It allows editing plans as part of the
revision process.

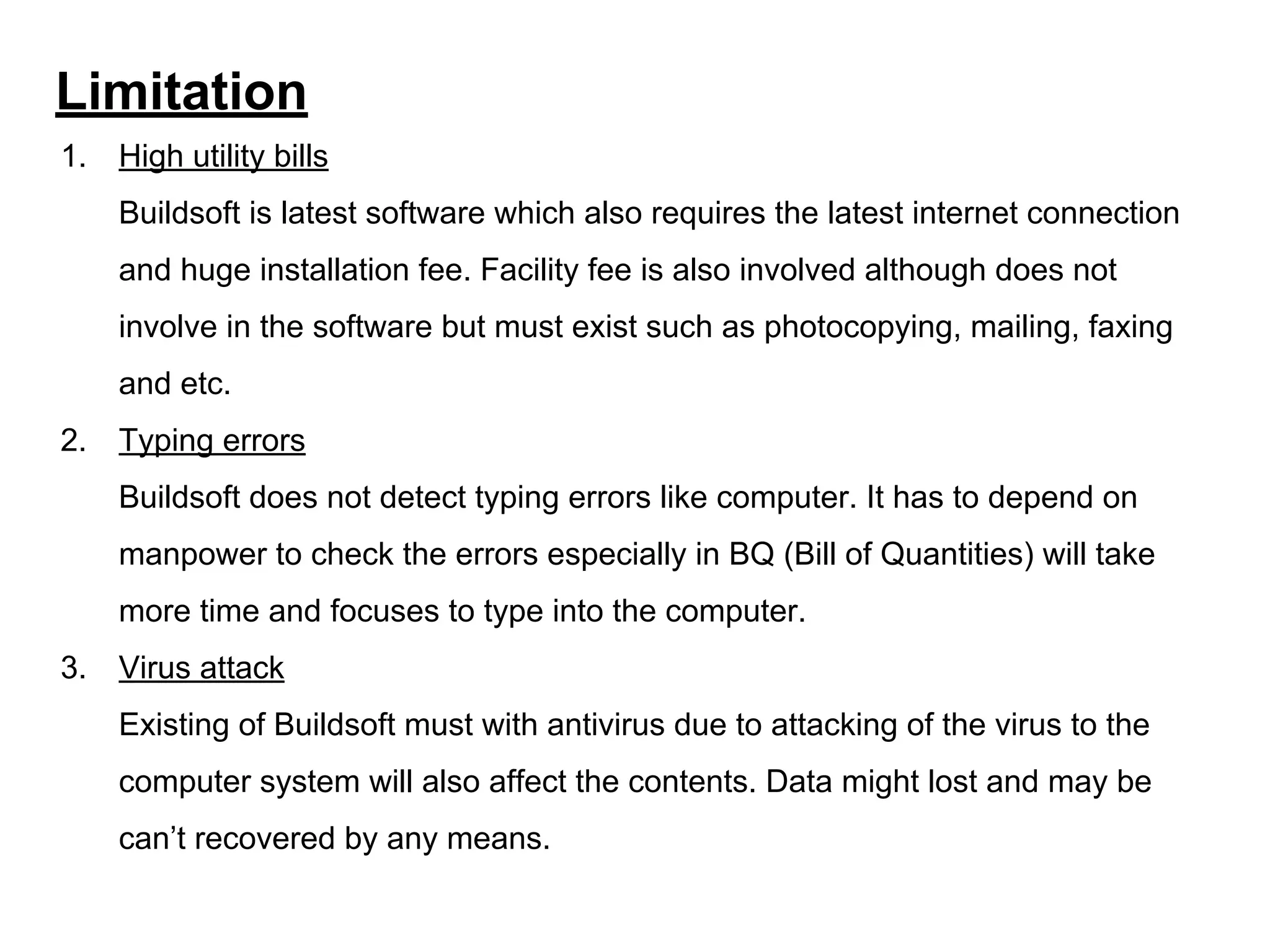

Limitation
1. High utility bills
Buildsoft is latest software which also requires the latest internet connection
and huge installation fee. Facility fee is also involved although does not
involve in the software but must exist such as photocopying, mailing, faxing
and etc.
2. Typing errors
Buildsoft does not detect typing errors like computer. It has to depend on
manpower to check the errors especially in BQ (Bill of Quantities) will take
more time and focuses to type into the computer.
3. Virus attack
Existing of Buildsoft must with antivirus due to attacking of the virus to the
computer system will also affect the contents. Data might lost and may be
can’t recovered by any means.

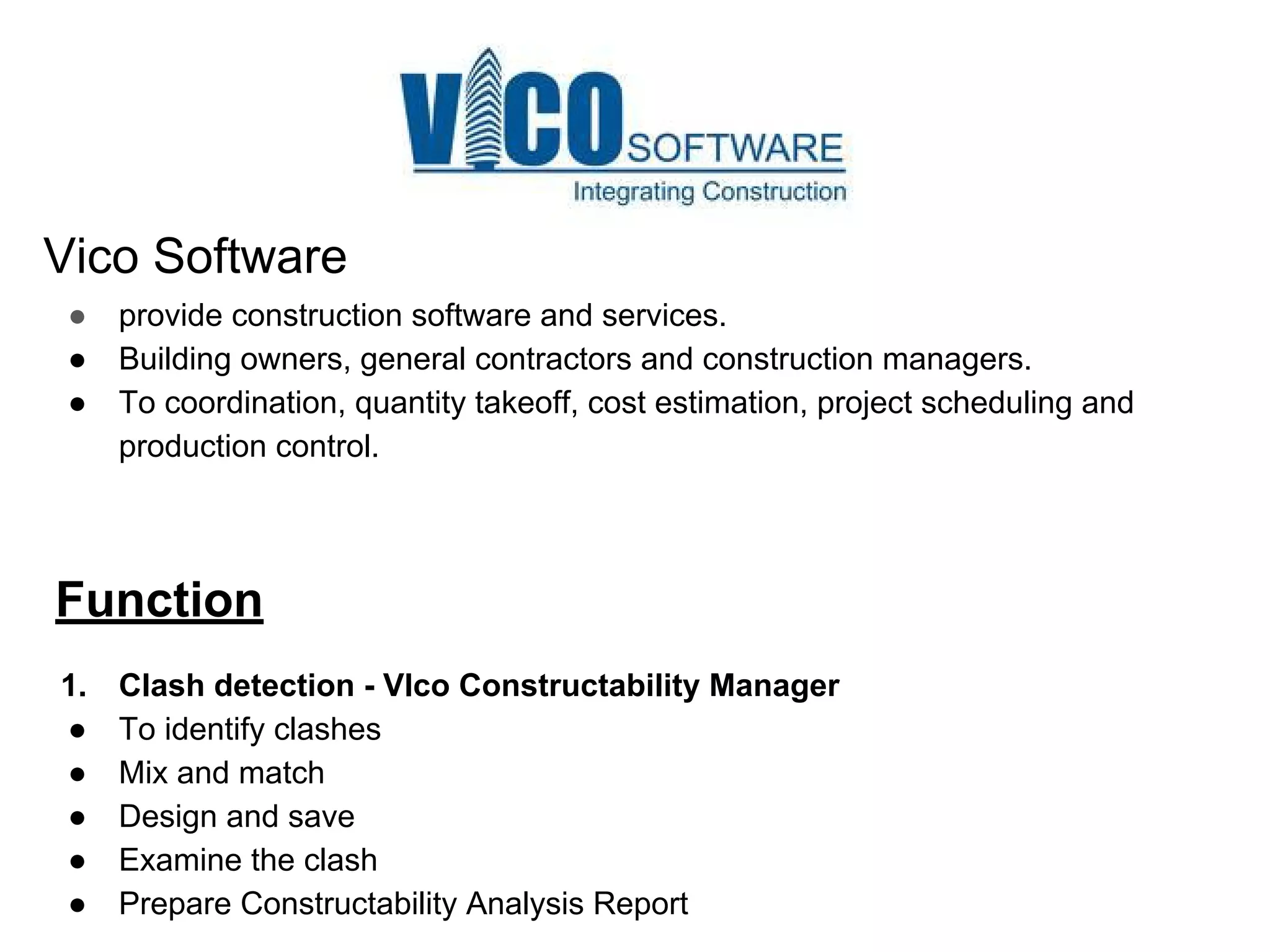

Vico Software
● provide construction software and services.
● Building owners, general contractors and construction managers.
● To coordination, quantity takeoff, cost estimation, project scheduling and
production control.
Function
1. Clash detection - VIco Constructability Manager
● To identify clashes
● Mix and match
● Design and save
● Examine the clash
● Prepare Constructability Analysis Report

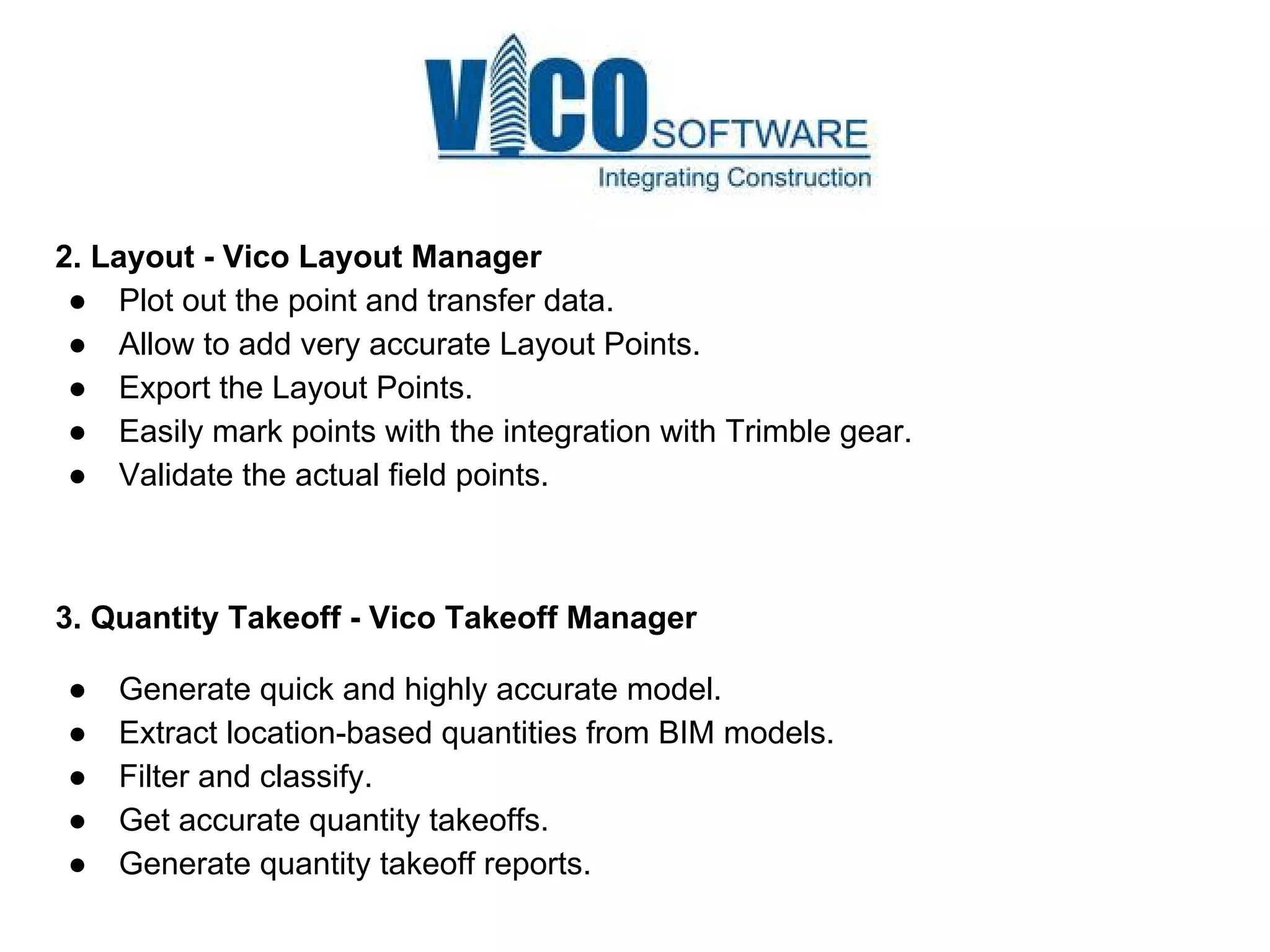

2. Layout - Vico Layout Manager
● Plot out the point and transfer data.
● Allow to add very accurate Layout Points.
● Export the Layout Points.
● Easily mark points with the integration with Trimble gear.
● Validate the actual field points.
3. Quantity Takeoff - Vico Takeoff Manager
● Generate quick and highly accurate model.
● Extract location-based quantities from BIM models.
● Filter and classify.
● Get accurate quantity takeoffs.
● Generate quantity takeoff reports.

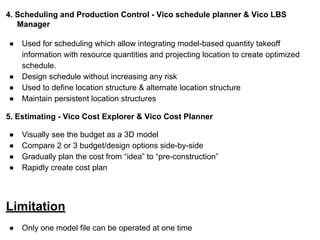

4. Scheduling and Production Control - Vico schedule planner & Vico LBS
Manager
● Used for scheduling which allow integrating model-based quantity takeoff
information with resource quantities and projecting location to create optimized
schedule.
● Design schedule without increasing any risk
● Used to define location structure & alternate location structure
● Maintain persistent location structures
5. Estimating - Vico Cost Explorer & Vico Cost Planner
● Visually see the budget as a 3D model
● Compare 2 or 3 budget/design options side-by-side
● Gradually plan the cost from “idea” to “pre-construction”
● Rapidly create cost plan
Limitation
● Only one model file can be operated at one time

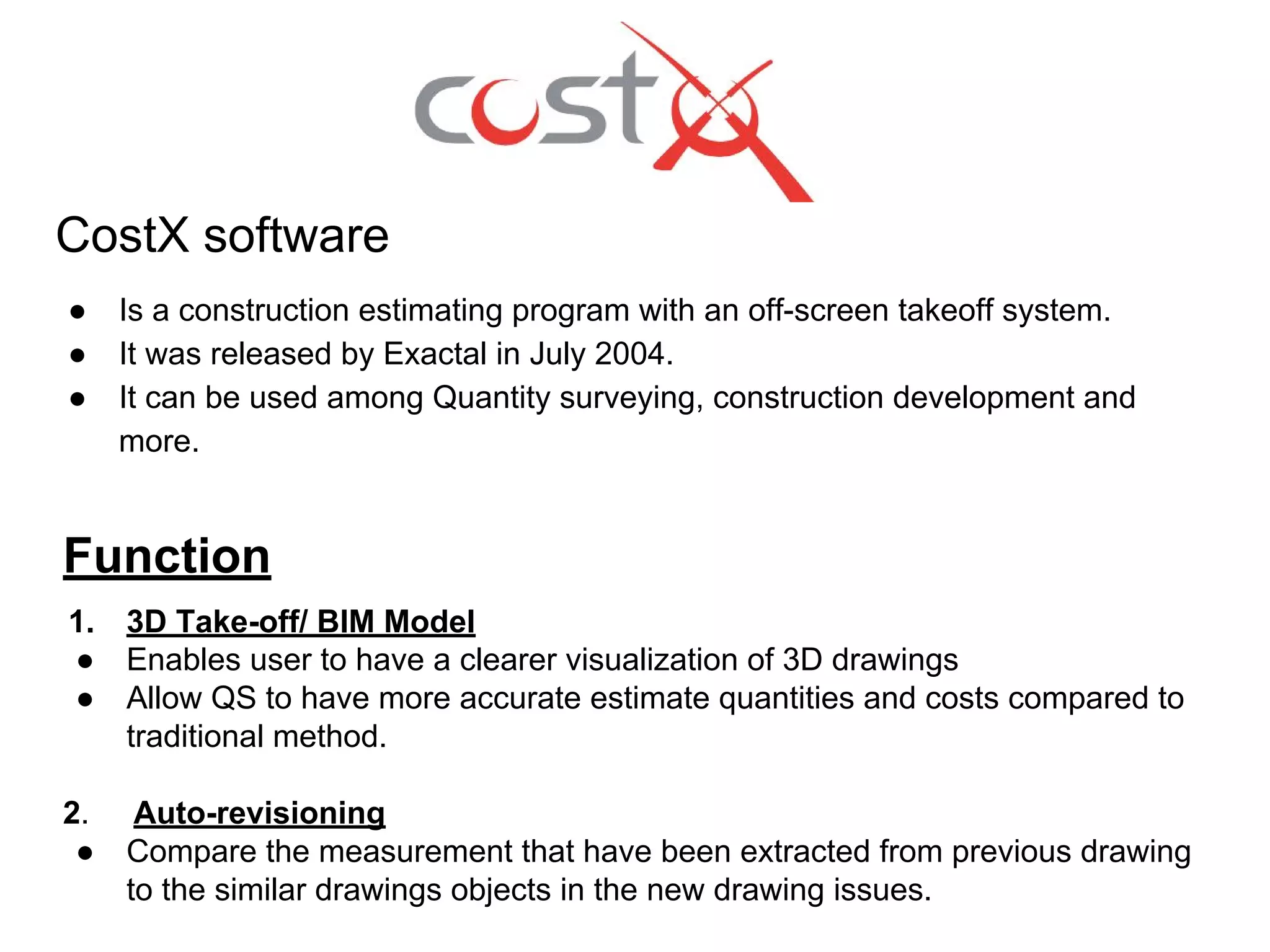

CostX software
● Is a construction estimating program with an off-screen takeoff system.
● It was released by Exactal in July 2004.
● It can be used among Quantity surveying, construction development and
more.
Function
1. 3D Take-off/ BIM Model
● Enables user to have a clearer visualization of 3D drawings
● Allow QS to have more accurate estimate quantities and costs compared to
traditional method.
2. Auto-revisioning
● Compare the measurement that have been extracted from previous drawing
to the similar drawings objects in the new drawing issues.

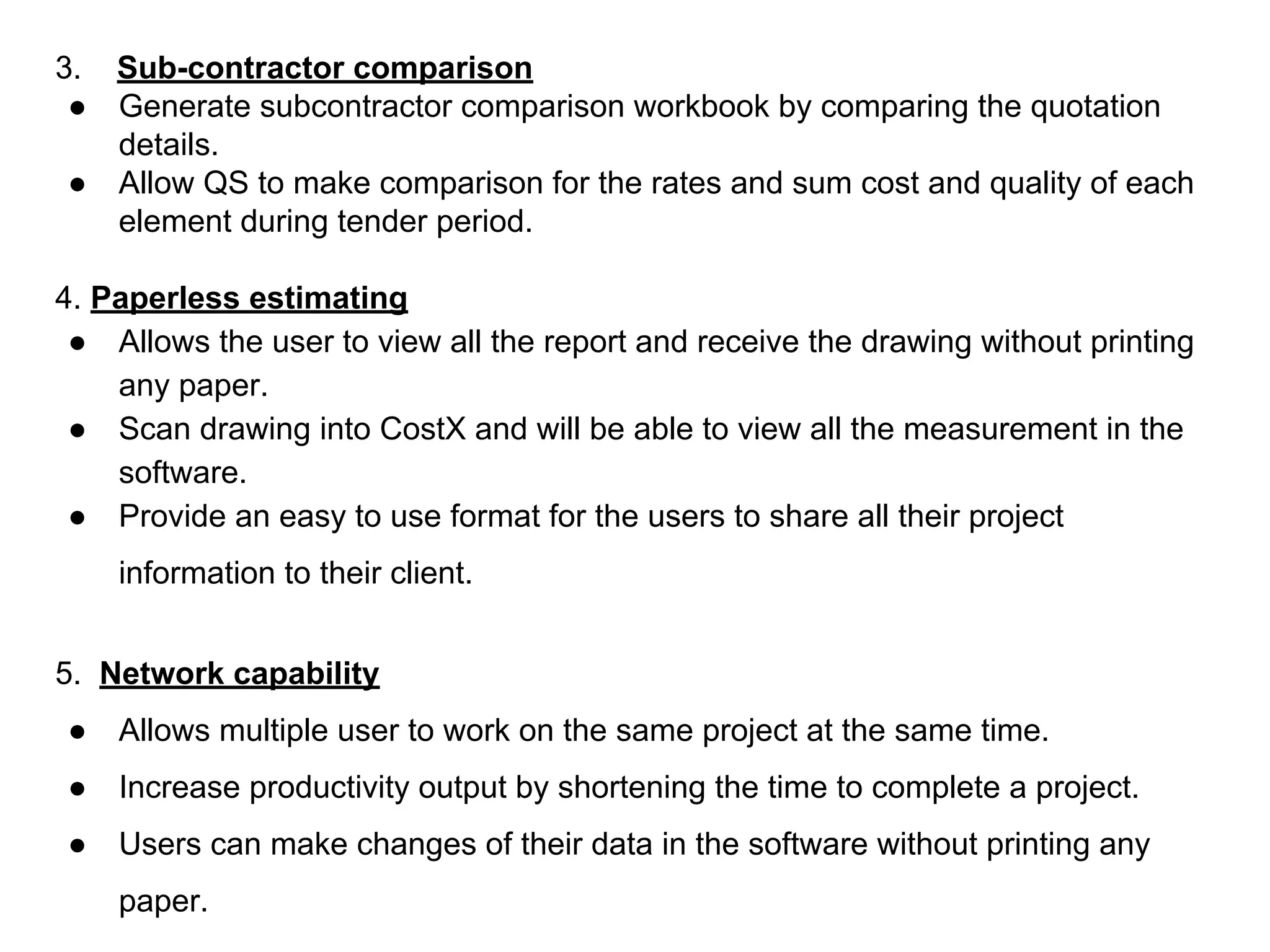

3. Sub-contractor comparison
● Generate subcontractor comparison workbook by comparing the quotation
details.
● Allow QS to make comparison for the rates and sum cost and quality of each
element during tender period.
4. Paperless estimating
● Allows the user to view all the report and receive the drawing without printing
any paper.
● Scan drawing into CostX and will be able to view all the measurement in the
software.
● Provide an easy to use format for the users to share all their project
information to their client.
5. Network capability
● Allows multiple user to work on the same project at the same time.
● Increase productivity output by shortening the time to complete a project.
● Users can make changes of their data in the software without printing any
paper.

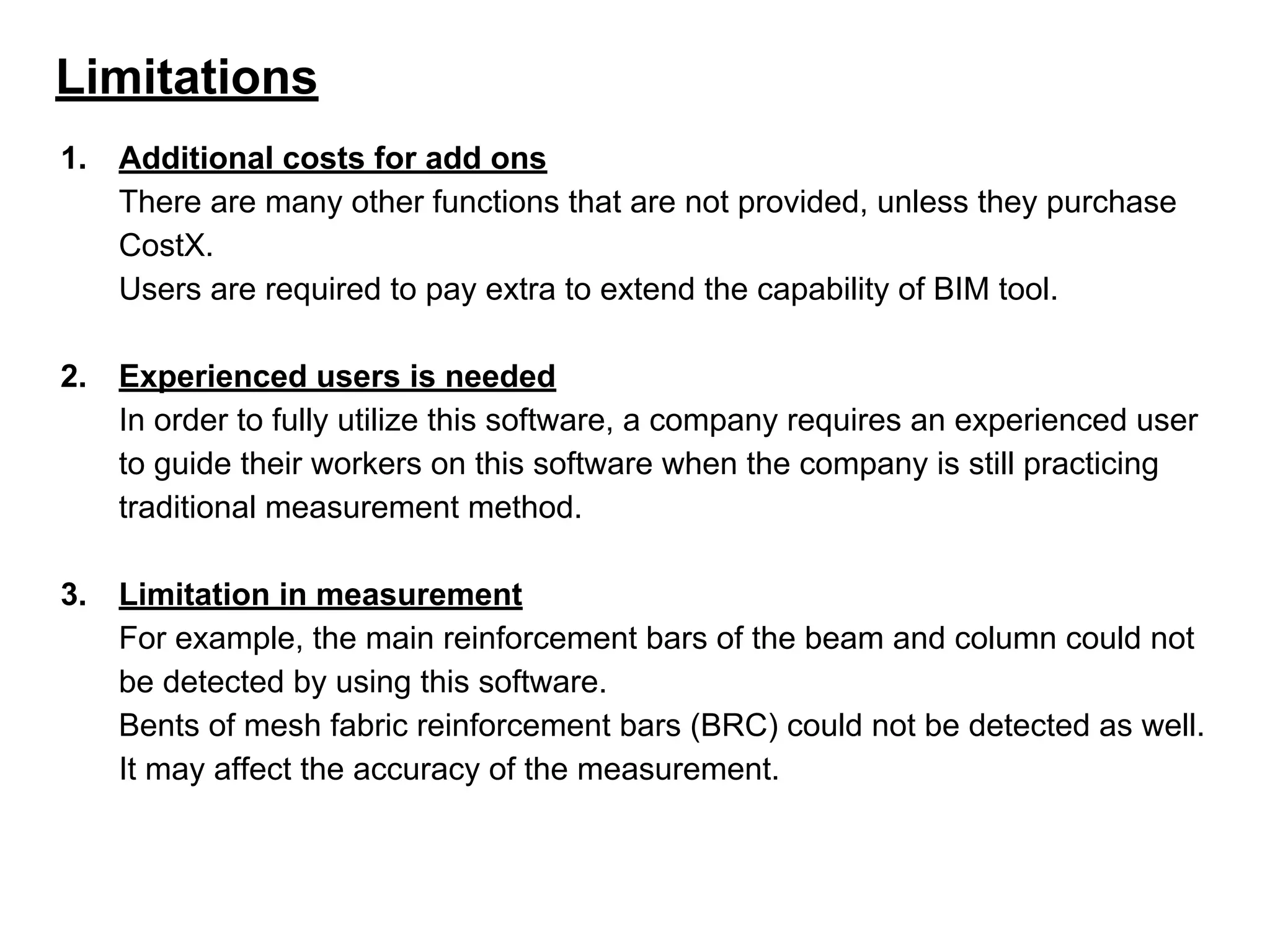

Limitations
1. Additional costs for add ons
There are many other functions that are not provided, unless they purchase
CostX.
Users are required to pay extra to extend the capability of BIM tool.
2. Experienced users is needed
In order to fully utilize this software, a company requires an experienced user
to guide their workers on this software when the company is still practicing
traditional measurement method.
3. Limitation in measurement
For example, the main reinforcement bars of the beam and column could not
be detected by using this software.
Bents of mesh fabric reinforcement bars (BRC) could not be detected as well.
It may affect the accuracy of the measurement.

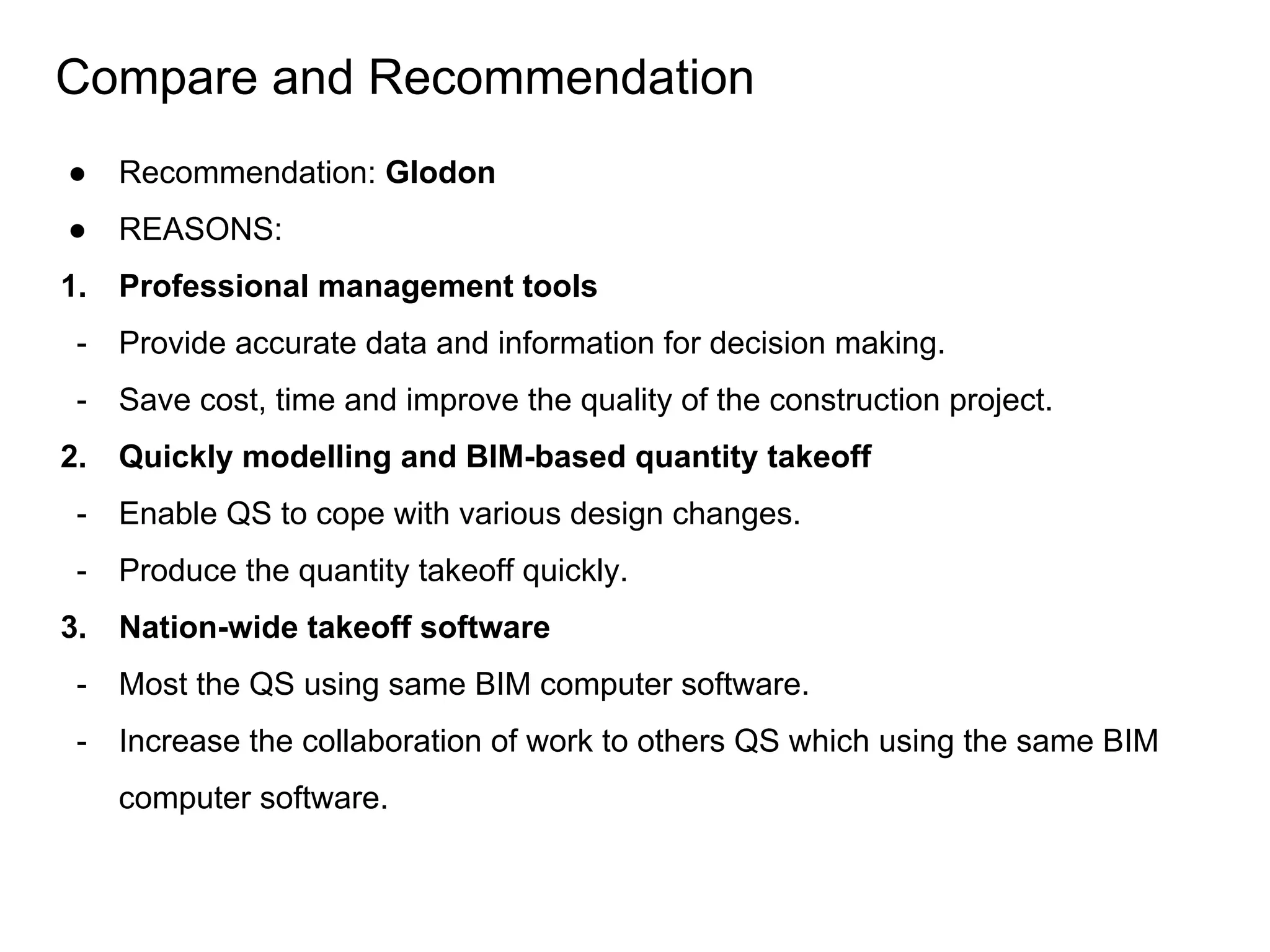

Compare and Recommendation

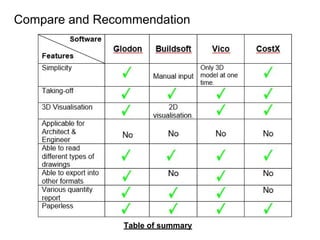

Table of summary
Compare and Recommendation

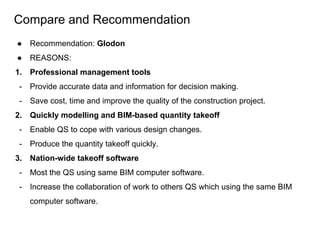

● Recommendation: Glodon
● REASONS:
1. Professional management tools
- Provide accurate data and information for decision making.
- Save cost, time and improve the quality of the construction project.
2. Quickly modelling and BIM-based quantity takeoff
- Enable QS to cope with various design changes.
- Produce the quantity takeoff quickly.
3. Nation-wide takeoff software
- Most the QS using same BIM computer software.
- Increase the collaboration of work to others QS which using the same BIM
computer software.

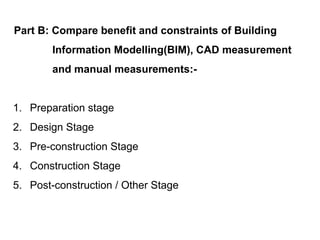

Part B: Compare benefit and constraints of Building
Information Modelling(BIM), CAD measurement
and manual measurements:-
1. Preparation stage
2. Design Stage
3. Pre-construction Stage
4. Construction Stage
5. Post-construction / Other Stage

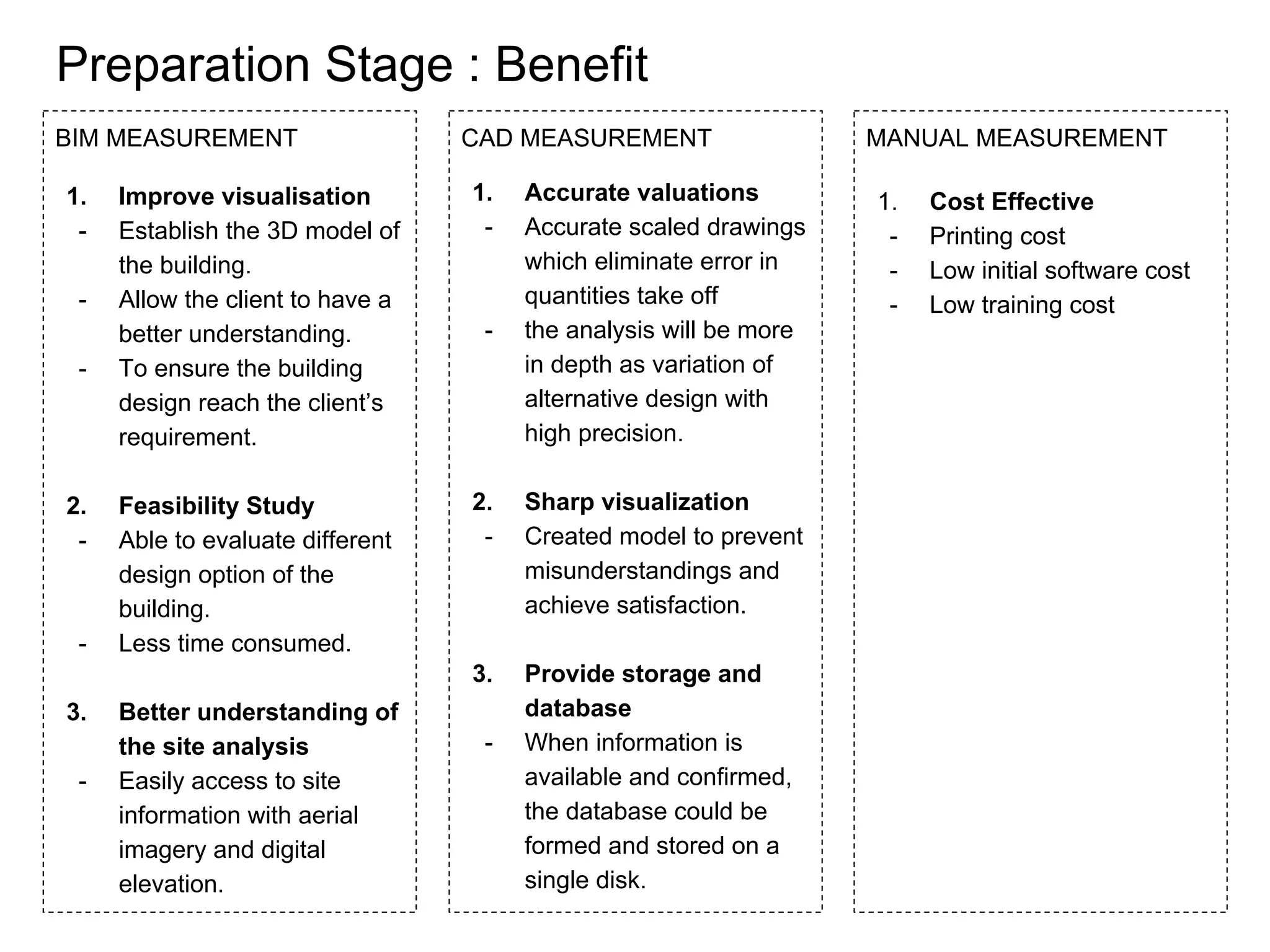

Preparation Stage : Benefit
BIM MEASUREMENT
1. Improve visualisation
- Establish the 3D model of
the building.
- Allow the client to have a
better understanding.
- To ensure the building
design reach the client’s
requirement.
2. Feasibility Study
- Able to evaluate different
design option of the
building.
- Less time consumed.
3. Better understanding of
the site analysis
- Easily access to site
information with aerial
imagery and digital
elevation.
CAD MEASUREMENT
1. Accurate valuations
- Accurate scaled drawings
which eliminate error in
quantities take off
- the analysis will be more
in depth as variation of
alternative design with
high precision.
2. Sharp visualization
- Created model to prevent
misunderstandings and
achieve satisfaction.
3. Provide storage and
database
- When information is
available and confirmed,
the database could be
formed and stored on a
single disk.
MANUAL MEASUREMENT
1. Cost Effective
- Printing cost
- Low initial software cost
- Low training cost

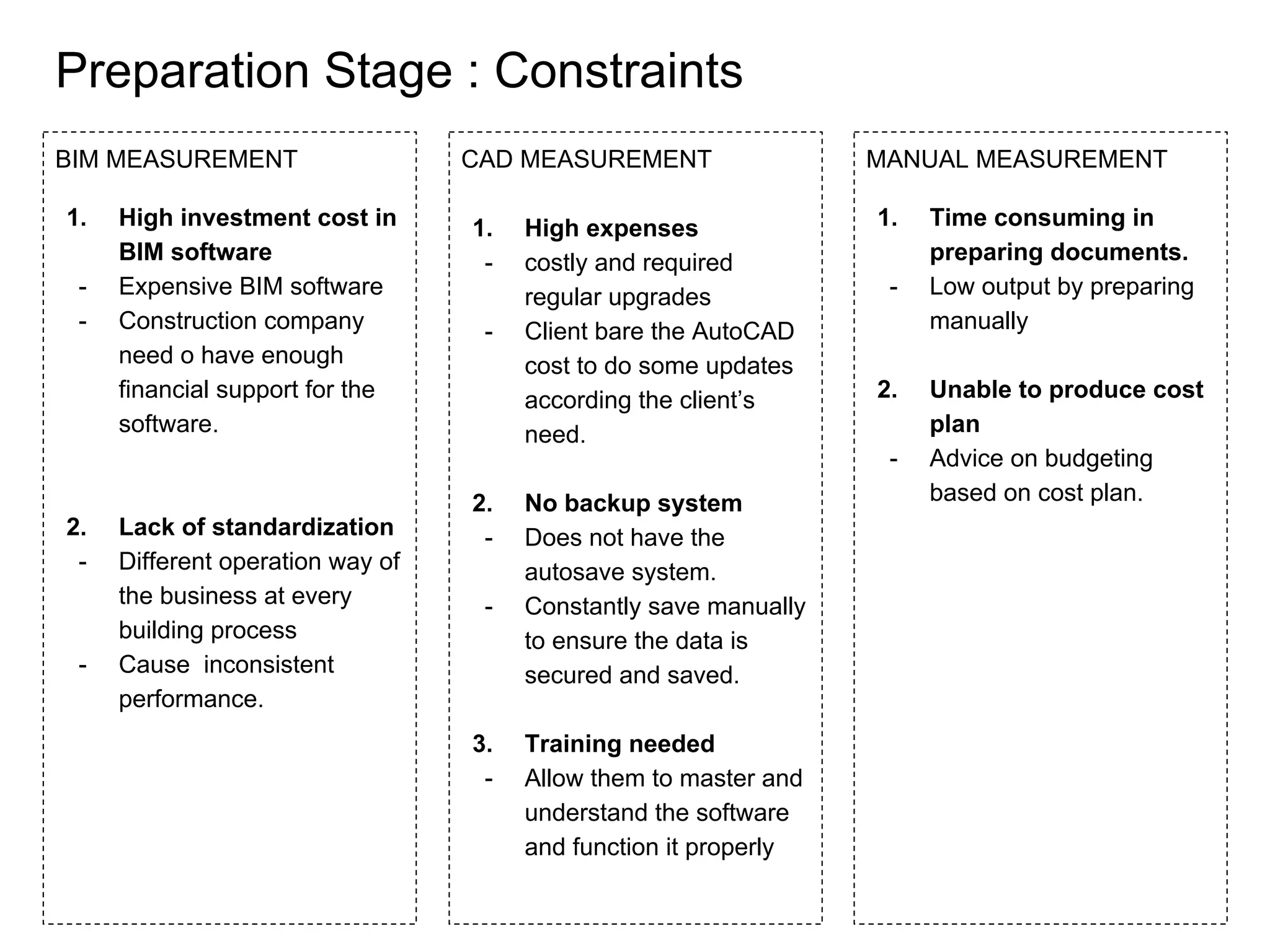

Preparation Stage : Constraints
BIM MEASUREMENT
1. High investment cost in
BIM software
- Expensive BIM software
- Construction company
need o have enough
financial support for the
software.
2. Lack of standardization
- Different operation way of
the business at every
building process
- Cause inconsistent
performance.
CAD MEASUREMENT
1. High expenses
- costly and required
regular upgrades
- Client bare the AutoCAD
cost to do some updates
according the client’s
need.
2. No backup system
- Does not have the
autosave system.
- Constantly save manually
to ensure the data is
secured and saved.
3. Training needed
- Allow them to master and
understand the software
and function it properly
MANUAL MEASUREMENT
1. Time consuming in
preparing documents.
- Low output by preparing
manually
2. Unable to produce cost
plan
- Advice on budgeting
based on cost plan.

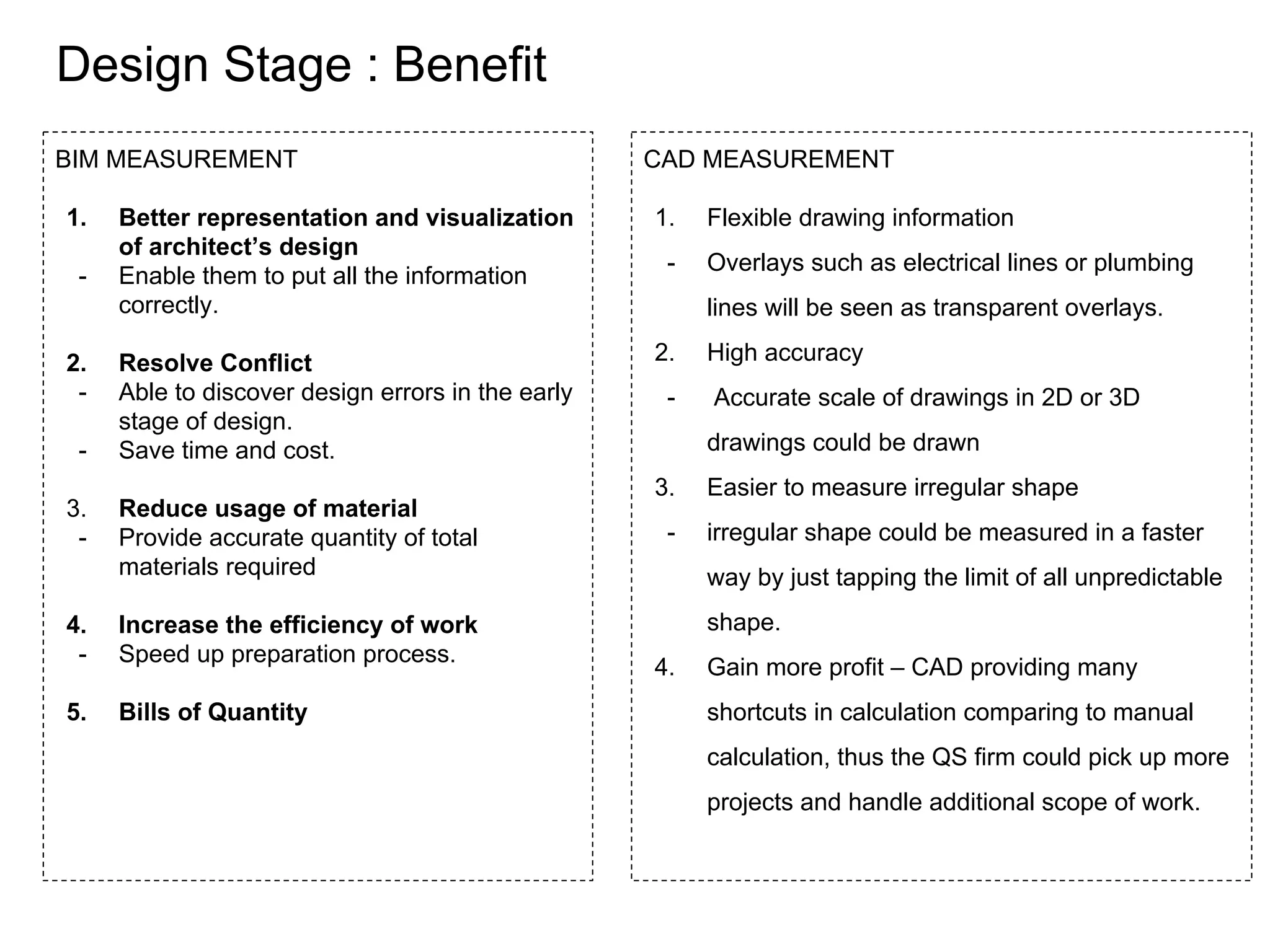

Design Stage : Benefit
BIM MEASUREMENT
1. Better representation and visualization
of architect’s design
- Enable them to put all the information
correctly.
2. Resolve Conflict
- Able to discover design errors in the early
stage of design.
- Save time and cost.
3. Reduce usage of material
- Provide accurate quantity of total
materials required
4. Increase the efficiency of work
- Speed up preparation process.
5. Bills of Quantity
CAD MEASUREMENT
1. Flexible drawing information
- Overlays such as electrical lines or plumbing
lines will be seen as transparent overlays.
2. High accuracy
- Accurate scale of drawings in 2D or 3D
drawings could be drawn
3. Easier to measure irregular shape
- irregular shape could be measured in a faster
way by just tapping the limit of all unpredictable
shape.
4. Gain more profit – CAD providing many
shortcuts in calculation comparing to manual
calculation, thus the QS firm could pick up more
projects and handle additional scope of work.

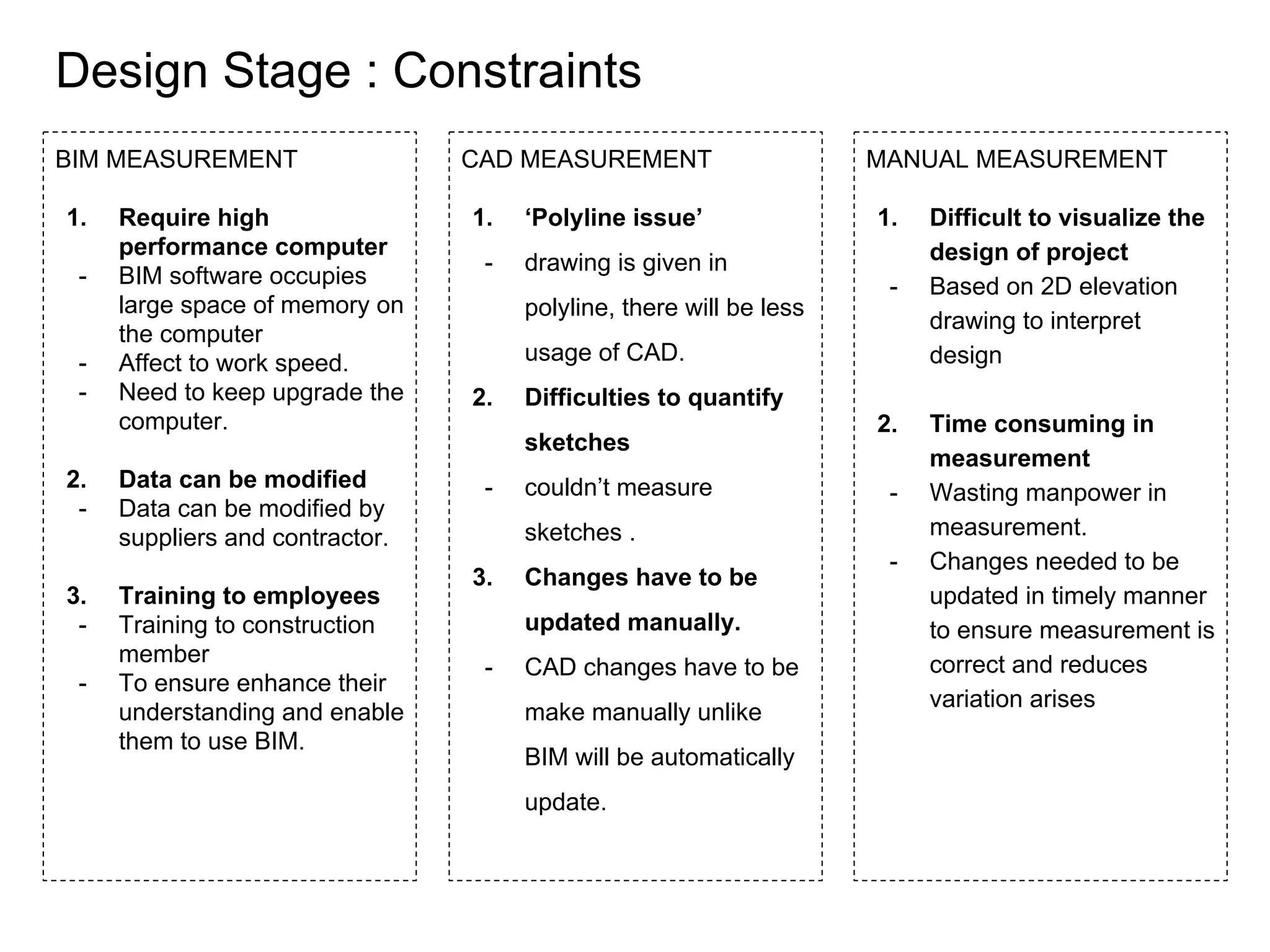

Design Stage : Constraints
BIM MEASUREMENT
1. Require high
performance computer
- BIM software occupies
large space of memory on
the computer
- Affect to work speed.
- Need to keep upgrade the
computer.
2. Data can be modified
- Data can be modified by
suppliers and contractor.
3. Training to employees
- Training to construction
member
- To ensure enhance their
understanding and enable
them to use BIM.
CAD MEASUREMENT
1. ‘Polyline issue’
- drawing is given in
polyline, there will be less
usage of CAD.
2. Difficulties to quantify
sketches
- couldn’t measure
sketches .
3. Changes have to be
updated manually.
- CAD changes have to be
make manually unlike
BIM will be automatically
update.
MANUAL MEASUREMENT
1. Difficult to visualize the
design of project
- Based on 2D elevation
drawing to interpret
design
2. Time consuming in
measurement
- Wasting manpower in
measurement.
- Changes needed to be
updated in timely manner
to ensure measurement is
correct and reduces
variation arises

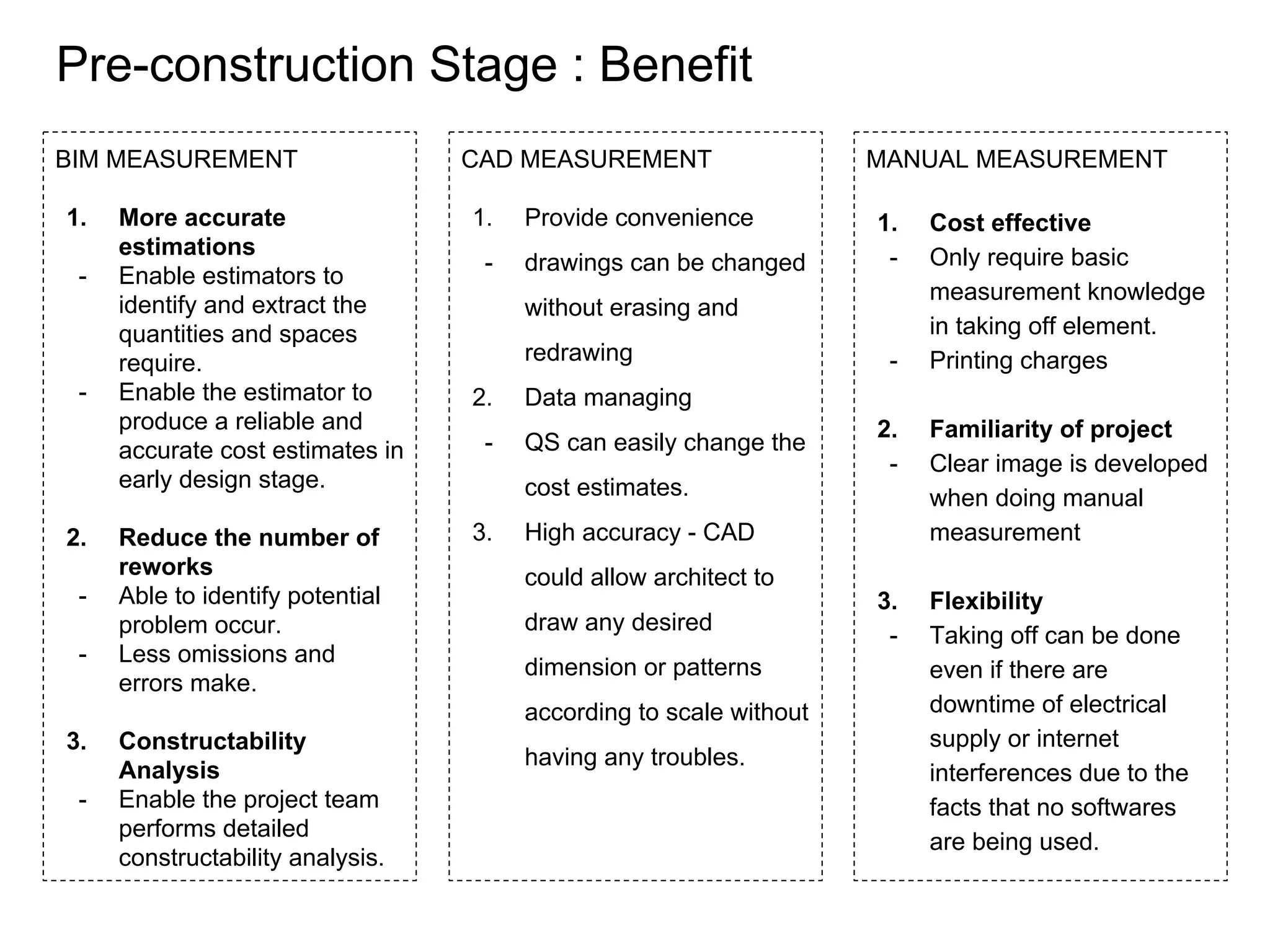

Pre-construction Stage : Benefit
BIM MEASUREMENT
1. More accurate
estimations
- Enable estimators to
identify and extract the
quantities and spaces
require.
- Enable the estimator to
produce a reliable and
accurate cost estimates in
early design stage.
2. Reduce the number of
reworks
- Able to identify potential
problem occur.
- Less omissions and
errors make.
3. Constructability
Analysis
- Enable the project team
performs detailed
constructability analysis.
CAD MEASUREMENT
1. Provide convenience
- drawings can be changed
without erasing and
redrawing
2. Data managing
- QS can easily change the
cost estimates.
3. High accuracy - CAD
could allow architect to
draw any desired
dimension or patterns
according to scale without
having any troubles.
MANUAL MEASUREMENT
1. Cost effective
- Only require basic
measurement knowledge
in taking off element.
- Printing charges
2. Familiarity of project
- Clear image is developed
when doing manual
measurement
3. Flexibility
- Taking off can be done
even if there are
downtime of electrical
supply or internet
interferences due to the
facts that no softwares
are being used.

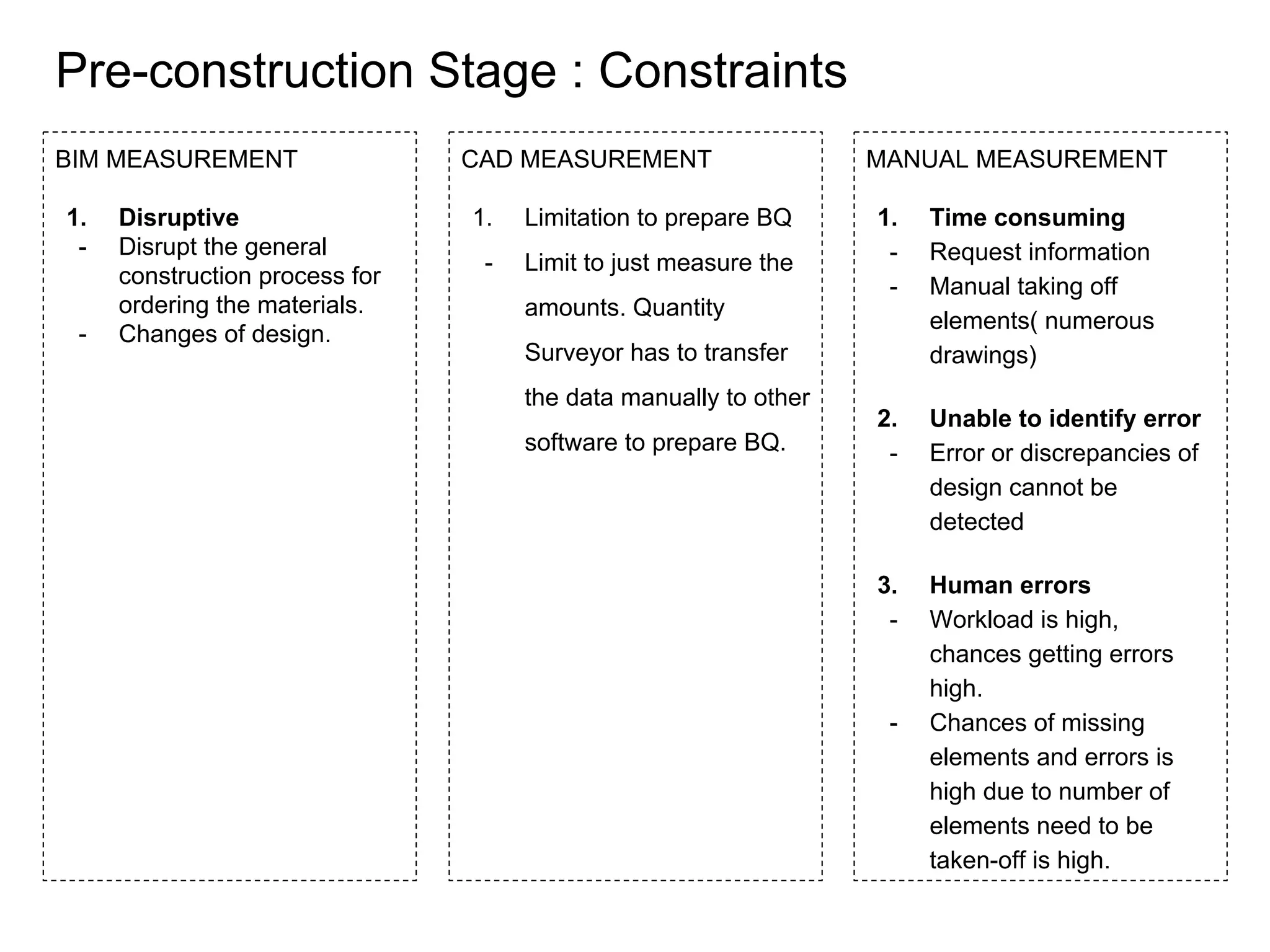

Pre-construction Stage : Constraints
BIM MEASUREMENT
1. Disruptive
- Disrupt the general
construction process for
ordering the materials.
- Changes of design.
CAD MEASUREMENT
1. Limitation to prepare BQ
- Limit to just measure the
amounts. Quantity
Surveyor has to transfer
the data manually to other
software to prepare BQ.
MANUAL MEASUREMENT
1. Time consuming
- Request information
- Manual taking off
elements( numerous
drawings)
2. Unable to identify error
- Error or discrepancies of
design cannot be
detected
3. Human errors
- Workload is high,
chances getting errors
high.
- Chances of missing
elements and errors is
high due to number of
elements need to be
taken-off is high.

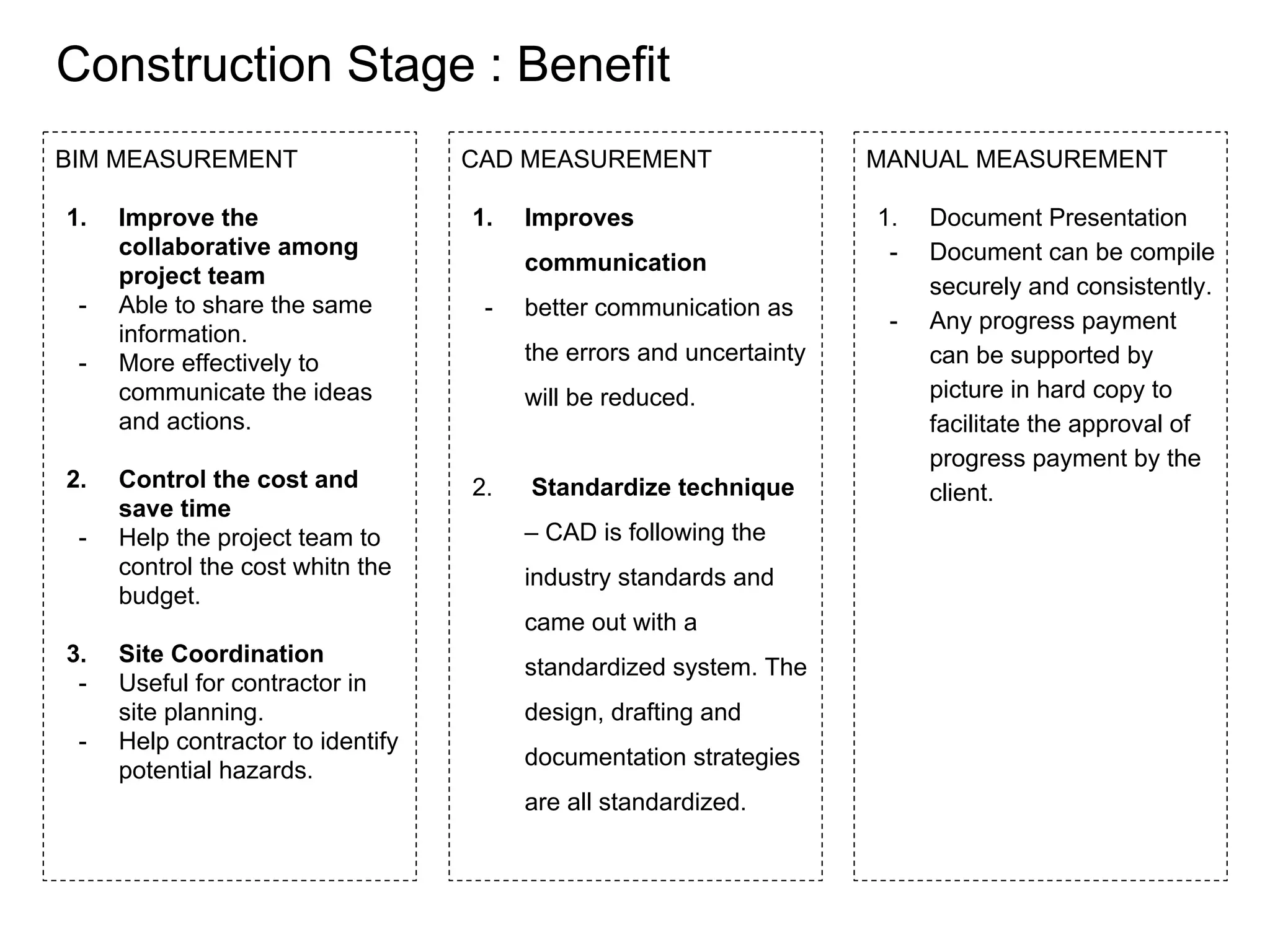

Construction Stage : Benefit
BIM MEASUREMENT
1. Improve the
collaborative among
project team
- Able to share the same
information.
- More effectively to
communicate the ideas
and actions.
2. Control the cost and
save time
- Help the project team to
control the cost whitn the
budget.
3. Site Coordination
- Useful for contractor in
site planning.
- Help contractor to identify
potential hazards.
CAD MEASUREMENT
1. Improves
communication
- better communication as
the errors and uncertainty
will be reduced.
2. Standardize technique
– CAD is following the
industry standards and
came out with a
standardized system. The
design, drafting and
documentation strategies
are all standardized.
MANUAL MEASUREMENT
1. Document Presentation
- Document can be compile
securely and consistently.
- Any progress payment
can be supported by
picture in hard copy to
facilitate the approval of
progress payment by the
client.

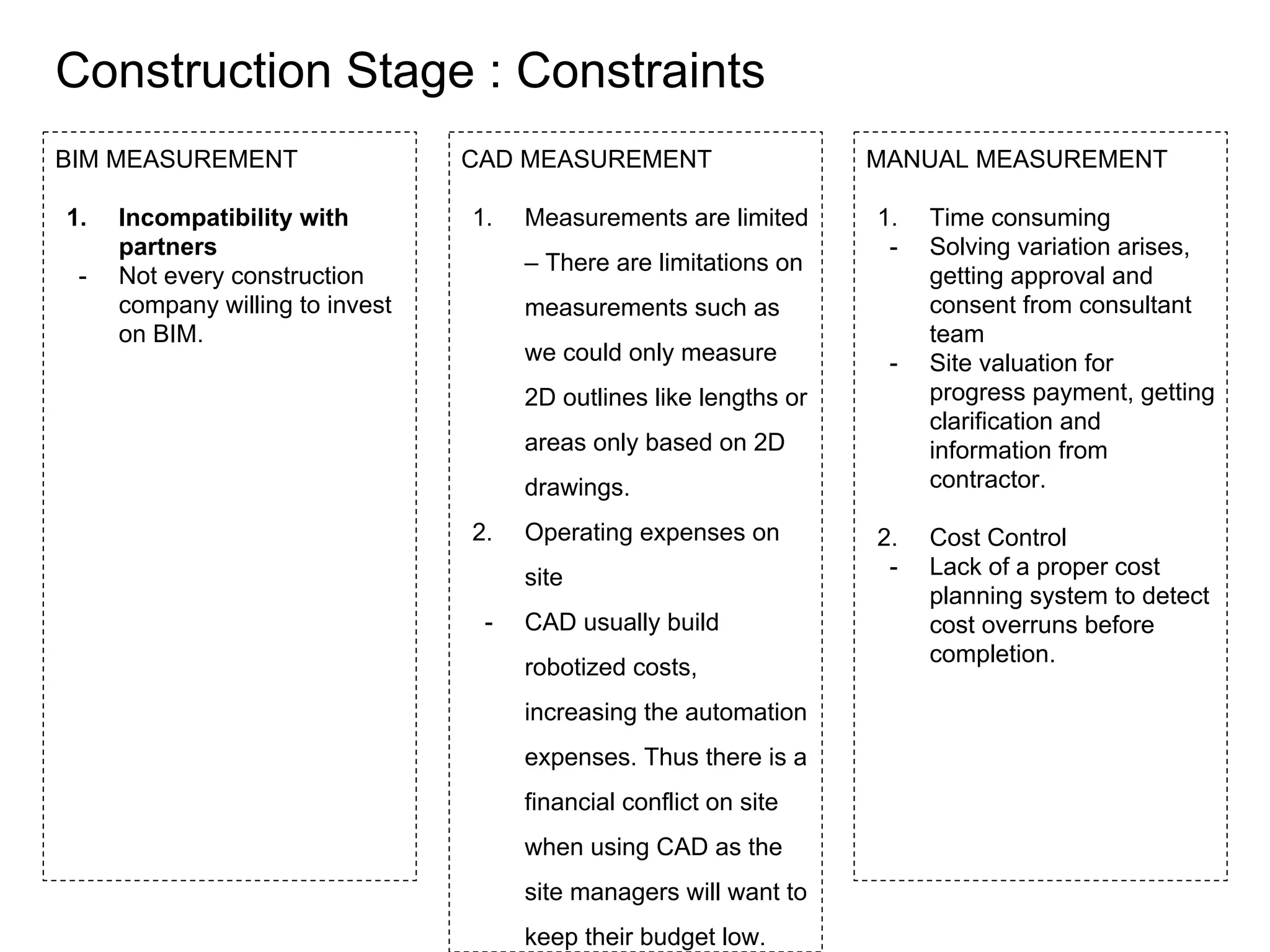

Construction Stage : Constraints
BIM MEASUREMENT
1. Incompatibility with
partners
- Not every construction
company willing to invest
on BIM.
CAD MEASUREMENT
1. Measurements are limited
– There are limitations on
measurements such as
we could only measure
2D outlines like lengths or
areas only based on 2D
drawings.
2. Operating expenses on
site
- CAD usually build
robotized costs,
increasing the automation
expenses. Thus there is a
financial conflict on site
when using CAD as the
site managers will want to
keep their budget low.
MANUAL MEASUREMENT
1. Time consuming
- Solving variation arises,
getting approval and
consent from consultant
team
- Site valuation for
progress payment, getting
clarification and
information from
contractor.
2. Cost Control
- Lack of a proper cost
planning system to detect
cost overruns before
completion.

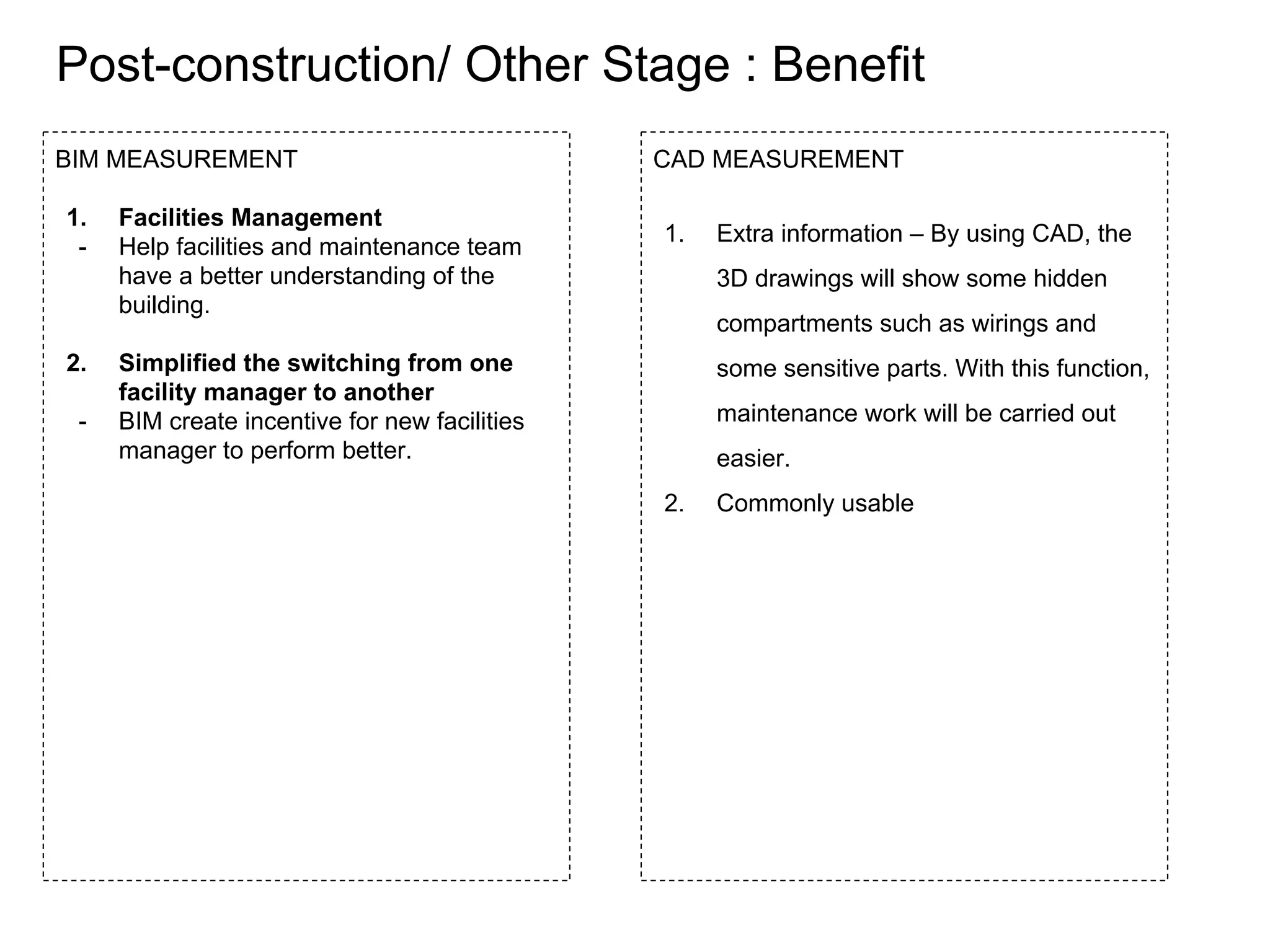

Post-construction/ Other Stage : Benefit
BIM MEASUREMENT
1. Facilities Management
- Help facilities and maintenance team
have a better understanding of the
building.
2. Simplified the switching from one
facility manager to another
- BIM create incentive for new facilities
manager to perform better.
CAD MEASUREMENT
1. Extra information – By using CAD, the
3D drawings will show some hidden
compartments such as wirings and
some sensitive parts. With this function,
maintenance work will be carried out
easier.
2. Commonly usable

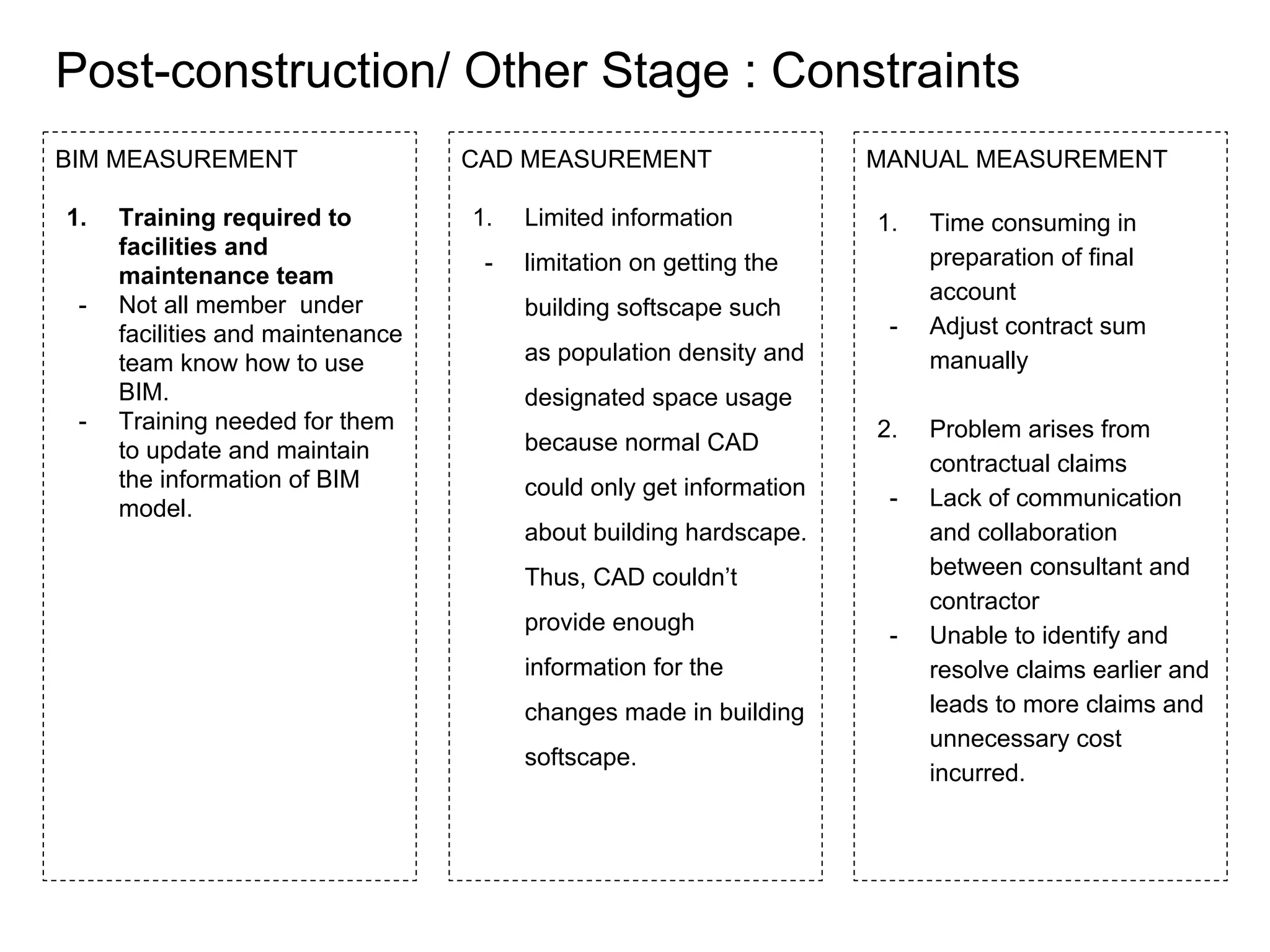

Post-construction/ Other Stage : Constraints
BIM MEASUREMENT
1. Training required to
facilities and
maintenance team
- Not all member under
facilities and maintenance
team know how to use
BIM.
- Training needed for them
to update and maintain
the information of BIM
model.
CAD MEASUREMENT
1. Limited information
- limitation on getting the
building softscape such
as population density and
designated space usage
because normal CAD
could only get information
about building hardscape.
Thus, CAD couldn’t
provide enough
information for the
changes made in building
softscape.
MANUAL MEASUREMENT
1. Time consuming in
preparation of final
account
- Adjust contract sum
manually
2. Problem arises from
contractual claims
- Lack of communication
and collaboration
between consultant and
contractor
- Unable to identify and
resolve claims earlier and
leads to more claims and
unnecessary cost
incurred.

More Related Content

Similar to Software Presentation Slides

Software app slides
Software app slidesSoftware app slides
Software app slides
ahmong4

Software app slides
Software app slidesSoftware app slides
Software app slides
Pui Chun Shian

Software presentation
Software presentationSoftware presentation
Software presentation
Timun Loh

Software application (QS)
Software application (QS)Software application (QS)
Software application (QS)
Hasif Alias

PP1 report
PP1 reportPP1 report
PP1 report
Kailyn Lee

Software Application Report
Software Application ReportSoftware Application Report
Software Application Report
Shze Hwa Lee

Software Application report
Software Application reportSoftware Application report
Software Application report
Kailyn Lee

Software
SoftwareSoftware
Software
Pui Chun Shian

Software Application Presentation Slide
Software Application Presentation SlideSoftware Application Presentation Slide
Software Application Presentation Slide
Lee Pei Gie

Software Applications
Software ApplicationsSoftware Applications
Software Applications
XinYee Khoo

Software full
Software fullSoftware full
Software full
ahmong4

Software application
Software application Software application
Software application
Farah Sham

Software Application presentation slides
Software Application presentation slidesSoftware Application presentation slides
Software Application presentation slides
Doreen Yeo

Software report-complete-final
Software report-complete-finalSoftware report-complete-final
Software report-complete-final
Yong Sy

Software app present (QS)
Software app present (QS)Software app present (QS)
Software app present (QS)
Hasif Alias

Software Report
Software ReportSoftware Report
Software Report
Arissa Loh

Software application
Software application Software application
Software application
Lee Pei Gie

software assignment
software assignmentsoftware assignment
software assignment
seenyeeyong

Bim in Construction Management
Bim in Construction ManagementBim in Construction Management
Bim in Construction Management
Md Manzoor Akhtar

Application of Building Information Modelling Software’s for Planning and Sch...
Application of Building Information Modelling Software’s for Planning and Sch...Application of Building Information Modelling Software’s for Planning and Sch...
Application of Building Information Modelling Software’s for Planning and Sch...
IRJET Journal


Similar to Software Presentation Slides (20)

Software app slides
Software app slidesSoftware app slides
Software app slides

Software app slides
Software app slidesSoftware app slides
Software app slides

Software presentation
Software presentationSoftware presentation
Software presentation

Software application (QS)
Software application (QS)Software application (QS)
Software application (QS)

PP1 report
PP1 reportPP1 report
PP1 report

Software Application Report
Software Application ReportSoftware Application Report
Software Application Report

Software Application report
Software Application reportSoftware Application report
Software Application report

Software
SoftwareSoftware
Software

Software Application Presentation Slide
Software Application Presentation SlideSoftware Application Presentation Slide
Software Application Presentation Slide

Software Applications
Software ApplicationsSoftware Applications
Software Applications

Software full
Software fullSoftware full
Software full

Software application
Software application Software application
Software application

Software Application presentation slides
Software Application presentation slidesSoftware Application presentation slides
Software Application presentation slides

Software report-complete-final
Software report-complete-finalSoftware report-complete-final
Software report-complete-final

Software app present (QS)
Software app present (QS)Software app present (QS)
Software app present (QS)

Software Report
Software ReportSoftware Report
Software Report

Software application
Software application Software application
Software application

software assignment
software assignmentsoftware assignment
software assignment

Bim in Construction Management
Bim in Construction ManagementBim in Construction Management
Bim in Construction Management

Application of Building Information Modelling Software’s for Planning and Sch...
Application of Building Information Modelling Software’s for Planning and Sch...Application of Building Information Modelling Software’s for Planning and Sch...
Application of Building Information Modelling Software’s for Planning and Sch...


More from Shze Hwa Lee

Professional practice 2
Professional practice 2Professional practice 2
Professional practice 2
Shze Hwa Lee

Pp2 p5
Pp2   p5Pp2   p5
Pp2 p5
Shze Hwa Lee

Cp 24062018 2241
Cp 24062018 2241Cp 24062018 2241
Cp 24062018 2241
Shze Hwa Lee

Be finalise a3
Be finalise a3Be finalise a3
Be finalise a3
Shze Hwa Lee

Be presentation slides
Be presentation slidesBe presentation slides
Be presentation slides
Shze Hwa Lee

Be Report Finalize
Be Report FinalizeBe Report Finalize
Be Report Finalize
Shze Hwa Lee

Fm report template
Fm report templateFm report template
Fm report template
Shze Hwa Lee

Csi presentation
Csi   presentationCsi   presentation
Csi presentation
Shze Hwa Lee

Finased csi report
Finased csi reportFinased csi report
Finased csi report
Shze Hwa Lee

Estimating presentation
Estimating presentationEstimating presentation
Estimating presentation
Shze Hwa Lee

Seminar 1 Questions
Seminar 1 QuestionsSeminar 1 Questions
Seminar 1 Questions
Shze Hwa Lee

Estimating presentation (question 1)
Estimating presentation (question 1)Estimating presentation (question 1)
Estimating presentation (question 1)
Shze Hwa Lee

PP1 presentation
PP1 presentationPP1 presentation
PP1 presentation
Shze Hwa Lee

PP1 report group 7 (finalized)
PP1 report group 7 (finalized)PP1 report group 7 (finalized)
PP1 report group 7 (finalized)
Shze Hwa Lee

Measurement 4 presentation
Measurement 4 presentation Measurement 4 presentation
Measurement 4 presentation
Shze Hwa Lee

ECA presentation
ECA presentationECA presentation
ECA presentation
Shze Hwa Lee

Bs 2 group assignment
Bs 2 group assignmentBs 2 group assignment
Bs 2 group assignment
Shze Hwa Lee

People dynamic (assingment 1)
People dynamic (assingment 1) People dynamic (assingment 1)
People dynamic (assingment 1)
Shze Hwa Lee

Safety and Health individual assignment
Safety and Health individual assignment Safety and Health individual assignment
Safety and Health individual assignment
Shze Hwa Lee

Traffic management safety six key issues (presentaion 1)
Traffic management safety   six key issues (presentaion 1)Traffic management safety   six key issues (presentaion 1)
Traffic management safety six key issues (presentaion 1)
Shze Hwa Lee


More from Shze Hwa Lee (20)

Professional practice 2
Professional practice 2Professional practice 2
Professional practice 2

Pp2 p5
Pp2   p5Pp2   p5
Pp2 p5

Cp 24062018 2241
Cp 24062018 2241Cp 24062018 2241
Cp 24062018 2241

Be finalise a3
Be finalise a3Be finalise a3
Be finalise a3

Be presentation slides
Be presentation slidesBe presentation slides
Be presentation slides

Be Report Finalize
Be Report FinalizeBe Report Finalize
Be Report Finalize

Fm report template
Fm report templateFm report template
Fm report template

Csi presentation
Csi   presentationCsi   presentation
Csi presentation

Finased csi report
Finased csi reportFinased csi report
Finased csi report

Estimating presentation
Estimating presentationEstimating presentation
Estimating presentation

Seminar 1 Questions
Seminar 1 QuestionsSeminar 1 Questions
Seminar 1 Questions

Estimating presentation (question 1)
Estimating presentation (question 1)Estimating presentation (question 1)
Estimating presentation (question 1)

PP1 presentation
PP1 presentationPP1 presentation
PP1 presentation

PP1 report group 7 (finalized)
PP1 report group 7 (finalized)PP1 report group 7 (finalized)
PP1 report group 7 (finalized)

Measurement 4 presentation
Measurement 4 presentation Measurement 4 presentation
Measurement 4 presentation

ECA presentation
ECA presentationECA presentation
ECA presentation

Bs 2 group assignment
Bs 2 group assignmentBs 2 group assignment
Bs 2 group assignment

People dynamic (assingment 1)
People dynamic (assingment 1) People dynamic (assingment 1)
People dynamic (assingment 1)

Safety and Health individual assignment
Safety and Health individual assignment Safety and Health individual assignment
Safety and Health individual assignment

Traffic management safety six key issues (presentaion 1)
Traffic management safety   six key issues (presentaion 1)Traffic management safety   six key issues (presentaion 1)
Traffic management safety six key issues (presentaion 1)


Recently uploaded

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
Nguyen Thanh Tu Collection

IGCSE Biology Chapter 14- Reproduction in Plants.pdf
IGCSE Biology Chapter 14- Reproduction in Plants.pdfIGCSE Biology Chapter 14- Reproduction in Plants.pdf
IGCSE Biology Chapter 14- Reproduction in Plants.pdf
Amin Marwan

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results
Krassimira Luka

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
siemaillard

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling
Excellence Foundation for South Sudan

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf
WaniBasim

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
Himanshu Rai

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
S. Raj Kumar

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation
TechSoup

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie
Nicholas Montgomery

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx
Denish Jangid

Solutons Maths Escape Room Spatial .pptx
Solutons Maths Escape Room Spatial .pptxSolutons Maths Escape Room Spatial .pptx
Solutons Maths Escape Room Spatial .pptx
spdendr

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
สมใจ จันสุกสี

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão


Recently uploaded (20)

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...

IGCSE Biology Chapter 14- Reproduction in Plants.pdf
IGCSE Biology Chapter 14- Reproduction in Plants.pdfIGCSE Biology Chapter 14- Reproduction in Plants.pdf
IGCSE Biology Chapter 14- Reproduction in Plants.pdf

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem studentsRHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students
RHEOLOGY Physical pharmaceutics-II notes for B.pharm 4th sem students

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude

Leveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit InnovationLeveraging Generative AI to Drive Nonprofit Innovation
Leveraging Generative AI to Drive Nonprofit Innovation

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx

Solutons Maths Escape Room Spatial .pptx
Solutons Maths Escape Room Spatial .pptxSolutons Maths Escape Room Spatial .pptx
Solutons Maths Escape Room Spatial .pptx

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf


Software Presentation Slides

  • 1.

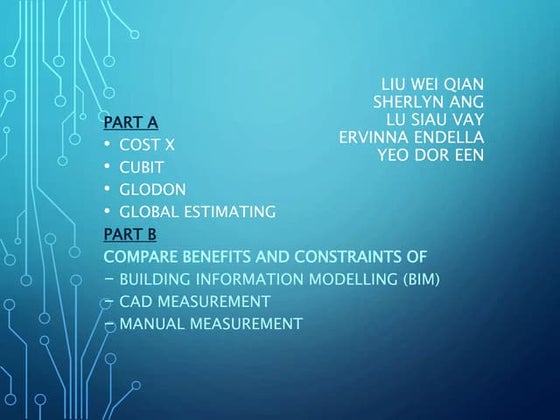

  • 2. Part A: Compare the functions and limitation of BIM QS computer software:- - Glodon - Buildsoft - Vico - Cost X Summary and recommendation
  • 3. ● Known as TAS. ● Is a measurement tool for QS in construction field. ● Utilize environment data to 3D Visualization effect. ● Enable modeling BIM drawing directly from DWG or PDF files. ● It allow user to carry out measurement calculation. ● Or adjusting model for variation calculation.
  • 4. Function ● Professional management tool - Provide accurate information for decision making (cost). ● Quick modeling & BIM-based quantity takeoff - Allow direct editing (DWG,IFC) to erect 3D model. ● The ideal data interface, accurate model data - Merge with international format. ● Project management for 5D BIM - Support web and mobile to inquire 5D information anytime. ● Takeoff products with high market share - Core source for BIM application.
  • 5. Limitation ● Cost ● Expensive to require full function of BIM product. ● Management and maintenance fee. ● Software operation update fee for new features. ● Cost is the biggest limitation for Glodon.
  • 6. BUILDSOFT is an Australian company in Sydney serving the construction in around the world that established in 1985. Its main function is estimating software for the building and construction industry. Buildsoft Global Estimating is the software program for commercial use in the building and construction industry. It produces Bills of Quantities or detailed Estimates and Cost Plans. Besides, it allows users to validate and cross-reference the estimating and takeoff at any stages. There are 3 types of products in Buildsoft which are cubit, Estimating series and Mudshark.
  • 7. Function 1. Update estimation efficiently Collect pricing information and save in template price list to control the prices jobs, ensuring accuracy and maximizing profitability over the company. Any of updates in further, template price list and jobs is able to push into estimates so information is the latest. 2. One seamless process Specialized estimating system with flexible functionality which integrates take off with estimating make users work the way they think. 3. Zero errors Pinpoint accurate takeoff from any angle in 3D drawing no matter how complex is the drawing by tracing directly over imported plans. Without second doubt of their own skill, work can be easily done in fast and accurate.
  • 8. 5. Greater control, insights and analysis It is handy if jobs are grouped together and make more visibility. Codes the estimating allows users to differentiate formats and giving a quick or breakdown a job by cost code or material. 4. Easily view and edit plan Clearly differences occurs when takeoff already done and save countless hours. This may be avoiding the overlapping taking off in the same phase. It allows editing plans as part of the revision process.
  • 9. Limitation 1. High utility bills Buildsoft is latest software which also requires the latest internet connection and huge installation fee. Facility fee is also involved although does not involve in the software but must exist such as photocopying, mailing, faxing and etc. 2. Typing errors Buildsoft does not detect typing errors like computer. It has to depend on manpower to check the errors especially in BQ (Bill of Quantities) will take more time and focuses to type into the computer. 3. Virus attack Existing of Buildsoft must with antivirus due to attacking of the virus to the computer system will also affect the contents. Data might lost and may be can’t recovered by any means.
  • 10. Vico Software ● provide construction software and services. ● Building owners, general contractors and construction managers. ● To coordination, quantity takeoff, cost estimation, project scheduling and production control. Function 1. Clash detection - VIco Constructability Manager ● To identify clashes ● Mix and match ● Design and save ● Examine the clash ● Prepare Constructability Analysis Report
  • 11. 2. Layout - Vico Layout Manager ● Plot out the point and transfer data. ● Allow to add very accurate Layout Points. ● Export the Layout Points. ● Easily mark points with the integration with Trimble gear. ● Validate the actual field points. 3. Quantity Takeoff - Vico Takeoff Manager ● Generate quick and highly accurate model. ● Extract location-based quantities from BIM models. ● Filter and classify. ● Get accurate quantity takeoffs. ● Generate quantity takeoff reports.
  • 12. 4. Scheduling and Production Control - Vico schedule planner & Vico LBS Manager ● Used for scheduling which allow integrating model-based quantity takeoff information with resource quantities and projecting location to create optimized schedule. ● Design schedule without increasing any risk ● Used to define location structure & alternate location structure ● Maintain persistent location structures 5. Estimating - Vico Cost Explorer & Vico Cost Planner ● Visually see the budget as a 3D model ● Compare 2 or 3 budget/design options side-by-side ● Gradually plan the cost from “idea” to “pre-construction” ● Rapidly create cost plan Limitation ● Only one model file can be operated at one time
  • 13. CostX software ● Is a construction estimating program with an off-screen takeoff system. ● It was released by Exactal in July 2004. ● It can be used among Quantity surveying, construction development and more. Function 1. 3D Take-off/ BIM Model ● Enables user to have a clearer visualization of 3D drawings ● Allow QS to have more accurate estimate quantities and costs compared to traditional method. 2. Auto-revisioning ● Compare the measurement that have been extracted from previous drawing to the similar drawings objects in the new drawing issues.
  • 14. 3. Sub-contractor comparison ● Generate subcontractor comparison workbook by comparing the quotation details. ● Allow QS to make comparison for the rates and sum cost and quality of each element during tender period. 4. Paperless estimating ● Allows the user to view all the report and receive the drawing without printing any paper. ● Scan drawing into CostX and will be able to view all the measurement in the software. ● Provide an easy to use format for the users to share all their project information to their client. 5. Network capability ● Allows multiple user to work on the same project at the same time. ● Increase productivity output by shortening the time to complete a project. ● Users can make changes of their data in the software without printing any paper.
  • 15. Limitations 1. Additional costs for add ons There are many other functions that are not provided, unless they purchase CostX. Users are required to pay extra to extend the capability of BIM tool. 2. Experienced users is needed In order to fully utilize this software, a company requires an experienced user to guide their workers on this software when the company is still practicing traditional measurement method. 3. Limitation in measurement For example, the main reinforcement bars of the beam and column could not be detected by using this software. Bents of mesh fabric reinforcement bars (BRC) could not be detected as well. It may affect the accuracy of the measurement.
  • 17. Compare and Recommendation ● Recommendation: Glodon ● REASONS: 1. Professional management tools - Provide accurate data and information for decision making. - Save cost, time and improve the quality of the construction project. 2. Quickly modelling and BIM-based quantity takeoff - Enable QS to cope with various design changes. - Produce the quantity takeoff quickly. 3. Nation-wide takeoff software - Most the QS using same BIM computer software. - Increase the collaboration of work to others QS which using the same BIM computer software.
  • 18. Part B: Compare benefit and constraints of Building Information Modelling(BIM), CAD measurement and manual measurements:- 1. Preparation stage 2. Design Stage 3. Pre-construction Stage 4. Construction Stage 5. Post-construction / Other Stage
  • 19. Preparation Stage : Benefit BIM MEASUREMENT 1. Improve visualisation - Establish the 3D model of the building. - Allow the client to have a better understanding. - To ensure the building design reach the client’s requirement. 2. Feasibility Study - Able to evaluate different design option of the building. - Less time consumed. 3. Better understanding of the site analysis - Easily access to site information with aerial imagery and digital elevation. CAD MEASUREMENT 1. Accurate valuations - Accurate scaled drawings which eliminate error in quantities take off - the analysis will be more in depth as variation of alternative design with high precision. 2. Sharp visualization - Created model to prevent misunderstandings and achieve satisfaction. 3. Provide storage and database - When information is available and confirmed, the database could be formed and stored on a single disk. MANUAL MEASUREMENT 1. Cost Effective - Printing cost - Low initial software cost - Low training cost
  • 20. Preparation Stage : Constraints BIM MEASUREMENT 1. High investment cost in BIM software - Expensive BIM software - Construction company need o have enough financial support for the software. 2. Lack of standardization - Different operation way of the business at every building process - Cause inconsistent performance. CAD MEASUREMENT 1. High expenses - costly and required regular upgrades - Client bare the AutoCAD cost to do some updates according the client’s need. 2. No backup system - Does not have the autosave system. - Constantly save manually to ensure the data is secured and saved. 3. Training needed - Allow them to master and understand the software and function it properly MANUAL MEASUREMENT 1. Time consuming in preparing documents. - Low output by preparing manually 2. Unable to produce cost plan - Advice on budgeting based on cost plan.
  • 21. Design Stage : Benefit BIM MEASUREMENT 1. Better representation and visualization of architect’s design - Enable them to put all the information correctly. 2. Resolve Conflict - Able to discover design errors in the early stage of design. - Save time and cost. 3. Reduce usage of material - Provide accurate quantity of total materials required 4. Increase the efficiency of work - Speed up preparation process. 5. Bills of Quantity CAD MEASUREMENT 1. Flexible drawing information - Overlays such as electrical lines or plumbing lines will be seen as transparent overlays. 2. High accuracy - Accurate scale of drawings in 2D or 3D drawings could be drawn 3. Easier to measure irregular shape - irregular shape could be measured in a faster way by just tapping the limit of all unpredictable shape. 4. Gain more profit – CAD providing many shortcuts in calculation comparing to manual calculation, thus the QS firm could pick up more projects and handle additional scope of work.
  • 22. Design Stage : Constraints BIM MEASUREMENT 1. Require high performance computer - BIM software occupies large space of memory on the computer - Affect to work speed. - Need to keep upgrade the computer. 2. Data can be modified - Data can be modified by suppliers and contractor. 3. Training to employees - Training to construction member - To ensure enhance their understanding and enable them to use BIM. CAD MEASUREMENT 1. ‘Polyline issue’ - drawing is given in polyline, there will be less usage of CAD. 2. Difficulties to quantify sketches - couldn’t measure sketches . 3. Changes have to be updated manually. - CAD changes have to be make manually unlike BIM will be automatically update. MANUAL MEASUREMENT 1. Difficult to visualize the design of project - Based on 2D elevation drawing to interpret design 2. Time consuming in measurement - Wasting manpower in measurement. - Changes needed to be updated in timely manner to ensure measurement is correct and reduces variation arises
  • 23. Pre-construction Stage : Benefit BIM MEASUREMENT 1. More accurate estimations - Enable estimators to identify and extract the quantities and spaces require. - Enable the estimator to produce a reliable and accurate cost estimates in early design stage. 2. Reduce the number of reworks - Able to identify potential problem occur. - Less omissions and errors make. 3. Constructability Analysis - Enable the project team performs detailed constructability analysis. CAD MEASUREMENT 1. Provide convenience - drawings can be changed without erasing and redrawing 2. Data managing - QS can easily change the cost estimates. 3. High accuracy - CAD could allow architect to draw any desired dimension or patterns according to scale without having any troubles. MANUAL MEASUREMENT 1. Cost effective - Only require basic measurement knowledge in taking off element. - Printing charges 2. Familiarity of project - Clear image is developed when doing manual measurement 3. Flexibility - Taking off can be done even if there are downtime of electrical supply or internet interferences due to the facts that no softwares are being used.
  • 24. Pre-construction Stage : Constraints BIM MEASUREMENT 1. Disruptive - Disrupt the general construction process for ordering the materials. - Changes of design. CAD MEASUREMENT 1. Limitation to prepare BQ - Limit to just measure the amounts. Quantity Surveyor has to transfer the data manually to other software to prepare BQ. MANUAL MEASUREMENT 1. Time consuming - Request information - Manual taking off elements( numerous drawings) 2. Unable to identify error - Error or discrepancies of design cannot be detected 3. Human errors - Workload is high, chances getting errors high. - Chances of missing elements and errors is high due to number of elements need to be taken-off is high.
  • 25. Construction Stage : Benefit BIM MEASUREMENT 1. Improve the collaborative among project team - Able to share the same information. - More effectively to communicate the ideas and actions. 2. Control the cost and save time - Help the project team to control the cost whitn the budget. 3. Site Coordination - Useful for contractor in site planning. - Help contractor to identify potential hazards. CAD MEASUREMENT 1. Improves communication - better communication as the errors and uncertainty will be reduced. 2. Standardize technique – CAD is following the industry standards and came out with a standardized system. The design, drafting and documentation strategies are all standardized. MANUAL MEASUREMENT 1. Document Presentation - Document can be compile securely and consistently. - Any progress payment can be supported by picture in hard copy to facilitate the approval of progress payment by the client.
  • 26. Construction Stage : Constraints BIM MEASUREMENT 1. Incompatibility with partners - Not every construction company willing to invest on BIM. CAD MEASUREMENT 1. Measurements are limited – There are limitations on measurements such as we could only measure 2D outlines like lengths or areas only based on 2D drawings. 2. Operating expenses on site - CAD usually build robotized costs, increasing the automation expenses. Thus there is a financial conflict on site when using CAD as the site managers will want to keep their budget low. MANUAL MEASUREMENT 1. Time consuming - Solving variation arises, getting approval and consent from consultant team - Site valuation for progress payment, getting clarification and information from contractor. 2. Cost Control - Lack of a proper cost planning system to detect cost overruns before completion.
  • 27. Post-construction/ Other Stage : Benefit BIM MEASUREMENT 1. Facilities Management - Help facilities and maintenance team have a better understanding of the building. 2. Simplified the switching from one facility manager to another - BIM create incentive for new facilities manager to perform better. CAD MEASUREMENT 1. Extra information – By using CAD, the 3D drawings will show some hidden compartments such as wirings and some sensitive parts. With this function, maintenance work will be carried out easier. 2. Commonly usable
  • 28. Post-construction/ Other Stage : Constraints BIM MEASUREMENT 1. Training required to facilities and maintenance team - Not all member under facilities and maintenance team know how to use BIM. - Training needed for them to update and maintain the information of BIM model. CAD MEASUREMENT 1. Limited information - limitation on getting the building softscape such as population density and designated space usage because normal CAD could only get information about building hardscape. Thus, CAD couldn’t provide enough information for the changes made in building softscape. MANUAL MEASUREMENT 1. Time consuming in preparation of final account - Adjust contract sum manually 2. Problem arises from contractual claims - Lack of communication and collaboration between consultant and contractor - Unable to identify and resolve claims earlier and leads to more claims and unnecessary cost incurred.
