1. BY
JOTHILAKSHMI
1
BUSINESS CENTRIC SOA
AND SOAP BASICS

2. 2

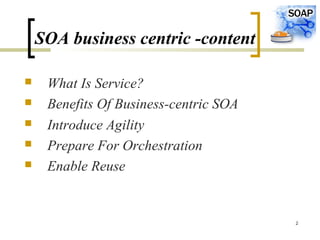

SOA business centric -content
 What Is Service?
 Benefits Of Business-centric SOA
 Introduce Agility
 Prepare For Orchestration
 Enable Reuse

3. 3

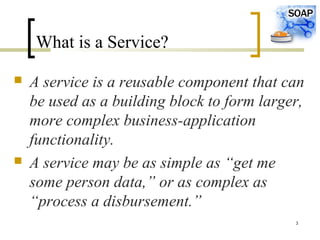

What is a Service?
 A service is a reusable component that can
be used as a building block to form larger,
more complex business-application
functionality.
 A service may be as simple as “get me
some person data,” or as complex as
“process a disbursement.”

4. 4

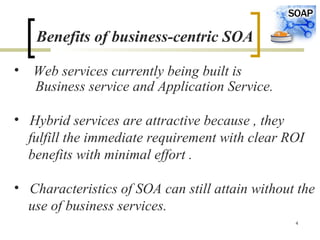

Benefits of business-centric SOA
• Web services currently being built is
Business service and Application Service.
• Hybrid services are attractive because , they
fulfill the immediate requirement with clear ROI
benefits with minimal effort .
• Characteristics of SOA can still attain without the
use of business services.

5. 5

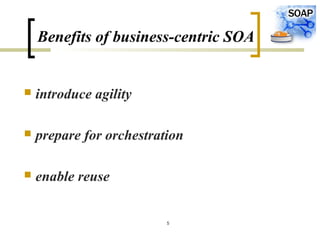

Benefits of business-centric SOA
 introduce agility
 prepare for orchestration
 enable reuse

6. 6

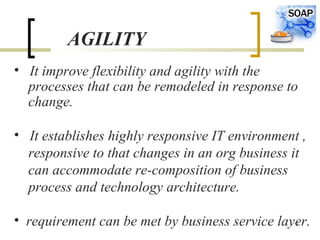

AGILITY
• It improve flexibility and agility with the
processes that can be remodeled in response to
change.
• It establishes highly responsive IT environment ,
responsive to that changes in an org business it
can accommodate re-composition of business
process and technology architecture.
• requirement can be met by business service layer.

7. 7
PREPARE FOR ORCHESTRATION
• Modeling current processes to that they can
easily migrate to an orchestration environment.
• Orchestration brings with the concept that ,
when implemented , it lie at the core of SOA

8. 8

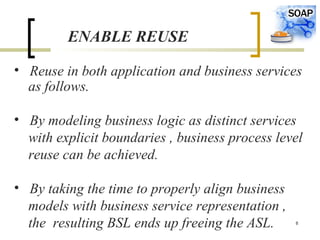

ENABLE REUSE
• Reuse in both application and business services
as follows.
• By modeling business logic as distinct services
with explicit boundaries , business process level
reuse can be achieved.
• By taking the time to properly align business
models with business service representation ,
the resulting BSL ends up freeing the ASL.

9. 9

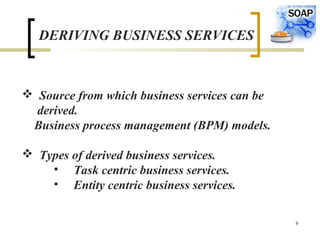

DERIVING BUSINESS SERVICES
 Source from which business services can be
derived.
Business process management (BPM) models.
 Types of derived business services.
• Task centric business services.
• Entity centric business services.

10. 10

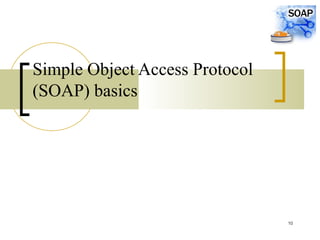

Simple Object Access Protocol
(SOAP) basics

11. 11
SOAP basic content
 What is SOAP?
 SOAP Messaging Framework
 One-Way Message
 Request/Response
 SOAP Message Format
 SOAP Security
 Syntax Rules

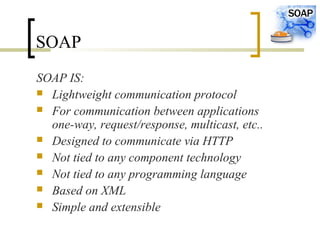

12. SOAP
SOAP IS:
 Lightweight communication protocol
 For communication between applications
one-way, request/response, multicast, etc..
 Designed to communicate via HTTP
 Not tied to any component technology
 Not tied to any programming language
 Based on XML
 Simple and extensible

13. 13
SOAP Messaging Framework
 XML-based messaging framework that is
 1) extensible
 2) interoperable
 3) independent
 Next we discuss these three characteristics
in more detail

14. 14
Extensible
 Simplicity remains one of SOAP's primary
design goals
 SOAP defines a communication
framework that allows for features such as
security, routing, and reliability to be
added later as layered extensions

15. 15
Interoperable
 SOAP can be used over any transport
protocol such as TCP, HTTP, SMTP
 SOAP provides an explicit binding today
for HTTP

16. 16

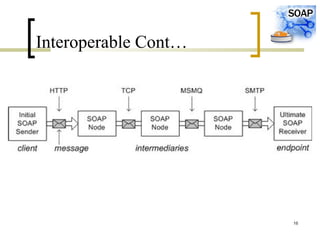

Interoperable Cont…

17. 17

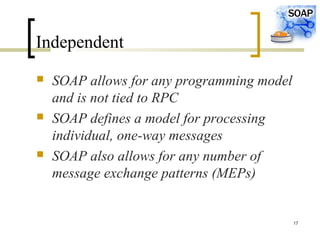

Independent
 SOAP allows for any programming model
and is not tied to RPC
 SOAP defines a model for processing
individual, one-way messages
 SOAP also allows for any number of
message exchange patterns (MEPs)

18. 18

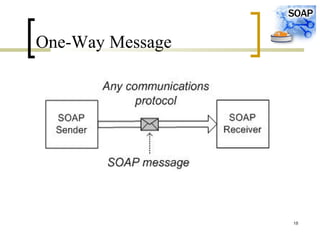

One-Way Message

19. 19
Request/Response

20. 20
SOAP Message Format
 SOAP message consists of three parts:
 SOAP Envelope - Defines the content of the message
 SOAP Header -contains header information
 SOAP Body - contains call and response information

21. 21

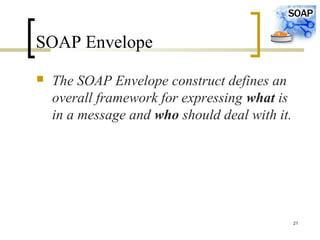

SOAP Envelope
 The SOAP Envelope construct defines an
overall framework for expressing what is
in a message and who should deal with it.

22. 22

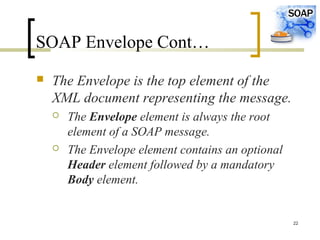

SOAP Envelope Cont…
 The Envelope is the top element of the
XML document representing the message.
 The Envelope element is always the root
element of a SOAP message.
 The Envelope element contains an optional
Header element followed by a mandatory
Body element.

23. 23
SOAP Header
 The Header element is a generic container
for control information
 It may contain any number of elements
from any namespace
 Header blocks should contain information
that influences payload processing
 Header is optional

24. 24
SOAP Body
 The Body element represents the message
payload
 It is Special case of header
 Default contract between sender and ultimate
recipient
 Different from HTTP's header/body
separation

25. SOAP Fault
 The SOAP Fault mechanism is designed to support the
composability model
 A SOAP message can carry one SOAP Fault element
 Must be placed in the Body of the message
 Detail information for faults resulting from headers are
carried in the header
 The SOAP fault code extension mechanism is for SOAP only
 Application faults should use existing SOAP fault codes
 Client code is for request faults
 Server code is for processing faults

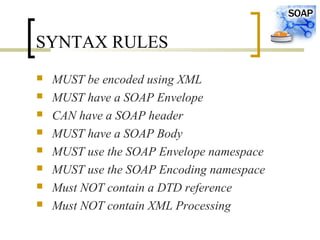

26. SYNTAX RULES
 MUST be encoded using XML
 MUST have a SOAP Envelope
 CAN have a SOAP header
 MUST have a SOAP Body
 MUST use the SOAP Envelope namespace
 MUST use the SOAP Encoding namespace
 Must NOT contain a DTD reference
 Must NOT contain XML Processing

27. Summary
 SOAP envelope provides
 Composability in the vertical (Shopping basket)
 Composability in the horizontal (Amtrak)
 SOAP can be used with many protocols
 Easy to deploy with existing infrastructure
 SOAP is fundamentally a one-way message
