The document summarizes a site analysis for a house project located on Rubaie Street in Baghdad, Iraq. It includes basic information about the project site, analysis of the sun and wind patterns, neighborhoods, views from inside and outside the site, shading throughout the day, and proposes an inward-looking house design as a solution. The proposed design aims to increase privacy, use trees to reduce pollution and improve air quality, orient the entrance away from the noisy street, and consider soundproofing materials due to outside noise pollution.

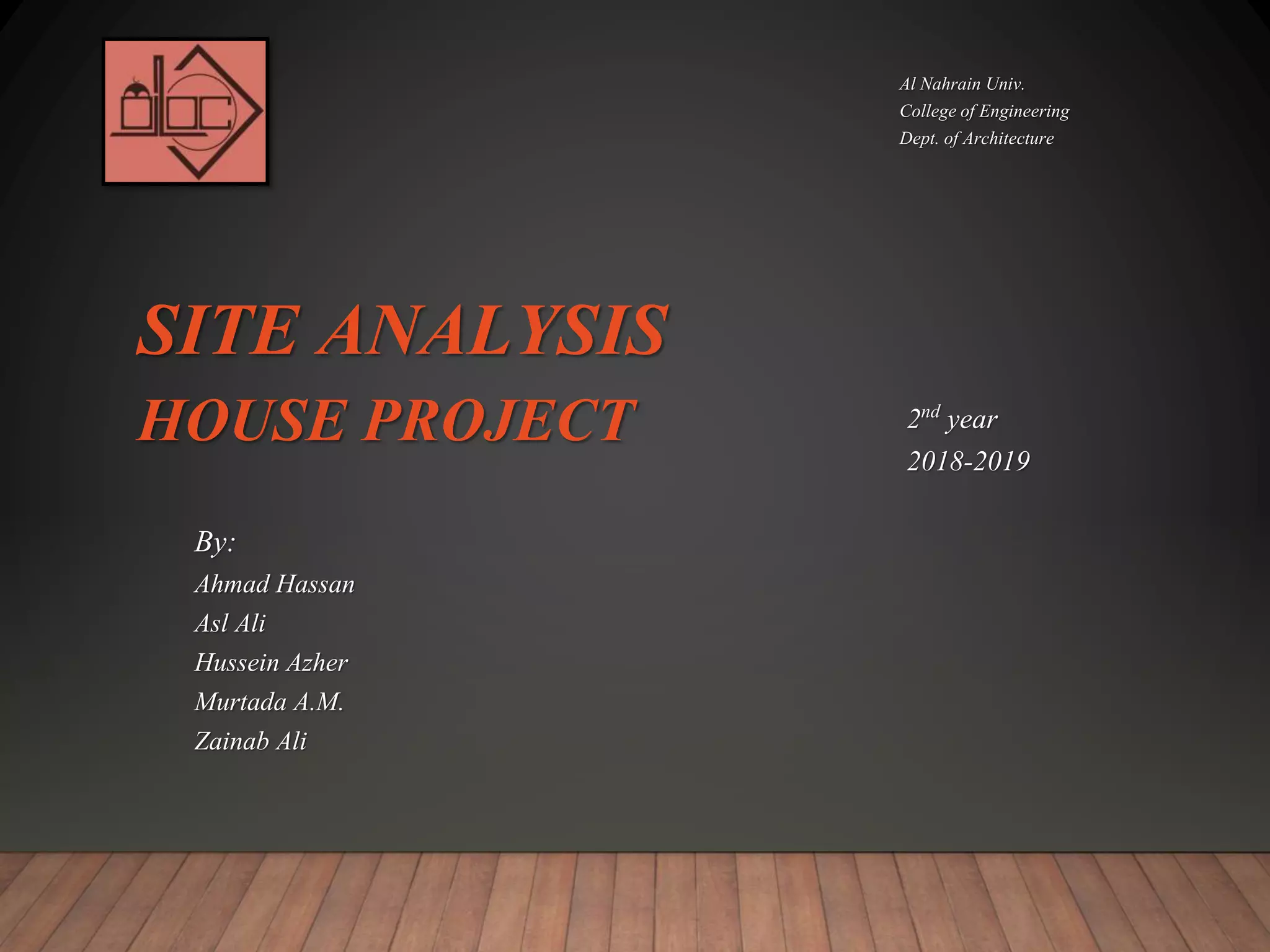

1. SITE ANALYSIS
HOUSE PROJECT
By:
Ahmad Hassan
Asl Ali
Hussein Azher
Murtada A.M.
Zainab Ali
Al Nahrain Univ.
College of Engineering
Dept. of Architecture
2nd year
2018-2019

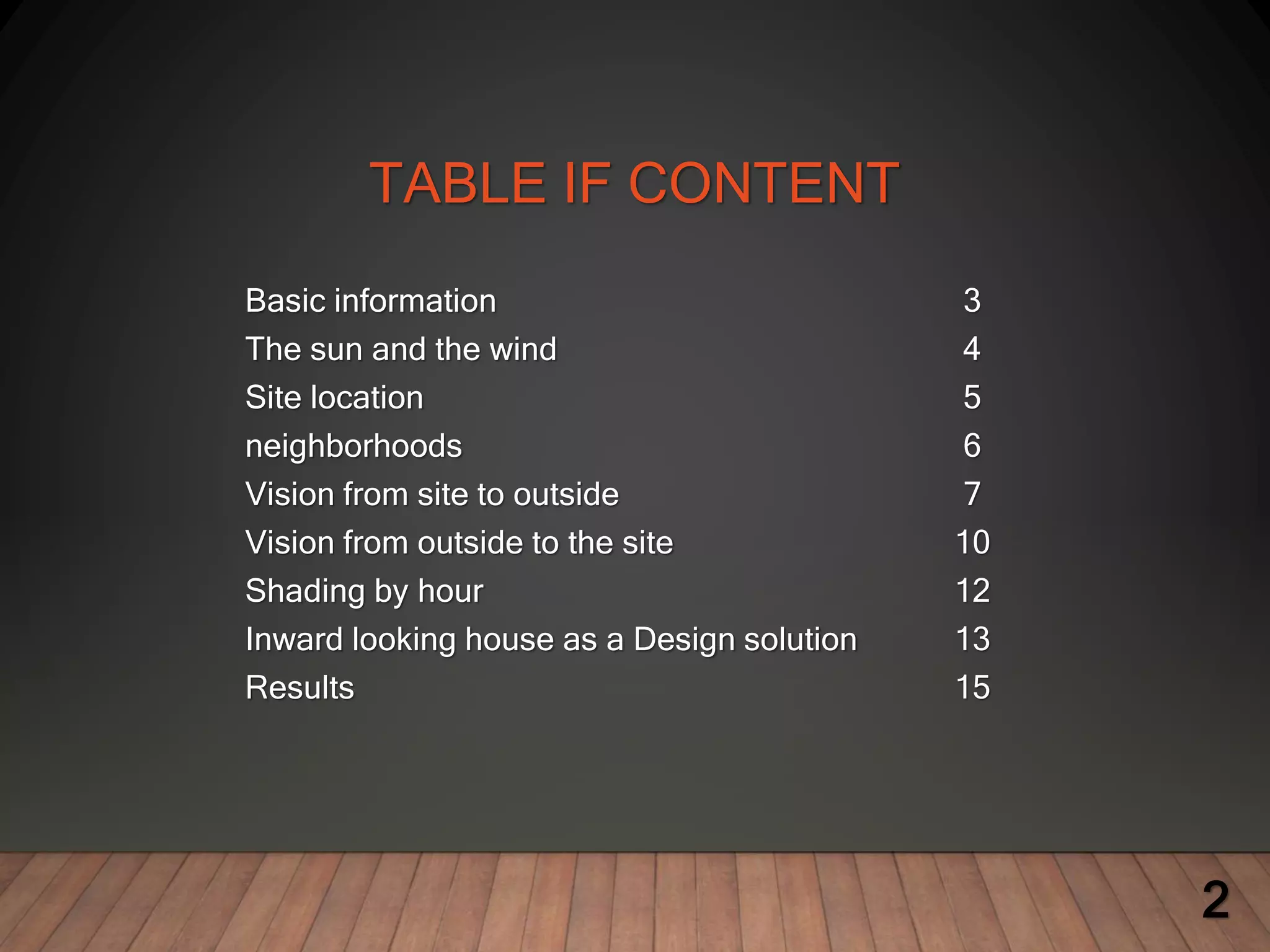

2. TABLE IF CONTENT
2
Basic information 3

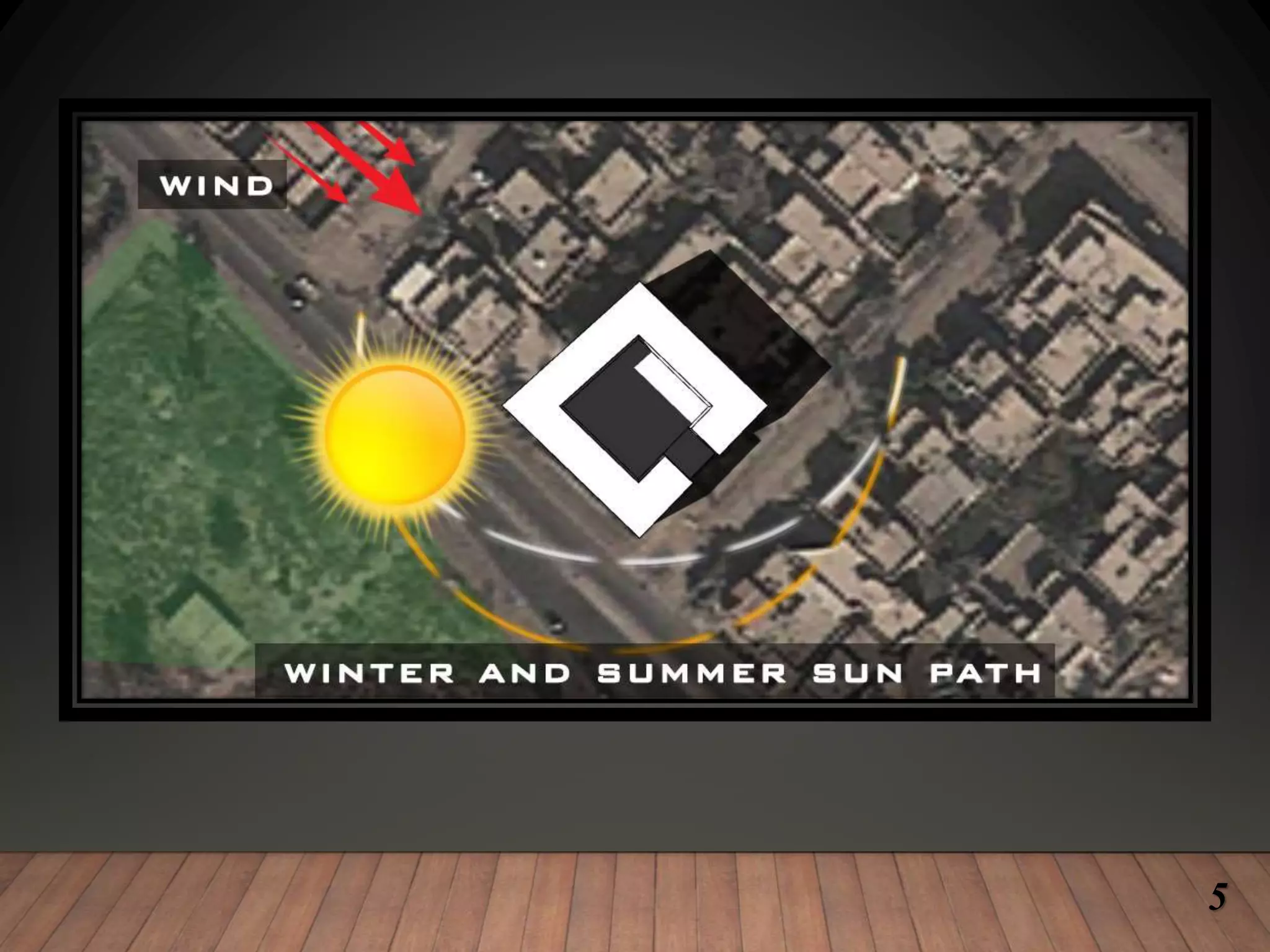

The sun and the wind 4
Site location 5
neighborhoods 6
Vision from site to outside 7
Vision from outside to the site 10
Shading by hour 12
Inward looking house as a Design solution 13
Results 15

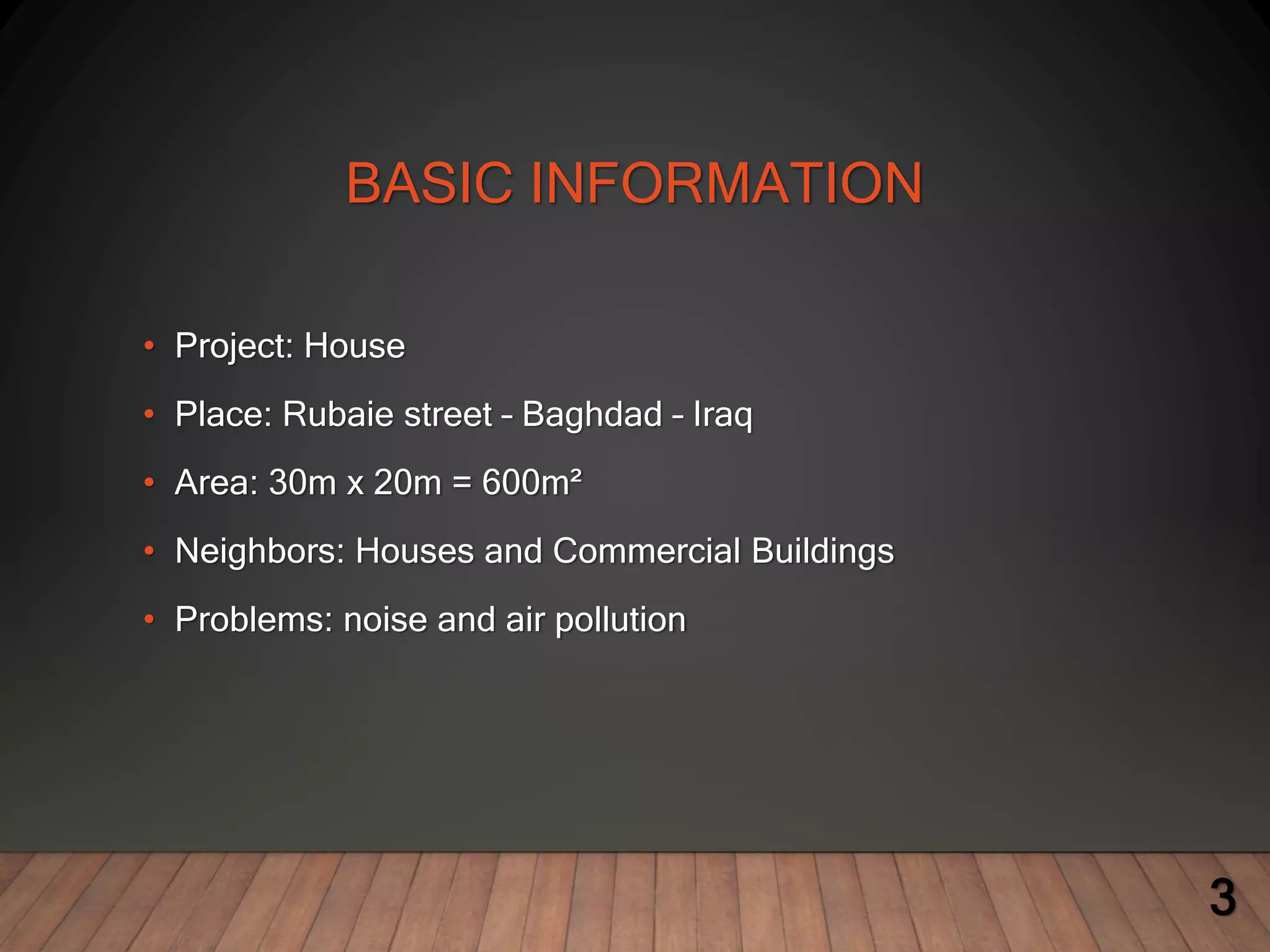

3. BASIC INFORMATION
• Project: House
• Place: Rubaie street – Baghdad – Iraq
• Area: 30m x 20m = 600m²
• Neighbors: Houses and Commercial Buildings
• Problems: noise and air pollution
3

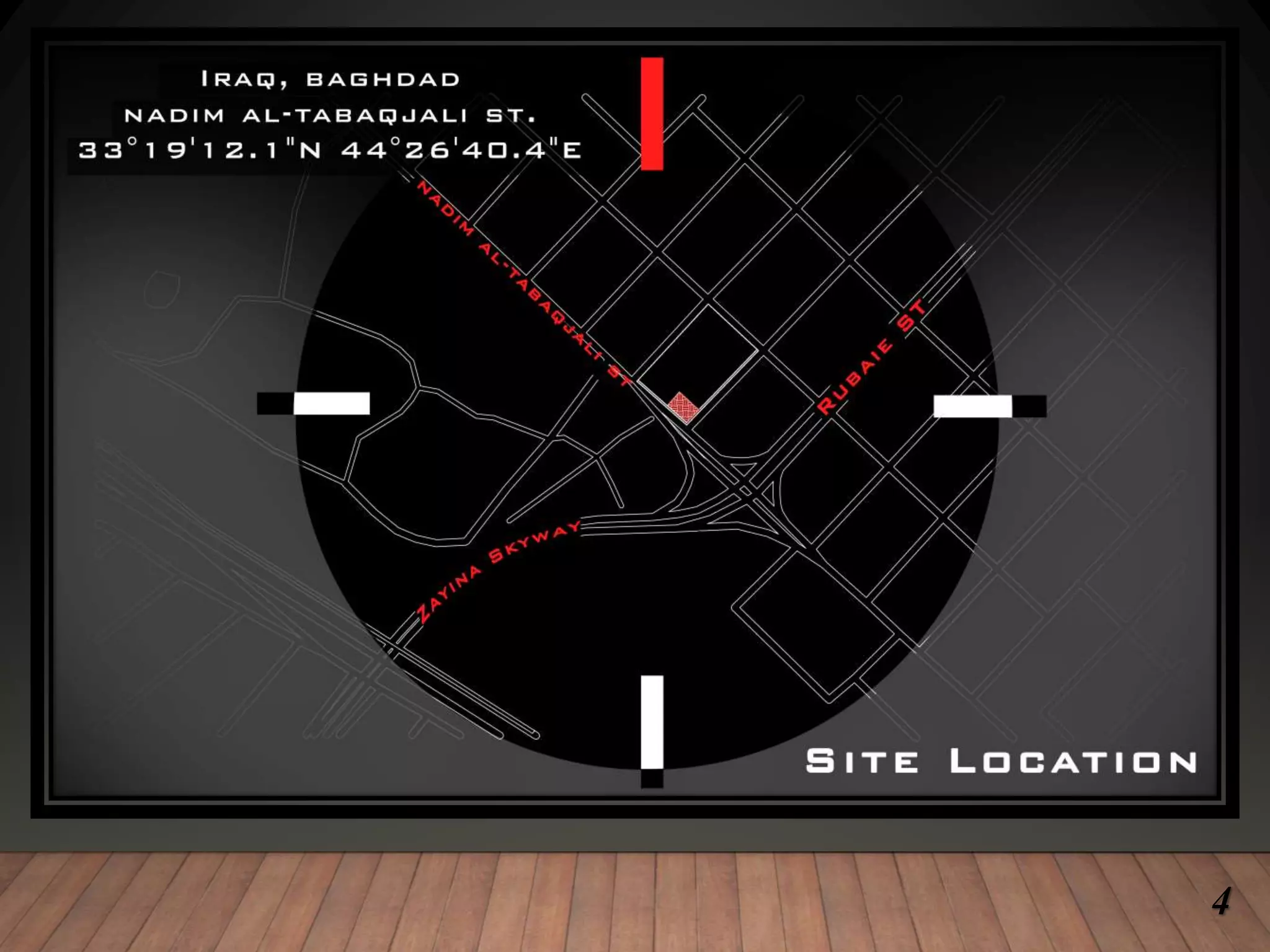

4. SITE LOCATION
4

5. 5

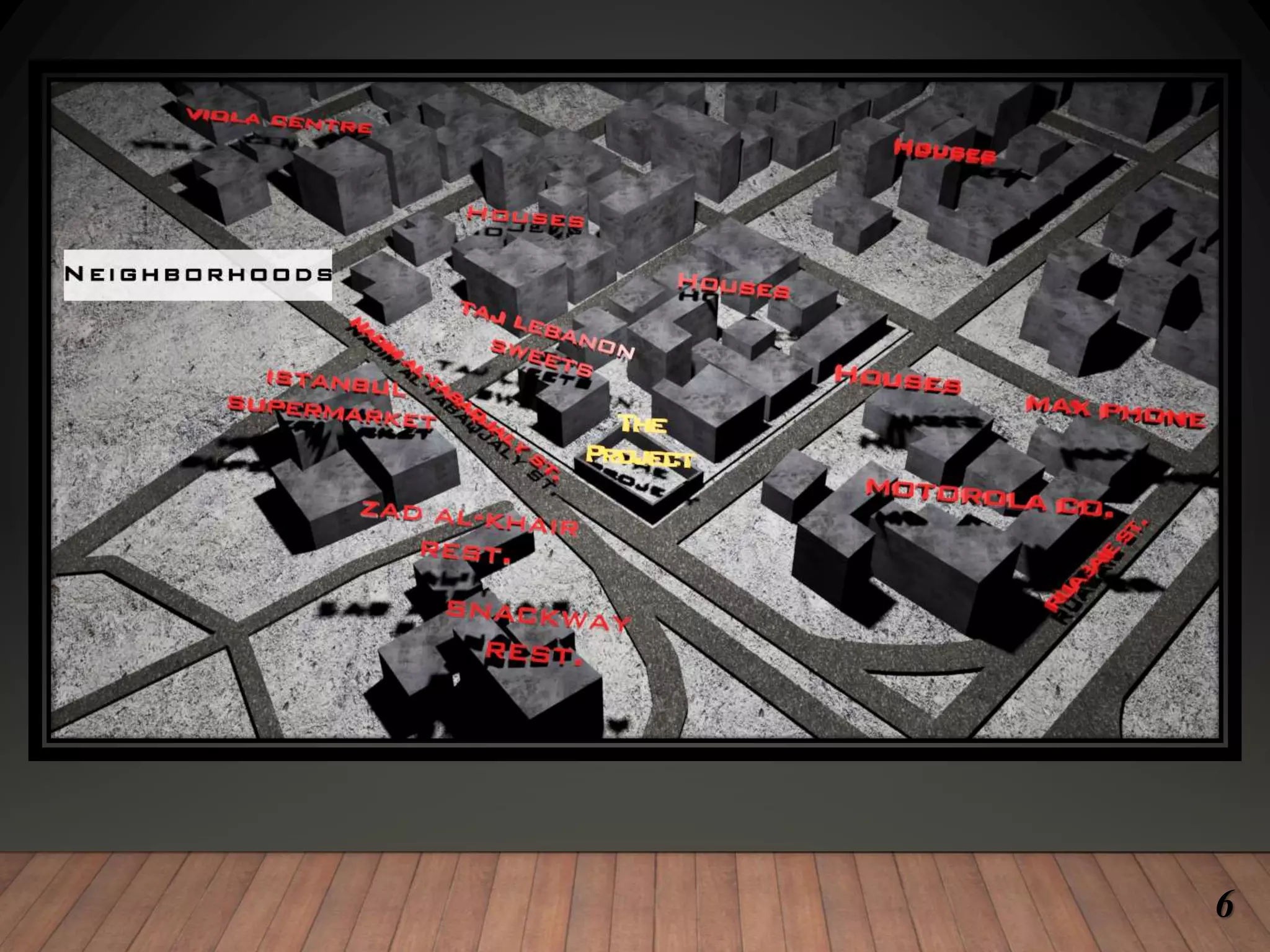

6. NEIGHBORHOODS
6

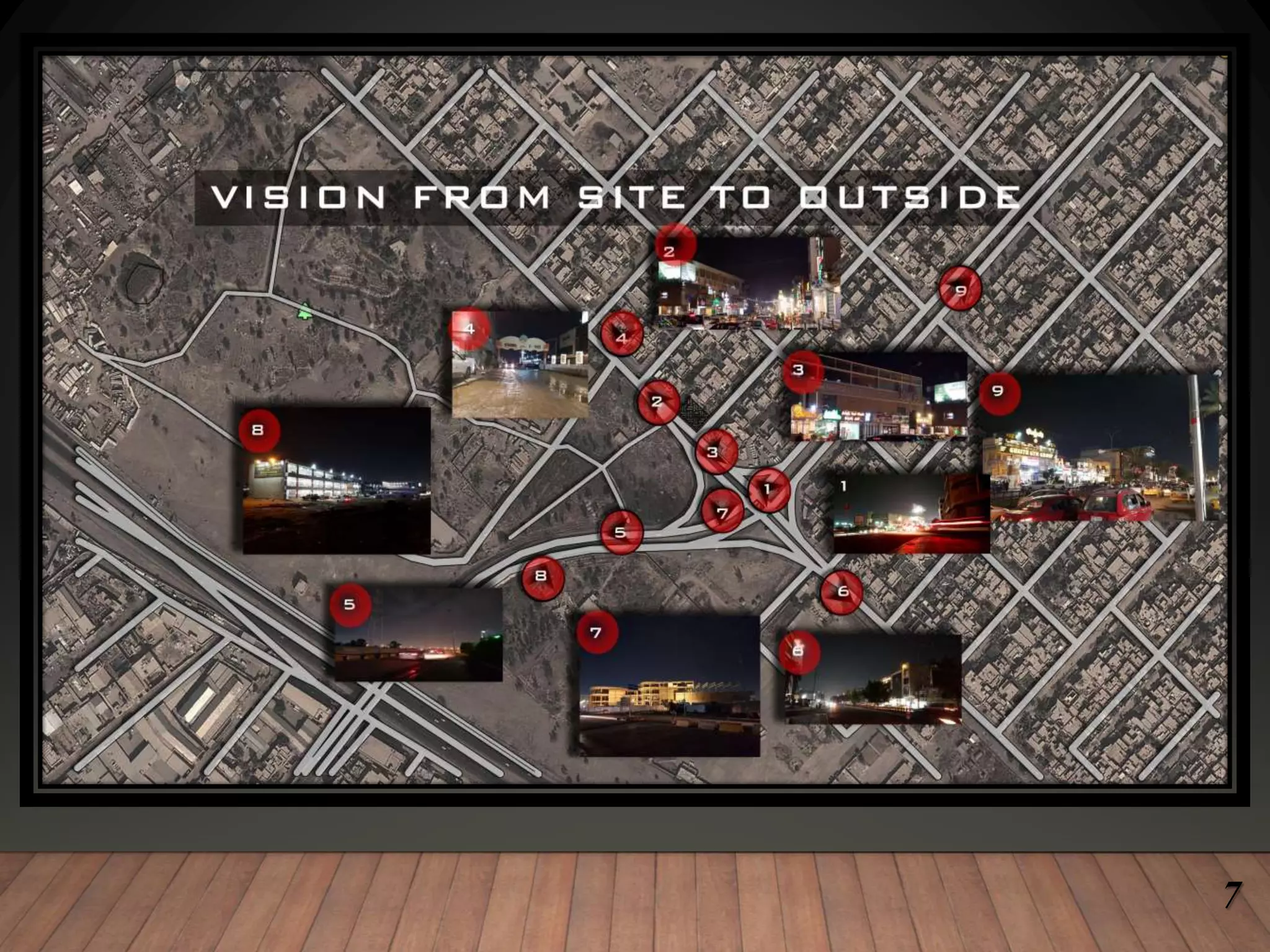

7. VISION FROM SITE TO
OUTSIDE
7

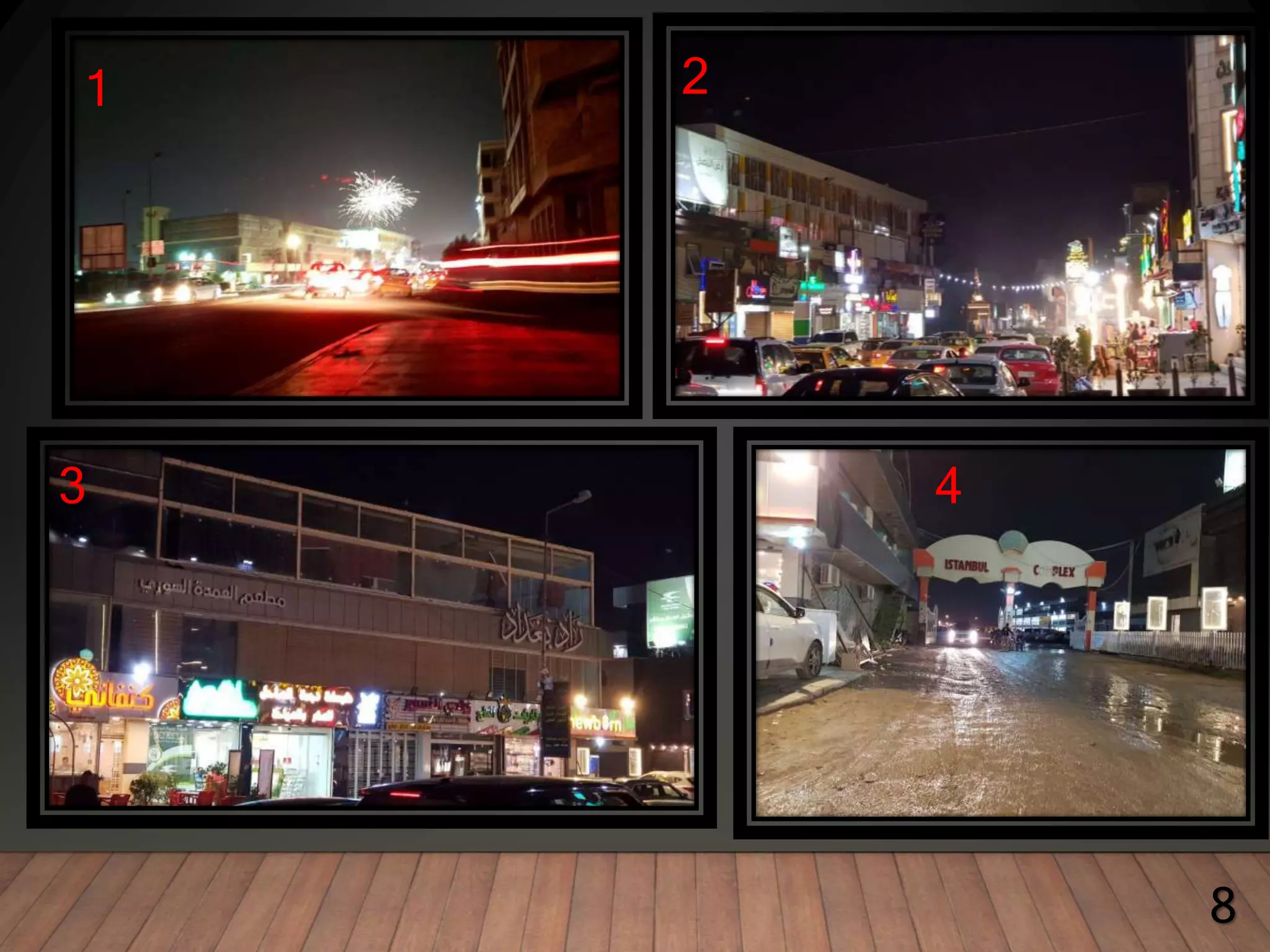

8. 1
4
3
2
8

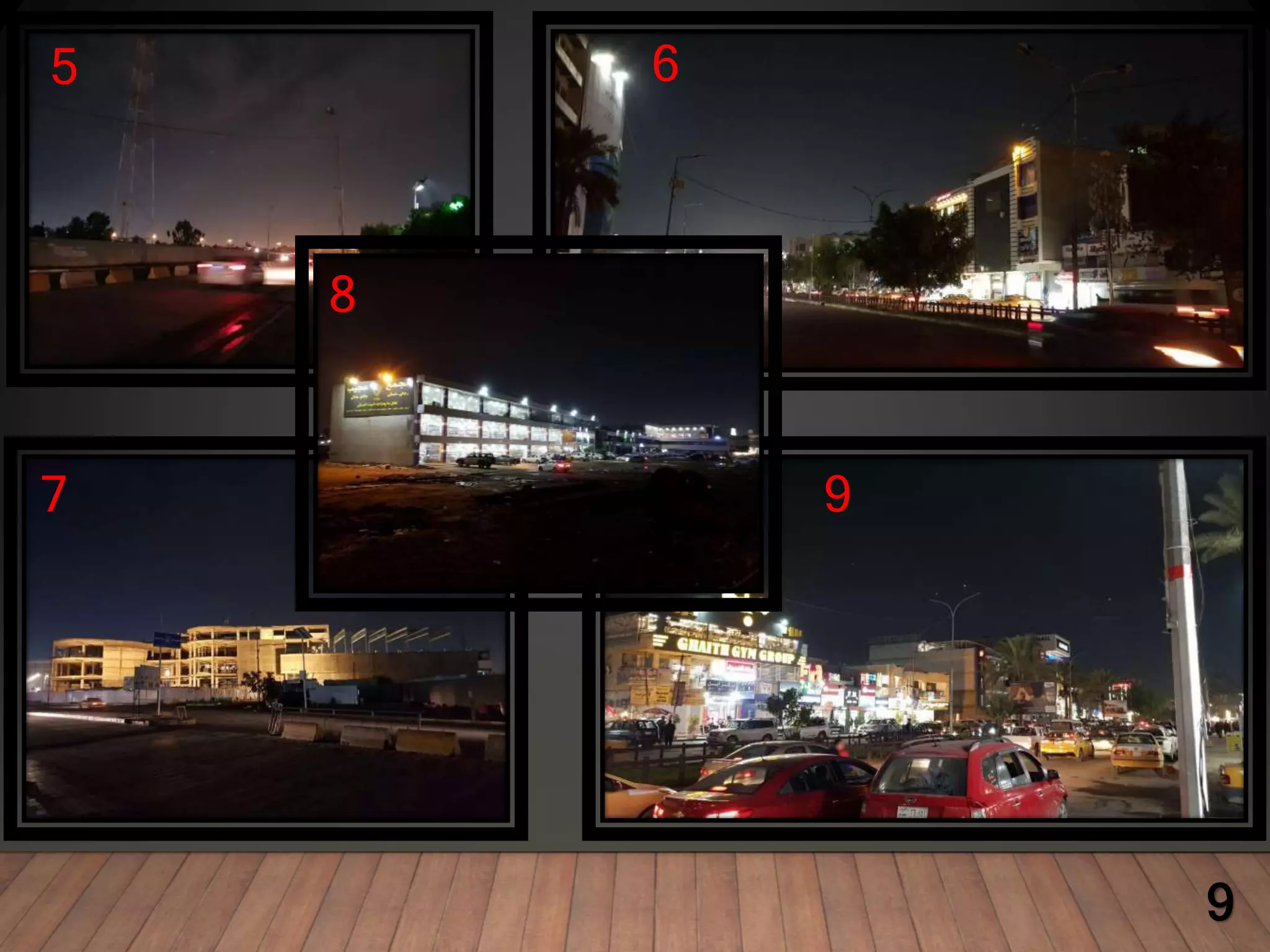

9. 9
7
5
8
6
9

10. VISION FROM OUTSIDE TO
THE SITE
10

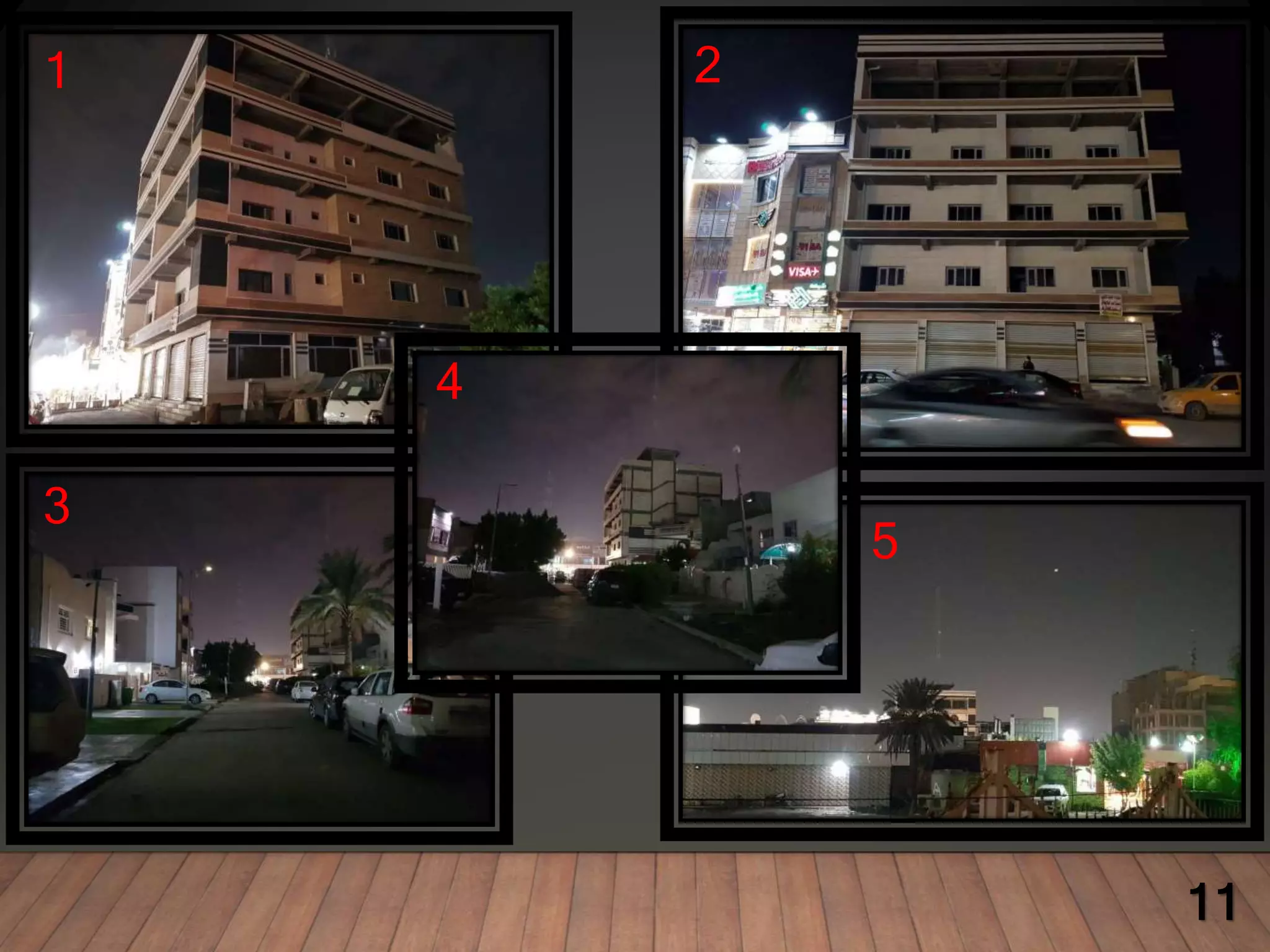

11. 3
4
5
2
1
11

12. SHADING BY HOUR
12

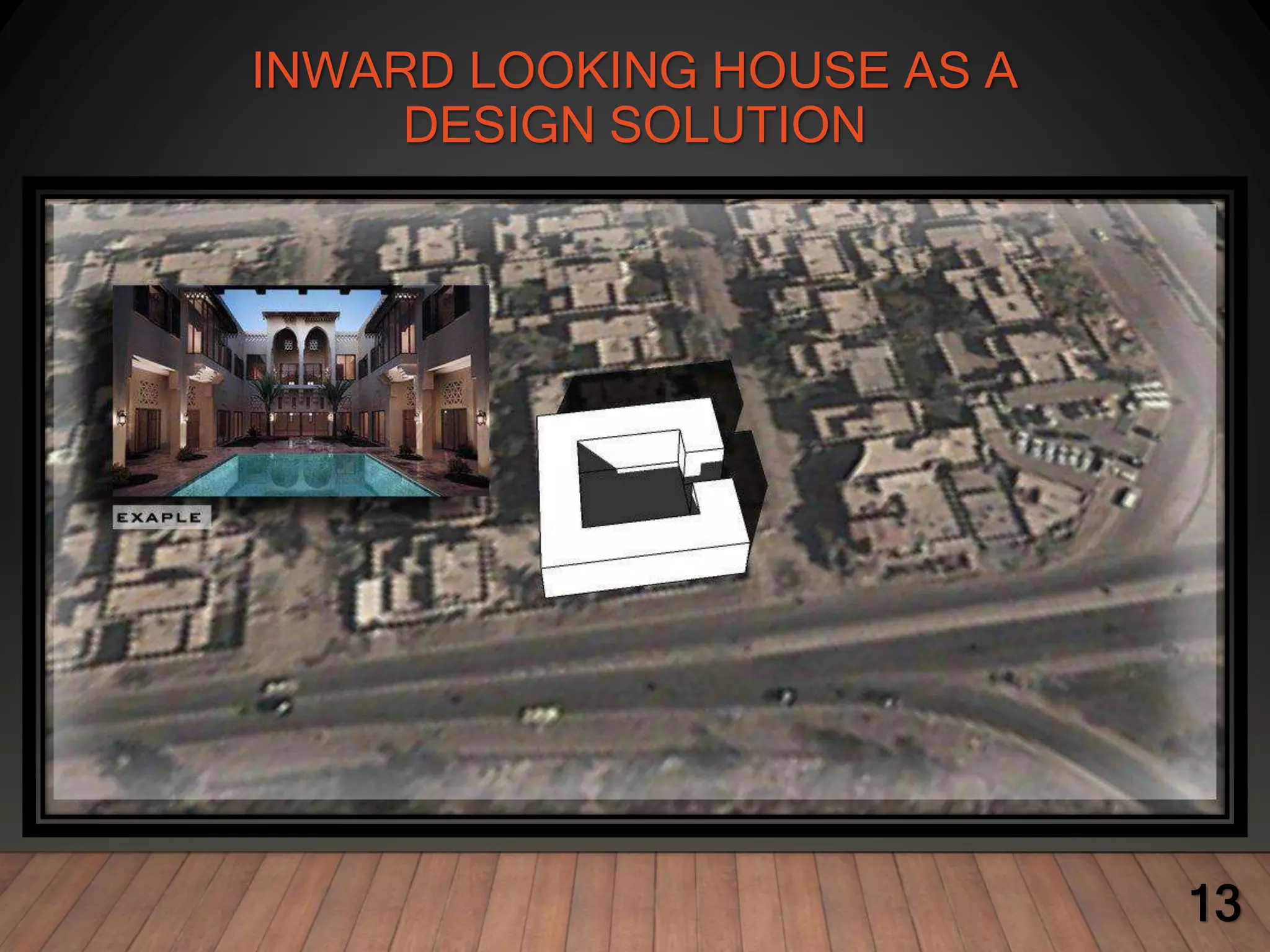

13. INWARD LOOKING HOUSE AS A
DESIGN SOLUTION
13

14. WIND MOVEMENT INSIDE AND
OUTSIDE THE HOUSE IN
COMPARISON. AS THE SHAPE
AND DESIGN OF THE SPACE
VARIES, THE WIND FLOWS
DIFFERENTLY.
14

15. RESULTS
• The inward looking design that we’ve motioned before
can make the house more private.
• Long trees inside and outside the house to reduce
pollution and generate fresh air.
• The door should be facing the alley not the street.
• Consider isolation technologies in the building materials
because of the noise outside.
15
