INTRODUCTION
Task:
In a group of 2 students, we are given a task to propose a small
construction project within a specific empty land. The size of the land
shall between (30mx30m)-(30mx40m) and serves one of the following
purposes:
1. Recreational Area
2. Commercial Area
3. Agricultural Area
4. Tourism Area
5. Residential Area
To do this project, students have to study types of building
development which include suggestion, rationale, benefits ,site analysis,
evaluation and the needs of the project to client and to the community.
Our group consists of two members: Sam Wei Yin and Ng Huoy Miin.
We want to propose a construction project for a Recreational Area.
Our site size: 30x40m
Location : Putra Permai(Putra Height)

4. Ici final project
Brief introduction of location:
Putra Heights is a residential township in Subang Jaya, Selangor,
Malaysia. It is located in the Mukim (sub-district) of Damansara. The
township could be easily located by the tall and famous Bukit Cermin
hill in Putra Heights.
Selected site

5. Ici final project
Site Analysis
After understanding the final project brief of this project, we had chosen an
empty land for this project is located between Jalan Putra Permai 10/1m and
Jalan Besar. The site is currently empty and serves no major purpose.
A top view of our site 30x40 site
Sunlight-since there is no rooftop to cover the empty land so that the sunlight is
throughout the day.
Wind direction- the wind blows from the south to the west strongly.
Human circulation- There is no people staying so that there are no circulation
within this site.
Sound-It is empty land therefore low human sound.

6. Ici final project
The site has been a large vacant space and without any construction or
renovation. Hence, most areas of the site are full of grass. A site analysis shows
that the site is ideal for the construction plan due to the following reasons:
1. Surroundings with houses, people have a place to relax
2. Has good ventilation due to large open space
3. Good accessibility from any side of the area
4. Has a lot of unutilized space available for new development
Advantage
1. Provide a green environment and space for resident to relax.
2. Sports such as jogging.
3. Protect their physical and mental health.
4. Provide opportunity to meet up and know their neighbors.
5. Restore oxygen to the air and help to reduce air pollution
6. Retreat from the noise and commotion of urban environment.
7. Increase property value.
8. The closer the relationship between parent and children.
Disadvantage
1. Maintenance and development fee of the park is too high.
2. Hard to maintain
3. It may face any safety problem such as the safety of the car.

7. Ici final project
Site specification
Looking East
Towards to the east from our site, it is Jalan Putra Permai 10/1m. .
Looking West
Towards to the west from our site, there are still have some empty places. And
there is a road further far, which is Jalan Besar .

8. Ici final project
v
View from the north

9. Ici final project
The master plan

10. Ici final project
The perspective drawing of gazebo within this
recreational area.

11. Ici final project
RATIONALE
Proposal:
It is proposed to use the empty land towards a landscaping of a park. The entire
site would be utilized for recreation, be remodeled into the grass with footpaths
lined with trees, shrubs and pond. Soil will be poured over the base.
Reasons:
Why we proposed to build a recreation area?
We found that the place lacks of green space for residents to interact with green
environment. From the site, we also found that is it too concrete and lack facilities
that serve the residential. Therefore, the action to renovate the site with natural
approach is necessary.
Why we chose Putra Permai our site for this project?
This site is an empty space and is available for people to access to the site. The
site is currently purposeless and being a recreation site would be a good purpose
for the site.

12. Ici final project
Concept
The whole concept of this recreational area
design is to let people to rest, relax and chill in
a green space with several facilities provided
there. This recreational area is divided into
two part along with a walkway for people
jogging and walk. The center is a pond that for people to appreciate the beautiful
views and feed fish. This recreational area has a lot of wooden benches, people
can just sit down and enjoy the peaceful and the scenery of the recreational area.
There are two gazebos in this recreational area for people chill and rest.
Hardscape
Wooden benches
Wooden benches will be provided in each section of the residential area. So,
there will be sufficient space for people to rest and chill.

13. Ici final project
Stainless steel dustbin
This elegant and modern recycling station is a great piece of furniture for any
modern public area. Made of high quality 304 stainless steel and decorated with
FSC certified pine wood. It is perfectly suitable outdoor use.
It is equipped with 3 interior bins made of durable sheet metal. Customized with
labels and stickers on the front body for an efficient and easy waste sorting and
recycling. Easy fix into the ground.
gazebo
a gazebo is structure with roof where people can rest and chill at there. We
provided a gazebo in size of 4mx 4m.

14. Ici final project
Softscape
Mimosa
Mimosa .It scientific name is Albizia Julibrissin. Pink. Main Bloom Time of this
mimosa at early summer, early spring, late summer, late spring, mid-summer, mid
spring. It cans growth until 12m. This could give a shady area to visitor.
Mondo Grass
This Mondo grass does well in filter sunlight. It will produce purple colour flower.
Give a nice view to this park when it reaches it blossom time.

15. Ici final project

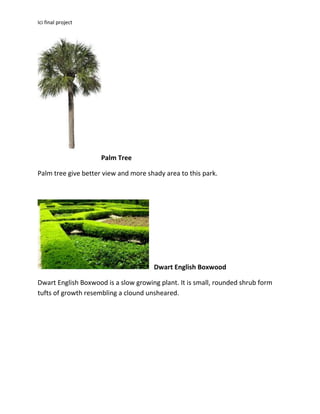

Palm Tree
Palm tree give better view and more shady area to this park.
Dwart English Boxwood
Dwart English Boxwood is a slow growing plant. It is small, rounded shrub form
tufts of growth resembling a clound unsheared.

16. Ici final project
EVALUTION
Material used and price:
No Material Unit Quantity Price(RM)
1 Tree No. 51 15300
2 Shrub No. 22 2500
3 Groundcover No. 30 600
4 Grass m2
650 19500
5 Precast concrete m2
120 1200
6 Gazebo No. 2 10000
7 pond No. 1 20000
8 maintenance month 24 36000
TOTAL 105,100

17. Ici final project
Renovation approval form by MPSJ

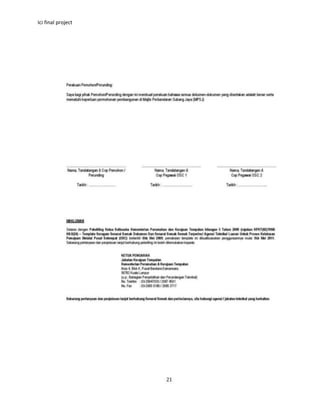

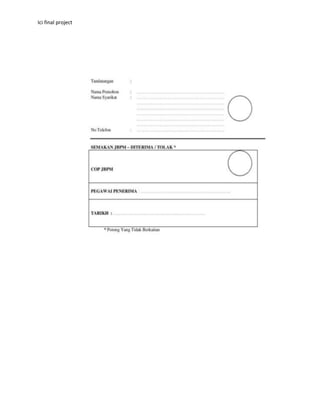

Before construction phase, we have to get the permit of construction or
renovation by the government by submitting an approval form. The attachment
files after these pages are the approval forms that we prepared before
construction.

18. Ici final project

19. Ici final project

20. Ici final project

21. Ici final project

22. Ici final project

23. Ici final project

24. Ici final project

25. Ici final project

26. Ici final project

27. Ici final project

28. Ici final project
Conclusion
The trend toward greenery is now extended in many places .More green spaces
should be provided to resident to relieve their stress of work and studies.
However, it is not enough to have just a piece of green land that without any
function. This new proposal of recreational area can satisfy the demand of
residents where a place to chill, fun and exercise. It is sure that the recreational
area can change the residential area to be more active and enlighten it to become
a better environment.
