In this session, we (Raymond Chou (SCOM MVP) & Lai Yoong Seng (VM MVP) provided an overview of the new features in System Center Virtual Machine Manager 2012 which included new architecture of VMM 2012 and 4 pillar of management:- deployment, fabric, cloud and services management at Microsoft Tech-Ed New Zealand 2011 (Auckland).

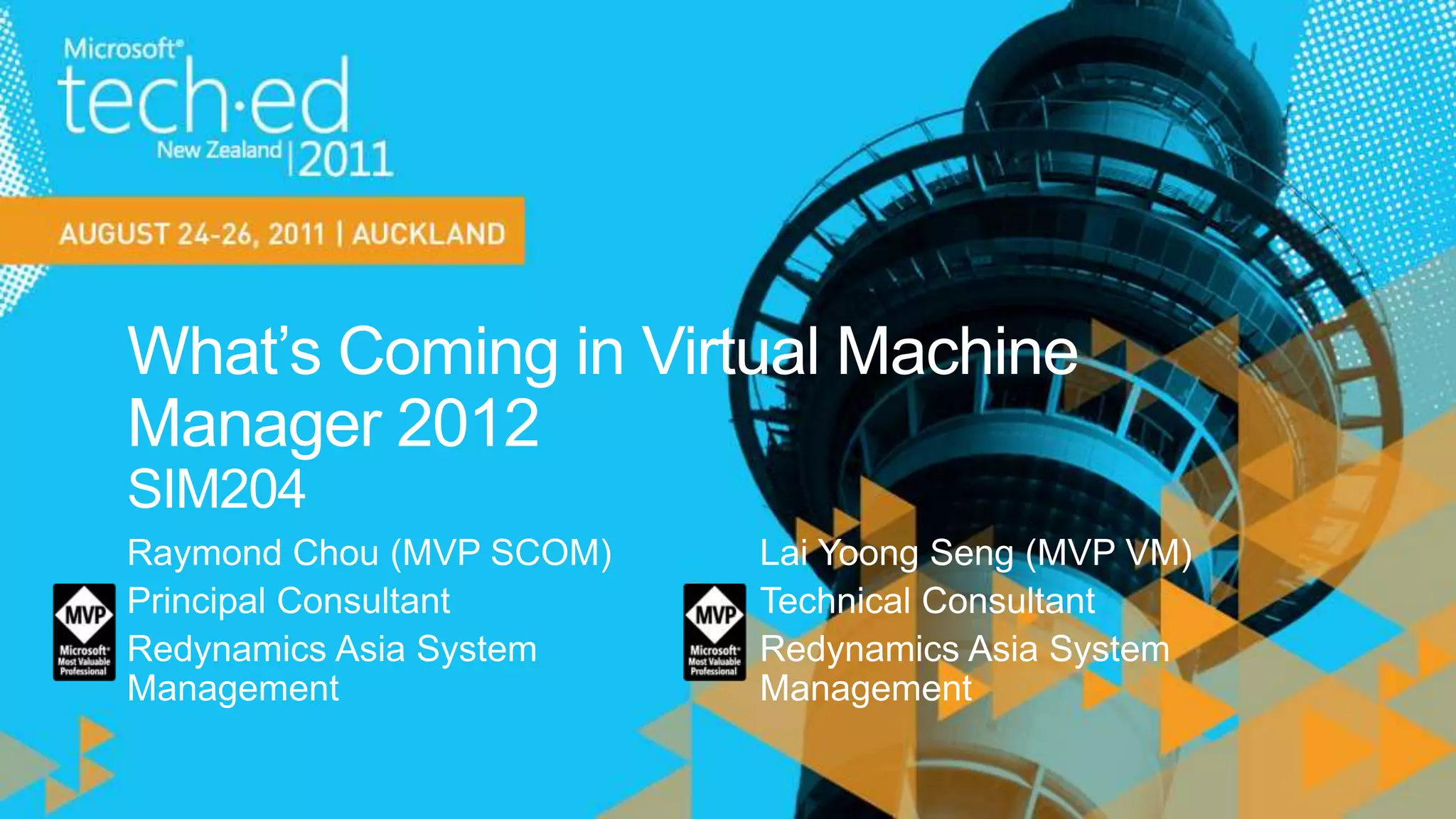

1. What’s Coming in Virtual Machine Manager 2012SIM204 Raymond Chou (MVP SCOM) Principal Consultant Redynamics Asia System Management Lai YoongSeng (MVP VM) Technical Consultant Redynamics Asia System Management

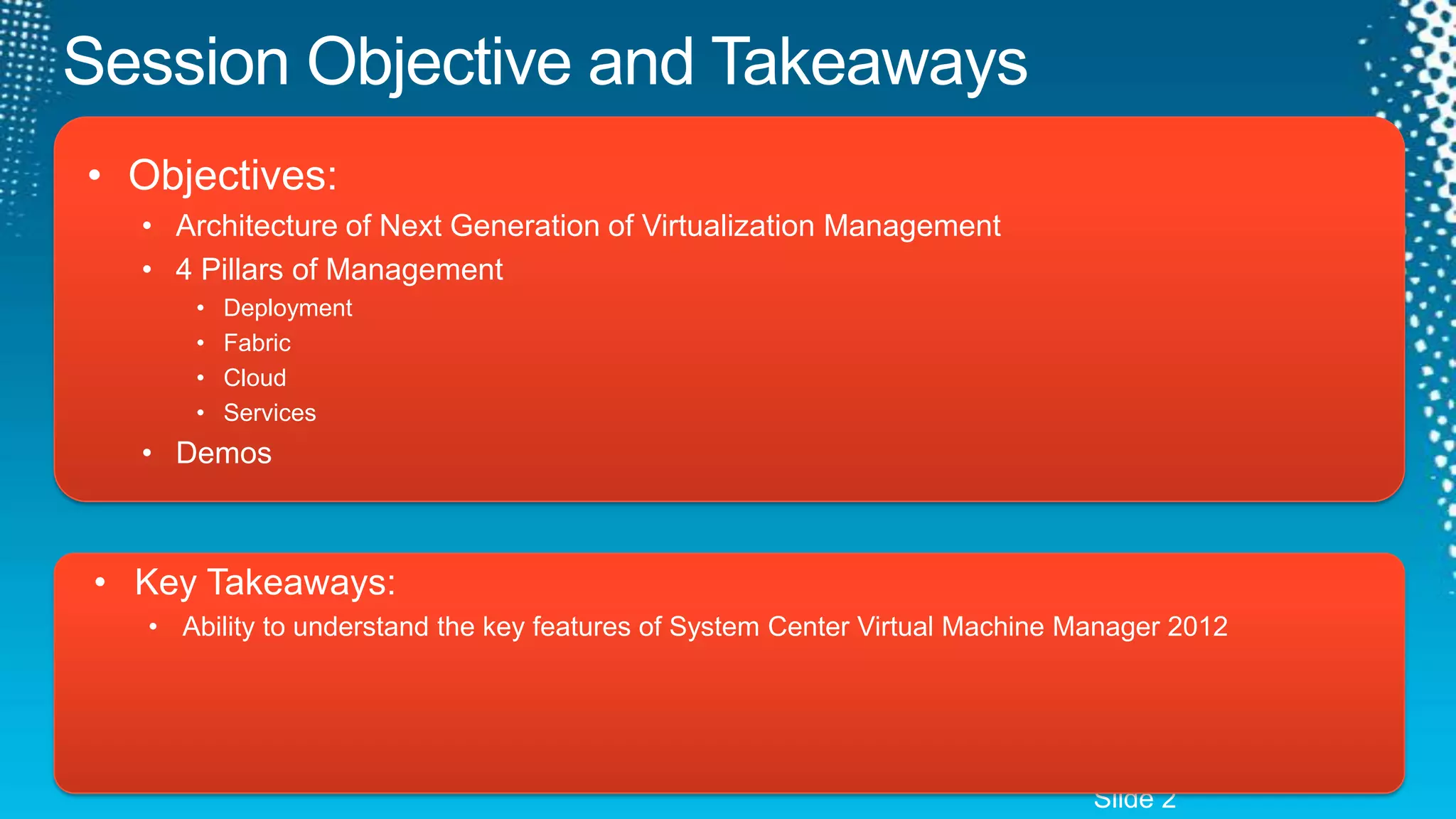

2. Session Objective and Takeaways Objectives: Architecture of Next Generation of Virtualization Management 4 Pillars of Management Deployment Fabric Cloud Services Demos Key Takeaways: Ability to understand the key features of System Center Virtual Machine Manager 2012 Slide 2

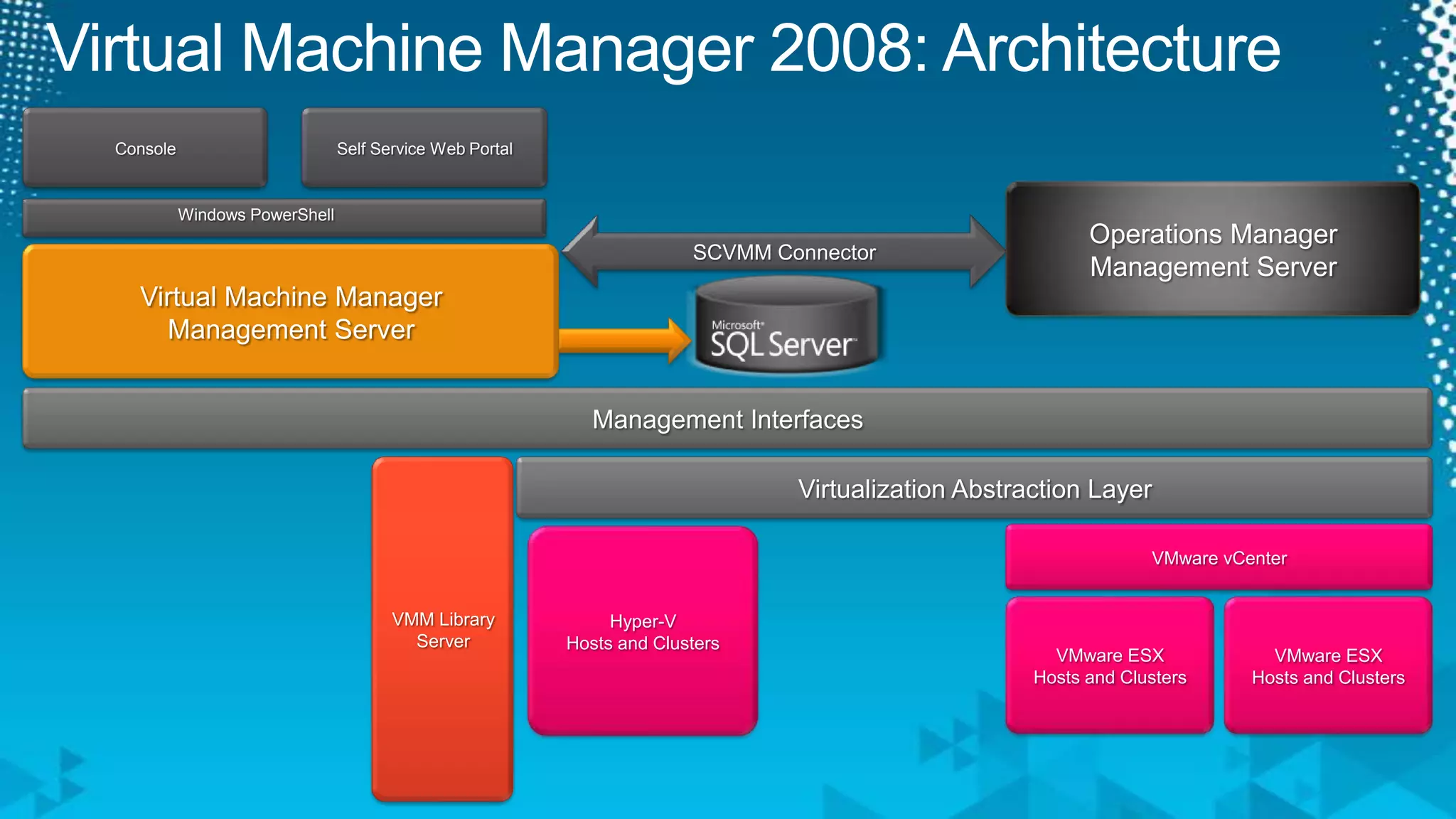

3. Virtual Machine Manager 2008: Architecture Self Service Web Portal Console Operations Manager Management Server Windows PowerShell SCVMM Connector Virtual Machine Manager Management Server Management Interfaces VMM Library Server Virtualization Abstraction Layer VMware vCenter Hyper-V Hosts and Clusters VMware ESX Hosts and Clusters VMware ESX Hosts and Clusters

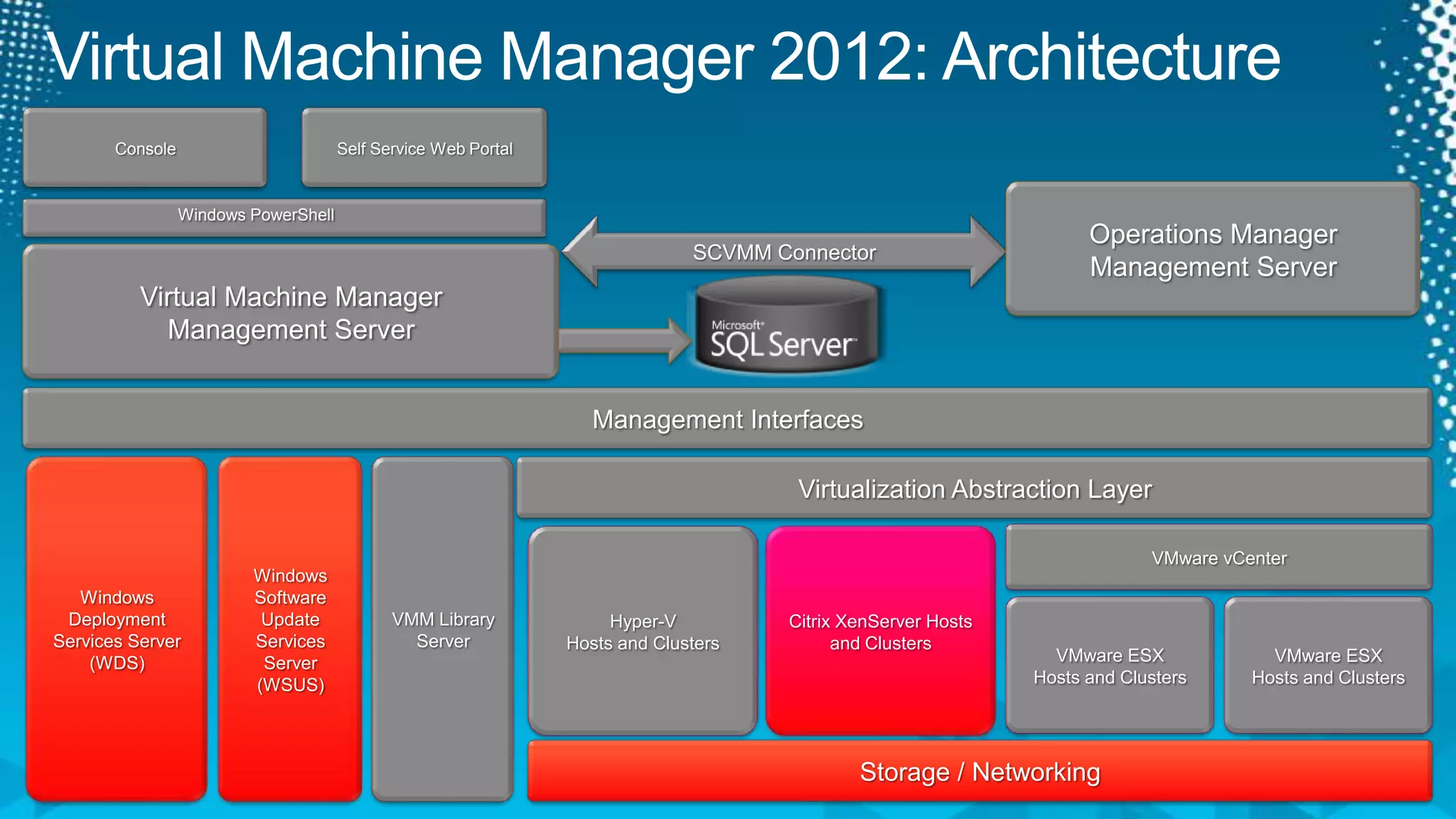

4. Virtual Machine Manager 2012: Architecture Self Service Web Portal Console Operations Manager Management Server Windows PowerShell SCVMM Connector Virtual Machine Manager Management Server Management Interfaces VMM Library Server Virtualization Abstraction Layer Windows Deployment Services Server (WDS) Windows Software Update Services Server (WSUS) VMware vCenter Hyper-V Hosts and Clusters Citrix XenServer Hosts and Clusters VMware ESX Hosts and Clusters VMware ESX Hosts and Clusters Storage / Networking

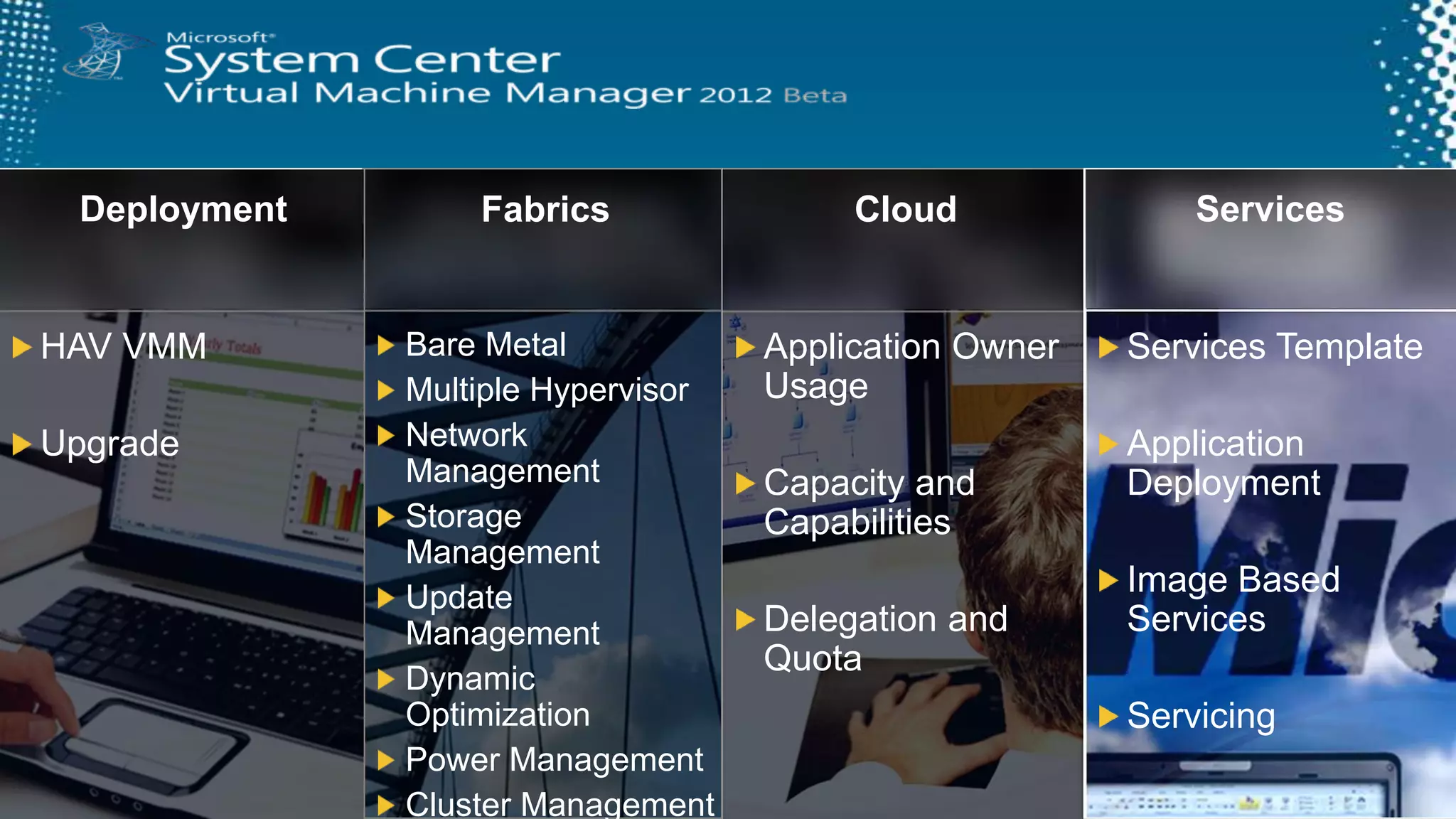

5. Deployment Services Cloud Fabrics Bare Metal Multiple Hypervisor Network Management Storage Management Update Management Dynamic Optimization Power Management Cluster Management Services Template Application Deployment Image Based Services Servicing Application Owner Usage Capacity and Capabilities Delegation and Quota HAV VMM Upgrade

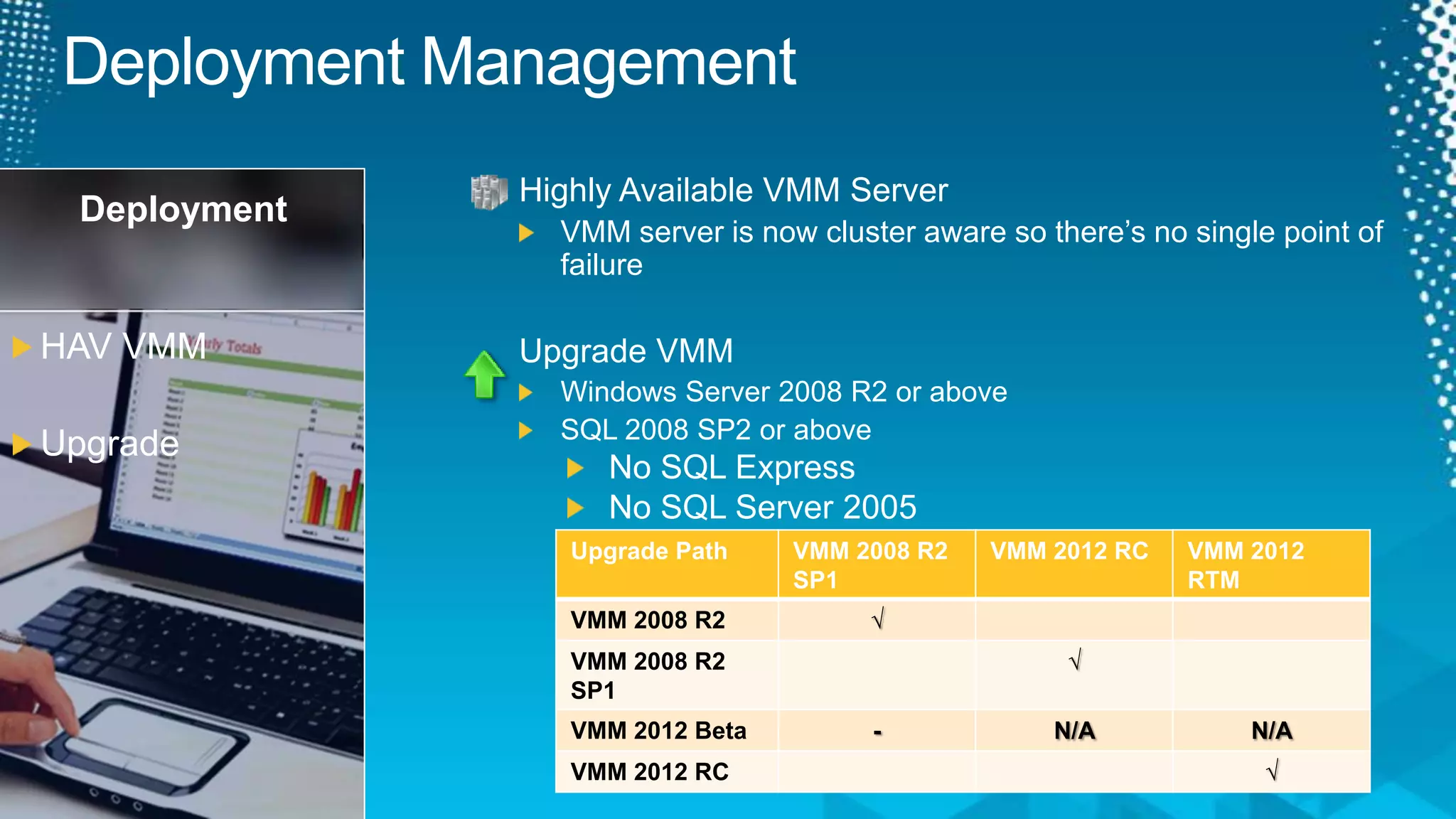

6. Deployment Management Highly Available VMM Server VMM server is now cluster aware so there’s no single point of failure Upgrade VMM Windows Server 2008 R2 or above SQL 2008 SP2or above No SQL Express No SQL Server 2005 Deployment HAV VMM Upgrade

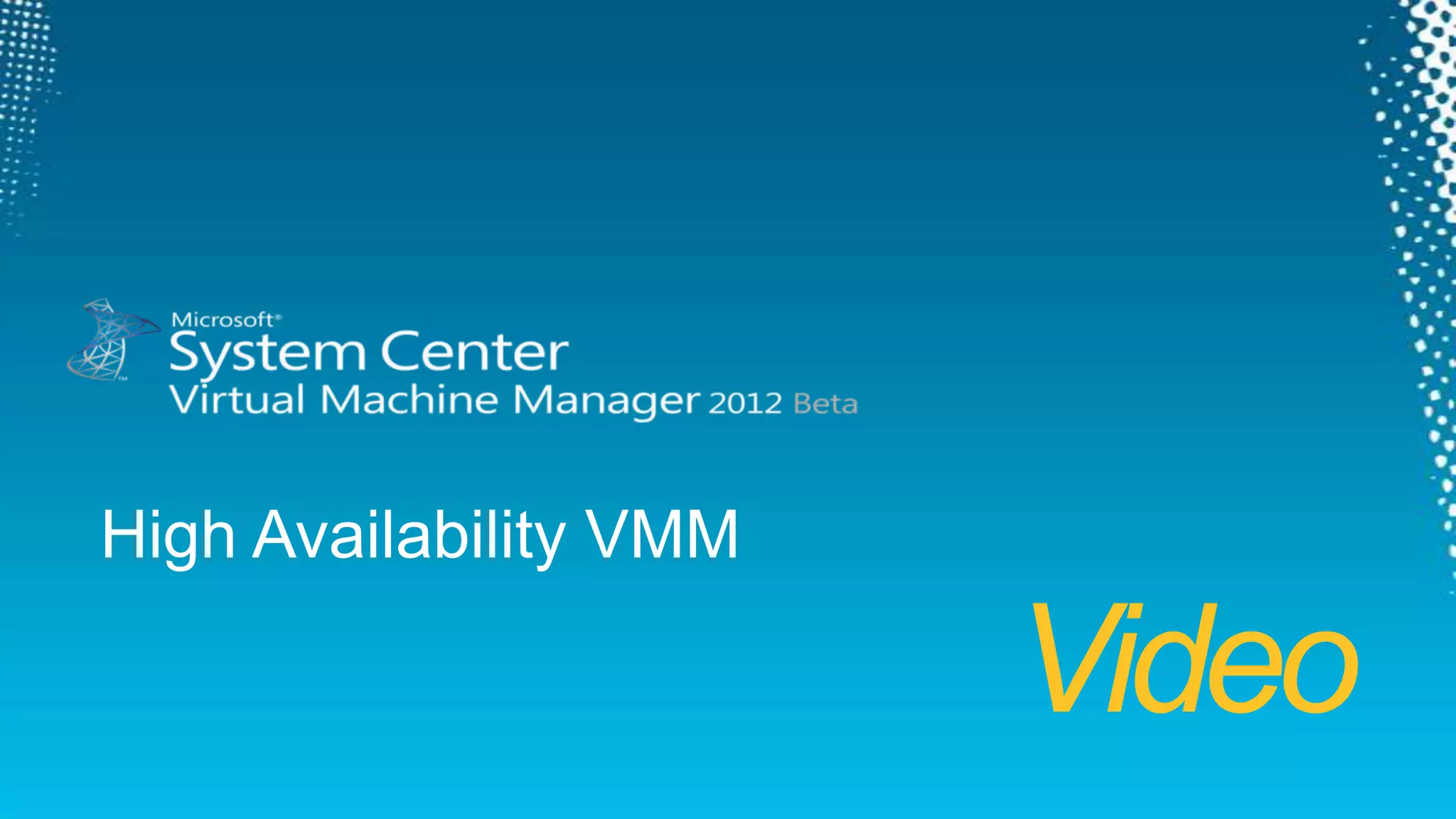

7. Video High Availability VMM

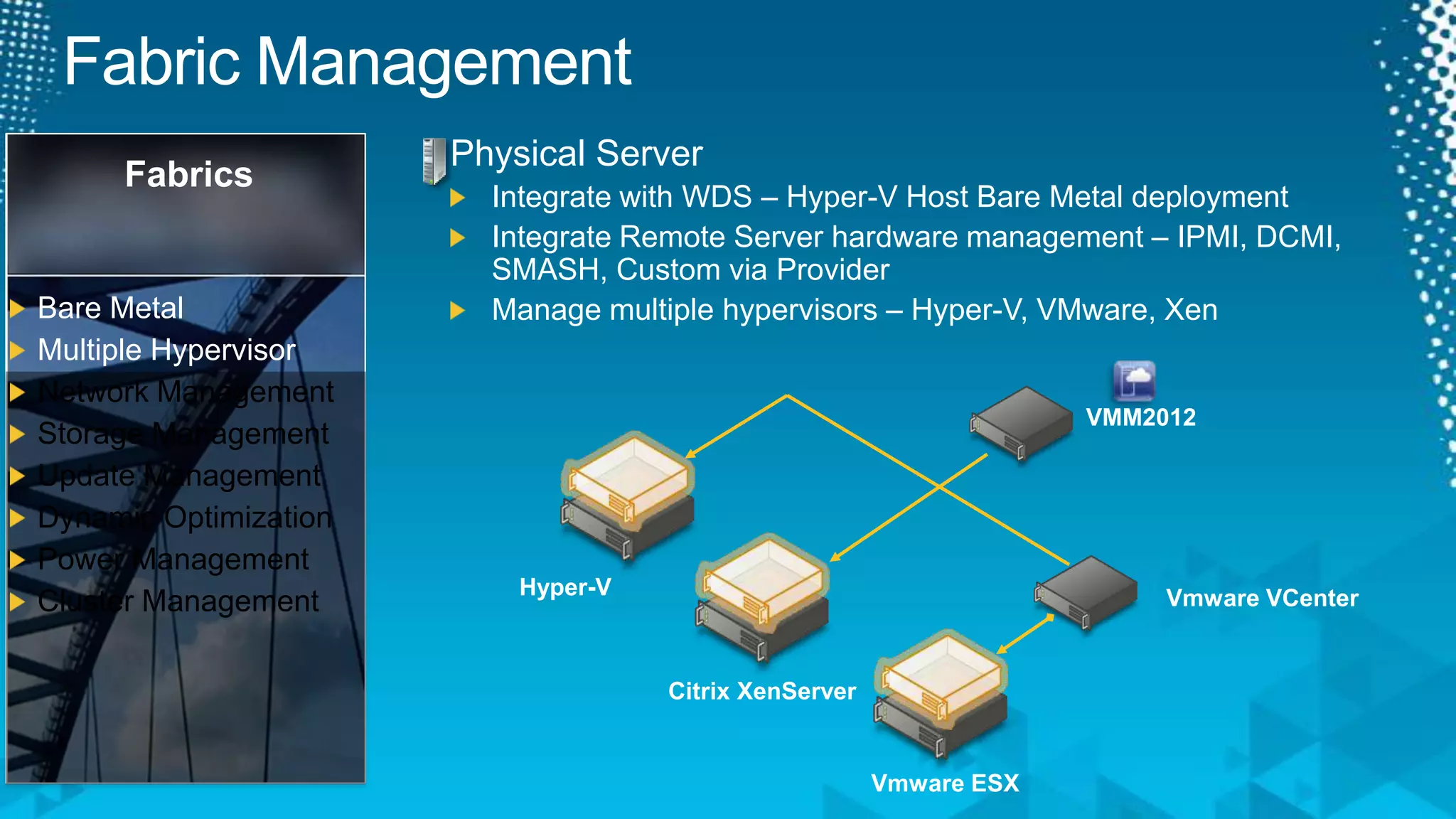

8. Fabric Management Physical Server Integrate with WDS – Hyper-V Host Bare Metal deployment Integrate Remote Server hardware management – IPMI, DCMI, SMASH, Custom via Provider Manage multiple hypervisors – Hyper-V, VMware, Xen Fabrics Bare Metal Multiple Hypervisor Network Management Storage Management Update Management Dynamic Optimization Power Management Cluster Management VMM2012 Hyper-V VmwareVCenter Citrix XenServer Vmware ESX

9. Video Bare Metal & Managing Citrix

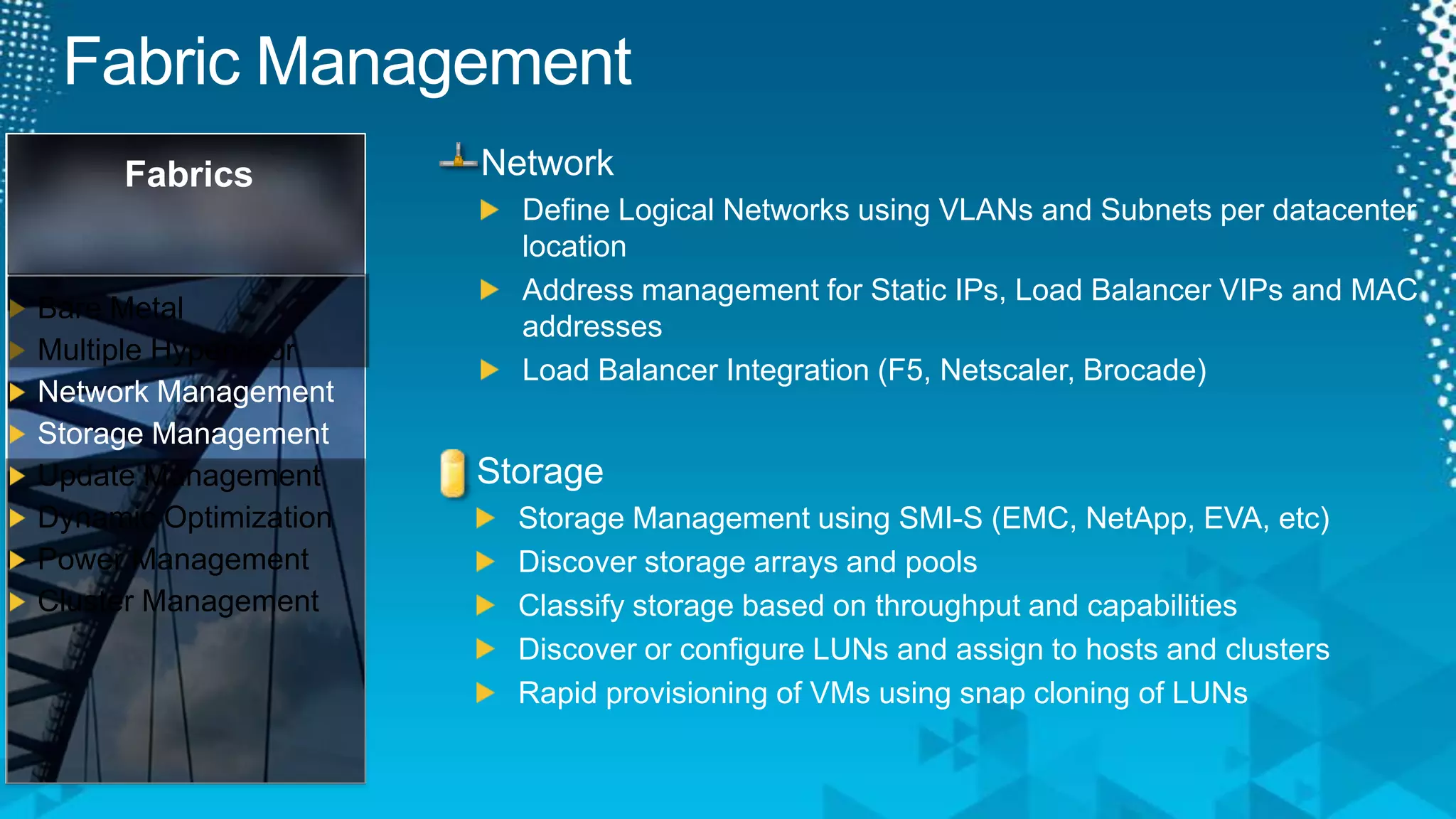

10. Fabric Management Fabrics Bare Metal Multiple Hypervisor Network Management Storage Management Update Management Dynamic Optimization Power Management Cluster Management Network Define Logical Networks using VLANs and Subnets per datacenter location Address management for Static IPs, Load Balancer VIPs and MAC addresses Load Balancer Integration (F5, Netscaler, Brocade) Storage Storage Management using SMI-S (EMC, NetApp, EVA, etc) Discover storage arrays and pools Classify storage based on throughput and capabilities Discover or configure LUNs and assign to hosts and clusters Rapid provisioning of VMs using snap cloning of LUNs

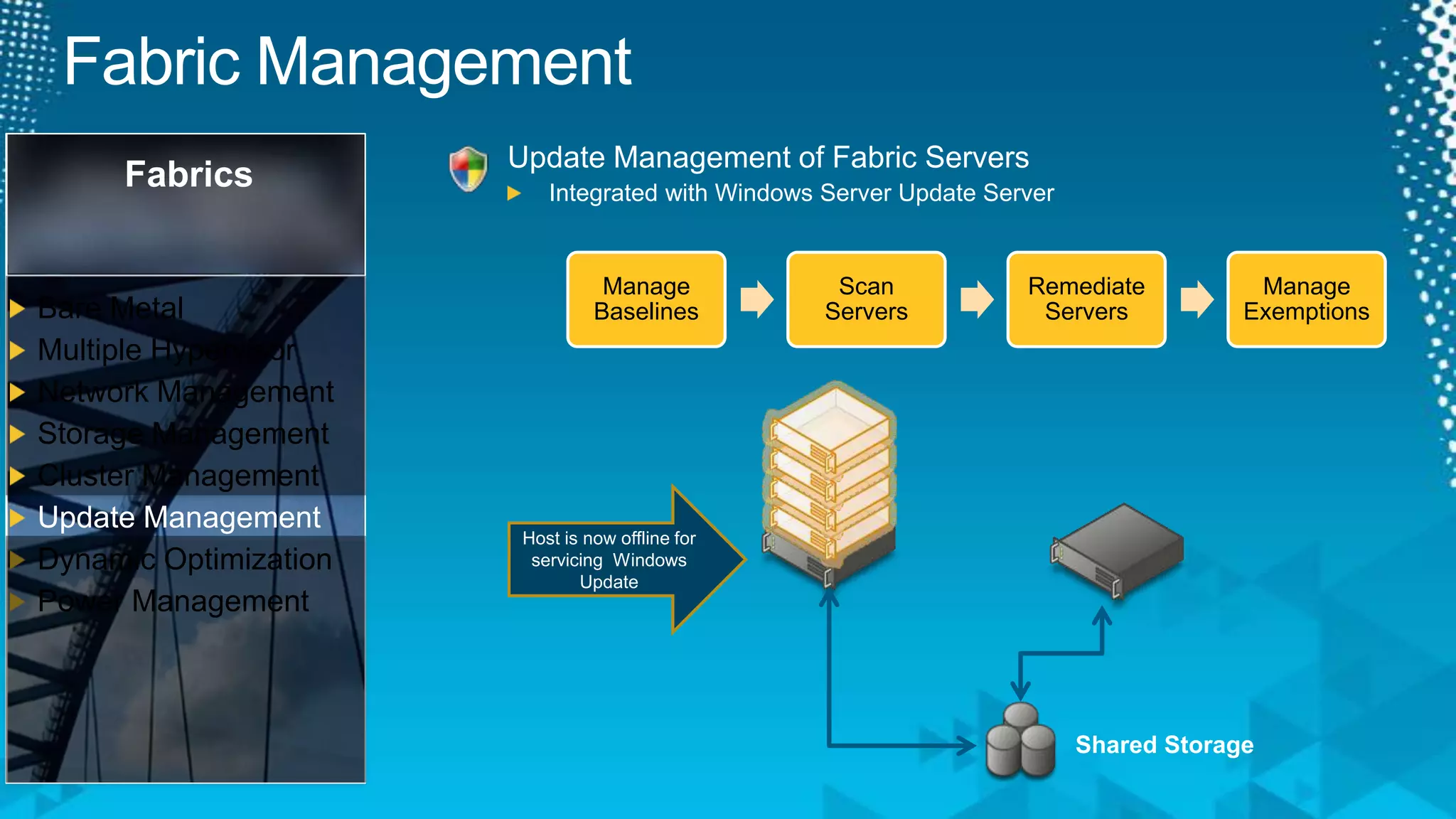

11. Fabric Management Update Management of Fabric Servers Integrated with Windows Server Update Server Fabrics Bare Metal Multiple Hypervisor Network Management Storage Management Cluster Management Update Management Dynamic Optimization Power Management Host is now offline for servicing Windows Update Shared Storage

12. Update Management Video

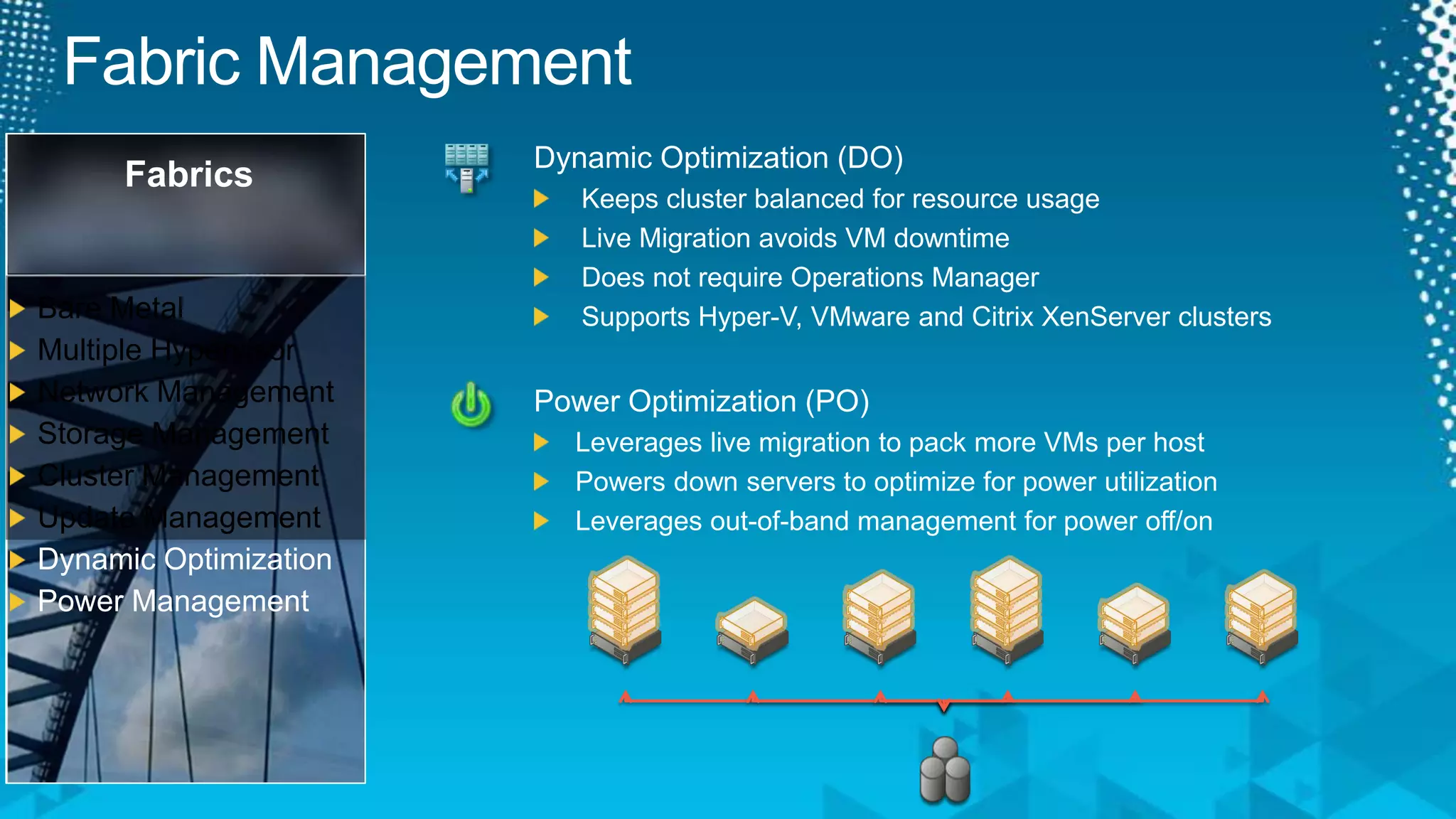

13. Fabric Management Dynamic Optimization (DO) Keeps cluster balanced for resource usage Live Migration avoids VM downtime Does not require Operations Manager Supports Hyper-V, VMware and Citrix XenServer clusters Fabrics Bare Metal Multiple Hypervisor Network Management Storage Management Cluster Management Update Management Dynamic Optimization Power Management Power Optimization (PO) Leverages live migration to pack more VMs per host Powers down servers to optimize for power utilization Leverages out-of-band management for power off/on

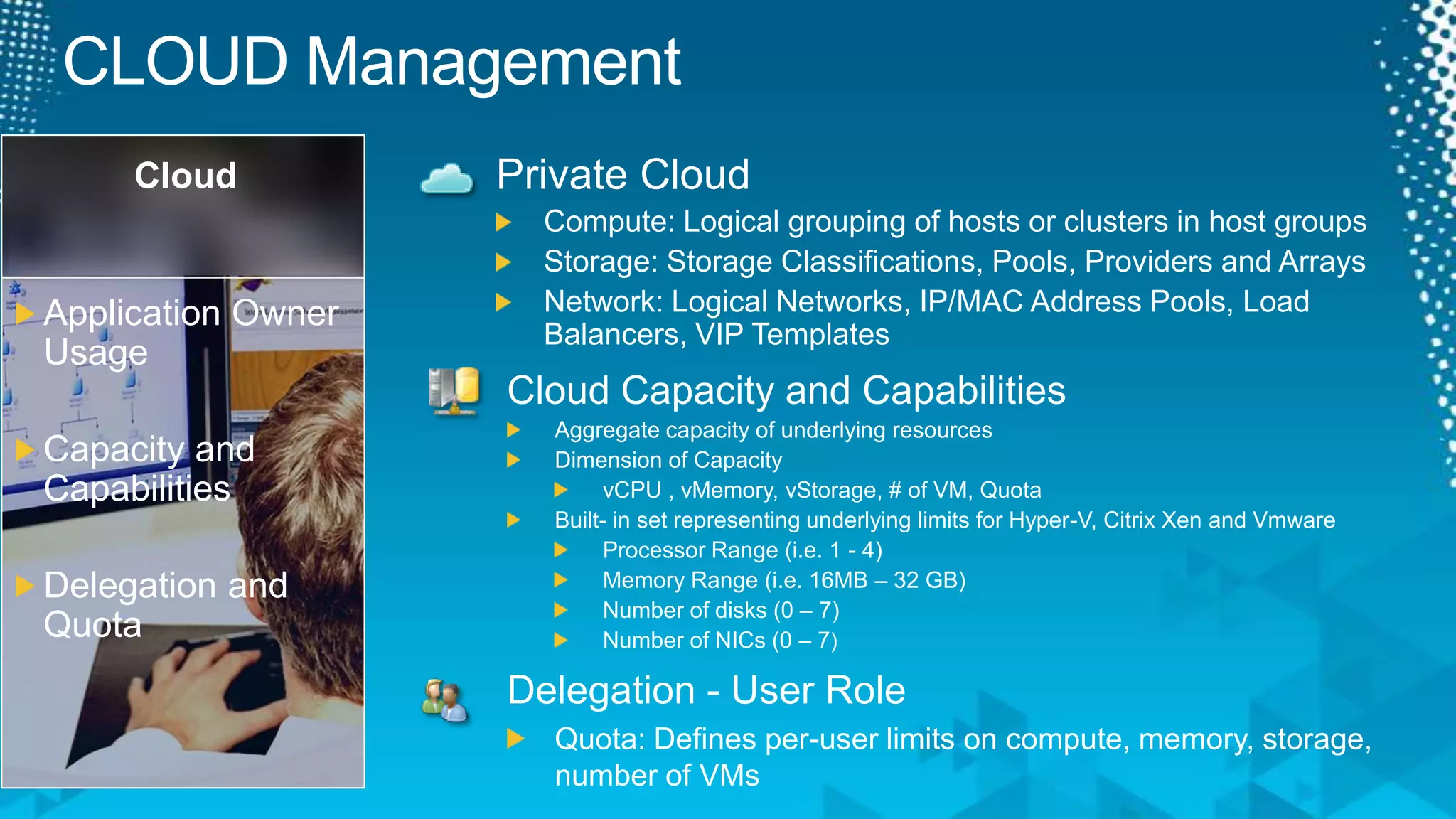

14. CLOUD Management Cloud Private Cloud Compute: Logical grouping of hosts or clusters in host groups Storage: Storage Classifications, Pools, Providers and Arrays Network: Logical Networks, IP/MAC Address Pools, Load Balancers, VIP Templates Application Owner Usage Capacity and Capabilities Delegation and Quota Cloud Capacity and Capabilities Aggregate capacity of underlying resources Dimension of Capacity vCPU , vMemory, vStorage, # of VM, Quota Built- in set representing underlying limits for Hyper-V, Citrix Xen and Vmware Processor Range (i.e. 1 - 4) Memory Range (i.e. 16MB – 32 GB) Number of disks (0 – 7) Number of NICs (0 – 7) Delegation - User Role Quota: Defines per-user limits on compute, memory, storage, number of VMs

15. Private Cloud Management Video

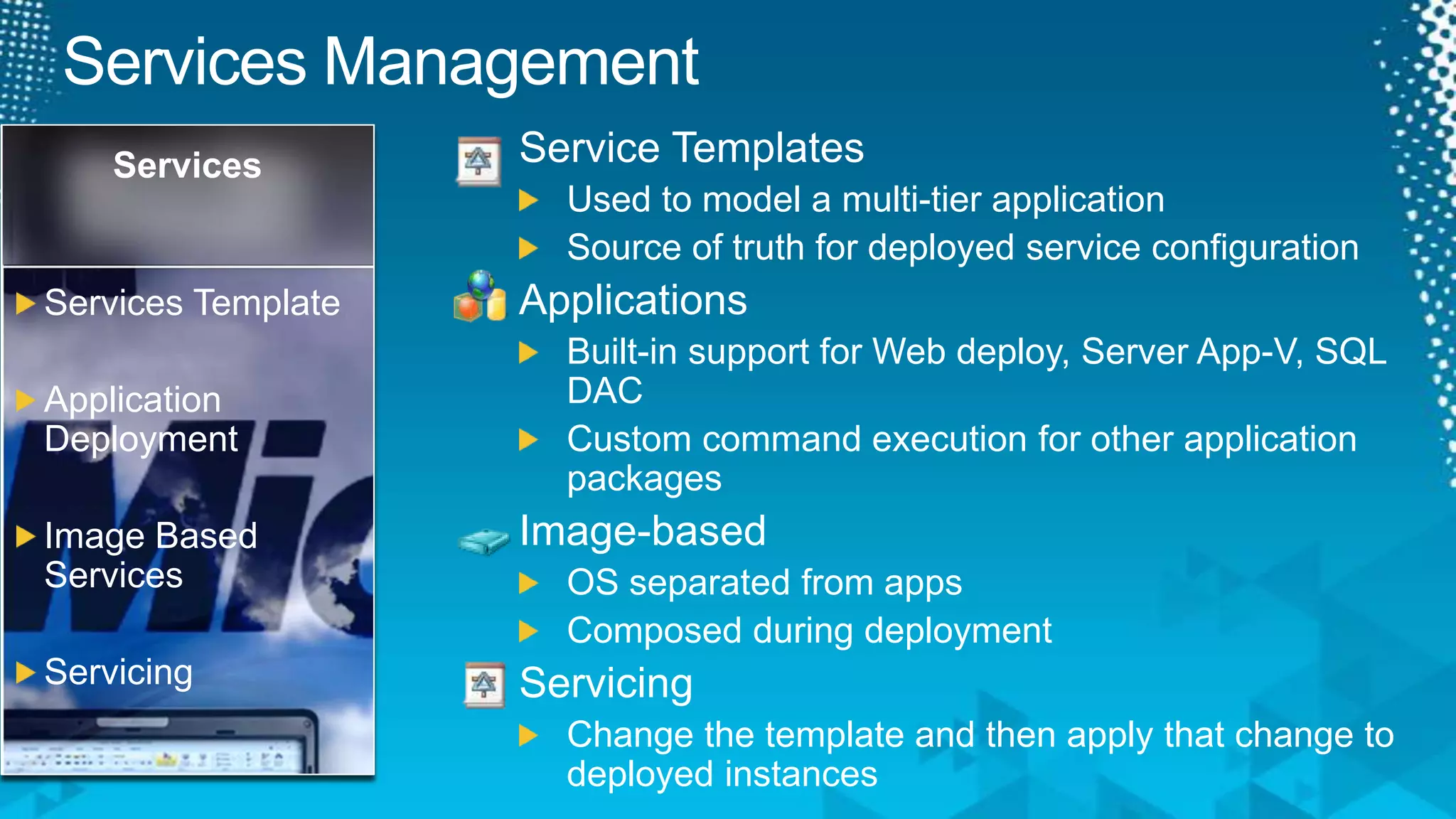

16. Services Management Service Templates Used to model a multi-tier application Source of truth for deployed service configuration Applications Built-in support for Web deploy, Server App-V, SQL DAC Custom command execution for other application packages Image-based OS separated from apps Composed during deployment Servicing Change the template and then apply that change to deployed instances Services Services Template Application Deployment Image Based Services Servicing

17. Services Dashboard Designer Video

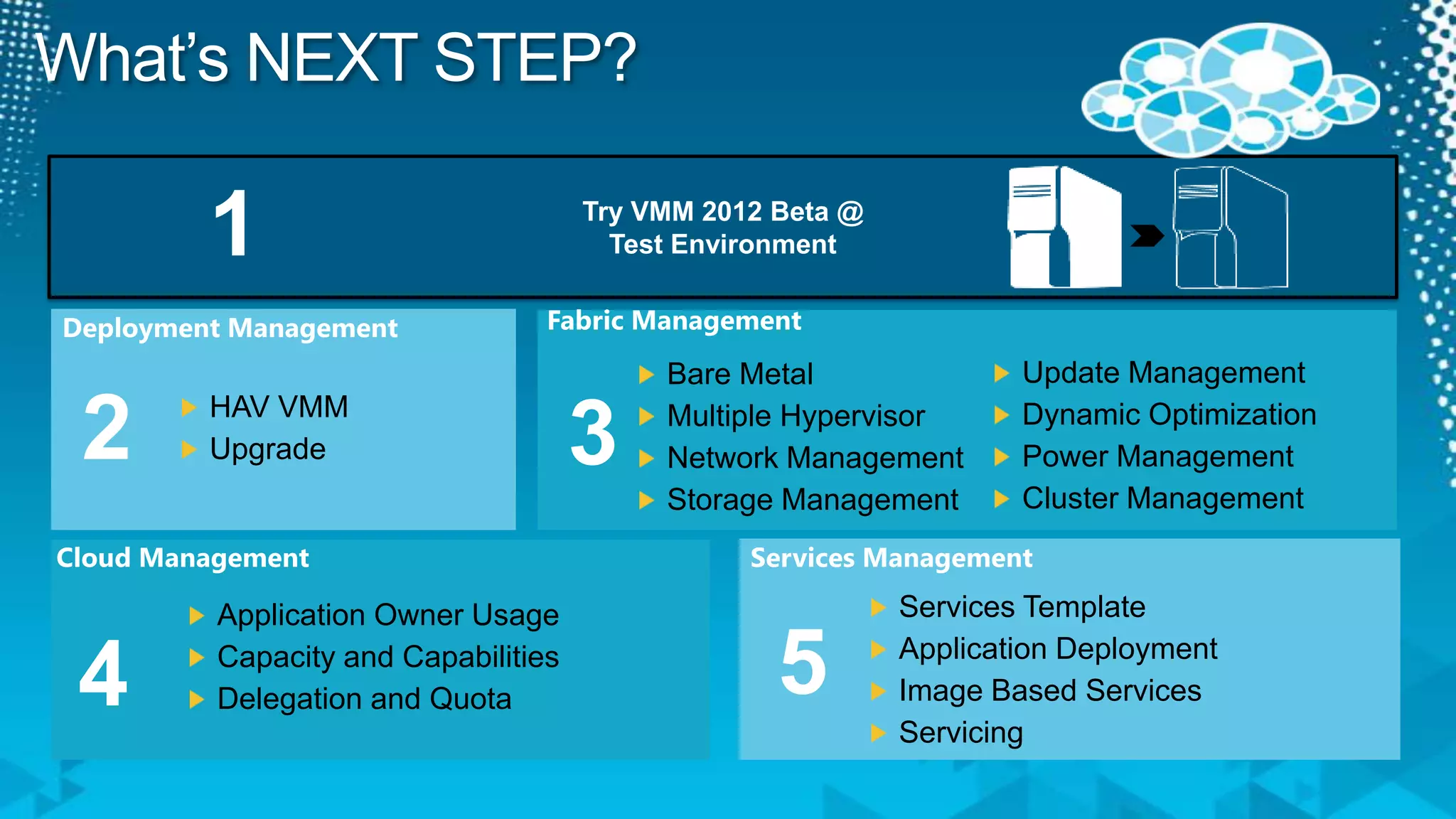

18. What’s NEXT STEP? Try VMM 2012 Beta @ Test Environment 1 Fabric Management Deployment Management Update Management Dynamic Optimization Power Management Cluster Management Bare Metal Multiple Hypervisor Network Management Storage Management 2 3 HAV VMM Upgrade Services Management Cloud Management Services Template Application Deployment Image Based Services Servicing Application Owner Usage Capacity and Capabilities Delegation and Quota 5 4

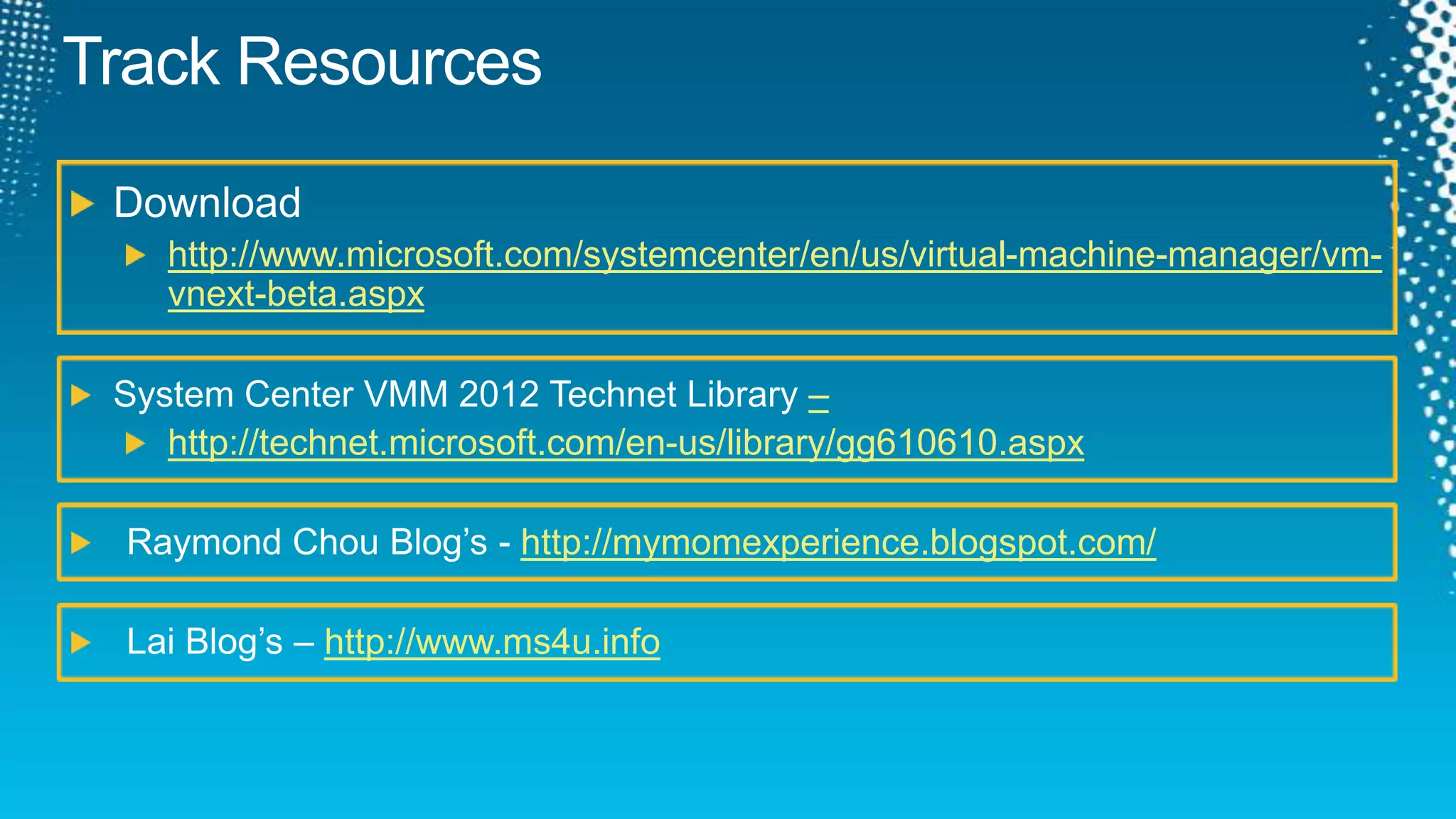

19. Track Resources Required Slide Track PMs will supply the content for this slide, which will be inserted during the final scrub. Download http://www.microsoft.com/systemcenter/en/us/virtual-machine-manager/vm-vnext-beta.aspx System Center VMM 2012 Technet Library – http://technet.microsoft.com/en-us/library/gg610610.aspx Raymond Chou Blog’s - http://mymomexperience.blogspot.com/ Lai Blog’s – http://www.ms4u.info

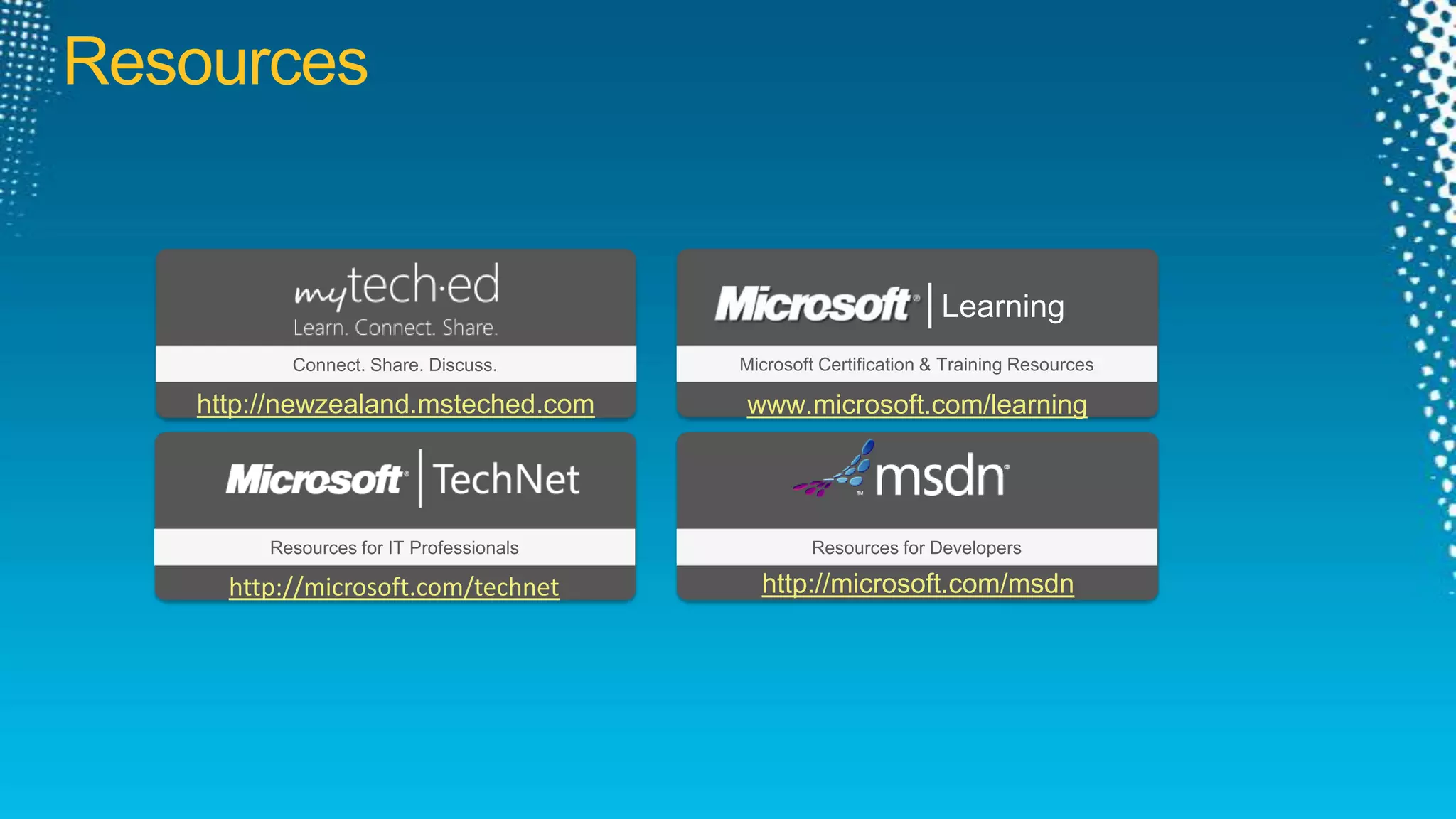

20. Resources Learning Microsoft Certification & Training Resources Connect. Share. Discuss. http://newzealand.msteched.com www.microsoft.com/learning Resources for IT Professionals Resources for Developers http://microsoft.com/msdn http://microsoft.com/technet

21. Evaluate your sessions on CommNet and go in the draw to win instant prizes
