Shellcode mastering
- 1. Shellcode Mastering by Anton Dorfman

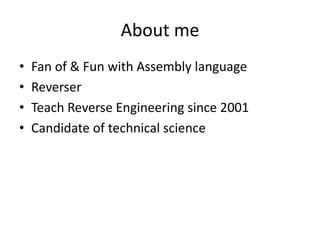

- 2. About me • Fan of & Fun with Assembly language • Reverser • Teach Reverse Engineering since 2001 • Candidate of technical science

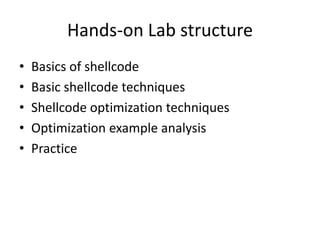

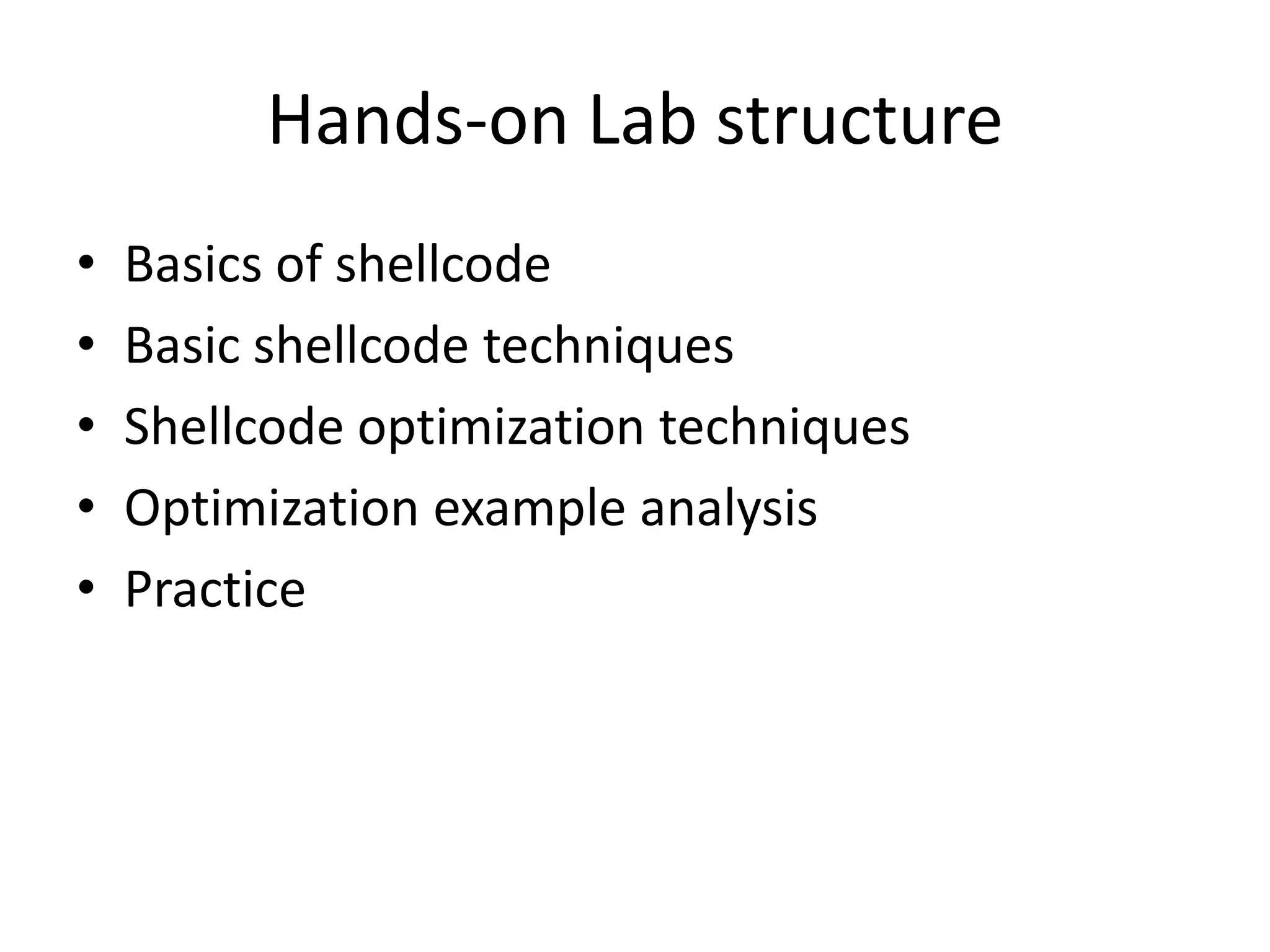

- 3. Hands-on Lab structure • Basics of shellcode • Basic shellcode techniques • Shellcode optimization techniques • Optimization example analysis • Practice

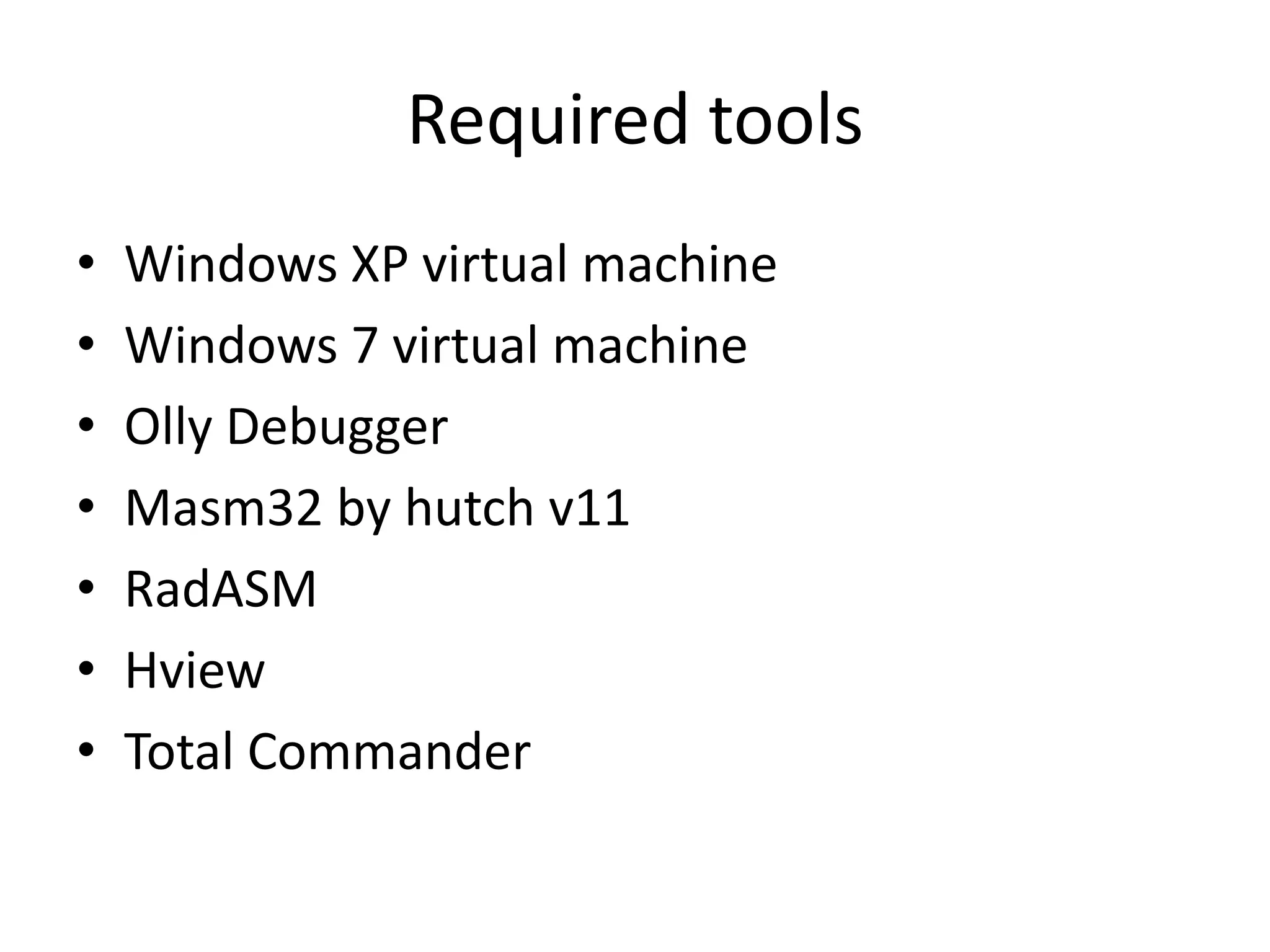

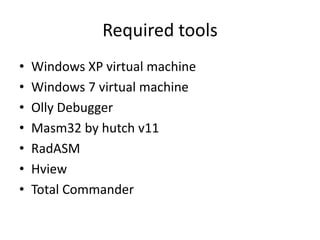

- 4. Required tools • Windows XP virtual machine • Windows 7 virtual machine • Olly Debugger • Masm32 by hutch v11 • RadASM • Hview • Total Commander

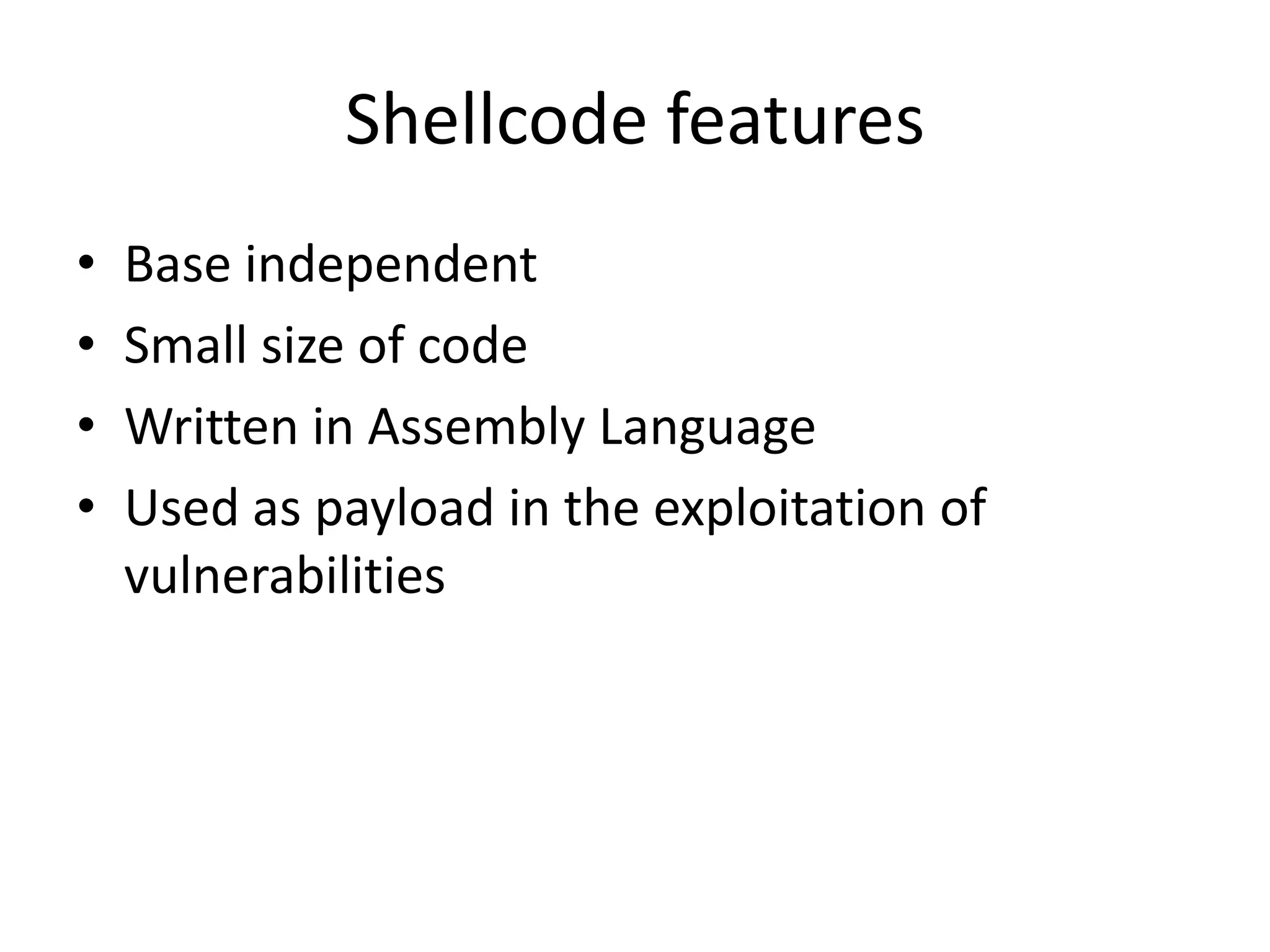

- 6. Shellcode features • Base independent • Small size of code • Written in Assembly Language • Used as payload in the exploitation of vulnerabilities

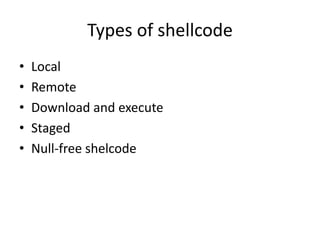

- 7. Types of shellcode • Local • Remote • Download and execute • Staged • Null-free shelcode

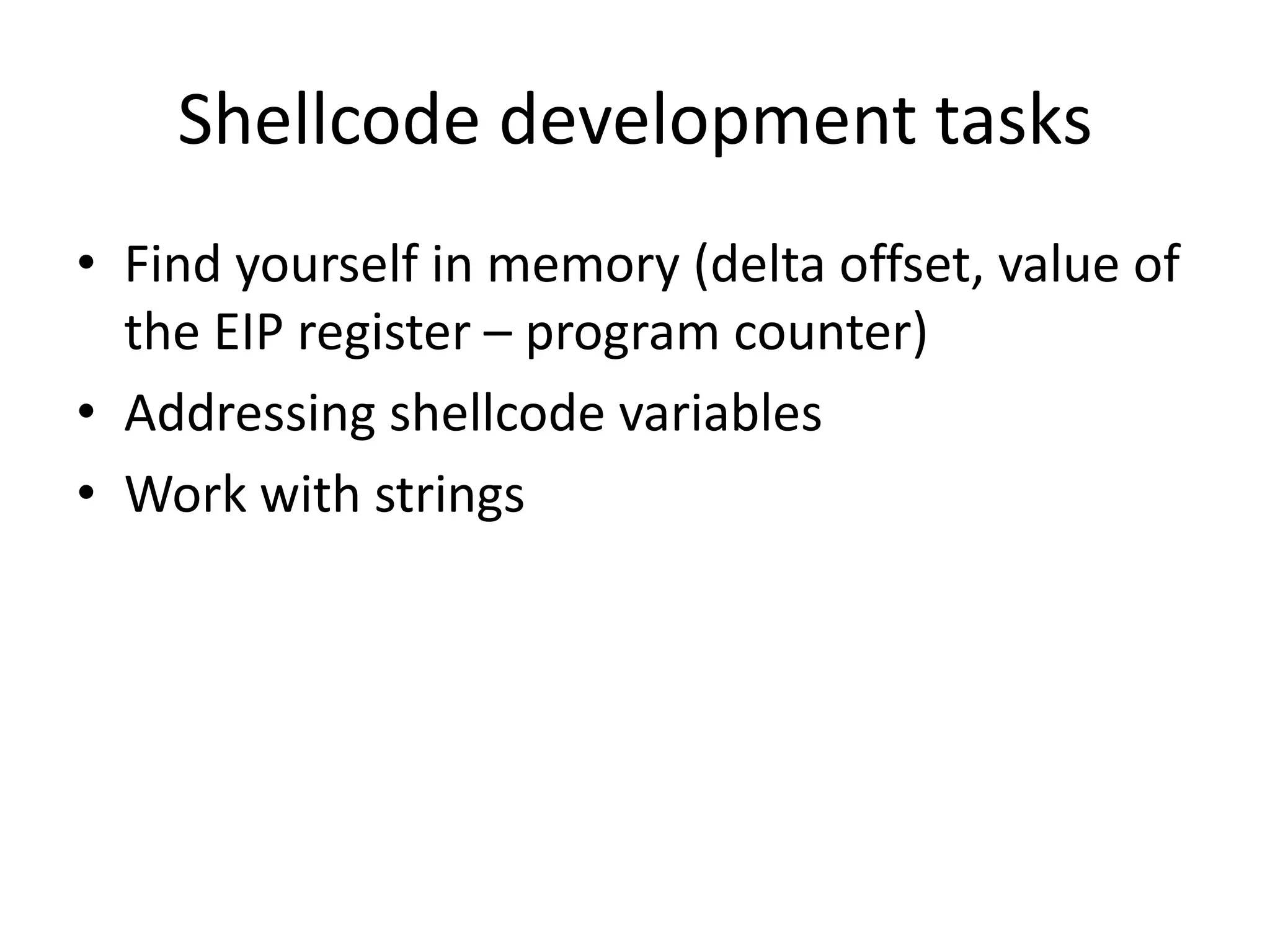

- 8. Shellcode development tasks • Find yourself in memory (delta offset, value of the EIP register – program counter) • Addressing shellcode variables • Work with strings

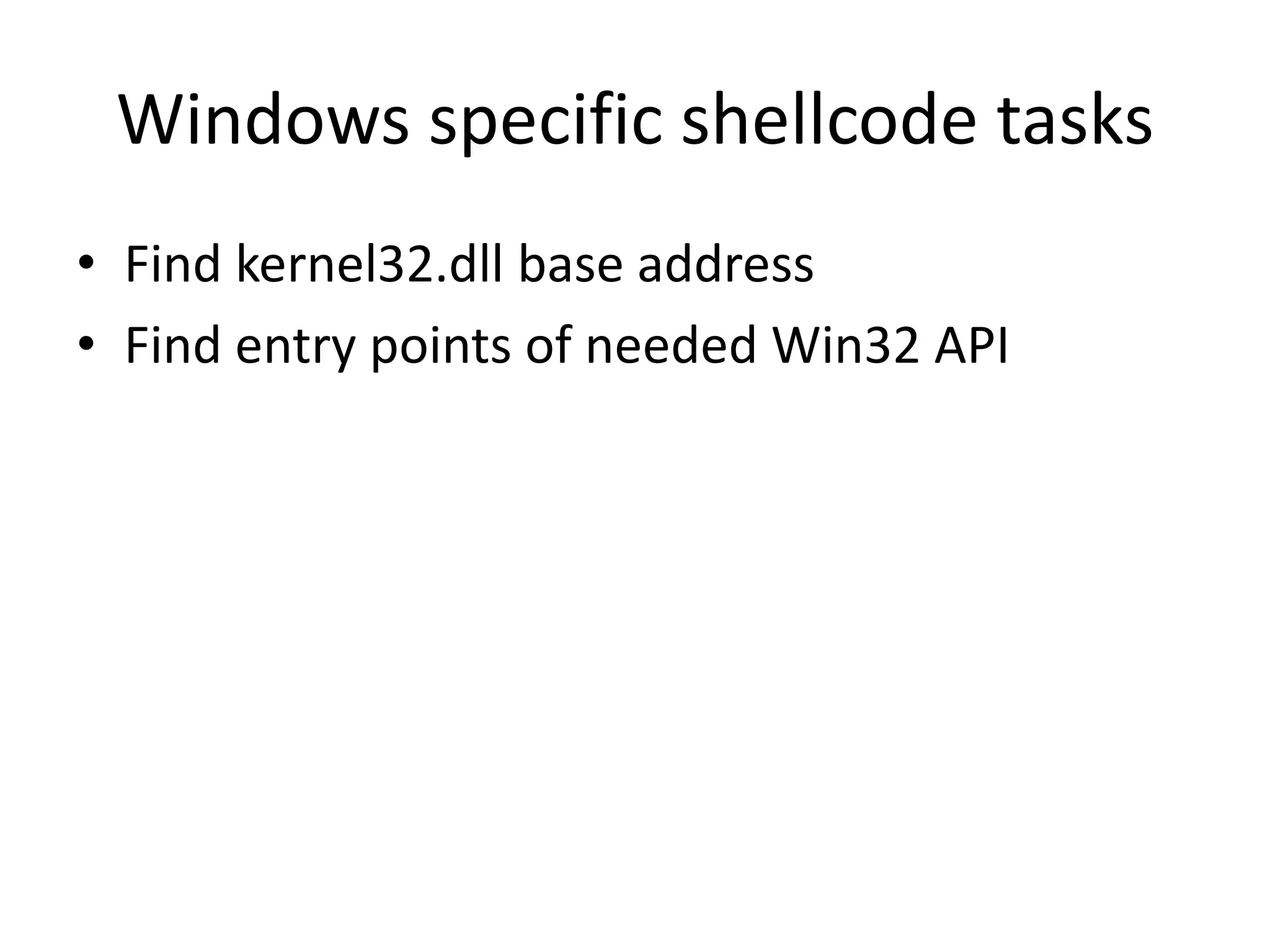

- 9. Windows specific shellcode tasks • Find kernel32.dll base address • Find entry points of needed Win32 API

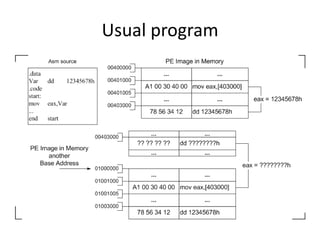

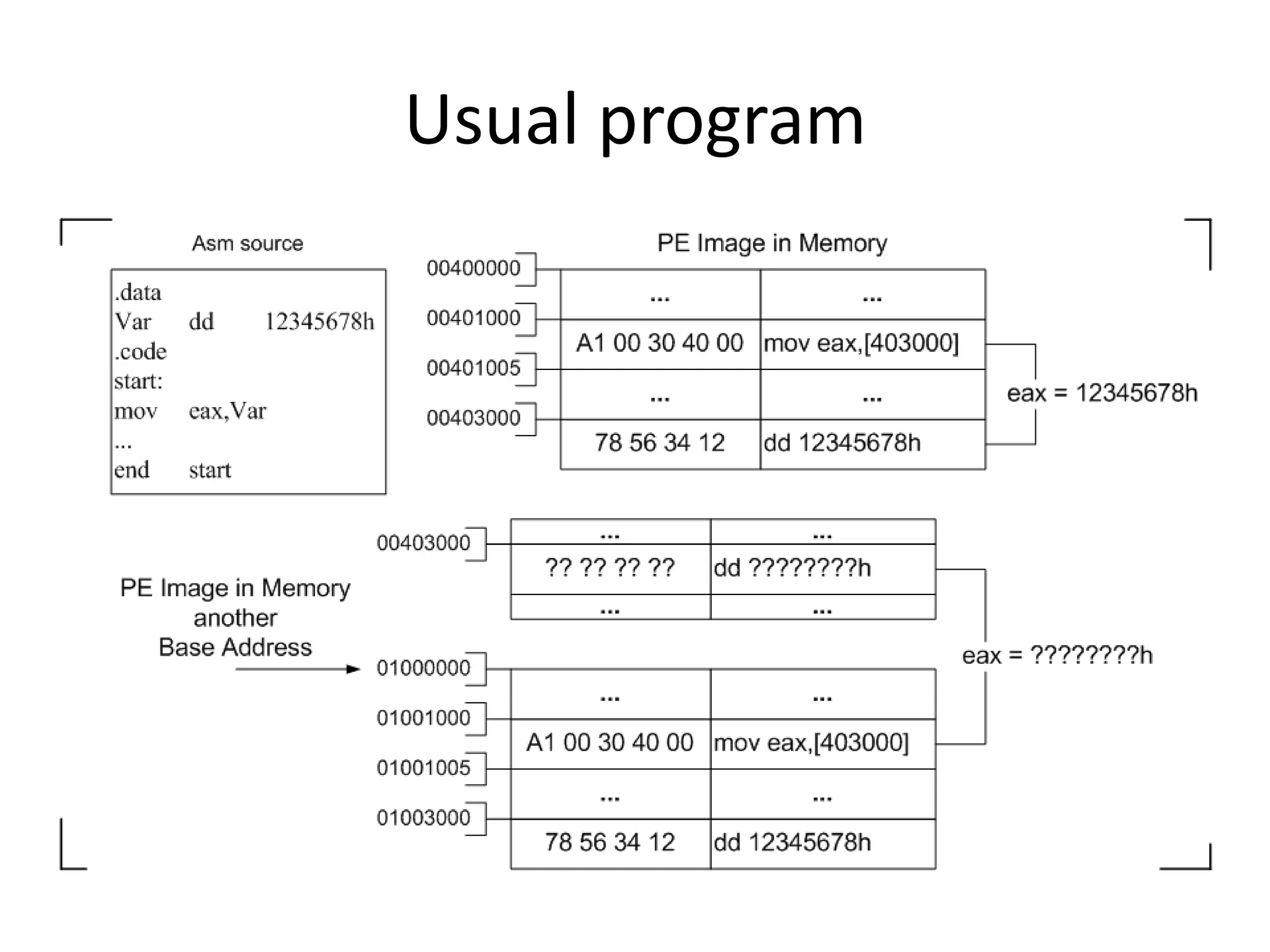

- 11. Usual program

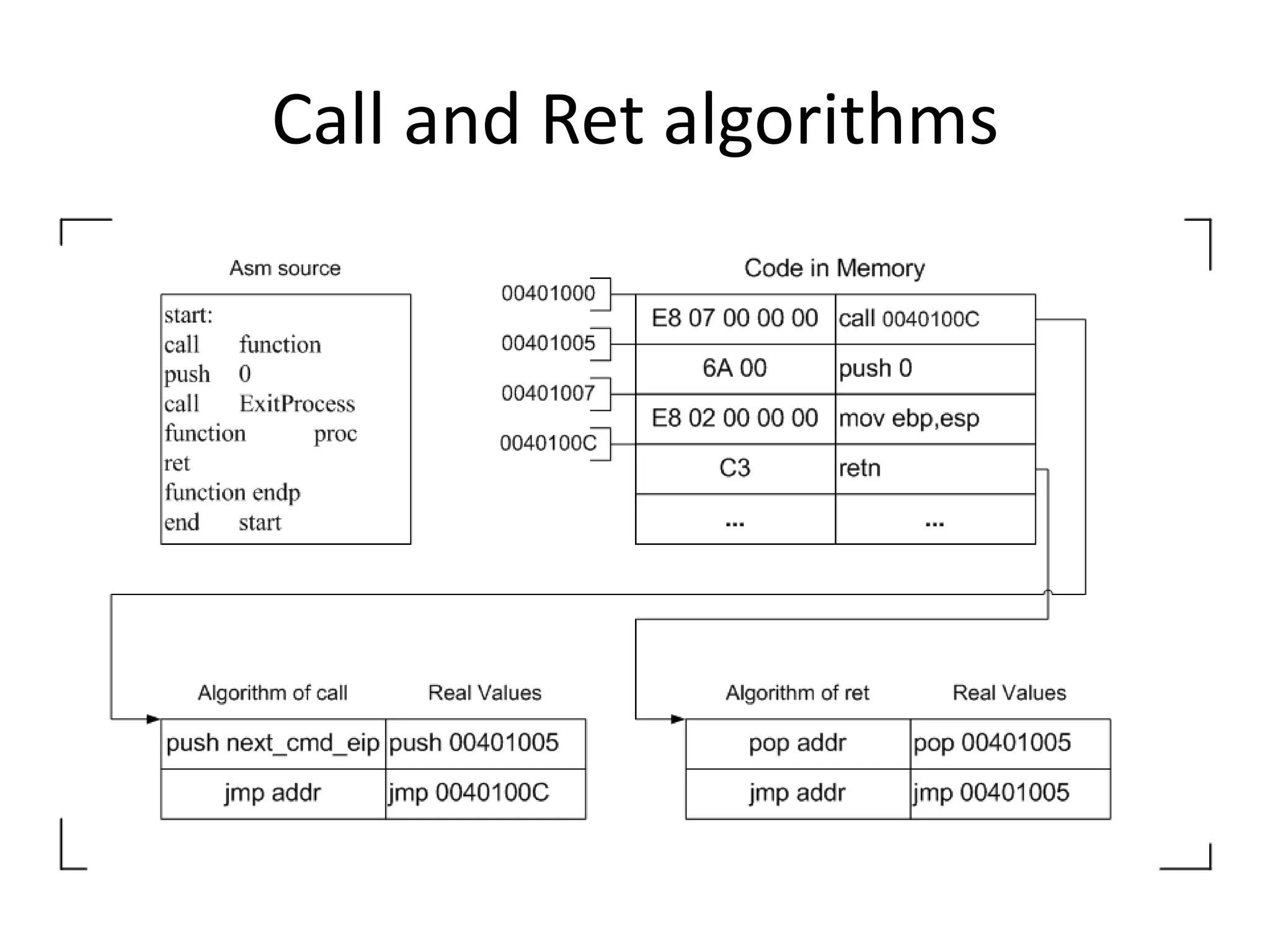

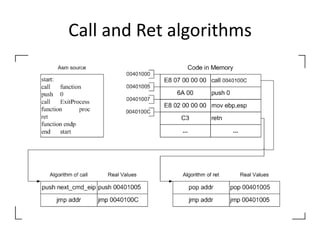

- 12. Call and Ret algorithms

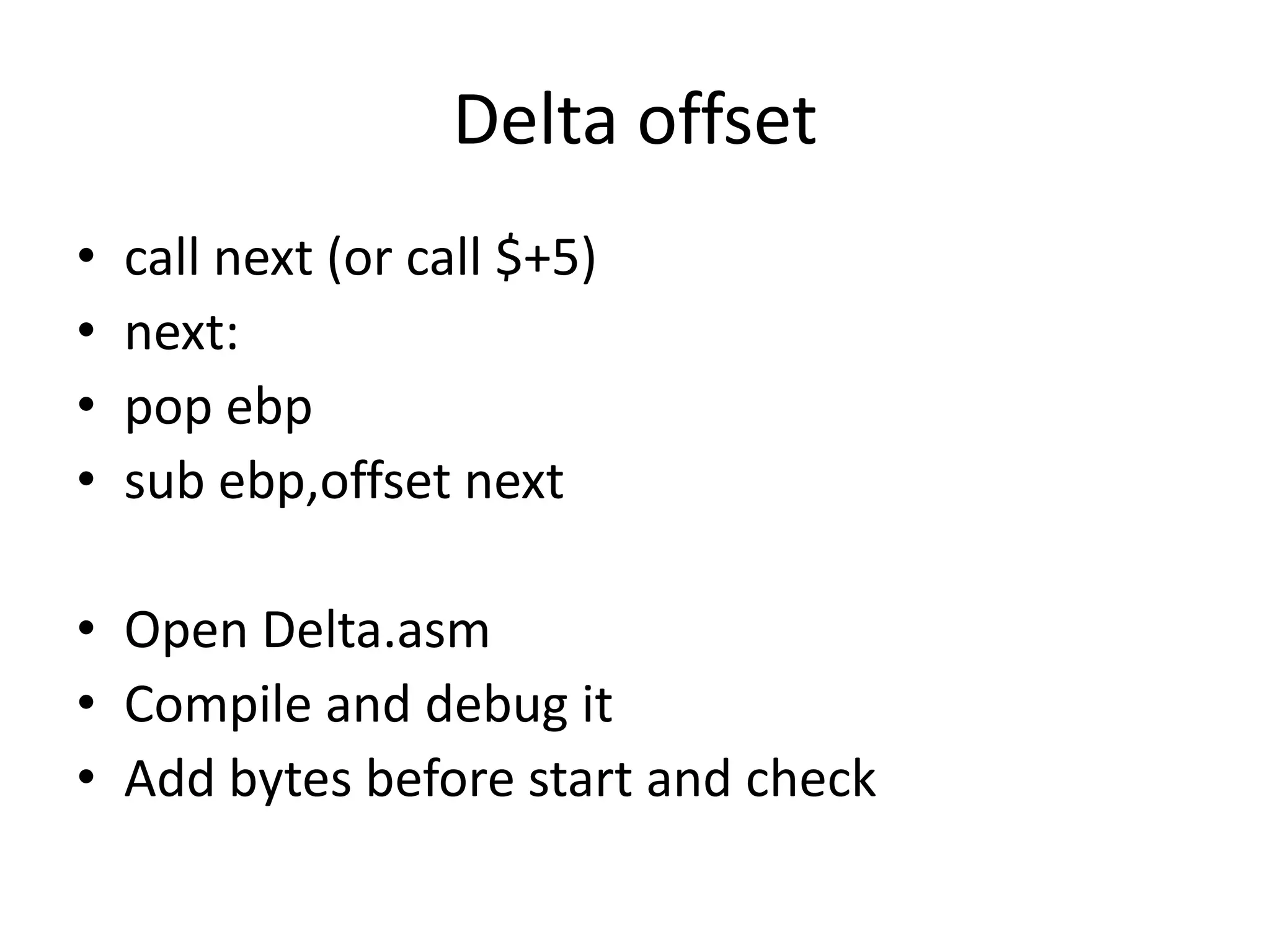

- 13. Delta offset • call next (or call $+5) • next: • pop ebp • sub ebp,offset next • Open Delta.asm • Compile and debug it • Add bytes before start and check

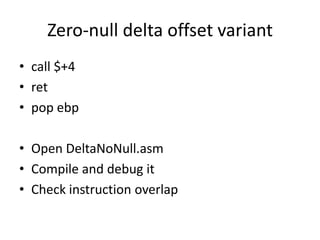

- 14. Zero-null delta offset variant • call $+4 • ret • pop ebp • Open DeltaNoNull.asm • Compile and debug it • Check instruction overlap

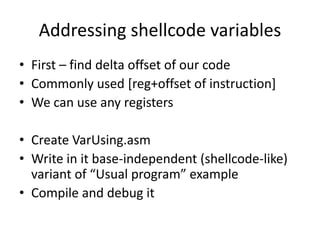

- 15. Addressing shellcode variables • First – find delta offset of our code • Commonly used [reg+offset of instruction] • We can use any registers • Create VarUsing.asm • Write in it base-independent (shellcode-like) variant of “Usual program” example • Compile and debug it

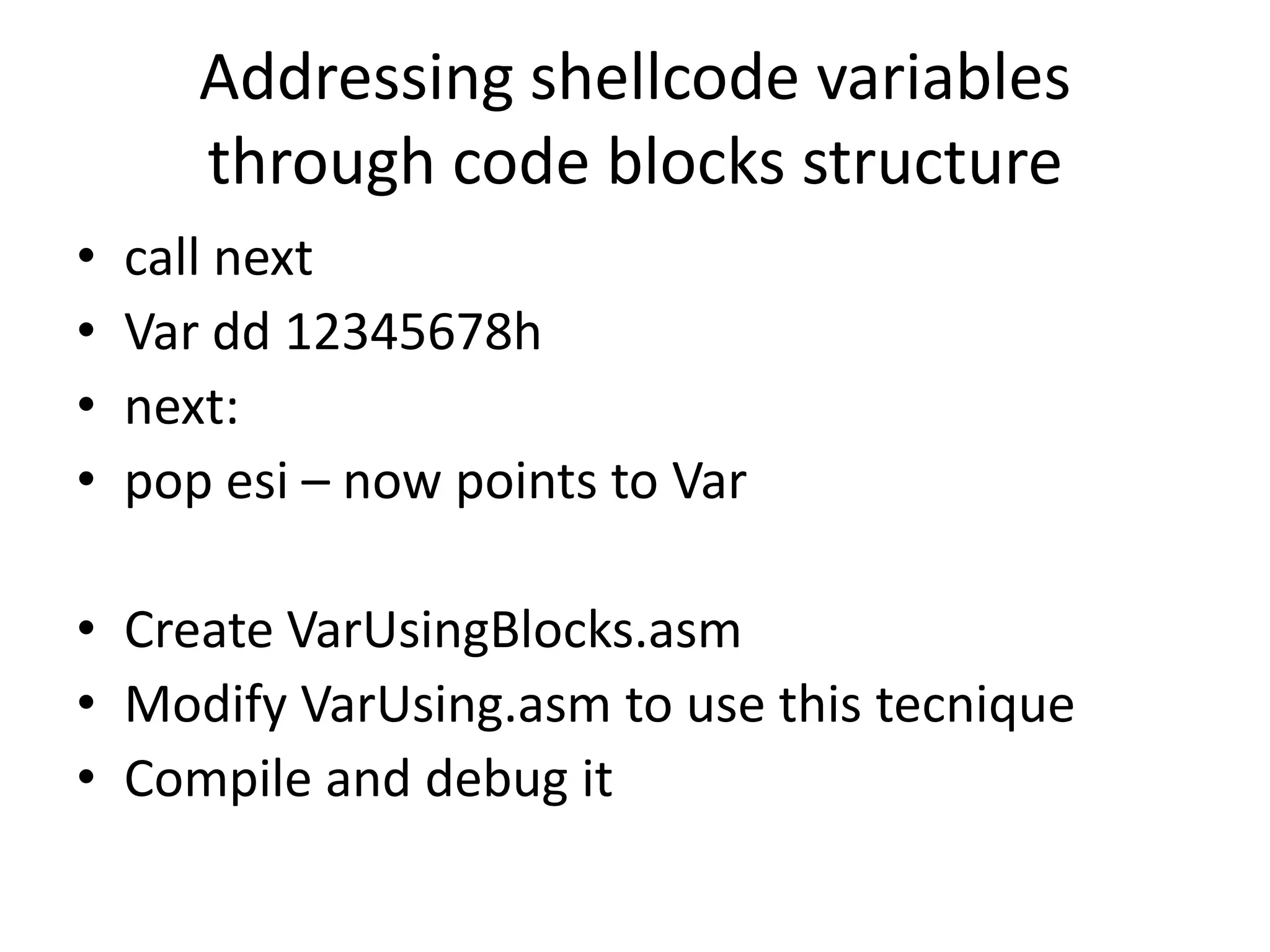

- 16. Addressing shellcode variables through code blocks structure • call next • Var dd 12345678h • next: • pop esi – now points to Var • Create VarUsingBlocks.asm • Modify VarUsing.asm to use this tecnique • Compile and debug it

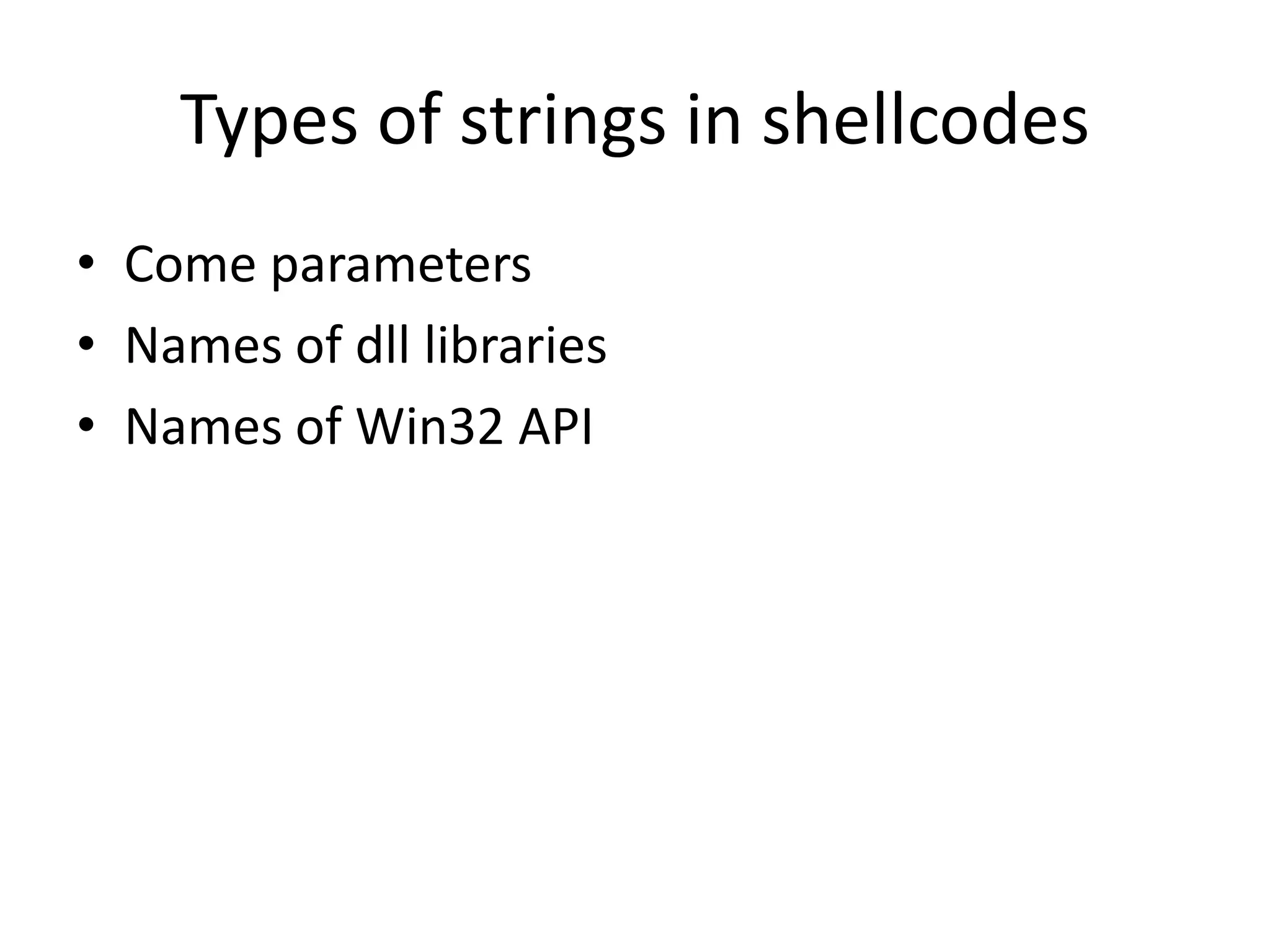

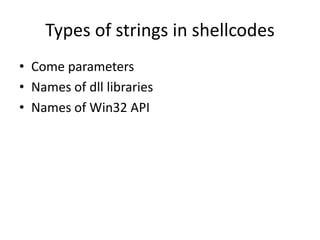

- 17. Types of strings in shellcodes • Come parameters • Names of dll libraries • Names of Win32 API

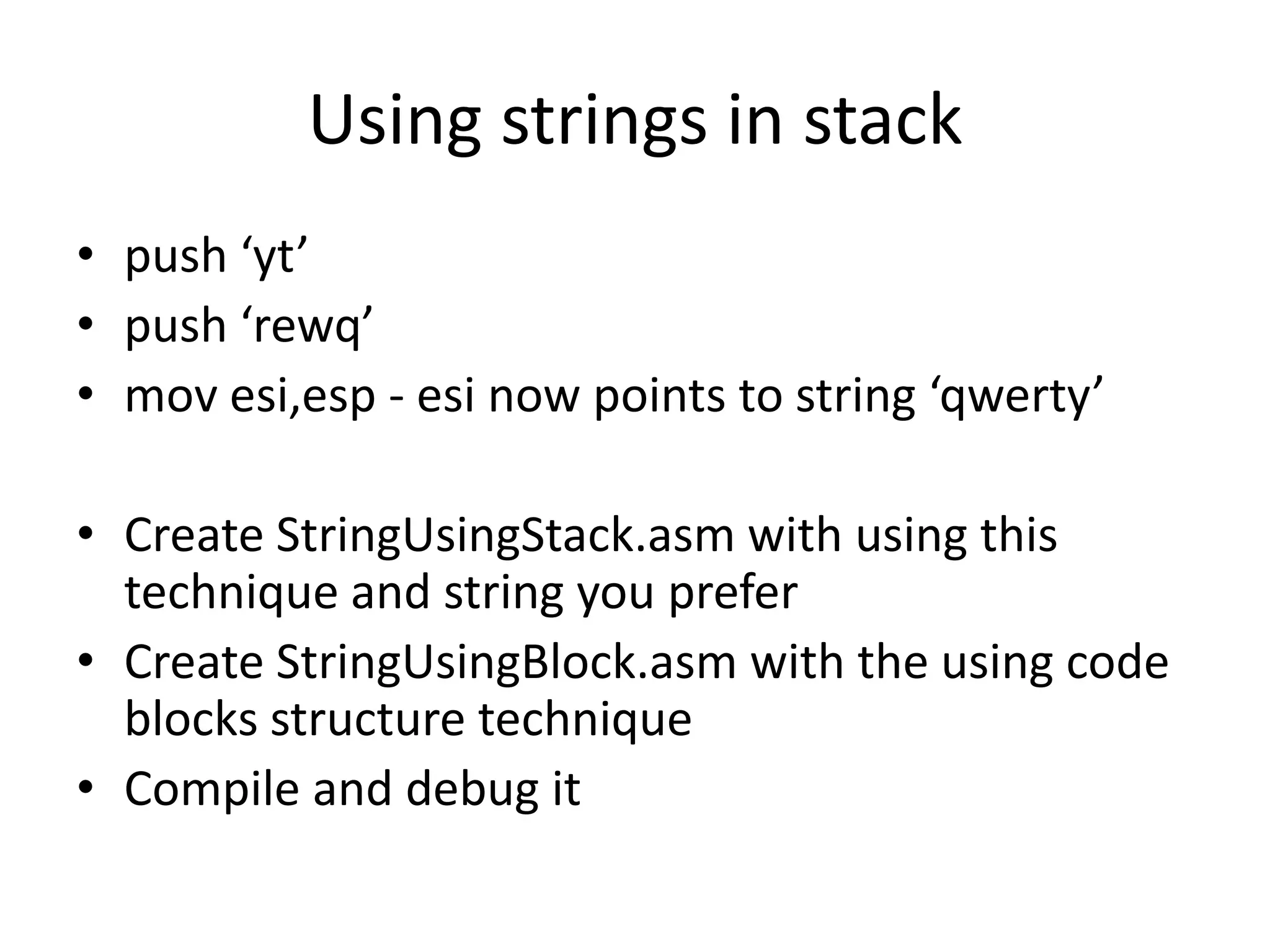

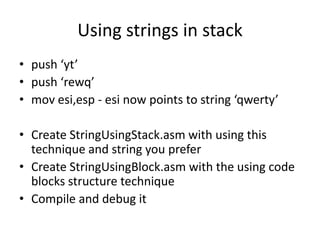

- 18. Using strings in stack • push ‘yt’ • push ‘rewq’ • mov esi,esp - esi now points to string ‘qwerty’ • Create StringUsingStack.asm with using this technique and string you prefer • Create StringUsingBlock.asm with the using code blocks structure technique • Compile and debug it

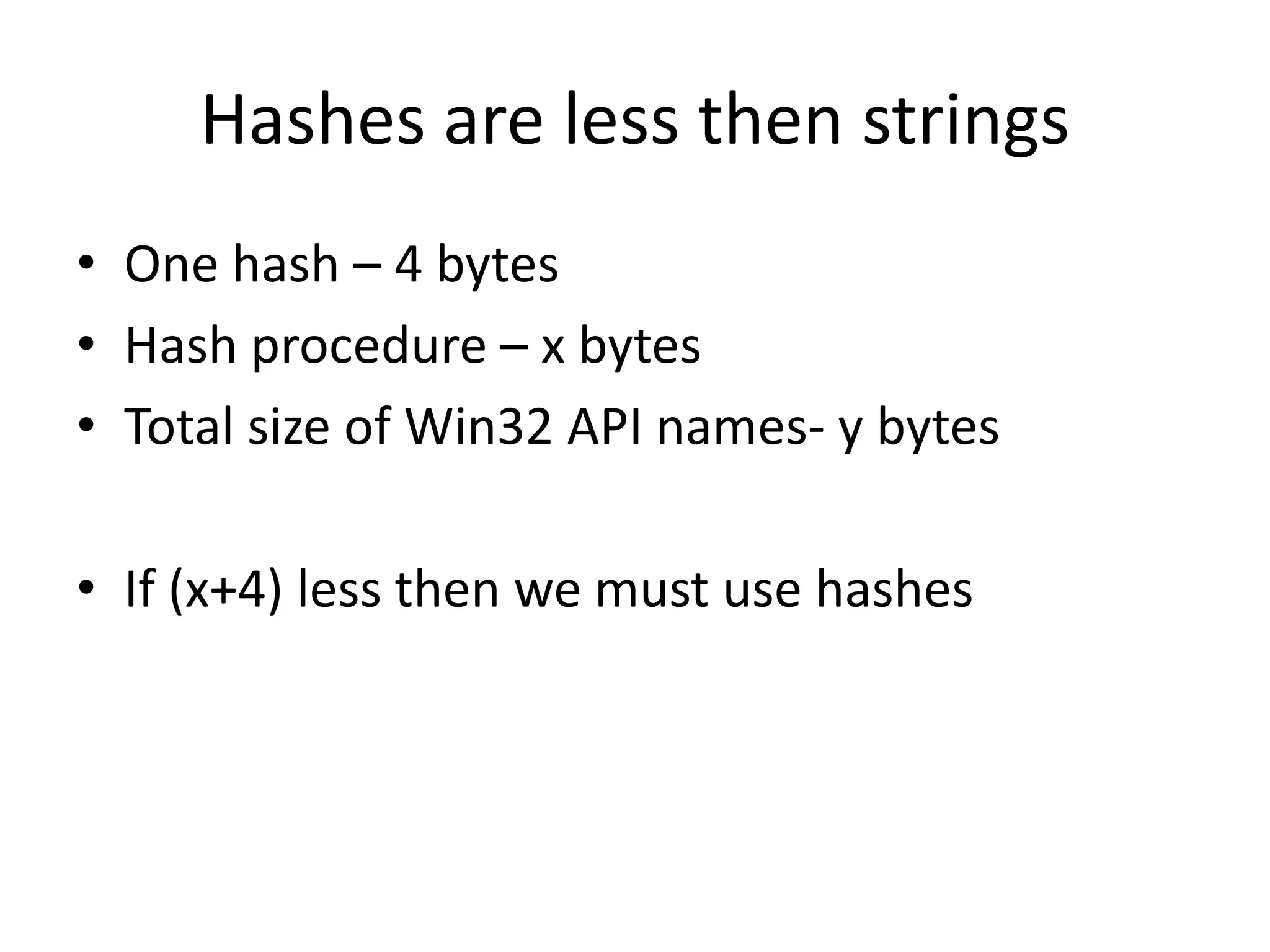

- 19. Hashes are less then strings • One hash – 4 bytes • Hash procedure – x bytes • Total size of Win32 API names- y bytes • If (x+4) less then we must use hashes

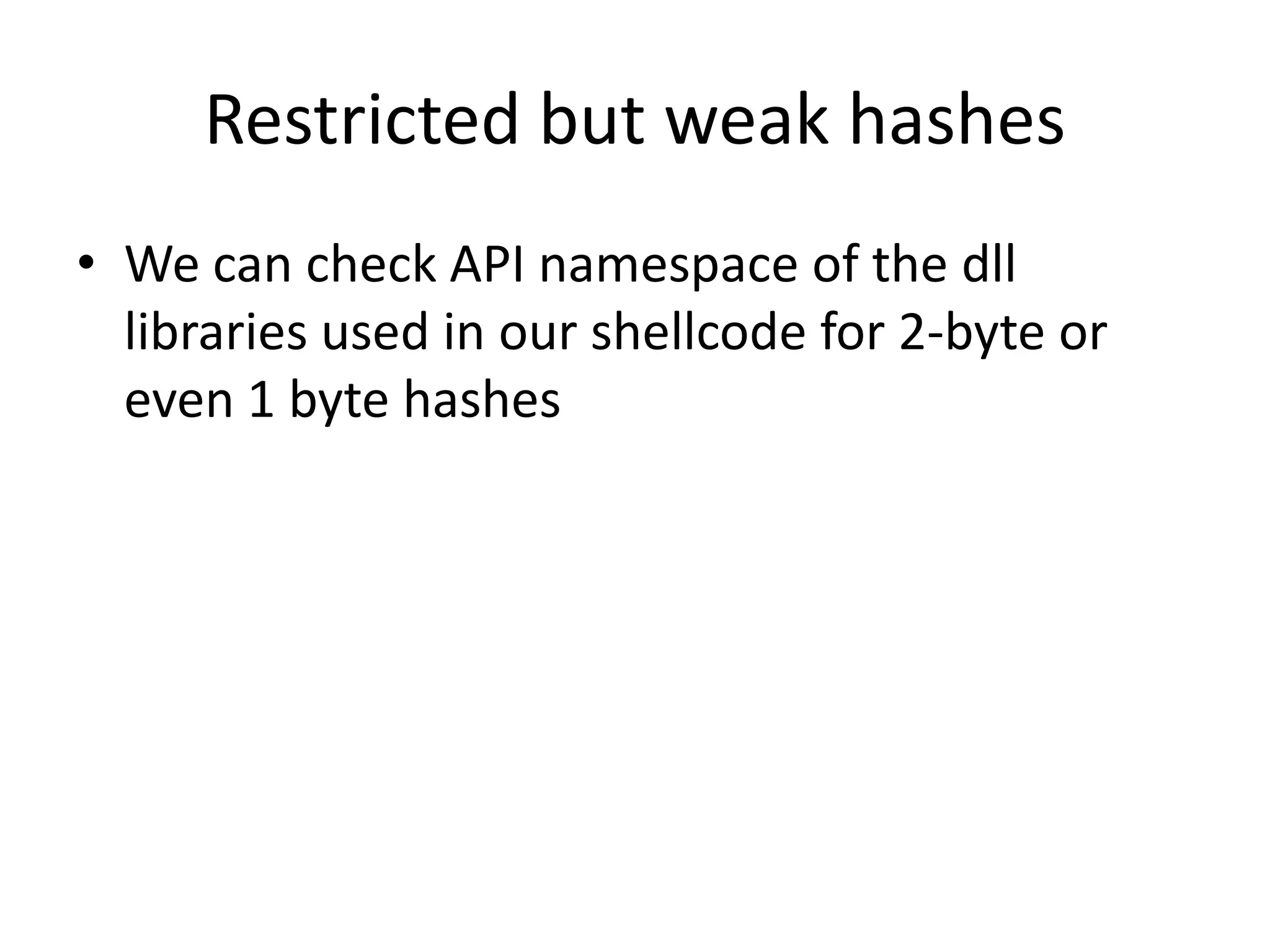

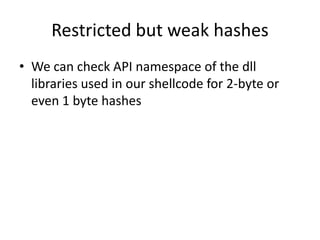

- 20. Restricted but weak hashes • We can check API namespace of the dll libraries used in our shellcode for 2-byte or even 1 byte hashes

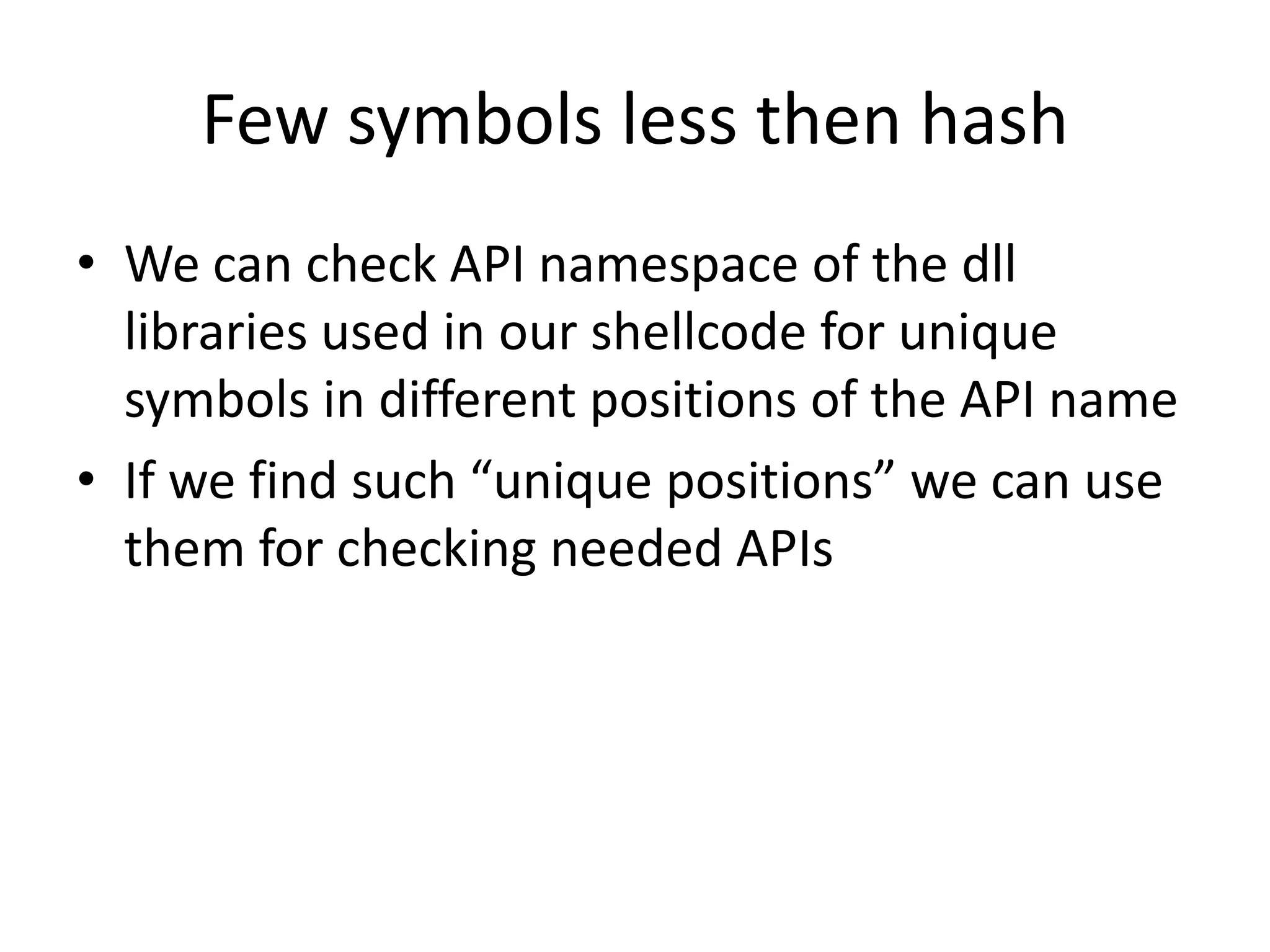

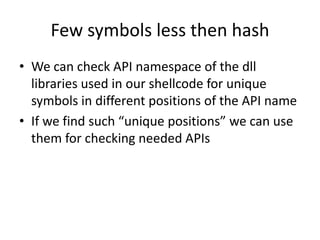

- 21. Few symbols less then hash • We can check API namespace of the dll libraries used in our shellcode for unique symbols in different positions of the API name • If we find such “unique positions” we can use them for checking needed APIs

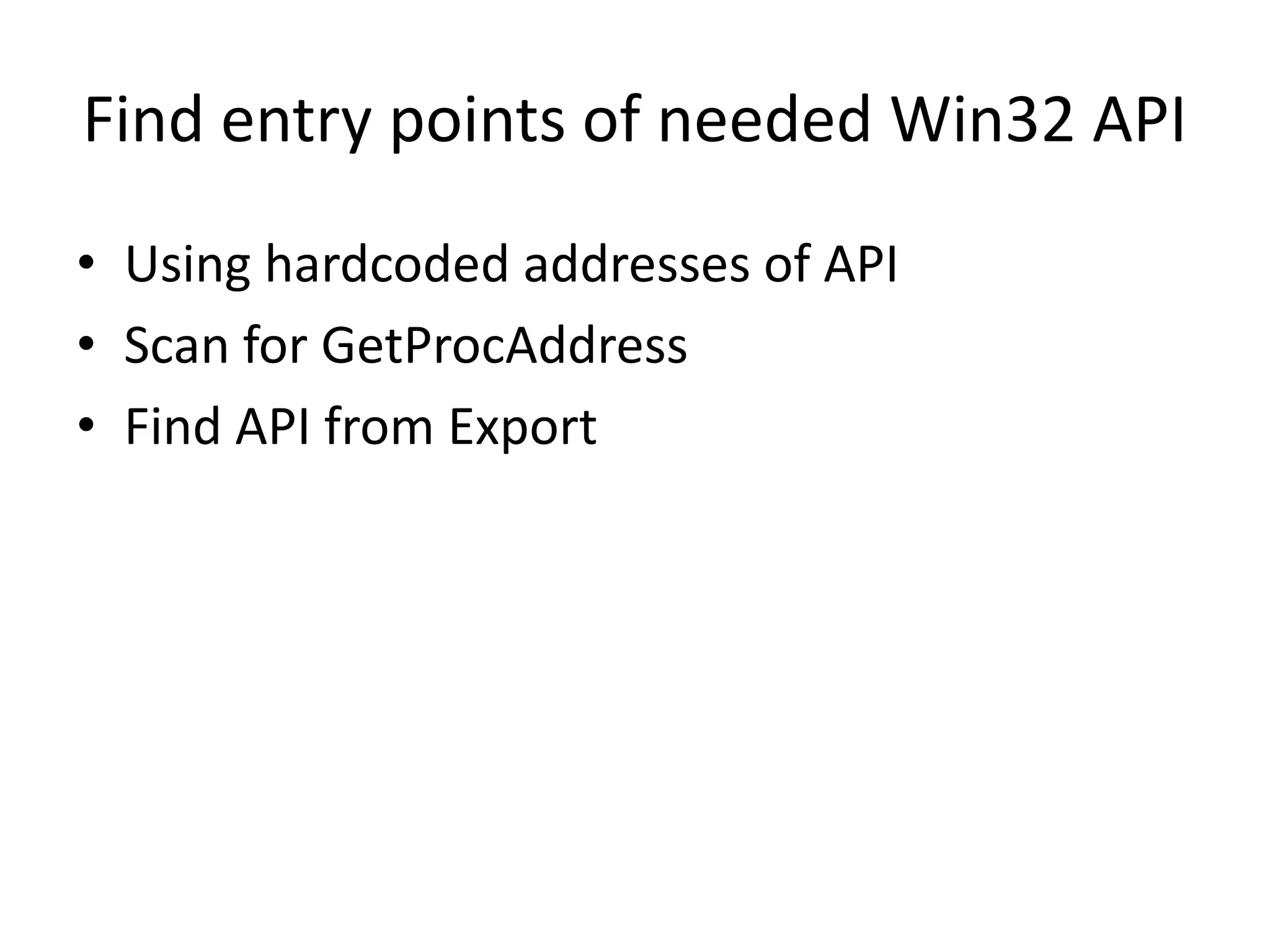

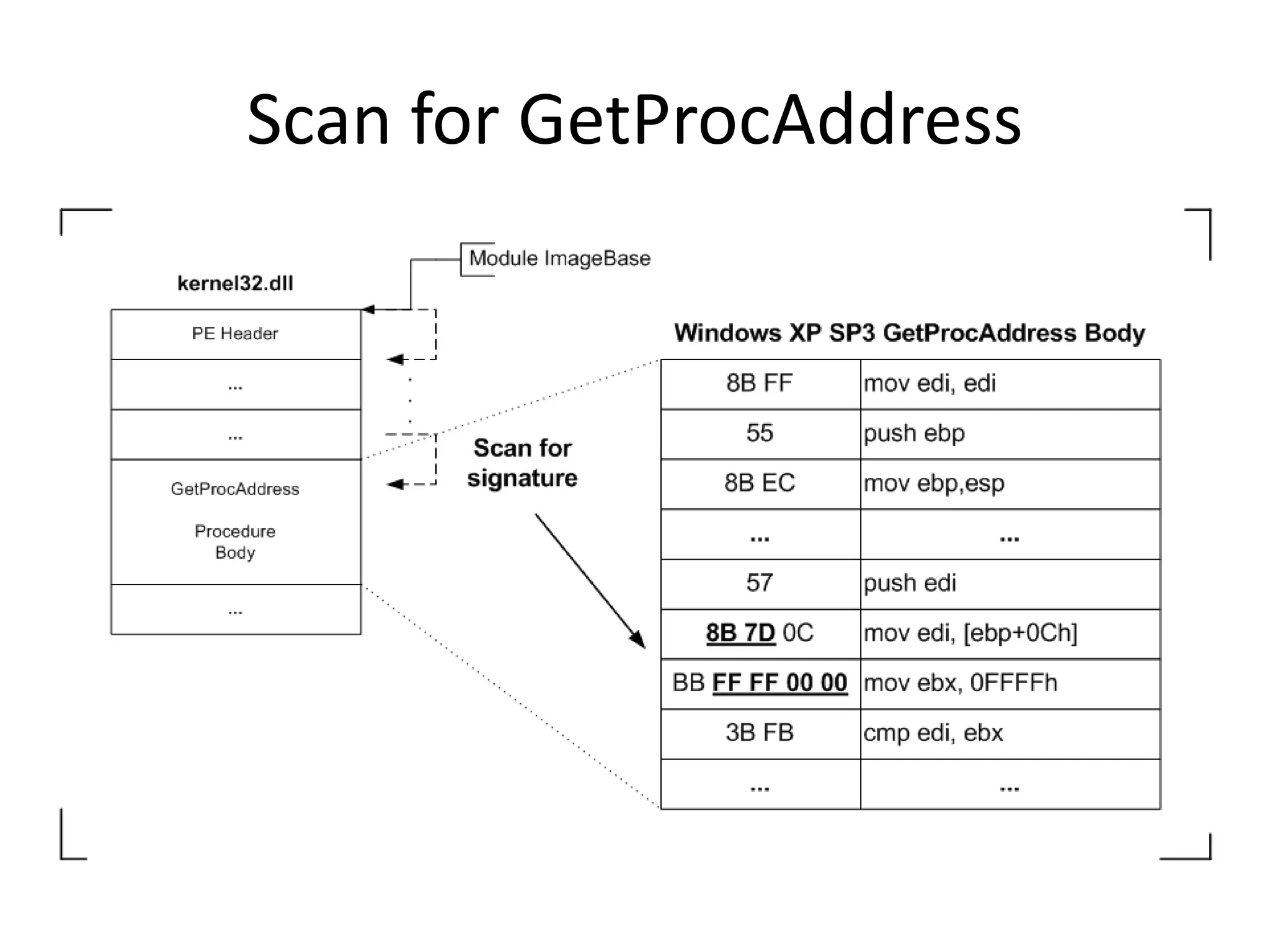

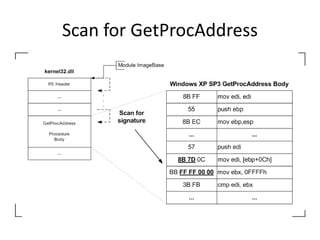

- 22. Find entry points of needed Win32 API • Using hardcoded addresses of API • Scan for GetProcAddress • Find API from Export

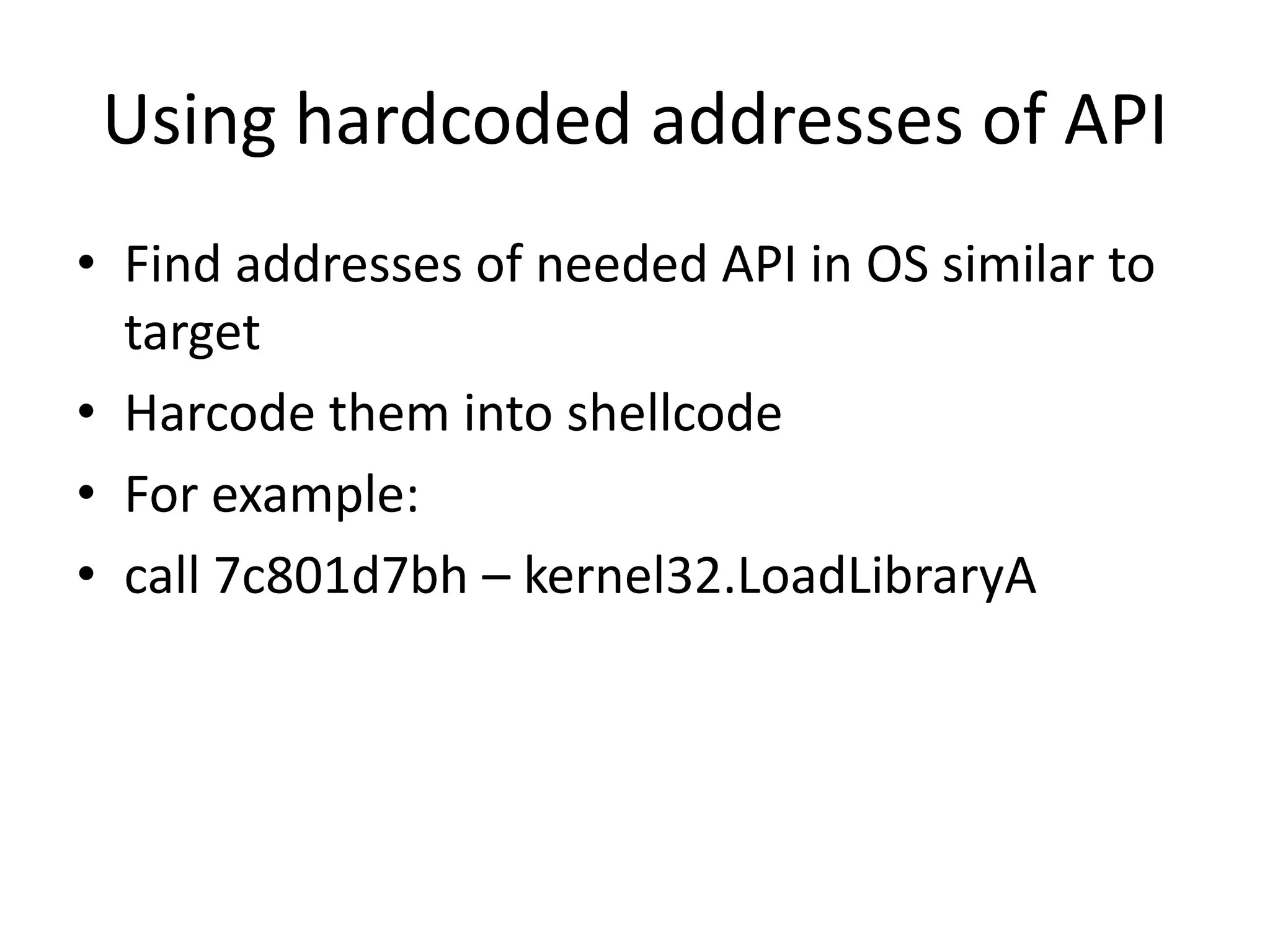

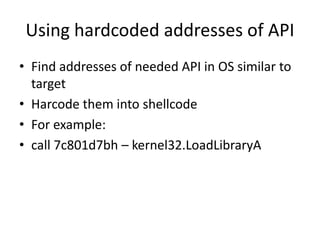

- 23. Using hardcoded addresses of API • Find addresses of needed API in OS similar to target • Harcode them into shellcode • For example: • call 7c801d7bh – kernel32.LoadLibraryA

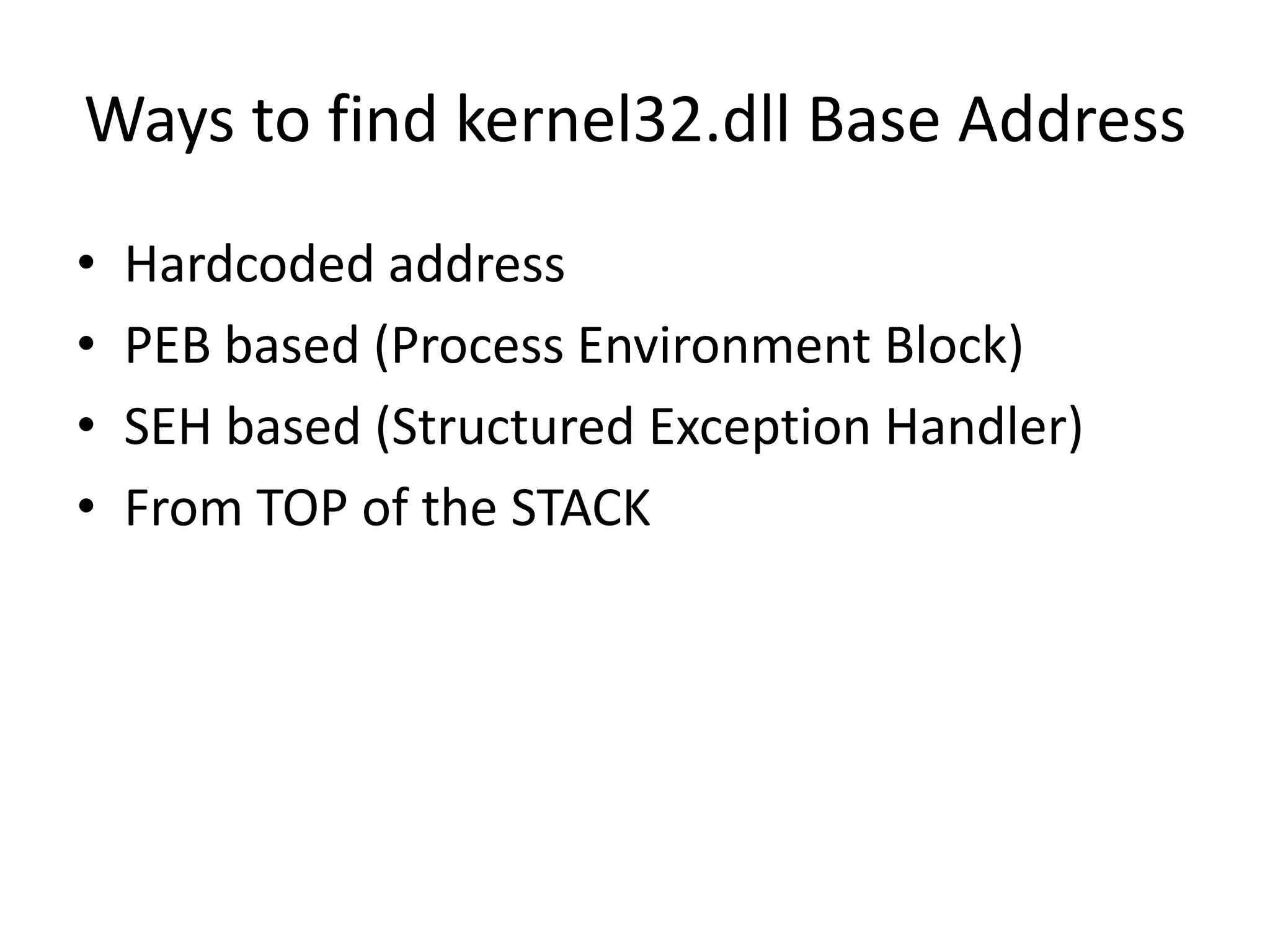

- 24. Ways to find kernel32.dll Base Address • Hardcoded address • PEB based (Process Environment Block) • SEH based (Structured Exception Handler) • From TOP of the STACK

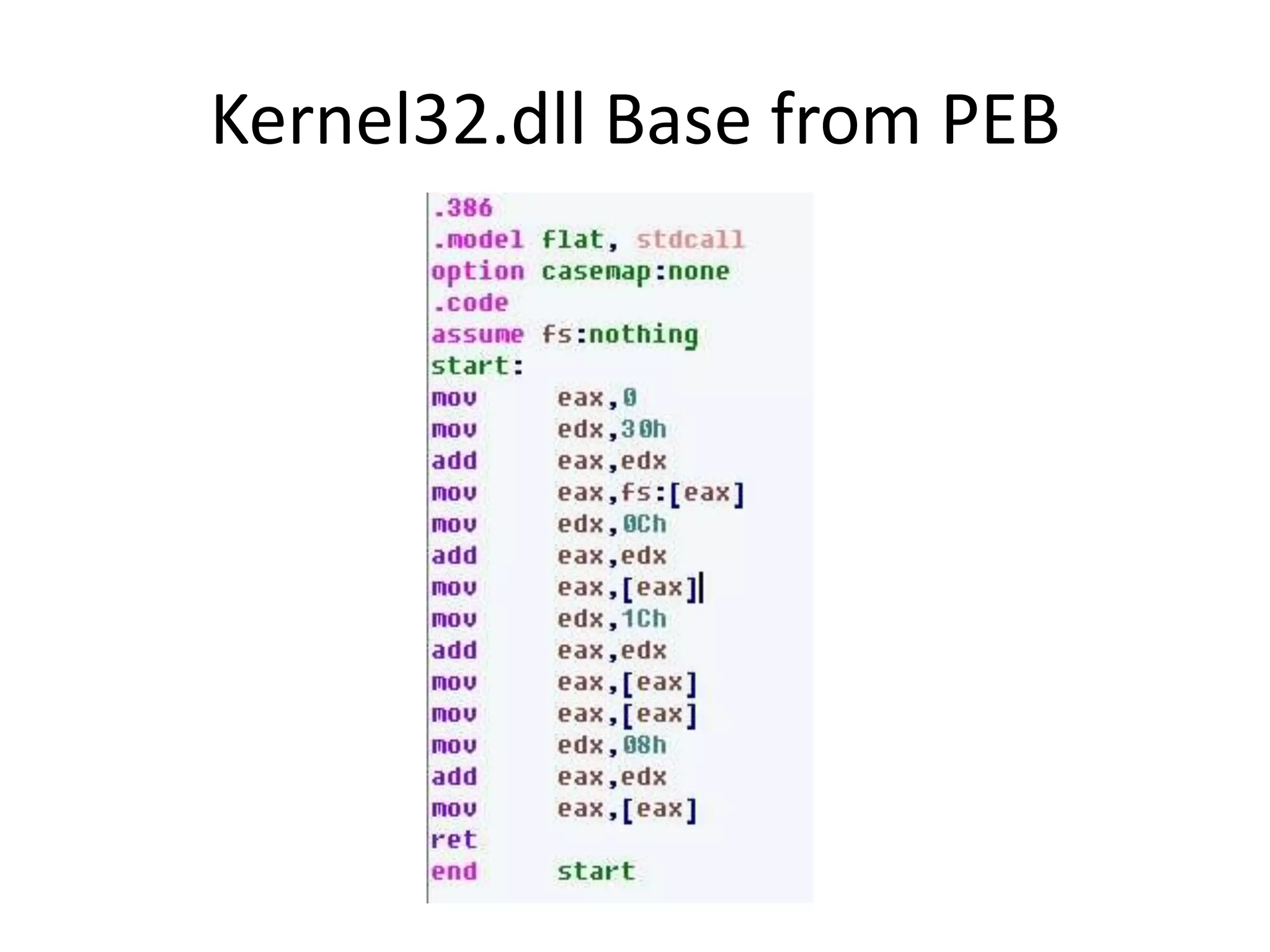

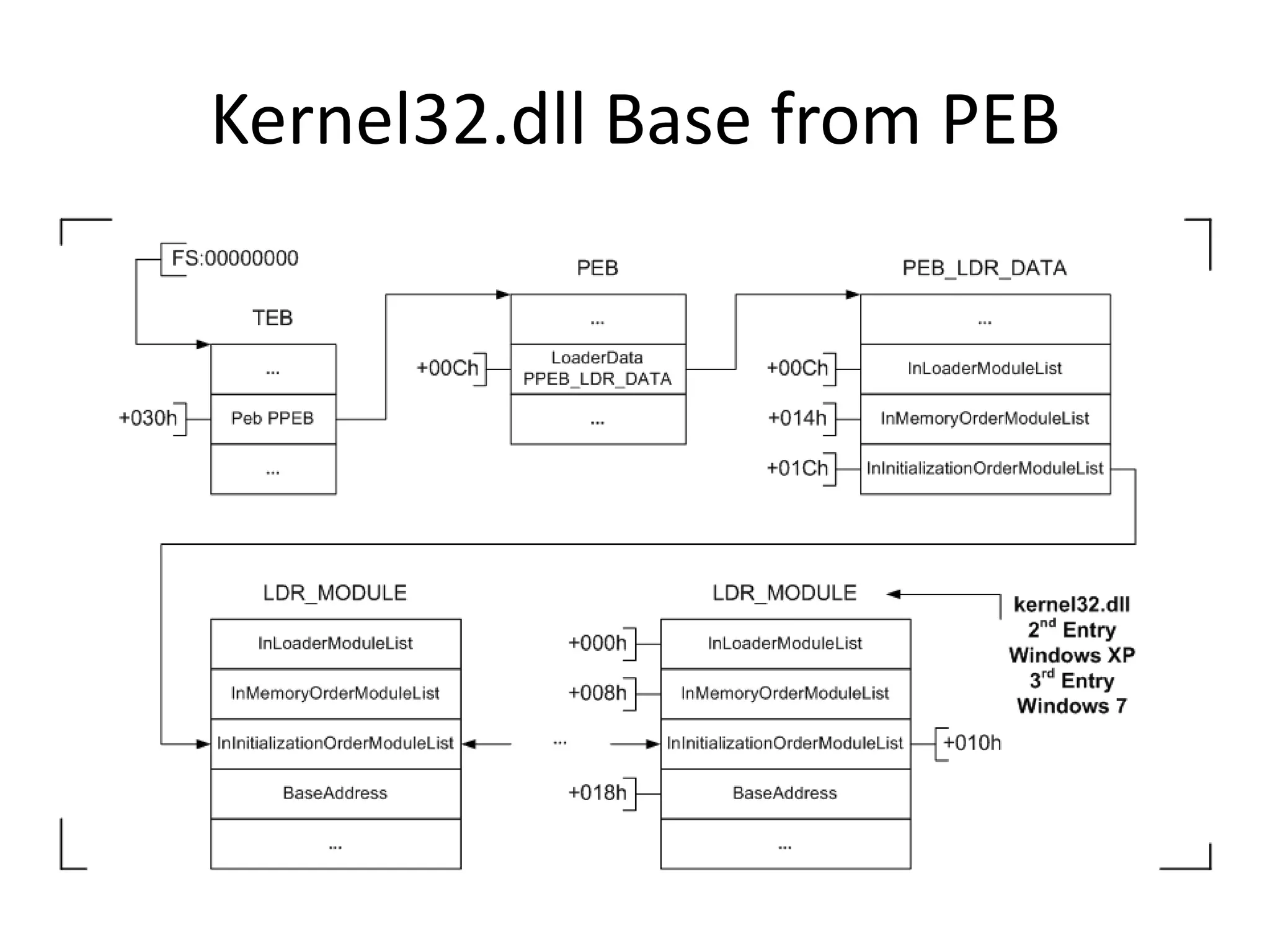

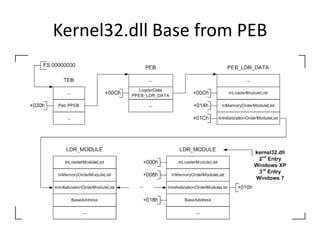

- 25. Kernel32.dll Base from PEB
- 26. Kernel32.dll Base from PEB

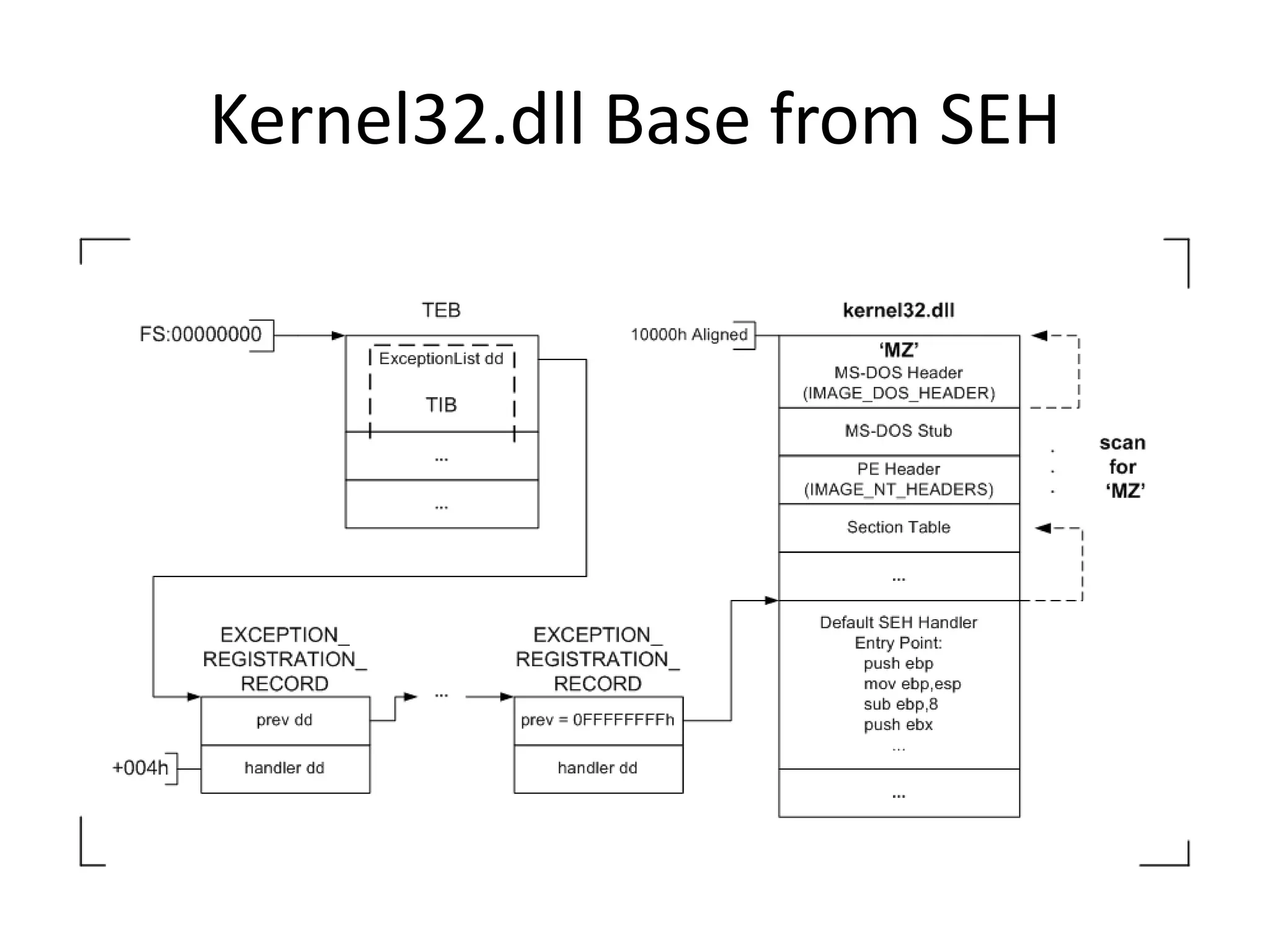

- 27. Kernel32.dll Base from SEH

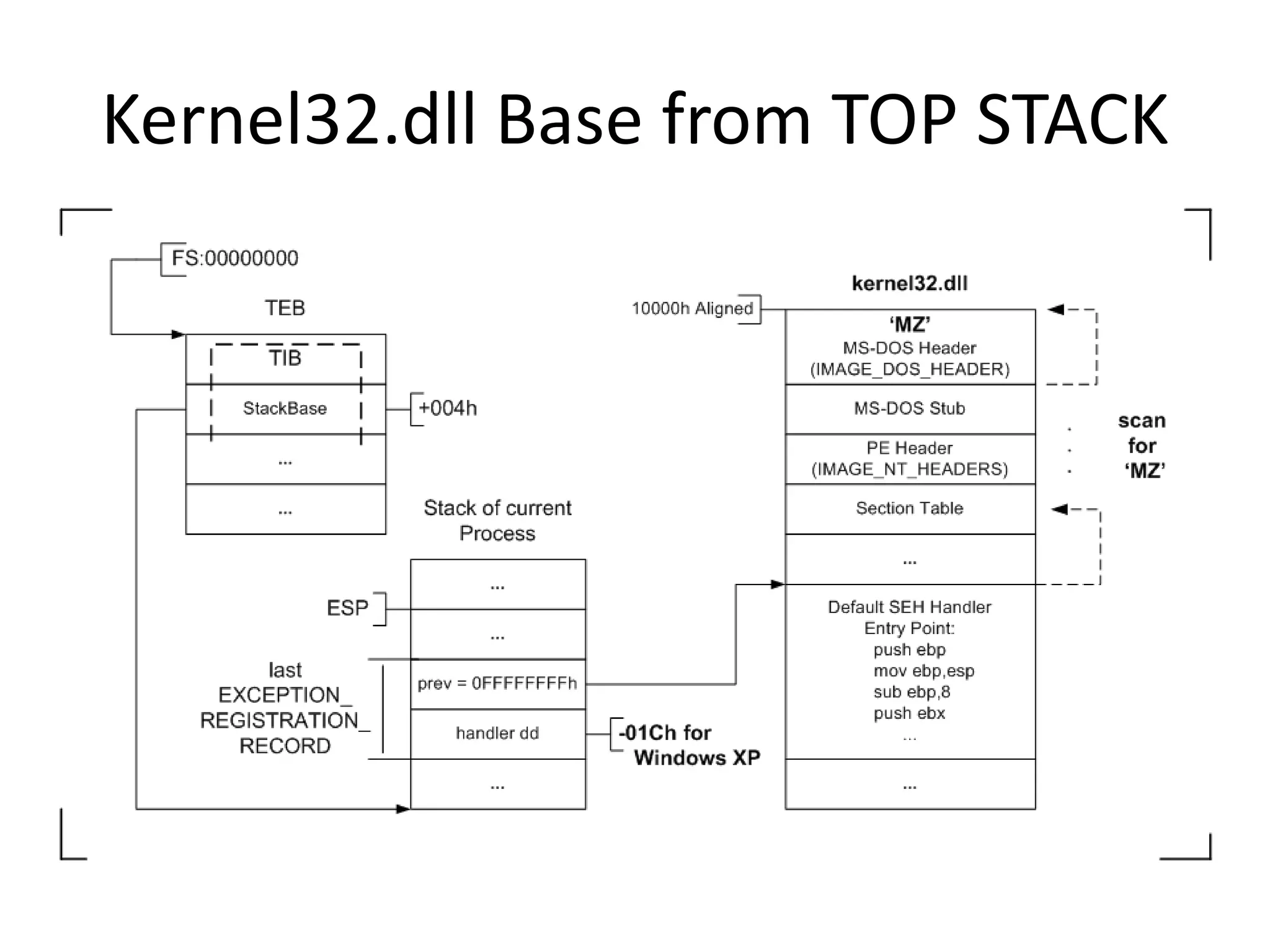

- 28. Kernel32.dll Base from TOP STACK

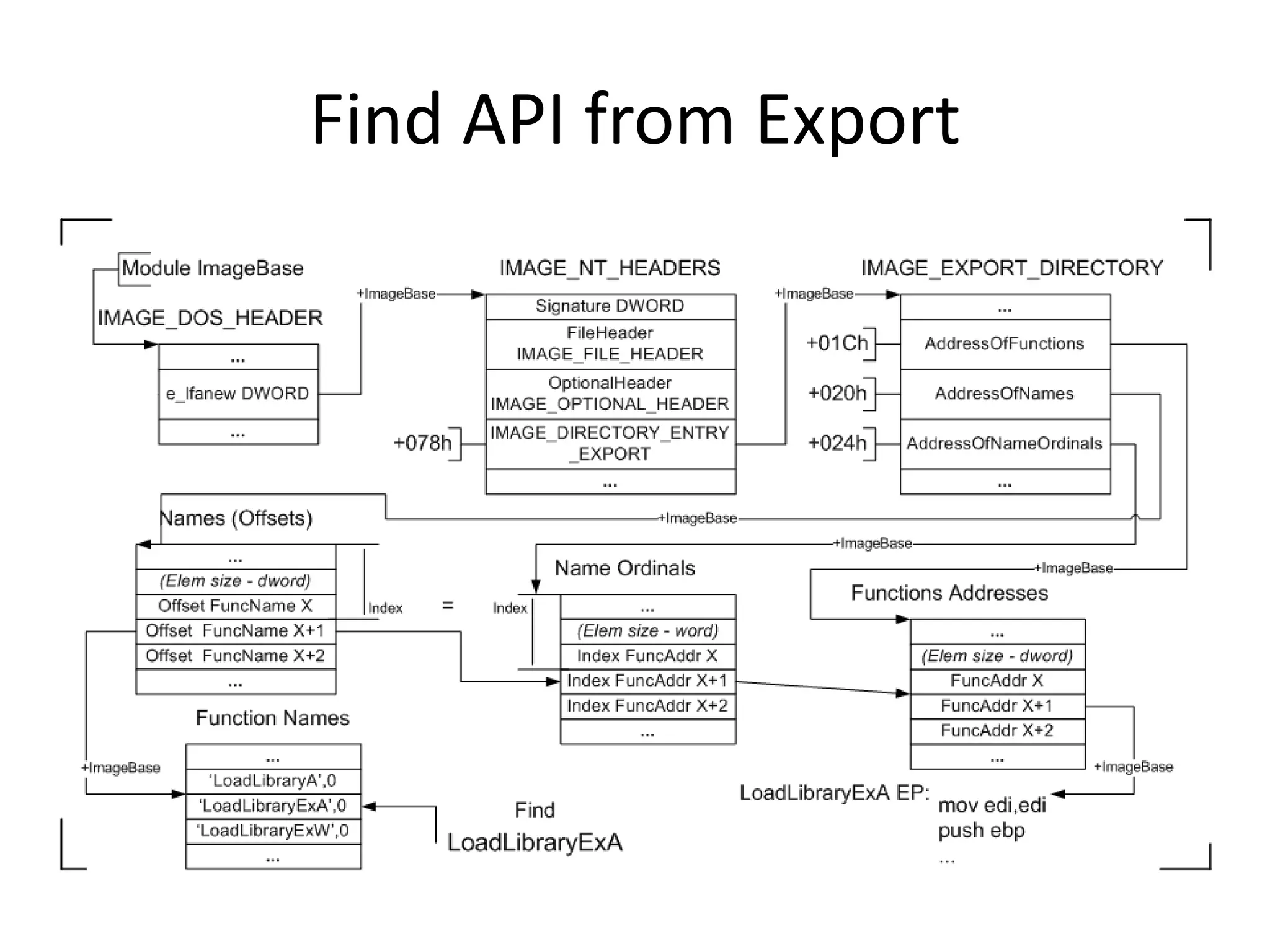

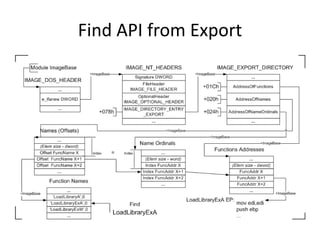

- 30. Find API from Export

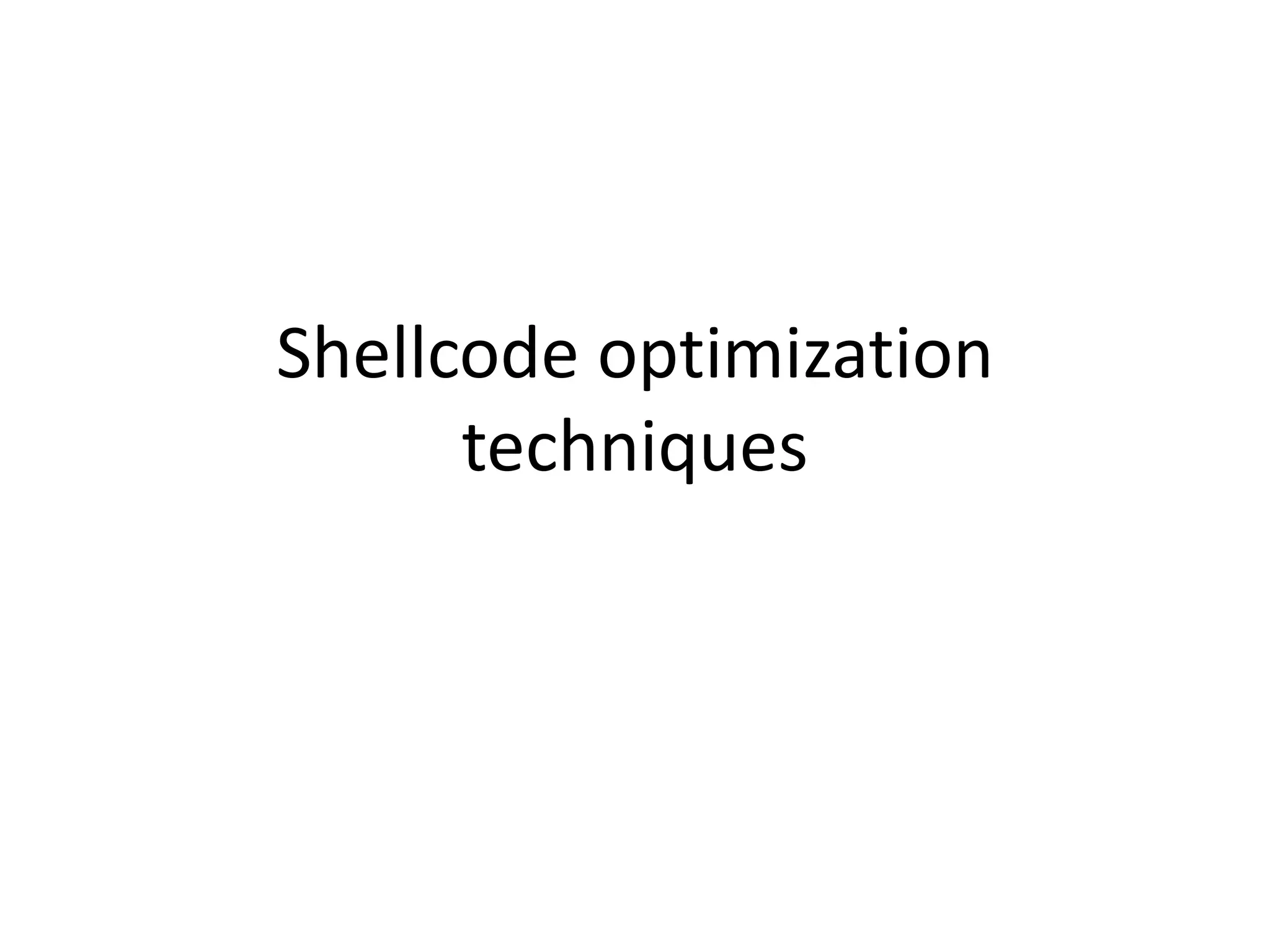

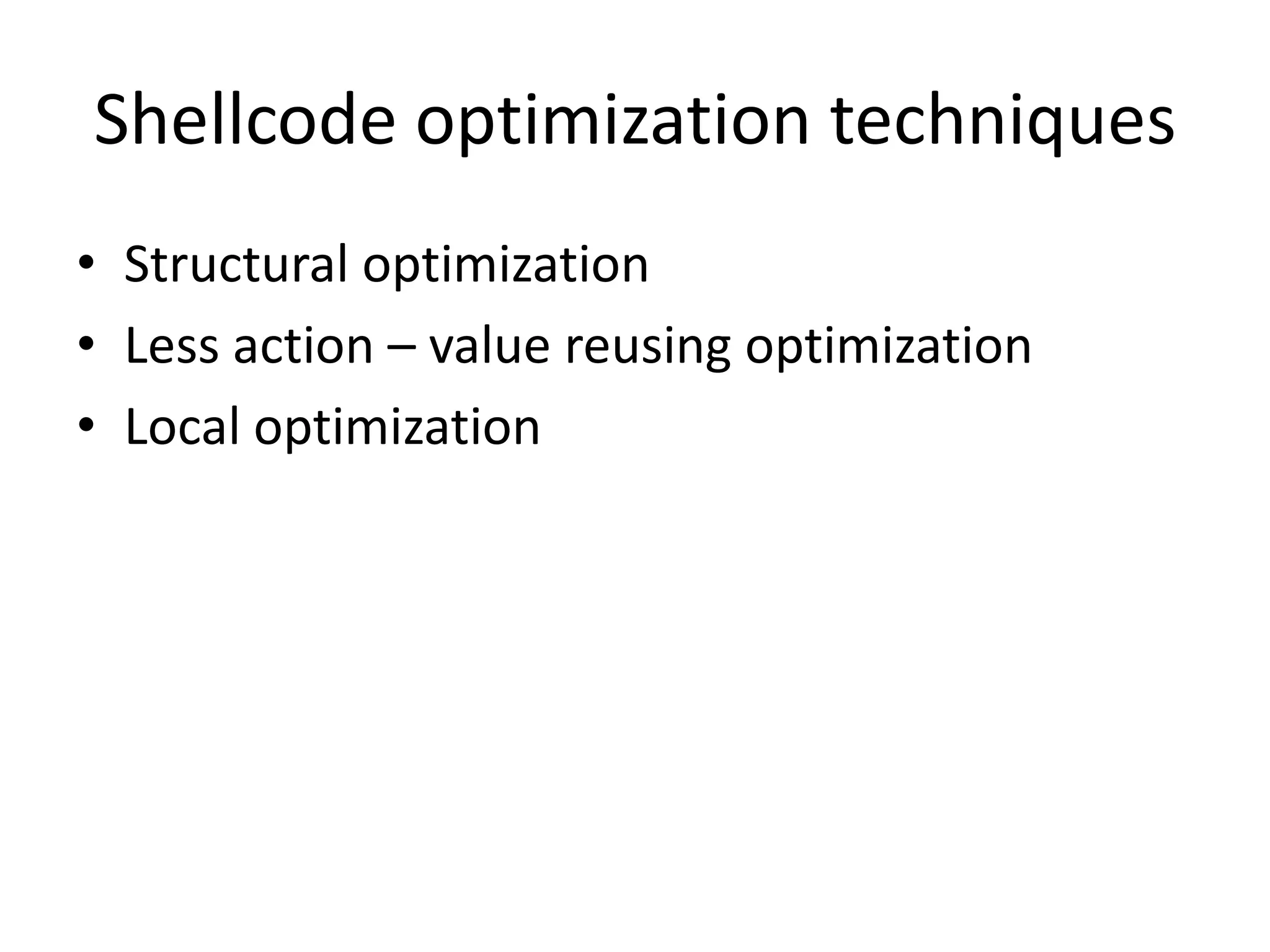

- 32. Shellcode optimization techniques • Structural optimization • Less action – value reusing optimization • Local optimization

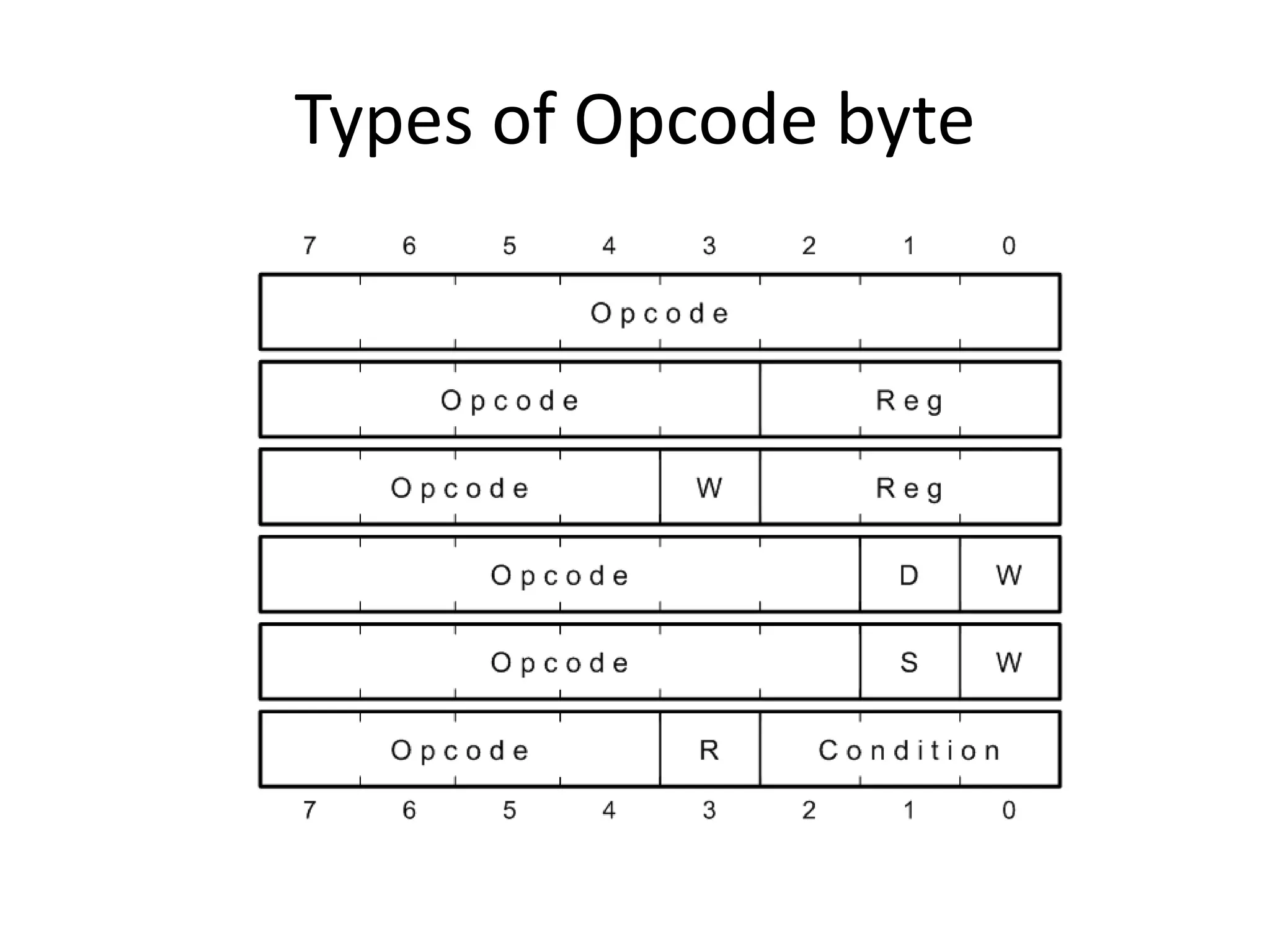

- 34. Types of Opcode byte

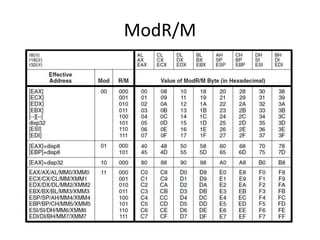

- 35. ModR/M

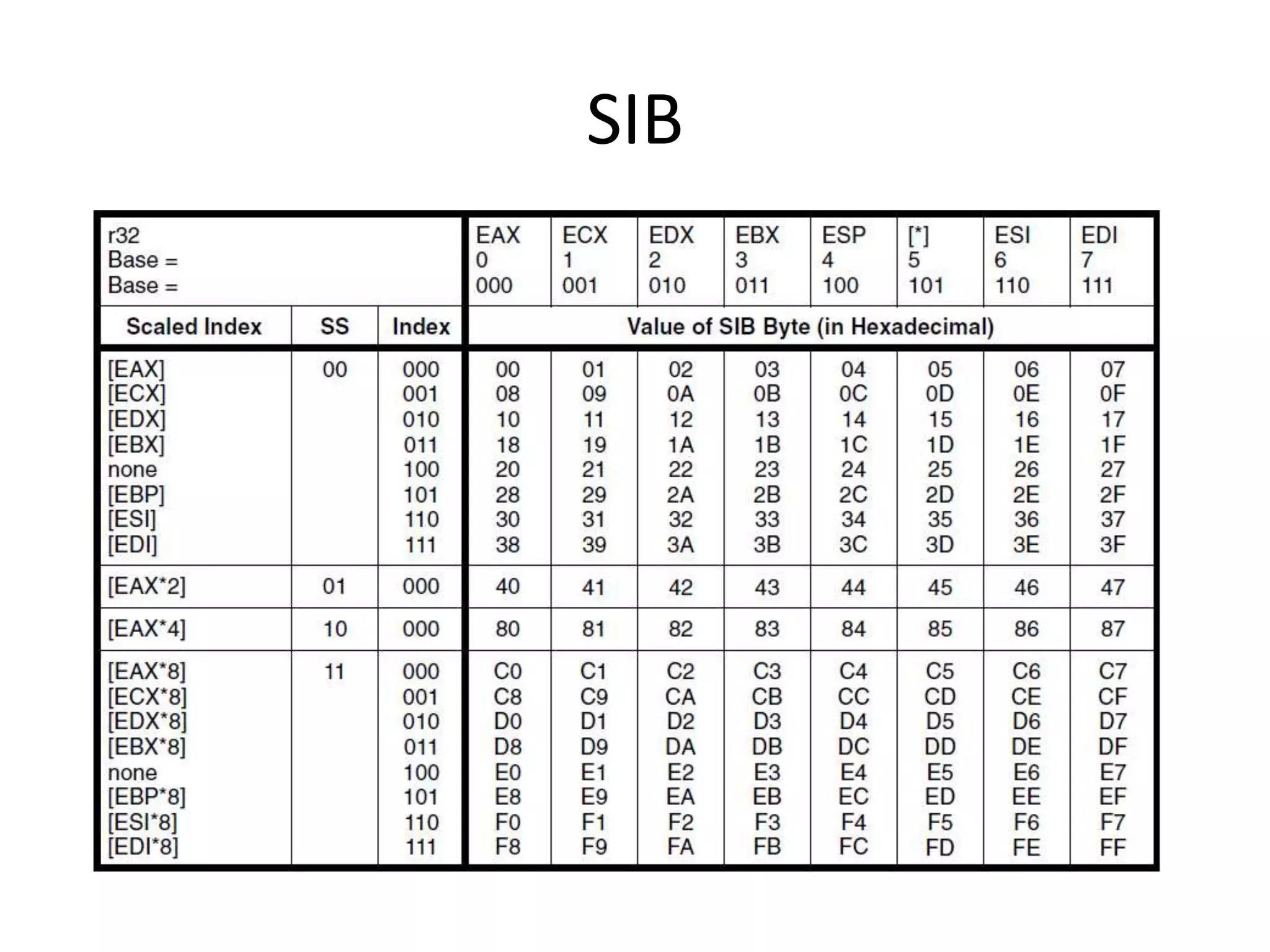

- 36. SIB

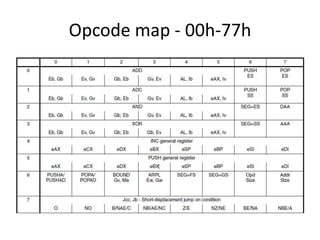

- 37. Opcode map - 00h-77h

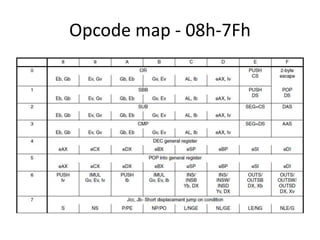

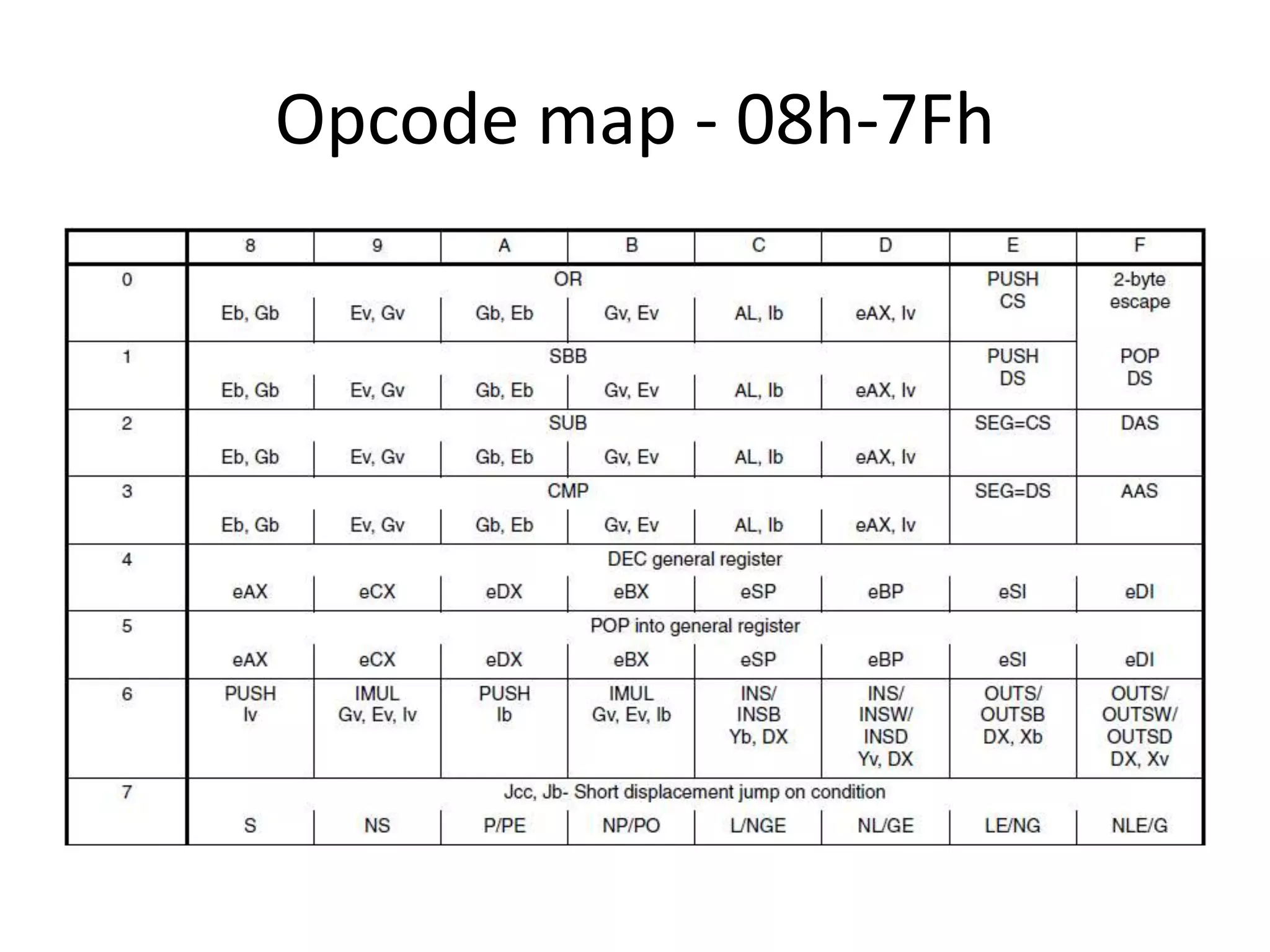

- 38. Opcode map - 08h-7Fh

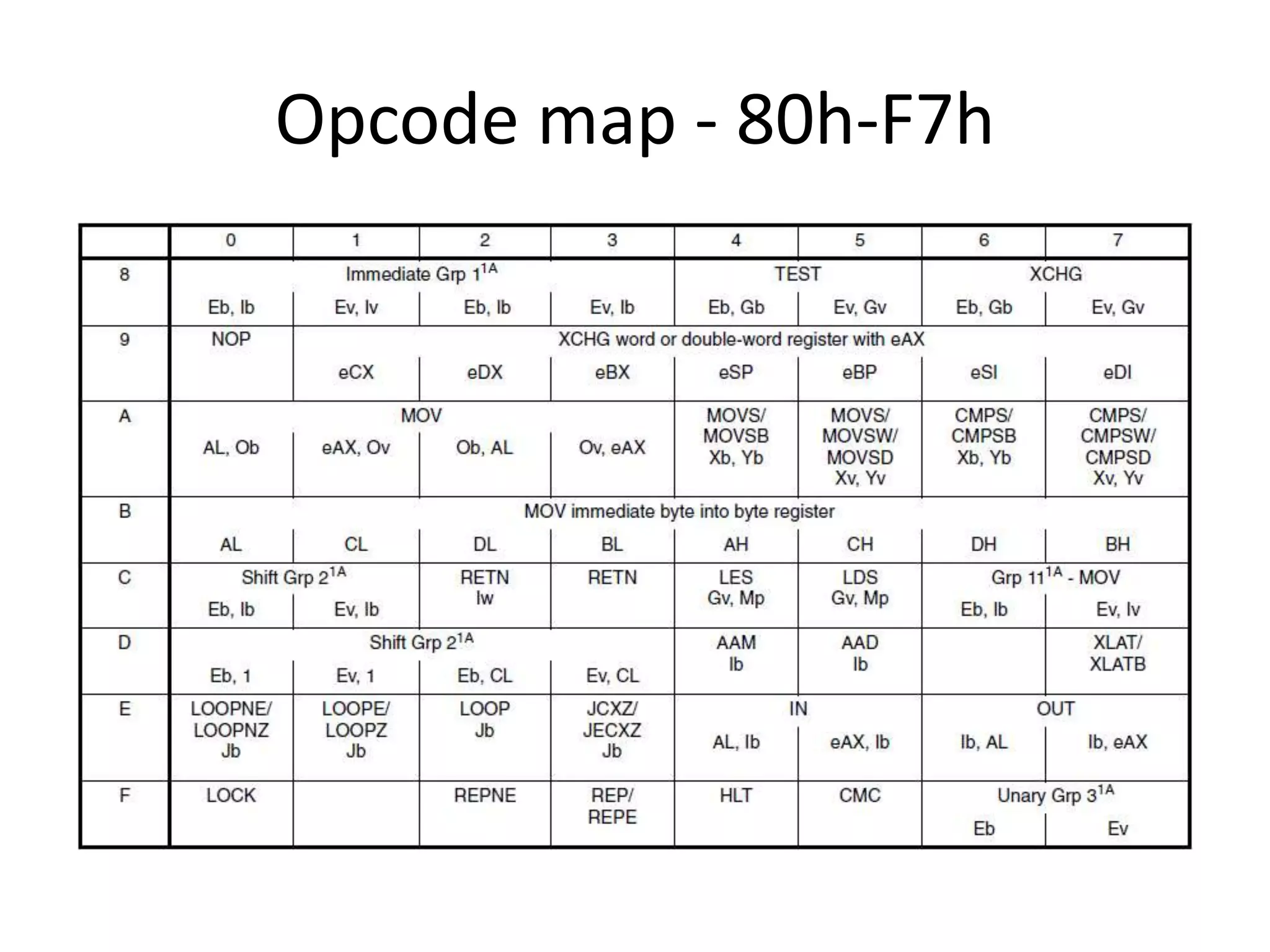

- 39. Opcode map - 80h-F7h

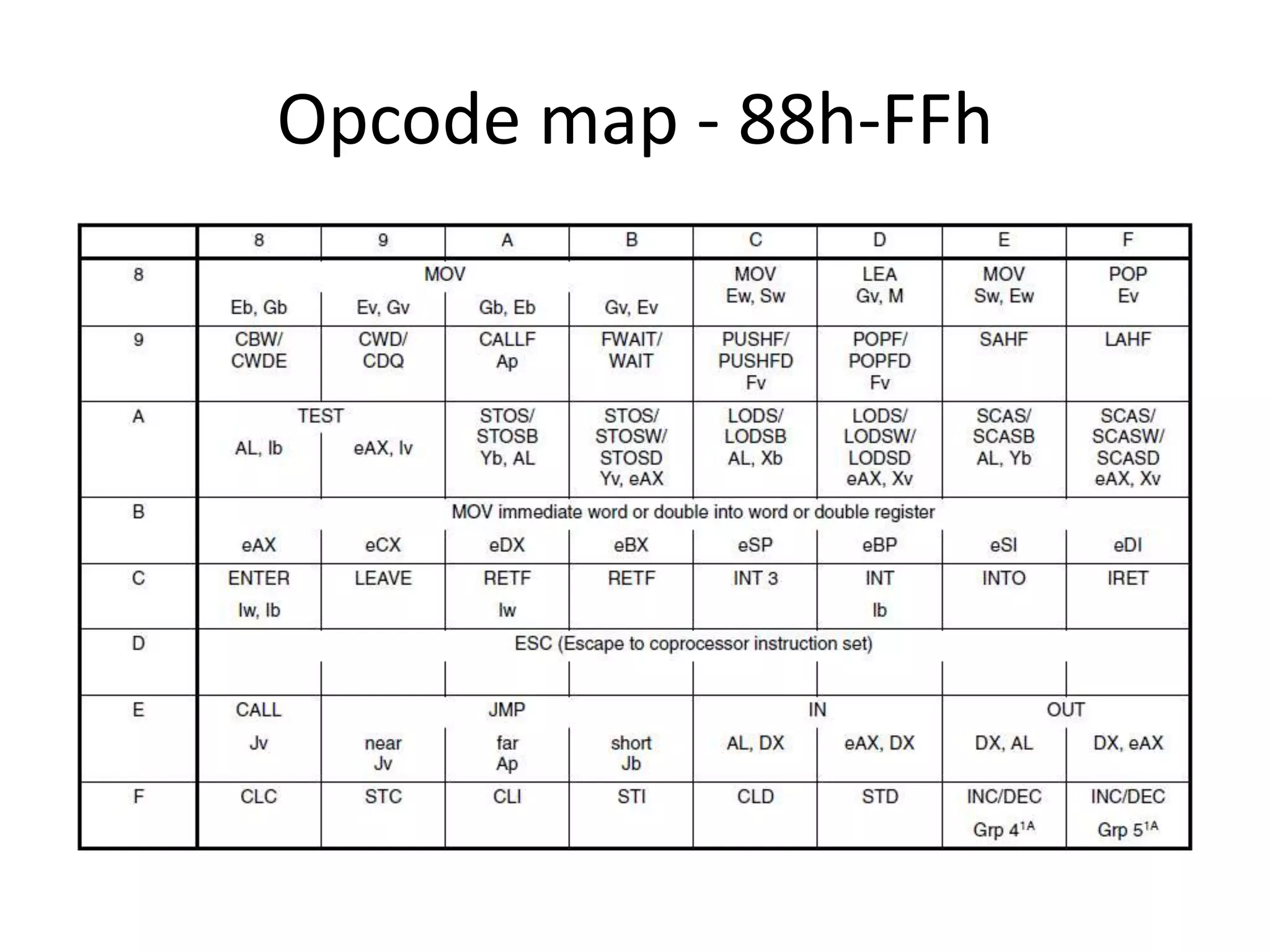

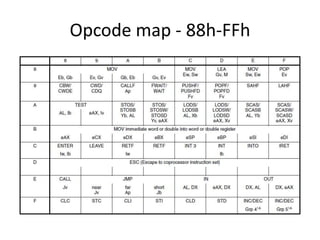

- 40. Opcode map - 88h-FFh

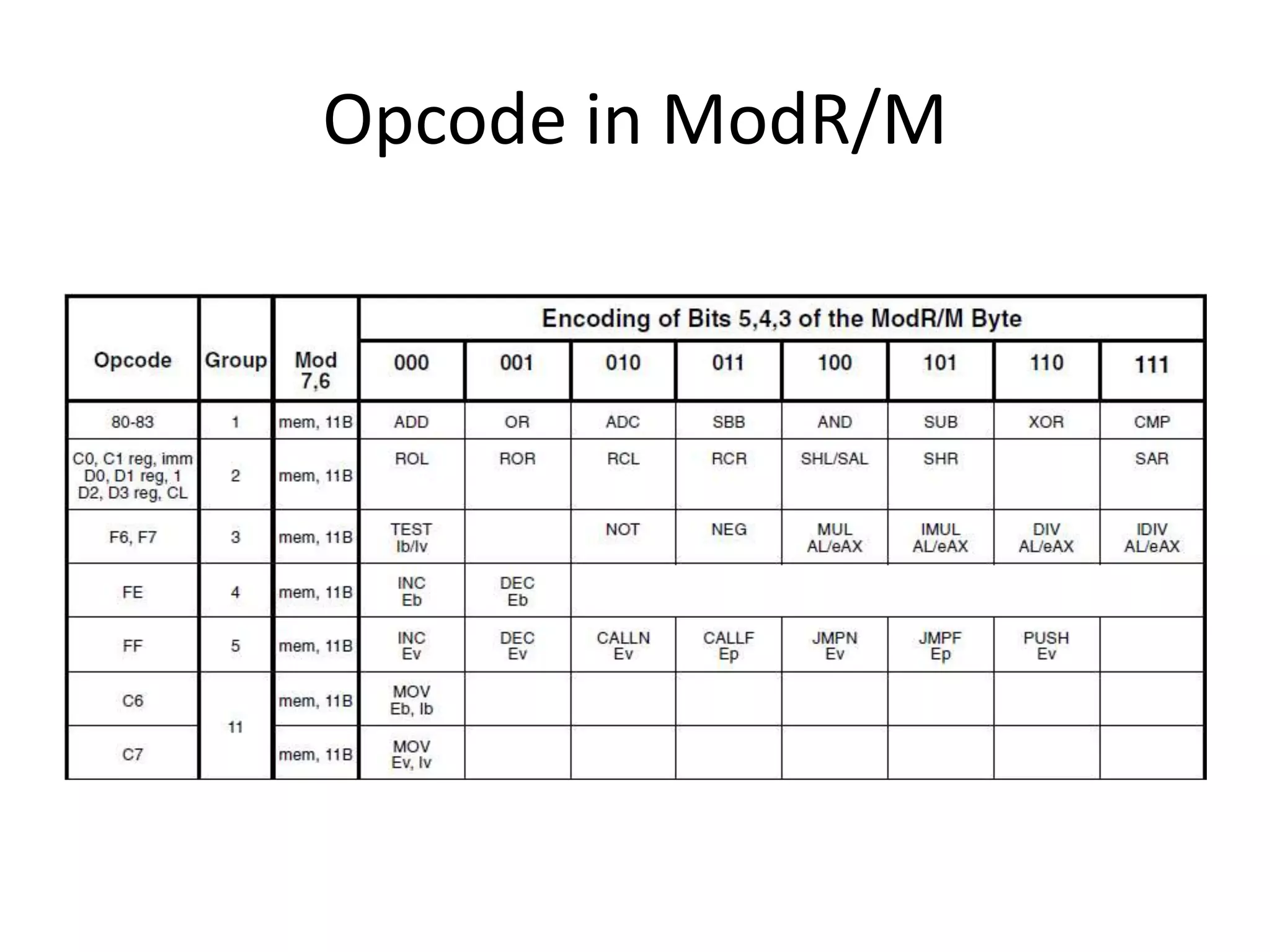

- 41. Opcode in ModR/M

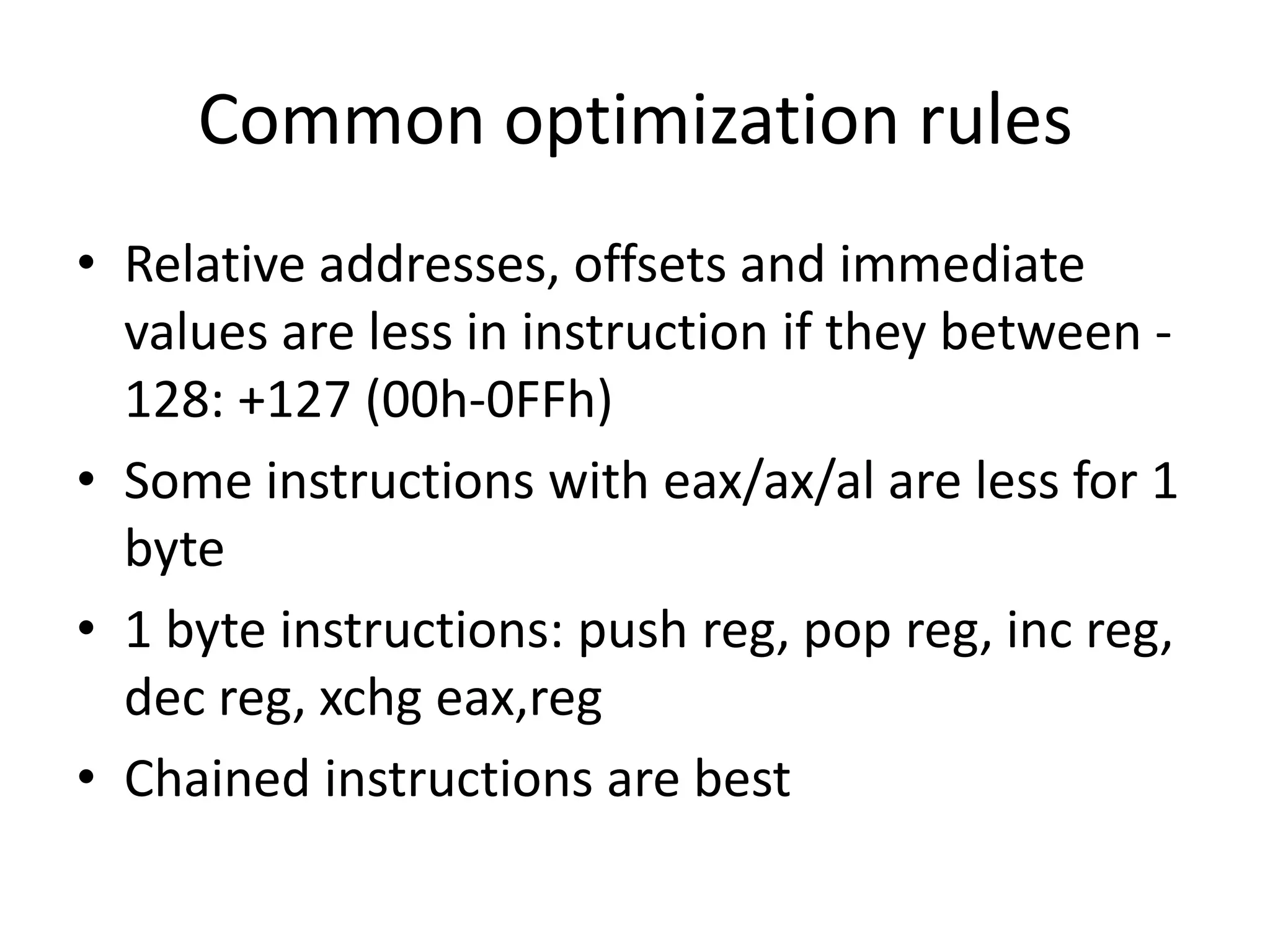

- 42. Common optimization rules • Relative addresses, offsets and immediate values are less in instruction if they between - 128: +127 (00h-0FFh) • Some instructions with eax/ax/al are less for 1 byte • 1 byte instructions: push reg, pop reg, inc reg, dec reg, xchg eax,reg • Chained instructions are best

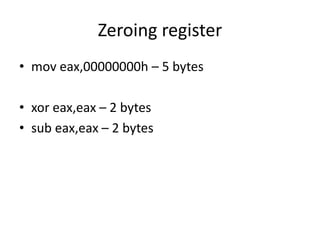

- 43. Zeroing register • mov eax,00000000h – 5 bytes • xor eax,eax – 2 bytes • sub eax,eax – 2 bytes

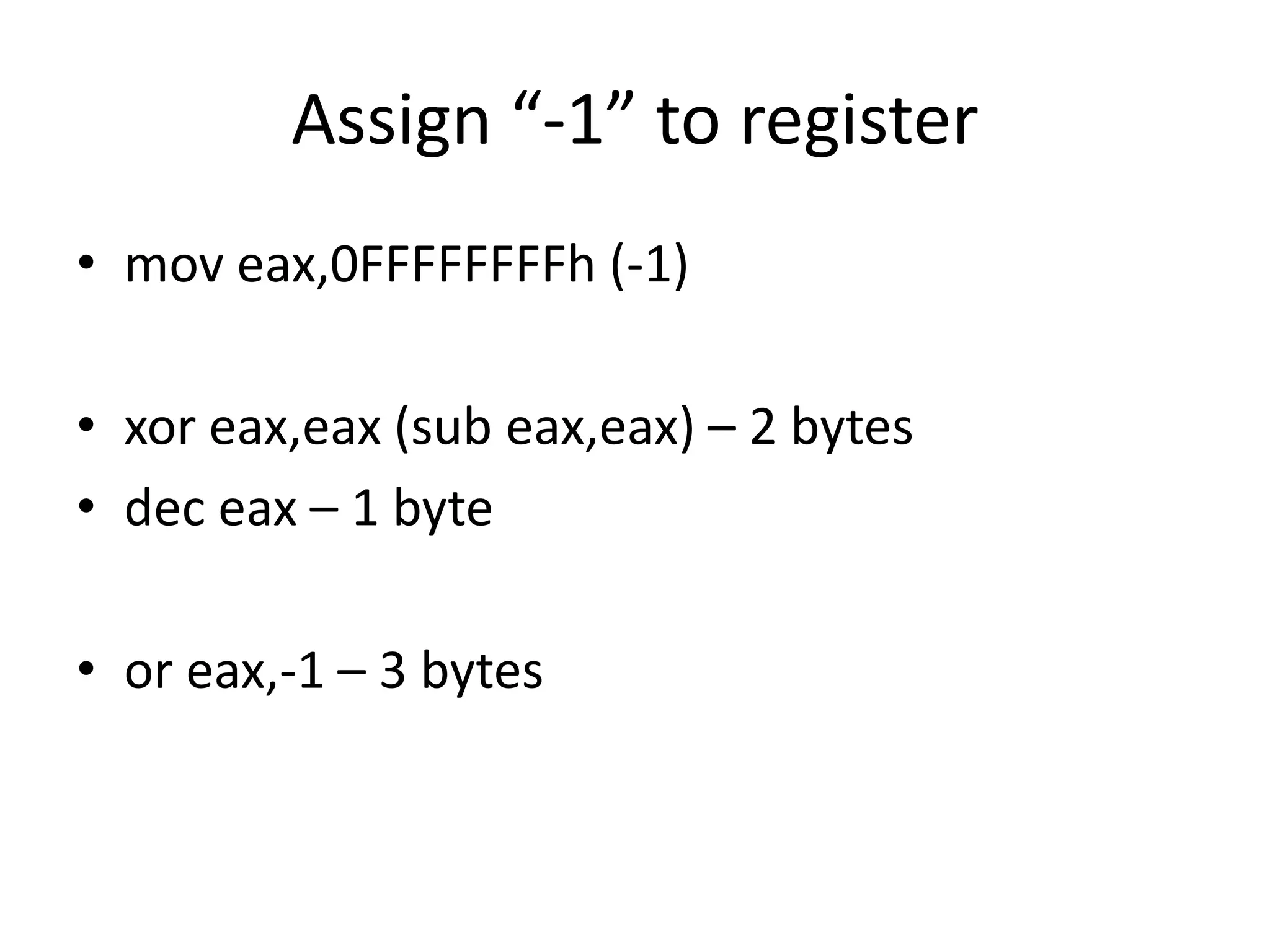

- 44. Assign “-1” to register • mov eax,0FFFFFFFFh (-1) • xor eax,eax (sub eax,eax) – 2 bytes • dec eax – 1 byte • or eax,-1 – 3 bytes

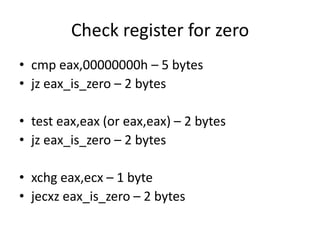

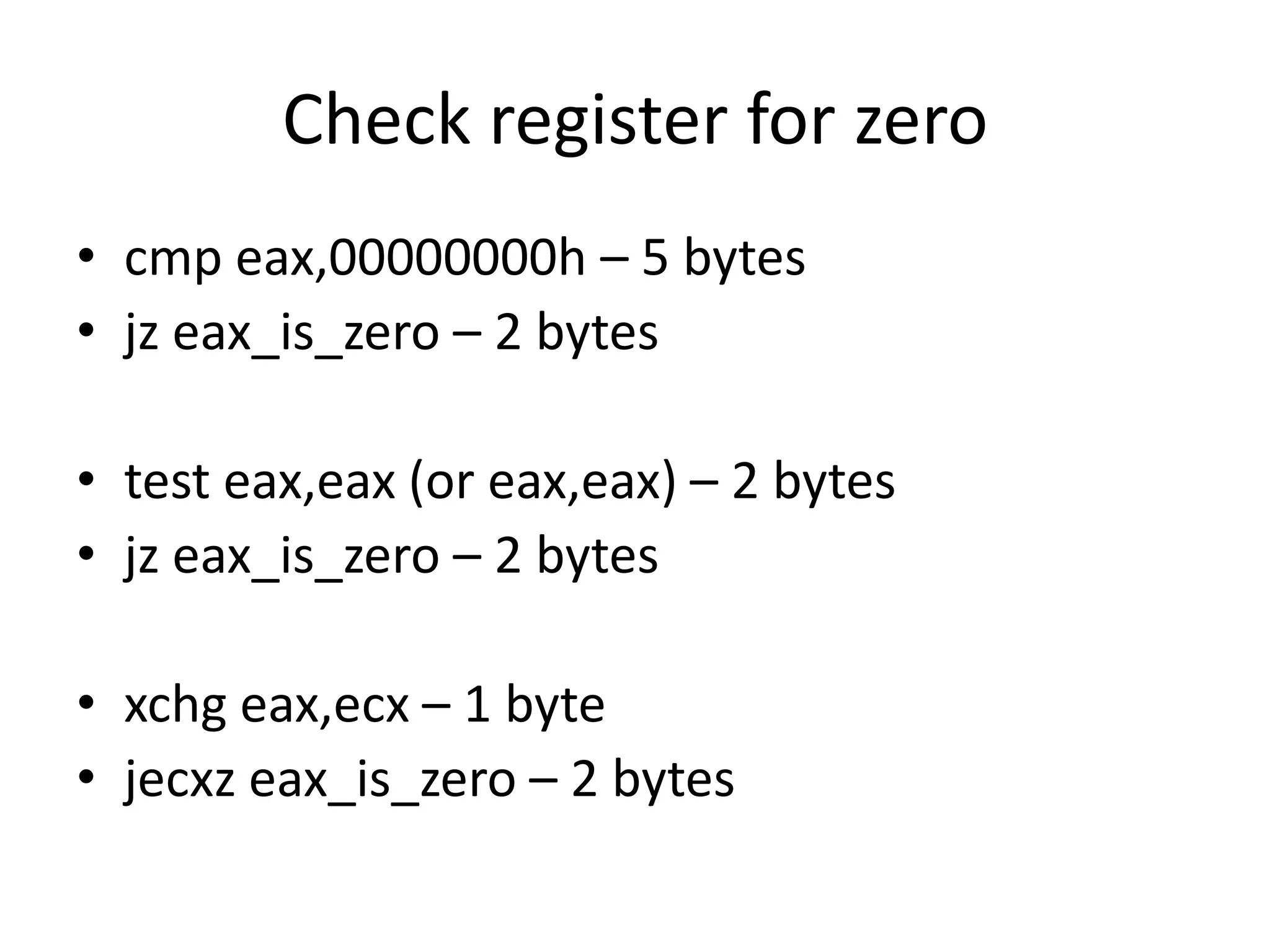

- 45. Check register for zero • cmp eax,00000000h – 5 bytes • jz eax_is_zero – 2 bytes • test eax,eax (or eax,eax) – 2 bytes • jz eax_is_zero – 2 bytes • xchg eax,ecx – 1 byte • jecxz eax_is_zero – 2 bytes

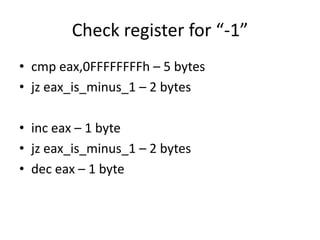

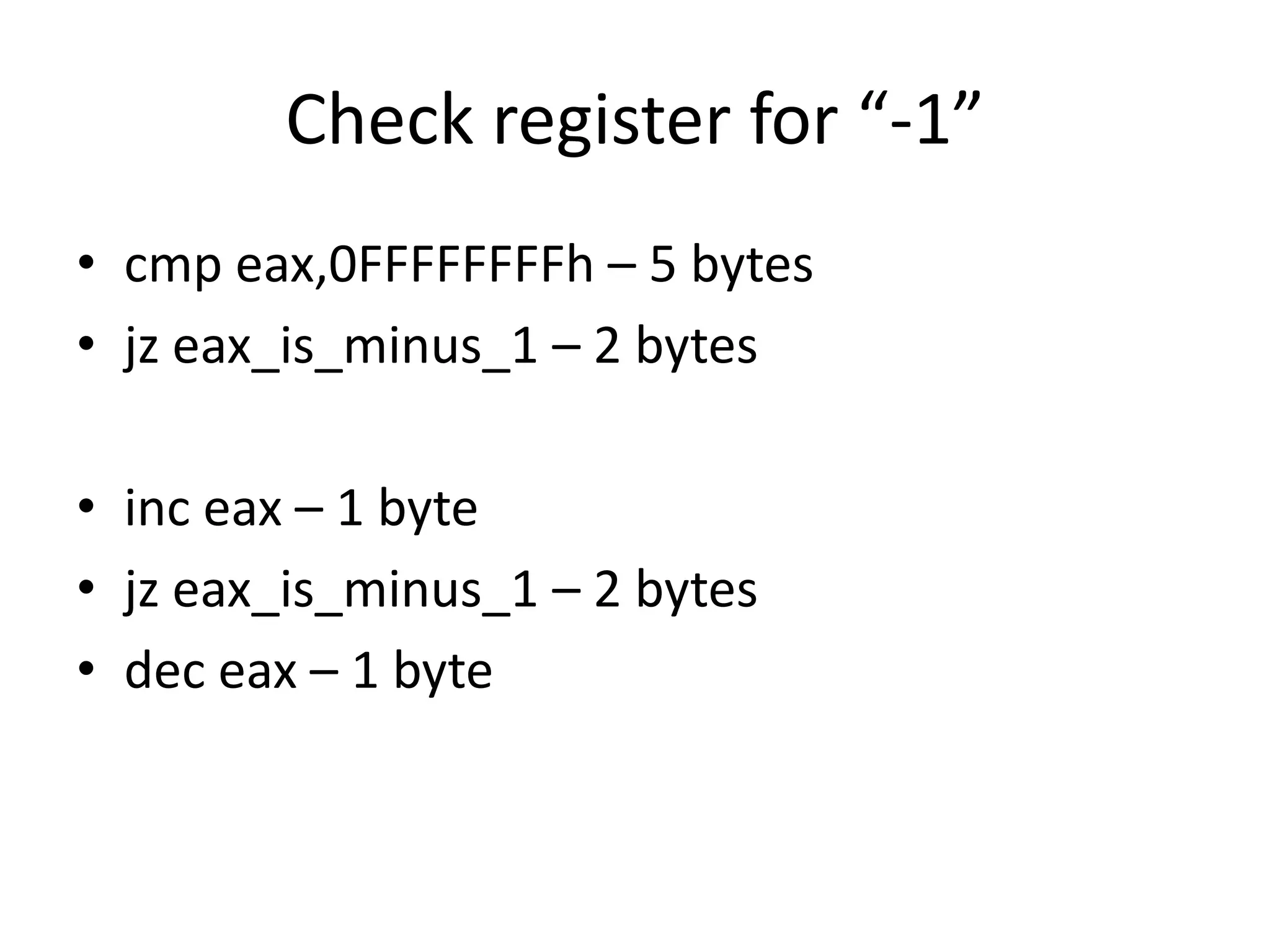

- 46. Check register for “-1” • cmp eax,0FFFFFFFFh – 5 bytes • jz eax_is_minus_1 – 2 bytes • inc eax – 1 byte • jz eax_is_minus_1 – 2 bytes • dec eax – 1 byte

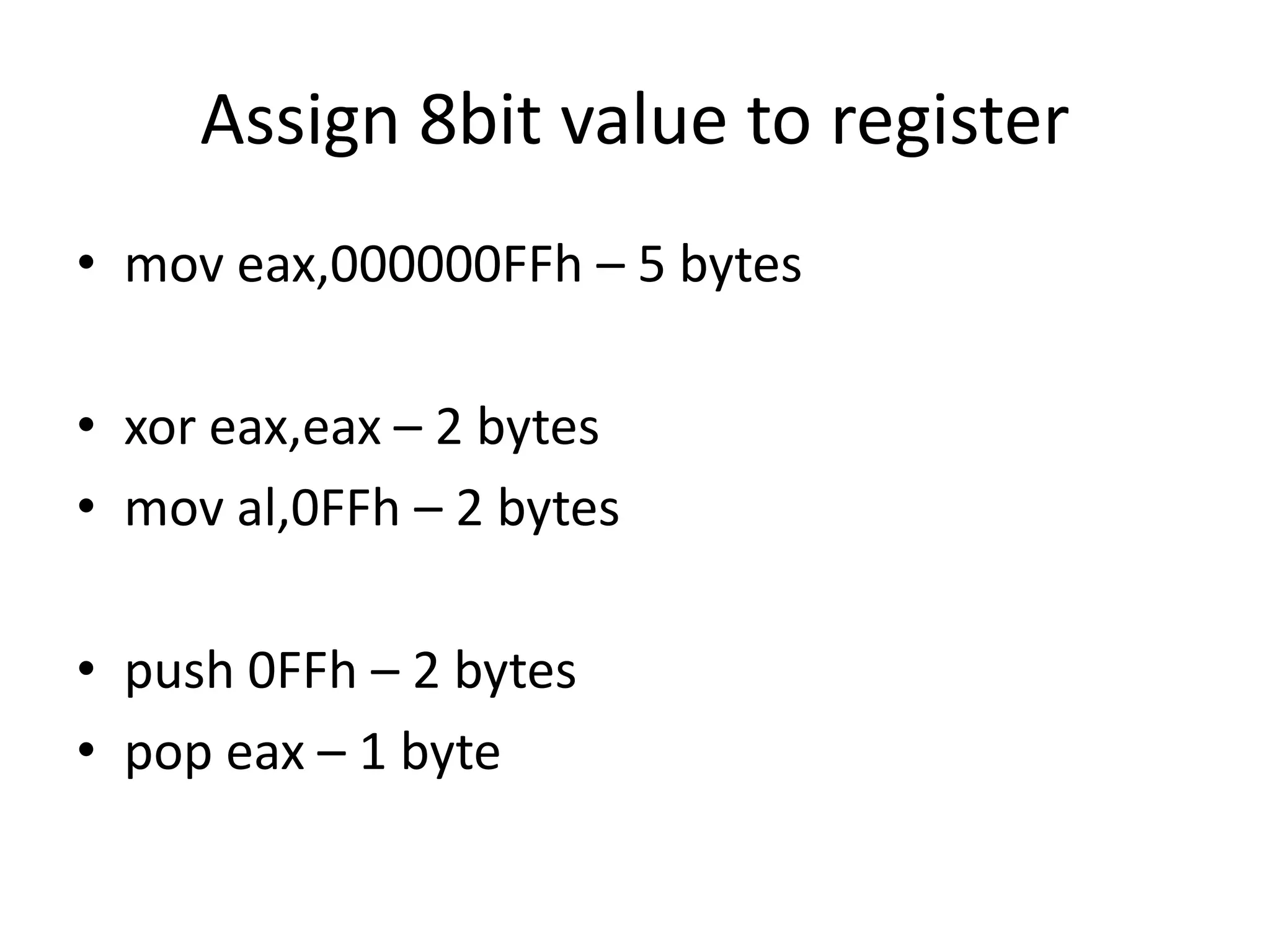

- 47. Assign 8bit value to register • mov eax,000000FFh – 5 bytes • xor eax,eax – 2 bytes • mov al,0FFh – 2 bytes • push 0FFh – 2 bytes • pop eax – 1 byte

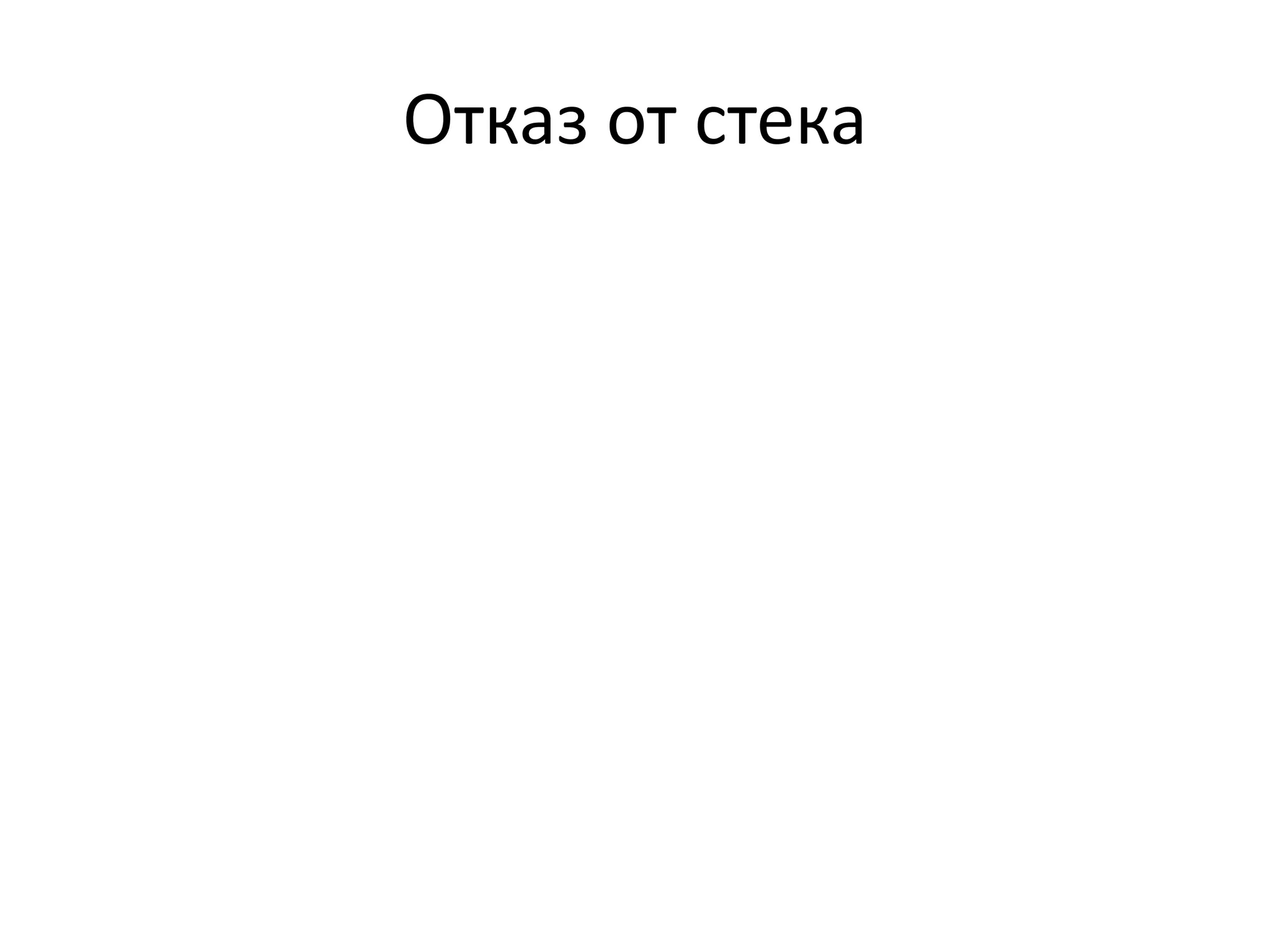

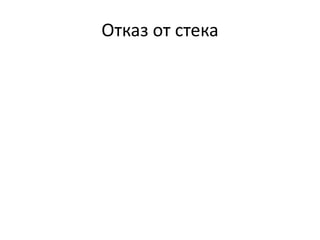

- 48. Отказ от стека

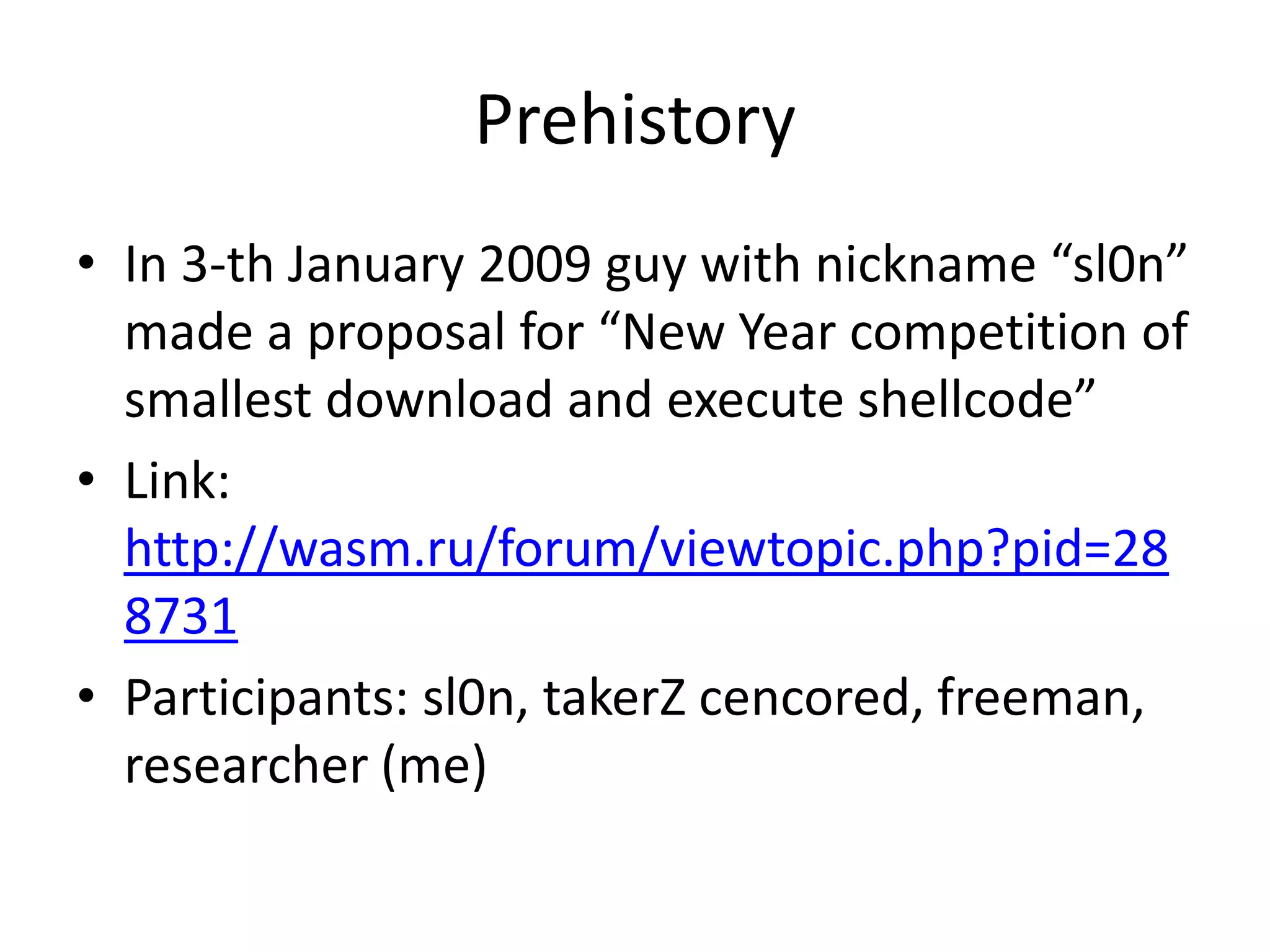

- 50. Prehistory • In 3-th January 2009 guy with nickname “sl0n” made a proposal for “New Year competition of smallest download and execute shellcode” • Link: http://wasm.ru/forum/viewtopic.php?pid=28 8731 • Participants: sl0n, takerZ cencored, freeman, researcher (me)

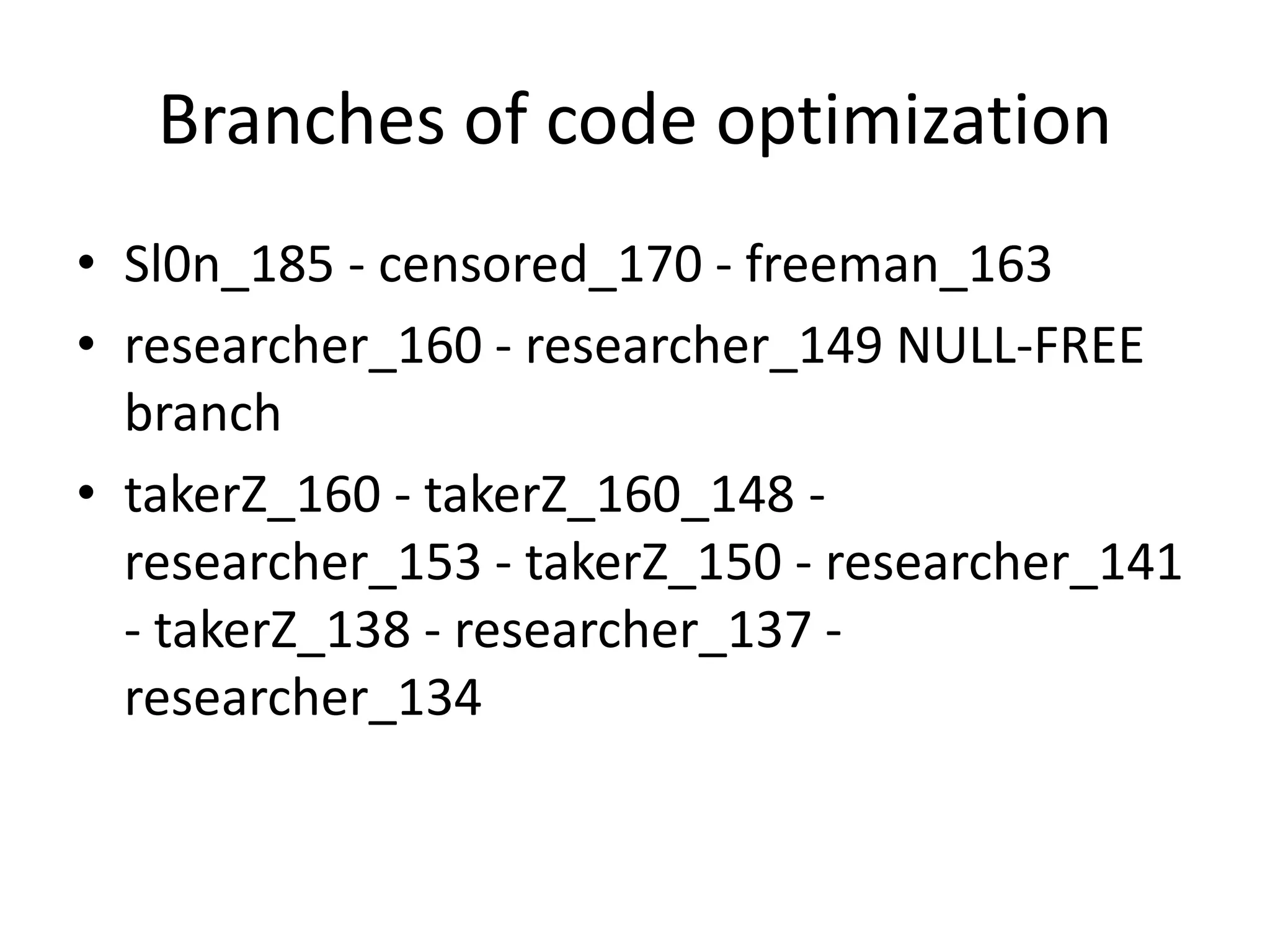

- 51. Branches of code optimization • Sl0n_185 - censored_170 - freeman_163 • researcher_160 - researcher_149 NULL-FREE branch • takerZ_160 - takerZ_160_148 - researcher_153 - takerZ_150 - researcher_141 - takerZ_138 - researcher_137 - researcher_134

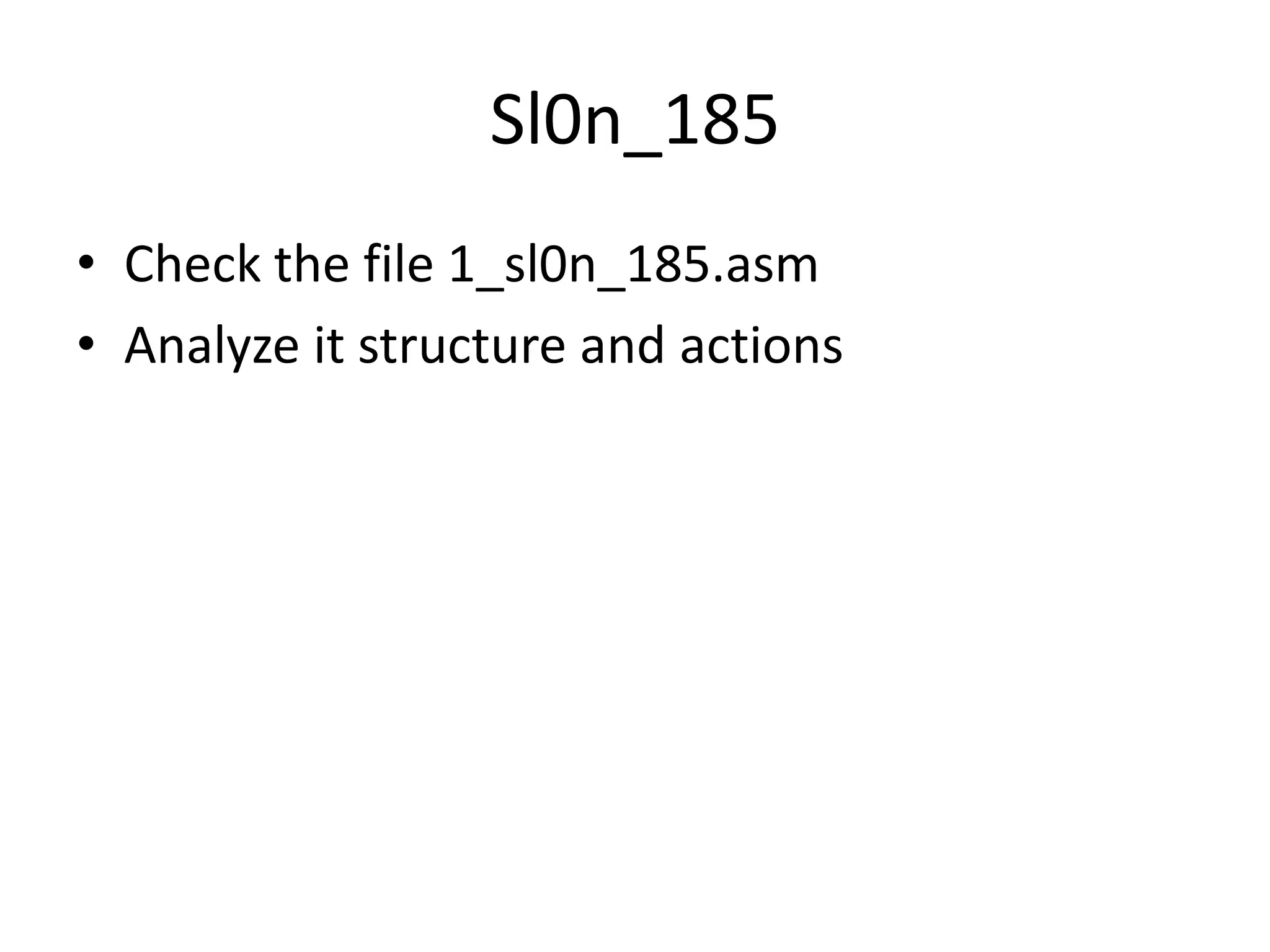

- 52. Sl0n_185 • Check the file 1_sl0n_185.asm • Analyze it structure and actions

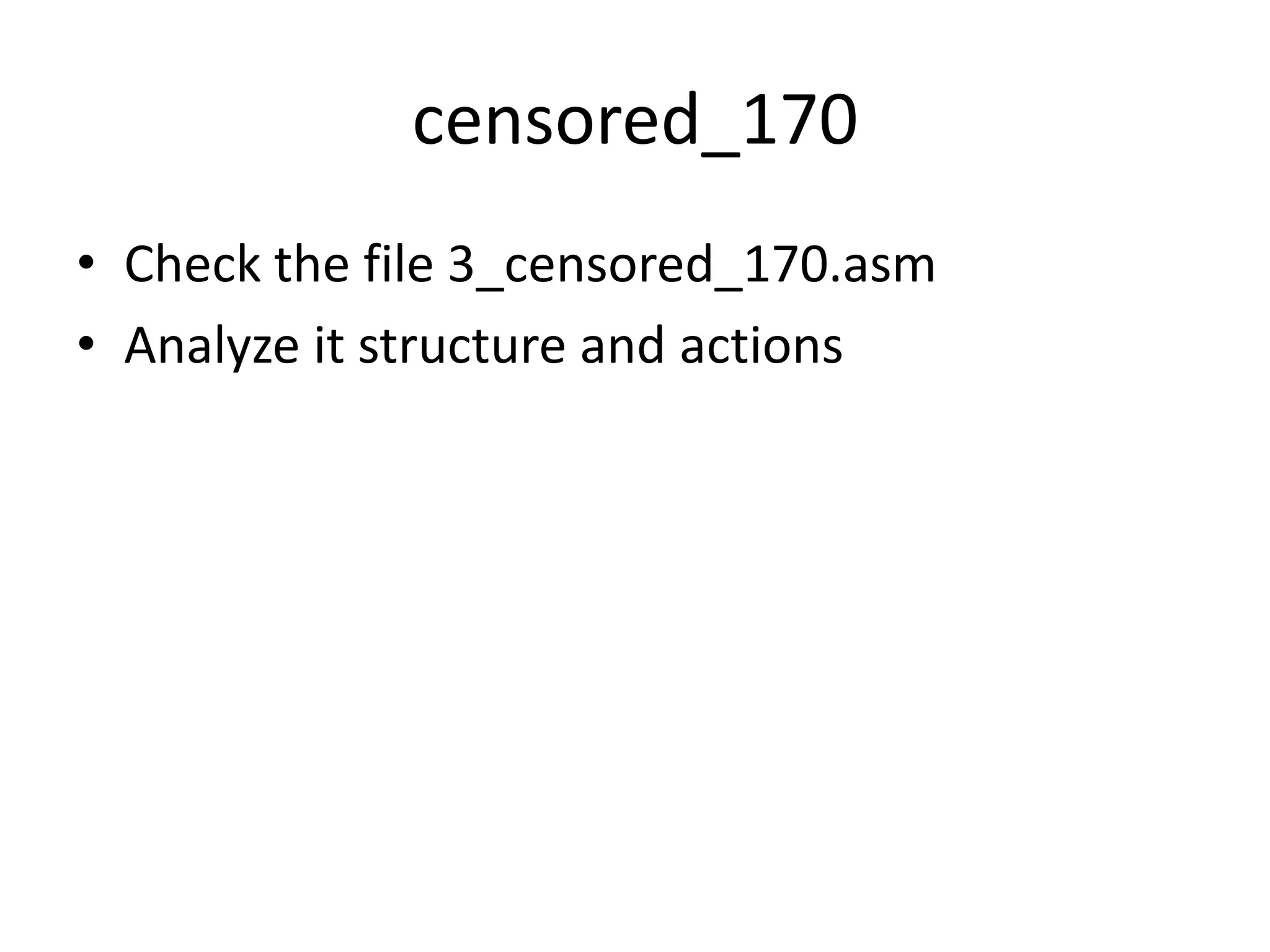

- 53. censored_170 • Check the file 3_censored_170.asm • Analyze it structure and actions

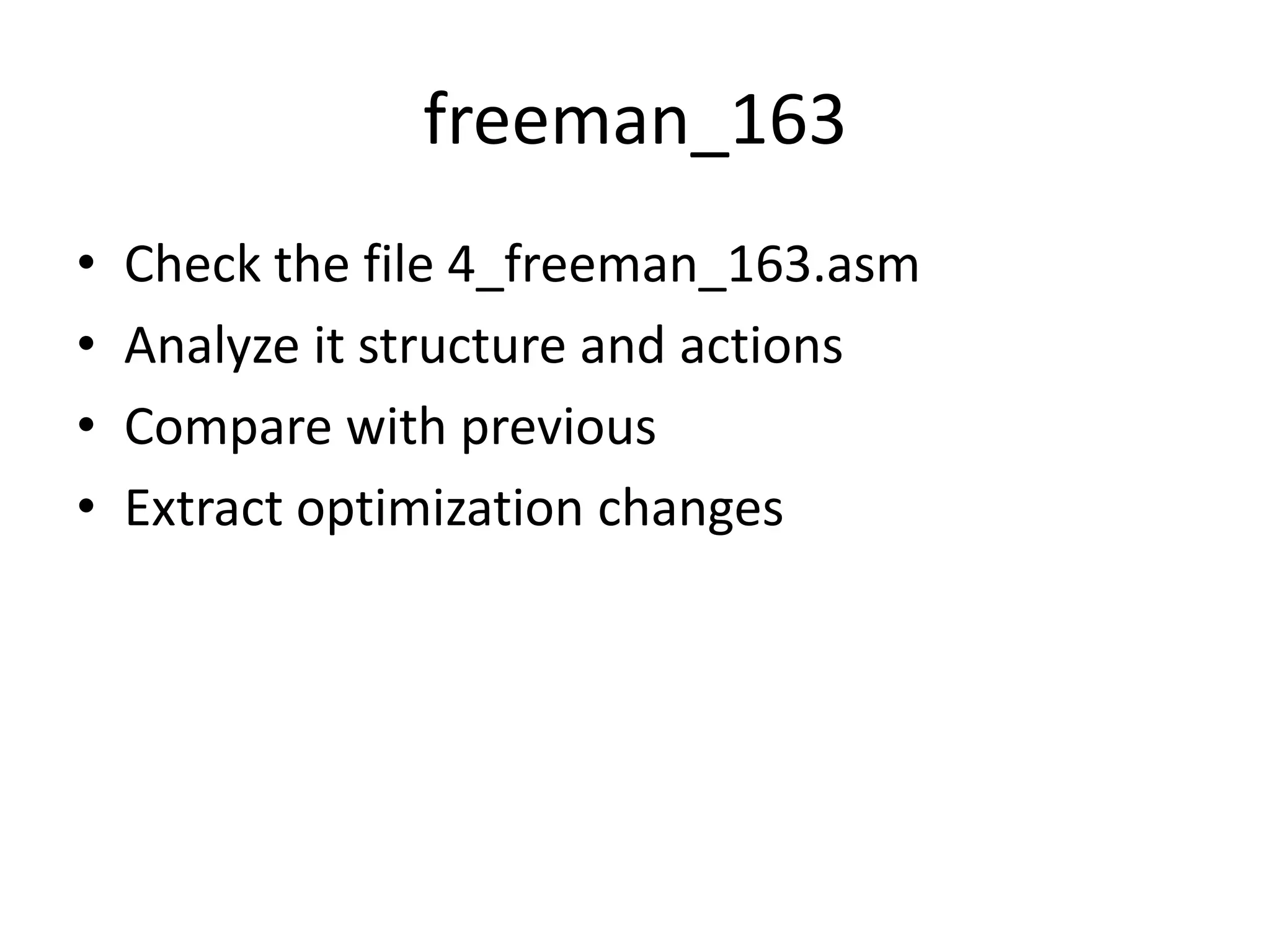

- 54. freeman_163 • Check the file 4_freeman_163.asm • Analyze it structure and actions • Compare with previous • Extract optimization changes

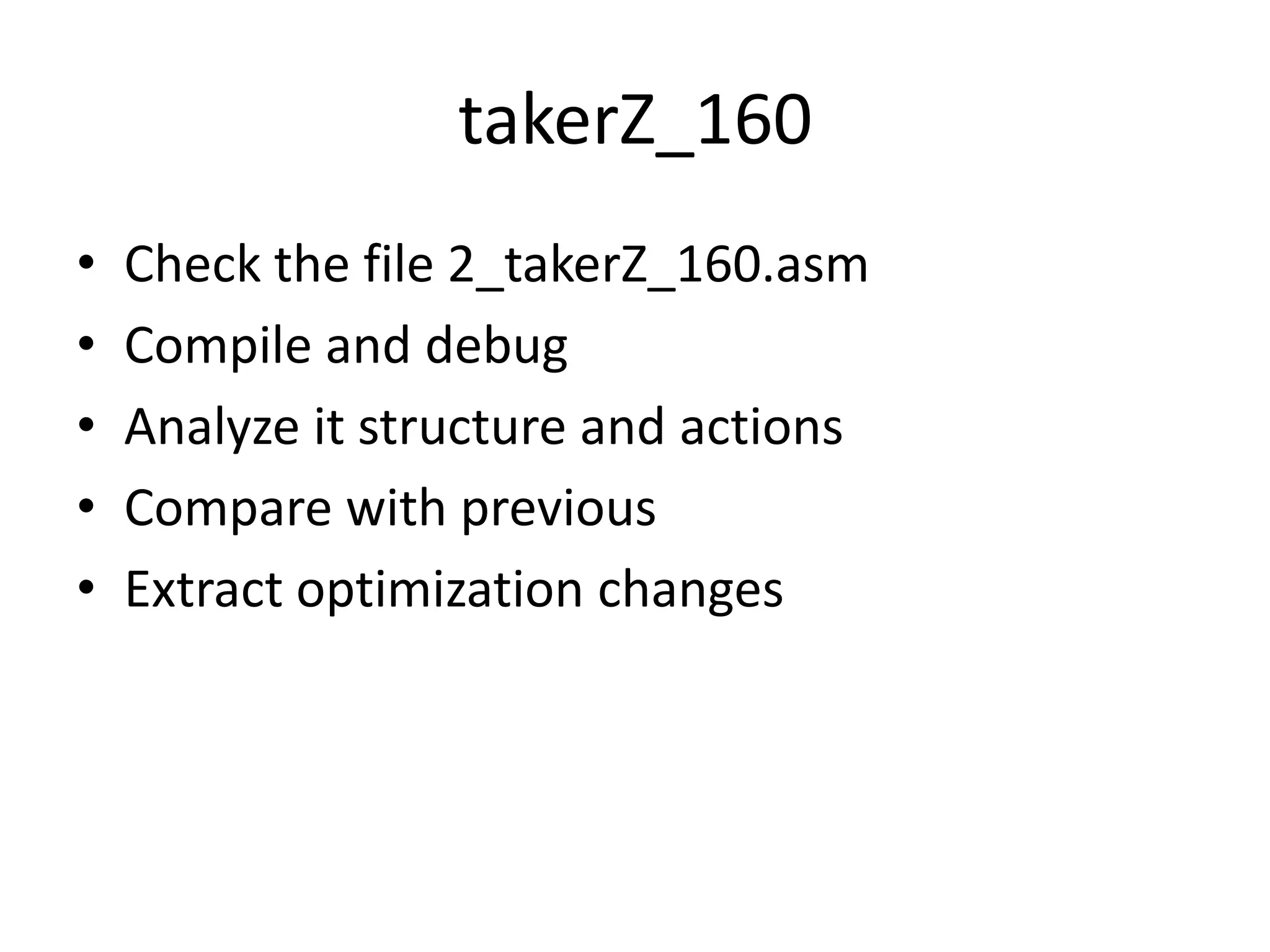

- 55. takerZ_160 • Check the file 2_takerZ_160.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes

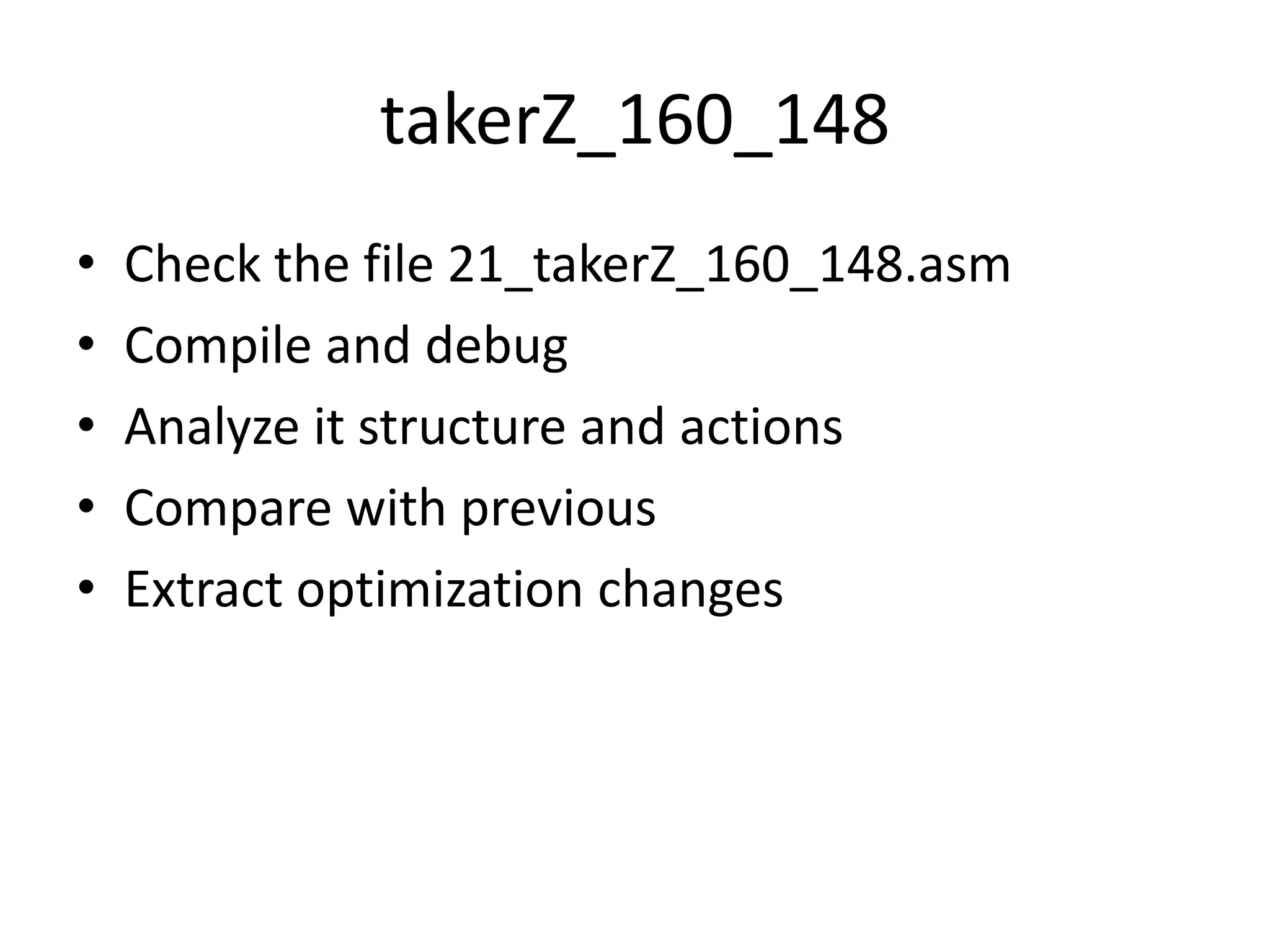

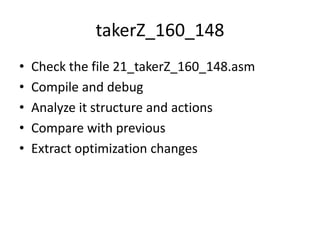

- 56. takerZ_160_148 • Check the file 21_takerZ_160_148.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes

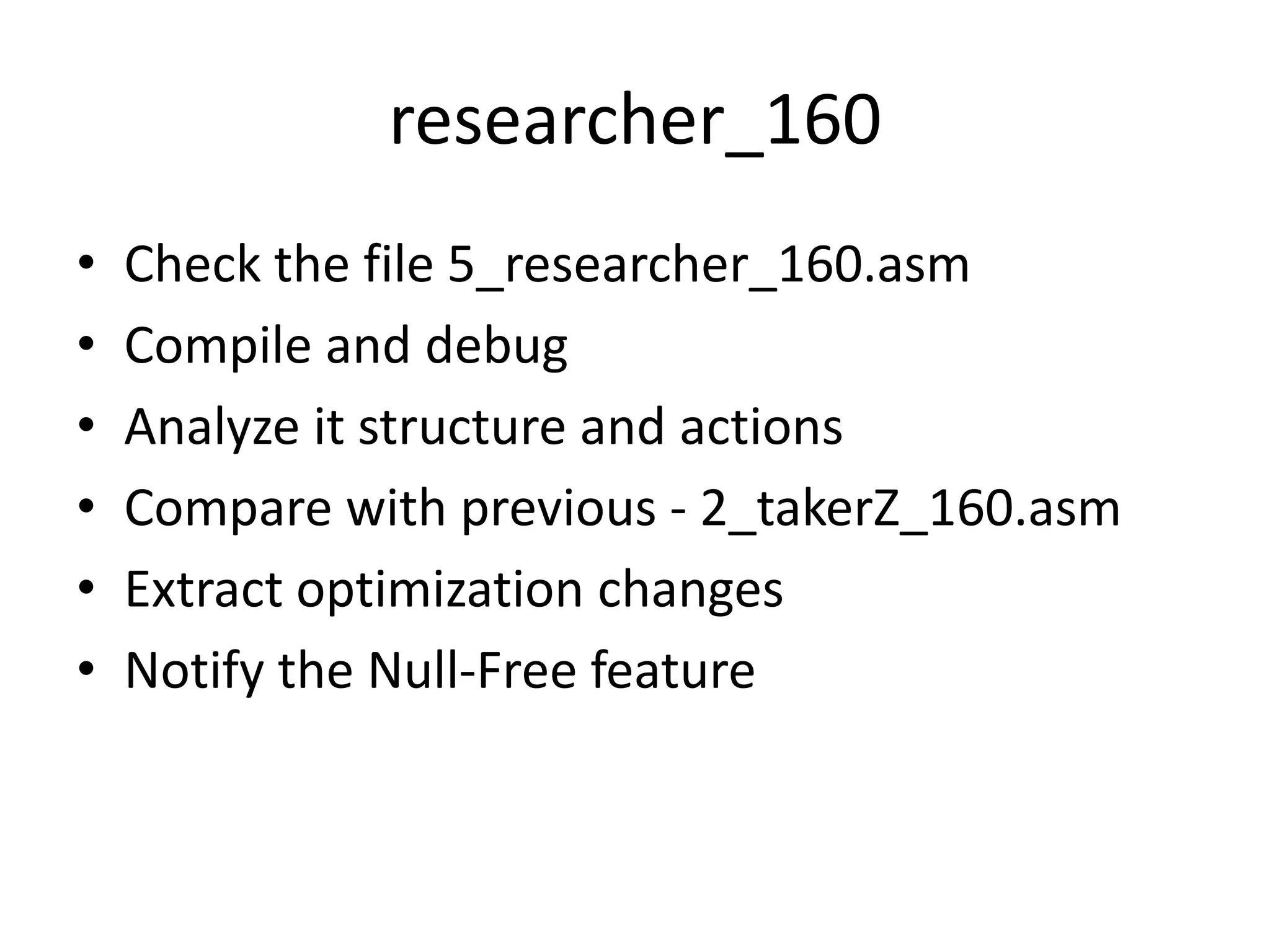

- 57. researcher_160 • Check the file 5_researcher_160.asm • Compile and debug • Analyze it structure and actions • Compare with previous - 2_takerZ_160.asm • Extract optimization changes • Notify the Null-Free feature

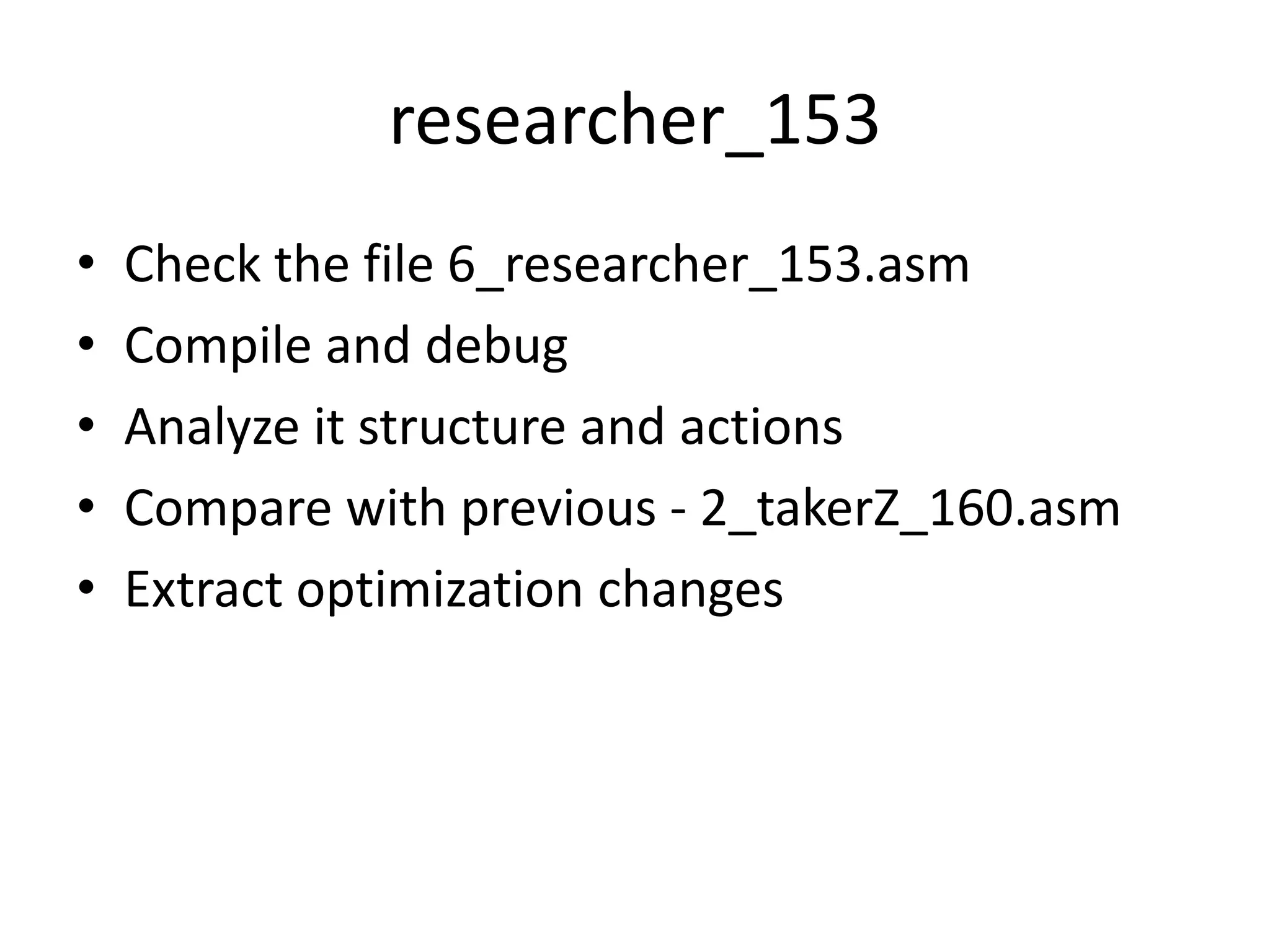

- 58. researcher_153 • Check the file 6_researcher_153.asm • Compile and debug • Analyze it structure and actions • Compare with previous - 2_takerZ_160.asm • Extract optimization changes

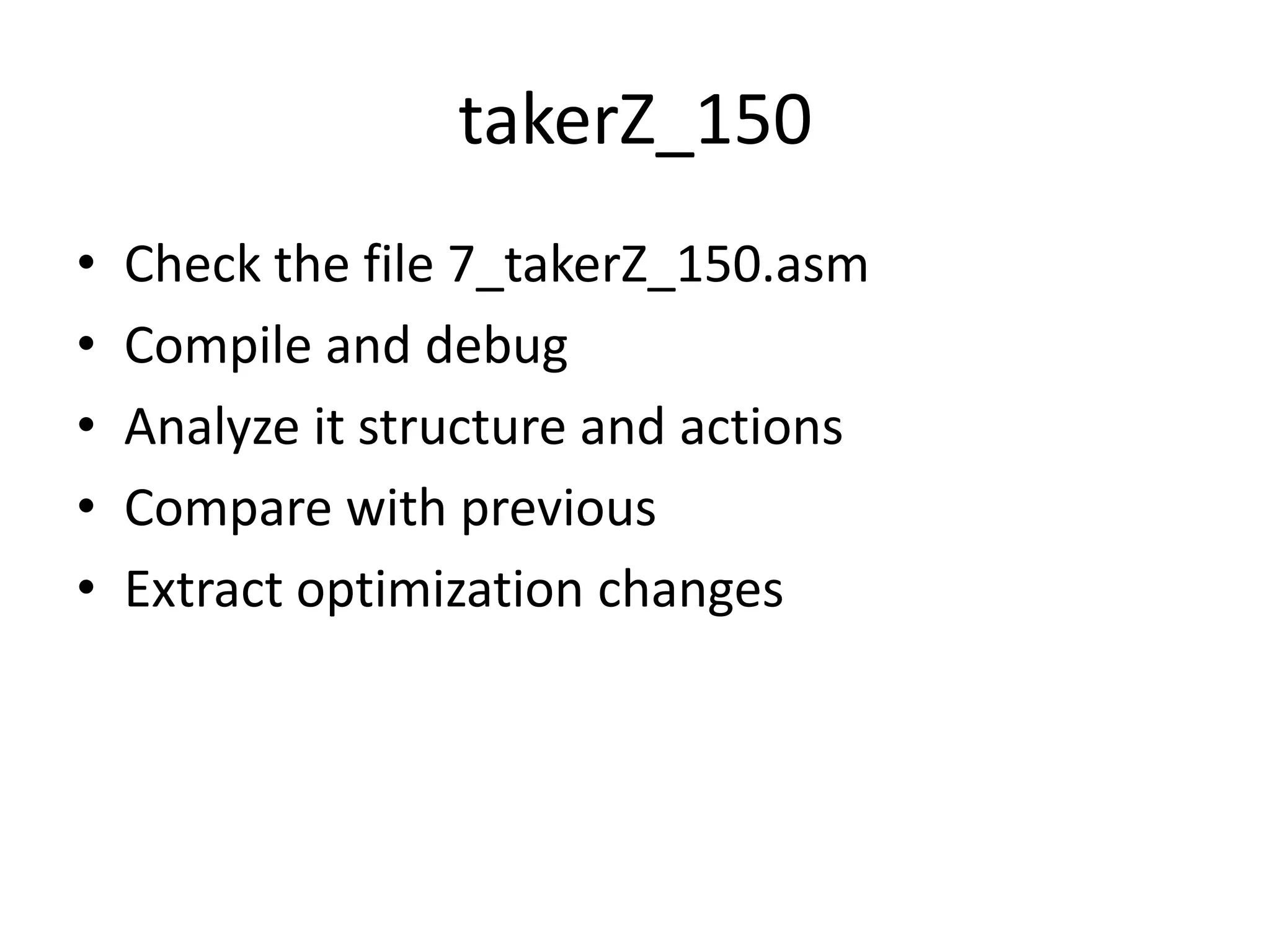

- 59. takerZ_150 • Check the file 7_takerZ_150.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes

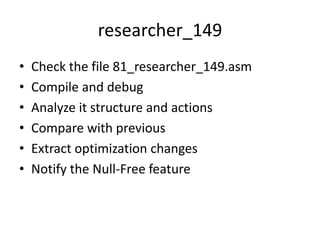

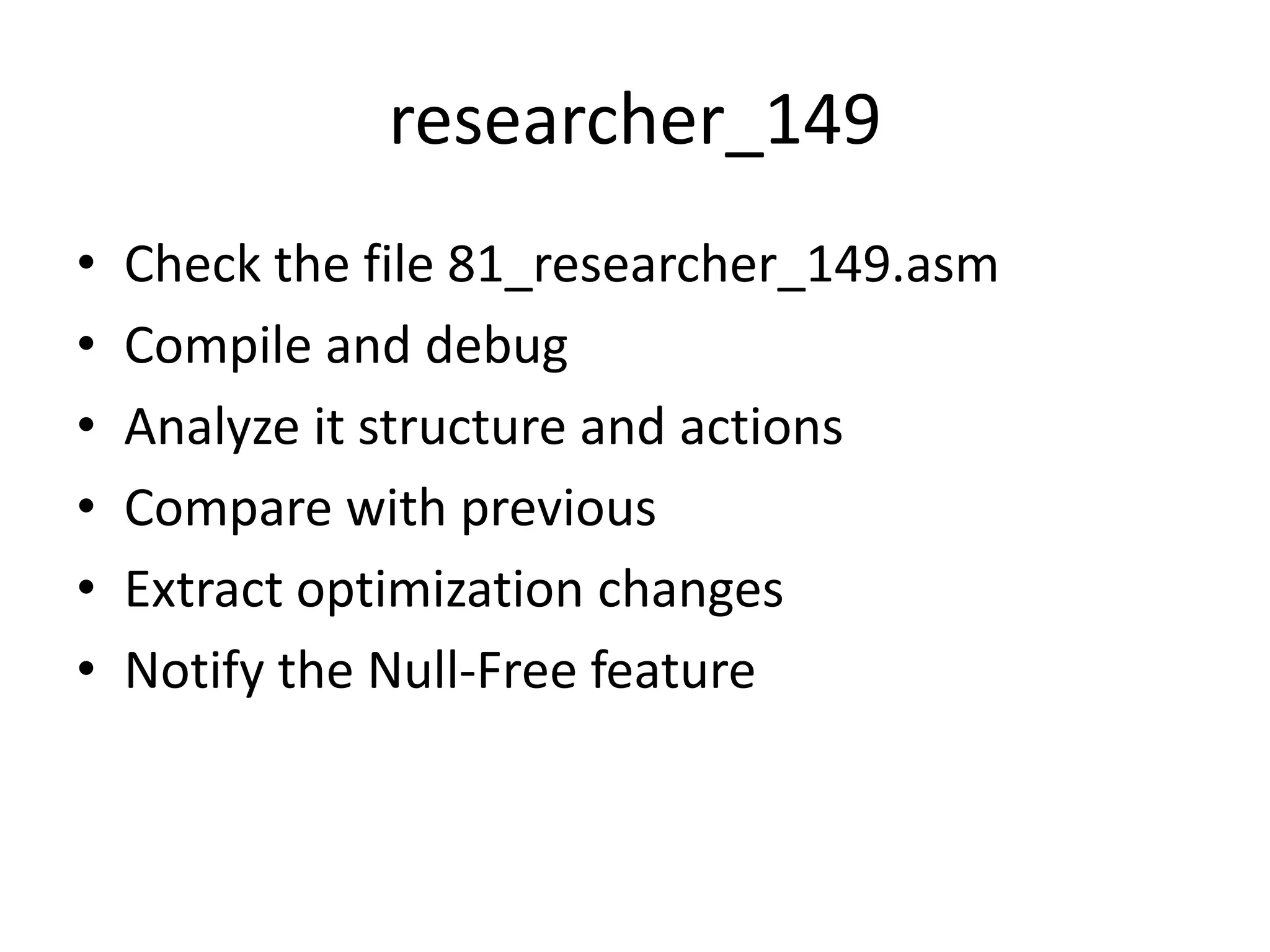

- 60. researcher_149 • Check the file 81_researcher_149.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes • Notify the Null-Free feature

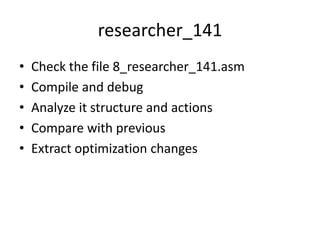

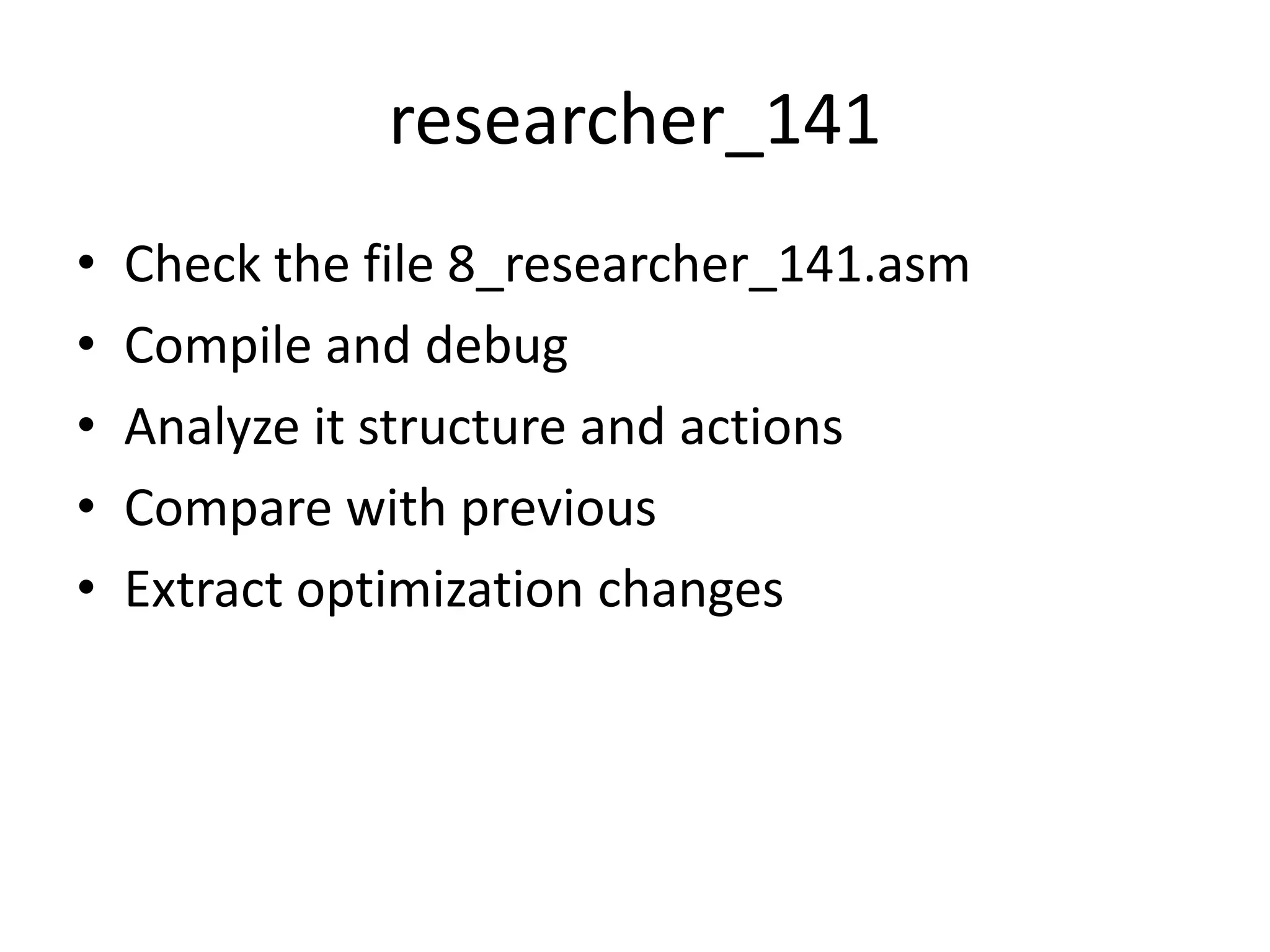

- 61. researcher_141 • Check the file 8_researcher_141.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes

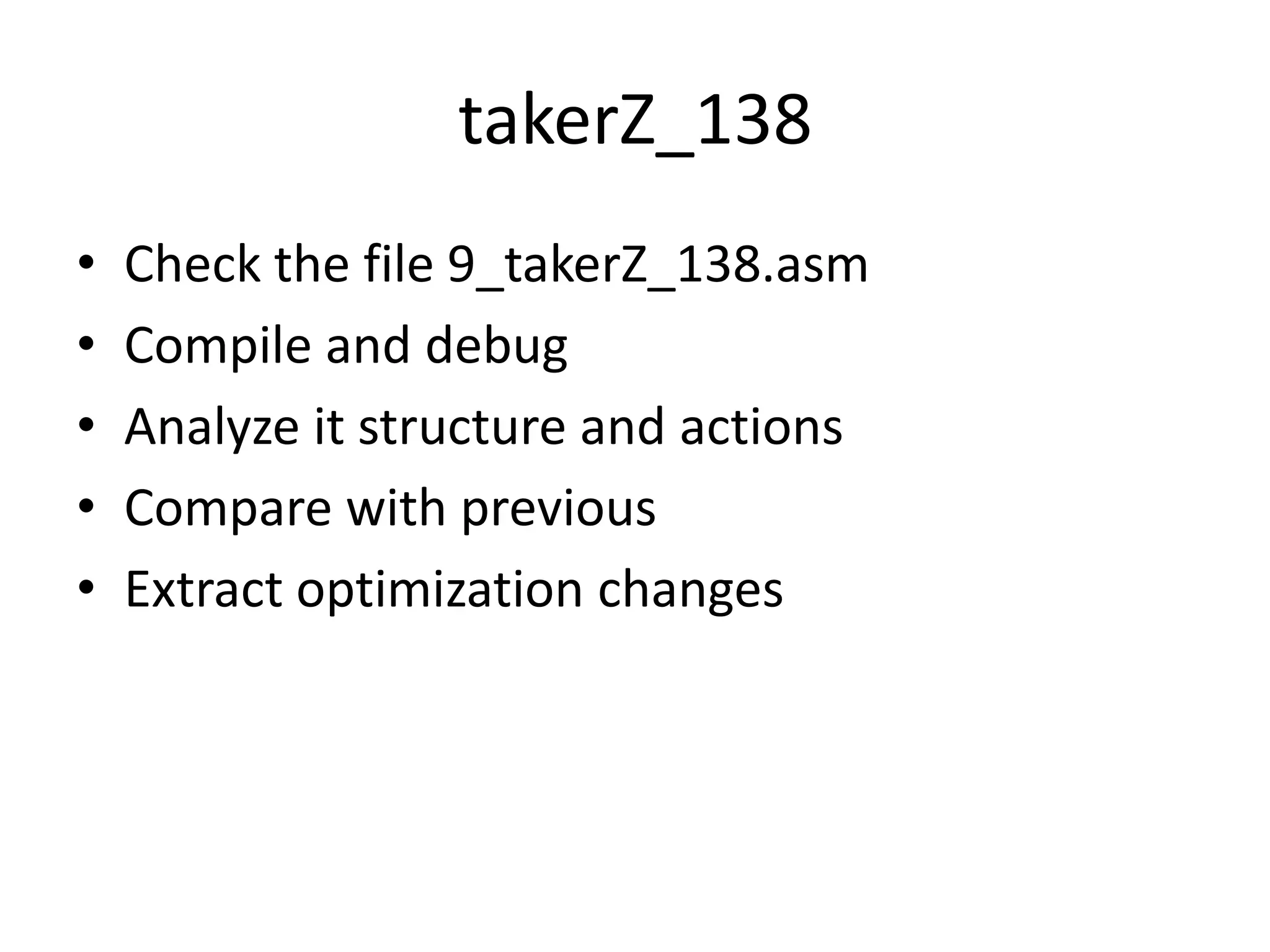

- 62. takerZ_138 • Check the file 9_takerZ_138.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes

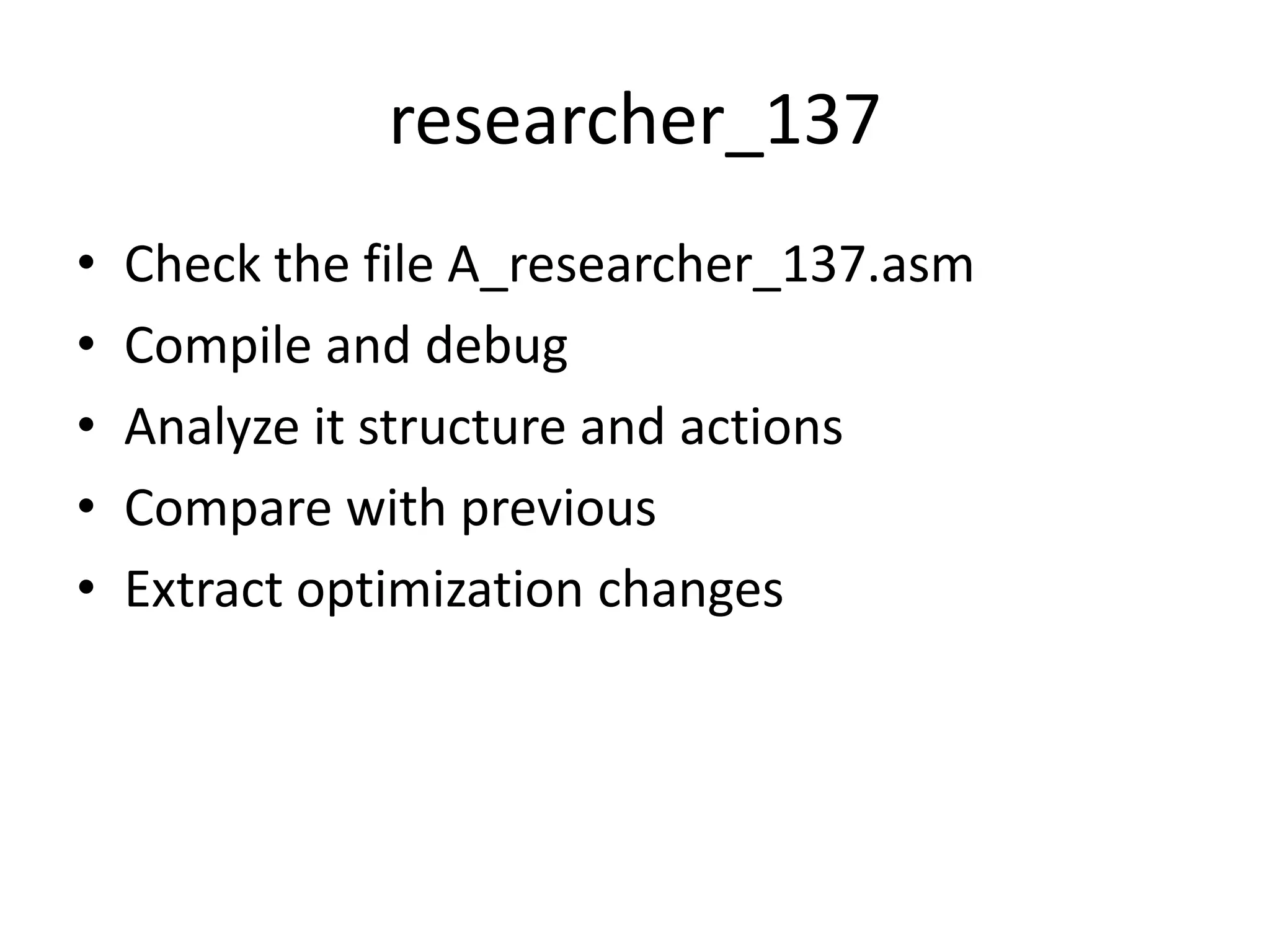

- 63. researcher_137 • Check the file A_researcher_137.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes

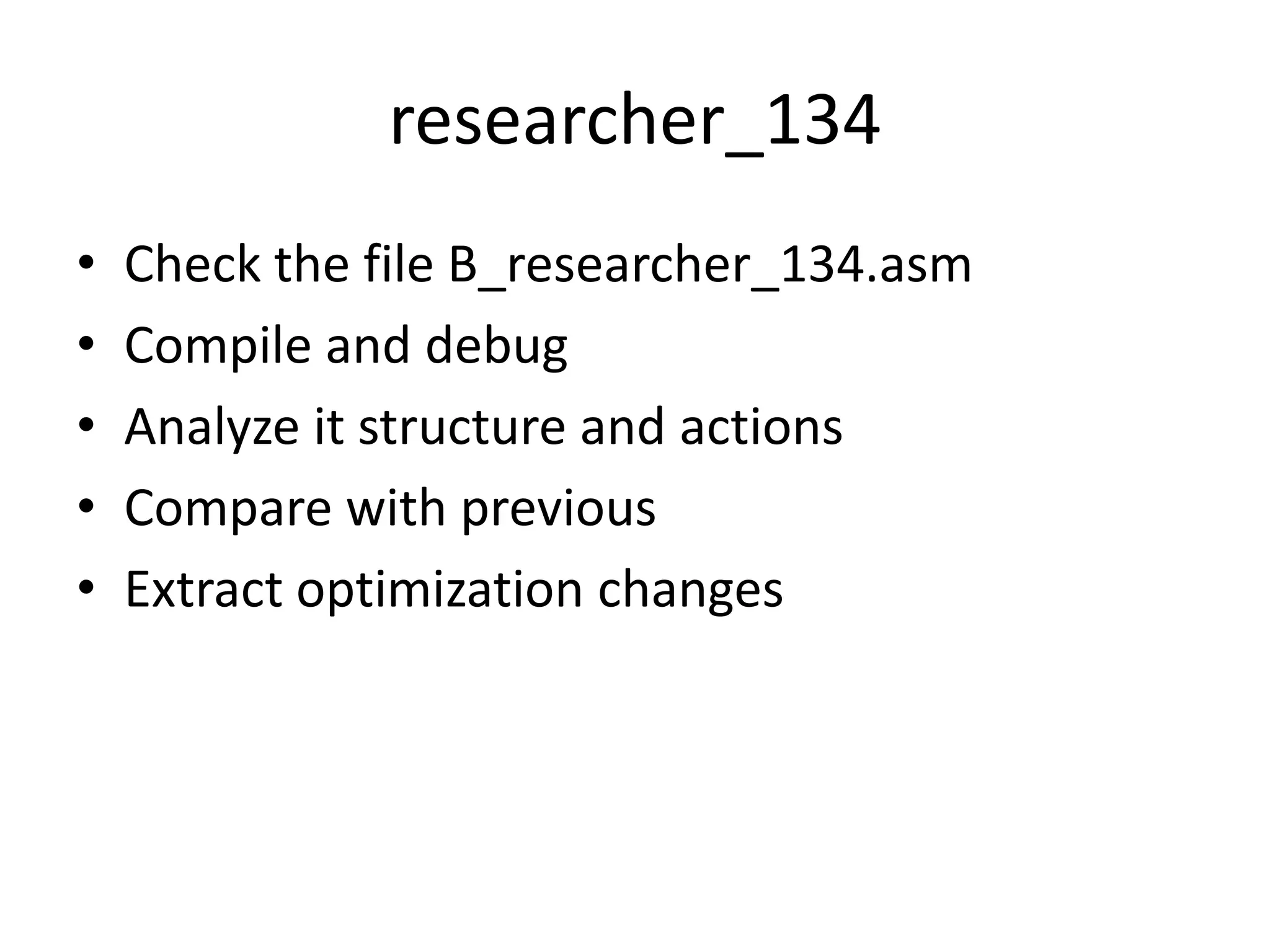

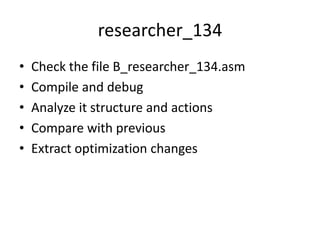

- 64. researcher_134 • Check the file B_researcher_134.asm • Compile and debug • Analyze it structure and actions • Compare with previous • Extract optimization changes

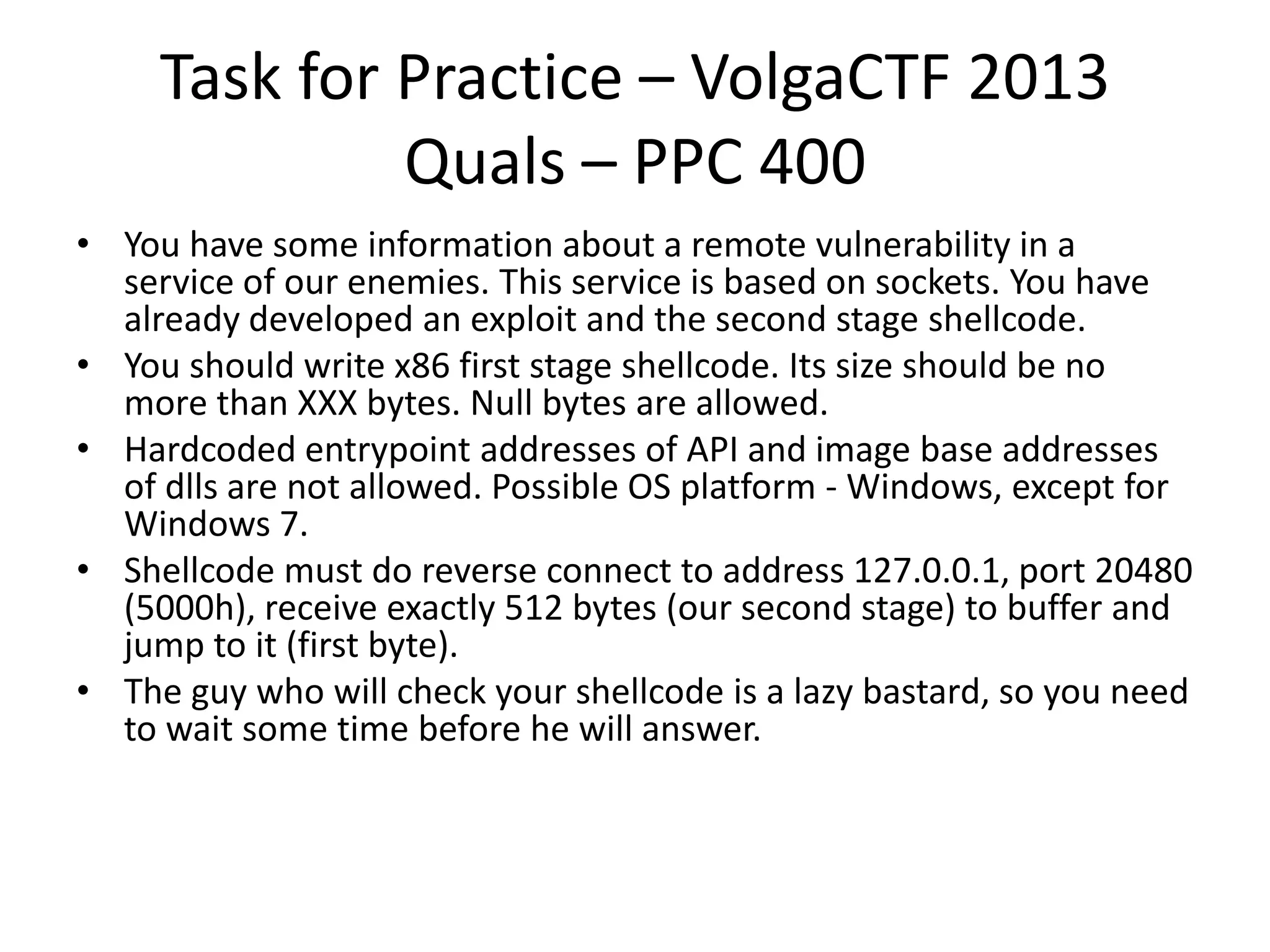

- 65. Task for Practice – VolgaCTF 2013 Quals – PPC 400 • You have some information about a remote vulnerability in a service of our enemies. This service is based on sockets. You have already developed an exploit and the second stage shellcode. • You should write x86 first stage shellcode. Its size should be no more than XXX bytes. Null bytes are allowed. • Hardcoded entrypoint addresses of API and image base addresses of dlls are not allowed. Possible OS platform - Windows, except for Windows 7. • Shellcode must do reverse connect to address 127.0.0.1, port 20480 (5000h), receive exactly 512 bytes (our second stage) to buffer and jump to it (first byte). • The guy who will check your shellcode is a lazy bastard, so you need to wait some time before he will answer.
- 66. Questions ?
