UnQLite is an embedded key-value and document-oriented database with a simple API similar to SQLite. It uses a BSD license and supports cross-platform usage. Benchmarks show it has comparable or better performance than SQLite, Berkeley DB and other databases for common operations like storing, fetching, and iterating over large amounts of data. The developer is working on adding new storage engines to UnQLite.

1. On UnQLite
Kenichi Ishigaki
(@charsbar)
Kyoto.pm #5
Jul 13, 2013

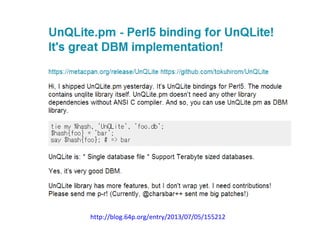

2. http://blog.64p.org/entry/2013/07/05/155212

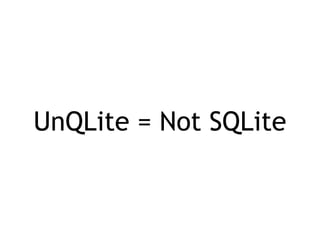

3. UnQLite = Not SQLite

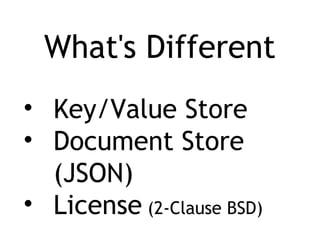

4. What's Different
• Key/Value Store
• Document Store
(JSON)
• License (2-Clause BSD)

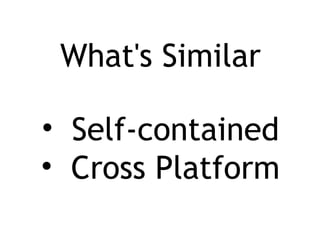

5. What's Similar
• Self-contained
• Cross Platform

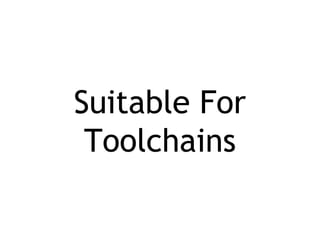

6. Suitable For
Toolchains

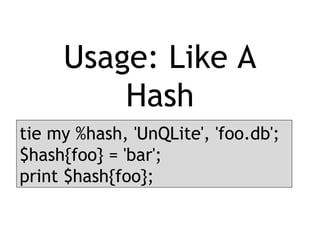

7. Usage: Like A
Hash
tie my %hash, 'UnQLite', 'foo.db';
$hash{foo} = 'bar';
print $hash{foo};

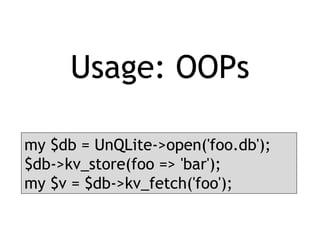

8. Usage: OOPs
my $db = UnQLite->open('foo.db');
$db->kv_store(foo => 'bar');
my $v = $db->kv_fetch('foo');

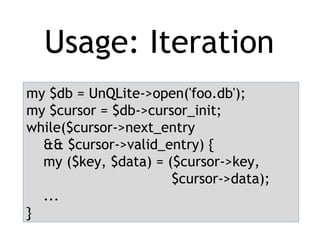

9. Usage: Iteration
my $db = UnQLite->open('foo.db');
my $cursor = $db->cursor_init;
while($cursor->next_entry
&& $cursor->valid_entry) {
my ($key, $data) = ($cursor->key,
$cursor->data);
...
}

10. JSON... only for Jx9
my $db = UnQLite->open(':memory:');
$db->exec(<<'JX9');
db_exists('foo') || db_create('foo');
db_store('foo', [{bar: 'baz'}])
|| print db_errlog();
print db_fetch('foo');# {"bar":"baz","__id":0}
JX9
say dump $db->kv_fetch('foo'); # ?????

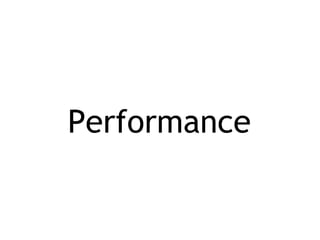

11. Performance

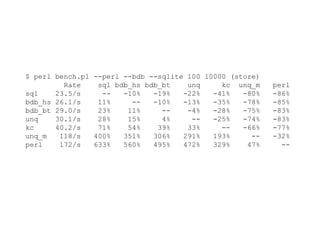

12. $ perl bench.pl --perl --bdb --sqlite 100 10000 (store)
Rate sql bdb_hs bdb_bt unq kc unq_m perl
sql 23.5/s -- -10% -19% -22% -41% -80% -86%
bdb_hs 26.1/s 11% -- -10% -13% -35% -78% -85%
bdb_bt 29.0/s 23% 11% -- -4% -28% -75% -83%
unq 30.1/s 28% 15% 4% -- -25% -74% -83%
kc 40.2/s 71% 54% 39% 33% -- -66% -77%
unq_m 118/s 400% 351% 306% 291% 193% -- -32%
perl 172/s 633% 560% 495% 472% 329% 47% --

13. $ perl bench.pl --perl --bdb --sqlite 10 100000 (store)
Rate bdb_hs sql unq bdb_bt kc perl unq_m
bdb_hs 1.14/s -- -53% -57% -60% -81% -89% -89%
sql 2.43/s 114% -- -8% -15% -59% -76% -77%
unq 2.65/s 133% 9% -- -7% -55% -74% -75%
bdb_bt 2.87/s 152% 18% 8% -- -52% -72% -73%
kc 5.95/s 424% 145% 124% 108% -- -42% -44%
perl 10.2/s 798% 320% 285% 256% 71% -- -4%
unq_m 10.6/s 836% 338% 301% 271% 79% 4% --

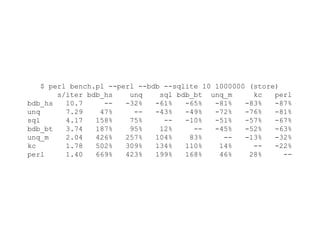

14. $ perl bench.pl --perl --bdb --sqlite 10 1000000 (store)
s/iter bdb_hs unq sql bdb_bt unq_m kc perl
bdb_hs 10.7 -- -32% -61% -65% -81% -83% -87%
unq 7.29 47% -- -43% -49% -72% -76% -81%
sql 4.17 158% 75% -- -10% -51% -57% -67%
bdb_bt 3.74 187% 95% 12% -- -45% -52% -63%
unq_m 2.04 426% 257% 104% 83% -- -13% -32%
kc 1.78 502% 309% 134% 110% 14% -- -22%
perl 1.40 669% 423% 199% 168% 46% 28% --

15. $ perl bench.pl --perl --bdb --sqlite 10 10000000 (store)
s/iter unq_m bdb_hs unq kc sql bdb_bt perl
unq_m 184 -- -38% -51% -67% -77% -78% -91%
bdb_hs 114 62% -- -20% -46% -62% -64% -85%
unq 91.0 103% 25% -- -33% -53% -55% -82%
kc 61.3 201% 86% 48% -- -30% -33% -73%
sql 43.1 328% 164% 111% 42% -- -5% -61%
bdb_bt 40.9 350% 178% 122% 50% 5% -- -59%
perl 16.6 1008% 584% 447% 268% 159% 146% --

16. $ perl bench.pl --bdb 100 10000 (fetch)
Rate bdb_bt unq bdb_hs kc
bdb_bt 40.0/s -- -5% -8% -23%
unq 42.2/s 5% -- -3% -19%
bdb_hs 43.7/s 9% 3% -- -16%
kc 52.1/s 30% 23% 19% --

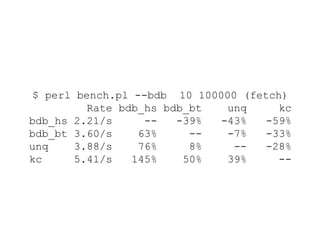

17. $ perl bench.pl --bdb 10 100000 (fetch)
Rate bdb_hs bdb_bt unq kc
bdb_hs 2.21/s -- -39% -43% -59%
bdb_bt 3.60/s 63% -- -7% -33%
unq 3.88/s 76% 8% -- -28%
kc 5.41/s 145% 50% 39% --

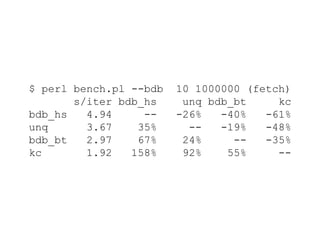

18. $ perl bench.pl --bdb 10 1000000 (fetch)
s/iter bdb_hs unq bdb_bt kc
bdb_hs 4.94 -- -26% -40% -61%
unq 3.67 35% -- -19% -48%
bdb_bt 2.97 67% 24% -- -35%
kc 1.92 158% 92% 55% --

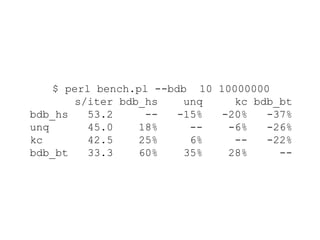

19. $ perl bench.pl --bdb 10 10000000
s/iter bdb_hs unq kc bdb_bt
bdb_hs 53.2 -- -15% -20% -37%
unq 45.0 18% -- -6% -26%
kc 42.5 25% 6% -- -22%
bdb_bt 33.3 60% 35% 28% --

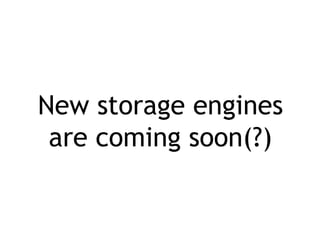

20. New storage engines
are coming soon(?)

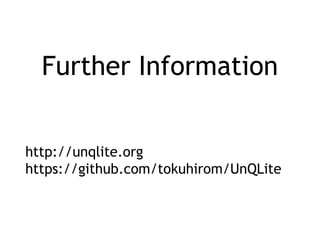

21. Further Information
http://unqlite.org
https://github.com/tokuhirom/UnQLite
