Kernel Debugging
Firo Yang
yongming.yang@windriver.com

2. 2 © 2015 Wind River. All Rights Reserved.

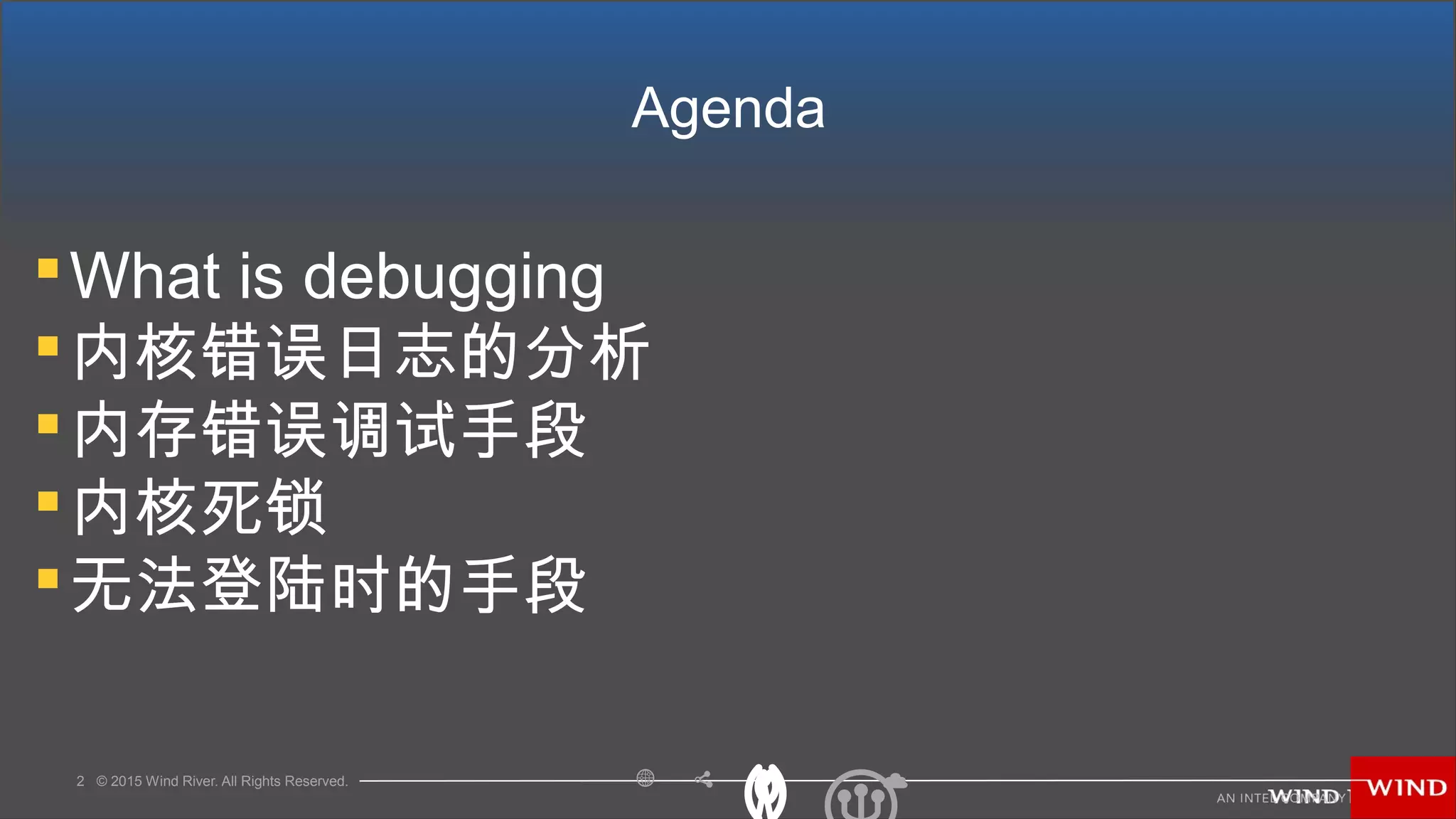

Agenda
What is debugging
内核错误日志的分析
内存错误调试手段
内核死锁
无法登陆时的手段

3. 3 © 2015 Wind River. All Rights Reserved.
What is debugging?
● It’s abductive reasoning
● Theory + Observations => Explanation
● Explanation → Observations
● Bug types
● nvd.nist.gov/cwe.cfm
● Debugging techniques

4. 4 © 2015 Wind River. All Rights Reserved.
内核错误日志的分析
4 © 2015 Wind River. All Rights Reserved.

5. 5 © 2015 Wind River. All Rights Reserved.
General procedures
● Prerequisites
● Don’t Panic
● Hardware specifications
● Kernel Source code
● Read the F**ing Source Code :-) torvalds@cc.helsinki.fi
● The basic principle: assembly → C → Transactions

6. 6 © 2015 Wind River. All Rights Reserved.
Kernel log functions
● Kernel mostly use die() to output log info
• Panic, oops, traps
● Other functions
• Custom outputs

7. 7 © 2015 Wind River. All Rights Reserved.
The structure of kernel bug log
●
Components of oops messages
●
Bug title
●
Print modules
●
Registers
●
Stack & calltrace
●
Instruction code
●
Summary of this bug
●
Example by Linus
yarchive.net/comp/linux/oops_decoding.html

8. 8 © 2015 Wind River. All Rights Reserved.
BUG: unable to handle kernel NULL pointer dereference at virtual address 00000008
printing eip: c022a7b5 *pde = 00000000 Oops: 0000 [#1] SMP
Modules linked in: thinkpad_acpi ppdev speedstep_lib cpufreq_conservative cpufreq_userspace cpufreq_ondemand cpufreq_stats
cpufreq_powersave freq_table video bay dock ac sbs button container battery lp irtty_sir sir_dev pcmcia parport_pc parport snd_cs46xx
gameport snd_ac97_codec ac97_bus snd_pcm_oss snd_mixer_oss nsc_ircc snd_pcm snd_seq_dummy irda crc_ccitt snd_seq_oss psmouse i2c_piix4
snd_seq_midi snd_rawmidi snd_seq_midi_event serio_raw pcspkr snd_seq i2c_core snd_timer snd_seq_device snd soundcore snd_page_alloc shpchp
pci_hotplug intel_agp yenta_socket rsrc_nonstatic pcmcia_core agpgart evdev ext3 jbd mbcache sg sr_mod cdrom sd_mod uhci_hcd usbcore
ata_piix ata_generic libata scsi_mod e100 mii thermal processor fan fuse apparmor commoncap
CPU: 0
EIP: 0060:[<c022a7b5>] Not tainted VLI
EFLAGS: 00010202 (2.6.22-12-generic #1)
EIP is at acpi_ns_internalize_name+0xd/0x83
eax: 00000008 ebx: 00000000 ecx: 00000000 edx: c7879e54
esi: d0b980c0 edi: c7879e54 ebp: c7879e70 esp: c7879de8
ds: 007b es: 007b fs: 00d8 gs: 0033 ss: 0068
Process modprobe (pid: 4467, ti=c7878000 task=ce5c94c0 task.ti=c7878000)
Stack: 00000000 00000000 d0b97e60 00008080 c01c4390 d0b97e60 00000000 00000000
d0b980c0 00000000 c7879e70 c022a85c d0b97e60 c795d030 c7c604e0 c01c44ef
00000004 d0b97e60 c7acea18 c01c3884 00008080 00000004 00000004 00000080
Call Trace:
[<c01c4390>] __sysfs_new_dirent+0x20/0x50
[<c022a85c>] acpi_ns_get_node+0x31/0x93
[<c01c44ef>] sysfs_make_dirent+0x2f/0x50
[<c01c3884>] sysfs_add_file+0x74/0x90
[<d0b910b7>] drv_acpi_handle_init+0x37/0x90 [thinkpad_acpi]
[<c0231aef>] acpi_ut_release_mutex+0x5b/0x63
[<c0233ac0>] acpi_method_notify_enable+0x15/0x34
[<d0b5ba32>] cmos_init+0x52/0x70 [thinkpad_acpi]
[<d0b5c21f>] thinkpad_acpi_module_init+0x27f/0x69a [thinkpad_acpi]
[<c014a811>] sys_init_module+0x151/0x1a00
[<c01fb8cf>] prio_tree_insert+0x1f/0x250
[<c01041d2>] sysenter_past_esp+0x6b/0xa9
=======================
Code: c7 44 24 14 01 00 00 00 8b 54 24 14 8d 04 96 e9 f2 fe ff ff 83 c4 18 89 d0 5b 5e 5f 5d c3 55 57 89 d7 56 53 83 ec 1c 85 c0 74 67 <80>
38 00 74 62 85 d2 74 5e 89 04 24 89 e0 e8 b5 fb ff ff 8b 4c
EIP: [<c022a7b5>] acpi_ns_internalize_name+0xd/0x83 SS:ESP 0068:c7879de8
Bug title
Modules
Registers info
Stack and calltrace
Instructions
Summary

9. 9 © 2015 Wind River. All Rights Reserved.
CPU: 0
EIP: 0060:[<c022a7b5>] Not tainted VLI
EFLAGS: 00010202 (2.6.22-12-generic #1)
EIP is at acpi_ns_internalize_name+0xd/0x83
eax: 00000008 ebx: 00000000 ecx: 00000000 edx: c7879e54
esi: d0b980c0 edi: c7879e54 ebp: c7879e70 esp: c7879de8
ds: 007b es: 007b fs: 00d8 gs: 0033 ss: 0068
Process modprobe (pid: 4467, ti=c7878000 task=ce5c94c0 task.ti=c7878000)
Stack: 00000000 00000000 d0b97e60 00008080 c01c4390 d0b97e60 00000000 00000000
d0b980c0 00000000 c7879e70 c022a85c d0b97e60 c795d030 c7c604e0 c01c44ef
00000004 d0b97e60 c7acea18 c01c3884 00008080 00000004 00000004 00000080
Call Trace:
[<c01c4390>] __sysfs_new_dirent+0x20/0x50
[<c022a85c>] acpi_ns_get_node+0x31/0x93
[<c01c44ef>] sysfs_make_dirent+0x2f/0x50
Crash-function
Crash-offset
Size of function

10. 10 © 2015 Wind River. All Rights Reserved.
From assembly to C
● CONFIG_DEBUG_INFO
● Gdb vmlinux
● Objdump -S vmlinux

11. 11 © 2015 Wind River. All Rights Reserved.
From C to specific transactions
● Marcos – the disaster
● Solutions
● Gcc option: -save-temps
● Use DWARF debug info

12. 12 © 2015 Wind River. All Rights Reserved.
DWARF macro debug info
Build kernel with -g3

13. 13 © 2015 Wind River. All Rights Reserved.
内存越界
13 © 2015 Wind River. All Rights Reserved.

14. 14 © 2015 Wind River. All Rights Reserved.
Weaknesses that Affect Memory

Improper Restriction of Operations within the Bounds of a
Memory Buffer

Memory Resource Management Errors

Information Exposure

15. 15 © 2015 Wind River. All Rights Reserved.
Improper Restriction of Operations within
the Bounds of a Memory Buffer

Out-of-bounds Read/Write

Stack-based Buffer Overflow

Heap-based Buffer Overflow

Else?

Access of Resource Using Incompatible Type ('Type
Confusion')

16. 16 © 2015 Wind River. All Rights Reserved.
Memory Resource Management Errors

Improper Release of Memory Before Removing Last
Reference ('Memory Leak')

Use After Free

Double Free

17. 17 © 2015 Wind River. All Rights Reserved.
Detection Methods

Static Analysis

Static syntax checker: smatch

Code review

Dynamic Analysis

User space: Valgrind, AddressSanitizer

Kernel: KASAN, memleak

18. 18 © 2015 Wind River. All Rights Reserved.
AddressSanitizer

A compiled and fast memory error detector for c/c++.

Buffer overflows in heap, stack and globals

heap-use-after-free, stack-use-after-return

The average slowdown is ~2x

The average memory overhead is ~2-3x

10000+ bugs found (Chromium, Firefox, ...)


How to use

# gcc -fsanitize=address main.c

19. 19 © 2015 Wind River. All Rights Reserved.
Example of AddressSnitizer
# cat sanitizer.c
static short zero = 0;
int main(int argc, char **argv) {
unsigned long *p = &zero;
return *p;
}
# gcc -g -O -fsanitize=address -o sanitizer sanitizer.c

20. 20 © 2015 Wind River. All Rights Reserved.

21. 21 © 2015 Wind River. All Rights Reserved.
How does it work?
?

22. 22 © 2015 Wind River. All Rights Reserved.
How does it work?

Based on compiler instrumentation

23. 23 © 2015 Wind River. All Rights Reserved.
How does it work?

Based on compiler instrumentation

an instrumentation module – gcc/asan.c

a run-time library – libsanitizer or kernel src

24. 24 © 2015 Wind River. All Rights Reserved.
How does it work?

Instrumentation - Inject codes

Poison shadow memory

Check the shadow state for each memory
access


25. 25 © 2015 Wind River. All Rights Reserved.
VMA to shadow memory

Shadow memory = 1/8 of the Virtual memory space

On x86_64, offset is 0x100000000000


26. 26 © 2015 Wind River. All Rights Reserved.
Shadow states

Each 8 bytes of Virtual memory space is tracked by 1 byte in shadow
memory

Shadow states

27. 27 © 2015 Wind River. All Rights Reserved.
InstrumentationDump of assembler code for function main:
0x0000000000400846 <+0>: sub $0x8,%rsp
0x000000000040084a <+4>: mov $0x4009a0,%edi
0x000000000040084f <+9>:callq 0x400720 <puts@plt>
0x0000000000400854 <+14>: mov $0x4009e0,%eax
0x0000000000400859 <+19>: mov %rax,%rdx
0x000000000040085c <+22>: shr $0x3,%rdx
0x0000000000400860 <+26>: movzbl 0x7fff8000(%rdx),%ecx
0x0000000000400867 <+33>: mov $0x4009e7,%edx
0x000000000040086c <+38>: mov %rdx,%rsi
0x000000000040086f <+41>: shr $0x3,%rsi
0x0000000000400873 <+45>: movzbl 0x7fff8000(%rsi),%esi
0x000000000040087a <+52>: and $0x7,%eax
0x000000000040087d <+55>: cmp %al,%cl
0x000000000040087f <+57>: setle %dil
0x0000000000400883 <+61>: test %cl,%cl
0x0000000000400885 <+63>: setne %al
0x0000000000400888 <+66>: test %al,%dil
0x000000000040088b <+69>: jne 0x4008ab <main+101>
0x000000000040088d <+71>: and $0x7,%edx
0x0000000000400890 <+74>: cmp %dl,%sil
0x0000000000400893 <+77>: setle %dl
0x0000000000400896 <+80>: test %sil,%sil
0x0000000000400899 <+83>: setne %al
0x000000000040089c <+86>: test %al,%dl
0x000000000040089e <+88>: jne 0x4008ab <main+101>
0x00000000004008a0 <+90>: mov 0x13a(%rip),%eax # 0x4009e0
<zero>
0x00000000004008a6 <+96>: add $0x8,%rsp
0x00000000004008aa <+100>: retq
0x00000000004008ab <+101>: mov $0x8,%esi
0x00000000004008b0 <+106>: mov $0x4009e0,%edi
0x00000000004008b5 <+111>: callq 0x4006e0 <__asan_report_load_n@plt>
Dump of assembler code for function main:
0x00000000004004d6 <+0>: mov 0x94(%rip),%eax
# 0x400570 <zero>
0x00000000004004dc <+6>: retq
static short zero = 0;
int main(int argc, char **argv)
{
unsigned long *p = &zero;
return *p;
}

28. 28 © 2015 Wind River. All Rights Reserved.
Instrumentation
static short zero = 0;
int main(int argc, char **argv)
{
unsigned long *p = &zero;
unsigned long k = (p >> 3) + Offset;
int size = sizeof(unsigned long);
if (k != 0 && ((p & 7) + size > k))
ReportAndCrash(p);
return *p;
}

29. 29 © 2015 Wind River. All Rights Reserved.
Interceptors & reporter

Libsanitizer for userspace

KASAN for kernel

Originate from Google

100+ bug founded

30. 30 © 2015 Wind River. All Rights Reserved.
KASAN shadow memory layout
0000000000000000 - 00007fffffffffff (=47 bits) user space, different per mm
hole caused by [48:63] sign extension
ffff800000000000 - ffff87ffffffffff (=43 bits) guard hole, reserved for hypervisor
ffff880000000000 - ffffc7ffffffffff (=64 TB) direct mapping of all phys. memory
ffffc80000000000 - ffffc8ffffffffff (=40 bits) ho le
ffffc90000000000 - ffffe8ffffffffff (=45 bits) vmalloc/ioremap space
ffffe90000000000 - ffffe9ffffffffff (=40 bits) hole
ffffea0000000000 - ffffeaffffffffff (=40 bits) virtual memory map (1TB) ... unused hole ...
ffffec0000000000 - fffffc0000000000 (=44 bits) kasan shadow memory (16TB)
ffffff0000000000 - ffffff7fffffffff (=39 bits) %esp fixup stacks ... unused hole ...
ffffffff80000000 - ffffffffa0000000 (=512 MB) kernel text mapping, from phys 0
ffffffffa0000000 - ffffffffff5fffff (=1525 MB) module mapping space
ffffffffff600000 - ffffffffffdfffff (=8 MB) vsyscalls
ffffffffffe00000 - ffffffffffffffff (=2 MB) unused hole

31. 31 © 2015 Wind River. All Rights Reserved.
Setup shadow memory

32. 32 © 2015 Wind River. All Rights Reserved.
Implementations

Memcpy/memset/memmove

Kmalloc/kfree

kasan_report

mm/kasan/

33. 33 © 2015 Wind River. All Rights Reserved.
Implementations

34. 34 © 2015 Wind River. All Rights Reserved.
Implementations

35. 35 © 2015 Wind River. All Rights Reserved.
Other kernel facilities
DEBUG_PAGE_ALLOC
Poison SLAB

36. 36 © 2015 Wind River. All Rights Reserved.
操作系统挂死（内核报错）
36 © 2015 Wind River. All Rights Reserved.

37. 37 © 2015 Wind River. All Rights Reserved.
Lockup
● Soft lockup
– No schedule lasts more than 20 secs
● Hard lockup
– No interrupts lasts more than 10 secs
● Lock detectors
– Watchdog

38. 38 © 2015 Wind River. All Rights Reserved.
Soft Lockup detector
[ 584.399202] BUG: soft lockup - CPU#0 stuck for 23s! [rsync:3603]
[ 584.496357] [<c001369c>] (unwind_backtrace+0x0/0xe0) from [<c00645ac>] (watchdog_timer_fn+0xe0/0x134)
[ 584.505615] [<c00645ac>] (watchdog_timer_fn+0xe0/0x134) from [<c004365c>] (__run_hrtimer+0x118/0x1ec)
[ 584.514875] [<c004365c>] (__run_hrtimer+0x118/0x1ec) from [<c0043e80>] (hrtimer_interrupt+0xe8/0x230)
[ 584.524138] [<c0043e80>] (hrtimer_interrupt+0xe8/0x230) from [<c001a1dc>] (orion_timer_interrupt+0x20/0x30)
[ 584.533921] [<c001a1dc>] (orion_timer_interrupt+0x20/0x30) from [<c0064e9c>] (handle_irq_event_percpu+0x7c/0x23c)
[ 584.544226] [<c0064e9c>] (handle_irq_event_percpu+0x7c/0x23c) from [<c0065084>] (handle_irq_event+0x28/0x38)
[ 584.554098] [<c0065084>] (handle_irq_event+0x28/0x38) from [<c0067240>] (handle_level_irq+0xac/0xc0)
[ 584.563271] [<c0067240>] (handle_level_irq+0xac/0xc0) from [<c006486c>] (generic_handle_irq+0x28/0x44)
[ 584.572621] [<c006486c>] (generic_handle_irq+0x28/0x44) from [<c000ed94>] (handle_IRQ+0x60/0x84)
[ 584.581443] [<c000ed94>] (handle_IRQ+0x60/0x84) from [<c000dab4>] (__irq_svc+0x34/0x78)

39. 39 © 2015 Wind River. All Rights Reserved.
Dispose soft lockup detector
● IRQ
– Hrtimer
● Watchdog thread
– RT thread

40. 40 © 2015 Wind River. All Rights Reserved.
Hard lockup
Kernel panic - not syncing: Watchdog detected hard LOCKUP on cpu 18
Pid: 12410, comm: xxxx Not tainted 2.6.32-220.el6.x86_64 #1
Call Trace:
<NMI> [<ffffffff814f8464>] ? panic+0x8b/0x156
[<ffffffff810dac1a>] ? watchdog_overflow_callback+0x1fa/0x200
[<ffffffff8110cb3d>] ? __perf_event_overflow+0x9d/0x230
[<ffffffff8110d0f4>] ? perf_event_overflow+0x14/0x20
[<ffffffff8101e396>] ? intel_pmu_handle_irq+0x336/0x550
[<ffffffff814fe156>] ? kprobe_exceptions_notify+0x16/0x450
[<ffffffff814fcc39>] ? perf_event_nmi_handler+0x39/0xb0
[<ffffffff814fe7a5>] ? notifier_call_chain+0x55/0x80
[<ffffffff814fe80a>] ? atomic_notifier_call_chain+0x1a/0x20
[<ffffffff81097dce>] ? notify_die+0x2e/0x30
[<ffffffff814fc3c3>] ? do_nmi+0x173/0x2c0
[<ffffffff814fbcd0>] ? nmi+0x20/0x30
[<ffffffff814fb465>] ? _spin_lock_irq+0x25/0x40

41. 41 © 2015 Wind River. All Rights Reserved.
Discompose hard lockup
detector
● NMI
– Despite irq disabling
● Performance event subsystem
– Portable

42. 42 © 2015 Wind River. All Rights Reserved.
Common reasons
● hard-lockup
– Disable interrupts but not re-enable them.
– Deadlock
● soft lockup
– Interrupts fire continuously (staging new driver)
– Infinitive loop because of integer overflow
– Deadlock

43. 43 © 2015 Wind River. All Rights Reserved.
Types of deadlocks
● Non-recursive lock
– Take twice
● Lock AB-BA
– Complex deadlock chain
● Special case
– Interrupt

44. 44 © 2015 Wind River. All Rights Reserved.
Non-recursive
● Take twice
● What about spinlock?
● What about mutex?

45. 45 © 2015 Wind River. All Rights Reserved.
Lock AB-BA
● Uni-core?
● Mutex or Spinlock?

46. 46 © 2015 Wind River. All Rights Reserved.
DEADLOCK
CPU 0 CPU 1
Lock A
Lock B
Lock B
Lock C
CPU 2
Lock C
Lock A
Lock chain: AB BC CA

47. 47 © 2015 Wind River. All Rights Reserved.
Mess up with interrupt
● If a lock will be taken in interrupt, then it must have
interrupts disabled when that lock is ever taken.
●
DEADLOCK
Process
Lock A
Interrupt
Lock A

48. 48 © 2015 Wind River. All Rights Reserved.
CPU 0
lock A
lock B
IRQ disable
CPU 1
lock B
IRQ enabled
DEADLOCKLock A
Interrupt

49. 49 © 2015 Wind River. All Rights Reserved.
Interrupt CPU 0
lock A
unlock A
lock A
lock B
IRQ disable
unlock B
unlock A
Enable
IRQ
CPU 1
lock B
lock C
IRQ disable
unlock C
unlock B
Enable
IRQ
CPU 2
lock C
IRQ enabled
unlock C
Deadlock?

50. 50 © 2015 Wind River. All Rights Reserved.
Lockdep
● Writen by Ingo Molnar in 2006
– Countless bugs found
● Lock correctness validator

51. 51 © 2015 Wind River. All Rights Reserved.
Lock classes
● Locks are tracked via “classes”, not
instances
● Spinlock in inode

52. 52 © 2015 Wind River. All Rights Reserved.
Dynamic detecting deadlock
● When locks are taken at runtime, the class
is updated.
● Lock_acquire() embedded in spinlock,
mutex, semaphore.

53. 53 © 2015 Wind River. All Rights Reserved.
[ INFO: possible circular locking dependency detected ]
2.6.32-504.16.2.1chaos.ch5.3.x86_64.debug #1
-------------------------------------------------------
txg_sync/1894 is trying to acquire lock:
(&db->db_mtx){+.+.+.}, at: [<ffffffffa033e558>] dbuf_sync_leaf+0x48/0x4f0 [zfs]
but task is already holding lock:
(&dr->dt.di.dr_mtx){+.+...}, at: [<ffffffffa033eb62>] dbuf_sync_indirect+0x102/0x330 [zfs]
which lock already depends on the new lock.
the existing dependency chain (in reverse order) is:
-> #1 (&dr->dt.di.dr_mtx){+.+...}:
[<ffffffff810bfbbe>] __lock_acquire+0xede/0x1560
[<ffffffff810c02e4>] lock_acquire+0xa4/0x120
[<ffffffff8155f24c>] mutex_lock_nested+0x5c/0x3b0
[<ffffffffa033f727>] dbuf_dirty+0x4a7/0xdf0 [zfs]
-> #0 (&db->db_mtx){+.+.+.}:
[<ffffffff810c013a>] __lock_acquire+0x145a/0x1560
[<ffffffff810c02e4>] lock_acquire+0xa4/0x120
[<ffffffff8155f24c>] mutex_lock_nested+0x5c/0x3b0
[<ffffffffa033e558>] dbuf_sync_leaf+0x48/0x4f0 [zfs]

54. 54 © 2015 Wind River. All Rights Reserved.
(&dr>dt.di.dr_mtx){+. +. ..},
Hardirqs Softirqs reclaim_fs?

55. 55 © 2015 Wind River. All Rights Reserved.
Lockdep implementations
● Three lists
– Current held locks
– Lock-class’s before list and after list.

56. 56 © 2015 Wind River. All Rights Reserved.
内核网口串口均无法登陆时的处
理方法
56 © 2015 Wind River. All Rights Reserved.

57. 57 © 2015 Wind River. All Rights Reserved.
Can not login?
 Common solutions
− Use early printk to print more log
− If keyboard available, Sysrq
− Use watchdog to dump current status


58. 58 © 2015 Wind River. All Rights Reserved.
Questions is welcomed
“Have a nice day:-)
Firo Yang
