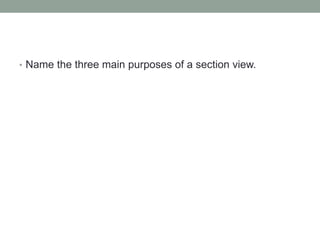

2. • Name the three main purposes of a section view.
3. • Name the three main purposes of a section view.
• • To document the design and manufacture of single parts that are manufactured as
one piece.
• • To document how multiple parts are to be assembled or built.
• • To aid in visualizing the internal workings of a design.
4. What type of Section?
• A partial section exposing interior shapes limited by a
break line
5. What type of Section?
• A partial section exposing interior shapes limited by a
break line
• Broken-Out Section
6. What type of Section?
• The cutting plane is bent passing through features and
imagined to be revolved to the original plane.

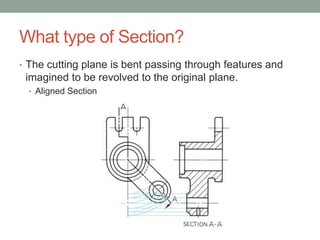

7. What type of Section?
• The cutting plane is bent passing through features and
imagined to be revolved to the original plane.
• Aligned Section

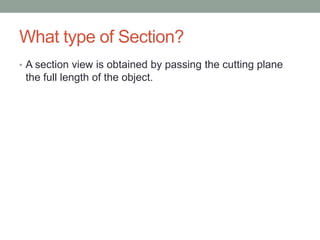

8. What type of Section?
• A section view is obtained by passing the cutting plane
the full length of the object.

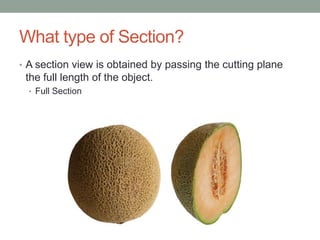

9. What type of Section?
• A section view is obtained by passing the cutting plane
the full length of the object.
• Full Section
10. What type of Section?
• A View Not a direct projection from the view containing the
cutting plane

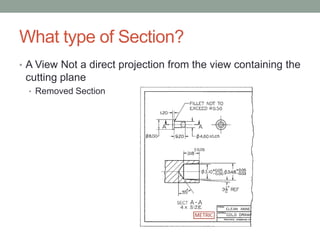

11. What type of Section?
• A View Not a direct projection from the view containing the
cutting plane
• Removed Section

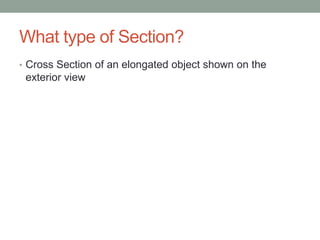

12. What type of Section?
• Cross Section of an elongated object shown on the
exterior view

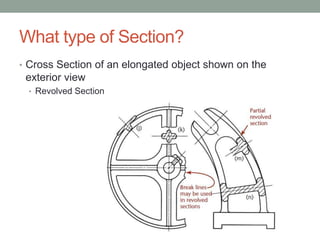

13. What type of Section?
• Cross Section of an elongated object shown on the
exterior view
• Revolved Section

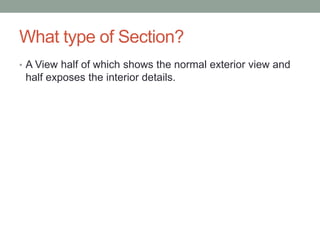

14. What type of Section?
• A View half of which shows the normal exterior view and
half exposes the interior details.

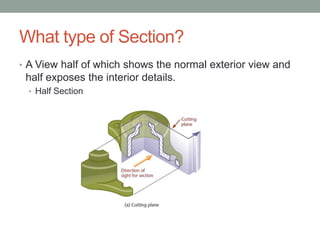

15. What type of Section?
• A View half of which shows the normal exterior view and
half exposes the interior details.
• Half Section
