5.  The Transfer of Electricity from one place to
another without wires is known as “WiTricity”.
 On June 7 ’07, a team of researchers at MIT
announced the successful operation of WiTricity
concept.
 They had lit up a 60W bulb with a power source
at a distance of 7 feet(over 2m) with no wires.

6. In 1891, Sir Nikola Tesla
Proposed a method of Wireless
Power Transmission.
As it is in Radiative mode,
most of the Power was wasted
and has less efficiency.

 In 2005, Dave Gerding coined the term WiTricity
which is being used today.
 Forgotton invention was reborn in 2007

7.  In 1891, Nikola Tesla invented a type of resonant
transformer called the Tesla coil, which was used
to generate very high voltage, low current, and
high frequency alternating electricity. He
experimented with a large variety of coils and
configurations, one of which is as:

8.  In1899,Tesla achieved a
major breakthrough in
his work at Colorado by
transmitting 100 million
volts of electric power
wirelessly over a
distance of 26 miles to
light up a bank of 200
light bulbs and run one
electric motor.

9.  Cell phones, i pods, laptop computers are capable
of re-charging themselves without ever being
plugged in.

10.  Currently, wired electricity powers have concured
nearly everything.
 In present electricity generation system we
waste more than half of its resources. Especially
the transmission and distribution losses are the
main concern of the present power technology.

11.  The resistance of the wire used in the electrical
grid distribution system causes a loss of 26-30%
of the energy generated
 The transmission of power without wires may be
one noble alternative for electricity transmission.

12.  Prof. Marin Soljacic from Massachusetts
Institute of Technology (MIT), is the one who
has proved that magnetic coupled resonance
can be utilized in order to transfer energy without
wires.
 He used Michael Faraday's principle of
electromagnetic induction (1831) came up with
WiTricity.

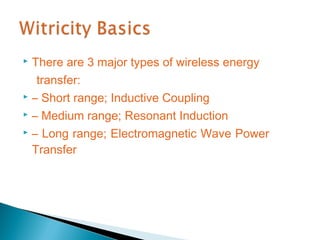

14.  There are 3 major types of wireless energy
transfer:
 – Short range; Inductive Coupling
 – Medium range; Resonant Induction
 – Long range; Electromagnetic Wave Power
Transfer

15.  What Is Inductive Coupling?
 Inductive Coupling is a method for short range
wireless energy transfer.
 Its range can vary, but it’s often very short.

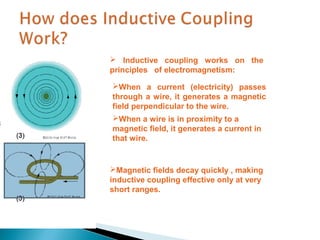

16.  Inductive coupling works on the
principles of electromagnetism:
When a current (electricity) passes
through a wire, it generates a magnetic
field perpendicular to the wire.
When a wire is in proximity to a
magnetic field, it generates a current in
that wire.
Magnetic fields decay quickly , making
inductive coupling effective only at very
short ranges.

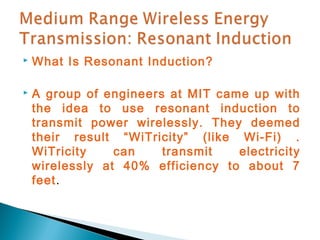

17.  What Is Resonant Induction?
 A group of engineers at MIT came up with
the idea to use resonant induction to
transmit power wirelessly. They deemed
their result “WiTricity” (like Wi-Fi) .
WiTricity can transmit electricity
wirelessly at 40% efficiency to about 7
feet.

18.  Resonant induction still uses the same
principles as magnetic induction (magnetic fields
to transfer current) , but it uses resonance to
increase the range at which the transfer can
efficiently take place.
 “Resonance", a phenomenon that causes an
object to vibrate when energy of a certain
frequency is applied.

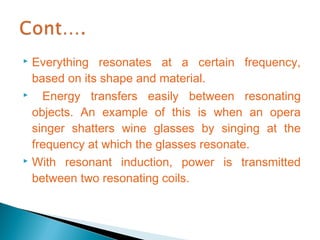

20.  Everything resonates at a certain frequency,
based on its shape and material.
 Energy transfers easily between resonating
objects. An example of this is when an opera
singer shatters wine glasses by singing at the
frequency at which the glasses resonate.
 With resonant induction, power is transmitted
between two resonating coils.

22.  Consider two self resonating copper coils of same
resonating frequency with a diameter 20
inches each. One copper wire is connected to
the power source , while the other copper wire is
connected to the device.

24.  A Tesla Coil produces high voltage electric arcs.
These arcs cause permanent damage to electrical
devices on contact
 Tesla coils also destroy hearing aids and cardiac
pacemakers in their vicinity.

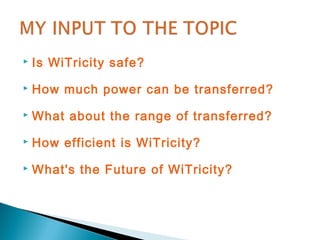

25.  Is WiTricity safe?
 How much power can be transferred?
 What about the range of transferred?
 How efficient is WiTricity?
 What's the Future of WiTricity?

26.  The rate of energy transfer between the emitter
and the receiver is greater than the rate of
energy dissipation.
 Efficiency is mesured by measuring the current
at the midpoint of the self resonant coils with a
current probe.
 This gives a measurement of the current
parameters

27.  We then compute power dissipated in each coil from:-
 Then the efficiency can be calculated .

28.  Direct Wireless Power
◦ No device needs wires
◦ Immobile devices
 Automatic Wireless Charging
◦ Device with rechargeable batteries
◦ charges itself
◦ Mobile device
◦ Used in and out of range of its
WiTricity power source

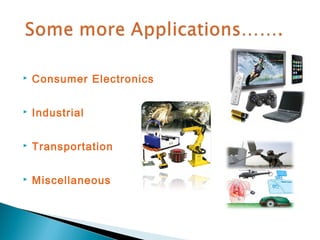

29.  Consumer Electronics
 Industrial
 Transportation
 Miscellaneous

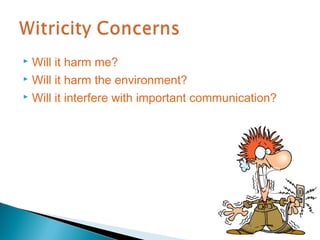

30.  Will it harm me?
 Will it harm the environment?
 Will it interfere with important communication?

31.  Human beings or other objects placed between
the transmitter and receiver do not hinder the
transmission of power.
 However, does magnetic coupling or
resonance coupling have any harmful effects on
humans?
 magnetic fields tend to interact very weakly
with the biological tissues of the body, and so
are not prone to cause any damage to any living
beings.

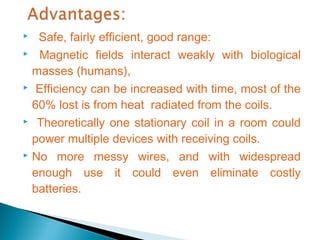

32.  Safe, fairly efficient, good range:
 Magnetic fields interact weakly with biological
masses (humans),
 Efficiency can be increased with time, most of the
60% lost is from heat radiated from the coils.
 Theoretically one stationary coil in a room could
power multiple devices with receiving coils.
 No more messy wires, and with widespread
enough use it could even eliminate costly
batteries.

33.  The resonance condition should be satisfied and if any
error exists, there is no possibility of power transfer.
 If there is any possibility of very strong ferromagnetic
material presence causes low power transfer due to
radiation.

34.  MIT's WiTricity is only 40 to 45% efficient and they
have to be twice as efficient to compete with the
traditional chemical batteries.
 Aim is to get a robotic vacuum or a laptop working,
charging devices placed anywhere in the room
 The researchers have said that in another five
years time, they will come up with a WiTricity
system for commercial use.
