1. Sarcoidosis.
Dr/ Abd Allah Nazeer. MD.
Lung.
Pleura.

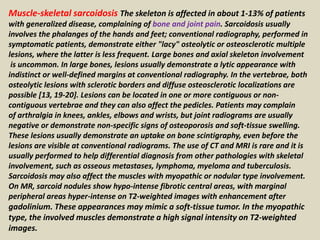

MKS.
Bones.
Heart.

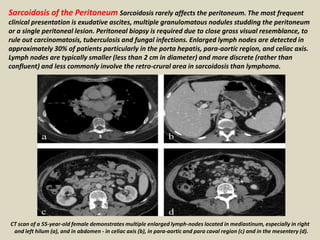

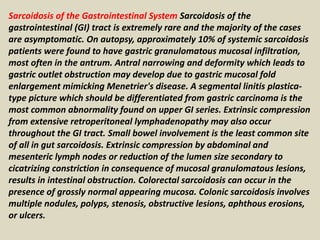

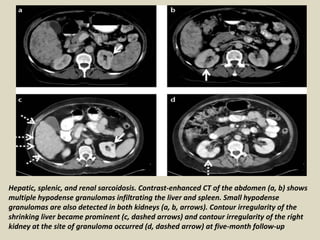

Abdomen.

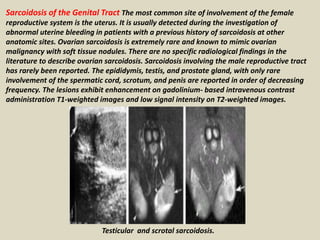

Genital
system.

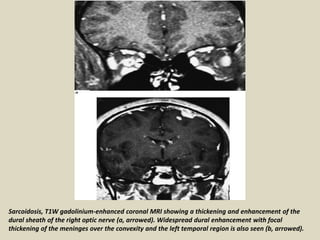

CNS.
Cord.
Eyes.
Skin.
Salivary
glands.
Breast.

2. Sarcoidosis is an inflammatory, multisystemic, disease of unknown
etiology, characterized pathologically by the presence of non-caseating
granulomas. Pulmonary involvement in sarcoidosis is reported in up to
90% of patients. It resolves spontaneously in the majority of cases, but
fibrosis causing permanent functional impairment develops in 20 to 25% of
patients, resulting in death in 5-10% of them. Sarcoidosis is the most
frequent among the interstitial lung diseases, showing a higher incidence
in women than in men and begins most often between 20 and 40 years of
age. The extra pulmonary involvement, particularly skin and eyes, is
present in 25% of cases, while more rare is the involvement of central
nervous system, heart and kidneys. There are multiple clinical and
radiological appearances: half of patients is asymptomatic at the time of
diagnosis and the involvement of various organs can vary significantly
from patient to patient. Chest X-ray has been widely used in the past in
the diagnosis and staging of the disease. The use of high-resolution
computed tomography (HRCT) provides detailed information on the wide
spectrum of radiological presentation of sarcoidosis. In some cases the
definitive diagnosis of sarcoidosis needs transbronchial biopsy or broncho-
alveolar lavage especially in clinical or radiological atypical cases.

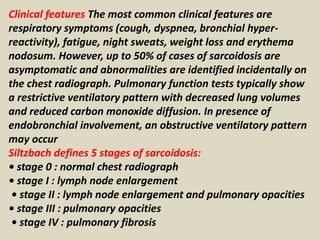

3. Clinical features The most common clinical features are
respiratory symptoms (cough, dyspnea, bronchial hyper-
reactivity), fatigue, night sweats, weight loss and erythema
nodosum. However, up to 50% of cases of sarcoidosis are
asymptomatic and abnormalities are identified incidentally on
the chest radiograph. Pulmonary function tests typically show
a restrictive ventilatory pattern with decreased lung volumes
and reduced carbon monoxide diffusion. In presence of
endobronchial involvement, an obstructive ventilatory pattern
may occur

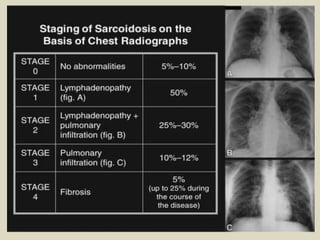

Siltzbach defines 5 stages of sarcoidosis:
• stage 0 : normal chest radiograph
• stage I : lymph node enlargement
• stage II : lymph node enlargement and pulmonary opacities
• stage III : pulmonary opacities
• stage IV : pulmonary fibrosis

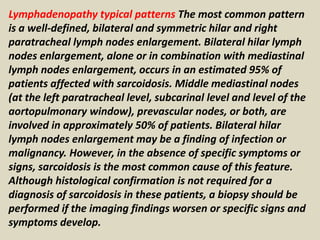

5. Lymphadenopathy typical patterns The most common pattern
is a well-defined, bilateral and symmetric hilar and right
paratracheal lymph nodes enlargement. Bilateral hilar lymph
nodes enlargement, alone or in combination with mediastinal
lymph nodes enlargement, occurs in an estimated 95% of
patients affected with sarcoidosis. Middle mediastinal nodes
(at the left paratracheal level, subcarinal level and level of the
aortopulmonary window), prevascular nodes, or both, are
involved in approximately 50% of patients. Bilateral hilar
lymph nodes enlargement may be a finding of infection or
malignancy. However, in the absence of specific symptoms or
signs, sarcoidosis is the most common cause of this feature.
Although histological confirmation is not required for a
diagnosis of sarcoidosis in these patients, a biopsy should be
performed if the imaging findings worsen or specific signs and
symptoms develop.

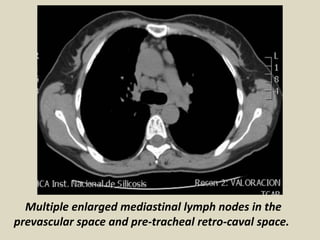

6. Multiple enlarged mediastinal lymph nodes in the
prevascular space and pre-tracheal retro-caval space.

7. Axial HRCT scan that shows bilateral subcarinal and hilar enlarged lymph nodes.

8. Axial HRCT scan that shows bilateral subcarinal and hilar enlarged lymph nodes.

9. (a) Axial contrast material–enhanced CT scan (mediastinal window) shows typical bilateral and symmetric hilar (arrows) and subcarinal (*)
lymphadenopathy.(b) Axial unenhanced CT scan (mediastinal window) obtained at the level of the left pulmonary artery shows enlargement of right
paratracheal and left hilar lymph nodes (arrows). Although the right hilum is not shown, it too was affected. (c) Axial unenhanced CT scan
(mediastinal window) shows punctate calcifications of hilar lymph nodes (arrows), a pattern that also occurs in other chronic granulomatous
diseases. (d) Axial contrast-enhanced CT scan shows bilateral eggshell-like calcifications of hilar and mediastinal lymph nodes (arrows).

10. Atypical patterns: Atypical patterns of lymphadenopathy
occur more frequently in patients older than 50 years. Lymph
nodes enlargement may be asymmetric or show unusual
locations (i.e., internal mammary chain, paravertebral or rtero-
crural regions). Such findings should lead to the inclusion of
entities such as lymphoma or tuberculosis in the differential
diagnosis. Isolated unilateral hilar lymph nodes enlargement,
usually on the right side, is seen in less than 5% of cases.
Enlargement of mediastinal lymph nodes without hilar lymph
nodes enlargement is even less common. The enlarged nodes
may occasionally become calcified, this being related to the
duration of the disease (calcification occurs in 3% of patients
after 5 years and in 20% after 10 years). The calcifications in
sarcoidosis may be indistinguishable from those seen in
tuberculosis and histoplasmosis. Eggshell-like calcifications
may also be identified in silicosis.

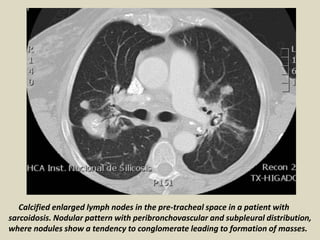

11. Calcified enlarged lymph nodes in the pre-tracheal space in a patient with
sarcoidosis. Nodular pattern with peribronchovascular and subpleural distribution,
where nodules show a tendency to conglomerate leading to formation of masses.

12. Axial CT scan shows bilateral enlargement and peripheral calcification of mediastinal and hilar lymph nodes.

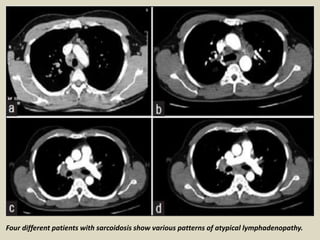

13. Four different patients with sarcoidosis show various patterns of atypical lymphadenopathy.

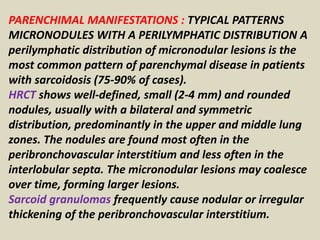

14. PARENCHIMAL MANIFESTATIONS : TYPICAL PATTERNS
MICRONODULES WITH A PERILYMPHATIC DISTRIBUTION A
perilymphatic distribution of micronodular lesions is the
most common pattern of parenchymal disease in patients
with sarcoidosis (75-90% of cases).
HRCT shows well-defined, small (2-4 mm) and rounded
nodules, usually with a bilateral and symmetric
distribution, predominantly in the upper and middle lung
zones. The nodules are found most often in the
peribronchovascular interstitium and less often in the
interlobular septa. The micronodular lesions may coalesce
over time, forming larger lesions.
Sarcoid granulomas frequently cause nodular or irregular
thickening of the peribronchovascular interstitium.

15. Frontal chest radiograph that exhibits a sarcoidosis-related diffuse
bilateral micronodular pattern, more profuse in upper lung zones.

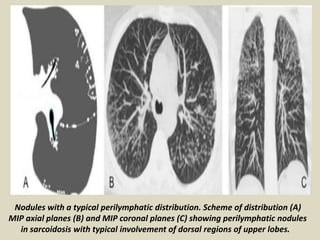

16. Nodules with a typical perilymphatic distribution. Scheme of distribution (A)
MIP axial planes (B) and MIP coronal planes (C) showing perilymphatic nodules
in sarcoidosis with typical involvement of dorsal regions of upper lobes.

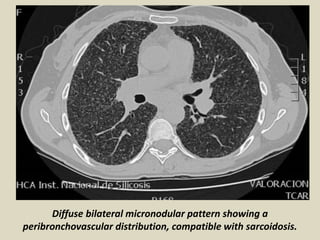

17. Diffuse bilateral micronodular pattern showing a
peribronchovascular distribution, compatible with sarcoidosis.

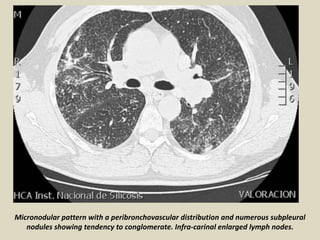

18. Micronodular pattern with a peribronchovascular distribution and numerous subpleural
nodules showing tendency to conglomerate. Infra-carinal enlarged lymph nodes.

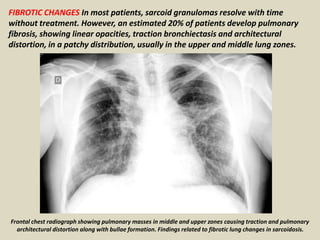

19. FIBROTIC CHANGES In most patients, sarcoid granulomas resolve with time
without treatment. However, an estimated 20% of patients develop pulmonary
fibrosis, showing linear opacities, traction bronchiectasis and architectural
distortion, in a patchy distribution, usually in the upper and middle lung zones.
Frontal chest radiograph showing pulmonary masses in middle and upper zones causing traction and pulmonary
architectural distortion along with bullae formation. Findings related to fibrotic lung changes in sarcoidosis.

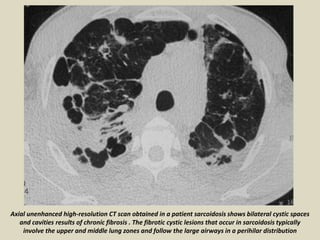

20. Axial unenhanced high-resolution CT scan obtained in a patient sarcoidosis shows bilateral cystic spaces
and cavities results of chronic fibrosis . The fibrotic cystic lesions that occur in sarcoidosis typically
involve the upper and middle lung zones and follow the large airways in a perihilar distribution

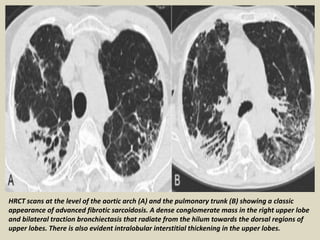

21. HRCT scans at the level of the aortic arch (A) and the pulmonary trunk (B) showing a classic
appearance of advanced fibrotic sarcoidosis. A dense conglomerate mass in the right upper lobe
and bilateral traction bronchiectasis that radiate from the hilum towards the dorsal regions of
upper lobes. There is also evident intralobular interstitial thickening in the upper lobes.

22. Alveolar sarcoid pattern of airspace consolidation in pulmonary sarcoidosis. Axial high-resolution CT scan
shows alveolar consolidation in the left upper lobe and patchy subpleural alveolar opacities in the right
upper lobe. Architectural distortion and traction bronchiectasis, signs of fibrosis, also are evident

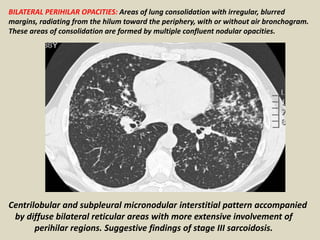

23. BILATERAL PERIHILAR OPACITIES: Areas of lung consolidation with irregular, blurred
margins, radiating from the hilum toward the periphery, with or without air bronchogram.
These areas of consolidation are formed by multiple confluent nodular opacities.
Centrilobular and subpleural micronodular interstitial pattern accompanied
by diffuse bilateral reticular areas with more extensive involvement of
perihilar regions. Suggestive findings of stage III sarcoidosis.

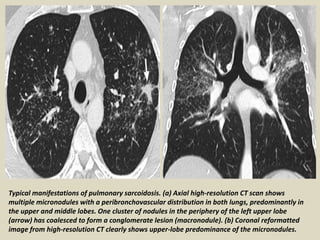

24. Typical manifestations of pulmonary sarcoidosis. (a) Axial high-resolution CT scan shows
multiple micronodules with a peribronchovascular distribution in both lungs, predominantly in
the upper and middle lobes. One cluster of nodules in the periphery of the left upper lobe
(arrow) has coalesced to form a conglomerate lesion (macronodule). (b) Coronal reformatted
image from high-resolution CT clearly shows upper-lobe predominance of the micronodules.

25. ATYPICAL PATTERNS: PULMONARY NODULES AND MASSES Pulmonary
nodules and masses are seen in 15%-25% of patients. On CT, they usually
appear as ill-defined irregular opacities, measuring 1-4 cm in diameter, that
represent coalescent interstitial granulomas. These lesions are typically
multiple and bilateral, commonly located in perihilar or peripheral regions.
HRCT showing an interstitial pattern with spiculated nodules in a peribronchovascular and subpleural distribution, predominantly in middle and
upper lung zones. Associated to traction bronchiectasis and enlarged right hilum lymph nodes. Suggestive findings of sarcoidosis as first option.

26. Coronal maximum-intensity projection image obtained with lung window settings that shows a
diffuse bilateral micronodular pattern with a peribronchovascular distribution and larger nodules.

27. CT scan of a patient with sarcoidosis shows bilaterally scattered
ground glass pulmonary nodules mimicking metastasis .

28. Small satellite nodules are often identified at the periphery of these masses,
giving an appearance that has been termed the "sarcoid galaxy sign".

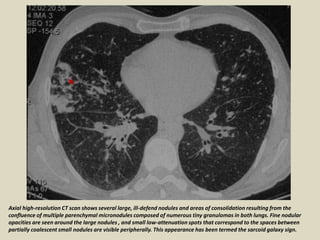

29. Axial high-resolution CT scan shows several large, ill-defend nodules and areas of consolidation resulting from the
confluence of multiple parenchymal micronodules composed of numerous tiny granulomas in both lungs. Fine nodular
opacities are seen around the large nodules , and small low-attenuation spots that correspond to the spaces between
partially coalescent small nodules are visible peripherally. This appearance has been termed the sarcoid galaxy sign.

30. PATCHY AIRSPACE CONSOLIDATION Patchy airspace consolidation is seen in 10%-20% of
patients with sarcoidosis. It is usually bilateral and symmetric and predominantly affects
the middle and upper lung zones. These regions may contain air bronchograms and
commonly show ill-defined margins, with a nodular pattern toward the lung periphery.
This pattern is known as the acinar or alveolar form of sarcoidosis, which may mimic
pneumonia, tuberculosis, or bronchiolitis obliterans organizing pneumonia.
Axial HRCT scan showing patchy bilateral lung consolidations, predominantly in hilum, with air bronchogram areas associated
with small bilateral peripheral nodules. Related to distortion of the lung parenchyma. Suggestive findings of sarcoidosis.

31. PATCHY GROUND-GLASS OPACITIES Patchy ground-glass opacities result from the confluence of multiple
granulomatous nodules and fibrotic interstitial lesions, which may cause airway compression but not
airspace filling like that seen in alveolitis. These ground-glass opacities show ill-defined margins and air
bronchogram may be present. Differential diagnosis must be made with bronchoalveolar carcinoma,
lymphoma, pneumoconiosis, pneumonia and bronchiolitis obliterans organizing pneumonia.
Axial HRCT scan in a patient with sarcoidosis showing an increased attenuation with a patchy
pattern and a ground-glass appearance, predominantly in peripheral areas and upper lung
zones. Interstitial thickening and some images of tree in bud nodules were also visible

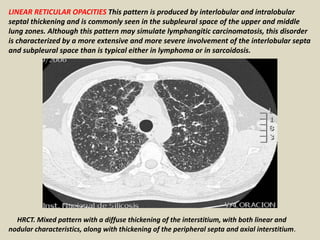

32. LINEAR RETICULAR OPACITIES This pattern is produced by interlobular and intralobular
septal thickening and is commonly seen in the subpleural space of the upper and middle
lung zones. Although this pattern may simulate lymphangitic carcinomatosis, this disorder
is characterized by a more extensive and more severe involvement of the interlobular septa
and subpleural space than is typical either in lymphoma or in sarcoidosis.
HRCT. Mixed pattern with a diffuse thickening of the interstitium, with both linear and
nodular characteristics, along with thickening of the peripheral septa and axial interstitium.

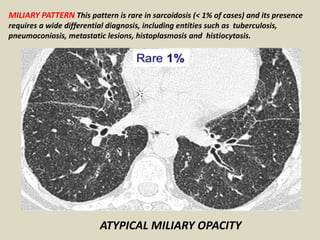

33. MILIARY PATTERN This pattern is rare in sarcoidosis (< 1% of cases) and its presence
requires a wide differential diagnosis, including entities such as tuberculosis,
pneumoconiosis, metastatic lesions, histoplasmosis and histiocytosis.

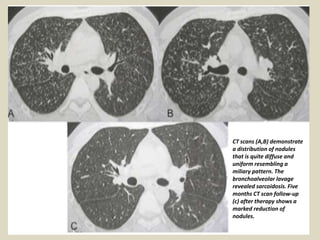

ATYPICAL MILIARY OPACITY

34. CT scans (A,B) demonstrate
a distribution of nodules
that is quite diffuse and
uniform resembling a
miliary pattern. The
bronchoalveolar lavage
revealed sarcoidosis. Five
months CT scan follow-up
(c) after therapy shows a
marked reduction of
nodules.

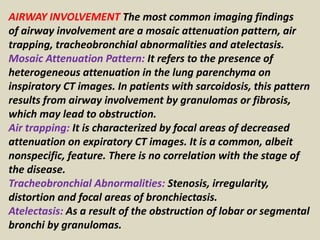

35. AIRWAY INVOLVEMENT The most common imaging findings
of airway involvement are a mosaic attenuation pattern, air
trapping, tracheobronchial abnormalities and atelectasis.
Mosaic Attenuation Pattern: It refers to the presence of
heterogeneous attenuation in the lung parenchyma on
inspiratory CT images. In patients with sarcoidosis, this pattern
results from airway involvement by granulomas or fibrosis,
which may lead to obstruction.
Air trapping: It is characterized by focal areas of decreased
attenuation on expiratory CT images. It is a common, albeit
nonspecific, feature. There is no correlation with the stage of
the disease.
Tracheobronchial Abnormalities: Stenosis, irregularity,
distortion and focal areas of bronchiectasis.
Atelectasis: As a result of the obstruction of lobar or segmental
bronchi by granulomas.

36. Axial unenhanced high-resolution expiratory CT scan obtained
in a patient with pulmonary sarcoidosis shows air trapping.

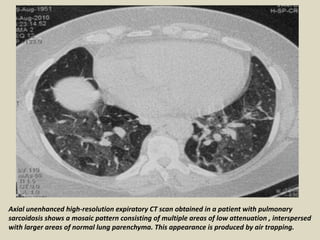

37. Axial unenhanced high-resolution expiratory CT scan obtained in a patient with pulmonary
sarcoidosis shows a mosaic pattern consisting of multiple areas of low attenuation , interspersed
with larger areas of normal lung parenchyma. This appearance is produced by air trapping.

38. HRCT scans (A,D) in patient with sarcoidosis showing some subtle areas of decreased
attenuation related to air trapping (yellow arrows in A,B,D). There are also small
perilymphatic nodules in the apical segment of the left lower lobe (red arrow in C).

39. Stage IV pulmonary sarcoidosis in a 60-year-old woman. Chest radiogram and thoracic
HRCT demonstrate fibrotic changes and ground glass opacities with upper predominance
(a finding confirmed on coronal CT reformation). This distribution is typical of sarcoidosis.

40. Stage IV pulmonary sarcoidosis in a 62-year-old man. Thoracic CT demonstrates extensive fibrotic
change with a central distribution that distort the lung parenchyma and a cavitary lesion, predisposing
to fungal infection, an aspergiloma (arrows). Note the presence of lymph nodes calcifications and the
enlargement of pulmonary artery, a finding that suggests pulmonary hypertension

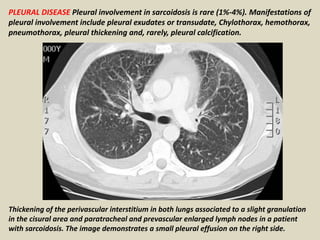

41. PLEURAL DISEASE Pleural involvement in sarcoidosis is rare (1%-4%). Manifestations of
pleural involvement include pleural exudates or transudate, Chylothorax, hemothorax,
pneumothorax, pleural thickening and, rarely, pleural calcification.
Thickening of the perivascular interstitium in both lungs associated to a slight granulation
in the cisural area and paratracheal and prevascular enlarged lymph nodes in a patient
with sarcoidosis. The image demonstrates a small pleural effusion on the right side.

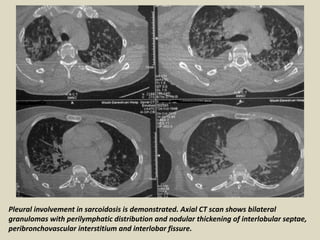

42. Pleural involvement in sarcoidosis is demonstrated. Axial CT scan shows bilateral
granulomas with perilymphatic distribution and nodular thickening of interlobular septae,
peribronchovascular interstitium and interlobar fissure.

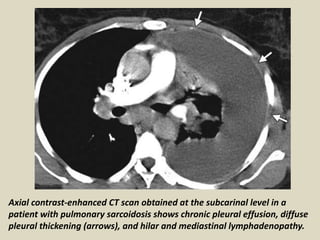

43. Axial contrast-enhanced CT scan obtained at the subcarinal level in a
patient with pulmonary sarcoidosis shows chronic pleural effusion, diffuse
pleural thickening (arrows), and hilar and mediastinal lymphadenopathy.

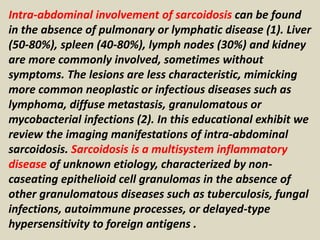

44. Intra-abdominal involvement of sarcoidosis can be found
in the absence of pulmonary or lymphatic disease (1). Liver
(50-80%), spleen (40-80%), lymph nodes (30%) and kidney
are more commonly involved, sometimes without
symptoms. The lesions are less characteristic, mimicking
more common neoplastic or infectious diseases such as
lymphoma, diffuse metastasis, granulomatous or
mycobacterial infections (2). In this educational exhibit we
review the imaging manifestations of intra-abdominal
sarcoidosis. Sarcoidosis is a multisystem inflammatory
disease of unknown etiology, characterized by non-
caseating epithelioid cell granulomas in the absence of
other granulomatous diseases such as tuberculosis, fungal
infections, autoimmune processes, or delayed-type
hypersensitivity to foreign antigens .

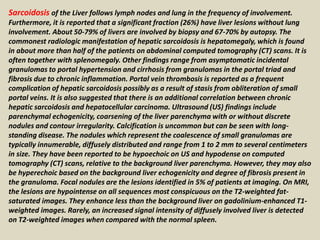

45. Sarcoidosis of the Liver follows lymph nodes and lung in the frequency of involvement.
Furthermore, it is reported that a significant fraction (26%) have liver lesions without lung
involvement. About 50-79% of livers are involved by biopsy and 67-70% by autopsy. The
commonest radiologic manifestation of hepatic sarcoidosis is hepatomegaly, which is found
in about more than half of the patients on abdominal computed tomography (CT) scans. It is
often together with splenomegaly. Other findings range from asymptomatic incidental
granulomas to portal hypertension and cirrhosis from granulomas in the portal triad and
fibrosis due to chronic inflammation. Portal vein thrombosis is reported as a frequent
complication of hepatic sarcoidosis possibly as a result of stasis from obliteration of small
portal veins. It is also suggested that there is an additional correlation between chronic
hepatic sarcoidosis and hepatocellular carcinoma. Ultrasound (US) findings include
parenchymal echogenicity, coarsening of the liver parenchyma with or without discrete
nodules and contour irregularity. Calcification is uncommon but can be seen with long-
standing disease. The nodules which represent the coalescence of small granulomas are
typically innumerable, diffusely distributed and range from 1 to 2 mm to several centimeters
in size. They have been reported to be hypoechoic on US and hypodense on computed
tomography (CT) scans, relative to the background liver parenchyma. However, they may also
be hyperechoic based on the background liver echogenicity and degree of fibrosis present in
the granuloma. Focal nodules are the lesions identified in 5% of patients at imaging. On MRI,
the lesions are hypointense on all sequences most conspicuous on the T2-weighted fat-
saturated images. They enhance less than the background liver on gadolinium-enhanced T1-
weighted images. Rarely, an increased signal intensity of diffusely involved liver is detected
on T2-weighted images when compared with the normal spleen.

46. A 61-year-old female patient affected by pulmonary biopsy proved
sarcoidosis. Routine abdominal ultrasound exam (a and b) shows multiple,
small, randomly distributed, hypoechoic nodules in the liver parenchyma.

47. Liver MRI of the same patient with pulmonary sarcoidosis, which demonstrates multiple, scattered,
small, hyperintense nodules on T2-weighted images (a and d) and on diffusion-weighted images (b and
e). After gadolinium administration above-mentioned lesions appear hypointense (c and f).

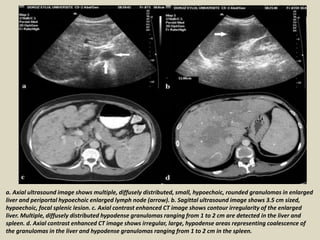

48. a. Axial ultrasound image shows multiple, diffusely distributed, small, hypoechoic, rounded granulomas in enlarged
liver and periportal hypoechoic enlarged lymph node (arrow). b. Sagittal ultrasound image shows 3.5 cm sized,
hypoechoic, focal splenic lesion. c. Axial contrast enhanced CT image shows contour irregularity of the enlarged
liver. Multiple, diffusely distributed hypodense granulomas ranging from 1 to 2 cm are detected in the liver and
spleen. d. Axial contrast enhanced CT image shows irregular, large, hypodense areas representing coalescence of
the granulomas in the liver and hypodense granulomas ranging from 1 to 2 cm in the spleen.

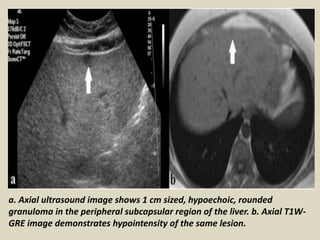

49. a. Axial ultrasound image shows 1 cm sized, hypoechoic, rounded
granuloma in the peripheral subcapsular region of the liver. b. Axial T1W-
GRE image demonstrates hypointensity of the same lesion.

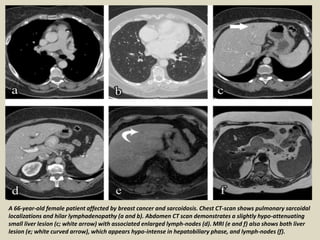

50. A 66-year-old female patient affected by breast cancer and sarcoidosis. Chest CT-scan shows pulmonary sarcoidal
localizations and hilar lymphadenopathy (a and b). Abdomen CT scan demonstrates a slightly hypo-attenuating
small liver lesion (c; white arrow) with associated enlarged lymph-nodes (d). MRI (e and f) also shows both liver
lesion (e; white curved arrow), which appears hypo-intense in hepatobiliary phase, and lymph-nodes (f).

51. 57-year-old woman with sarcoidosis and hepatic involvement; Ultrasonographic image (A) shows
predominantly hyperechoic heterogeneous areas on right lobe of liver (arrows). Contrast-enhanced
CT images (B, C) show lobulated outline of liver, hypodense bands and septations in liver parenchyma (arrows)

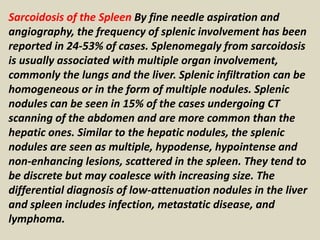

52. Sarcoidosis of the Spleen By fine needle aspiration and
angiography, the frequency of splenic involvement has been
reported in 24-53% of cases. Splenomegaly from sarcoidosis
is usually associated with multiple organ involvement,
commonly the lungs and the liver. Splenic infiltration can be
homogeneous or in the form of multiple nodules. Splenic
nodules can be seen in 15% of the cases undergoing CT
scanning of the abdomen and are more common than the
hepatic ones. Similar to the hepatic nodules, the splenic
nodules are seen as multiple, hypodense, hypointense and
non-enhancing lesions, scattered in the spleen. They tend to
be discrete but may coalesce with increasing size. The
differential diagnosis of low-attenuation nodules in the liver
and spleen includes infection, metastatic disease, and
lymphoma.

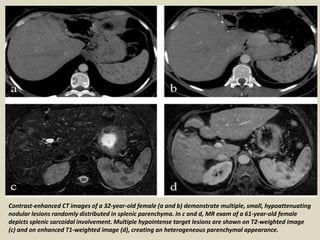

53. Contrast-enhanced CT images of a 32-year-old female (a and b) demonstrate multiple, small, hypoattenuating
nodular lesions randomly distributed in splenic parenchyma. In c and d, MR exam of a 61-year-old female
depicts splenic sarcoidal involvement. Multiple hypointense target lesions are shown on T2-weighted image
(c) and on enhanced T1-weighted image (d), creating an heterogeneous parenchymal appearance.

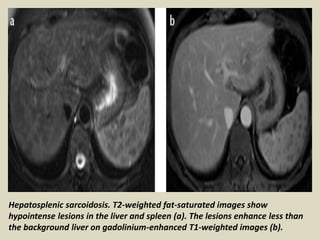

54. Hepatosplenic sarcoidosis. T2-weighted fat-saturated images show
hypointense lesions in the liver and spleen (a). The lesions enhance less than
the background liver on gadolinium-enhanced T1-weighted images (b).

55. Sarcoidosis of the Gastrointestinal System Sarcoidosis of the
gastrointestinal (GI) tract is extremely rare and the majority of the cases
are asymptomatic. On autopsy, approximately 10% of systemic sarcoidosis
patients were found to have gastric granulomatous mucosal infiltration,
most often in the antrum. Antral narrowing and deformity which leads to
gastric outlet obstruction may develop due to gastric mucosal fold
enlargement mimicking Menetrier's disease. A segmental linitis plastica-
type picture which should be differentiated from gastric carcinoma is the
most common abnormality found on upper GI series. Extrinsic compression
from extensive retroperitoneal lymphadenopathy may also occur
throughout the GI tract. Small bowel involvement is the least common site
of all in gut sarcoidosis. Extrinsic compression by abdominal and
mesenteric lymph nodes or reduction of the lumen size secondary to
cicatrizing constriction in consequence of mucosal granulomatous lesions,
results in intestinal obstruction. Colorectal sarcoidosis can occur in the
presence of grossly normal appearing mucosa. Colonic sarcoidosis involves
multiple nodules, polyps, stenosis, obstructive lesions, aphthous erosions,
or ulcers.

56. Sarcoidosis of the Peritoneum Sarcoidosis rarely affects the peritoneum. The most frequent
clinical presentation is exudative ascites, multiple granulomatous nodules studding the peritoneum
or a single peritoneal lesion. Peritoneal biopsy is required due to close gross visual resemblance, to
rule out carcinomatosis, tuberculosis and fungal infections. Enlarged lymph nodes are detected in
approximately 30% of patients particularly in the porta hepatis, para-aortic region, and celiac axis.
Lymph nodes are typically smaller (less than 2 cm in diameter) and more discrete (rather than
confluent) and less commonly involve the retro-crural area in sarcoidosis than lymphoma.
CT scan of a 55-year-old female demonstrates multiple enlarged lymph-nodes located in mediastinum, especially in right
and left hilum (a), and in abdomen - in celiac axis (b), in para-aortic and para caval region (c) and in the mesentery (d).

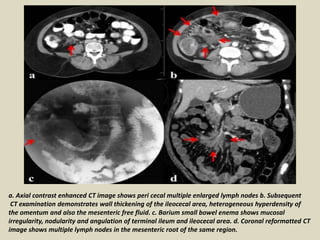

57. a. Axial contrast enhanced CT image shows peri cecal multiple enlarged lymph nodes b. Subsequent
CT examination demonstrates wall thickening of the ileocecal area, heterogeneous hyperdensity of
the omentum and also the mesenteric free fluid. c. Barium small bowel enema shows mucosal
irregularity, nodularity and angulation of terminal ileum and ileocecal area. d. Coronal reformatted CT
image shows multiple lymph nodes in the mesenteric root of the same region.

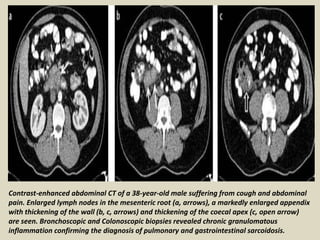

58. Contrast-enhanced abdominal CT of a 38-year-old male suffering from cough and abdominal
pain. Enlarged lymph nodes in the mesenteric root (a, arrows), a markedly enlarged appendix
with thickening of the wall (b, c, arrows) and thickening of the coecal apex (c, open arrow)
are seen. Bronchoscopic and Colonoscopic biopsies revealed chronic granulomatous
inflammation confirming the diagnosis of pulmonary and gastrointestinal sarcoidosis.

59. Sarcoidosis of the Pancreas Pancreatic sarcoidosis has been detected on autopsy
in 1-3% of cases with systemic disease but it is rarely symptomatic during life.
Typical symptoms of pancreatic involvement are due to direct tissue infiltration,
duct obstruction, or constrictive peripancreatic lymphadenopathy.
Sarcoidosis. Contrast-enhanced CT of the abdomen (a) shows enlarged lobulated pancreas. Ill-
defined multiple small hypodense lesions are detected in the pancreatic head and body (b, arrows).

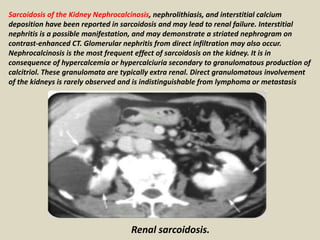

60. Sarcoidosis of the Kidney Nephrocalcinosis, nephrolithiasis, and interstitial calcium
deposition have been reported in sarcoidosis and may lead to renal failure. Interstitial
nephritis is a possible manifestation, and may demonstrate a striated nephrogram on
contrast-enhanced CT. Glomerular nephritis from direct infiltration may also occur.
Nephrocalcinosis is the most frequent effect of sarcoidosis on the kidney. It is in
consequence of hypercalcemia or hypercalciuria secondary to granulomatous production of
calcitriol. These granulomata are typically extra renal. Direct granulomatous involvement
of the kidneys is rarely observed and is indistinguishable from lymphoma or metastasis
Renal sarcoidosis.

61. Hepatic, splenic, and renal sarcoidosis. Contrast-enhanced CT of the abdomen (a, b) shows
multiple hypodense granulomas infiltrating the liver and spleen. Small hypodense
granulomas are also detected in both kidneys (a, b, arrows). Contour irregularity of the
shrinking liver became prominent (c, dashed arrows) and contour irregularity of the right
kidney at the site of granuloma occurred (d, dashed arrow) at five-month follow-up

62. Sarcoidosis of the Genital Tract The most common site of involvement of the female
reproductive system is the uterus. It is usually detected during the investigation of
abnormal uterine bleeding in patients with a previous history of sarcoidosis at other
anatomic sites. Ovarian sarcoidosis is extremely rare and known to mimic ovarian
malignancy with soft tissue nodules. There are no specific radiological findings in the
literature to describe ovarian sarcoidosis. Sarcoidosis involving the male reproductive tract
has rarely been reported. The epididymis, testis, and prostate gland, with only rare
involvement of the spermatic cord, scrotum, and penis are reported in order of decreasing
frequency. The lesions exhibit enhancement on gadolinium- based intravenous contrast
administration T1-weighted images and low signal intensity on T2-weighted images.
Testicular and scrotal sarcoidosis.

63. Testicular sarcoidosis proven by partial removal of the testis. B-mode and color Doppler
US shows scrotal swelling and hypoechoic nodular areas in the left testis (arrows).

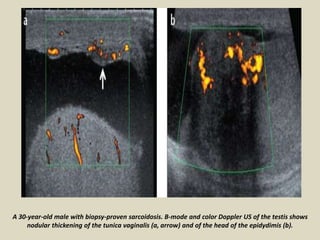

64. A 30-year-old male with biopsy-proven sarcoidosis. B-mode and color Doppler US of the testis shows
nodular thickening of the tunica vaginalis (a, arrow) and of the head of the epidydimis (b).

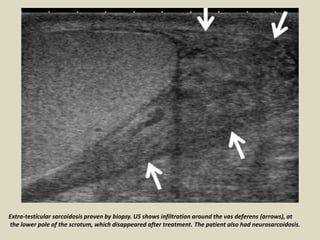

65. Extra-testicular sarcoidosis proven by biopsy. US shows infiltration around the vas deferens (arrows), at
the lower pole of the scrotum, which disappeared after treatment. The patient also had neurosarcoidosis.

66. Sarcoidosis with bilateral adnexal cystic masses are demonstrated (black arrows). The cyst
wall on the right side is thick and irregular. There is marked thickening of the mesorectal
fascia (long white arrow). Multiple prominent nodes are demonstrated along the pelvic
sidewalls, which are very high in signal intensity on T2W (short white arrows).

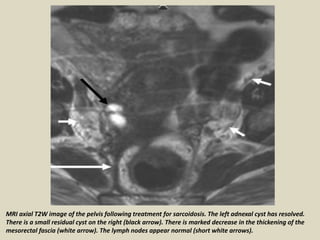

67. MRI axial T2W image of the pelvis following treatment for sarcoidosis. The left adnexal cyst has resolved.
There is a small residual cyst on the right (black arrow). There is marked decrease in the thickening of the
mesorectal fascia (white arrow). The lymph nodes appear normal (short white arrows).

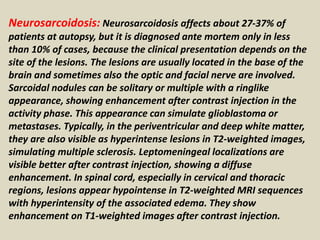

68. Neurosarcoidosis: Neurosarcoidosis affects about 27-37% of
patients at autopsy, but it is diagnosed ante mortem only in less
than 10% of cases, because the clinical presentation depends on the
site of the lesions. The lesions are usually located in the base of the
brain and sometimes also the optic and facial nerve are involved.
Sarcoidal nodules can be solitary or multiple with a ringlike
appearance, showing enhancement after contrast injection in the
activity phase. This appearance can simulate glioblastoma or
metastases. Typically, in the periventricular and deep white matter,
they are also visible as hyperintense lesions in T2-weighted images,
simulating multiple sclerosis. Leptomeningeal localizations are
visible better after contrast injection, showing a diffuse
enhancement. In spinal cord, especially in cervical and thoracic
regions, lesions appear hypointense in T2-weighted MRI sequences
with hyperintensity of the associated edema. They show
enhancement on T1-weighted images after contrast injection.

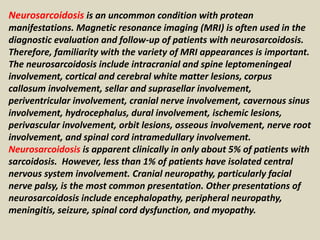

69. Neurosarcoidosis is an uncommon condition with protean
manifestations. Magnetic resonance imaging (MRI) is often used in the
diagnostic evaluation and follow-up of patients with neurosarcoidosis.
Therefore, familiarity with the variety of MRI appearances is important.
The neurosarcoidosis include intracranial and spine leptomeningeal
involvement, cortical and cerebral white matter lesions, corpus
callosum involvement, sellar and suprasellar involvement,
periventricular involvement, cranial nerve involvement, cavernous sinus
involvement, hydrocephalus, dural involvement, ischemic lesions,
perivascular involvement, orbit lesions, osseous involvement, nerve root
involvement, and spinal cord intramedullary involvement.
Neurosarcoidosis is apparent clinically in only about 5% of patients with
sarcoidosis. However, less than 1% of patients have isolated central
nervous system involvement. Cranial neuropathy, particularly facial
nerve palsy, is the most common presentation. Other presentations of
neurosarcoidosis include encephalopathy, peripheral neuropathy,
meningitis, seizure, spinal cord dysfunction, and myopathy.

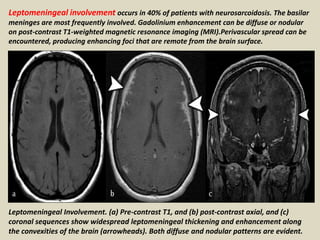

70. Leptomeningeal involvement occurs in 40% of patients with neurosarcoidosis. The basilar
meninges are most frequently involved. Gadolinium enhancement can be diffuse or nodular
on post-contrast T1-weighted magnetic resonance imaging (MRI).Perivascular spread can be
encountered, producing enhancing foci that are remote from the brain surface.
Leptomeningeal Involvement. (a) Pre-contrast T1, and (b) post-contrast axial, and (c)
coronal sequences show widespread leptomeningeal thickening and enhancement along
the convexities of the brain (arrowheads). Both diffuse and nodular patterns are evident.

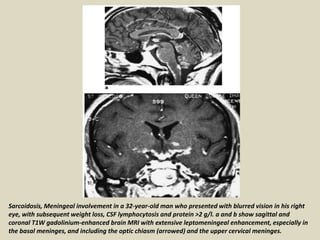

71. Sarcoidosis, Meningeal involvement in a 32-year-old man who presented with blurred vision in his right
eye, with subsequent weight loss, CSF lymphocytosis and protein >2 g/l. a and b show sagittal and
coronal T1W gadolinium-enhanced brain MRI with extensive leptomeningeal enhancement, especially in
the basal meninges, and including the optic chiasm (arrowed) and the upper cervical meninges.

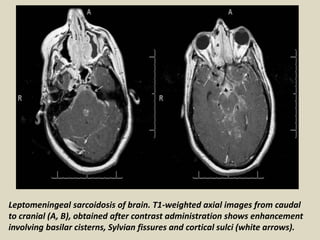

72. Leptomeningeal sarcoidosis of brain. T1-weighted axial images from caudal
to cranial (A, B), obtained after contrast administration shows enhancement
involving basilar cisterns, Sylvian fissures and cortical sulci (white arrows).

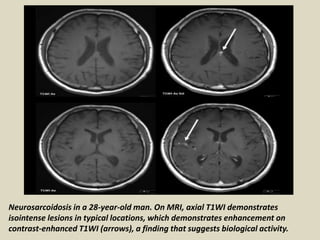

73. Neurosarcoidosis in a 28-year-old man. On MRI, axial T1WI demonstrates
isointense lesions in typical locations, which demonstrates enhancement on
contrast-enhanced T1WI (arrows), a finding that suggests biological activity.

74. Intraparenchymal mass lesions: Parenchymal mass lesions or granulomas are a
fairly common manifestation of neurosarcoidosis, with 35% of cases presenting as multiple
supratentorial and/or infratentorial masses and 15% as solitary masses. These lesions are
often intimately associated with leptomeningeal involvement and may represent centripetal
spread of the disease. Intraparenchymal masses typically show enhancement. Initially, the
lesions can be hypointense on T2, but are otherwise hyperintense. Central necrosis is rare.
(a) Axial T2 and (b) post-contrast T1sequences show numerous cortical and subcortical white matter lesions in
the bilateral cerebral hemispheres, which are hyperintense on T2 (arrows) and demonstrate enhancement.

75. Sarcoidosis, a and b, axial T2W and gadolinium-enhanced T1W brain images with multiple, extensive
white-matter periventricular and subcortical enhancing lesions, some of which are large (arrowed).

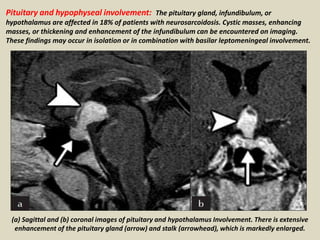

76. Pituitary and hypophyseal involvement: The pituitary gland, infundibulum, or
hypothalamus are affected in 18% of patients with neurosarcoidosis. Cystic masses, enhancing
masses, or thickening and enhancement of the infundibulum can be encountered on imaging.
These findings may occur in isolation or in combination with basilar leptomeningeal involvement.
(a) Sagittal and (b) coronal images of pituitary and hypothalamus Involvement. There is extensive
enhancement of the pituitary gland (arrow) and stalk (arrowhead), which is markedly enlarged.

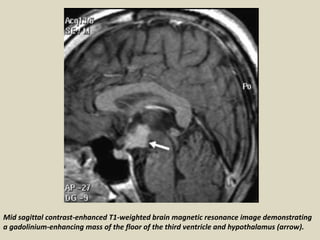

77. Mid sagittal contrast-enhanced T1-weighted brain magnetic resonance image demonstrating
a gadolinium-enhancing mass of the floor of the third ventricle and hypothalamus (arrow).

78. Sarcoidosis, T1W gadolinium-enhanced coronal MRI showing a thickening and enhancement of the
dural sheath of the right optic nerve (a, arrowed). Widespread dural enhancement with focal
thickening of the meninges over the convexity and the left temporal region is also seen (b, arrowed).

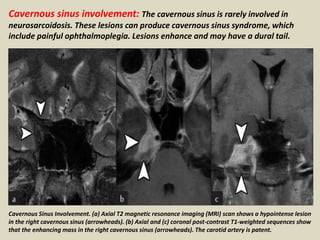

79. Cavernous sinus involvement: The cavernous sinus is rarely involved in
neurosarcoidosis. These lesions can produce cavernous sinus syndrome, which
include painful ophthalmoplegia. Lesions enhance and may have a dural tail.
Cavernous Sinus Involvement. (a) Axial T2 magnetic resonance imaging (MRI) scan shows a hypointense lesion
in the right cavernous sinus (arrowheads). (b) Axial and (c) coronal post-contrast T1-weighted sequences show
that the enhancing mass in the right cavernous sinus (arrowheads). The carotid artery is patent.

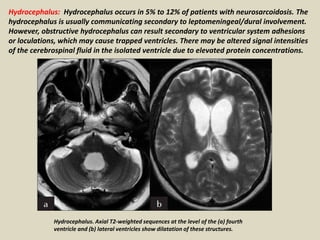

80. Hydrocephalus: Hydrocephalus occurs in 5% to 12% of patients with neurosarcoidosis. The
hydrocephalus is usually communicating secondary to leptomeningeal/dural involvement.
However, obstructive hydrocephalus can result secondary to ventricular system adhesions
or loculations, which may cause trapped ventricles. There may be altered signal intensities
of the cerebrospinal fluid in the isolated ventricle due to elevated protein concentrations.
Hydrocephalus. Axial T2-weighted sequences at the level of the (a) fourth
ventricle and (b) lateral ventricles show dilatation of these structures.

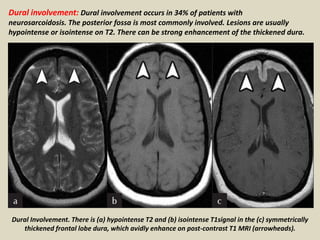

81. Dural involvement: Dural involvement occurs in 34% of patients with
neurosarcoidosis. The posterior fossa is most commonly involved. Lesions are usually
hypointense or isointense on T2. There can be strong enhancement of the thickened dura.
Dural Involvement. There is (a) hypointense T2 and (b) isointense T1signal in the (c) symmetrically
thickened frontal lobe dura, which avidly enhance on post-contrast T1 MRI (arrowheads).

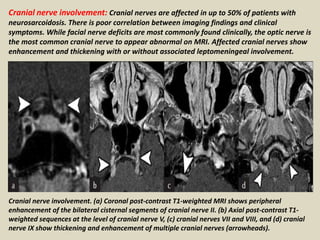

82. Cranial nerve involvement: Cranial nerves are affected in up to 50% of patients with
neurosarcoidosis. There is poor correlation between imaging findings and clinical
symptoms. While facial nerve deficits are most commonly found clinically, the optic nerve is
the most common cranial nerve to appear abnormal on MRI. Affected cranial nerves show
enhancement and thickening with or without associated leptomeningeal involvement.
Cranial nerve involvement. (a) Coronal post-contrast T1-weighted MRI shows peripheral
enhancement of the bilateral cisternal segments of cranial nerve II. (b) Axial post-contrast T1-
weighted sequences at the level of cranial nerve V, (c) cranial nerves VII and VIII, and (d) cranial
nerve IX show thickening and enhancement of multiple cranial nerves (arrowheads).

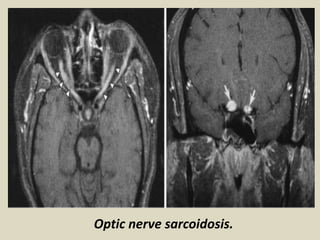

83. Optic nerve sarcoidosis.

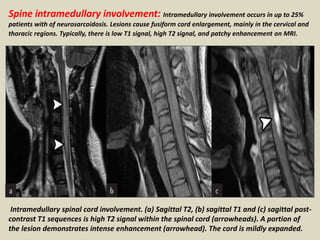

84. Spine intramedullary involvement: Intramedullary involvement occurs in up to 25%
patients with of neurosarcoidosis. Lesions cause fusiform cord enlargement, mainly in the cervical and
thoracic regions. Typically, there is low T1 signal, high T2 signal, and patchy enhancement on MRI.
Intramedullary spinal cord involvement. (a) Sagittal T2, (b) sagittal T1 and (c) sagittal post-
contrast T1 sequences is high T2 signal within the spinal cord (arrowheads). A portion of
the lesion demonstrates intense enhancement (arrowhead). The cord is mildly expanded.

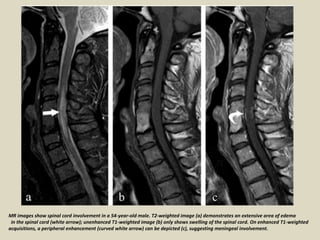

85. MR images show spinal cord involvement in a 54-year-old male. T2-weighted image (a) demonstrates an extensive area of edema
in the spinal cord (white arrow); unenhanced T1-weighted image (b) only shows swelling of the spinal cord. On enhanced T1-weighted
acquisitions, a peripheral enhancement (curved white arrow) can be depicted (c), suggesting meningeal involvement.

86. Sagittal T1-weighted magnetic resonance image of the spinal cord showing an
intramedullary gadolinium-enhancing mass responsible for cordal enlargement (arrow).

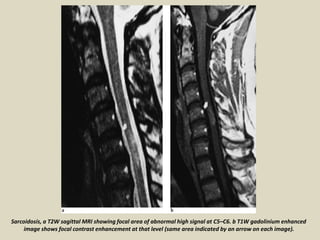

87. Sarcoidosis, a T2W sagittal MRI showing focal area of abnormal high signal at C5–C6. b T1W gadolinium enhanced
image shows focal contrast enhancement at that level (same area indicated by an arrow on each image).

88. Spinal leptomeningeal sarcoidosis. Contrast-enhanced sagittal T1-weighted image of the cervical spine shows linear and
multiple nodular enhancing lesions along surface of spinal cord and on spinal nerve roots (thin white arrows). Post contrast
axial T1-weighted image of the thoracic spine demonstrates nodular leptomeningeal deposits (thick white arrows) with
enlarged subcarinal and left hilar lymph nodes (arrowheads) and bilateral pleural effusion (hollow white arrows).

89. Sarcoidosis, involving spinal cord and the brain.

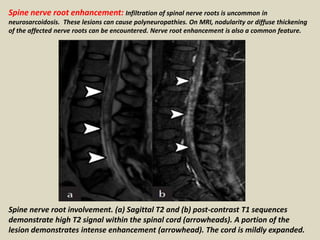

90. Spine nerve root enhancement: Infiltration of spinal nerve roots is uncommon in
neurosarcoidosis. These lesions can cause polyneuropathies. On MRI, nodularity or diffuse thickening
of the affected nerve roots can be encountered. Nerve root enhancement is also a common feature.
Spine nerve root involvement. (a) Sagittal T2 and (b) post-contrast T1 sequences
demonstrate high T2 signal within the spinal cord (arrowheads). A portion of the
lesion demonstrates intense enhancement (arrowhead). The cord is mildly expanded.

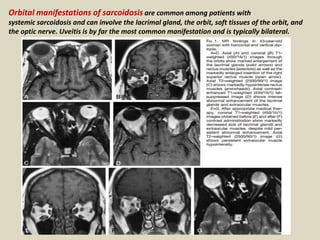

91. Orbital manifestations of sarcoidosis are common among patients with
systemic sarcoidosis and can involve the lacrimal gland, the orbit, soft tissues of the orbit, and
the optic nerve. Uveitis is by far the most common manifestation and is typically bilateral.

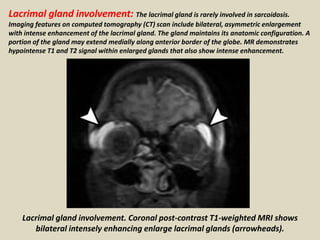

92. Lacrimal gland involvement: The lacrimal gland is rarely involved in sarcoidosis.
Imaging features on computed tomography (CT) scan include bilateral, asymmetric enlargement
with intense enhancement of the lacrimal gland. The gland maintains its anatomic configuration. A
portion of the gland may extend medially along anterior border of the globe. MR demonstrates
hypointense T1 and T2 signal within enlarged glands that also show intense enhancement.
Lacrimal gland involvement. Coronal post-contrast T1-weighted MRI shows
bilateral intensely enhancing enlarge lacrimal glands (arrowheads).

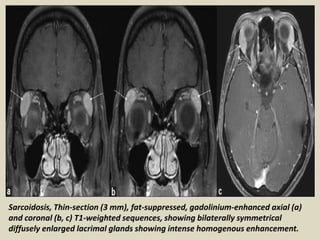

93. Sarcoidosis, Thin-section (3 mm), fat-suppressed, gadolinium-enhanced axial (a)
and coronal (b, c) T1-weighted sequences, showing bilaterally symmetrical
diffusely enlarged lacrimal glands showing intense homogenous enhancement.

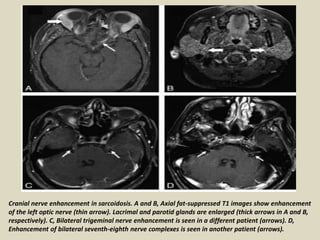

94. Cranial nerve enhancement in sarcoidosis. A and B, Axial fat-suppressed T1 images show enhancement
of the left optic nerve (thin arrow). Lacrimal and parotid glands are enlarged (thick arrows in A and B,
respectively). C, Bilateral trigeminal nerve enhancement is seen in a different patient (arrows). D,
Enhancement of bilateral seventh-eighth nerve complexes is seen in another patient (arrows).

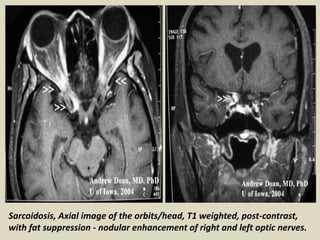

95. Sarcoidosis, Axial image of the orbits/head, T1 weighted, post-contrast,
with fat suppression - nodular enhancement of right and left optic nerves.

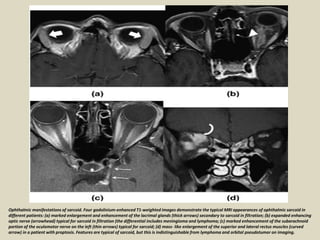

96. Ophthalmic manifestations of sarcoid. Four gadolinium-enhanced T1-weighted images demonstrate the typical MRI appearances of ophthalmic sarcoid in
different patients: (a) marked enlargement and enhancement of the lacrimal glands (thick arrows) secondary to sarcoid in filtration; (b) expanded enhancing
optic nerve (arrowhead) typical for sarcoid in filtration (the differential includes meningioma and lymphoma; (c) marked enhancement of the subarachnoid
portion of the oculomotor nerve on the left (thin arrows) typical for sarcoid; (d) mass- like enlargement of the superior and lateral rectus muscles (curved
arrow) in a patient with proptosis. Features are typical of sarcoid, but this is indistinguishable from lymphoma and orbital pseudotumor on imaging.

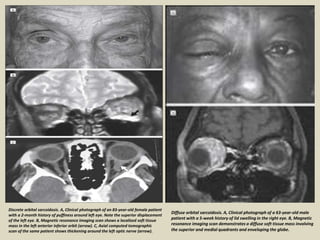

97. Discrete orbital sarcoidosis. A, Clinical photograph of an 83-year-old female patient
with a 2-month history of puffiness around left eye. Note the superior displacement
of the left eye. B, Magnetic resonance imaging scan shows a localized soft tissue
mass in the left anterior inferior orbit (arrow). C, Axial computed tomographic
scan of the same patient shows thickening around the left optic nerve (arrow).
Diffuse orbital sarcoidosis. A, Clinical photograph of a 63-year-old male
patient with a 5-week history of lid swelling in the right eye. B, Magnetic
resonance imaging scan demonstrates a diffuse soft tissue mass involving
the superior and medial quadrants and enveloping the globe.

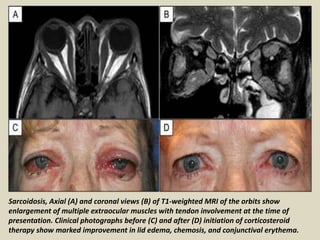

98. Sarcoidosis, Axial (A) and coronal views (B) of T1-weighted MRI of the orbits show
enlargement of multiple extraocular muscles with tendon involvement at the time of
presentation. Clinical photographs before (C) and after (D) initiation of corticosteroid
therapy show marked improvement in lid edema, chemosis, and conjunctival erythema.

99. Muscle-skeletal sarcoidosis The skeleton is affected in about 1-13% of patients
with generalized disease, complaining of bone and joint pain. Sarcoidosis usually
involves the phalanges of the hands and feet; conventional radiography, performed in
symptomatic patients, demonstrate either "lacy" osteolytic or osteosclerotic multiple
lesions, where the latter is less frequent. Large bones and axial skeleton involvement
is uncommon. In large bones, lesions usually demonstrate a lytic appearance with
indistinct or well-defined margins at conventional radiography. In the vertebrae, both
osteolytic lesions with sclerotic borders and diffuse osteosclerotic localizations are
possible [13, 19-20]. Lesions can be located in one or more contiguous or non-
contiguous vertebrae and they can also affect the pedicles. Patients may complain
of arthralgia in knees, ankles, elbows and wrists, but joint radiograms are usually
negative or demonstrate non-specific signs of osteoporosis and soft-tissue swelling.
These lesions usually demonstrate an uptake on bone scintigraphy, even before the
lesions are visible at conventional radiograms. The use of CT and MRI is rare and it is
usually performed to help differential diagnosis from other pathologies with skeletal
involvement, such as osseous metastases, lymphoma, myeloma and tuberculosis.
Sarcoidosis may also affect the muscles with myopathic or nodular type involvement.
On MR, sarcoid nodules show hypo-intense fibrotic central areas, with marginal
peripheral areas hyper-intense on T2-weighted images with enhancement after
gadolinium. These appearances may mimic a soft-tissue tumor. In the myopathic
type, the involved muscles demonstrate a high signal intensity on T2-weighted
images.

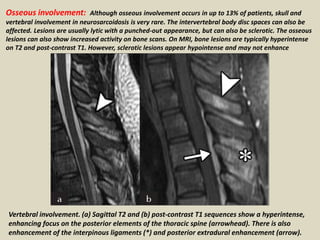

100. Osseous involvement: Although osseous involvement occurs in up to 13% of patients, skull and
vertebral involvement in neurosarcoidosis is very rare. The intervertebral body disc spaces can also be
affected. Lesions are usually lytic with a punched-out appearance, but can also be sclerotic. The osseous
lesions can also show increased activity on bone scans. On MRI, bone lesions are typically hyperintense
on T2 and post-contrast T1. However, sclerotic lesions appear hypointense and may not enhance
Vertebral involvement. (a) Sagittal T2 and (b) post-contrast T1 sequences show a hyperintense,
enhancing focus on the posterior elements of the thoracic spine (arrowhead). There is also
enhancement of the interpinous ligaments (*) and posterior extradural enhancement (arrow).

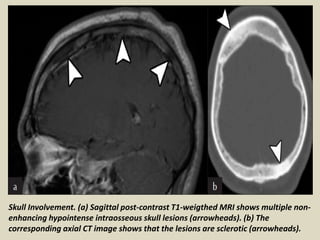

101. Skull Involvement. (a) Sagittal post-contrast T1-weigthed MRI shows multiple non-
enhancing hypointense intraosseous skull lesions (arrowheads). (b) The
corresponding axial CT image shows that the lesions are sclerotic (arrowheads).

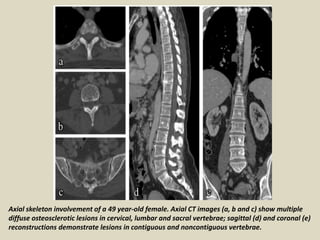

102. Axial skeleton involvement of a 49 year-old female. Axial CT images (a, b and c) show multiple
diffuse osteosclerotic lesions in cervical, lumbar and sacral vertebrae; sagittal (d) and coronal (e)
reconstructions demonstrate lesions in contiguous and noncontiguous vertebrae.

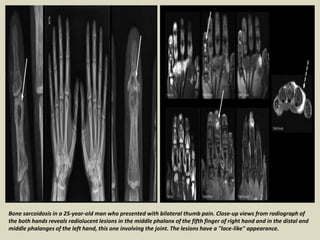

103. Bone sarcoidosis in a 25-year-old man who presented with bilateral thumb pain. Close-up views from radiograph of
the both hands reveals radiolucent lesions in the middle phalanx of the fifth finger of right hand and in the distal and
middle phalanges of the left hand, this one involving the joint. The lesions have a "lace-like" appearance.

104. Small bone sarcoidosis. Close-up view from a postero-anterior radiograph of the finger shows sarcoidosis
with the classic lacy lytic pattern involving the middle phalanx. The articular surface is spared.

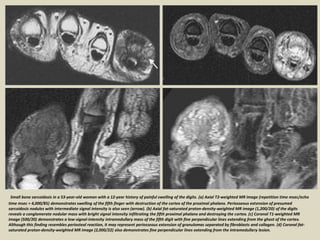

105. Small bone sarcoidosis in a 53-year-old woman with a 12-year history of painful swelling of the digits. (a) Axial T2-weighted MR image (repetition time msec/echo
time msec = 4,000/85) demonstrates swelling of the fifth finger with destruction of the cortex of the proximal phalanx. Periosseous extension of presumed
sarcoidosis nodules with intermediate signal intensity is also seen (arrow). (b) Axial fat-saturated proton-density-weighted MR image (1,200/20) of the digits
reveals a conglomerate nodular mass with bright signal intensity infiltrating the fifth proximal phalanx and destroying the cortex. (c) Coronal T1-weighted MR
image (500/20) demonstrates a low-signal-intensity intramedullary mass of the fifth digit with fine perpendicular lines extending from the ghost of the cortex.
Although this finding resembles periosteal reaction, it may represent periosseous extension of granulomas separated by fibroblasts and collagen. (d) Coronal fat-
saturated proton-density-weighted MR image (2,000/22) also demonstrates fine perpendicular lines extending from the intramedullary lesion.

106. Large bone sarcoidosis in a 48-year-old man with
left hip pain. (a) Anteroposterior radiograph
shows the normal pelvis. (b, c) Coronal T1-
weighted (450/8) (b) and fat-saturated
intermediate-density-weighted (2,000/15) (c) MR
images demonstrate numerous discrete round
lesions within the lumbar vertebrae, the pelvis,
and both proximal femurs. As seen here, these
lesions typically have low signal intensity on T1-
weighted images and bright signal intensity on
fat-saturated proton-density-weighted images.

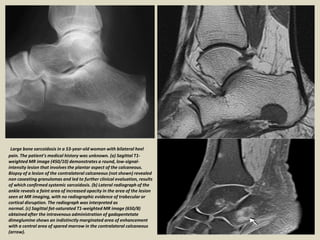

107. Large bone sarcoidosis in a 53-year-old woman with bilateral heel
pain. The patient’s medical history was unknown. (a) Sagittal T1-
weighted MR image (450/10) demonstrates a round, low-signal-
intensity lesion that involves the plantar aspect of the calcaneous.
Biopsy of a lesion of the contralateral calcaneous (not shown) revealed
non caseating granulomas and led to further clinical evaluation, results
of which confirmed systemic sarcoidosis. (b) Lateral radiograph of the
ankle reveals a faint area of increased opacity in the area of the lesion
seen at MR imaging, with no radiographic evidence of trabecular or
cortical disruption. The radiograph was interpreted as
normal. (c) Sagittal fat-saturated T1-weighted MR image (650/8)
obtained after the intravenous administration of gadopentetate
dimeglumine shows an indistinctly marginated area of enhancement
with a central area of spared marrow in the contralateral calcaneous
(arrow).

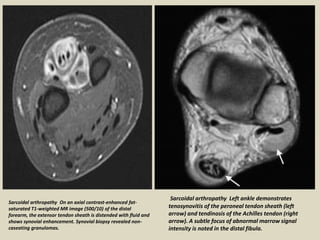

108. Sarcoidal arthropathy Left ankle demonstrates
tenosynovitis of the peroneal tendon sheath (left
arrow) and tendinosis of the Achilles tendon (right
arrow). A subtle focus of abnormal marrow signal
intensity is noted in the distal fibula.
Sarcoidal arthropathy On an axial contrast-enhanced fat-
saturated T1-weighted MR image (500/10) of the distal
forearm, the extensor tendon sheath is distended with fluid and
shows synovial enhancement. Synovial biopsy revealed non-
caseating granulomas.

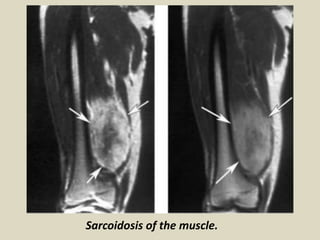

109. Sarcoidosis of the muscle.

110. Breast sarcoidosis is rare and usually presents in patients with known sarcoid involving other organ
systems. In the breast, sarcoidosis may mimic malignancy which must be excluded by core biopsy.
Sarcoidosis. 72 years old with skin biopsy and chest radiograph consistent with sarcoidosis. US guided biopsy of a
spiculated mass in the left breast was consistent with sarcoidosis. Fungal and acid fast bacilli stains were negative. A.
(Right) and B. (Left) CC and CC Magnification: Multiple spiculated masses in both breasts, which were stable for 5 years.

111. Breast sarcoidosis in a 62-year-old woman. Cranio-caudal and medio-lateral views show a
background mammographic pattern of scattered fibroglandular densities throughout both breasts,
in a woman who had developed new nodular lesions diffusely distributed, predominantly in the
right breast. All of them show rounded shape and partial ill-defined margins.

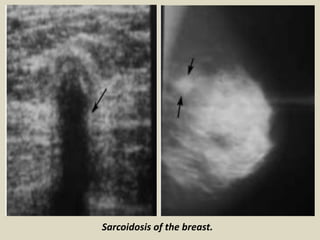

112. Sarcoidosis of the breast.

113. Sarcoidosis, Bilateral diagnostic mammogram with (a) MLO and (b) CC views demonstrates new
spiculated masses throughout both breasts (arrows) which were all initially suspicious for carcinoma.

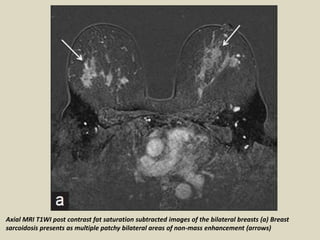

114. Axial MRI T1WI post contrast fat saturation subtracted images of the bilateral breasts (a) Breast
sarcoidosis presents as multiple patchy bilateral areas of non-mass enhancement (arrows)

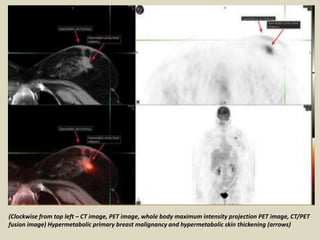

115. (Clockwise from top left – CT image, PET image, whole body maximum intensity projection PET image, CT/PET
fusion image) Hypermetabolic primary breast malignancy and hypermetabolic skin thickening (arrows)

116. Cutaneous Sarcoidosis is a granulomatous disease
characterized by the presence of noncaseating
granulomas in organ tissue. Skin involvement is common,
and a variety of therapeutic interventions have been
utilized for the treatment of cutaneous disease. However,
scientific support for most treatments for cutaneous
sarcoidosis is limited to observational studies,
uncontrolled prospective studies, small case series,
individual case reports, and opinions of respected
authorities. When managing patients with cutaneous
sarcoidosis, clinicians must first consider whether
treatment is indicated. The options available for the
treatment of skin lesions include both local and systemic
therapies.

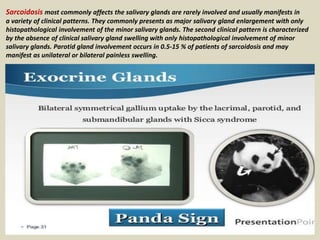

120. Sarcoidosis most commonly affects the salivary glands are rarely involved and usually manifests in
a variety of clinical patterns. They commonly presents as major salivary gland enlargement with only
histopathological involvement of the minor salivary glands. The second clinical pattern is characterized
by the absence of clinical salivary gland swelling with only histopathological involvement of minor
salivary glands. Parotid gland involvement occurs in 0.5-15 % of patients of sarcoidosis and may
manifest as unilateral or bilateral painless swelling.

121. The "panda sign" in radiogallium scintigraphy.

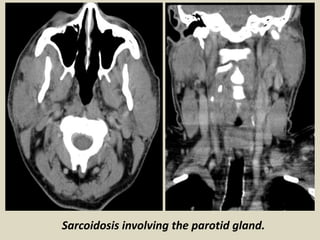

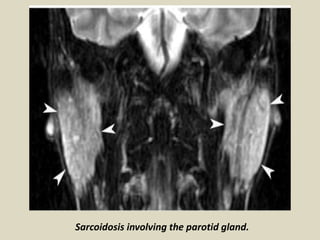

122. Sarcoidosis involving the parotid gland.

123. Sarcoidosis involving the parotid gland.

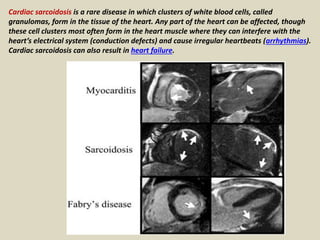

124. Cardiac sarcoidosis is a rare disease in which clusters of white blood cells, called
granulomas, form in the tissue of the heart. Any part of the heart can be affected, though
these cell clusters most often form in the heart muscle where they can interfere with the
heart’s electrical system (conduction defects) and cause irregular heartbeats (arrhythmias).
Cardiac sarcoidosis can also result in heart failure.

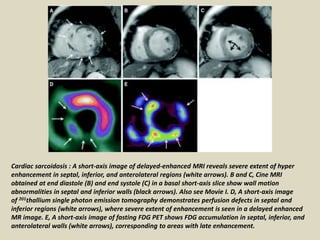

125. Cardiac sarcoidosis : A short-axis image of delayed-enhanced MRI reveals severe extent of hyper
enhancement in septal, inferior, and anterolateral regions (white arrows). B and C, Cine MRI
obtained at end diastole (B) and end systole (C) in a basal short-axis slice show wall motion
abnormalities in septal and inferior walls (black arrows). Also see Movie I. D, A short-axis image
of 201thallium single photon emission tomography demonstrates perfusion defects in septal and
inferior regions (white arrows), where severe extent of enhancement is seen in a delayed enhanced
MR image. E, A short-axis image of fasting FDG PET shows FDG accumulation in septal, inferior, and
anterolateral walls (white arrows), corresponding to areas with late enhancement.

126. Gadolinium‐diethylenetriamine penta-acetic acid (DTPA) enhanced magnetic resonance imaging
in the detection of cardiac sarcoidosis. Cardiac sarcoidosis produces zones of segmental wall
thinning that enhances with gadolinium‐DTPA (arrow). The pattern of enhancement manifests
mostly in the mid portion of the myocardium and is not typical of myocardial infarction.

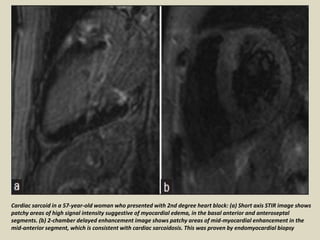

127. Cardiac sarcoid in a 57-year-old woman who presented with 2nd degree heart block: (a) Short axis STIR image shows
patchy areas of high signal intensity suggestive of myocardial edema, in the basal anterior and anteroseptal
segments. (b) 2-chamber delayed enhancement image shows patchy areas of mid-myocardial enhancement in the
mid-anterior segment, which is consistent with cardiac sarcoidosis. This was proven by endomyocardial biopsy

128. Sarcoid myopericarditis: 46-year-old male presented with chest pain and dyspnea. (a) Short axis T2-weighted
image shows mild, diffuse circumferential pericardial thickening. (b) 2-chamber delayed enhancement image
shows diffuse circumferential enhancement of the pericardium and subepicardial layer of the pericardium,
which is consistent with a myopericarditis pattern, in this patient due to cardiac sarcoidosis.

129. Atypical presentation of cardiac sarcoid in a 62-year-old woman with history of heart block: (a) Short
axis phase sensitive inversion recovery sequence show a full thickness transmural enhancement in the
mid-part of antero- and inferoseptal segments. (b) Short axis phase-sensitive inversion recovery
sequence shows wall thickening and transmural enhancement in the mid-inferolateral and inferior
segments. Although the enhancement patterns are suggestive of an infarct, the patchy in a non-vascular
distribution is suggestive of non-ischemic pattern of enhancement. Biopsy showed cardiac sarcoidosis

130. Unusual appearances of cardiac sarcoidosis in a 63-year-old man with biopsy confirmed pulmonary sarcoidosis: (a) Axial
HASTE-MR image shows enlarged lymph nodes in the paratracheal and hilar regions. (b) 4-chamber delayed
enhancement image shows near full thickness transmural enhancement in the basal lateral wall and patchy areas of
enhancement in the septal segments. In addition, there is also patchy enhancement in the right ventricular myocardium.
There is relatively low signal intensity in the blood pool. These appearances are suggestive of diffuse sarcoidosis

132. Cardiac MRI with T2-weighted STIR images (left panel) showing edema (arrow) and
(middle and right panels) extensive patchy late gadolinium enhancement typical of sarcoid.

133. Diagnosis and treatment response evaluation of cardiac sarcoidosis
using positron emission tomography/magnetic resonance imaging.

134. A to D, Imaging results from the 4 patients with probable cardiac sarcoidosis (ie, with high-degree
atrioventricular block and findings in cardiac imaging typical for cardiac sarcoidosis despite negative
endomyocardial biopsy findings. In each part, the top row of images shows a technetium-99m-tetrofosmin
myocardial perfusion image, and the bottom row shows the corresponding 18F-2-deoxyglucose uptake. Every
patient had a localized septal perfusion defect (*) with a super imposable hot spot on PET imaging suggestive
of active inflammation. FDG F-18 indicates 18F-2-deoxyglucose; Tc, technetium-99m.

135. Thank You.
