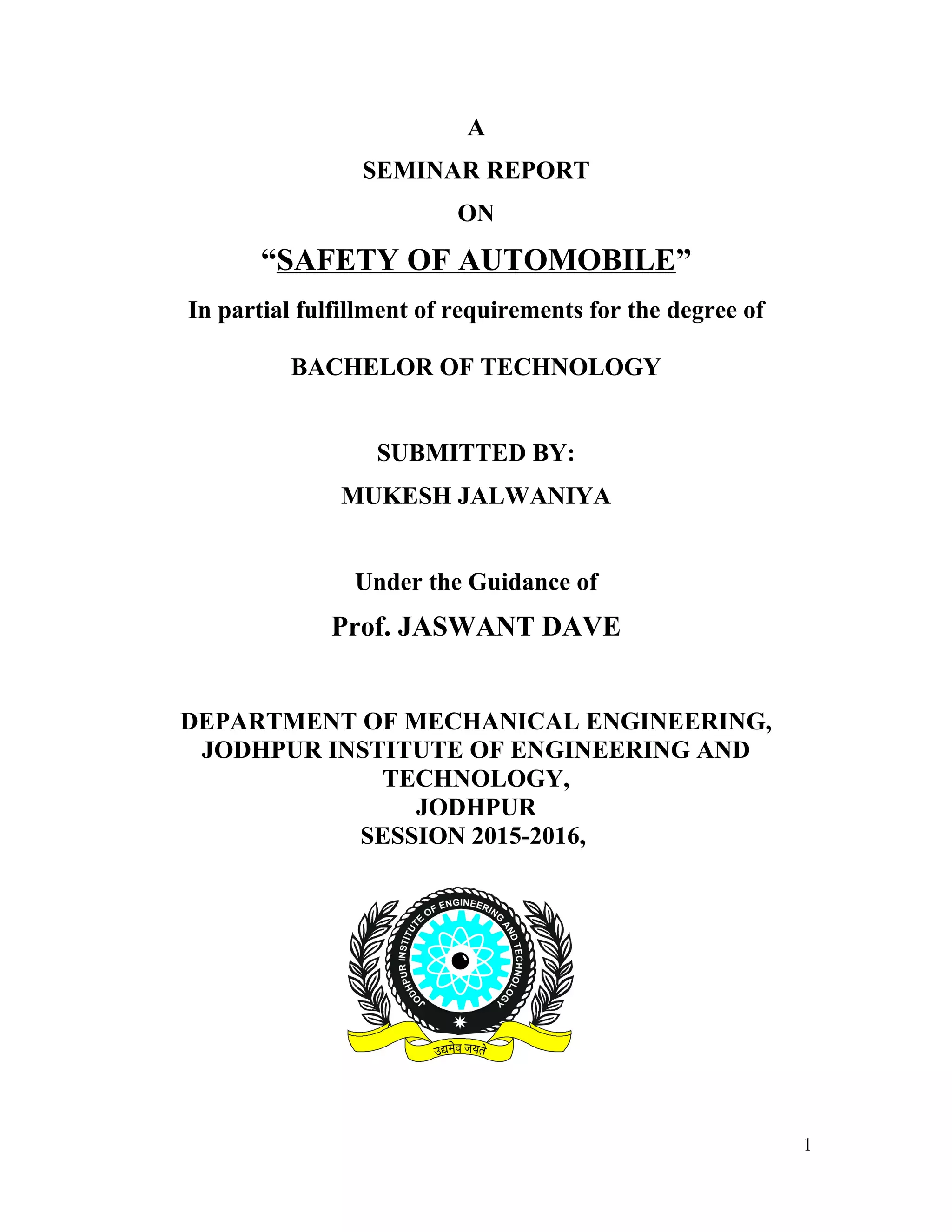

1. A
SEMINAR REPORT
ON
“SAFETY OF AUTOMOBILE”
In partial fulfillment of requirements for the degree of
BACHELOR OF TECHNOLOGY
SUBMITTED BY:
MUKESH JALWANIYA
Under the Guidance of
Prof. JASWANT DAVE
DEPARTMENT OF MECHANICAL ENGINEERING,
JODHPUR INSTITUTE OF ENGINEERING AND
TECHNOLOGY,
JODHPUR
SESSION 2015-2016,
1

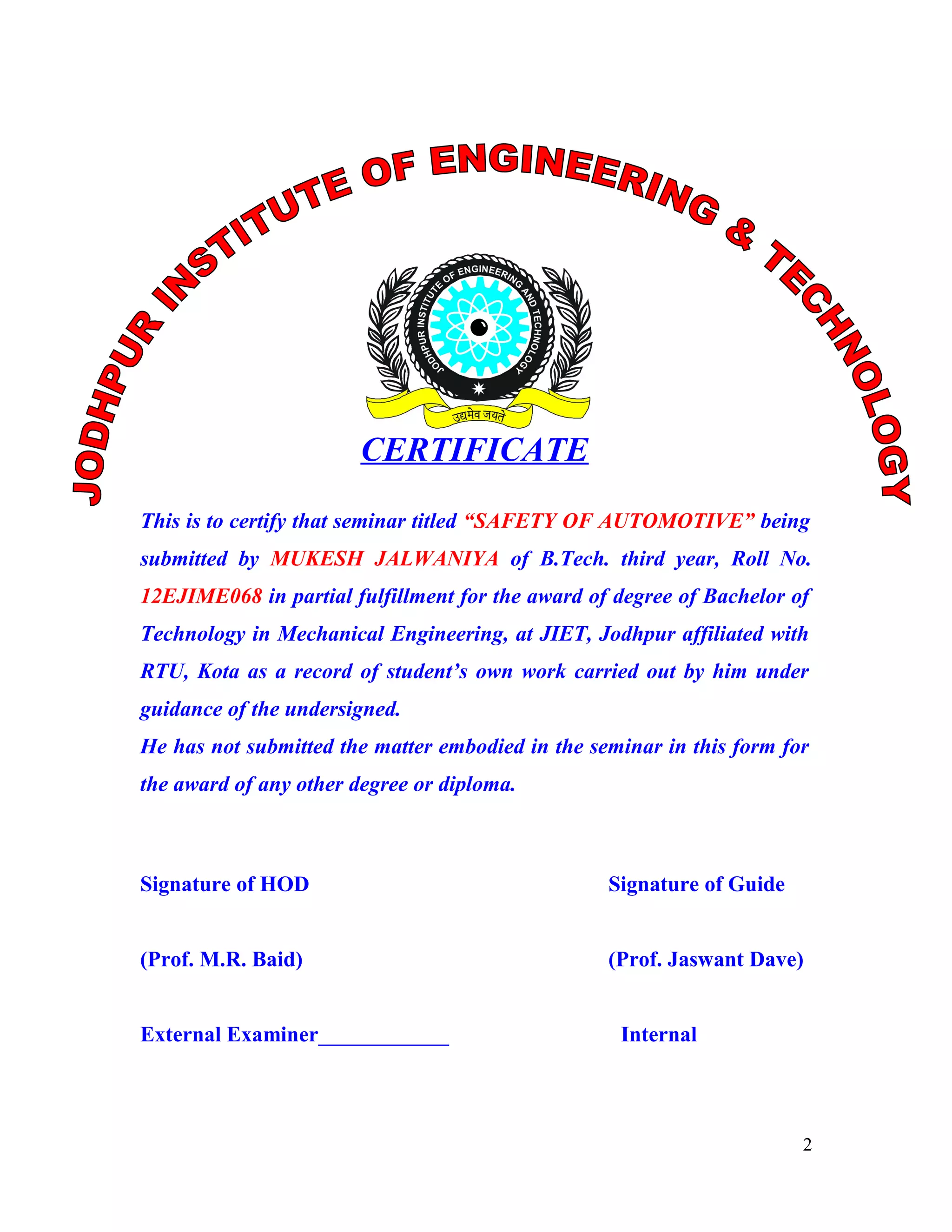

2. CERTIFICATE
This is to certify that seminar titled “SAFETY OF AUTOMOTIVE” being
submitted by MUKESH JALWANIYA of B.Tech. third year, Roll No.
12EJIME068 in partial fulfillment for the award of degree of Bachelor of
Technology in Mechanical Engineering, at JIET, Jodhpur affiliated with
RTU, Kota as a record of student’s own work carried out by him under
guidance of the undersigned.
He has not submitted the matter embodied in the seminar in this form for
the award of any other degree or diploma.
Signature of HOD Signature of Guide
(Prof. M.R. Baid) (Prof. Jaswant Dave)
External Examiner____________ Internal
2

3. ACKNOWLEDGEMENT
I have taken efforts in this seminar. However, it would not have been
possible without the kind support and help of many individuals and
organizations. I would like to extend my sincere thanks to all of them.
I am highly indebted to Prof. M.R.BAID, Head of department and ,
Seminar Incharge Prof. SUNIL GUPTA for their guidance and constant
supervision as well as for providing necessary information regarding the
seminar & also for their support in completing the seminar.
I would like to express my gratitude towards Prof. JASWANT
DAVE, my seminar guide for their kind co-operation and encouragement
which help me in completion of this seminar.
My thanks and appreciations also go to my colleague in developing
the seminar and people who have willingly helped me out with their
abilities.
3

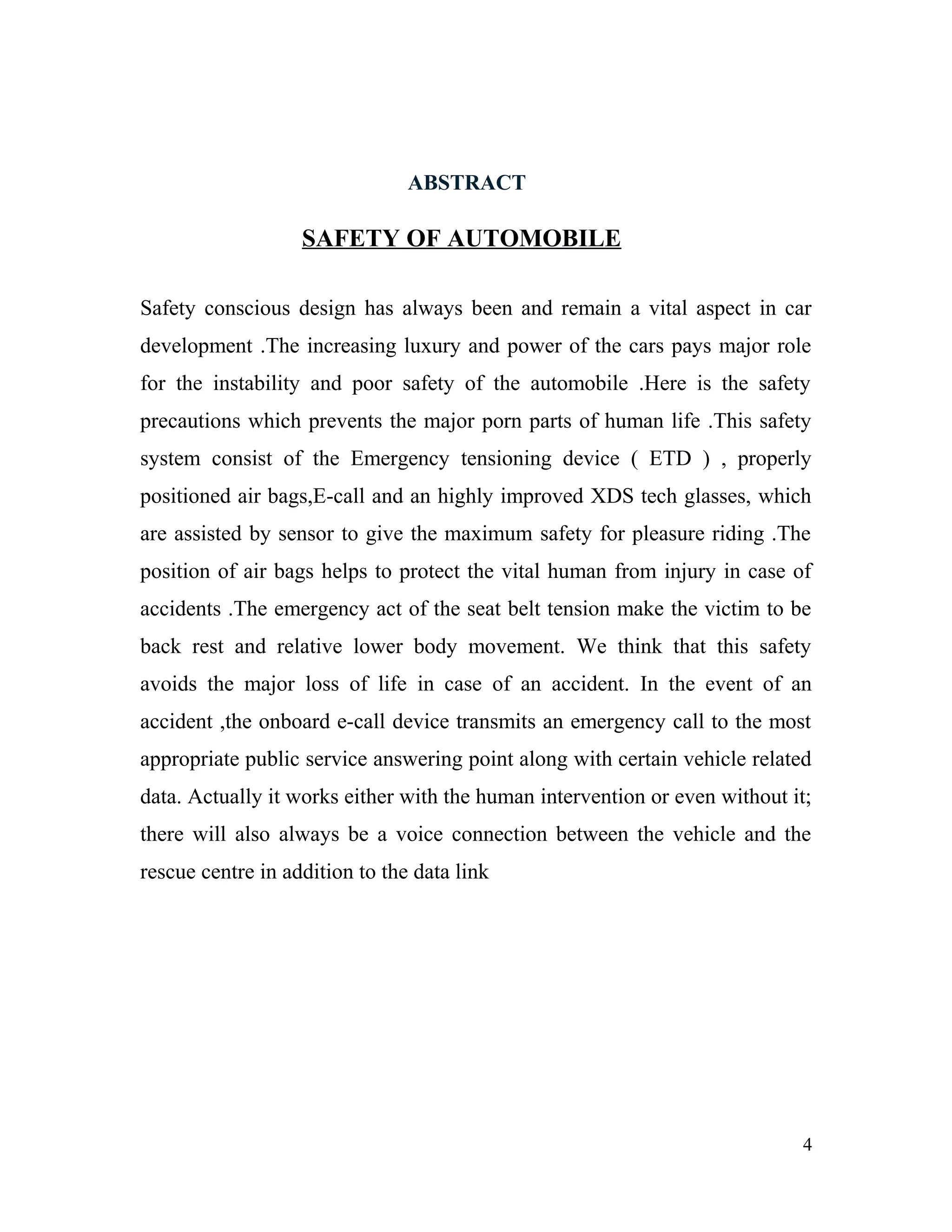

4. ABSTRACT
SAFETY OF AUTOMOBILE
Safety conscious design has always been and remain a vital aspect in car
development .The increasing luxury and power of the cars pays major role
for the instability and poor safety of the automobile .Here is the safety
precautions which prevents the major porn parts of human life .This safety
system consist of the Emergency tensioning device ( ETD ) , properly
positioned air bags,E-call and an highly improved XDS tech glasses, which
are assisted by sensor to give the maximum safety for pleasure riding .The
position of air bags helps to protect the vital human from injury in case of
accidents .The emergency act of the seat belt tension make the victim to be
back rest and relative lower body movement. We think that this safety
avoids the major loss of life in case of an accident. In the event of an
accident ,the onboard e-call device transmits an emergency call to the most
appropriate public service answering point along with certain vehicle related
data. Actually it works either with the human intervention or even without it;
there will also always be a voice connection between the vehicle and the
rescue centre in addition to the data link
4

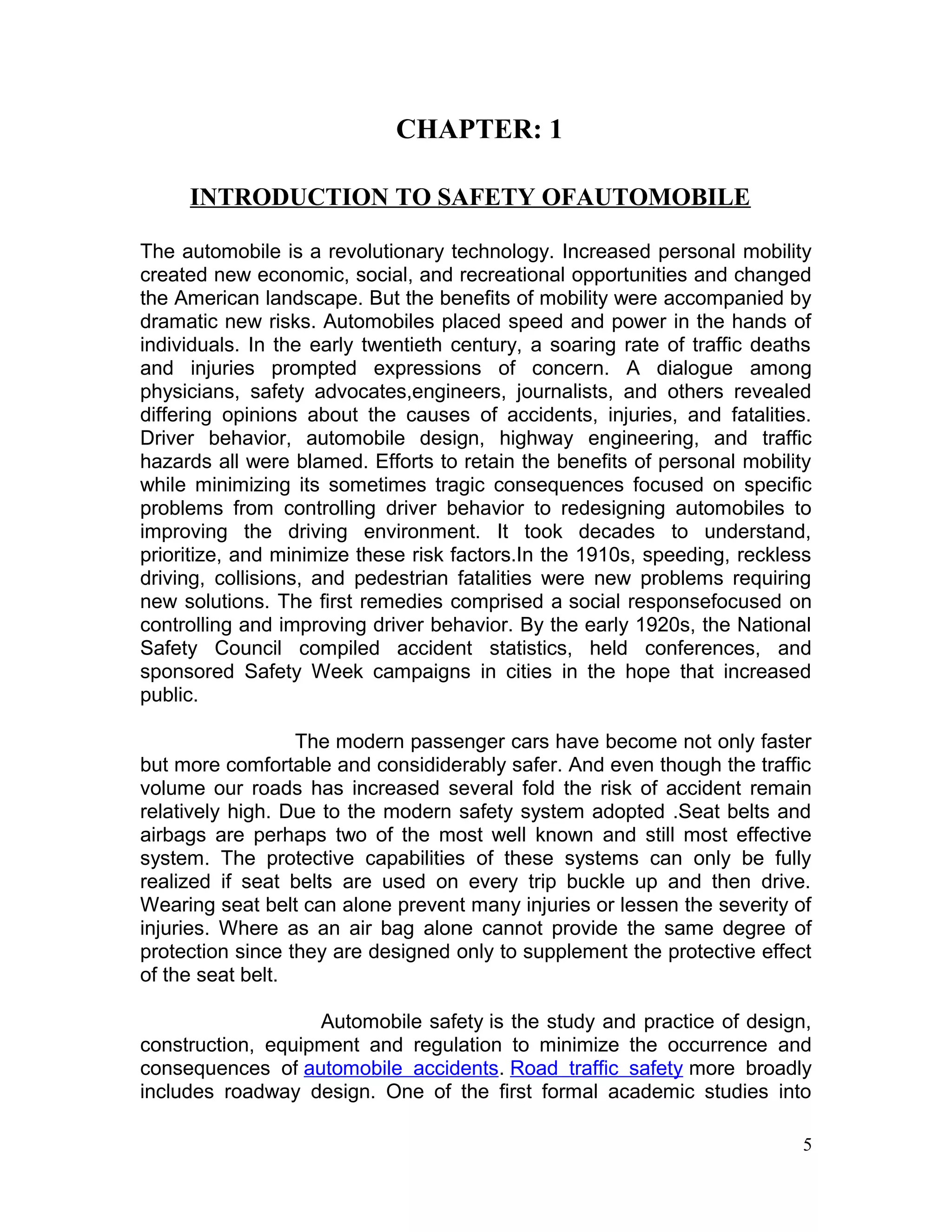

5. CHAPTER: 1
INTRODUCTION TO SAFETY OFAUTOMOBILE
The automobile is a revolutionary technology. Increased personal mobility
created new economic, social, and recreational opportunities and changed
the American landscape. But the benefits of mobility were accompanied by
dramatic new risks. Automobiles placed speed and power in the hands of
individuals. In the early twentieth century, a soaring rate of traffic deaths
and injuries prompted expressions of concern. A dialogue among
physicians, safety advocates,engineers, journalists, and others revealed
differing opinions about the causes of accidents, injuries, and fatalities.
Driver behavior, automobile design, highway engineering, and traffic
hazards all were blamed. Efforts to retain the benefits of personal mobility
while minimizing its sometimes tragic consequences focused on specific
problems from controlling driver behavior to redesigning automobiles to
improving the driving environment. It took decades to understand,
prioritize, and minimize these risk factors.In the 1910s, speeding, reckless
driving, collisions, and pedestrian fatalities were new problems requiring
new solutions. The first remedies comprised a social responsefocused on
controlling and improving driver behavior. By the early 1920s, the National
Safety Council compiled accident statistics, held conferences, and
sponsored Safety Week campaigns in cities in the hope that increased
public.
The modern passenger cars have become not only faster
but more comfortable and consididerably safer. And even though the traffic
volume our roads has increased several fold the risk of accident remain
relatively high. Due to the modern safety system adopted .Seat belts and
airbags are perhaps two of the most well known and still most effective
system. The protective capabilities of these systems can only be fully
realized if seat belts are used on every trip buckle up and then drive.
Wearing seat belt can alone prevent many injuries or lessen the severity of
injuries. Where as an air bag alone cannot provide the same degree of
protection since they are designed only to supplement the protective effect
of the seat belt.
Automobile safety is the study and practice of design,
construction, equipment and regulation to minimize the occurrence and
consequences of automobile accidents. Road traffic safety more broadly
includes roadway design. One of the first formal academic studies into
5

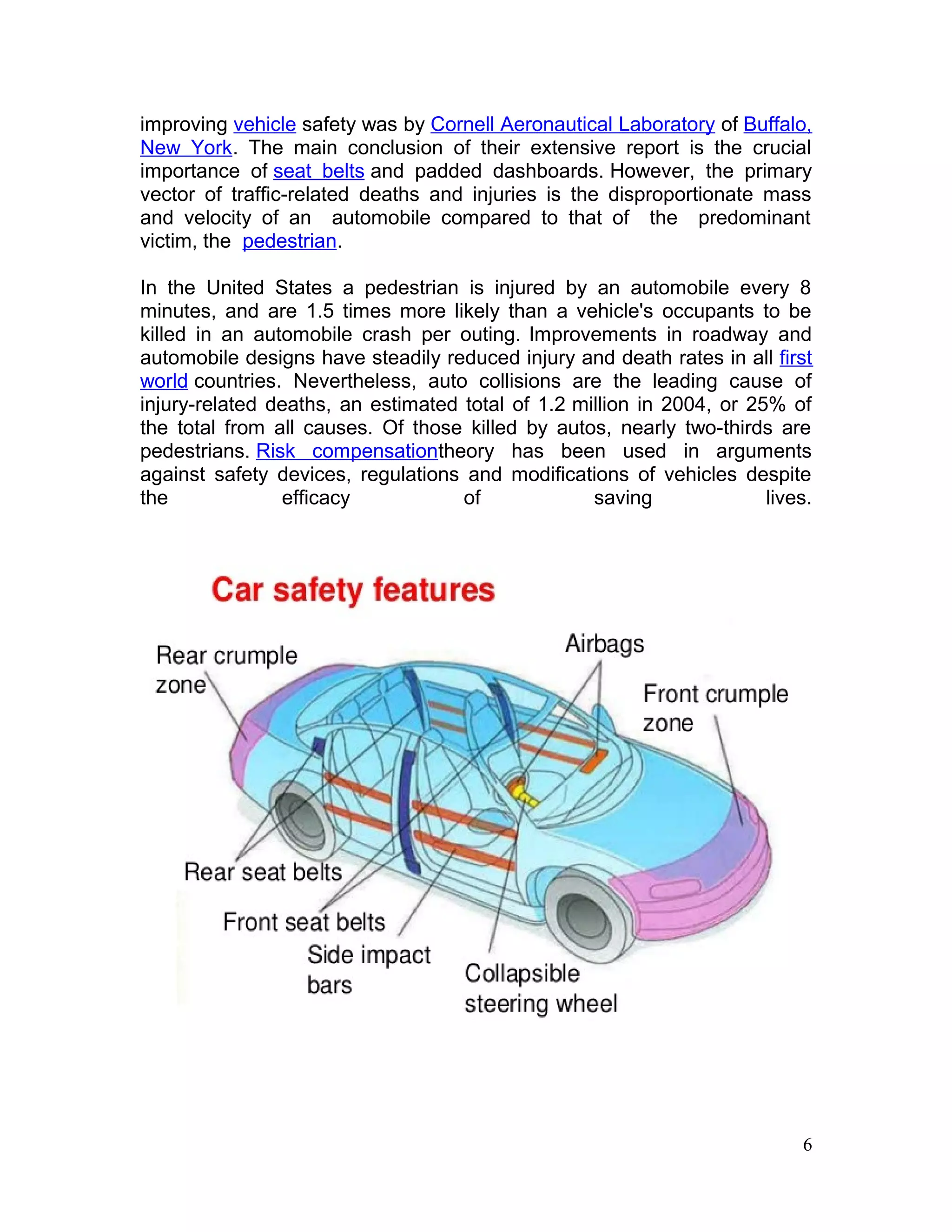

6. improving vehicle safety was by Cornell Aeronautical Laboratory of Buffalo,
New York. The main conclusion of their extensive report is the crucial
importance of seat belts and padded dashboards. However, the primary
vector of traffic-related deaths and injuries is the disproportionate mass
and velocity of an automobile compared to that of the predominant
victim, the pedestrian.
In the United States a pedestrian is injured by an automobile every 8
minutes, and are 1.5 times more likely than a vehicle's occupants to be
killed in an automobile crash per outing. Improvements in roadway and
automobile designs have steadily reduced injury and death rates in all first
world countries. Nevertheless, auto collisions are the leading cause of
injury-related deaths, an estimated total of 1.2 million in 2004, or 25% of
the total from all causes. Of those killed by autos, nearly two-thirds are
pedestrians. Risk compensationtheory has been used in arguments
against safety devices, regulations and modifications of vehicles despite
the efficacy of saving lives.
6

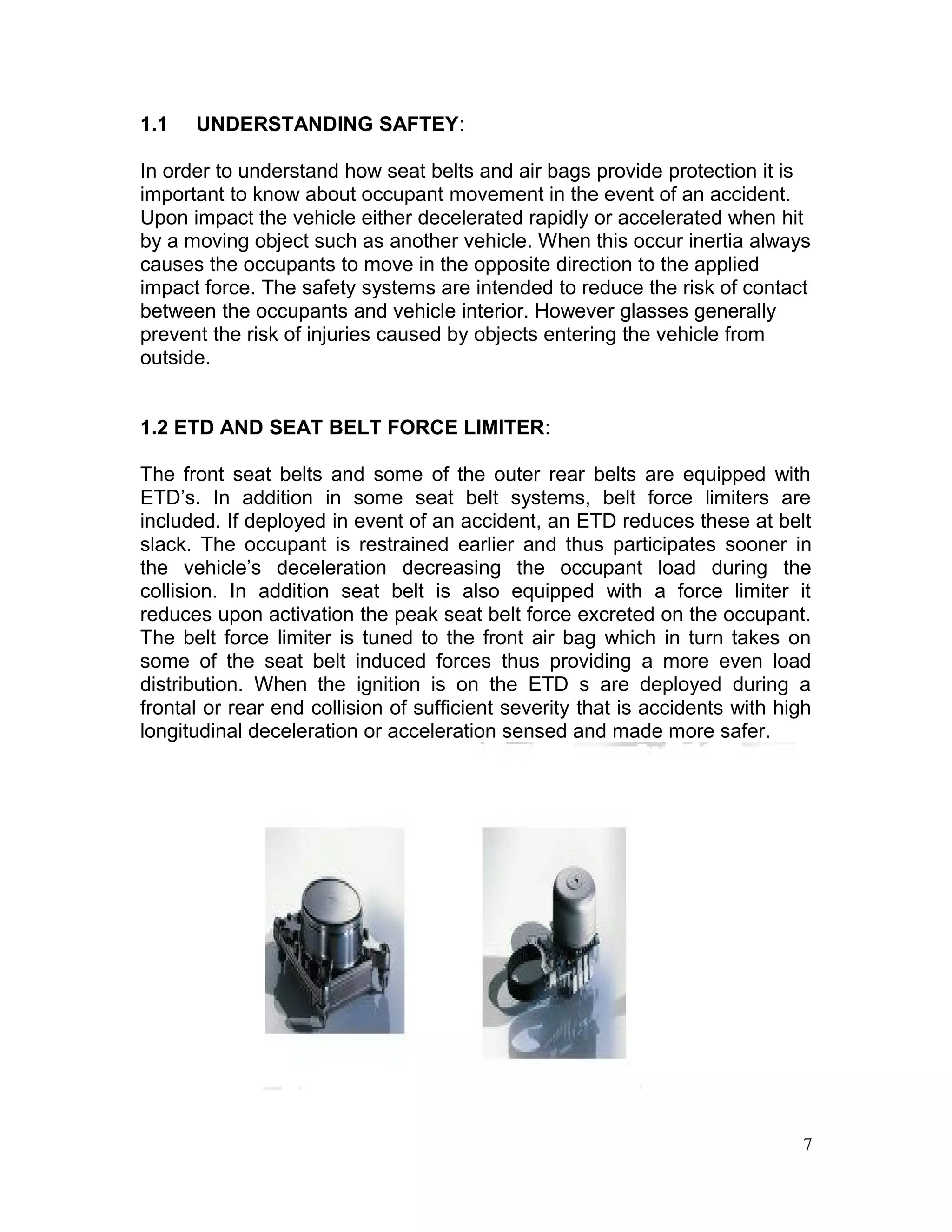

7. 1.1 UNDERSTANDING SAFTEY:
In order to understand how seat belts and air bags provide protection it is
important to know about occupant movement in the event of an accident.
Upon impact the vehicle either decelerated rapidly or accelerated when hit
by a moving object such as another vehicle. When this occur inertia always
causes the occupants to move in the opposite direction to the applied
impact force. The safety systems are intended to reduce the risk of contact
between the occupants and vehicle interior. However glasses generally
prevent the risk of injuries caused by objects entering the vehicle from
outside.
1.2 ETD AND SEAT BELT FORCE LIMITER:
The front seat belts and some of the outer rear belts are equipped with
ETD’s. In addition in some seat belt systems, belt force limiters are
included. If deployed in event of an accident, an ETD reduces these at belt
slack. The occupant is restrained earlier and thus participates sooner in
the vehicle’s deceleration decreasing the occupant load during the
collision. In addition seat belt is also equipped with a force limiter it
reduces upon activation the peak seat belt force excreted on the occupant.
The belt force limiter is tuned to the front air bag which in turn takes on
some of the seat belt induced forces thus providing a more even load
distribution. When the ignition is on the ETD s are deployed during a
frontal or rear end collision of sufficient severity that is accidents with high
longitudinal deceleration or acceleration sensed and made more safer.
7

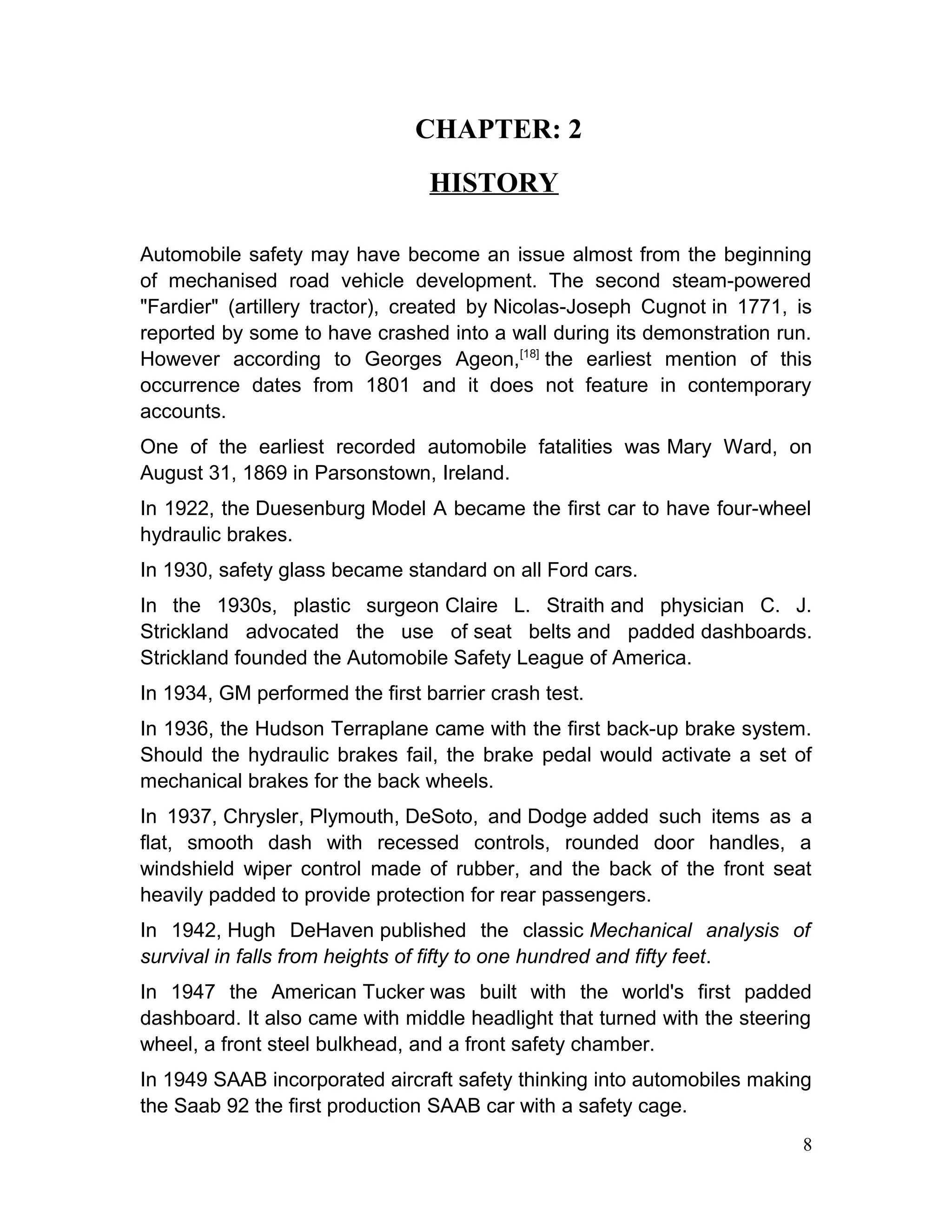

8. CHAPTER: 2
HISTORY
Automobile safety may have become an issue almost from the beginning
of mechanised road vehicle development. The second steam-powered
"Fardier" (artillery tractor), created by Nicolas-Joseph Cugnot in 1771, is
reported by some to have crashed into a wall during its demonstration run.
However according to Georges Ageon,[18]
the earliest mention of this
occurrence dates from 1801 and it does not feature in contemporary
accounts.
One of the earliest recorded automobile fatalities was Mary Ward, on
August 31, 1869 in Parsonstown, Ireland.
In 1922, the Duesenburg Model A became the first car to have four-wheel
hydraulic brakes.
In 1930, safety glass became standard on all Ford cars.
In the 1930s, plastic surgeon Claire L. Straith and physician C. J.
Strickland advocated the use of seat belts and padded dashboards.
Strickland founded the Automobile Safety League of America.
In 1934, GM performed the first barrier crash test.
In 1936, the Hudson Terraplane came with the first back-up brake system.
Should the hydraulic brakes fail, the brake pedal would activate a set of
mechanical brakes for the back wheels.
In 1937, Chrysler, Plymouth, DeSoto, and Dodge added such items as a
flat, smooth dash with recessed controls, rounded door handles, a
windshield wiper control made of rubber, and the back of the front seat
heavily padded to provide protection for rear passengers.
In 1942, Hugh DeHaven published the classic Mechanical analysis of
survival in falls from heights of fifty to one hundred and fifty feet.
In 1947 the American Tucker was built with the world's first padded
dashboard. It also came with middle headlight that turned with the steering
wheel, a front steel bulkhead, and a front safety chamber.
In 1949 SAAB incorporated aircraft safety thinking into automobiles making
the Saab 92 the first production SAAB car with a safety cage.
8

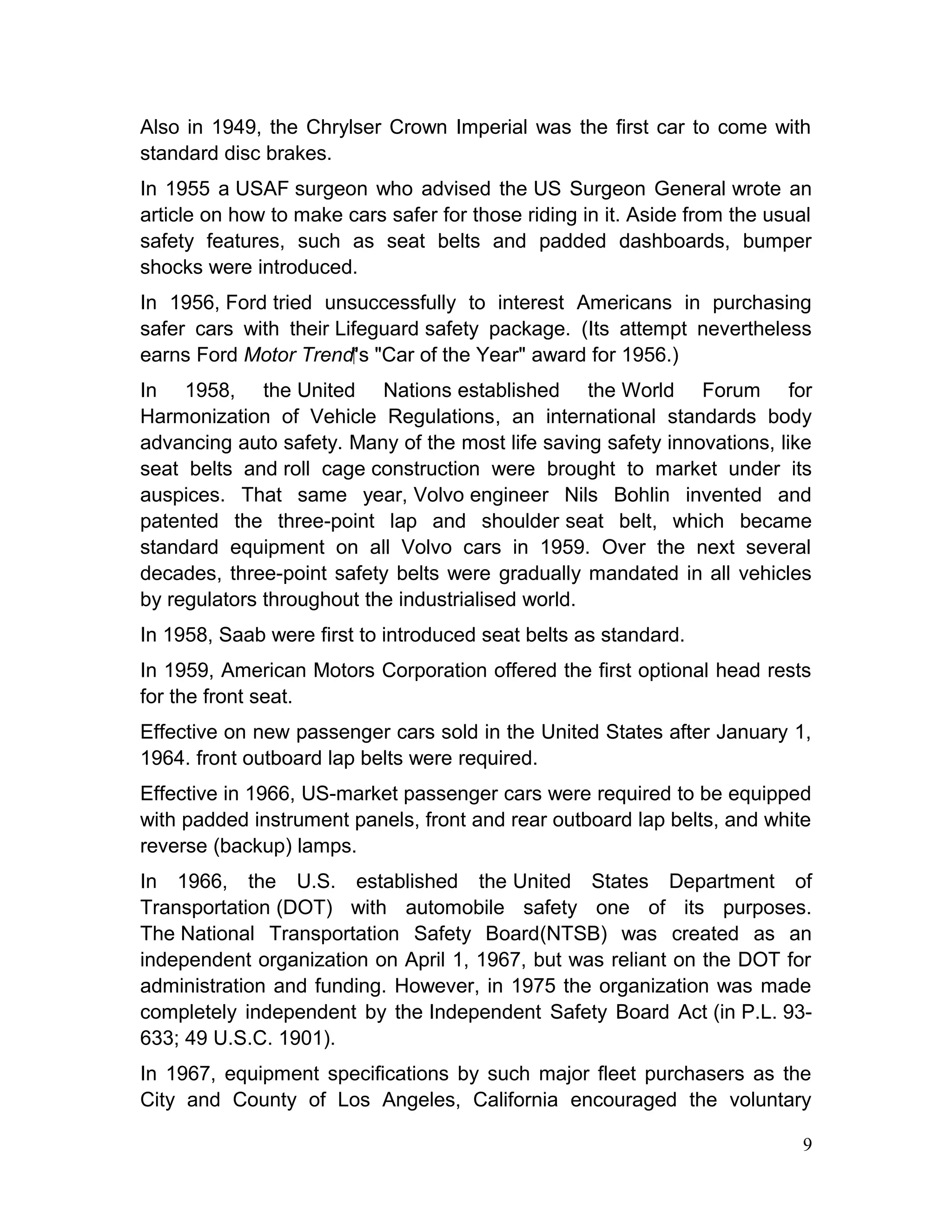

9. Also in 1949, the Chrylser Crown Imperial was the first car to come with
standard disc brakes.
In 1955 a USAF surgeon who advised the US Surgeon General wrote an
article on how to make cars safer for those riding in it. Aside from the usual
safety features, such as seat belts and padded dashboards, bumper
shocks were introduced.
In 1956, Ford tried unsuccessfully to interest Americans in purchasing
safer cars with their Lifeguard safety package. (Its attempt nevertheless
earns Ford Motor Trend‍' s "Car of the Year" award for 1956.)
In 1958, the United Nations established the World Forum for
Harmonization of Vehicle Regulations, an international standards body
advancing auto safety. Many of the most life saving safety innovations, like
seat belts and roll cage construction were brought to market under its
auspices. That same year, Volvo engineer Nils Bohlin invented and
patented the three-point lap and shoulder seat belt, which became
standard equipment on all Volvo cars in 1959. Over the next several
decades, three-point safety belts were gradually mandated in all vehicles
by regulators throughout the industrialised world.
In 1958, Saab were first to introduced seat belts as standard.
In 1959, American Motors Corporation offered the first optional head rests
for the front seat.
Effective on new passenger cars sold in the United States after January 1,
1964. front outboard lap belts were required.
Effective in 1966, US-market passenger cars were required to be equipped
with padded instrument panels, front and rear outboard lap belts, and white
reverse (backup) lamps.
In 1966, the U.S. established the United States Department of
Transportation (DOT) with automobile safety one of its purposes.
The National Transportation Safety Board(NTSB) was created as an
independent organization on April 1, 1967, but was reliant on the DOT for
administration and funding. However, in 1975 the organization was made
completely independent by the Independent Safety Board Act (in P.L. 93-
633; 49 U.S.C. 1901).
In 1967, equipment specifications by such major fleet purchasers as the
City and County of Los Angeles, California encouraged the voluntary
9

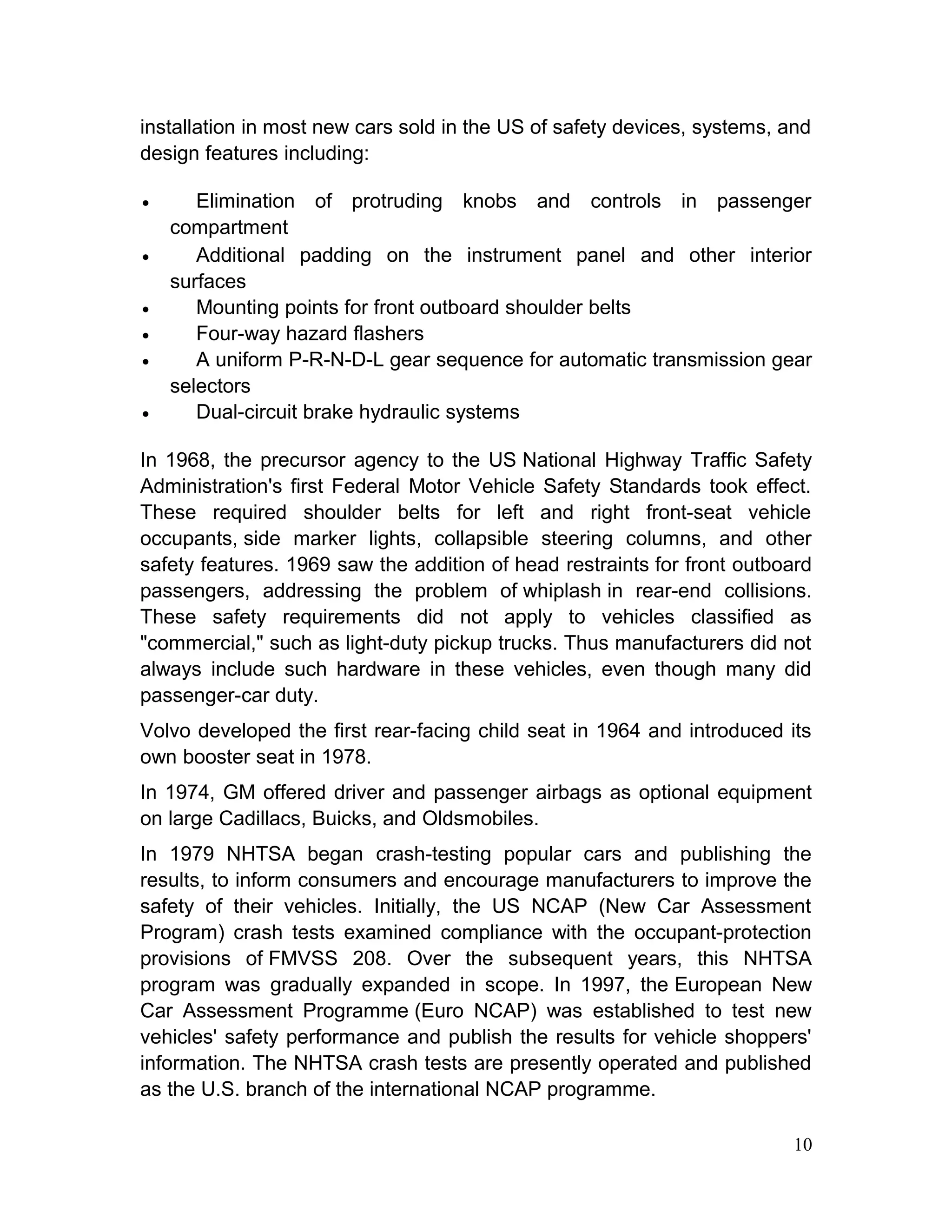

10. installation in most new cars sold in the US of safety devices, systems, and
design features including:
• Elimination of protruding knobs and controls in passenger
compartment
• Additional padding on the instrument panel and other interior
surfaces
• Mounting points for front outboard shoulder belts
• Four-way hazard flashers
• A uniform P-R-N-D-L gear sequence for automatic transmission gear
selectors
• Dual-circuit brake hydraulic systems
In 1968, the precursor agency to the US National Highway Traffic Safety
Administration's first Federal Motor Vehicle Safety Standards took effect.
These required shoulder belts for left and right front-seat vehicle
occupants, side marker lights, collapsible steering columns, and other
safety features. 1969 saw the addition of head restraints for front outboard
passengers, addressing the problem of whiplash in rear-end collisions.
These safety requirements did not apply to vehicles classified as
"commercial," such as light-duty pickup trucks. Thus manufacturers did not
always include such hardware in these vehicles, even though many did
passenger-car duty.
Volvo developed the first rear-facing child seat in 1964 and introduced its
own booster seat in 1978.
In 1974, GM offered driver and passenger airbags as optional equipment
on large Cadillacs, Buicks, and Oldsmobiles.
In 1979 NHTSA began crash-testing popular cars and publishing the
results, to inform consumers and encourage manufacturers to improve the
safety of their vehicles. Initially, the US NCAP (New Car Assessment
Program) crash tests examined compliance with the occupant-protection
provisions of FMVSS 208. Over the subsequent years, this NHTSA
program was gradually expanded in scope. In 1997, the European New
Car Assessment Programme (Euro NCAP) was established to test new
vehicles' safety performance and publish the results for vehicle shoppers'
information. The NHTSA crash tests are presently operated and published
as the U.S. branch of the international NCAP programme.
10

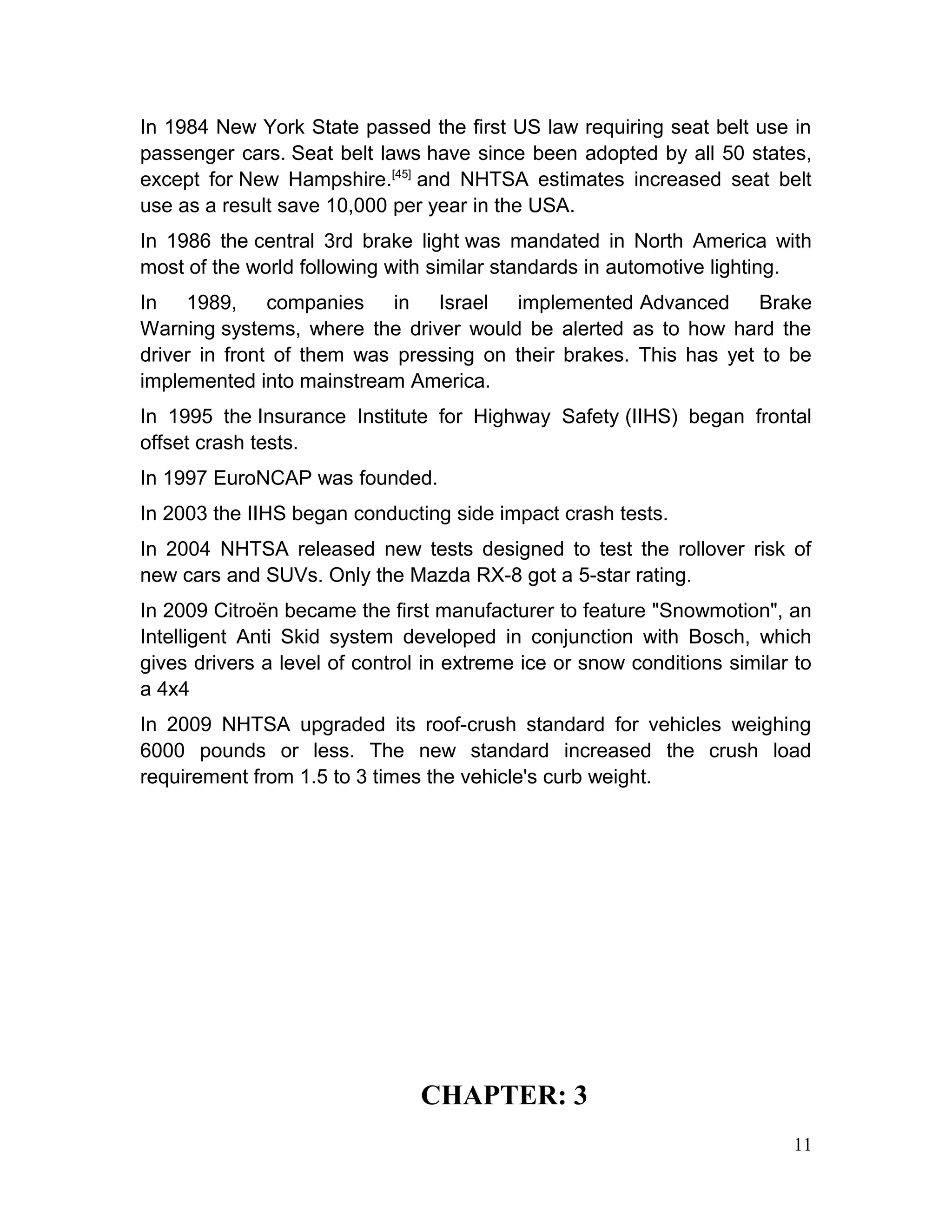

11. In 1984 New York State passed the first US law requiring seat belt use in
passenger cars. Seat belt laws have since been adopted by all 50 states,
except for New Hampshire.[45]
and NHTSA estimates increased seat belt
use as a result save 10,000 per year in the USA.
In 1986 the central 3rd brake light was mandated in North America with
most of the world following with similar standards in automotive lighting.
In 1989, companies in Israel implemented Advanced Brake
Warning systems, where the driver would be alerted as to how hard the
driver in front of them was pressing on their brakes. This has yet to be
implemented into mainstream America.
In 1995 the Insurance Institute for Highway Safety (IIHS) began frontal
offset crash tests.
In 1997 EuroNCAP was founded.
In 2003 the IIHS began conducting side impact crash tests.
In 2004 NHTSA released new tests designed to test the rollover risk of
new cars and SUVs. Only the Mazda RX-8 got a 5-star rating.
In 2009 Citroën became the first manufacturer to feature "Snowmotion", an
Intelligent Anti Skid system developed in conjunction with Bosch, which
gives drivers a level of control in extreme ice or snow conditions similar to
a 4x4
In 2009 NHTSA upgraded its roof-crush standard for vehicles weighing
6000 pounds or less. The new standard increased the crush load
requirement from 1.5 to 3 times the vehicle's curb weight.
CHAPTER: 3
11

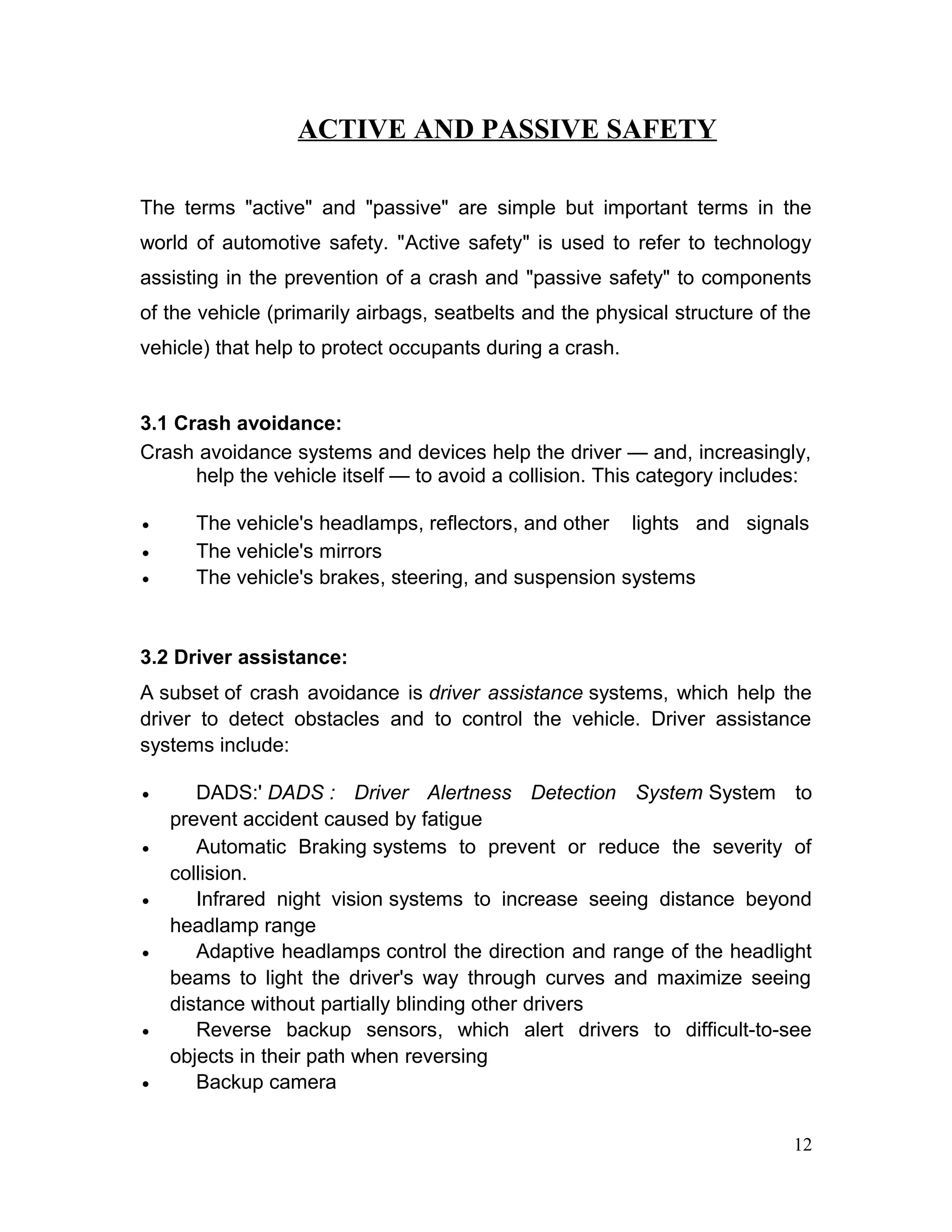

12. ACTIVE AND PASSIVE SAFETY
The terms "active" and "passive" are simple but important terms in the
world of automotive safety. "Active safety" is used to refer to technology
assisting in the prevention of a crash and "passive safety" to components
of the vehicle (primarily airbags, seatbelts and the physical structure of the
vehicle) that help to protect occupants during a crash.
3.1 Crash avoidance:
Crash avoidance systems and devices help the driver — and, increasingly,
help the vehicle itself — to avoid a collision. This category includes:
• The vehicle's headlamps, reflectors, and other lights and signals
• The vehicle's mirrors
• The vehicle's brakes, steering, and suspension systems
3.2 Driver assistance:
A subset of crash avoidance is driver assistance systems, which help the
driver to detect obstacles and to control the vehicle. Driver assistance
systems include:
• DADS:' DADS : Driver Alertness Detection System System to
prevent accident caused by fatigue
• Automatic Braking systems to prevent or reduce the severity of
collision.
• Infrared night vision systems to increase seeing distance beyond
headlamp range
• Adaptive headlamps control the direction and range of the headlight
beams to light the driver's way through curves and maximize seeing
distance without partially blinding other drivers
• Reverse backup sensors, which alert drivers to difficult-to-see
objects in their path when reversing
• Backup camera
12

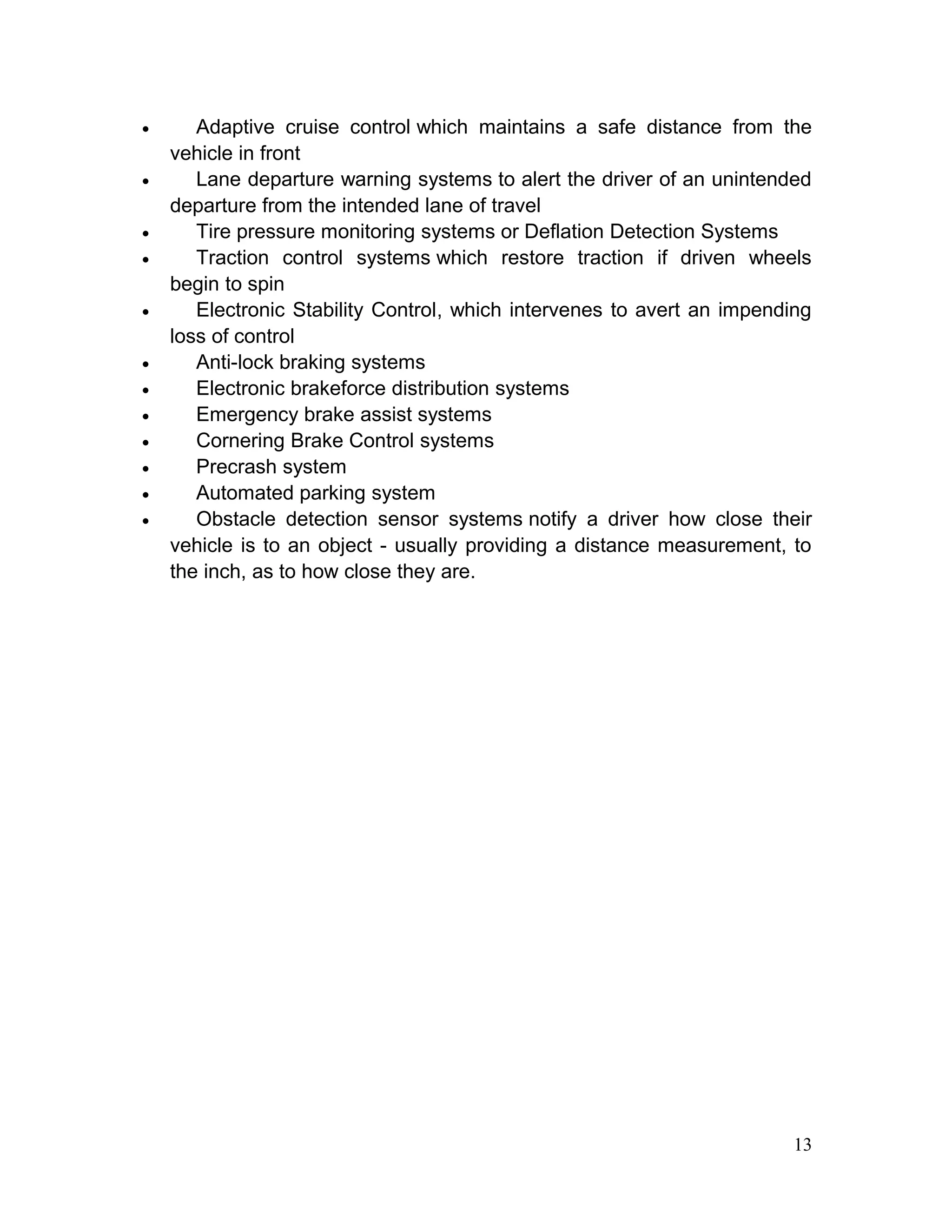

13. • Adaptive cruise control which maintains a safe distance from the
vehicle in front
• Lane departure warning systems to alert the driver of an unintended
departure from the intended lane of travel
• Tire pressure monitoring systems or Deflation Detection Systems
• Traction control systems which restore traction if driven wheels
begin to spin
• Electronic Stability Control, which intervenes to avert an impending
loss of control
• Anti-lock braking systems
• Electronic brakeforce distribution systems
• Emergency brake assist systems
• Cornering Brake Control systems
• Precrash system
• Automated parking system
• Obstacle detection sensor systems notify a driver how close their
vehicle is to an object - usually providing a distance measurement, to
the inch, as to how close they are.
13

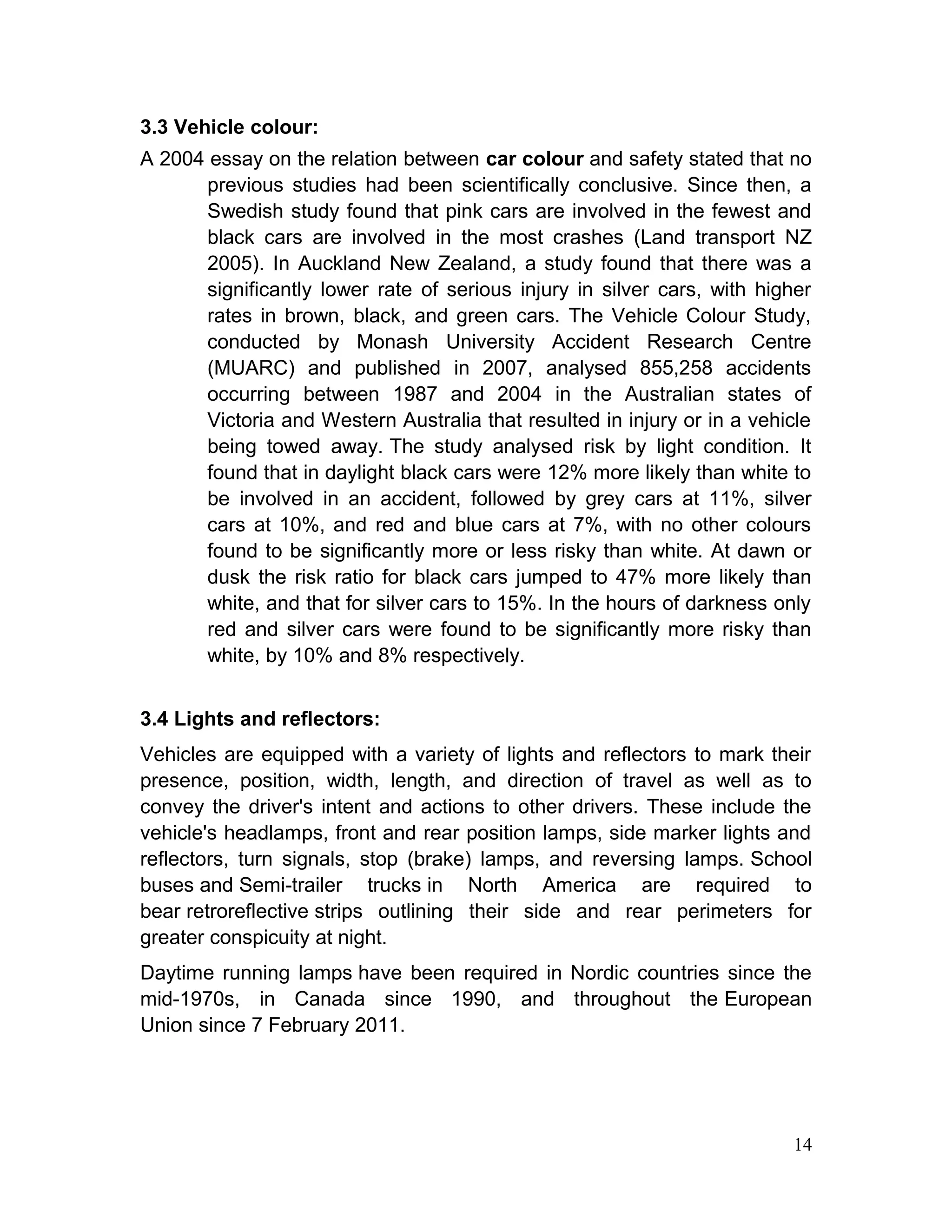

14. 3.3 Vehicle colour:
A 2004 essay on the relation between car colour and safety stated that no
previous studies had been scientifically conclusive. Since then, a
Swedish study found that pink cars are involved in the fewest and
black cars are involved in the most crashes (Land transport NZ
2005). In Auckland New Zealand, a study found that there was a
significantly lower rate of serious injury in silver cars, with higher
rates in brown, black, and green cars. The Vehicle Colour Study,
conducted by Monash University Accident Research Centre
(MUARC) and published in 2007, analysed 855,258 accidents
occurring between 1987 and 2004 in the Australian states of
Victoria and Western Australia that resulted in injury or in a vehicle
being towed away. The study analysed risk by light condition. It
found that in daylight black cars were 12% more likely than white to
be involved in an accident, followed by grey cars at 11%, silver
cars at 10%, and red and blue cars at 7%, with no other colours
found to be significantly more or less risky than white. At dawn or
dusk the risk ratio for black cars jumped to 47% more likely than
white, and that for silver cars to 15%. In the hours of darkness only
red and silver cars were found to be significantly more risky than
white, by 10% and 8% respectively.
3.4 Lights and reflectors:
Vehicles are equipped with a variety of lights and reflectors to mark their
presence, position, width, length, and direction of travel as well as to
convey the driver's intent and actions to other drivers. These include the
vehicle's headlamps, front and rear position lamps, side marker lights and
reflectors, turn signals, stop (brake) lamps, and reversing lamps. School
buses and Semi-trailer trucks in North America are required to
bear retroreflective strips outlining their side and rear perimeters for
greater conspicuity at night.
Daytime running lamps have been required in Nordic countries since the
mid-1970s, in Canada since 1990, and throughout the European
Union since 7 February 2011.
14

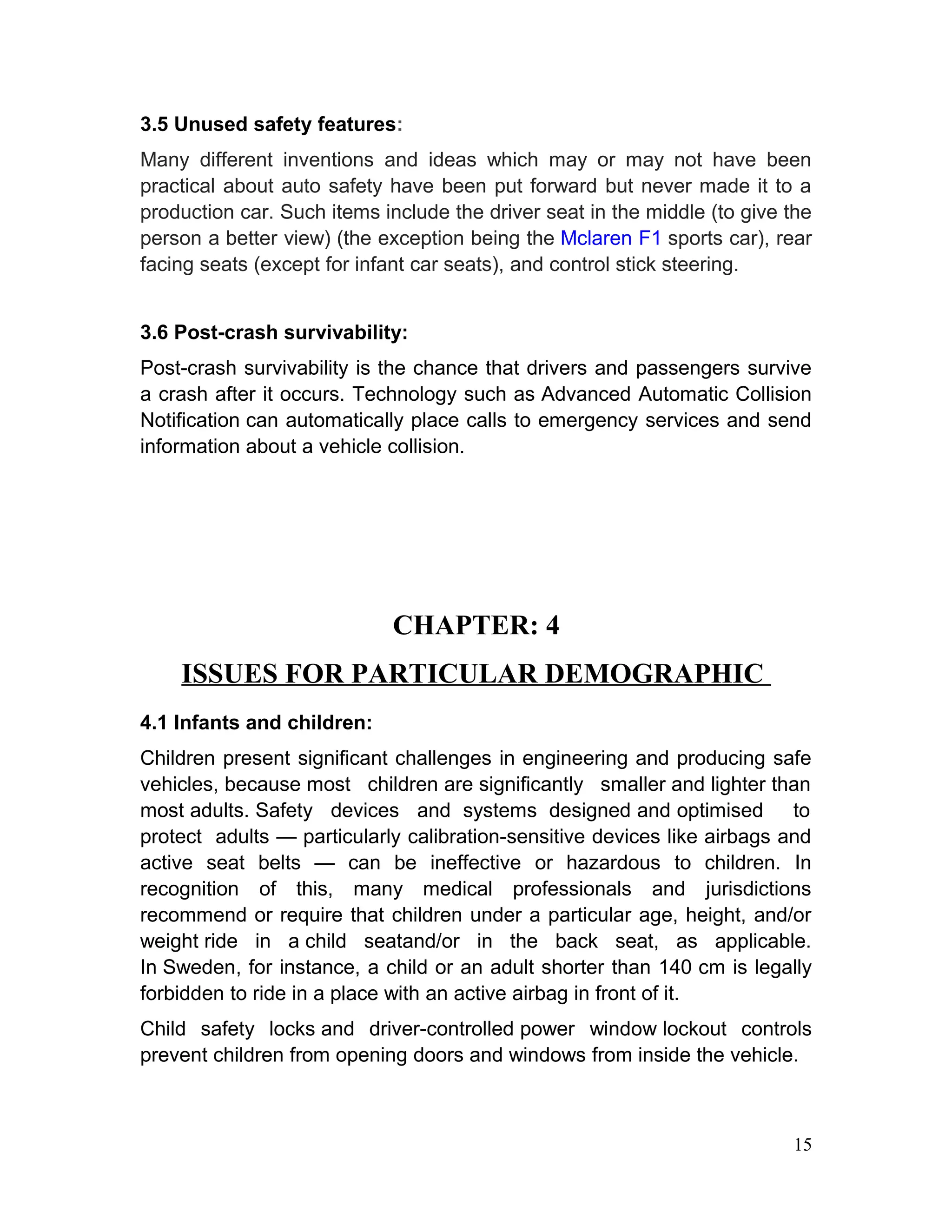

15. 3.5 Unused safety features:
Many different inventions and ideas which may or may not have been
practical about auto safety have been put forward but never made it to a
production car. Such items include the driver seat in the middle (to give the
person a better view) (the exception being the Mclaren F1 sports car), rear
facing seats (except for infant car seats), and control stick steering.
3.6 Post-crash survivability:
Post-crash survivability is the chance that drivers and passengers survive
a crash after it occurs. Technology such as Advanced Automatic Collision
Notification can automatically place calls to emergency services and send
information about a vehicle collision.
CHAPTER: 4
ISSUES FOR PARTICULAR DEMOGRAPHIC
4.1 Infants and children:
Children present significant challenges in engineering and producing safe
vehicles, because most children are significantly smaller and lighter than
most adults. Safety devices and systems designed and optimised to
protect adults — particularly calibration-sensitive devices like airbags and
active seat belts — can be ineffective or hazardous to children. In
recognition of this, many medical professionals and jurisdictions
recommend or require that children under a particular age, height, and/or
weight ride in a child seatand/or in the back seat, as applicable.
In Sweden, for instance, a child or an adult shorter than 140 cm is legally
forbidden to ride in a place with an active airbag in front of it.
Child safety locks and driver-controlled power window lockout controls
prevent children from opening doors and windows from inside the vehicle.
15

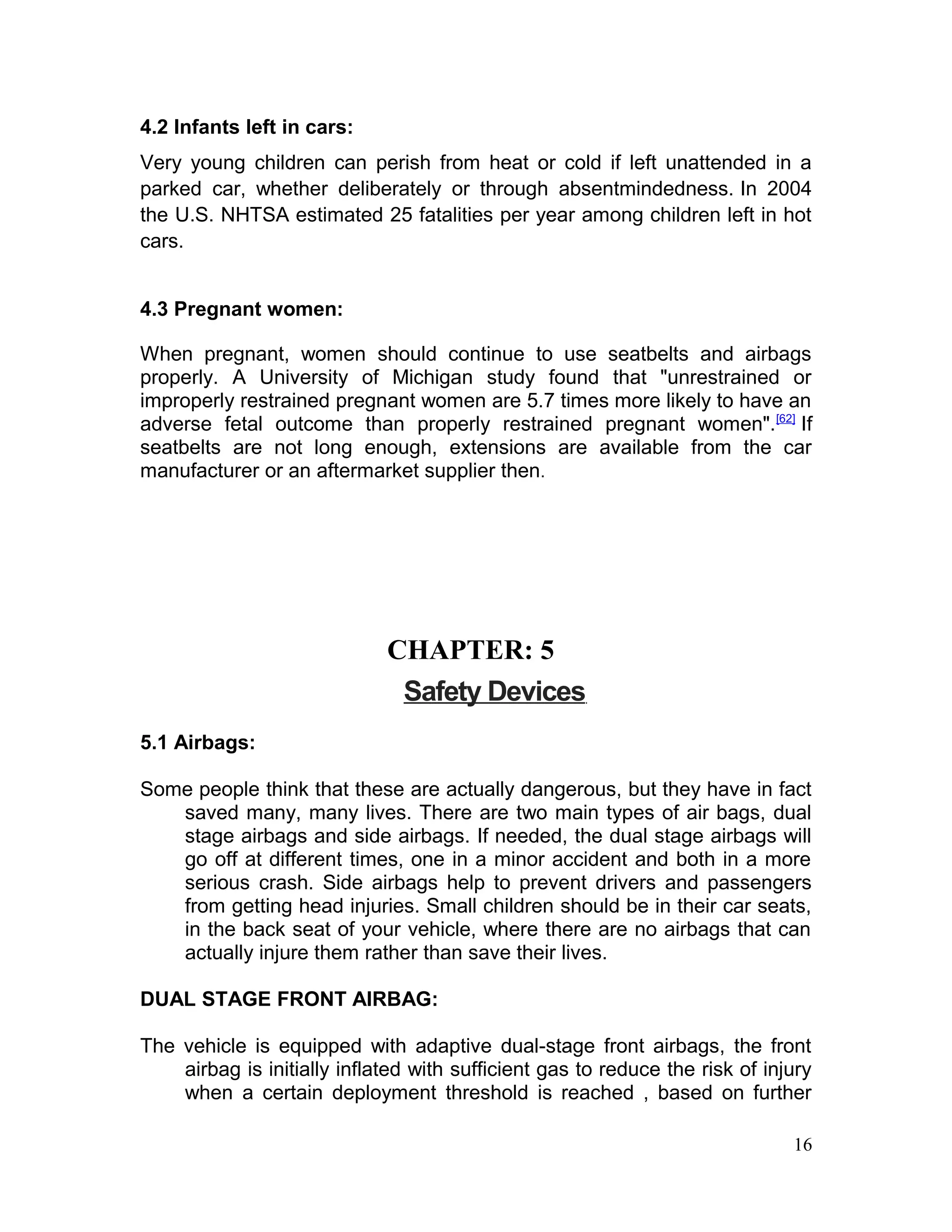

16. 4.2 Infants left in cars:
Very young children can perish from heat or cold if left unattended in a
parked car, whether deliberately or through absentmindedness. In 2004
the U.S. NHTSA estimated 25 fatalities per year among children left in hot
cars.
4.3 Pregnant women:
When pregnant, women should continue to use seatbelts and airbags
properly. A University of Michigan study found that "unrestrained or
improperly restrained pregnant women are 5.7 times more likely to have an
adverse fetal outcome than properly restrained pregnant women".[62]
If
seatbelts are not long enough, extensions are available from the car
manufacturer or an aftermarket supplier then.
CHAPTER: 5
Safety Devices
5.1 Airbags:
Some people think that these are actually dangerous, but they have in fact
saved many, many lives. There are two main types of air bags, dual
stage airbags and side airbags. If needed, the dual stage airbags will
go off at different times, one in a minor accident and both in a more
serious crash. Side airbags help to prevent drivers and passengers
from getting head injuries. Small children should be in their car seats,
in the back seat of your vehicle, where there are no airbags that can
actually injure them rather than save their lives.
DUAL STAGE FRONT AIRBAG:
The vehicle is equipped with adaptive dual-stage front airbags, the front
airbag is initially inflated with sufficient gas to reduce the risk of injury
when a certain deployment threshold is reached , based on further
16

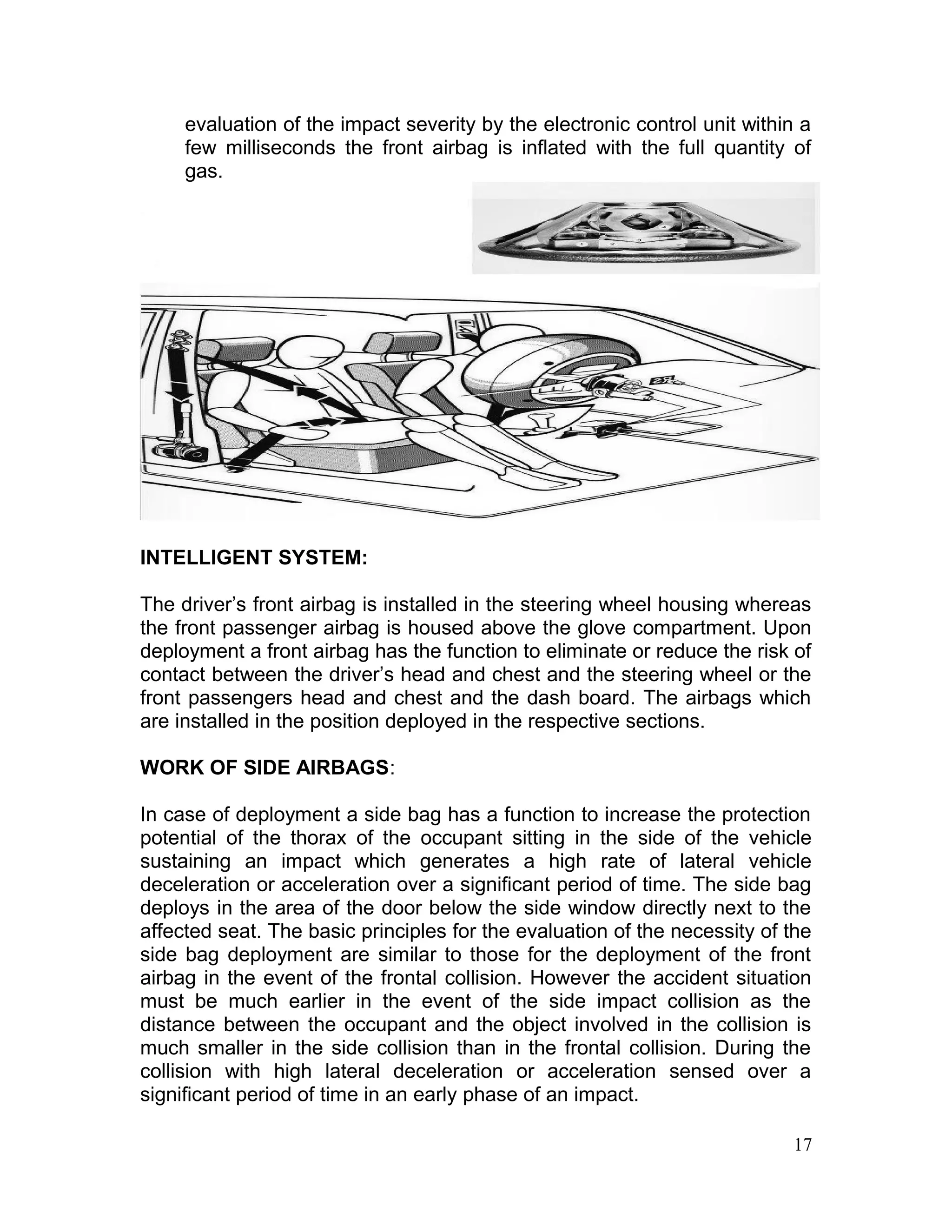

17. evaluation of the impact severity by the electronic control unit within a
few milliseconds the front airbag is inflated with the full quantity of
gas.
INTELLIGENT SYSTEM:
The driver’s front airbag is installed in the steering wheel housing whereas
the front passenger airbag is housed above the glove compartment. Upon
deployment a front airbag has the function to eliminate or reduce the risk of
contact between the driver’s head and chest and the steering wheel or the
front passengers head and chest and the dash board. The airbags which
are installed in the position deployed in the respective sections.
WORK OF SIDE AIRBAGS:
In case of deployment a side bag has a function to increase the protection
potential of the thorax of the occupant sitting in the side of the vehicle
sustaining an impact which generates a high rate of lateral vehicle
deceleration or acceleration over a significant period of time. The side bag
deploys in the area of the door below the side window directly next to the
affected seat. The basic principles for the evaluation of the necessity of the
side bag deployment are similar to those for the deployment of the front
airbag in the event of the frontal collision. However the accident situation
must be much earlier in the event of the side impact collision as the
distance between the occupant and the object involved in the collision is
much smaller in the side collision than in the frontal collision. During the
collision with high lateral deceleration or acceleration sensed over a
significant period of time in an early phase of an impact.
17

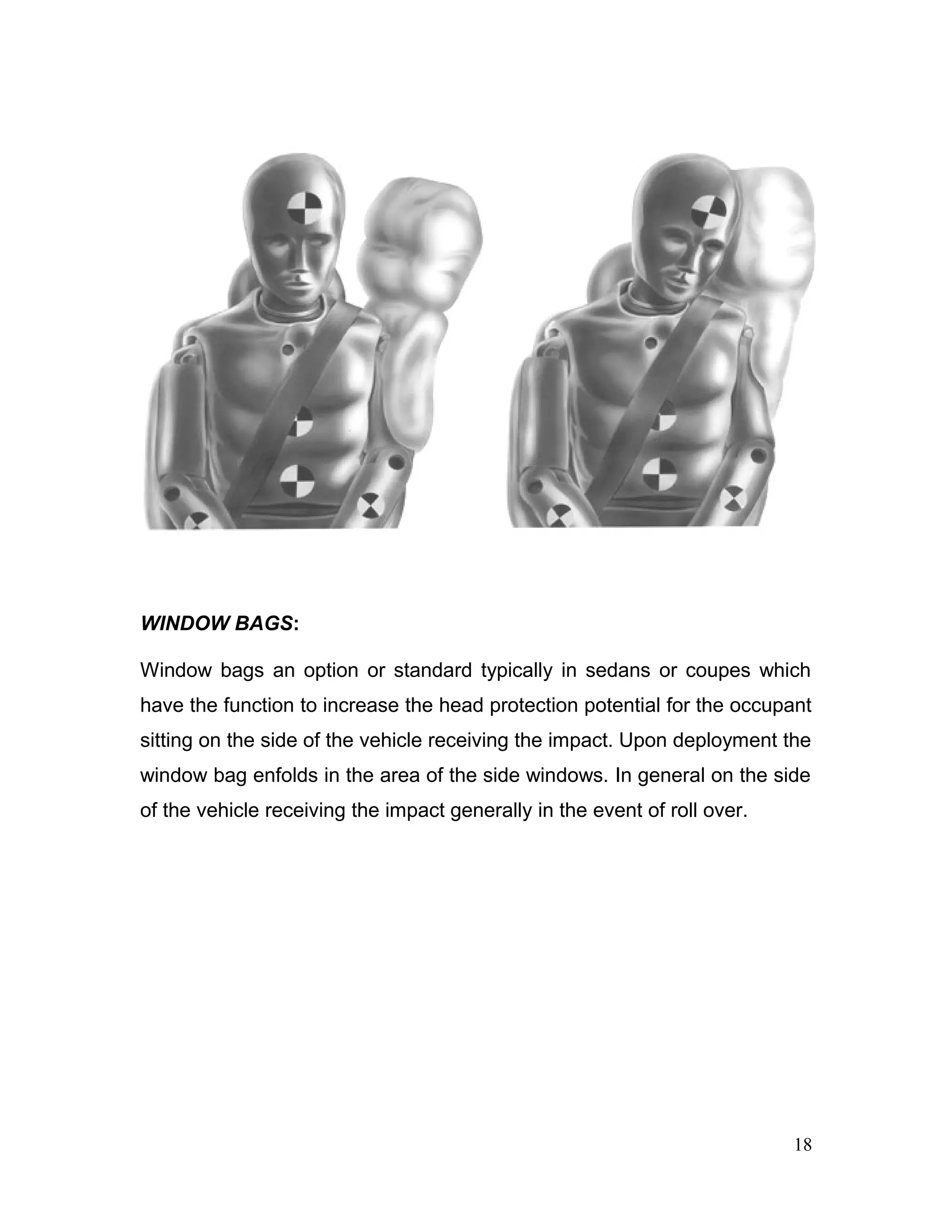

18. WINDOW BAGS:
Window bags an option or standard typically in sedans or coupes which
have the function to increase the head protection potential for the occupant
sitting on the side of the vehicle receiving the impact. Upon deployment the
window bag enfolds in the area of the side windows. In general on the side
of the vehicle receiving the impact generally in the event of roll over.
18

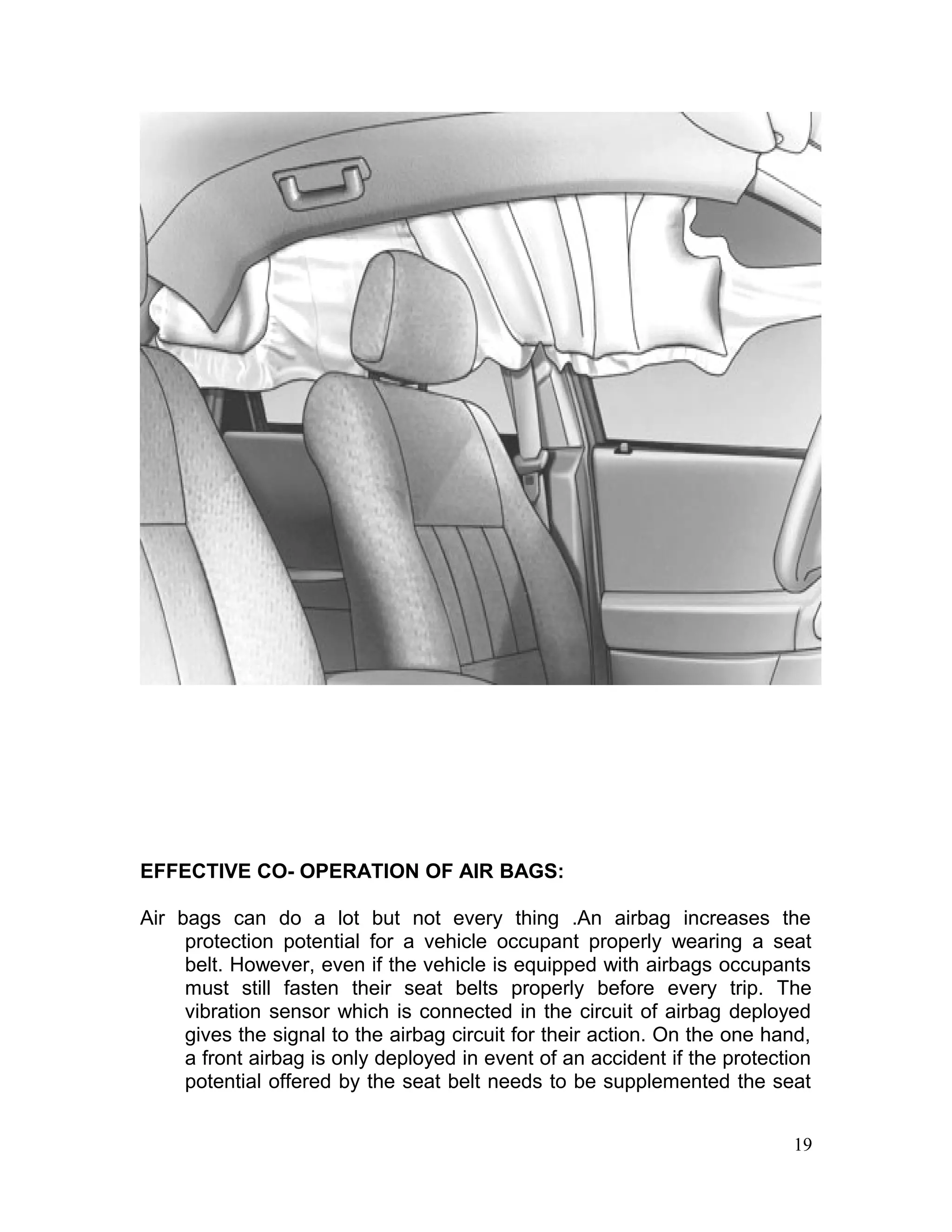

19. EFFECTIVE CO- OPERATION OF AIR BAGS:
Air bags can do a lot but not every thing .An airbag increases the
protection potential for a vehicle occupant properly wearing a seat
belt. However, even if the vehicle is equipped with airbags occupants
must still fasten their seat belts properly before every trip. The
vibration sensor which is connected in the circuit of airbag deployed
gives the signal to the airbag circuit for their action. On the one hand,
a front airbag is only deployed in event of an accident if the protection
potential offered by the seat belt needs to be supplemented the seat
19

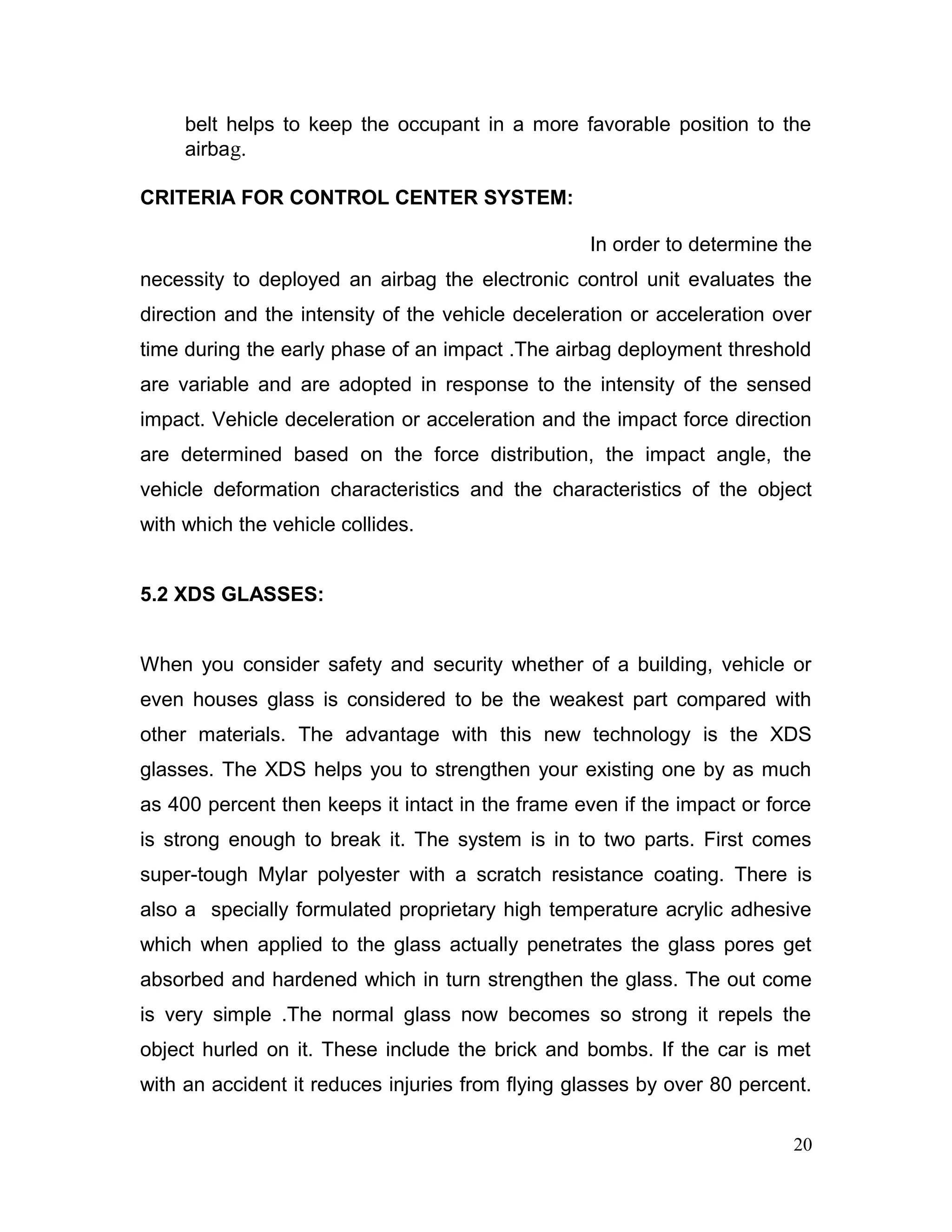

20. belt helps to keep the occupant in a more favorable position to the
airbag.
CRITERIA FOR CONTROL CENTER SYSTEM:
In order to determine the
necessity to deployed an airbag the electronic control unit evaluates the
direction and the intensity of the vehicle deceleration or acceleration over
time during the early phase of an impact .The airbag deployment threshold
are variable and are adopted in response to the intensity of the sensed
impact. Vehicle deceleration or acceleration and the impact force direction
are determined based on the force distribution, the impact angle, the
vehicle deformation characteristics and the characteristics of the object
with which the vehicle collides.
5.2 XDS GLASSES:
When you consider safety and security whether of a building, vehicle or
even houses glass is considered to be the weakest part compared with
other materials. The advantage with this new technology is the XDS
glasses. The XDS helps you to strengthen your existing one by as much
as 400 percent then keeps it intact in the frame even if the impact or force
is strong enough to break it. The system is in to two parts. First comes
super-tough Mylar polyester with a scratch resistance coating. There is
also a specially formulated proprietary high temperature acrylic adhesive
which when applied to the glass actually penetrates the glass pores get
absorbed and hardened which in turn strengthen the glass. The out come
is very simple .The normal glass now becomes so strong it repels the
object hurled on it. These include the brick and bombs. If the car is met
with an accident it reduces injuries from flying glasses by over 80 percent.
20

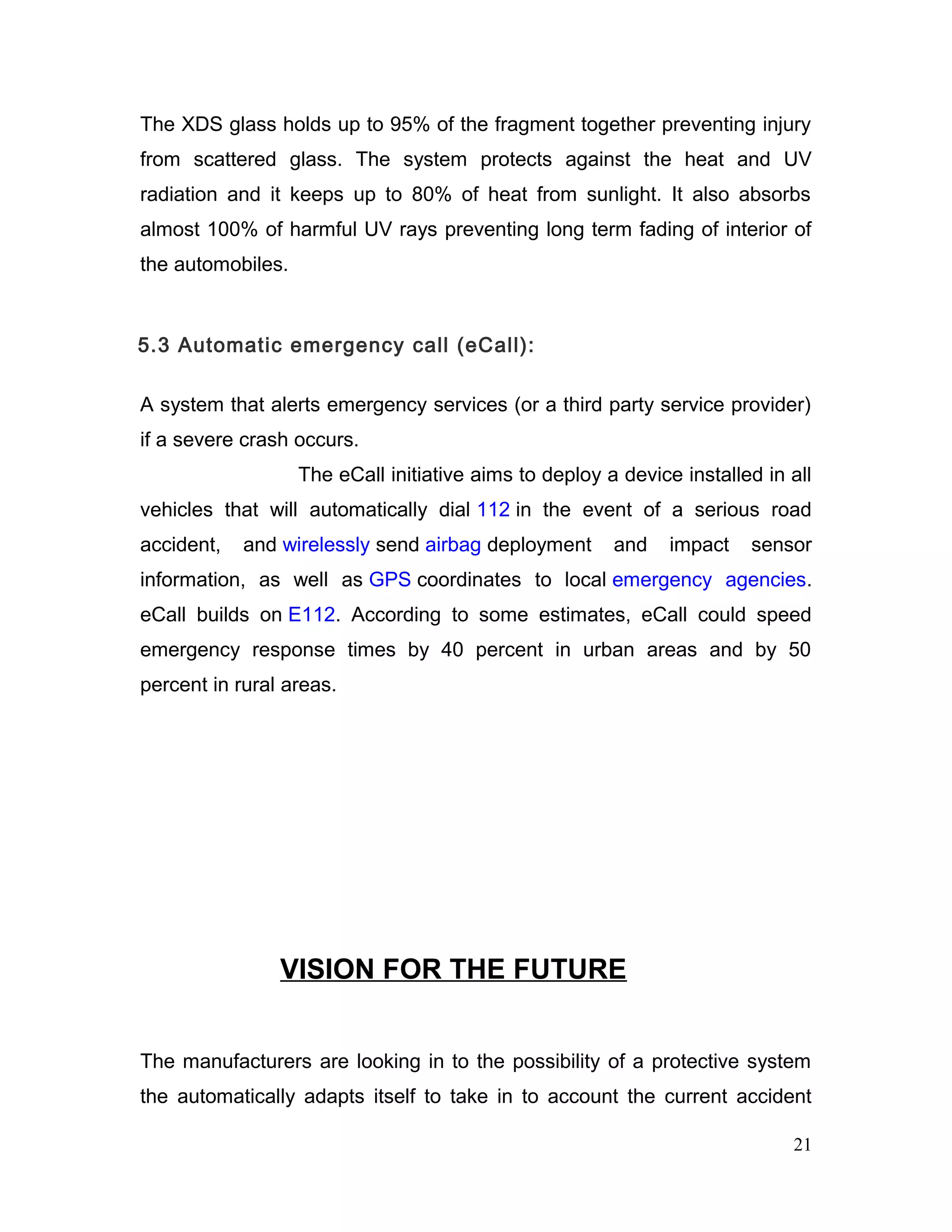

21. The XDS glass holds up to 95% of the fragment together preventing injury
from scattered glass. The system protects against the heat and UV
radiation and it keeps up to 80% of heat from sunlight. It also absorbs
almost 100% of harmful UV rays preventing long term fading of interior of
the automobiles.
5.3 Automatic emergency call (eCall):
A system that alerts emergency services (or a third party service provider)
if a severe crash occurs.
The eCall initiative aims to deploy a device installed in all
vehicles that will automatically dial 112 in the event of a serious road
accident, and wirelessly send airbag deployment and impact sensor
information, as well as GPS coordinates to local emergency agencies.
eCall builds on E112. According to some estimates, eCall could speed
emergency response times by 40 percent in urban areas and by 50
percent in rural areas.
VISION FOR THE FUTURE
The manufacturers are looking in to the possibility of a protective system
the automatically adapts itself to take in to account the current accident
21

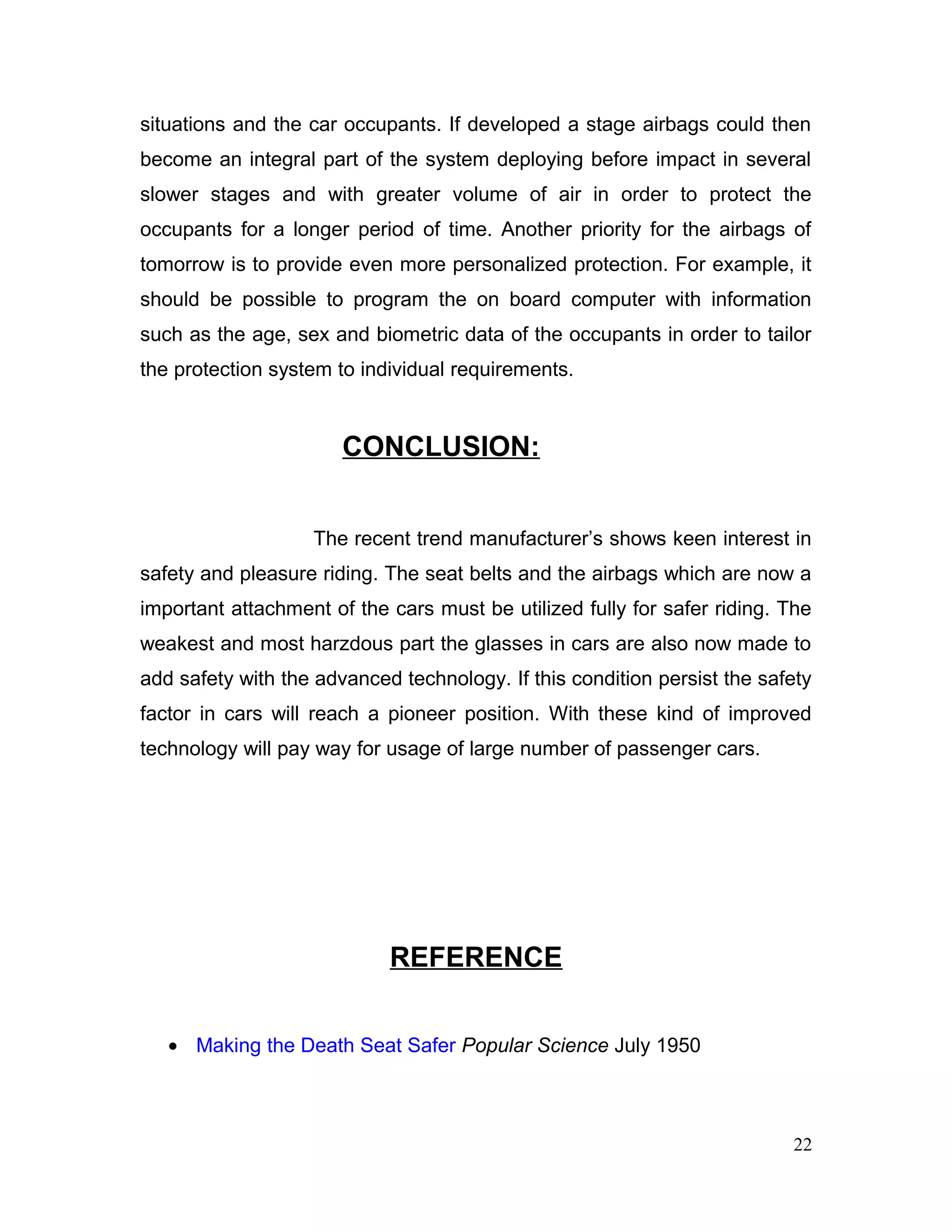

22. situations and the car occupants. If developed a stage airbags could then
become an integral part of the system deploying before impact in several
slower stages and with greater volume of air in order to protect the
occupants for a longer period of time. Another priority for the airbags of
tomorrow is to provide even more personalized protection. For example, it
should be possible to program the on board computer with information
such as the age, sex and biometric data of the occupants in order to tailor
the protection system to individual requirements.
CONCLUSION:
The recent trend manufacturer’s shows keen interest in
safety and pleasure riding. The seat belts and the airbags which are now a
important attachment of the cars must be utilized fully for safer riding. The
weakest and most harzdous part the glasses in cars are also now made to
add safety with the advanced technology. If this condition persist the safety
factor in cars will reach a pioneer position. With these kind of improved
technology will pay way for usage of large number of passenger cars.
REFERENCE
• Making the Death Seat Safer Popular Science July 1950
22

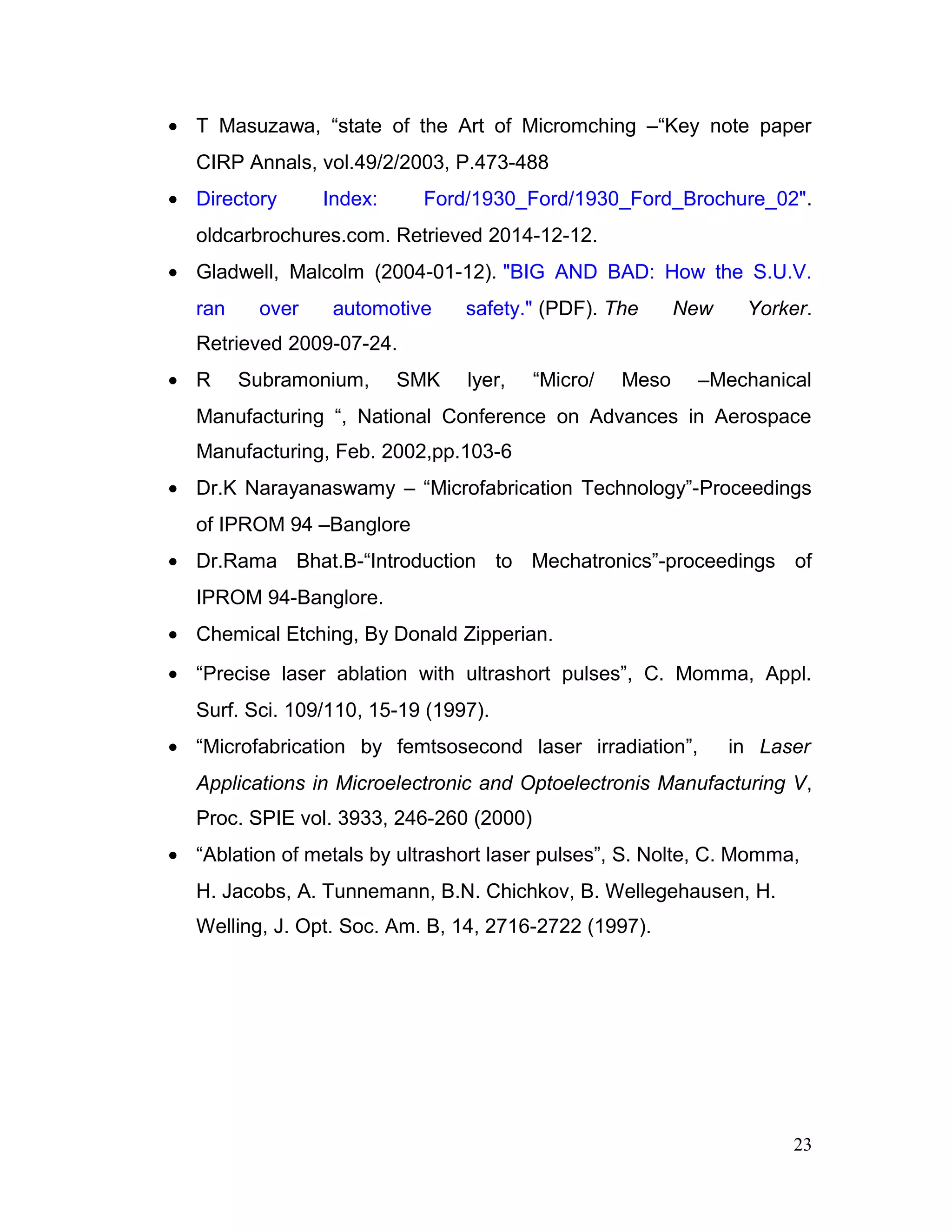

23. • T Masuzawa, “state of the Art of Micromching –“Key note paper
CIRP Annals, vol.49/2/2003, P.473-488
• Directory Index: Ford/1930_Ford/1930_Ford_Brochure_02".
oldcarbrochures.com. Retrieved 2014-12-12.
• Gladwell, Malcolm (2004-01-12). "BIG AND BAD: How the S.U.V.
ran over automotive safety." (PDF). The New Yorker.
Retrieved 2009-07-24.
• R Subramonium, SMK lyer, “Micro/ Meso –Mechanical
Manufacturing “, National Conference on Advances in Aerospace
Manufacturing, Feb. 2002,pp.103-6
• Dr.K Narayanaswamy – “Microfabrication Technology”-Proceedings
of IPROM 94 –Banglore
• Dr.Rama Bhat.B-“Introduction to Mechatronics”-proceedings of
IPROM 94-Banglore.
• Chemical Etching, By Donald Zipperian.
• “Precise laser ablation with ultrashort pulses”, C. Momma, Appl.
Surf. Sci. 109/110, 15-19 (1997).
• “Microfabrication by femtsosecond laser irradiation”, in Laser
Applications in Microelectronic and Optoelectronis Manufacturing V,
Proc. SPIE vol. 3933, 246-260 (2000)
• “Ablation of metals by ultrashort laser pulses”, S. Nolte, C. Momma,
H. Jacobs, A. Tunnemann, B.N. Chichkov, B. Wellegehausen, H.
Welling, J. Opt. Soc. Am. B, 14, 2716-2722 (1997).
23
