This document discusses non-blocking synchronization as an alternative to lock-based synchronization for parallel applications. It begins by asking whether non-blocking synchronization can provide performance benefits over lock-based approaches for scientific applications. It then describes NOBLE, a non-blocking synchronization interface designed to make non-blocking techniques more accessible to parallel programmers. The document concludes by discussing evaluations of applications modified to use non-blocking synchronization and the performance improvements observed.

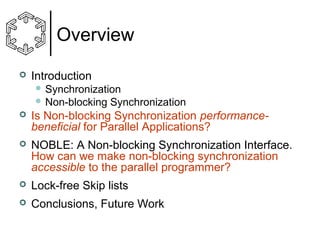

2. Overview

Introduction
 Synchronization
 Non-blocking
Synchronization

Is Non-blocking Synchronization performancebeneficial for Parallel Applications?

NOBLE: A Non-blocking Synchronization Interface.
How can we make non-blocking synchronization
accessible to the parallel programmer?

Lock-free Skip lists

Conclusions, Future Work

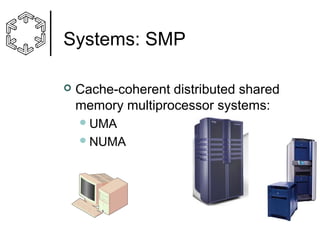

3. Systems: SMP

Cache-coherent distributed shared
memory multiprocessor systems:
 UMA
 NUMA

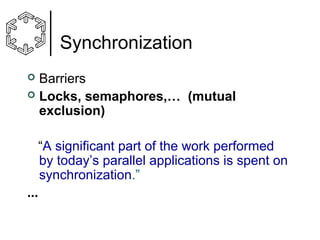

4. Synchronization
Barriers
 Locks, semaphores,… (mutual
exclusion)

“A significant part of the work performed
by today’s parallel applications is spent on
synchronization.”
...

5. Lock-Based Synchronization:
Sequential

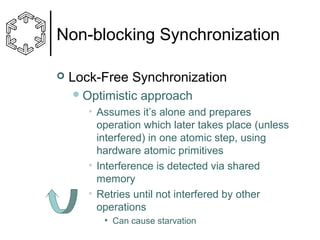

6. Non-blocking Synchronization

Lock-Free Synchronization
 Optimistic
approach
• Assumes it’s alone and prepares
operation which later takes place (unless
interfered) in one atomic step, using
hardware atomic primitives
• Interference is detected via shared
memory
• Retries until not interfered by other
operations
• Can cause starvation

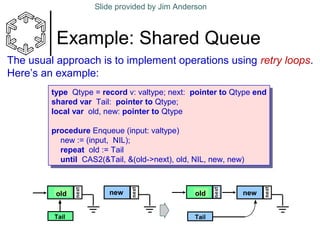

7. Slide provided by Jim Anderson
Example: Shared Queue
The usual approach is to implement operations using retry loops.
Here’s an example:
type Qtype = record v: valtype; next: pointer to Qtype end
type Qtype = record v: valtype; next: pointer to Qtype end
shared var Tail: pointer to Qtype;
shared var Tail: pointer to Qtype;
local var old, new: pointer to Qtype
local var old, new: pointer to Qtype
procedure Enqueue (input: valtype)
procedure Enqueue (input: valtype)
new := (input, NIL);
new := (input, NIL);
repeat old := Tail
repeat old := Tail
until CAS2(&Tail, &(old->next), old, NIL, new, new)
until CAS2(&Tail, &(old->next), old, NIL, new, new)
old
Tail
new
old
Tail
new

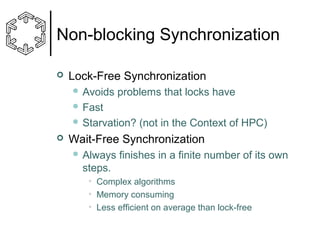

8. Non-blocking Synchronization

Lock-Free Synchronization
 Avoids
problems that locks have
 Fast
 Starvation?

(not in the Context of HPC)
Wait-Free Synchronization
 Always
finishes in a finite number of its own
steps.
• Complex algorithms
• Memory consuming
• Less efficient on average than lock-free

9. Overview

Introduction
 Synchronization
 Non-blocking
Synchronization

Is Non-blocking Synchronization performancebeneficial for Parallel Scientific Applications?

NOBLE: A Non-blocking Synchronization Interface.
How can we make non-blocking synchronization
accessible to the parallel programmer?

Conclusions, Future Work

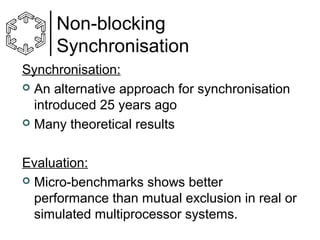

10. Non-blocking
Synchronisation
Synchronisation:
 An alternative approach for synchronisation
introduced 25 years ago
 Many theoretical results
Evaluation:
 Micro-benchmarks shows better
performance than mutual exclusion in real or
simulated multiprocessor systems.

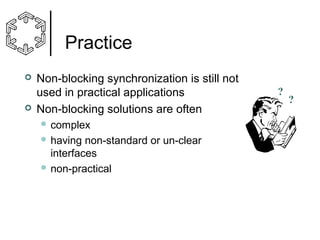

11. Practice


Non-blocking synchronization is still not
used in practical applications
Non-blocking solutions are often
 complex
 having
non-standard or un-clear
interfaces
 non-practical
?
?

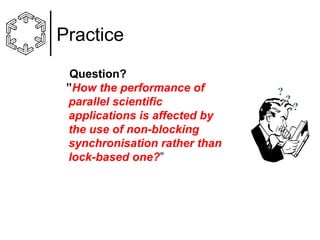

12. Practice
Question?
”How the performance of
parallel scientific
applications is affected by
the use of non-blocking
synchronisation rather than
lock-based one?”
?
?
?

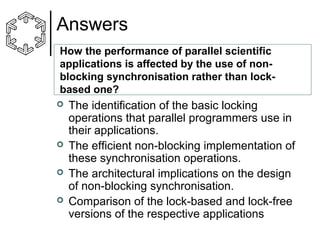

13. Answers
How the performance of parallel scientific
applications is affected by the use of nonblocking synchronisation rather than lockbased one?




The identification of the basic locking
operations that parallel programmers use in
their applications.
The efficient non-blocking implementation of
these synchronisation operations.
The architectural implications on the design
of non-blocking synchronisation.
Comparison of the lock-based and lock-free
versions of the respective applications

14. Applications
Ocean
simulates eddy currents in an ocean basin.
Radiosity
computes the equilibrium distribution of light in a scene
using the radiosity method.
Volrend
renders 3D volume data into an image using a raycasting method.
Water
Evaluates forces and potentials that occur over time
between water molecules.
Spark98
a collection of sparse matrix kernels.
Each kernel performs a sequence of sparse matrix
vector product operations using matrices that are
derived from a family of three-dimensional finite
element earthquake applications.

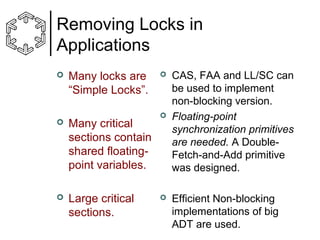

15. Removing Locks in
Applications

Many locks are
“Simple Locks”.

Many critical
sections contain
shared floatingpoint variables.

Large critical
sections.



CAS, FAA and LL/SC can
be used to implement
non-blocking version.
Floating-point
synchronization primitives
are needed. A DoubleFetch-and-Add primitive
was designed.
Efficient Non-blocking
implementations of big
ADT are used.

16. Experimental Results:
Speedup
58P
58P
32P
24P
24P
58P
58P

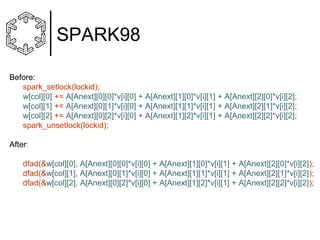

17. SPARK98
Before:
spark_setlock(lockid);
w[col][0] += A[Anext][0][0]*v[i][0] + A[Anext][1][0]*v[i][1] + A[Anext][2][0]*v[i][2];
w[col][1] += A[Anext][0][1]*v[i][0] + A[Anext][1][1]*v[i][1] + A[Anext][2][1]*v[i][2];
w[col][2] += A[Anext][0][2]*v[i][0] + A[Anext][1][2]*v[i][1] + A[Anext][2][2]*v[i][2];
spark_unsetlock(lockid);
After:
dfad(&w[col][0], A[Anext][0][0]*v[i][0] + A[Anext][1][0]*v[i][1] + A[Anext][2][0]*v[i][2]);
dfad(&w[col][1], A[Anext][0][1]*v[i][0] + A[Anext][1][1]*v[i][1] + A[Anext][2][1]*v[i][2]);
dfad(&w[col][2], A[Anext][0][2]*v[i][0] + A[Anext][1][2]*v[i][1] + A[Anext][2][2]*v[i][2]);

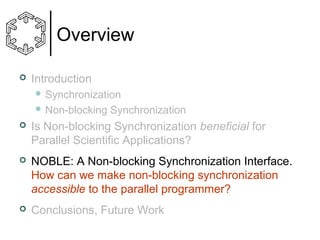

18. Overview

Introduction
 Synchronization
 Non-blocking
Synchronization

Is Non-blocking Synchronization beneficial for
Parallel Scientific Applications?

NOBLE: A Non-blocking Synchronization Interface.
How can we make non-blocking synchronization
accessible to the parallel programmer?

Conclusions, Future Work

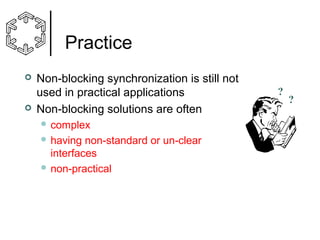

19. Practice


Non-blocking synchronization is still not
used in practical applications
Non-blocking solutions are often
 complex
 having
non-standard or un-clear
interfaces
 non-practical
?
?

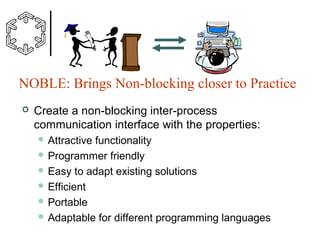

20. NOBLE: Brings Non-blocking closer to Practice

Create a non-blocking inter-process
communication interface with the properties:
 Attractive
functionality
 Programmer friendly
 Easy to adapt existing solutions
 Efficient
 Portable
 Adaptable for different programming languages

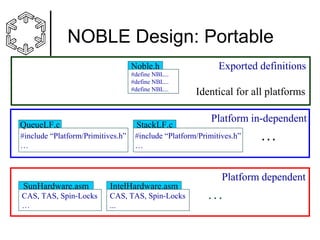

21. NOBLE Design: Portable
Noble.h
#define NBL...
#define NBL...
#define NBL...
Exported definitions
Identical for all platforms
Platform in-dependent
QueueLF.c
StackLF.c
#include “Platform/Primitives.h”
…
#include “Platform/Primitives.h”
…
...
Platform dependent
SunHardware.asm
IntelHardware.asm
CAS, TAS, Spin-Locks
…
CAS, TAS, Spin-Locks
...
...

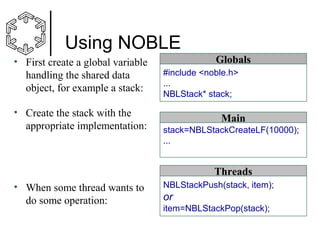

22. Using NOBLE
• First create a global variable
handling the shared data
object, for example a stack:
• Create the stack with the
appropriate implementation:
Globals
#include <noble.h>
...
NBLStack* stack;
Main
stack=NBLStackCreateLF(10000);
...
Threads
• When some thread wants to
do some operation:
NBLStackPush(stack, item);
or
item=NBLStackPop(stack);

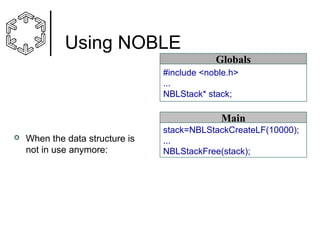

23. Using NOBLE
Globals
#include <noble.h>
...
NBLStack* stack;
Main

When the data structure is
not in use anymore:
stack=NBLStackCreateLF(10000);
...
NBLStackFree(stack);

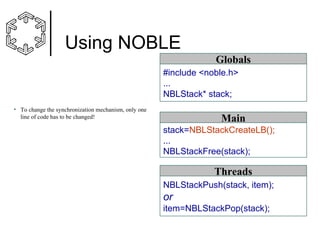

24. Using NOBLE
Globals
#include <noble.h>
...
NBLStack* stack;
• To change the synchronization mechanism, only one
line of code has to be changed!
Main
stack=NBLStackCreateLB();
...
NBLStackFree(stack);
Threads
NBLStackPush(stack, item);
or
item=NBLStackPop(stack);

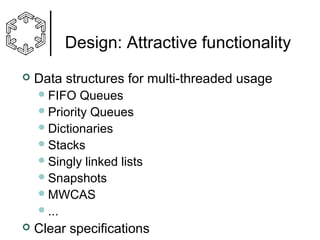

25. Design: Attractive functionality

Data structures for multi-threaded usage
 FIFO
Queues
 Priority Queues
 Dictionaries
 Stacks
 Singly linked lists
 Snapshots
 MWCAS
 ...

Clear specifications

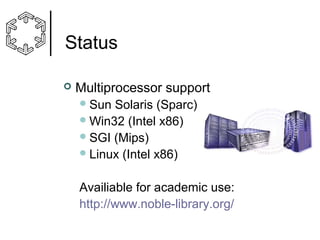

26. Status

Multiprocessor support
 Sun
Solaris (Sparc)
 Win32 (Intel x86)
 SGI (Mips)
 Linux (Intel x86)
Availiable for academic use:
http://www.noble-library.org/

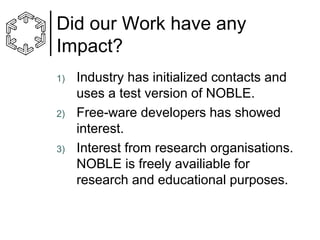

27. Did our Work have any
Impact?
1)
2)
3)
Industry has initialized contacts and
uses a test version of NOBLE.
Free-ware developers has showed
interest.
Interest from research organisations.
NOBLE is freely availiable for
research and educational purposes.

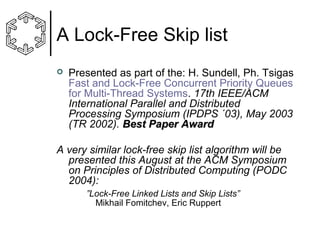

28. A Lock-Free Skip list

Presented as part of the: H. Sundell, Ph. Tsigas
Fast and Lock-Free Concurrent Priority Queues
for Multi-Thread Systems. 17th IEEE/ACM
International Parallel and Distributed
Processing Symposium (IPDPS ´03), May 2003
(TR 2002). Best Paper Award
A very similar lock-free skip list algorithm will be
presented this August at the ACM Symposium
on Principles of Distributed Computing (PODC
2004):
”Lock-Free Linked Lists and Skip Lists”
Mikhail Fomitchev, Eric Ruppert

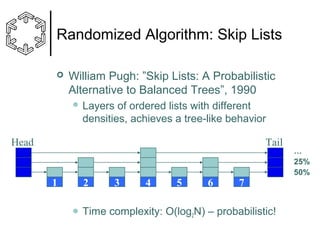

29. Randomized Algorithm: Skip Lists

William Pugh: ”Skip Lists: A Probabilistic
Alternative to Balanced Trees”, 1990
 Layers
of ordered lists with different
densities, achieves a tree-like behavior
Head
Tail
1
2
 Time
3
4
5
6
7
complexity: O(log2N) – probabilistic!
…
25%
50%

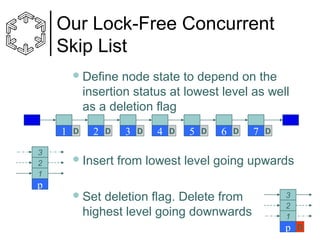

30. Our Lock-Free Concurrent
Skip List
 Define
node state to depend on the
insertion status at lowest level as well
as a deletion flag
1
3
2
1
p
D
2
D
 Insert
 Set
3
D
4
D
5
D
6
D
7
D
from lowest level going upwards
deletion flag. Delete from
highest level going downwards
3
2
1
p
D

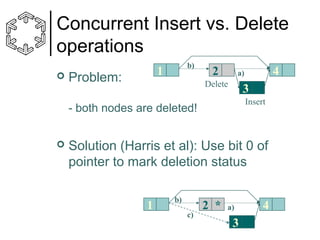

31. Concurrent Insert vs. Delete
operations

b)
1
Problem:
2
Delete
3
Insert
- both nodes are deleted!

4
a)
Solution (Harris et al): Use bit 0 of
pointer to mark deletion status
1
b)
2 *
c)
a)
3
4

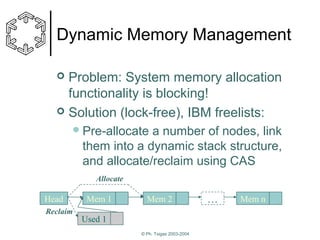

32. Dynamic Memory Management
Problem: System memory allocation
functionality is blocking!
 Solution (lock-free), IBM freelists:

 Pre-allocate
a number of nodes, link
them into a dynamic stack structure,
and allocate/reclaim using CAS
Allocate
Head
Mem 1
Mem 2
Reclaim
Used 1
© Ph. Tsigas 2003-2004
…
Mem n

33. The ABA problem

Problem: Because of concurrency
(pre-emption in particular), same
pointer value does not always mean
same node (i.e. CAS succeeds)!!!
Step 1:
1
6
7
3
7
4
Step 2:
2
4
© Ph. Tsigas 2003-2004

34. The ABA problem

Solution: (Valois et al) Add reference
counting to each node, in order to prevent
nodes that are of interest to some thread to
be reclaimed until all threads have left the
node
New Step 2:
1 *
6 *
1
1
CAS Failes!
2
3
?
7
?
4
1
© Ph. Tsigas 2003-2004
?

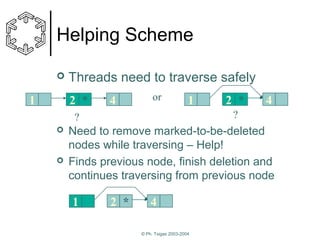

35. Helping Scheme

Threads need to traverse safely
2 *
1
4
or
1

4
?
?

2 *
Need to remove marked-to-be-deleted
nodes while traversing – Help!
Finds previous node, finish deletion and
continues traversing from previous node
1
2 *
4
© Ph. Tsigas 2003-2004

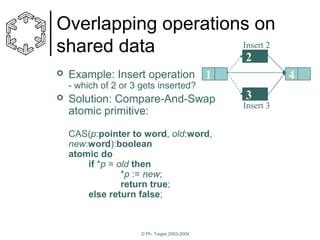

36. Overlapping operations on
Insert 2
shared data
2

Example: Insert operation 1
4
- which of 2 or 3 gets inserted?

Solution: Compare-And-Swap
atomic primitive:
CAS(p:pointer to word, old:word,
new:word):boolean
atomic do
if *p = old then
*p := new;
return true;
else return false;
© Ph. Tsigas 2003-2004
3
Insert 3

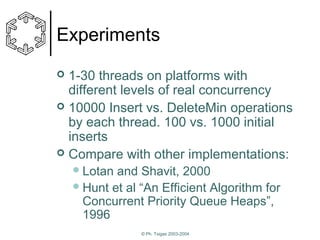

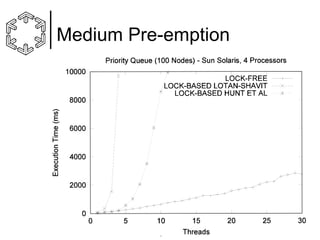

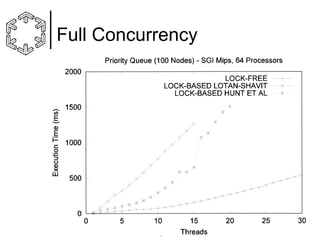

37. Experiments
1-30 threads on platforms with
different levels of real concurrency
 10000 Insert vs. DeleteMin operations
by each thread. 100 vs. 1000 initial
inserts
 Compare with other implementations:

 Lotan
and Shavit, 2000
 Hunt et al “An Efficient Algorithm for
Concurrent Priority Queue Heaps”,
1996
© Ph. Tsigas 2003-2004

38. Full Concurrency
© Ph. Tsigas 2003-2004

39. Medium Pre-emption
© Ph. Tsigas 2003-2004

40. High Pre-emption
© Ph. Tsigas 2003-2004

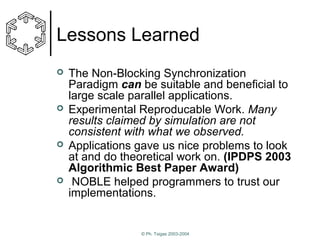

41. Lessons Learned




The Non-Blocking Synchronization
Paradigm can be suitable and beneficial to
large scale parallel applications.
Experimental Reproducable Work. Many
results claimed by simulation are not
consistent with what we observed.
Applications gave us nice problems to look
at and do theoretical work on. (IPDPS 2003
Algorithmic Best Paper Award)
NOBLE helped programmers to trust our
implementations.
© Ph. Tsigas 2003-2004

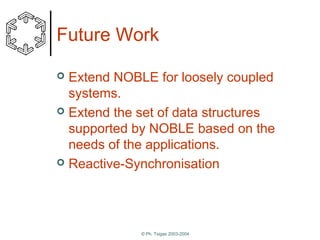

42. Future Work
Extend NOBLE for loosely coupled
systems.
 Extend the set of data structures
supported by NOBLE based on the
needs of the applications.
 Reactive-Synchronisation

© Ph. Tsigas 2003-2004

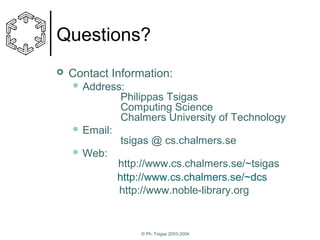

43. Questions?

Contact Information:
 Address:
Philippas Tsigas
Computing Science
Chalmers University of Technology
 Email:
 Web:
tsigas @ cs.chalmers.se
http://www.cs.chalmers.se/~tsigas
http://www.cs.chalmers.se/~dcs
http://www.noble-library.org
© Ph. Tsigas 2003-2004

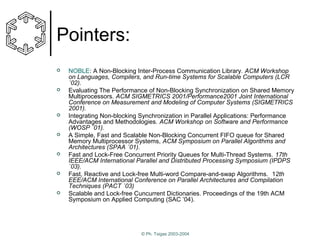

44. Pointers:







NOBLE: A Non-Blocking Inter-Process Communication Library. ACM Workshop
on Languages, Compilers, and Run-time Systems for Scalable Computers (LCR
´02).
Evaluating The Performance of Non-Blocking Synchronization on Shared Memory
Multiprocessors. ACM SIGMETRICS 2001/Performance2001 Joint International
Conference on Measurement and Modeling of Computer Systems (SIGMETRICS
2001).
Integrating Non-blocking Synchronization in Parallel Applications: Performance
Advantages and Methodologies. ACM Workshop on Software and Performance
(WOSP ´01).
A Simple, Fast and Scalable Non-Blocking Concurrent FIFO queue for Shared
Memory Multiprocessor Systems, ACM Symposium on Parallel Algorithms and
Architectures (SPAA ´01).
Fast and Lock-Free Concurrent Priority Queues for Multi-Thread Systems. 17th
IEEE/ACM International Parallel and Distributed Processing Symposium (IPDPS
´03).
Fast, Reactive and Lock-free Multi-word Compare-and-swap Algorithms. 12th
EEE/ACM International Conference on Parallel Architectures and Compilation
Techniques (PACT ´03)
Scalable and Lock-free Cuncurrent Dictionaries. Proceedings of the 19th ACM
Symposium on Applied Computing (SAC ’04).
© Ph. Tsigas 2003-2004
