Software Architecture for (Robot-Sense, Think and Act ). It is general architecture for mobile robots for performing tasks. A Layered architecture, use to build standard software by integrating robot subsystems and user logic.

1. Sathya - Software Development @ JRPL
Satyanarayana.mekala@yahoo.co.in

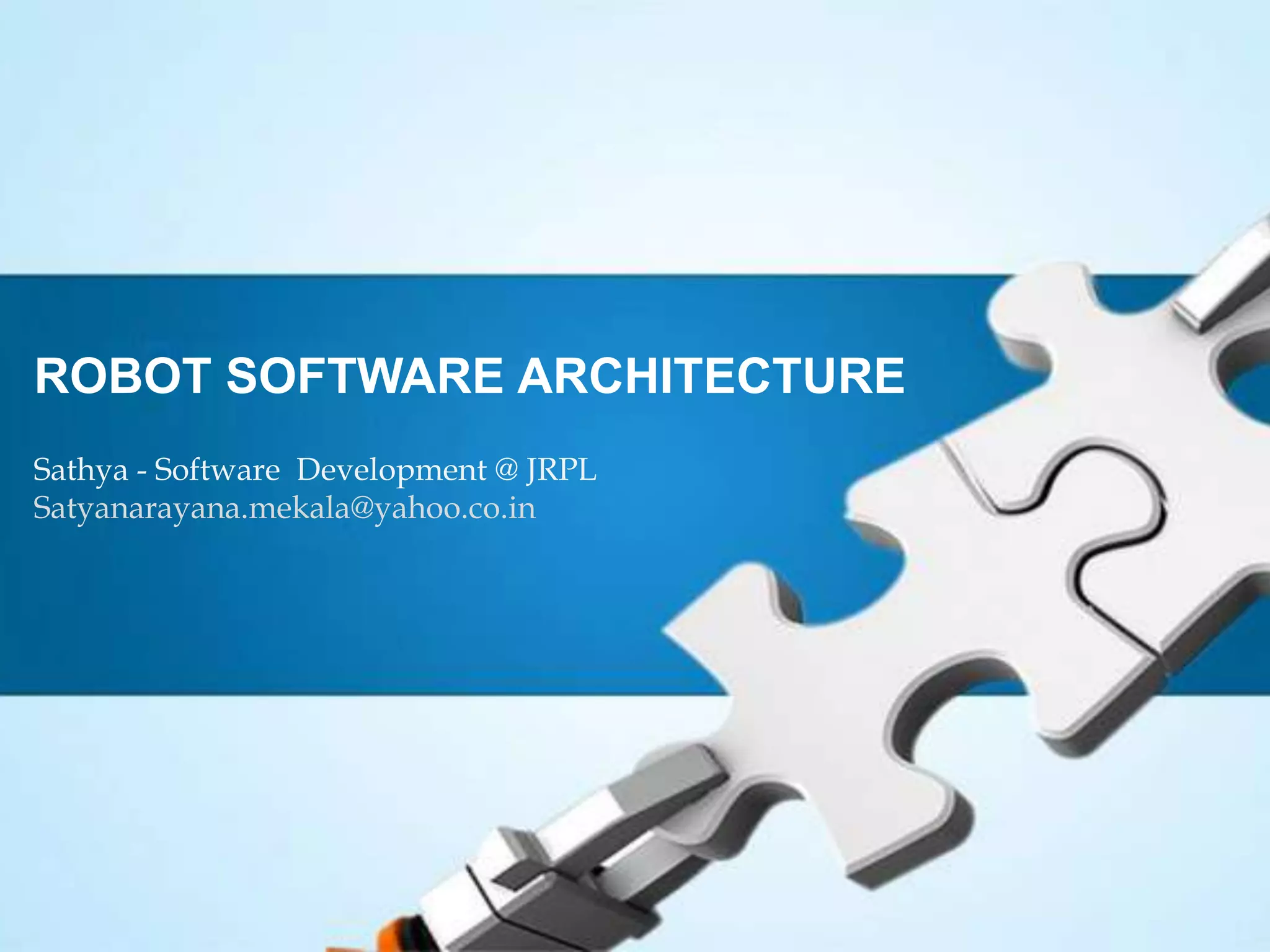

ROBOT SOFTWARE ARCHITECTURE

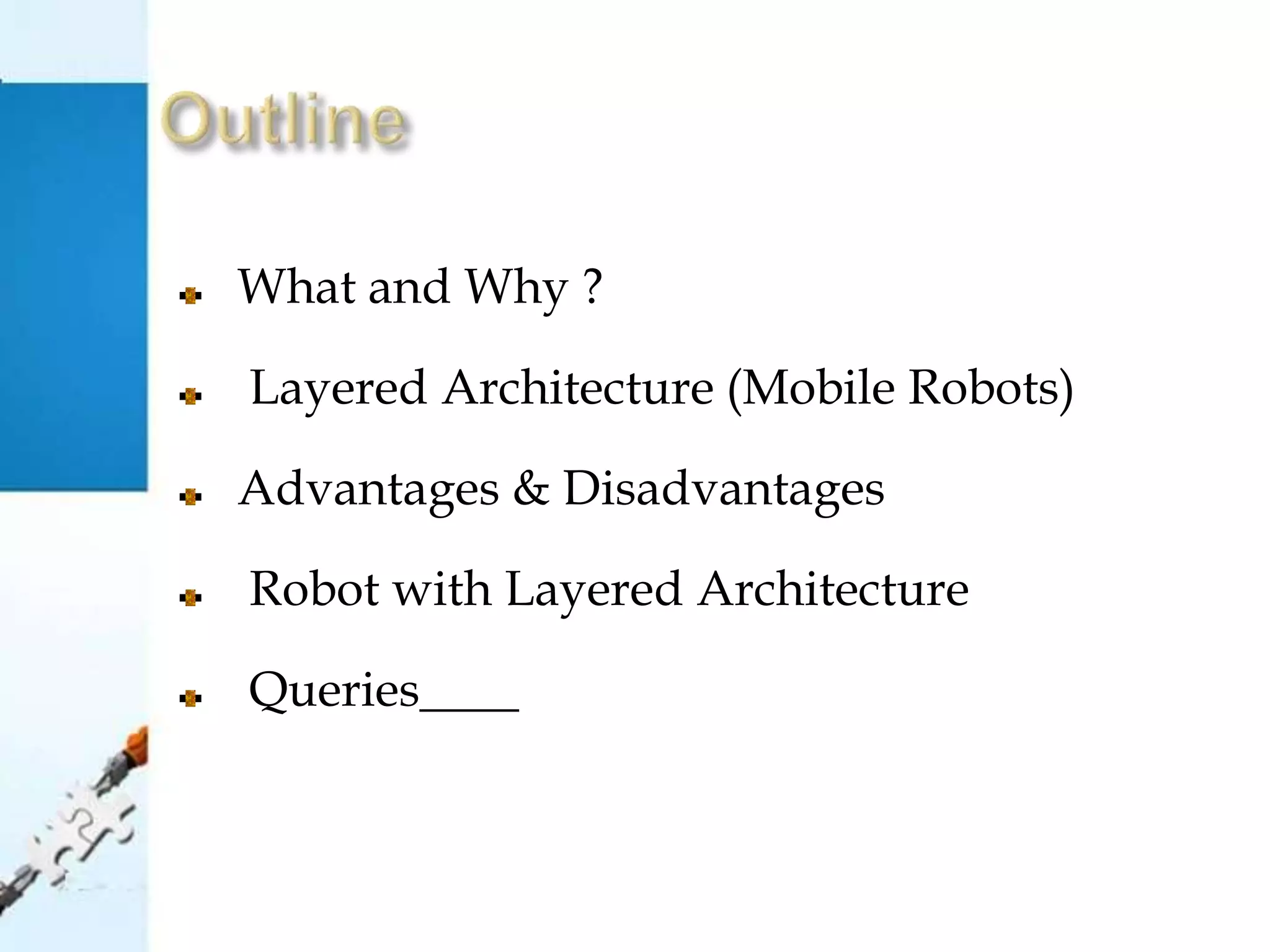

2. What and Why ?
Layered Architecture (Mobile Robots)
Advantages & Disadvantages
Robot with Layered Architecture
Queries____

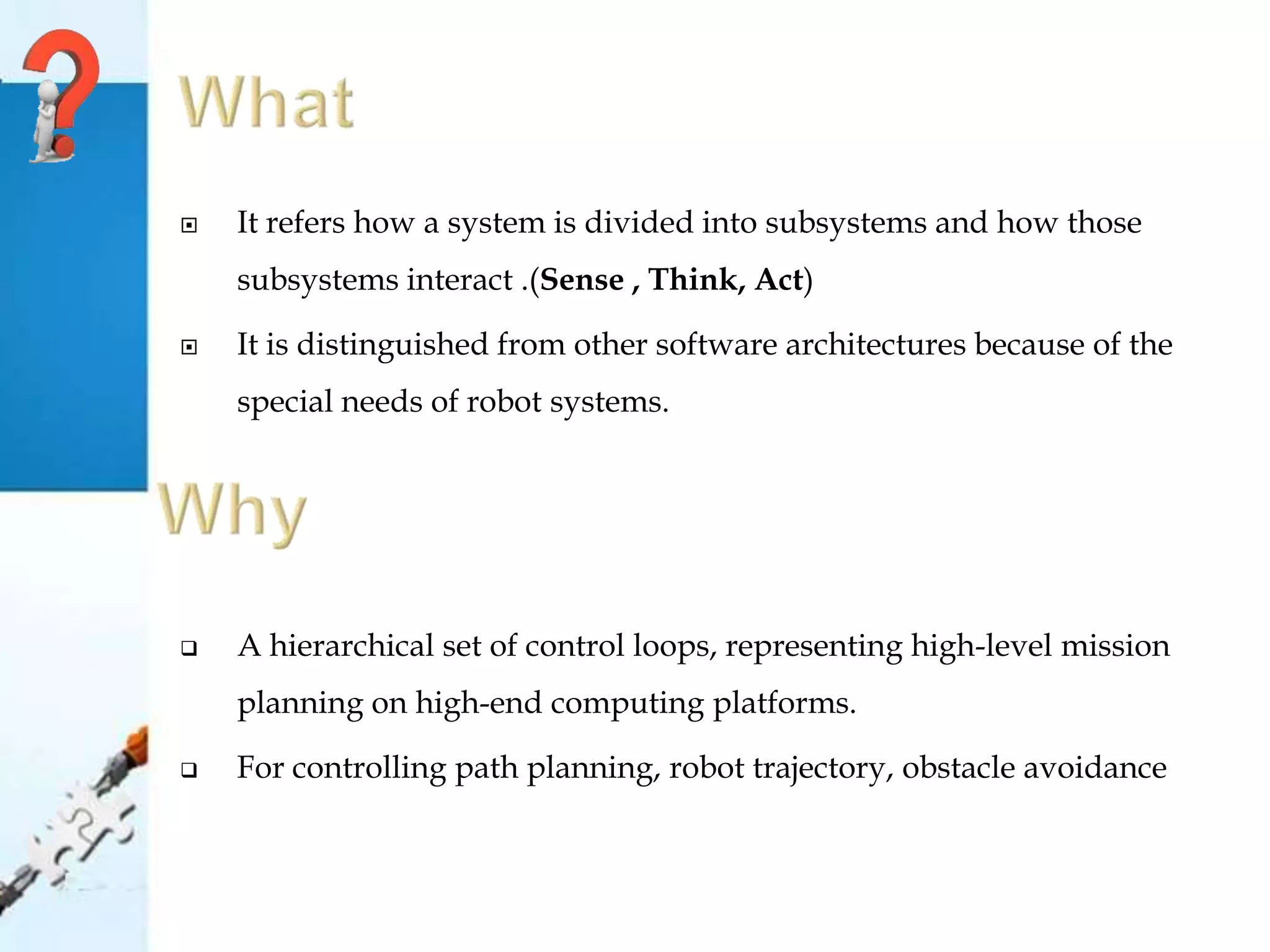

3.  It refers how a system is divided into subsystems and how those
subsystems interact .(Sense , Think, Act)
 It is distinguished from other software architectures because of the
special needs of robot systems. -
 A hierarchical set of control loops, representing high-level mission
planning on high-end computing platforms.
 For controlling path planning, robot trajectory, obstacle avoidance

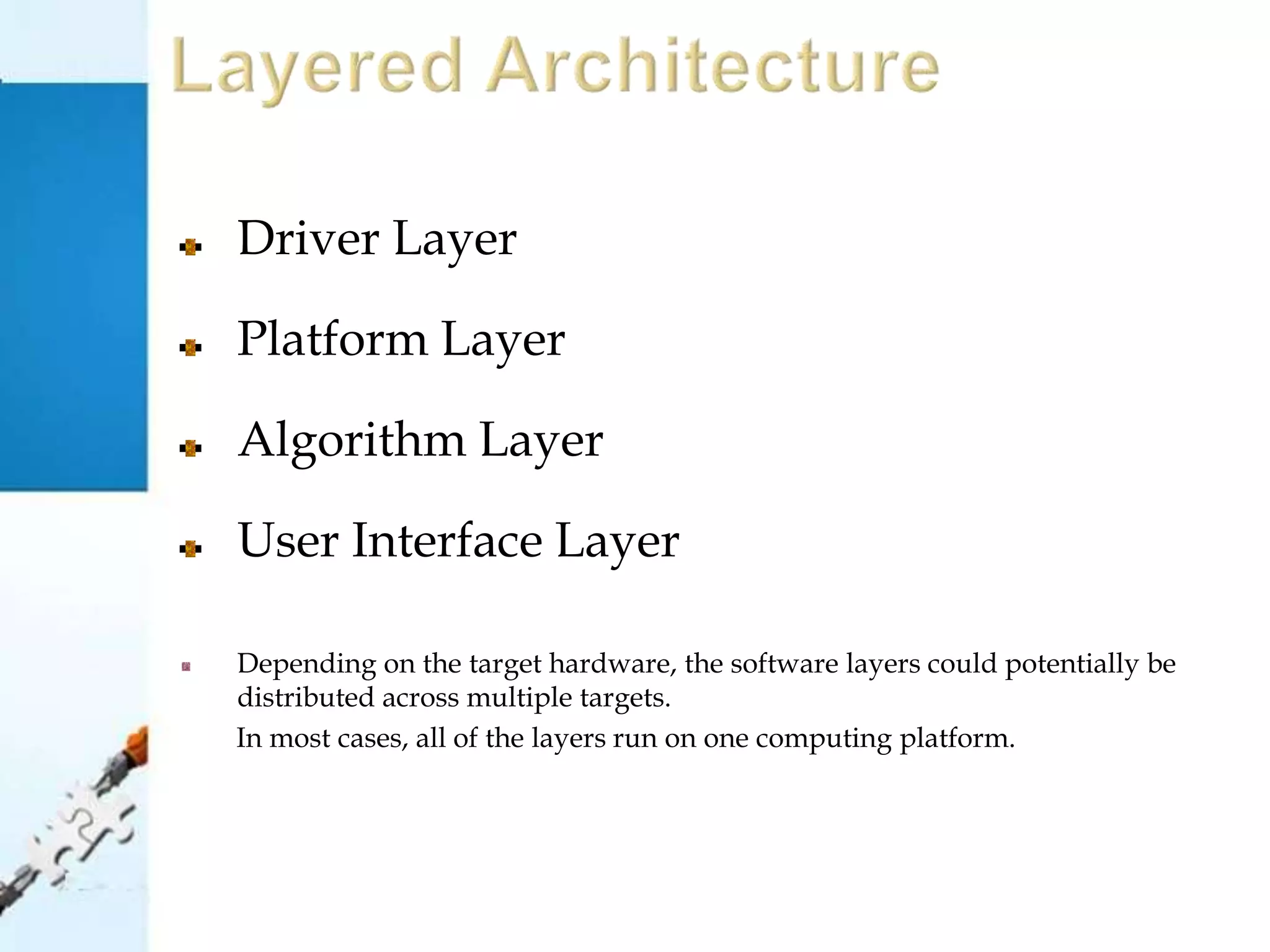

4. Driver Layer
Platform Layer
Algorithm Layer
User Interface Layer
Depending on the target hardware, the software layers could potentially be
distributed across multiple targets.
In most cases, all of the layers run on one computing platform.

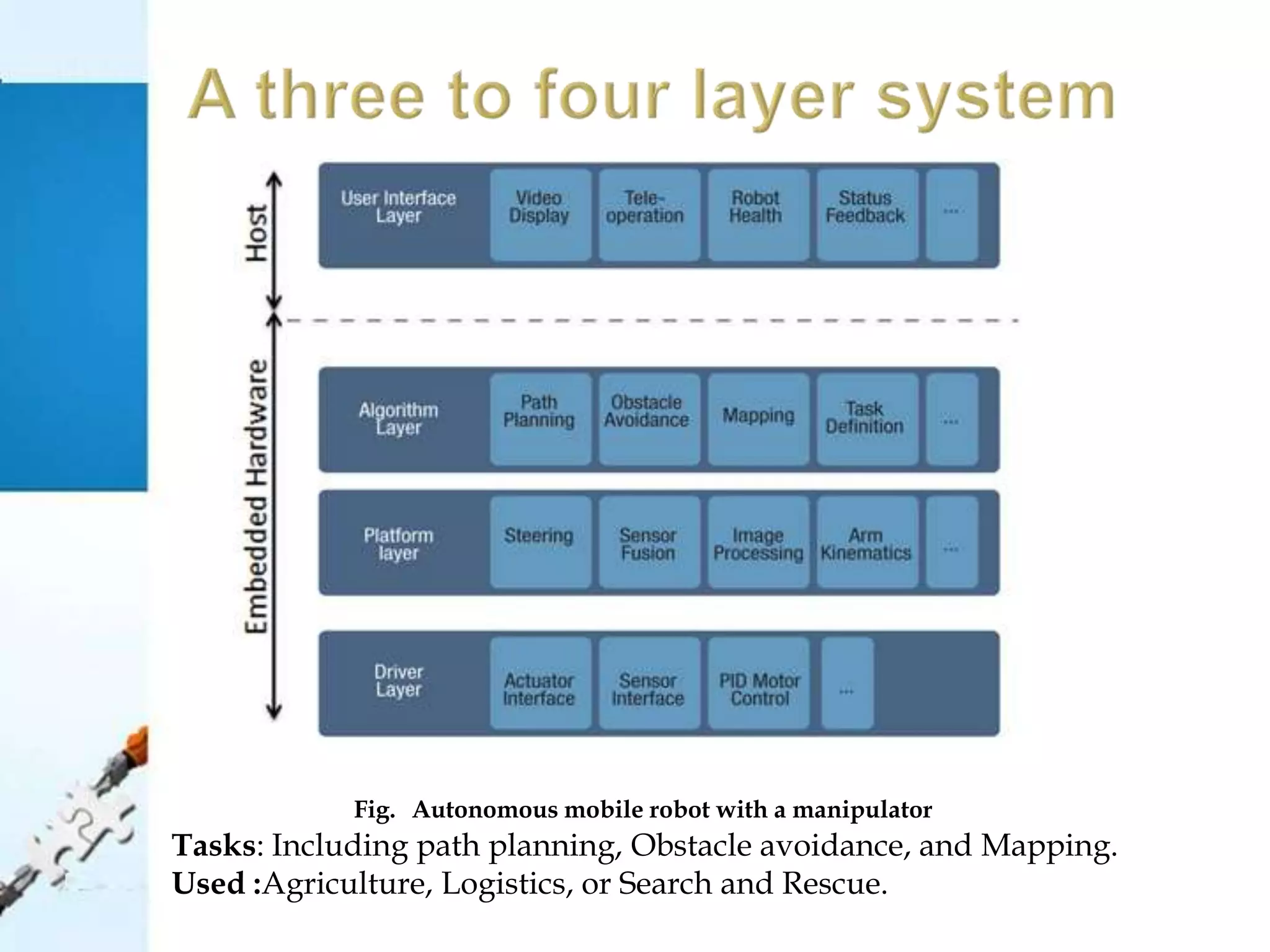

5. Fig. Autonomous mobile robot with a manipulator
Tasks: Including path planning, Obstacle avoidance, and Mapping.
Used :Agriculture, Logistics, or Search and Rescue.

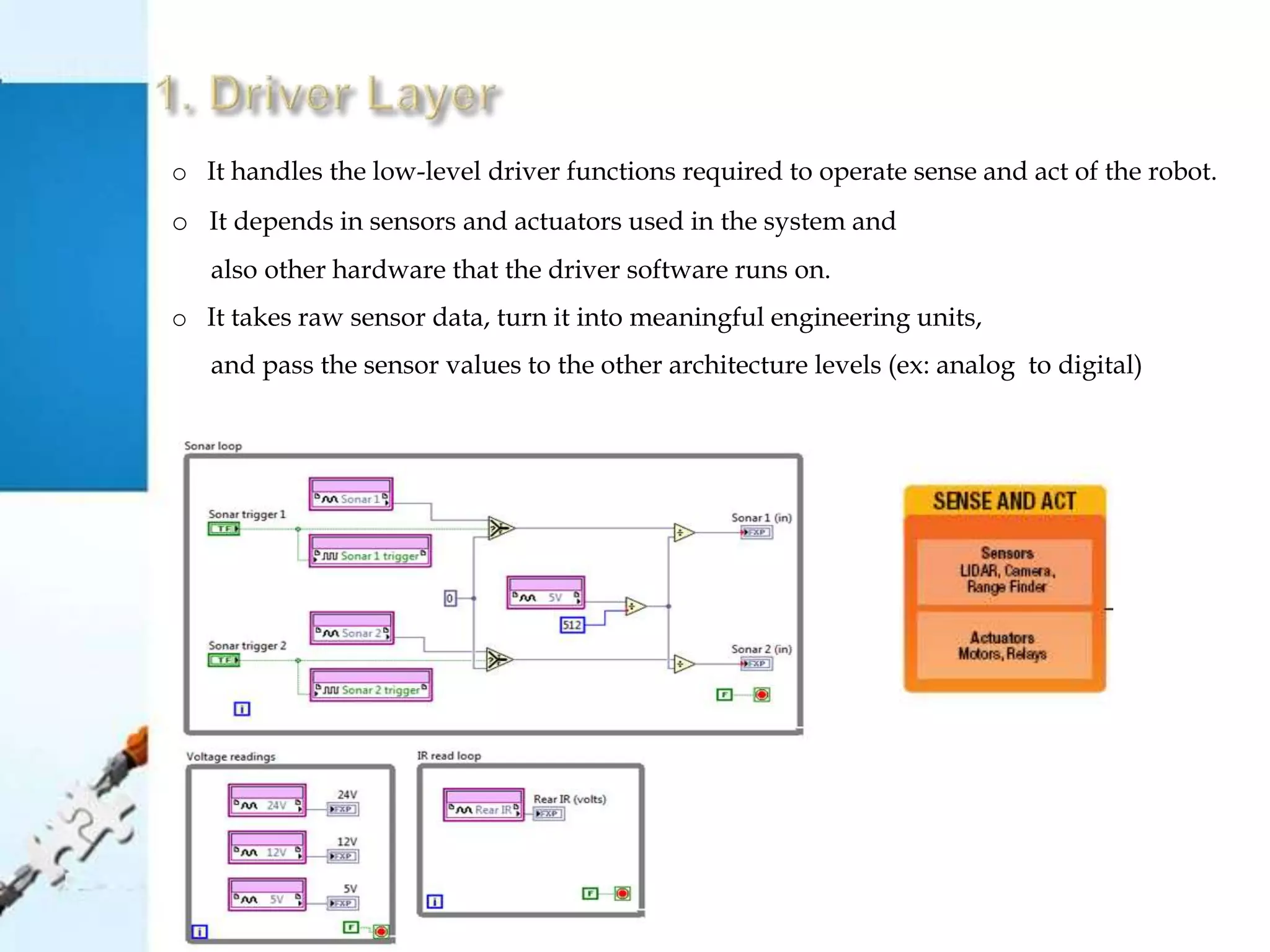

6. o It handles the low-level driver functions required to operate sense and act of the robot.
o It depends in sensors and actuators used in the system and
also other hardware that the driver software runs on.
o It takes raw sensor data, turn it into meaningful engineering units,
and pass the sensor values to the other architecture levels (ex: analog to digital)

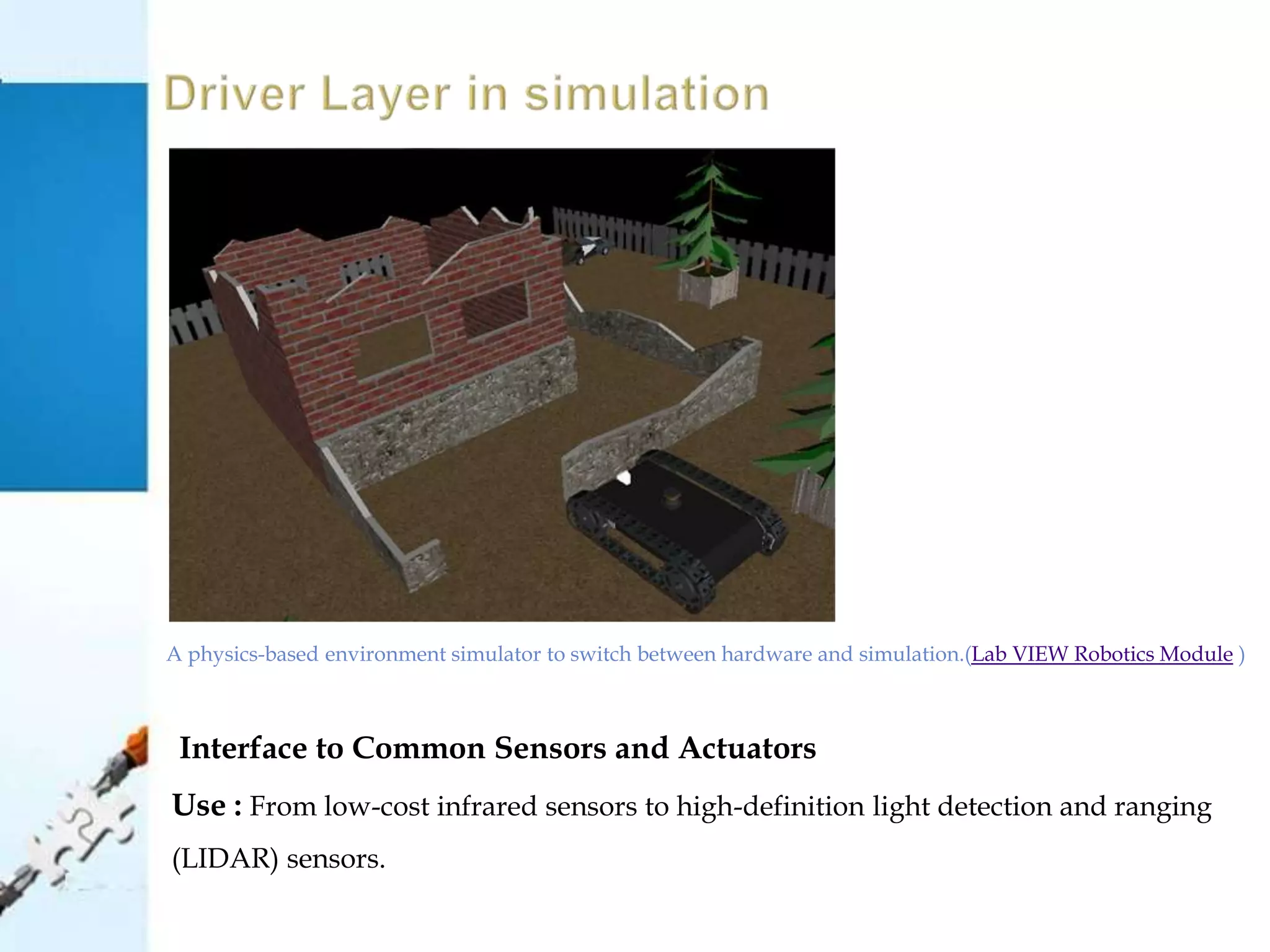

7. Interface to Common Sensors and Actuators
Use : From low-cost infrared sensors to high-definition light detection and ranging
(LIDAR) sensors.
A physics-based environment simulator to switch between hardware and simulation.(Lab VIEW Robotics Module )

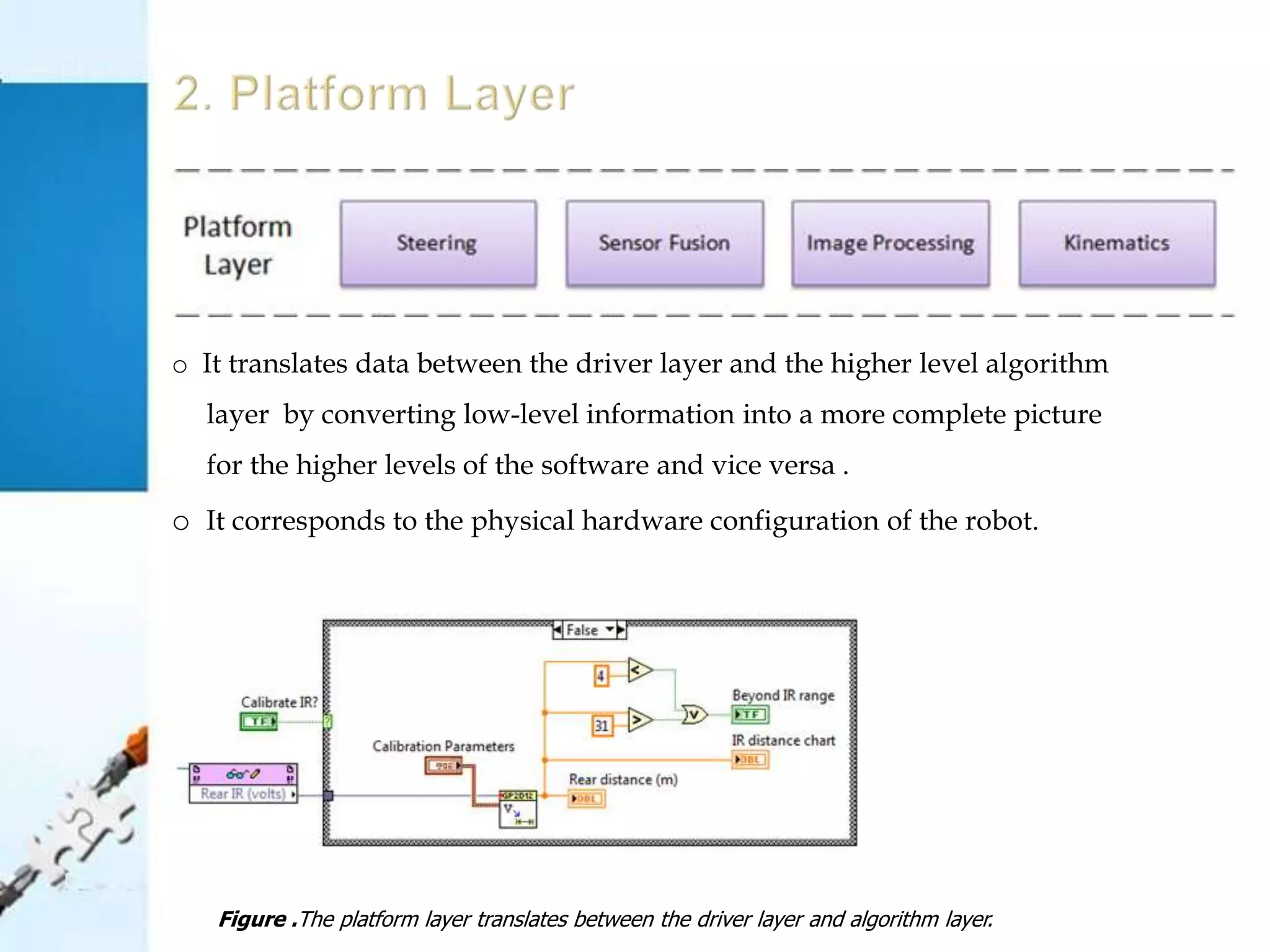

8. o It translates data between the driver layer and the higher level algorithm
layer by converting low-level information into a more complete picture
for the higher levels of the software and vice versa .
o It corresponds to the physical hardware configuration of the robot.
Figure .The platform layer translates between the driver layer and algorithm layer.

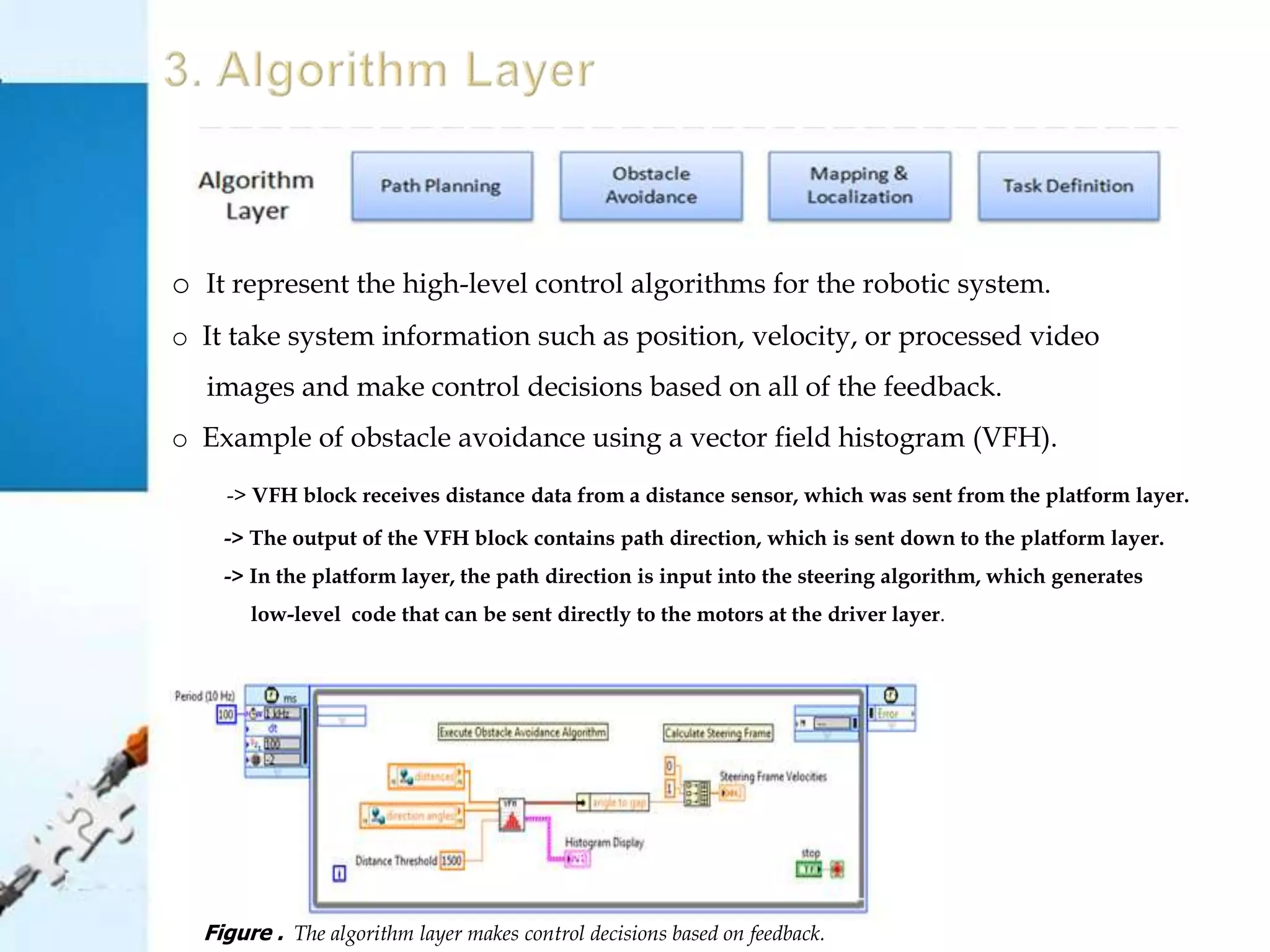

9. o It represent the high-level control algorithms for the robotic system.
o It take system information such as position, velocity, or processed video
images and make control decisions based on all of the feedback.
o Example of obstacle avoidance using a vector field histogram (VFH).
-> VFH block receives distance data from a distance sensor, which was sent from the platform layer.
-> The output of the VFH block contains path direction, which is sent down to the platform layer.
-> In the platform layer, the path direction is input into the steering algorithm, which generates
low-level code that can be sent directly to the motors at the driver layer.
Figure . The algorithm layer makes control decisions based on feedback.

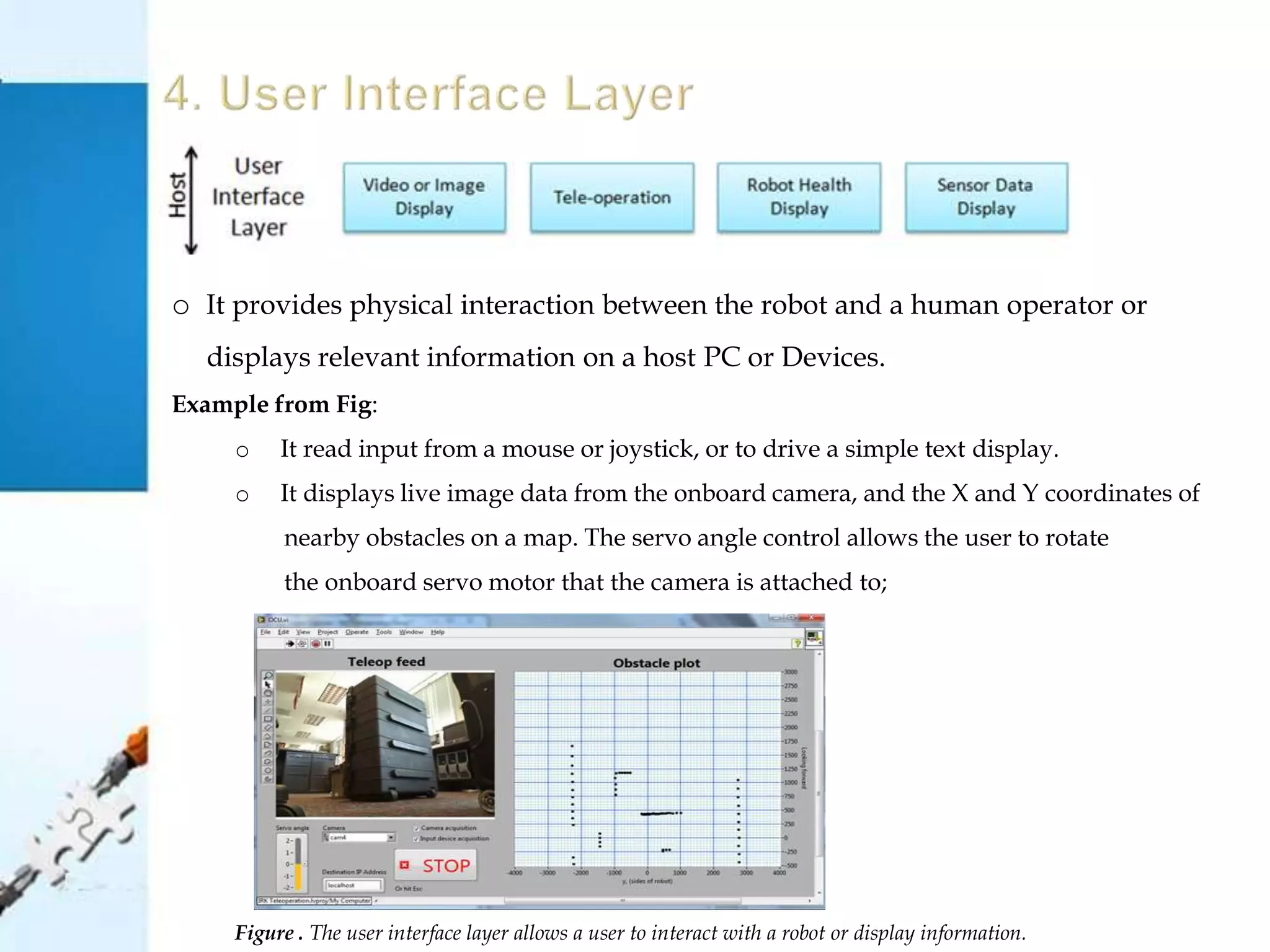

10. o It provides physical interaction between the robot and a human operator or
displays relevant information on a host PC or Devices.
Example from Fig:
o It read input from a mouse or joystick, or to drive a simple text display.
o It displays live image data from the onboard camera, and the X and Y coordinates of
nearby obstacles on a map. The servo angle control allows the user to rotate
the onboard servo motor that the camera is attached to;
Figure . The user interface layer allows a user to interact with a robot or display information.

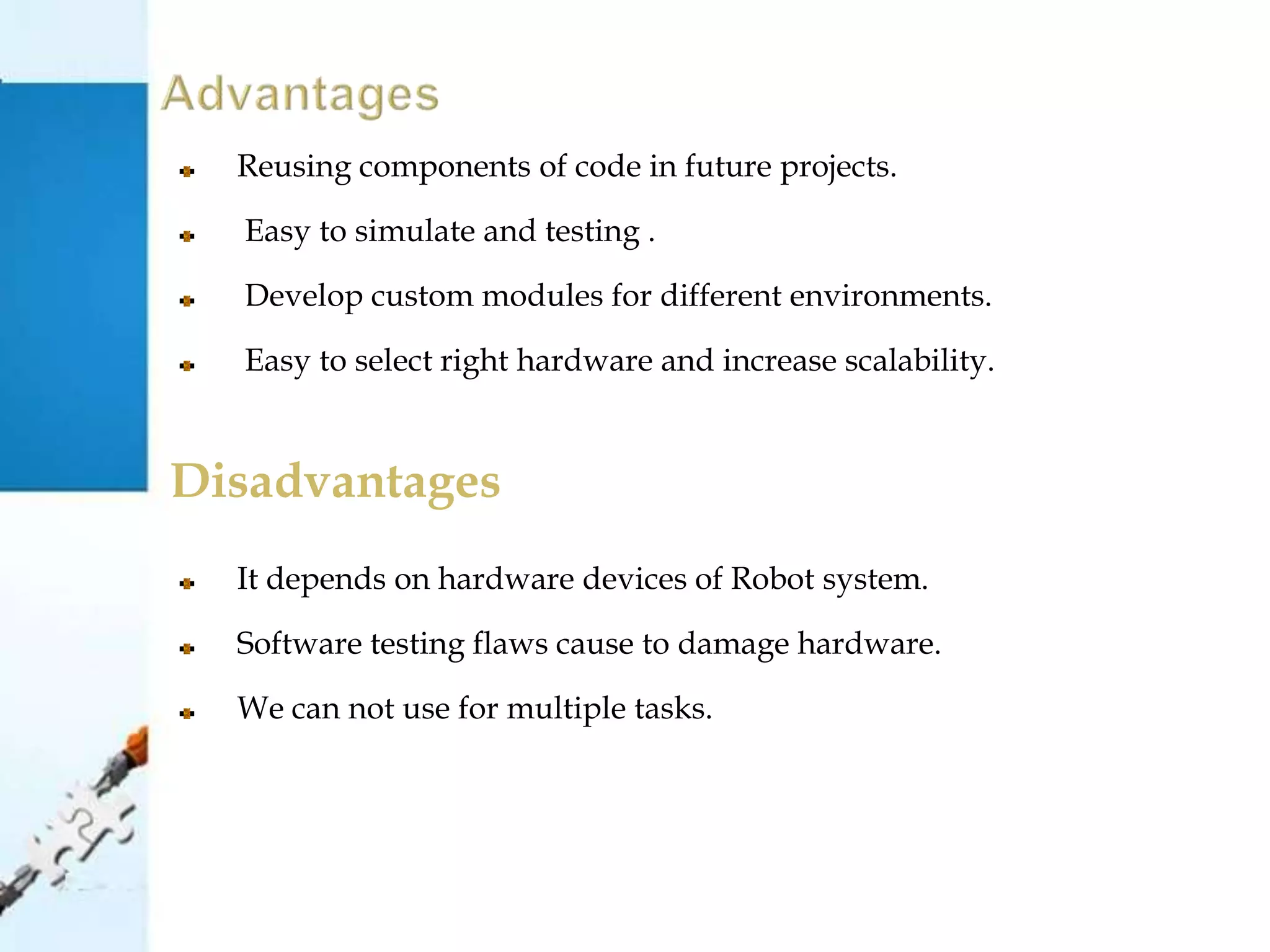

11. Reusing components of code in future projects.
Easy to simulate and testing .
Develop custom modules for different environments.
Easy to select right hardware and increase scalability.
Disadvantages
It depends on hardware devices of Robot system.
Software testing flaws cause to damage hardware.
We can not use for multiple tasks.

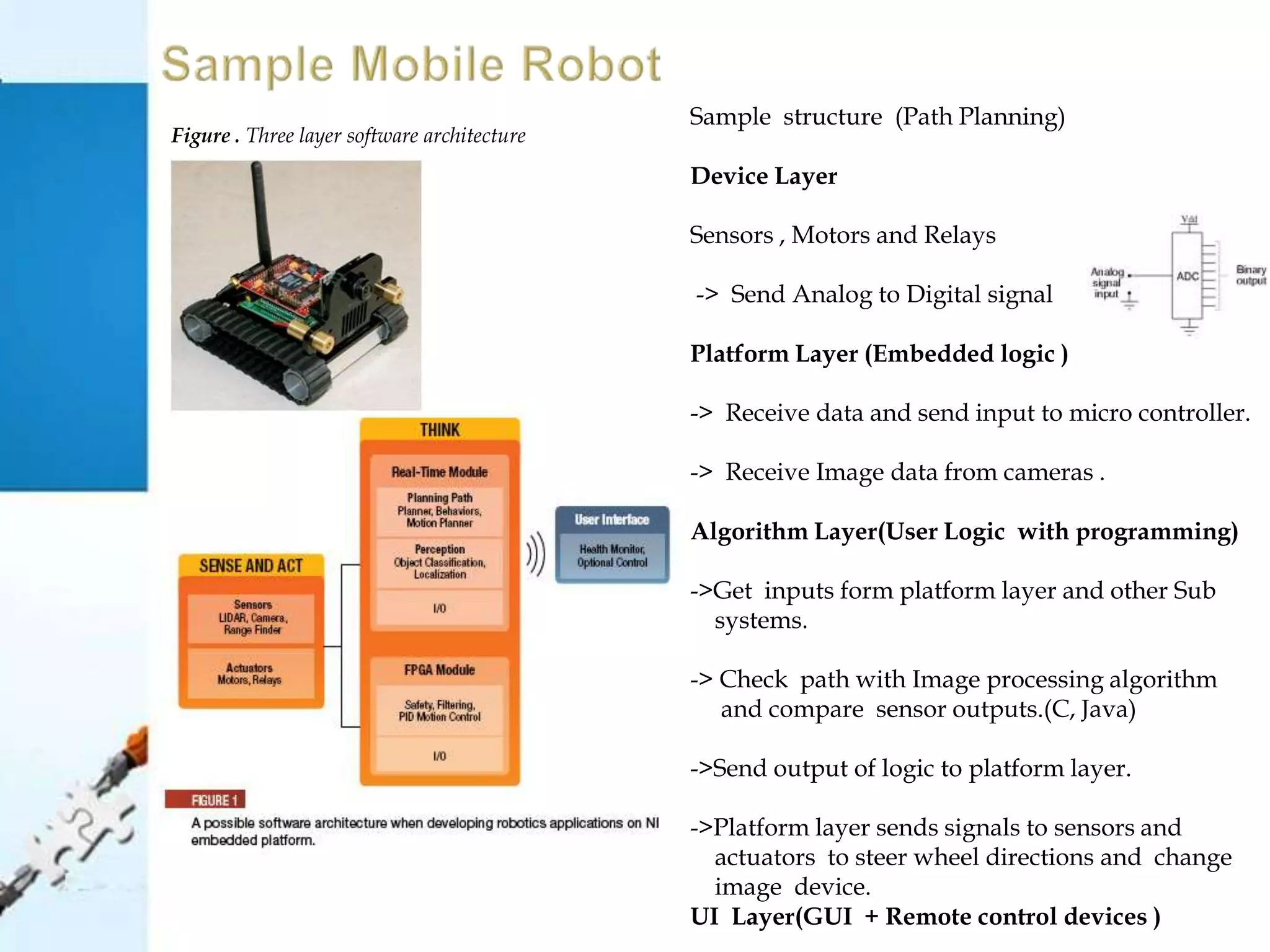

12. Sample structure (Path Planning)
Device Layer
Sensors , Motors and Relays
-> Send Analog to Digital signal
Platform Layer (Embedded logic )
-> Receive data and send input to micro controller.
-> Receive Image data from cameras .
Algorithm Layer(User Logic with programming)
->Get inputs form platform layer and other Sub
systems.
-> Check path with Image processing algorithm
and compare sensor outputs.(C, Java)
->Send output of logic to platform layer.
->Platform layer sends signals to sensors and
actuators to steer wheel directions and change
image device.
UI Layer(GUI + Remote control devices )
Figure . Three layer software architecture

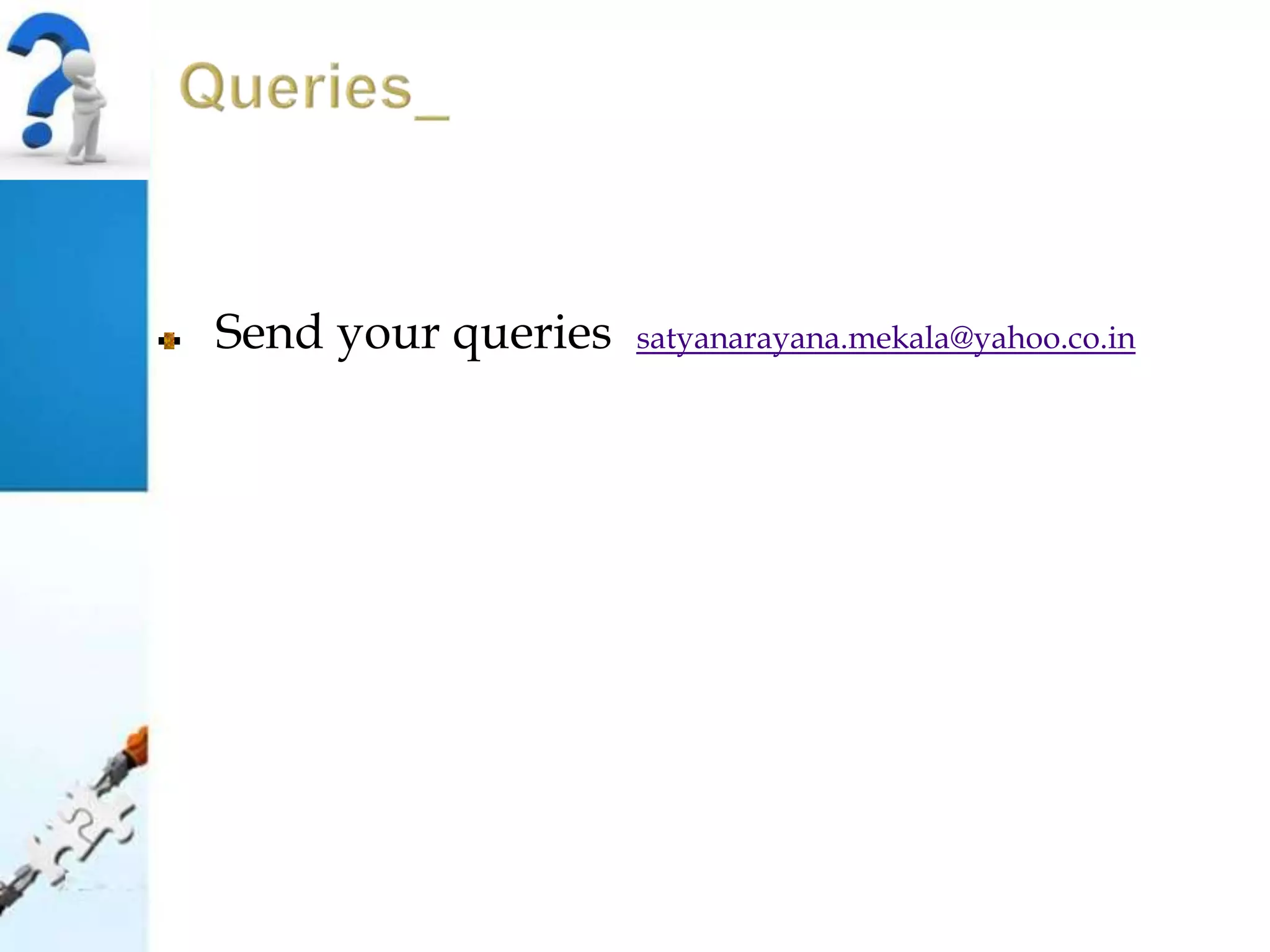

13. Send your queries satyanarayana.mekala@yahoo.co.in
