Database-as-a-Service with Oracle Enterprise Manager Cloud Control 12c and Oracle Database 12c
This document discusses using Oracle Enterprise Manager 12c and Oracle Database 12c to provide Database-as-a-Service capabilities. It covers why DBaaS is useful, the key capabilities of EM12c and DB12c for DBaaS, such as self-service provisioning and database consolidation. It also reviews requirements, architecture, setup steps, and features like metering and chargeback that EM12c provides for DBaaS.
More Related Content
Similar to Database-as-a-Service with Oracle Enterprise Manager Cloud Control 12c and Oracle Database 12c
Database-as-a-Service with Oracle Enterprise Manager Cloud Control 12c and Oracle Database 12c
- 1. Database-as-a-Service with #EM12c and#DB12c Leighton L. Nelson
- 2. About Me Oracle DBA OracleACE Oracle Certified Expert RAC and Grid Infrastructure Administrator 11gR2 Co-Author Expert Oracle Enterprise Manager Cloud Control 12c (Apress 2013) Speaker at IOUG Collaborate, KScope, Oracle OpenWorld Blogs, Social Media RAC Attack Ninja
- 3. Agenda What is Database-as-a-Service(DBaaS) Why DBaaS? Why EM12c? Self-Service Portal Pluggable DBaaS Metering and Chargeback Rapid Cloud Setup
- 4. What is Databaseas a Service (DBaaS)? The ability to provide rapid on-demand database provisioning using a consolidated platform to reduce cost and increase resource utilization.
- 5. Why #DBaaS? Self-Service Automation FastProvisioning Reduces Database/VM Sprawl Standardization & Automation
- 6.
- 7. Why #EM12c? Central DatabaseManagement Tool Complete Lifecycle Management Quota, Role-based Access REST API Access Single Pane of Glass
- 8. Why #DB12c? Database Consolidation(Containers) “Manage Many as One” Backups, Upgrades & Patching Fast Provisioning via Plug and Unplug Isolation Security

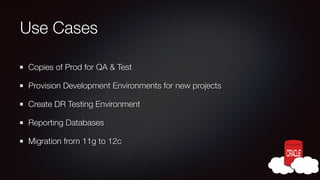

- 9. Use Cases Copies ofProd for QA & Test Provision Development Environments for new projects Create DR Testing Environment Reporting Databases Migration from 11g to 12c

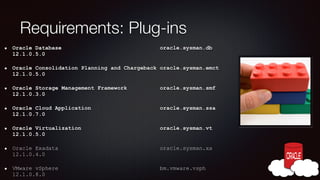

- 10. Requirements: Plug-ins Oracle Database 12.1.0.5.0 oracle.sysman.db OracleConsolidation Planning and Chargeback oracle.sysman.emct 12.1.0.5.0 Oracle Storage Management Framework 12.1.0.3.0 oracle.sysman.smf Oracle Cloud Application 12.1.0.7.0 oracle.sysman.ssa Oracle Virtualization 12.1.0.5.0 oracle.sysman.vt Oracle Exadata 12.1.0.4.0 oracle.sysman.xa VMware vSphere 12.1.0.8.0 bm.vmware.vsph
- 11. Requirements: Licenses Oracle Database12cMultitenant Option Cloud Management Pack for Database Database Lifecycle Management Pack Storage Licenses if Necessary

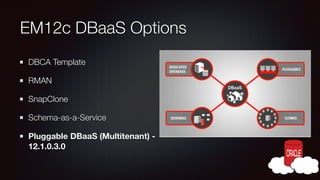

- 12. EM12c DBaaS Options DBCATemplate RMAN SnapClone Schema-as-a-Service Pluggable DBaaS (Multitenant) 12.1.0.3.0

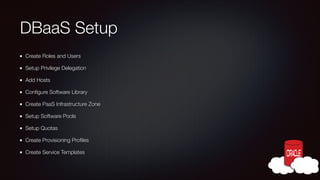

- 13. DBaaS Setup Create Rolesand Users Setup Privilege Delegation Add Hosts Configure Software Library Create PaaS Infrastructure Zone Setup Software Pools Setup Quotas Create Provisioning Profiles Create Service Templates
- 14. Users and Roles SuperAdministrator EM_CLOUD_ADMINISTRATOR EM_SSA_ADMINISTRATOR EM_SSA_USER Database Administrator
- 15.

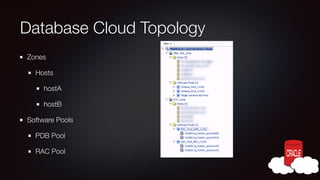

- 16. Database Cloud Topology Zones Hosts hostA hostB SoftwarePools PDB Pool RAC Pool
- 17.

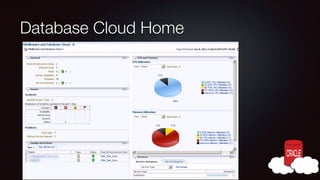

- 18.

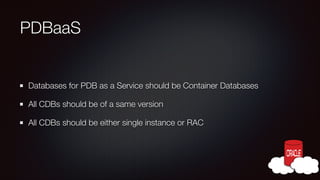

- 19. PDBaaS Databases for PDBas a Service should be Container Databases All CDBs should be of a same version All CDBs should be either single instance or RAC

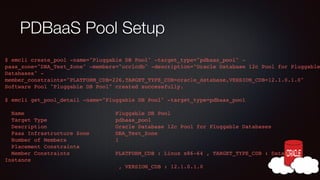

- 20. PDBaaS Pool Setup $emcli create_pool -name="Pluggable DB Pool" -target_type="pdbaas_pool" paas_zone="DBA_Test_Zone" -members="orclcdb" -description="Oracle Database 12c Pool for Pluggable Databases" member_constraints="PLATFORM_CDB=226,TARGET_TYPE_CDB=oracle_database,VERSION_CDB=12.1.0.1.0"! Software Pool "Pluggable DB Pool" created successfully.! ! $ emcli get_pool_detail -name="Pluggable DB Pool" -target_type=pdbaas_pool! ! Name Target Type Description Paas Infrastructure Zone Number of Members Placement Constraints! Member Constraints Instance! Pluggable DB Pool! pdbaas_pool! Oracle Database 12c Pool for Pluggable Databases! DBA_Test_Zone! 1! PLATFORM_CDB : Linux x86-64 , TARGET_TYPE_CDB : Database , VERSION_CDB : 12.1.0.1.0!

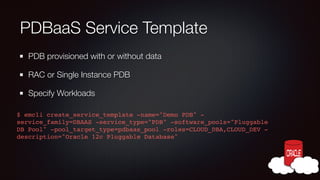

- 21. PDBaaS Service Template PDBprovisioned with or without data RAC or Single Instance PDB Specify Workloads $ emcli create_service_template -name="Demo PDB" service_family=DBAAS -service_type="PDB" -software_pools="Pluggable DB Pool" -pool_target_type=pdbaas_pool -roles=CLOUD_DBA,CLOUD_DEV description="Oracle 12c Pluggable Database"!
- 22.

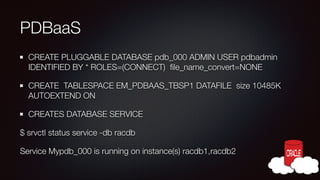

- 23. PDBaaS CREATE PLUGGABLE DATABASEpdb_000 ADMIN USER pdbadmin IDENTIFIED BY * ROLES=(CONNECT) file_name_convert=NONE CREATE TABLESPACE EM_PDBAAS_TBSP1 DATAFILE size 10485K AUTOEXTEND ON CREATES DATABASE SERVICE $ srvctl status service -db racdb Service Mypdb_000 is running on instance(s) racdb1,racdb2
- 24. PDBaaS Management Resource ManagerPlan Created at Container Level Backup Container + PDBs Patch Container + PDBs Monitor All PDBs together

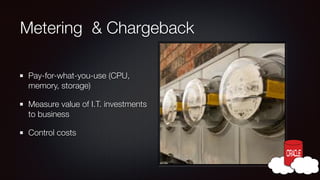

- 25. Metering & Chargeback Pay-for-what-you-use(CPU, memory, storage) Measure value of I.T. investments to business Control costs
- 26. Chargeback Requirements Oracle Chargebackand Capacity Planning plug-in (oracle.sysman.emct) Cloud Management Pack for Database/Middleware Chargeback privileges granted (EM_CBA_ADMIN)
- 27.
- 28.
- 29.
- 30.
- 31. Rapid Cloud Setup MultipleSteps Required for DBaaS setup click, click, click… EMCLI Rapid Start Kit ORACLE_HOME/bin/emcli @exadata_cloud_setup.py -pdbaas db_list=pdb Blue Medora Plug-in for VMware
- 32.
