2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods to Cloud

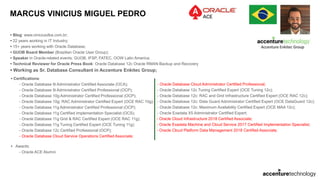

MARCUS VINICIUS MIGUEL PEDRO
• Blog: www.viniciusdba.com.br;
• 22 years working in IT Industry;
• 15+ years working with Oracle Database;
• GUOB Board Member (Brazilian Oracle User Group);
• Speaker in Oracle-related events: GUOB, IFSP, FATEC, OOW Latin America;
• Technical Reviewer for Oracle Press Book: Oracle Database 12c Oracle RMAN Backup and Recovery
• Working as Sr. Database Consultant in Accenture Enkitec Group;
• Certifications:
- Oracle Database 9i Administrator Certified Associate (OCA);
- Oracle Database 9i Administrator Certified Professional (OCP);
- Oracle Database 10g Administrator Certified Professional (OCP);
- Oracle Database 10g: RAC Administrator Certified Expert (OCE RAC 10g);
- Oracle Database 11g Administrator Certified Professional (OCP);
- Oracle Database 11g Certified Implementation Specialist (OCS);
- Oracle Database 11g Grid & RAC Certified Expert (OCE RAC 11g);
- Oracle Database 11g Tuning Certified Expert (OCE Tuning 11g);
- Oracle Database 12c Certified Professional (OCP);
- Oracle Database Cloud Service Operations Certified Associate;
• Awards:
- Oracle ACE Alumni
- Oracle Database Cloud Administrator Certified Professional;
- Oracle Database 12c Tuning Certified Expert (OCE Tuning 12c);
- Oracle Database 12c: RAC and Grid Infrastructure Certified Expert (OCE RAC 12c);
- Oracle Database 12c: Data Guard Administrator Certified Expert (OCE DataGuard 12c);
- Oracle Database 12c: Maximum Availability Certified Expert (OCE MAA 12c);
- Oracle Exadata X5 Administrator Certified Expert;
- Oracle Cloud Infrastructure 2018 Certified Associate;
- Oracle Exadata Machine and Cloud Service 2017 Certified Implementation Specialist;
- Oracle Cloud Platform Data Management 2018 Certified Associate.

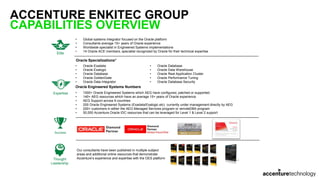

ACCENTURE ENKITEC GROUP
CAPABILITIES OVERVIEW
4
• Global systems integrator focused on the Oracle platform
• Consultants average 15+ years of Oracle experience
• Worldwide specialist in Engineered Systems implementations
• 14 Oracle ACE members, specialist recognized by Oracle for their technical expertise
Elite
Expertise
Oracle Specializations*
• Oracle Exadata
• Oracle Exalogic
• Oracle Database
• Oracle GoldenGate
• Oracle Data Integrator
• Oracle Database
• Oracle Data Warehouse
• Oracle Real Application Cluster
• Oracle Performance Tuning
• Oracle Database Security
Thought
Leadership
Success
Our consultants have been published in multiple subject
areas and additional online resources that demonstrate
Accenture’s experience and expertise with the OES platform
Oracle Engineered Systems Numbers
• 1000+ Oracle Engineered Systems which AEG have configured, patched or supported.
• 140+ AEG resources which have an average 15+ years of Oracle experience
• AEG Support across 9 countries
• 200 Oracle Engineered Systems (Exadata/Exalogic etc) currently under management directly by AEG
• 200+ customers in either the AEG Managed Services program or remoteDBA program
• 50,000 Accenture Oracle IDC resources that can be leveraged for Level 1 & Level 2 support

AGENDA
OCI Milestones
OCI Key Concepts
OCI Configuration
Database On OCI Concepts
Will DBA Jobs Be Dead?
OCI Database Configuration
Considerations to Migrate Your Database

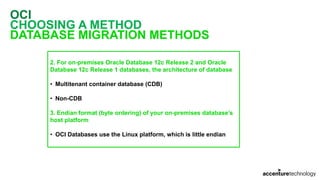

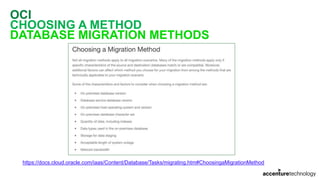

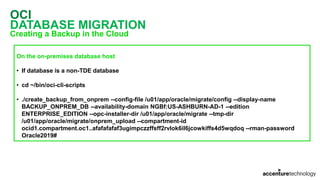

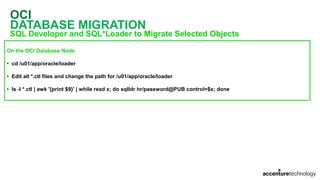

Methods to Migrate Your Database to Cloud
QA

OCI - MAIN MILESTONES
Oracle Cloud Infrastructure – OCI
• Launched as Oracle Bare Metal Cloud
• Announced at Oracle OpenWorld 2016
• Changed to OCI in January 2017
• Evolved to 2nd Generation and announced at Oracle OpenWorld 2018.

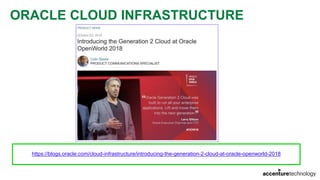

ORACLE CLOUD INFRASTRUCTURE
https://blogs.oracle.com/cloud-infrastructure/introducing-the-generation-2-cloud-at-oracle-openworld-2018

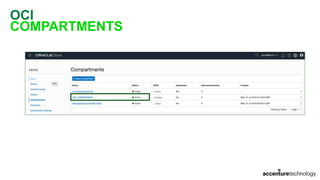

OCI

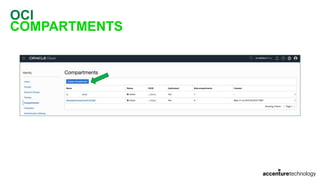

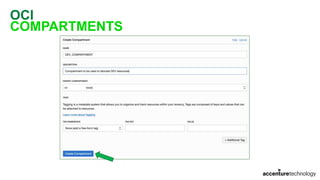

COMPARTMENTS
• Compartment is a collection of related resources (instances, VCNs, block volumes, etc)
• Can be accessed by groups that have have been given permission by an administrator
• When you sign up for OCI, Oracle creates your tenancy, which is the root compartment
• You can create compartments to organize and isolate your cloud resources:
• DEV_COMPARTMENT;
• QA_COMPARTMENT;
• PROD_COMPARTMENT.

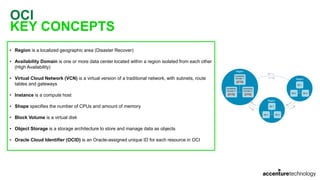

OCI
KEY CONCEPTS
• Region is a localized geographic area (Disaster Recover)
• Availability Domain is one or more data center located within a region isolated from each other
(High Availability)
• Virtual Cloud Network (VCN) is a virtual version of a traditional network, with subnets, route
tables and gateways
• Instance is a compute host
• Shape specifies the number of CPUs and amount of memory
• Block Volume is a virtual disk
• Object Storage is a storage architecture to store and manage data as objects
• Oracle Cloud Identifier (OCID) is an Oracle-assigned unique ID for each resource in OCI

OCI
NEW REGIONS ANNOUNCEMENT
https://blogs.oracle.com/cloud-infrastructure/oracle-launches-four-new-cloud-regions-across-four-continents

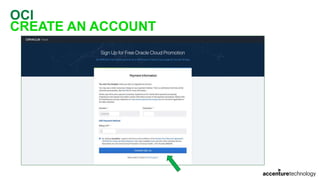

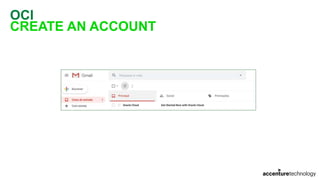

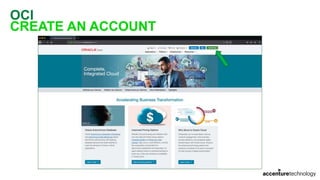

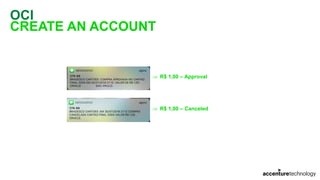

OCI

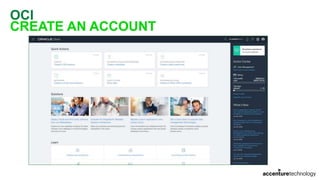

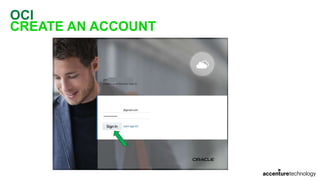

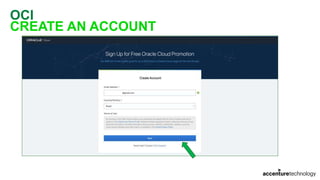

CREATE AN ACCOUNT
 R$ 1,00 – Approval
 R$ 1,00 – Canceled

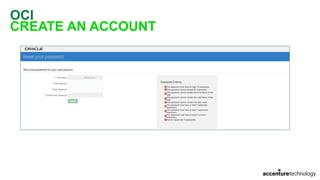

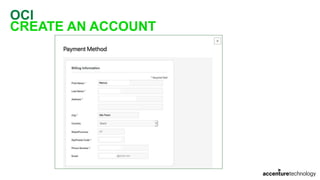

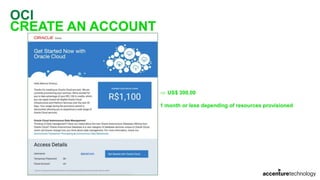

OCI
CREATE AN ACCOUNT
 US$ 300,00
1 month or less depending of resources provisioned

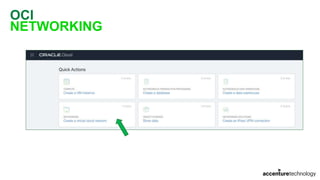

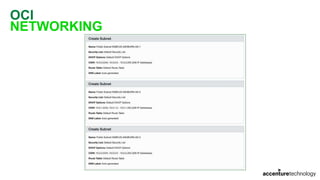

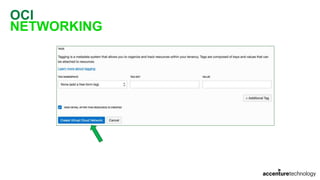

OCI
NETWORKING
Specify a Name and choose the
COMPARTMENT created for DEV
Choose the 2nd option: all
the related resources will
be created

WILL DBA JOBS BE DEAD?
Some Automatic Features
• Undo Automatic Management
• Cost-Based Optimizer
• Automatic Storage Management
• AWR
• ADDM
• SQL Tuning Advisor
• Access Advisor
• Memory Advisor
• SGA Advisor
• Buffer Cache Advisor
• PGA Advisor
• Undo Advisor
• Exadata:
• Engineering System = Hardware and Software, Engineered to Work Together
• AutoUpgrade Tool
• Automatic Indexing
• Automatic Resolution of SQL Plan Regressions

In my humble opinion
No!

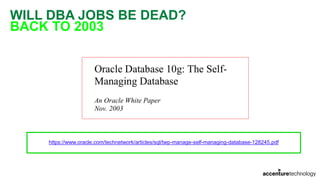

BACK TO 2003
https://www.oracle.com/technetwork/articles/sql/twp-manage-self-managing-database-128245.pdf

BACK TO THE FUTURE: 2018
AUTONOMOUS DATABASE

BACK TO THE FUTURE: 2018
AUTONOMOUS DATABASE
What is Autonomous Database?
• It’s a Database Cloud Service:
• Database 18c + Cloud + Machine Learning

DATABASE OFFERS IN OCI
• Bare Metal DB Systems
• Virtual Machine DB Systems
• Exadata DB Systems
• Autonomous Data Warehouse
• Autonomous Transaction Processing

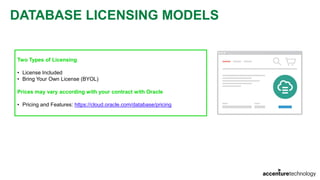

DATABASE LICENSING MODELS
Two Types of Licensing
• License Included
• Bring Your Own License (BYOL)
Prices may vary according with your contract with Oracle
• Pricing and Features: https://cloud.oracle.com/database/pricing

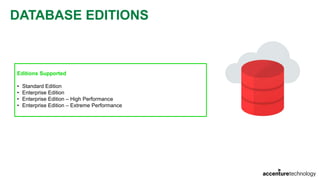

DATABASE EDITIONS
Editions Supported
• Standard Edition
• Enterprise Edition
• Enterprise Edition – High Performance
• Enterprise Edition – Extreme Performance

DATABASE EDITIONS
STANDARD EDITION
Features
• All features included in Oracle Database Standard Edition 2
• Full Oracle Database Instance
• Up to 24 CPUs
• Transparent Data Encryption

DATABASE EDITIONS
ENTERPRISE EDITION
Features
• Includes Oracle Database Enterprise Edition plus:
• Data Masking and Subsetting Pack
• Diagnostics and Tuning Packs
• Real Application Testing

DATABASE EDITIONS
ENTERPRISE EDITION – HIGH PERFORMANCE
Features
• Includes all the features from Enterprise Edition plus:
• Multitenant
• Partitioning
• Advanced Compression
• Advanced Security
• Label Security
• Database Vault
• OLAP
• Advanced Analytics
• Database Lifecycle Management Pack
• Cloud Management Pack for Oracle Database

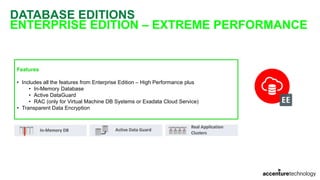

DATABASE EDITIONS
ENTERPRISE EDITION – EXTREME PERFORMANCE
Features
• Includes all the features from Enterprise Edition – High Performance plus
• In-Memory Database
• Active DataGuard
• RAC (only for Virtual Machine DB Systems or Exadata Cloud Service)

DATABASE VERSIONS
Versions Supported
• Oracle Database 11g Release 2 (11.2)
• Oracle Database 12c Release 1 (12.1)
• Oracle Database 12c Release 2 (12.2)
• Oracle Database 18c (18.0)
• Oracle Database 19c (19.0) – Only for VM DB Systems and Exadata – Aug/2019

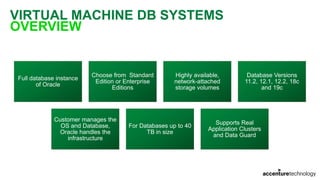

VIRTUAL MACHINE DB SYSTEMS
OVERVIEW
Full database instance
of Oracle
Choose from Standard
Edition or Enterprise
Editions
Highly available,
network-attached
storage volumes
Database Versions
11.2, 12.1, 12.2, 18c
and 19c
Customer manages the
OS and Database,
Oracle handles the
infrastructure
For Databases up to 40
TB in size
Supports Real
Application Clusters
and Data Guard

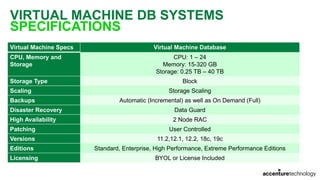

SPECIFICATIONS
Virtual Machine Specs Virtual Machine Database
CPU, Memory and
Storage
CPU: 1 – 24
Memory: 15-320 GB
Storage: 0.25 TB – 40 TB
Storage Type Block
Scaling Storage Scaling
Backups Automatic (Incremental) as well as On Demand (Full)
Disaster Recovery Data Guard
High Availability 2 Node RAC
Patching User Controlled
Versions 11.2,12.1, 12.2, 18c, 19c
Editions Standard, Enterprise, High Performance, Extreme Performance Editions
Licensing BYOL or License Included

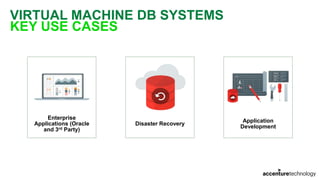

KEY USE CASES
Enterprise
Applications (Oracle
and 3rd Party)
Disaster Recovery
Application
Development

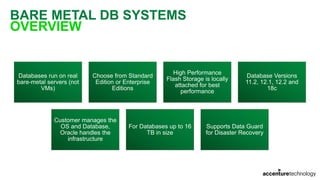

BARE METAL DB SYSTEMS
OVERVIEW
Databases run on real
bare-metal servers (not
VMs)
Choose from Standard
Edition or Enterprise
Editions
High Performance
Flash Storage is locally
attached for best
performance
Database Versions
11.2, 12.1, 12.2 and
18c
Customer manages the
OS and Database,
Oracle handles the
infrastructure
TB in size
Supports Data Guard
for Disaster Recovery

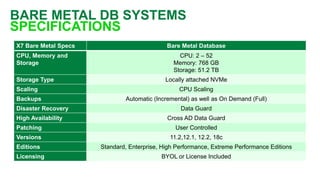

SPECIFICATIONS
X7 Bare Metal Specs Bare Metal Database
CPU, Memory and
Storage
CPU: 2 – 52
Memory: 768 GB
Storage: 51.2 TB
Storage Type Locally attached NVMe
Scaling CPU Scaling
High Availability Cross AD Data Guard
Versions 11.2,12.1, 12.2, 18c
Editions Standard, Enterprise, High Performance, Extreme Performance Editions

KEY USE CASES
Enterprise
Applications (Oracle
and 3rd Party)
Disaster Recovery
Application
Development

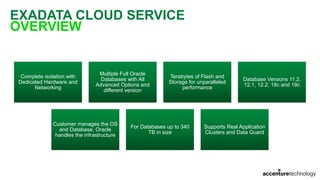

EXADATA CLOUD SERVICE
OVERVIEW
Complete isolation with
Dedicated Hardware and
Networking
Multiple Full Oracle
Databases with All
Advanced Options and
different version
Terabytes of Flash and
Storage for unparalleled
performance
Database Versions 11.2,
12.1, 12.2, 18c and 19c
Customer manages the OS
and Database, Oracle
handles the infrastructure
TB in size
Supports Real Application
Clusters and Data Guard

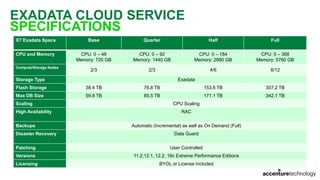

SPECIFICATIONS
X7 Exadata Specs Base Quarter Half Full
CPU and Memory CPU: 0 – 48
Memory: 720 GB
CPU: 0 – 92
Memory: 1440 GB
CPU: 0 – 184
Memory: 2880 GB
CPU: 0 – 368
Memory: 5760 GB
Compute/Storage Nodes
2/3 2/3 4/6 8/12
Storage Type Exadata
Flash Storage 38.4 TB 76.8 TB 153.6 TB 307.2 TB
Max DB Size 59.8 TB 85.5 TB 171.1 TB 342.1 TB
Scaling CPU Scaling
High Availability RAC
Versions 11.2,12.1, 12.2, 18c Extreme Performance Editions

KEY USE CASES
Mission Critical
Production
Databases
Disaster Recovery
Application
Development Consolidation
Analytics

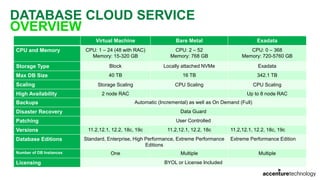

SAME ARCHICTECTURE AS ON-PREMISES

DATABASE CLOUD SERVICE
OVERVIEW
Virtual Machine Bare Metal Exadata
CPU and Memory CPU: 1 – 24 (48 with RAC)
Memory: 15-320 GB
CPU: 2 – 52
Memory: 768 GB
CPU: 0 – 368
Memory: 720-5760 GB
Storage Type Block Locally attached NVMe Exadata
Max DB Size 40 TB 16 TB 342.1 TB
Scaling Storage Scaling CPU Scaling CPU Scaling
High Availability 2 node RAC Up to 8 node RAC
Versions 11.2,12.1, 12.2, 18c, 19c 11.2,12.1, 12.2, 18c 11.2,12.1, 12.2, 18c, 19c
Database Editions Standard, Enterprise, High Performance, Extreme Performance
Editions
Extreme Performance Edition
Number of DB Instances One Multiple Multiple

OCI
NETWORKING SETUP FOR DB SYSTEMS
Two Options
• Public Subnet can be useful for proof-of-concept or development work. Use if you have services that run only on a
public network and need to access database.
• Private Subnet recommended for a production system. Cannot be reached from the Internet.

OCI
DATABASE ON CLOUD
One Million Question
• Should I move my database(s) to Cloud?

OCI
DATABASE ON CLOUD
• It Depends!
• Are you planning to move your application ecosystem to cloud?

OCI
DATABASE ON CLOUD
Big Challenge when moving databases to Cloud
• Traffic between Database tier and Application tier
• Moving your application ecosystem along with database you can benefit from Cloud features/advantages
• If some piece/part of your application remains in On-Premises DataCenter, even with FastConnect you can expect
some increased response time.

OCI
DATABASE SIZING

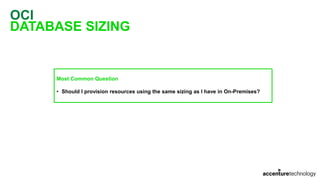

Most Common Question
• Should I provision resources using the same sizing as I have in On-Premises?

OCI
DATABASE SIZING
As always, it depends!

OCI

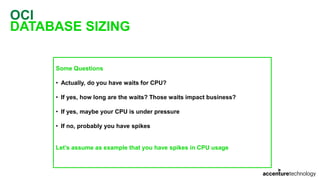

DATABASE SIZING
Some Questions
• Actually, do you have waits for CPU?
• If yes, how long are the waits? Those waits impact business?
• If yes, maybe your CPU is under pressure
• If no, probably you have spikes
Let’s assume as example that you have spikes in CPU usage

OCI
DATABASE SIZING
How much pain are you willing to tolerate?

OCI
DATABASE SIZING
No pain! (No wait!)

OCI
DATABASE SIZING
Some pain is tolerated!

OCI
DATABASE SIZING
How measure CPU usage?
• If you have Diagnostics Pack: DBA_HIST_ACTIVE_SESS_HISTORY (ASH)
• If you don’t, STATSPACK or any external OS monitoring tool

OCI
DATABASE SIZING

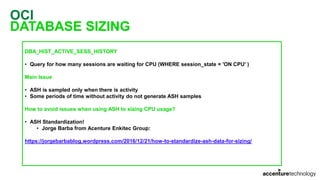

DBA_HIST_ACTIVE_SESS_HISTORY
• Query for how many sessions are waiting for CPU (WHERE session_state = 'ON CPU' )
Main Issue
• ASH is sampled only when there is activity
• Some periods of time without activity do not generate ASH samples
How to avoid issues when using ASH to sizing CPU usage?
• ASH Standardization!
• Jorge Barba from Acenture Enkitec Group:
https://jorgebarbablog.wordpress.com/2016/12/21/how-to-standardize-ash-data-for-sizing/

OCI
DATABASE SIZING

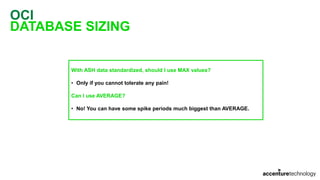

With ASH data standardized, should I use MAX values?
• Only if you cannot tolerate any pain!
Can I use AVERAGE?
• No! You can have some spike periods much biggest than AVERAGE.

OCI
DATABASE SIZING
What I can do to find out the “Magic Number”?
• You can use percentiles.
Percentiles in One Hour
• 97th percentile: longest wait is 1.8 min in 60 mins
• 95th percentile: longest wait is 3 min in 60 mins
https://jorgebarbablog.wordpress.com/2016/12/27/sizing-post-3-understanding-percentiles/

OCI
DATABASE SIZING
How is the appropriate percentile for my database workload?
How much pain are you willing to tolerate?

OCI

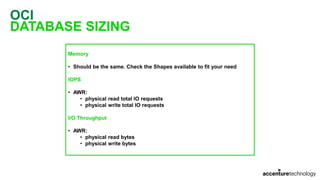

DATABASE SIZING
Memory
• Should be the same. Check the Shapes available to fit your need
IOPS
• AWR:
• physical read total IO requests
• physical write total IO requests
I/O Throughput
• AWR:
• physical read bytes
• physical write bytes

OCI
CREATE DB SYSTEM – SHAPES FOR VM

OCI

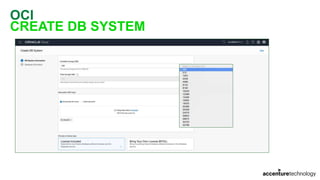

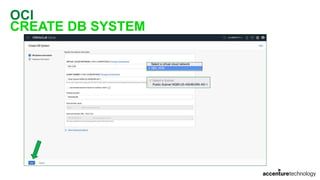

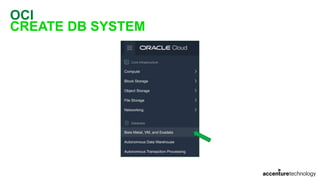

CREATE DB SYSTEM
If you want to use a
specific version
Password policy

OCI
CREATE DB SYSTEM
https://docs.cloud.oracle.com/iaas/Content/Database/Tasks/backingupOS.htm#prerequisites

OCI
CREATE DB SYSTEM
90 minutes later…

OCI
DATABASE CONSOLE OPERATIONS
Main Console Operations

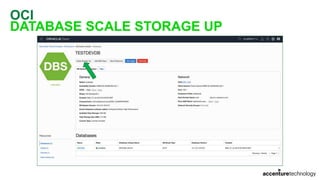

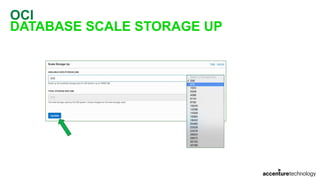

• Scale Storage Up

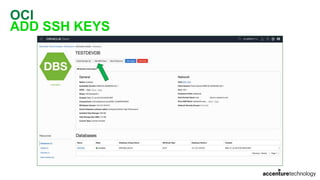

• Add SSH Keys

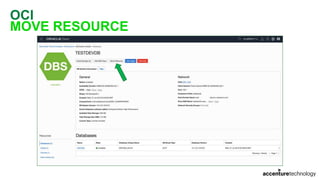

• Move Resource
• Patching
• Enable DataGuard
• Backup
• Restore

OCI

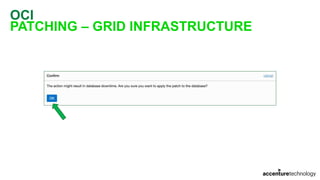

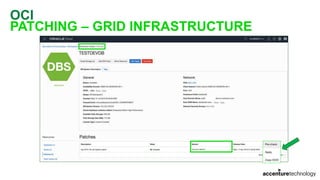

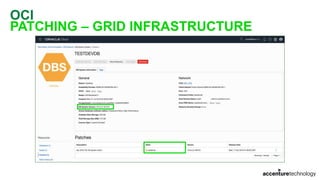

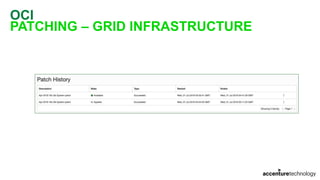

PATCHING – GRID INFRASTRUCTURE

OCI
6 minutes later…

OCI
26 minutes later…

OCI

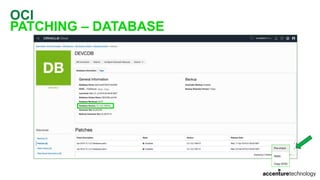

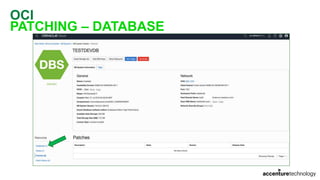

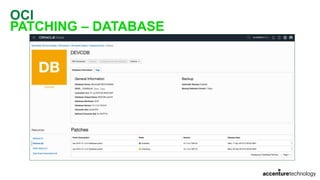

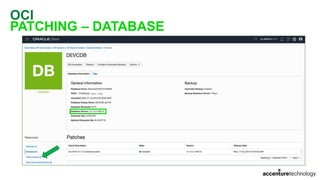

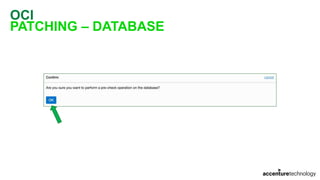

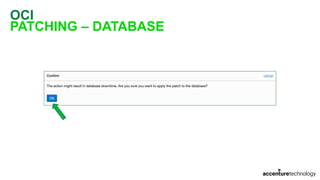

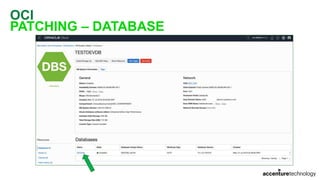

PATCHING – DATABASE
8 minutes later…

OCI
PATCHING – DATABASE
42 minutes later…

OCI

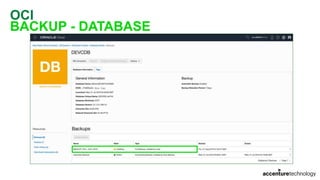

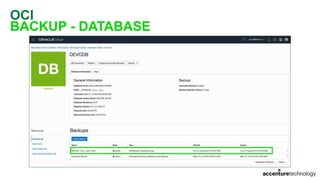

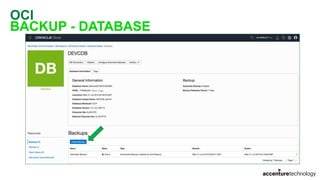

BACKUP - DATABASE
5 minutes later…

OCI

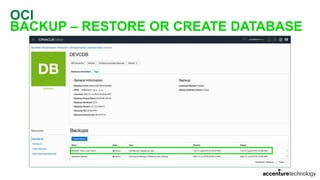

BACKUP – RESTORE OR CREATE DATABASE

OCI

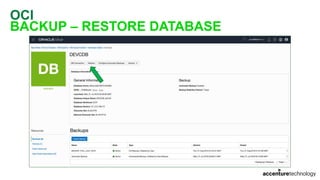

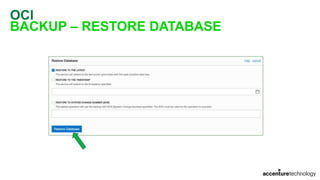

BACKUP – RESTORE DATABASE

OCI

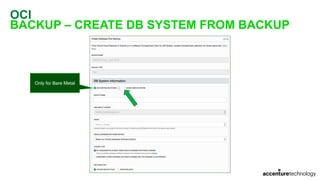

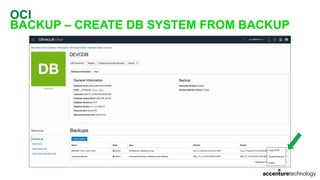

BACKUP – CREATE DB SYSTEM FROM BACKUP

OCI
BACKUP – CREATE DB SYSTEM FROM BACKUP
Only for Bare Metal

OCI

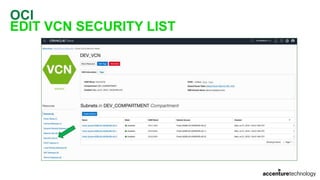

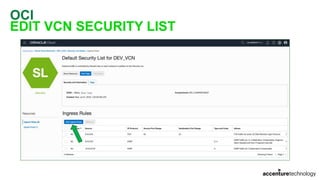

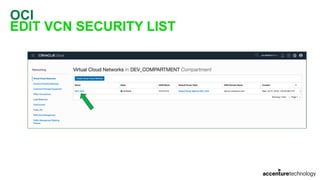

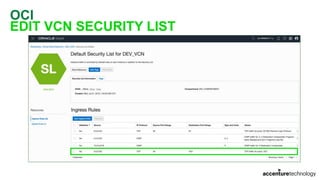

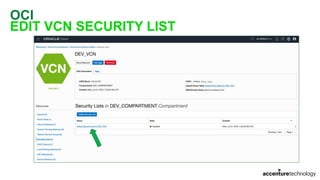

EDIT VCN SECURITY LIST
Do not create this Ingress Rule unless you are
sure about the risks!
It’s open to Internet!

OCI

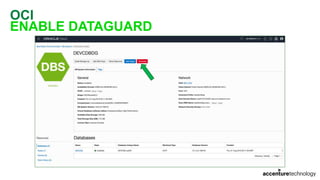

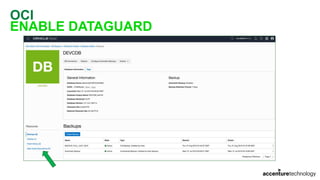

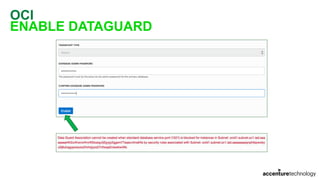

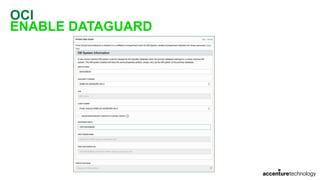

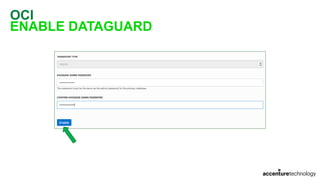

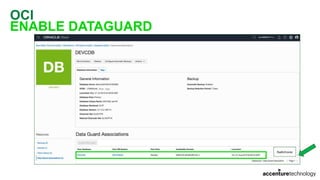

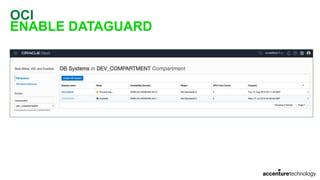

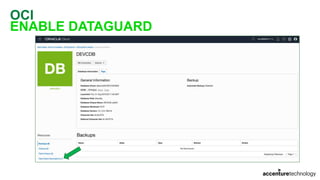

ENABLE DATAGUARD
90 minutes later…

OCI

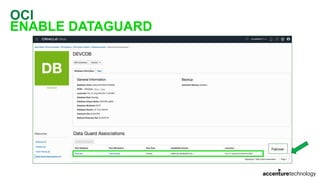

ENABLE DATAGUARD
You need to type the name of DB
System to confirm Termination

OCI

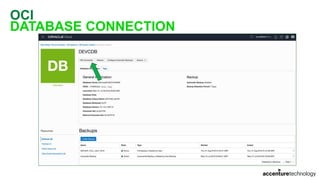

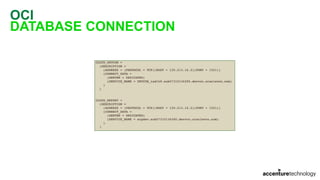

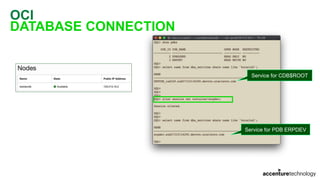

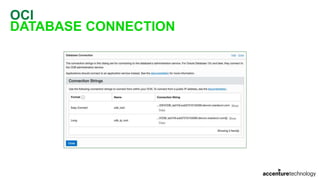

DATABASE CONNECTION
Service for CDB$ROOT
Service for PDB ERPDEV

OCI

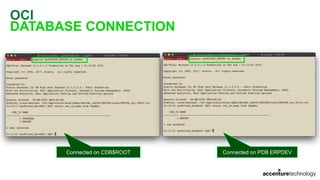

DATABASE CONNECTION
Connected on CDB$ROOT Connected on PDB ERPDEV

OCI
DATABASE MIGRATION METHODS
https://docs.cloud.oracle.com/iaas/Content/Database/Tasks/migrating.htm#MigrationMethods

OCI
CHOOSING A METHOD
https://docs.cloud.oracle.com/iaas/Content/Database/Tasks/migrating.htm#ChoosingaMigrationMethod

OCI

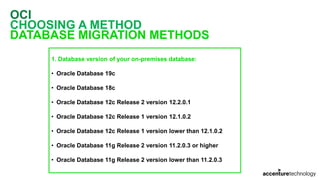

CHOOSING A METHOD
1. Database version of your on-premises database:
• Oracle Database 19c
• Oracle Database 12c Release 2 version 12.2.0.1
• Oracle Database 12c Release 1 version 12.1.0.2
• Oracle Database 12c Release 1 version lower than 12.1.0.2
• Oracle Database 11g Release 2 version 11.2.0.3 or higher
• Oracle Database 11g Release 2 version lower than 11.2.0.3

OCI
CHOOSING A METHOD
2. For on-premises Oracle Database 12c Release 2 and Oracle
Database 12c Release 1 databases, the architecture of database
• Multitenant container database (CDB)
• Non-CDB
3. Endian format (byte ordering) of your on-premises database’s
host platform
• OCI Databases use the Linux platform, which is little endian

OCI
CHOOSING A METHOD
4. Database character set of your on-premises database and the
OCI Database
• Some migrations methods require that the source and target
databases use compatible database character sets

OCI
CHOOSING A METHOD

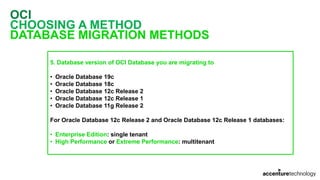

5. Database version of OCI Database you are migrating to
• Oracle Database 12c Release 2
• Oracle Database 12c Release 1
• Oracle Database 11g Release 2
For Oracle Database 12c Release 2 and Oracle Database 12c Release 1 databases:
• Enterprise Edition: single tenant
• High Performance or Extreme Performance: multitenant

OCI

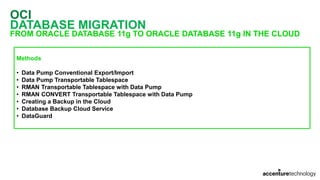

DATABASE MIGRATION
FROM ORACLE DATABASE 11g TO ORACLE DATABASE 11g IN THE CLOUD
Methods
• Data Pump Conventional Export/Import

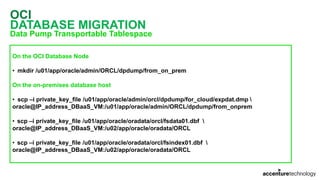

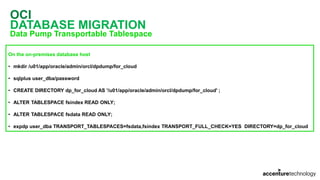

• Data Pump Transportable Tablespace

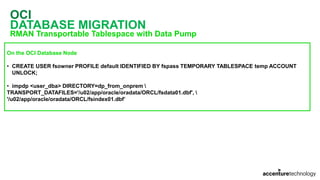

• RMAN Transportable Tablespace with Data Pump

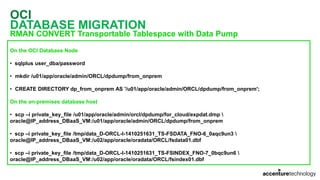

• RMAN CONVERT Transportable Tablespace with Data Pump
• Creating a Backup in the Cloud
• Database Backup Cloud Service

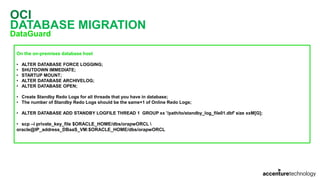

• DataGuard

OCI
DATABASE MIGRATION
FROM ORACLE DATABASE 11g TO ORACLE DATABASE 12c IN THE CLOUD
Methods
• DataGuard

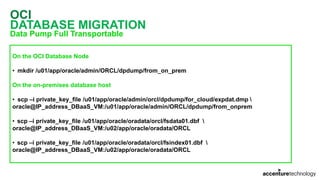

• Data Pump Full Transportable

OCI
DATABASE MIGRATION
FROM ORACLE DATABASE 12c Non-CDB TO ORACLE DATABASE 12c IN THE CLOUD
Methods
• DataGuard
• RMAN Cross-Platform Transportable Backup Sets

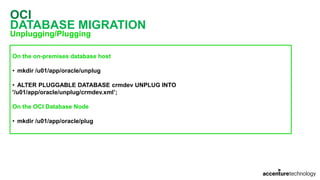

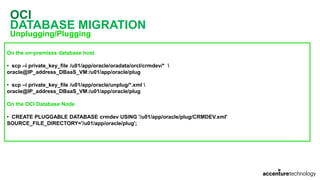

• Unplugging/Plugging (CDB)

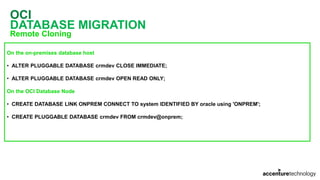

• Remote Cloning (CDB)

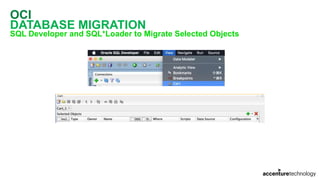

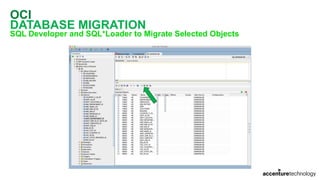

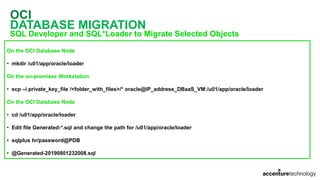

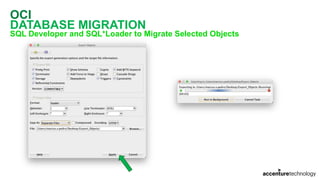

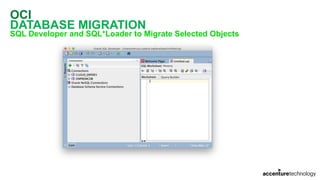

• SQL Developer and SQL*Loader to Migrate Selected Objects

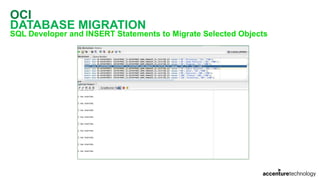

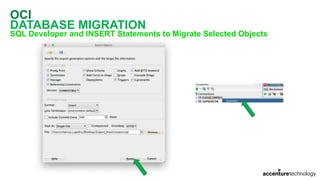

• SQL Developer and INSERT Statements to Migrate Selected Objects

OCI
DATABASE MIGRATION
FROM ORACLE DATABASE 12c CDB TO ORACLE DATABASE 12c IN THE CLOUD
Methods
• DataGuard
• RMAN Cross-Platform Transportable Backup Sets

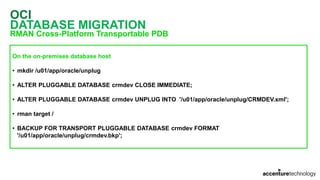

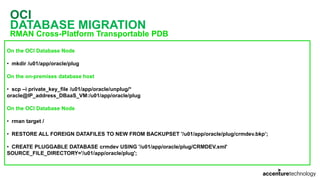

• RMAN Cross-Platform Transportable PDB
All methods above also applies for Oracle Database 18c and Oracle Database 19c

OCI

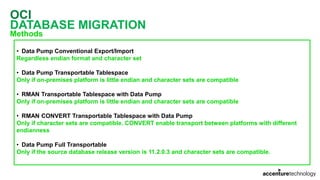

DATABASE MIGRATION
Methods
Regardless endian format and character set
Only if on-premises platform is little endian and character sets are compatible
Only if character sets are compatible. CONVERT enable transport between platforms with different
endianness
Only if the source database release version is 11.2.0.3 and character sets are compatible.

OCI

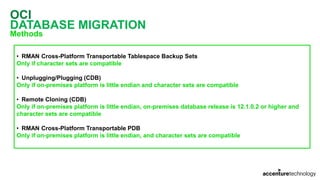

DATABASE MIGRATION
Methods

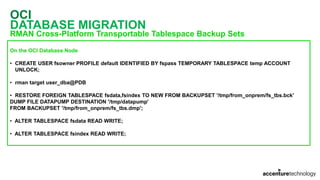

• RMAN Cross-Platform Transportable Tablespace Backup Sets
Only if character sets are compatible
Only if on-premises platform is little endian, on-premises database release is 12.1.0.2 or higher and
character sets are compatible
Only if on-premises platform is little endian, and character sets are compatible

OCI
DATABASE MIGRATION
Methods
• Create a Backup in the Cloud
Only if Database is in version 11.2.0.4, 12.1.0.2, 12.2.0.1, 18c or 19c in Linux
• DataGuard

OCI
DATABASE MIGRATION

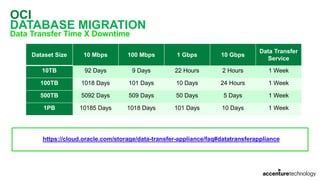

Data Transfer Time X Downtime
https://cloud.oracle.com/storage/data-transfer-appliance/faq#datatransferappliance
Dataset Size 10 Mbps 100 Mbps 1 Gbps 10 Gbps
Data Transfer
Service
10TB 92 Days 9 Days 22 Hours 2 Hours 1 Week
100TB 1018 Days 101 Days 10 Days 24 Hours 1 Week
500TB 5092 Days 509 Days 50 Days 5 Days 1 Week
1PB 10185 Days 1018 Days 101 Days 10 Days 1 Week

OCI
DATABASE MIGRATION
Data Transfer Service

OCI
DATABASE MIGRATION

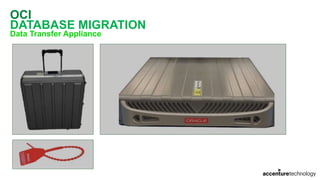

Data Transfer Appliance

OCI
DATABASE MIGRATION

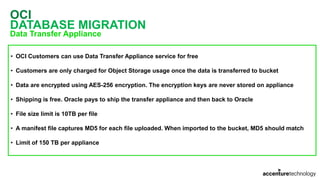

Data Transfer Appliance
• OCI Customers can use Data Transfer Appliance service for free
• Customers are only charged for Object Storage usage once the data is transferred to bucket
• Data are encrypted using AES-256 encryption. The encryption keys are never stored on appliance
• Shipping is free. Oracle pays to ship the transfer appliance and then back to Oracle
• File size limit is 10TB per file
• A manifest file captures MD5 for each file uploaded. When imported to the bucket, MD5 should match
• Limit of 150 TB per appliance

OCI
DATABASE MIGRATION
Data Transfer Time X Downtime
Method Online/Offline DB Size
SQL Dev Data Pump Exp/Imp Online <= 5TB
Data Pump Conventional Tablespace Exp/Imp Online <= 20TB
Data Pump Full Transportable Offline Any size
RMAN Transportable PDB Online Any size
RMAN Duplicate from Active Database Online <= 5TB
Unplug and Plug a PDB Offline Any size
DataGuard Online Any size
RMAN – Incremental Online Any size
https://cloud.oracle.com/iaas/whitepapers/database_migration_aws_to_oci_database.pdf

OCI
DATABASE MIGRATION

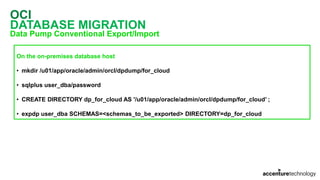

Data Pump Conventional Export/Import
On the on-premises database host
• mkdir /u01/app/oracle/admin/orcl/dpdump/for_cloud
• sqlplus user_dba/password
• CREATE DIRECTORY dp_for_cloud AS '/u01/app/oracle/admin/orcl/dpdump/for_cloud’ ;
• expdp user_dba SCHEMAS=<schemas_to_be_exported> DIRECTORY=dp_for_cloud

OCI
DATABASE MIGRATION

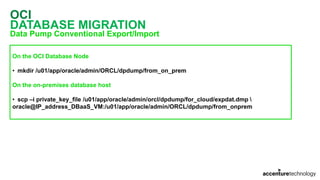

On the OCI Database Node
• mkdir /u01/app/oracle/admin/ORCL/dpdump/from_on_prem
• scp –i private_key_file /u01/app/oracle/admin/orcl/dpdump/for_cloud/expdat.dmp
oracle@IP_address_DBaaS_VM:/u01/app/oracle/admin/ORCL/dpdump/from_onprem

OCI
DATABASE MIGRATION
• CREATE DIRECTORY dp_from_onprem AS '/u01/app/oracle/admin/ORCL/dpdump/from_onprem' ;
• impdp user_dba SCHEMAS=<schemas_to_be_imported> DIRECTORY=dp_from_onprem

OCI
DATABASE MIGRATION

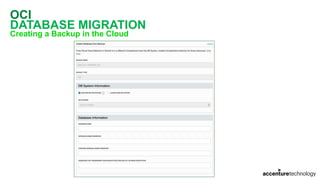

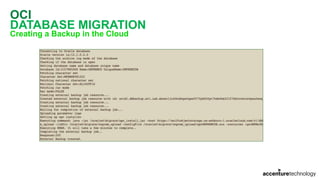

Creating a Backup in the Cloud
• mkdir /u01/app/oracle/migrate
• Install OCI CLI: https://docs.cloud.oracle.com/iaas/Content/API/SDKDocs/cliinstall.htm#bash (in
optional packages install db package)
• Copy Database Backup Cloud Module
(http://www.oracle.com/technetwork/database/availability/oracle-cloud-backup-2162729.html) to
directory /u01/app/oracle/migrate

OCI
DATABASE MIGRATION

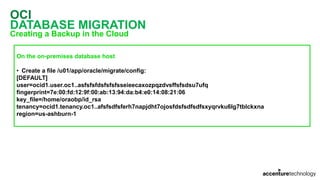

• Create a file /u01/app/oracle/migrate/config:
[DEFAULT]
user=ocid1.user.oc1..asfsfsfdsfsfsfsseieecaxozpqzdvsffsfsdsu7ufq
fingerprint=7e:00:fd:12:9f:00:ab:13:94:da:b4:e0:14:08:21:06
key_file=/home/oraobp/id_rsa
tenancy=ocid1.tenancy.oc1..afsfsdfsferh7napjdht7ojosfdsfsdfsdfsxyqrvku6lg7tblckxna
region=us-ashburn-1

OCI
DATABASE MIGRATION
• If database is a non-TDE database
• cd ~/bin/oci-cli-scripts
• ./create_backup_from_onprem --config-file /u01/app/oracle/migrate/config --display-name
BACKUP_ONPREM_DB --availability-domain NGBf:US-ASHBURN-AD-1 --edition
ENTERPRISE_EDITION --opc-installer-dir /u01/app/oracle/migrate --tmp-dir
/u01/app/oracle/migrate/onprem_upload --compartment-id
ocid1.compartment.oc1..afafafafaf3ugimpczzffsff2rvlok6il6jcowkiffs4d5wqdoq --rman-password
Oracle2019#

OCI
DATABASE MIGRATION

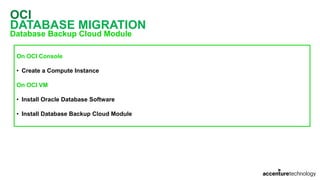

OCI
DATABASE MIGRATION

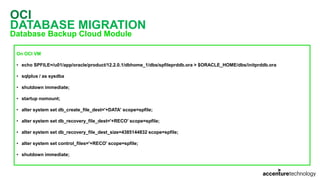

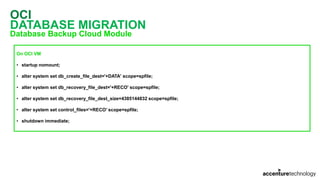

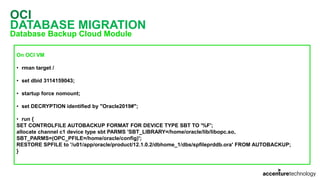

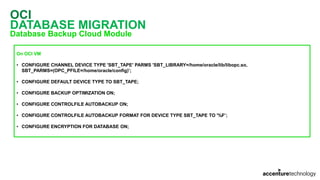

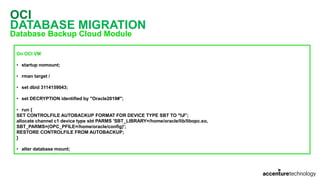

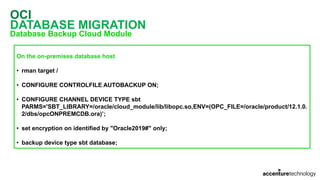

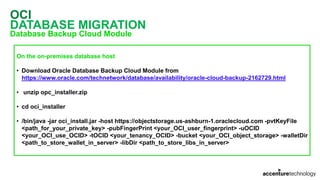

Database Backup Cloud Module
• Download Oracle Database Backup Cloud Module from
https://www.oracle.com/technetwork/database/availability/oracle-cloud-backup-2162729.html
• unzip opc_installer.zip
• cd oci_installer
• /bin/java -jar oci_install.jar -host https://objectstorage.us-ashburn-1.oraclecloud.com -pvtKeyFile
<path_for_your_private_key> -pubFingerPrint <your_OCI_user_fingerprint> -uOCID
<your_OCI_use_OCID> -tOCID <your_tenancy_OCID> -bucket <your_OCI_object_storage> -walletDir
<path_to_store_wallet_in_server> -libDir <path_to_store_libs_in_server>

OCI
DATABASE MIGRATION
• rman target /
• CONFIGURE CONTROLFILE AUTOBACKUP ON;
• CONFIGURE CHANNEL DEVICE TYPE sbt
PARMS='SBT_LIBRARY=/oracle/cloud_module/lib/libopc.so,ENV=(OPC_FILE=/oracle/product/12.1.0.
2/dbs/opcONPREMCDB.ora)’;
• set encryption on identified by "Oracle2019#" only;
• backup device type sbt database;

OCI
DATABASE MIGRATION
On OCI Console
• Create a Compute Instance
On OCI VM
• Install Oracle Database Software
• Install Database Backup Cloud Module

OCI
DATABASE MIGRATION
On OCI VM
• rman target /
• set dbid 3114159043;
• startup force nomount;
• set DECRYPTION identified by "Oracle2019#";
• run {
SET CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE SBT TO '%F';
allocate channel c1 device type sbt PARMS 'SBT_LIBRARY=/home/oracle/lib/libopc.so,
SBT_PARMS=(OPC_PFILE=/home/oracle/config)';
RESTORE SPFILE to '/u01/app/oracle/product/12.1.0.2/dbhome_1/dbs/spfileprddb.ora' FROM AUTOBACKUP;
}

OCI
DATABASE MIGRATION
On OCI VM
• echo SPFILE=/u01/app/oracle/product/12.2.0.1/dbhome_1/dbs/spfileprddb.ora > $ORACLE_HOME/dbs/initprddb.ora
• sqlplus / as sysdba
• shutdown immediate;
• startup nomount;
• alter system set db_create_file_dest='+DATA' scope=spfile;
• alter system set db_recovery_file_dest='+RECO' scope=spfile;
• alter system set db_recovery_file_dest_size=4385144832 scope=spfile;
• alter system set control_files='+RECO' scope=spfile;

OCI
DATABASE MIGRATION
On OCI VM
• alter system set db_create_file_dest='+DATA' scope=spfile;
• alter system set db_recovery_file_dest='+RECO' scope=spfile;
• alter system set db_recovery_file_dest_size=4385144832 scope=spfile;
• alter system set control_files='+RECO' scope=spfile;

OCI
DATABASE MIGRATION
On OCI VM
• rman target /
• set dbid 3114159043;
• set DECRYPTION identified by "Oracle2019#";
• run {
SET CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE SBT TO '%F';
allocate channel c1 device type sbt PARMS 'SBT_LIBRARY=/home/oracle/lib/libopc.so,
SBT_PARMS=(OPC_PFILE=/home/oracle/config)';
RESTORE CONTROLFILE FROM AUTOBACKUP;
}
• alter database mount;

OCI
DATABASE MIGRATION
On OCI VM
• CONFIGURE CHANNEL DEVICE TYPE 'SBT_TAPE' PARMS 'SBT_LIBRARY=/home/oracle/lib/libopc.so,
SBT_PARMS=(OPC_PFILE=/home/oracle/config)’;
• CONFIGURE DEFAULT DEVICE TYPE TO SBT_TAPE;
• CONFIGURE BACKUP OPTIMIZATION ON;
• CONFIGURE CONTROLFILE AUTOBACKUP ON;
• CONFIGURE CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE SBT_TAPE TO '%F’;
• CONFIGURE ENCRYPTION FOR DATABASE ON;

OCI
DATABASE MIGRATION
On OCI VM
• run
{ set ARCHIVELOG DESTINATION to '+RECO';
set NEWNAME for database to '+DATA';
allocate channel c1 device type sbt PARMS 'SBT_LIBRARY=/home/oracle/lib/libopc.so, SBT_PARMS=(OPC_PFILE=/home/oracle/config)'
FORMAT "BACKUP_%U";
SQL "ALTER DATABASE RENAME FILE ''/u01/oradata/prddb/redo01.log'' TO ''+RECO/<db_unique_name>/ONLINELOG/redo01.log'' ";
restore database;
switch datafile all;
restore archivelog all;
recover database;
}
• alter database open resetlogs;

OCI
DATABASE MIGRATION
DataGuard
• ALTER DATABASE FORCE LOGGING;
• SHUTDOWN IMMEDIATE;
• STARTUP MOUNT;
• ALTER DATABASE ARCHIVELOG;
• ALTER DATABASE OPEN;
• Create Standby Redo Logs for all threads that you have in database;
• The number of Standby Redo Logs should be the same+1 of Online Redo Logs;
• ALTER DATABASE ADD STANDBY LOGFILE THREAD 1 GROUP xx '/path/to/standby_log_file01.dbf' size xxM[G];
• scp –i private_key_file $ORACLE_HOME/dbs/orapwORCL
oracle@IP_address_DBaaS_VM:$ORACLE_HOME/dbs/orapwORCL

OCI
DATABASE MIGRATION
DataGuard
On OCI VM
• initORCL.ora:
db_name='ORCL’
db_unique_name='ORCL_OCI’
audit_file_dest='/u01/app/oracle/admin/ORCL/adump'
• mkdir -p /u01/app/oracle/admin/ORCL/adump
• startup nomount pfile=/home/oracle/initORCL.ora
• rman
• connect target sys/password@ORCL_ONPREMISES
• connect auxiliary sys/password@ORCL_OCI
• run {
allocate auxiliary channel sby1 type disk;
allocate channel pmy1 type disk;
duplicate target database for standby from active database;
}

OCI
DATABASE MIGRATION

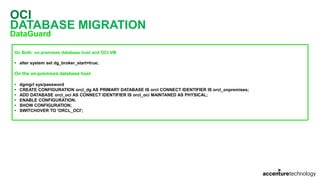

DataGuard
On Both: on-premises database host and OCI VM
• alter system set dg_broker_start=true;
• dgmgrl sys/password
• CREATE CONFIGURATION orcl_dg AS PRIMARY DATABASE IS orcl CONNECT IDENTIFIER IS orcl_onpremises;
• ADD DATABASE orcl_oci AS CONNECT IDENTIFIER IS orcl_oci MAINTANED AS PHYSICAL;
• ENABLE CONFIGURATION;
• SHOW CONFIGURATION;
• SWITCHOVER TO 'ORCL_OCI';

OCI
DATABASE MIGRATION
Data Pump Transportable Tablespace
• CREATE DIRECTORY dp_for_cloud AS '/u01/app/oracle/admin/orcl/dpdump/for_cloud' ;
• ALTER TABLESPACE fsindex READ ONLY;
• ALTER TABLESPACE fsdata READ ONLY;
• expdp user_dba TRANSPORT_TABLESPACES=fsdata,fsindex TRANSPORT_FULL_CHECK=YES DIRECTORY=dp_for_cloud

OCI
DATABASE MIGRATION
• scp –i private_key_file /u01/app/oracle/oradata/orcl/fsdata01.dbf
oracle@IP_address_DBaaS_VM:/u02/app/oracle/oradata/ORCL
• scp –i private_key_file /u01/app/oracle/oradata/orcl/fsindex01.dbf

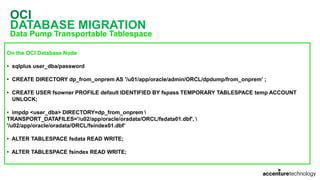

OCI
DATABASE MIGRATION
• CREATE USER fsowner PROFILE default IDENTIFIED BY fspass TEMPORARY TABLESPACE temp ACCOUNT
UNLOCK;
• impdp <user_dba> DIRECTORY=dp_from_onprem
TRANSPORT_DATAFILES='/u02/app/oracle/oradata/ORCL/fsdata01.dbf',
'/u02/app/oracle/oradata/ORCL/fsindex01.dbf’
• ALTER TABLESPACE fsdata READ WRITE;
• ALTER TABLESPACE fsindex READ WRITE;

OCI
DATABASE MIGRATION
RMAN Transportable Tablespace with Data Pump
• mkdir /u01/app/oracle/admin/orcl/rman_transdest
• mkdir /u01/app/oracle/admin/orcl/rman_auxdest
• rman target system
• TRANSPORTABLE TABLESPACE fsdata,fsindex
TABLESPACE DESTINATION '/u01/app/oracle/admin/orcl/rman_transdest'
AUXILIARY DESTINATION '/u01/app/oracle/admin/orcl/rman_auxdest’;

OCI
DATABASE MIGRATION
• scp –i private_key_file /u01/app/oracle/admin/orcl/rman_auxdest/dmpfile.dmp
• scp –i private_key_file /u01/app/oracle/rman_transdest/fsdata01.dbf
• scp –i private_key_file /u01/app/oracle/rman_transdest/fsindex01.dbf
• CREATE DIRECTORY dp_from_onprem AS '/u01/app/oracle/admin/ORCL/dpdump/from_onprem';

OCI
DATABASE MIGRATION
UNLOCK;
'/u02/app/oracle/oradata/ORCL/fsindex01.dbf’

OCI
DATABASE MIGRATION
RMAN CONVERT Transportable Tablespace with Data Pump
• expdp user_dba TRANSPORT_TABLESPACES=fsdata,fsindex TRANSPORT_FULL_CHECK=YES DIRECTORY=dp_for_cloud
• rman target /
• CONVERT TABLESPACE fsdata,fsindex TO PLATFORM 'Linux x86 64-bit' FORMAT '/tmp/%U';

OCI
DATABASE MIGRATION
• mkdir /u01/app/oracle/admin/ORCL/dpdump/from_onprem
• CREATE DIRECTORY dp_from_onprem AS '/u01/app/oracle/admin/ORCL/dpdump/from_onprem';
• scp –i private_key_file /tmp/data_D-ORCL-I-1410251631_TS-FSDATA_FNO-6_0aqc9un3
oracle@IP_address_DBaaS_VM:/u02/app/oracle/oradata/ORCL/fsdata01.dbf
• scp –i private_key_file /tmp/data_D-ORCL-I-1410251631_TS-FSINDEX_FNO-7_0bqc9un6
oracle@IP_address_DBaaS_VM:/u02/app/oracle/oradata/ORCL/fsindex01.dbf

OCI
DATABASE MIGRATION
• CREATE USER fsowner PROFILE default IDENTIFIED BY fspass TEMPORARY TABLESPACE temp ACCOUNT UNLOCK;
TRANSPORT_DATAFILES='/u02/app/oracle/oradata/ORCL/fsdata01.dbf’, '/u02/app/oracle/oradata/ORCL/fsindex01.dbf’

OCI
DATABASE MIGRATION
RMAN Cross-Platform Transportable Tablespace Backup Sets
• mkdir /u01/app/oracle/admin/orcl/rman_transdest
• rman target user_dba@PDB
• BACKUP FOR TRANSPORT FORMAT '/u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.bck'
TABLESPACE fsdata,fsindex DATAPUMP FORMAT '/u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.dmp’;

OCI
DATABASE MIGRATION
• mkdir /tmp/from_onprem
• scp –i private_key_file /u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.bck
oracle@IP_address_DBaaS_VM:/tmp/from_onprem
• scp –i private_key_file /u01/app/oracle/admin/orcl/rman_transdest/fs_tbs.dmp
oracle@IP_address_DBaaS_VM:/tmp/from_onprem

OCI
DATABASE MIGRATION
UNLOCK;
• rman target user_dba@PDB
• RESTORE FOREIGN TABLESPACE fsdata,fsindex TO NEW FROM BACKUPSET '/tmp/from_onprem/fs_tbs.bck'
DUMP FILE DATAPUMP DESTINATION '/tmp/datapump'
FROM BACKUPSET '/tmp/from_onprem/fs_tbs.dmp';

OCI
DATABASE MIGRATION

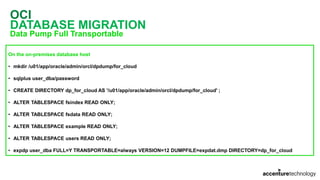

Data Pump Full Transportable
• ALTER TABLESPACE example READ ONLY;
• ALTER TABLESPACE users READ ONLY;
• expdp user_dba FULL=Y TRANSPORTABLE=always VERSION=12 DUMPFILE=expdat.dmp DIRECTORY=dp_for_cloud

OCI
DATABASE MIGRATION
• scp –i private_key_file /u01/app/oracle/oradata/orcl/fsdata01.dbf
• scp –i private_key_file /u01/app/oracle/oradata/orcl/fsindex01.dbf

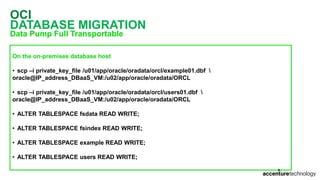

OCI
DATABASE MIGRATION
• scp –i private_key_file /u01/app/oracle/oradata/orcl/example01.dbf
• scp –i private_key_file /u01/app/oracle/oradata/orcl/users01.dbf
• ALTER TABLESPACE example READ WRITE;
• ALTER TABLESPACE users READ WRITE;

OCI
DATABASE MIGRATION
UNLOCK;
• impdp <user_dba>@PDB FULL=Y DIRECTORY=dp_from_onprem
'/u02/app/oracle/oradata/ORCL/fsindex01.dbf', '/u02/app/oracle/oradata/ORCL/example01.dbf'
'/u02/app/oracle/oradata/ORCL/users01.dbf'

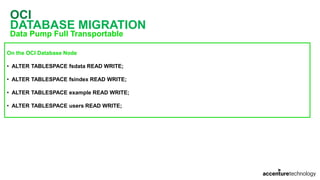

OCI
DATABASE MIGRATION
• ALTER TABLESPACE example READ WRITE;
• ALTER TABLESPACE users READ WRITE;

OCI
DATABASE MIGRATION
Unplugging/Plugging
• mkdir /u01/app/oracle/unplug
• ALTER PLUGGABLE DATABASE crmdev UNPLUG INTO
'/u01/app/oracle/unplug/crmdev.xml’;
• mkdir /u01/app/oracle/plug

OCI
DATABASE MIGRATION
Unplugging/Plugging
• scp –i private_key_file /u01/app/oracle/oradata/orcl/crmdev/*
oracle@IP_address_DBaaS_VM:/u01/app/oracle/plug
• scp –i private_key_file /u01/app/oracle/unplug/*.xml
• CREATE PLUGGABLE DATABASE crmdev USING '/u01/app/oracle/plug/CRMDEV.xml'
SOURCE_FILE_DIRECTORY='/u01/app/oracle/plug';

OCI
DATABASE MIGRATION
Remote Cloning
• ALTER PLUGGABLE DATABASE crmdev CLOSE IMMEDIATE;
• ALTER PLUGGABLE DATABASE crmdev OPEN READ ONLY;
• CREATE DATABASE LINK ONPREM CONNECT TO system IDENTIFIED BY oracle using 'ONPREM';
• CREATE PLUGGABLE DATABASE crmdev FROM crmdev@onprem;

OCI
DATABASE MIGRATION
RMAN Cross-Platform Transportable PDB
• mkdir /u01/app/oracle/unplug
• ALTER PLUGGABLE DATABASE crmdev CLOSE IMMEDIATE;
• ALTER PLUGGABLE DATABASE crmdev UNPLUG INTO '/u01/app/oracle/unplug/CRMDEV.xml';
• rman target /
• BACKUP FOR TRANSPORT PLUGGABLE DATABASE crmdev FORMAT
'/u01/app/oracle/unplug/crmdev.bkp';

OCI
DATABASE MIGRATION
RMAN Cross-Platform Transportable PDB
• mkdir /u01/app/oracle/plug
• scp –i private_key_file /u01/app/oracle/unplug/*
• rman target /
• RESTORE ALL FOREIGN DATAFILES TO NEW FROM BACKUPSET '/u01/app/oracle/plug/crmdev.bkp’;
• CREATE PLUGGABLE DATABASE crmdev USING '/u01/app/oracle/plug/CRMDEV.xml'
SOURCE_FILE_DIRECTORY='/u01/app/oracle/plug';

OCI
DATABASE MIGRATION
SQL Developer and SQL*Loader to Migrate Selected Objects

OCI
DATABASE MIGRATION
• mkdir /u01/app/oracle/loader
On the on-premises Workstation
• scp –i private_key_file /<folder_with_files>/* oracle@IP_address_DBaaS_VM:/u01/app/oracle/loader
• cd /u01/app/oracle/loader
• Edit file Generated-*.sql and change the path for /u01/app/oracle/loader
• sqlplus hr/password@PDB
• @Generated-20190801232008.sql

OCI
DATABASE MIGRATION
• cd /u01/app/oracle/loader
• Edit all *.ctl files and change the path for /u01/app/oracle/loader
• ls -l *.ctl | awk '{print $9}' | while read x; do sqlldr hr/password@PUB control=$x; done

OCI
DATABASE MIGRATION
SQL Developer and INSERT Statements to Migrate Selected Objects

REACH ME OUT
blog@viniciusdba.com.br
twitter.com/viniciusdba
facebook.com/viniciusdba
linkedin.com/in/viniciusdba

2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods to Cloud

More Related Content

What's hot

Similar to 2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods to Cloud

More from Marcus Vinicius Miguel Pedro

Recently uploaded

2019 - GUOB Tech Day / Groundbreakers LAD Tour - Database Migration Methods to Cloud

Editor's Notes
