1. REMINDER
Check in on the COLLABORATE
mobile app
PDB Cloning Using SQL
Commands
Prepared by:
Leighton L. Nelson
Lead Database Administrator
World Wide Technology, Inc.
Session ID#: 799
@leight0nn

2. About me
■ Oracle DBA
■ Oracle ACE
■ Speaker
■ Co-Author – Expert Oracle Enterprise Manager
Cloud Control 12c
http://blogs.griddba.com
linkedin.com
@leight0nn

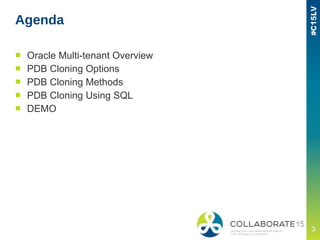

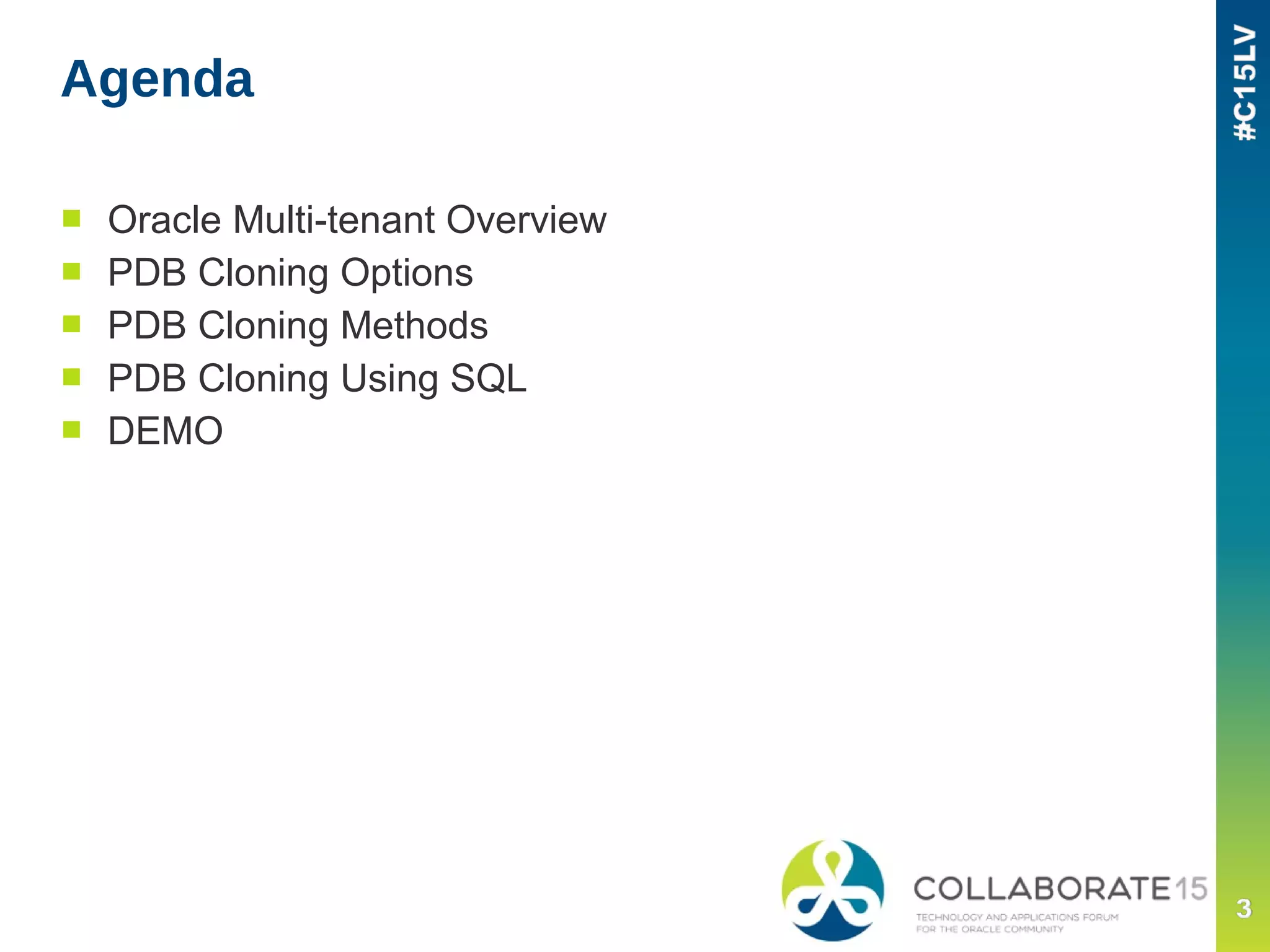

3. Agenda
■ Oracle Multi-tenant Overview
■ PDB Cloning Options
■ PDB Cloning Methods
■ PDB Cloning Using SQL
■ DEMO

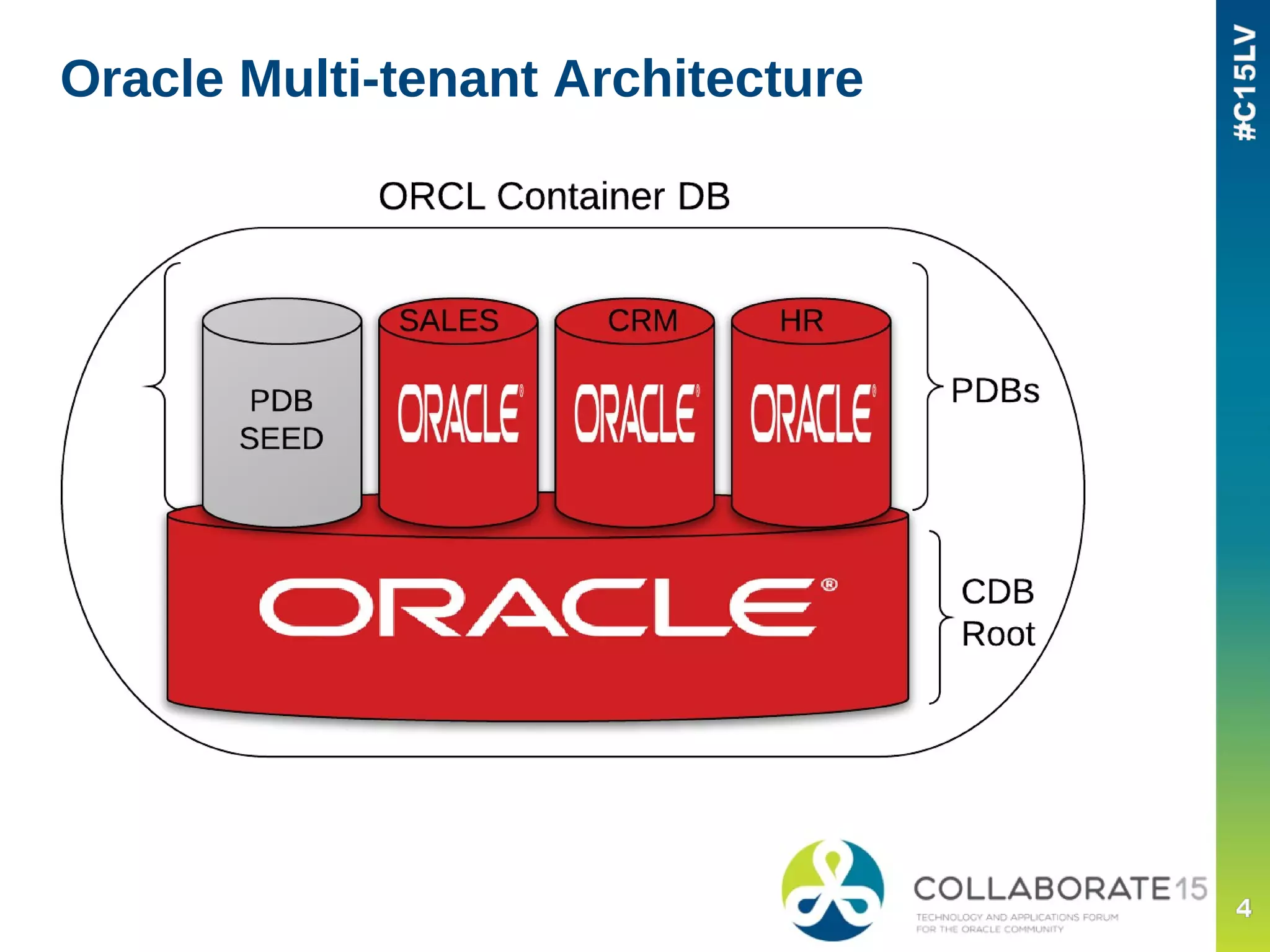

4. Oracle Multi-tenant Architecture

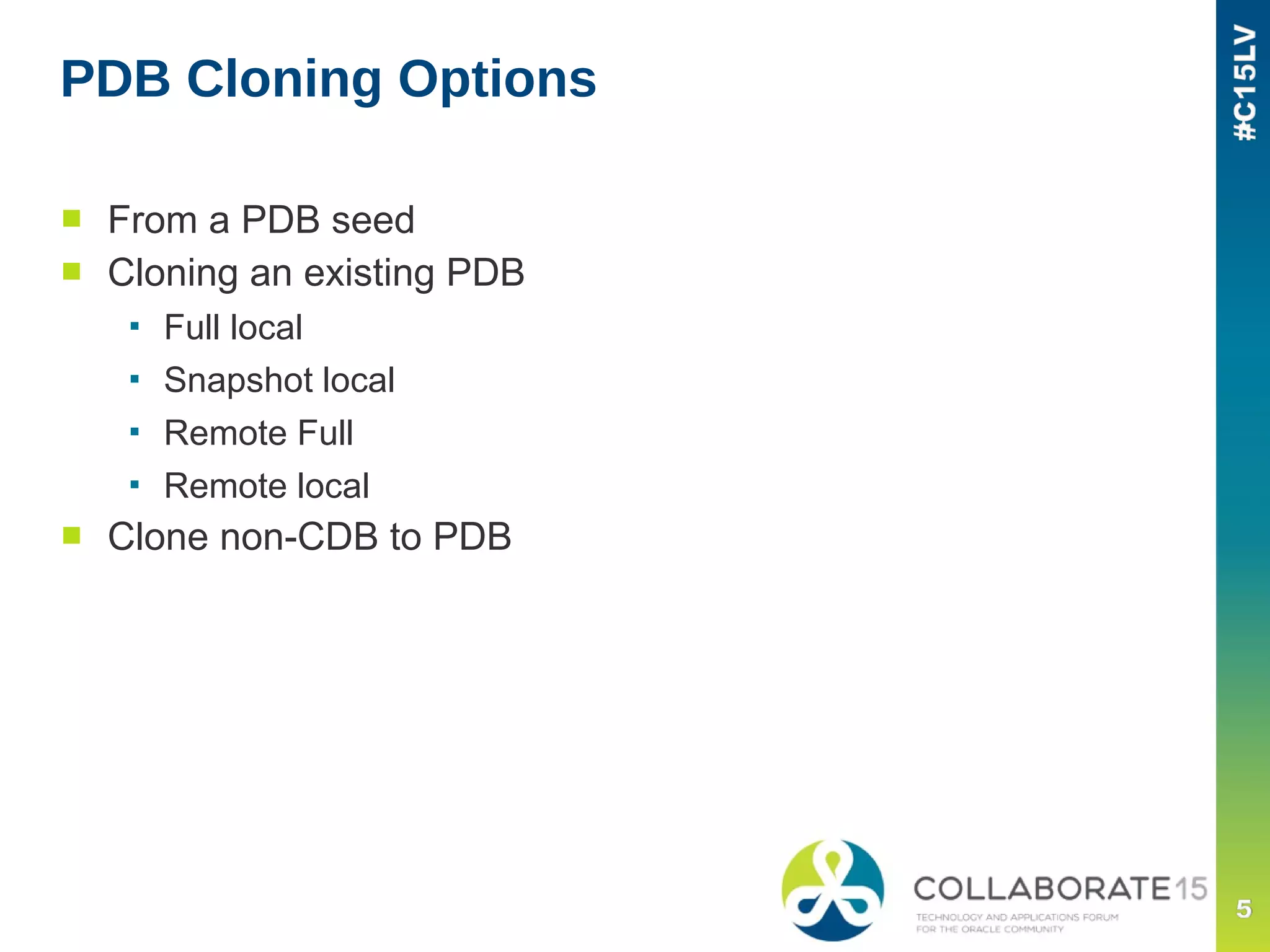

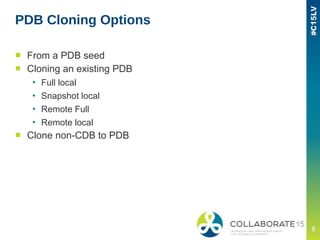

5. PDB Cloning Options
■ From a PDB seed
■ Cloning an existing PDB
▪ Full local
▪ Snapshot local
▪ Remote Full
▪ Remote local
■ Clone non-CDB to PDB

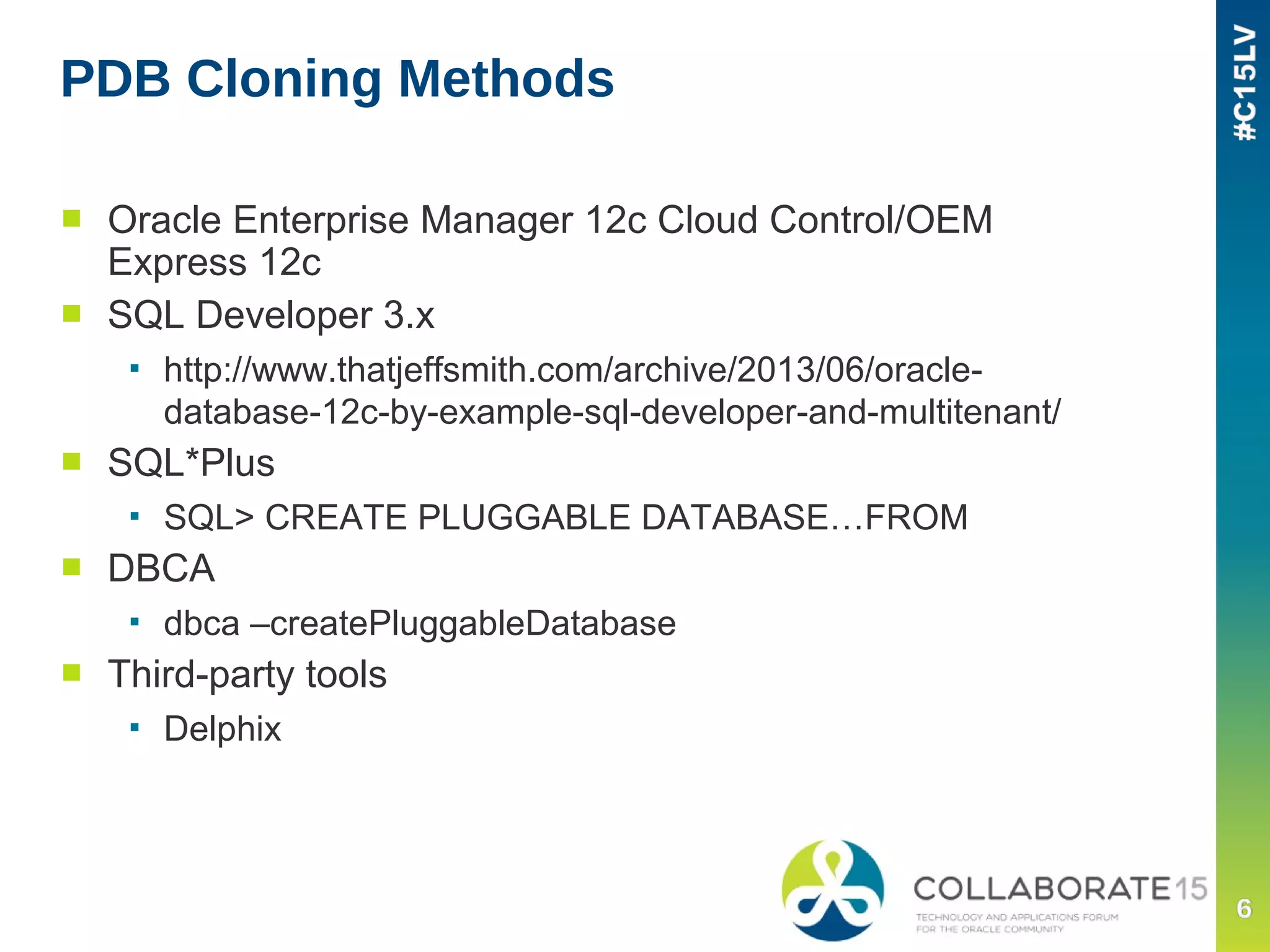

6. PDB Cloning Methods
■ Oracle Enterprise Manager 12c Cloud Control/OEM
Express 12c
■ SQL Developer 3.x
▪ http://www.thatjeffsmith.com/archive/2013/06/oracle-
database-12c-by-example-sql-developer-and-multitenant/
■ SQL*Plus
▪ SQL> CREATE PLUGGABLE DATABASE…FROM
■ DBCA
▪ dbca –createPluggableDatabase
■ Third-party tools
▪ Delphix

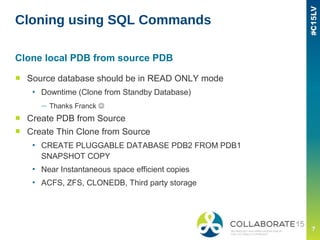

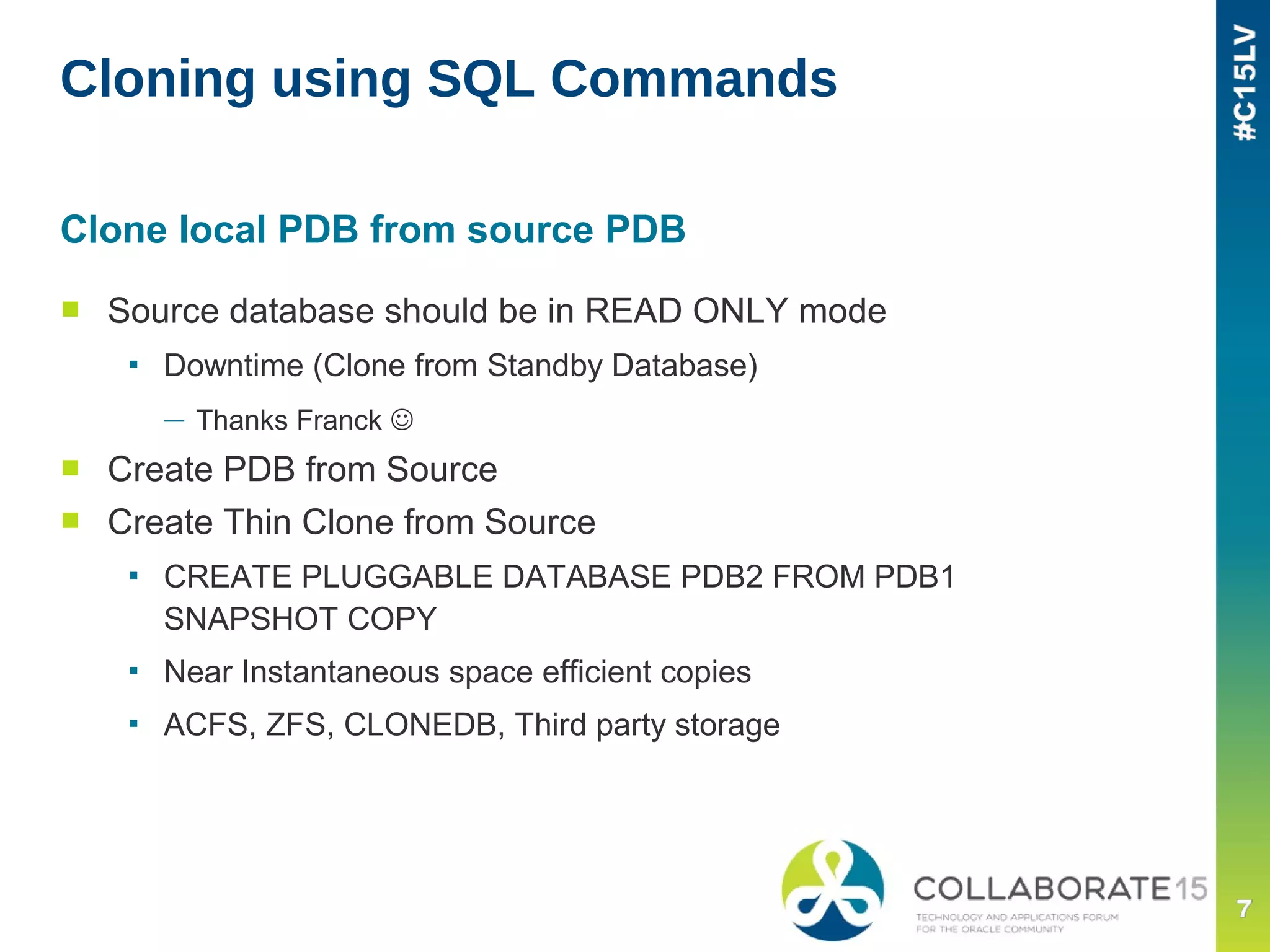

7. Cloning using SQL Commands
■ Source database should be in READ ONLY mode
▪ Downtime (Clone from Standby Database)
— Thanks Franck 
■ Create PDB from Source
■ Create Thin Clone from Source
▪ CREATE PLUGGABLE DATABASE PDB2 FROM PDB1
SNAPSHOT COPY
▪ Near Instantaneous space efficient copies
▪ ACFS, ZFS, CLONEDB, Third party storage
Clone local PDB from source PDB

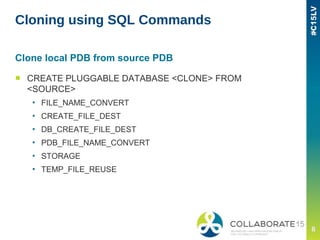

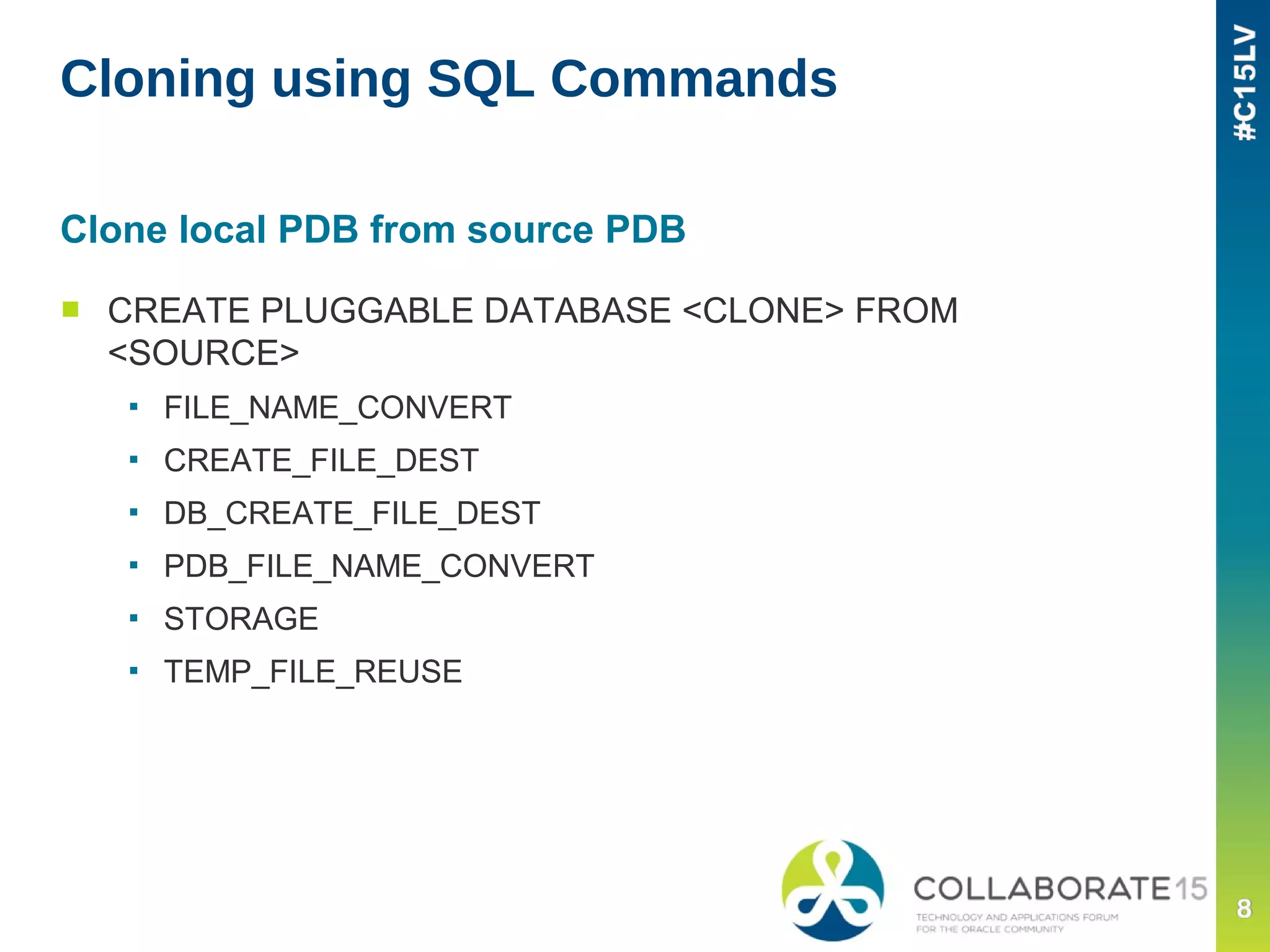

8. Cloning using SQL Commands
■ CREATE PLUGGABLE DATABASE <CLONE> FROM
<SOURCE>
▪ FILE_NAME_CONVERT
▪ CREATE_FILE_DEST
▪ DB_CREATE_FILE_DEST
▪ PDB_FILE_NAME_CONVERT
▪ STORAGE
▪ TEMP_FILE_REUSE
Clone local PDB from source PDB

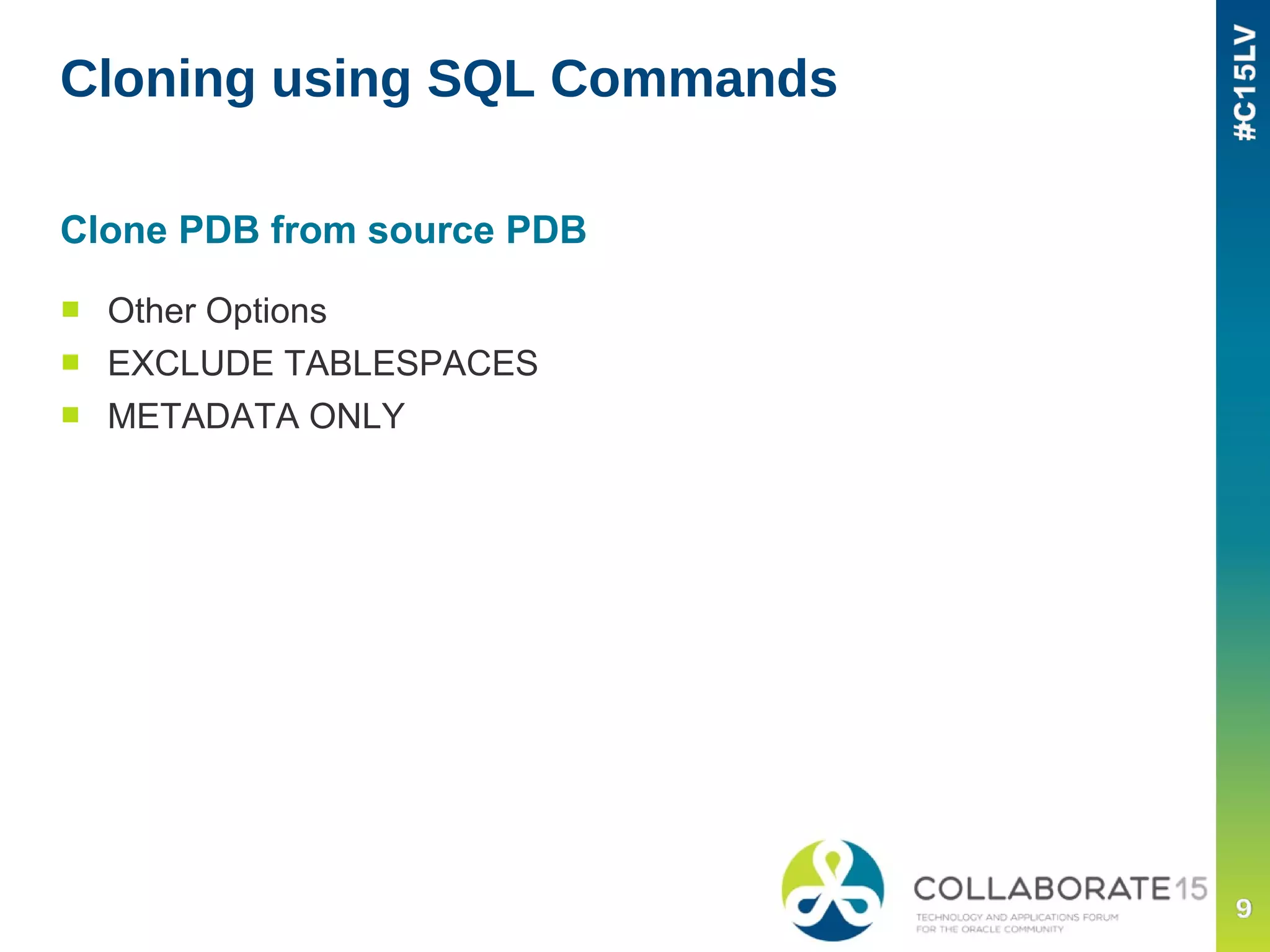

9. Cloning using SQL Commands
■ Other Options
■ EXCLUDE TABLESPACES
■ METADATA ONLY
Clone PDB from source PDB

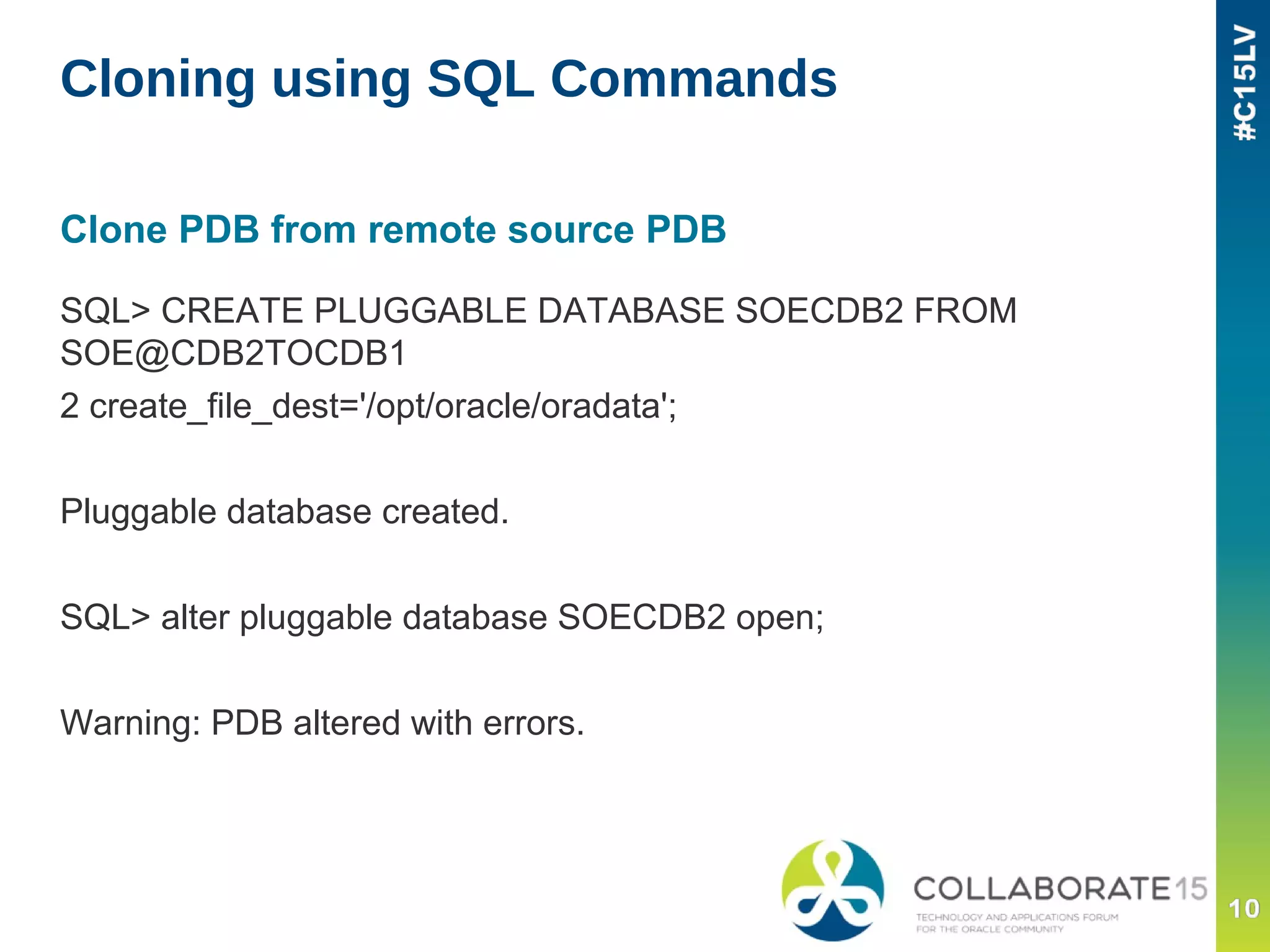

10. Cloning using SQL Commands
SQL> CREATE PLUGGABLE DATABASE SOECDB2 FROM
SOE@CDB2TOCDB1
2 create_file_dest='/opt/oracle/oradata';
Pluggable database created.
SQL> alter pluggable database SOECDB2 open;
Warning: PDB altered with errors.
Clone PDB from remote source PDB

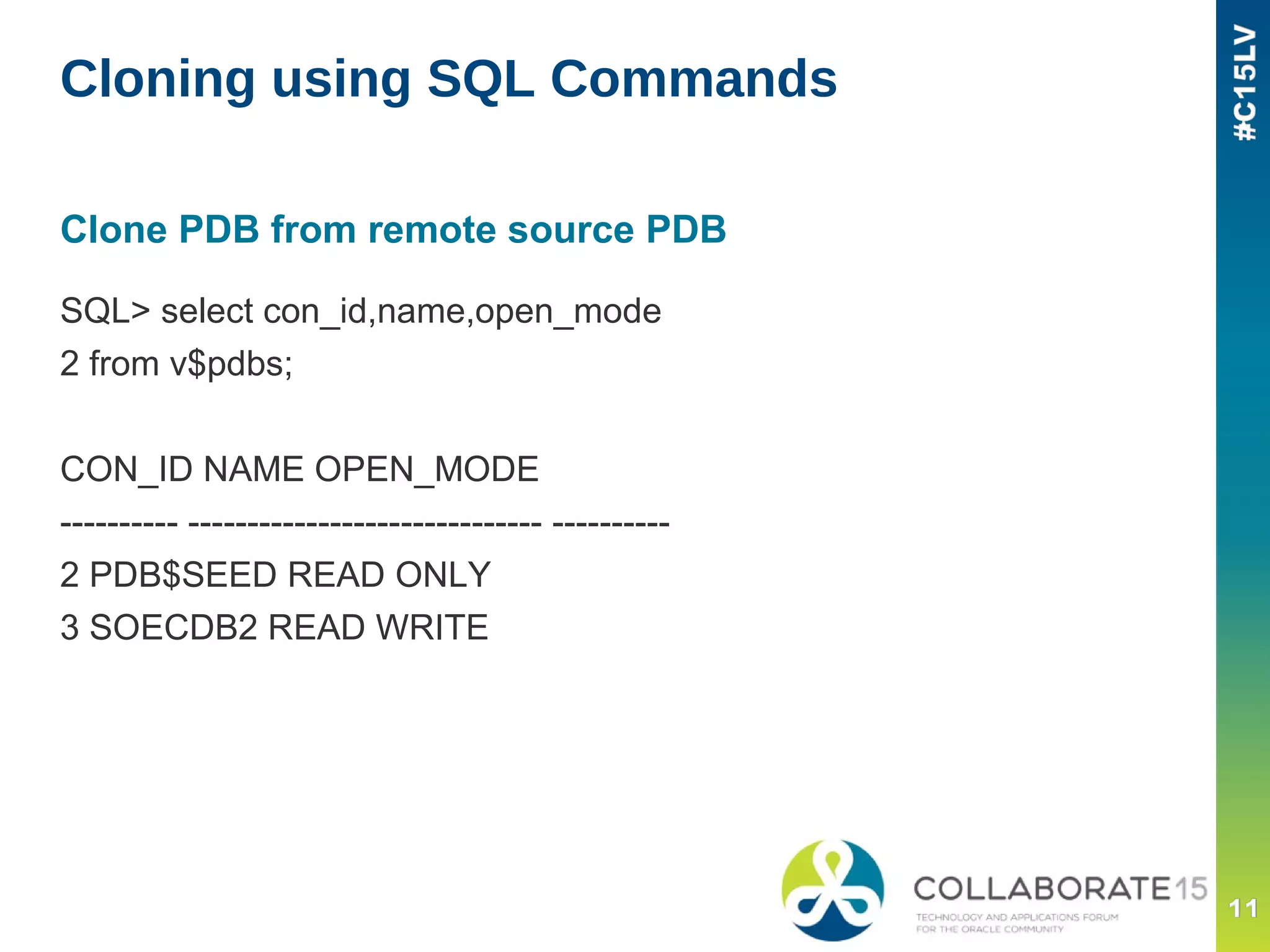

11. Cloning using SQL Commands
SQL> select con_id,name,open_mode
2 from v$pdbs;
CON_ID NAME OPEN_MODE
---------- ------------------------------ ----------
2 PDB$SEED READ ONLY
3 SOECDB2 READ WRITE
Clone PDB from remote source PDB

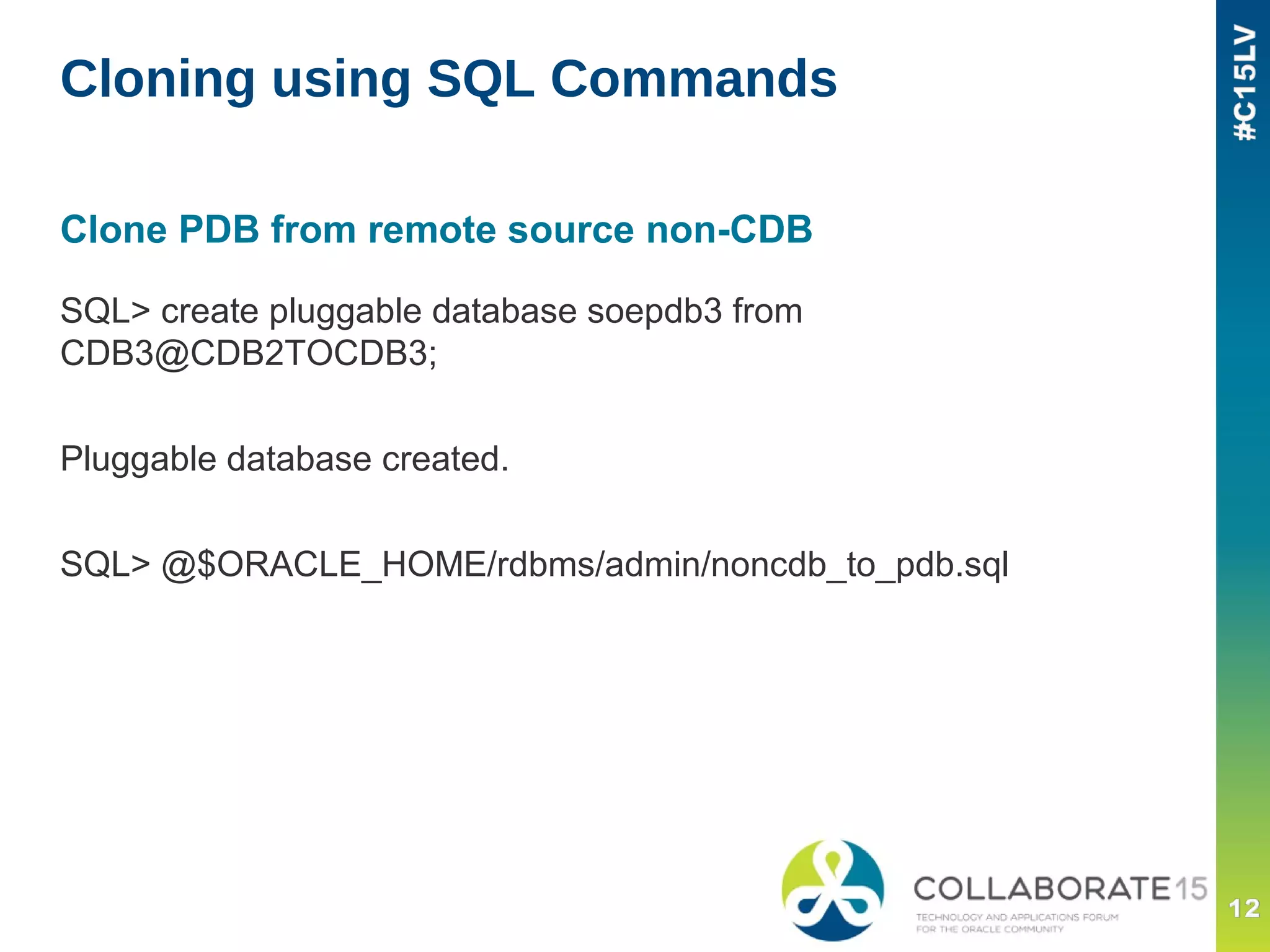

12. Cloning using SQL Commands
SQL> create pluggable database soepdb3 from
CDB3@CDB2TOCDB3;
Pluggable database created.
SQL> @$ORACLE_HOME/rdbms/admin/noncdb_to_pdb.sql
Clone PDB from remote source non-CDB

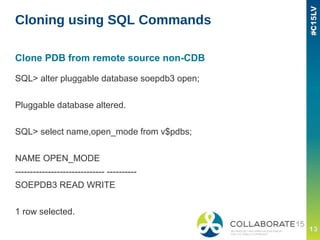

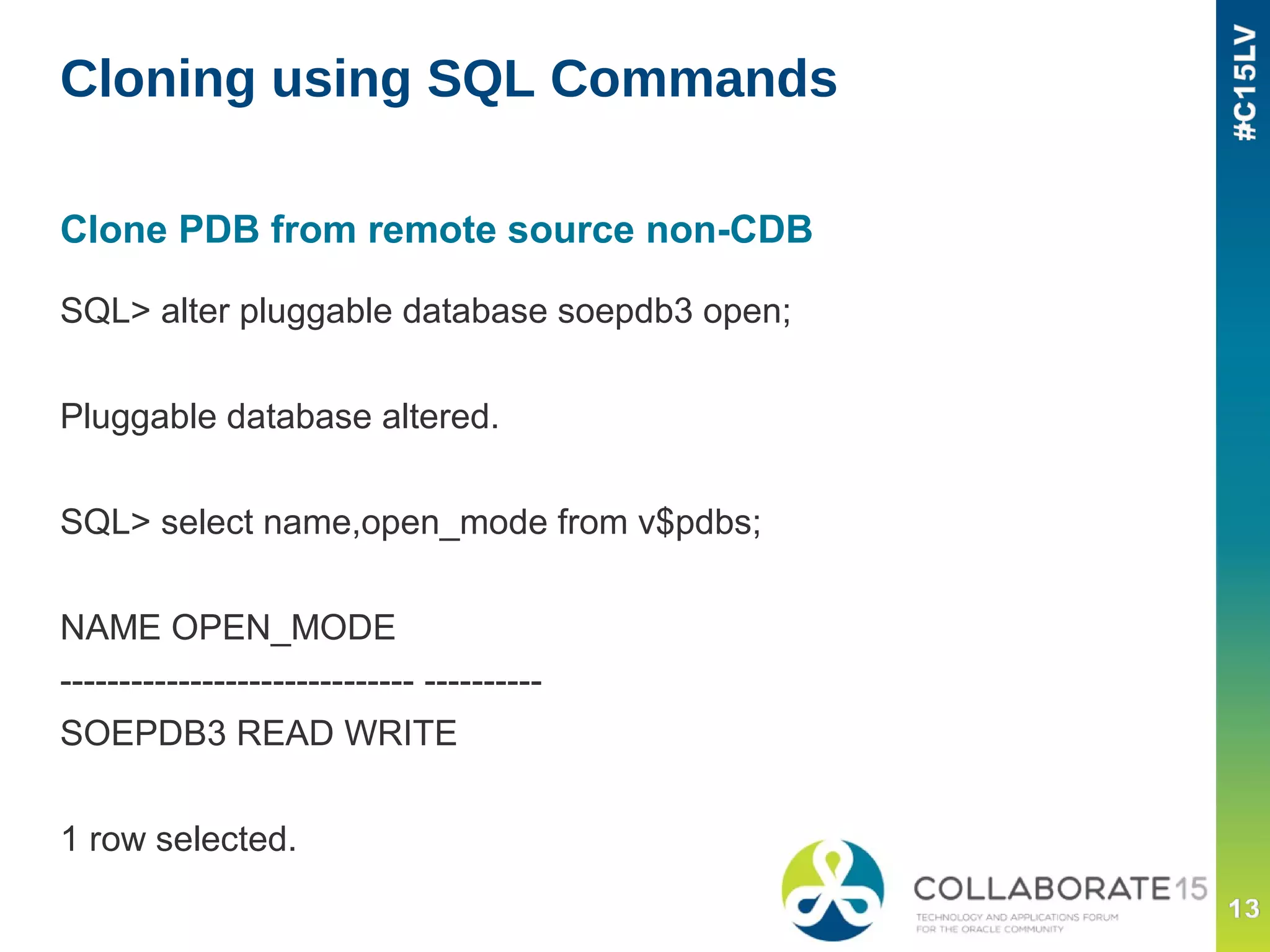

13. Cloning using SQL Commands
SQL> alter pluggable database soepdb3 open;
Pluggable database altered.
SQL> select name,open_mode from v$pdbs;
NAME OPEN_MODE
------------------------------ ----------
SOEPDB3 READ WRITE
1 row selected.
Clone PDB from remote source non-CDB

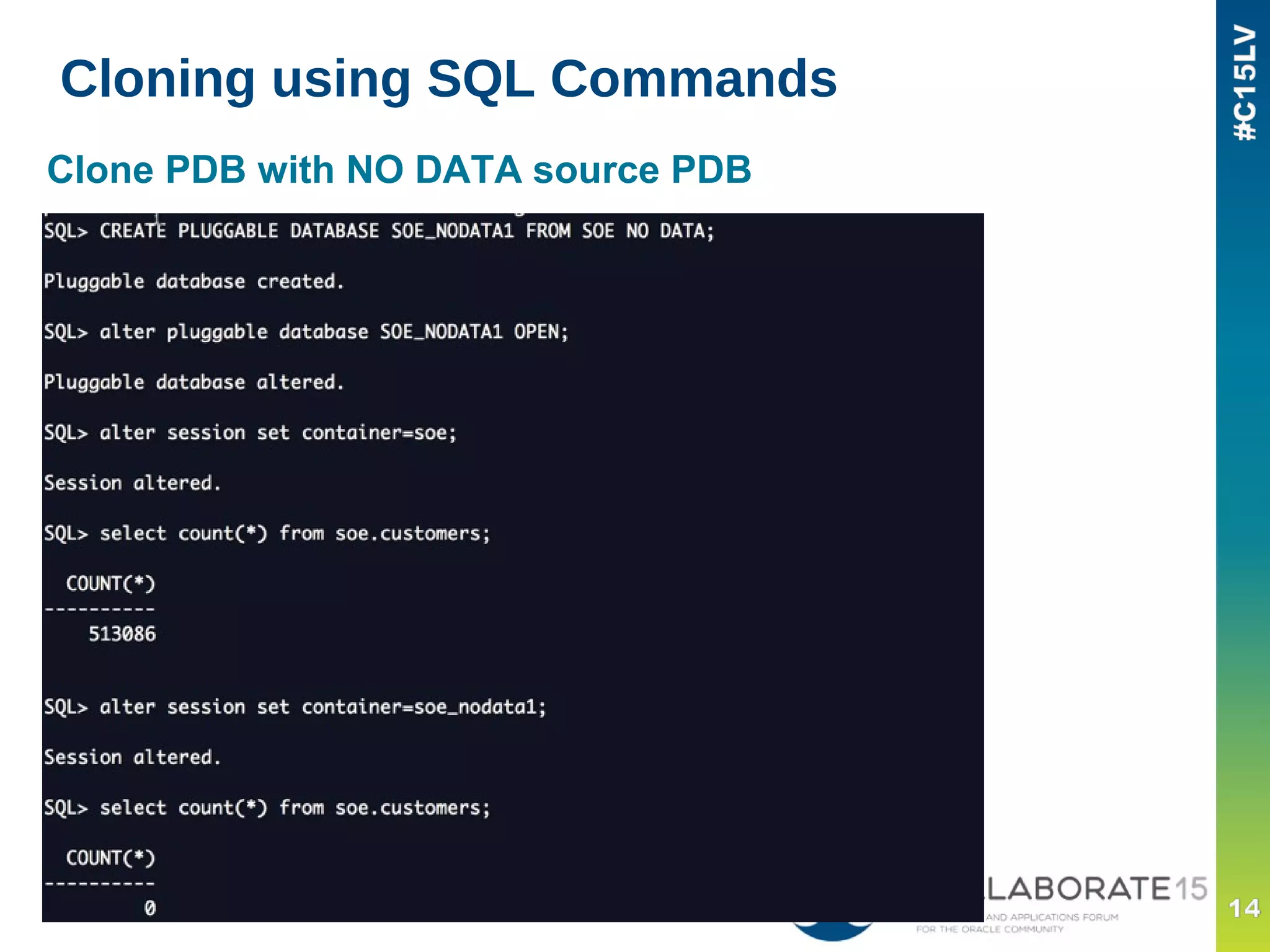

14. Cloning using SQL Commands
Clone PDB with NO DATA source PDB

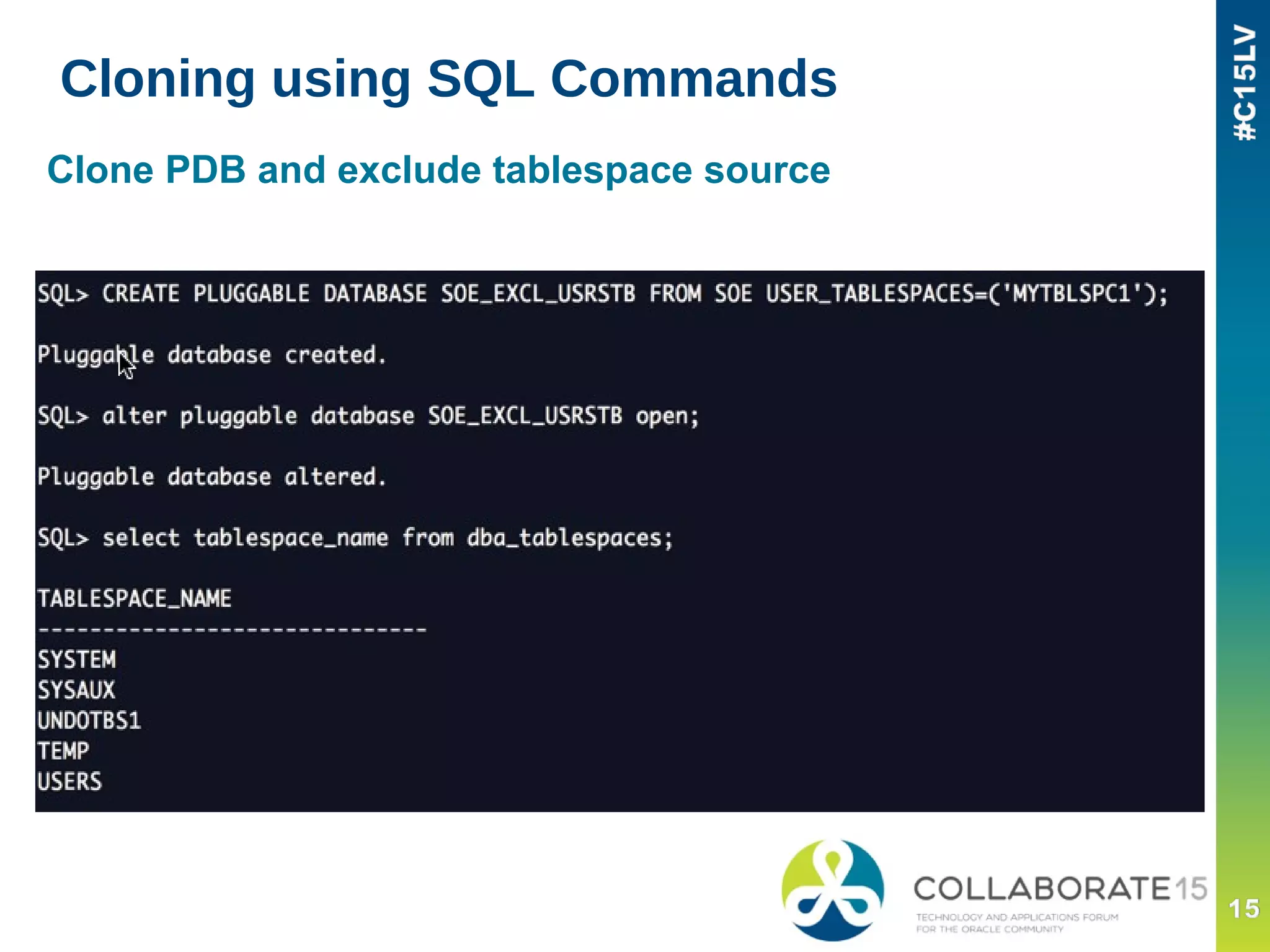

15. Cloning using SQL Commands
Clone PDB and exclude tablespace source

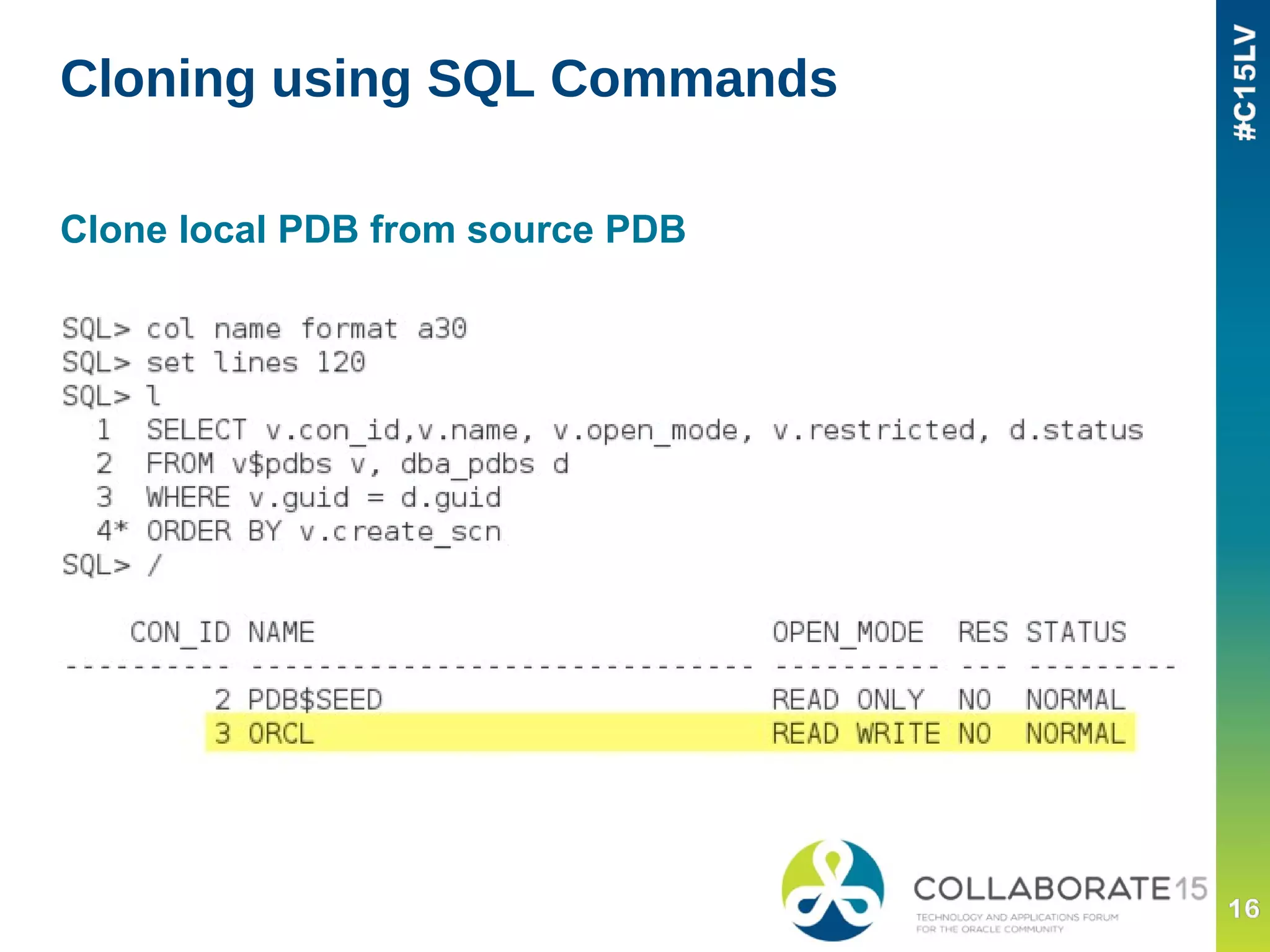

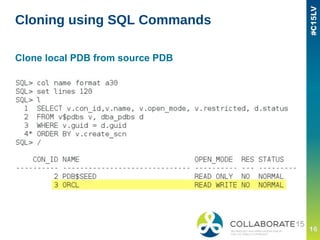

16. Cloning using SQL Commands
Clone local PDB from source PDB

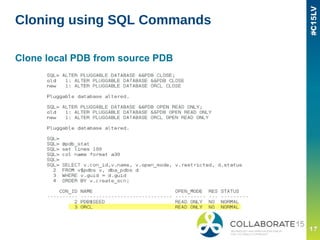

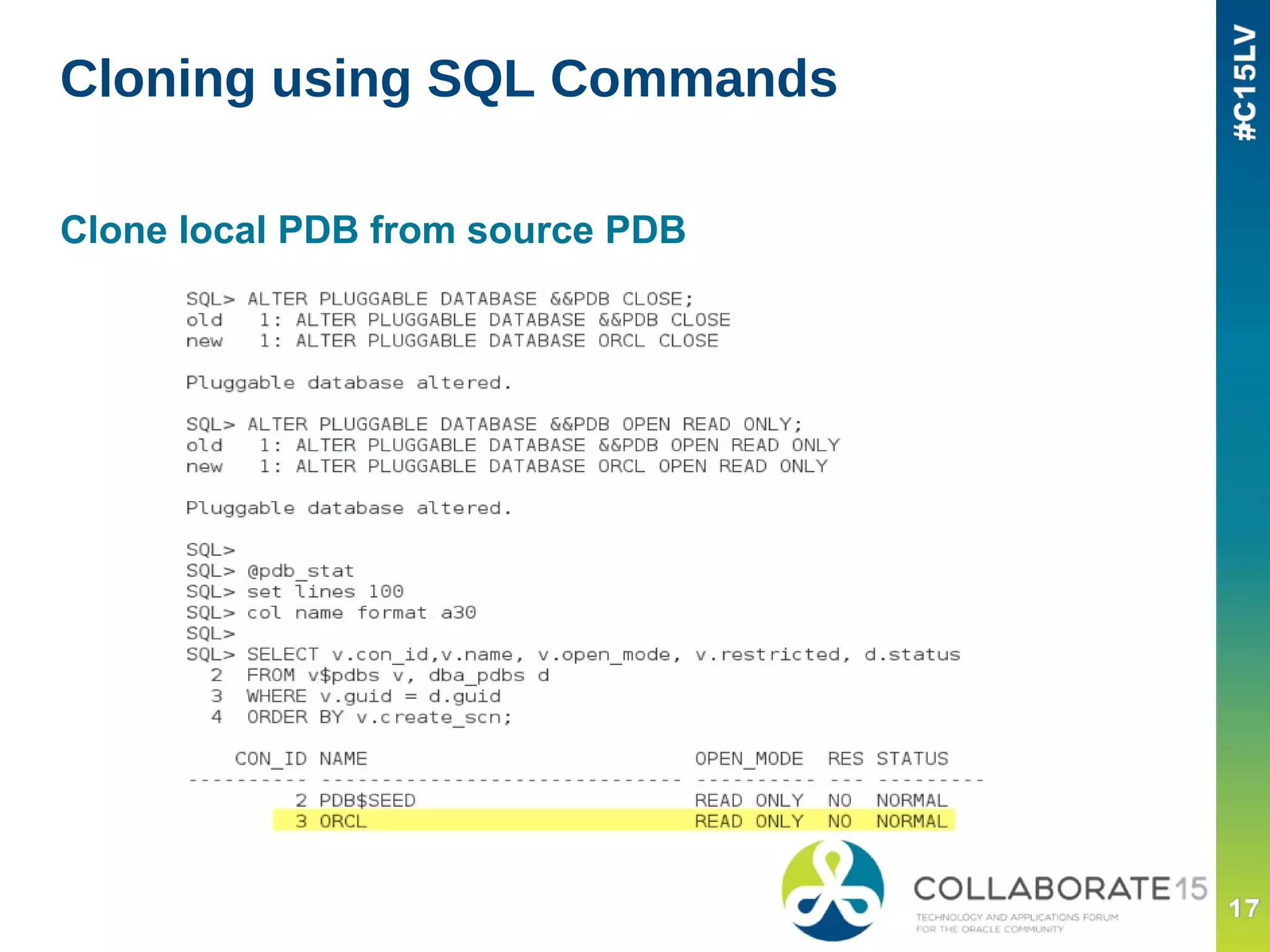

17. Cloning using SQL Commands
Clone local PDB from source PDB

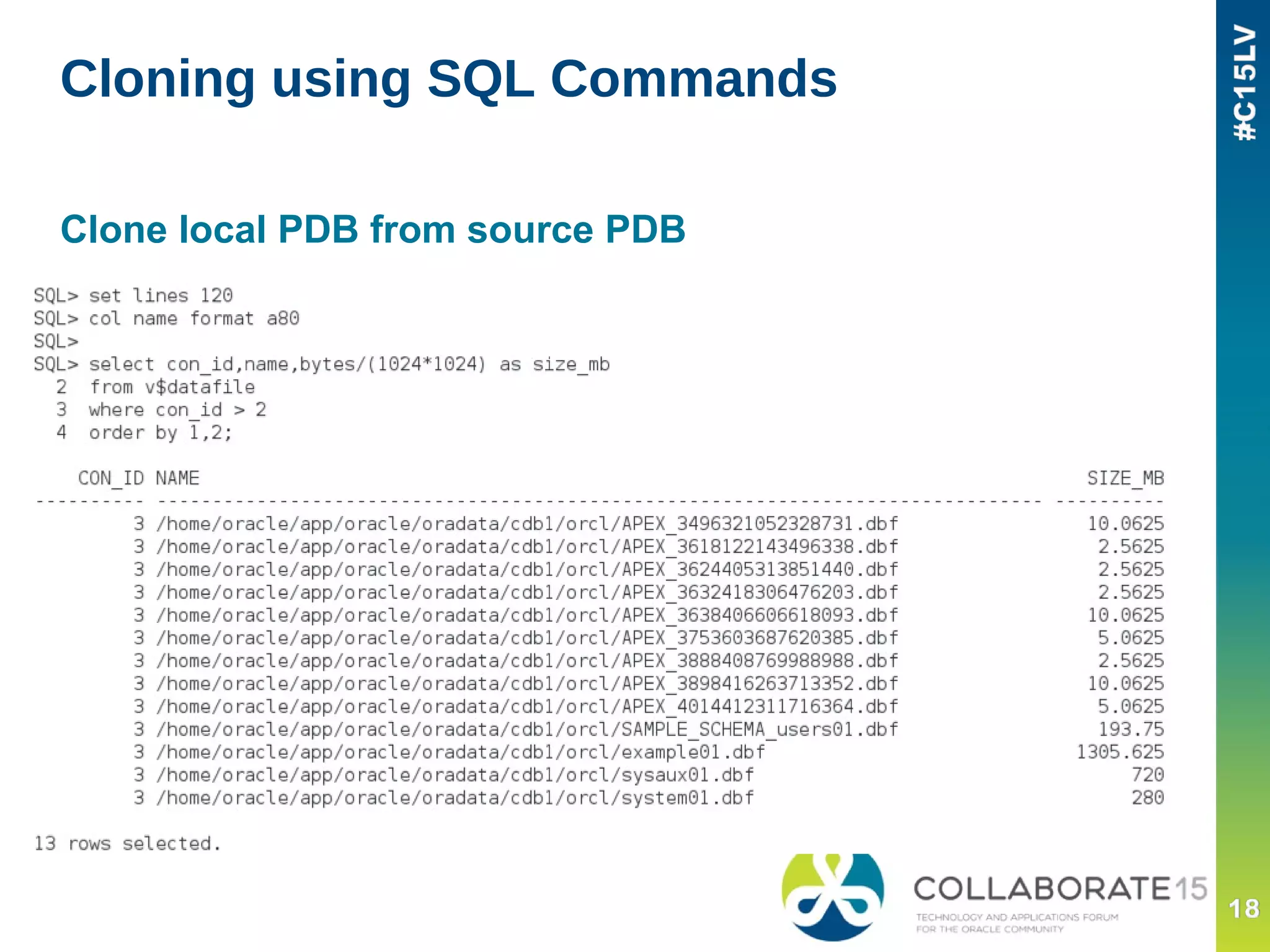

18. Cloning using SQL Commands
Clone local PDB from source PDB

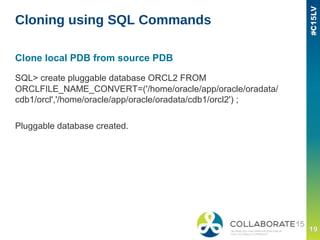

19. Cloning using SQL Commands
Clone local PDB from source PDB
SQL> create pluggable database ORCL2 FROM
ORCLFILE_NAME_CONVERT=('/home/oracle/app/oracle/oradata/
cdb1/orcl','/home/oracle/app/oracle/oradata/cdb1/orcl2') ;
Pluggable database created.

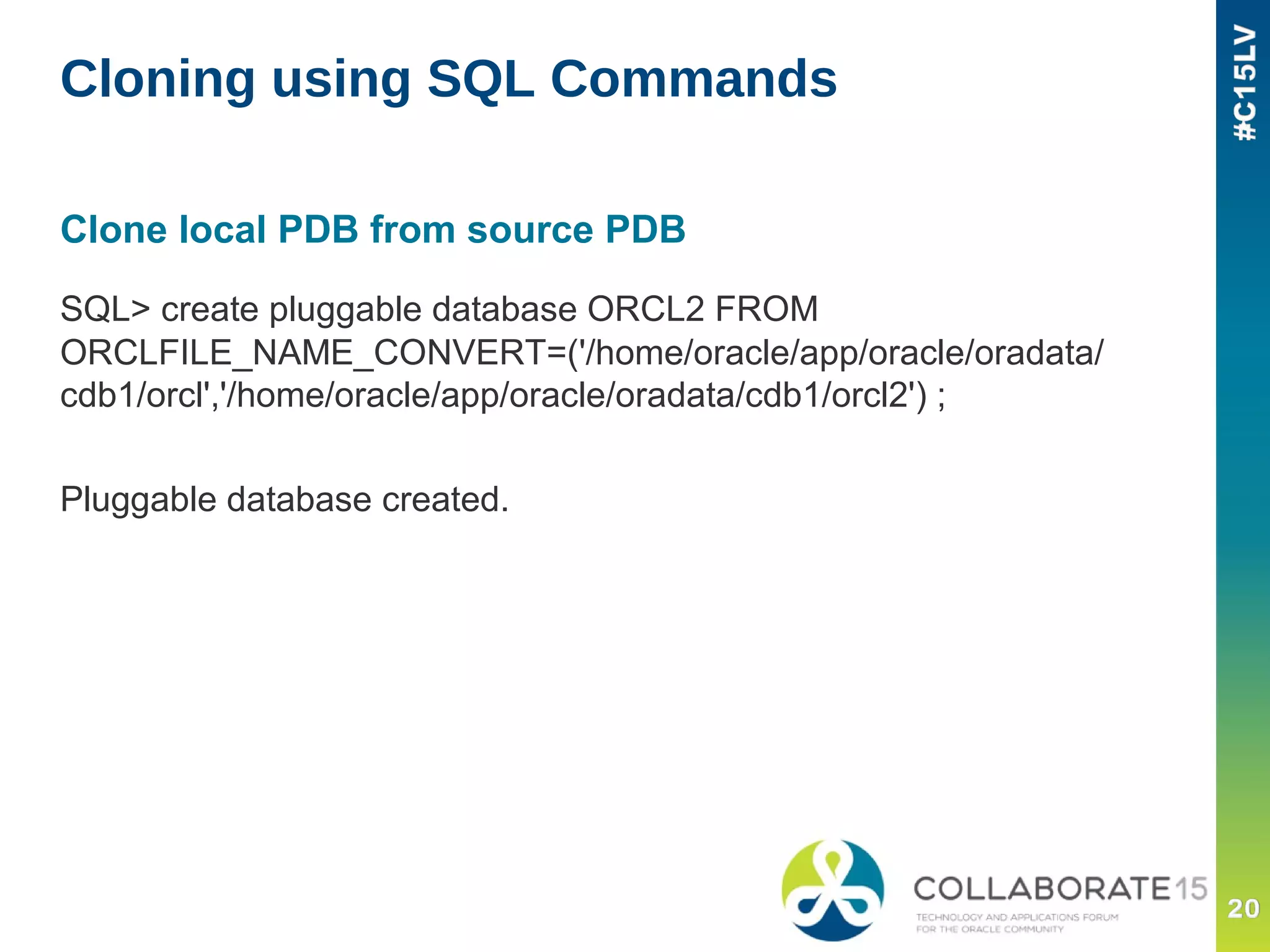

20. Cloning using SQL Commands
Clone local PDB from source PDB
SQL> create pluggable database ORCL2 FROM
ORCLFILE_NAME_CONVERT=('/home/oracle/app/oracle/oradata/
cdb1/orcl','/home/oracle/app/oracle/oradata/cdb1/orcl2') ;
Pluggable database created.

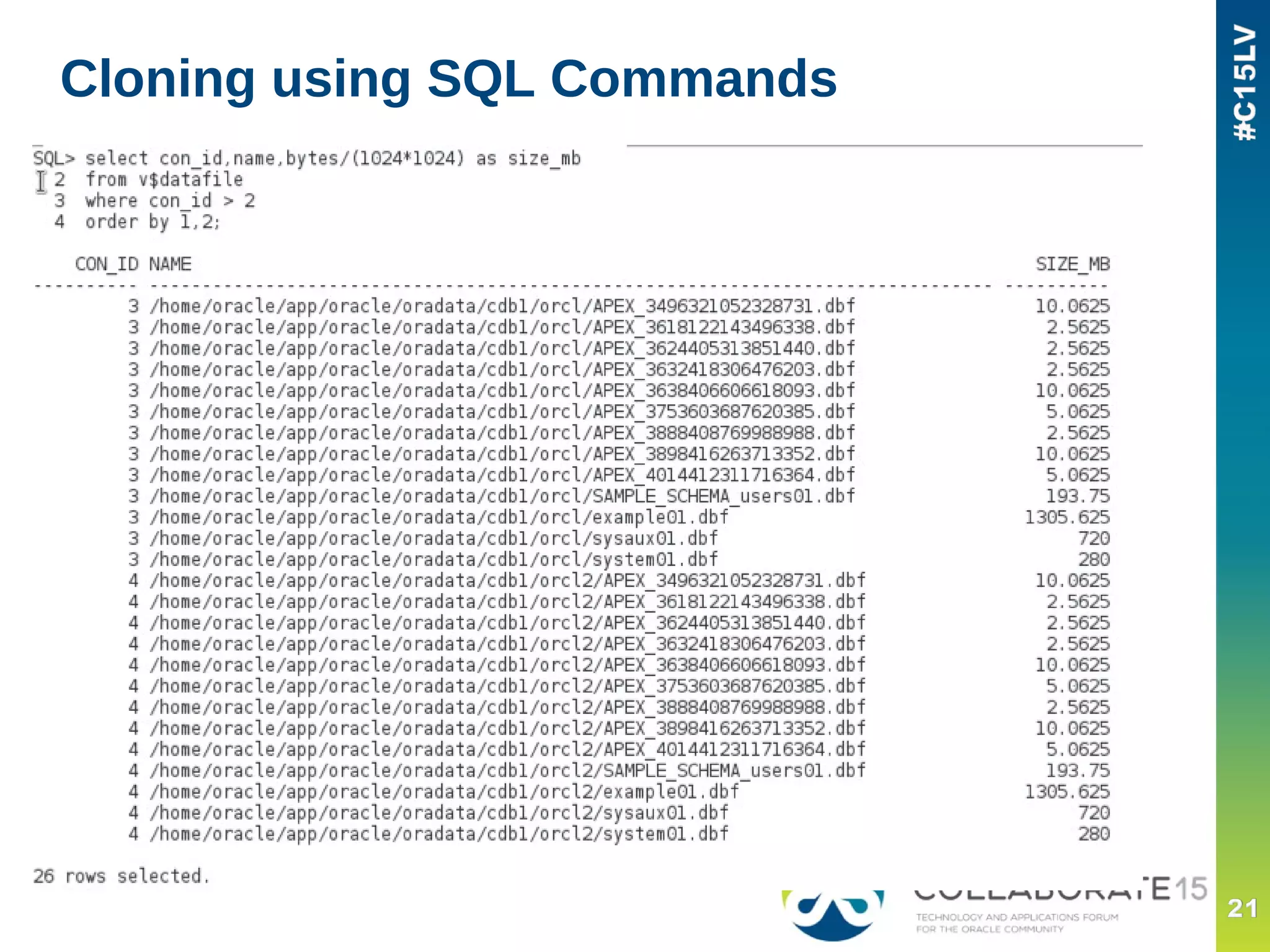

21. Cloning using SQL Commands
Clone local PDB from source PDB

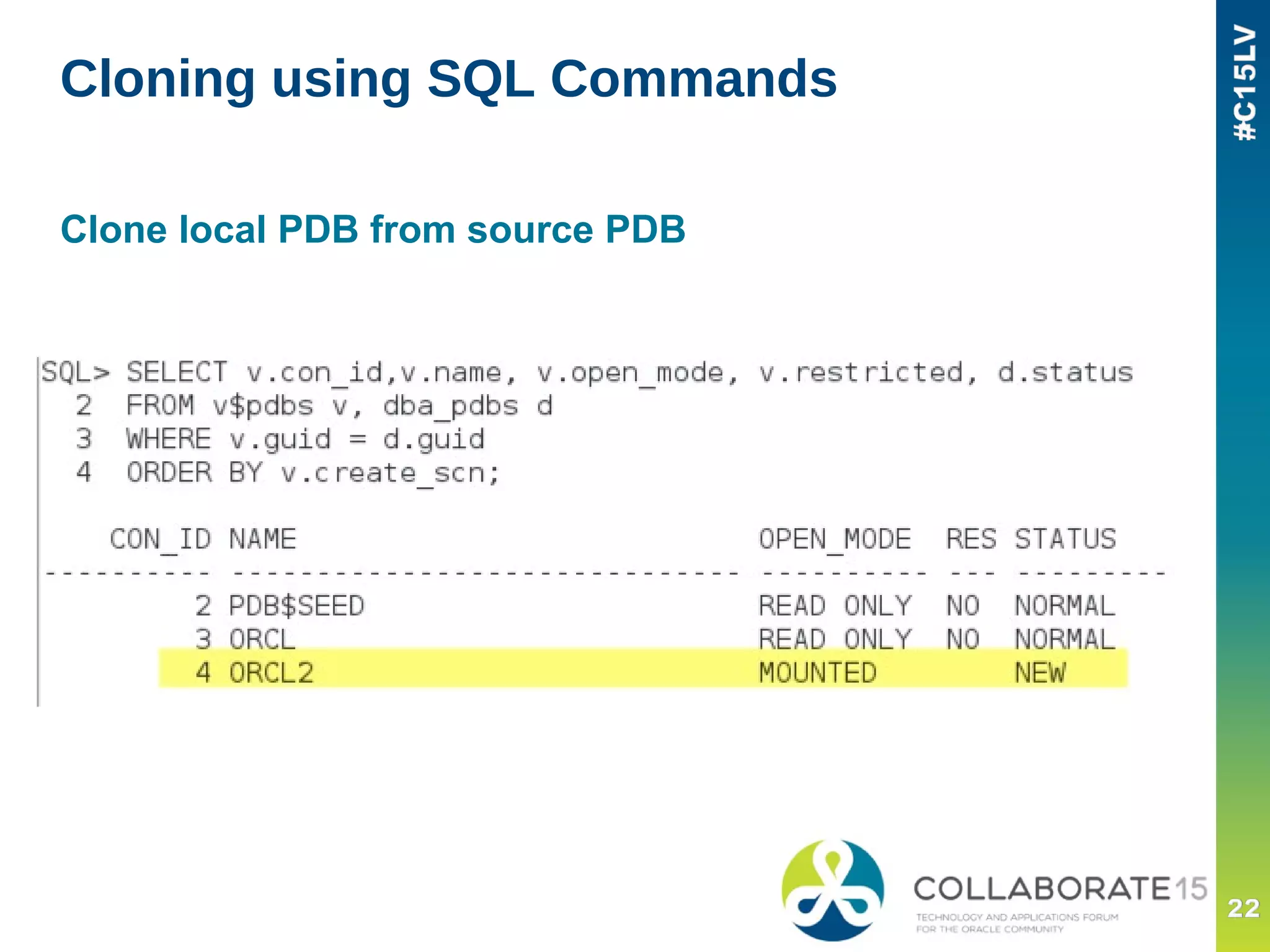

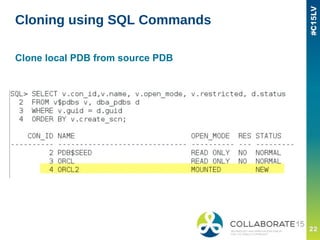

22. Cloning using SQL Commands
Clone local PDB from source PDB

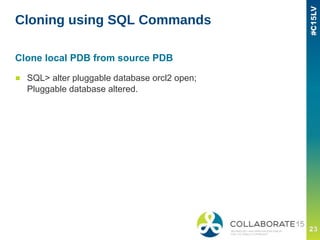

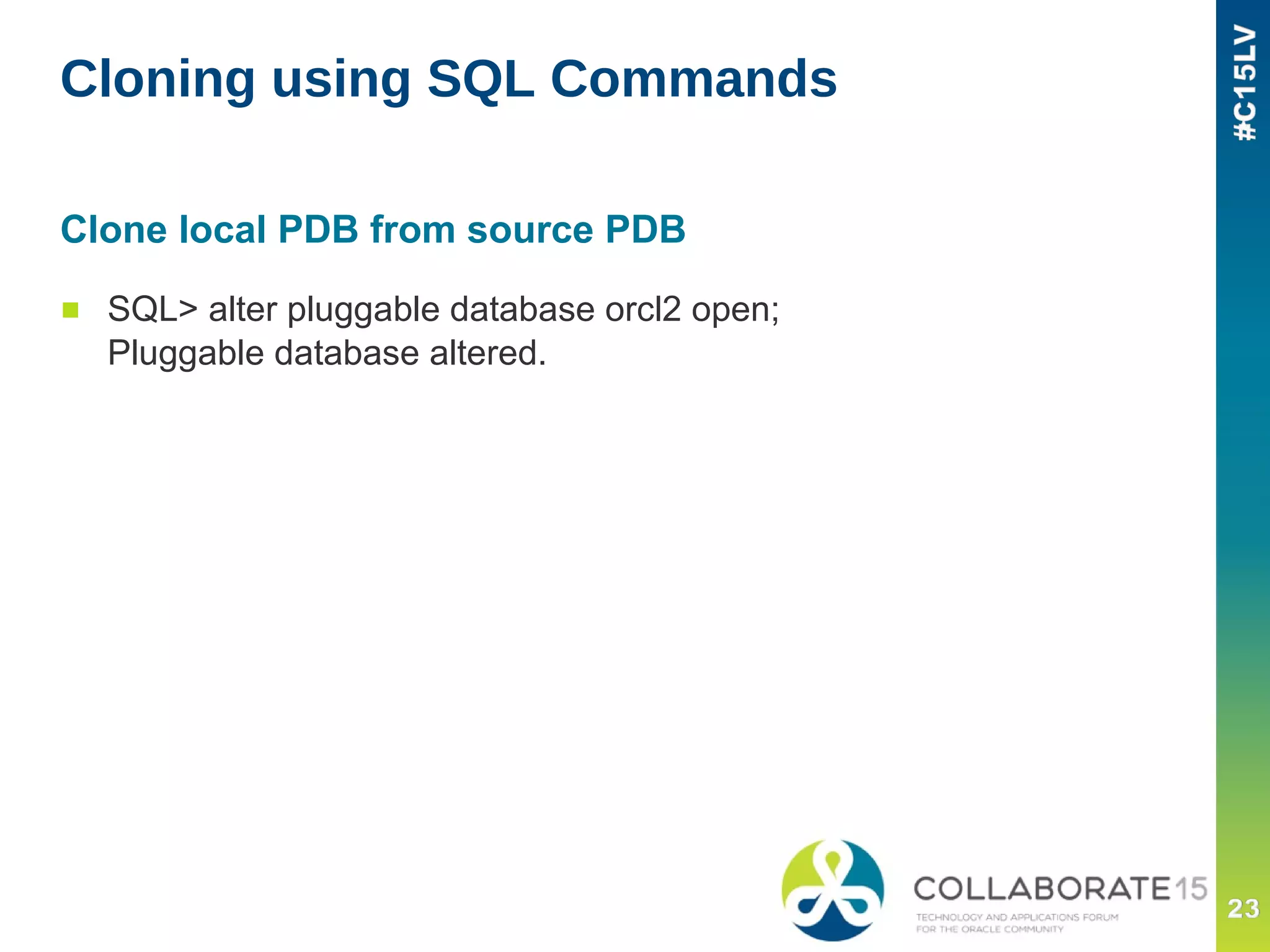

23. Cloning using SQL Commands
Clone local PDB from source PDB
■ SQL> alter pluggable database orcl2 open;
Pluggable database altered.

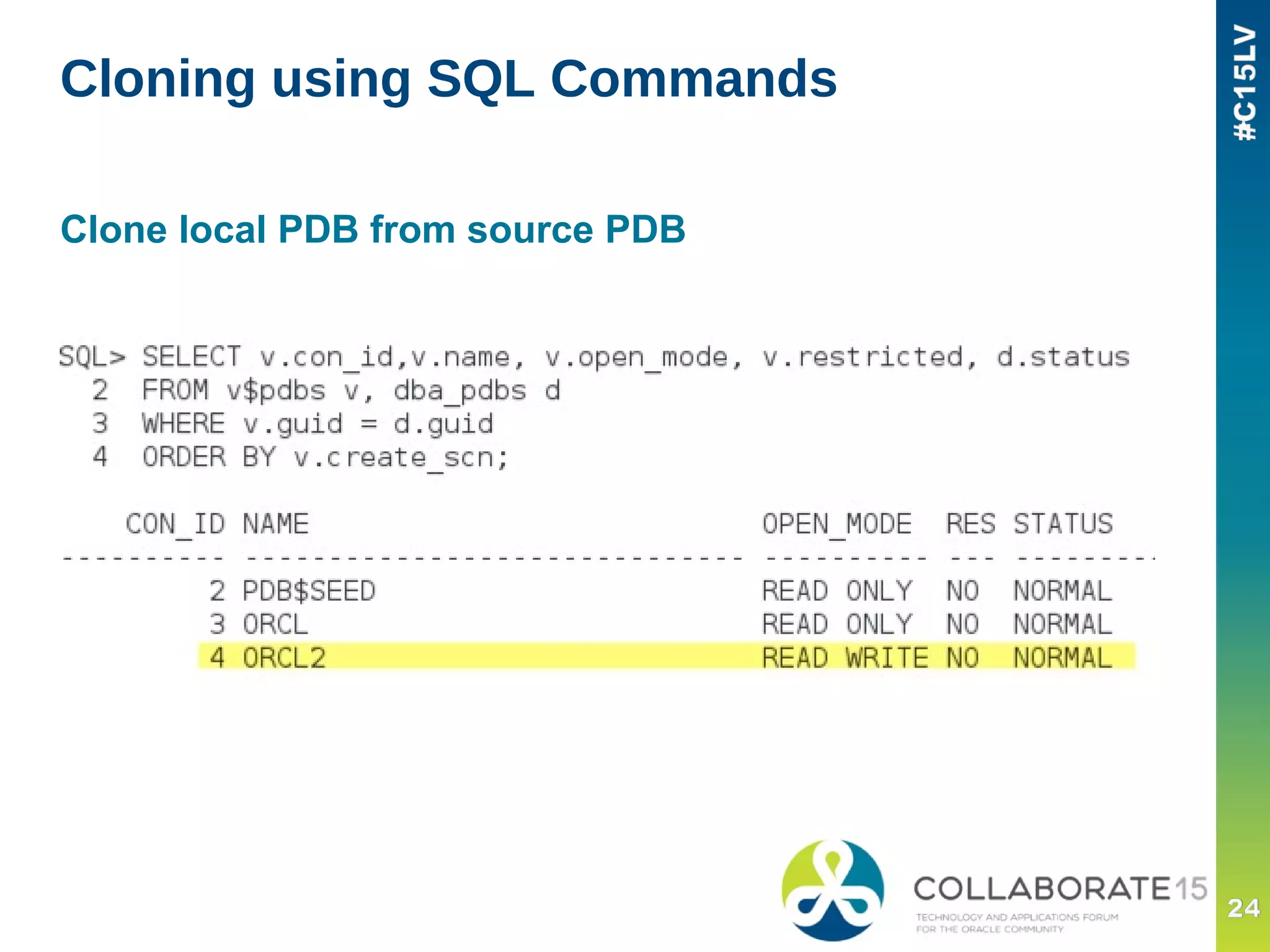

24. Cloning using SQL Commands
Clone local PDB from source PDB

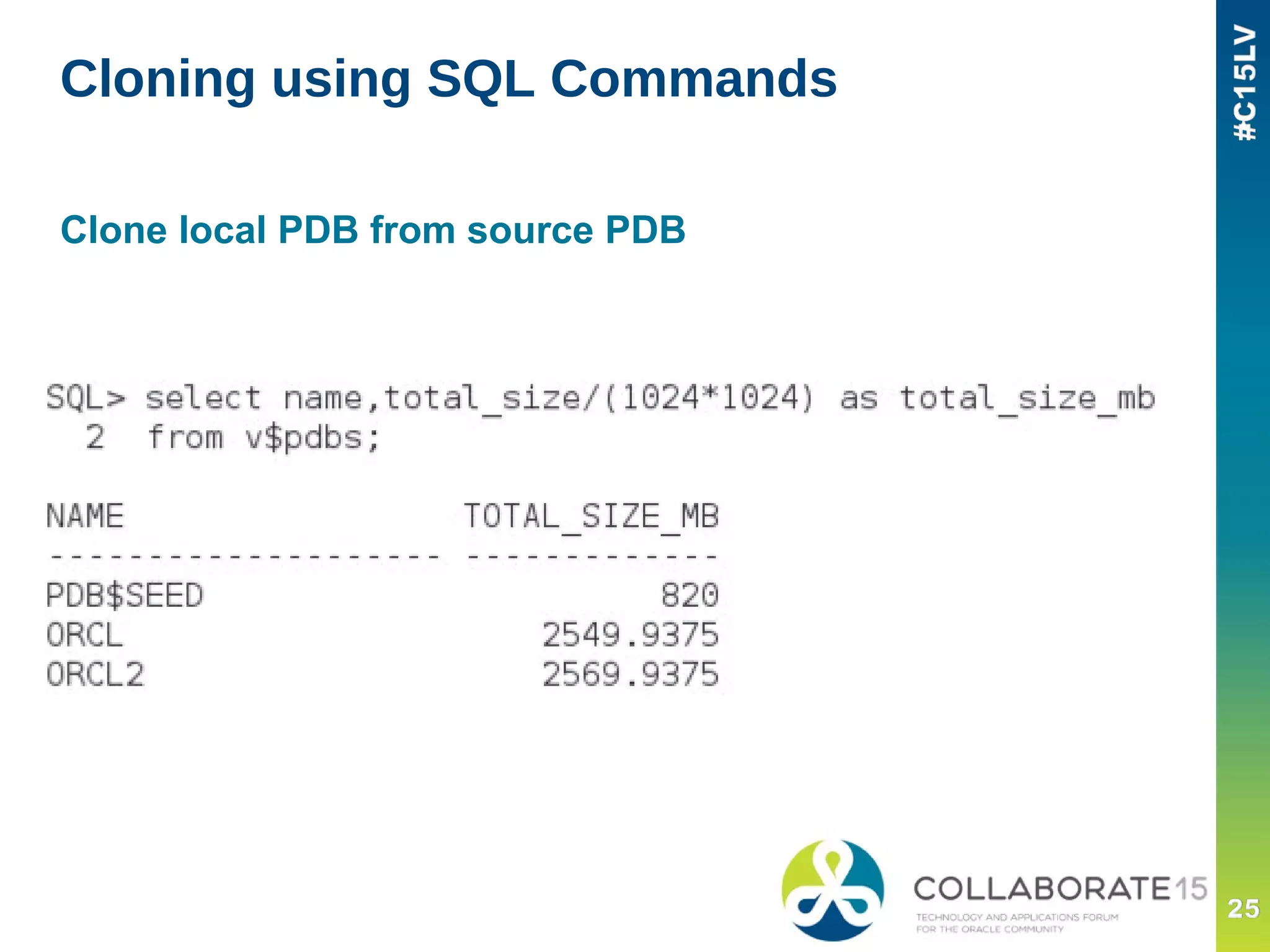

25. Cloning using SQL Commands
Clone local PDB from source PDB

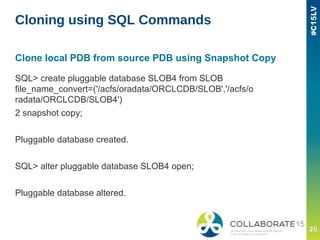

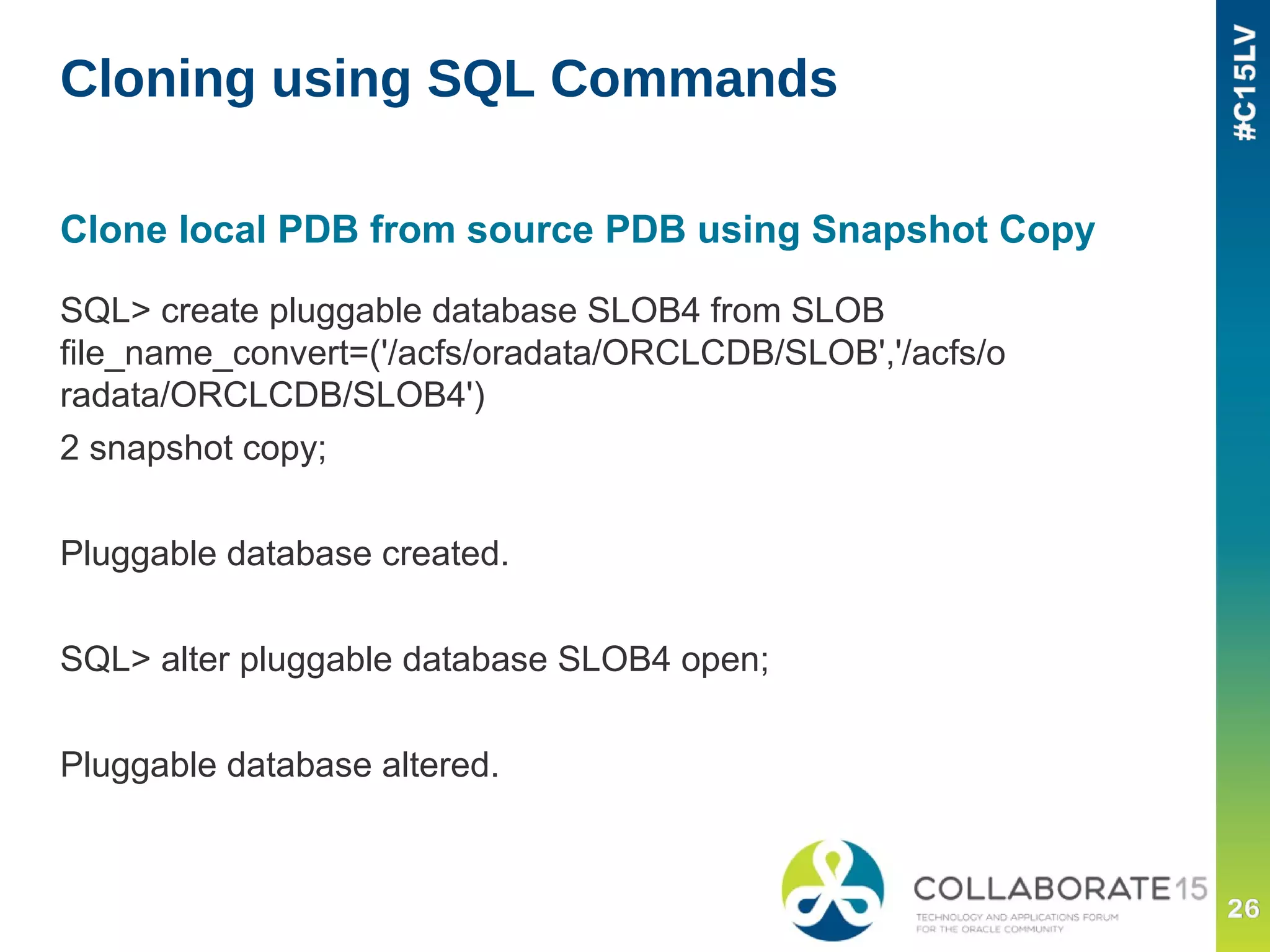

26. Cloning using SQL Commands
Clone local PDB from source PDB using Snapshot Copy
SQL> create pluggable database SLOB4 from SLOB
file_name_convert=('/acfs/oradata/ORCLCDB/SLOB','/acfs/o
radata/ORCLCDB/SLOB4')
2 snapshot copy;
Pluggable database created.
SQL> alter pluggable database SLOB4 open;
Pluggable database altered.

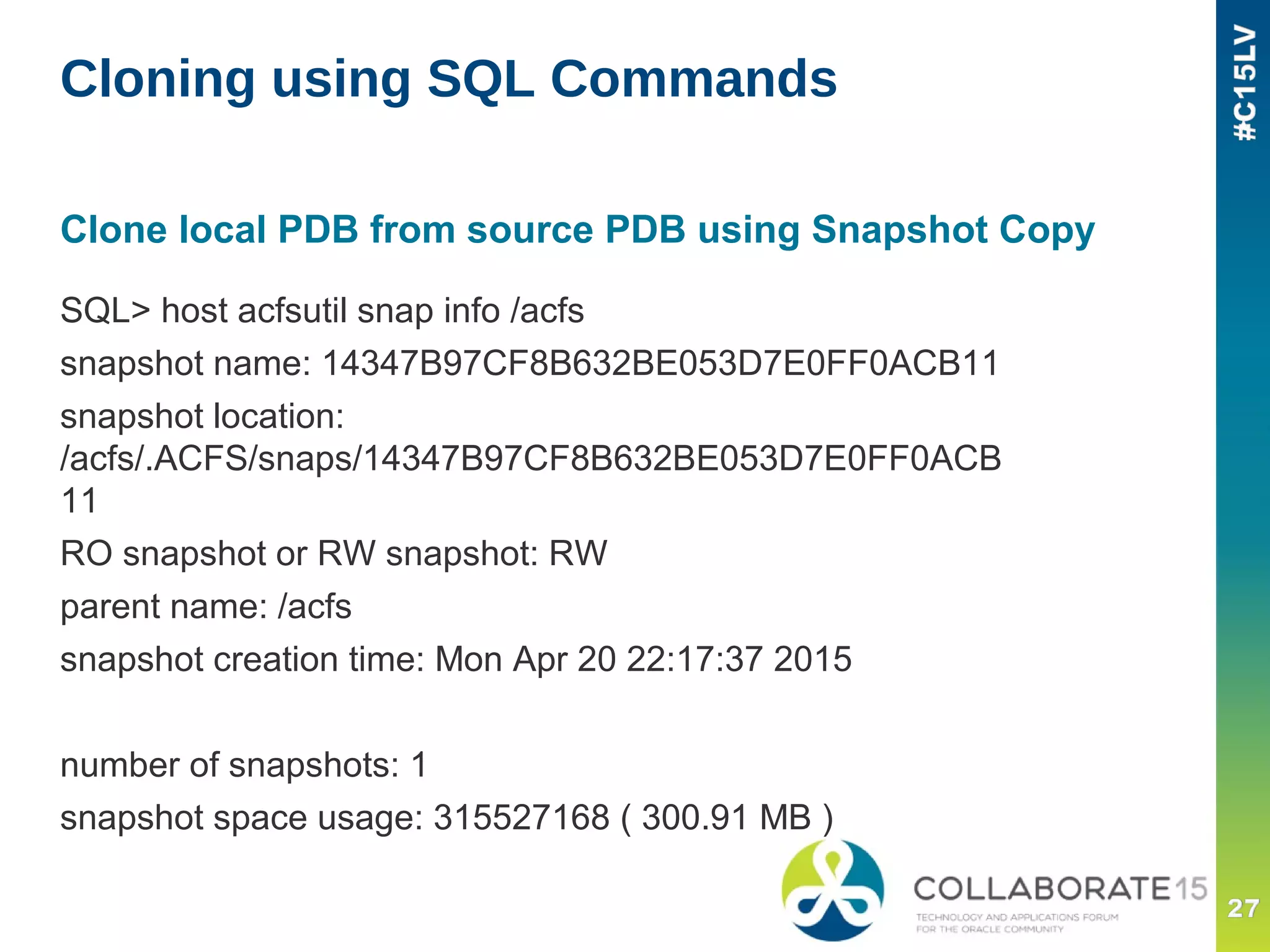

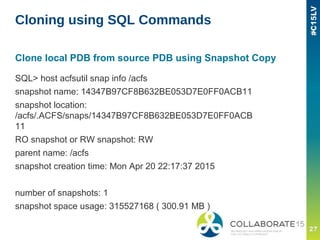

27. Cloning using SQL Commands
Clone local PDB from source PDB using Snapshot Copy
SQL> host acfsutil snap info /acfs
snapshot name: 14347B97CF8B632BE053D7E0FF0ACB11
snapshot location:
/acfs/.ACFS/snaps/14347B97CF8B632BE053D7E0FF0ACB
11
RO snapshot or RW snapshot: RW
parent name: /acfs
snapshot creation time: Mon Apr 20 22:17:37 2015
number of snapshots: 1
snapshot space usage: 315527168 ( 300.91 MB )

28. DEMO

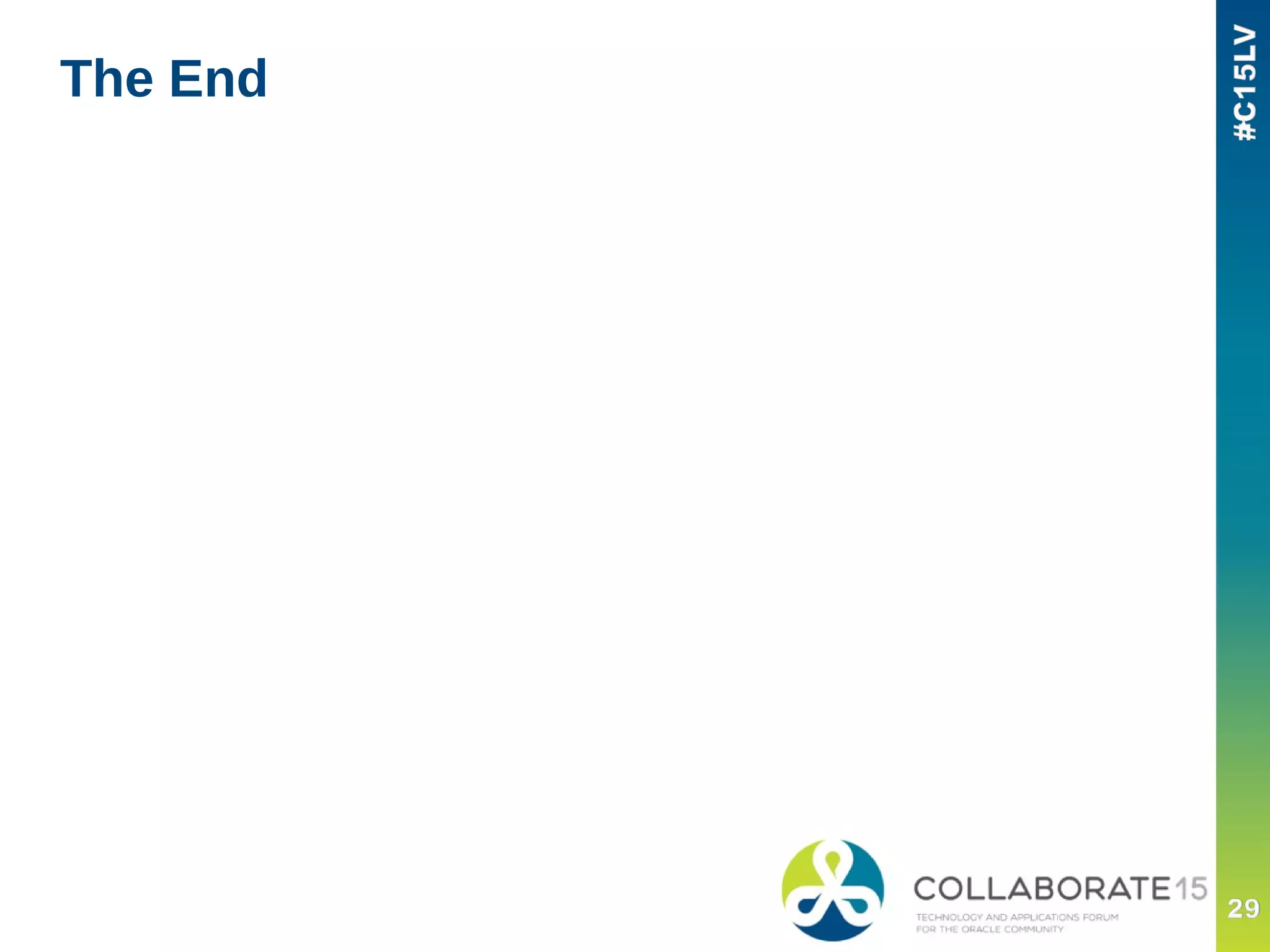

29. The End

30. Please complete the session
evaluation
We appreciate your feedback and insight
You may complete the session evaluation either
on paper or online via the mobile app
